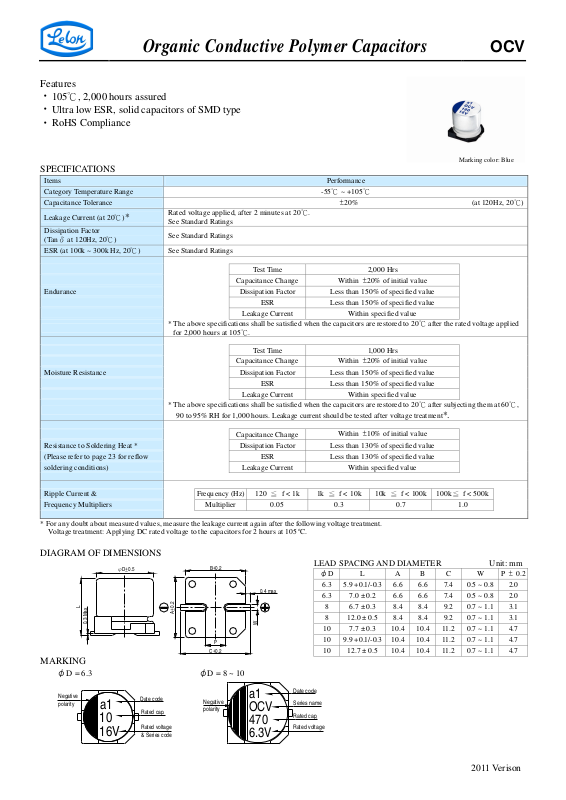

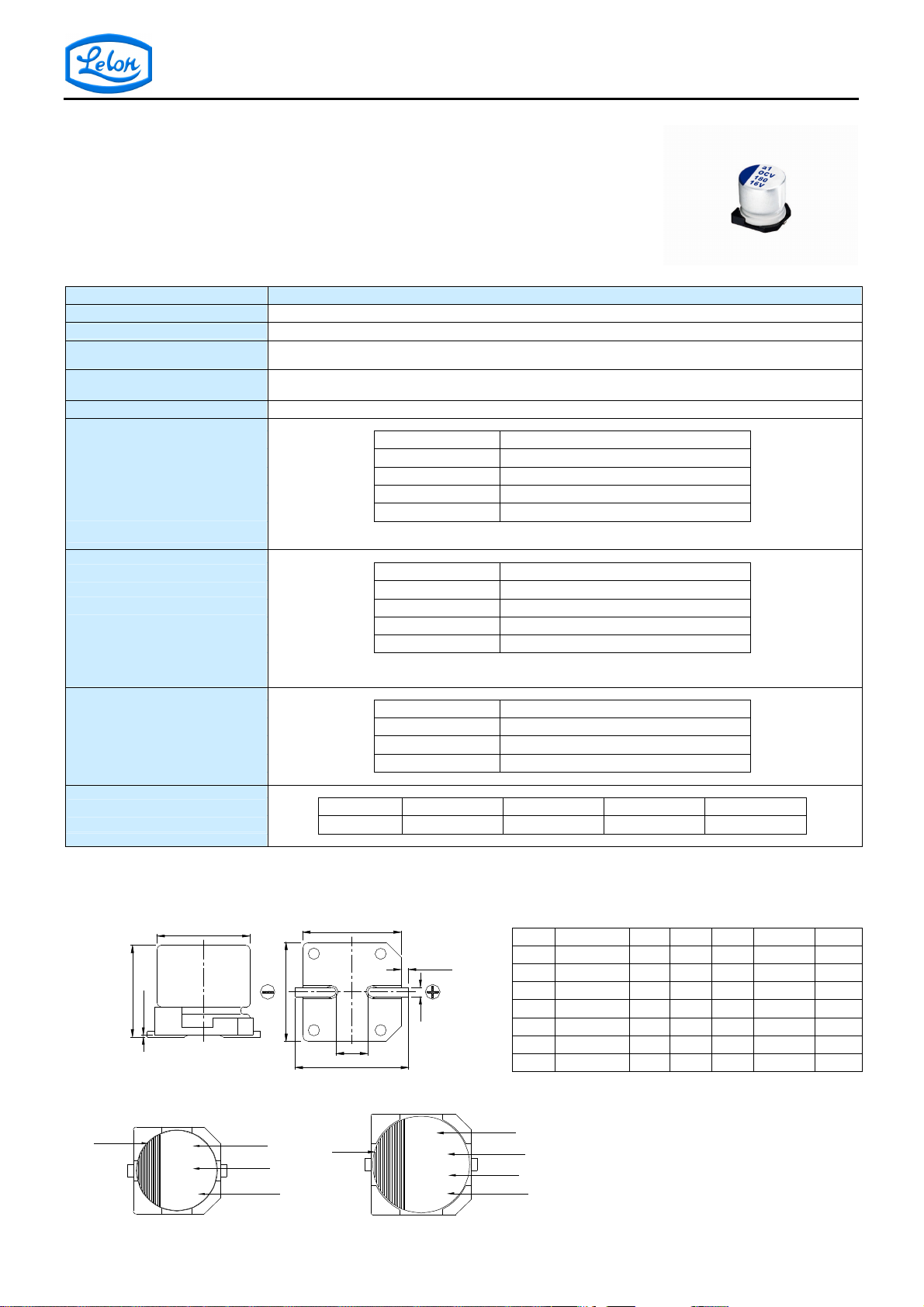

Organic Conductive Polymer Capacitors
OCV
Features
‧
105℃, 2,000 hours assured
‧
Ultra low ESR, solid capacitors of SMD type
‧
RoHS Compliance
SPECIFICATIONS
Items Performance
Category Temperature Range -55℃ ~ +105℃
Capacitance Tolerance
Leakage Current (at 20℃)*
Dissipation Factor
(Tanδ at 120Hz, 20 )℃
ESR (at 100k ~ 300k Hz, 20 )℃ See Standard Ratings
Endurance
Moisture Resistance
Resistance to Soldering Heat *
(Please refer to page 23 for reflow
soldering conditions)
Ripple Current &
Frequency Multipliers
* For any doubt about measured values, measure the leakage current again after the following voltage treatment.
Voltage treatment: Applying DC rated voltage to the capacitors for 2 hours at 105 oC.
Rated voltage applied, after 2 minutes at 20℃.
See Standard Ratings
See Standard Ratings
* The above specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage applied
for 2,000 hours at 105℃.
* The above specifications shall be satisfied when the capacitors are restored to 20℃ after subjecting them at 60℃,
90 to 95% RH for 1,000 hours. Leakage current should be tested after voltage treatment*.
Frequency (Hz)
Multiplier 0.05 0.3 0.7 1.0
Test Time 2,000 Hrs
Capacitance Change
Dissipation Factor Less than 150% of specified value
ESR Less than 150% of specified value
Leakage Current Within specified value
Test Time 1,000 Hrs
Capacitance Change
Dissipation Factor Less than 150% of specified value
ESR Less than 150% of specified value
Leakage Current Within specified value
Capacitance Change
Dissipation Factor Less than 130% of specified value
ESR Less than 130% of specified value
Leakage Current Within specified value
120 ≦ f < 1k 1k ≦ f < 10k 10k ≦ f < 100k 100k≦ f < 500k
DIAGRAM OF DIMENSIONS
LEAD SPACING AND DIAMETER Unit: mm
L
0.3 Max
φD±
0.5
0.2
±
A
B±0.2
0.4 max
W
P
C±0.2
MARKING
φ
D = 6.3
Negative
polarity
a1
10
16V
Date code
Rated cap.
Rated voltage
& Series code
φ
D = 8 ~ 10
Negative
polarity
a1
OCV
470
6.3V
Date code
Series name
Rated cap
Rated voltage
±20% (at 120Hz, 20℃)
Within ±20% of initial value
Within ±20% of initial value
Within ±10% of initial value
φD
6.3 5.9 +0.1/-0.3 6.6 6.6 7.4 0.5 ~ 0.8 2.0
6.3 7.0 ± 0.2 6.6 6.6 7.4 0.5 ~ 0.8 2.0
8 6.7 ± 0.3 8.4 8.4 9.2 0.7 ~ 1.1 3.1
8 12.0 ± 0.5 8.4 8.4 9.2 0.7 ~ 1.1 3.1
10 7.7 ± 0.3 10.4 10.4 11.2 0.7 ~ 1.1 4.7
10 9.9 +0.1/-0.3 10.4 10.4 11.2 0.7 ~ 1.1 4.7
10 12.7 ± 0.5 10.4 10.4 11.2 0.7 ~ 1.1 4.7
.
L A B C W
Marking color: Blue
P ± 0.2
2011 Verison
Page 2
STANDARD RATINGS
W. V. (V)
2.5V (0E)
4V (0G)
6.3V (0J)
10V (1A)
16V (1C)
20V (1D)
25V (1E)
35V (1V)
Capacitance
(µF)
220 6.3×5.9 0.12 110 25 2,500
560 8×6.7 0.12 280 23 3,100
680 8×12 0.18 340 12 4,770
1,000 10×7.7 0.12 500 19 4,240
1,200 10×9.9 0.18 750 13 5,200
1,500 10×12.7 0.18 750 10 5,500
150 6.3×5.9 0.12 120 26 2,450
220 8×6.7 0.12 176 25 3,020
330 8×6.7 0.12 264 25 3,020
470 10×7.7 0.12 376 20 4,130
560 8×12 0.18 448 12 4,770
680 10×7.7 0.12 544 20 4,130
820 10×9.9 0.18 656 13 5,200
1200 10×12.7 0.18 960 10 5,500
82 6.3×5.9 0.12 103 27 2,400
100 6.3×5.9 0.12 126 27 2,400
120 6.3×7 0.12 151 30 2,010
150
220
330 10×7.7 0.12 416 20 4,130
470 8×12 0.15 592 12 4,770
560 10×9.9 0.15 706 16 4,700
820 10×12.7 0.15 1,033 10 5,500
56 6.3×5.9 0.10 112 31 2,250
150 8×6.7 0.10 300 27 2,800
330
470 10×9.9 0.15 940 18 4,400
560 10×12.7 0.15 1,120 12 5,300
47 6.3×5.9 0.10 150 50 1,650
82 8×6.7 0.10 262 30 2,700
180
220 10×9.9 0.15 704 20 4,200
330 10×12.7 0.15 792 14 5,050
22 6.3×5.9 0.10 88 50 1,650
47 8×6.7 0.10 188 45 2,000
82 10×7.7 0.10 328 40 2,500
100
150 10×12.7 0.15 600 20 4,320
6.8 6.3×5.9 0.10 170 80 1,200
33 8×12 0.12 413 30 2,980
56 10×12.7 0.12 700 28 3,800
39 8×12 0.12 273 31 2,100
68 10×12.7 0.12 476 28 2,700
Organic Conductive Polymer Capacitors
OCV
Dimension: φD×L(mm)
Ripple Current: mA/rms at 100k Hz, 105℃
Size
φD×L(mm)
6.3×7 0.12 189 30 2,250
8×6.7 0.12 189 25 3,020
6.3×7 0.12 277 30 2,250
8×6.7 0.12 277 25 3,020
8×12 0.15 660 14 4,420
10x7.7 0.10 660 24 3,770
8×12 0.15 576 16 4,360
10×7.7 0.10 576 26 3,430
8×12 0.15 400 24 3,320
10×9.9 0.15 400 25 3,700
Tanδ
(120Hz, 20 )℃
L C
(µA)
(mΩ/at 100k ~ 300k Hz, 20 Max)℃
E S R
Rated R. C.
(mA/rms at 100k Hz, 105 )℃
2011 Version
