Page 1

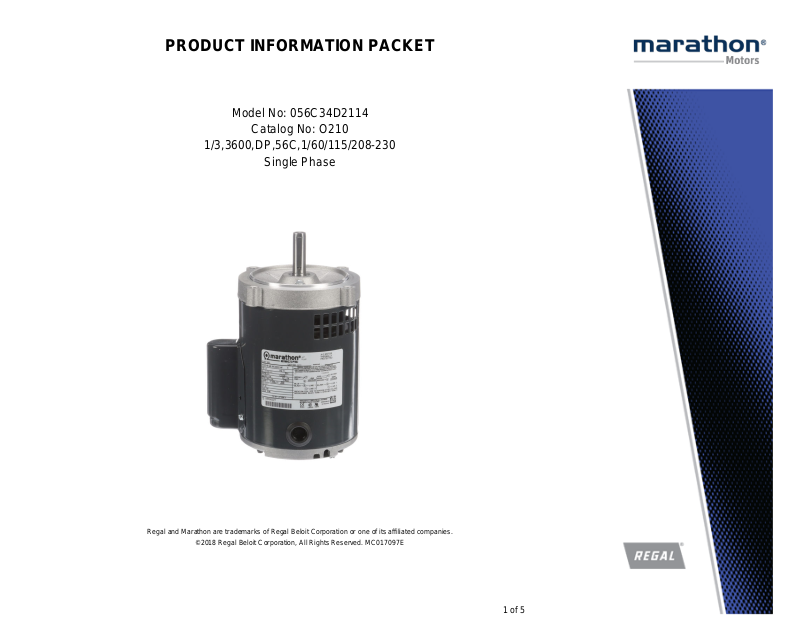

PRODUCT INFORMATION PACKET
Model No: 056C34D2114
Catalog No: O210
1/3,3600,DP,56C,1/60/115/208-230
Single Phase
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 5
Page 2
Product Information Packet: Model No: 056C34D2114, Catalog No:O210 1/3,3600,DP,56C,1/60/115/208-230
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 115/208-230 V
Current
Service Factor
Efficiency 64 % Duty Continous
Insulation Class
KVA Code L Frame 56C
Enclosure Drip Proof Overload Protector Automatic
Ambient Temperature
Opp Drive End Bearing Size 6203 UL Recognized
CSA
IP Code
0.33 Hp
5.6/2.7-2.8 A
1.75
B
40 °C
Y
22
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
0.25 kW
3450 rpm
1
NO DESIGN CODE
6203
Y
Technical Specifications
Electrical Type
Poles 2 Rotation Selective Counterclockwise
Capacitor Start Induction Run
Starting Method
Across The Line
Mounting
Drive End Bearing Ball Opp Drive End Bearing Ball
Frame Material Rolled Steel Shaft Type T
Overall Length
Shaft Diameter 0.625 in Shaft Extension 2.06 in
Assembly/Box Mounting

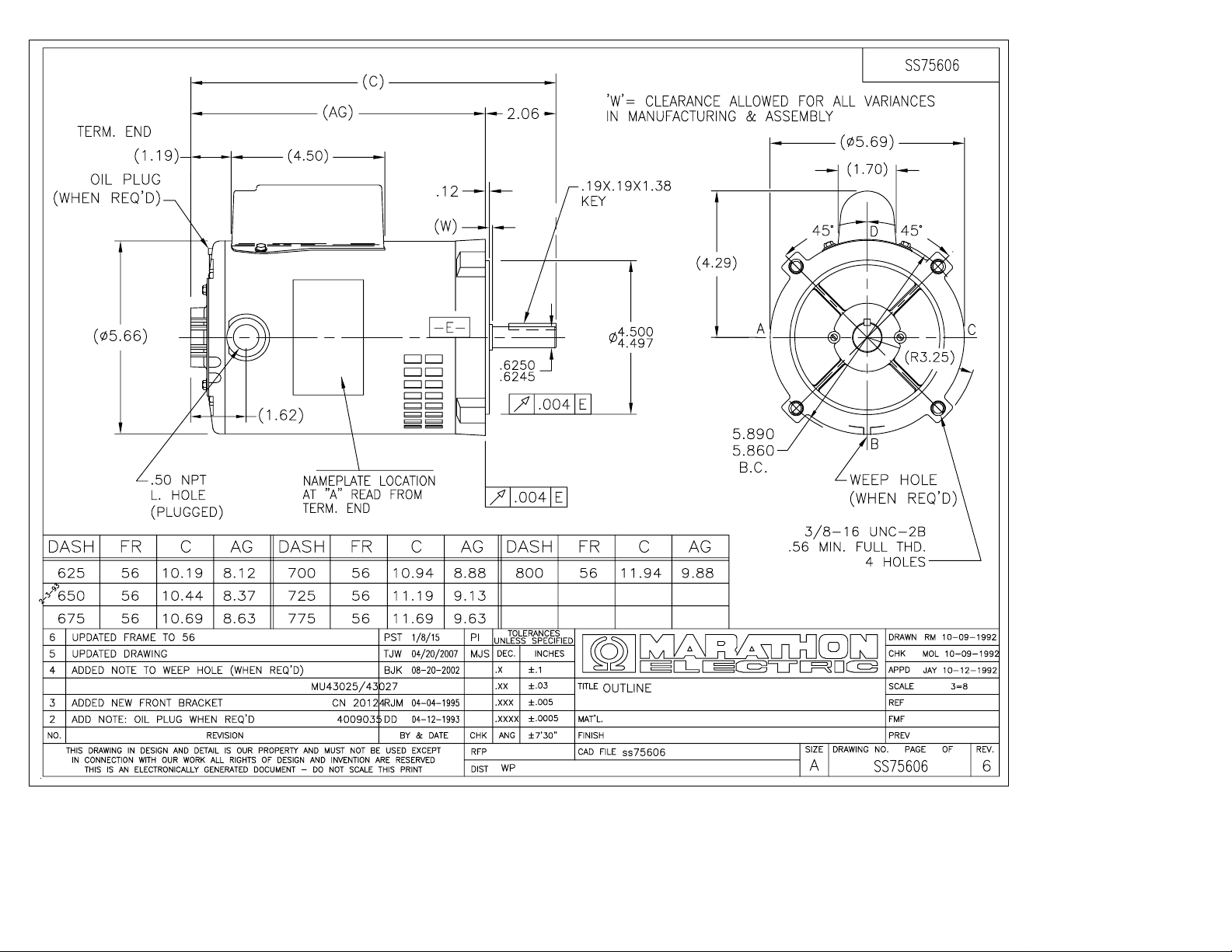

Outline Drawing
Round
10.44 in
F1 Only
A-SS75606-650
Motor Orientation
Frame Length

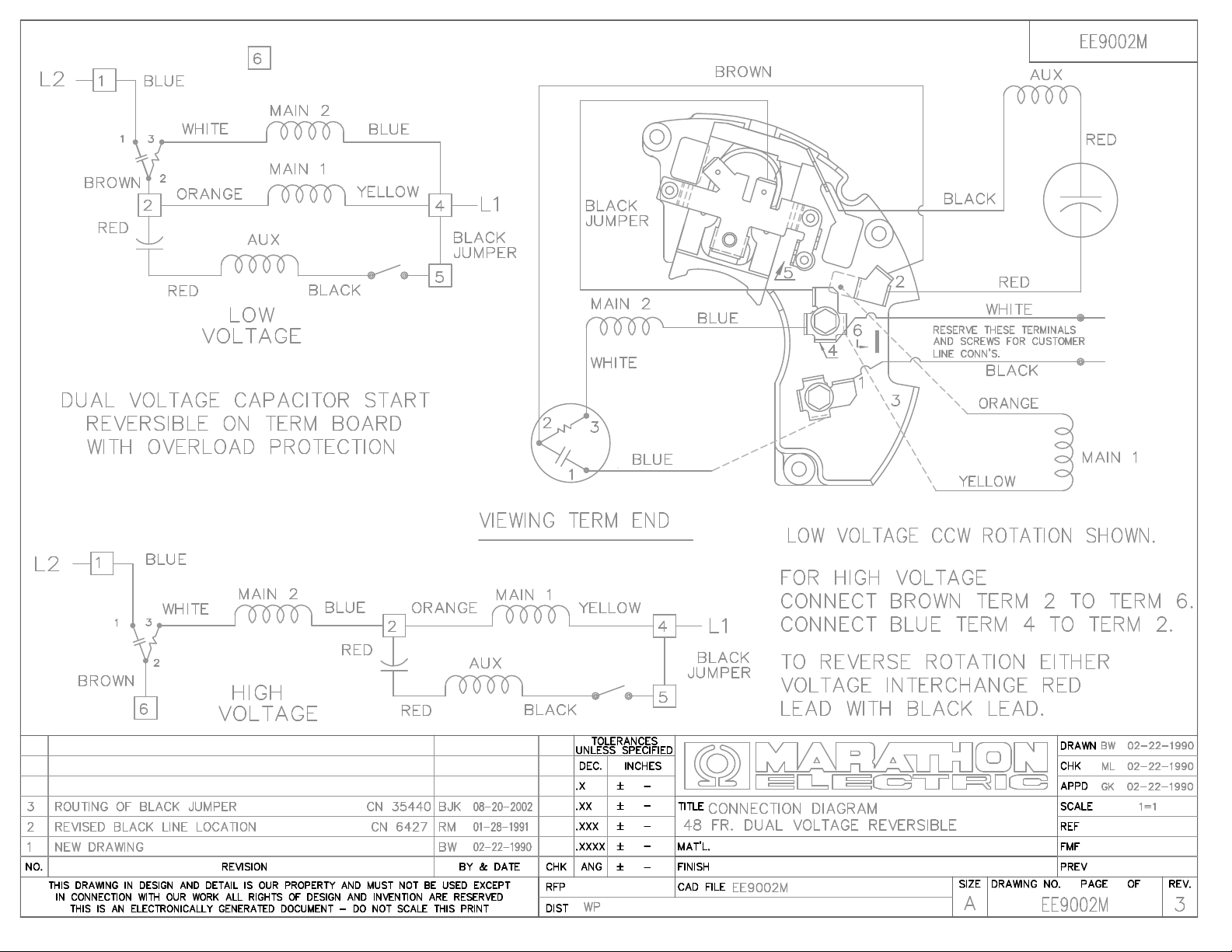

Connection Diagram
Horizontal
6.50 in
A-EE9002M
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 06/29/2018
2 of 5
Page 3
Uncontrolled Copy
3 of 5
Page 4
9/30/2008 5:54:57 AM
4 of 5
Page 5
CERTIFICATION DATA SHEET
Model#: 56C34D2114 F WINDING#: CE482197 NONE 3
CONN. DIAGRAM: A-EE9002M ASSEMBLY: F1 ONLY
OUTLINE: A-SS75606-650
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
1/3 0.25 3600 3450 56C DP L NO DESIGN
CODE
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
1 60 115/208-230 5.6/2.7-2.8 ACROSS THE
LINE
CONTINUOUSB3 1.75 40 3300
FULL LOAD EFF: 64 3/4 LOAD EFF: 57 1/2 LOAD EFF: 48 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF: 65 3/4 LOAD PF: 58 1/2 LOAD PF: 48 0 CAP START IND RUN 4.4 / 2.2
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
8 LB-FT 28.2 / 14.1 14.3 LB-FT - 23 LB-FT - 30
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
- dBA - dBA 0 LB-FT^2 - LB-FT^2 - SEC. - 0 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
C-FACE STANDARD ROUND HORIZONTAL FALSE NONE FALSE NONE GRAY
(POWDER)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL POLYREX EM T NONE NONE 1144
STRESSPROOF
(C-223)
ROLLED STEEL
6203 6203
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE AUTOMATIC NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: NONE
INV. HP SPEED RANGE: NONE
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: NONE NONE
NONE P/N NONE
NONE NONE
NONE FT-LB NONE V NONE Hz
DATE: 06/27/2017 07:45:07 AM
FORM 3531 REV.3 02/07/99
** Subject to change without notice.
Uncontrolled Copy
5 of 5
