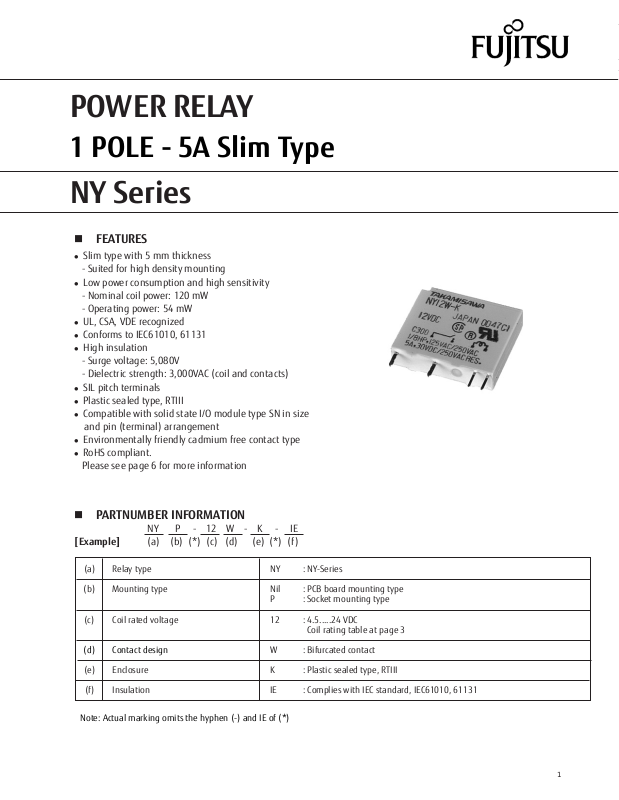

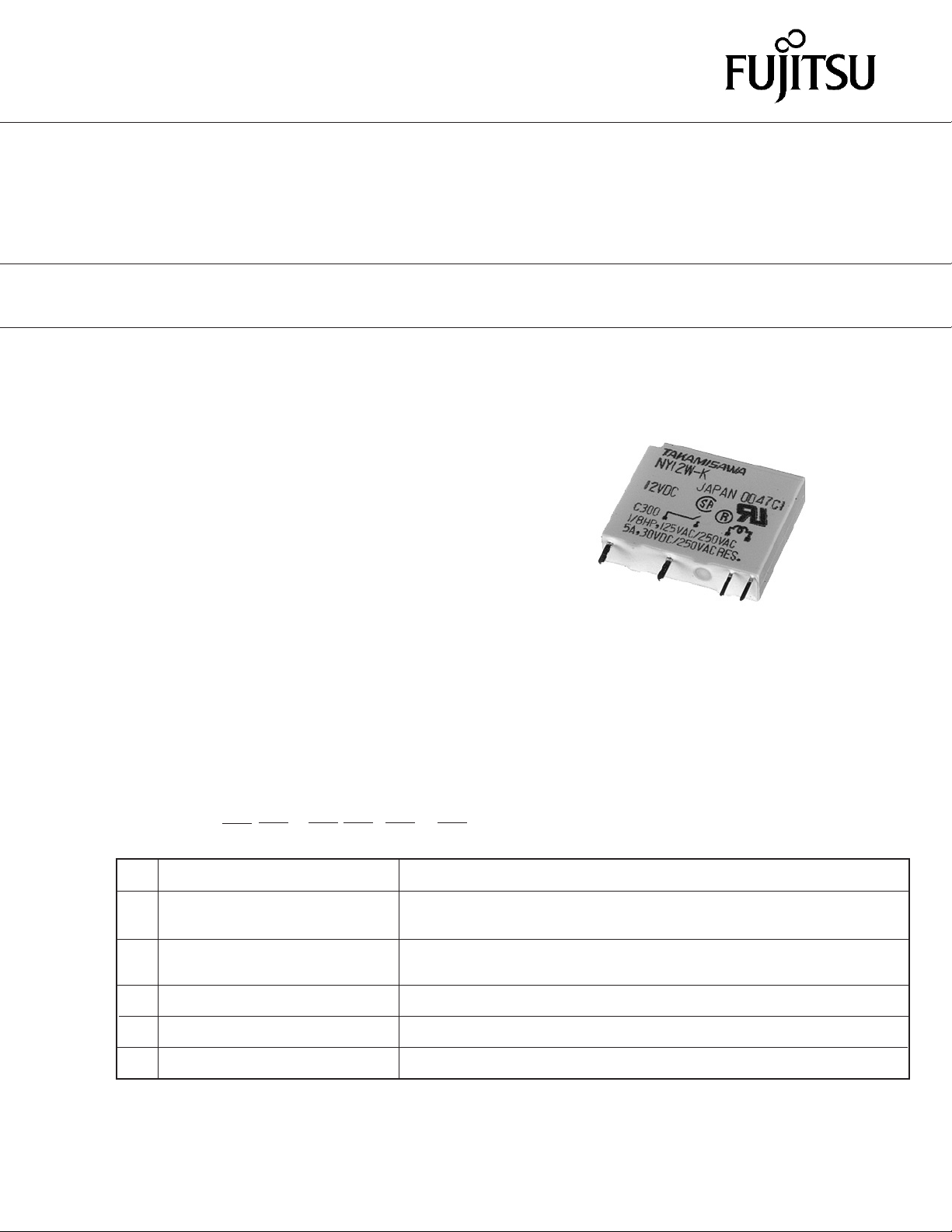

Datasheet NY-24W-K Specification

POWER RELAY

1 POLE - 5A Slim Type

NY Series

n FEATURES

l Slim type with 5 mm thickness

- Suited for high density mounting

l Low power consumption and high sensitivity

- Nominal coil power: 120 mW

- Operating power: 54 mW

l UL, CSA, VDE recognized
l Conforms to IEC61010, 61131
l High insulation

- Surge voltage: 5,080V

- Dielectric strength: 3,000VAC (coil and contacts)

l SIL pitch terminals
l Plastic sealed type, RTIII
l Compatible with solid state I/O module type SN in size

and pin (terminal) arrangement

l Environmentally friendly cadmium free contact type
l RoHS compliant.

Please see page 6 for more information

FTR-K1 SERIES

n PARTNUMBER INFORMATION

NY P - 12 W - K - IE
[Example] (a) (b) (*) (c) (d) (e) (*) (f)

(a) Relay type NY : NY-Series

(b) Mounting type Nil : PCB board mounting type
P : Socket mounting type

(c) Coil rated voltage 12 : 4.5.....24 VDC

Coil rating table at page 3

(d) Contact design W : Bifurcated contact

(e) Enclosure K : Plastic sealed type, RTIII

(f) Insulation IE : Complies with IEC standard, IEC61010, 61131

Note: Actual marking omits the hyphen (-) and IE of (*)

1

FTR-K1 SERIES

n SPECIFICATION

Item NY
Contact Data Conguration 1 form A (SPST-NO)

Construction Bifurcated
Material Gold overlay silver alloy (AgNi + Au)
Resistance (initial) Max. 30 mΩ at 6 VDC, 1 A
Contact rating 5A, 250VAC / 30VDC
Max. carrying current 5A
Max. switching voltage 270VAC / 150 VDC
Max. switching power 750VA / 90W
Max. switching current 5A
Min. switching load * 1 mA, 5 VDC

6

Life Mechanical Min. 20 x 10

Min. 100 x 10

Electrical

Coil Data Rated power (at 20 °C) 120 mW

Operate power (at 20 °C) 54 mW
Operating temperature range -40 °C to +90 °C (no frost)

Timing Data Operate (at nominal voltage) Max. 10 ms (without bounce)

Release (at nominal voltage) Max. 5 ms (no diode)

Insulation Resistance (initial) Min. 1,000MΩ at 500VDC

Dielectric strength Open contacts 750VAC, 1min

Contacts to coil 3,000VAC, 1min

Surge strength Coil to contacts 5,080V / 1.2 x 50µs standard wave

Other

Vibration resistance

Shock

Weight Approximately 3.5 g
Sealing Plastic sealed, RTIII

Misoperation 10 to 55Hz double amplitude 1.5 mm
Endurance 10 to 55Hz double amplitude 5 mm
Misoperation Min. 100m/s² (11 ± 1ms)
Endurance Min. 1,000m/s² (6 ± 1ms)

(at 3A, 250VAC, 30VDC resistive)
Min. 50 x 103 operations
(at 5A, 250VAC, 30VDC resistive)

operations

3

operations

NY SERIES

* Minimum switching loads mentioned above are reference values. Please perform the conrmation test with actual

load before production since reference values may vary according to switching frequencies, environmental conditions
and expected reliability levels.

2

n COIL RATING

FTR-K1 SERIES

NY SERIES

Coil

Code

4.5 4.5 169 3 0.45
5 5 208 3.35 0.5
6 6 300 4 0.6
9 9 675 6 0.9

12 12 1,200 8 1.2
18 18 2,700 12.1 1.8
24 24 4,800 16.1 2.4

Note: All values in the table are valid for 20°C and zero contact current.

* Specied operate values are valid for pulse wave voltage.

Rated Coil

Voltage

(VDC)

Coil Resistance
+/- 10% (Ohm)

Must Operate

Voltage

(VDC) *

Must Release-

n SAFETY STANDARDS

Type Compliance Contact rating
UL UL 508, UL 1604

E56140, E199193

CSA C22.2 No. 14

LR 35579

Flammability: UL 94-V0 (plastics)
3A (General use)

5A, 250VAC/30 VDC (resistive)
1/8 HP, 250VAC /125VAC
Pilot duty: C300

Voltage

(VDC) *

Rated Power

(mW)

120

VDE 0435 part 201

40016933

Also complies with VDE, IEC 61010, 61131

5A, 250VAC, cos φ1, 30K (-40 / 80 °C)
5A, 30VDC, 0msec, 100K (-40 / 80 °C)

3

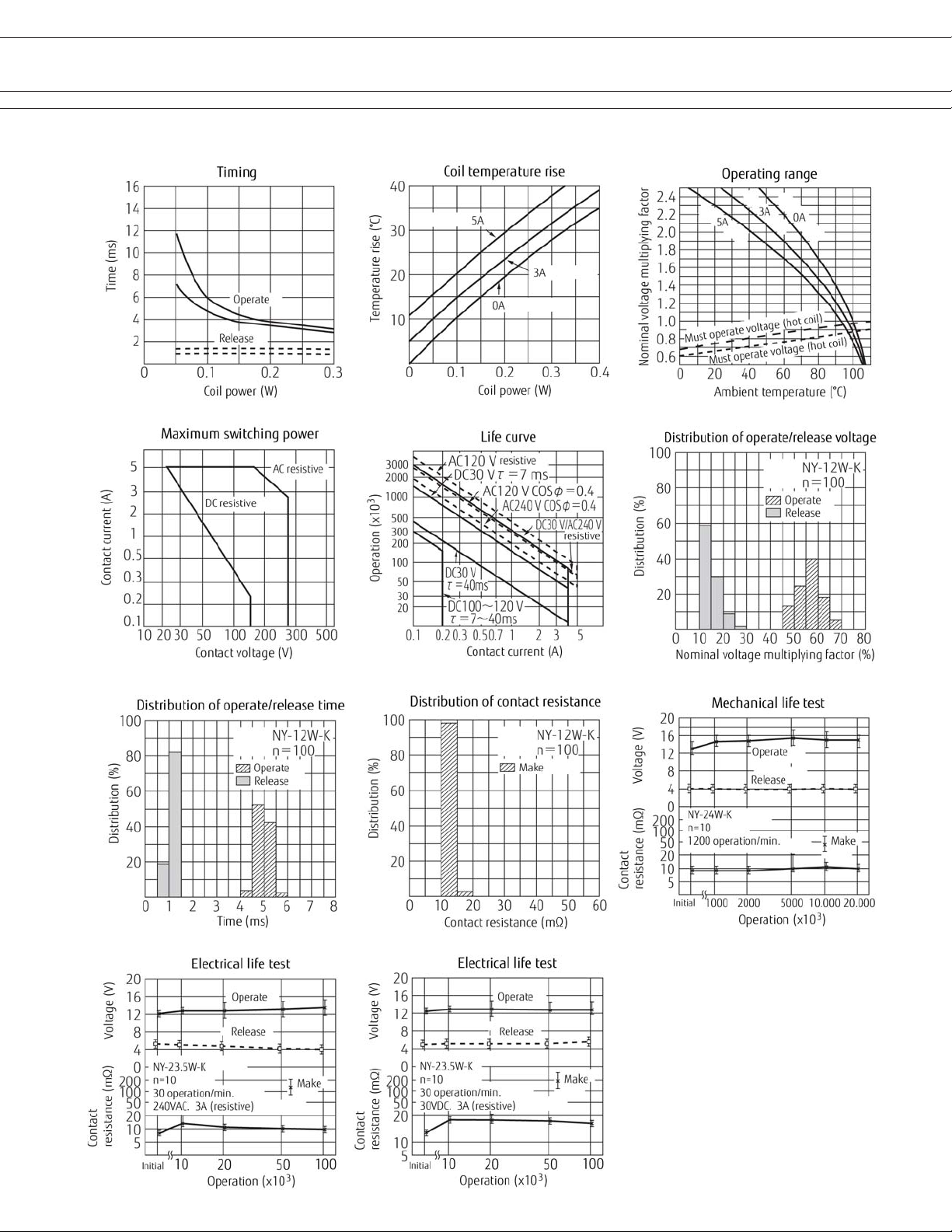

n CHARACTERISTIC DATA

FTR-K1 SERIES

NY SERIES

4

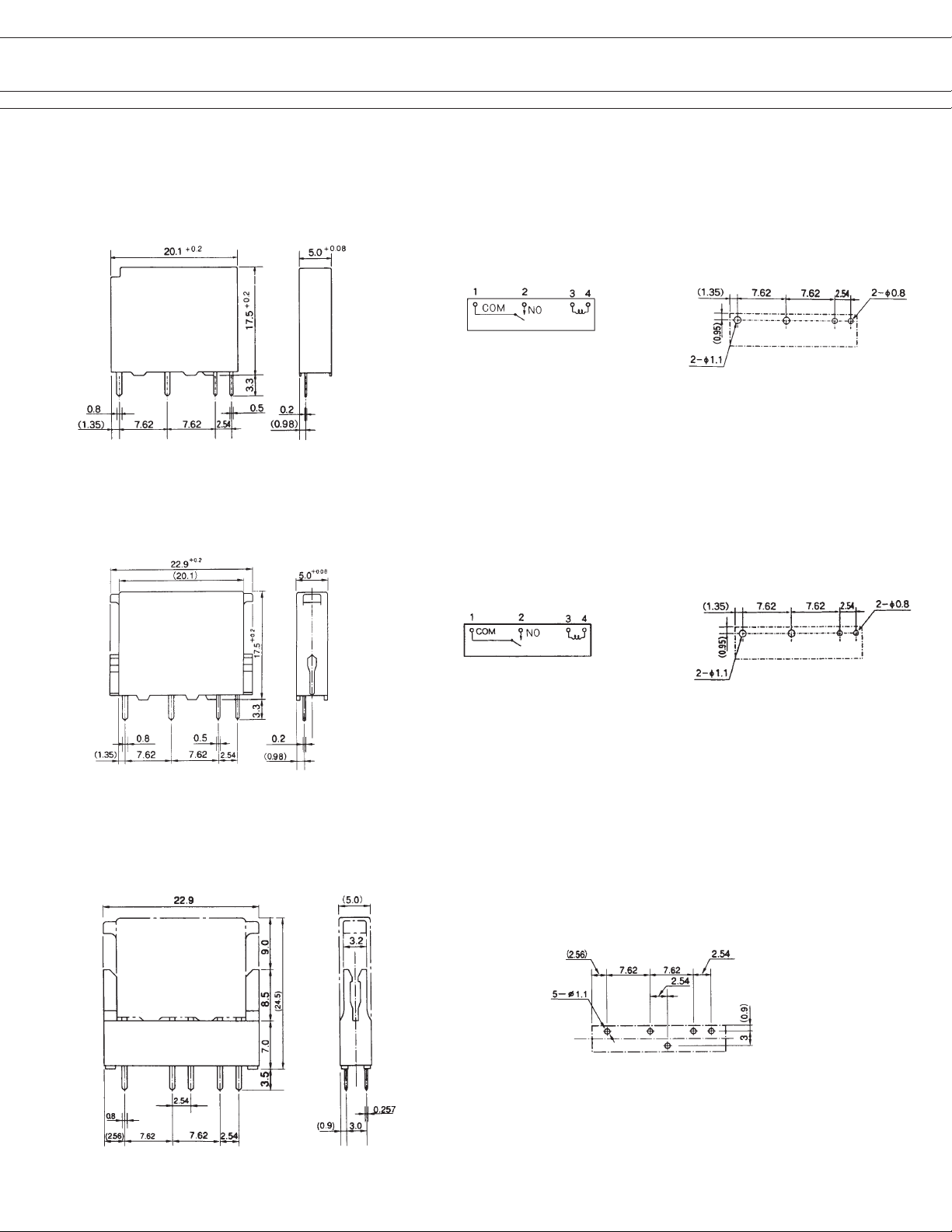

n DIMENSIONS

NY type

l Dimensions

NYP type

l Dimensions

l Schematics

l Schematics

FTR-K1 SERIES

NY SERIES

l PC board mounting
hole layout

(BOTTOM VIEW)

l PC board mounting
hole layout

(BOTTOM VIEW)

Socket type JL-5N

l Dimensions

l PC board mounting

hole layout

(BOTTOM VIEW)

5

FTR-K1 SERIES

NY SERIES

RoHS Compliance and Lead Free Information

1. General Information

l All signal and power relays produced by Fujitsu Components are compliant with RoHS directive 2002/95EC including

amendments.

l Cadmium as used in electrical contacts is exempted from the RoHS directives on October 21st, 2005.

(Amendment to Directive 2002/95/EC)

l All of our signal and power relays are lead-free. Please refer to Lead-Free Status Info for older date codes

at: http://www.fujitsu.com/us/downloads/MICRO/fcai/relays/lead-free-letter.pdf

l Lead free solder plating on relay terminals is Sn-3.0Ag-0.5Cu, unless otherwise specified.

This material has been verified to be compatible with PbSn assembly process.

2. Recommended Lead Free Solder Profile

l Recommended solder Sn-3.0Ag-0.5Cu.

Flow Solder condition:

Pre-heating: maximum 120˚C

Soldering: dip within 5 sec. at

260˚C solder bath

Solder by Soldering Iron:

Soldering Iron

Temperature: maximum 360˚C

Duration: maximum 3 sec.

We highly recommend that you conrm your actual solder conditions

3. Moisture Sensitivity

l Moisture Sensitivity Level standard is not applicable to electromechanical relays, unless otherwise indicated.

4. Tin Whiskers

l Dipped SnAgCu solder is known as presenting a low risk to tin whisker development. No considerable length

whisker was found by our in house test.

6
