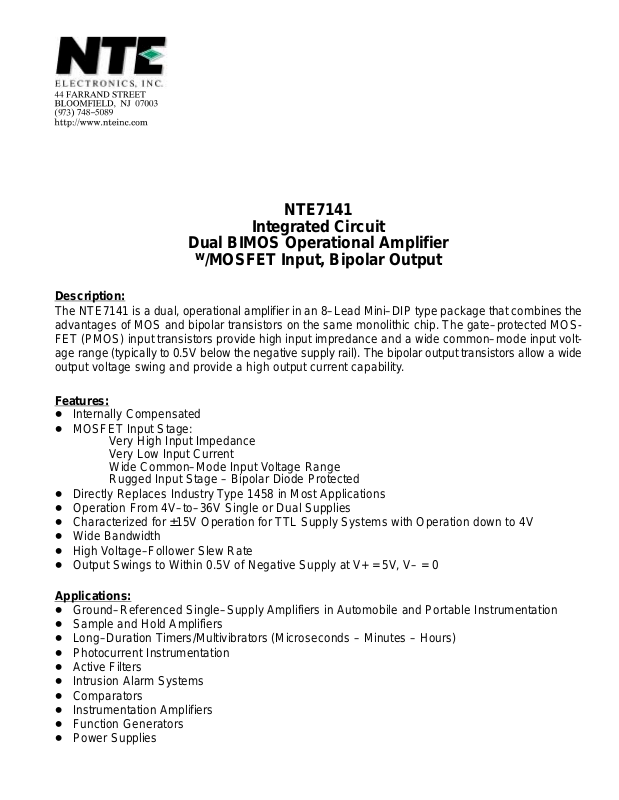

Page 1
NTE7141
Integrated Circuit
Dual BIMOS Operational Amplifier
w
/MOSFET Input, Bipolar Output
Description:
The NTE7141 is a dual, operational amplifier in an 8–Lead Mini–DIP type package that combines the
advantages of MOS and bipolar transistors on the same monolithic chip. The gate–protected MOSFET (PMOS) input transistors provide high input impredance and a wide common–mode input voltage range (typically to 0.5V below the negative supply rail). The bipolar output transistors allow a wide
output voltage swing and provide a high output current capability.
Features:
D Internally Compensated
D MOSFET Input Stage:
Very High Input Impedance
Very Low Input Current
Wide Common–Mode Input Voltage Range
Rugged Input Stage – Bipolar Diode Protected
D Directly Replaces Industry Type 1458 in Most Applications
D Operation From 4V–to–36V Single or Dual Supplies
D Characterized for ±15V Operation for TTL Supply Systems with Operation down to 4V
D Wide Bandwidth
D High Voltage–Follower Slew Rate
D Output Swings to Within 0.5V of Negative Supply at V+ = 5V, V– = 0
Applications:
D Ground–Referenced Single–Supply Amplifiers in Automobile and Portable Instrumentation
D Sample and Hold Amplifiers
D Long–Duration Timers/Multivibrators (Microseconds – Minutes – Hours)
D Photocurrent Instrumentation
D Active Filters
D Intrusion Alarm Systems
D Comparators
D Instrumentation Amplifiers
D Function Generators
D Power Supplies
Page 2
Absolute Maximum Ratings:
DC Supply Voltage (Between V+ and V– Terminals) 36V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating Voltage Range 4 to 36V or ±2 to ±18V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Differential–Mode Input Voltage ±8V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Common–Mode DC Input Voltage (V+ +8V) to (V– –0.5V). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input–Terminal Current 1mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Device Dissipation, P
D
630mW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Derate Linearly Above +55°C 6.67mW/°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating Temperature Range, T
Storage Temperature Range, T
opr
stg
Lead Temperature (During Soldering, 1/16” from case, 10sec max), T
L
–40° to +85°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
–65° to +150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
+265°C. . . . . . . . . . . . . . . . .
Output Short–Circuit Duration (Note 1) Unlimited. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Note 1. Short circuit may be applied to GND or to either supply. Temperature and/or supply voltages
must be limited to keep dissipation within maximum rating.
Electrical Characteristics: (V+ = +15V, V– = –15V unless otherwise specified)
Parameter Symbol Test Conditions Min Typ Max Unit
Input Offset Voltage |VIO| TA = +25°C – 5 15 mV
TA = –40° to +85°C – 10 – mV
Input Offset Current |IIO| TA = +25°C – 0.5 30 pA
TA = +85°C – 32 – pA
Input Current I
Large–Signal Voltage Gain A
Common–Mode Rejection Ratio CMRR TA = +25°C – 32 320 µV/V
Common–Mode Input–Voltage
Range
V
ICR
TA = +25°C – 10 50 pA
I
TA = +85°C – 640 – pA
Note 2 TA = +25°C 20k 100k – V/V
OL
86 100 – dB
TA = –40° to +85°C – 63k – V/V
– 96 – dB
70 90 – dB
TA = –40° to +85°C – 32 – µV/V
– 90 – dB
TA = +25°C –15 –15.5
to
+12.5
TA = –40° to +85°C – –15
to
+12.3
+11 V
– V
Power Supply Rejection Ratio ∆VIO/∆V TA = +25°C – 100 150 µV/V
PSSR 76 80 – dB
∆VIO/∆V TA = –40° to +85°C – 150 – µV/V
PSSR – 76 – dB
Note 2. VO = 26V
, +12V, –14V and RL = 2kΩ.
P–P
Page 3
Electrical Characteristics (Cont’d): (V+ = +15V, V– = –15V unless otherwise specified)
Parameter Symbol Test Conditions Min Typ Max Unit
Maximum Output Voltage VOM+ TA = +25°C, RL = 2kΩ +12 +13 – V
VOM– –14 –14.4 – V
TA = +25°C, Note 3 0.4 0.13 – V
VOM+ TA = –40° to +85°C, RL = 2kΩ – +12.4 – V
VOM– – –14.2 – V
Supply Current, For Both Amps I+ TA = +25°C – 8 12 mA
TA = –40° to +85°C – 8.4 – mA
Total Device Dissipation P
TA = +25°C – 240 360 mW
D
TA = –40° to +85°C – 252 – mW
Temperature Coefficient of
∆VIO/∆T TA = –40° to +85°C – 15 – µA/°C
Input Offset Voltage
Input Resistance R
Input Capacitance C
Output Resistance R
Equivalent Wideband Input Noise
e
Voltage RS = 100Ω
TA = +25°C – 1.5 – TΩ
I
TA = +25°C – 4 – pF
I
TA = +25°C – 60 – Ω
O
n
TA = +25°C,
f = 1kHz – 40 – nV/√Hz
f = 10kHz – 12 – nV/√Hz
Short–Circuit Current to Opposite
Supply
Source IOM+ TA = +25°C – 40 mA
Sink IOM– – 11 – mA
Gain–Bandwidth Product f
TA = +25°C – 4.5 – MHz
T
Slew Rate SR TA = +25°C – 9 – V/µs
Transient Response:
Rise Time t
TA = +25°C, RL = 2kΩ, CL = 100pF – 0.08 – µs
r
Overshoot – 10 – %
Setting Time at 10V
1mV t
10mV
P–P
TA = +25°C, RL = 2kΩ, CL = 100pF,
s
Voltage Follower
– 4.5 – µs
– 1.4 – µs
Crosstalk CT TA = +25°C, f = 1kHz – 120 – dB
Note 3. V+ = 5V, V– = GND, I
= 200µA.
Sink
Electrical Characteristics: (TA = +25°C, V+ = +5V, V– = –5V unless otherwise specified)
Parameter Symbol Test Conditions Min Typ Max Unit
Input Offset Voltage |VIO| – 5 – mV
Input Offset Current |IIO| – 0.1 – pA
Input Current I
Input Resistance R
Large–Signal Voltage Gain A
I
I
OL
Common–Mode Rejection Ratio CMRR – 32 320 µV/V
– 2 – pA
– 1 – TΩ
– 100k – V/V
– 100 – dB
70 90 – dB
Page 4
Electrical Characteristics (Cont’d): (TA = +25°C, V+ = +5V, V– = –5V unless otherwise specified)
Parameter Symbol Test Conditions Min Typ Max Unit
Common–Mode Input–Voltage Range
Power Supply Rejection Ratio
Maximum Output Voltage
Maximum Output Current:
Source IOM+ – 20 – mA
Sink IOM– – 1 – mA
Slew Rate SR – 7 – V/µs
Gain–Bandwidth Product f
Supply Current I+ – 4 – mA
Device Dissipation P
V
ICR
∆VIO/∆V – 31.6 – µV/V
PSSR – 90 – dB
VOM+ – 3.0 – V
VOM– – 0.3 – V
T
D
Pin Connection Diagram
Output A
V+1
8
– –0.5 – V
– +2.6 – V
– 4.5 – MHz
– 20 – mW
Invert Input A
Non–Invert Input A
V–
85
14
.390 (9.9)
Max
2
3
4
7
Output B
6
Invert Input B
5
Non–Invert Input B
.260 (6.6)
(7.62)
.155
(3.93)
.300
.100 (2.54)
.145 (3.68)
.300 (7.62)
