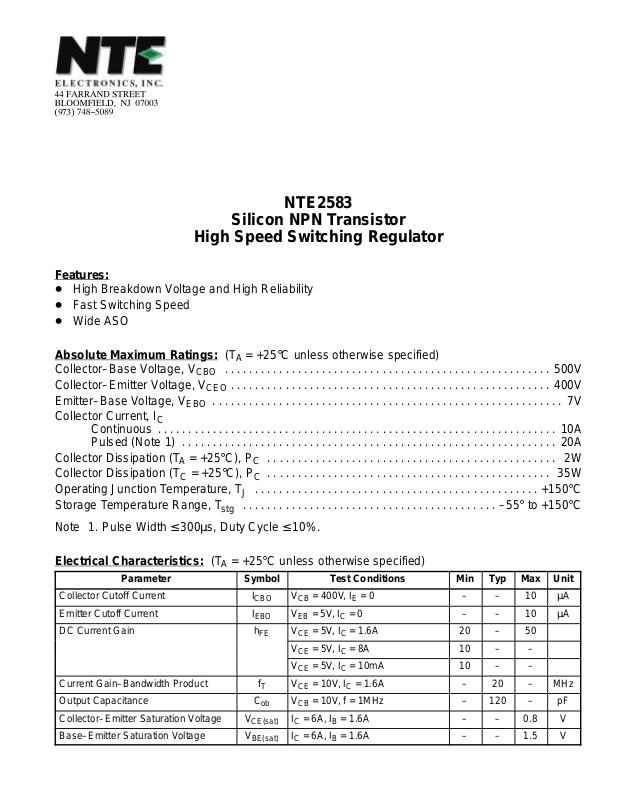

NTE2583
Silicon NPN Transistor
High Speed Switching Regulator
Features:
D High Breakdown Voltage and High Reliability
D Fast Switching Speed
D Wide ASO
Absolute Maximum Ratings:
Collector–Base Voltage, V
Collector–Emitter Voltage, V
Emitter–Base Voltage, V
Collector Current, I
EBO
C
(TA = +25°C unless otherwise specified)
CBO
CEO
Continuous 10A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pulsed (Note 1) 20A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Collector Dissipation (T
Collector Dissipation (T
Operating Junction Temperature, T
Storage Temperature Range, T
= +25°C), P
A
= +25°C), P
C
stg
C
C
J
Note 1. Pulse Width ≤ 300µs, Duty Cycle ≤ 10%.
Electrical Characteristics: (TA = +25°C unless otherwise specified)
Parameter Symbol Test Conditions Min Typ Max Unit
Collector Cutoff Current I
Emitter Cutoff Current I
DC Current Gain h
CBO
EBO
FE
VCB = 400V, IE = 0 – – 10 µA
VEB = 5V, IC = 0 – – 10 µA
VCE = 5V, IC = 1.6A 20 – 50
VCE = 5V, IC = 8A 10 – –
500V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
400V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2W. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
35W. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
+150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
–55° to +150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Current Gain–Bandwidth Product f
Output Capacitance C
Collector–Emitter Saturation Voltage V
Base–Emitter Saturation Voltage V
CE(sat)IC
BE(sat)IC
T
ob
VCE = 5V, IC = 10mA 10 – –
VCE = 10V, IC = 1.6A – 20 – MHz
VCB = 10V, f = 1MHz – 120 – pF
= 6A, IB = 1.6A – – 0.8 V
= 6A, IB = 1.6A – – 1.5 V
Page 2
Electrical Characteristics (Cont’d): (TA = +25°C unless otherwise specified)
Parameter Symbol Test Conditions Min Typ Max Unit
Collector–Base Breakdown Voltage V
Collector–Emitter Breakdown Voltage V
Emitter–Base Breakdown Voltage V
Collector–Emitter Sustaining Voltage V
(BR)CBOIC
(BR)CEOIC
(BR)EBOIE
CEX(sus)IC
L = 500µH, Clamped
Turn–On Time t
Storage Time t
Fall Time t
on
stg
IC = 7A, IB1 = 1.4A, IB2 = 2.8A,
RL = 28.6Ω, VCC = 200V, Note 2
f
Note 2. Pulse Width = 20µs, Duty Cycle ≤ 1%.
.402 (10.2) Max
.224 (5.7) Max
= 1mA, IE = 0 500 – – V
= 5mA, RBE = ∞ 400 – – V
= 1mA, IC = 0 7 – – V
= 4.5A, IB1 = 0.45A, IB2 = –1.8A,
400 – – V
– – 0.5 µs
– – 2.5 µs
– – 0.3 µs
.173 (4.4) Max
.122 (3.1)
.114 (2.9) Max
Dia
.295
(7.5)
.669
(17.0)
Max
BCE
.531
(13.5)
Min
.100 (2.54) .059 (1.5) Max
.165
(4.2)
NOTE: Tab is isolated
