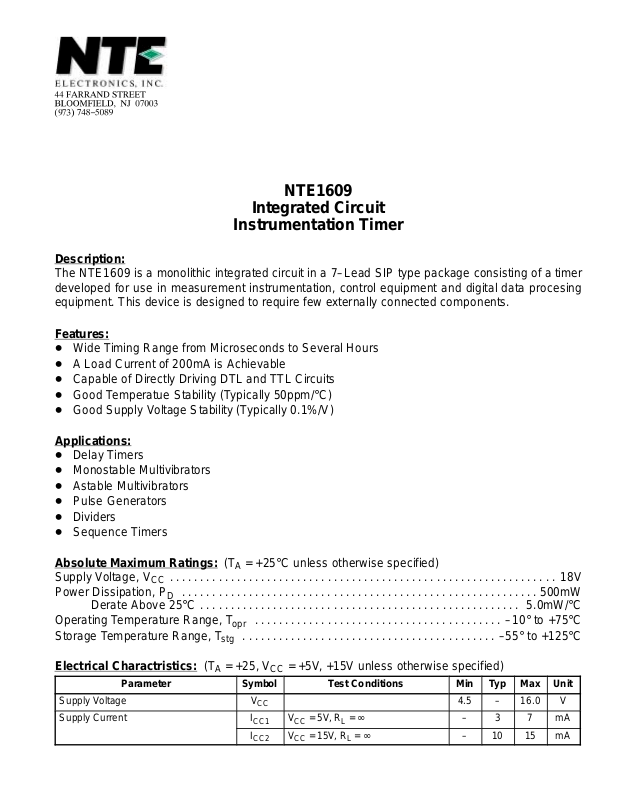

Page 1
NTE1609
Integrated Circuit
Instrumentation Timer
Description:
The NTE1609 is a monolithic integrated circuit in a 7–Lead SIP type package consisting of a timer
developed for use in measurement instrumentation, control equipment and digital data procesing
equipment. This device is designed to require few externally connected components.
Features:
D Wide Timing Range from Microseconds to Several Hours
D A Load Current of 200mA is Achievable
D Capable of Directly Driving DTL and TTL Circuits
D Good Temperatue Stability (Typically 50ppm/°C)
D Good Supply Voltage Stability (Typically 0.1%/V)
Applications:
D Delay Timers
D Monostable Multivibrators
D Astable Multivibrators
D Pulse Generators
D Dividers
D Sequence Timers
Absolute Maximum Ratings: (TA = +25°C unless otherwise specified)
Supply Voltage, V
Power Dissipation, P
CC
D
Derate Above 25°C 5.0mW/°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating Temperature Range, T
Storage Temperature Range, T
opr
stg
Electrical Charactristics: (TA = +25, VCC = +5V, +15V unless otherwise specified)
Parameter Symbol Test Conditions Min Typ Max Unit
Supply Voltage V
Supply Current I
CC1
I
CC2
CC
VCC = 5V, RL = ∞ – 3 7 mA
VCC = 15V, RL = ∞ – 10 15 mA
4.5 – 16.0 V
18V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
500mW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
–10° to +75°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
–55° to +125°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 2
Electrical Charactristics (Cont’d): (TA = +25, VCC = +5V, +15V unless otherwise specified)
Parameter Symbol Test Conditions Min Typ Max Unit
Monostable Timing Accuracy T
Monostable Timing Temperature
ERR (M)RA
T
DT (M)RA
Coefficient
Monostable Timing Supply Regulation T
Astable Timing Accuracy T
Astable Timing Temperature
DS (M)RA
ERR (A)RA
T
DT (A)
Coefficient
Astable Timing Supply Regulation T
DS (A)
Threshold Voltage V
Threshold Current I
Trigger Voltage V
Trigger Current I
Reset Voltage V
Reset Current I
Control Voltage V
V
Low–Level Output Voltage V
V
V
V
V
High–Level Output Voltage V
V
TH
TH
T
T
R
R
CR1
CR2
OL1
OL2
OL3
OL4
OL5
OH1
OH2
= 1kΩ to 100kΩ, C = 0.1µF – 1 – %
= 1kΩ to 10kΩ, C = 0.1µF – 50 – ppm/°C
= 1kΩ to 10kΩ, C = 0.1µF – 0.1 – %/V
= RB = 1 kΩ to 100kΩ, C = 0.1µF – 2.5 – %
RA = RB = 1 kΩ to 10kΩ, C = 0.1µF – 150 – ppm/°C
RA = RB = 1 kΩ to 100kΩ, C = 0.1µF – 0.3 – %/V
– 2/3 – x V
CC
– 0.1 0.25 µA
– 1/3 – x V
CC
– 0.5 – µA
– 0.7 1.0 V
– 0.1 – mA
2.60 3.33 4.00 V
9 10 11 V
VCC = 5V, I
VCC = 15V, I
VCC = 15V, I
VCC = 15V, I
VCC = 15V, I
VCC = 5V, I
VCC = 15V, I
= 5mA – 0.25 0.35 V
sink
= 10mA – 0.10 0.25 V
sink
= 50mA – 0.40 0.75 V
sink
= 100mA – 2.0 2.5 V
sink
= 200mA – 2.5 – V
sink
= 100mA 2.75 3.30 – V
source
= 100mA 12.7513.30– V
source
V
Output Rise Time t
Output Fall Time t
OH3
r
f
VCC = 15V, I
= 200mA – 12.50– V
source
– 100 – ns
– 100 – ns
Page 3
Pin Connection Diagram
(Front View)
Reset
7
Output
6
Trigger
5
GND
4
V
3
CC
Discharge
2
1
Threshold
.670 (17.0) .110 (12.8)
.243
17
.100 (2.54) .012 (0.3)
.599 (15.2)
(6.1)
.138
(3.5)
