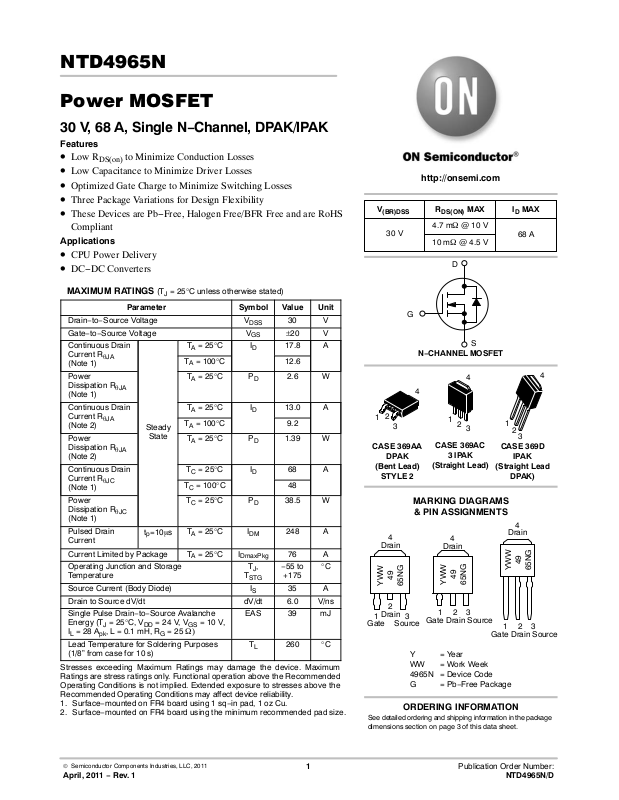

Page 1

NTD4965N

Power MOSFET

30 V, 68 A, Single N−Channel, DPAK/IPAK

Features

• Low R

• Low Capacitance to Minimize Driver Losses

• Optimized Gate Charge to Minimize Switching Losses

• Three Package Variations for Design Flexibility

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS

Compliant

Applications

• CPU Power Delivery

• DC−DC Converters

to Minimize Conduction Losses

DS(on)

(BR)DSS

30 V

http://onsemi.com

MAX ID MAX

DS(ON)

4.7 mW @ 10 V

10 mW @ 4.5 V

68 A

MAXIMUM RATINGS (T

Parameter Symbol Value Unit

Drain−to−Source Voltage V

Gate−to−Source Voltage V

Continuous Drain Current R (Note 1)

Power Dissipation R (Note 1)

Continuous Drain Current R (Note 2)

Power Dissipation R (Note 2)

Continuous Drain Current R (Note 1)

Power Dissipation R (Note 1)

Pulsed Drain Current

Current Limited by Package TA = 25°C I

Operating Junction and Storage Temperature

Source Current (Body Diode) I

Drain to Source dV/dt dV/dt 6.0 V/ns

Single Pulse Drain−to−Source Avalanche Energy (TJ = 25°C, VDD = 24 V, VGS = 10 V, IL = 28 Apk, L = 0.1 mH, RG = 25 W)

Lead Temperature for Soldering Purposes (1/8” from case for 10 s)

Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.

1. Surface−mounted on FR4 board using 1 sq−in pad, 1 oz Cu.

2. Surface−mounted on FR4 board using the minimum recommended pad size.

= 25°C unless otherwise stated)

TA = 25°C

TA = 100°C 12.6

TA = 25°C P

TA = 25°C

Steady

State

tp=10ms

TA = 100°C 9.2

TA = 25°C P

TC = 25°C

TC = 100°C 48

TC = 25°C P

TA = 25°C I

DSS

DmaxPkg

TJ,

STG

EAS 39 mJ

30 V

±20 V

17.8

2.6 W

13.0

1.39 W

38.5 W

248 A

76 A

−55 to +175

35 A

260 °C

°C

N−CHANNEL MOSFET

IPAK

DPAK)

CASE 369AA

DPAK

(Bent Lead)

STYLE 2

CASE 369AC

(Straight Lead)

3 IPAK

CASE 369D

(Straight Lead

MARKING DIAGRAMS

& PIN ASSIGNMENTS

Gate

Drain

YWW

Drain

65NG

Source

Gate

Drain

YWW

65NG

Drain

Source

Y = Year WW = Work Week 4965N = Device Code G = Pb−Free Package

Gate

Drain

YWW

Drain

65NG

Source

ORDERING INFORMATION

See detailed ordering and shipping information in the package dimensions section on page 3 of this data sheet.

April, 2011 − Rev. 1

1 Publication Order Number:

NTD4965N/D

Page 2

NTD4965N

THERMAL RESISTANCE MAXIMUM RATINGS

Parameter Symbol Value Unit

Junction−to−Case (Drain)

Junction−to−TAB (Drain)

Junction−to−Ambient – Steady State (Note 3)

Junction−to−Ambient – Steady State (Note 4)

3. Surface−mounted on FR4 board using 1 sq−in pad, 1 oz Cu.

4. Surface−mounted on FR4 board using the minimum recommended pad size.

JC−TAB

3.9

4.3

57.6

107.6

°C/W

ELECTRICAL CHARACTERISTICS (T

= 25°C unless otherwise specified)

Parameter Symbol Test Condition Min Typ Max Unit

OFF CHARACTERISTICS

Drain−to−Source Breakdown Voltage V

Drain−to−Source Breakdown Voltage

Temperature Coefficient

Zero Gate Voltage Drain Current I

Gate−to−Source Leakage Current I

(BR)DSS

DSS

GSS

VGS = 0 V, ID = 250 mA

VGS = 0 V,

VDS = 24 V

VDS = 0 V, VGS = ±20 V ±100 nA

ON CHARACTERISTICS (Note 5)

Gate Threshold Voltage V

Negative Threshold Temperature

Coefficient

Drain−to−Source On Resistance R

GS(TH)

GS(TH)/TJ

DS(on)

VGS = VDS, ID = 250 mA

VGS = 10 V

VGS = 4.5 V

Forward Transconductance g

VDS = 1.5 V, ID = 30 A 52 S

CHARGES, CAPACITANCES AND GATE RESISTANCE

Input Capacitance C

Output Capacitance C

Reverse Transfer Capacitance C

Total Gate Charge Q

Threshold Gate Charge Q

Gate−to−Source Charge Q

Gate−to−Drain Charge Q

Total Gate Charge Q

ISS

OSS

RSS

G(TOT)

G(TH)

G(TOT)

VGS = 0 V, f = 1.0 MHz, VDS = 15 V

VGS = 4.5 V, VDS = 15 V, ID = 30 A

VGS = 10 V, VDS = 15 V, ID = 30 A 28.2 nC

SWITCHING CHARACTERISTICS (Note 6)

Turn−On Delay Time t

Rise Time t

Turn−Off Delay Time t

Fall Time t

d(ON)

d(OFF)

VGS = 4.5 V, VDS = 15 V,

ID = 15 A, RG = 3.0 W

5. Pulse Test: pulse width v 300 ms, duty cycle v 2%.

6. Switching characteristics are independent of operating junction temperatures.

7. Assume terminal length of 110 mils.

30 V

21.5

TJ = 25°C 1.0

TJ = 125°C 10

1.5 1.8 2.5 V

4.1

ID = 30 A 3.4 4.7

ID = 15 A 3.4

ID = 30 A 5.4 10

ID = 15 A 5.3

1710

664

340

17.2

2.7

5.1

8.5

12.1

34.2

18.9

14.2

mV/°C

http://onsemi.com

Page 3

NTD4965N

ELECTRICAL CHARACTERISTICS (T

= 25°C unless otherwise specified)

Parameter UnitMaxTypMinTest ConditionSymbol

SWITCHING CHARACTERISTICS (Note 6)

Turn−On Delay Time t

Rise Time t

Turn−Off Delay Time t

Fall Time t

d(ON)

d(OFF)

VGS = 10 V, VDS = 15 V,

ID = 15 A, RG = 3.0 W

DRAIN−SOURCE DIODE CHARACTERISTICS

Forward Diode Voltage V

VGS = 0 V,

IS = 30 A

Reverse Recovery Time t

Charge Time t

Discharge Time t

Reverse Recovery Charge Q

VGS = 0 V, dIS/dt = 100 A/ms,

IS = 30 A

PACKAGE PARASITIC VALUES

Source Inductance (Note 7) L

Drain Inductance, DPAK L

Drain Inductance, IPAK (Note 7) L

Gate Inductance (Note 7) L

Gate Resistance R

TA = 25°C

5. Pulse Test: pulse width v 300 ms, duty cycle v 2%.

6. Switching characteristics are independent of operating junction temperatures.

7. Assume terminal length of 110 mils.

8.3

21.5

24.4

7.8

TJ = 25°C 0.86 1.1

TJ = 125°C 0.74

28.3

13.3

16 nC

2.85

0.0164

1.88

4.9

1.0 2.2

ORDERING INFORMATION

Device Package Shipping

NTD4965NT4G DPAK

2500 / Tape & Reel

(Pb−Free)

NTD4965N−1G IPAK

75 Units / Rail

(Pb−Free)

NTD4965N−35G IPAK Trimmed Lead

75 Units / Rail

(Pb−Free)

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging

Specifications Brochure, BRD8011/D.

†

http://onsemi.com

Page 4

NTD4965N

TYPICAL PERFORMANCE CURVES

, DRAIN CURRENT (A)

012345

10 V thru 4.5 V

TJ = 25°C

VDS, DRAIN−TO−SOURCE VOLTAGE (V)

VGS = 3.7 V

3.5 V

3.3 V

3.1 V

2.9 V

2.7 V

Figure 1. On−Region Characteristics Figure 2. Transfer Characteristics

15 14 13 12

9 8 7 6 5 4 3

, DRAIN−TO−SOURCE RESISTANCE (mW)

345678

DS(on)

VGS, GATE−TO−SOURCE VOLTAGE (V)

ID = 30 A TJ = 25°C

910

Figure 3. On−Resistance vs. Gate−to−Source

Voltage

VDS = 10 V

, DRAIN CURRENT (A)

12345

8.0

7.5

7.0

6.5

6.0

5.5

5.0

4.5

4.0

3.5

3.0

2.5

, DRAIN−TO−SOURCE RESISTANCE (mW)

2.0 10 20 30 40 50 60

DS(on)

TJ = 25°C

TJ = 125°C

VGS, GATE−TO−SOURCE VOLTAGE (V)

ID, DRAIN CURRENT (A)

TJ = −55°C

TJ = 25°C

VGS = 4.5 V

VGS = 10 V

70 80 90

Figure 4. On−Resistance vs. Drain Current and

Gate Voltage

1.8 ID = 30 A

1.7

1.6

1.5

1.4

1.3

1.2

1.1

1.0

(NORMALIZED)

0.9

0.8

, DRAIN−TO−SOURCE RESISTANCE

0.7

0.6

DS(on)

= 10 V

−50 −250 255075

TJ, JUNCTION TEMPERATURE (°C)

Figure 5. On−Resistance Variation with

Temperature

100 125 175

150

http://onsemi.com

10000

1000

, LEAKAGE (nA)

100

DSS

51015202530

TJ = 150°C

TJ = 125°C

TJ = 85°C

VGS = 0 V

VDS, DRAIN−TO−SOURCE VOLTAGE (V)

Figure 6. Drain−to−Source Leakage Current

vs. Voltage

Page 5

NTD4965N

TYPICAL PERFORMANCE CURVES

2400

2200

2000

1800

iss

1600

1400

1200

1000

800 600

C, CAPACITANCE (pF)

oss

400

200

015

rss

10 25

VDS, DRAIN−TO−SOURCE VOLTAGE (V)

Figure 7. Capacitance Variation

1000

VDD = 15 V ID = 15 A VGS = 10 V

100

d(off)

TJ = 25°C VGS = 0 V

, GATE−TO−SOURCE VOLTAGE (V)

ID = 30 A TJ = 25°C VDD = 15 V VGS = 10 A

062812410142016 22 2618 24 28

QG, TOTAL GATE CHARGE (nC)

Figure 8. Gate−to−Source and Drain−to−Source

Voltage vs. Total Charge

VGS = 0 V

TJ = 125°C

TJ = 25°C

t, TIME (ns)

1 10 100

RG, GATE RESISTANCE (W)

Figure 9. Resistive Switching Time

Variation vs. Gate Resistance

1000

100

0 V < VGS < 10 V

0.1

0.01

Single Pulse TC = 25°C

RDS(on) LIMIT THERMAL LIMIT PACKAGE LIMIT

0.10.01

1 10 100

VDS, DRAIN−TO−SOURCE VOLTAGE (V)

, DRAIN CURRENT (A)

d(on)

10 ms

100 ms

1 ms

10 ms

, SOURCE CURRENT (A)

0.4 0.7 1.0

0.5 0.80.6 0.9

VSD, SOURCE−TO−DRAIN VOLTAGE (V)

Figure 10. Diode Forward Voltage vs. Current

AVALANCHE ENERGY (mJ)

, SINGLE PULSE DRAIN−TO−SOURCE

25 50 75 100 125 150

TJ, STARTING JUNCTION TEMPERATURE (°C)

ID = 28 A

Figure 11. Maximum Rated Forward Biased

Safe Operating Area

http://onsemi.com

Figure 12. Maximum Avalanche Energy vs.

Starting Junction Temperature

Page 6

12 3

0.005 (0.13) C

DETAIL A

NTD4965N

PACKAGE DIMENSIONS

DPAK (SINGLE GUAGE)

CASE 369AA−01

ISSUE B

GAUGE

PLANE

DETAIL A

ROTATED 90 CW5

SOLDERING FOOTPRINT*

6.20

0.244

2.58

0.102

0.118

3.00

SEATING PLANE

NOTES:

1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.

2. CONTROLLING DIMENSION: INCHES.

3. THERMAL PAD CONTOUR OPTIONAL WITHIN DIMENSIONS b3, L3 and Z.

4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH, PROTRUSIONS, OR BURRS. MOLD FLASH, PROTRUSIONS, OR GATE BURRS SHALL NOT EXCEED 0.006 INCHES PER SIDE.

5. DIMENSIONS D AND E ARE DETERMINED AT THE OUTERMOST EXTREMES OF THE PLASTIC BODY.

6. DATUMS A AND B ARE DETERMINED AT DATUM PLANE H.

DIM MIN MAX MIN MAX

A 0.086 0.094 2.18 2.38

A1 0.000 0.005 0.00 0.13

b 0.025 0.035 0.63 0.89 b2 0.030 0.045 0.76 1.14 b3 0.180 0.215 4.57 5.46

c 0.018 0.024 0.46 0.61 c2 0.018 0.024 0.46 0.61

D 0.235 0.245 5.97 6.22

E 0.250 0.265 6.35 6.73

e 0.090 BSC 2.29 BSC

H 0.370 0.410 9.40 10.41

L 0.055 0.070 1.40 1.78 L1 0.108 REF 2.74 REF L2 0.020 BSC 0.51 BSC L3 0.035 0.050 0.89 1.27 L4 −−− 0.040 −−− 1.01

Z 0.155 −−− 3.93 −−−

STYLE 2:

PIN 1. GATE

2. DRAIN

3. SOURCE

4. DRAIN

MILLIMETERSINCHES

5.80

0.228

1.60

0.063

SCALE 3:1

6.17

0.243

inches

*For additional information on our Pb−Free strategy and soldering

details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.

http://onsemi.com

Page 7

SEATING PLANE

NTD4965N

PACKAGE DIMENSIONS

3 IPAK, STRAIGHT LEAD

CASE 369AC−01

ISSUE O

3 PL

0.13 (0.005) W

IPAK

CASE 369D−01

ISSUE C

NOTES:

1.. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982.

2.. CONTROLLING DIMENSION: INCH.

3. SEATING PLANE IS ON TOP OF DAMBAR POSITION.

4. DIMENSION A DOES NOT INCLUDE DAMBAR POSITION OR MOLD GATE.

DIM MIN MAX MIN MAX

A 0.235 0.245 5.97 6.22 B 0.250 0.265 6.35 6.73 C 0.086 0.094 2.19 2.38 D 0.027 0.035 0.69 0.88 E 0.018 0.023 0.46 0.58 F 0.037 0.043 0.94 1.09 G 0.090 BSC 2.29 BSC H 0.034 0.040 0.87 1.01 J 0.018 0.023 0.46 0.58 K 0.134 0.142 3.40 3.60 R 0.180 0.215 4.57 5.46 V 0.035 0.050 0.89 1.27

W 0.000 0.010 0.000 0.25

MILLIMETERSINCHES

123

−T−

SEATING PLANE

D 3 PL

ON Semiconductor and are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice

to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.

0.13 (0.005) T

NOTES:

1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982.

2. CONTROLLING DIMENSION: INCH.

DIM MIN MAX MIN MAX

A 0.235 0.245 5.97 6.35 B 0.250 0.265 6.35 6.73 C 0.086 0.094 2.19 2.38 D 0.027 0.035 0.69 0.88 E 0.018 0.023 0.46 0.58 F 0.037 0.045 0.94 1.14

0.090 BSC 2.29 BSC

G H 0.034 0.040 0.87 1.01 J 0.018 0.023 0.46 0.58 K 0.350 0.380 8.89 9.65 R 0.180 0.215 4.45 5.45 S 0.025 0.040 0.63 1.01 V 0.035 0.050 0.89 1.27 Z 0.155 −−− 3.93 −−−

STYLE 2:

PIN 1. GATE

2. DRAIN

3. SOURCE

4. DRAIN

MILLIMETERSINCHES

PUBLICATION ORDERING INFORMATION

LITERATURE FULFILLMENT:

Literature Distribution Center for ON Semiconductor P.O. Box 5163, Denver, Colorado 80217 USA

Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada Email: [email protected]

N. American Technical Support: 800−282−9855 Toll Free

USA/Canada

Europe, Middle East and Africa Technical Support:

Phone: 421 33 790 2910

Japan Customer Focus Center

Phone: 81−3−5773−3850

http://onsemi.com

ON Semiconductor Website: www.onsemi.com

Order Literature: http://www.onsemi.com/orderlit

For additional information, please contact your loca Sales Representative

NTD4965N/D
