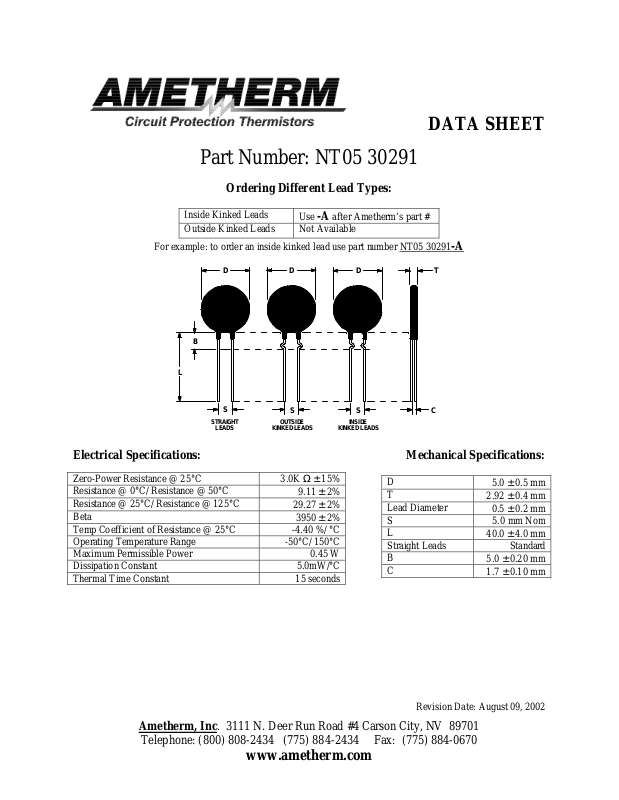

Datasheet NT0530291 Specification

DATA SHEET

Part Number: NT05 30291

Ordering Different Lead Types:

For example: to order an inside kinked lead use part number NT05 30291-A

Electrical Specifications: Mechanical Specifications:

Inside Kinked Leads
Outside Kinked Leads Not Available

D D D

B

L

S

STRAIGHT

LEADS

Use

-A after Ametherm’s part #

S S

OUTSIDE

KINKED LEADS

INSIDE

KINKED LEADS

T

C

Zero-Power Resistance @ 25°C
Resistance @ 0°C/ Resistance @ 50°C
Resistance @ 25°C/ Resistance @ 125°C
Beta
Temp Coefficient of Resistance @ 25°C -4.40 %/ °C
Operating Temperature Range -50°C/ 150°C
Maximum Permissible Power 0.45 W
Dissipation Consta nt 5.0mW/°C
Thermal Time Constant 15 seconds

3.0K Ω ± 15%

9.11 ± 2%

29.27 ± 2%
3950 ± 2%

Ametherm, Inc. 3111 N. Deer Run Road #4 Carson City, NV 89701

Telephone: [phone] [phone] Fax: [phone]

www.ametherm.com

D
T
Lead Diameter
S 5.0 mm Nom

L
Straight Leads Standard
B
C

Revision Date: August 09, 2002

5.0 ± 0.5 mm

2.92 ± 0.4 mm

0.5 ± 0.2 mm

40.0 ± 4.0 mm

5.0 ± 0.20 mm

1.7 ± 0.10 mm

Part Number: NT05 30291

Resistance Temperature Curve:

Temperature

-50 66.97

-45 47.25

-40 33.74

-35 24.37

-30 17.80

-25 13.13

-20 9.776

-15 7.348

-10 5.570

-5 4.257
0 3.279
5 2.550

10 1.998
15 1.576
20 1.252
25 1.000
30 0.8038
35 0.6499
40 0.5282
45 0.4316
50 0.3545
55 0.2949
60 0.2465
65 0.2070
70 0.1747
75 0.1481
80 0.1261
85 0.1077
90 0.09243

95 0.07961
100 0.06881
105 0.05977
110 0.05210
115 0.04560
120 0.04005
125 0.03529
130 0.03119
135 0.02766
140 0.02460
145 0.02194
150 0.01963

R@T/R@25°C
