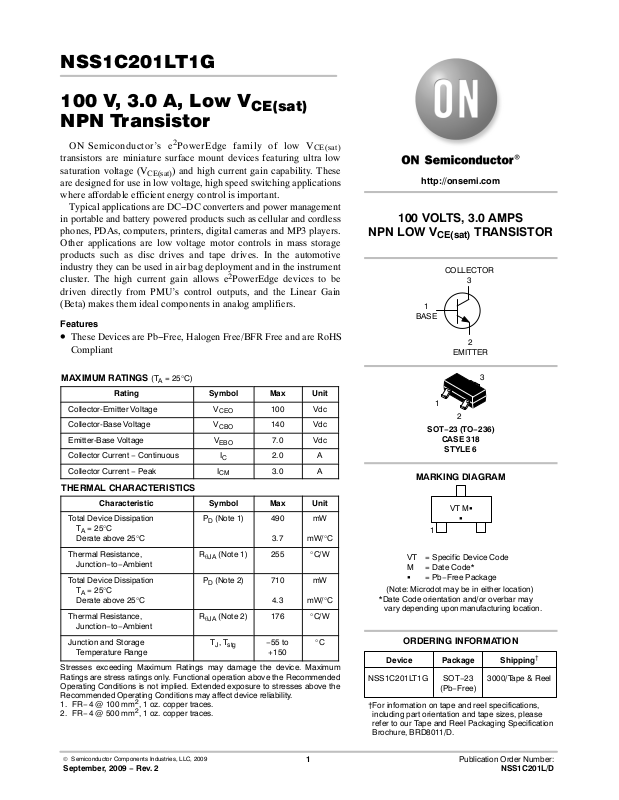

Page 1
NSS1C201LT1G
100 V, 3.0 A, Low V
CE(sat)
NPN Transistor
ON Semiconductor’s e2PowerEdge family of low V
transistors are miniature surface mount devices featuring ultra low
saturation voltage (V
) and high current gain capability. These
CE(sat)
are designed for use in low voltage, high speed switching applications
where affordable efficient energy control is important.
Typical applications are DC−DC converters and power management
in portable and battery powered products such as cellular and cordless
phones, PDAs, computers, printers, digital cameras and MP3 players.
Other applications are low voltage motor controls in mass storage
products such as disc drives and tape drives. In the automotive
industry they can be used in air bag deployment and in the instrument
cluster. The high current gain allows e
2
PowerEdge devices to be
driven directly from PMU’s control outputs, and the Linear Gain
(Beta) makes them ideal components in analog amplifiers.
Features
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
MAXIMUM RATINGS (T
Rating
Collector-Emitter Voltage V
Collector-Base Voltage V
Emitter-Base Voltage V
Collector Current − Continuous I
Collector Current − Peak I
THERMAL CHARACTERISTICS
Characteristic Symbol Max Unit
Total Device Dissipation
T
= 25°C
A
Derate above 25°C
Thermal Resistance,
Junction−to−Ambient
Total Device Dissipation
T
= 25°C
A
Derate above 25°C
Thermal Resistance,
Junction−to−Ambient
Junction and Storage
Temperature Range
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
1. FR− 4 @ 100 mm
2. FR− 4 @ 500 mm
= 25°C)
A
2
, 1 oz. copper traces.
2
, 1 oz. copper traces.
Symbol Max Unit
CEO
CBO
EBO
C
CM
PD (Note 1) 490
R
(Note 1)
q
JA
PD (Note 2) 710
R
(Note 2)
q
JA
TJ, T
stg
100 Vdc
140 Vdc
7.0 Vdc
2.0 A
3.0 A
3.7
255 °C/W
4.3
176 °C/W
−55 to
+150
CE(sat)
mW
mW/°C
mW
mW/°C
°C
http://onsemi.com
100 VOLTS, 3.0 AMPS
NPN LOW V
CE(sat)
1
BASE
1
SOT−23 (TO−236)
MARKING DIAGRAM
1
VT = Specific Device Code
M = Date Code*
G = Pb−Free Package
(Note: Microdot may be in either location)
*Date Code orientation and/or overbar may
vary depending upon manufacturing location.
ORDERING INFORMATION
Device Package Shipping
NSS1C201LT1G SOT−23
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
Brochure, BRD8011/D.
(Pb−Free)
TRANSISTOR
COLLECTOR
3
2
EMITTER
3
2
CASE 318
STYLE 6
VT MG
G
†
3000/Tape & Reel
© Semiconductor Components Industries, LLC, 2009
September, 2009 − Rev. 2
1 Publication Order Number:
NSS1C201L/D
Page 2
NSS1C201LT1G
ELECTRICAL CHARACTERISTICS (T
Characteristic
= 25°C unless otherwise noted)
A
Symbol Min Typ Max Unit
OFF CHARACTERISTICS
Collector−Emitter Breakdown Voltage
(IC = 10 mAdc, IB = 0)
Collector−Base Breakdown Voltage
(I
= 0.1 mAdc, IE = 0)
C
Emitter−Base Breakdown Voltage
(I
= 0.1 mAdc, IC = 0)
E
Collector Cutoff Current
(V
= 140 Vdc, IE = 0)
CB
Emitter Cutoff Current
(V
= 6.0 Vdc)
EB
V
(BR)CEO
V
(BR)CBO
V
(BR)EBO
I
CBO
I
EBO
100
140
7.0
100
50
ON CHARACTERISTICS
DC Current Gain (Note 3)
(IC = 10 mA, VCE = 2.0 V)
= 500 mA, VCE = 2.0 V)
(I
C
(I
= 1.0 A, VCE = 2.0 V)
C
(I
= 2.0 A, VCE = 2.0 V)
C
Collector−Emitter Saturation Voltage (Note 3)
(I
= 0.1 A, IB = 0.01 A)
C
= 0.5 A, IB = 0.05 A)
(I
C
(I
= 1.0 A, IB = 0.100 A)
C
(I
= 2.0 A, IB = 0.200 A)
C
Base − Emitter Saturation Voltage (Note 3)
(I
= 1.0 A, IB = 0.100 A)
C
Base − Emitter Turn−on Voltage (Note 3)
(I
= 1.0 A, VCE = 2.0 V)
C
Cutoff Frequency
(I
= 100 mA, VCE = 5.0 V, f = 100 MHz)
C
h
V
CE(sat)
V
BE(sat)
V
BE(on)
FE
150
120
240 360
80
40
0.030
0.060
0.090
0.150
0.950
0.850
f
T
110
Input Capacitance (VEB = 2.0 V, f = 1.0 MHz) Cibo 230 pF
Output Capacitance (VCB = 10 V, f = 1.0 MHz) Cobo 14 pF
3. Pulsed Condition: Pulse Width = 300 msec, Duty Cycle ≤ 2%.
Vdc
Vdc
Vdc
nAdc
nAdc
V
V
V
MHz
0.8
0.7
0.6
0.5
0.4
0.3
0.2
, POWER DERATING (W)
D
P
0.1
0
TYPICAL CHARACTERISTICS
Note 2
Note 1
140120100806040200
TJ, TEMPERATURE (°C)
Figure 1. Power Derating
http://onsemi.com
2
Page 3
NSS1C201LT1G
TYPICAL CHARACTERISTICS
400
350
300
250
200
150
, DC CURRENT GAIN
100
FE
h
50
0
IC, COLLECTOR CURRENT (A)
Figure 2. DC Current Gain
1
IC/IB = 10
0.1
150°C
25°C
−55°C
25°C
VCE = 2 V
150°C
400
350
300
250
200
150
, DC CURRENT GAIN
100
FE
h
50
1010.10.010.001
0.1
0
1
IC/IB = 20
150°C
25°C
−55°C
IC, COLLECTOR CURRENT (A)
Figure 3. DC Current Gain
150°C
25°C
VCE = 4 V
1010.10.010.001
SATURATION (V)
, COLLECTOR−EMITTER
CE(sat)
V
0.01
1.2
1.0
0.8
0.6
0.4
, BASE−EMITTER SATURATION (V)
0.2
BE(sat)
V
−55°C
, COLLECTOR CURRENT (A)
I
C
Figure 4. Collector−Emitter Saturation Voltage
IC/IB = 10
−55°C
25°C
150°C
IC, COLLECTOR CURRENT (A)
Figure 6. Base−Emitter Saturation Voltage
−55°C
, COLLECTOR−EMITTER SATURATION (V)
0.01
1010.10.010.001
CE(sat)
V
, COLLECTOR CURRENT (A)
I
C
1010.10.010.001
Figure 5. Collector−Emitter Saturation Voltage
1.2
IC/IB = 50
1.0
−55°C
0.8
0.6
0.4
, BASE−EMITTER SATURATION (V)
0.2
BE(sat)
V
1010.10.010.001
I
, COLLECTOR CURRENT (A)
C
25°C
150°C
1010.10.010.001
Figure 7. Base−Emitter Saturation Voltage
http://onsemi.com
3
Page 4
NSS1C201LT1G
TYPICAL CHARACTERISTICS
1.2
VCE = 2 V
1.0
0.8
0.6
, BASE−EMITTER VOLTAGE (V)
0.4
BE(on)
V
0.2
400
350
300
250
200
150
100
, INPUT CAPACITANCE (pF)
IB
50
C
0
−55°C
25°C
150°C
IC, COLLECTOR CURRENT (A)
Figure 8. Base Emitter Voltage
TJ = 25°C
f
TEST
V
, EMITTER BASE VOLTAGE (V)
EB
Figure 10. Input Capacitance
= 1 MHz
76543210
1010.10.010.001
8
1
0.1
, COLLECTOR−EMITTER
SATURATION VOLTAGE (V)
CE(sat)
V
0.01
50
45
40
35
30
25
20
15
10
, OUTPUT CAPACITANCE (pF)
OB
5
C
0
2 A
3 A
1 A
0.5 A
IC = 0.1 A
IB, BASE CURRENT (A)
Figure 9. Collector Saturation Region
TJ = 25°C
f
= 1 MHz
TEST
60 70 100
VCB, COLLECTOR BASE VOLTAGE (V)
Figure 11. Output Capacitance
10.10.010.0010.0001
908050403020100
140
TJ = 25°C
120
f
= 1 MHz
TEST
= 2 V
V
CE
100
80
60
40
20
, CURRENT GAIN BANDWIDTH (MHz)
Ta u
0
f
I
, COLLECTOR CURRENT (A)
C
Figure 12. Current−Gain Bandwidth Product
10
1
0.1
, COLLECTOR CURRENT (A)
C
I
0.01
10.10.010.001
http://onsemi.com
4
10 mS
100 mS
1 mS
Thermal Limit
VCE, COLLECTOR EMITTER VOLTAGE (V)
Figure 13. Safe Operating Area
1001010.1
Page 5
NSS1C201LT1G
PACKAGE DIMENSIONS
SOT−23 (TO−236)
CASE 318−08
ISSUE AN
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
D
H
SEE VIEW C
E
c
0.25
3
E
12
b
e
q
A
L
A1
L1
VIEW C
2. CONTROLLING DIMENSION: INCH.
3. MAXIMUM LEAD THICKNESS INCLUDES LEAD
FINISH THICKNESS. MINIMUM LEAD
THICKNESS IS THE MINIMUM THICKNESS OF
BASE MATERIAL.
4. 318−01 THRU −07 AND −09 OBSOLETE, NEW
STANDARD 318−08.
DIMAMIN NOM MAX MIN
A1 0.01 0.06 0.10 0.001
b 0.37 0.44 0.50 0.015
c 0.09 0.13 0.18 0.003
D 2.80 2.90 3.04 0.110
E 1.20 1.30 1.40 0.047
e 1.78 1.90 2.04 0.070
L 0.10 0.20 0.30 0.004
L1
H
STYLE 6:
PIN 1. BASE
MILLIMETERS
0.89 1.00 1.11 0.035
0.35 0.54 0.69 0.014 0.021 0.029
2.10 2.40 2.64 0.083 0.094 0.104
E
2. EMITTER
3. COLLECTOR
INCHES
NOM MAX
0.040 0.044
0.002 0.004
0.018 0.020
0.005 0.007
0.114 0.120
0.051 0.055
0.075 0.081
0.008 0.012
SOLDERING FOOTPRINT*
0.95
0.95
0.037
0.9
0.035
0.8
0.031
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
