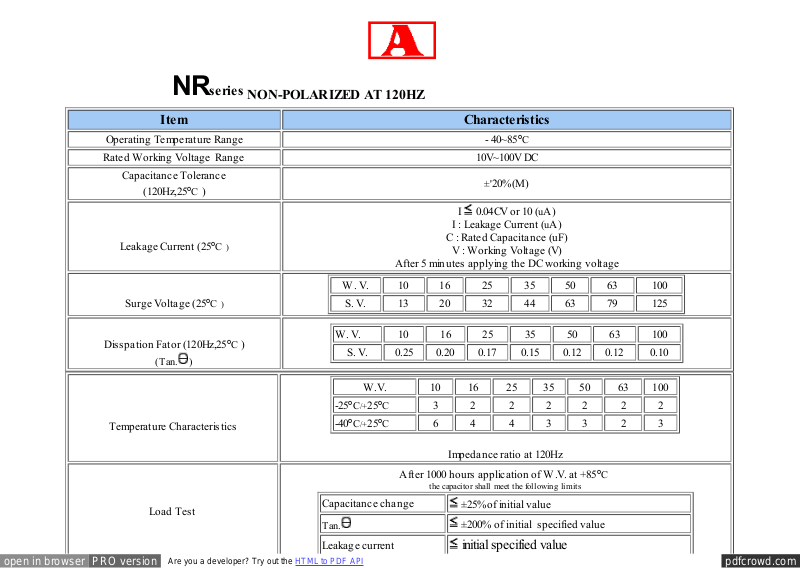

Page 1
NRseries
NON-POLARIZED AT 120HZ
Item Characteristics
Operating Temperature Range 40~85ºC
Rated Working Voltage Range 10V~100V DC
Capacitance Tolerance
(120Hz,25ºC )
±'20%(M)
Leakage Current (25ºC )
I 0.04CV or 10 (uA)
I : Leakage Current (uA)
C : Rated Capacitance (uF)
V : Working Voltage (V)
After 5 minutes applying the DC working voltage
Surge Voltage (25ºC )
W. V. 10 16 25 35 50 63 100
S. V. 13 20 32 44 63 79 125
Disspation Fator (120Hz,25ºC )
(Tan. )
W. V. 10 16 25 35 50 63 100
S. V. 0.25 0.20 0.17 0.15 0.12 0.12 0.10
Temperature Characteristics
W.V. 10 16 25 35 50 63 100
25ºC/+25ºC 3 2 2 2 2 2 2
40ºC/+25ºC 6 4 4 3 3 2 3
Impedance ratio at 120Hz
Load Tes t
After 1000 hours application of W.V. at +85ºC
the capacitor shall meet the following limits
Capacitance change
±25%of initial value
Tan.
±200% of initial specified value
Leakage current
initial specified value
Are you a developer? Try out the HTML to PDF API
pdfcrowd.comopen in browser PRO version
Page 2
Shelf Test
After 500 hours application of W.V. at +85ºC
the capacitor shall meet the following limits
Capacitance change
±25% of initial value
Tan.
200% of initial specified value
Leakage current
200% of initial specified value
NRseries

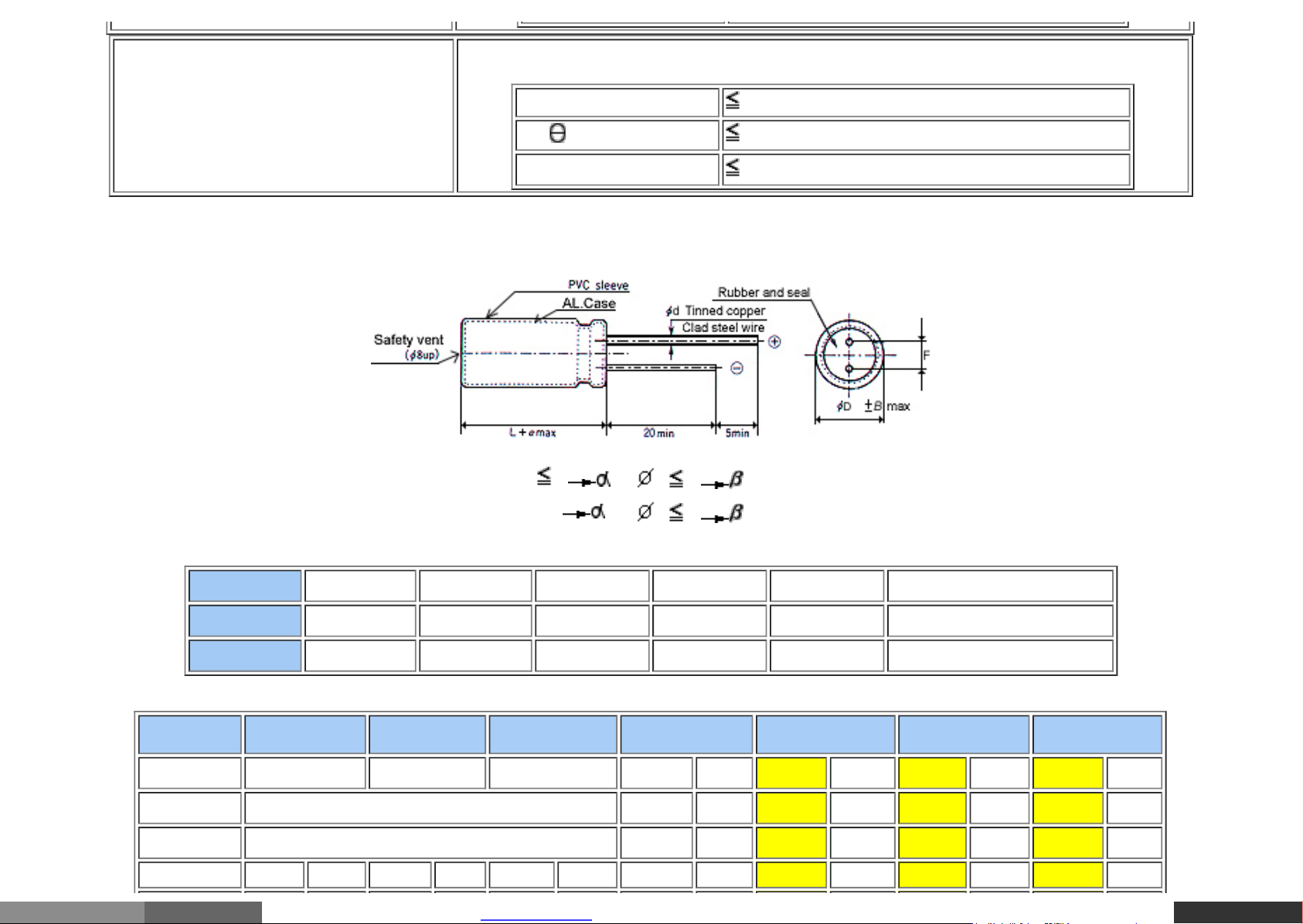

Dimensions
L 16 =1
D 10 =0.5
L>16 =2
D 10 =1.0
Unit (mm)
D
5 6 8 10 13 16
F ± '0.5
2 2.5 3.5 5 5 7.5
d ± '0.02
0.5 0.5 0.5 0.6 0.6 0.8
D x L (m/m)
uF\WV 10 16 25 35 50 63 100
0.47
5x11 10 5x11 10 5x11 13
1 Dimension: D x L (mm)
5x11 16 5x11 16 5x11 20
2.2 Ripple Current : mA (rms) at 120Hz 85ºC
5x11 24 5x11 24 5x11 32
3.3
5x11 29 5x11 35 5x11 47
Are you a developer? Try out the HTML to PDF API
pdfcrowd.comopen in browser PRO version
Page 3
4.7
5x11 39 5x11 42 6x12 55
10
5x11 48 5x11 51 6x12 67 6x12 70 10x12 95
22
5x11 66 5x11 82 6x12 89 6x12 109 10x12 124 10x15 171
33 5x11 73 5x11 93 6x12 100 6x12 119 8x12 143 10x16 166 13x21 210
47 6x12 88 6x12 109 6x12 133 8x12 157 8x12 181 13x21 219 13x26 276
100 6x12 183 6x12 195 8x12 228 10x17 271 10x20 295 13x25 390 16x28 485
