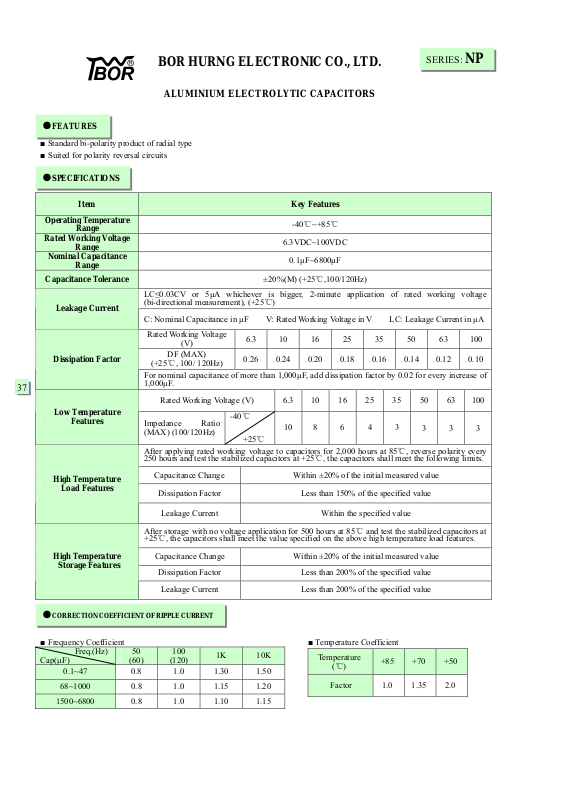

BOR HURNG ELECTRONIC CO., LTD.
ALUMINIUM ELECTROLYTIC CAPACITORS
●FEATURES
■ Standard bi-polarity product of radial type
■ Suited for polarity reversal circuits
●SPECIFICATIONS
Item Key Features
Operating Temperature
Rated Working Voltage
Capacitance Tolerance ±20%(M) (+25℃,100/120Hz)
37
Range
Range
Nominal Capacitance
Range
Leakage Current
Dissipation Factor
Low Temperature
Features
LC≤0.03CV or 5μA whichever is bigger, 2-minute application of rated working voltage
(bi-directional measurement), (+25℃)
C: Nominal Capacitance in μF V: Rated Working Voltage in V LC: Leakage Current in μA
Rated Working Voltage
(+25℃, 100/ 120Hz)
For nominal capacitance of more than 1,000μF, add dissipation factor by 0.02 for every increase of
1,000μF.
Impedance Ratio
(MAX) (100/120Hz)
After applying rated working voltage to capacitors for 2,000 hours at 85℃, reverse polarity every
250 hours and test the stabilized capacitors at +25℃, the capacitors shall meet the following limits.
(V)
DF (MAX)
Rated Working Voltage (V) 6.3 10 16 25 35 50 63 100
6.3 10 16 25 35
0.26 0.24 0.20 0.18 0.16 0.14 0.12
-40℃
+25℃
-40℃~+85℃
6.3VDC~100VDC
0.1μF~6800μF
10 8 6 4 3
SERIES: NP
50
63 100
3 3 3
0.10
High Temperature
Load Features
High Temperature
Storage Features
Capacitance Change Within ±20% of the initial measured value
Dissipation Factor Less than 150% of the specified value
Leakage Current
After storage with no voltage application for 500 hours at 85℃ and test the stabilized capacitors at
+25℃, the capacitors shall meet the value specified on the above high temperature load features.
Capacitance Change
Dissipation Factor
Leakage Current
Within the specified value
Within ±20% of the initial measured value
Less than 200% of the specified value
Less than 200% of the specified value
●CORRECTION COEFFICIENT OF RIPPLE CURRENT
■ Frequency Coefficient ■ Temperature Coefficient
Cap(μF)
Freq.(Hz)
0.1~47 0.8 1.0 1.30 1.50
68~1000 0.8 1.0 1.15 1.20
1500~6800 0.8 1.0 1.10 1.15
50
(60)
100
(120)
1K 10K
Temperature
(℃)
Factor 1.0 1.35 2.0
+85 +70 +50

BOR HURNG ELECTRONIC CO., LTD
铝 电 解 电 容 器
ALUMINIUM ELECTROLYTIC CAPACITORS

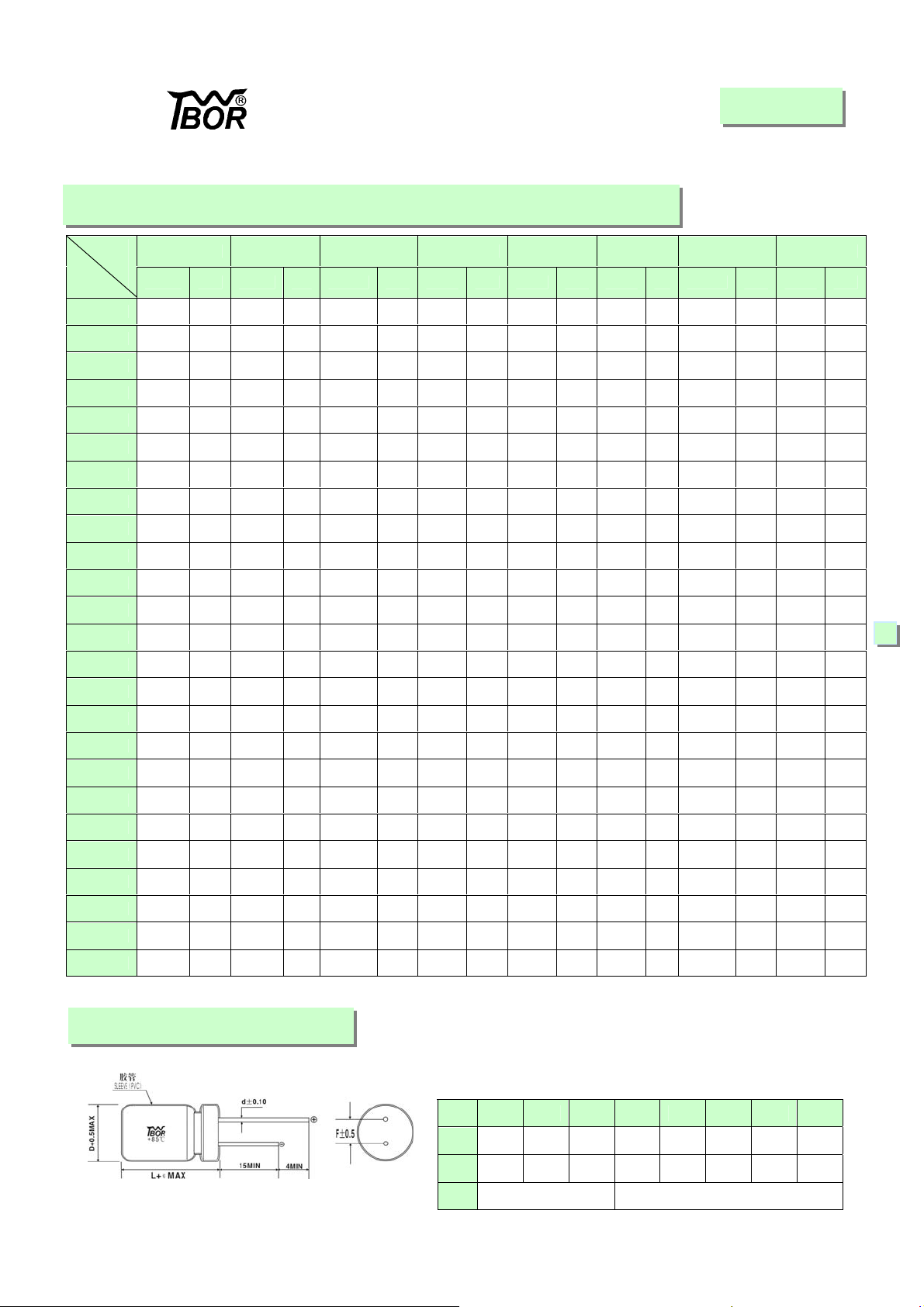

●DIMENSIONS DXL(mm) AND MAXIMUM RIPPLE CURRENT(mA.rms at 85℃, 100/120Hz)
W.V.
(V)
CAP.
(μF)
0.1
0.22
0.33
0.47
0.68
1
2.2
3.3
4.7
6.8
10
22
6.3 10 16 25 35 50 63 100
SIZE I
5×11 1.3 5×11 1.3 5×11 2.7
5×11 2.9 5×11 2.9 5×11 5.9
5×11 4.4 5×11 4.4 5×11 8.8
5×11 6.3 5×11 6.3 5×11 10
5×11 8.3 5×11 8.6 5×11 12
5×11 12 5×11 13 5×11 15
5×11 18 5×11 20 5×11 22
5×11 23 5×11 24 6.3×11 30
5×11 27 5×11 29 6.3×11 36
5×11 36 5×11 40 6.3×11 47
5×11 33 5×11 33 5×11 37 5×11 39 6.3×11 48 8×12 63
5×11 45 5×11 49 5×11 49 6.3×11 62 6.3×11 66 8×12 85 8×16 117
R
SIZE I
R
SIZE I
R
SIZE I
R
SIZE I
R
SIZE I
R
SERIES: NP
SIZE I
R
SIZE I
R
33
47
68
100
220
330
470
680
1000
2200
3300
4700
6800
5×11 55 5×11 55 5×11 60 6.3×11 68 6.3×11 76 8×12 97 8×14 112 10×17 152
5×11 65 5×11 65 5×11 78 6.3×11 81 8×12 108 8×14 123 8×16 153
5×11 92 5×11 92 6.3×11 105 6.3×11 128 8×12 148 8×16 186 10×17 205 13×20 282
5×11 108 6.3×11 108 6.3×11 146 8×12 141 8×14 168 10×17 217 10×20 258 13×25 361
6.3×11 156 8×12 156 8×12 182 8×16 246 10×17 313 13×20 410 13×25 443 16×30 652
8×12 234 8×12 234 8×16 326 10×17 361 10×20 457 13×25 503 16×25 673 18×35 966
8×12 297 8×14 323 10×17 433 10×20 492 13×20 561 16×25 744 16×30 870 22×40 1010
8×16 345 8×16 468 10×20 621 13×20 703 13×25 842 16×30 1021 18×30 1296
10×17 577 10×17 648 13×20 732 13×25 807 16×25 1015 18×30 1334 22×30 2231
13×20 952 13×20 1051 16×25 1283 16×30 1485 18×40 1895 22×40 2416
13×25 1239 13×25 1359 16×30 1645 18×35 1986 22×40 2318
16×25 1420 16×25 1732 18×30 1992 22×40 2381
16×30 1650 16×30 2240 22×30 2441
10×20
38
214
CASE SIZE AND DIMENSIONS(MM)
Capacitor External Diametre D, Lead Diametre d, Lead Spacing F
D 5 6 8 10 13 16 18 22
F 2.0 2.5 3.5 5.0 5.0 7.5 7.5 10
d 0.5 0.5 0.5 0.6 0.6 0.8 0.8 0.8
α 1.5 2.0
