User Manual

Version 0.99

NovoConnect™ B360

Wireless Presentation & Collaboration System

Table of Contents

1. GETTING STARTED ...............................................................................4

1.1 Package Contents ...................................................................................... 4

1.2 Connecting your NovoConnect B360 Device ............................................. 5

1.2.1 Steps to connect your NovoConnect B360 Device ....................................................... 5

1.2.2 The NovoConnect Home Screen ................................................................................. 6

1.3 Software Download and Installation ......................................................... 7

2. WI-FI SETUP .......................................................................................... 10

2.1 Hotspot Mode ......................................................................................... 10

2.2 Client Mode ............................................................................................ 11

3. MAKING A PRESENTATION ........................................................... 12

3.1 Presenting with Windows and Mac PC ........................................................ 12

3.1.1 Step 1: Presentation Software Configuration ............................................................ 12

3.1.2 Step 2: Connect to your B360 device......................................................................... 14

3.1.3 Step 3: Make a Presentation ..................................................................................... 15

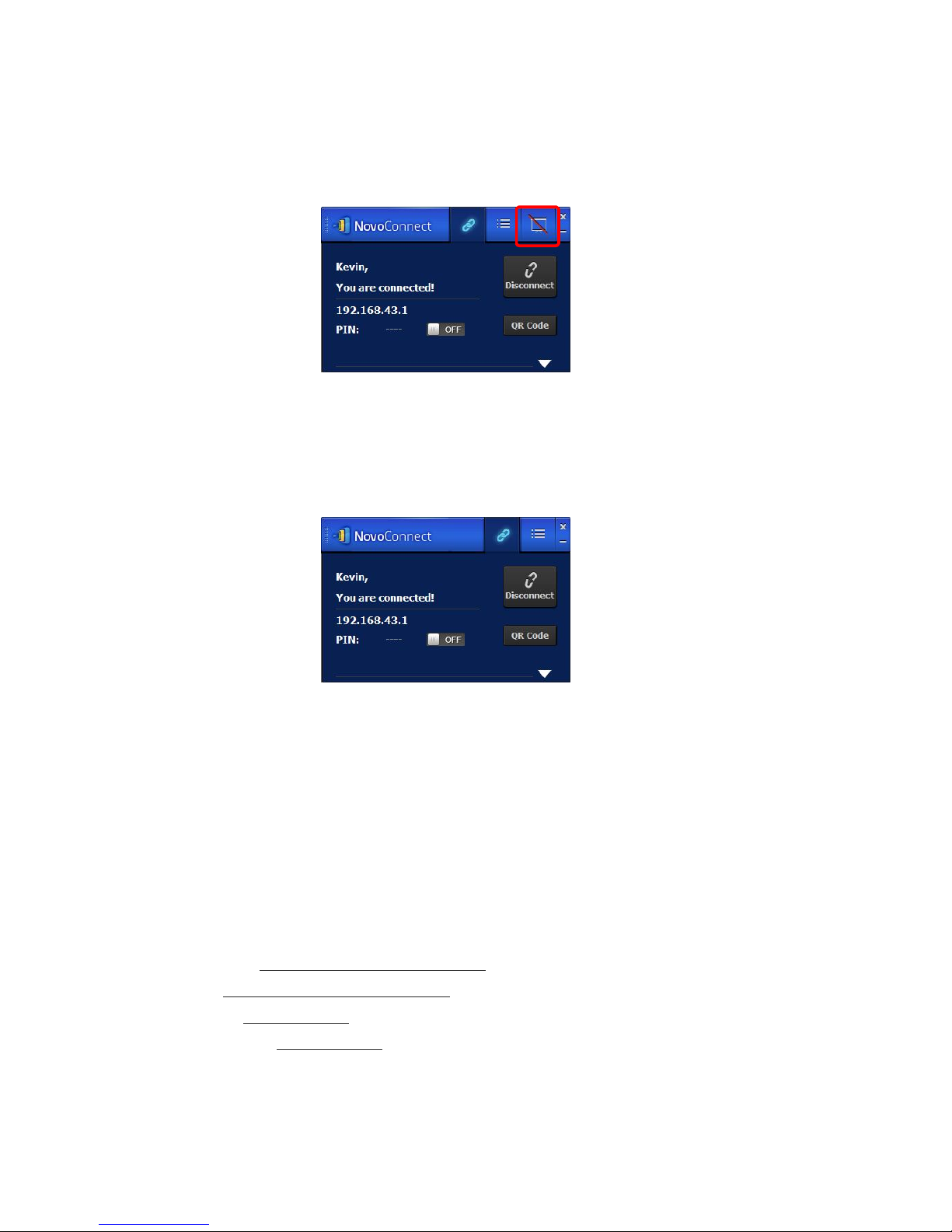

3.1.4 Step 4: Presentation Management ........................................................................... 15

3.1.4.1 Role Assignment .......................................................................................................................... 15

3.1.4.2 Role Change, Screen Preview, and 4-way Split Screen................................................................... 16

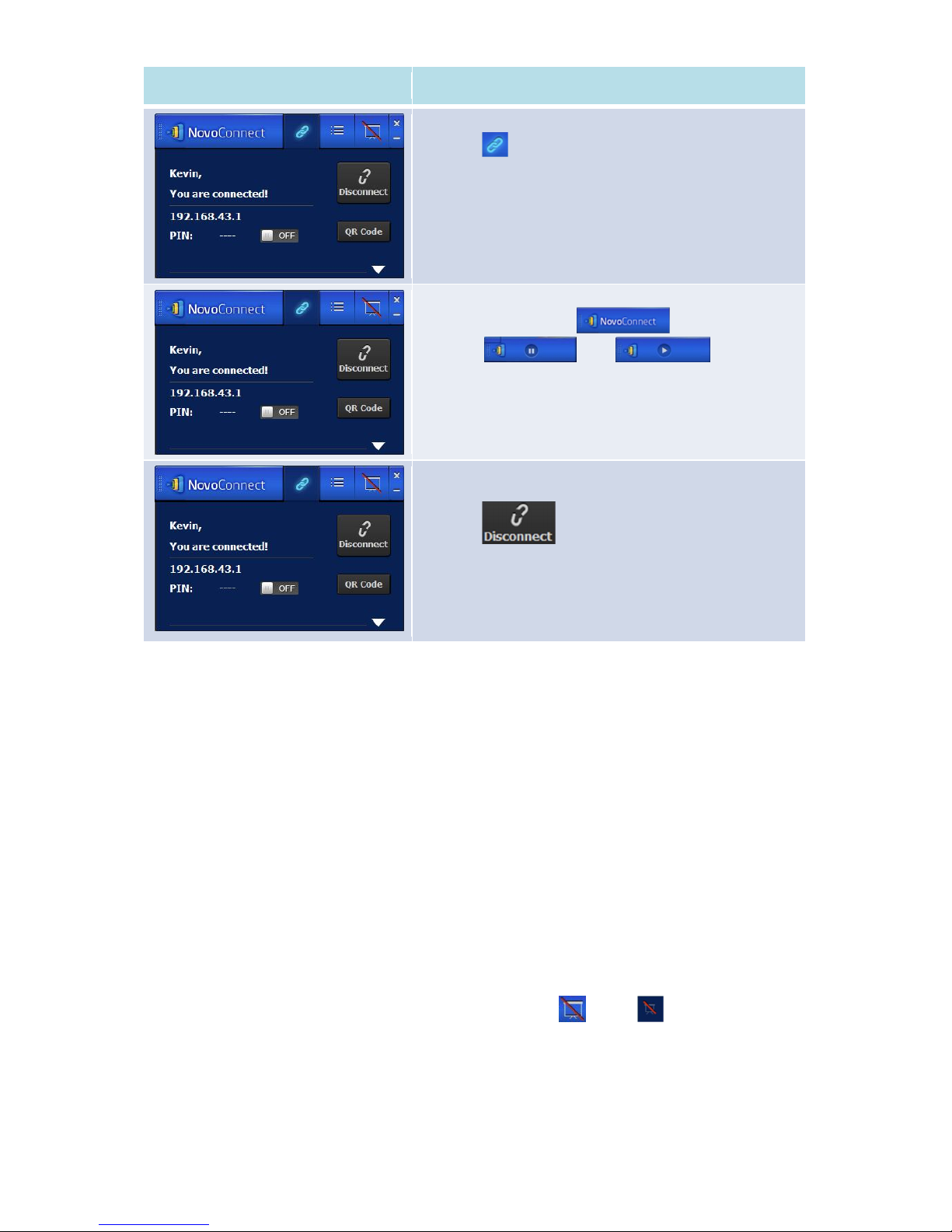

3.1.4.3 Pause, Resume, and Disconnect ................................................................................................... 17

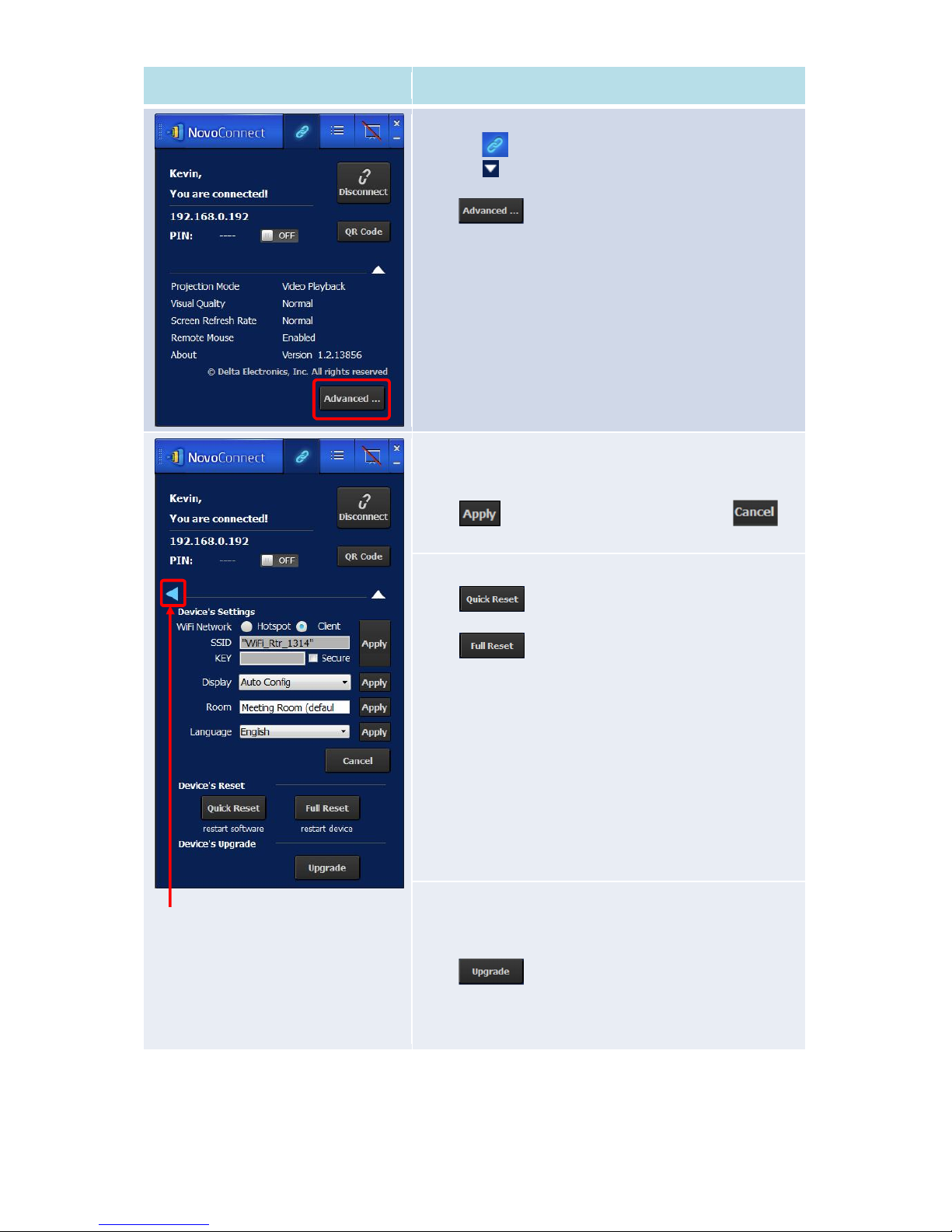

3.1.4.4 Device Information and Settings, Reset, and Firmware Upgrade ................................................... 18

3.2 Presenting with iOS Tablet (iPad) ................................................................ 20

3.2.1 Step 1: Connect to your B360 Device ........................................................................ 20

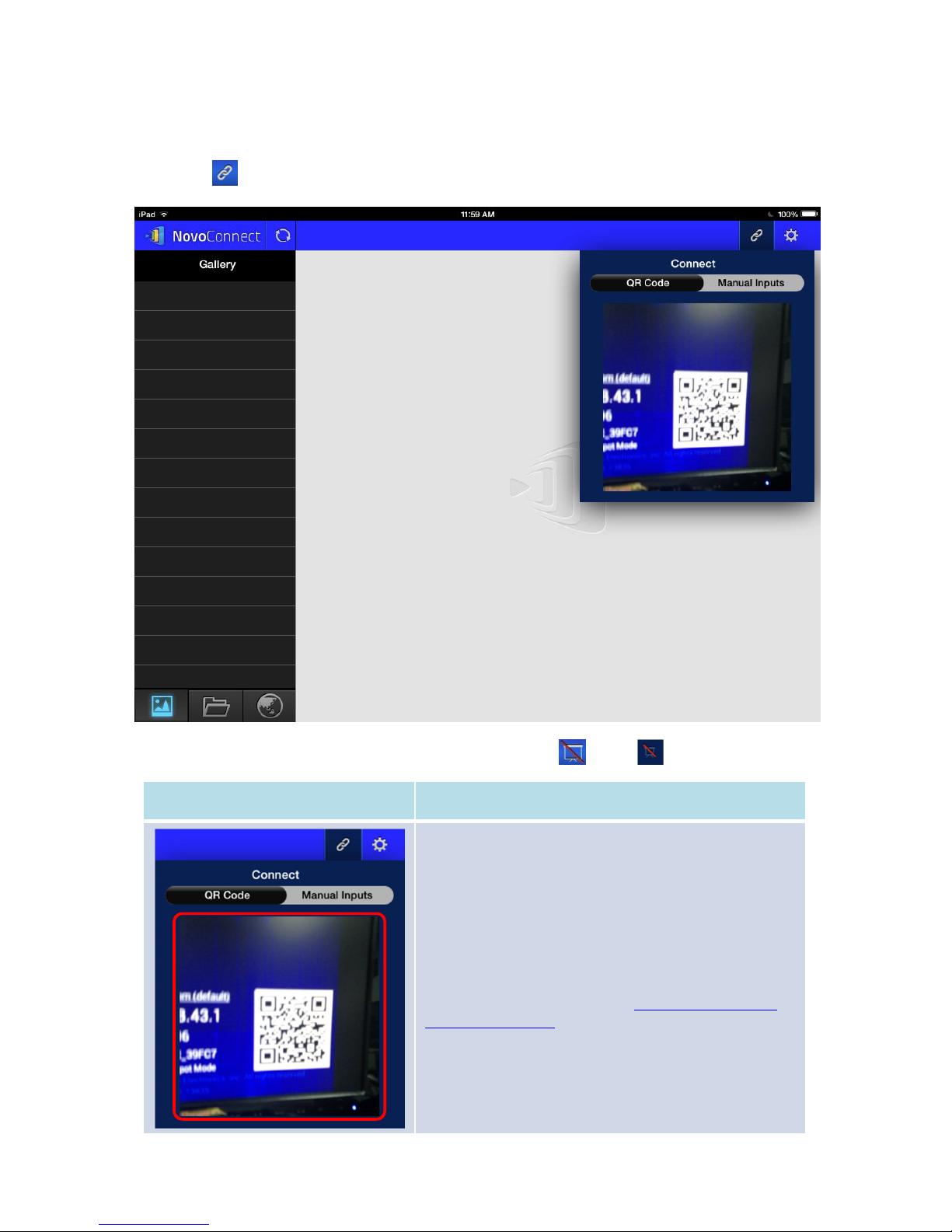

3.2.1.1 Connect to your B360 device automatically via QR Code .............................................................. 21

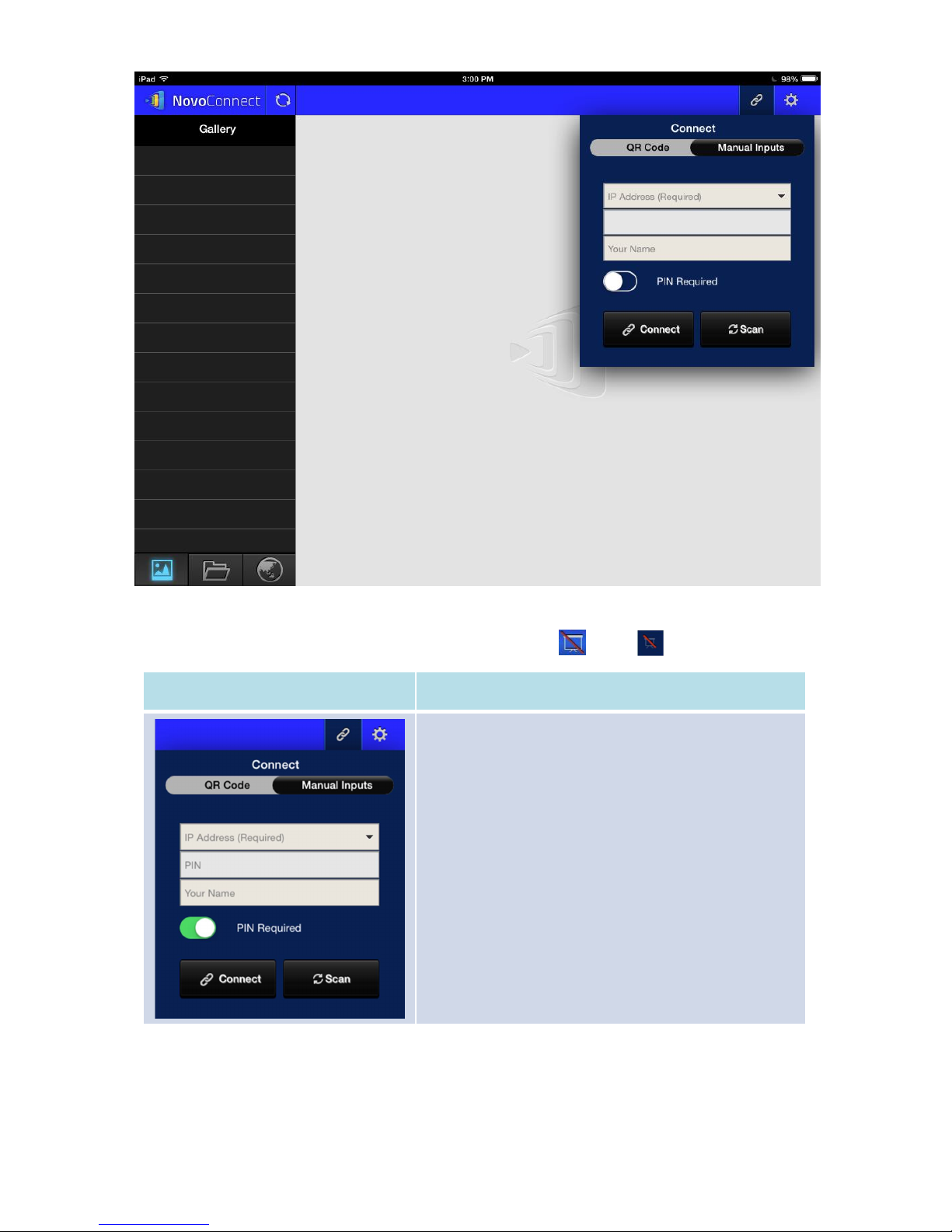

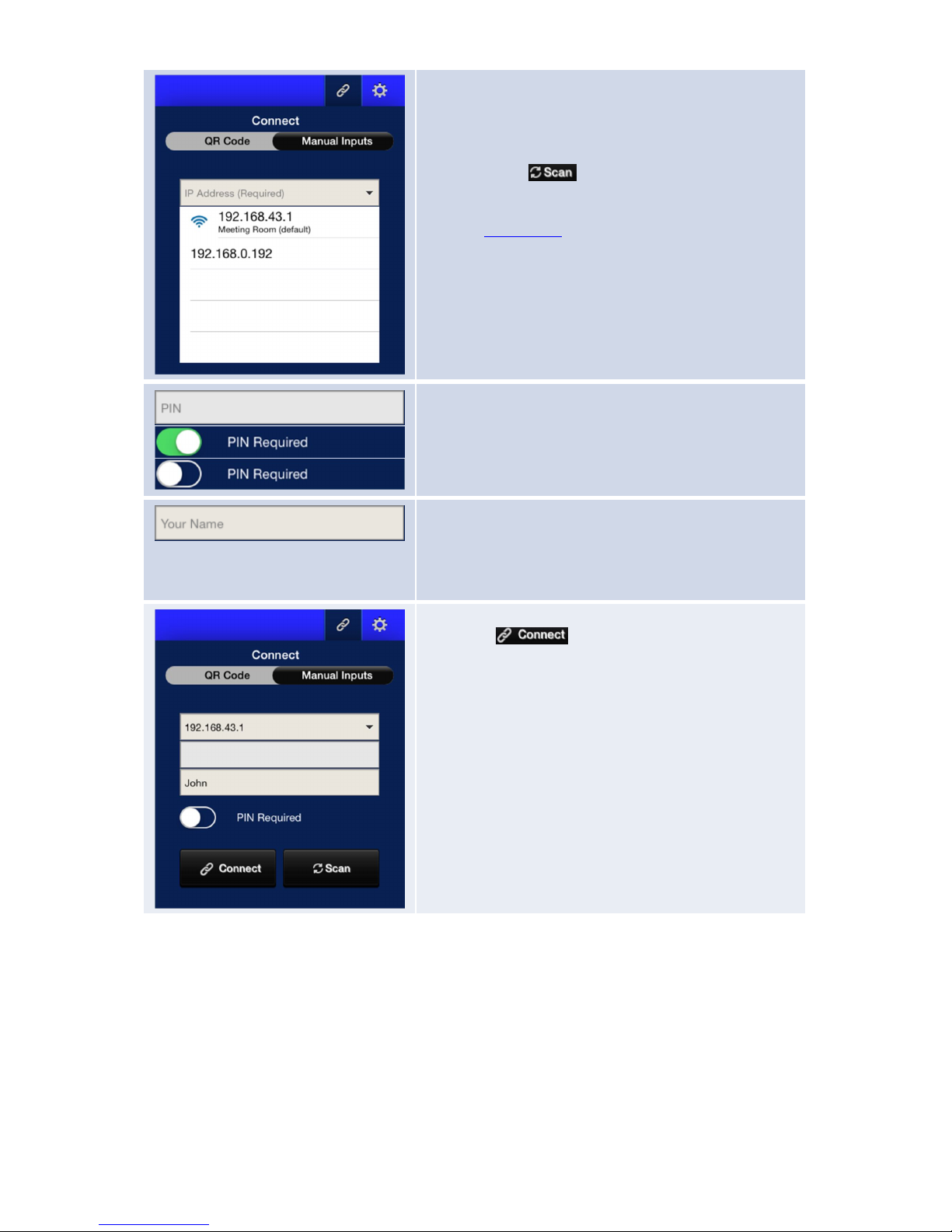

3.2.1.2 Connect to your B360 device manually ......................................................................................... 22

3.2.3 Step 3: Make a Presentation ..................................................................................... 25

3.2.3.1 Presenting an Image .................................................................................................................... 25

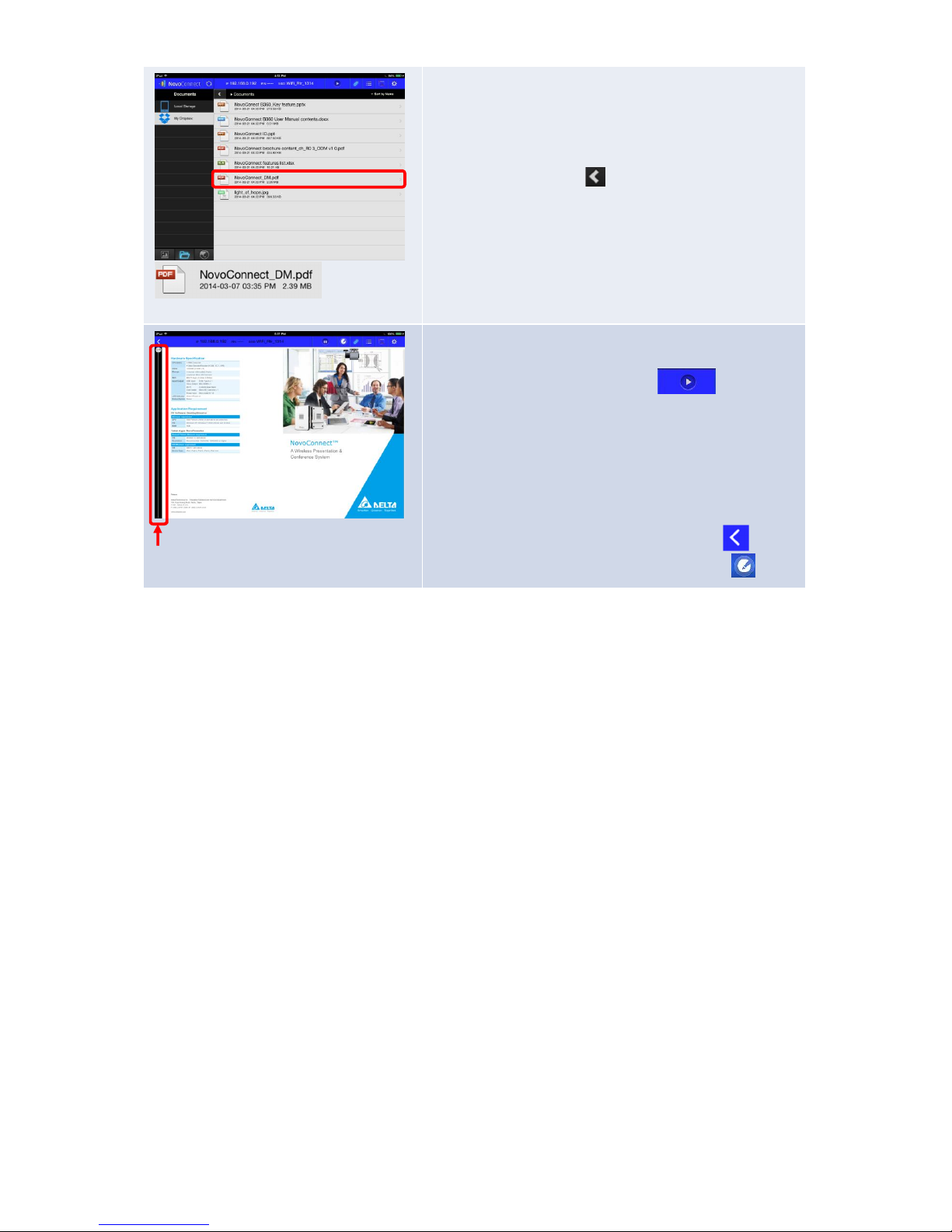

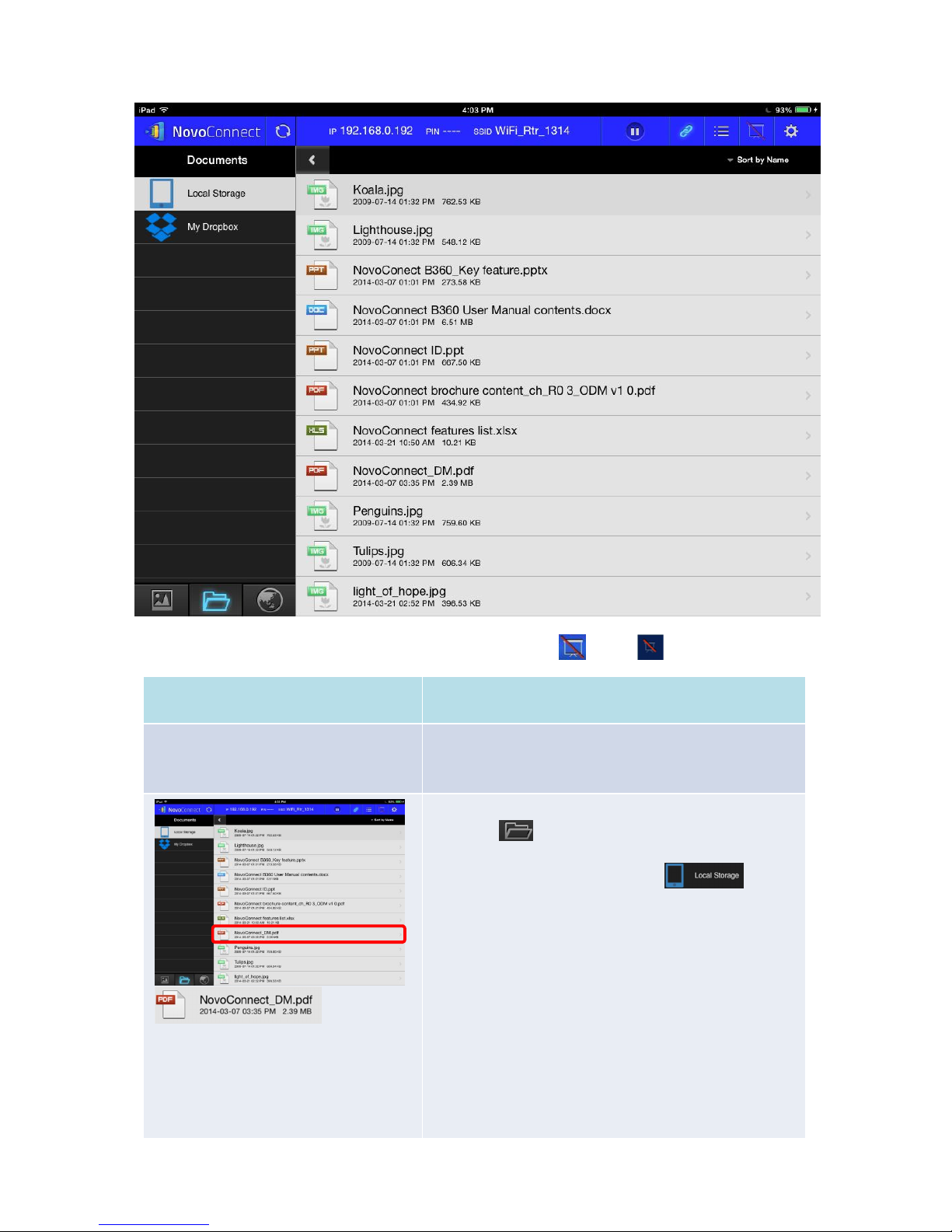

3.2.3.2 Presenting a Document (Local Storage) ........................................................................................ 28

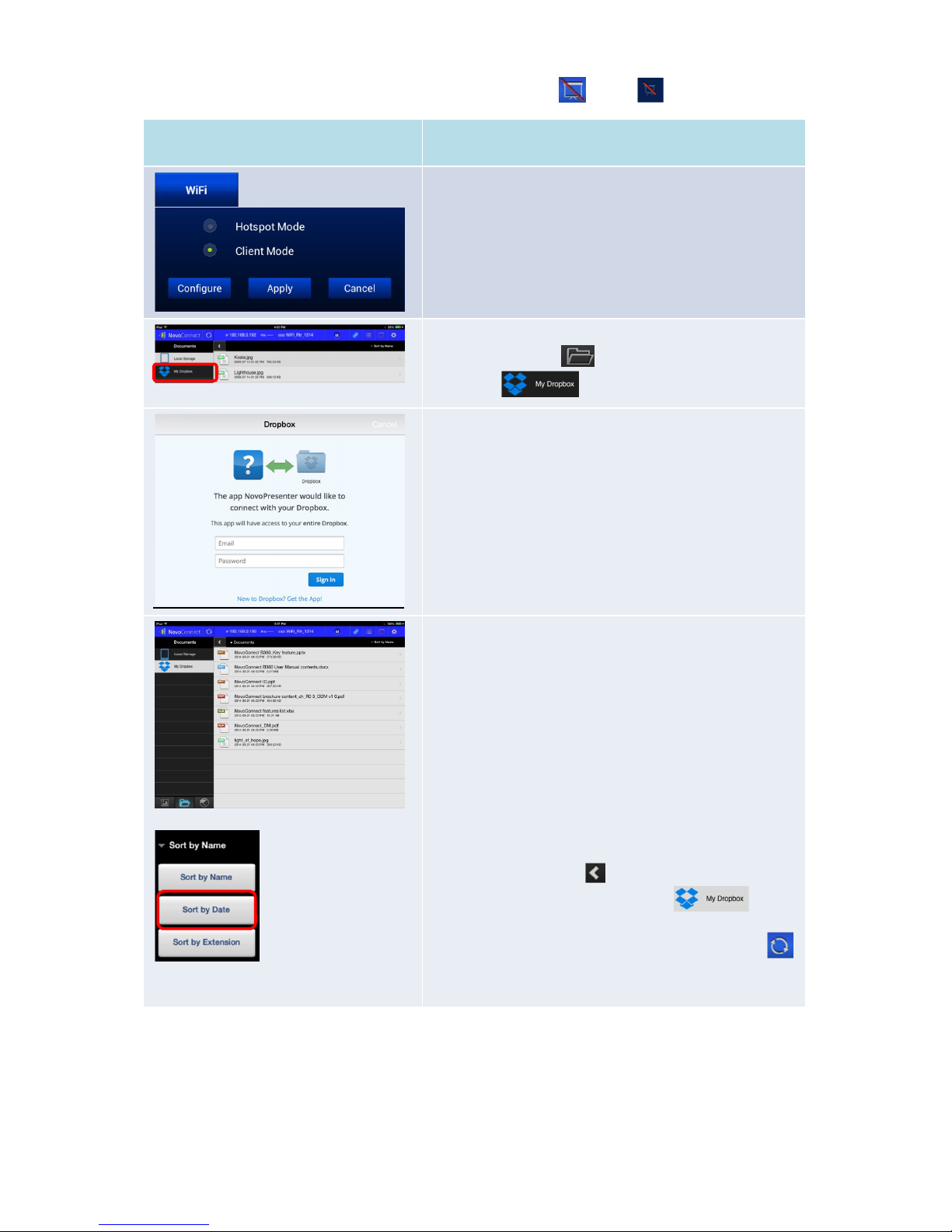

3.2.3.2 Presenting a Document (With Dropbox) ....................................................................................... 29

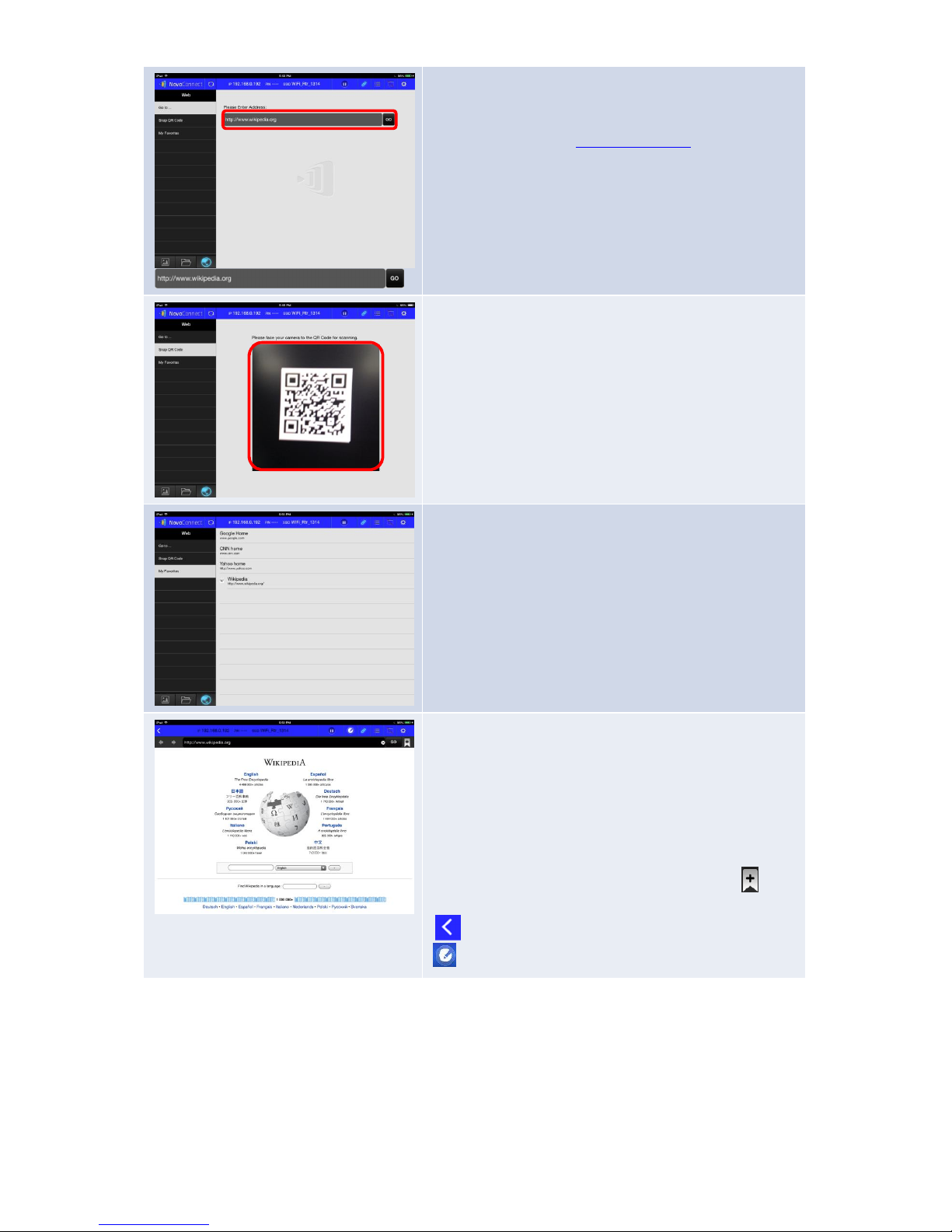

3.2.3.3 Presenting with a Browser ........................................................................................................... 32

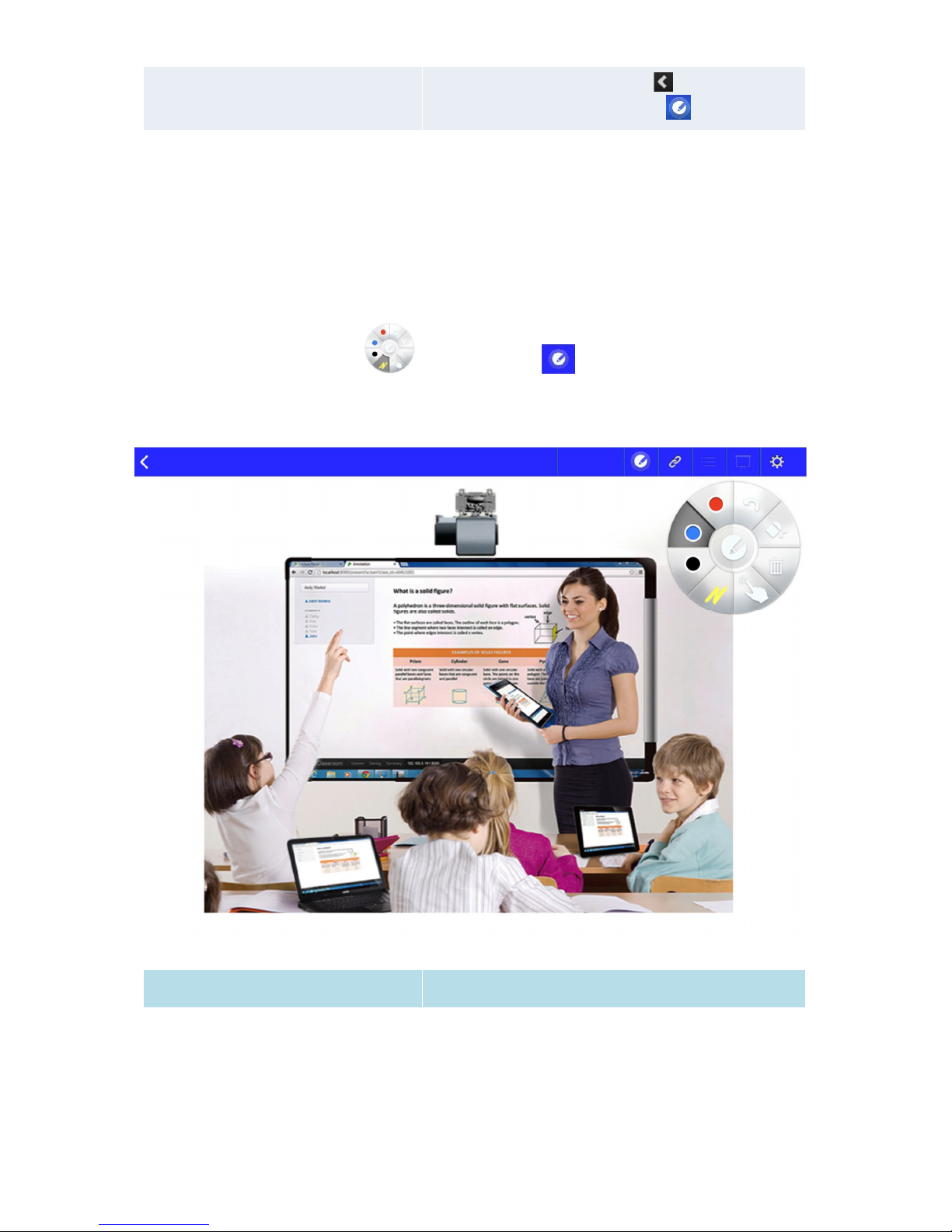

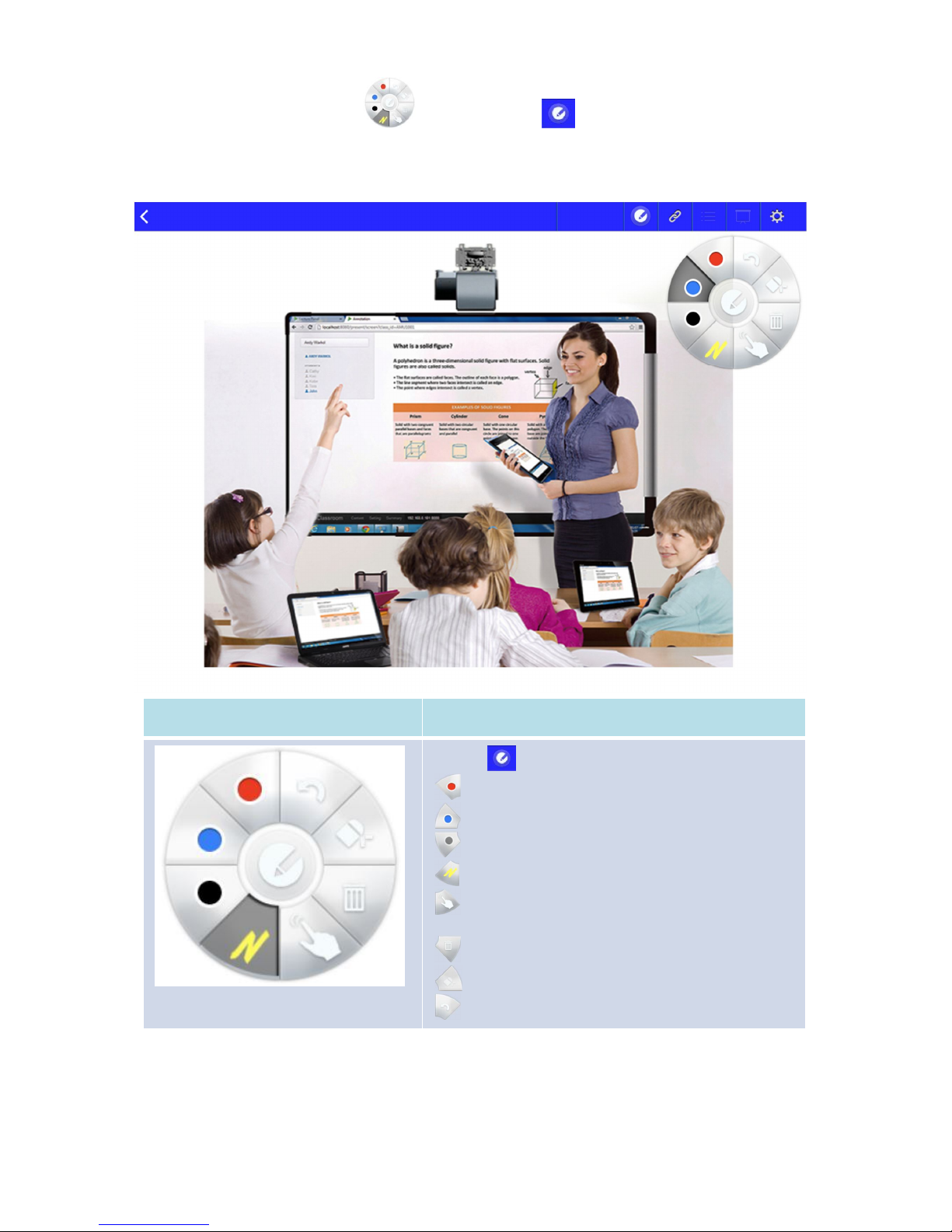

3.2.3.4 Annotation .................................................................................................................................. 33

3.2.4 Step 4: Presentation Management ........................................................................... 35

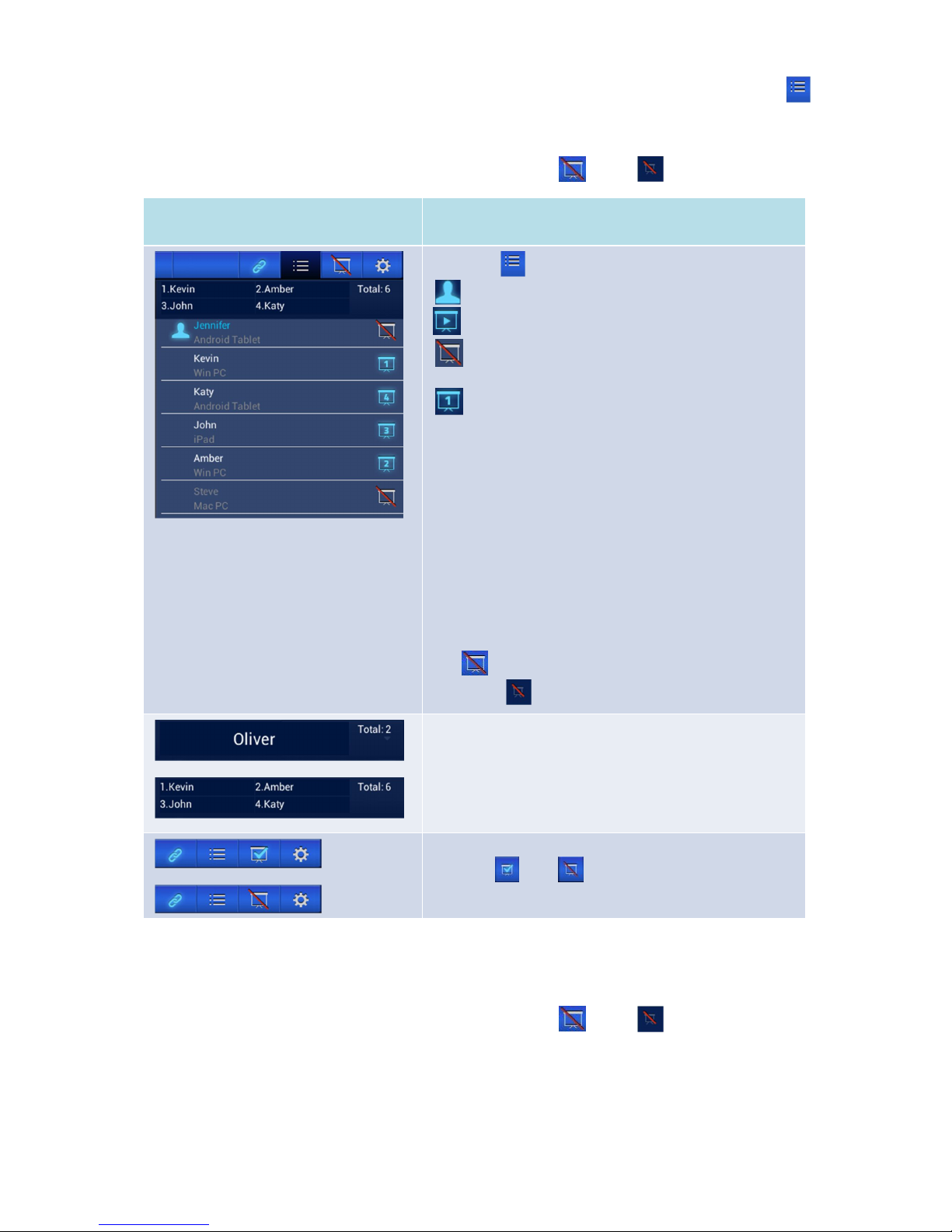

3.2.4.1 Role Assignment .......................................................................................................................... 35

3.2.4.2 Role Change, Screen Preview, and 4-way Split Screen................................................................... 36

3.2.4.3 Pause, Resume, and Disconnect ................................................................................................... 40

3.2.4.4 Reset ........................................................................................................................................... 41

3.3 Presenting with Android Tablet ................................................................... 42

3.3.1 Step 1: Connect to your B360 Device ........................................................................ 43

3.3.1.1 Connect to your B360 device automatically via QR Code .............................................................. 44

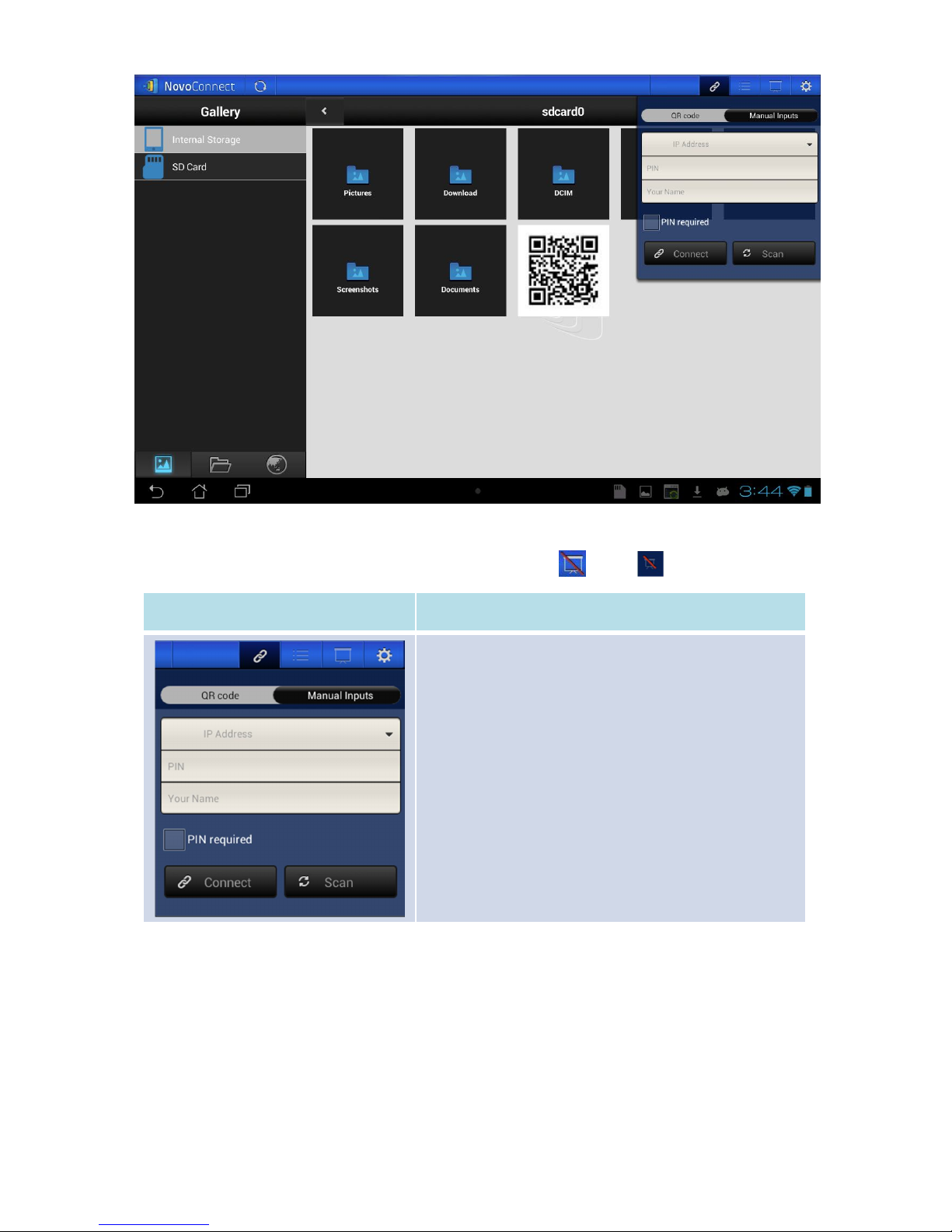

3.3.1.2 Connect to your B360 device manually ......................................................................................... 45

3.3.2 Step 2: Make a Presentation ..................................................................................... 48

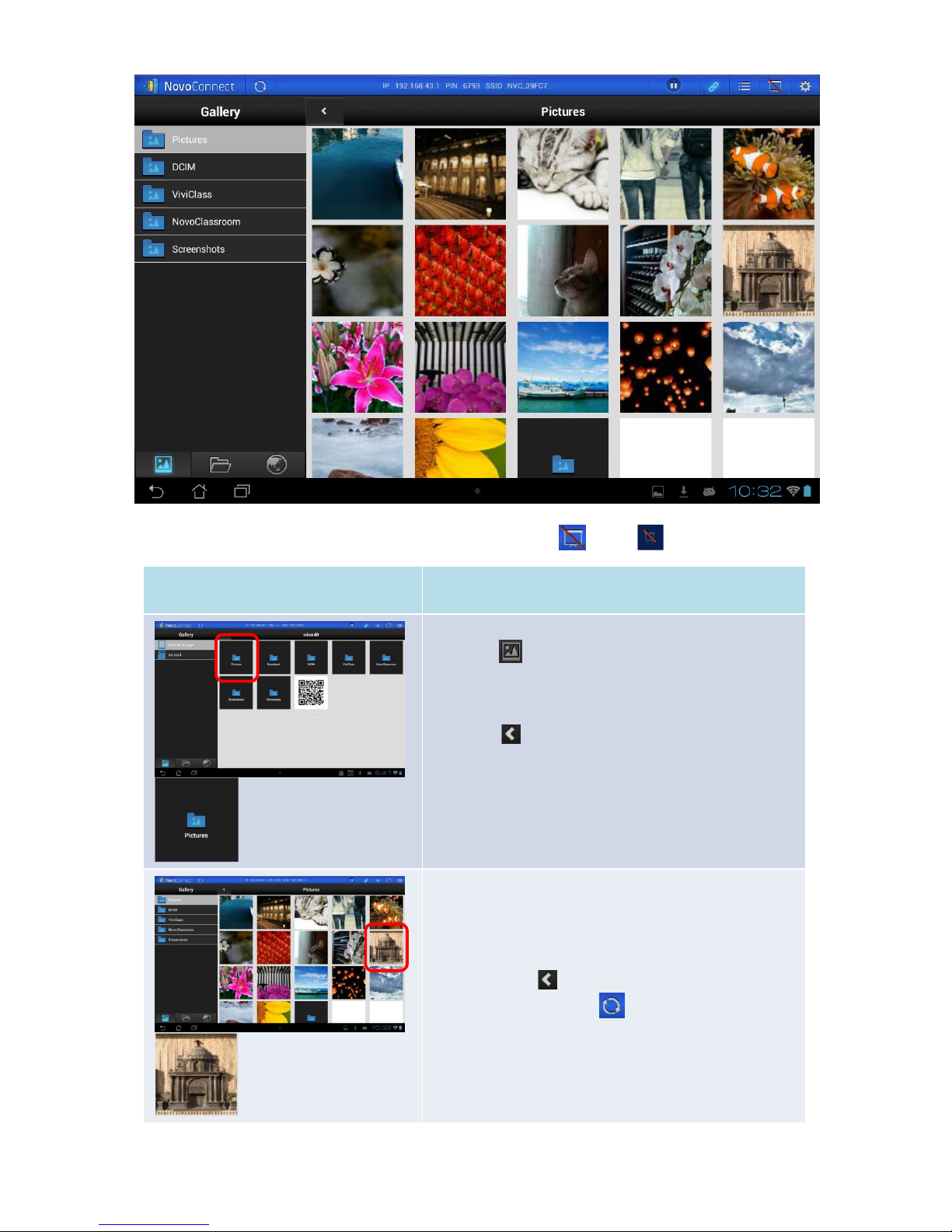

3.3.2.1 Presenting an Image .................................................................................................................... 48

3.3.2.2 Presenting a Document (Local Storage) ........................................................................................ 50

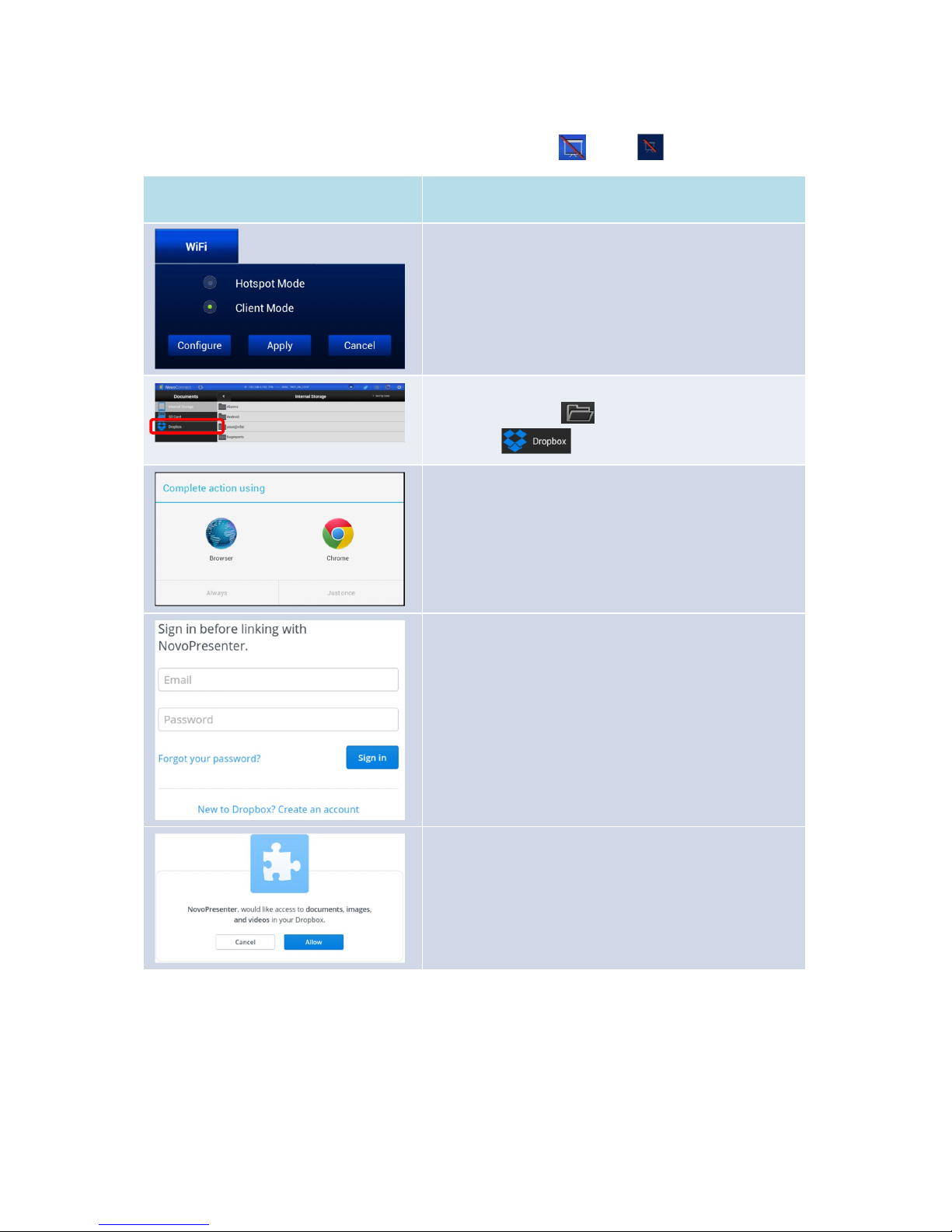

3.3.2.3 Presenting a Document (With Dropbox) ....................................................................................... 52

3.3.2.4 Presenting a Document (with a Browser) ..................................................................................... 53

3.3.2.5 Annotation .................................................................................................................................. 55

3.3.3 Step 3: Presentation Management ........................................................................... 56

3.3.3.1 Role Assignment .......................................................................................................................... 56

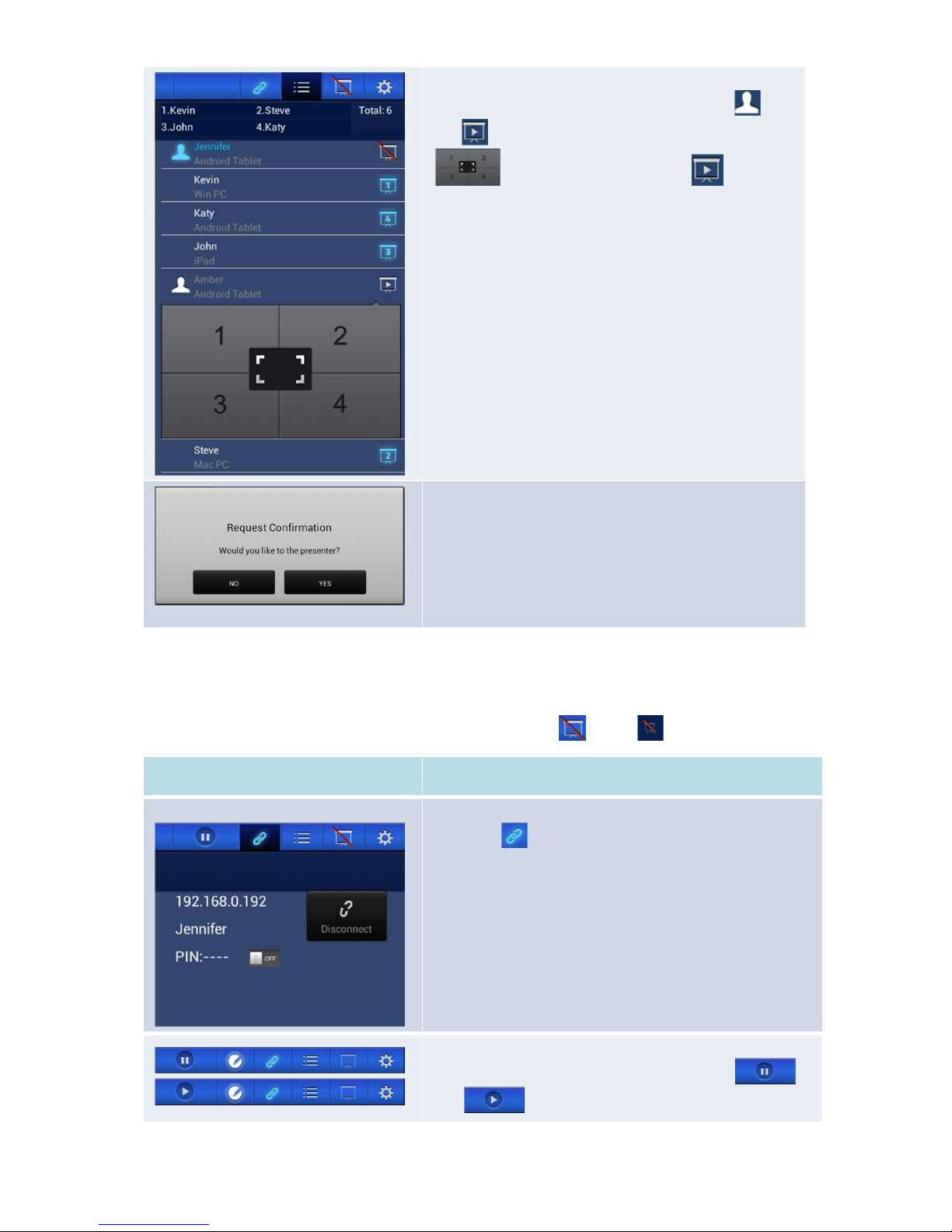

3.3.3.2 Role Change, Screen Preview, and 4-way Split Screen................................................................... 57

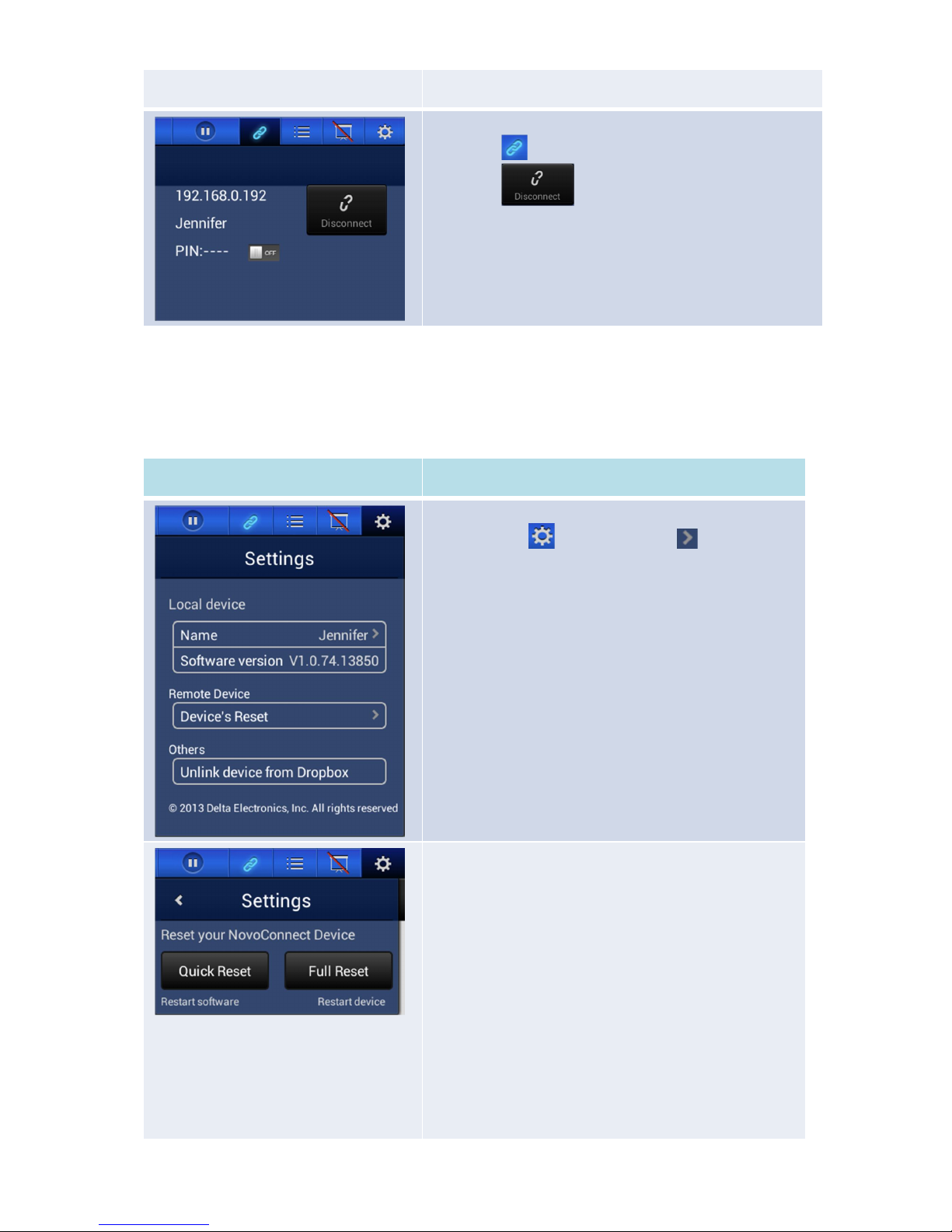

3.3.3.3 Pause, Resume, and Disconnect ................................................................................................... 60

3.3.3.4 Reset and Rename Local Device ................................................................................................... 61

3.4 Presenting with the NovoConnect B360 Device .......................................... 62

4. B360 CONFIGURATION ..................................................................... 63

5. SPECIFICATIONS ................................................................................... 66

6. TROUBLESHOOTING........................................................................... 67

7. SAFETY INFORMATION ..................................................................... 69

8. COPYRIGHT INFORMATION ............................................................ 70

9. INDEX ......................................................................................................... 71

1. Getting Started

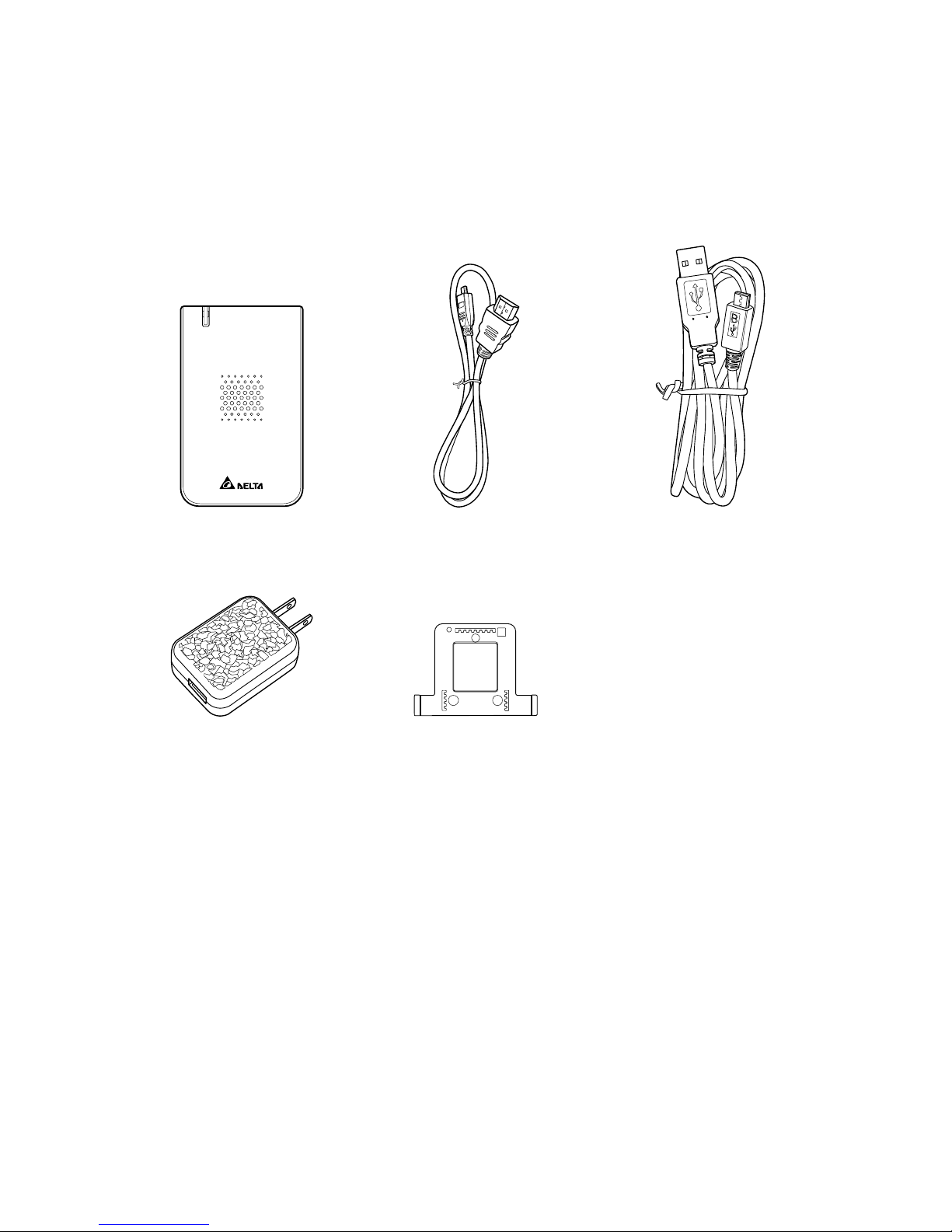

1.1 Package Contents

(a) NovoConnect B360 main unit (b) Micro-HDMI-to-HDMI cable (c) Micro-USB-to-USB power cable

(d) USB power adapter (e) NovoConnect Mount

1.2 Connecting your NovoConnect B360 Device

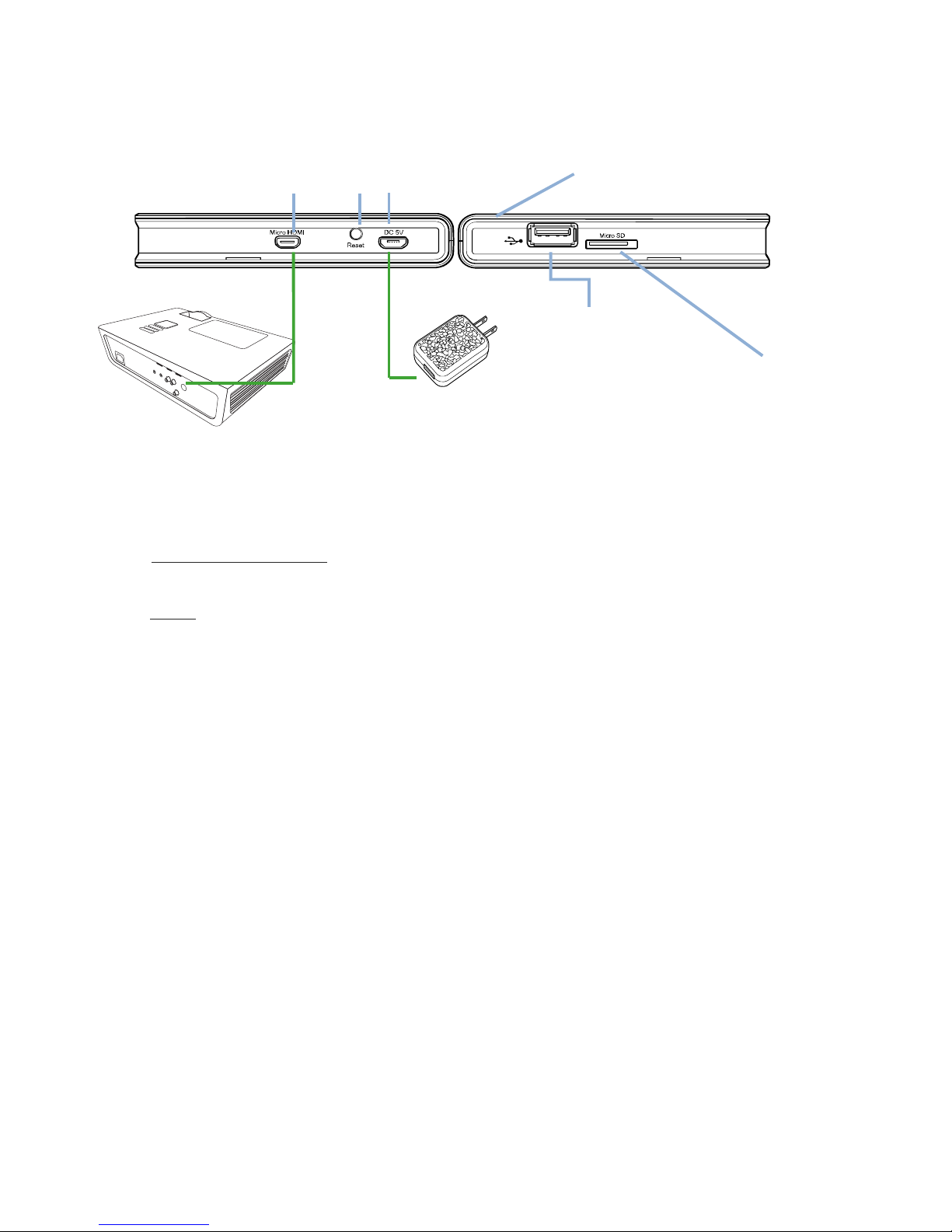

1.2.1 Steps to connect your NovoConnect B360 Device

1. Video/Audio connection: Connect the Micro HDMI port to the TV/projector’s HDMI input

port using the Micro-HDMI-to-HDMI cable (item (b) in “Package Contents.”)

2. Power: Connect the Micro-USB port to a power source using the Micro-USB-to-USB power

cable and the USB power adapter (items (c) and (d) in “Package Contents.”)

Note: In this manual, your NovoConnect B360 will also be referred to as B360 for short.

Note: You may connect an optional USB mouse, keyboard, or memory drive to the USB port.

Note: The microSD slot supports microSD cards up to 32 GB, FAT32 and NTFS file types.

1 2

USB power adapter

HDMI input port

Micro HDMI port (to TV/projector)

Reset

Micro-USB port (5V power input)

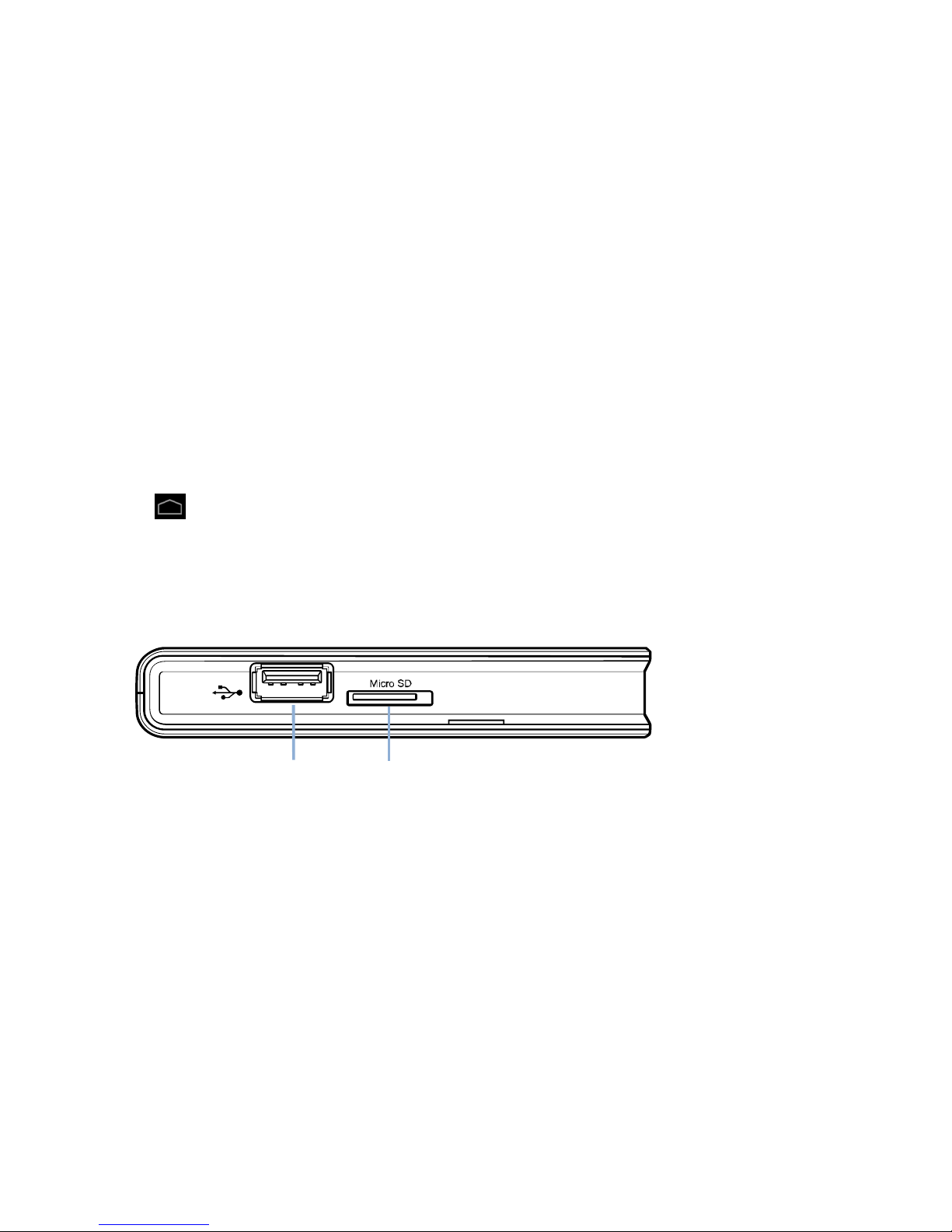

USB port (Mouse,

keyboard,

memory drive)

microSD slot

Power LED (Green light when power is on)

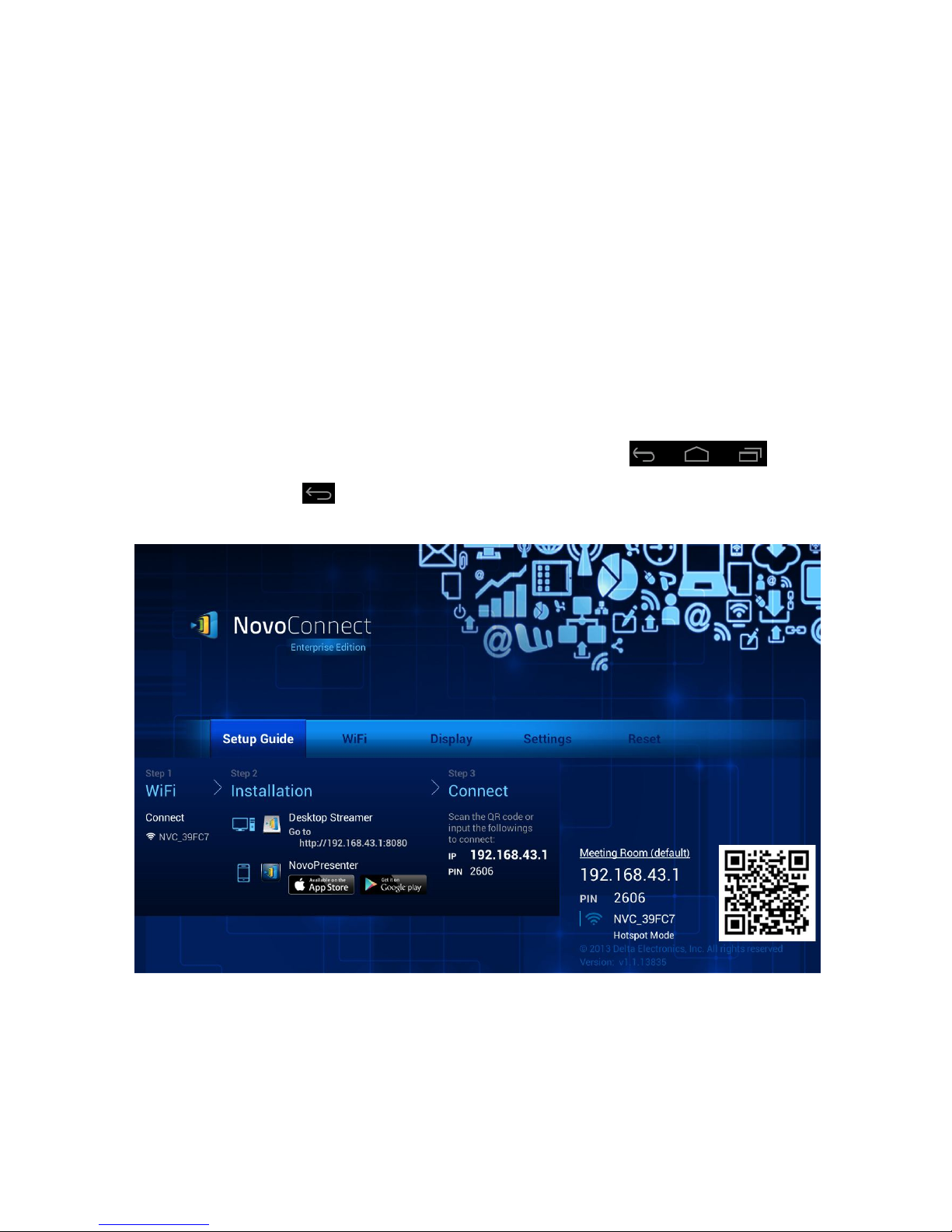

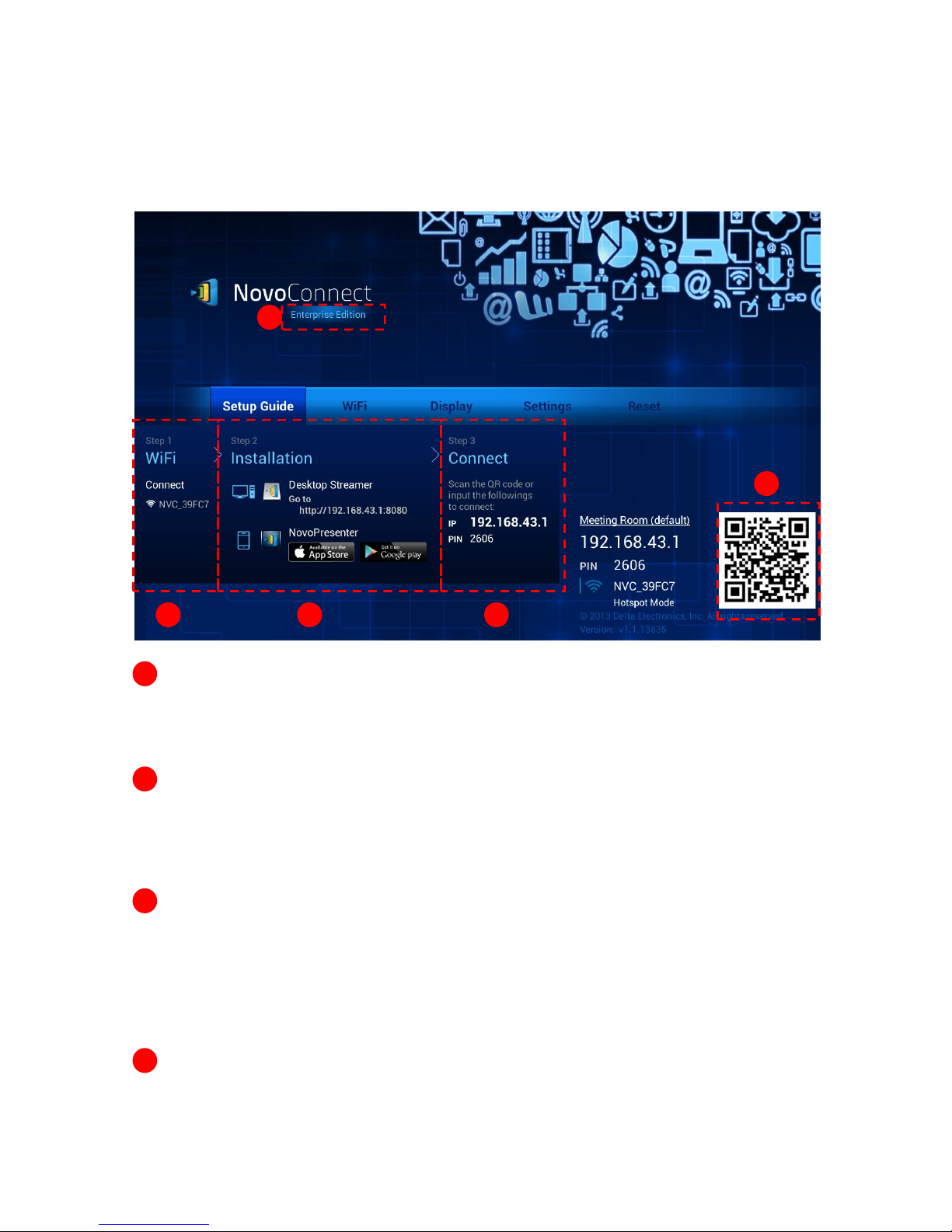

1.2.2 The NovoConnect Home Screen

The NovoConnect B360 device will power up with the below display after steps 1 and 2 listed

above. This display is referred to as the “NovoConnect home screen” or just the “home screen”

in the document. The display is generated by the presentation management software, in the

B360 device, which is also known as the remote viewer.

Presentation Setup

Enable Wi-Fi on the computer. Search for and connect to the SSID shown in this step (e.g.

NVC_39FC7). The default Wi-Fi mode is Hotspot Mode for your B360.

Software Installation

Windows/Mac Users: Enter the URL into a web browser and follow the instructions in

the next section.

iPad/Android Users: Follow the instructions in the next section.

Connect

Windows/Mac Users: Launch the installed NovoConnect Desktop Streamer application

and enter the URL (and PIN if required) shown in this step.

iPad/Android Devices: Scan the QR code on the bottom right corner of the NovoConnect

screen or manually configure the SSID into your tablet and enter the IP address into your NovoPresenter and connect.

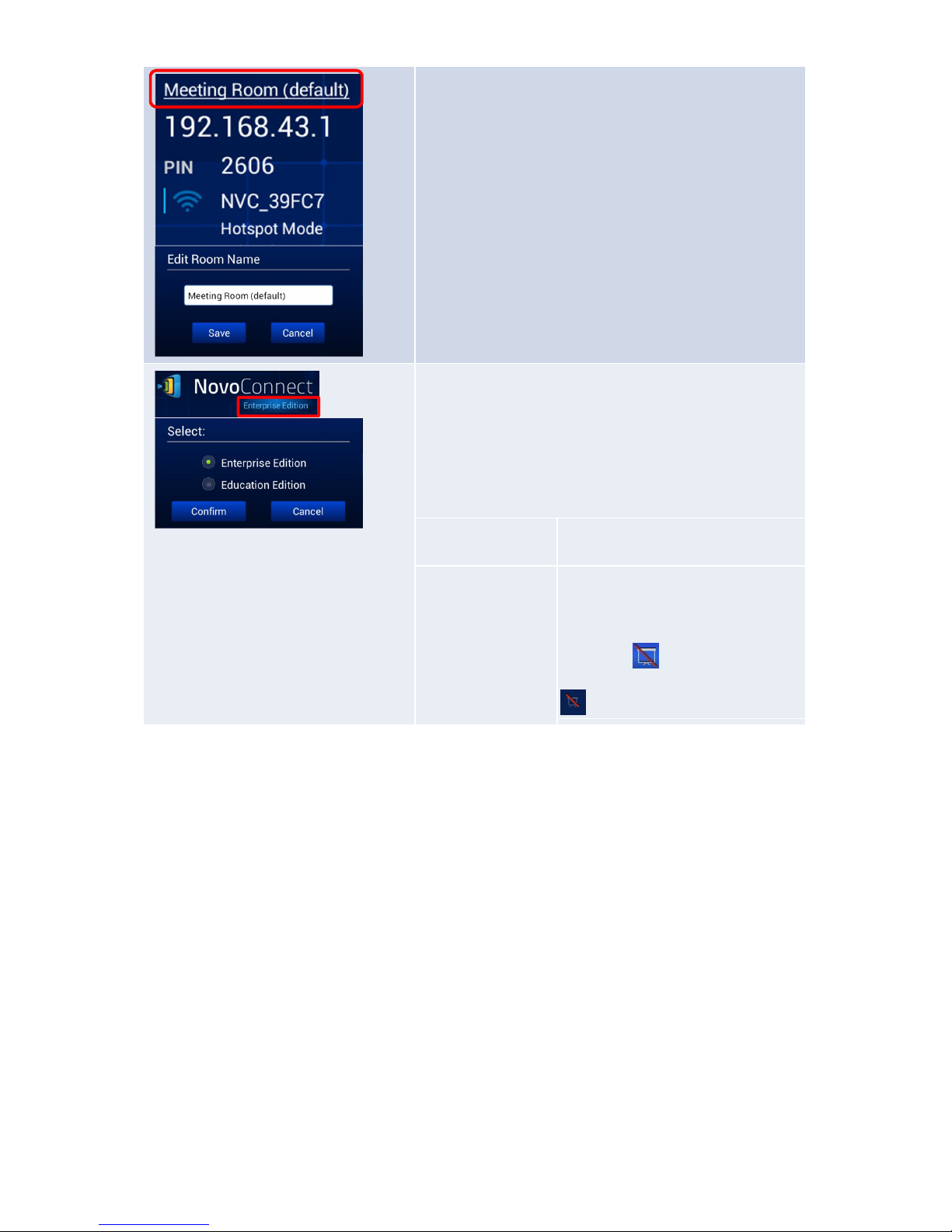

Select the Application Edition (optional)

Connect a USB mouse to your B360. Click the on-screen edition display area to set your

NovoConnect to either Enterprise Edition or Education Edition.

1 2 3 4

3

1 2 4 3

The main differences between these two editions are as follows:

Enterprise Edition: During a presentation, the host must obtain permission from

participants for screen preview. After connecting to the

NovoConnect B360 device, each user has a screen preview control tab. For more information on the screen preview function refer to the Presentation Management section for your respective device.

Education Edition: During a presentation, the host can preview the screen of any

participant without requiring permission. After connecting to the NovoConnect B360 device, each user does not have a screen preview control tab. For more information on the screen preview function refer to the Presentation Management section for your respective device.

This manual primarily uses the Enterprise Edition for instructional examples. Special notes will

accompany instructions that are specific to the Enterprise Edition.

1.3 Software Download and Installation

The NovoConnect B360 device supports up to 64 concurrent participants across a mix of PC and

Tablet devices. Each participant’s device will need to set up a connection with the presentation

application, the Remote Viewer, residing on the B360 to make a presentation. You will need to

download and install the following application software:

On Windows PC - NovoConnect Desktop Streamer

On Mac PC - NovoConnect Desktop Streamer

On iOS tablet – NovoPresenter

On Android tablet – NovoPresenter

Note: Throughout the document, these four presentation application software and the B360

Remote Viewer software are highlighted in Italics font.

Downloading the Presentation Software for Windows PC and Mac PC

Enable Wi-Fi on the computer. Click the network icon , , or .. Select the B360 SSID

on the NovoConnect home screen (for example, NVC_DC9AB) and click Connect or Join. Ignore

all security warnings.

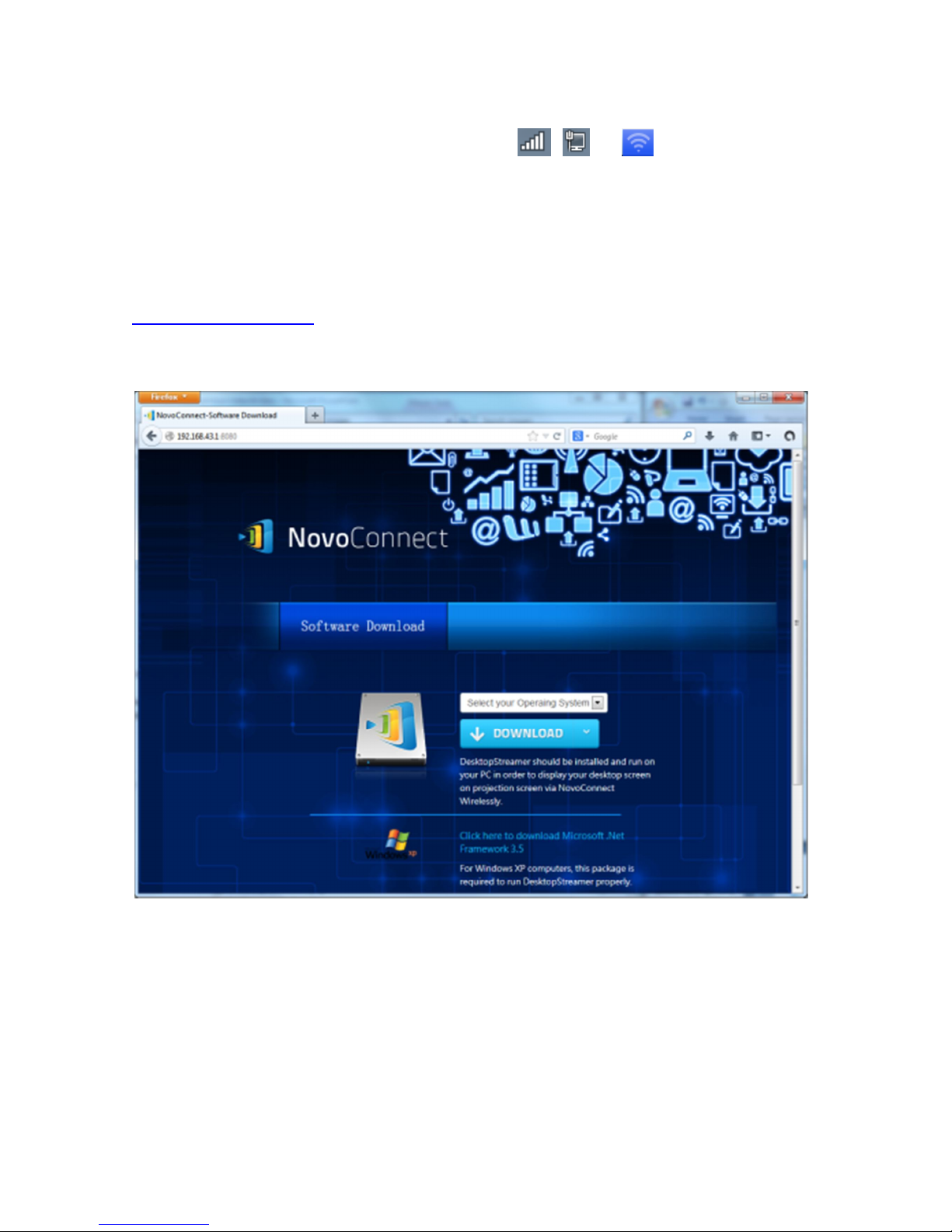

Launch the web browser of your choice on your PC and enter the URL displayed on the

NovoConnect home screen. In the example display screen shown above, you would enter

http://192.168.43.1:8080 into the address line of the browser. The following screen will be

displayed on your browser.

Select the operating system type from the drop down menu and then click the DOWNLOAD

button to download the NovoConnect Desktop Streamer software to your PC.

Installing the Application Software for Windows PC and Mac PC

Run either Desktop_Streamer_Setup_Windows.exe (for MS Windows based computers) or

Desktop_Streamer _Setup_Mac.exe (for Macintosh computers) by double clicking the

downloaded file on your computer. Follow installation instructions on the PC to complete and

allow all security permissions for NovoConnect Desktop Streamer and all of its subcomponents.

The computer is now ready to make a wireless presentation with your B360.

Downloading and Installing the Presentation Software for Android and iOS Tablet Devices

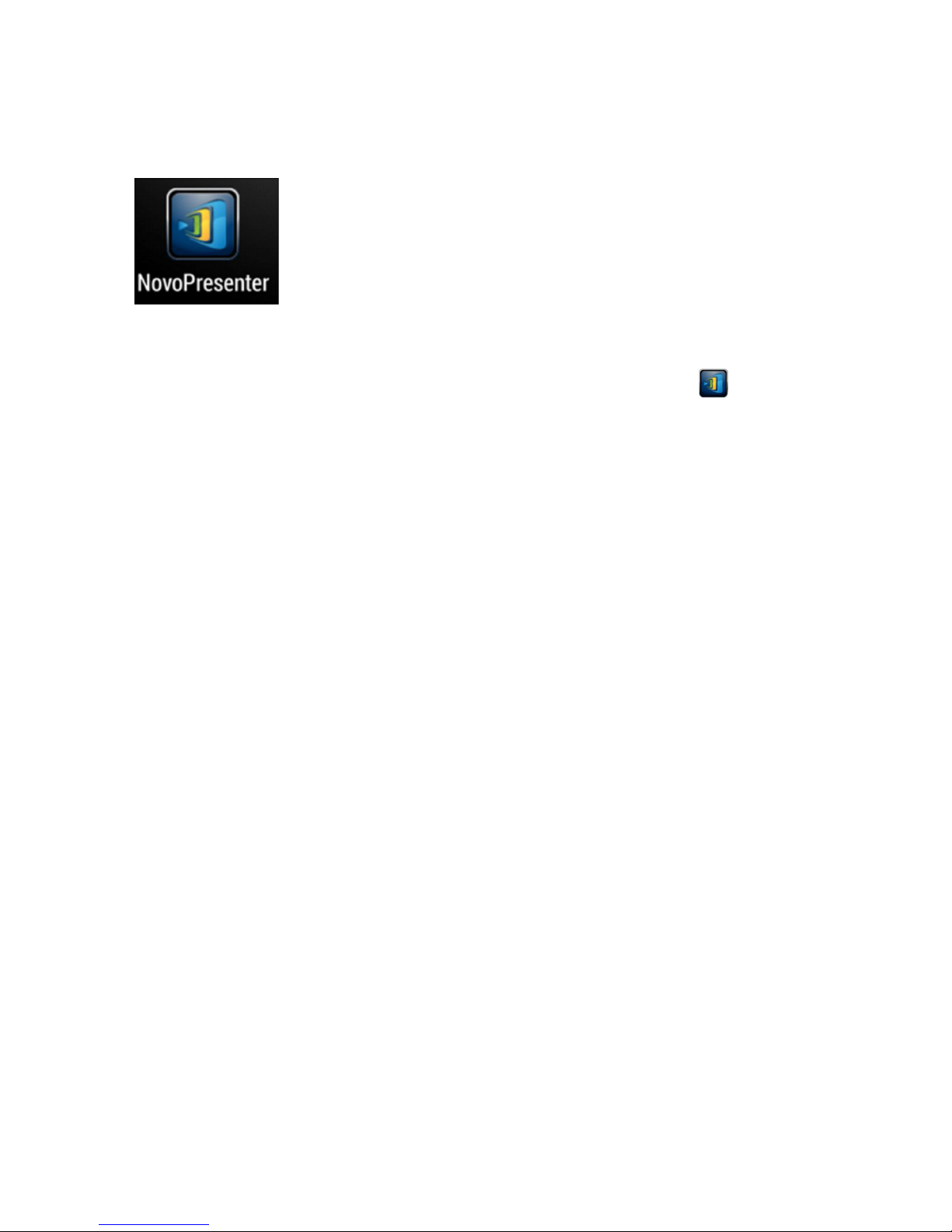

On iOS tablets, the iOS version of the NovoPresenter is required. You can download and install it

from the Apple App Store.

On Android tablets, the Android version of the NovoPresenter is required. You can download

and install it from the Google Playstore.

Once you have downloaded and installed the presentation software, you are ready to make a

wireless presentation from your tablet device.

2. Wi-Fi Setup

Depending on where your presentation content is located, you may select one of the following

WiFi modes from the NovoConnect home screen.

A) Client mode – for content residing in a private cloud or the Internet cloud

B) Hotspot mode – for content residing on your PC or Tablet

C) Either – for content residing on your microSD card

The NovoConnect B360 defaults to start up in WiFi Hotspot mode, which is the shortest path to

make a wireless presentation without needing a WiFi AP. If this is your preferred mode, you

may skip to next chapter for steps to making a presentation.

If you would like to make your presentation in a WiFi AP networked environment, please refer

to the “Client Mode” section in this chapter.

2.1 Hotspot Mode

Right out of the box, NovoConnect’s WiFi is set to function as a WiFi Hotspot and will stay in this

configuration until you alter it. The default SSID for the WiFi Hotspot is “NVC_XXXXX”, where

“XXXXX” is a machine generated string of characters and numbers. A mouse is required for the

following steps.

If you alter your settings and then choose to revert to Hotspot mode, on the NovoConnect

home screen, select WiFi-> Hotspot Mode->Apply.

For a PC to connect to the B360 Hotspot, click the network icon or on task bar. Select

the SSID of the NovoConnect B360 device shown on the home screen (for example, NVC_DC9AB)

and click Connect.

For a Mac to connect to the B360 Hotspot, click the network icon . Select the SSID of the

NovoConnect B360 device shown on the home screen (for example, NVC_DC9AB) and click Join.

Ignore any security warnings.

For a tablet to connect to the B360 Hotspot, enable WiFi and go to the WiFi AP list. Select the

SSID of the NovoConnect B360 device shown on the home screen (for example, NVC_DC9AB).

Note: In Hotspot mode operation, all participating presentation devices must be connected to

the same NovoConnect B360 WiFi HotSpot.

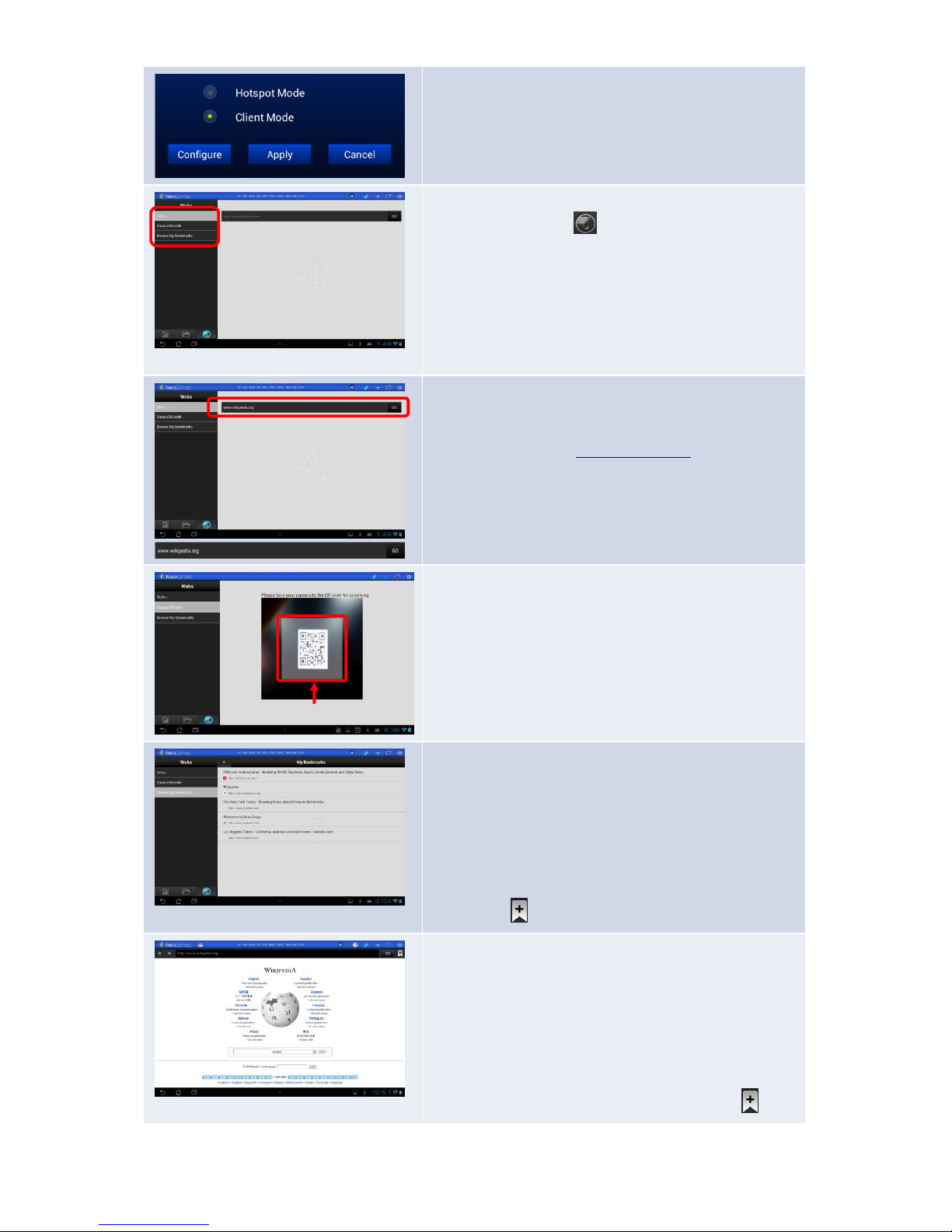

2.2 Client Mode

In this mode, the B360 device functions as a WiFi client and a WiFi AP is needed for network

connectivity. A mouse is required for the following steps.

On the home screen of the NovoConnect, first select WiFi->Normal Mode-> Config->Wireless &

Networks-> Wi-Fi (ON), and then select the desired WiFi AP SSID. Enter password if prompted.

For a PC to connect to the Wi-Fi AP, click the network icon or . Select the desired

WiFi AP SSID. Enter password if prompted.

For a Mac to connect to the Wi-Fi AP, click the network icon . Select the desired WiFi AP

SSID and click Join. Enter password if prompted.

For a tablet to connect to the Wi-Fi AP, enable WiFi and go to the WiFi AP list. Select the desired

WiFi AP SSID. Enter password if prompted.

3. Making a Presentation

The NovoConnect B360 device supports up to 64 concurrent participants across a mix of PC and

Tablet devices. To make a presentation, each participant’s device will need to connect to the

B360 and join the presentation group hosted by the B360. There are three key features which

help facilitate smooth collaboration and coordination of presentations using the NovoConnect:

1) A participant list is included with the individuals’ roles indicated with clear graphical

representation

2) A specific capability is defined for each role

3) The split screen and annotation tool for simultaneous presentation of multiple

participants.

3.1 Presenting with Windows and Mac PC

Launch Presentation Application

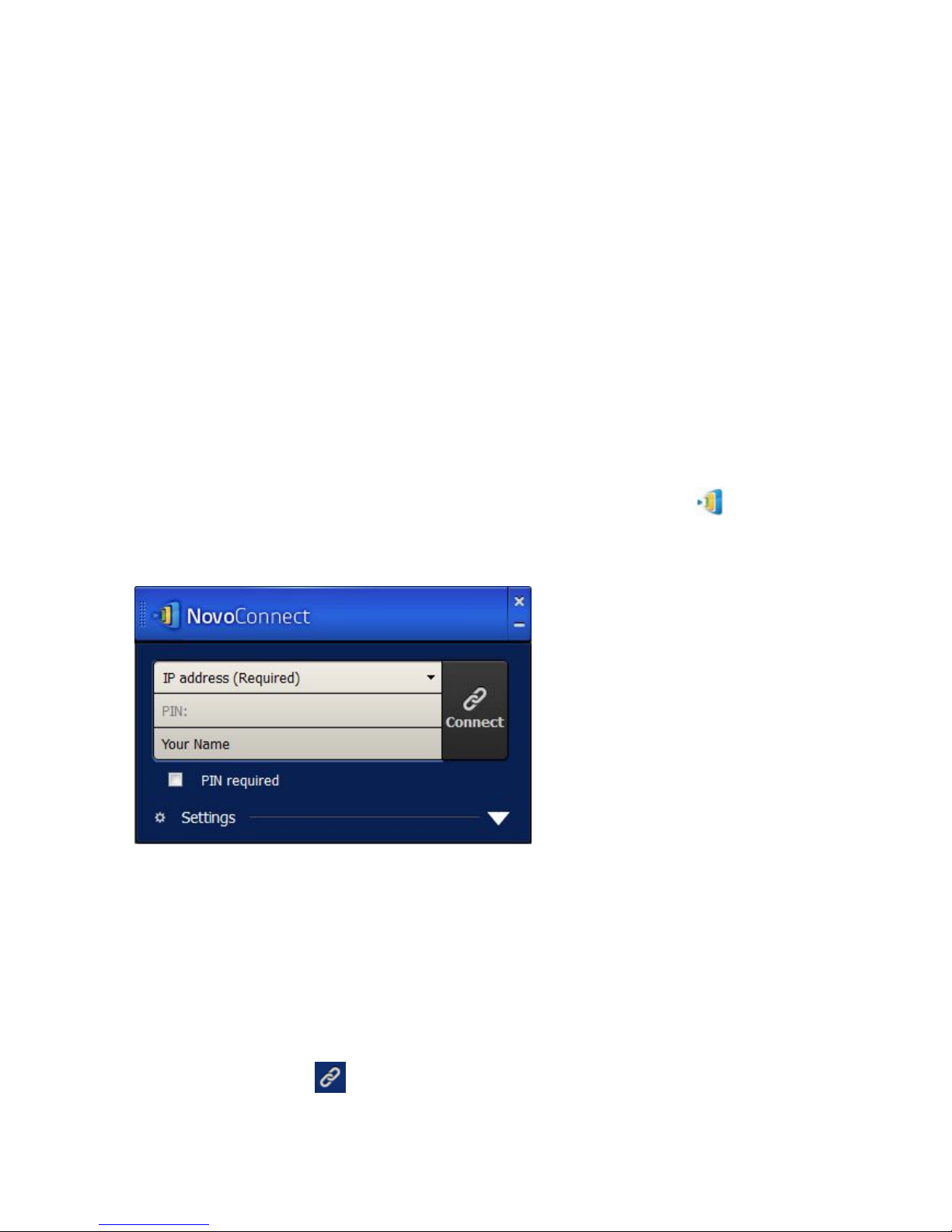

Launch the NovoConnect Desktop Streamer Application by double clicking the icon. The

NovoConnect Desktop Streamer will be launched (pictured in the image below).

To make a presentation, you must follow the below steps:

Step 1: Configure the presentation application

Step 2: Connect to your B360 device

Step 3: Make a Presentation

Step 4: Manage the presentation

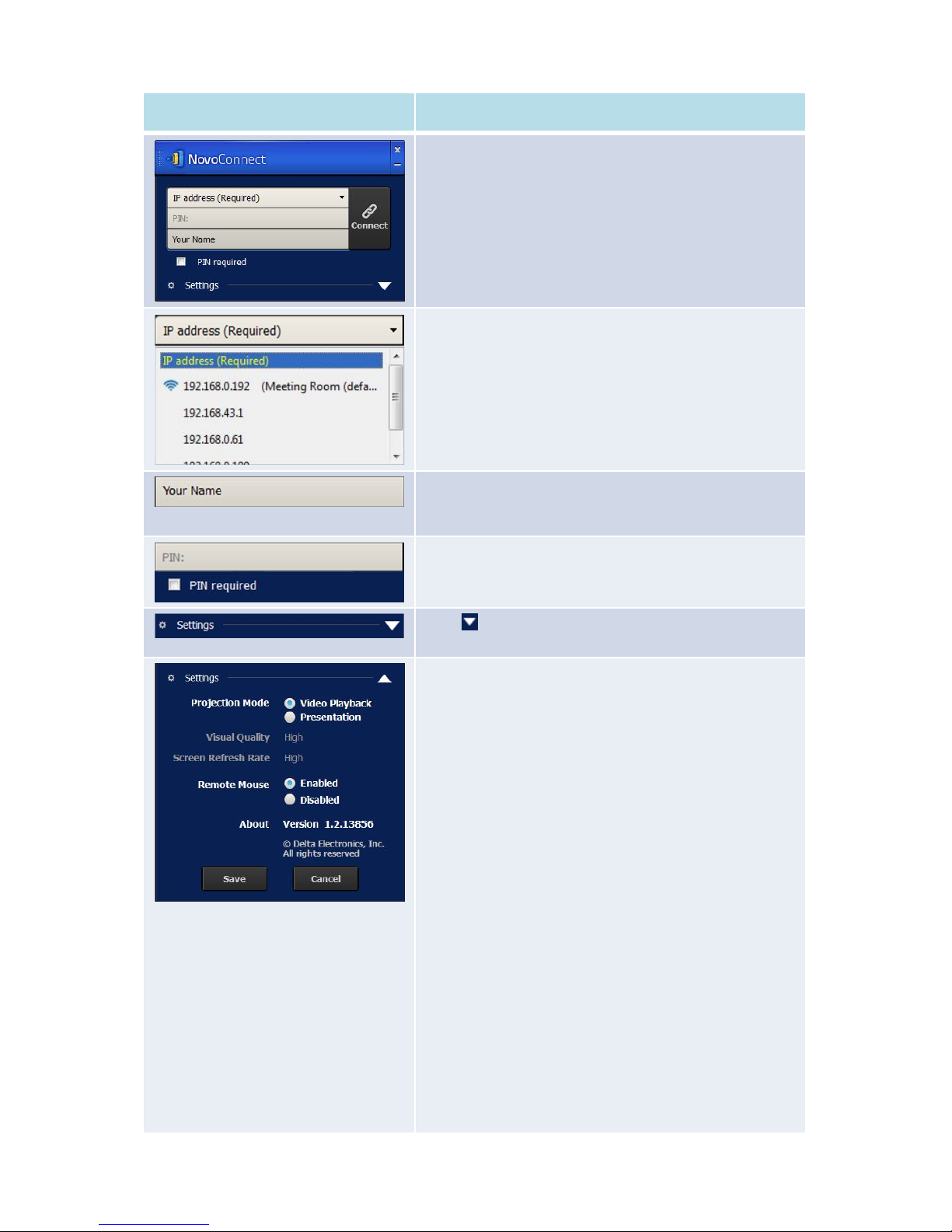

3.1.1 Step 1: Presentation Software Configuration

Click the connection tab and access the configuration options of NovoConnect Desktop

Streamer below.

Option

Description

Configure the

NovoConnect Desktop Streamer

Application

. Manually enter the IP address shown on the NovoConnect

home screen, or select an IP address entry from the drop down menu that matches the IP address shown on the NovoConnect home screen.

(Optional)

Manually

e

nter a name for this computer to be

viewed in the presentation group among other participants. Example: Kevin.

I

f PIN is required

for a presentation group

,

check

the “PIN

required” box and enter the four-digit PIN shown on the home screen.

Click to expand the Settings tab to access more detailed settings.

Projection mode

:

Video Playback: Select this option for a higher frame rate screen mirroring and to turn on audio transmission. Presentation: Select this option for document presentation or browser content presentation. The audio will be automatically set to off. Two additional drop-down configurations, Visual Quality and Screen Refresh Rate, will be enabled.

Visual Quality:

High: This setting yields the best visual quality but has the longest latency. Normal: This setting is the middle ground between High and Low. Low: This setting yields the lower visual quality but has the shortest latency.

Screen Refresh Rate:

High: This setting yields the best visual quality but has the highest CPU consumption. Normal: This setting is the middle ground between High and Low. Low: This setting yields the lower visual quality but has the lowest CPU consumption.

Remote Mouse:

Supports mouse event back-channeled from the B360 device to your desktop.

About:

Software version number of your NovoConnect Desktop Streamer.

Save and Cancel buttons: You can save your configuration for future presentation setup.

3.1.2 Step 2: Connect to your B360 device

Once you are done configuring your NovoConnect Desktop Streamer, you are ready to start or

join a presentation group with your B360.

(Note: Education Edition does not have the screen preview control tab or the symbol.)

Option

Description

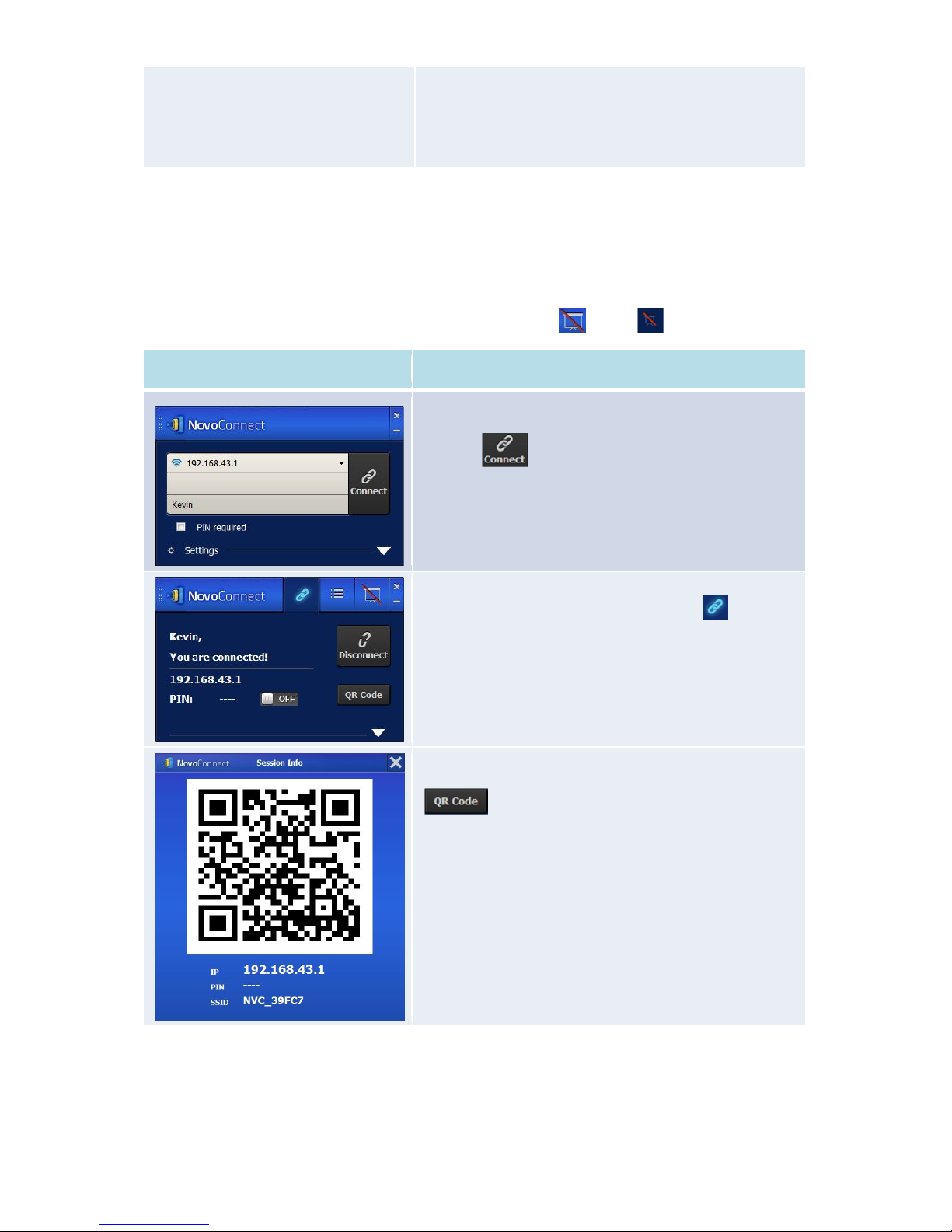

Connect to your B360 device.

Click the button. If you are the first participant, this will start a presentation group on your B360. If you are not the first participant, you will be joining a presentation group.

After your

Desktop Streamer

is connected successfully to your

B360, you will see the connection tab light up .

If you are the first participant, you will see that your PC’s on-screen display is wirelessly mirrored on your projector or TV. You can also slide the PIN requirement switch to OFF or ON to enable the use of access PIN code to the presentation group.

If you are the first participant you may allow other users to

join the presentation group via QR code by clicking

to display the QR code and session information

windows for others to quickly connect to your B360.

Please note that your PC screen resolutions may be changed to match projector resolution, and

when disconnected from the NovoConnect device, the original screen resolution will be

restored. This takes place for all PCs in the same presentation group.

3.1.3 Step 3: Make a Presentation

Once you have started/joined a presentation group you can make a presentation with the contents stored on your PC, local network, or Internet. Your desktop screen will be mirrored to the B360 display regardless of the applications you are running on your PC.

Sometimes you may want to write, highlight, mark, video-record, or cut-and-paste portions of

your presentation materials directly on the desktop screen. Delta provides a free simple-to-use

tool for all of these functions – NovoScreenote. You can download the Windows PC or Mac PC

versions of NovoScreenote from http://www.deltaww.com/EduSolution.

3.1.4 Step 4: Presentation Management

3.1.4.1 Role Assignment

There are three roles in a presentation group, the host, the presenter, and the participant.

The first participant to start the presentation group is assigned the host role. Subsequent

joiners are assigned the participant role.

The host is defaulted to assume the presenter role until he hands over the presenter role to

another participant.

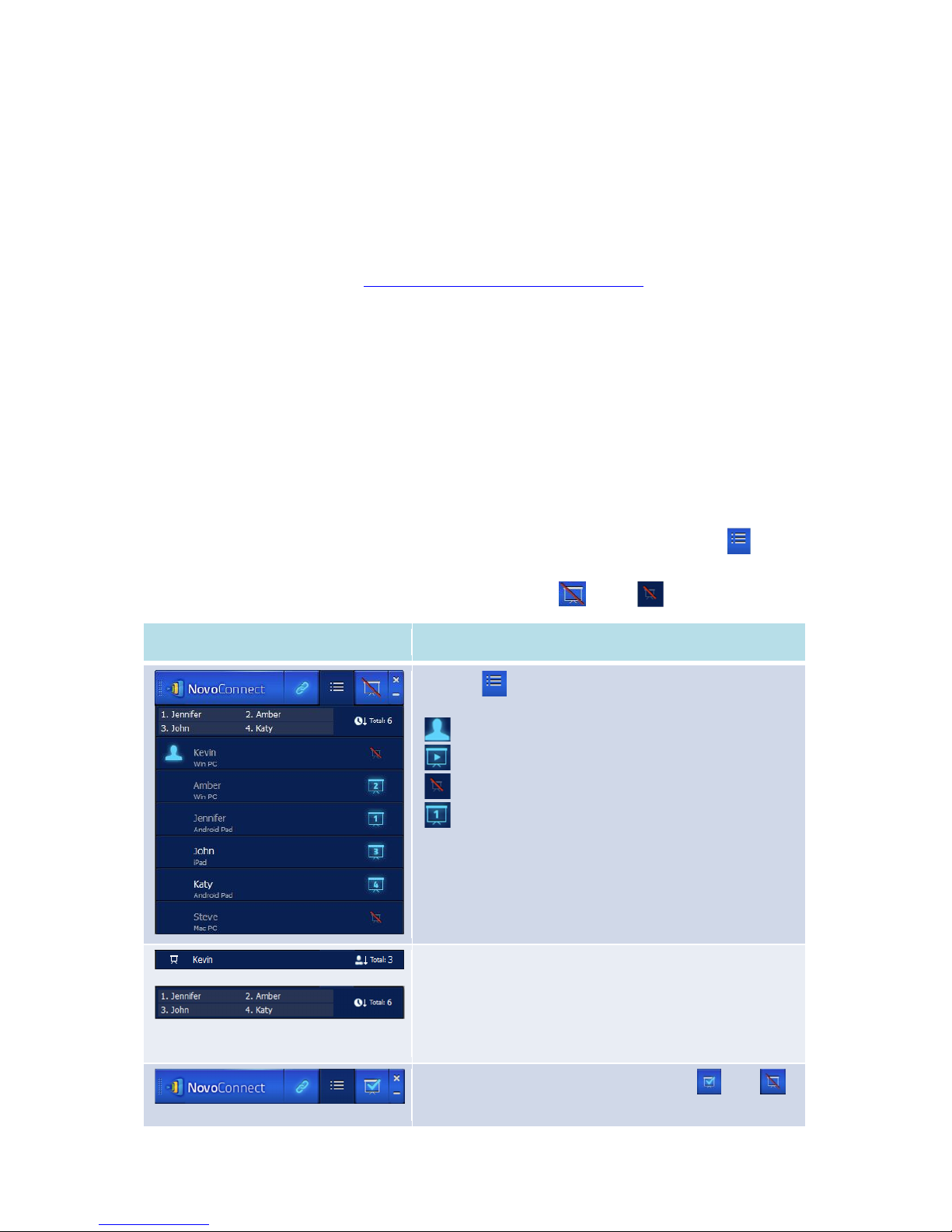

To show all current participants who have joined the presentation group, click the tab.

(Note: Education Edition does not have the screen preview control tab or the symbol.)

Icon Description

Click the tab to show the participant list.

Indicates the current host.

Indicates the current presenter.

*Indicates a participant who has denied screen preview.

indicates the current presenter that is presenting in the indicated split-screen Box number (#1-4) (the instance here shows a presenter that is presenting in Box #1).

When no symbol appears in a participant line, it indicates that the participant is neither the host nor the presenter and has allowed screen preview.

Indicate

the name

s of the

presenters

and the total number of

participants. Example 1: Kevin is the only presenter, and there are currently 3 participants. Example 2: Jennifer, Amber, John, and Katy are the four presenters, and there are currently 6 participants.

*(For non-host participants) Toggle between and to accept or deny screen preview by the host, respectively.

*: Enterprise Edition only

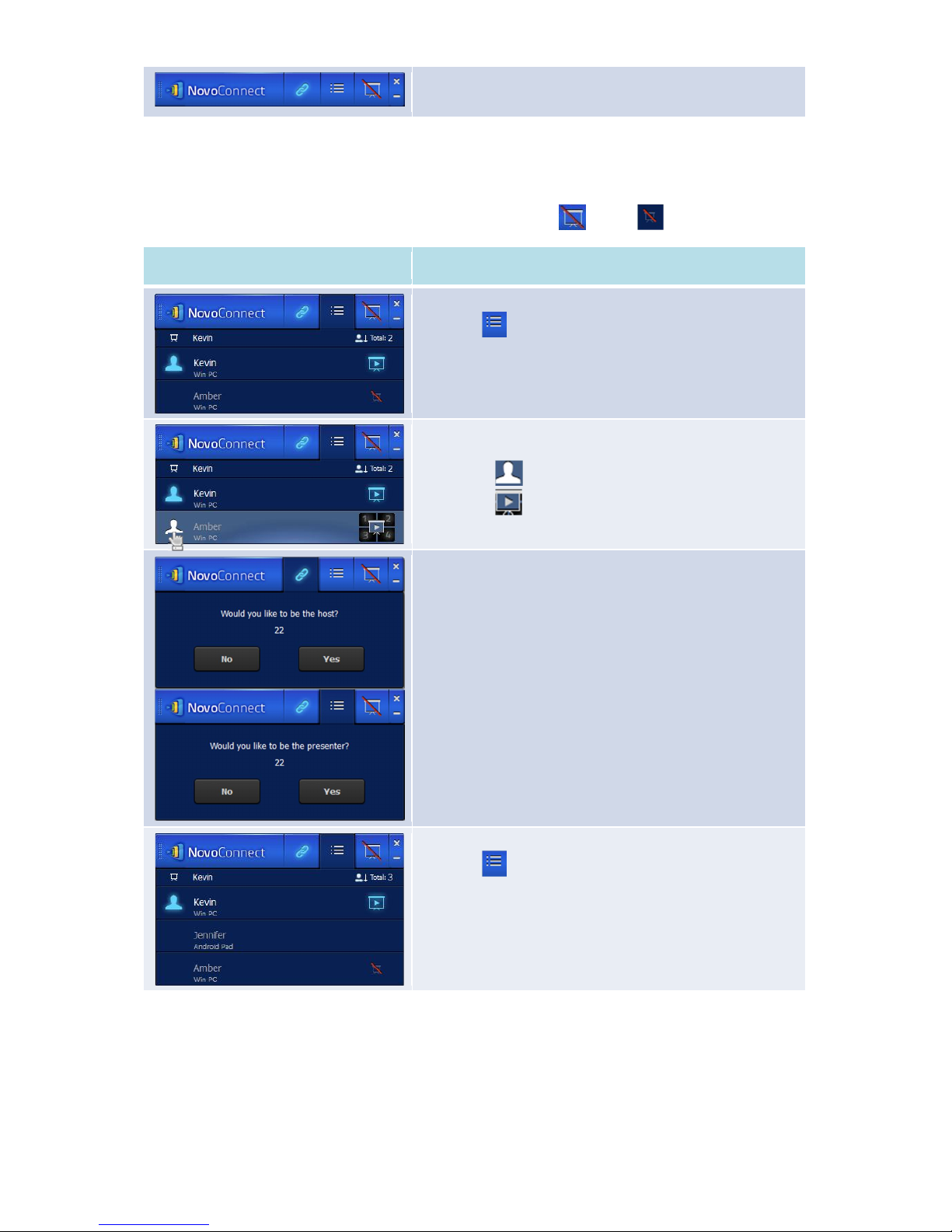

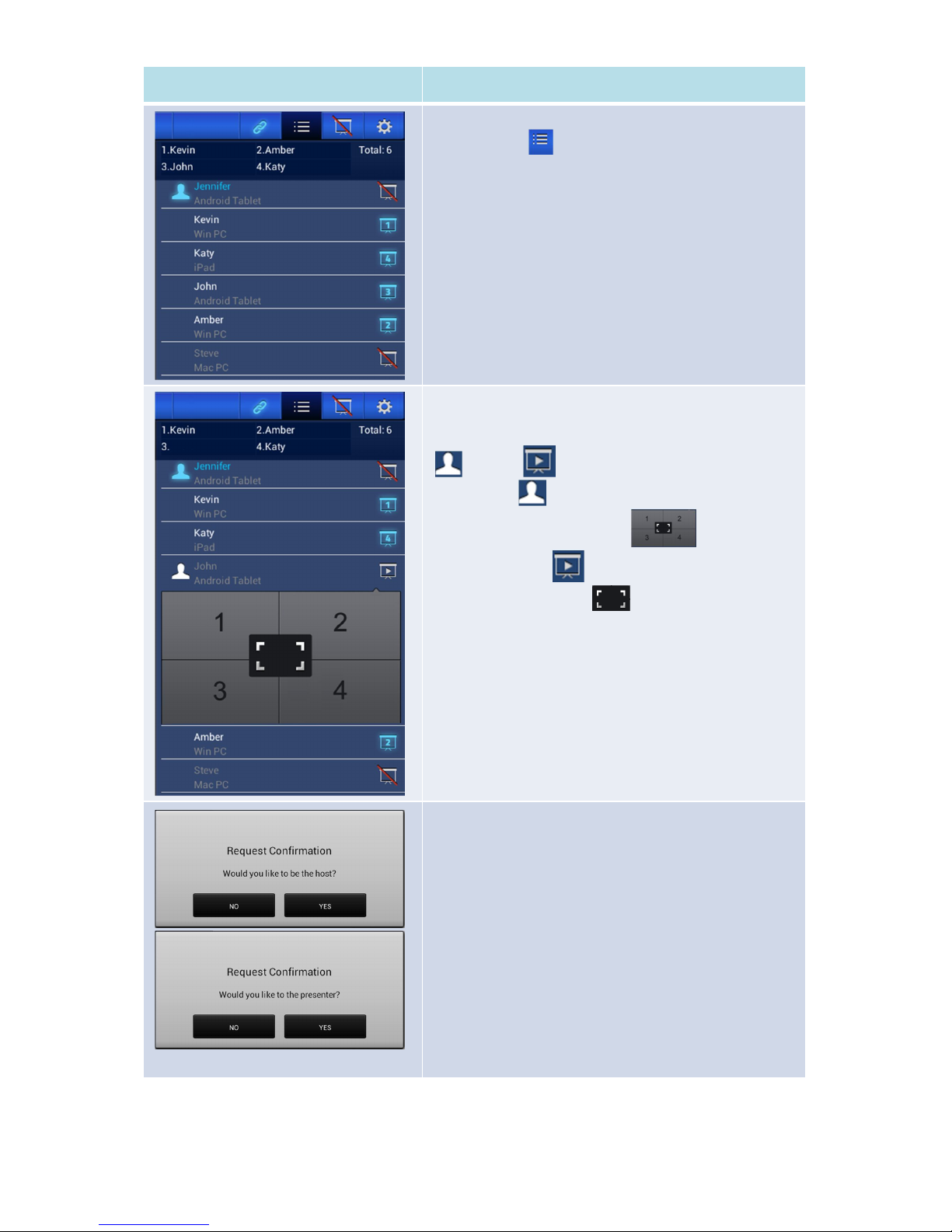

3.1.4.2 Role Change, Screen Preview, and 4-way Split Screen

(Note: Education Edition does not have the screen preview control tab or the symbol.)

Icon Description

To perform a role change:

Click the tab to show the participant list.

Highlight a

participant

by moving

the cursor onto the targeted

participant.

Click on to hand over the host role to the participant.

Click on to hand over the presenter role.

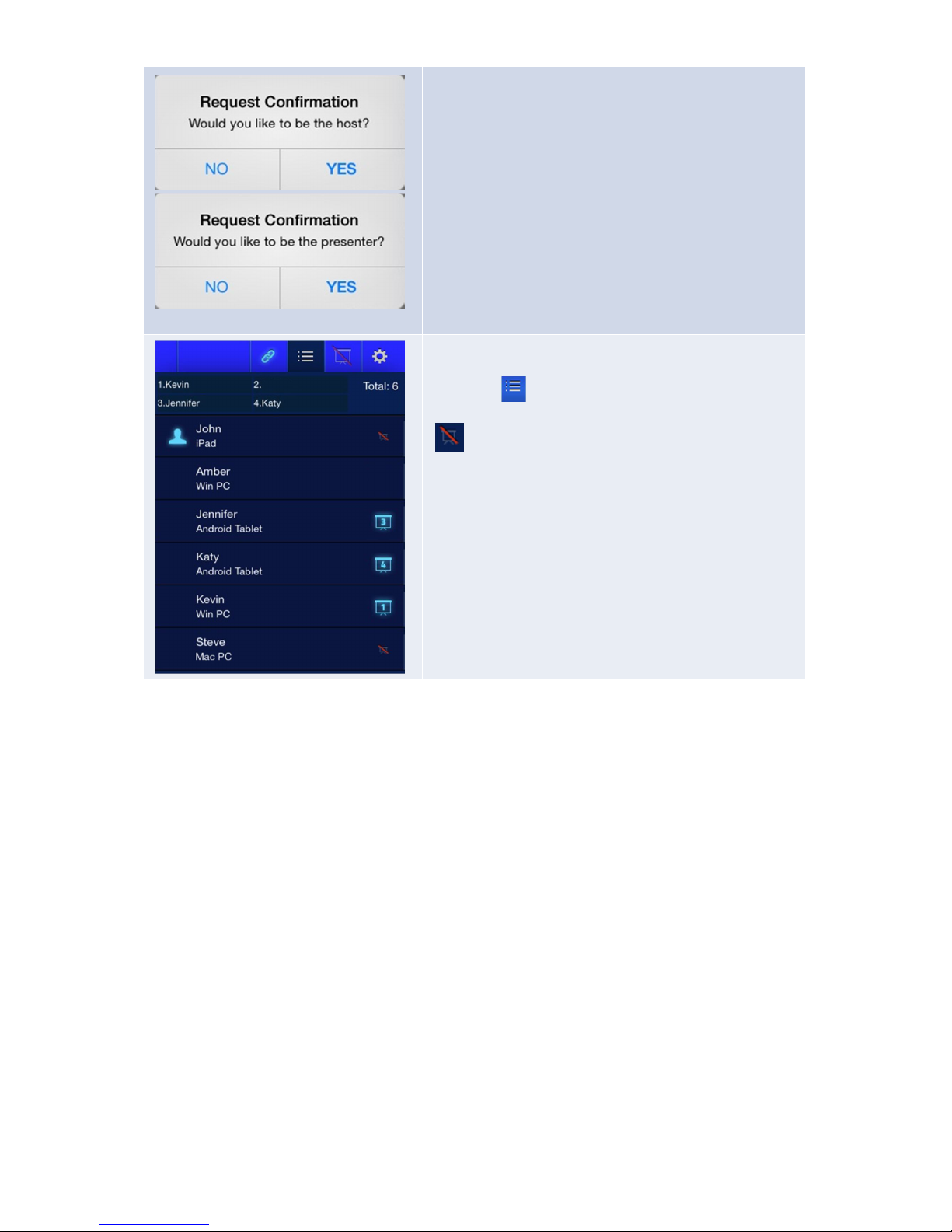

When a participant is asked to be a host, a dialog box will appear on the participant’s screen. When a participant is asked to be a presenter, a dialog box will appear on the participant’s screen. The participant has 20+ seconds to click the Yes button to accept or click the No button to reject the requested role

change.

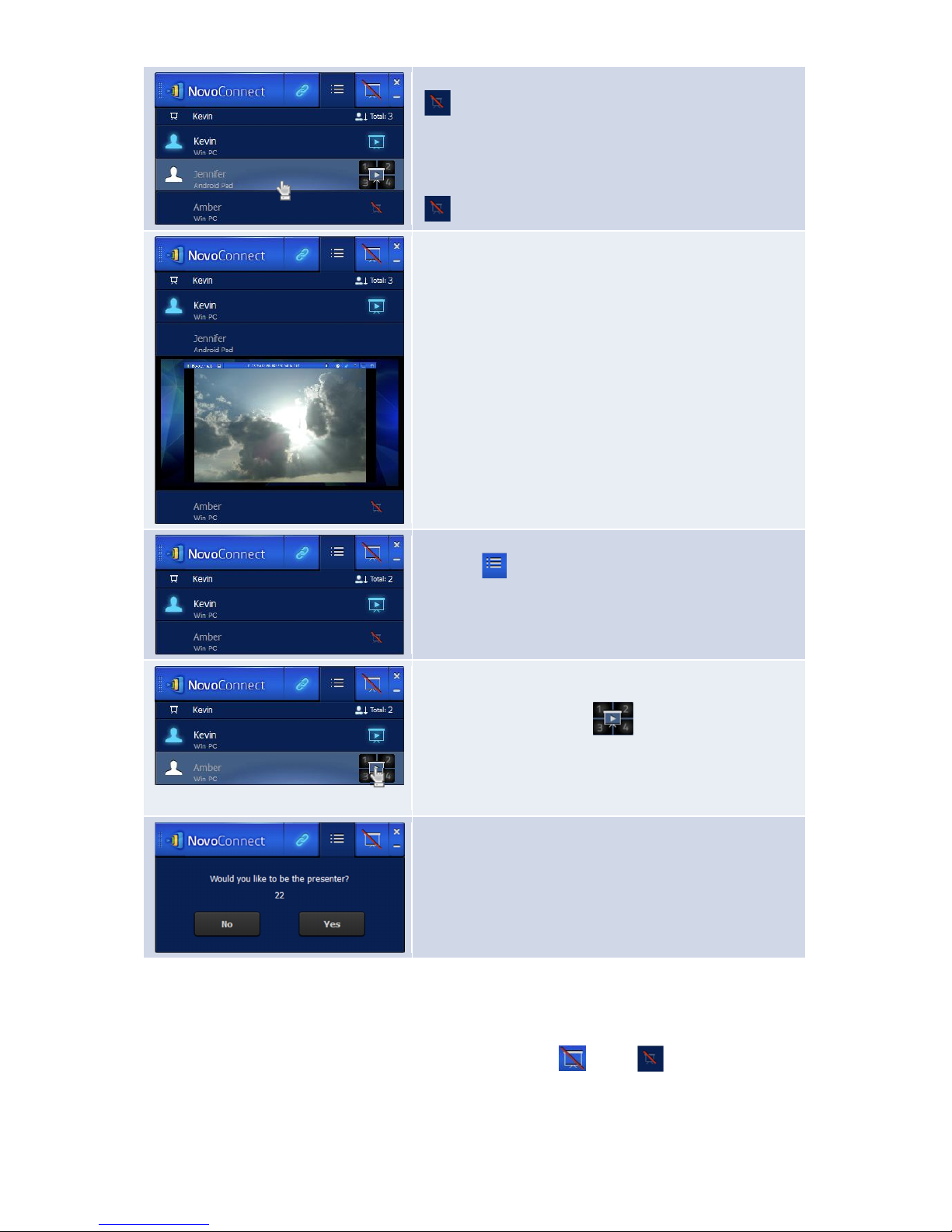

To perform screen preview:

Click the tab to view participant list. (Note: Only the host can preview the participant’s screen.)

*Jennifer’

s

(example name)

Android tablet

does not have

a

symbol, indicating that Jennifer allows host preview.

Highlight and click on the middle part of the entry for Jennifer.

*: In the Education Edition, host preview is always allowed as all participants will automatically allow screen preview as

will not appear.

The diagram shows the host viewing the screen of Jennifer’s Android tablet.

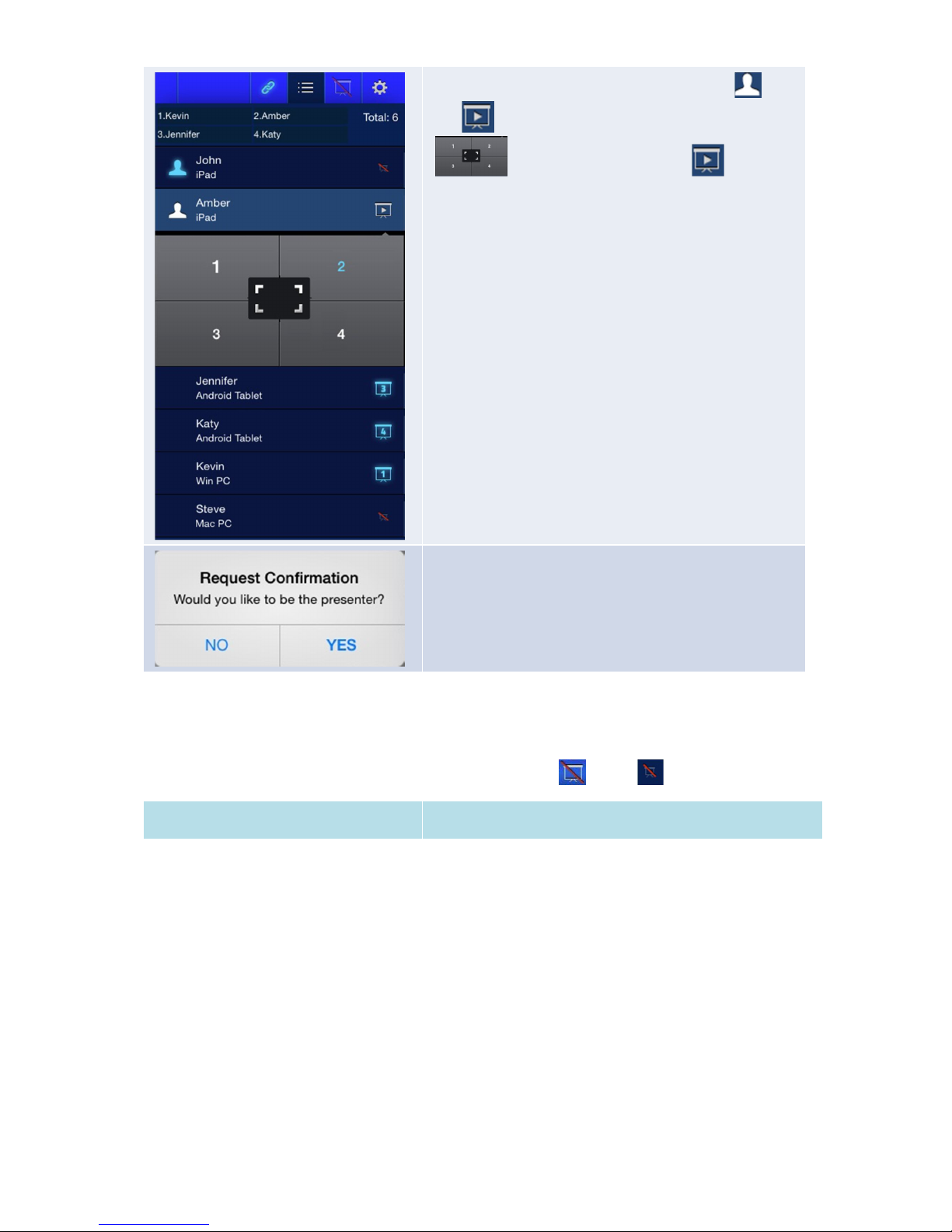

To perform

a 4-way split screen presentation:

Click the tab to view the participant list. (Note: only the host may designate a 4-way split screen presentation.)

1. Move cursor over to highlight participant O

l

iver (example

name).

2. Click on a numbered box to assign a presenter’s on-screen display to the corresponding presentation screen #1-#4. Click the center box to assign a presenter’s on-screen display to full screen.

Oliver

receives a request to

assume

the presenter role.

After Oliver clicks yes to accept being the presenter, Oliver’s screen will be presented on one of the four quarters of the 4-way split screen.

3.1.4.3 Pause, Resume, and Disconnect

(Note: Education Edition does not have the screen preview control tab or the symbol.)

Icon Description

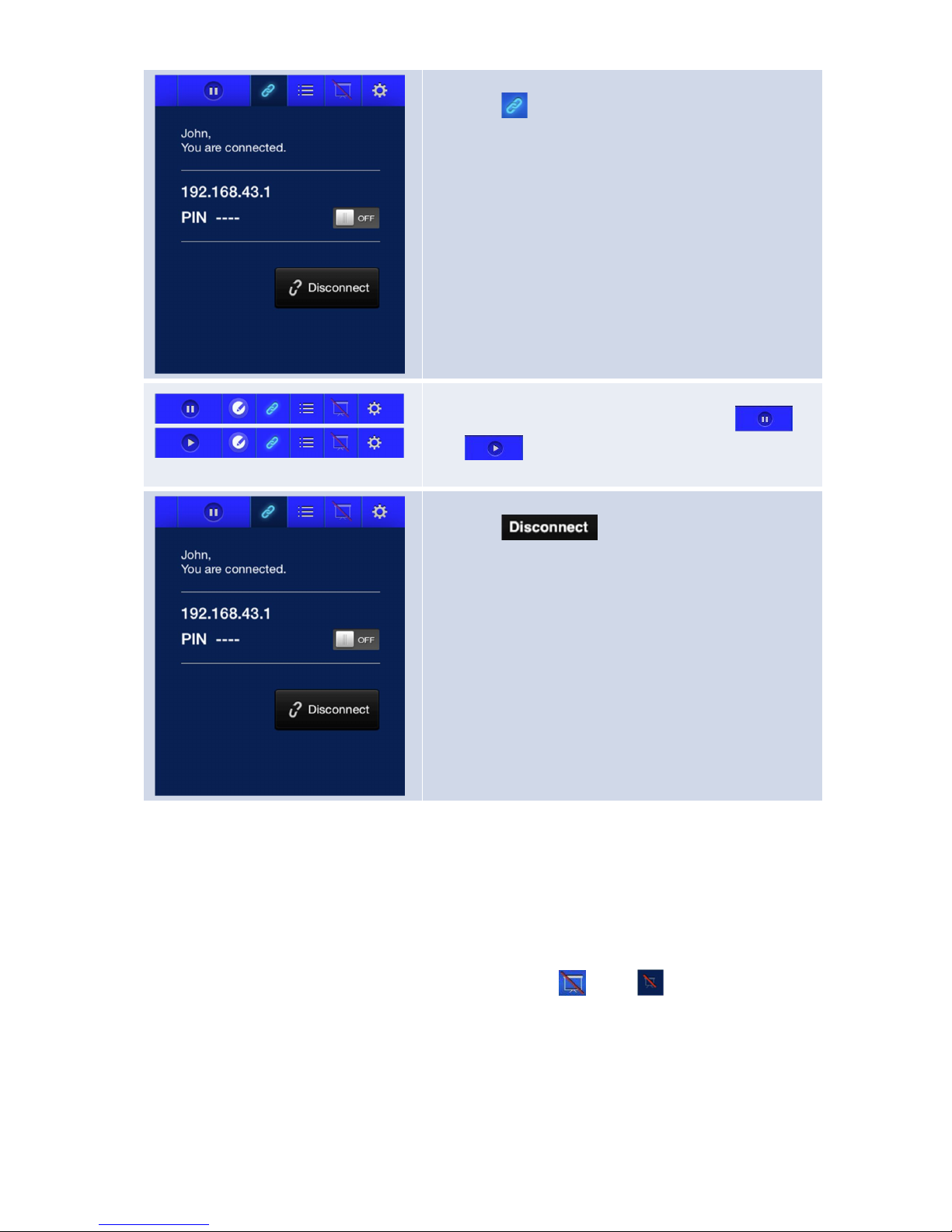

To pause/resume a presentation:

Click the tab to bring up the presentation control page.

Pausing and Resuming a Presentation:

Move your cursor to the tab. Toggle

between and to pause and resume a presentation respectively.

To disconnect from a presentation group:

Click the button to exit the presentation group.

If the host exits a presentation group without handing over the host role, all participants will receive a message prompting them to take over the host role. The first to respond to the prompt will get the host role.

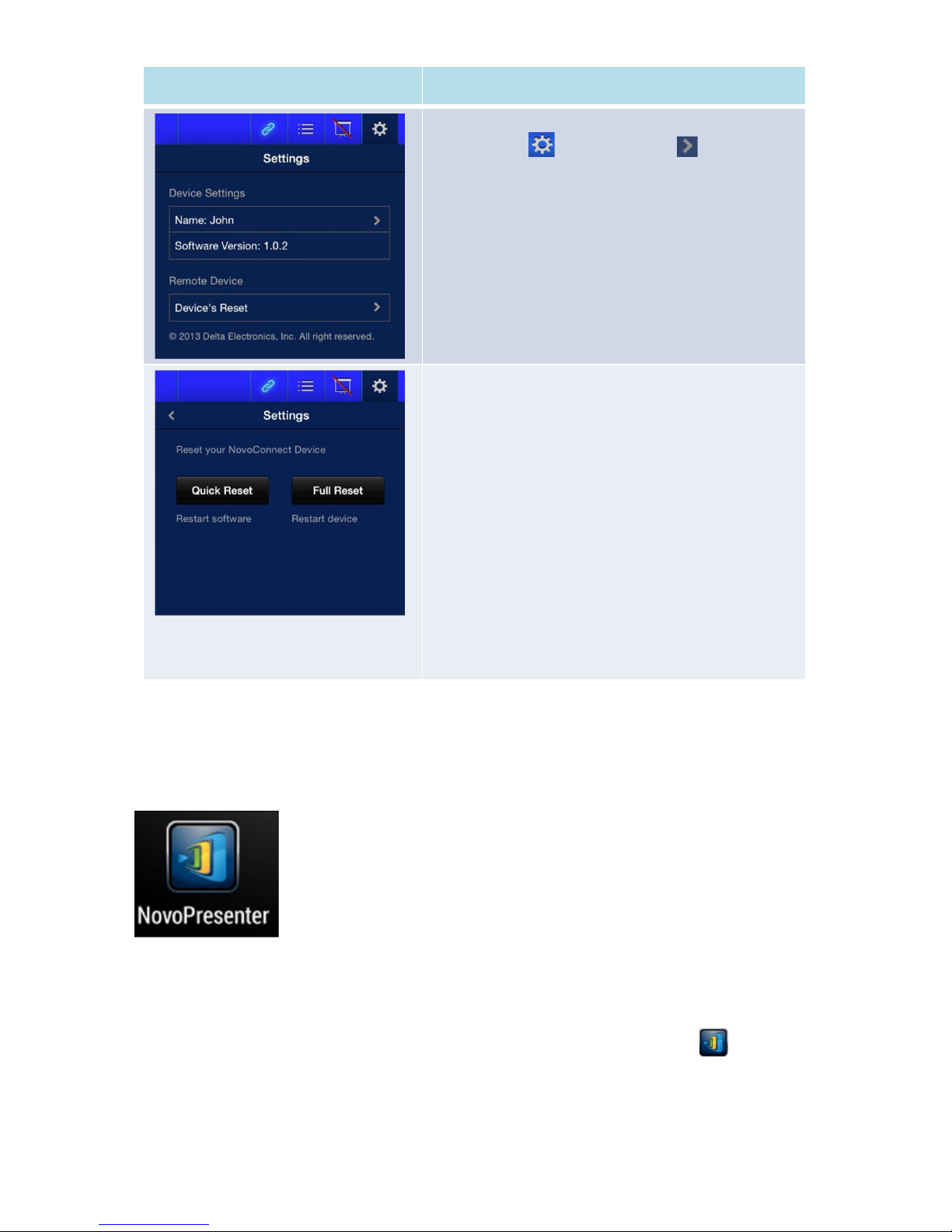

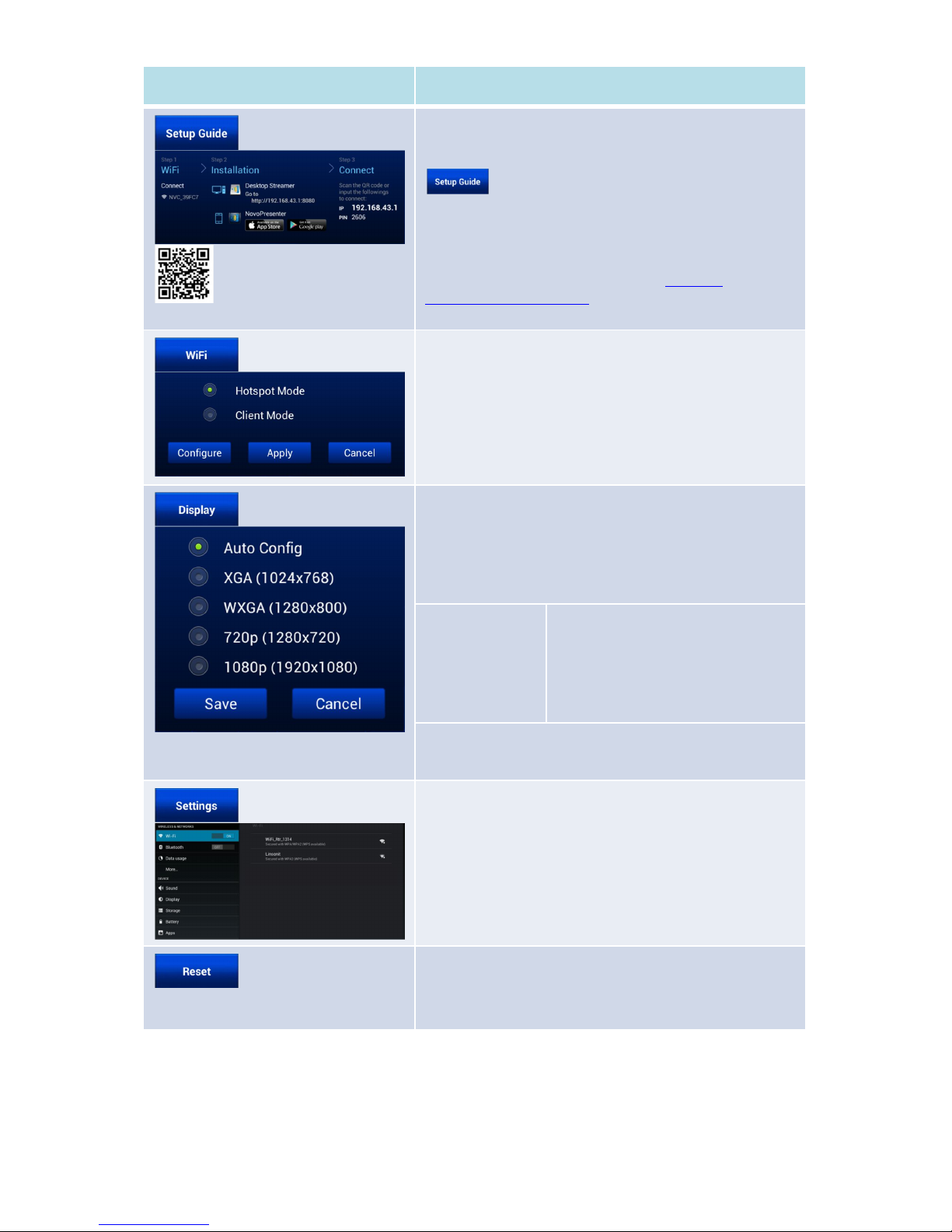

3.1.4.4 Device Information and Settings, Reset, and Firmware Upgrade

The device information and settings menus have four functions:

1. Presentation Settings:

This menu shows presentation connection information for your B360.

2. Device Settings: This menu allows you to remotely configure your B360 right from

your desktop.

3. Reset: Occasionally you may encounter problems with the network or the

computer, causing the presentation group to malfunction on your B360. This menu allows you to reset the presentation group to help resolve this problem.

4. Device Upgrade: This menu allows you to perform an online upgrade your B360 to

the latest software version.

Follow the steps below to access the functions described above.

(Note: Education Edition does not have the screen preview control tab or the symbol.)

Option

Description

To show

P

resentation

S

ettings

:

Click the tab to enter the presentation control page. Click the icon to display presentation settings that have been set before connecting to your B360.

Click to access the device settings, reset, and device upgrade functions as shown below.

Click this tab to go back to the presentation settings page.

Device Settings:

Here you can remotely configure your B360 device settings right from your desktop.

Click to make the changes official, or click to abort the changes.

Resetting:

Click to reset the presentation group to allow a presentation group to start over again.

Click to restart the NovoConnect B360 device. Conflicts may occur when multiple participants simultaneously attempt to reset the presentation group or the B360 device. The reset privilege priorities are as follows:

1. Host: The host has the sole privilege to reset the presentation group or the B360 when the host stays connected to the B360.

2. Presenter: If the host lost connection with the B360, the current presenter inherits the privilege to reset the presentation group or the B360.

3. Participant: If the host and the presenter both lose connection with the B360, any participant can reset the presentation group or the B360.

Device Upgrade:

First make sure that your B360 is set to Client Mode and is connected to a Wi-Fi router with internet connection.

Click . The computer will then automatically check for the latest firmware upgrade of your device. If new upgrades are available, your B360 will automatically download and install the latest upgrades.

3.2 Presenting with iOS Tablet (iPad)

The iOS version of the NovoPresenter app (pictured in the image below) enables an iPad device

to connect to the B360 and make a presentation.

Launch Presentation Application

Launch the NovoPresenter application by selecting the NovoPresenter app icon on your

iPad. The NovoPresenter app will be launched.

To make a presentation, you must follow the steps below:

Step 1: Connect to your B360 device

Step 2: Make a presentation

Step 3: Manage the presentation

3.2.1 Step 1: Connect to your B360 Device

There are two ways to connect to your B360 device:

1. Connect to your B360 device automatically via QR Code.

2. Connect to your B360 device manually.

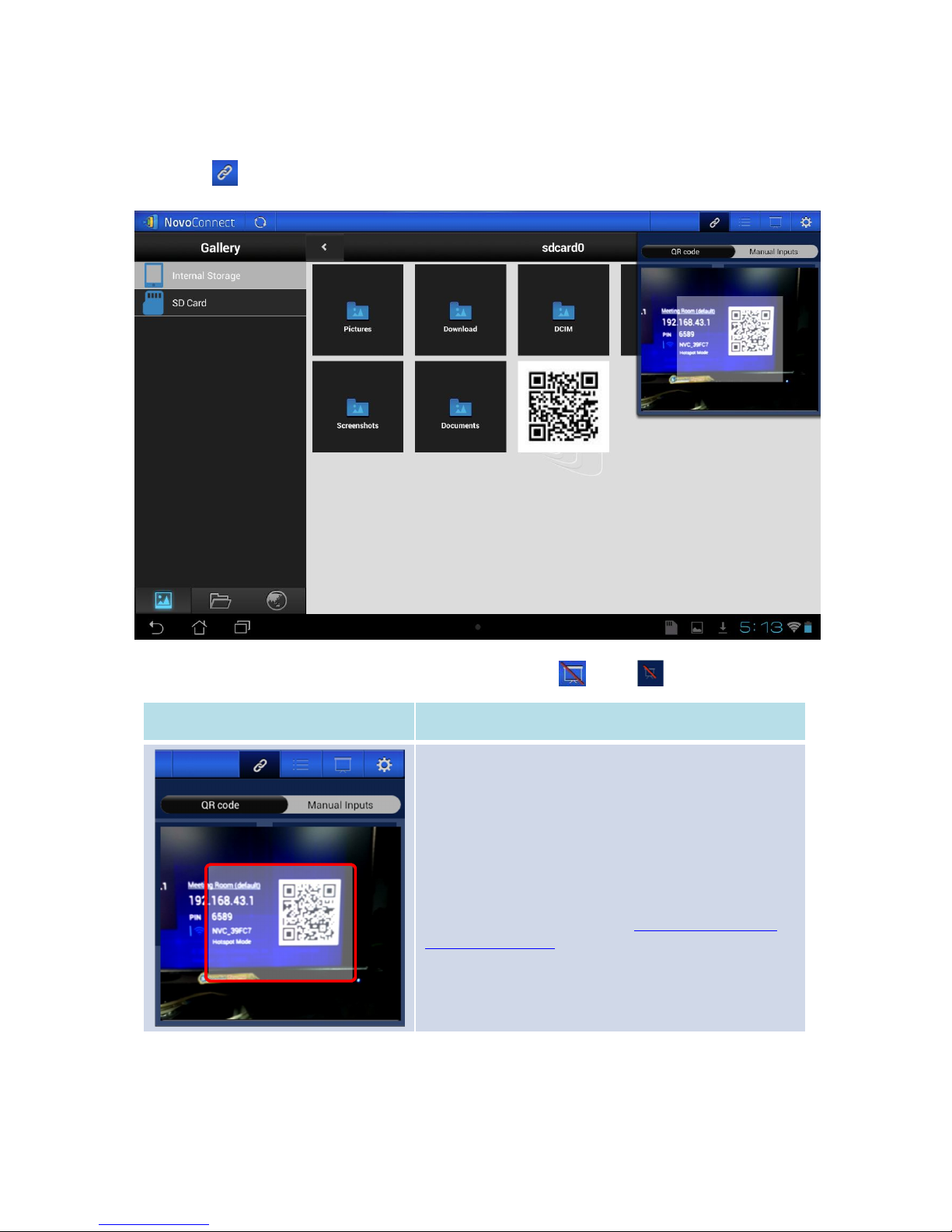

3.2.1.1 Connect to your B360 device automatically via QR Code

This is the default B360 connection option which allows you to connect to your B360

automatically without any manual configurations. After launching the NovoPresenter app,

touch the tab (as seen in the screen shot below) and access the connection options.

(Note: Education Edition does not have the screen preview control tab or the symbol.)

Option

Description

Connect to the B360 automatically via QR Code:

The QR Code / Manual Inputs switch will be in the QR Code position by default (if not, just tap the switch once). Aim your tablet’s camera to the QR code containing login information, which can be found on your B360 home screen or on the screen of the device connected to your B360. Under normal circumstances, NovoPresenter will automatically login to your B360. Should automatic login fail, then follow the manual configuration option in the section 3.2.1.2 Connect to your

B360 device manually.

QR Code Scan Area

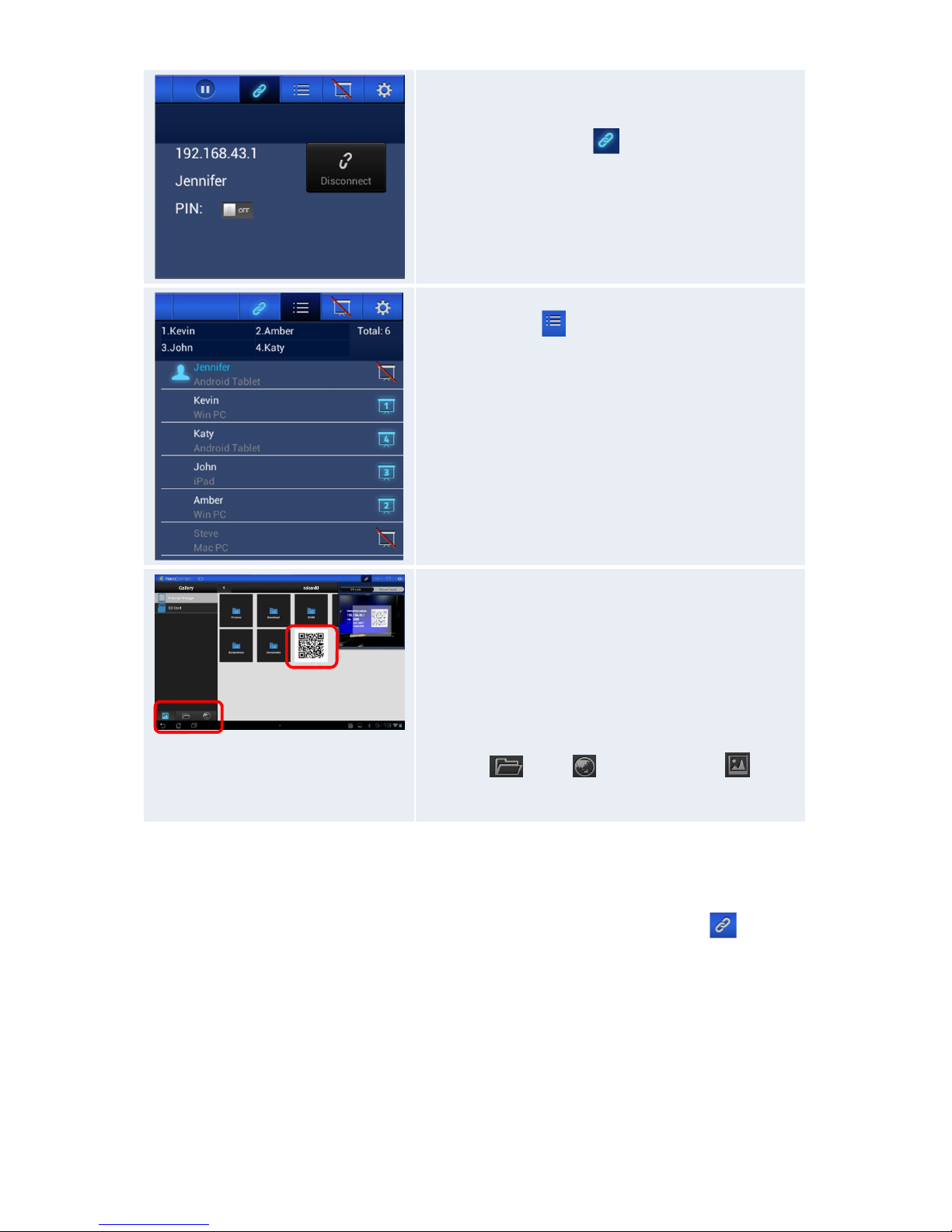

Confirm Connection:

After your NovoPresenter App on your iPad is connected successfully to your B360, You will see the connection tab

light up blue .

If you are the first participant, you will see that your iPad's on-screen display is wirelessly mirrored on your projector or TV. You can slide the PIN requirement switch to OFF or ON to disable or enable usage of PIN code.

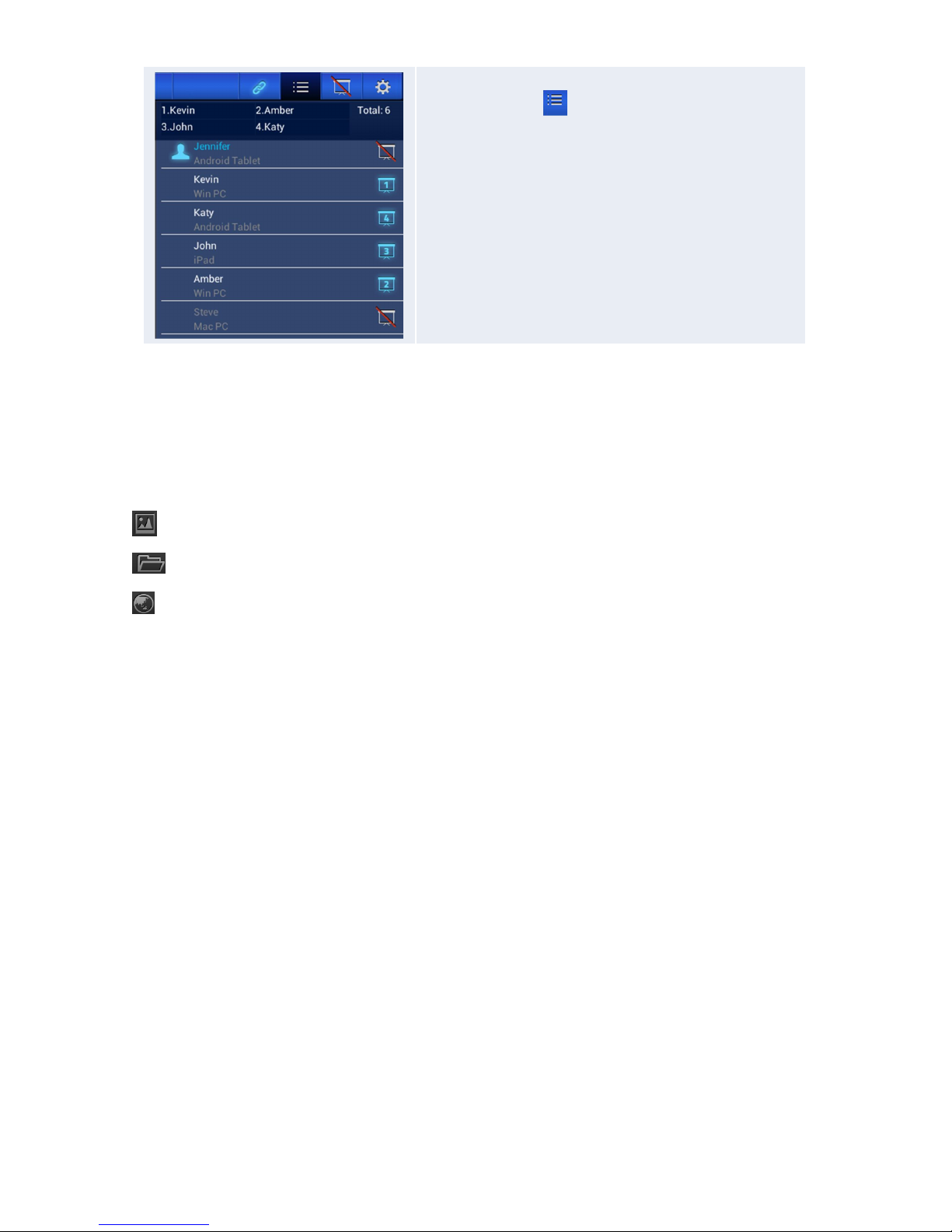

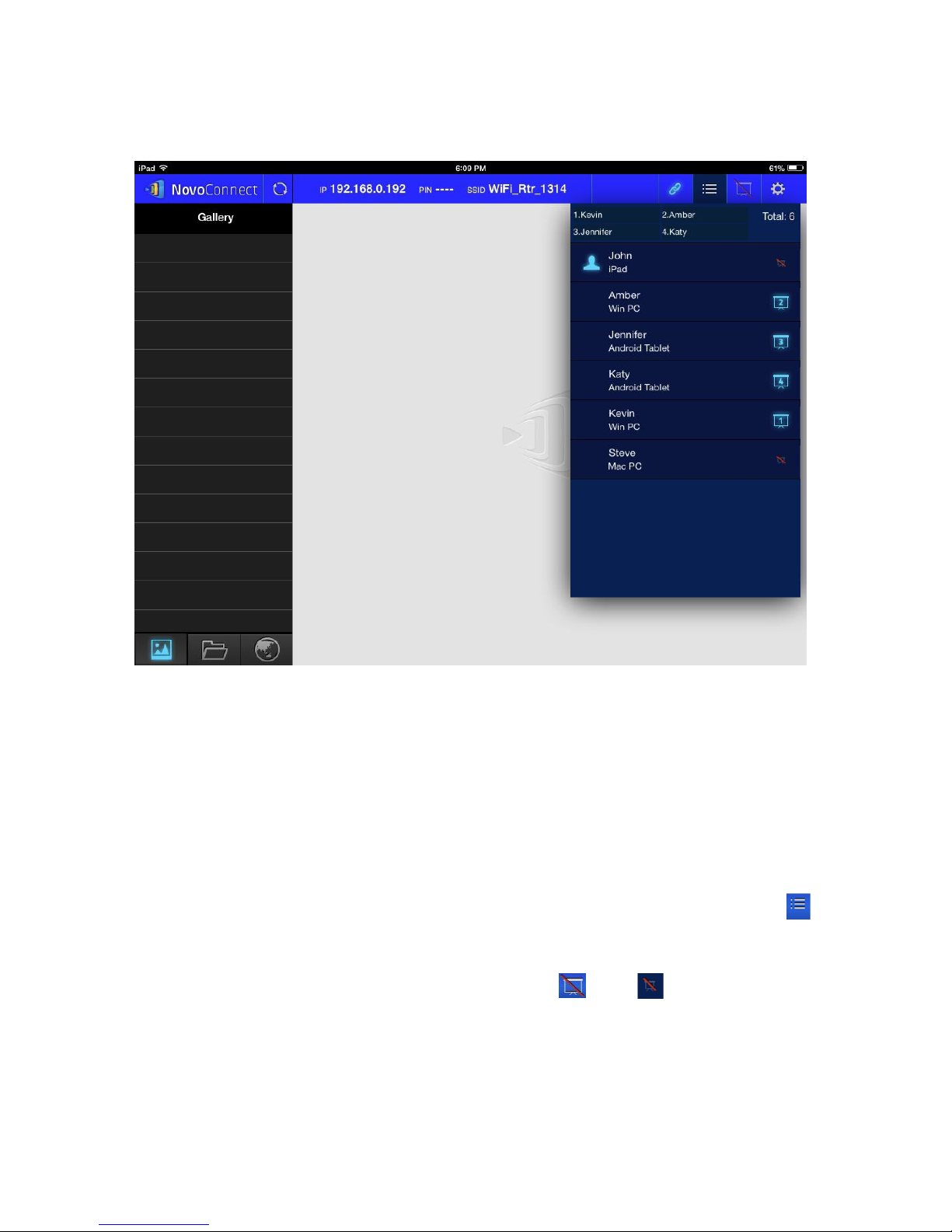

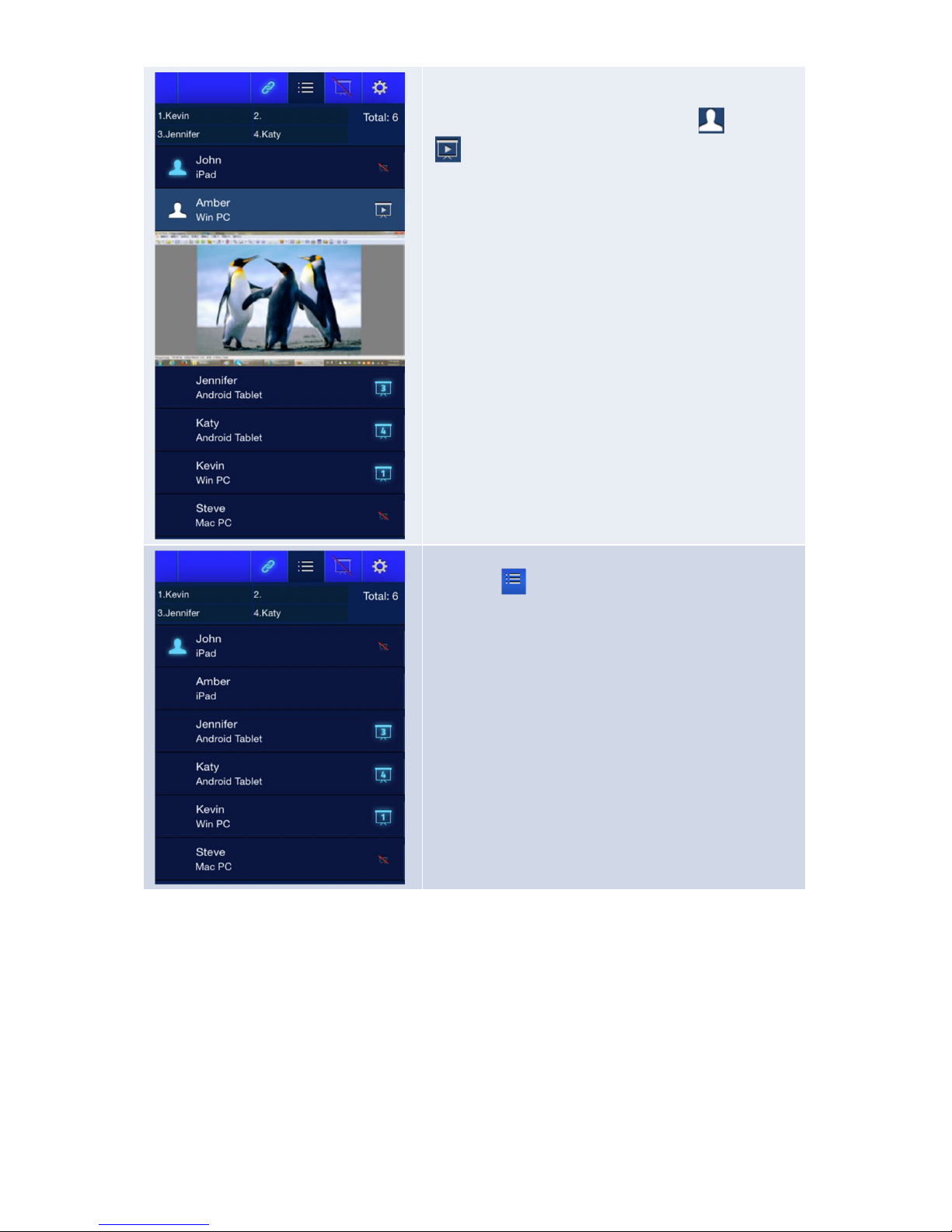

View Participants List:

You can touch the tab to see the current participant list.

Example: There are a total of six participants in the presentation group. John the host himself is not making a presentation at the moment because he has assigned Kevin, Amber, Jennifer, and Katy as the four presenters.

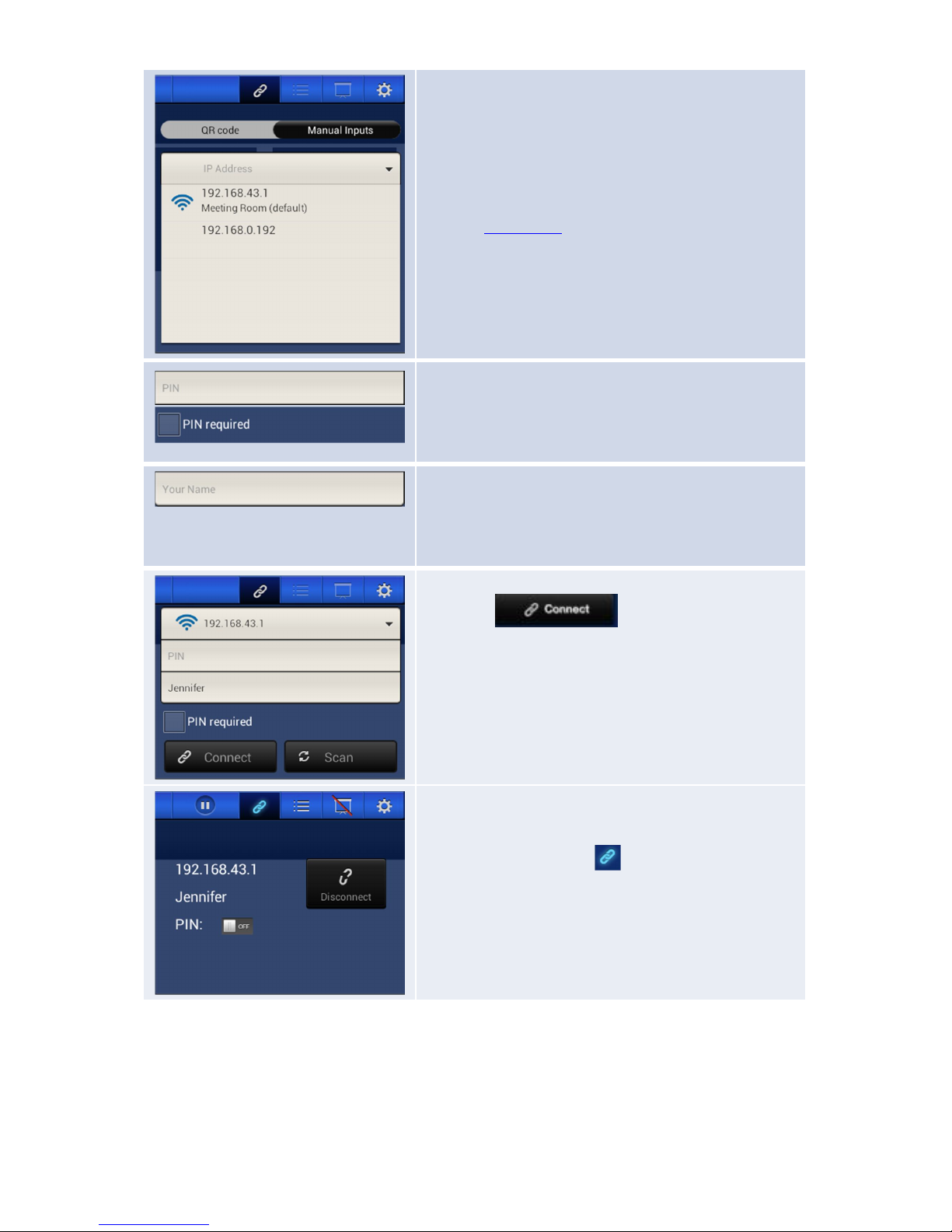

3.2.1.2 Connect to your B360 device manually

If you need to configure login information manually before connecting to your B360, this is the

preferred connection option. After launching the NovoPresenter app, touch the tab (as

seen in the screenshot below) and access the configuration options.

(Note: Education Edition does not have the screen preview control tab or the symbol.)

Option

Description

Manual Configuration option:

Toggle the QR Code / Manual Inputs switch to the Manual Inputs position.

IP Address:

Manually enter the IP address shown on your NovoConnect home screen here, or select an entry from the drop down menu that matches the IP address shown on your NovoConnect home screen.

You can tap the button to scan the IP addresses of all available B360s within the same subnet. Select the drop down menu to see the available B360s within your area. Example: 192.168.43.1.

PIN:

If a PIN code is required to connect to the B360, slide the PIN Required switch to the ON position and enter the PIN shown on the NovoConnect home screen. If the PIN code is not required, slide the PIN Required switch to the OFF position.

Your Name:

(Optional) Manually enter a name for this tablet to be identified in the presentation group among other participants. Example: Jennifer.

Make Connection

:

Touch the button. If you are the first participant, this will start a presentation group on your B360. If you are not the first participant, you will be joining a presentation group.

Confirm Connection:

After your NovoPresenter App on your iPad is connected successfully to your B360, You will see the connection tab

light up blue .

If you are the first participant, you will see that your iPad's on-screen display is wirelessly mirrored on your projector or TV. You can slide the PIN requirement switch to OFF or ON to disable or enable usage of PIN code.

View Participants List:

You can touch the tab to see the current participant list.

Example: There are a total of six participants in the presentation group. John the host himself is not making a presentation at the moment because he has assigned Kevin, Amber, Jennifer, and Katy as the four presenters.

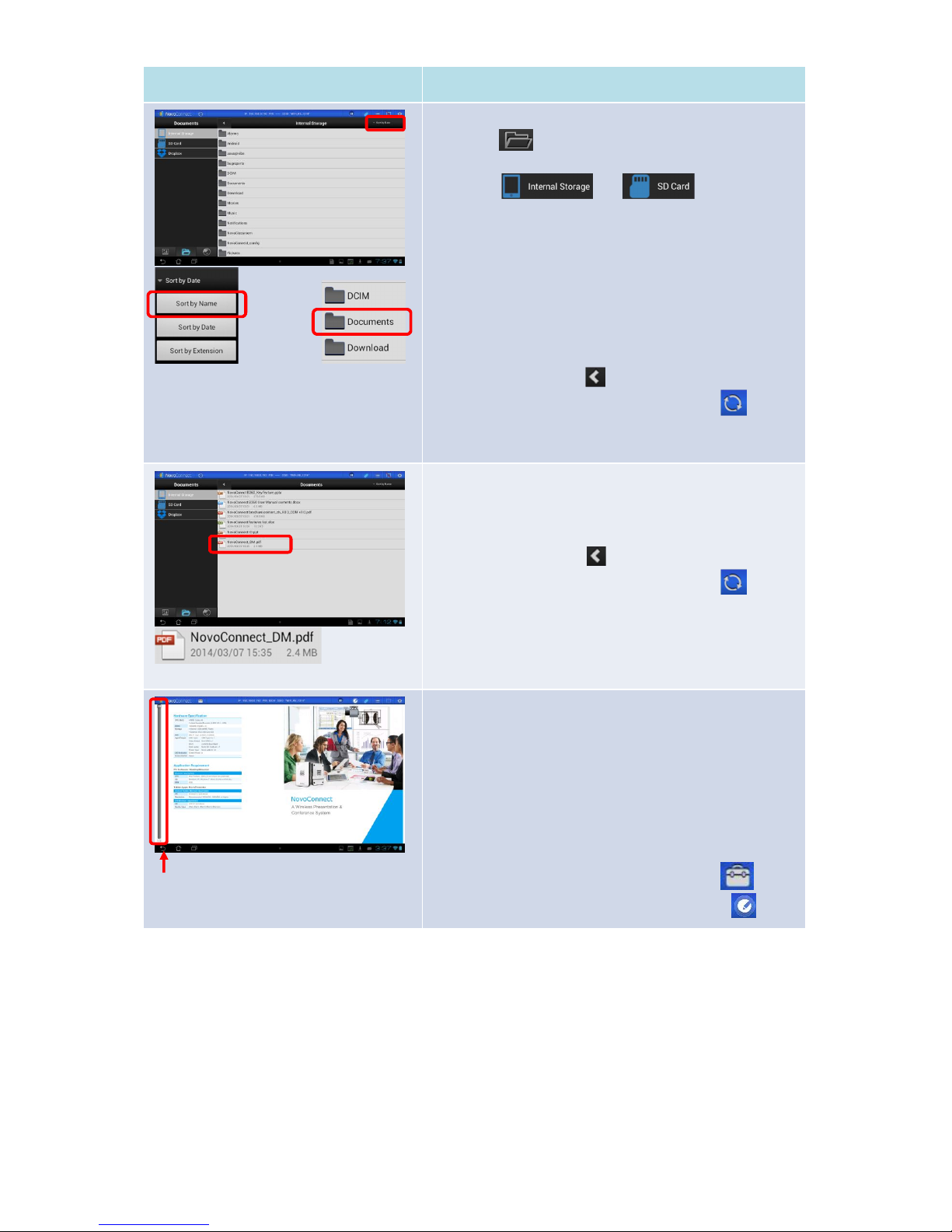

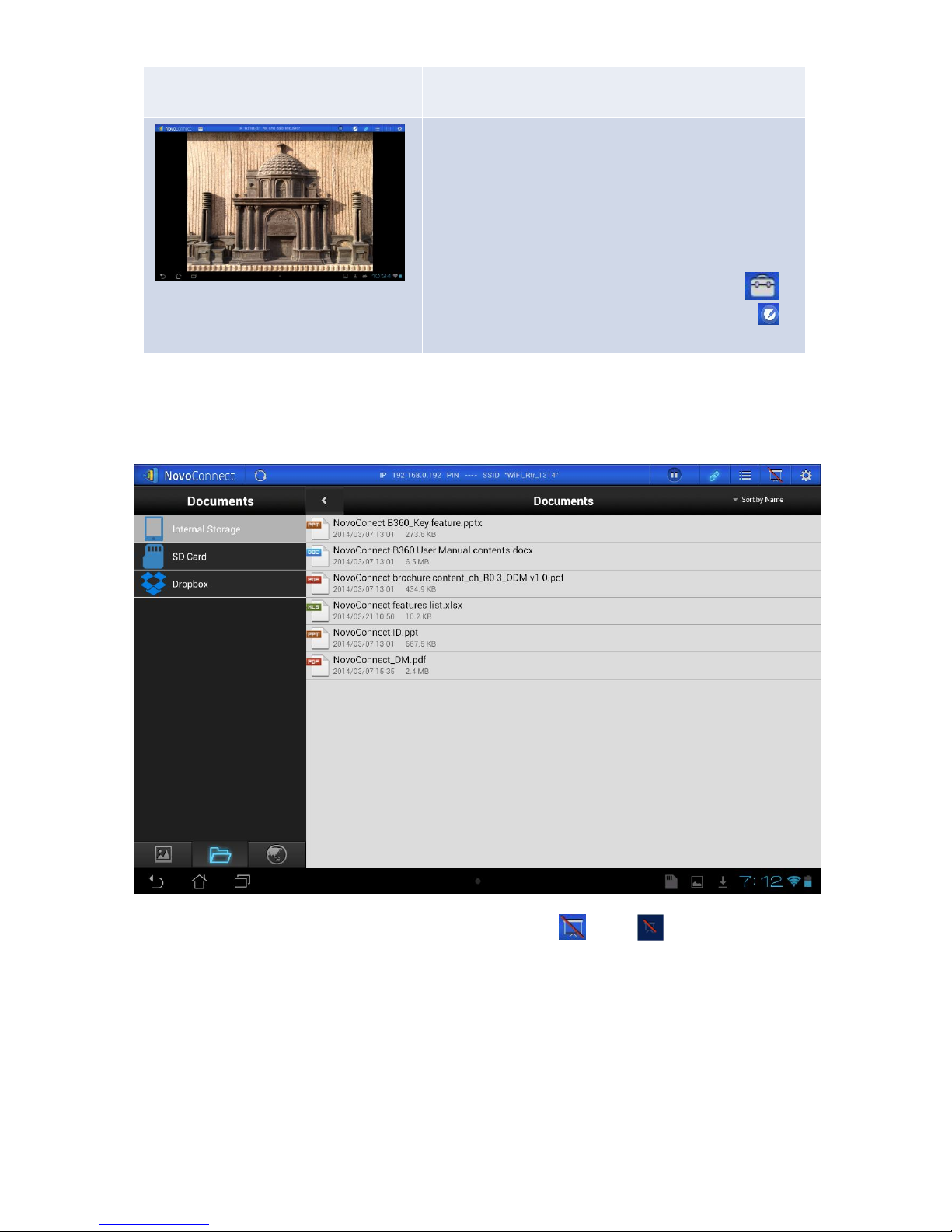

3.2.3 Step 3: Make a Presentation

Once you have started/joined a presentation group you can make a presentation with the

contents stored on your iPad, local network, or Internet. There are three tabs on the lower left

corner of the NovoPresenter’s home screen:

: Touch this tab to present an image stored on your iPad.

: Touch this tab to present a document stored on your iPad.

: Touch this tab to present a web page.

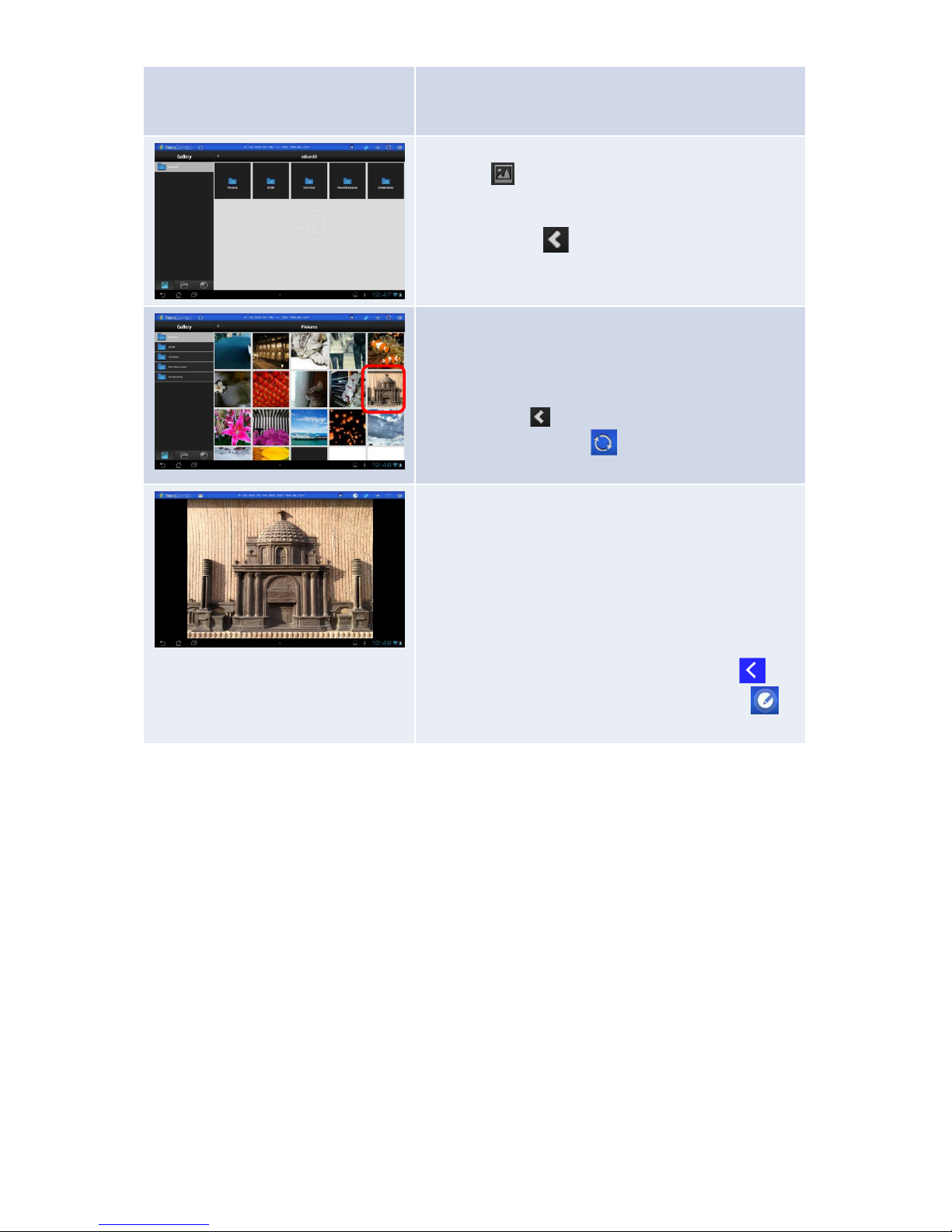

3.2.3.1 Presenting an Image

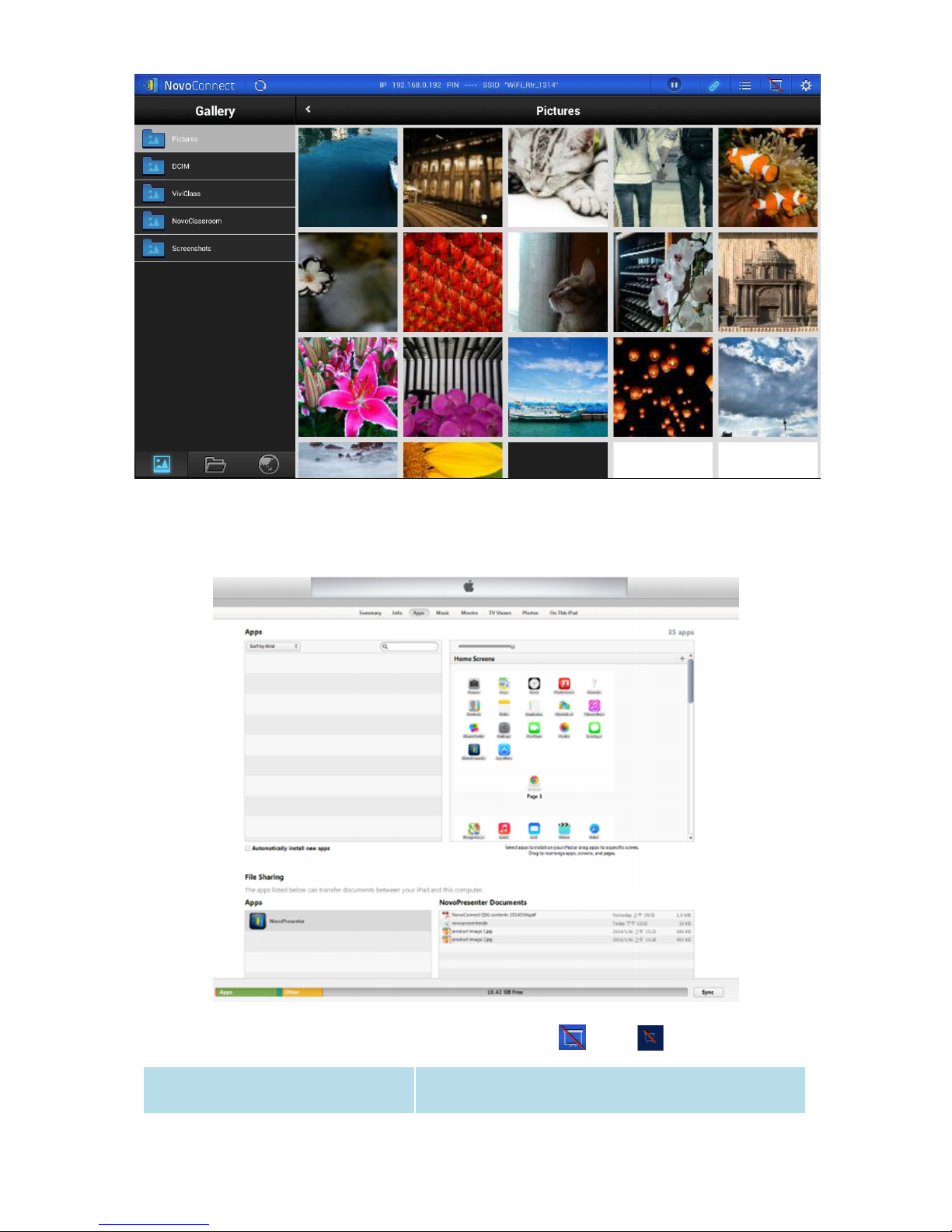

To import presentation files into iPad tablet, please refer to the iPad user manual. A sample

iTune usage page is diagrammed below.

(Note: Education Edition does not have the screen preview control tab or the symbol.)

Option Description

Import:

Please refer to the iTunes user manual for the procedure of importing images to your iPad for presentation.

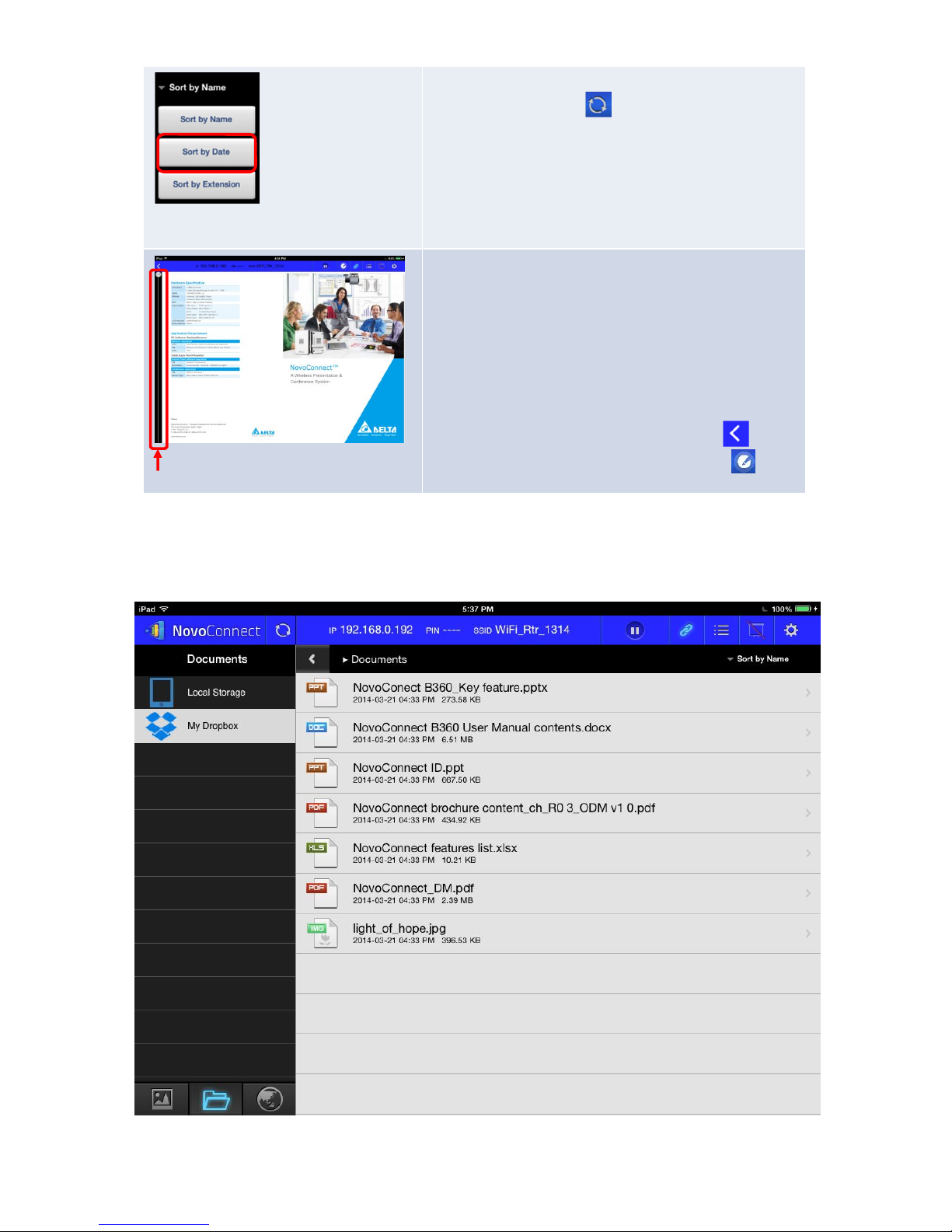

Navigation:

Touch the tab to access folders with image files. The image symbol will light up blue. Navigate to a folder by tapping on the selected folder.

. Tap the return tab to return to previous folder.

Image Thumbnails:

You will see image thumbnails displayed once you navigate to a folder with images. You can select a thumbnail to view the full image. Example: Tap on the ancient building image thumbnail.

Note: Touch the tab at any time to return to the

previous folder. Touch the tab at any time to refresh the screen.

Image Presentation:

The selected image will be displayed in full screen. You can zoom in on the image by sliding two fingers apart, or you can zoom out on the image by sliding two fingers toward each other. If you have more than one image in the same folder, you can swipe your finger left or right across the screen to advance to the next or previous image.

To return to the Image Thumbnails page, touch the

tab. To use the on-screen annotation tools, touch the tab.

3.2.3.2 Presenting a Document (Local Storage)

(Note: Education Edition does not have the screen preview control tab or the symbol.)

Option Description

Import:

Using the iTunes software, import the desired presentation documents to your iPad.

Navigation:

Touch the tab to access folders with presentation files. The folder image will light up blue. If local storage

contents are not displayed, touch the tab. Navigate to a folder by tapping the selected folder. The document list will display documents that are supported by NovoPresenter. Locate and touch the document of interest. Example: Touch the document “NovoConnect_DM.pdf”.

If you wish to sort the folder list with a desired order, touch the drop-down menu Sort, then select one of the following options:

- Sort by Name (default)

- Sort by Date

- Sort by Extension

Example: Touch the Sort by drop-down menu. Touch the option Sort by Date, then touch the Sort by Date of the Sort

by drop-down menu

Note: You can touch the tab at any time to refresh the screen contents.

Scroll Bar

Document Presentation:

The selected document will be displayed in full screen. You can zoom in on the document by sliding two fingers apart, or you can zoom out on the document by sliding two fingers toward each other. To scroll down or move to the next page, slide your finger up or drag the scroll bar down. To scroll up or move to the previous page, slide your finger down or drag the scroll bar up.

To return to the Document List page, touch the tab.

To use the on-screen annotation tools, touch the tab.

3.2.3.2 Presenting a Document (With Dropbox)

(Note: Education Edition does not have the screen preview control tab or the symbol.)

Option Description

Set Your B360 to Client Mode:

Set your B360’s Wi-Fi mode to Client Mode and connect to a WiFI AP router with Internet access.

Select Dropbox as the document source:

Touch the folder tab . It will light up blue.

Touch the tab.

First time using Dropbox in NovoPresenter: Upon first use of the NovoPresenter Dropbox feature, a link between NovoPresenter and your Dropbox account will need to be established. Enter your Dropbox Email and Password, then touch the

Sign In button.

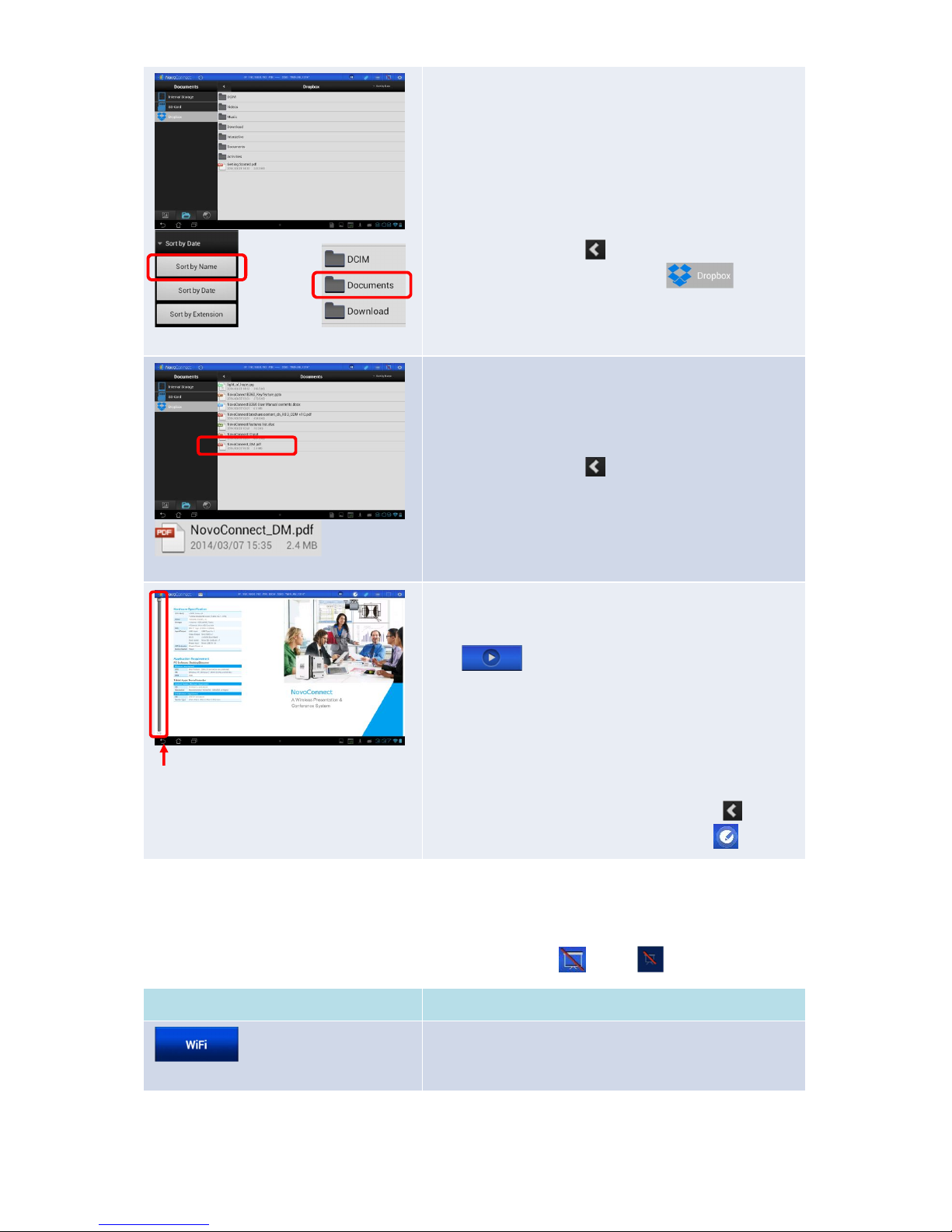

Navigation:

By default, your Dropbox’s home directory contents will be first displayed. Navigate to a folder by tapping the selected folder. If you wish to sort the list with a desired order, touch the drop-down menu Sort by, then select one of the following options:

- Sort by Name

- Sort by Date (default)

- Sort by Extension

Example: Touch the Sort by drop-down menu. Touch the option Sort by Name, then touch the Documents folder.

Note: You can touch the tab at any time to return to

previous folder. You can also touch the tab at any time to refresh the Dropbox list (you will be returned to

your Dropbox list’s home directory). You can touch the tab at any time to refresh the screen contents.

Document List:

Once you locate the document of interest. you can open and present the document page by page on dropbox website without downloading the document to your iPad. Example: Touch the document “NovoConnect_DM.pdf”.

Note: You can touch the tab at any time to return to the previous folder.

Scroll Bar

Document Presentation:

The selected document will be displayed in full screen. If

your presentation is paused, tap the button to resume presentation. You can zoom in on the document by sliding two fingers apart, or you can zoom out on the document by sliding two fingers toward each other. To scroll down or move to the next page, slide your finger up or drag the scroll bar down. To scroll up or move to the previous page, slide your finger down or drag the scroll bar up.

To return to the Document List page, touch the tab.

To use the on-screen annotation tools, touch the tab.

3.2.3.3 Presenting with a Browser

To present with a browser, please follow steps listed in the table below. A sample screen is

diagramed below.

(Note: Education Edition does not have the screen preview control tab or the symbol.)

Option Description

Set Your B360 to Client Mode:

Set your B360’s Wi-Fi mode to Client Mode and connect to a router with Internet access. Please refer to the Remote Viewer chapter for more details.

Start Browsing for a Web Page:

Touch the internet tab . It will light up blue. Select one of the three options to access a web page:

- Type URL (default)

- QR Code Scanner

- My Favorites (website bookmarks)

Type URL: Tap the Type URL tab. Enter the web page URL and tap Go. Example: Enter the URL www.wikipedia.org and tap Go (the pre-fix http:// can be omitted).

Snap a QR code:

Tap the QR Code Scanner tab. Aim your tablet’s camera to a QR code containing web page information. NovoPresenter will detect the URL and access the corresponding web page.

My Favorites:

Tap the My Favorite tab. From the bookmark list, tap the bookmark of interest to go to its corresponding web page. Tap and hold a bookmark for two seconds to edit or delete the bookmark. Note: The bookmark list may initially be empty. You can add a web page to the bookmark list at any time while browsing and presenting web pages.

Web Page Presentation:

The selected web page is fully displayed. You can zoom in on the web page by sliding two fingers apart, or you can zoom out on the web page by sliding two fingers toward each other. To scroll down or move to the next page, slide your finger up. To scroll up or move to the previous page, slide your finger down.

To add this web page to the bookmark list, tap the tab. To return to the Start Browsing for a Web Page, tap the

tab. To use the on-screen annotation tools, tap the

tab.

3.2.3.4 Annotation

Sometimes you may want to write, highlight, or mark portions of your presentation materials

directly on the tablet screen. The NovoPresenter provides an on screen annotation tool for the

presenter to annotate directly on the presentation material without changing the original.. You

can enable the annotation tool by toggling the tab on, as shown in the screen

shot below.

Option

Description

Tap the tab to enable the annotation tool.

Annotate with a red marker

Annotate with a blue marker

Annotate with a black marker

Annotate with a yellow highlighter

Change from annotation (writing) mode to touch panel

(operation) mode

Trash can

Eraser

Undo

3.2.4 Step 4: Presentation Management

Once you are done starting/joining a presentation group, you are ready to make a presentation

and collaborate with other participants. A sample screen view is provided below.

3.2.4.1 Role Assignment

There are three roles in a presentation group, the host, the presenter, and the participant.

The first person to start a presentation group with a B360 is assigned the host role. Subsequent

joiners are assigned the participant role.

The host is defaulted to assume the presenter role until he handed over the presenter role to

another participant.

To show all current participants who have joined the presentation group, please touch the

tab.

(Note: Education Edition does not have the screen preview control tab or the symbol.)

Option

Description

Select the tab to show the participant list.

indicates the current host.

indicates the current presenter.

*indicates a participant who has denied screen

preview.

indicates the current presenter that is presenting in the indicated split-screen Box number (#1-4) (the instance here shows a presenter that is presenting in Box #1).

*Example: There are six participants in the presentation group – one with an iPad, two with Windows PCs, two with Android tablets, and one with a Mac PC. John is the host who automatically has denied screen preview. Steve is a participant who has denied screen preview. Kevin, Amber, Jennifer, and Katy are presenters currently presenting in Box #1-4 of the 4-way split screen (which will be explained in detail later).

*: For Education Edition, there is no screen preview control

tab , and all participants will automatically allow screen

preview as will not appear for any participant.

Indicate

the name

s of the

presenters

seen by other

participants and the total number of current participants. Example 1: Oliver is the only presenter, and there are currently 2 participants. Example 2: Kevin, Amber, Jennifer, and Katy are the four presenters, and there are currently 6 participants.

(For non

-

host

participants

in

Enterprise Edition

only)

Toggle

between and to accept or deny screen preview by the host, respectively.

3.2.4.2 Role Change, Screen Preview, and 4-way Split Screen

(Note: Education Edition does not have the screen preview control tab or the symbol.)

Option

Description

To perform

a

Role Change:

First select the tab to show the participant list.

Highlight

participant

Amber

(example name)

by

touching the

middle part of Amber’s entry once or twice until both the

and the icons appear.

Touch Amber’s icon to hand over the host role to her.

If the split screen selection area is not yet

present, touch the icon to bring up the split screen

selection area. Touch the icon of the split screen selection area to request Amber to be the sole presenter.

Touch one of the four boxes (#1-4) in the split screen selection area to assign Amber to perform a presentation on one of the four boxes of the 4-way split screen.

When a participant is asked to be a host, a dialog box will appear on the participant’s screen. When a participant is asked to be a presenter, a dialog box will appear on the participant’s screen. The participant has 20+ seconds to touch the Yes button to become the new host or touch the No button to reject the host assignment.

To perform Screen Preview:

Touch the tab to show the participant list. The participant Amber (example name) does not have a

icon, indicating that she allows screen preview.

To preview a participant’s screen, touch the middle part of

an entry once or twice to bring up both the and the

icons. Wait for a few seconds for the screen to be sampled and displayed.In this example, Amber’s Win PC is selected to be previewed.

To perform

a 4-

way split screen presentation:

Touch the tab to show the participant list.

Select a participant to make a presentation. In this example, Amber (example name) is selected.

Touch Amber’s entry once or twice until both the and

the icons appear. If the split screen selection area

is not yet present, touch the icon to bring up the split screen selection area. Touch one of the four boxes (#1-4) in the split screen selection area to assign Amber to perform a presentation on one of the four boxes of the 4-way split screen. In this example, Amber is assigned to make a presentation in Box #2.

Amber

will receive a request to perform a presentation on

one of the four boxes of the 4-way split screen. After John accepts (within 20+ seconds) being one of the four possible presenters (by touching the Yes button), John’s screen will appear on one of the four boxes of the 4-way split screen.

3.2.4.3 Pause, Resume, and Disconnect

(Note: Education Edition does not have the screen preview control tab or the symbol.)

Icon Description

To Pause a Presentation:

Touch the tab to enter the presentation control page.

Pausing and Resuming a Presentation:

While presenting, the presenter toggle between

and to pause and resume the presentation respectively.

To Disconnect from a Presentation

Group

:

Touch the button to exit the presentation group.

If the host exited the presentation session without handing over the host role, all participants will receive a message prompting them to take over the host role. The first to respond to the prompt will assume the role of the host.

3.2.4.4 Reset

Occasionally you may encounter problems with the network or the computer, causing the

presentation group to malfunction on your B360. One way to resolve this problem is to reset

the presentation group.

(Note: Education Edition does not have the screen preview control tab or the symbol.)

Option

Description

To perform

a

Reset:

First touch the tab and touch the arrow of

Device Reset.

Resetting:

Touch the Quick Reset to reset the presentation group to allow a presentation group to start over again. Touch the Full Reset button to reset the NovoConnect B360 device. The B360 device will restart automatically. Conflicts may occur when multiple participants simultaneously attempt to reset the presentation group or the B360. The reset privilege priorities are as the following:

1. Host: The host has the sole privilege to quick-reset the presentation group or the B360 device when the host stays connected to the B360.

2. Presenter: If the host lost connection with the B360, the current presenter inherits the privilege to quick-reset the B360.

3. Participant: If the host and the presenter both lost connection with the B360, any participant can quick-reset the presentation group.

3.3 Presenting with Android Tablet

The Android version of the NovoPresenter app (pictured in the image below) enables an

Android tablet device to connect to the B360 and make a presentation.

Launch Presentation Application

Launch the NovoPresenter application by selecting the NovoPresenter app icon on your

Android tablet. The NovoPresenter app will be launched.

To make a presentation, you must follow the steps below:

Step 1: Connect to your B360 device

Step 2: Make a presentation

Step 3: Manage the presentation

3.3.1 Step 1: Connect to your B360 Device

There are two ways to connect to your B360 device:

3. Connect to your B360 device automatically via QR Code.

4. Connect to your B360 device manually.

3.3.1.1 Connect to your B360 device automatically via QR Code

This is the default B360 connection option which allows you to connect to your B360

automatically without any manual configurations. After launching the NovoPresenter app,

touch the tab (as seen in the screen shot below) and access the connection options.

(Note: Education Edition does not have the screen preview control tab or the symbol.)

Option

Description

Connect to the B360 automatically via QR Code:

The QR code / Manual inputs switch will be in the QR code position by default (if not, just tap the switch once). Aim your tablet’s camera to the QR code containing login information, which can be found on your B360 home screen or on the screen of the device connected to your B360. Under normal circumstances, NovoPresenter will automatically login to your B360. Should automatic login fail, then follow the manual configuration option in the section 3.3.1.2 Connect to your

B360 device manually.

QR Code Scan Area

Confirm Connection:

After your NovoPresenter App on your Android tablet is connected successfully to your B360, You will see the

connection tab light up blue .

If you are the first participant, you will see that your Android tablet's on-screen display is wirelessly mirrored on your projector or TV. You can slide the PIN requirement switch to

OFF or ON to disable or enable usage of PIN code.

View Participants List:

You can touch the tab to see the current participant list.

Example: There are a total of six participants in the presentation group. Jennifer the host herself is not making a presentation at the moment. She has assigned Kevin, Amber, John, and Katy as the four presenters.

Allow other users to

connect to the B360 automatically via

QR Code:

For the first participant, NovoPresenter automatically generates a QR code on your Android device's home directory (which is mirrored on your projector or TV) to allow other subsequent users to connect to your B360 automatically. Subsequent users can follow the steps described above to scan the QR code and connect automatically to your B360. Upon starting the NovoPresenter, you should be able to find an applicable QR Code image being displayed. If not, just

touch the or the tab followed by the tab on the lower left corner of the NovoPresenter screen.

3.3.1.2 Connect to your B360 device manually

If you need to configure login information manually before connecting to your B360, this is the

preferred connection option. After launching the NovoPresenter app, touch the tab (as

seen in the screenshot below) and access the configuration options.

QR Code

(Note: Education Edition does not have the screen preview control tab or the symbol.)

Option

Description

Manual Configuration option:

Toggle the QR code / Manual inputs switch to the Manual inputs position.

IP Address:

Manually enter the IP address shown on your NovoConnect home screen here, or select an entry from the drop down menu that matches the IP address shown on your NovoConnect home screen. You can tap the Scan button to scan the IP addresses of all available B360s within the same subnet. Select the drop down menu to see the available B360s within your area. Example: 192.168.43.1.

PIN:

If a PIN code is required to connect to the B360, check the PIN Required box and enter the PIN shown on the NovoConnect home screen. If the PIN code is not required, uncheck the PIN Required check box.

Your Name:

(Optional) Manually enter a name for this tablet to be identified in the presentation group among other participants. Example: Jennifer.

Make Connection

:

Touch the button. If you are the first participant, this will start a presentation group on your B360. If you are not the first participant, you will be joining a presentation group.

Confirm Connection:

After your NovoPresenter App on your Android tablet is connected successfully to your B360, You will see the

connection tab light up blue .

If you are the first participant, you will see that your Android tablet's on-screen display is wirelessly mirrored on your projector or TV. You can slide the PIN requirement switch to OFF or ON to disable or enable usage of PIN code.

View Participants List:

You can touch the tab to see the current participant list. Example: There are a total of six participants in the presentation group. Jennifer the host herself is not making a presentation at the moment. She has assigned Kevin, Amber, John, and Katy as the four presenters.

3.3.2 Step 2: Make a Presentation

Once you have started orjoined a presentation group you can make a presentation with the

contents stored on your tablet, local network, or the Internet. There are three tabs on the lower

left corner of the NovoPresenter’s home screen:

: Touch this tab to present an image stored on your tablet.

: Touch this tab to present a document stored on your tablet.

: Touch this tab to present a web page.

3.3.2.1 Presenting an Image

One quick way to import presentation files into an Android tablet is to connect to a computer

via USB cable. Drag and drop photos and documents onto the tablet as USB storage device. A

sample screen is provided below.

(Note: Education Edition does not have the screen preview control tab or the symbol.)

Option Description

Navigation:

Touch the tab to access folders with image files. It will light up blue. Navigate to a folder by tapping the selected folder. .

Touch the tab at any time to return to previous folder.

Image Thumbnails:

You will see image thumbnails displayed once you navigate to a folder with images. You can select a thumbnail to view the full image. Example: Tap on the ancient building image thumbnail.

Note: Touch the tab at any time to return to the

previous folder. Touch the tab at any time to refresh the screen.

Image Presentation:

The selected image will be displayed in full screen. You can zoom in on the image by sliding two fingers apart, or you can zoom out on the image by sliding two fingers toward each other. If you have more than one image in the same folder, you can swipe your finger left or right on the screen to advance to the next or previous image.

To return to the Image Thumbnails page, touch the tab. To use the on-screen annotation tools, touch the

tab.

3.3.2.2 Presenting a Document (Local Storage)

(Note: Education Edition does not have the screen preview control tab or the symbol.)

Option Description



Navigation:

Touch the tab to access folders with supported document types.. It will light up blue.

Touch the or tab (or any other tab of your storage device) and browse a folder with documents. If you wish to sort the folder list with a desired order, touch the drop-down menu Sort by, then select one of the following options:

- Sort by Name

- Sort by Date (default)

- Sort by Extension

Example: Touch the Sort by drop-down menu. Touch the option Sort by Name and then touch the Documents folder.

Note: You can touch the tab at any time to return to

the previous folder. Besides, you can touch the tab at any time to refresh the screen.

Document List:

Once you enter a folder with documents supported by NovoPresenter, touch the document of interest. Example: Touch the document “NovoConnect_DM.pdf”.

Note: You can select the tab at any time to return to

the previous folder. Besides, you can touch the tab at any time to refresh the screen contents.

Scroll Bar

Document Presentation:

The selected document (PDF as an example) will be displayed in full screen. You can zoom in on the document by sliding two fingers apart, or you can zoom out on the document by sliding two fingers toward each other. To scroll down or move to the next page, slide your finger up or drag the scroll bar down. To scroll up or move to the previous page, slide your finger down or drag the scroll bar up.

To return to the Document List page, touch the tab.

To use the on-screen annotation tools, touch the tab.

3.3.2.3 Presenting a Document (With Dropbox)

To present with documents residing in Dropbox, please follow steps listed in the table below.

(Note: Education Edition does not have the screen preview control tab or the symbol.)

Option Description

Set Your B360 to Client Mode:

Set your B360’s Wi-Fi mode to Client Mode and connect to a router with Internet access. Please refer to the Remote Viewer chapter for more details..

Select Dropbox as the document source:

Touch the folder tab . It will light up blue.

Touch the tab.

First time using Dropbox in NovoPresenter: Upon first use of the NovoPresenter Dropbox feature, a link

between NovoPresenter and your Dropbox account will need to be established. Choose a web browser to access the Dropbox link page.

Enter your Dropbox Email and Password, then touch the Sign In button.

Touch the Allow button to permit NovoPresenter to access your Dropbox documents. You will then be redirected back to NovoPresenter. Note: If your Android tablet is disconnected from your B360 during the Dropbox setup, simply reconnect to your B360 using the procedures in “Step 2: Connect to your B360 device”.



Navigation: . If you wish to sort the list with a desired order, touch the drop-down menu Sort by, then select one of the following options:

- Sort by Name

- Sort by Date (default)

- Sort by Extension

Example: Touch the Sort by drop-down menu. Touch the option Sort by Name, then touch the Documents folder.

Note: You can touch the tab at any time to return to

previous folder. You can also touch the tab at any time to refresh the Dropbox list.

Document List:

Once you locate the document of interest. you can open and present the document page by page on dropbox website without downloading the document to your Android tablet..

Example: Touch the document “NovoConnect_DM.pdf”.

Note: You can touch the tab at any time to return to the previous folder.

Scroll Bar

Document Presentation:

The selected document (PDF as an example) will be displayed in full screen. . If your presentation is paused, tap

the button to resume presentation. You can zoom in on the document by sliding two fingers apart, or you can zoom out on the document by sliding two fingers toward each other. To scroll down or move to the next page, slide your finger up or drag the scroll bar down. To scroll up or move to the previous page, slide your finger down or drag the scroll bar up.

To return to the Document List page, touch the tab. To

use the on-screen annotation tools, touch the tab.

3.3.2.4 Presenting a Document (with a Browser)

(Note: Education Edition does not have the screen preview control tab or the symbol.)

Option Description

Set Your B360 to Client Mode:

Set your B360’s Wi-Fi mode to Client Mode and connect to a WiFI AP router with Internet access.

Start Browsing for a Web Page:

Touch the internet tab . It will light up blue. Select one of the three options to choose a web page:

- Type URL (default)

- QR Code Scanner

- My Favorite (website bookmarks)

Type URL …: Touch theType URL… tab. Enter the web page URL and touch Go. Example: Enter the URL www.wikipedia.org and touch Go.

QR code Scanner:

Touch the QR code Scanner tab. Aim your tablet’s camera to a QR code containing web page information. NovoPresenter will detect the embedded URL and go to the corresponding web page.

My Favorite:

Touch the My Favorite tab. From the bookmark list, touch a bookmark of interest to go to its corresponding web page. Touch and hold a bookmark for two seconds to edit or delete that bookmark. Note: The bookmark list may initially be empty. You can add a web page to the bookmark list while browsing the web by

tapping the tab..

Web Page Presentation:

The selected web page will be displayed in full screen. You can zoom in on the web page by sliding two fingers apart, or you can zoom out on the web page by sliding two fingers toward each other. To scroll down or move to the next page, slide your finger up. To scroll up or move to the previous page, slide your finger down.

To add a web page to the bookmark list, touch the tab.

QR Code Scan Area

To return to My Favorite, touch the tab. To use the

on-screen annotation tools, touch the tab.

3.3.2.5 Annotation

Sometimes you may want to write, highlight, or mark portions of your presentation materials

directly on the tablet screen. The NovoPresenter provides an on screen annotation tool for the

presenter to annotate directly on the presentation material without changing the original. You

can enable the annotation tool by toggling the tab on, as shown in the screen

sample below.

Option

Description

Touch the tab to enable the annotation tool.

Annotate with a red marker

Annotate with a blue marker

Annotate with a black marker

Annotate with a yellow transparent marker

Change from annotation (writing) mode to touch panel

(operation) mode

Trash can

Eraser

Undo

3.3.3 Step 3: Presentation Management

Once you are done starting/joining a presentation group, you are ready to make a presentation

and collaborate with other participants. A sample screen view is provided below.

3.3.3.1 Role Assignment

There are three roles in a presentation group, the host, the presenter, and the participant.

The first person to start the presentation group with a B360 is assigned the host role. Subsequent

joiners are assigned the participant role. The host is defaulted to assume the presenter role

until he handed over the presenter role to another participant.

To show all current participants who have joined the presentation group, please touch the

tab.

(Note: Education Edition does not have the screen preview control tab or the symbol.)

Option

Description

Select the tab to show participant list.

indicates the current host.

indicates the current presenter.

*indicates a participant who has denied screen

preview.

indicates the current presenter that is presenting in the indicated split-screen Box number (#1-4) (the instance here shows a presenter that is presenting in Box #1).

*Example: There are six participants in the presentation group – two with Android tablets, two with Windows PCs, one with an iPad, and one with a Mac PC. Jennifer is the host who automatically has denied screen preview. Steve is a participant who has denied screen preview. Kevin, Amber, John, and Katy are presenters currently presenting in Box #1-4 of the 4-way split screen (which will be explained in detail later).

*: For Education Edition, there is no screen preview control

tab , and all participants will automatically allow screen

preview as will not appear for any participant.

The n

ames

on this box indicate the

current presenters

and

the total number of current participants. Example 1: Oliver is the only presenter, and there are currently 2 participants. Example 2: Kevin, Amber, John, and Katy are the four presenters, and there are currently 6 participants.

(For non

-

host users

in

Enterprise Edition

only)

Toggle

between and to accept or deny screen preview by the host, respectively.

3.3.3.2 Role Change, Screen Preview, and 4-way Split Screen

(Note: Education Edition does not have the screen preview control tab or the symbol.)

Option

Description

To perform

a

Role Change:

First select the tab to show the participant list.

Highlight participant John (example name) by touching the middle part of the entry of John once or twice until both the

and the icons appear.

Touch John’s icon to hand over the host role to him.

If the split screen selection area is not yet

present, touch the icon to bring up the split screen

selection area. Touch the icon of the split screen selection area to request John to be the sole presenter.

Touch one of the four boxes (#1-4) in the split screen selection area to assign John to perform a presentation on one of the four boxes of the 4-way split screen.

When a participant is asked to be a host or a presenter, a dialog box will appear on the participant’s screen to prompt for acceptance. The participant has 20+ seconds to touch the Yes button to accept the new role or touch the No button to reject.

To perform Screen Preview:

Touch the tab to show the participant list. *The participant Amber (example name) does not have a

icon, indicating that she allows screen preview.

*: For Education Edition, there is no screen preview control

tab , and all participants will automatically allow screen

preview as will not appear for any participant.

To preview a participant’s screen, touch the middle part of

an entry once or twice to bring up both the and the

icons. Wait for a few seconds for the screen to be sampled and displayed.In this example, Amber’s Android tablet is selected to be previewed.

To perform

a 4-

way split screen presentation:

Touch the tab to show the participant list.

Select a participant to make a presentation. In this example, Amber (example name) is selected.

4-way Split Screen

Presentation:

Touch Amber’s entry once or twice until both the and

the icons appear. If the split screen selection area

is not yet present, touch the icon to bring up the split screen selection area. Touch one of the four boxes (#1-4) in the split screen selection area to assign Amber to perform a presentation on one of the four boxes of the 4-way split screen. .

Amber will receive a request to perform a presentation on one of the four boxes of the 4-way split screen. After Amber accepts (within 20+ seconds) the request (by touching the Yes button), Amber’s screen will appear on one of the four boxes of the 4-way split screen.

3.3.3.3 Pause, Resume, and Disconnect

(Note: Education Edition does not have the screen preview control tab or the symbol.)

Option

Description

To Pause a Presentation:

Touch the tab to enter the presentation control page.

Pausing and Resuming a Presentation:

While presenting, the presenter toggle between

and to pause and resume the presentation

respectively.

To Disconnect from a Presentation

Group

:

Touch the tab to enter the presentation control page.

Touch the button to exit the presentation group.

If the host exited the presentation session without handing over the host role, all participants will receive a message prompting them to take over the host role. The first to respond to the prompt will assume the role of the host.

3.3.3.4 Reset and Rename Local Device

Occasionally you may encounter problems with the network or the computer, causing the

presentation group to malfunction on your B360. One way to resolve this problem is to reset

the presentation group.

Option

Description

To perform

a

Reset:

First touch the tab and touch the arrow of

Device Reset.

Resetting:

Tap Quick Reset to start a presentation group over again. Tap the Full Reset button to reset the NovoConnect B360 device. The B360 device will restart automatically. Conflicts may occur when multiple participants simultaneously attempt to reset the presentation group or the B360. The reset privilege priorities are as the following:

1. Host: The host has the sole privilege to quick-reset the presentation group or the B360 device when the host stays connected to the B360.

2. Presenter: If the host loses connection with the B360, the current presenter inherits the privilege to quick-reset the B360.

3. Participant: If the host and the presenter both lose connection with the B360, any participant can quick-reset the presentation group.

3.4 Presenting with the NovoConnect B360 Device

Your B360 device allows you to make presentations with the computing power of the device

itself without a computer. Your presentation files may reside in a microSD card, USB memory

stick, or the internal storage of your B360 device.

The steps to making a presentation with only your B360 are as follows:

1) If your presentations are stored in a microSD card, please insert the microSD card into the

microSDcard slot.

2) If your presentations are stored on a USB memory stick, please first connect a USB hub to

your B360 device, then connect a mouse and a USB memory drive to the USB hub.

3) You can also save your presentation files in the local storage of your B360.

Note: You need a mouse to operate the following steps.

4) Click on any empty space of the NovoConnect home screen, and then click the home button

.

5) Click and open NovoPresenter App.

6) Browse for and open your presentation file within NovoPresenter App..

You are now ready to make a direct presentation with your B360.

USB port (Mouse,

keyboard,

memory drive)

microSD slot

4. B360 Configuration

The Remote Viewer is the application software on the NovoConnect B360 device that hosts the

presentation group. The main function of the Remote Viewer is to manage and control all

presentation sessions between the participant devices and the NovoConnect B360. In addition

to presentation management, the Remote Viewer supports the configuration of the below

parameters of the B360 device:

 Setup Guide  WiFi  Display  Settings  Reset  Presentation Group Name

Note: Following any clicking activity on the screen, the system bar

appears. Click one or more times until the system bar disappears.

Please go to the NovoConnect home screen to locate the parameters. You will need a

USB-based mouse to perform setting changes.

Option

Description

Setup Guide

and QR Code

:

The B360 connection setup guide is initially selected when B360 is first powered on. To show or hide this guide, click

. For quick connection for iPad or Android tablets, the B360 connection QR code is continuously displayed and updated on the lower right corner of the NovoConnect home screen.

For more details regarding the use of this setup guide and the QR code, please refer to the section 1.2.2 The

NovoConnect Home Screen earlier in this document for

more details.

WiFi:

Click the WiFi button to bring up the Configure WiFi window.

Select either Hotspot Mode (B360 is the Wi-Fi host) or Client Mode (B360 is the Wi-Fi client). To set the Wi-Fi mode immediately, click Apply. To further customize the selected Wi-Fi mode, click Configure to bring up the relevant Android system menu.

Display

:

Click the Display button to bring up the Select Display Output Format window.

Select one of the following screen resolutions (the presenter’s , Windows and Mac PC,will be automatically adjusted to match the selected option):

Auto

Config

XGA(1024x768) WXGA(1280x800) 720p (1280x720) 1080p (1920x1080)

automatically determines the optimal

screen resolution

Click

Save to make the

selection

official, or click

Cancel

to

abort the selection.

Settings

:

For more device settings of your B360, click the Settings button to access the Android system menu.

Reset:

To restart the NovoConnect B360: Press and hold on the Reset tab 2 seconds. The B360 will restart.

Presentation Group Name

:

Click on the presentation group name shown on the lower right corner of the NovoConnect home screen. This will bring up the Edit Room Name window. Enter the new presentation group name using the on-screen soft keyboard or a physical keyboard. Click Save to make the name change official, or click Cancel to abort the name change.

Set Edition:

Click on the edition name shown on the top left corner of the NovoConnect home screen. This will bring up the edition selection window. Select either Enterprise Edition or Education Edition, then click Confirm to make the edition change official, or click Cancel to abort the edition change. The main difference between these two editions are as follows:

Enterprise Edition:

The host must obtain permiss

ion from

participants for screen preview.

Education Edition:

The host can preview the screen of any

participant without requiring permission

.

For all users that are connected to the B360 device, there is no screen preview

control tab

, and all participants will

automatically allow screen preview as

will not appear for any participant..

5. Specifications

Hardware Specifications

Power Supply 5VDC, 2A Power

Consumption

< 10W

Output Resolutions

1024x768 (XGA), 1280x720 (HD), 1280x800 (WXGA), 1920x1080 (Full HD), Auto Config

CPU (SoC) ARM Cortex A9

Video Decoder/Encoder (H.264, VC-1, VP8)

Memory DDR 1024MB Storage Internal: 4GB (eMMC Flash)

External: microSD Card Slot

Wi-Fi 802.11 b/g/n (2.4GHz & 5GHz) Input/Output USB Input USB Type A x 1

Video Output Micro HDMI x 1 Card Reader microSD Card Slot x 1 Power Input Micro USB (5V 2A)

LED Indicator Green (Power On) Button/Switch Reset Dimensions 88 x 55 x 16 mm (L x W x H)

Weight g

52

PC/Notebook Application Requirements

CPU Intel Pentium, 2GHz (Intel Core i3 and above are

preferred)

Operating System

Windows XP, Windows 7, Windows 8 (32 bits and 64 bits), Mac 10.6 and above

RAM 4 GB

Android Mobile Device Application Requirements

Operating System

Android 3.2 and above (Android 4.0 and above are recommended)

Resolution 1024x768, 1280x800, or Higher are recommended

iOS Mobile Device Application Requirements

Operating System

iOS 5.1 and above

Device Type iPad, iPad 2, iPad 3, iPad 4, iPad mini, and iPad Air

6. Troubleshooting

Q: NovoConnect does not operate.

A: Check if the proper DC power supply with the appropriate operating voltage and sufficient

operating current (5VDC, 2A) is connected to the Micro-USB port of the NovoConnect

B360.

Q: My PC cannot link to NovoConnect wirelessly.

A: For your PC to link to NovoConnect, your PC must either have a built-in a Wi-Fi module or

an external Wi-Fi adapter, and WiFi must be enabled. If the NovoConnect B360 is set to

Hotspot Mode (factory-default mode), choose NovoConnect’s SSID from the available

SSID list. If NovoConnect is set to Client Mode and is connected to a specific WiFi AP,

choose that AP’s SSID from the available SSID list.

Q: The play/pause buttons do not work.

A: These buttons are functional only for the current presenters.

Q: I cannot connect to the internet on NovoConnect.

A: This is normal if the NovoConnect B360 is set to Hotspot Mode, since NovoConnect by

itself does not support WAN (wireless wide area network) access. To access the internet,

such as web browsingon NovoConnect, please set the WiFi to Client Mode and connect to

a WiFi AP that ha route to the Internet.

Q: My PC or mobile device has failed to connect to NovoConnect.

A:

First, make sure that Wi-Fi is enabled on your device. If NovoConnect is set to Hotspot

Mode (factory-default mode), choose NovoConnect’s SSID from the available SSID list. If

NovoConnect is set to Client Mode and is connected to a WiFi router, choose that

router’s SSID from the available SSID list.

Q: I cannot choose to present in full screen or in one of the split screens.

A: Only the host has the authority to decide whether your presentation is to be seen in full

screen or one of the split screens. You may be invited to be the host: 1) if the Reset

button is clicked on the NovoConnect B360, 2) if the host explicitly hands over host

control to you, or 3) if all other presenters have disconnected from NovoConnect.

Q: I am the host, but I cannot preview other participants’ screens.

A: To preview a participant’s screen before sending a presentation invitation, that

participant must have screen preview enabled on his device.

Q: My device’s on-screen display looks stretched or compressed on NovoConnect’s screen

output.

A: There may be an aspect ratio mismatch between the NovoConnect B360’s chosen output

resolution and your device’s screen aspect ratio (e.g. your device’s screen has the 4:3

aspect ratio, and you have set NovoConnect’s output resolution to a 16:9 or 16:10 option).

Try to set the display resolution on the NovoConnect B360 so that it has an aspect ratio

either matching that of your device or is as close to your device’s screen aspect ratio as

possible. You have option of letting NovoConnect automatically determines the best

output resolution by selecting Auto Config in the Display setting..

Q: During the presentation, my PC/Mac computer’s cursor is flickering.

A: You can try a different screen resolution for your PC/Mac computer. You can also try

different settings for Projection Mode, Visual Quality, and Screen Refresh Rate (which

need to be set before you connect your PC/Mac computer to your NovoConnect B360) –

until the problem disappears or is reduced.

7. Safety Information

Refer to the manual and take note of the safety instructions before operating your device.

 Ensure that the power source’s output voltage matches your device’s operating voltage.  To prevent the risk of electric shock, do not operate this device near water or in

environments of high moisture.

 Do not disassemble or try to repair this device by yourself. Contact your local Delta service

center for assistance.

 Keep the device’s plastic packages out of the reach of children.

8. Copyright Information

Android and Google are registered trademarks of Google Inc.

ARM is a registered trademark of ARM Inc.

App Store, iPad, iTunes, Mac, and Mac OS are service marks, trademarks, or registered

trademarks of Apple Inc.

IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used

under license.

miniSD, microSD, miniSDHC, microSDHC, microSDXC, smartSD, smartSDHC, SDIO and miniSDIO

are all trademarks or registered trademarks of SD-3C, LLC in the United States, other countries

or both.

Microsoft and Windows are either trademarks or registered trademarks of Microsoft

Corporation in the United States and/or other countries.

Pentium and Core i3 are registered trademarks of Intel Corporation.

VGA and XGA are registered trademarks of International Business Machines Corporation.

Product names, logos, brands, and other trademarks featured or referred to in this materials

are the property of their respective trademark holders.

9. Index

1. access point

2. Android

3. B360

4. cable

5. click

6. Client Mode

7. configure

8. connect

9. device

10. disconnect

11. firmware upgrade

12. HDMI

13. host

14. Hotspot Mode

15. icon

16. install

17. internet

18. iOS

19. iPad

20. IWB

21. join

22. keyboard

23. login

24. Mac

25. mobile

26. mouse

27. NovoConnect

28. NovoConnect Desktop Streamer

29. NovoPresenter

30. PC

31. PIN

32. participant

33. power

34. presentation

35. presenter

36. preview

37. projector

38. reset

39. Remote Viewer

40. resolution

41. role

42. screen

43. setting

44. software

45. SSID

46. tablet

47. touch

48. USB

49. Wi-Fi

50. Windows

Datasheet NovoConnect B360 Datasheet (Delta Electronics)

Specifications and Main Features

Frequently Asked Questions

User Manual
