Page 1
Dia.
0.3
max.
L
Polarity bar
U
R
0.5
max.
T
V
S
Case Size Dia. L R S T U V
3.0 x 5.3 3.0 5.3 3.3 3.3 1.5 0.60 0.8
4.0 x 5.3 4.0 5.3 4.3 4.3 2.0 0.65 1.0
5.0 x 5.3 5.0 5.3 5.3 5.3 2.3 0.65 1.5
6.3 x 5.3 6.3 5.3 6.6 6.6 2.7 0.65 2.0
6.3 x 7.7 6.3 7.7 6.6 6.6 2.7 0.65 2.0
8.0 x 6.5 8.0 6.5 8.4 8.4 3.4 0.65 2.3
8.0 x 10.0 8.0 10.0 8.4 8.4 3.0 0.90 3.1
10.0 x 10.0 10.0 10.0 10.4 10.4 3.3 0.90 4.7

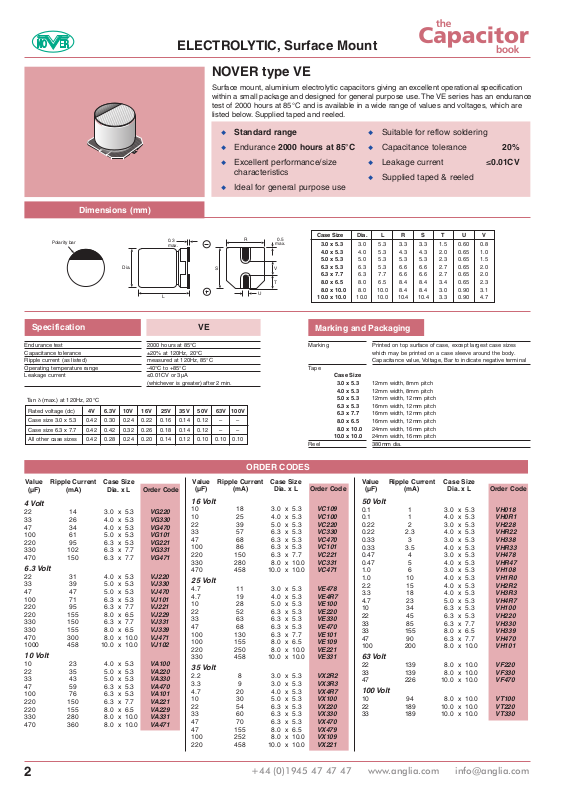

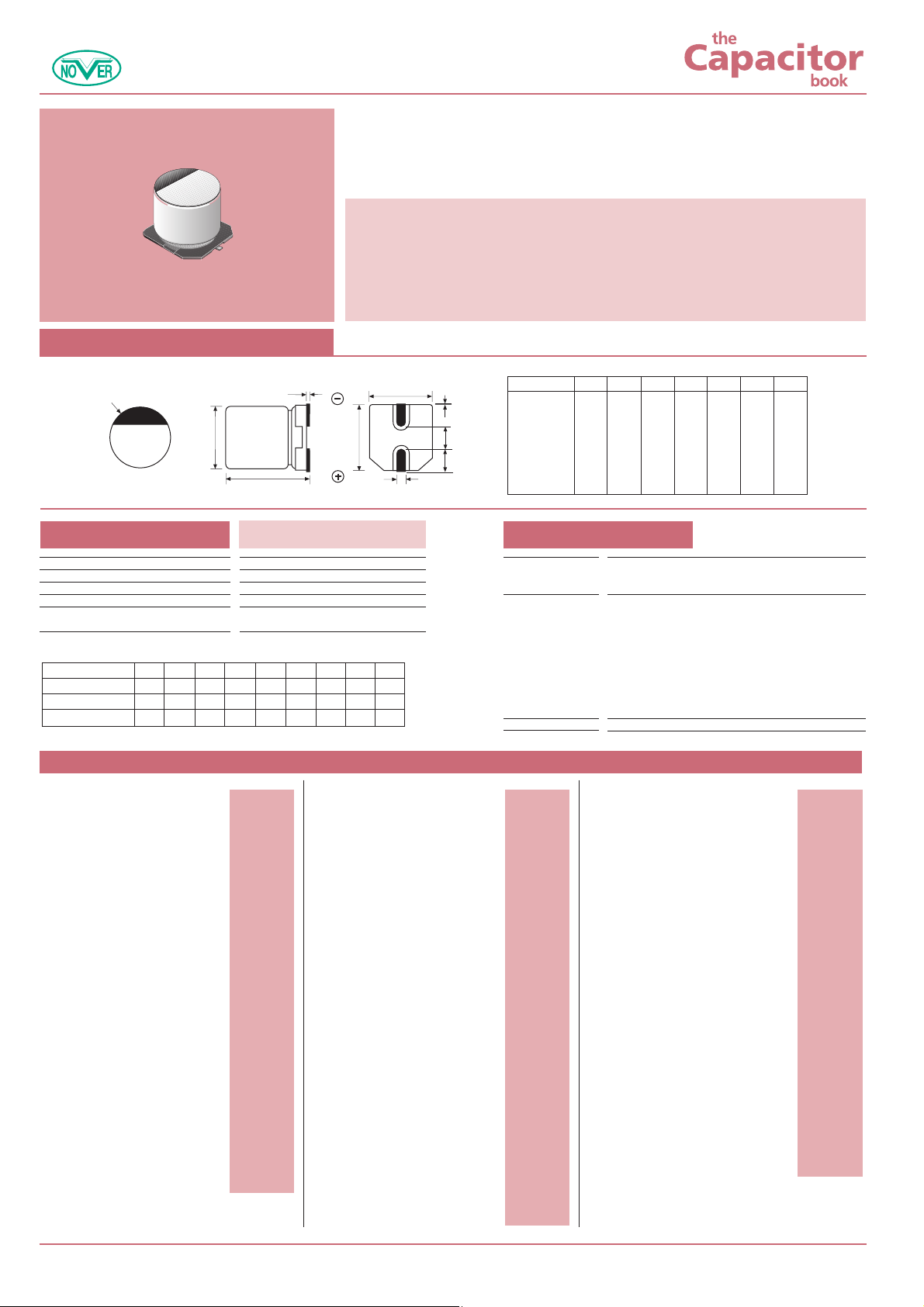

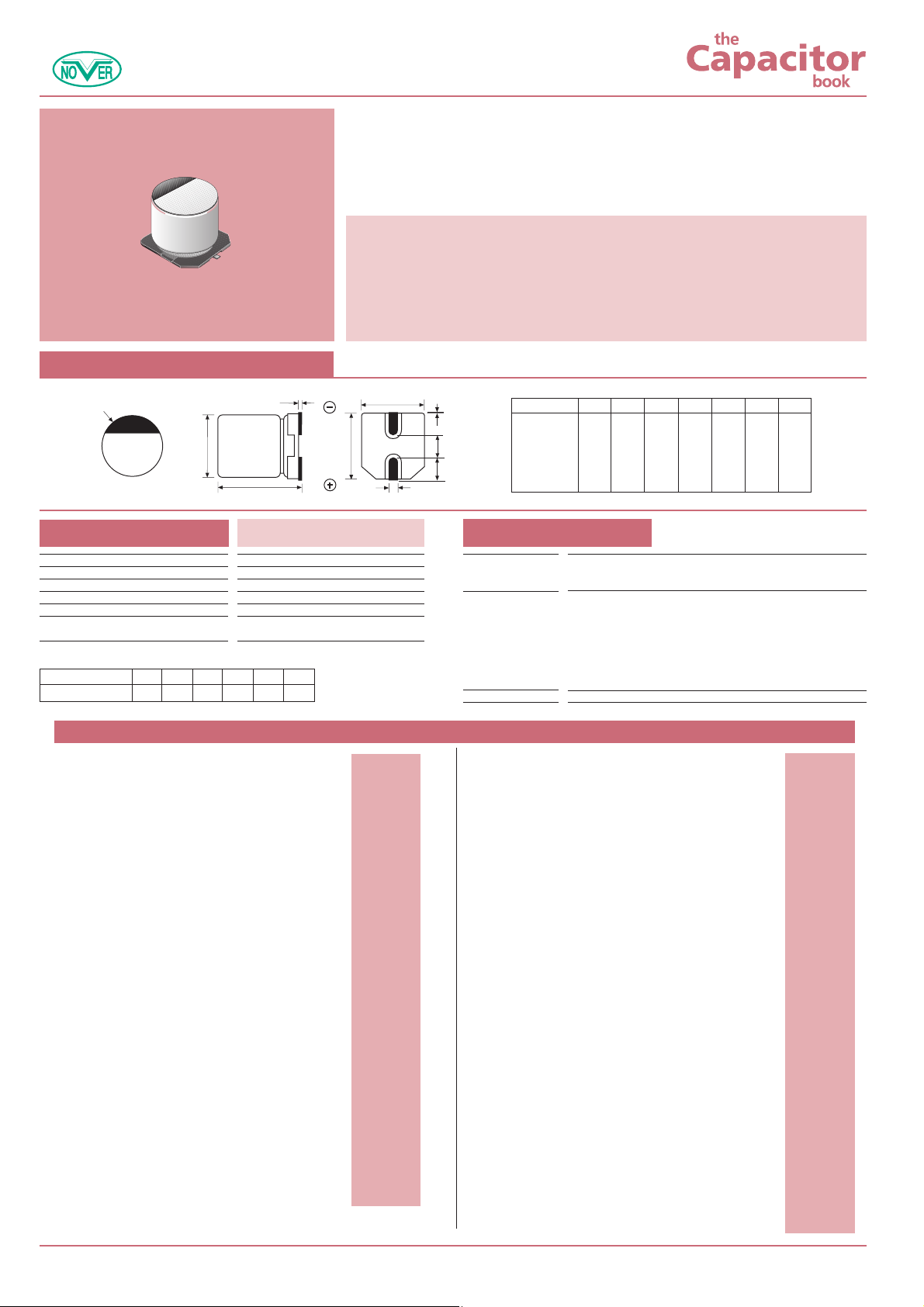

NOVER type VE
Surface mount, aluminium electrolytic capacitors giving an excellent operational specification
within a small package and designed for general purpose use. The VE series has an endurance
test of 2000 hours at 85°C and is available in a wide range of values and voltages, which are
listed below. Supplied taped and reeled.
N Standard range
N Endurance 2000 hours at 85°C
N Excellent performance/size
characteristics
N Ideal for general purpose use
Specification VE
Endurance test
Capacitance tolerance
Ripple current (as listed)
Operating temperature range
Leakage current
2000 hours at 85°C
±20% at 120Hz, 20°C
measured at 120Hz, 85°C
-40°C to +85°C
≤0.01CV or 3µA
(whichever is greater) after 2 min.
Dimensions (mm)
Marking and Packaging
Marking
Tape
Case Size
3.0 x 5.3
4.0 x 5.3
5.0 x 5.3
6.3 x 5.3
6.3 x 7.7
8.0 x 6.5
8.0 x 10.0
10.0 x 10.0
Reel
Printed on top surface of case, except largest case sizes
which may be printed on a case sleeve around the body.
Capacitance value, Voltage, Bar to indicate negative terminal
12mm width, 8mm pitch
12mm width, 8mm pitch
12mm width, 12mm pitch
16mm width, 12mm pitch
16mm width, 12mm pitch
16mm width, 12mm pitch
24mm width, 16mm pitch
24mm width, 16mm pitch
380mm dia.
N Suitable for reflow soldering
N Capacitance tolerance 20%
N Leakage current ≤0.01CV
N Supplied taped & reeled
Value Ripple Current Case Size
(µF) (mA) Dia. x L Order Code
50 Volt
0.1 1 3.0 x 5.3
VH018
0.1 1 4.0 x 5.3
VH0R1
0.22 2 3.0 x 5.3
VH228
0.22 2.3 4.0 x 5.3
VHR22
0.33 3 3.0 x 5.3
VH338
0.33 3.5 4.0 x 5.3
VHR33
0.47 4 3.0 x 5.3
VH478
0.47 5 4.0 x 5.3
VHR47
1.0 6 3.0 x 5.3
VH108
1.0 10 4.0 x 5.3
VH1R0
2.2 15 4.0 x 5.3
VH2R2
3.3 18 4.0 x 5.3
VH3R3
4.7 23 5.0 x 5.3
VH4R7
10 34 6.3 x 5.3
VH100
22 45 6.3 x 5.3
VH220
33 85 6.3 x 7.7
VH330
33 155 8.0 x 6.5
VH339
47 90 6.3 x 7.7
VH470
100 200 8.0 x 10.0
VH101
63 Volt
22 139 8.0 x 10.0
VF220
33 139 8.0 x 10.0
VF330
47 226 10.0 x 10.0
VF470
100 Volt
10 94 8.0 x 10.0
VT100
22 189 10.0 x 10.0
VT220
33 189 10.0 x 10.0
VT330
Value Ripple Current Case Size
(µF) (mA) Dia. x L Order Code
4 Volt
22 14 3.0 x 5.3
VG220
33 26 4.0 x 5.3
VG330
47 34 4.0 x 5.3
VG470
100 61 5.0 x 5.3
VG101
220 95 6.3 x 5.3
VG221
330 102 6.3 x 7.7
VG331
470 150 6.3 x 7.7
VG471
6.3 Volt
22 31 4.0 x 5.3
VJ220
33 39 5.0 x 5.3
VJ330
47 47 5.0 x 5.3
VJ470
100 71 6.3 x 5.3
VJ101
220 95 6.3 x 7.7
VJ221
220 155 8.0 x 6.5
VJ229
330 150 6.3 x 7.7
VJ331
330 155 8.0 x 6.5
VJ339
470 300 8.0 x 10.0
VJ471
1000 458 10.0 x 10.0
VJ102
10 Volt
10 23 4.0 x 5.3
VA100
22 35 5.0 x 5.3
VA220
33 43 5.0 x 5.3
VA330
47 59 6.3 x 5.3
VA470
100 76 6.3 x 5.3
VA101
220 150 6.3 x 7.7
VA221
220 155 8.0 x 6.5
VA229
330 280 8.0 x 10.0
VA331
470 360 8.0 x 10.0
VA471
Value Ripple Current Case Size
(µF) (mA) Dia. x L Order Code
16 Volt
10 18 3.0 x 5.3
VC109
10 25 4.0 x 5.3
VC100
22 39 5.0 x 5.3
VC220
33 57 6.3 x 5.3
VC330
47 68 6.3 x 5.3
VC470
100 86 6.3 x 5.3
VC101
220 150 6.3 x 7.7
VC221
330 280 8.0 x 10.0
VC331
470 458 10.0 x 10.0
VC471
25 Volt
4.7 11 3.0 x 5.3
VE478
4.7 19 4.0 x 5.3
VE4R7
10 28 5.0 x 5.3
VE100
22 52 6.3 x 5.3
VE220
33 63 6.3 x 5.3
VE330
47 68 6.3 x 5.3
VE470
100 130 6.3 x 7.7
VE101
100 155 8.0 x 6.5
VE109
220 250 8.0 x 10.0
VE221
330 458 10.0 x 10.0
VE331
35 Volt
2.2 8 3.0 x 5.3
VX2R2
3.3 9 3.0 x 5.3
VX3R3
4.7 20 4.0 x 5.3
VX4R7
10 30 5.0 x 5.3
VX100
22 54 6.3 x 5.3
VX220
33 60 6.3 x 5.3
VX330
47 70 6.3 x 5.3
VX470
47 155 8.0 x 6.5
VX479
100 252 8.0 x 10.0
VX109
220 458 10.0 x 10.0
VX221
ORDER CODES
Tan δ (max.) at 120Hz, 20°C
Rated voltage (dc) 4V 6.3V 10V 16V 25V 35V 50V 63V 100V
Case size 3.0 x 5.3 0.42 0.30 0.24 0.22 0.16 0.14 0.12 – –
Case size 6.3 x 7.7 0.42 0.42 0.32 0.26 0.18 0.14 0.12 – –
All other case sizes 0.42 0.28 0.24 0.20 0.14 0.12 0.10 0.10 0.10
Page 2
+44 (0)1945 47 47 47 www.anglia.com [email protected]
5
ELECTROLYTIC, Surface Mount, 105°C
Case Size Dia. L R S T U V
4.0 x 5.8 4.0 5.8 4.3 4.3 2.0 0.65 1.0
5.0 x 5.8 5.0 5.8 5.3 5.3 2.3 0.65 1.5
6.3 x 5.8 6.3 5.8 6.6 6.6 2.7 0.65 2.0
8.0 x 6.5 8.0 6.5 8.4 8.4 3.4 0.65 2.3
8.0 x 10.0 8.0 10.0 8.4 8.4 3.0 0.90 3.1
10.0 x 10.0 10.0 10.0 10.4 10.4 3.3 0.90 4.7
Tan (max.) at 120Hz, 20°C
Rated voltage (dc) 4V 6.3V 10V 16V 25V 35V 50V 63V 100V
All case sizes 0.37 0.30 0.26 0.22 0.17 0.14 0.13 0.11 0.10
Dia.
0.3
max.
L
Polarity bar
U
R
0.5
max.
T
V
S

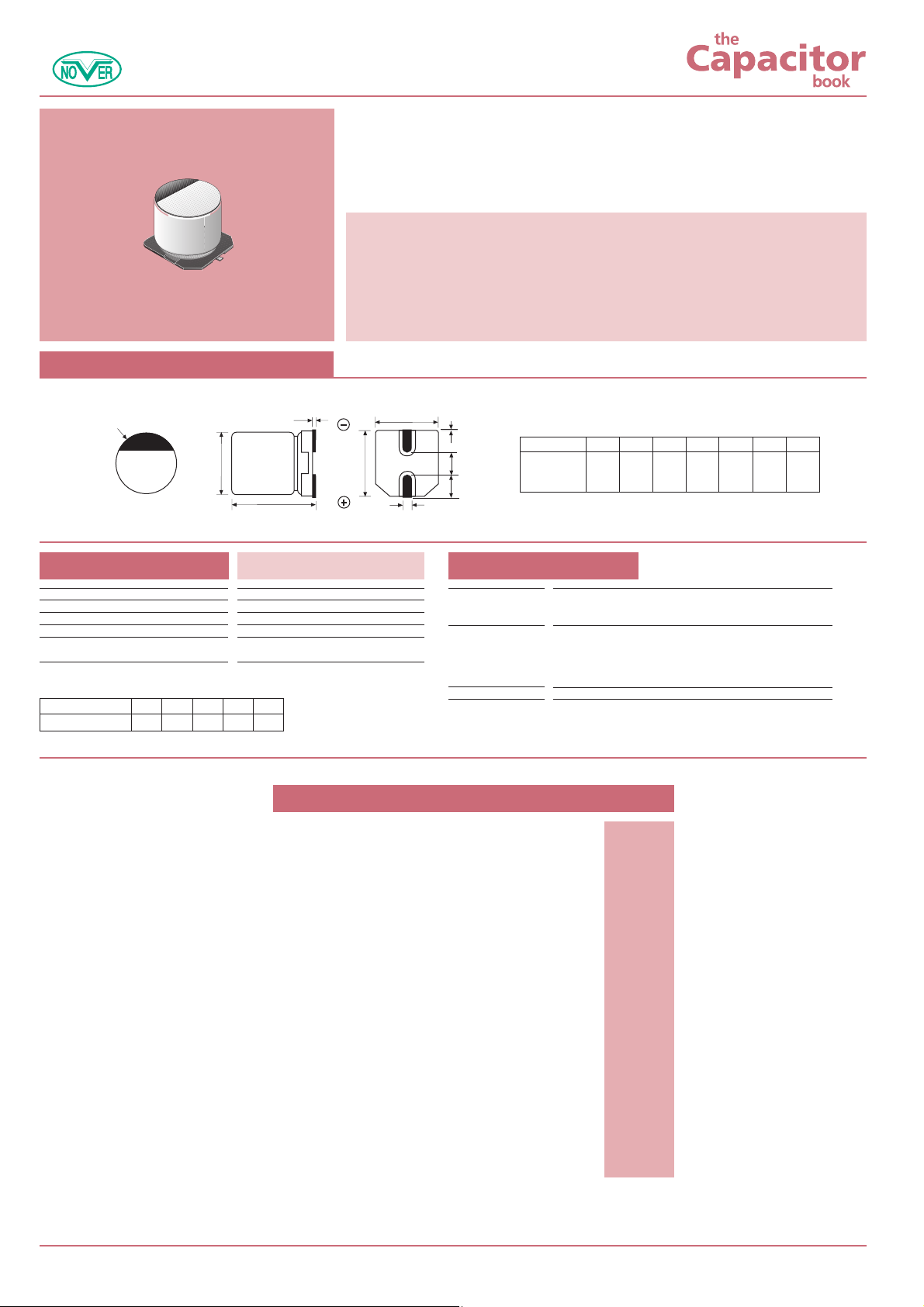

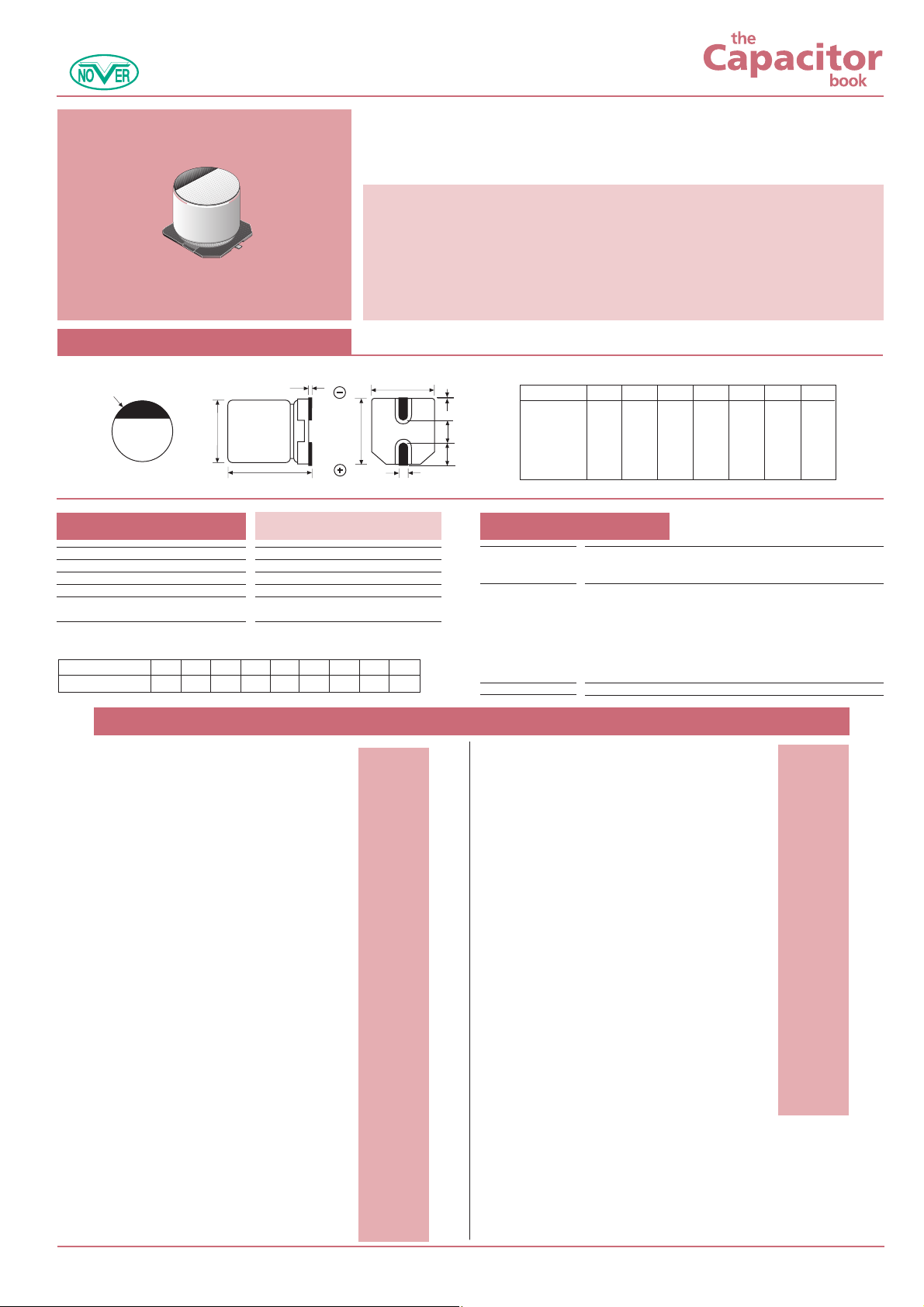

NOVER type VH
Surface mount, aluminium electrolytic capacitors with an extended upper temperature limit
of 105°C. The VH series has an endurance test of 2000 hours at 105°C and is available in
a wide range of values and voltages, which are listed below. Supplied taped and reeled.
N High temperature
N Endurance 2000 hours at 105°C
N Excellent performance/size
characteristics
N Designed for higher ambient
conditions
Specification VH
Endurance test
Capacitance tolerance
Ripple current (as listed)
Operating temperature range
Leakage current
2000 hours at 105°C
±20% at 120Hz, 20°C
measured at 120Hz, 105°C
-55°C to +105°C
≤0.01CV or 3µA
(whichever is greater) after 2 min.
Dimensions (mm)
Marking and Packaging
Marking
Tape
Case Size
4.0 x 5.8
5.0 x 5.8
6.3 x 5.8
8.0 x 6.5
8.0 x 10.0
10.0 x 10.0
Reel
Printed on top surface of case, except largest case sizes which may be
printed on a case sleeve around the body.
Capacitance value, Voltage, Bar to indicate negative terminal
12mm width, 8mm pitch
12mm width, 12mm pitch
16mm width, 12mm pitch
16mm width, 12mm pitch
24mm width, 16mm pitch
24mm width, 16mm pitch
380mm dia.
N Suitable for reflow soldering
N Capacitance tolerance 20%
N Leakage current ≤0.01CV
N Supplied taped & reeled
Value Ripple Current Case Size
(µF) (mA) Dia. x L Order Code
4 Volt
22 22 4.0 x 5.8
ZP220
33 27 5.0 x 5.8
ZP330
47 33 5.0 x 5.8
ZP470
100 50 6.3 x 5.8
ZP101
6.3 Volt
22 22 4.0 x 5.8
ZN220
33 27 5.0 x 5.8
ZN330
47 33 5.0 x 5.8
ZN470
100 100 6.3 x 5.8
ZN101
220 178 8.0 x 10.0
ZN221
330 178 8.0 x 10.0
ZN331
470 324 10.0 x 10.0
ZN471
1000 335 10.0 x 10.0
ZN102
10 Volt
22 25 5.0 x 5.8
ZL220
33 30 5.0 x 5.8
ZL330
47 43 6.3 x 5.8
ZL470
100 110 8.0 x 6.5
ZL101
220 178 8.0 x 10.0
ZL221
330 324 10.0 x 10.0
ZL331
470 324 10.0 x 10.0
ZL471
16 Volt
10 16 4.0 x 5.8
ZK100
22 30 5.0 x 5.8
ZK220
33 40 6.3 x 5.8
ZK330
47 50 6.3 x 5.8
ZK470
100 110 8.0 x 6.5
ZK101
220 324 10.0 x 10.0
ZK221
330 324 10.0 x 10.0
ZK331
470 324 10.0 x 10.0
ZK471
25 Volt
4.7 13 4.0 x 5.8
ZW4R7
10 23 5.0 x 5.8
ZW100
22 38 6.3 x 5.8
ZW220
33 48 6.3 x 5.8
ZW330
47 110 8.0 x 6.5
ZW470
100 178 8.0 x 10.0
ZW101
220 324 10.0 x 10.0
ZW221
330 324 10.0 x 10.0
ZW331
Value Ripple Current Case Size
(µF) (mA) Dia. x L Order Code
35 Volt
4.7 15 4.0 x 5.8
ZR4R7
10 25 5.0 x 5.8
ZR100
22 50 6.3 x 5.8
ZR220
33 110 8.0 x 6.5
ZR330
47 178 8.0 x 10.0
ZR470
100 324 10.0 x 10.0
ZR101
220 324 10.0 x 10.0
ZR221
50 Volt
0.1 2 4.0 x 5.8
ZB0R1
0.22 3 4.0 x 5.8
ZBR22
0.33 4 4.0 x 5.8
ZBR33
0.47 5 4.0 x 5.8
ZBR47
1.0 10 4.0 x 5.8
ZB1R0
2.2 16 4.0 x 5.8
ZB2R2
3.3 18 4.0 x 5.8
ZB3R3
4.7 22 5.0 x 5.8
ZB4R7
10 30 6.3 x 5.8
ZB100
22 110 8.0 x 6.5
ZB220
33 178 8.0 x 10.0
ZB330
47 178 8.0 x 10.0
ZB470
100 324 10.0 x 10.0
ZB101
63 Volt
22 99 8.0 x 10.0
ZF220
33 160 10.0 x 10.0
ZF330
47 160 10.0 x 10.0
ZF470
100 Volt
10 67 8.0 x 10.0
ZT100
22 133 10.0 x 10.0
ZT220
ORDER CODES
Page 3
+44 (0)1945 47 47 47 www.anglia.com [email protected]
7
ELECTROLYTIC, Surface Mount, Long Life, 105°C
Dia.
0.3
max.
L
Polarity bar
U
R
0.5
max.
T
V
S

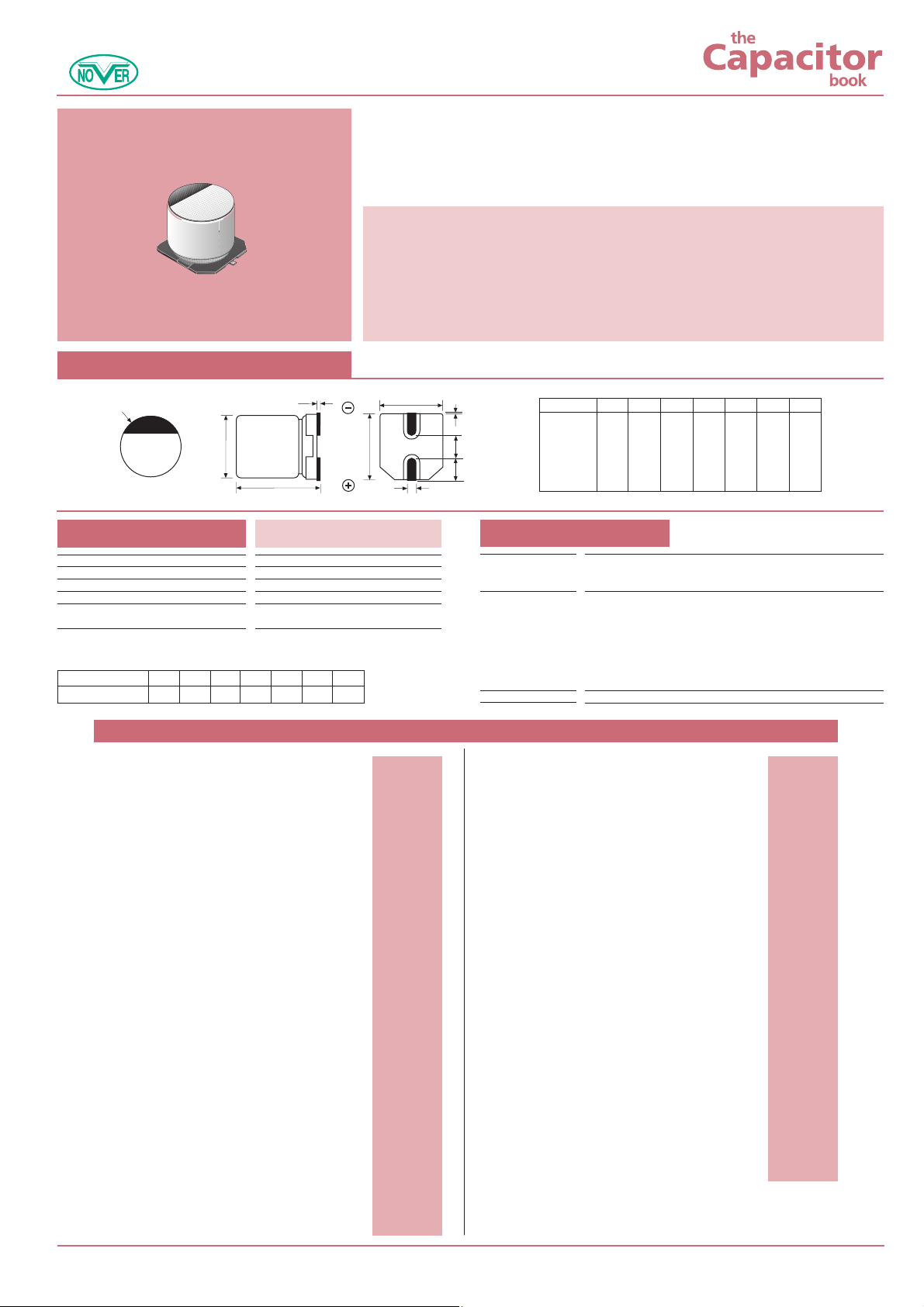

NOVER type VL
Surface mount, aluminium electrolytic capacitors offering long life together with an extended
upper temperature limit of 105°C. The VL series has an endurance test of 5000 hours at 105°C
and is available in a wide range of values and voltages, which are listed below.
Supplied taped and reeled.
N High temperature, long life
N Endurance 5000 hours at 105°C
N Excellent performance/size
characteristics
N For sustained operation in
higher ambients
Specification VL
Endurance test
Capacitance tolerance
Ripple current (as listed)
Operating temperature range
Leakage current
5000 hours at 105°C
±20% at 120Hz, 20°C
measured at 120Hz, 105°C
-40°C to +105°C
≤0.01CV or 3µA
(whichever is greater) after 2 min.
Dimensions (mm)
Marking and Packaging
Marking
Tape
Case Size
4.0 x 5.8
5.0 x 5.8
6.3 x 5.8
6.3 x 7.7
8.0 x 10.0
10.0 x 10.0
Reel
Printed on top surface of case, except largest case sizes which may be
printed on a case sleeve around the body.
Capacitance value, Voltage, Bar to indicate negative terminal
12mm width, 8mm pitch
12mm width, 12mm pitch
16mm width, 12mm pitch
16mm width, 12mm pitch
24mm width, 16mm pitch
24mm width, 16mm pitch
380mm dia.
N Suitable for reflow soldering
N Capacitance tolerance 20%
N Leakage current ≤0.01CV
N Supplied taped & reeled
ORDER CODES
Case Size Dia. L R S T U V
4.0 x 5.8 4.0 5.8 4.3 4.3 1.8 0.65 1.0
5.0 x 5.8 5.0 5.8 5.3 5.3 2.1 0.65 1.3
6.3 x 5.8 6.3 5.8 6.6 6.6 2.4 0.65 2.2
6.3 x 7.7 6.3 7.7 6.6 6.6 2.4 0.65 2.2
8.0 x 10.0 8.0 10.0 8.3 8.3 2.9 0.95 3.1
10.0 x 10.0 10.0 10.0 10.3 10.3 3.2 0.95 4.5
Tan (max.) at 120Hz, 20°C
Rated voltage (dc) 4V 6.3V 10V 16V 25V 35V 50V
All case sizes 0.37 0.28 0.24 0.20 0.16 0.13 0.12
Value Ripple Current Case Size
(µF) (mA) Dia. x L Order Code
4 Volt
22 22 4.0 x 5.8
EP220
33 30 5.0 x 5.8
EP330
47 36 5.0 x 5.8
EP470
100 60 6.3 x 5.8
EP101
220 60 6.3 x 7.7
EP221
330 140 8.0 x 10.0
EP331
470 140 8.0 x 10.0
EP471
1000 315 10.0 x 10.0
EP102
6.3 Volt
22 22 4.0 x 5.8
EN220
33 30 5.0 x 5.8
EN330
47 36 5.0 x 5.8
EN470
100 60 6.3 x 5.8
EN101
220 140 8.0 x 10.0
EN221
330 140 8.0 x 10.0
EN331
470 315 10.0 x 10.0
EN471
10 Volt
22 27 5.0 x 5.8
EL220
33 35 5.0 x 5.8
EL330
47 46 6.3 x 5.8
EL470
100 60 6.3 x 7.7
EL101
220 140 8.0 x 10.0
EL221
330 315 10.0 x 10.0
EL331
470 315 10.0 x 10.0
EL471
16 Volt
10 18 4.0 x 5.8
EK100
22 30 5.0 x 5.8
EK220
33 40 6.3 x 5.8
EK330
47 50 6.3 x 5.8
EK470
100 60 6.3 x 7.7
EK101
220 315 10.0 x 10.0
EK221
330 315 10.0 x 10.0
EK331
Value Ripple Current Case Size
(µF) (mA) Dia. x L Order Code
25 Volt
4.7 13 4.0 x 5.8
EE4R7
10 23 5.0 x 5.8
EE100
22 38 6.3 x 5.8
EE220
33 48 6.3 x 5.8
EE330
47 60 6.3 x 7.7
EE470
100 140 8.0 x 10.0
EE101
220 315 10.0 x 10.0
EE221
35 Volt
4.7 15 4.0 x 5.8
ER4R7
10 25 5.0 x 5.8
ER100
22 42 6.3 x 5.8
ER220
33 60 6.3 x 7.7
ER330
47 140 8.0 x 10.0
ER470
100 315 10.0 x 10.0
ER101
50 Volt
0.1 1 4.0 x 5.8
ES0R1
0.22 2.6 4.0 x 5.8
ESR22
0.33 3.2 4.0 x 5.8
ESR33
0.47 3.8 4.0 x 5.8
ESR47
1.0 6.2 4.0 x 5.8
ES1R0
2.2 11 4.0 x 5.8
ES2R2
3.3 14 4.0 x 5.8
ES3R3
4.7 19 5.0 x 5.8
ES4R7
10 30 6.3 x 5.8
ES100
22 60 6.3 x 7.7
ES220
33 140 8.0 x 10.0
ES330
47 315 10.0 x 10.0
ES470
100 315 10.0 x 10.0
ES101
Page 4

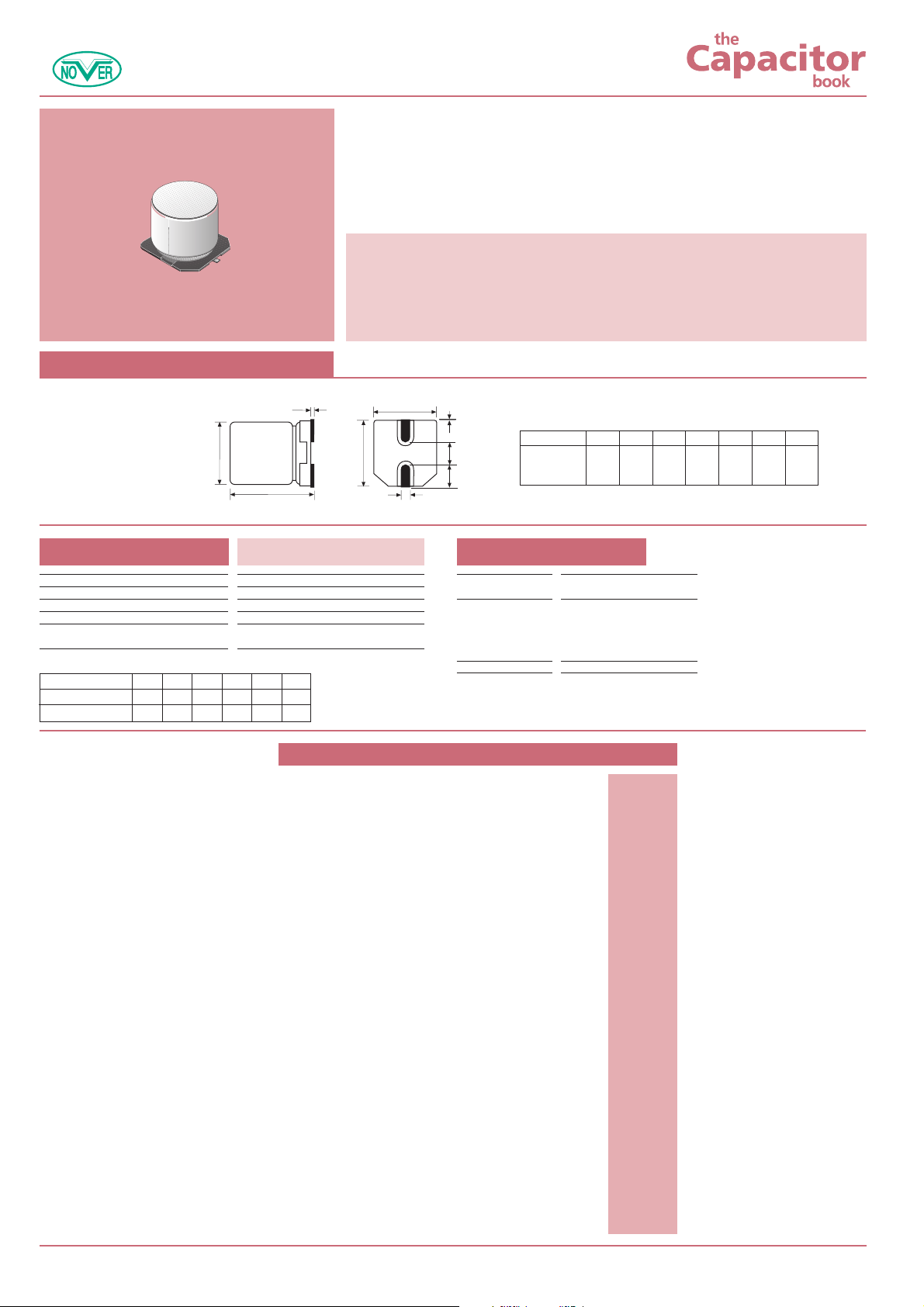

ELECTROLYTIC, Surface Mount, Low ESR, 105°C
10
+44 (0)1945 47 47 47 www.anglia.com [email protected]
Case Size Dia. L R S T U V
4.0 x 5.4 4.0 5.4 4.3 4.3 1.8 0.65 1.0
5.0 x 5.4 5.0 5.4 5.3 5.3 2.1 0.65 1.3
6.3 x 5.4 6.3 5.4 6.6 6.6 2.4 0.65 2.2
6.3 x 7.7 6.3 7.7 6.6 6.6 2.4 0.65 2.2
8.0 x 10.0 8.0 10.0 8.3 8.3 2.9 0.95 3.1
10.0 x 10.0 10.0 10.0 10.3 10.3 3.2 0.95 4.5
NOVER type VZ
Surface mount, aluminium electrolytic capacitors combining low impedance and ESR
characteristics within a small package. The VZ series additionally feature a maximum
operational temperature specification of 105°C making them especially suitable for switch
mode power supplies (SMPS). Available in a wide range of values and voltages, which are
listed below. Supplied taped and reeled.
N Low impedance
N Endurance 2000 hours at 105°C
N Excellent performance/size
characteristics
N For switch mode power supplies
(SMPS) and industrial electronics
Specification VZ
Endurance test
Capacitance tolerance
Ripple current (as listed)
Impedance (as listed)
Operating temperature range
Leakage current
2000 hours at 105°C
±20% at 120Hz, 20°C
measured at 100kHz, 105°C
measured at 100kHz, 20°C
-55°C to +105°C
≤0.01CV or 3µA
(whichever is greater) after 2 min.
Dimensions (mm)
Marking and Packaging
Marking
Tape
Case Size
4.0 x 5.4
5.0 x 5.4
6.3 x 5.4
6.3 x 7.7
8.0 x 10.0
10.0 x 10.0
Reel
Printed on top surface of case, except largest case sizes which may be
printed on a case sleeve around the body.
Capacitance value, Voltage, Bar to indicate negative terminal
12mm width, 8mm pitch
12mm width, 12mm pitch
16mm width, 12mm pitch
16mm width, 12mm pitch
24mm width, 16mm pitch
24mm width, 16mm pitch
380mm dia.
N Suitable for reflow soldering
N Capacitance tolerance 20%
N Leakage current ≤0.01CV
N Supplied taped & reeled
ORDER CODES
Value Ripple Current Impedance Case Size
(µF) (mA) (Ω) Dia. x L Order Code
6.3 Volt
22 50 5.0 4.0 x 5.4
ZJ220
33 80 2.6 5.0 x 5.4
ZJ330
47 80 2.6 5.0 x 5.4
ZJ470
100 115 1.3 6.3 x 5.4
ZJ101
220 150 0.8 6.3 x 7.7
ZJ221
330 150 0.8 6.3 x 7.7
ZJ331
470 450 0.45 8.0 x 10.0
ZJ471
1000 670 0.15 10.0 x 10.0
ZJ102
1500 670 0.15 10.0 x 10.0
ZJ152
10 Volt
22 80 2.6 5.0 x 5.4
ZA220
33 80 2.6 5.0 x 5.4
ZA330
47 115 1.3 6.3 x 5.4
ZA470
100 150 0.8 6.3 x 7.7
ZA101
220 150 0.8 6.3 x 7.7
ZA221
330 450 0.45 8.0 x 10.0
ZA331
470 450 0.45 8.0 x 10.0
ZA471
1000 670 0.15 10.0 x 10.0
ZA102
16 Volt
10 50 5.0 4.0 x 5.4
ZC100
22 80 2.6 5.0 x 5.4
ZC220
33 115 1.3 6.3 x 5.4
ZC330
47 115 1.3 6.3 x 5.4
ZC470
100 150 0.8 6.3 x 7.7
ZC101
220 150 0.8 6.3 x 7.7
ZC221
330 450 0.45 8.0 x 10.0
ZC331
470 670 0.15 10.0 x 10.0
ZC471
Value Ripple Current Impedance Case Size
(µF) (mA) (Ω) Dia. x L Order Code
25 Volt
4.7 50 5.0 4.0 x 5.4
ZE4R7
10 80 2.6 5.0 x 5.4
ZE100
22 115 1.3 6.3 x 5.4
ZE220
33 115 1.3 6.3 x 5.4
ZE330
47 150 0.8 6.3 x 7.7
ZE470
100 150 0.8 6.3 x 7.7
ZE101
220 450 0.45 8.0 x 10.0
ZE221
330 670 0.15 10.0 x 10.0
ZE331
470 670 0.15 10.0 x 10.0
ZE471
35 Volt
4.7 50 5.0 4.0 x 5.4
ZV4R7
10 80 2.6 5.0 x 5.4
ZV100
22 115 1.3 6.3 x 5.4
ZV220
33 150 0.8 6.3 x 7.7
ZV330
47 150 0.8 6.3 x 7.7
ZV470
100 450 0.45 8.0 x 10.0
ZV101
220 670 0.15 10.0 x 10.0
ZV221
330 670 0.15 10.0 x 10.0
ZV331
50 Volt
1.0 30 5.0 4.0 x 5.4
ZH1R0
2.2 30 5.0 4.0 x 5.4
ZH2R2
3.3 30 5.0 4.0 x 5.4
ZH3R3
4.7 50 3.0 5.0 x 5.4
ZH4R7
10 70 2.6 6.3 x 5.4
ZH100
22 70 2.6 6.3 x 5.4
ZH220
33 120 1.0 6.3 x 7.7
ZH330
47 120 1.0 6.3 x 7.7
ZH470
100 300 0.6 8.0 x 10.0
ZH101
220 500 0.3 10.0 x 10.0
ZH221
Tan (max.) at 120Hz, 20°C
Rated voltage (dc) 6.3V 10V 16V 25V 35V 50V
All case sizes 0.22 0.19 0.16 0.14 0.12 0.12
Polarity bar
Dia.
0.3
max.
L
R
S
0.5
max.
V
T
U
Page 5
ELECTROLYTIC, Surface Mount, Very Low ESR, 105°C
12
+44 (0)1945 47 47 47 www.anglia.com [email protected]
NOVER type VX
Surface mount, aluminium electrolytic capacitors offering a very low impedance and a 105°C
operational temperature limit within a small package. Available in a wide range of values and
voltages, which are listed below. Supplied taped and reeled.
N Very low impedance
N Endurance 2000 hours at 105°C
N Excellent performance/size
characteristics
N Ideal for portable equipment &
instrumentation
Specification VX
Endurance test
Capacitance tolerance
Ripple current (as listed)
Impedance (as listed)
Operating temperature range
Leakage current
2000 hours at 105°C
±20% at 120Hz, 20°C
measured at 100Hz, 105°C
measured at 100kHz, 20°C
-55°C to +105°C
≤0.01CV or 3µA
(whichever is greater) after 2 min.
Dimensions (mm)
Marking and Packaging
Marking
Tape
Case Size
4.0 x 5.8
5.0 x 5.8
6.3 x 5.8
6.3 x 7.7
8.0 x 10.0
10.0 x 10.0
Reel
Printed on top surface of case, except largest case sizes which may be
printed on a case sleeve around the body.
Capacitance value, Voltage, Bar to indicate negative terminal
12mm width, 8mm pitch
12mm width, 12mm pitch
16mm width, 12mm pitch
16mm width, 12mm pitch
24mm width, 16mm pitch
24mm width, 16mm pitch
380mm dia.
N Suitable for reflow soldering
N Capacitance tolerance 20%
N Leakage current ≤0.01CV
N Supplied taped & reeled
ORDER CODES
Value Ripple Current Impedance Case Size
(µF) (mA) (Ω) Dia. x L Order Code
6.3 Volt
33 150 0.76 5.0 x 5.8
ZD330
47 150 0.76 5.0 x 5.8
ZD470
100 230 0.44 6.3 x 5.8
ZD101
220 280 0.34 6.3 x 7.7
ZD221
330 280 0.34 6.3 x 7.7
ZD331
470 450 0.17 8.0 x 10.0
ZD471
1000 670 0.09 10.0 x 10.0
ZD102
1500 670 0.09 10.0 x 10.0
ZD152
10 Volt
22 80 1.8 4.0 x 5.8
ZG220
33 150 0.76 5.0 x 5.8
ZG330
47 230 0.44 6.3 x 5.8
ZG470
100 280 0.34 6.3 x 7.7
ZG101
220 280 0.34 6.3 x 7.7
ZG221
330 450 0.17 8.0 x 10.0
ZG331
470 450 0.17 8.0 x 10.0
ZG471
1000 670 0.09 10.0 x 10.0
ZG102
16 Volt
22 150 0.76 5.0 x 5.8
ZM220
33 230 0.44 6.3 x 5.8
ZM330
47 230 0.44 6.3 x 5.8
ZM470
100 280 0.34 6.3 x 7.7
ZM101
220 450 0.17 8.0 x 10.0
ZM221
330 450 0.17 8.0 x 10.0
ZM331
470 670 0.09 10.0 x 10.0
ZM471
Value Ripple Current Impedance Case Size
(µF) (mA) (Ω) Dia. x L Order Code
25 Volt
10 80 1.8 4.0 x 5.8
ZX100
22 230 0.44 6.3 x 5.8
ZX220
33 230 0.44 6.3 x 5.8
ZX330
47 280 0.34 6.3 x 7.7
ZX470
100 280 0.34 6.3 x 7.7
ZX101
220 450 0.17 8.0 x 10.0
ZX221
330 670 0.09 10.0 x 10.0
ZX331
470 670 0.09 10.0 x 10.0
ZX471
35 Volt
4.7 80 1.8 4.0 x 5.8
ZY4R7
10 150 0.76 5.0 x 5.8
ZY100
22 230 0.44 6.3 x 5.8
ZY220
33 230 0.44 6.3 x 5.8
ZY330
47 280 0.34 6.3 x 7.7
ZY470
100 450 0.17 8.0 x 10.0
ZY101
220 670 0.09 10.0 x 10.0
ZY221
330 670 0.09 10.0 x 10.0
ZY331
50 Volt
1.0 30 5.0 4.0 x 5.8
ZS1R0
2.2 30 5.0 4.0 x 5.8
ZS2R2
3.3 30 5.0 4.0 x 5.8
ZS3R3
4.7 40 1.52 5.0 x 5.8
ZS4R7
10 120 0.88 6.3 x 5.8
ZS100
22 140 0.68 6.3 x 7.7
ZS220
33 140 0.68 6.3 x 7.7
ZS330
47 140 0.68 6.3 x 7.7
ZS470
100 340 0.18 10.0 x 10.0
ZS101
220 340 0.18 10.0 x 10.0
ZS221
Case Size Dia. L R S T U V
4.0 x 5.8 4.0 5.8 4.3 4.3 1.8 0.65 1.0
5.0 x 5.8 5.0 5.8 5.3 5.3 2.1 0.65 1.3
6.3 x 5.8 6.3 5.8 6.6 6.6 2.4 0.65 2.2
6.3 x 7.7 6.3 7.7 6.6 6.6 2.4 0.65 2.2
8.0 x 10.0 8.0 10.0 8.3 8.3 2.9 0.95 3.1
10.0 x 10.0 10.0 10.0 10.3 10.3 3.2 0.95 4.5
Tan (max.) at 120Hz, 20°C
Rated voltage (dc) 6.3V 10V 16V 25V 35V 50V
Case dia. 4.0 to 6.3 0.22 0.20 0.16 0.14 0.12 0.10
Case dia. 8.0 to 10.0 0.28 0.24 0.20 0.16 0.14 0.12
Polarity bar
Dia.
0.3
max.
L
R
S
0.5
max.
V
T
U
Page 6
Dia.
0.3
max.
L
Polarity bar
U
R
0.5
max.
T
V
S
NOVER type VA
Surface mount, aluminium electrolytic capacitors with an upper temperature limit extended to
125°C to sustain performance in harsher environments. The VA series has an endurance test of
1000 hours at 125°C and is available in a range of values and voltages, which are listed below.
Supplied taped and reeled.
N Very high temperature
N Endurance 1000 hours at 125°C
N Excellent performance/size
characteristics
N Ideal for harsh environments
Specification VA
Endurance test
Capacitance tolerance
Ripple current (as listed)
Operating temperature range
Leakage current
1000 hours at 125°C
±20% at 120Hz, 20°C
measured at 120Hz, 125°C
-40°C to +125°C
≤0.03CV or 4µA
(whichever is greater) after 1 min.
Dimensions (mm)
Marking and Packaging
Marking
Tape
Case Size
6.3 x 7.7
8.0 x 10.0
10.0 x 10.0
Reel
Printed on top surface of case, except largest case sizes which
may be printed on a case sleeve around the body.
Capacitance value, Voltage, Bar to indicate negative terminal
16mm width, 12mm pitch
24mm width, 16mm pitch
24mm width, 16mm pitch
380mm dia.
N Suitable for reflow soldering
N Capacitance tolerance 20%
N Leakage current ≤0.03CV
N Supplied taped & reeled
ORDER CODES
Tan (max.) at 120Hz, 20°C
Rated voltage (dc) 10V 16V 25V 35V 50V
All case sizes 0.32 0.24 0.21 0.18 0.18
Case Size Dia. L R S T U V
6.3 x 7.7 6.3 7.7 6.6 6.6 2.4 0.65 2.2
8.0 x 10.0 8.0 10.0 8.3 8.3 2.9 0.95 3.1
10.0 x 10.0 10.0 10.0 10.3 10.3 3.2 0.95 4.5
Value Ripple Current Case Size
(µF) (mA) Dia. x L Order Code
10 Volt
100 58 6.3 x 7.7
EB101
220 90 8.0 x 10.0
EB221
330 112 10.0 x 10.0
EB331
16 Volt
100 66 8.0 x 10.0
EC101
220 102 10.0 x 10.0
EC221
25 Volt
47 48 6.3 x 7.7
EH470
100 74 8.0 x 10.0
EH101
220 116 10.0 x 10.0
EH221
35 Volt
33 44 6.3 x 7.7
ET330
47 52 8.0 x 10.0
ET470
100 80 10.0 x 10.0
ET101
50 Volt
10 24 6.3 x 7.7
EW100
22 38 6.3 x 7.7
EW220
33 46 8.0 x 10.0
EW330
47 58 10.0 x 10.0
EW470
Page 7
Dia.
0.3
max.
L
U
R
0.5
max.
T
V
S

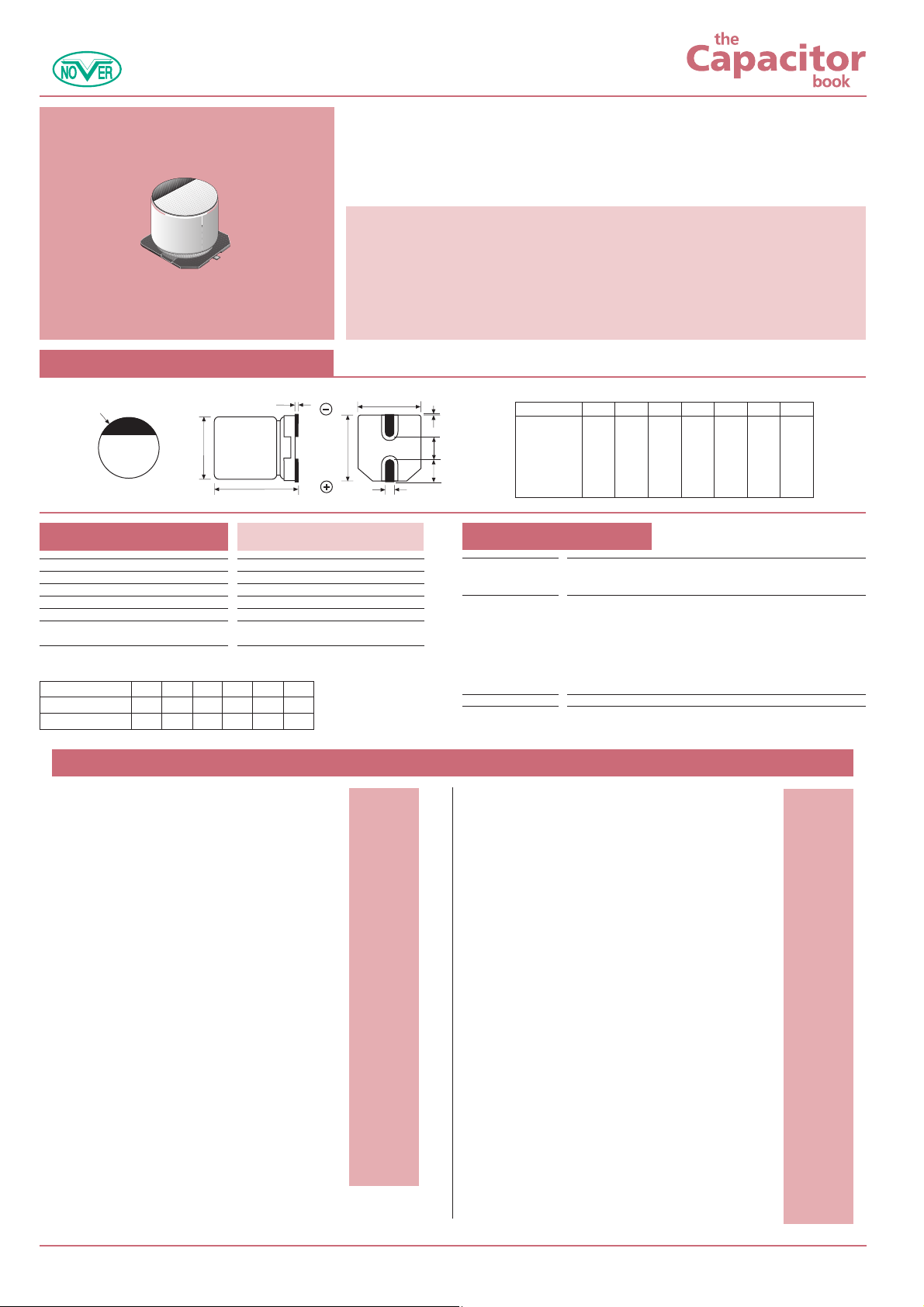

NOVER type VP
Surface mount, bi-polar (non polarised) aluminium electrolytic capacitors suitable for
applications where reverse voltage may be applied. Available in a wide range of values
and voltages, which are listed below. Supplied taped and reeled.
N Bi-polar (non-polarised)
N Endurance 2000 hours at 85°C
N Able to withstand reverse voltage
Specification VP
Endurance test
Capacitance tolerance
Ripple current (as listed)
Operating temperature range
Leakage current
2000 hours at 85°C
±20% at 120Hz, 20°C
measured at 120Hz, 85°C
-40°C to +85°C
≤0.01CV or 3µA
(whichever is greater) after 2 min.
Dimensions (mm)
Marking and Packaging
Marking
Tape
Case Size
4.0 x 5.3
5.0 x 5.3
6.3 x 5.3
Reel
Printed on top surface of case.
Capacitance value, Voltage
12mm width, 8mm pitch
12mm width, 12mm pitch
16mm width, 12mm pitch
380mm dia.
N Suitable for reflow soldering
N Capacitance tolerance 20%
N Leakage current ≤0.01CV
N Supplied taped & reeled
ORDER CODES
Case Size Dia. L R S T U V
4.0 x 5.3 4.0 5.3 4.3 4.3 2.0 0.65 1.0
5.0 x 5.3 5.0 5.3 5.3 5.3 2.3 0.65 1.3
6.3 x 5.3 6.3 5.3 6.6 6.6 2.7 0.65 2.2
Value Ripple Current Case Size
(µF) (mA) Dia. x L Order Code
6.3 Volt
22 27 5.0 x 5.3
VB220
33 45 6.3 x 5.3
VB330
47 54 6.3 x 5.3
VB470
10 Volt
10 18 4.0 x 5.3
VR100
22 40 6.3 x 5.3
VR220
33 50 6.3 x 5.3
VR330
16 Volt
4.7 14 4.0 x 5.3
VK4R7
10 26 5.0 x 5.3
VK100
22 45 6.3 x 5.3
VK220
33 55 6.3 x 5.3
VK330
25 Volt
3.3 13 4.0 x 5.3
VN3R3
4.7 20 5.0 x 5.3
VN4R7
10 35 6.3 x 5.3
VN100
35 Volt
2.2 10 4.0 x 5.3
VW2R2
3.3 17 5.0 x 5.3
VW3R3
4.7 21 5.0 x 5.3
VW4R7
10 35 6.3 x 5.3
VW100
50 Volt
0.1 2.3 4.0 x 5.3
VL0R1
0.22 3.3 4.0 x 5.3
VLR22
0.33 4.1 4.0 x 5.3
VLR33
0.47 4.9 4.0 x 5.3
VLR47
1.0 7.2 4.0 x 5.3
VL1R0
2.2 14 5.0 x 5.3
VL2R2
3.3 17 5.0 x 5.3
VL3R3
4.7 24 6.3 x 5.3
VL4R7
Tan (max.) at 120Hz, 20°C
Rated voltage (dc) 6.3V 10V 16V 25V 35V 50V
Case size 4.0 x 5.3 0.35 0.30 0.25 0.25 0.25 0.25
All other case sizes 0.30 0.25 0.20 0.15 0.15 0.15
ELECTROLYTIC, Surface Mount, Bi-polar
16
+44 (0)1945 47 47 47 www.anglia.com [email protected]
Page 8

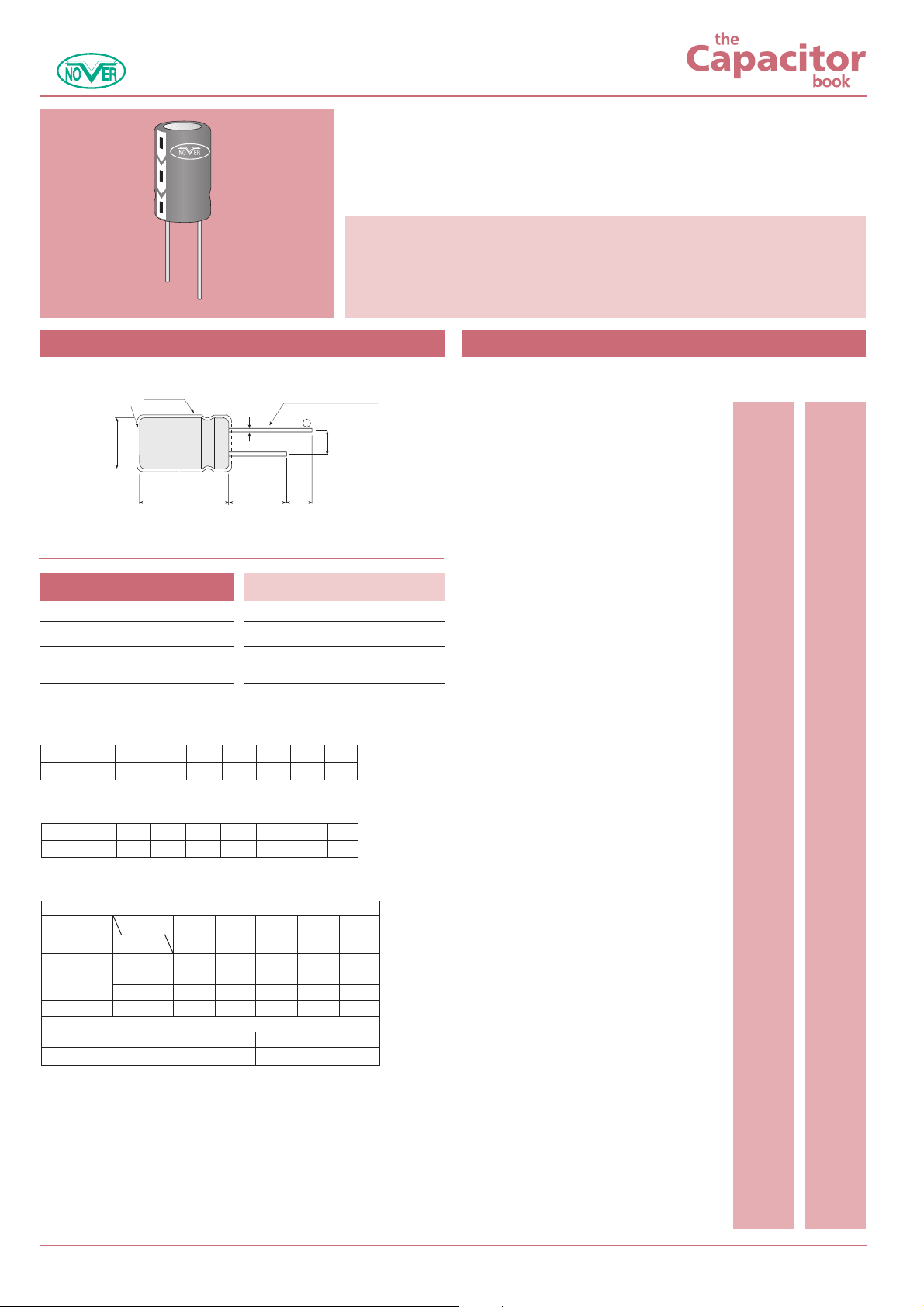

ELECTROLYTIC, Radial
18
+44 (0)1945 47 47 47 www.anglia.com [email protected]

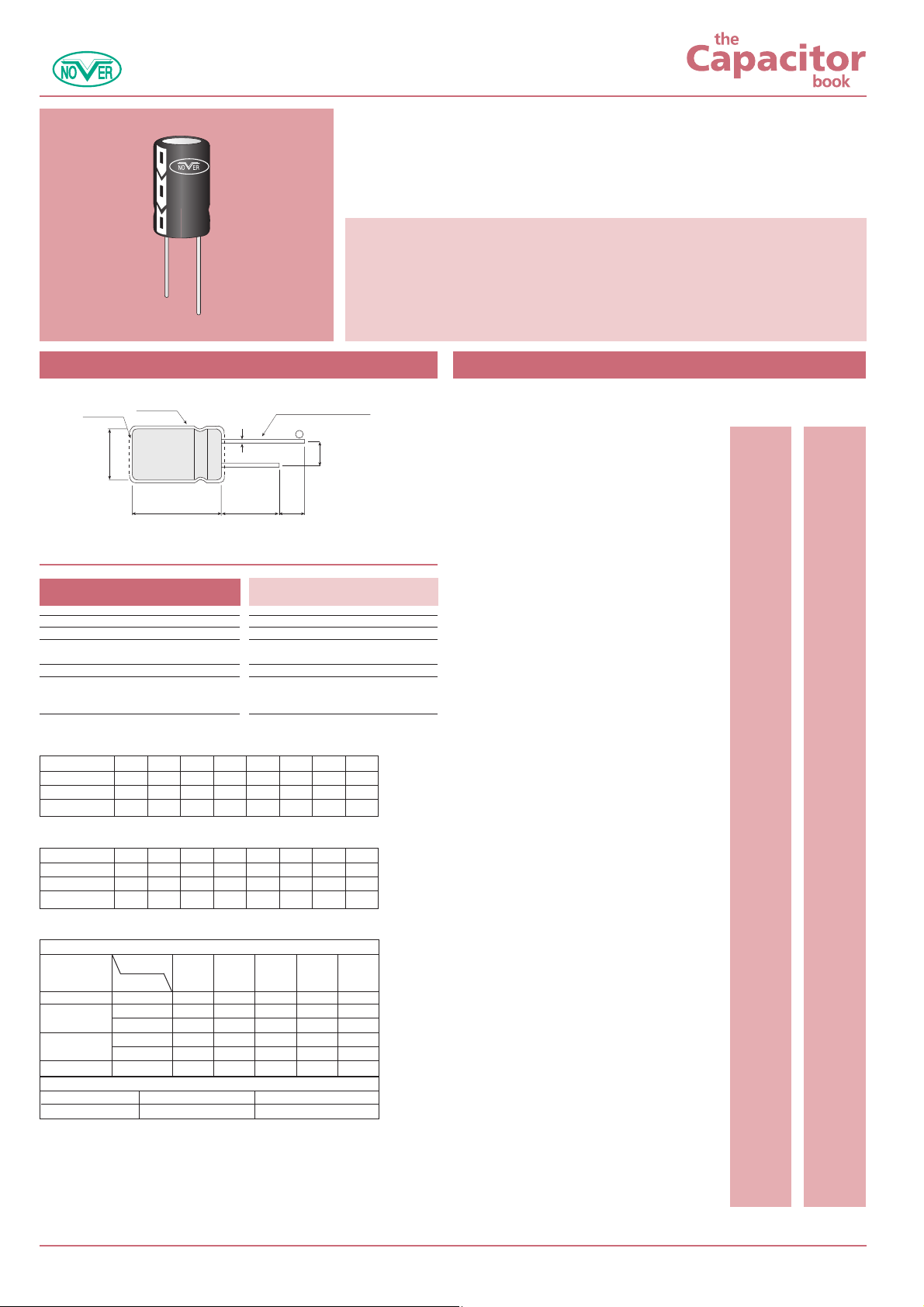

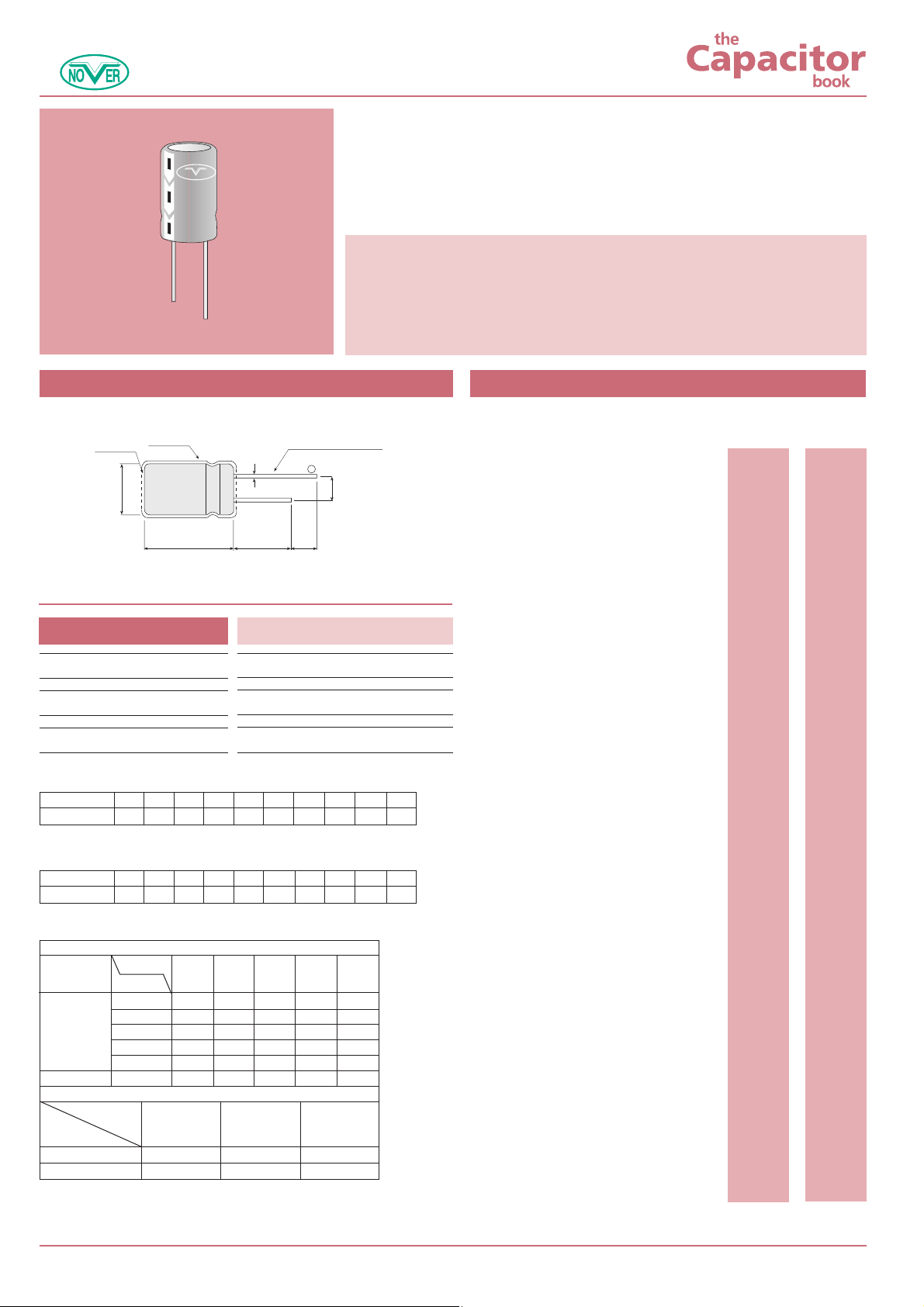

NOVER type RE
Radial lead aluminium electrolytic capacitors manufactured to be highly cost effective whilst
maintaining high levels of quality and reliability. Offer longer life with an endurance test of 2000
hours at 85°C. The most popular values are listed below and continued on the following page
with other values and higher voltages being available to order. Supplied loose or taped and
boxed.
N Standard range
N Longer life
N Endurance 2000 hours at 85°C
N Solvent resistant
N Very competitively priced
Specification
RE
Endurance test
Capacitance tolerance
Ripple current (as listed)
Operating temperature range
Leakage current
2000 hours at 85°C
±20% at 120Hz, 20°C
measured at 120Hz, 85°C
(see also multiplier table below)
-40°C to +85°C
6.3 ~ 100V ≤0.01CV or 3µA
250 ~ 450V ≤0.06CV or 10µA
(whichever is greater) after 2 min.
Dimensions (mm)
N Capacitance tolerance 20%
N Leakage current ≤0.01CV
N Body colour Black
N Supplied loose or taped & boxed
ORDER CODES
15 min.
L
Dia
Vinyl sleeve
Tinned copper-clad steel wire
ød
Pitch
5 min.
+
Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L (2.0 L≥20)
Vent (Dia ≥ 6.3)
ød = 0.5 (Dia ≤6.3)
0.6 (Dia 8–12.5)
0.8 (Dia ≥16)
Value Ripple Current Dia. x L Pitch Taped &
(µF) (mA) (mm) (mm) Loose Boxed
6.3 Volt
33 70 5.0 x 11.0 2.0(5)
053308 053308T
47 75 5.0 x 11.0 2.0(5)
053309 053309T
100 100 5.0 x 11.0 2.0(5)
053310 053310T
220 170 6.3 x 11.0 2.5(5)
053311 053311T
330 210 6.3 x 11.0 2.5(5)
053312 053312T
470 300 8.0 x 11.5 3.5(5)
053313 053313T
1000 530 10.0 x 12.5 5.0
053314 053314T
2200 990 12.5 x 20.0 5.0
053315 053315T
3300 1150 12.5 x 20.0 5.0
053316 053316T
4700 1700 16.0 x 25.0 7.5
053317 053317T
6800 1900 16.0 x 25.0 7.5
053318 053318T
10000 2250 16.0 x 31.5 7.5
053319
–
15000 2400 18.0 x 35.5 7.5
053320
–
10 Volt
22 55 5.0 x 11.0 2.0(5)
053007 053007T
33 70 5.0 x 11.0 2.0(5)
053008 053008T
47 75 5.0 x 11.0 2.0(5)
053009 053009T
100 110 5.0 x 11.0 2.0(5)
053010 053010T
220 190 6.3 x 11.0 2.5(5)
053011 053011T
330 270 8.0 x 11.5 3.5(5)
053012 053012T
470 330 8.0 x 11.5 3.5(5)
053013 053013T
1000 620 10.0 x 16.0 5.0
053014 053014T
2200 1050 12.5 x 20.0 5.0
053015 053015T
3300 1350 12.5 x 25.0 5.0
053215 053215T
4700 1800 16.0 x 25.0 7.5
053216 053216T
6800 2200 16.0 x 31.5 7.5
053217
–
10000 2750 18.0 x 35.5 7.5
053218
–
16 Volt
10 40 5.0 x 11.0 2.0(5)
053016 053016T
22 55 5.0 x 11.0 2.0(5)
053017 053017T
33 70 5.0 x 11.0 2.0(5)
053018 053018T
47 80 5.0 x 11.0 2.0(5)
053019 053019T
100 140 6.3 x 11.0 2.5(5)
053020 053020T
220 220 6.3 x 11.0 2.5(5)
053421 053421T
220 240 8.0 x 11.5 3.5(5)
053021 053021T
330 300 8.0 x 11.5 3.5(5)
053022 053022T
470 400 8.0 x 11.5 3.5(5)
053423 053423T
470 420 10.0 x 12.5 5.0
053023 053023T
1000 720 10.0 x 16.0 5.0
053424 053424T
1000 740 10.0 x 20.0 5.0
053024 053024T
2200 1200 12.5 x 25.0 5.0
053025 053025T
3300 1650 16.0 x 25.0 7.5
053225 053225T
4700 2100 16.0 x 31.5 7.5
053226
–
6800 2600 18.0 x 35.5 7.5
053227
–
25 Volt
4.7 25 5.0 x 11.0 2.0(5)
053234 053234T
10 45 5.0 x 11.0 2.0(5)
053026 053026T
22 60 5.0 x 11.0 2.0(5)
053027 053027T
33 70 5.0 x 11.0 2.0(5)
053028 053028T
47 90 5.0 x 11.0 2.0(5)
053029 053029T
100 150 6.3 x 11.0 2.5(5)
053030 053030T
220 260 8.0 x 11.5 3.5(5)
053031 053031T
330 380 10.0 x 12.5 5.0
053032 053032T
470 500 10.0 x 16.0 5.0
053033 053033T
1000 910 12.5 x 20.0 5.0
053034 053034T
2200 1400 12.5 x 25.0 5.0
053435 053435T
2200 1500 16.0 x 25.0 7.5
053035 053035T
3300 1900 16.0 x 31.5 7.5
053235
–
4700 2450 18.0 x 35.5 7.5
053036
–
Rated voltage 6.3V 10V 16V 25V 40V 50V 63V dc
Tan (max.)* 0.22 0.19 0.16 0.14 0.11 0.10 0.09
Rated voltage 100V 250V 350V 450V dc
Tan (max.) 0.08 0.15 0.15 0.23
Rated voltage 6.3V 10V 16V 25V 40V 50V 63V dc
Surge voltage 8V 13V 20V 32V 50V 63V 79V dc
Rated voltage 100V 250V 350V 450V dc
Surge voltage 125V 300V 400V 500V dc
*Add 0.02 for every 1000µF above 1000µF
Dissipation factor (120Hz, 20°C)
Multiplier for ripple current
Frequency coefficient
Rated Voltage
Freq (Hz)
50/60 120 1k 10k 100k
(V)
CV (µF.WV)
6.3 ~ 16 0.8 1.0 1.1 1.2 1.2
25 ~ 40
≤1000 0.8 1.0 1.2 1.7 1.7
>1000 0.8 1.0 1.2 1.3 1.3
≤1000 0.8 1.0 1.6 1.9 1.9
50 ~ 100
>1000 0.8 1.0 1.2 1.3 1.3
250 ~ 450 0.8 1.0 1.3 1.5 1.6
Temperature coefficient
Temperature (°C) +70 +85
Factor 1.35 1.0
Surge voltage capability
Conforms to JIS
C5141-1982 Char.W
continued > > > >
Page 9
+44 (0)1945 47 47 47 www.anglia.com [email protected]
19
ELECTROLYTIC, Radial
ORDER CODES
Value Ripple Current Dia. x L Pitch Taped &
(µF) (mA) (mm) (mm) Loose Boxed
40 Volt
4.7 30 5.0 x 11.0 2.0(5)
053236 053236T
10 45 5.0 x 11.0 2.0(5)
053037 053037T
22 60 5.0 x 11.0 2.0(5)
053038 053038T
33 90 5.0 x 11.0 2.0(5)
053039 053039T
47 100 6.3 x 11.0 2.5(5)
053040 053040T
100 200 8.0 x 11.5 3.5(5)
053041 053041T
220 360 10.0 x 12.5 5.0
053042 053042T
330 500 10.0 x 16.0 5.0
053043 053043T
470 620 10.0 x 20.0 5.0
053044 053044T
1000 1040 12.5 x 25.0 5.0
053045 053045T
2200 1900 16.0 x 31.5 7.5
053046
–
3300 2250 18.0 x 35.5 7.5
053047
–
4700 2500 18.0 x 35.5 7.5
053247
–
50 Volt
0.1 5 5.0 x 11.0 2.0(5)
053112 053112T
0.22 7 5.0 x 11.0 2.0(5)
053113 053113T
0.33 9 5.0 x 11.0 2.0(5)
053114 053114T
0.47 10 5.0 x 11.0 2.0(5)
053115 053115T
1.0 15 5.0 x 11.0 2.0(5)
053048 053048T
2.2 20 5.0 x 11.0 2.0(5)
053049 053049T
3.3 25 5.0 x 11.0 2.0(5)
053116 053116T
4.7 30 5.0 x 11.0 2.0(5)
053050 053050T
10 45 5.0 x 11.0 2.0(5)
053051 053051T
22 70 5.0 x 11.0 2.0(5)
053052 053052T
33 100 6.3 x 11.0 2.5(5)
053053 053053T
47 120 6.3 x 11.0 2.5(5)
053054 053054T
100 210 8.0 x 11.5 3.5(5)
053055 053055T
220 400 10.0 x 16.0 5.0
053056 053056T
330 540 10.0 x 20.0 5.0
053057 053057T
470 740 12.5 x 20.0 5.0
053058 053058T
1000 1280 12.5 x 25.0 5.0
053459 053459T
1000 1350 16.0 x 25.0 7.5
053059 053059T
2200 2100 18.0 x 35.5 7.5
053221
–
63 Volt
0.1 5 5.0 x 11.0 2.0(5)
053117 053117T
0.22 8 5.0 x 11.0 2.0(5)
053118 053118T
0.33 9 5.0 x 11.0 2.0(5)
053119 053119T
0.47 10 5.0 x 11.0 2.0(5)
053060 053060T
1.0 15 5.0 x 11.0 2.0(5)
053061 053061T
2.2 20 5.0 x 11.0 2.0(5)
053062 053062T
3.3 30 5.0 x 11.0 2.0(5)
053063 053063T
4.7 35 5.0 x 11.0 2.0(5)
053064 053064T
10 50 5.0 x 11.0 2.0(5)
053065 053065T
22 85 6.3 x 11.0 2.5(5)
053066 053066T
33 100 6.3 x 11.0 2.5(5)
053067 053067T
47 150 8.0 x 11.5 3.5(5)
053068 053068T
100 260 10.0 x 12.5 5.0
053069 053069T
220 460 10.0 x 20.0 5.0
053070 053070T
330 650 12.5 x 20.0 5.0
053071 053071T
470 850 12.5 x 25.0 5.0
053120 053120T
1000 1550 16.0 x 31.5 7.5
053220
–
Value Ripple Current Dia. x L Pitch Taped &
(µF) (mA) (mm) (mm) Loose Boxed
100 Volt
0.1 5 5.0 x 11.0 2.0(5)
053128 053128T
0.22 8 5.0 x 11.0 2.0(5)
053129 053129T
0.33 10 5.0 x 11.0 2.0(5)
053130 053130T
0.47 10 5.0 x 11.0 2.0(5)
053072 053072T
1.0 15 5.0 x 11.0 2.0(5)
053073 053073T
2.2 25 5.0 x 11.0 2.0(5)
053074 053074T
3.3 30 5.0 x 11.0 2.0(5)
053075 053075T
4.7 35 5.0 x 11.0 2.0(5)
053076 053076T
10 60 6.3 x 11.0 2.5(5)
053077 053077T
22 110 8.0 x 11.5 3.5(5)
053078 053078T
33 160 10.0 x 12.5 5.0
053079 053079T
47 210 10.0 x 16.0 5.0
053080 053080T
100 380 12.5 x 20.0 5.0
053081 053081T
220 720 16.0 x 25.0 7.5
053083 053083T
330 880 16.0 x 25.0 7.5
053084 053084T
470 1150 16.0 x 31.5 7.5
053085
–
250 Volt
0.47 10 6.3 x 11.0 2.5(5)
053106 053106T
1.0 15 6.3 x 11.0 2.5(5)
053107 053107T
2.2 25 8.0 x 11.5 3.5(5)
053108 053108T
3.3 35 10.0 x 12.5 5.0
053109 053109T
4.7 40 10.0 x 12.5 5.0
053110 053110T
10 75 10.0 x 20.0 5.0
053111 053111T
22 140 12.5 x 25.0 5.0
053135 053135T
33 170 12.5 x 20.0 5.0
053136 053136T
47 240 16.0 x 25.0 7.5
053182 053182T
100 440 18.0 x 35.5 7.5
053183
–
350 Volt
0.47 10 6.3 x 11.0 2.5(5)
053131 053131T
1.0 15 8.0 x 11.5 3.5(5)
053132 053132T
2.2 30 10.0 x 12.5 5.0
053133 053133T
3.3 35 10.0 x 12.5 5.0
053134 053134T
4.7 45 10.0 x 16.0 5.0
053140 053140T
10 75 10.0 x 20.0 5.0
053141 053141T
22 140 12.5 x 25.0 5.0
053142 053142T
33 200 16.0 x 25.0 7.5
053143 053143T
47 260 16.0 x 31.5 7.5
053144
–
450 Volt
1.0 15 10.0 x 12.5 5.0
053121 053121T
2.2 25 10.0 x 16.0 5.0
053122 053122T
3.3 35 10.0 x 20.0 5.0
053123 053123T
4.7 45 12.5 x 20.0 5.0
053124 053124T
10 75 12.5 x 25.0 5.0
053125 053125T
22 140 16.0 x 31.5 7.5
053126
–
33 200 18.0 x 35.5 7.5
053127
–
47 296 16.0 x 31.5 7.5
053155
–
continuation
(5) Leads pre-formed to 5mm pitch on taped part
Other values and higher voltages are available to order. Please contact our Sales Desk for details.
Page 10

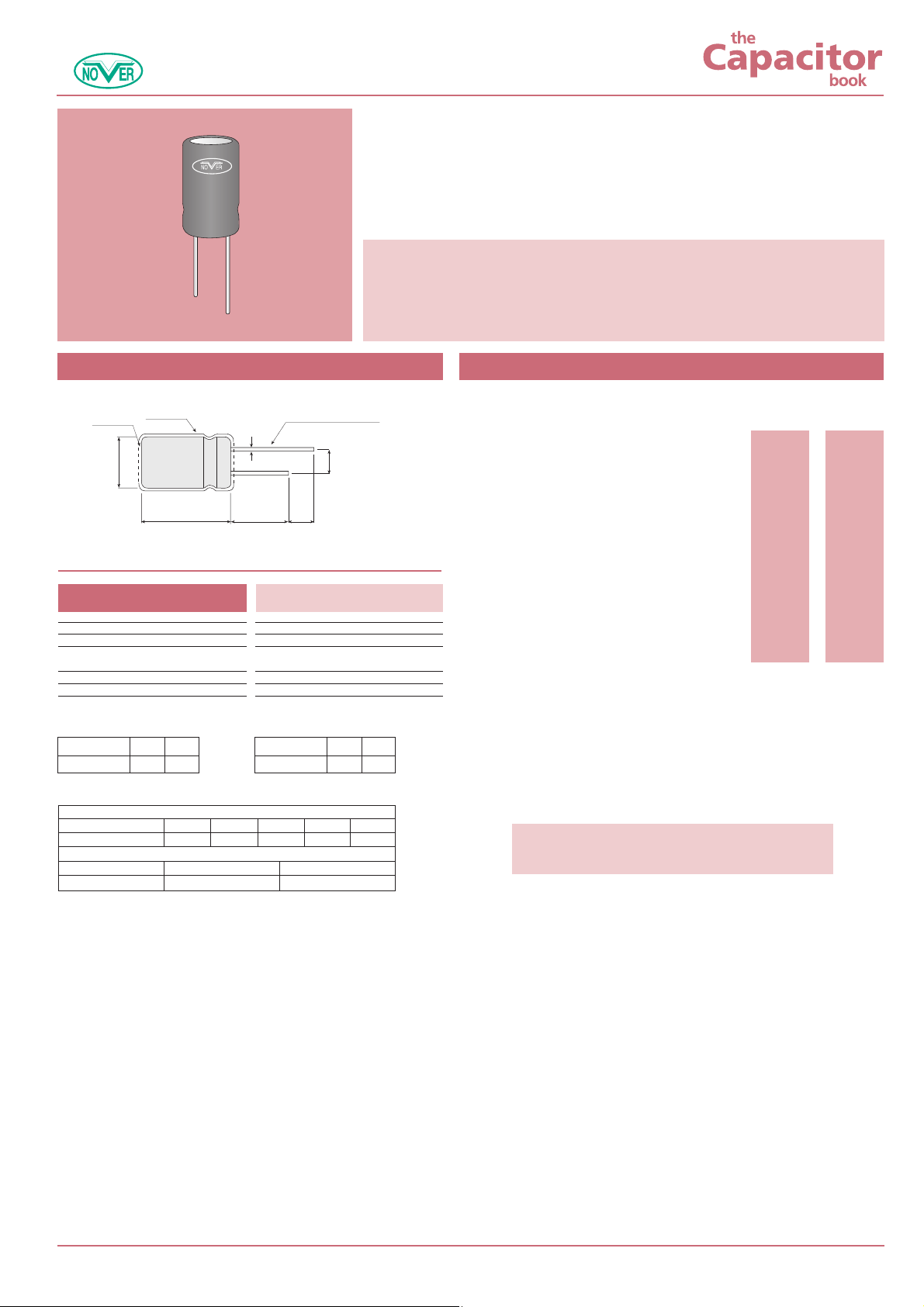

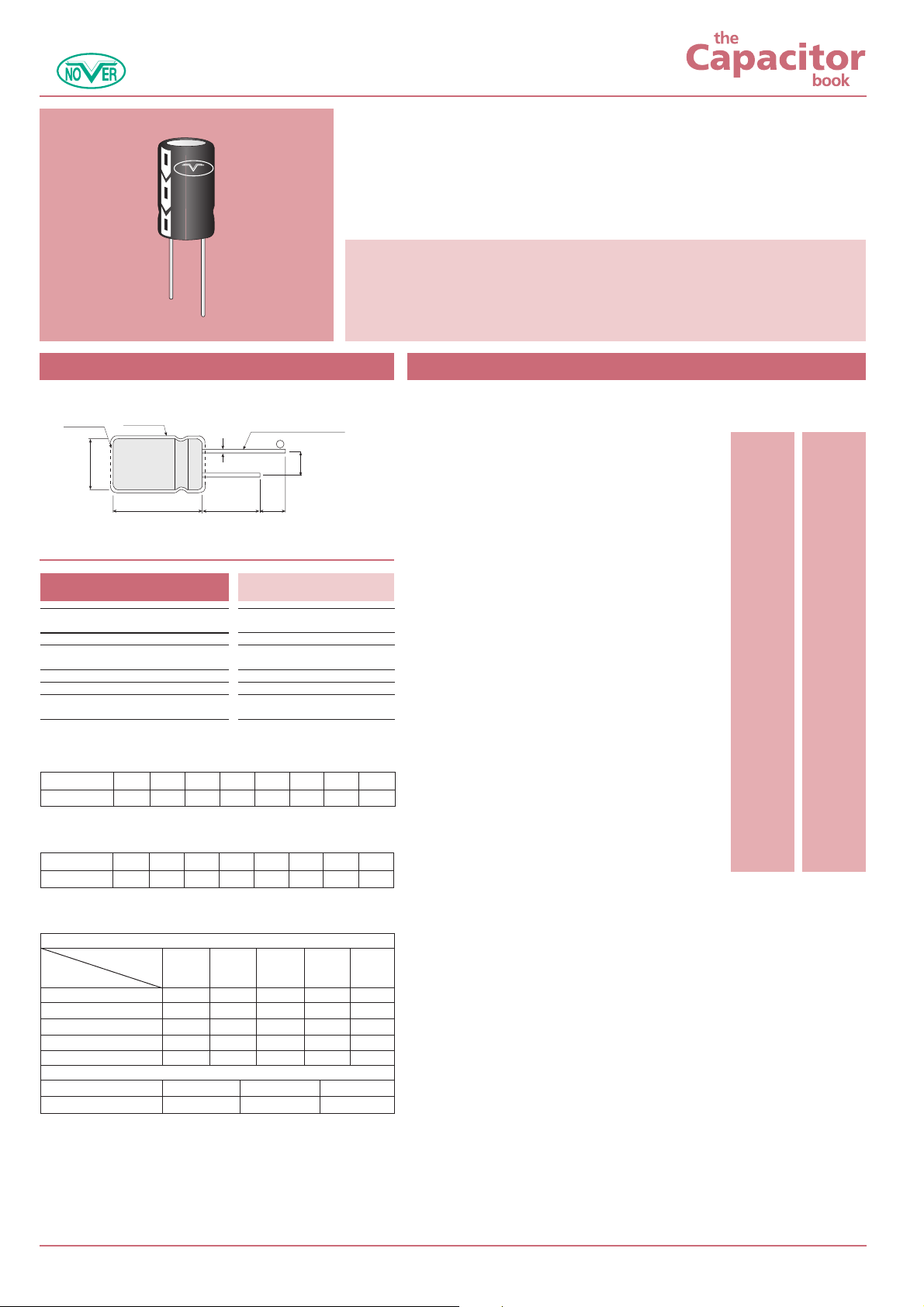

ELECTROLYTIC, Radial, 105°C
22
+44 (0)1945 47 47 47 www.anglia.com [email protected]
NOVER type RH/RT
NO ER
A range of radial aluminium electrolytic capacitors with an extended upper temperature limit
of 105° C. Ideal for equipment running at a high ambient where a greater temperature safety
margin and thus improved reliability is required. Endurance test 2000 hours at 105 °C except
for 400V RT series parts which are 3000 hours at 105°C. The most popular values are listed
below and continued on the following page with other values and voltages being available to
order. Supplied loose or taped and boxed.
N High temperature
N Longer life
N Endurance
2000/3000 hours at 105°C
N Solvent resistant
Specification
Conforms to JIS
C5141-1982 Char.W
RH/RT
Endurance test
Capacitance tolerance
Ripple current (as listed)
Operating temperature range
Leakage current
Dimensions (mm)
N Capacitance tolerance 20%
N Leakage current ≤0.01CV
N Body colour Light Green/Purple
N Supplied loose or taped & boxed
15 min.
L
Dia
Vinyl sleeve
Tinned copper-clad steel wire
ød
Pitch
5 min.
+
Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L (2.0 L≥20)
Vent (Dia ≥ 6.3)
ød = 0.5 (Dia ≤6.3)
0.6 (Dia 8–12.5)
0.8 (Dia ≥16)
Rated voltage 6.3V 10V 16V 25V 35V 50V 63V 100V 400V dc
Tan (max.)* 0.22 0.19 0.16 0.14 0.12 0.10 0.08 0.08 0.25
†
Rated voltage 6.3V 10V 16V 25V 35V 50V 63V 100V 400V dc
Surge voltage 8V 13V 20V 32V 44V 63V 79V 125V 450V dc
*Add 0.02 for every 1000µF above 1000µF
†
RT series 0.20
Dissipation factor (120Hz, 20°C)
Multiplier for ripple current
Surge voltage capability
Frequency coefficient
Rated Voltage
Freq (Hz)
50 120 1k 10k 100k
(V)
Cap (µF)
0.1 ~ 4.7 – 0.4 0.7 0.8 1.0
10 ~ 47 – 0.5 0.8 0.9 1.0
6.3 ~ 100
100 ~ 220 – 0.7 0.9 0.9 1.0
330 ~ 1000 – 0.8 0.9 1.0 1.0
2200 ~ 10000 – 0.9 1.0 1.0 1.0
400 3.3 ~ 47 0.8 1.0 1.3 1.4 1.6
Temperature coefficient
Temperature
(°C)
+70 +85 +105
Rated Voltage (V)
6.3 ~ 100 2.0 1.7 1.0
400 1.8 1.4 1.0
2000 hours at 105°C
(400V RT series: 3000 hours at 105°C)
±20% at 120Hz, 20°C
measured at 100kHz, 105°C (400V: 120Hz, 105°C)
(see also multiplier table below)
-40°C to +105°C
≤0.01CV or 3µA
(whichever is greater) after 2 min.
Value Ripple Current Dia. x L Pitch Taped &
(µF) (mA) (mm) (mm) Loose Boxed
6.3 Volt
33 105 5.0 x 11.0 2.0(5)
052308 052308T
47 120 5.0 x 11.0 2.0(5)
052309 052309T
100 130 5.0 x 11.0 2.0(5)
052310 052310T
220 180 6.3 x 11.0 2.5(5)
052311 052311T
330 220 8.0 x 11.5 3.5(5)
052312 052312T
470 315 8.0 x 11.5 3.5(5)
052313 052313T
1000 500 10.0 x 12.5 5.0
052314 052314T
2200 1000 12.5 x 20.0 5.0
052315 052315T
3300 1050 12.5 x 25.0 5.0
052316 052316T
4700 1670 16.0 x 25.0 7.5
052317 052317T
6800 1740 16.0 x 31.5 7.5
052318
–
10000 2110 16.0 x 31.5 7.5
052719
–
10000 2110 18.0 x 35.5 7.5
052319
–
10 Volt
22 92 5.0 x 11.0 2.0(5)
052007 052007T
33 105 5.0 x 11.0 2.0(5)
052008 052008T
47 120 5.0 x 11.0 2.0(5)
052009 052009T
100 130 5.0 x 11.0 2.0(5)
052010 052010T
220 220 6.3 x 11.0 2.5(5)
052011 052011T
330 265 8.0 x 11.5 3.5(5)
052412 052412T
330 265 10.0 x 12.5 5.0
052012 052012T
470 315 10.0 x 12.5 5.0
052013 052013T
1000 615 10.0 x 16.0 5.0
052414 052414T
2200 1050 12.5 x 20.0 5.0
052015 052015T
3300 1300 16.0 x 25.0 7.5
052215 052215T
4700 1740 16.0 x 31.5 7.5
052216
–
6800 2110 18.0 x 35.5 7.5
052217
–
16 Volt
10 92 5.0 x 11.0 2.0(5)
052016 052016T
22 105 5.0 x 11.0 2.0(5)
052017 052017T
33 120 5.0 x 11.0 2.0(5)
052018 052018T
47 130 5.0 x 11.0 2.0(5)
052019 052019T
100 220 6.3 x 11.0 2.5(5)
052020 052020T
220 290 8.0 x 11.5 3.5(5)
052021 052021T
330 315 8.0 x 11.5 3.5(5)
052422 052422T
330 315 10.0 x 12.5 5.0
052022 052022T
470 315 10.0 x 12.5 5.0
052023 052023T
1000 825 10.0 x 20.0 5.0
052024 052024T
2200 1300 12.5 x 25.0 5.0
052025 052025T
3300 1740 16.0 x 25.0 7.5
052225 052225T
4700 2110 16.0 x 31.5 7.5
052226
–
25 Volt
10 92 5.0 x 11.0 2.0(5)
052026 052026T
22 105 5.0 x 11.0 2.0(5)
052027 052027T
33 120 5.0 x 11.0 2.0(5)
052028 052028T
47 130 6.3 x 11.0 2.5(5)
052029 052029T
100 220 6.3 x 11.0 2.5(5)
052430 052430T
100 220 8.0 x 11.5 3.5(5)
052030 052030T
220 315 8.0 x 11.5 3.5(5)
052431 052431T
220 315 10.0 x 12.5 5.0
052031 052031T
330 500 10.0 x 12.5 5.0
052032 052032T
470 615 10.0 x 16.0 5.0
052033 052033T
1000 1050 12.5 x 20.0 5.0
052034 052034T
2200 1740 16.0 x 25.0 7.5
052035 052035T
3300 2110 16.0 x 31.5 7.5
052235
–
ORDER CODES
continued > > > >
Page 11
+44 (0)1945 47 47 47 www.anglia.com [email protected]
23
ELECTROLYTIC, Radial, 105°C
ORDER CODES
continuation
Value Ripple Current Dia. x L Pitch Taped &
(µF) (mA) (mm) (mm) Loose Boxed
35 Volt
4.7 92 5.0 x 11.0 2.0(5)
052236 052236T
10 105 5.0 x 11.0 2.0(5)
052037 052037T
22 120 5.0 x 11.0 2.0(5)
052038 052038T
33 130 6.3 x 11.0 2.5(5)
052039 052039T
47 220 6.3 x 11.0 2.5(5)
052040 052040T
100 315 8.0 x 11.5 3.5(5)
052041 052041T
220 500 10.0 x 12.5 5.0
052042 052042T
330 615 10.0 x 16.0 5.0
052043 052043T
470 825 10.0 x 20.0 5.0
052044 052044T
1000 1300 12.5 x 25.0 5.0
052445 052445T
1000 1300 16.0 x 25.0 7.5
052045 052045T
2200 2110 16.0 x 31.5 7.5
052046
–
50 Volt
0.1 10 5.0 x 11.0 2.0(5)
052112 052112T
0.22 15 5.0 x 11.0 2.0(5)
052113 052113T
0.33 18 5.0 x 11.0 2.0(5)
052114 052114T
0.47 23 5.0 x 11.0 2.0(5)
052115 052115T
1.0 35 5.0 x 11.0 2.0(5)
052048 052048T
2.2 53 5.0 x 11.0 2.0(5)
052049 052049T
3.3 65 5.0 x 11.0 2.0(5)
052116 052116T
4.7 82 5.0 x 11.0 2.0(5)
052050 052050T
10 100 5.0 x 11.0 2.0(5)
052051 052051T
22 125 6.3 x 11.0 2.5(5)
052052 052052T
33 195 6.3 x 11.0 2.5(5)
052053 052053T
47 245 6.3 x 11.0 2.5(5)
052054 052054T
100 385 8.0 x 11.5 3.5(5)
052055 052055T
220 505 10.0 x 16.0 5.0
052056 052056T
330 675 12.5 x 20.0 5.0
052057 052057T
470 895 12.5 x 20.0 5.0
052058 052058T
1000 1495 16.0 x 25.0 7.5
052059 052059T
63 Volt
0.1 10 5.0 x 11.0 2.0(5)
052117 052117T
0.22 15 5.0 x 11.0 2.0(5)
052118 052118T
0.33 18 5.0 x 11.0 2.0(5)
052119 052119T
0.47 23 5.0 x 11.0 2.0(5)
052060 052060T
1.0 35 5.0 x 11.0 2.0(5)
052061 052061T
2.2 53 5.0 x 11.0 2.0(5)
052062 052062T
3.3 65 5.0 x 11.0 2.0(5)
052063 052063T
4.7 74 5.0 x 11.0 2.0(5)
052064 052064T
10 95 5.0 x 11.0 2.0(5)
052465 052465T
10 95 6.3 x 11.0 2.5(5)
052065 052065T
22 130 8.0 x 11.5 3.5(5)
052066 052066T
33 160 8.0 x 11.5 3.5(5)
052067 052067T
47 305 8.0 x 11.5 3.5(5)
052068 052068T
100 395 10.0 x 12.5 5.0
052069 052069T
220 505 10.0 x 20.0 5.0
052070 052070T
330 660 12.5 x 25.0 5.0
052071 052071T
470 850 12.5 x 25.0 5.0
052520 052520T
470 1250 16.0 x 25.0 7.5
052120 052120T
Value Ripple Current Dia. x L Pitch Taped &
(µF) (mA) (mm) (mm) Loose Boxed
100 Volt
0.47 30 5.0 x 11.0 2.0(5)
052072 052072T
1.0 45 5.0 x 11.0 2.0(5)
052073 052073T
2.2 60 5.0 x 11.0 2.0(5)
052074 052074T
3.3 67 5.0 x 11.0 2.0(5)
052075 052075T
4.7 75 5.0 x 11.0 2.0(5)
052076 052076T
10 110 6.3 x 11.0 2.5(5)
052077 052077T
22 165 8.0 x 11.5 3.5(5)
052078 052078T
33 305 10.0 x 12.5 5.0
052079 052079T
47 320 10.0 x 16.0 5.0
052080 052080T
100 585 12.5 x 20.0 5.0
052081 052081T
220 1120 16.0 x 25.0 7.5
052082 052082T
330 1290 16.0 x 25.0 7.5
052083 052083T
470 1350 16.0 x 31.5 7.5
052084
–
400 Volt
3.3 29 8.0 x 11.5 3.5(5)
052148 052148T
4.7 36 8.0 x 11.5 3.5(5)
052149 052149T
10 62 10.0 x 16.0 5.0
052150 052150T
22 132 12.5 x 20.0 5.0
052151 052151T
33 174 12.5 x 25.0 5.0
052152 052152T
47 212 16.0 x 25.0 7.5
052153 052153T
400 Volt 3000 hour endurance at 105°C (RT series)
4.7 52 10.0 x 16.0 5.0
052250 052250T
10 79 10.0 x 20.0 5.0
052251 052251T
22 140 12.5 x 25.0 5.0
052252 052252T
33 186 16.0 x 25.0 7.5
052253 052253T
47 238 16.0 x 31.5 7.5
052254
–
(5) Leads pre-formed to 5mm pitch on taped part
Other values and higher voltages are available to order. Please contact our Sales Desk for details.
Page 12
(5) Leads pre-formed to 5mm pitch on taped part

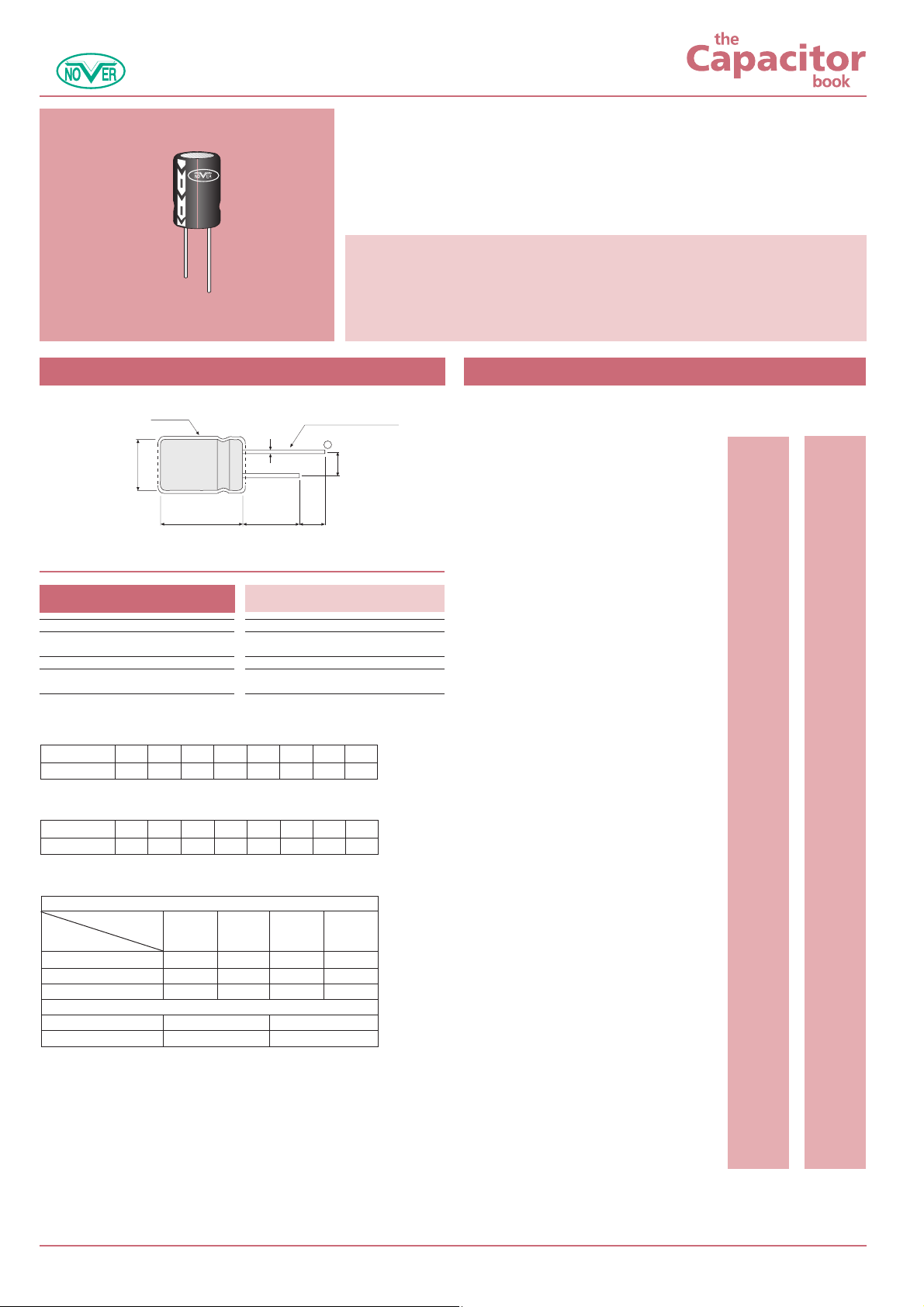

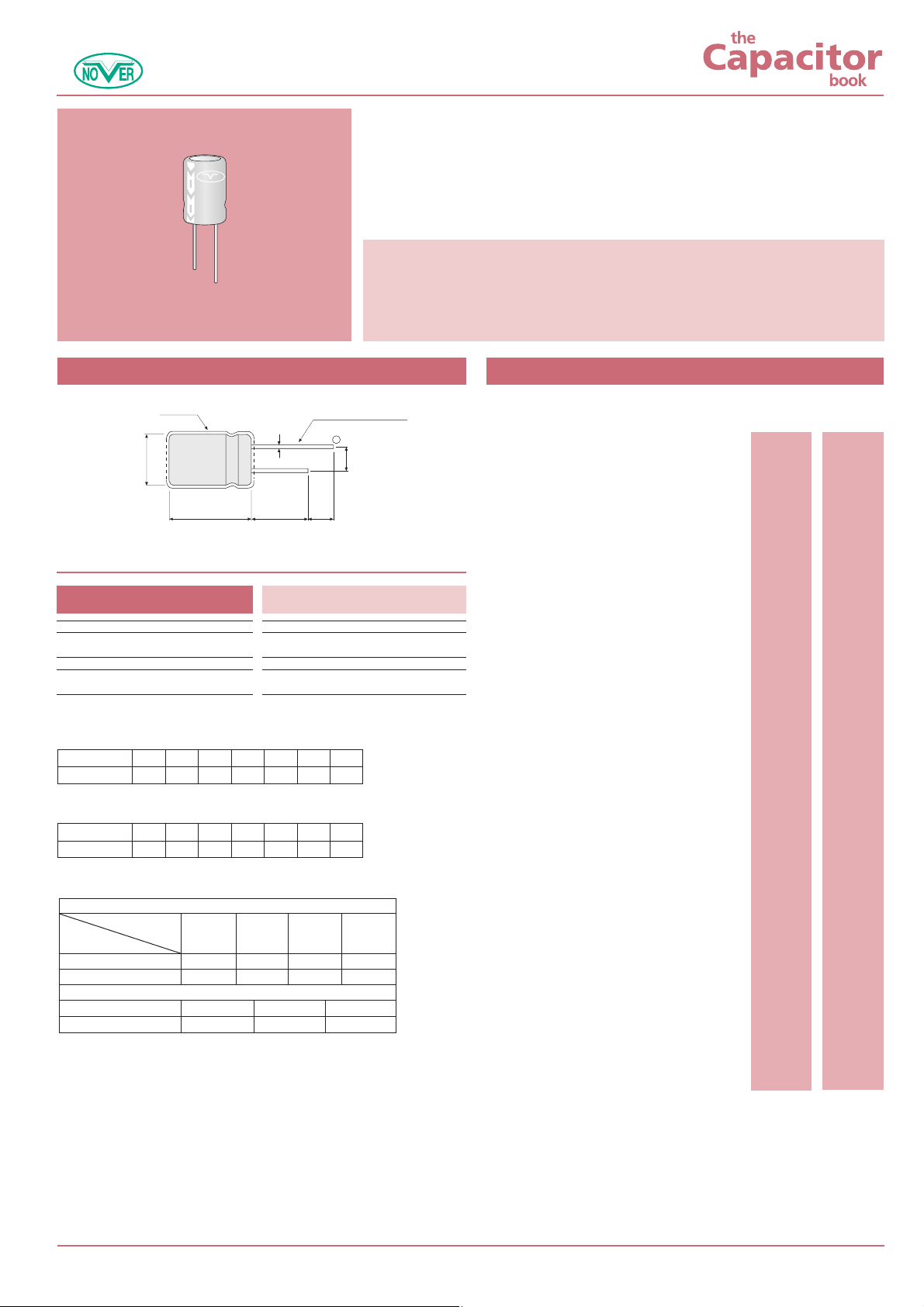

ELECTROLYTIC, Radial, Sub-miniature
26
+44 (0)1945 47 47 47 www.anglia.com [email protected]
NOVER type R7
A range of sub-miniature, radial aluminium electrolytic capacitors all with a 7mm can height.
Ideal in applications where space is at a premium. The entire range of values and voltages
manufactured are listed below and supplied loose or taped and boxed.
N Low profile 7mm height
N Solvent resistant
N Maximum temperature 85°C
N Capacitance tolerance 20%
Specification
Conforms to JIS
C5141-1982 Char.W
R7
Capacitance tolerance
Ripple current (as listed)
Operating temperature range
Leakage current
Dimensions (mm)
N Leakage current ≤0.01CV
N Body colour Black
N Supplied loose or taped & boxed
15 min.
L(7)
Dia
Vinyl sleeve
Tinned copper-clad steel wire
ø0.45
Pitch
5 min.
+
Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L
±20% at 120Hz, 20°C
measured at 120Hz, 85°C
(see also multiplier table below)
-40°C to +85°C
≤0.01CV or 3µA
(whichever is greater) after 2 min.
Rated voltage 6.3V 10V 16V 25V 35V 50V 63V dc
Tan (max) 0.24 0.20 0.16 0.14 0.12 0.10 0.08
Rated voltage 6.3V 10V 16V 25V 35V 50V 63V dc
Surge voltage 8V 13V 20V 32V 44V 63V 79V dc
Dissipation factor (120Hz, 20°C)
Surge voltage capability
Multiplier for ripple current
Frequency coefficient
Freq (Hz)
50/60 120 1k 10 ~ 100k
Rated Voltage (V)
6.3 ~ 16 0.8 1.0 1.1 1.2
25 ~ 35 0.8 1.0 1.5 1.7
50 ~ 63 0.8 1.0 1.6 1.9
Temperature coefficient
Temperature (°C) +70 +85
Factor 1.35 1.0
Value Ripple Current Dia. x L Pitch Taped &
(µF) (mA) (mm) (mm) Loose Boxed
6.3 Volt
22 35 4.0 x 7.0 1.5(5)
056001 056001T
33 40 4.0 x 7.0 1.5(5)
056002 056002T
47 50 4.0 x 7.0 1.5(5)
056403 056403T
47 50 5.0 x 7.0 2.0(5)
056003 056003T
100 80 5.0 x 7.0 2.0(5)
056404 056404T
100 80 6.3 x 7.0 2.5(5)
056004 056004T
220 140 6.3 x 7.0 2.5(5)
056005 056005T
10 Volt
22 35 4.0 x 7.0 1.5(5)
056411 056411T
22 35 5.0 x 7.0 2.0(5)
056011 056011T
33 45 4.0 x 7.0 1.5(5)
056412 056412T
33 45 5.0 x 7.0 2.0(5)
056012 056012T
47 60 5.0 x 7.0 2.0(5)
056413 056413T
47 60 6.3 x 7.0 2.5(5)
056013 056013T
100 105 6.3 x 7.0 2.5(5)
056014 056014T
16 Volt
3.3 20 4.0 x 7.0 1.5(5)
056019 056019T
10 25 4.0 x 7.0 1.5(5)
056021 056021T
22 40 4.0 x 7.0 1.5(5)
056422 056422T
22 40 5.0 x 7.0 2.0(5)
056022 056022T
33 55 5.0 x 7.0 2.0(5)
056023 056023T
47 70 5.0 x 7.0 2.0(5)
056424 056424T
47 70 6.3 x 7.0 2.5(5)
056024 056024T
100 120 6.3 x 7.0 2.5(5)
056025 056025T
25 Volt
10 25 4.0 x 7.0 1.5(5)
056431 056431T
10 30 5.0 x 7.0 2.0(5)
056031 056031T
22 50 5.0 x 7.0 2.0(5)
056432 056432T
22 50 6.3 x 7.0 2.5(5)
056032 056032T
33 70 6.3 x 7.0 2.5(5)
056033 056033T
35 Volt
4.7 20 4.0 x 7.0 1.5(5)
056034 056034T
10 30 5.0 x 7.0 2.0(5)
056035 056035T
22 55 6.3 x 7.0 2.5(5)
056036 056036T
50 Volt
1.0 10 4.0 x 7.0 1.5(5)
056055 056055T
2.2 15 4.0 x 7.0 1.5(5)
056056 056056T
3.3 20 4.0 x 7.0 1.5(5)
056057 056057T
4.7 24 4.0 x 7.0 1.5(5)
056444 056444T
4.7 24 5.0 x 7.0 2.0(5)
056044 056044T
10 40 6.3 x 7.0 2.5(5)
056045 056045T
63 Volt
0.1 5 4.0 x 7.0 1.5(5)
056037 056037T
0.22 8 4.0 x 7.0 1.5(5)
056038 056038T
0.33 10 4.0 x 7.0 1.5(5)
056039 056039T
0.47 10 4.0 x 7.0 1.5(5)
056040 056040T
1.0 15 4.0 x 7.0 1.5(5)
056041 056041T
2.2 20 4.0 x 7.0 1.5(5)
056042 056042T
4.7 30 5.0 x 7.0 2.0(5)
056058 056058T
ORDER CODES
Page 13
+44 (0)1945 47 47 47 www.anglia.com [email protected]
27
ELECTROLYTIC, Radial, Sub-miniature, 105°C
NOVER type RJ
A range of sub-miniature, radial aluminium electrolytic capacitors all with a 7mm can
height and an extended upper temperature limit of 105°C. Ideal in applications where space
is at a premium and a greater temperature safety margin is required. The entire range of
values and voltages manufactured are listed below and supplied loose or taped and boxed.
N Low profile 7mm height
N High temperature 105°C
N Solvent resistant
N Capacitance tolerance 20%
Specification
RJ
Capacitance tolerance
Ripple current (as listed)
Operating temperature range
Leakage current
±20% at 120Hz, 20°C
measured at 120Hz, 105°C
(see also multiplier table below)
-40°C to +105°C
≤0.01CV or 3µA
(whichever is greater) after 2 min.
Dimensions (mm)
N Leakage current ≤0.01CV
N Body colour Yellow
N Supplied loose or taped & boxed
15 min.
L(7)
Dia
Vinyl sleeve
Tinned copper-clad steel wire
ø0.45
Pitch
5 min.
+
Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L
Conforms to JIS
C5141-1982 Char.W
Rated voltage 6.3V 10V 16V 25V 35V 50V dc
Tan (max) 0.24 0.20 0.16 0.14 0.12 0.10
Rated voltage 6.3V 10V 16V 25V 35V 50V dc
Surge voltage 8V 13V 20V 32V 44V 63V dc
Dissipation factor (120Hz, 20°C)
Surge voltage capability
Multiplier for ripple current
Frequency coefficient
Freq (Hz)
50/60 120 1k 10 ~ 100k
Cap (µF)
0.1 ~ 47 0.8 1.0 1.3 1.5
100 ~ 220 0.8 1.0 1.1 1.2
Temperature coefficient
Temperature (°C) +70 +85 +105
Factor 2.0 1.7 1.0
Value Ripple Current Dia. x L Pitch Taped &
(µF) (mA) (mm) (mm) Loose Boxed
6.3 Volt
22 42 4.0 x 7.0 1.5(5)
057001 057001T
33 50 4.0 x 7.0 1.5(5)
057402 057402T
33 53 5.0 x 7.0 2.0(5)
057002 057002T
47 64 5.0 x 7.0 2.0(5)
057003 057003T
100 89 5.0 x 7.0 2.0(5)
057404 057404T
100 96 6.3 x 7.0 2.5(5)
057004 057004T
220 122 6.3 x 7.0 2.5(5)
057005 057005T
10 Volt
22 46 4.0 x 7.0 1.5(5)
057411 057411T
22 49 5.0 x 7.0 2.0(5)
057011 057011T
33 60 5.0 x 7.0 2.0(5)
057012 057012T
47 89 5.0 x 7.0 2.0(5)
057413 057413T
47 95 6.3 x 7.0 2.5(5)
057013 057013T
100 116 6.3 x 7.0 2.5(5)
057014 057014T
16 Volt
10 39 4.0 x 7.0 1.5(5)
057021 057021T
22 46 4.0 x 7.0 1.5(5)
057422 057422T
22 49 5.0 x 7.0 2.0(5)
057022 057022T
33 78 5.0 x 7.0 2.0(5)
057423 057423T
33 83 6.3 x 7.0 2.5(5)
057023 057023T
47 89 5.0 x 7.0 2.0(5)
057424 057424T
47 95 6.3 x 7.0 2.5(5)
057024 057024T
100 116 6.3 x 7.0 2.5(5)
057025 057025T
25 Volt
10 30 4.0 x 7.0 1.5(5)
057431 057431T
10 47 5.0 x 7.0 2.0(5)
057031 057031T
22 82 5.0 x 7.0 2.0(5)
057432 057432T
22 87 6.3 x 7.0 2.5(5)
057032 057032T
33 90 6.3 x 7.0 2.5(5)
057033 057033T
35 Volt
4.7 25 4.0 x 7.0 1.5(5)
057034 057034T
10 45 4.0 x 7.0 1.5(5)
057435 057435T
10 48 5.0 x 7.0 2.0(5)
057035 057035T
22 90 6.3 x 7.0 2.5(5)
057036 057036T
50 Volt
0.1 5 4.0 x 7.0 1.5(5)
057051 057051T
0.22 8 4.0 x 7.0 1.5(5)
057052 057052T
0.33 10 4.0 x 7.0 1.5(5)
057053 057053T
0.47 12 4.0 x 7.0 1.5(5)
057054 057054T
1.0 16 4.0 x 7.0 1.5(5)
057055 057055T
2.2 25 4.0 x 7.0 1.5(5)
057056 057056T
3.3 28 4.0 x 7.0 1.5(5)
057057 057057T
4.7 48 5.0 x 7.0 2.0(5)
057044 057044T
10 75 6.3 x 7.0 2.5(5)
057045 057045T
(5) Leads pre-formed to 5mm pitch on taped part
ORDER CODES
NO ER
Page 14

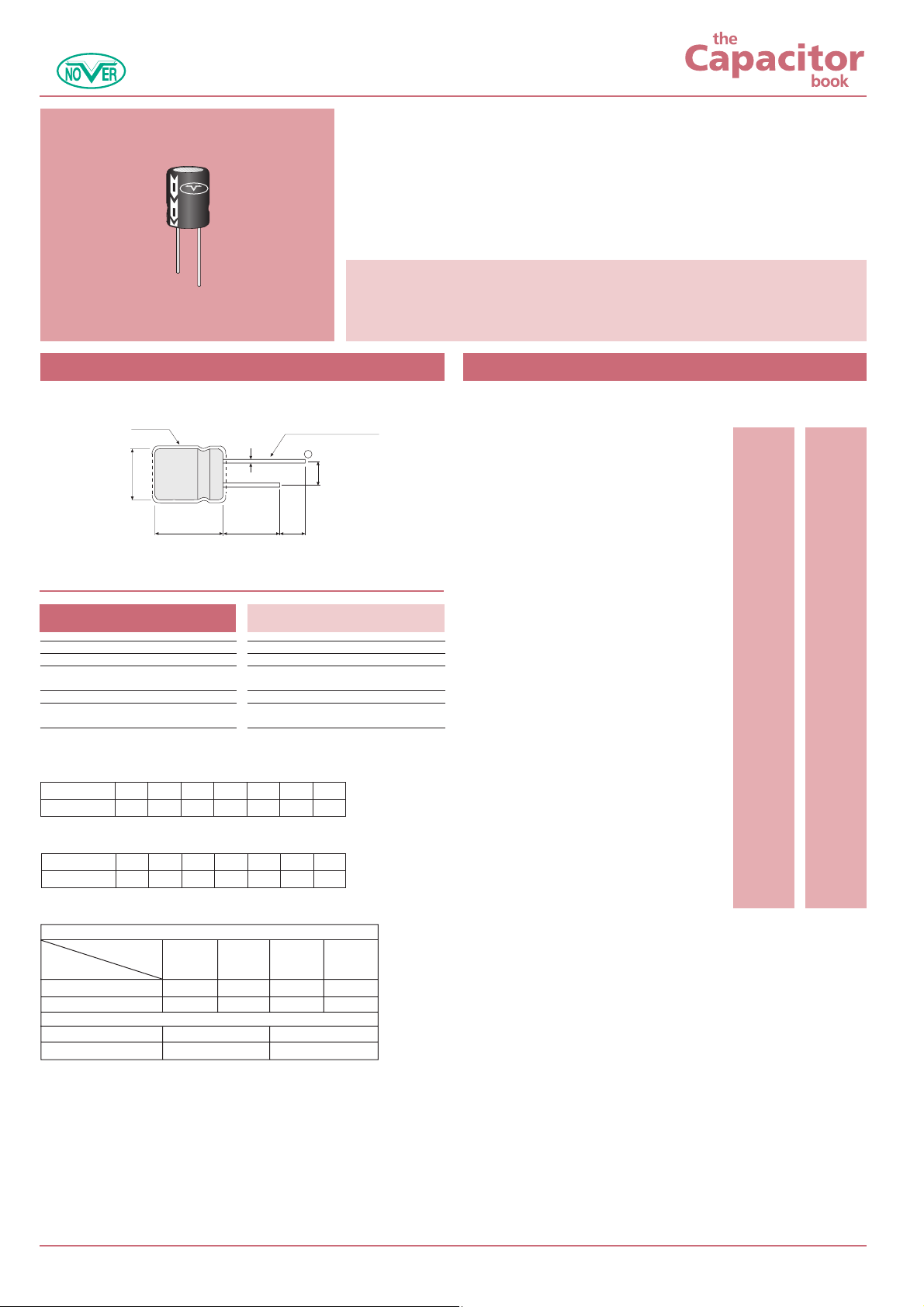

ELECTROLYTIC, Radial, Ultra-miniature
28
+44 (0)1945 47 47 47 www.anglia.com [email protected]
NOVER type R5
NO ER
A range of ultra-miniature radial aluminium electrolytic capacitors evolving from the advanced
features of the R7 series and offering a very low profile of only 5mm. The entire range of
values and voltages manufactured are listed below and supplied loose or taped and boxed.
N Very low profile 5mm height
N Solvent resistant
N Capacitance tolerance 20%
Specification
R5
Endurance test
Capacitance tolerance
Ripple current (as listed)
Operating temperature range
Leakage current
1000 hours at 85°C
±20% at 120Hz, 20°C
measured at 120Hz, 85°C
(see also multiplier table below)
-40°C to +85°C
≤0.01CV or 3µA
(whichever is greater) after 2 min.
Dimensions (mm)
N Leakage current ≤0.01CV
N Body Colour Indigo
N Supplied loose or taped & boxed
15 min.
L(5)
Dia
Vinyl sleeve
Tinned copper-clad steel wire
ø0.45
Pitch
5 min.
+
Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L
Conforms to JIS
C5141-1982 Char.W
Value Ripple Current Dia. x L Pitch Taped &
(µF) (mA) (mm) (mm) Loose Boxed
6.3 Volt
22 22 4.0 x 5.0 1.5(5)
063001 063001T
33 34 5.0 x 5.0 2.0(5)
063002 063002T
47 37 5.0 x 5.0 2.0(5)
063003 063003T
100 62 6.3 x 5.0 2.5(5)
063004 063004T
10 Volt
10 16 4.0 x 5.0 1.5(5)
063010 063010T
22 28 4.0 x 5.0 1.5(5)
063411 063411T
33 45 5.0 x 5.0 2.0(5)
063012 063012T
47 48 5.0 x 5.0 2.0(5)
063413 063413T
16 Volt
4.7 11 4.0 x 5.0 1.5(5)
063020 063020T
10 18 4.0 x 5.0 1.5(5)
063021 063021T
22 35 5.0 x 5.0 2.0(5)
063022 063022T
33 48 5.0 x 5.0 2.0(5)
063423 063423T
47 65 6.3 x 5.0 2.5(5)
063024 063024T
25 Volt
4.7 13 4.0 x 5.0 1.5(5)
063030 063030T
10 25 4.0 x 5.0 1.5(5)
063431 063431T
22 43 5.0 x 5.0 2.0(5)
063432 063432T
33 54 6.3 x 5.0 2.5(5)
063033 063033T
35 Volt
3.3 12 4.0 x 5.0 1.5(5)
063049 063049T
4.7 14 4.0 x 5.0 1.5(5)
063034 063034T
10 27 5.0 x 5.0 2.0(5)
063035 063035T
22 46 6.3 x 5.0 2.5(5)
063036 063036T
50 Volt
0.1 1 4.0 x 5.0 1.5(5)
063051 063051T
0.22 1.5 4.0 x 5.0 1.5(5)
063052 063052T
0.33 2.5 4.0 x 5.0 1.5(5)
063053 063053T
0.47 4 4.0 x 5.0 1.5(5)
063054 063054T
1.0 6 4.0 x 5.0 1.5(5)
063055 063055T
2.2 7 4.0 x 5.0 1.5(5)
063056 063056T
3.3 13 4.0 x 5.0 1.5(5)
063057 063057T
4.7 20 5.0 x 5.0 2.0(5)
063044 063044T
10 31 6.3 x 5.0 2.5(5)
063045 063045T
ORDER CODES
Rated voltage 6.3V 10V 16V 25V 35V 50V dc
Tan (max) 0.26 0.22 0.18 0.14 0.12 0.10
Rated voltage 6.3V 10V 16V 25V 35V 50V dc
Surge voltage 8V 13V 20V 32V 44V 63V dc
Dissipation factor (120Hz, 20°C)
Surge voltage capability
Multiplier for ripple current
Frequency coefficient
Freq (Hz)
50/60 120 1k 10 ~ 100k
Cap (µF)
0.1 ~ 47 0.8 1.0 1.3 1.5
100 0.8 1.0 1.15 1.2
Temperature coefficient
Temperature (°C) +70 +85
Factor 1.35 1.0
(5) Leads pre-formed to 5mm pitch on taped part
Page 15
ELECTROLYTIC, Radial, Low ESR, Long Life, 105°C
34
+44 (0)1945 47 47 47 www.anglia.com [email protected]
NOVER type RX
A specialised range of radial aluminium electrolytic capacitors which offers a superb
combination of low impedance, high temperature and an extended life expectancy. Suitable for
applications where long term component reliability and integrity are of paramount importance.
The entire range of values and voltages manufactured are listed below and on the following
page. Supplied loose or taped and boxed.
N Low impedance
N High endurance Up to 6000 hours
N High ripple current
N Maximum temperature 105°C
Specification
RX
Endurance test (at 105°C)
Capacitance tolerance
Ripple current (as listed)
Impedance (as listed)
Operating temperature range
Leakage current
3000 hours (Dia ≤8),
6000 hours (Dia ≥10)
±20% at 120Hz, 20°C
measured at 100kHz, 105°C
(see also multiplier table below)
measured at 100kHz, 20°C
-55°C to +105°C
≤0.01CV or 0.3µA
(whichever is greater) after 2 min.
Dimensions (mm)
N Capacitance tolerance 20%
N Body colour Black
N Supplied loose or taped & boxed
15 min.
L
Dia
Vinyl sleeve
Tinned copper-clad steel wire
ød
Pitch
5 min.
+
Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L (2.0 L≥20)
Vent (Dia ≥ 6.3)
ød = 0.5 (Dia ≤6.3)
0.6 (Dia 8–12.5)
0.8 (Dia ≥16)
Conforms to JIS
C5141-1982 Char.W
Rated voltage 10V 16V 25V 35V 50V 63V 100V dc
Tan (max) * 0.19 0.16 0.14 0.12 0.10 0.09 0.08
Dissipation factor (120Hz, 20°C)
* Add 0.02 for every 100µF above 1000µF
Rated voltage 10V 16V 25V 35V 50V 63V 100V dc
Surge voltage 13V 20V 32V 44V 63V 79V 125V dc
Surge voltage capability
Multiplier for ripple current
Frequency coefficient
Freq (Hz)
50/60 120 1k 10k ≤100k
Cap (µF)
0.47 ~ 4.7 0.35 0.42 0.60 0.80 1.0
10 ~ 33 0.45 0.55 0.75 0.90 1.0
47 ~ 330 0.60 0.70 0.85 0.95 1.0
470 ~ 1000 0.65 0.75 0.90 0.98 1.0
2200 ~ 10000 0.75 0.80 0.95 1.0 1.0
Temperature coefficient
Temperature (°C) +70 +85 +105
Coefficient 1.96 1.68 1.0
Value Ripple Current Impedance Dia. x L Pitch Taped &
(µF) (mA) (Ω) (mm) (mm) Loose Boxed
10 Volt
100 147 0.900 5.0 x 11.0 2.0(5)
061011 061011T
220 244 0.400 6.3 x 11.0 2.5(5)
061012 061012T
330 391 0.250 8.0 x 11.5 3.5(5)
061013 061013T
470 391 0.250 8.0 x 11.5 3.5(5)
061014 061014T
1000 762 0.120 10.0 x 16.0 5.0
061015 061015T
2200 1296 0.062 12.5 x 20.0 5.0
061016 061016T
3300 1646 0.048 12.5 x 25.0 5.0
061017 061017T
4700 1839 0.034 16.0 x 25.0 7.5
061018 061018T
6800 1994 0.029 16.0 x 31.5 7.5
061019
–
10000 2193 0.025 18.0 x 35.5 7.5
061020
–
16 Volt
47 147 0.900 5.0 x 11.0 2.0(5)
061084 061084T
100 244 0.400 6.3 x 11.0 2.5(5)
061085 061085T
220 391 0.250 8.0 x 11.5 3.5(5)
061086 061086T
330 391 0.250 8.0 x 11.5 3.5(5)
061087 061087T
470 576 0.160 10.0 x 12.5 5.0
061088 061088T
1000 1009 0.078 10.0 x 20.0 5.0
061089 061089T
2200 1646 0.048 12.5 x 25.0 5.0
061090 061090T
3300 1839 0.034 16.0 x 25.0 7.5
061091 061091T
4700 1994 0.029 16.0 x 31.5 7.5
061092
–
6800 2193 0.025 18.0 x 35.5 7.5
061093
–
25 Volt
33 147 0.900 5.0 x 11.0 2.0(5)
061028 061028T
47 147 0.900 5.0 x 11.0 2.0(5)
061029 061029T
100 244 0.400 6.3 x 11.0 2.5(5)
061030 061030T
220 391 0.250 8.0 x 11.5 3.5(5)
061031 061031T
330 576 0.160 10.0 x 12.5 5.0
061032 061032T
470 762 0.120 10.0 x 16.0 5.0
061033 061033T
1000 1296 0.062 12.5 x 20.0 5.0
061034 061034T
2200 1893 0.034 16.0 x 25.0 7.5
061035 061035T
3300 1994 0.029 16.0 x 31.5 7.5
061036
–
4700 2193 0.025 18.0 x 35.5 7.5
061037
–
ORDER CODES
continued > > > >
NO ER
Page 16
+44 (0)1945 47 47 47 www.anglia.com [email protected]
35
ELECTROLYTIC, Radial, Low ESR, Long Life, 105°C
Value Ripple Current Impedance Dia. x L Pitch Taped &
(µF) (mA) (Ω) (mm) (mm) Loose Boxed
35 Volt
33 147 0.900 5.0 x 11.0 2.0(5)
061039 061039T
47 244 0.400 6.3 x 11.0 2.5(5)
061040 061040T
100 391 0.250 8.0 x 11.5 3.5(5)
061041 061041T
220 576 0.160 10.0 x 12.5 5.0
061042 061042T
330 762 0.120 10.0 x 16.0 5.0
061043 061043T
470 1009 0.078 10.0 x 20.0 5.0
061044 061044T
680 1340 0.068 12.5 x 25.0 5.0
061021 061021T
1000 1646 0.048 12.5 x 25.0 5.0
061045 061045T
2200 1994 0.029 16.0 x 31.5 7.5
061046
–
3300 2193 0.025 18.0 x 35.5 7.5
061047
–
50 Volt
0.47 17 5.500 5.0 x 11.0 2.0(5)
061048 061048T
1.0 29 4.000 5.0 x 11.0 2.0(5)
061049 061049T
2.2 43 2.500 5.0 x 11.0 2.0(5)
061050 061050T
3.3 53 2.200 5.0 x 11.0 2.0(5)
061051 061051T
4.7 88 1.900 5.0 x 11.0 2.0(5)
061052 061052T
10 100 1.500 5.0 x 11.0 2.0(5)
061053 061053T
22 147 0.900 5.0 x 11.0 2.0(5)
061054 061054T
33 244 0.400 6.3 x 11.0 2.5(5)
061055 061055T
47 244 0.400 6.3 x 11.0 2.5(5)
061056 061056T
100 391 0.250 8.0 x 11.5 3.5(5)
061057 061057T
220 762 0.120 10.0 x 16.0 5.0
061058 061058T
330 1009 0.078 10.0 x 20.0 5.0
061059 061059T
470 1295 0.062 12.5 x 20.0 5.0
061060 061060T
1000 1839 0.034 16.0 x 25.0 7.5
061061 061061T
2200 2193 0.025 18.0 x 35.5 7.5
061062
–
63 Volt
10 87 2.300 5.0 x 11.0 2.0(5)
061063 061063T
22 138 1.300 6.3 x 11.0 2.5(5)
061064 061064T
33 138 1.200 6.3 x 11.0 2.5(5)
061065 061065T
47 210 0.630 8.0 x 11.5 3.5(5)
061066 061066T
100 300 0.430 10.0 x 12.5 5.0
061067 061067T
220 520 0.210 10.0 x 20.0 5.0
061068 061068T
330 660 0.160 12.5 x 20.0 5.0
061069 061069T
470 750 0.120 12.5 x 25.0 5.0
061070 061070T
1000 1390 0.054 16.0 x 31.5 7.5
061071
–
100 Volt
0.47 15 6.000 5.0 x 11.0 2.0(5)
061072 061072T
1.0 20 4.500 5.0 x 11.0 2.0(5)
061073 061073T
2.2 30 3.000 5.0 x 11.0 2.0(5)
061074 061074T
3.3 40 2.700 5.0 x 11.0 2.0(5)
061075 061075T
4.7 65 2.500 5.0 x 11.0 2.0(5)
061076 061076T
10 138 1.200 6.3 x 11.0 2.5(5)
061077 061077T
22 160 0.630 8.0 x 11.5 3.5(5)
061078 061078T
33 230 0.430 10.0 x 12.5 5.0
061079 061079T
47 290 0.310 10.0 x 16.0 5.0
061080 061080T
100 430 0.160 12.5 x 20.0 5.0
061081 061081T
220 900 0.073 16.0 x 25.0 7.5
061082 061082T
330 900 0.073 16.0 x 25.0 7.5
061083 061083T
ORDER CODES
(5) Leads pre-formed to 5mm pitch on taped part
continuation
Page 17
ELECTROLYTIC, Radial, Low Leakage
40
+44 (0)1945 47 47 47 www.anglia.com [email protected]
NOVER type LL
A range of low leakage, radial aluminium electrolytic capacitors suitable for timing circuits
and low signal coupling applications. The entire range of values and voltages manufactured
are listed below and supplied loose or taped and boxed.
N Low leakage ≤0.002CV
N Stable during storage
N Solvent resistant
N Maximum temperature 85°C
Specification
LL
Capacitance tolerance
Ripple current (as listed)
Operating temperature range
Leakage current
±20% at 120Hz, 20°C
measured at 120Hz, 85°C
(see also multiplier table below)
-40°C to +85°C
≤0.002CV or 0.3µA
(whichever is greater) after 2 min.
Dimensions (mm)
N Capacitance tolerance 20%
N Body colour Orange
N Supplied loose or taped & boxed
15 min.
L
Dia
Vinyl sleeve
Tinned copper-clad steel wire
ød
Pitch
5 min.
+
Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L (2.0 L≥20)
Vent (Dia ≥ 6.3)
ød = 0.5 (Dia ≤6.3)
0.6 (Dia 8–12.5)
0.8 (Dia ≥16)
Conforms to JIS
C5141-1982 Char.W
Rated voltage 6.3V 10V 16V 25V 35V 50V dc
Tan (max)*0.20 0.17 0.13 0.10 0.10 0.08
Rated voltage 6.3V 10V 16V 25V 35V 50V dc
Surge voltage 8V 13V 20V 32V 44V 63V dc
Dissipation factor (120Hz, 20°C)
Surge voltage capability
Multiplier for ripple current
Frequency coefficient
Rated Voltage
Freq (Hz)
50/60 120 1k 10k 100k
(V)
CV (µF.WV)
6.3 ~ 10 0.8 1.0 1.1 1.2 1.2
16 ~ 25
≤1000 0.8 1.0 1.5 1.7 1.7
>1000 0.8 1.0 1.2 1.3 1.3
35 ~ 50 0.8 1.0 1.6 1.9 1.9
Temperature coefficient
Temperature (°C) +70 +85
Factor 1.35 1.0
*Add 0.02 for every 1000µF above 1000µF
Value Ripple Current Dia. x L Pitch Taped &
(µF) (mA) (mm) (mm) Loose Boxed
6.3 Volt
220 240 8.0 x 11.5 3.5(5)
059002 059002T
330 300 8.0 x 11.5 3.5(5)
059003 059003T
470 420 10.0 x 12.5 5.0
059004 059004T
1000 740 10.0 x 20.0 5.0
059005 059005T
2200 1220 12.5 x 20.0 5.0
059006 059006T
10 Volt
22 56 5.0 x 11.0 2.0(5)
059007 059007T
33 70 5.0 x 11.0 2.0(5)
059008 059008T
47 80 5.0 x 11.0 2.0(5)
059009 059009T
100 140 6.3 x 11.0 2.5(5)
059010 059010T
220 240 8.0 x 11.5 3.5(5)
059011 059011T
330 380 10.0 x 12.5 5.0
059012 059012T
470 500 10.0 x 16.0 5.0
059013 059013T
1000 910 12.5 x 20.0 5.0
059014 059014T
2200 1710 12.5 x 25.0 5.0
059015 059015T
16 Volt
10 43 5.0 x 11.0 2.0(5)
059016 059016T
22 74 5.0 x 11.0 2.0(5)
059017 059017T
33 80 5.0 x 11.0 2.0(5)
059018 059018T
47 90 5.0 x 11.0 2.0(5)
059019 059019T
100 200 8.0 x 11.5 3.5(5)
059020 059020T
220 360 10.0 x 12.5 5.0
059021 059021T
330 500 10.0 x 16.0 5.0
059022 059022T
470 620 10.0 x 20.0 5.0
059023 059023T
1000 1040 12.5 x 25.0 5.0
059024 059024T
2200 1900 16.0 x 31.5 7.5
059025
–
25 Volt
4.7 34 5.0 x 11.0 2.0(5)
059026 059026T
10 52 5.0 x 11.0 2.0(5)
059027 059027T
22 72 5.0 x 11.0 2.0(5)
059028 059028T
33 100 6.3 x 11.0 2.5(5)
059029 059029T
47 114 6.3 x 11.0 2.5(5)
059030 059030T
100 210 8.0 x 11.5 3.5(5)
059031 059031T
220 400 10.0 x 16.0 5.0
059032 059032T
330 540 10.0 x 20.0 5.0
059033 059033T
470 740 12.5 x 20.0 5.0
059034 059034T
1000 1350 16.0 x 25.0 7.5
059035
–
35 Volt
4.7 34 5.0 x 11.0 2.0(5)
059036 059036T
10 52 5.0 x 11.0 2.0(5)
059037 059037T
22 74 6.3 x 11.0 2.5(5)
059038 059038T
33 100 6.3 x 11.0 2.5(5)
059039 059039T
47 150 8.0 x 11.5 3.5(5)
059040 059040T
100 260 10.0 x 12.5 5.0
059041 059041T
220 460 10.0 x 20.0 5.0
059042 059042T
330 650 12.5 x 20.0 5.0
059043 059043T
470 850 12.5 x 25.0 5.0
059044 059044T
1000 1550 16.0 x 25.0 7.5
059045
–
50 Volt
0.1 5 5.0 x 11.0 2.0(5)
059046 059046T
0.22 7 5.0 x 11.0 2.0(5)
059047 059047T
0.33 9 5.0 x 11.0 2.0(5)
059048 059048T
0.47 14 5.0 x 11.0 2.0(5)
059049 059049T
1.0 20 5.0 x 11.0 2.0(5)
059050 059050T
2.2 26 5.0 x 11.0 2.0(5)
059051 059051T
3.3 32 5.0 x 11.0 2.0(5)
059052 059052T
4.7 43 5.0 x 11.0 2.0(5)
059053 059053T
10 70 5.0 x 11.0 2.0(5)
059054 059054T
22 110 8.0 x 11.5 3.5(5)
059055 059055T
33 160 10.0 x 12.5 5.0
059056 059056T
47 210 10.0 x 16.0 5.0
059057 059057T
100 380 12.5 x 20.0 5.0
059058 059058T
220 720 16.0 x 25.0 7.5
059059 059059T
330 880 16.0 x 25.0 7.5
059060 059060T
470 1150 16.0 x 31.5 7.5
059061
–
(5) Leads pre-formed to 5mm pitch on taped part
ORDER CODES
Page 18
+44 (0)1945 47 47 47 www.anglia.com [email protected]
41
ELECTROLYTIC, Radial, Bi-polar
NOVER type RB
A range of bi-polar (non-polarised) radial aluminium electrolytic capacitors suitable for applications
where reverse voltage may be applied. Endurance test 2000 hours at 85°C. The most popular
values are listed below with other values and voltages being available to order. Supplied loose
or taped and boxed.
N Bi-polar (non-polarised)
N Longer life
N Endurance 2000 hours at 85°C
N Solvent resistant
Specification
RB
Endurance test
Capacitance tolerance
Ripple current (as listed)
Operating temperature range
Leakage current
2000 hours at 85°C
±20% at 120Hz, 20°C
measured at 120Hz, 85°C
(see also multiplier table below)
-40°C to +85°C
≤0.03CV + 3µA after 5 min.
Dimensions (mm)
N Capacitance tolerance 20%
N Body colour Red
N Supplied loose or taped & boxed
15 min.
L
Dia
Vinyl sleeve
Tinned copper-clad steel wire
ød
Pitch
5 min.
Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L (2.0 L≥20)
Vent (Dia ≥ 6.3)
ød = 0.5 (Dia ≤6.3)
0.6 (Dia 8–12.5)
0.8 (Dia ≥16)
to EIAJ RC-3803
Rated voltage 50V dc
Surge voltage 63V dc
Rated voltage 50V dc
Tan (max) 0.14 dc
Value Ripple Current Dia. x L Pitch Taped &
(µF) (mA) (mm) (mm) Loose Boxed
50 Volt
0.1 4 5.0 x 11.0 2.0(5)
050046 050046T
0.22 7 5.0 x 11.0 2.0(5)
050047 050047T
0.33 8 5.0 x 11.0 2.0(5)
050048 050048T
0.47 10 5.0 x 11.0 2.0(5)
050049 050049T
1.0 14 5.0 x 11.0 2.0(5)
050050 050050T
2.2 21 5.0 x 11.0 2.0(5)
050051 050051T
3.3 26 5.0 x 11.0 2.0(5)
050052 050052T
4.7 31 5.0 x 11.0 2.0(5)
050053 050053T
10 45 5.0 x 11.0 2.0(5)
050054 050054T
22 77 6.3 x 11.0 2.5(5)
050055 050055T
33 111 8.0 x 11.5 3.5(5)
050056 050056T
47 157 10.0 x 12.5 5.0
050057 050057T
100 273 10.0 x 20.0 5.0
050058 050058T
220 506 12.5 x 25.0 5.0
050059 050059T
330 620 12.5 x 25.0 5.0
050060 050060T
470 861 16.0 x 25.0 7.5
050061 050061T
Dissipation factor (120Hz, 20°C)
Surge voltage capability
Multiplier for ripple current
Frequency coefficient
Freq (Hz) 50/60 120 1k 10k 100k
Factor 0.8 1.0 1.6 1.9 1.9
Temperature coefficient
Temperature (°C) +70 +85
Factor 1.35 1.0
ORDER CODES
(5) Leads pre-formed to 5mm pitch on taped part
Other values and voltages are available to order.
Please contact our Sales Desk for details.
Page 19

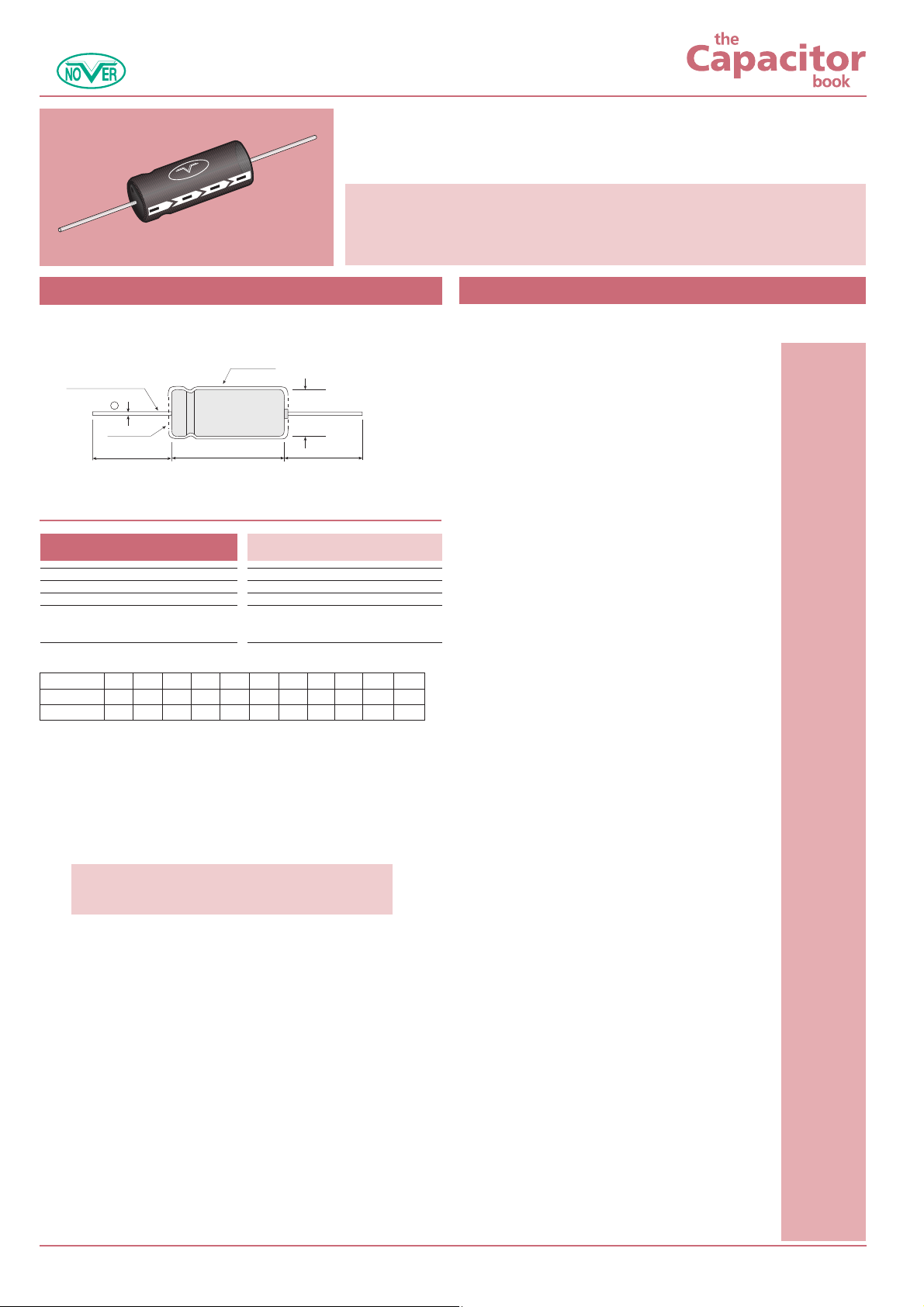

NO ER
Axial lead aluminium electrolytic capacitors manufactured to be highly cost effective whilst
maintaining high levels of quality and reliability. Supplied loose, with taped and reeled product
available to order.
N Standard range
N Maximum temperature 85°C
N Capacitance tolerance 20%
Specification
TE
Capacitance tolerance
Ripple current (as listed)
Operating temperature range
Leakage current
±20% at 120Hz, 25°C
measured at 120Hz, 85°C
-40°C to +85°C
≤0.01CV or 3µA
(≤100V)
(whichever is greater) after 2 mins.
≤0.01CV +100µA (>100V) after 5 mins.
Dimensions (mm)
N Leakage current ≤0.01CV
N Body colour Black
N Supplied loose
Vinyl sleeve
Tinned copper-clad steel wire
35 min.
35 min.
L
Vent (Dia >8)
+
ød
ød = 0.6 (Dia ≤13)
0.8 (Dia ≥16)
Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.5 to L
Dia
Conforms to JIS
C5141-1982 Char. W
Value Ripple Current Dia. x L
(µF) (mA) (mm) Loose
10 Volt
47 75 5.0 x 12.5
051006
100 180 6.3 x 12.5
051007
220 204 6.3 x 16.0
051008
470 400 8.0 x 20.0
051010
1000 585 10.0 x 20.0
051011
2200 920 13.0 x 25.0
051012
4700 1200 16.0 x 30.0
051014
16 Volt
10 40 5.0 x 12.5
051016
22 64 5.0 x 12.5
051017
47 92 6.3 x 12.5
051019
100 160 6.3 x 12.5
051020
220 280 8.0 x 16.0
051021
470 450 8.0 x 20.0
051023
1000 760 10.0 x 25.0
051024
2200 1200 13.0 x 26.0
051025
4700 1900 16.0 x 34.0
051027
25 Volt
10 47 5.0 x 12.5
051000
22 70 6.3 x 12.5
051028
47 100 6.3 x 12.5
051030
100 180 6.3 x 16.5
051031
220 300 8.0 x 16.0
051032
470 500 10.0 x 20.0
051034
1000 950 13.0 x 21.0
051035
2200 1450 16.0 x 29.0
051036
4700 2160 16.0 x 40.0
051037
40 Volt
10 38 5.0 x 12.5
051038
22 67 6.3 x 12.5
051039
47 113 8.0 x 16.0
051041
100 189 8.0 x 20.0
051042
220 335 10.0 x 20.0
051043
470 590 13.0 x 26.0
051045
1000 1095 16.0 x 34.0
051046
2200 1624 18.0 x 40.0
051047
4700 (35V) 2300 18.0 x 40.0
051049
63 Volt
1.0 16 5.0 x 12.5
051058
2.2 21 5.0 x 12.5
051059
4.7 38 6.3 x 12.5
051061
10 62 6.3 x 12.5
051062
22 100 6.3 x 12.5
051063
47 180 8.0 x 16.0
051065
100 280 10.0 x 16.0
051066
220 470 10.0 x 25.0
051067
470 900 13.0 x 26.0
051069
1000 1500 16.0 x 40.0
051070
2200 2060 22.0 x 40.0
051071
100 Volt
1.0 12 5.0 x 12.5
051073
2.2 21 6.3 x 12.5
051074
4.7 39 6.3 x 12.5
051076
10 75 6.3 x 16.5
051077
22 120 8.0 x 16.0
051078
47 230 10.0 x 20.0
051080
100 420 13.0 x 21.0
051081
220 700 13.0 x 30.0
051082
470 1031 16.0 x 40.0
051084
1000 1447 22.0 x 40.0
051085
250 Volt
1.0 13 6.3 x 16.0
051099
2.2 23 8.0 x 16.0
051100
4.7 37 8.0 x 20.0
051102
10 57 10.0 x 16.0
051103
22 101 10.0 x 25.0
051104
47 184 13.0 x 25.0
051106
350 Volt
10 62 10.0 x 20.0
051114
22 109 13.0 x 20.0
051115
47 147 16.0 x 33.0
051117
450 Volt
1.0 19 8.0 x 16.0
051121
2.2 30 10.0 x 20.0
051122
4.7 50 10.0 x 25.0
051124
10 80 13.0 x 20.0
051125
22 130 13.0 x 30.0
051126
47 230 18.0 x 40.0
051128
100 470 22.0 x 40.0
051129
Rated voltage 10V 16V 25V 35V 40V 63V 100V 250V 350V 450V dc
Surge voltage 13V 20V 32V 44V 50V 79V 125V 300V 400V 500V dc
Tan 웃 (max)* 0.20 0.16 0.14 0.12 0.11 0.10 0.08 0.20 0.20 0.25
*Add 0.02 for every 1000µF above 1000µF.
ORDER CODES
Taped & reeled product available to order.
Please contact our Sales Desk for details.
CAP/1125
Page 20
+44 (0)1945 47 47 47 www.anglia.com [email protected]
43

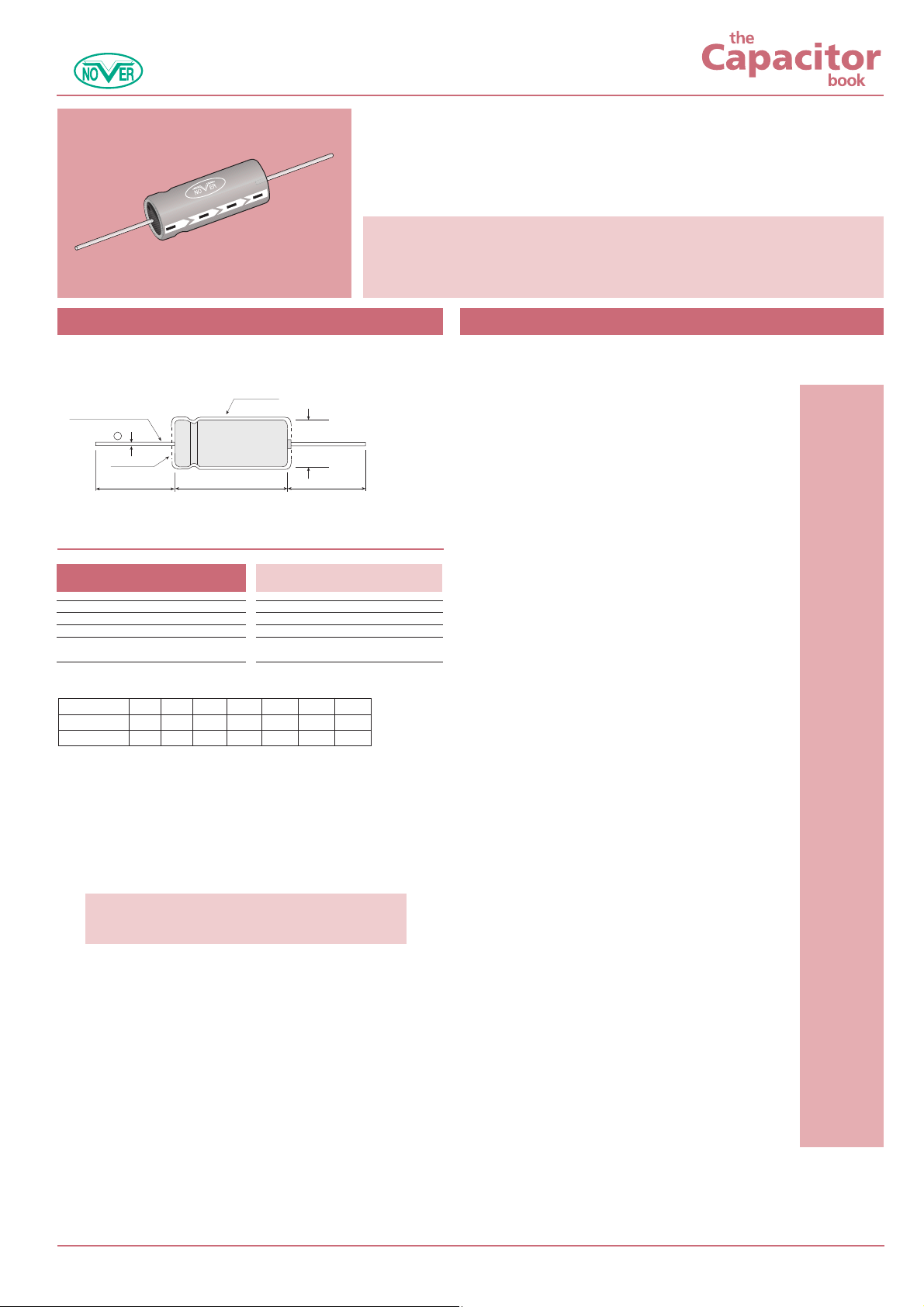

ELECTROLYTIC, Axial, 105°C
NOVER type TH
Axial lead aluminium electrolytic capacitors with an extended upper temperature limit of
105°C. Ideal for equipment running at high ambient temperatures where a greater climatic
safety margin and improved reliabilty is required. Supplied loose, with taped and reeled
product available to order.
N High temperature
N Maximum temperature 105°C
N Capacitance tolerance 20%
Specification
TH
Capacitance tolerance
Ripple current (as listed)
Operating temperature range
Leakage current
±20% at 120Hz, 20°C
measured at 120Hz, 105°C
-40°C to +105°C
≤0.01CV or 3µA
(whichever is greater) after 2 min.
Dimensions (mm)
N Leakage current ≤0.01CV
N Body colour Light Green
N Supplied loose
Vinyl sleeve
Tinned copper-clad steel wire
35 min.
35 min.
L
Vent (Dia >8)
+
ød
ød = 0.6 (Dia ≤13)
0.8 (Dia ≥16)
Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.5 to L
Dia
Conforms to JIS
C5141-1982 Char. W
Value Ripple Current Dia. x L
(µF) (mA) (mm) Loose
10 Volt
22 38 5.0 x 12.5
062004
47 56 5.0 x 12.5
062006
100 93 6.3 x 12.5
062007
220 177 6.3 x 16.0
062008
470 267 8.0 x 20.0
062010
1000 488 10.0 x 20.0
062011
2200 783 13.0 x 25.0
062012
4700 1483 16.0 x 30.0
062014
16 Volt
22 38 5.0 x 12.5
062017
47 61 6.3 x 12.5
062019
100 101 6.3 x 16.0
062020
220 177 8.0 x 16.0
062021
470 329 10.0 x 16.0
062023
1000 572 10.0 x 25.0
062024
2200 912 13.0 x 30.0
062025
4700 1585 16.0 x 40.0
062027
25 Volt
10 27 5.0 x 12.5
062000
22 44 6.3 x 12.5
062028
47 73 6.3 x 12.5
062030
100 127 8.0 x 16.0
062031
220 210 8.0 x 20.0
062032
470 384 10.0 x 20.0
062034
1000 672 13.0 x 25.0
062035
2200 1099 16.0 x 30.0
062036
4700 1498 18.0 x 40.0
062037
35 Volt
10 30 5.0 x 12.5
062038
22 49 6.3 x 12.5
062039
47 82 6.3 x 16.0
062041
100 158 8.0 x 16.0
062042
220 266 10.0 x 16.0
062043
470 467 10.0 x 25.0
062045
1000 816 13.0 x 30.0
062046
2200 1140 16.0 x 40.0
062047
4700 1550 22.0 x 40.0
062049
63 Volt
1.0 10 5.0 x 12.5
062058
2.2 15 5.0 x 12.5
062059
4.7 25 6.3 x 12.5
062061
10 36 6.3 x 12.5
062062
22 61 6.3 x 16.0
062063
47 117 8.0 x 16.0
062065
100 196 10.0 x 16.0
062066
220 346 10.0 x 25.0
062067
470 597 13.0 x 30.0
062069
1000 1163 16.0 x 40.0
062070
2200 1320 22.0 x 40.0
062071
100 Volt
1.0 10 5.0 x 12.5
062073
2.2 17 6.3 x 12.5
062074
4.7 25 6.3 x 12.5
062076
10 45 6.3 x 16.0
062077
22 81 8.0 x 16.0
062078
47 134 10.0 x 20.0
062080
100 255 10.0 x 25.0
062081
220 439 13.0 x 30.0
062082
Rated voltage 10V 16V 25V 35V 63V 100V dc
Surge voltage 13V 20V 32V 44V 79V 125V dc
Tan (max.)* 0.20 0.17 0.15 0.12 0.10 0.08
*Add 0.02 for every 1000µF above 1000µF.
ORDER CODES
Taped & reeled product available to order.
Please contact our Sales Desk for details.
Page 21

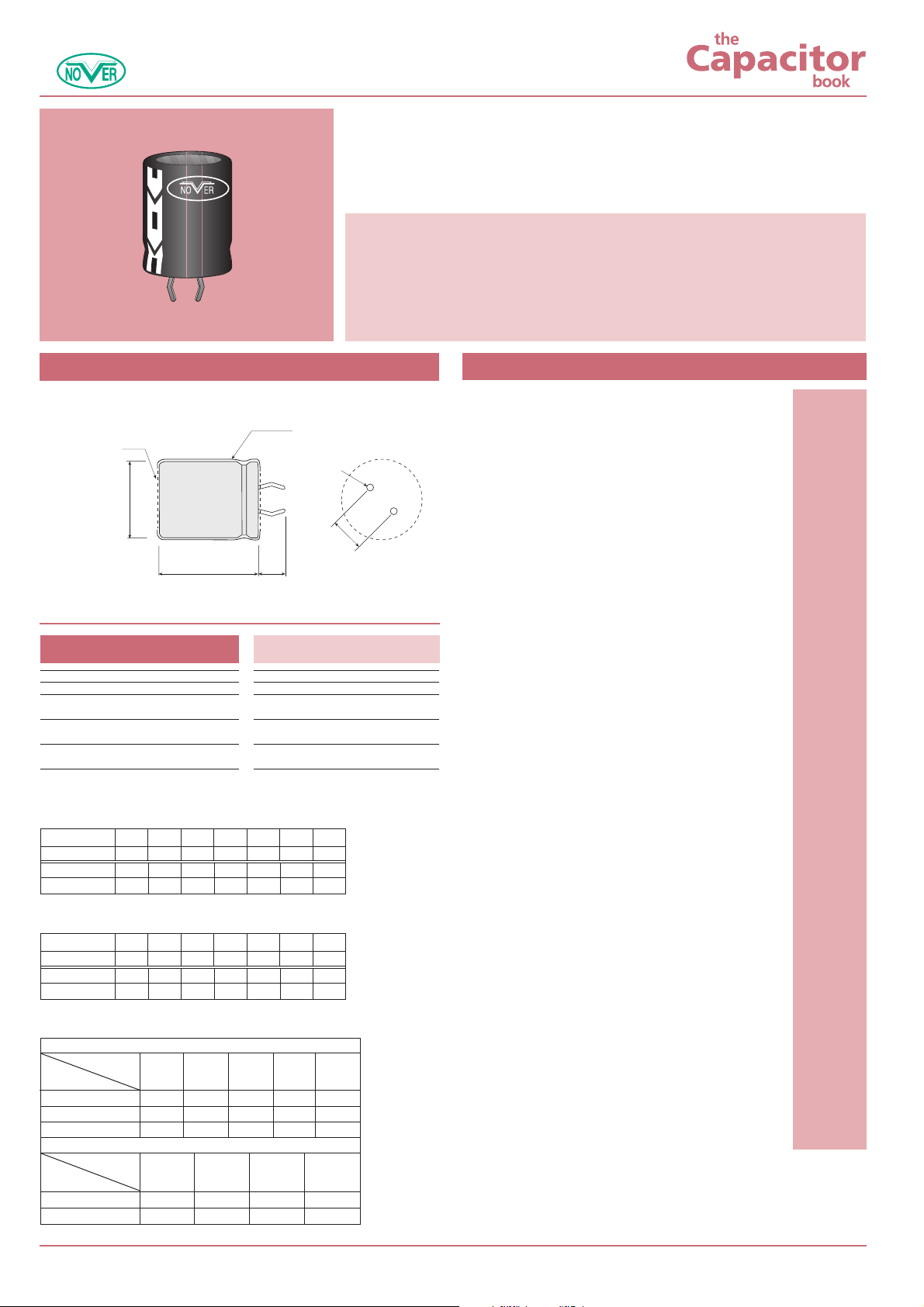

Value Ripple Current Dia. x L
(µF) (A) (mm) Order Code
16 Volt
4700 2.20 22.0 x 25.0
054002
6800 2.33 22.0 x 25.0
054003
8200 2.56 22.0 x 30.0
054053
10000 2.81 22.0 x 30.0
054004
15000 3.64 25.0 x 30.0
054005
22000 4.44 25.0 x 40.0
054006
33000 5.38 30.0 x 45.0
054007
25 Volt
4700 2.18 22.0 x 25.0
054101
6800 2.56 22.0 x 30.0
054102
8200 2.80 22.0 x 35.0
054123
8200 2.86 25.0 x 40.0
054103
10000 3.12 22.0 x 40.0
054125
10000 3.16 25.0 x 30.0
054105
15000 4.00 25.0 x 40.0
054106
22000 5.19 30.0 x 40.0
054107
35 Volt
3300 2.14 22.0 x 25.0
054203
4700 2.24 22.0 x 30.0
054224
4700 2.28 25.0 x 25.0
054204
6800 2.89 25.0 x 35.0
054205
8200 3.33 25.0 x 40.0
054255
10000 3.59 25.0 x 40.0
054226
10000 3.62 25.0 x 45.0
054206
10000 3.70 30.0 x 40.0
054216
15000 4.80 30.0 x 45.0
054207
22000 6.40 30.0 x 50.0
054208
50 Volt
2200 1.93 22.0 x 30.0
054303
3300 2.41 22.0 x 30.0
054304
4700 3.01 22.0 x 40.0
054305
4700 3.01 35.0 x 25.0
054315
6800 3.79 25.0 x 40.0
054326
6800 3.87 30.0 x 35.0
054306
8200 4.42 30.0 x 40.0
054356
10000 5.02 30.0 x 40.0
054327
10000 5.06 30.0 x 45.0
054307
15000 6.44 35.0 x 50.0
054308
63 Volt
2200 2.24 22.0 x 30.0
054414
2200 2.30 25.0 x 25.0
054424
2200 2.35 25.0 x 30.0
054404
3300 2.69 25.0 x 30.0
054425
3300 2.73 25.0 x 40.0
054405
4700 1.96 35.0 x 25.0
054436
4700 3.32 25.0 x 40.0
054426
4700 3.37 30.0 x 30.0
054416
4700 3.42 30.0 x 40.0
054406
6800 4.41 30.0 x 40.0
054427
6800 4.47 30.0 x 50.0
054407
8200 4.90 30.0 x 50.0
054428
10000 5.32 35.0 x 40.0
054438
10000 5.49 35.0 x 50.0
054408
NOVER type LS
A range of high CV, high ripple current, aluminium electrolytic capacitors suitable for general
purpose use. Housed in compact bodies and fitted with two snap-in pcb terminals on a
standard 10mm pitch. Endurance test 2000 hours at 85°C. N.B. Other values, voltages and can
sizes are available to order.
N General purpose
N High CV
N High ripple current
N Compact body
N Snap-in terminals 10mm pitch
Specification
LS
Endurance test
Capacitance tolerance
Ripple current (as listed)
Operating temperature range
Leakage current
2000 hours at 85°C
±20% at 120Hz, 20°C
measured at 120Hz, 85°C
(see also multiplier table below)
-40°C to +85°C (16 ~ 100V)
-25°C to +85°C (200 ~ 450V)
≤0.01CV or 3µA
(whichever is greater) after 2 min.
Dimensions (mm)
N Endurance test 2000 hours at 85°C
N Maximum temperature 85°C
N Capacitance tolerance 20%
N Leakage current ≤0.01CV
N Body colour Black
Dia x L are can sizes only. To allow for sleeve add 1.0 to Dia and 2.0 to L
Vinyl sleeve
6.3
L
Dia
Vent
10
ø2
Mounting Holes
Conforms to JIS
C5141-1982 Char. W
Rated voltage 16V 25V 35V 50V 63V 100V dc
Surge voltage 20V 32V 44V 63V 79V 125V dc
Rated voltage 200V 250V 400V 450V dc
Surge voltage 250V 300V 450V 500V dc
Rated voltage 16V 25V 35V 50V 63V 100V dc
Tan 웃 (max)* 0.40 0.30 0.25 0.20 0.15 0.15
Rated voltage 200V 250V 400V 450V dc
Tan 웃 (max) 0.15 0.15 0.15 0.15
Dissipation factor (120Hz, 20°C)
Surge voltage capability
Multiplier for ripple current
Frequency coefficient
Freq (Hz)
50 120 1k 10k 20k
Rated Voltage(V)
16 ~ 50 0.95 1.0 1.10 1.15 1.15
63 ~ 100 0.95 1.0 1.16 1.30 1.33
200 ~ 450 0.90 1.0 1.20 1.50 1.55
Temperature coefficient
Temperature
+40 +55 +70 +85
Rated Voltage(V)
(°C)
<200 2.1 1.8 1.5 1.0
≥200 1.7 1.5 1.3 1.0
*Add 0.02 for every 1000µF above 5000µF
ELECTROLYTIC, Snap-in, 2 Pin
44
+44 (0)1945 47 47 47 www.anglia.com [email protected]
ORDER CODES
continued > > > >
Page 22
+44 (0)1945 47 47 47 www.anglia.com [email protected]
45
ELECTROLYTIC, Snap-in, 2 Pin
Value Ripple Current Dia. x L
(µF) (A) (mm) Order Code
100 Volt
1000 2.10 22.0 x 30.0
054504
2200 3.20 30.0 x 40.0
054506
3300 4.10 35.0 x 45.0
054507
4700 5.10 35.0 x 40.0
054528
4700 5.14 35.0 x 45.0
054508
200 Volt
220 1.10 22.0 x 30.0
054703
330 1.48 22.0 x 30.0
054734
330 1.50 25.0 x 30.0
054724
330 1.50 22.0 x 40.0
054704
470 1.86 25.0 x 35.0
054725
470 1.90 25.0 x 40.0
054705
680 2.36 25.0 x 40.0
054736
680 2.40 25.0 x 45.0
054726
680 2.44 25.0 x 50.0
054706
820 2.69 30.0 x 40.0
054756
1000 2.88 35.0 x 30.0
054727
1000 3.05 35.0 x 40.0
054707
250 Volt
220 1.30 22.0 x 35.0
054803
330 1.68 25.0 x 35.0
054804
470 2.05 25.0 x 40.0
054805
680 2.78 30.0 x 45.0
054806
820 3.13 30.0 x 50.0
054807
1000 3.50 35.0 x 50.0
054808
400 Volt
47 0.50 22.0 x 25.0
054902
100 0.72 22.0 x 30.0
054904
150 0.95 25.0 x 30.0
054905
220 1.23 30.0 x 30.0
054926
220 1.25 30.0 x 35.0
054906
330 1.61 30.0 x 40.0
054927
330 1.68 30.0 x 45.0
054907
470 2.10 35.0 x 40.0
054928
470 2.15 35.0 x 45.0
054908
450 Volt
47 0.56 22.0 x 25.0
054973
100 0.70 25.0 x 35.0
054975
150 1.08 25.0 x 40.0
054976
220 1.30 30.0 x 45.0
054977
330 1.49 35.0 x 45.0
054978
470 1.92 35.0 x 50.0
054979
ORDER CODES
continuation
Other values, voltages and can sizes are available to order.
Please contact our Sales Desk for details.
Page 23

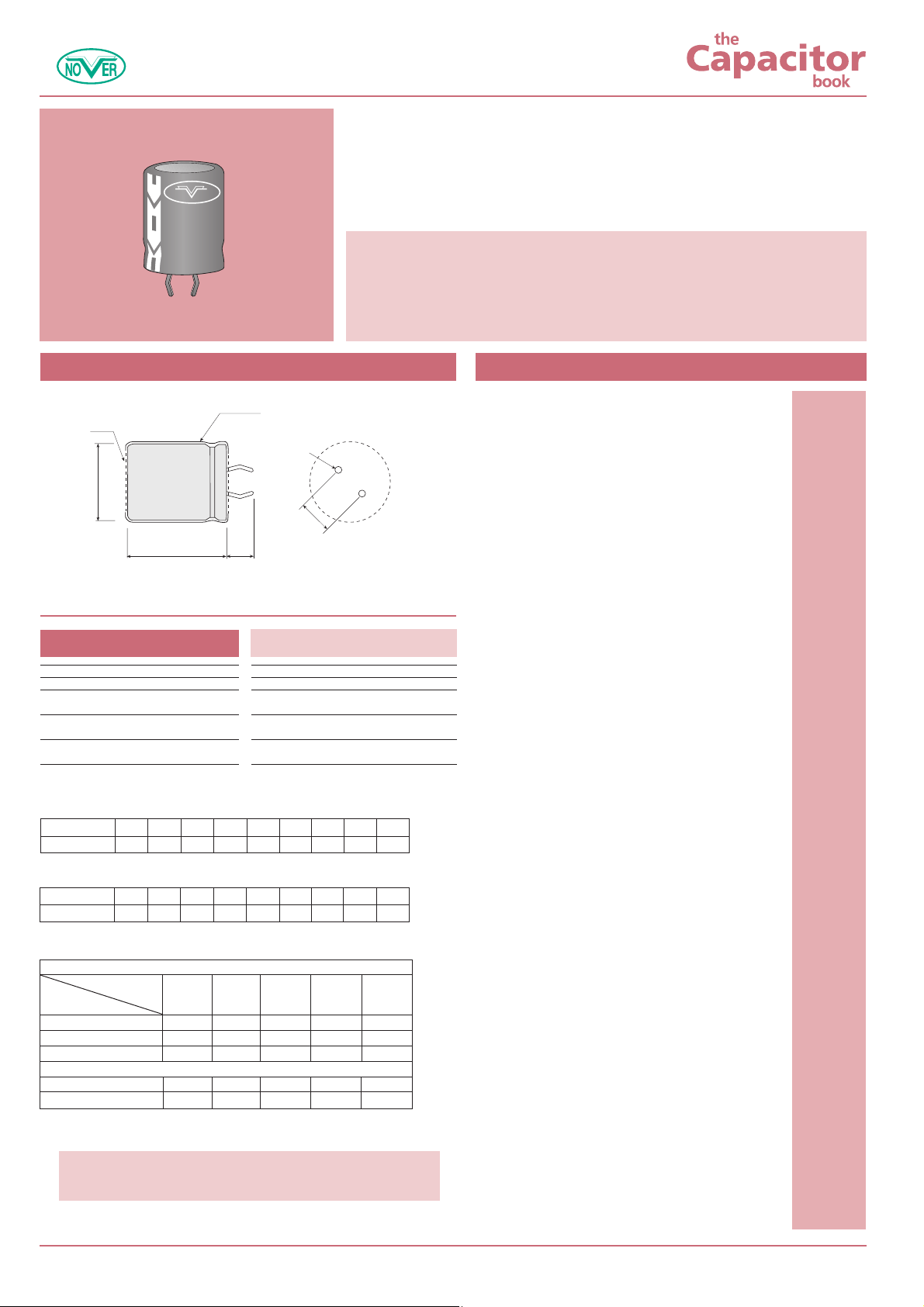

ELECTROLYTIC, Snap-in, 2 Pin, 105°C
48
+44 (0)1945 47 47 47 www.anglia.com [email protected]
NOVER type LH
NO ER
Offering a high temperature capability of 105°C and an endurance of 2000 hours, the LH
aluminium electrolytic 2 pin, snap-in capacitor range is designed for applications where ambient
conditions may exceed the operating specification of the general purpose LS series.The most
popular values are listed below with other values and voltages being available to order.
Supplied loose.
N High temperature 105°C
N High CV
N High ripple current
N Snap-in terminals 10mm pitch
Specification
LH
Endurance test
Capacitance tolerance
Ripple current (as listed)
Operating temperature range
Leakage current
2000 hours at 105°C
±20% at 120Hz, 20°C
measured at 120Hz, 105°C
(see also multiplier table below)
-40°C to +105°C (16 ~ 100V)
-25°C to +105°C (200 ~ 400V)
≤0.01CV or 3µA
(whichever is greater) after 2 min.
Dimensions (mm)
N Endurance 2000 hours at 105°C
N Capacitance tolerance 20%
N Leakage current ≤0.01CV
N Body colour Grey
Dia x L are can sizes only. To allow for sleeve add 1.0 to Dia and 2.0 to L
Vinyl sleeve
6.0 ±1
L
Dia
Vent
10
ø2
Mounting Holes
Rated voltage 16V 25V 35V 50V 63V 100V 200V 400V dc
Tan (max.)* 0.40 0.30 0.25 0.20 0.15 0.15 0.15 0.15
Rated voltage 16V 25V 35V 50V 63V 100V 200V 400V dc
Surge voltage 20V 32V 44V 63V 79V 125V 250V 450V dc
Dissipation factor (120Hz, 20°C)
Surge voltage capability
Multiplier for ripple current
Frequency coefficient
Freq (Hz)
50 120 1k 10k 20k
Rated Voltage (V)
16 ~ 50 0.95 1.0 1.10 1.15 1.15
63 ~ 100 0.95 1.0 1.16 1.30 1.33
200 ~ 400 0.90 1.0 1.20 1.50 1.55
Temperature coefficient
Temperature (°C) +40 +55 +70 +85 +105
Factor 2.7 2.5 2.1 1.7 1.0
*Add 0.01 for every 1000µF above 5000µF
Conforms to JIS
C5141-1982 Char. W
Value Ripple Current Dimensions (mm)
(µF) (A) Dia. x L Order Code
16 Volt
4700 1.60 22.0 x 25.0
055002
6800 1.75 22.0 x 25.0
055003
8200 2.00 22.0 x 30.0
055053
10000 2.10 22.0 x 30.0
055004
22000 3.36 25.0 x 45.0
055006
33000 4.30 30.0 x 45.0
055007
25 Volt
4700 1.61 22.0 x 30.0
055101
6800 2.00 22.0 x 40.0
055104
6800 2.09 25.0 x 30.0
055102
8200 2.34 25.0 x 35.0
055123
10000 2.61 25.0 x 40.0
055105
22000 4.04 30.0 x 45.0
055107
35 Volt
3300 1.57 22.0 x 30.0
055203
4700 2.02 25.0 x 30.0
055204
6800 2.31 25.0 x 40.0
055205
8200 2.73 25.0 x 45.0
055255
10000 3.04 25.0 x 45.0
055226
10000 3.05 25.0 x 50.0
055206
22000 4.92 35.0 x 50.0
055208
50 Volt
2200 1.60 22.0 x 35.0
055303
3300 1.97 25.0 x 35.0
055304
4700 2.43 25.0 x 40.0
055305
6800 3.30 30.0 x 40.0
055306
8200 3.60 30.0 x 45.0
055356
10000 4.05 30.0 x 50.0
055307
63 Volt
2200 1.75 25.0 x 30.0
055404
3300 2.33 25.0 x 40.0
055405
4700 1.96 35.0 x 25.0
055436
4700 2.86 30.0 x 40.0
055406
6800 3.65 30.0 x 50.0
055407
8200 4.04 35.0 x 50.0
055527
10000 4.48 35.0 x 50.0
055408
100 Volt
1000 1.47 22.0 x 30.0
055504
2200 2.53 25.0 x 50.0
055514
2200 2.55 30.0 x 40.0
055506
3300 3.30 35.0 x 45.0
055507
4700 3.80 35.0 x 50.0
055508
200 Volt
220 0.83 22.0 x 25.0
055723
220 1.00 22.0 x 30.0
055703
330 1.20 25.0 x 30.0
055704
470 1.44 25.0 x 35.0
055705
680 1.76 25.0 x 45.0
055706
820 2.11 30.0 x 40.0
055756
1000 2.40 35.0 x 40.0
055707
400 Volt
47 0.32 22.0 x 25.0
055902
100 0.62 22.0 x 35.0
055904
150 0.75 22.0 x 40.0
055905
150 0.85 25.0 x 40.0
055925
220 1.24 30.0 x 40.0
055906
330 1.47 30.0 x 50.0
055907
470 1.87 35.0 x 50.0
055908
ORDER CODES
Other values, voltages and can sizes are available to order.
Please contact our Sales Desk for details.
Loading...
