Datasheet Nover 2001 Full Datasheet

Download

Page 1

Page 2

CONTENTS

APPLICATION GUIDE

Page 2-3

RADIAL PART No. KEY

Page 4

RADIAL LEAD OPTIONS

Page 5

ELECTROLYTIC CAPACITORS

TANTALUM CAPACITORS 65

RADIAL Type Page

GENERAL PURPOSE – standard range RE 6-9 GENERAL PURPOSE, 105°C – high temperature RH 10-13 SUB-MINIATURE – low proﬁle 7mm height, standard range R7 14-15 SUB-MINIATURE, 105°C – low proﬁle 7mm height, RJ 16-17

high temperature ULTRA-MINIATURE – very low proﬁle, 5mm height R5 18-19 LOW LEAKAGE – standard range LL 20-21 LOW ESR, 105°C – high temperature RL 22-26 LOW ESR, 105°C – high temperature, long life RX 27-29 BI-POLAR – non-polarised, standard range RB 30-32 BI-POLAR, 105°C – non-polarised, high temperature BD 33

AXIAL

GENERAL PURPOSE – standard range TE 34-35 GENERAL PURPOSE, 105°C – high temperature TH 36-37

SNAP-IN

GENERAL PURPOSE – standard range LS 38-40 GENERAL PURPOSE, 105°C – high temperature LH 41-43 LOW ESR – high CV LA 44-45

LUG

GENERAL PURPOSE – standard range LE 46-48 MOTOR START – long life MS 49-51

SCREW

GENERAL PURPOSE – standard range CE 52-54

SURFACE MOUNT

GENERAL PURPOSE – standard range VE 56-57A GENERAL PURPOSE, 105°C – high temperature VH 58-59A LONG LIFE, 105°C – high temperature VL 59B-59C 125°C – very high temperature VA 59D-59E LOW ESR, 105°C – high temperature VZ 60-61 VERY LOW ESR, 105°C – high temperature VX 61A-61B BI-POLAR – non-polarised VP 62-63

SURFACE MOUNT

CHIP, General Purpose – standard range TC 66-70 CHIP, Low ESR – high ripple current TL 71-72

RADIAL

DIPPED – General Purpose TX 72A-72C

NOV/0251

Page 3

APPLICATION GUIDE

1. Polarity

An electrolytic capacitor is a polarised component. If used in reverse polarity, the life may be reduced or the capacitor may become a short circuit and explode. Where the polarity of a circuit is sometimes reversed, a bi-polar capacitor should be used. However, the bi-polar capacitor must not be used for AC voltage applications.

2. Voltage

Do not apply voltage exceeding the rated voltage of the capacitor. The capacitor may be damaged and the leakage current increased causing the capacitor’s life to be reduced. Surge voltages can only be applied for short periods.

When AC voltage is superimposed onto DC voltage, the sum of the DC voltage and the peak AC voltage should not exceed the full rated voltage of the capacitor.

3. Ripple Current

Maximum permissible ripple current is speciﬁed for the individual types. Do not apply excessive ripple current, this will reduce the life expectancy due to temperature rise causing gas to be generated.

Electrolytic capacitors with high ripple current capability are available within the range.

4. Operating Temperature

Use well within the stated operating temperature of the component. Increasing temperature causes a rise in leakage current and capacitance, whilst ESR reduces. At lower frequencies, ripple current will cause heat to be generated due to an increase in ESR.

When the operating temperature is increased by 10°C, the capacitor’s life is reduced by 50%.

5. Charge and Discharge

When general purpose electrolytic capacitors are used in rapid charge and discharge applications, the life expectancy may be reduced by capacitance decrease, heat rise, etc. Please contact our technical department or agent if you have any special requirements. We will do our best to meet your needs.

6. Insulation and PCB Mounting (through hole only)

(a) The aluminium case of electrolytic capacitors is not insulated from the cathode due to an undeﬁned

resistance of electrolyte between them. Although the case is ordinarily covered with PVC (Polyvinyl Chloride) this sleeve is for marking purposes only and not intended for electrical insulation. If complete insulation of the case is necessary, add an insulator during assembly.

(b) Mount the capacitor on the PCB so that there are no conductive circuit patterns under the capacitor.

7. Vent (through hole & lug/screw terminal types only)

Please note that this is a safety feature. In the unlikely event of it being used, it requires a small amount of clearance, not less than 5mm for 40mm dia. parts, dropping to not less than 2mm for the smaller can sizes.

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

Page 4

APPLICATION GUIDE

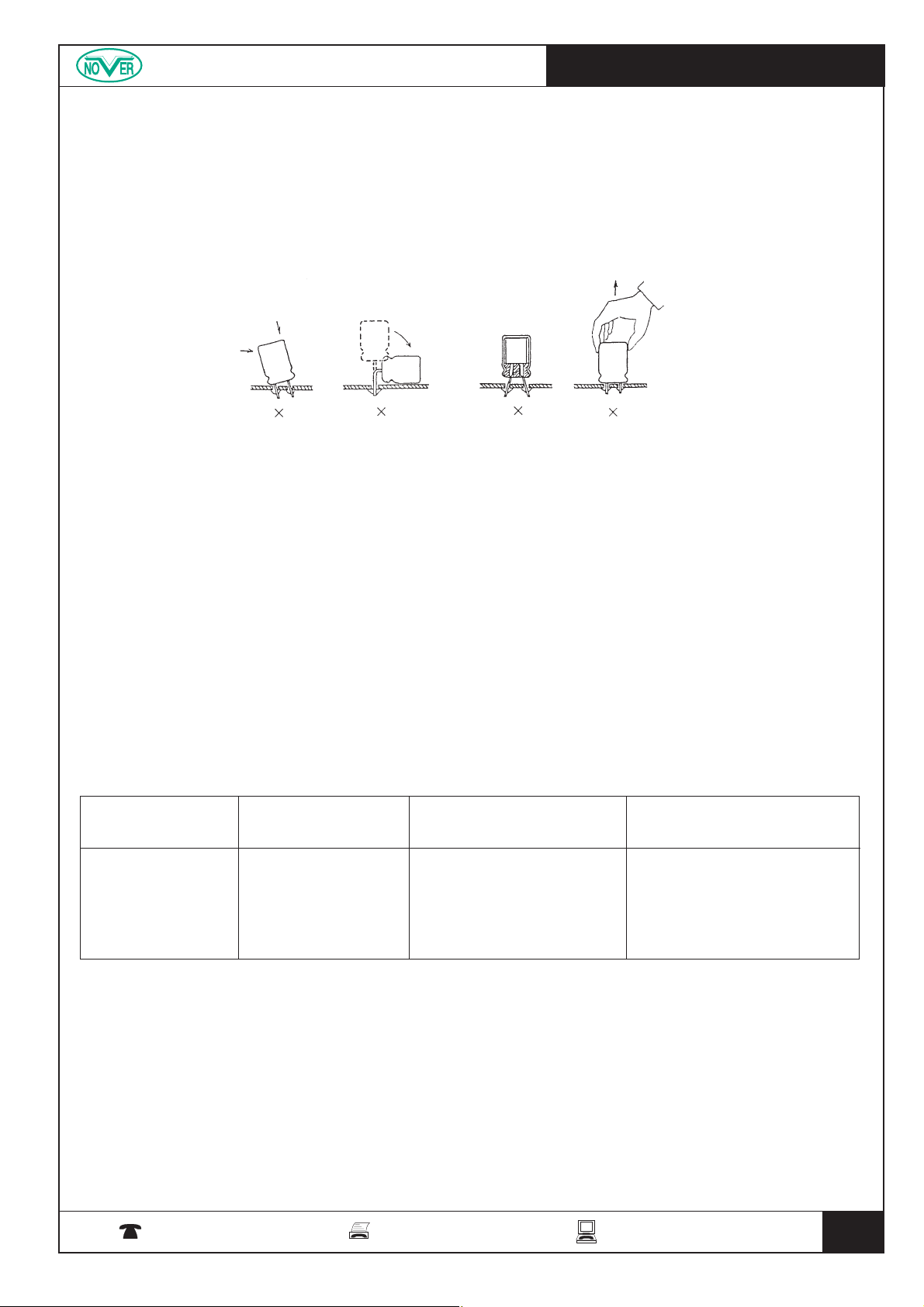

8. External Stress (through hole only)

Excessive force or stress to terminals or lead wires of capacitors should be prevented. Stresses such as pulling, pushing, bending etc. will damage the capacitors causing high leakage current, leakage of electrolyte and in the worst case open / short circuit.

The following are typical examples of stresses to avoid imposing on capacitors.

(a) (b) (c) (d)

(a) Tilting a capacitor after soldering.

(b) Bending a capacitor after soldering.

(d) Picking up the PCB by holding the capacitor.

9. Preheat and Soldering Temperature

When the preheat or soldering temperature is too high and the soldering time is too long, it affects the capacitor’s operating characteristics. On through hole devices, the PVC sleeve may also split or shrink, especially, when a thin PCB or a through-board is used. Additionally, do not locate copper tracks under through hole capacitors on the PCB as the temperature of the track is increased by the preheating and soldering and the sleeve may be affected. Repeatedly conﬁrm that the capacitor does not have any damage, before actual use.

10. Storage

Care must be taken if the electrolytic capacitors are stored in a high ambient temperature environment, without applied voltage, for an extended length of time (typically years). Under these conditions, the leakage current is liable to increase to unwanted levels when the rated voltage is ﬁnally applied. This is a common occurrence with electrolytic capacitors and in no way implies a faulty component. In these circumstances, it is possible to re-form the capacitor by gradually increasing the applied voltage. Consult our technical department or agent for advice.

Manual Wave Reﬂow PCB

Soldering Soldering Soldering Cleaning

350°C for 3s max. Pre-heat to 160°C Pre-heat to 160°C Immersion or ultrasonically

for 120s max. for 120s max. clean for 5m/60°C max.

Solder at 240°C Reﬂow time of 20s with Use alcohol, terpene

for 5s max. peak temperature of 230°C or water based solvents.

for 5s max. Rinse & dry pcb.

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

Page 5

example shown RE1J100MAET - General purpose, radial electrolytic 10F 63V ±20%

size 5mm dia x 11mm length, pre-formed leads 5mm pitch supplied taped and boxed

RANGE RE = General Purpose RH = General Purpose, 105°C R7 = Sub-Miniature RJ = Sub-Miniature, 105°C R5 = Ultra Miniature LL = Low Leakage RL = Low ESR, 105°C RX = Low ESR/Long Life, 105°C RB = Bi-Polar BD = Bi-Polar, 105°C

LEAD STYLE & PACKAGING

LOOSE (bulk packed)

Blank = Natural pitch, full length

C = Cropped F = Cropped & formed M = Snap-in W = Twisted & formed

TAPED

T = Taped & boxed R = Taped & reeled

VALUE

0R1 = 0.1



R22 = 0.22



R33 = 0.33



R47 = 0.47



010 = 1.0



2R2 = 2.2



3R3 = 3.3



4R7 = 4.7



100 =10



220 =22



330 =33



470 =47



101 = 100



221 = 220



331 = 330



471 = 470



102 = 1000



222 = 2200



332 = 3300



472 = 4700



103 = 10000



223 = 22000



etc

VO LTAGE 0G =4V 0J = 6.3V 1A = 10V 1C = 16V 1D = 20V 1E = 25V 1V = 35V 1G = 40V 1H = 50V 1J = 63V 1K = 80V 2A = 100V 2B = 125V 2C = 160V 2D = 200V 2E = 250V 2F = 315V 2U = 330V 2V = 350V 2G = 400V 2W = 450V

PITCH A = 1.5mm B = 2.0mm C = 2.5mm D = 3.5mm E = 5.0mm F = 7.5mm

CAN SIZE

see table below

A = 5 x 11 B = 6.3 x 11 C = 8 x 11.5 D = 10 x 12.5 E = 10 x 16 F = 10 x 20 G = 12.5 x 20 H = 12.5 x 25 J =4 x 7 K =5 x 7 M = 6.3 x 7 P = 16 x 25 Q = 8 x 15 R = 16 x 31.5 S = 8 x 20 T = 10 x 25 U = 10 x 30 V = 18 x 35.5 W = 12.5 x 15 X = 12.5 x 30 Y = 12.5 x 35.5 Z = 12.5 x 40

CAN SIZE

Dia. x L (mm)

A1 = 16 x 15 A2 = 16 x 20 A3 = 16 x 35.5 A4 = 16 x 40 A5 = 18 x 15 A6 = 18 x 20 A7 = 18 x 25 A8 = 18 x 31.5 A9 = 18 x 40 B1 = 11 x 32 B2 = 11 x 40 B3 = 11 x 48 B4 = 11 x 55 B5 = 12 x 27 B6 = 12.5 x 32 B7 = 12.5 x 43 B8 = 12.5 x 49 B9 = 12.5 x 53 C1 = 14 x 46 C2 = 14.5 x 25 C3 = 14.5 x 29 C4 = 14.5 x 33 C5 = 14.5 x 37 C6 = 14.5 x 39

C7 = 14.5 x 41 C8 = 14.5 x 49 C9 = 14.5 x 53 D1 = 16 x 28 D2 = 16 x 34 D3 = 16 x 37 D4 = 16 x 43 D5 = 16 x 49 D6 = 18 x 27 D7 = 18 x 28 D8 = 18 x 29 D9 = 18 x 34 E1 = 18 x 37 E2 = 18 x 47 E3 = 20 x 30 E4 = 20 x 32 E5 = 20 x 35 E6 = 20 x 41 F1 =4 x 5 F2 =5 x 5 F3 = 6.3 x 5

TOLERANCE M = ±20% K = ±10% R = 0, +20% V = -10, +20% T = -10, +50%

AET

100

RADIAL PART No. KEY

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

Page 6

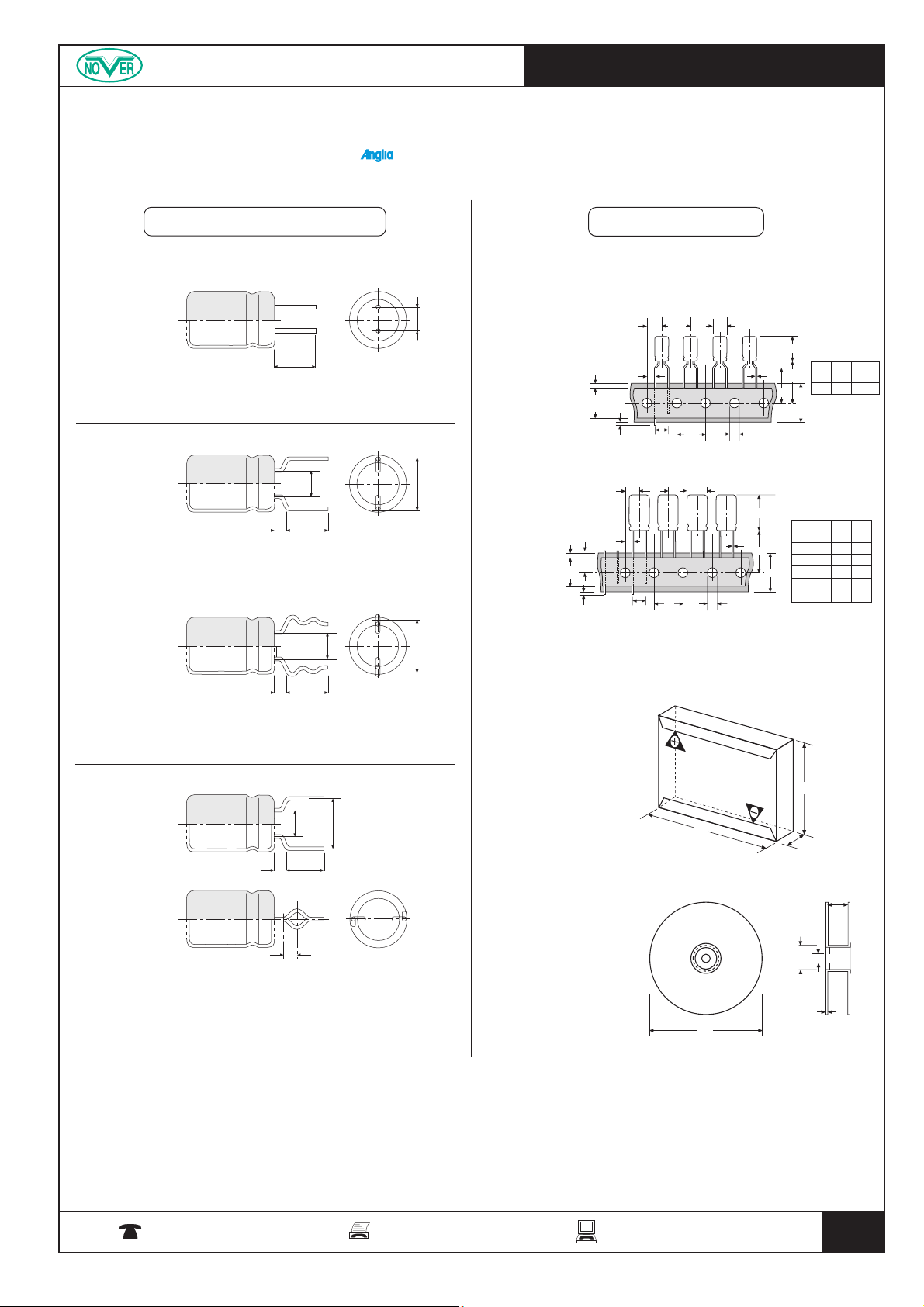

LEAD FORMING & CROPPING

As part of our commitment to providing customers with the widest choice of Nover product we are able to offer a complete range of options on all ranges of radial electrolytics. Please contact the Sales Desk for price and availability.

Available on can diameters of 5mm and above

Available on can diameters from 4mm to 16mm :

Supplied boxed or reeled :

BOXED (in ammos)

Nover part no. sufﬁx T

REELED

Nover part no. sufﬁx R

Available on can diameters from 4mm to 8mm

N.B. When leads are formed body height will be raised 2mm over and above the can length (+ sleeve) listed on the product pages.

CROPPED

(to 5mm length) Nover part no. sufﬁx C

CROPPED & FORMED

(to 5mm length and pitch) Nover part no. sufﬁx F

SNAP-IN

(5mm length and pitch) Nover part no. sufﬁx M

TWISTED & FORMED

(to 4.5mm length and 5mm pitch) Nover part no. sufﬁx W

TAPING

Pitch

The polarity of the leading wire is negative unless requested otherwise.

340

3.4

Max. can L. 12.5

Can diameters 4mm to 8mm

Can diameters 10mm to 16mm

Dia 10 12.5 16

P 12.7 15.0 30.0

0 12.7 15.0 15.0

1 3.85 5.0 3.75

2 6.35 7.5 7.5

F 5.0 5.0 7.5

ød 0.6 0.6 0.8

Refer to previous page for Nover part number key

Leads on natural pitch

Leads pre-formed to 5mm pitch as standard. Natural pitch available to special order on all can diameters except 4mm.

RADIAL LEAD OPTIONS

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

Dia. 4-6.3 5-8

L 5-7 11-11.5

ød 0.45 0.5

BACK TO CONTENTS

2 max.

Pitch

Dia

12.7

1.5 max.

12.5 min.

1 max.

2.5 max.

12.5 min.

1 max.

11 max.

6.35

18.5 max.

3.85

12.7

Dia

ød

ø4

L (25 max.)

ød

18.5

ø4

Pitch

2 max.

4.5

1.8

The polarity of the leading wire may be selected as indicated on the pack.

248

325

47 (65 for Can L 16+)

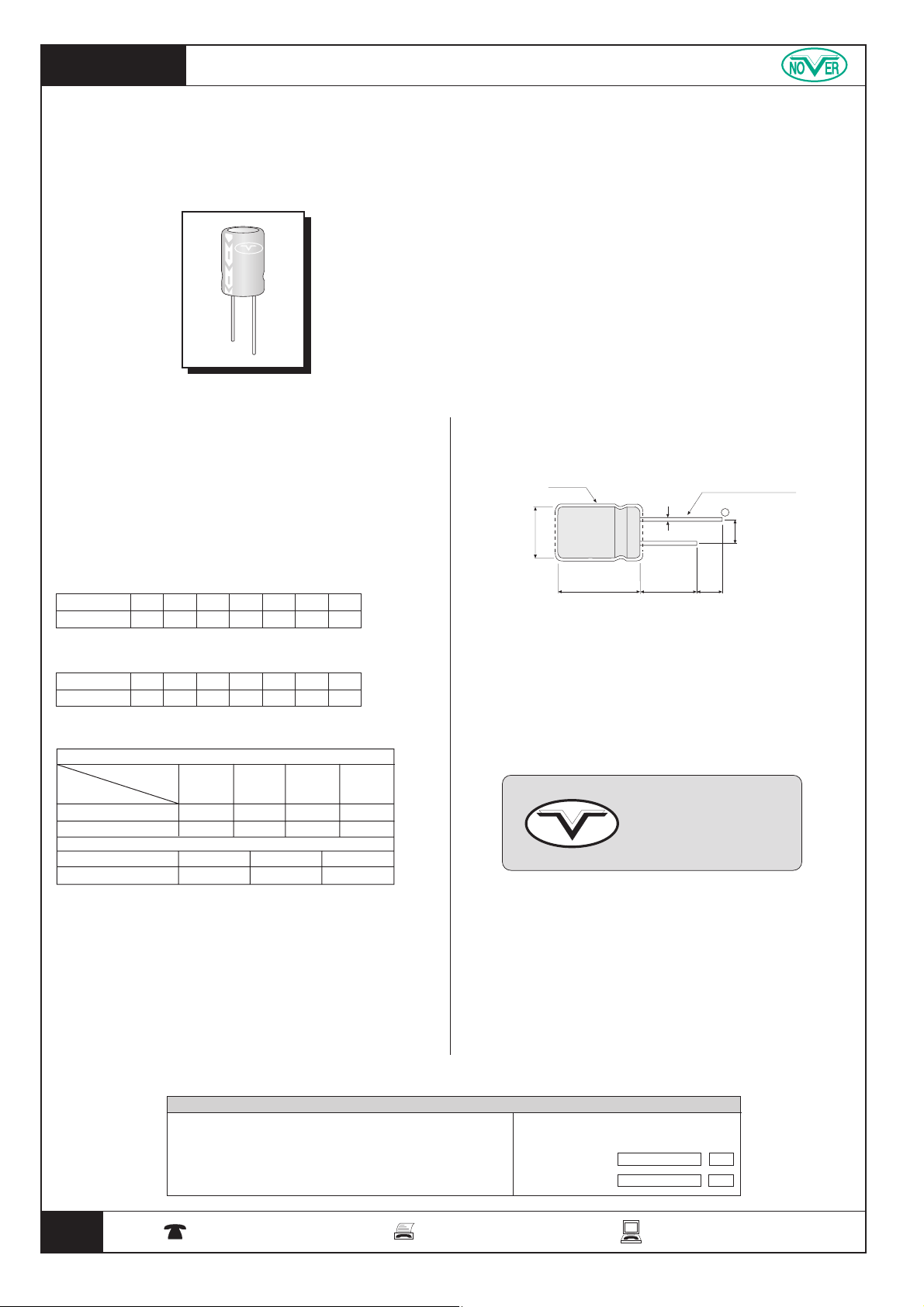

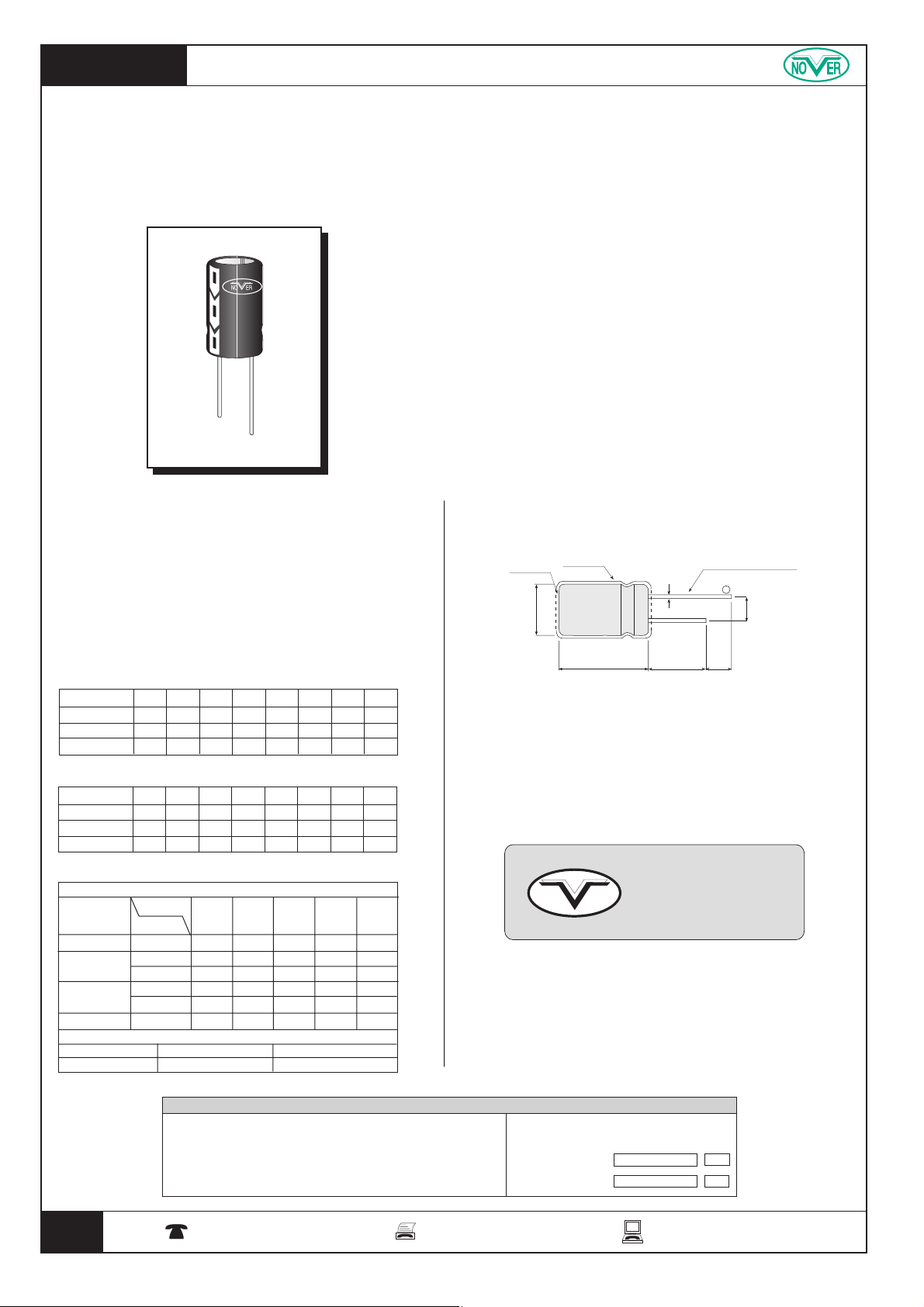

Page 7

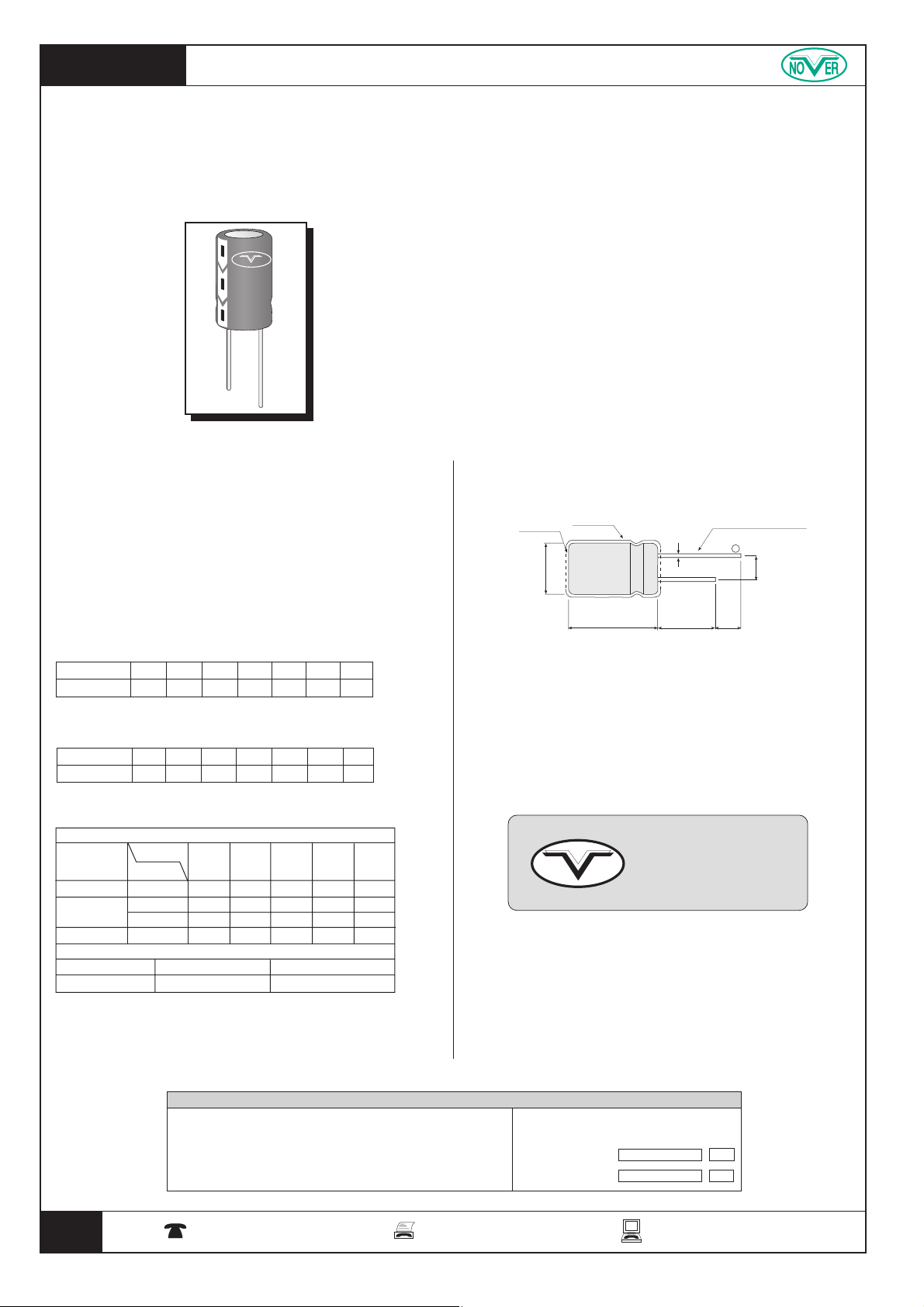

GENERAL PURPOSE

RADIAL

● Standard range

● High quality

● Endurance 2000 hours at 85°C

● Solvent resistant

● Very competitively priced

● Capacitance tolerance 20%

● Body colour Black

● Supplied loose or taped

Rated voltage 6.3V 10V 16V 25V 40V 50V 63V d.c.

Tan  (max)* 0.22 0.19 0.16 0.14 0.11 0.10 0.09

Rated voltage 100V 160V 200V 250V 350V 400V 450V d.c.

Tan  (max) 0.08 0.12 0.12 0.15 0.15 0.20 0.23

Rated voltage 6.3V 10V 16V 25V 40V 50V 63V d.c.

Surge voltage 8V 13V 20V 32V 50V 63V 79V d.c.

Rated voltage 100V 160V 200V 250V 350V 400V 450V d.c.

Surge voltage 125V 200V 250V 300V 400V 450V 500V d.c.

*Add 0.02 for every 1000F above 1000F

Conforms to JIS C5141-1982 Char.W

Endurance test ........................................... 2000 hours at 85°C

Capacitance tolerance ............................... ±20% at 120Hz, 20°C

Ripple current (as listed) ........................... measured at 120Hz, 85°C

(see also Multiplier table below)

Operating temperature range .................... -40°C to +85°C

Leakage current ........................................ 6.3 ~ 100V ≤0.01CV or 3A

160 ~ 450V ≤0.06CV or 10A

(whichever is greater) after 2 min.

Speciﬁcation

Dissipation factor (120Hz, 20°C)

Multiplier for ripple current

Dimensions (mm)

NOVER type RE

General purpose, radial lead aluminium electrolytic capacitors manufactured to be highly cost effective whilst offering excellent levels of quality, endurance and reliability. The entire range of available values and voltages in loose or taped formats, are shown on the following pages. For lead forming, cropping and taping options refer to page 5.



LEAD FORMING



CROPPING



TAPING



Refer to page 5

ORDERING INFORMATION

Example : 100µF 16V

Nover

Basic Anglia Code Letter

Cropped 053020 C

Twisted & formed 053020 W

For simplicity, the following list provides both Nover Part No’s and Anglia Order Codes for loose (natural pitch, full length leads) and taped & boxed parts only. To order alternative lead forms etc just add the appropriate Nover Part No. sufﬁx letter (see page 4) to the basic six digit Anglia Order Code, like example shown.

Frequency coefﬁcient

Rated Voltage

Freq(Hz)

50/60 120 1K 10K 100K

(V)

CV(µF.WV)

6.3 ~ 16 0.8 1.0 1.1 1.2 1.2

25 ~ 40

≤1000 0.8 1.0 1.2 1.7 1.7

>1000 0.8 1.0 1.2 1.3 1.3

≤1000 0.8 1.0 1.6 1.9 1.9

50 ~ 100

>1000 0.8 1.0 1.2 1.3 1.3

160 ~ 450 0.8 1.0 1.3 1.5 1.6

Temperature coefﬁcient

Temperature (°C) +70 +85 Factor 1.35 1.0

Surge voltage capability

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

Vent (Dia ≥ 6.3)

Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L (2.0 L≥20)

Vinyl sleeve

Dia

NO ER

Tinned copper-clad steel wire

ød

15 min.

5 min.

Pitch

ød = 0.5 (Dia ≤6.3)

d = 0.6 (Dia 8–12.5) d = 0.8 (Dia ≥16)

Page 8

RADIAL

GENERAL PURPOSE

NOVER type RE

LOOSE TAPED & BOXED

Value Ripple Current Dimensions (mm) Nover Pack Qty Nover Box Qty

(F) (mA) Pitch Dia. x L Part No. Order Code pcs Part No. Order Code pcs

6.3 Volt

33 70 2(5) 5.0 x 11.0 RE0J330MAB 053308 200 RE0J330MAET 053308T 2000 47 75 2(5) 5.0 x 11.0 RE0J470MAB 053309 200 RE0J470MAET 053309T 2000 100 100 2(5) 5.0 x 11.0 RE0J101MAB 053310 200 RE0J101MAET 053310T 2000 220 170 2.5(5) 6.3 x 11.0 RE0J221MBC 053311 200 RE0J221MBET 053311T 1500 330 210 2.5(5) 6.3 x 11.0 RE0J331MBC 053312 200 RE0J331MBET 053312T 1500 470 300 3.5(5) 8.0 x 11.5 RE0J471MCD 053313 200 RE0J471MCET 053313T 1000 1000 530 5 10.0 x 12.5 RE0J102MDE 053314 100 RE0J102MDET 053314T 600 2200 990 5 12.5 x 20.0 RE0J222MGE 053315 100 RE0J222MGET 053315T 400 3300 1150 5 12.5 x 20.0 RE0J332MGE 053316 100 RE0J332MGET 053316T 400 4700 1700 7.5 16.0 x 25.0 RE0J472MPF 053317 100 RE0J472MPFT 053317T 180 6800 1900 7.5 16.0 x 25.0 RE0J682MPF 053318 100 RE0J682MPFT 053318T 180 10000 2250 7.5 16.0 x 31.5 RE0J103MRF 053319 50 – – – 15000 2400 7.5 18.0 x 35.5 RE0J153MVF 053320 50 – – –

10 Volt

22 55 2(5) 5.0 x 11.0 RE1A220MAB 053007 200 RE1A220MAET 053007T 2000 33 70 2(5) 5.0 x 11.0 RE1A330MAB 053008 200 RE1A330MAET 053008T 2000 47 75 2(5) 5.0 x 11.0 RE1A470MAB 053009 200 RE1A470MAET 053009T 2000 100 110 2(5) 5.0 x 11.0 RE1A101MAB 053010 200 RE1A101MAET 053010T 2000 220 190 2.5(5) 6.3 x 11.0 RE1A221MBC 053011 200 RE1A221MBET 053011T 1500 330 270 3.5(5) 8.0 x 11.5 RE1A331MCD 053012 200 RE1A331MCET 053012T 1000 470 330 3.5(5) 8.0 x 11.5 RE1A471MCD 053013 200 RE1A471MCET 053013T 1000 1000 620 5 10.0 x 16.0 RE1A102MEE 053014 100 RE1A102MEET 053014T 600 2200 1050 5 12.5 x 20.0 RE1A222MGE 053015 100 RE1A222MGET 053015T 400 3300 1350 5 12.5 x 25.0 RE1A332MHE 053215 100 RE1A332MHET 053215T 400 4700 1800 7.5 16.0 x 25.0 RE1A472MPF 053216 100 RE1A472MPFT 053216T 180 6800 2200 7.5 16.0 x 31.5 RE1A682MRF 053217 50 – – – 10000 2750 7.5 18.0 x 35.5 RE1A103MVF 053218 50 – – –

16 Volt

10 40 2(5) 5.0 x 11.0 RE1C100MAB 053016 200 RE1C100MAET 053016T 2000 22 55 2(5) 5.0 x 11.0 RE1C220MAB 053017 200 RE1C220MAET 053017T 2000 33 70 2(5) 5.0 x 11.0 RE1C330MAB 053018 200 RE1C330MAET 053018T 2000 47 80 2(5) 5.0 x 11.0 RE1C470MAB 053019 200 RE1C470MAET 053019T 2000 100 140 2.5(5) 6.3 x 11.0 RE1C101MBC 053020 200 RE1C101MBET 053020T 1500 220 220 2.5(5) 6.3 x 11.0 RE1C221MBC 053421 200 RE1C221MBET 053421T 1500 220 240 3.5(5) 8.0 x 11.5 RE1C221MCD 053021 200 RE1C221MCET 053021T 1000 330 300 3.5(5) 8.0 x 11.5 RE1C331MCD 053022 200 RE1C331MCET 053022T 1000 470 400 3.5(5) 8.0 x 11.5 RE1C471MCD 053423 200 RE1C471MCET 053423T 1000 470 420 5 10.0 x 12.5 RE1C471MDE 053023 100 RE1C471MDET 053023T 600 1000 720 5 10.0 x 16.0 RE1C102MEE 053424 100 RE1C102MEET 053424T 600 1000 740 5 10.0 x 20.0 RE1C102MFE 053024 100 RE1C102MFET 053024T 600 2200 1200 5 12.5 x 25.0 RE1C222MHE 053025 100 RE1C222MHET 053025T 400 3300 1650 7.5 16.0 x 25.0 RE1C332MPF 053225 100 RE1C332MPFT 053225T 180 4700 2100 7.5 16.0 x 31.5 RE1C472MRF 053226 50 – – – 6800 2600 7.5 18.0 x 35.5 RE1C682MVF 053227 50 – – –

25 Volt

4.7 25 2(5) 5.0 x 11.0 RE1E4R7MAB 053234 200 RE1E4R7MAET 053234T 2000 10 45 2(5) 5.0 x 11.0 RE1E100MAB 053026 200 RE1E100MAET 053026T 2000 22 60 2(5) 5.0 x 11.0 RE1E220MAB 053027 200 RE1E220MAET 053027T 2000 33 70 2(5) 5.0 x 11.0 RE1E330MAB 053028 200 RE1E330MAET 053028T 2000 47 90 2(5) 5.0 x 11.0 RE1E470MAB 053029 200 RE1E470MAET 053029T 2000 100 150 2.5(5) 6.3 x 11.0 RE1E101MBC 053030 200 RE1E101MBET 053030T 1500 220 260 3.5(5) 8.0 x 11.5 RE1E221MCD 053031 200 RE1E221MCET 053031T 1000 330 380 5 10.0 x 12.5 RE1E331MDE 053032 100 RE1E331MDET 053032T 600 470 500 5 10.0 x 16.0 RE1E471MEE 053033 100 RE1E471MEET 053033T 600 1000 910 5 12.5 x 20.0 RE1E102MGE 053034 100 RE1E102MGET 053034T 400 2200 1400 5 12.5 x 25.0 RE1E222MHE 053435 100 RE1E222MHET 053435T 400 2200 1500 7.5 16.0 x 25.0 RE1E222MPF 053035 100 RE1E222MPFT 053035T 180 3300 1900 7.5 16.0 x 31.5 RE1E332MRF 053235 50 – – – 4700 2450 7.5 18.0 x 35.5 RE1E472MVF 053036 50 – – –

40 Volt

4.7 30 2(5) 5.0 x 11.0 RE1G4R7MAB 053236 200 RE1G4R7MAET 053236T 2000 10 45 2(5) 5.0 x 11.0 RE1G100MAB 053037 200 RE1G100MAET 053037T 2000 22 60 2(5) 5.0 x 11.0 RE1G220MAB 053038 200 RE1G220MAET 053038T 2000 33 90 2(5) 5.0 x 11.0 RE1G330MAB 053039 200 RE1G330MAET 053039T 2000 47 100 2.5(5) 6.3 x 11.0 RE1G470MBC 053040 200 RE1G470MBET 053040T 1500 100 200 3.5(5) 8.0 x 11.5 RE1G101MCD 053041 200 RE1G101MCET 053041T 1000 220 360 5 10.0 x 12.5 RE1G221MDE 053042 100 RE1G221MDET 053042T 600 330 500 5 10.0 x 16.0 RE1G331MEE 053043 100 RE1G331MEET 053043T 600 470 620 5 10.0 x 20.0 RE1G471MFE 053044 100 RE1G471MFET 053044T 600 1000 1040 5 12.5 x 25.0 RE1G102MHE 053045 100 RE1G102MHET 053045T 400 2200 1900 7.5 16.0 x 31.5 RE1G222MRF 053046 50 – – – 3300 2250 7.5 18.0 x 35.5 RE1G332MVF 053047 50 – – – 4700 2500 7.5 18.0 x 35.5 RE1G472MVF 053247 50 – – –

(5) Leads pre-formed to 5mm pitch on taped part

RE continued overleaf > > > >

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

Page 9

GENERAL PURPOSE

RADIAL

NOVER type RE (continued)

LOOSE TAPED & BOXED

Value Ripple Current Dimensions (mm) Nover Pack Qty Nover Box Qty

(F) (mA) Pitch Dia. x L Part No. Order Code pcs Part No. Order Code pcs

50 Volt

0.1 5 2(5) 5.0 x 11.0 RE1HR10MAB 053112 200 RE1HR10MAET 053112T 2000

0.22 7 2(5) 5.0 x 11.0 RE1HR22MAB 053113 200 RE1HR22MAET 053113T 2000

0.33 9 2(5) 5.0 x 11.0 RE1HR33MAB 053114 200 RE1HR33MAET 053114T 2000

0.47 10 2(5) 5.0 x 11.0 RE1HR47MAB 053115 200 RE1HR47MAET 053115T 2000

1.0 15 2(5) 5.0 x 11.0 RE1H010MAB 053048 200 RE1H010MAET 053048T 2000

2.2 20 2(5) 5.0 x 11.0 RE1H2R2MAB 053049 200 RE1H2R2MAET 053049T 2000

3.3 25 2(5) 5.0 x 11.0 RE1H3R3MAB 053116 200 RE1H3R3MAET 053116T 2000

4.7 30 2(5) 5.0 x 11.0 RE1H4R7MAB 053050 200 RE1H4R7MAET 053050T 2000 10 45 2(5) 5.0 x 11.0 RE1H100MAB 053051 200 RE1H100MAET 053051T 2000 22 70 2(5) 5.0 x 11.0 RE1H220MAB 053052 200 RE1H220MAET 053052T 2000 33 100 2.5(5) 6.3 x 11.0 RE1H330MBC 053053 200 RE1H330MBET 053053T 1500 47 120 2.5(5) 6.3 x 11.0 RE1H470MBC 053054 200 RE1H470MBET 053054T 1500 100 210 3.5(5) 8.0 x 11.5 RE1H101MCD 053055 200 RE1H101MCET 053055T 1000 220 400 5 10.0 x 16.0 RE1H221MEE 053056 100 RE1H221MEET 053056T 600 330 540 5 10.0 x 20.0 RE1H331MFE 053057 100 RE1H331MFET 053057T 600 470 740 5 12.5 x 20.0 RE1H471MGE 053058 100 RE1H471MGET 053058T 400 1000 1280 5 12.5 x 25.0 RE1H102MHE 053459 100 RE1H102MHET 053459T 400 1000 1350 7.5 16.0 x 25.0 RE1H102MPF 053059 100 RE1H102MPFT 053059T 180 2200 2100 7.5 18.0 x 35.5 RE1H222MVF 053221 50 – – –

63 Volt

0.1 5 2(5) 5.0 x 11.0 RE1JR10MAB 053117 200 RE1JR10MAET 053117T 2000

0.22 8 2(5) 5.0 x 11.0 RE1JR22MAB 053118 200 RE1JR22MAET 053118T 2000

0.33 9 2(5) 5.0 x 11.0 RE1JR33MAB 053119 200 RE1JR33MAET 053119T 2000

0.47 10 2(5) 5.0 x 11.0 RE1JR47MAB 053060 200 RE1JR47MAET 053060T 2000

1.0 15 2(5) 5.0 x 11.0 RE1J010MAB 053061 200 RE1J010MAET 053061T 2000

2.2 20 2(5) 5.0 x 11.0 RE1J2R2MAB 053062 200 RE1J2R2MAET 053062T 2000

3.3 30 2(5) 5.0 x 11.0 RE1J3R3MAB 053063 200 RE1J3R3MAET 053063T 2000

4.7 35 2(5) 5.0 x 11.0 RE1J4R7MAB 053064 200 RE1J4R7MAET 053064T 2000 10 50 2(5) 5.0 x 11.0 RE1J100MAB 053065 200 RE1J100MAET 053065T 2000 22 85 2.5(5) 6.3 x 11.0 RE1J220MBC 053066 200 RE1J220MBET 053066T 1500 33 100 2.5(5) 6.3 x 11.0 RE1J330MBC 053067 200 RE1J330MBET 053067T 1500 47 150 3.5(5) 8.0 x 11.5 RE1J470MCD 053068 200 RE1J470MCET 053068T 1000 100 260 5 10.0 x 12.5 RE1J101MDE 053069 100 RE1J101MDET 053069T 600 220 460 5 10.0 x 20.0 RE1J221MFE 053070 100 RE1J221MFET 053070T 600 330 650 5 12.5 x 20.0 RE1J331MGE 053071 100 RE1J331MGET 053071T 400 470 850 5 12.5 x 25.0 RE1J471MHE 053120 100 RE1J471MHET 053120T 400 1000 1550 7.5 16.0 x 31.5 RE1J102MRF 053220 50 – – –

100 Volt

0.1 5 2(5) 5.0 x 11.0 RE2AR10MAB 053128 200 RE2AR10MAET 053128T 2000

0.22 8 2(5) 5.0 x 11.0 RE2AR22MAB 053129 200 RE2AR22MAET 053129T 2000

0.33 10 2(5) 5.0 x 11.0 RE2AR33MAB 053130 200 RE2AR33MAET 053130T 2000

0.47 10 2(5) 5.0 x 11.0 RE2AR47MAB 053072 200 RE2AR47MAET 053072T 2000

1.0 15 2(5) 5.0 x 11.0 RE2A010MAB 053073 200 RE2A010MAET 053073T 2000

2.2 25 2(5) 5.0 x 11.0 RE2A2R2MAB 053074 200 RE2A2R2MAET 053074T 2000

3.3 30 2(5) 5.0 x 11.0 RE2A3R3MAB 053075 200 RE2A3R3MAET 053075T 2000

4.7 35 2(5) 5.0 x 11.0 RE2A4R7MAB 053076 200 RE2A4R7MAET 053076T 2000 10 60 2.5(5) 6.3 x 11.0 RE2A100MBC 053077 200 RE2A100MBET 053077T 1500 22 110 3.5(5) 8.0 x 11.5 RE2A220MCD 053078 200 RE2A220MCET 053078T 1000 33 160 5 10.0 x 12.5 RE2A330MDE 053079 100 RE2A330MDET 053079T 600 47 210 5 10.0 x 16.0 RE2A470MEE 053080 100 RE2A470MEET 053080T 600 100 380 5 12.5 x 20.0 RE2A101MGE 053081 100 RE2A101MGET 053081T 400 220 720 7.5 16.0 x 25.0 RE2A221MPF 053083 100 RE2A221MPFT 053083T 180 330 880 7.5 16.0 x 25.0 RE2A331MPF 053084 100 RE2A331MPFT 053084T 180 470 1150 7.5 16.0 x 31.5 RE2A471MRF 053085 50 – – –

160 Volt

0.47 10 2.5(5) 6.3 x 11.0 RE2CR47MBC 053086 200 RE2CR47MBET 053086T 1500

1.0 15 2.5(5) 6.3 x 11.0 RE2C010MBC 053087 200 RE2C010MBET 053087T 1500

2.2 20 2.5(5) 6.3 x 11.0 RE2C2R2MBC 053088 200 RE2C2R2MBET 053088T 1500

3.3 35 3.5(5) 8.0 x 11.5 RE2C3R3MCD 053089 200 RE2C3R3MCET 053089T 1000

4.7 40 3.5(5) 8.0 x 11.5 RE2C4R7MCD 053090 200 RE2C4R7MCET 053090T 1000 10 70 5 10.0 x 12.5 RE2C100MDE 053091 100 RE2C100MDET 053091T 600 22 120 5 10.0 x 20.0 RE2C220MFE 053092 100 RE2C220MFET 053092T 600 33 180 5 12.5 x 20.0 RE2C330MGE 053093 100 RE2C330MGET 053093T 600 47 230 5 12.5 x 25.0 RE2C470MHE 053094 100 RE2C470MHET 053094T 400 100 400 7.5 16.0 x 25.0 RE2C101MPF 053095 100 RE2C101MPFT 053095T 180 220 730 7.5 18.0 x 35.5 RE2C221MVF 053096 50 – – –

200 Volt

0.47 10 2.5(5) 6.3 x 11.0 RE2DR47MBC 053097 200 RE2DR47MBET 053097T 1500

1.0 15 2.5(5) 6.3 x 11.0 RE2D010MBC 053098 200 RE2D010MBET 053098T 1500

2.2 20 2.5(5) 6.3 x 11.0 RE2D2R2MBC 053099 200 RE2D2R2MBET 053099T 1500

3.3 35 3.5(5) 8.0 x 11.5 RE2D3R3MCD 053100 200 RE2D3R3MCET 053100T 1000

4.7 50 5 10.0 x 12.5 RE2D4R7MDE 053101 100 RE2D4R7MDET 053101T 600 10 75 5 10.0 x 16.0 RE2D100MEE 053102 100 RE2D100MEET 053102T 600 22 120 5 10.0 x 20.0 RE2D220MFE 053103 100 RE2D220MFET 053103T 600 33 190 5 12.5 x 25.0 RE2D330MHE 053104 100 RE2D330MHET 053104T 400 47 220 5 12.5 x 25.0 RE2D470MHE 053105 100 RE2D470MHET 053105T 400 100 430 7.5 16.0 x 31.5 RE2D101MRF 053138 50 – – – 220 760 7.5 18.0 x 35.5 RE2D221MVF 053139 50 – – –

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

Page 10

GENERAL PURPOSE

RADIAL

NOVER type RE (continued)

LOOSE TAPED & BOXED

Value Ripple Current Dimensions (mm) Nover Pack Qty Nover Box Qty

(F) (mA) Pitch Dia. x L Part No. Order Code pcs Part No. Order Code pcs

250 Volt

0.47 10 2.5(5) 6.3 x 11.0 RE2ER47MBC 053106 200 RE2ER47MBET 053106T 1500

1.0 15 2.5(5) 6.3 x 11.0 RE2E010MBC 053107 200 RE2E010MBET 053107T 1500

2.2 25 3.5(5) 8.0 x 11.5 RE2E2R2MCD 053108 200 RE2E2R2MCET 053108T 1000

3.3 35 5 10.0 x 12.5 RE2E3R3MDE 053109 100 RE2E3R3MDET 053109T 600

4.7 40 5 10.0 x 12.5 RE2E4R7MDE 053110 100 RE2E4R7MDET 053110T 600 10 75 5 10.0 x 20.0 RE2E100MFE 053111 100 RE2E100MFET 053111T 600 22 140 5 12.5 x 25.0 RE2E220MHE 053135 100 RE2E220MHET 053135T 400 33 170 5 12.5 x 20.0 RE2E330MGE 053136 100 RE2E330MGET 053136T 400 47 240 7.5 16.0 x 25.0 RE2E470MPF 053182 100 RE2E470MPFT 053182T 180 100 440 7.5 18.0 x 35.5 RE2E101MVF 053183 50 – – –

350 Volt

0.47 10 2.5(5) 6.3 x 11.0 RE2VR47MBC 053131 200 RE2VR47MBET 053131T 1500

1.0 15 3.5(5) 8.0 x 11.5 RE2V010MCD 053132 200 RE2V010MCET 053132T 1000

2.2 30 5 10.0 x 12.5 RE2V2R2MDE 053133 100 RE2V2R2MDET 053133T 600

3.3 35 5 10.0 x 12.5 RE2V3R3MDE 053134 100 RE2V3R3MDET 053134T 600

4.7 45 5 10.0 x 16.0 RE2V4R7MEE 053140 100 RE2V4R7MEET 053140T 600 10 75 5 10.0 x 20.0 RE2V100MFE 053141 100 RE2V100MFET 053141T 600 22 140 5 12.5 x 25.0 RE2V220MHE 053142 100 RE2V220MHET 053142T 400 33 200 7.5 16.0 x 25.0 RE2V330MPF 053143 100 RE2V330MPFT 053143T 180 47 260 7.5 16.0 x 31.5 RE2V470MRF 053144 50 – – –

400 Volt

1.0 15 3.5(5) 8.0 x 11.5 RE2G010MCD 053146 200 RE2G010MCET 053146T 1000

2.2 20 5 10.0 x 12.5 RE2G2R2MDE 053147 100 RE2G2R2MDET 053147T 600

3.3 35 5 10.0 x 16.0 RE2G3R3MEE 053148 100 RE2G3R3MEET 053148T 600

4.7 45 5 10.0 x 20.0 RE2G4R7MFE 053149 100 RE2G4R7MFET 053149T 600 10 75 5 12.5 x 20.0 RE2G100MGE 053150 100 RE2G100MGET 053150T 400 22 140 7.5 16.0 x 25.0 RE2G220MPF 053151 100 RE2G220MPFT 053151T 180 33 190 7.5 16.0 x 31.5 RE2G330MRF 053152 50 – – – 47 260 7.5 18.0 x 35.5 RE2G470MVF 053153 50 – – –

450 Volt

1.0 15 5 10.0 x 12.5 RE2W010MDE 053121 100 RE2W010MDET 053121T 600

2.2 25 5 10.0 x 16.0 RE2W2R2MEE 053122 100 RE2W2R2MEET 053122T 600

3.3 35 5 10.0 x 20.0 RE2W3R3MFE 053123 100 RE2W3R3MFET 053123T 600

4.7 45 5 12.5 x 20.0 RE2W4R7MGE 053124 100 RE2W4R7MGET 053124T 400 10 75 5 12.5 x 25.0 RE2W100MHE 053125 100 RE2W100MHET 053125T 400 22 140 7.5 16.0 x 31.5 RE2W220MRF 053126 50 – – – 33 200 7.5 18.0 x 35.5 RE2W330MVF 053127 50 – – –

ORDERING INFORMATION

Example : 100µF 16V

Nover

Basic Anglia Code Letter

Cropped 053020 C

Twisted & formed 053020 W

For simplicity, this list provides both Nover Part No’s and Anglia Order Codes for loose (natural pitch, full length leads) and taped & boxed parts only. To order alternative lead forms etc just add the appropriate Nover Part No. sufﬁx letter (see page 4) to the basic six digit Anglia Order Code, like example shown.

PART NUMBER KEY

Refer to page 4

(5) Leads pre-formed to 5mm pitch on taped part

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

NO ER

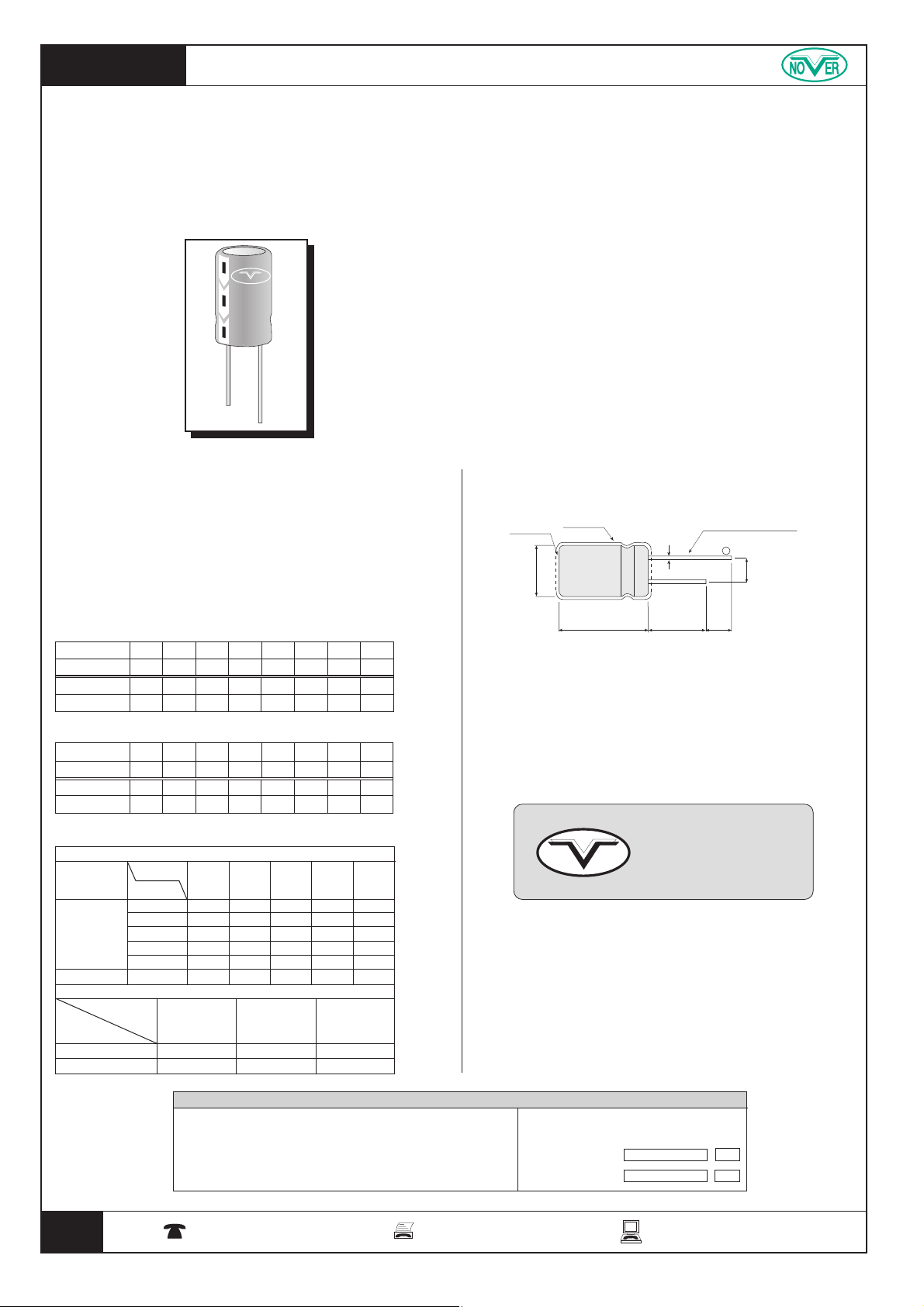

Page 11

GENERAL PURPOSE, 105°C

RADIAL

Conforms to JIS C5141-1982 Char.W

Endurance test .......................................... 2000 hours at 105°C

Capacitance tolerance ............................... ±20% at 120Hz, 20°C

Ripple current (as listed) ........................... 6.3 ~ 100V measured at 100kHz, 105°C

160 ~ 400V measured at 120Hz, 105°C

(see also Multiplier table below)

Operating temperature range .................... -40°C to +105°C

Leakage current ........................................ 6.3 ~ 100V ≤0.01CV or 3A after 2 min

160 ~ 400V C ≤1000 - 0.1CV or 40µA after 1 min.

C >1000 - 0.04CV or 100µA after 1 min. (whichever is greater)

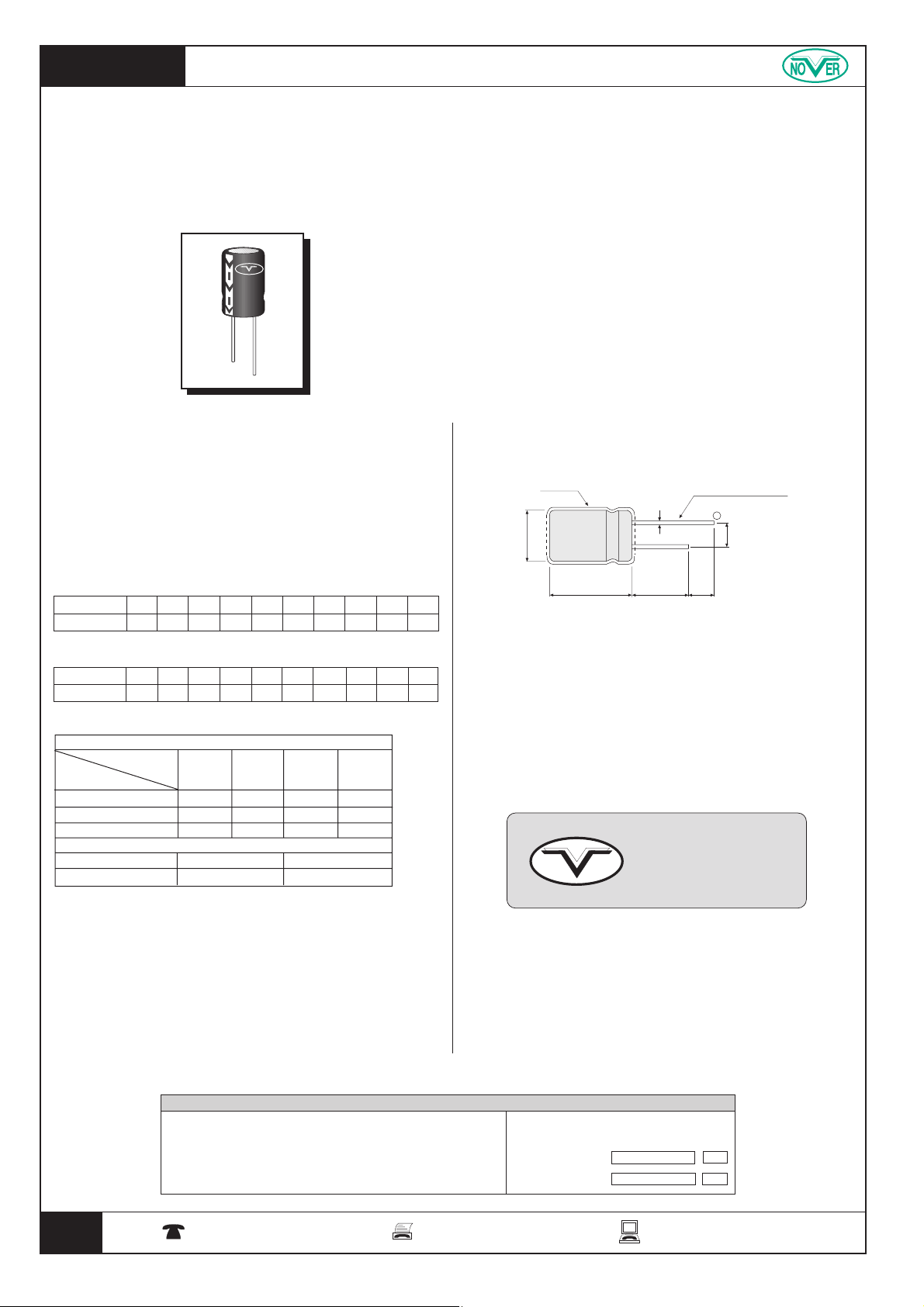

NOVER type RH

A range of radial aluminium electrolytic capacitors designed for applications where greater temperature safety margins are required due to high ambient conditions. Endurance testing is carried out at maximum temperature rating to ensure component integrity and reliability. The entire range of available values and voltages in loose or taped formats, are shown on the following pages. For lead forming, cropping and taping options refer to page 5.

● High temperature

● Endurance 2000 hours at 105°C

● Solvent resistant

● Capacitance tolerance 20%

● Body colour Light Green

● Supplied loose or taped

Dimensions (mm)

Speciﬁcation

Rated voltage 6.3V 10V 16V 25V 35V 50V 63V d.c.

Tan  (max)* 0.22 0.19 0.16 0.14 0.12 0.10 0.08

Rated voltage 100V 160V 200V 250V 315V 350V 400V d.c.

Tan  (max) 0.08 0.15 0.15 0.15 0.15 0.20 0.20

Rated voltage 6.3V 10V 16V 25V 35V 50V 63V d.c.

Surge voltage 8V 13V 20V 32V 44V 63V 79V d.c.

Rated voltage 100V 160V 200V 250V 315V 350V 400V d.c.

Surge voltage 125V 200V 250V 300V 365V 400V 450V d.c.

*Add 0.02 for every 1000F above 1000F

Dissipation factor (120Hz, 20°C)

Surge voltage capability



LEAD FORMING



CROPPING



TAPING



Refer to page 5

ORDERING INFORMATION

Example : 100µF 16V

Nover

Basic Anglia Code Letter

Cropped 052020 C

Twisted & formed 052020 W

Multiplier for ripple current

Frequency coefﬁcient

Rated Voltage

Freq(Hz)

50 120 1K 10K 100K

(V)

Cap (µF)

0.1 ~ 4.7 – 0.4 0.7 0.8 1.0

10 ~ 47 – 0.5 0.8 0.9 1.0

6.3 ~ 100 100 ~ 220 – 0.7 0.9 0.9 1.0

330 ~ 1000 – 0.8 0.9 1.0 1.0

2200 ~ 15000 – 0.9 1.0 1.0 1.0

160 ~ 400 0.47 ~ 220 0.8 1.0 1.3 1.4 1.6

Temperature coefﬁcient

Temperature

(°C) +70 +85 +105

Rated Voltage (V)

6.3 ~ 100 2.0 1.7 1.0

160 ~ 400 1.8 1.4 1.0

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

NO ER

Vent (Dia ≥ 6.3)

Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L (2.0 L≥20)

Vinyl sleeve

Dia

NO ER

Tinned copper-clad steel wire

ød

15 min.

Pitch

5 min.

ød = 0.5 (Dia ≤6.3)

d = 0.6 (Dia 8–12.5) d = 0.8 (Dia ≥16)

Page 12

GENERAL PURPOSE, 105°C

RADIAL

NOVER type RH

LOOSE TAPED & BOXED

Value Ripple Current Dimensions (mm) Nover Pack Qty Nover Box Qty

(F) (mA) Pitch Dia. x L Part No. Order Code pcs Part No. Order Code pcs

6.3 Volt

33 105 2(5) 5.0 x 11.0 RH0J330MAB 052308 200 RH0J330MAET 052308T 2000 47 120 2(5) 5.0 x 11.0 RH0J470MAB 052309 200 RH0J470MAET 052309T 2000 100 130 2(5) 5.0 x 11.0 RH0J101MAB 052310 200 RH0J101MAET 052310T 2000 220 180 2.5(5) 6.3 x 11.0 RH0J221MBC 052311 200 RH0J221MBET 052311T 1500 330 220 2.5(5) 6.3 x 11.0 RH0J331MBC 052712 200 RH0J331MBET 052712T 1500 330 220 3.5(5) 8.0 x 11.5 RH0J331MCD 052312 200 RH0J331MCET 052312T 1000 470 315 3.5(5) 8.0 x 11.5 RH0J471MCD 052313 200 RH0J471MCET 052313T 1000 1000 500 5 10.0 x 12.5 RH0J102MDE 052314 100 RH0J102MDET 052314T 600 2200 1000 5 12.5 x 20.0 RH0J222MGE 052315 100 RH0J222MGET 052315T 400 3300 1050 5 12.5 x 20.0 RH0J332MGE 052716 100 RH0J332MGET 052716T 400 3300 1050 5 12.5 x 25.0 RH0J332MHE 052316 100 RH0J332MHET 052316T 400 4700 1670 7.5 16.0 x 25.0 RH0J472MPF 052317 100 RH0J472MPFT 052317T 180 6800 1740 7.5 16.0 x 25.0 RH0J682MPF 052718 100 RH0J682MPFT 052718T 180 6800 1740 7.5 16.0 x 31.5 RH0J682MRF 052318 50 – – – 10000 2110 7.5 16.0 x 31.5 RH0J103MRF 052719 50 – – – 10000 2110 7.5 18.0 x 35.5 RH0J103MVF 052319 50 – – –

15000 2580 7.5 18.0 x 35.5 RH0J153MVF 052320 50 – – –

10 Volt

22 92 2(5) 5.0 x 11.0 RH1A220MAB 052007 200 RH1A220MAET 052007T 2000 33 105 2(5) 5.0 x 11.0 RH1A330MAB 052008 200 RH1A330MAET 052008T 2000 47 120 2(5) 5.0 x 11.0 RH1A470MAB 052009 200 RH1A470MAET 052009T 2000 100 130 2(5) 5.0 x 11.0 RH1A101MAB 052010 200 RH1A101MAET 052010T 2000 220 220 2.5(5) 6.3 x 11.0 RH1A221MBC 052011 200 RH1A221MBET 052011T 1500 330 265 3.5(5) 8.0 x 11.5 RH1A331MCD 052412 200 RH1A331MCET 052412T 1000 330 265 5 10.0 x 12.5 RH1A331MDE 052012 100 RH1A331MDET 052012T 600 470 315 3.5(5) 8.0 x 11.5 RH1A471MCD 052413 200 RH1A471MCET 052413T 1000 470 315 5 10.0 x 12.5 RH1A471MDE 052013 100 RH1A471MDET 052013T 600 1000 615 5 10.0 x 16.0 RH1A102MEE 052414 100 RH1A102MEET 052414T 600 2200 1050 5 12.5 x 20.0 RH1A222MGE 052015 100 RH1A222MGET 052015T 400 3300 1300 5 12.5 x 25.0 RH1A332MHE 052615 100 RH1A332MHET 052615T 400 3300 1300 7.5 16.0 x 25.0 RH1A332MPF 052215 100 RH1A332MPFT 052215T 180 4700 1740 7.5 16.0 x 25.0 RH1A472MPF 052616 100 RH1A472MPET 052616T 180 4700 1740 7.5 16.0 x 31.5 RH1A472MRF 052216 50 – – – 6800 2110 7.5 16.0 x 31.5 RH1A682MRF 052617 50 – – – 6800 2110 7.5 18.0 x 35.5 RH1A682MVF 052217 50 – – – 10000 2580 7.5 18.0 x 35.5 RH1A103MVF 052218 50 – – –

16 Volt

10 92 2(5) 5.0 x 11.0 RH1C100MAB 052016 200 RH1C100MAET 052016T 2000 22 105 2(5) 5.0 x 11.0 RH1C220MAB 052017 200 RH1C220MAET 052017T 2000 33 120 2(5) 5.0 x 11.0 RH1C330MAB 052018 200 RH1C330MAET 052018T 2000 47 130 2(5) 5.0 x 11.0 RH1C470MAB 052019 200 RH1C470MAET 052019T 2000 100 220 2.5(5) 6.3 x 11.0 RH1C101MBC 052020 200 RH1C101MBET 052020T 1500 220 290 3.5(5) 8.0 x 11.5 RH1C221MCD 052021 200 RH1C221MCET 052021T 1000 330 315 3.5(5) 8.0 x 11.5 RH1C331MCD 052422 200 RH1C331MCET 052422T 1000 330 315 5 10.0 x 12.5 RH1C331MDE 052022 100 RH1C331MDET 052022T 600 470 315 5 10.0 x 12.5 RH1C471MDE 052023 100 RH1C471MDET 052023T 600 1000 825 5 10.0 x 20.0 RH1C102MFE 052024 100 RH1C102MFET 052024T 600 2200 1300 5 12.5 x 25.0 RH1C222MHE 052025 100 RH1C222MHET 052025T 400 3300 1740 7.5 16.0 x 25.0 RH1C332MPF 052225 100 RH1C332MPFT 052225T 180 4700 2110 7.5 16.0 x 31.5 RH1C472MRF 052226 50 – – – 6800 2580 7.5 18.0 x 35.5 RH1C682MVF 052227 50 – – –

25 Volt

4.7 85 2(5) 5.0 x 11.0 RH1E4R7MAB 052234 200 RH1E4R7MAET 052234T 2000

10 92 2(5) 5.0 x 11.0 RH1E100MAB 052026 200 RH1E100MAET 052026T 2000 22 105 2(5) 5.0 x 11.0 RH1E220MAB 052027 200 RH1E220MAET 052027T 2000 33 120 2(5) 5.0 x 11.0 RH1E330MAB 052028 200 RH1E330MAET 052028T 2000 47 130 2(5) 5.0 x 11.0 RH1E470MAB 052429 200 RH1E470MAET 052429T 2000 47 130 2.5(5) 6.3 x 11.0 RH1E470MBC 052029 200 RH1E470MBET 052029T 1500 100 220 2.5(5) 6.3 x 11.0 RH1E101MBC 052430 200 RH1E101MBET 052430T 1500 100 220 3.5(5) 8.0 x 11.5 RH1E101MCD 052030 200 RH1E101MCET 052030T 1000 220 315 3.5(5) 8.0 x 11.5 RH1E221MCD 052431 200 RH1E221MCET 052431T 1000 220 315 5 10.0 x 12.5 RH1E221MDE 052031 100 RH1E221MDET 052031T 600 330 500 5 10.0 x 12.5 RH1E331MDE 052032 100 RH1E331MDET 052032T 600 470 615 5 10.0 x 16.0 RH1E471MEE 052033 100 RH1E471MEET 052033T 600 1000 1050 5 12.5 x 20.0 RH1E102MGE 052034 100 RH1E102MGET 052034T 400 2200 1740 7.5 16.0 x 25.0 RH1E222MPF 052035 100 RH1E222MPFT 052035T 180 3300 2110 7.5 16.0 x 31.5 RH1E332MRF 052235 50 – – – 4700 2580 7.5 18.0 x 35.5 RH1E472MVF 052036 50 – – –

(5) Leads pre-formed to 5mm pitch on taped part

RH continued overleaf > > > >

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

Page 13

GENERAL PURPOSE, 105°C

RADIAL

NOVER type RH (continued)

LOOSE TAPED & BOXED

Value Ripple Current Dimensions (mm) Nover Pack Qty Nover Box Qty

(F) (mA) Pitch Dia. x L Part No. Order Code pcs Part No. Order Code pcs

35 Volt

4.7 92 2(5) 5.0 x 11.0 RH1V4R7MAB 052236 200 RH1V4R7MAET 052236T 2000 10 105 2(5) 5.0 x 11.0 RH1V100MAB 052037 200 RH1V100MAET 052037T 2000 22 120 2(5) 5.0 x 11.0 RH1V220MAB 052038 200 RH1V220MAET 052038T 2000 33 130 2(5) 5.0 x 11.0 RH1V330MAB 052439 200 RH1V330MAET 052439T 2000 33 130 2.5(5) 6.3 x 11.0 RH1V330MBC 052039 200 RH1V330MBET 052039T 1500 47 220 2.5(5) 6.3 x 11.0 RH1V470MBC 052040 200 RH1V470MBET 052040T 1500 100 315 3.5(5) 8.0 x 11.5 RH1V101MCD 052041 200 RH1V101MCET 052041T 1000 220 500 5 10.0 x 12.5 RH1V221MDE 052042 100 RH1V221MDET 052042T 600 330 615 5 10.0 x 16.0 RH1V331MEE 052043 100 RH1V331MEET 052043T 600 470 825 5 10.0 x 20.0 RH1V471MFE 052044 100 RH1V471MFET 052044T 600 1000 1300 5 12.5 x 25.0 RH1V102MHE 052445 100 RH1V102MHET 052445T 400 1000 1300 7.5 16.0 x 25.0 RH1V102MPF 052045 100 RH1V102MPFT 052045T 180 2200 2110 7.5 16.0 x 31.5 RH1V222MRF 052046 50 – – – 3300 2580 7.5 18.0 x 35.5 RH1V332MVF 052047 50 – – –

50 Volt

0.1 10 2(5) 5.0 x 11.0 RH1HR10MAB 052112 200 RH1HR10MAET 052112T 2000

0.22 15 2(5) 5.0 x 11.0 RH1HR22MAB 052113 200 RH1HR22MAET 052113T 2000

0.33 18 2(5) 5.0 x 11.0 RH1HR33MAB 052114 200 RH1HR33MAET 052114T 2000

0.47 23 2(5) 5.0 x 11.0 RH1HR47MAB 052115 200 RH1HR47MAET 052115T 2000

1.0 35 2(5) 5.0 x 11.0 RH1H010MAB 052048 200 RH1H010MAET 052048T 2000

2.2 53 2(5) 5.0 x 11.0 RH1H2R2MAB 052049 200 RH1H2R2MAET 052049T 2000

3.3 65 2(5) 5.0 x 11.0 RH1H3R3MAB 052116 200 RH1H3R3MAET 052116T 2000

4.7 82 2(5) 5.0 x 11.0 RH1H4R7MAB 052050 200 RH1H4R7MAET 052050T 2000 10 100 2(5) 5.0 x 11.0 RH1H100MAB 052051 200 RH1H100MAET 052051T 2000 22 125 2(5) 5.0 x 11.0 RH1H220MAB 052452 200 RH1H220MAET 052452T 2000 22 125 2.5(5) 6.3 x 11.0 RH1H220MBC 052052 200 RH1H220MBET 052052T 1500 33 195 2.5(5) 6.3 x 11.0 RH1H330MBC 052053 200 RH1H330MBET 052053T 1500 47 245 2.5(5) 6.3 x 11.0 RH1H470MBC 052054 200 RH1H470MBET 052054T 1500 100 385 3.5(5) 8.0 x 11.5 RH1H101MCD 052055 200 RH1H101MCET 052055T 1000 220 505 5 10.0 x 16.0 RH1H221MEE 052056 100 RH1H221MEET 052056T 600 330 675 5 10.0 x 20.0 RH1H331MFE 052457 100 RH1H331MFET 052457T 600 330 675 5 12.5 x 20.0 RH1H331MGE 052057 100 RH1H331MGET 052057T 400 470 895 5 12.5 x 20.0 RH1H471MGE 052058 100 RH1H471MGET 052058T 400 1000 1495 7.5 16.0 x 25.0 RH1H102MPF 052059 100 RH1H102MPFT 052059T 180 2200 2190 7.5 18.0 x 35.5 RH1H222MVF 052221 50 – – –

63 Volt

0.1 10 2(5) 5.0 x 11.0 RH1JR10MAB 052117 200 RH1JR10MAET 052117T 2000

0.22 15 2(5) 5.0 x 11.0 RH1JR22MAB 052118 200 RH1JR22MAET 052118T 2000

0.33 18 2(5) 5.0 x 11.0 RH1JR33MAB 052119 200 RH1JR33MAET 052119T 2000

0.47 23 2(5) 5.0 x 11.0 RH1JR47MAB 052060 200 RH1JR47MAET 052060T 2000

1.0 35 2(5) 5.0 x 11.0 RH1J010MAB 052061 200 RH1J010MAET 052061T 2000

2.2 53 2(5) 5.0 x 11.0 RH1J2R2MAB 052062 200 RH1J2R2MAET 052062T 2000

3.3 65 2(5) 5.0 x 11.0 RH1J3R3MAB 052063 200 RH1J3R3MAET 052063T 2000

4.7 74 2(5) 5.0 x 11.0 RH1J4R7MAB 052064 200 RH1J4R7MAET 052064T 2000 10 95 2(5) 5.0 x 11.0 RH1J100MAB 052465 200 RH1J100MAET 052465T 2000 10 95 2.5(5) 6.3 x 11.0 RH1J100MBC 052065 200 RH1J100MBET 052065T 1500 22 130 3.5(5) 8.0 x 11.5 RH1J220MCD 052066 200 RH1J220MCET 052066T 1000 33 160 2.5(5) 6.3 x 11.0 RH1J330MBC 052467 200 RH1J330MBET 052467T 1500 33 160 3.5(5) 8.0 x 11.5 RH1J330MCD 052067 200 RH1J330MCET 052067T 1000 47 305 3.5(5) 8.0 x 11.5 RH1J470MCD 052068 200 RH1J470MCET 052068T 1000 100 395 5 10.0 x 12.5 RH1J101MDE 052069 100 RH1J101MDET 052069T 600 220 505 5 10.0 x 20.0 RH1J221MFE 052070 100 RH1J221MFET 052070T 600 330 660 5 12.5 x 20.0 RH1J331MGE 052471 100 RH1J331MGET 052471T 400 330 660 5 12.5 x 25.0 RH1J331MHE 052071 100 RH1J331MHET 052071T 400 470 850 5 12.5 x 25.0 RH1J471MHE 052520 100 RH1J471MHET 052520T 400 470 1250 7.5 16.0 x 25.0 RH1J471MPF 052120 100 RH1J471MPFT 052120T 180 1000 1430 7.5 16.0 x 31.5 RH1J102MRF 052220 50 – – –

100 Volt

0.47 30 2(5) 5.0 x 11.0 RH2AR47MAB 052072 200 RH2AR47MAET 052072T 2000

1.0 45 2(5) 5.0 x 11.0 RH2A010MAB 052073 200 RH2A010MAET 052073T 2000

2.2 60 2(5) 5.0 x 11.0 RH2A2R2MAB 052074 200 RH2A2R2MAET 052074T 2000

3.3 67 2(5) 5.0 x 11.0 RH2A3R3MAB 052075 200 RH2A3R3MAET 052075T 2000

4.7 75 2(5) 5.0 x 11.0 RH2A4R7MAB 052076 200 RH2A4R7MAET 052076T 2000 10 110 2.5(5) 6.3 x 11.0 RH2A100MBC 052077 200 RH2A100MBET 052077T 1500 22 165 3.5(5) 8.0 x 11.5 RH2A220MCD 052078 200 RH2A220MCET 052078T 1000 33 305 5 10.0 x 12.5 RH2A330MDE 052079 100 RH2A330MDET 052079T 600 47 320 5 10.0 x 16.0 RH2A470MEE 052080 100 RH2A470MEET 052080T 600 100 585 5 12.5 x 20.0 RH2A101MGE 052081 100 RH2A101MGET 052081T 400 220 1120 7.5 16.0 x 25.0 RH2A221MPF 052082 100 RH2A221MPFT 052082T 180 330 1290 7.5 16.0 x 25.0 RH2A331MPF 052083 100 RH2A331MPFT 052083T 180 470 1350 7.5 16.0 x 31.5 RH2A471MRF 052084 50 – – –

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

Page 14

GENERAL PURPOSE, 105°C

RADIAL

NOVER type RH (continued)

LOOSE TAPED & BOXED

Value Ripple Current Dimensions (mm) Nover Pack Qty Nover Box Qty

(F) (mA) Pitch Dia. x L Part No. Order Code pcs Part No. Order Code pcs

160V

0.47 12 2.5(5) 6.3 x 11.0 RH2CR47MBC 052086 200 RH2CR47MBET 052086T 1500

1.0 18 2.5(5) 6.3 x 11.0 RH2C010MBC 052087 200 RH2C010MBET 052087T 1500

2.2 26 2.5(5) 6.3 x 11.0 RH2C2R2MBC 052088 200 RH2C2R2MBET 052088T 1500

3.3 37 3.5(5) 8.0 x 11.5 RH2C3R3MCD 052089 200 RH2C3R3MCET 052089T 1000

4.7 44 3.5(5) 8.0 x 11.5 RH2C4R7MCD 052090 200 RH2C4R7MCET 052090T 1000

10 75 5 10.0 x 12.5 RH2C100MDE 052091 100 RH2C100MDET 052091T 600 22 135 5 10.0 x 20.0 RH2C220MFE 052092 100 RH2C220MFET 052092T 600 33 175 5 12.5 x 20.0 RH2C330MGE 052093 100 RH2C330MGET 052093T 400 47 230 5 12.5 x 25.0 RH2C470MHE 052094 100 RH2C470MHET 052094T 400 100 330 7.5 16.0 x 25.0 RH2C101MPF 052095 100 RH2C101MPFT 052095T 180 220 500 7.5 18.0 x 35.5 RH2C221MVF 052096 50 – – –

200V

0.47 12 2.5(5) 6.3 x 11.0 RH2DR47MBC 052097 200 RH2DR47MBET 052097T 1500

1.0 18 2.5(5) 6.3 x 11.0 RH2D010MBC 052098 200 RH2D010MBET 052098T 1500

2.2 26 2.5(5) 6.3 x 11.0 RH2D2R2MBC 052099 200 RH2D2R2MBET 052099T 1500

3.3 37 3.5(5) 8.0 x 11.5 RH2D3R3MCD 052100 200 RH2D3R3MCET 052100T 1000

4.7 50 5 10.0 x 12.5 RH2D4R7MDE 052101 100 RH2D4R7MDET 052101T 600

10 80 5 10.0 x 16.0 RH2D100MEE 052102 100 RH2D100MEET 052102T 600 22 135 5 10.0 x 20.0 RH2D220MFE 052103 100 RH2D220MFET 052103T 600 33 190 5 12.5 x 25.0 RH2D330MHE 052104 100 RH2D330MHET 052104T 400 47 230 5 12.5 x 25.0 RH2D470MHE 052105 100 RH2D470MHET 052105T 400 100 360 7.5 16.0 x 31.5 RH2D101MRF 052138 50 – – – 220 525 7.5 18.0 x 35.5 RH2D221MVF 052139 50 – – –

250V

0.47 12 2.5(5) 6.3 x 11.0 RH2ER47MBC 052106 200 RH2ER47MBET 052106T 1500

1.0 18 2.5(5) 6.3 x 11.0 RH2E010MBC 052107 200 RH2E010MBET 052107T 1500

2.2 30 3.5(5) 8.0 x 11.5 RH2E2R2MCD 052108 200 RH2E2R2MCET 052108T 1000

3.3 43 5 10.0 x 12.5 RH2E3R3MDE 052109 100 RH2E3R3MDET 052109T 600

4.7 50 5 10.0 x 12.5 RH2E4R7MDE 052110 100 RH2E4R7MDET 052110T 600

10 90 5 10.0 x 20.0 RH2E100MFE 052111 100 RH2E100MFET 052111T 600 22 155 5 12.5 x 25.0 RH2E220MHE 052135 100 RH2E220MHET 052135T 400 33 190 5 12.5 x 25.0 RH2E330MHE 052136 100 RH2E330MHET 052136T 400 47 225 7.5 16.0 x 25.0 RH2E470MPF 052182 100 RH2E470MPFT 052182T 180 100 340 7.5 18.0 x 35.5 RH2E101MVF 052183 50 – – –

315V

0.47 11 2.5(5) 6.3 x 11.0 RH2FR47MBC 052240 200 RH2FR47MBET 052240T 1500

1.0 16 2.5(5) 6.3 x 11.0 RH2FR10MBC 052241 200 RH2FR10MBET 052241T 1500

2.2 27 3.5(5) 8.0 x 11.5 RH2F2R2MCD 052242 200 RH2F2R2MCET 052242T 1000

3.3 36 5 10.0 x 12.5 RH2F3R3MDE 052243 100 RH2F3R3MDET 052243T 600

4.7 47 5 10.0 x 16.0 RH2F4R7MEE 052244 100 RH2F4R7MEET 052244T 600

10 75 5 10.0 x 20.0 RH2F100MFE 052245 100 RH2F100MFET 052245T 600 22 130 5 12.5 x 25.0 RH2F220MHE 052246 100 RH2F220MHET 052246T 400 33 160 7.5 16.0 x 25.0 RH2F330MPF 052247 100 RH2F330MPFT 052247T 180 47 210 7.5 16.0 x 31.5 RH2F470MRF 052248 50 – – – 100 335 7.5 18.0 x 35.5 RH2F101MVF 052249 50 – – –

350V

0.47 11 2.5(5) 6.3 x 11.0 RH2VR47MBC 052131 200 RH2VR47MBET 052131T 1500

1.0 18 2.5(5) 6.3 x 11.0 RH2V010MBC 052132 200 RH2V010MBET 052132T 1500

2.2 30 3.5(5) 8.0 x 11.5 RH2V2R2MCD 052133 200 RH2V2R2MCET 052133T 1000

3.3 36 5 10.0 x 12.5 RH2V3R3MDE 052134 100 RH2V3R3MDET 052134T 600

4.7 47 5 10.0 x 16.0 RH2V4R7MEE 052140 100 RH2V4R7MEET 052140T 600

10 79 5 12.5 x 20.0 RH2V100MGE 052141 100 RH2V100MGET 052141T 400 22 130 5 12.5 x 25.0 RH2V220MHE 052142 100 RH2V220MHET 052142T 400 33 160 7.5 16.0 x 25.0 RH2V330MPF 052143 100 RH2V330MPFT 052143T 180 47 210 7.5 16.0 x 31.5 RH2V470MRF 052144 50 – – – 100 335 7.5 18.0 x 35.5 RH2V101MVF 052145 50 – – –

400V

1.0 18 3.5(5) 8.0 x 11.5 RH2G010MCD 052146 200 RH2G010MCET 052146T 1000

2.2 30 5 10.0 x 12.5 RH2G2R2MDE 052147 100 RH2G2R2MDET 052147T 600

3.3 40 5 10.0 x 16.0 RH2G3R3MEE 052148 100 RH2G3R3MEET 052148T 600

4.7 52 5 10.0 x 20.0 RH2G4R7MFE 052149 100 RH2G4R7MFET 052149T 600

10 79 5 12.5 x 20.0 RH2G100MGE 052150 100 RH2G100MGET 052150T 400 22 130 7.5 16.0 x 25.0 RH2G220MPF 052151 100 RH2G220MPFT 052151T 180 33 175 7.5 16.0 x 31.5 RH2G330MRF 052152 50 – – – 47 220 7.5 18.0 x 35.5 RH2G470MVF 052153 50 – – –

PART NUMBER KEY

Refer to page 4

NO ER

(5) Leads pre-formed to 5mm pitch on taped part

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

Page 15

NOVER type R7

Sub-miniature, radial aluminium electrolytic capacitors with a 7mm can height. Offers high performance in applications where space is at a premium. Suitable for ambient temperatures up to 85°C. The entire range of available values and voltages in loose or taped formats, are shown on the following page. For lead forming, cropping and taping options refer to page 5.

● Low proﬁle 7mm height

● Solvent resistant

● Maximum temperature 85°C

● Capacitance tolerance 20%

● Leakage current ≤0.01CV

● Body colour Black

● Supplied loose or taped

Conforms to JIS C5141-1982 Char.W

Capacitance tolerance ............................... ±20% at 120Hz, 20°C

Ripple current (as listed) ........................... measured at 120Hz, 85°C

(see also Multiplier table below)

Operating temperature range .................... -40°C to +85°C

Leakage current ........................................ ≤0.01CV or 3A

(whichever is greater) after 2 min.

Speciﬁcation

Dimensions (mm)

SUB-MINIATURE

RADIAL

Rated voltage 4.0V 6.3V 10V 16V 25V 35V 50V 63V 100V d.c.

Tan  (max) 0.35 0.24 0.20 0.16 0.14 0.12 0.10 0.08 0.08

Rated voltage 4.0V 6.3V 10V 16V 25V 35V 50V 63V 100V d.c.

Surge voltage 5.0V 8V 13V 20V 32V 44V 63V 79V 125V d.c.

Dissipation factor (120Hz, 20°C)

Surge voltage capability



LEAD FORMING



CROPPING



TAPING



Refer to page 5

NO ER

ORDERING INFORMATION

Example : 10µF 35V

Nover

Basic Anglia Code Letter

Cropped 056035 C

Twisted & formed 056035 W

Multiplier for ripple current

Frequency coefﬁcient

Freq(Hz)

50/60 120 1K 10 ~ 100K

Rated Voltage (V)

4 ~ 16 0.8 1.0 1.1 1.2

25 ~ 35 0.8 1.0 1.5 1.7

50 ~ 100 0.8 1.0 1.6 1.9

Temperature coefﬁcient

Temperature (°C) +70 +85

Factor 1.35 1.0

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

NO ER

Vinyl sleeve

Dia

Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L

L(7)

Tinned copper-clad steel wire

ø0.45

15 min.

5 min.

Pitch

Page 16

SUB-MINIATURE

RADIAL

NOVER type R7

LOOSE TAPED & BOXED

Value Ripple Current Dimensions (mm) Nover Pack Qty Nover Box Qty

(F) (mA) Pitch Dia. x L Part No. Order Code pcs Part No. Order Code pcs

4.0 Volt

33 35 1.5(5) 4.0 x 7.0 R70G330MJA 056071 200 R70G330MJET 056071T 2500 47 40 1.5(5) 4.0 x 7.0 R70G470MJA 056072 200 R70G470MJET 056072T 2500 100 70 2.0(5) 5.0 x 7.0 R70G101MKB 056073 200 R70G101MJET 056073T 2000 220 120 2.5(5) 6.3 x 7.0 R70G221MMC 056074 200 R70G221MMET 056074T 1500

6.3 Volt

22 35 1.5(5) 4.0 x 7.0 R70J220MJA 056001 200 R70J220MJET 056001T 2500 33 40 1.5(5) 4.0 x 7.0 R70J330MJA 056002 200 R70J330MJET 056002T 2500 47 50 1.5(5) 4.0 x 7.0 R70J470MJA 056403 200 R70J470MJET 056403T 2500 47 50 2(5) 5.0 x 7.0 R70J470MKB 056003 200 R70J470MKET 056003T 2000 100 80 2(5) 5.0 x 7.0 R70J101MKB 056404 200 R70J101MKET 056404T 2000 100 80 2.5(5) 6.3 x 7.0 R70J101MMC 056004 200 R70J101MMET 056004T 1500 220 140 2.5(5) 6.3 x 7.0 R70J221MMC 056005 200 R70J221MMET 056005T 1500

10 Volt

22 35 1.5(5) 4.0 x 7.0 R71A220MJA 056411 200 R71A220MJET 056411T 2500 22 35 2(5) 5.0 x 7.0 R71A220MKB 056011 200 R71A220MKET 056011T 2000 33 45 1.5(5) 4.0 x 7.0 R71A330MJA 056412 200 R71A330MJET 056412T 2500 33 45 2(5) 5.0 x 7.0 R71A330MKB 056012 200 R71A330MKET 056012T 2000 47 60 2(5) 5.0 x 7.0 R71A470MKB 056413 200 R71A470MKET 056413T 2000 47 60 2.5(5) 6.3 x 7.0 R71A470MMC 056013 200 R71A470MMET 056013T 1500 100 105 2.5(5) 6.3 x 7.0 R71A101MMC 056014 200 R71A101MMET 056014T 1500

16 Volt

3.3 20 1.5(5) 4.0 x 7.0 R71C3R3MJA 056019 200 R71C3R3MJET 056019T 2500 10 25 1.5(5) 4.0 x 7.0 R71C100MJA 056021 200 R71C100MJET 056021T 2500 22 40 1.5(5) 4.0 x 7.0 R71C220MJA 056422 200 R71C220MJET 056422T 2500 22 40 2(5) 5.0 x 7.0 R71C220MKB 056022 200 R71C220MKET 056022T 2000 33 55 2(5) 5.0 x 7.0 R71C330MKB 056023 200 R71C330MKET 056023T 2000 47 70 2(5) 5.0 x 7.0 R71C470MKB 056424 200 R71C470MKET 056424T 2000 47 70 2.5(5) 6.3 x 7.0 R71C470MMC 056024 200 R71C470MMET 056024T 1500 100 120 2.5(5) 6.3 x 7.0 R71C101MMC 056025 200 R71C101MMET 056025T 1500

25 Volt

3.3 15 1.5(5) 4.0 x 7.0 R71E3R3MJA 056029 200 R71E3R3MJET 056029T 2500

4.7 20 1.5(5) 4.0 x 7.0 R71E4R7MJA 056030 200 R71E4R7MJET 056030T 2500 10 25 1.5(5) 4.0 x 7.0 R71E100MJA 056431 200 R71E100MJET 056431T 2500 10 30 2(5) 5.0 x 7.0 R71E100MKB 056031 200 R71E100MKET 056031T 2000 22 50 2(5) 5.0 x 7.0 R71E220MKB 056432 200 R71E220MKET 056432T 2000 22 50 2.5(5) 6.3 x 7.0 R71E220MMC 056032 200 R71E220MMET 056032T 1500 33 70 2.5(5) 6.3 x 7.0 R71E330MMC 056033 200 R71E330MMET 056033T 1500 47 85 2.5(5) 6.3 x 7.0 R71E470MMC 056048 200 R71E470MMET 056048T 1500

35 Volt

3.3 15 1.5(5) 4.0 x 7.0 R71V3R3MJA 056049 200 R71V3R3MJET 056049T 2500

4.7 20 1.5(5) 4.0 x 7.0 R71V4R7MJA 056034 200 R71V4R7MJET 056034T 2500 10 30 1.5(5) 4.0 x 7.0 R71V100MJA 056435 200 R71V100MJET 056435T 2500 10 30 2.0(5) 5.0 x 7.0 R71V100MKB 056035 200 R71V100MKET 056035T 2000 22 55 2.0(5) 5.0 x 7.0 R71V220MKB 056436 200 R71V220MKET 056436T 2000 22 55 2.5(5) 6.3 x 7.0 R71V220MMC 056036 200 R71V220MMET 056036T 1500 33 75 2.5(5) 6.3 x 7.0 R71V330MMC 056050 200 R71V330MMET 056050T 1500

50 Volt

0.1 4 1.5(5) 4.0 x 7.0 R71HR10MJA 056051 200 R71HR10MJET 056051T 2500

0.22 5 1.5(5) 4.0 x 7.0 R71HR22MJA 056052 200 R71HR22MJET 056052T 2500

0.33 7 1.5(5) 4.0 x 7.0 R71HR33MJA 056053 200 R71HR33MJET 056053T 2500

0.47 8 1.5(5) 4.0 x 7.0 R71HR47MJA 056054 200 R71HR47MJET 056054T 2500

1.0 10 1.5(5) 4.0 x 7.0 R71H010MJA 056055 200 R71H010MJET 056055T 2500

2.2 15 1.5(5) 4.0 x 7.0 R71H2R2MJA 056056 200 R71H2R2MJET 056056T 2500

3.3 20 1.5(5) 4.0 x 7.0 R71H3R3MJA 056057 200 R71H3R3MJET 056057T 2500

4.7 24 1.5(5) 4.0 x 7.0 R71H4R7MJA 056444 200 R71H4R7MJET 056444T 2500

4.7 24 2.0(5) 5.0 x 7.0 R71H4R7MKB 056044 200 R71H4R7MKET 056044T 2000 10 40 2.5(5) 6.3 x 7.0 R71H100MMC 056045 200 R71H100MMET 056045T 1500 22 70 2.5(5) 6.3 x 7.0 R71H220MMC 056046 200 R71H220MMET 056046T 1500

63 Volt

0.1 5 1.5(5) 4.0 x 7.0 R71JR10MJA 056037 200 R71JR10MJET 056037T 2500

0.22 8 1.5(5) 4.0 x 7.0 R71JR22MJA 056038 200 R71JR22MJET 056038T 2500

0.33 10 1.5(5) 4.0 x 7.0 R71JR33MJA 056039 200 R71JR33MJET 056039T 2500

0.47 10 1.5(5) 4.0 x 7.0 R71JR47MJA 056040 200 R71JR47MJET 056040T 2500

1.0 15 1.5(5) 4.0 x 7.0 R71J010MJA 056041 200 R71J010MJET 056041T 2500

2.2 20 1.5(5) 4.0 x 7.0 R71J2R2MJA 056042 200 R71J2R2MJET 056042T 2500

3.3 23 1.5(5) 4.0 x 7.0 R71J3R3MJA 056043 200 R71J3R3MJET 056043T 2500

4.7 30 2.0(5) 5.0 x 7.0 R71J4R7MKB 056058 200 R71J4R7MKET 056058T 2000 10 50 2.5(5) 6.3 x 7.0 R71J100MMC 056059 200 R71J100MMET 056059T 1500

100 Volt

1.0 12 1.5(5) 4.0 x 7.0 R72A010MJA 056064 200 R72A010MJET 056064T 2500

2.2 20 2.0(5) 5.0 x 7.0 R72A2R2MKB 056065 200 R72A2R2MKET 056065T 2000

3.3 30 2.5(5) 6.3 x 7.0 R72A3R3MMC 056066 200 R72A3R3MMET 056066T 1500

4.7 35 2.5(5) 6.3 x 7.0 R72A4R7MMC 056067 200 R72A4R7MMET 056067T 1500

PART NUMBER KEY

Refer to page 4

(5) Leads pre-formed to 5mm pitch on taped part

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

NO ER

Page 17

Based on the advanced design features of the R7 series, the RJ offers the additional advantage of 105°C ambient operational capability whilst retaining a 7mm can height. Suitable for applications where a greater temperature safety margin is required. The entire range of available values and voltages in loose and taped formats, are shown on the following page. For lead forming, cropping and taping options refer to page 5.

NOVER type RJ

● Low proﬁle 7mm height

● Solvent resistant

● High temperature 105°C max.

● Capacitance tolerance 20%

● Leakage current ≤0.01CV

● Body colour Yellow

● Supplied loose or taped

Conforms to JIS C5141-1982 Char.W

Capacitance tolerance ............................... ±20% at 120Hz, 20°C

Ripple current (as listed) ........................... measured at 120Hz, 105°C

(see also Multiplier table below)

Operating temperature range .................... -40°C to +105°C

Leakage current ........................................ ≤0.01CV or 3A

(whichever is greater) after 2 min.

Speciﬁcation

Dimensions (mm)

SUB-MINIATURE, 105°C

RADIAL

Rated voltage 6.3V 10V 16V 25V 35V 50V d.c.

Tan  (max) 0.24 0.20 0.16 0.14 0.12 0.10

Rated voltage 6.3V 10V 16V 25V 35V 50V d.c.

Surge voltage 8V 13V 20V 32V 44V 63V d.c.

Dissipation factor (120Hz, 20°C)

Surge voltage capability



LEAD FORMING



CROPPING



TAPING



Refer to page 5

ORDERING INFORMATION

Example : 10µF 35V

Nover

Basic Anglia Code Letter

Cropped 057035 C

Twisted & formed 057035 W

Multiplier for ripple current

Frequency coefﬁcient

Freq(Hz)

50/60 120 1K 10 ~ 100K

Cap (µF)

0.1 ~ 47 0.8 1.0 1.3 1.5

100 ~ 220 0.8 1.0 1.1 1.2

Temperature coefﬁcient

Temperature (°C) +70 +85 +105

Factor 2.0 1.7 1.0

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

NO ER

Vinyl sleeve

Dia

Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L

NO ER

L(7)

Tinned copper-clad steel wire

ø0.45

15 min.

5 min.

Pitch

Page 18

SUB-MINIATURE, 105°C

RADIAL

NOVER type RJ

LOOSE TAPED & BOXED

Value Ripple Current Dimensions (mm) Nover Pack Qty Nover Box Qty

(F) (mA) Pitch Dia. x L Part No. Order Code pcs Part No. Order Code pcs

6.3 Volt

22 42 1.5(5) 4.0 x 7.0 RJ0J220MJA 057001 200 RJ0J220MJET 057001T 2500 33 50 1.5(5) 4.0 x 7.0 RJ0J330MJA 057402 200 RJ0J330MJET 057402T 2500 33 53 2(5) 5.0 x 7.0 RJ0J330MKB 057002 200 RJ0J330MKET 057002T 2000 47 64 2(5) 5.0 x 7.0 RJ0J470MKB 057003 200 RJ0J470MKET 057003T 2000 100 89 2(5) 5.0 x 7.0 RJ0J101MKB 057404 200 RJ0J101MKET 057404T 2000 100 96 2.5(5) 6.3 x 7.0 RJ0J101MMC 057004 200 RJ0J101MMET 057004T 1500 220 122 2.5(5) 6.3 x 7.0 RJ0J221MMC 057005 200 RJ0J221MMET 057005T 1500

10 Volt

22 46 1.5(5) 4.0 x 7.0 RJ1A220MJA 057411 200 RJ1A220MJET 057411T 2500 22 49 2(5) 5.0 x 7.0 RJ1A220MKB 057011 200 RJ1A220MKET 057011T 2000 33 60 2(5) 5.0 x 7.0 RJ1A330MKB 057012 200 RJ1A330MKET 057012T 2000 47 89 2(5) 5.0 x 7.0 RJ1A470MKB 057413 200 RJ1A470MKET 057413T 2000 47 95 2.5(5) 6.3 x 7.0 RJ1A470MMC 057013 200 RJ1A470MMET 057013T 1500 100 116 2.5(5) 6.3 x 7.0 RJ1A101MMC 057014 200 RJ1A101MMET 057014T 1500

16 Volt

10 39 1.5(5) 4.0 x 7.0 RJ1C100MJA 057021 200 RJ1C100MJET 057021T 2500 22 46 1.5(5) 4.0 x 7.0 RJ1C220MJA 057422 200 RJ1C220MJET 057422T 2500 22 49 2(5) 5.0 x 7.0 RJ1C220MKB 057022 200 RJ1C220MKET 057022T 2000 33 78 2(5) 5.0 x 7.0 RJ1C330MKB 057423 200 RJ1C330MKET 057423T 2000 33 83 2.5(5) 6.3 x 7.0 RJ1C330MMC 057023 200 RJ1C330MMET 057023T 1500 47 89 2(5) 5.0 x 7.0 RJ1C470MKB 057424 200 RJ1C470MKET 057424T 2000 47 95 2.5(5) 6.3 x 7.0 RJ1C470MMC 057024 200 RJ1C470MMET 057024T 1500 100 116 2.5(5) 6.3 x 7.0 RJ1C101MMC 057025 200 RJ1C101MMET 057025T 1500

25 Volt

10 30 1.5(5) 4.0 x 7.0 RJ1E100MJA 057431 200 RJ1E100MJET 057431T 2500 10 47 2(5) 5.0 x 7.0 RJ1E100MKB 057031 200 RJ1E100MKET 057031T 2000 22 82 2(5) 5.0 x 7.0 RJ1E220MKB 057432 200 RJ1E220MKET 057432T 2000 22 87 2.5(5) 6.3 x 7.0 RJ1E220MMC 057032 200 RJ1E220MMET 057032T 1500 33 90 2.5(5) 6.3 x 7.0 RJ1E330MMC 057033 200 RJ1E330MMET 057033T 1500

35 Volt

4.7 25 1.5(5) 4.0 x 7.0 RJ1V4R7MJA 057034 200 RJ1V4R7MJET 057034T 2500 10 45 1.5(5) 4.0 x 7.0 RJ1V100MJA 057435 200 RJ1V100MJET 057435T 2500 10 48 2(5) 5.0 x 7.0 RJ1V100MKB 057035 200 RJ1V100MKET 057035T 2000 22 90 2.5(5) 6.3 x 7.0 RJ1V220MMC 057036 200 RJ1V220MMET 057036T 1500

50 Volt

0.1 5 1.5(5) 4.0 x 7.0 RJ1HR10MJA 057051 200 RJ1HR10MJET 057051T 2500

0.22 8 1.5(5) 4.0 x 7.0 RJ1HR22MJA 057052 200 RJ1HR22MJET 057052T 2500

0.33 10 1.5(5) 4.0 x 7.0 RJ1HR33MJA 057053 200 RJ1HR33MJET 057053T 2500

0.47 12 1.5(5) 4.0 x 7.0 RJ1HR47MJA 057054 200 RJ1HR47MJET 057054T 2500

1.0 16 1.5(5) 4.0 x 7.0 RJ1H010MJA 057055 200 RJ1H010MJET 057055T 2500

2.2 25 1.5(5) 4.0 x 7.0 RJ1H2R2MJA 057056 200 RJ1H2R2MJET 057056T 2500

3.3 28 1.5(5) 4.0 x 7.0 RJ1H3R3MJA 057057 200 RJ1H3R3MJET 057057T 2500

4.7 48 2(5) 5.0 x 7.0 RJ1H4R7MKB 057044 200 RJ1H4R7MKET 057044T 2000 10 75 2.5(5) 6.3 x 7.0 RJ1H100MMC 057045 200 RJ1H100MMET 057045T 1500

PART NUMBER KEY

Refer to page 4

(5) Leads pre-formed to 5mm pitch on taped part

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

NO ER

Page 19

A range of ultra-miniature radial aluminium electrolytic capacitors evolving from the advanced features of the R7 series and offering a very low proﬁle of only 5mm. The entire range of available values and voltages in loose or taped formats, are shown on the following page. For lead forming, cropping and taping options refer to page 5.

NOVER type R5

● Very low proﬁle 5mm height

● Solvent resistant

● Capacitance tolerance 20%

● Leakage current ≤0.01CV

● Body colour Indigo

● Supplied loose or taped

Conforms to JIS C5141-1982 Char.W

Endurance test .......................................... 1000 hours at 85°C

Capacitance tolerance ............................... ±20% at 120Hz, 20°C

Ripple current (as listed) ........................... measured at 120Hz, 85°C

(see also Multiplier table below)

Operating temperature range .................... -40°C to +85°C

Leakage current ........................................ ≤0.01CV or 3A

(whichever is greater) after 2 min.

Speciﬁcation

Dimensions (mm)

ULTRA-MINIATURE

RADIAL

Rated voltage 6.3V 10V 16V 25V 35V 50V d.c.

Tan  (max) 0.26 0.22 0.18 0.14 0.12 0.10

Rated voltage 6.3V 10V 16V 25V 35V 50V d.c.

Surge voltage 8V 13V 20V 32V 44V 63V d.c.

Dissipation factor (120Hz, 20°C)

Surge voltage capability

Multiplier for ripple current



LEAD FORMING



CROPPING



TAPING



Refer to page 5

ORDERING INFORMATION

Example : 33µF 10V

Nover

Basic Anglia Code Letter

Cropped 063012 C

Twisted & formed 063012 W

Frequency coefﬁcient

Freq(Hz)

50/60 120 1K 10 ~ 100K

Cap (µF)

0.1 ~ 47 0.8 1.0 1.3 1.5

100 0.8 1.0 1.15 1.2

Temperature coefﬁcient

Temperature (°C) +70 +85

Factor 1.35 1.0

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

NO ER

Vinyl sleeve

Dia

Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L

NO ER

L(5)

Tinned copper-clad steel wire

ø0.45

15 min.

5 min.

Pitch

Page 20

ULTRA-MINIATURE

RADIAL

NOVER type R5

LOOSE TAPED & BOXED

Value Ripple Current Dimensions (mm) Nover Pack Qty Nover Box Qty

(F) (mA) Pitch Dia. x L Part No. Order Code pcs Part No. Order Code pcs

6.3 Volt

22 22 1.5(5) 4.0 x 5.0 R50J220MF1A 063001 200 R50J220MF1ET 063001T 2500 33 34 2(5) 5.0 x 5.0 R50J330MF2B 063002 200 R50J330MF2ET 063002T 2000 47 37 2(5) 5.0 x 5.0 R50J470MF2B 063003 200 R50J470MF2ET 063003T 2000 100 58 2(5) 5.0 x 5.0 R50J101MF2B 063404 200 R50J101MF2ET 063404T 2000 100 62 2.5(5) 6.3 x 5.0 R50J101MF3C 063004 200 R50J101MF3ET 063004T 1500

10 Volt

10 16 1.5(5) 4.0 x 5.0 R51A100MF1A 063010 200 R51A100MF1ET 063010T 2500 22 28 1.5(5) 4.0 x 5.0 R51A220MF1A 063411 200 R51A220MF1ET 063411T 2500 22 30 2(5) 5.0 x 5.0 R51A220MF2B 063011 200 R51A220MF2ET 063011T 2000 33 45 2(5) 5.0 x 5.0 R51A330MF2B 063012 200 R51A330MF2ET 063012T 2000 47 48 2(5) 5.0 x 5.0 R51A470MF2B 063413 200 R51A470MF2ET 063413T 2000 47 50 2.5(5) 6.3 x 5.0 R51A470MF3C 063013 200 R51A470MF3ET 063013T 1500

16 Volt

4.7 11 1.5(5) 4.0 x 5.0 R51C4R7MF1A 063020 200 R51C4R7MF1ET 063020T 2500 10 18 1.5(5) 4.0 x 5.0 R51C100MF1A 063021 200 R51C100MF1ET 063021T 2500 22 33 1.5(5) 4.0 x 5.0 R51C220MF1A 063422 200 R51C220MF1ET 063422T 2500 22 35 2(5) 5.0 x 5.0 R51C220MF2B 063022 200 R51C220MF2ET 063022T 2000 33 48 2(5) 5.0 x 5.0 R51C330MF2B 063423 200 R51C330MF2ET 063423T 2000 33 51 2.5(5) 6.3 x 5.0 R51C330MF3C 063023 200 R51C330MF3ET 063023T 1500 47 61 2(5) 5.0 x 5.0 R51C470MF2B 063424 200 R51C470MF2ET 063424T 2000 47 65 2.5(5) 6.3 x 5.0 R51C470MF3C 063024 200 R51C470MF3ET 063024T 1500

25 Volt

4.7 13 1.5(5) 4.0 x 5.0 R51E4R7MF1A 063030 200 R51E4R7MF1ET 063030T 2500 10 25 1.5(5) 4.0 x 5.0 R51E100MF1A 063431 200 R51E100MF1ET 063431T 2500 10 27 2(5) 5.0 x 5.0 R51E100MF2B 063031 200 R51E100MF2ET 063031T 2000 22 43 2(5) 5.0 x 5.0 R51E220MF2B 063432 200 R51E220MF2ET 063432T 2000 22 46 2.5(5) 6.3 x 5.0 R51E220MF3C 063032 200 R51E220MF3ET 063032T 1500 33 54 2.5(5) 6.3 x 5.0 R51E330MF3C 063033 200 R51E330MF3ET 063033T 1500

35 Volt

3.3 12 1.5(5) 4.0 x 5.0 R51V3R3MF1A 063049 200 R51V3R3MF1ET 063049T 2500

4.7 14 1.5(5) 4.0 x 5.0 R51V4R7MF1A 063034 200 R51V4R7MF1ET 063034T 2500 10 27 2(5) 5.0 x 5.0 R51V100MF2B 063035 200 R51V100MF2ET 063035T 2000 22 46 2.5(5) 6.3 x 5.0 R51V220MF3C 063036 200 R51V220MF3ET 063036T 1500

50 Volt

0.1 1 1.5(5) 4.0 x 5.0 R51HR10MF1A 063051 200 R51HR10MF1ET 063051T 2500

0.22 1.5 1.5(5) 4.0 x 5.0 R51HR22MF1A 063052 200 R51HR22MF1ET 063052T 2500

0.33 2.5 1.5(5) 4.0 x 5.0 R51HR33MF1A 063053 200 R51HR33MF1ET 063053T 2500

0.47 4 1.5(5) 4.0 x 5.0 R51HR47MF1A 063054 200 R51HR47MF1ET 063054T 2500

1.0 6 1.5(5) 4.0 x 5.0 R51H010MF1A 063055 200 R51H010MF1ET 063055T 2500

2.2 7 1.5(5) 4.0 x 5.0 R51H2R2MF1A 063056 200 R51H2R2MF1ET 063056T 2500

3.3 13 1.5(5) 4.0 x 5.0 R51H3R3MF1A 063057 200 R51H3R3MF1ET 063057T 2500

4.7 18 1.5(5) 4.0 x 5.0 R51H4R7MF1A 063444 200 R51H4R7MF1ET 063444T 2500

4.7 20 2(5) 5.0 x 5.0 R51H4R7MF2B 063044 200 R51H4R7MF2ET 063044T 2000 10 31 2.5(5) 6.3 x 5.0 R51H100MF3C 063045 200 R51H100MF3ET 063045T 1500

PART NUMBER KEY

Refer to page 4

(5) Leads pre-formed to 5mm pitch on taped part

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

NO ER

Page 21

LOW LEAKAGE

RADIAL

Conforms to JIS C5141-1982 Char.W

Endurance test .......................................... 1000 hours at 85°C

Capacitance tolerance ............................... ±20% at 120Hz, 20°C

†

Ripple current (as listed) ........................... measured at 120Hz, 85°C

(see also Multiplier table below)

Operating temperature range .................... -40°C to +85°C

Leakage current ........................................ ≤0.002CV or 0.3A

(whichever is greater) after 2 min.

NOVER type LL

Low leakage, radial aluminium electrolytic capacitors suitable for timing circuits, low signal coupling or any application where high stability is required. The LL series also offers a potential alternative to tantalum capacitors in many instances where cost is at a premium. The entire range of available values and voltages in loose or taped formats, are shown on the following page. For lead forming, cropping and taping options refer to page 5.

● Low leakage ≤0.002CV

● Stable during storage

● Solvent resistant

● Maximum temperature 85°C

● Capacitance tolerance 20%

● Body colour Orange

● Supplied loose or taped

Dimensions (mm)

Speciﬁcation

Rated voltage 6.3V 10V 16V 25V 35V 50V d.c.

Tan  (max)*0.20 0.17 0.13 0.10 0.10 0.08

Rated voltage 6.3V 10V 16V 25V 35V 50V d.c.

Surge voltage 8V 13V 20V 32V 44V 63V d.c.

Dissipation factor (120Hz, 20°C)

Surge voltage capability



LEAD FORMING



CROPPING



TAPING



Refer to page 5

NO ER

ORDERING INFORMATION

Example : 100µF 10V

Nover

Basic Anglia Code Letter

Cropped 059010 C

Twisted & formed 059010 W

Multiplier for ripple current

Frequency coefﬁcient

Rated Voltage

Freq(Hz)

50/60 120 1K 10K 100K

(V)

CV(µF.WV)

6.3 ~ 10 0.8 1.0 1.1 1.2 1.2

16 ~ 25

≤1000 0.8 1.0 1.5 1.7 1.7

>1000 0.8 1.0 1.2 1.3 1.3

35 ~ 50 0.8 1.0 1.6 1.9 1.9

Temperature coefﬁcient

Temperature (°C) +70 +85

Factor 1.35 1.0

†

±10% available to special order

*Add 0.02 for every 1000F above 1000F

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

NO ER

Vent (Dia ≥ 6.3)

Vinyl sleeve

Dia

Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L (2.0 L≥20)

Tinned copper-clad steel wire

ød

15 min.

5 min.

Pitch

ød = 0.5 (Dia ≤6.3)

d = 0.6 (Dia 8–12.5) d = 0.8 (Dia ≥16)

Page 22

LOW LEAKAGE

RADIAL

NOVER type LL

LOOSE TAPED & BOXED

Value Ripple Current Dimensions (mm) Nover Pack Qty Nover Box Qty

(F) (mA) Pitch Dia. x L Part No. Order Code pcs Part No. Order Code pcs

6.3 Volt

220 240 3.5(5) 8.0 x 11.5 LL0J221MCD 059002 200 LL0J221MCET 059002T 1000 330 300 3.5(5) 8.0 x 11.5 LL0J331MCD 059003 200 LL0J331MCET 059003T 1000 470 420 5 10.0 x 12.5 LL0J471MDE 059004 100 LL0J471MDET 059004T 600 1000 740 5 10.0 x 20.0 LL0J102MFE 059005 100 LL0J102MFET 059005T 600 2200 1220 5 12.5 x 20.0 LL0J222MGE 059006 100 LL0J222MGET 059006T 400

10 Volt

22 56 2(5) 5.0 x 11.0 LL1A220MAB 059007 200 LL1A220MAET 059007T 2000 33 70 2(5) 5.0 x 11.0 LL1A330MAB 059008 200 LL1A330MAET 059008T 2000 47 80 2(5) 5.0 x 11.0 LL1A470MAB 059009 200 LL1A470MAET 059009T 2000 100 140 2.5(5) 6.3 x 11.0 LL1A101MBC 059010 200 LL1A101MBET 059010T 1500 220 240 3.5(5) 8.0 x 11.5 LL1A221MCD 059011 200 LL1A221MCET 059011T 1000 330 380 5 10.0 x 12.5 LL1A331MDE 059012 100 LL1A331MDET 059012T 600 470 500 5 10.0 x 16.0 LL1A471MEE 059013 100 LL1A471MEET 059013T 600 1000 910 5 12.5 x 20.0 LL1A102MGE 059014 100 LL1A102MGET 059014T 400 2200 1710 5 12.5 x 25.0 LL1A222MHE 059015 100 LL1A222MHET 059015T 400

16 Volt

10 43 2(5) 5.0 x 11.0 LL1C100MAB 059016 200 LL1C100MAET 059016T 2000 22 74 2(5) 5.0 x 11.0 LL1C220MAB 059017 200 LL1C220MAET 059017T 2000 33 80 2(5) 5.0 x 11.0 LL1C330MAB 059018 200 LL1C330MAET 059018T 2000 47 90 2(5) 5.0 x 11.0 LL1C470MAB 059019 200 LL1C470MAET 059019T 2000 100 200 3.5(5) 8.0 x 11.5 LL1C101MCD 059020 200 LL1C101MCET 059020T 1000 220 360 5 10.0 x 12.5 LL1C221MDE 059021 100 LL1C221MDET 059021T 600 330 500 5 10.0 x 16.0 LL1C331MEE 059022 100 LL1C331MEET 059022T 600 470 620 5 10.0 x 20.0 LL1C471MFE 059023 100 LL1C471MFET 059023T 600 1000 1040 5 12.5 x 25.0 LL1C102MHE 059024 100 LL1C102MHET 059024T 400 2200 1900 7.5 16.0 x 31.5 LL1C222MRF 059025 50

– – –

25 Volt

4.7 34 2(5) 5.0 x 11.0 LL1E4R7MAB 059026 200 LL1E4R7MAET 059026T 2000 10 52 2(5) 5.0 x 11.0 LL1E100MAB 059027 200 LL1E100MAET 059027T 2000 22 72 2(5) 5.0 x 11.0 LL1E220MAB 059028 200 LL1E220MAET 059028T 2000 33 100 2.5(5) 6.3 x 11.0 LL1E330MBC 059029 200 LL1E330MBET 059029T 1500 47 114 2.5(5) 6.3 x 11.0 LL1E470MBC 059030 200 LL1E470MBET 059030T 1500 100 210 3.5(5) 8.0 x 11.5 LL1E101MCD 059031 200 LL1E101MCET 059031T 1000 220 400 5 10.0 x 16.0 LL1E221MEE 059032 100 LL1E221MEET 059032T 600 330 540 5 10.0 x 20.0 LL1E331MFE 059033 100 LL1E331MFET 059033T 600 470 740 5 12.5 x 20.0 LL1E471MGE 059034 100 LL1E471MGET 059034T 400 1000 1350 7.5 16.0 x 25.0 LL1E102MPF 059035 100

– – –

35 Volt

4.7 34 2(5) 5.0 x 11.0 LL1V4R7MAB 059036 200 LL1V4R7MAET 059036T 2000 10 52 2(5) 5.0 x 11.0 LL1V100MAB 059037 200 LL1V100MAET 059037T 2000 22 74 2.5(5) 6.3 x 11.0 LL1V220MBC 059038 200 LL1V220MBET 059038T 1500 33 100 2.5(5) 6.3 x 11.0 LL1V330MBC 059039 200 LL1V330MBET 059039T 1500 47 150 3.5(5) 8.0 x 11.5 LL1V470MCD 059040 200 LL1V470MCET 059040T 1000 100 260 5 10.0 x 12.5 LL1V101MDE 059041 100 LL1V101MDET 059041T 600 220 460 5 10.0 x 20.0 LL1V221MFE 059042 100 LL1V221MFET 059042T 600 330 650 5 12.5 x 20.0 LL1V331MGE 059043 100 LL1V331MGET 059043T 400 470 850 5 12.5 x 25.0 LL1V471MHE 059044 100 LL1V471MHET 059044T 400 1000 1550 7.5 16.0 x 25.0 LL1V102MPF 059045 50

– – –

50 Volt

0.1 5 2(5) 5.0 x 11.0 LL1HR10MAB 059046 200 LL1HR10MAET 059046T 2000

0.22 7 2(5) 5.0 x 11.0 LL1HR22MAB 059047 200 LL1HR22MAET 059047T 2000

0.33 9 2(5) 5.0 x 11.0 LL1HR33MAB 059048 200 LL1HR33MAET 059048T 2000

0.47 14 2(5) 5.0 x 11.0 LL1HR47MAB 059049 200 LL1HR47MAET 059049T 2000

1.0 20 2(5) 5.0 x 11.0 LL1H010MAB 059050 200 LL1H010MAET 059050T 2000

2.2 26 2(5) 5.0 x 11.0 LL1H2R2MAB 059051 200 LL1H2R2MAET 059051T 2000

3.3 32 2(5) 5.0 x 11.0 LL1H3R3MAB 059052 200 LL1H3R3MAET 059052T 2000

4.7 43 2(5) 5.0 x 11.0 LL1H4R7MAB 059053 200 LL1H4R7MAET 059053T 2000 10 70 2(5) 5.0 x 11.0 LL1H100MAB 059054 200 LL1H100MAET 059054T 2000 22 110 3.5(5) 8.0 x 11.5 LL1H220MCD 059055 200 LL1H220MCET 059055T 1000 33 160 5 10.0 x 12.5 LL1H330MDE 059056 100 LL1H330MDET 059056T 600 47 210 5 10.0 x 16.0 LL1H470MEE 059057 100 LL1H470MEET 059057T 600 100 380 5 12.5 x 20.0 LL1H101MGE 059058 100 LL1H101MGET 059058T 400 220 720 7.5 16.0 x 25.0 LL1H221MPF 059059 100 LL1H221MPFT 059059T 180 330 880 7.5 16.0 x 25.0 LL1H331MPF 059060 100

LL1H331MPFT 059060T 180

470 1150 7.5 16.0 x 31.5 LL1H471MRF 059061 50 – – –

PART NUMBER KEY

Refer to page 4

(5) Leads pre-formed to 5mm pitch on taped part

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

NO ER

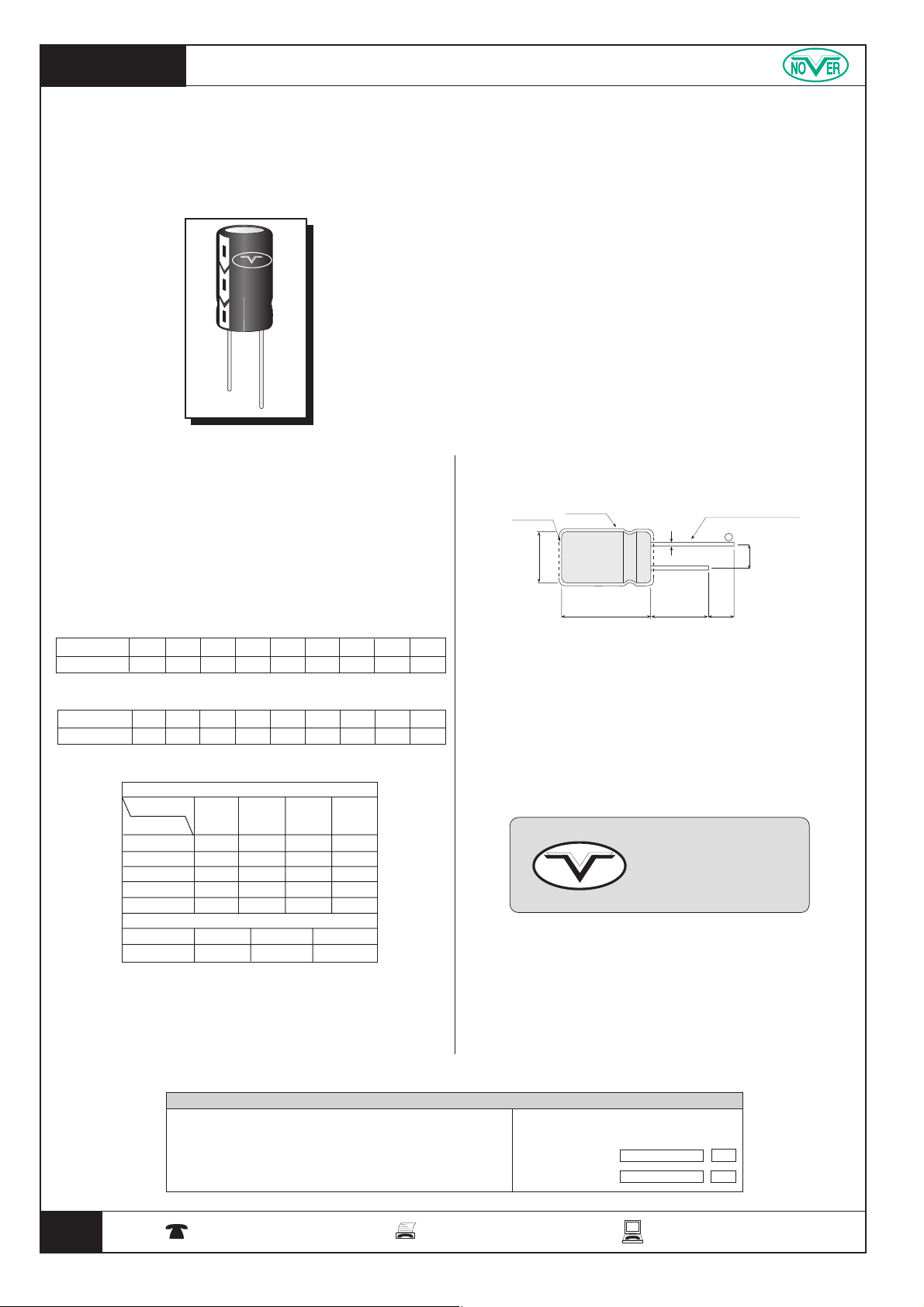

Page 23

LOW ESR, 105°C

RADIAL

Conforms to JIS C5141-1982 Char.W

Endurance test .......................................... 2000 hours at 105°C

Capacitance tolerance ............................... ±20% at 120Hz, 20°C

Ripple current (as listed) ........................... measured at 100kHz, 105°C

(see also Multiplier table below)

Impedance (as listed)................................. measured at 100kHz

Operating temperature range .................... -55°C to +105°C

Leakage current ........................................ ≤0.01CV or 0.3A

(whichever is greater) after 2 min.

NOVER type RL

A range of high performance radial aluminium electrolytic capacitors featuring excellent low impedance and ESR characteristics. The RL range further beneﬁts from having a 105°C operating temperature range making it especially suitable for switch mode power supplies (SMPS). The entire range of available values and voltages in loose or taped formats, are shown on the following pages. For lead forming, cropping and taping options refer to page 5.

● Low impedance

● Endurance 2000 hours at 105°C

● High ripple current

● High performance and reliability

● For switch mode power supplies (SMPS)

and industrial electronics

● Capacitance tolerance 20%

● Body colour Brown

● Supplied loose or taped

Dimensions (mm)

15 min.

Dia

Vinyl sleeve

Tinned copper-clad steel wire

ød

Pitch

5 min.

Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L (2.0 L≥20)

Vent (Dia ≥ 6.3)

ød = 0.5 (Dia ≤6.3)

d = 0.6 (Dia 8–12.5) d = 0.8 (Dia ≥16)

Speciﬁcation

Rated voltage 6.3V 10V 16V 25V 35V 50V 63V 100V d.c.

Tan  (max)* 0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.08

Dissipation factor (120Hz, 20°C)

* Add 0.02 for every 1000µF above 1000µF



LEAD FORMING



CROPPING



TAPING



Refer to page 5

NO ER

ORDERING INFORMATION

Example : 270µF 16V

Nover

Basic Anglia Code Letter

Cropped 060034 C

Twisted & formed 060034 W

Rated voltage 6.3V 10V 16V 25V 40V 50V 63V 100V d.c.

Surge voltage 8V 13V 20V 32V 50V 63V 79V 125V d.c.

Multiplier for ripple current

Frequency coefﬁcient

Freq(Hz)

120 1K 10K 100K

Cap (µF)

0.47 ~ 4.7 0.40 0.68 0.78 1.0

5.6 ~ 47 0.50 0.76 0.87 1.0

56 ~ 270 0.70 0.85 0.90 1.0

330 ~ 1000 0.80 0.93 0.98 1.0

1200 ~ 15000 0.90 0.95 1.0 1.0

Temperature coefﬁcient

Temperature (°C)

+70 +85 +105

Factor 1.96 1.68 1.0

Surge voltage capability

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

NO ER

Page 24

LOW ESR, 105°C

RADIAL

NOVER type RL

LOOSE TAPED & BOXED

Value Ripple Current Impedance (Ω) Dimensions (mm) Nover Pack Qty Nover Box Qty

(F) (mA) 20°C -10°C Pitch Dia. x L Part No. Order Code pcs Part No. OrderCode pcs

6.3 Volt

100 175 0.65 1.30 2(5) 5.0 x 11.5 RL0J101MAB 060305 200 RL0J101MAET 060305T 2000 150 235 0.46 0.92 2.5(5) 6.3 x 11.5 RL0J151MBC 060307 200 RL0J151MBET 060307T 1500 220 290 0.30 0.60 2.5(5) 6.3 x 11.5 RL0J221MBC 060309 200 RL0J221MBET 060309T 1500 330 400 0.20 0.40 2.5(5) 6.3 x 11.5 RL0J331MBC 060311 200 RL0J331MBET 060311T 1500 470 488 0.17 0.34 3.5(5) 8.0 x 12.0 RL0J471MCD 060312 200 RL0J471MCET 060312T 1000 680 613 0.12 0.24 5 10.0 x 12.5 RL0J681MDE 060313 100 RL0J681MDET 060313T 600 820 734 0.095 0.19 5 10.0 x 16.0 RL0J821MEE 060314 100 RL0J821MEET 060314T 600 1000 800 0.076 0.152 3.5(5) 8.0 x 12.0 RL0J102MCD 060315 200 RL0J102MCET 060315T 1000 1000 820 0.068 0.136 3.5(5) 8.0 x 15.0 RL0J102MQD 060355 200 RL0J102MQET 060355T 1000 1200 980 0.052 0.104 3.5(5) 8.0 x 20.0 RL0J122MSD 060316 200 RL0J122MSET 060316T 1000 1200 1010 0.046 0.092 5 10.0 x 16.0 RL0J122MEE 060356 100 RL0J122MEET 060356T 600 1500 1160 0.042 0.084 3.5(5) 8.0 x 20.0 RL0J152MSD 060317 200 RL0J152MSET 060317T 1000 1500 1190 0.038 0.076 5 10.0 x 20.0 RL0J152MFE 060358 100 RL0J152MFET 060358T 600 2200 1440 0.032 0.064 5 12.5 x 20.0 RL0J222MGE 060318 100 RL0J222MGET 060318T 400 2700 1690 0.028 0.056 5 12.5 x 25.0 RL0J272MHE 060319 100 RL0J272MHET 060319T 400 3300 1860 0.026 0.052 5 12.5 x 25.0 RL0J332MHE 060320 100 RL0J332MHET 060320T 400 3900 1950 0.024 0.048 5 12.5 x 30.0 RL0J392MXE 060321 100 – – – 4700 2220 0.022 0.044 5 12.5 x 35.0 RL0J472MTE 060322 100 – – – 5600 2390 0.020 0.040 5 12.5 x 40.0 RL0J562MZE 060323 100 – – – 6800 2350 0.018 0.036 7.5 16.0 x 31.5 RL0J682MRF 060324 50 – – – 8200 2550 0.016 0.032 7.5 16.0 x 35.5 RL0J822MA3F 060325 50 – – – 10000 2410 0.014 0.028 7.5 18.0 x 31.5 RL0J103MA8F 060326 50 – – – 12000 2970 0.012 0.024 7.5 16.0 x 40.0 RL0J123MA4F 060327 50 – – – 15000 3010 0.010 0.020 7.5 18.0 x 40.0 RL0J153MA9F 060328 50 – – –

10 Volt

82 175 0.65 1.30 2(5) 5.0 x 11.5 RL1A820MAB 060006 200 RL1A820MAET 060006T 2000 100 235 0.46 0.92 2(5) 5.0 x 11.5 RL1A101MAB 060007 200 RL1A101MAET 060007T 2000 180 290 0.31 0.62 2.5(5) 6.3 x 11.5 RL1A181MBC 060008 200 RL1A181MBET 060008T 1500 220 400 0.20 0.40 2.5(5) 6.3 x 11.5 RL1A221MBC 060009 200 RL1A221MBET 060009T 1500 330 490 0.17 0.34 3.5(5) 8.0 x 12.0 RL1A331MCD 060010 200 RL1A331MCET 060010T 1000 470 615 0.14 0.28 3.5(5) 8.0 x 12.0 RL1A471MCD 060011 200 RL1A471MCET 060011T 1000 470 617 0.13 0.26 3.5(5) 8.0 x 15.0 RL1A471MQD 060362 200 RL1A471MQET 060362T 1000 560 734 0.095 0.19 3.5(5) 8.0 x 15.0 RL1A561MQD 060012 200 RL1A561MQET 060012T 1000 680 800 0.095 0.19 3.5(5) 8.0 x 20.0 RL1A681MSD 060013 200 RL1A681MSET 060013T 1000 1000 1010 0.080 0.12 5 10.0 x 16.0 RL1A102MEE 060014 100 RL1A102MEET 060014T 600 1200 1190 0.048 0.096 5 10.0 x 20.0 RL1A122MFE 060015 100 RL1A122MFET 060015T 600 1500 1440 0.032 0.064 5 10.0 x 20.0 RL1A152MFE 060016 100 RL1A152MFET 060016T 600 1800 1520 0.030 0.060 5 12.5 x 20.0 RL1A182MGE 060017 100 RL1A182MGET 060017T 400 2200 1690 0.028 0.056 5 12.5 x 25.0 RL1A222MGE 060018 100 RL1A222MGET 060018T 400 2700 1950 0.026 0.052 5 12.5 x 30.0 RL1A272MXE 060019 100 – – – 3300 2220 0.024 0.048 5 12.5 x 35.0 RL1A332MTE 060020 100 – – – 3900 2390 0.022 0.044 5 12.5 x 40.0 RL1A392MZE 060021 100 – – – 4700 2410 0.018 0.036 7.5 16.0 x 25.0 RL1A472MPF 060022 100 RL1A472MPFT 060022T 180 5600 2530 0.017 0.034 7.5 16.0 x 31.5 RL1A562MRF 060023 50 – – – 6800 2680 0.016 0.032 7.5 18.0 x 31.5 RL1A682MA8F 060024 50 – – – 8200 2970 0.014 0.028 7.5 18.0 x 35.5 RL1A822MVF 060025 50 – – – 10000 3010 0.012 0.024 7.5 18.0 x 40.0 RL1A103MA9F 060026 50 – – –

(5) Leads pre-formed to 5mm pitch on taped part

RL continued overleaf > > > >

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

For the very latest Nover product data and news

visit the Nover website:

www.nover.com

BACK TO CONTENTS

Page 25

LOW ESR, 105°C

RADIAL

NOVER type RL (continued)

LOOSE TAPED & BOXED

Value Ripple Current Impedance (Ω) Dimensions (mm) Nover Pack Qty Nover Box Qty

(F) (mA) 20°C -10°C Pitch Dia. x L Part No. Order Code pcs Part No. Order Code pcs

16 Volt

56 175 0.65 1.30 2(5) 5.0 x 11.5 RL1C560MAB 060030 200 RL1C560MAET 060030T 2000 82 235 0.46 0.92 2.5(5) 6.3 x 11.5 RL1C820MBC 060031 200 RL1C820MBET 060031T 1500 120 290 0.31 0.62 2.5(5) 6.3 x 11.5 RL1C121MBC 060032 200 RL1C121MBET 060032T 1500 180 400 0.20 0.40 3.5(5) 8.0 x 12.0 RL1C181MCD 060033 200 RL1C181MCET 060033T 1000 270 501 0.17 0.34 3.5(5) 8.0 x 12.0 RL1C271MCD 060034 200 RL1C271MCET 060034T 1000 330 575 0.13 0.26 3.5(5) 8.0 x 15.0 RL1C331MQD 060035 200 RL1C331MQET 060035T 1000 330 625 0.13 0.26 5 10.0 x 12.5 RL1C331MDE 060801 100 RL1C331MDET 060801T 600 390 795 0.090 0.18 5 10.0 x 16.0 RL1C391MEE 060037 100 RL1C391MEET 060037T 600 470 760 0.095 0.19 3.5(5) 8.0 x 12.0 RL1C471MCD 060067 200 RL1C471MCET 060067T 1000 470 760 0.095 0.19 3.5(5) 8.0 x 20.0 RL1C471MSD 060038 200 RL1C471MSET 060038T 1000 680 1010 0.065 0.13 5 10.0 x 20.0 RL1C681MFE 060039 100 RL1C681MFET 060039T 600 680 1010 0.065 0.13 5 12.5 x 15.0 RL1C681MWE 060802 100 RL1C681MWET 060802T 400 820 1190 0.055 0.11 5 10.0 x 25.0 RL1C821MYE 060041 100 RL1C821MYET 060041T 600 1200 1430 0.047 0.094 5 10.0 x 30.0 RL1C122MUE 060042 100 RL1C122MUET 060042T 600 1200 1400 0.042 0.084 5 12.5 x 20.0 RL1C122MGE 060803 100 RL1C122MGET 060803T 400 1500 1690 0.038 0.076 5 12.5 x 25.0 RL1C152MHE 060043 100 RL1C152MHET 060043T 400 1500 1340 0.046 0.092 7.5 16.0 x 15.0 RL1C152MA1F 060804 100 RL1C152MA1FT 060804T 180 1500 1500 0.043 0.086 7.5 18.0 x 15.0 RL1C152MA5F 060805 50 – – – 2200 1950 0.032 0.064 5 12.5 x 30.0 RL1C222MXE 060044 100 – – – 2200 1730 0.034 0.068 7.5 16.0 x 20.0 RL1C222MA2F 060806 100 RL1C222MA2FT 060806T 180 2700 2200 0.028 0.056 5 12.5 x 35.0 RL1C272MTE 060045 50 – – – 2700 2070 0.028 0.056 7.5 16.0 x 25.0 RL1C272MPF 060807 100 RL1C272MPFT 060807T 180 2700 1870 0.030 0.060 7.5 18.0 x 20.0 RL1C272MA6F 060808 50 – – – 3300 2390 0.026 0.052 5 12.5 x 40.0 RL1C332MZE 060046 50 – – – 3900 2350 0.025 0.050 7.5 16.0 x 31.5 RL1C392MRF 060047 50 – – – 3900 2160 0.027 0.054 7.5 18.0 x 25.0 RL1C392MA7F 060809 50 – – – 4700 2550 0.022 0.044 7.5 16.0 x 35.5 RL1C472MA3F 060048 50 – – – 4700 2450 0.023 0.046 7.5 18.0 x 31.5 RL1C472MA8F 060810 50 – – – 5600 2900 0.020 0.020 7.5 16.0 x 40.0 RL1C562MA4F 060049 50 – – – 6800 2730 0.019 0.038 7.5 18.0 x 35.5 RL1C682MVF 060050 50 – – – 8200 3060 0.018 0.036 7.5 18.0 x 40.0 RL1C822MA9F 060051 50 – – –

25 Volt

39 175 0.65 1.30 2(5) 5.0 x 11.5 RL1E390MAB 060057 200 RL1E390MAET 060057T 2000 56 235 0.46 0.92 2.5(5) 6.3 x 11.5 RL1E560MBC 060058 200 RL1E560MBET 060058T 1500 82 290 0.31 0.62 2.5(5) 6.3 x 11.5 RL1E820MBC 060059 200 RL1E820MBET 060059T 1500 120 400 0.20 0.40 3.5(5) 8.0 x 12.0 RL1E121MCD 060060 200 RL1E121MNET 060060T 1000 180 503 0.17 0.34 3.5(5) 8.0 x 12.0 RL1E181MCD 060061 200 RL1E181MCET 060061T 1000 220 575 0.13 0.26 3.5(5) 8.0 x 15.0 RL1E221MQD 060062 200 RL1E221MQET 060062T 1000 220 629 0.12 0.24 5 10.0 x 12.5 RL1E221MDE 060815 100 RL1E221MDET 060815T 600 270 795 0.090 0.18 5 10.0 x 16.0 RL1E271MEE 060063 100 RL1E271MEET 060063T 600 330 751 0.095 0.19 3.5(5) 8.0 x 15.0 RL1E331MQD 060097 200 RL1E331MQET 060097T 1000 330 751 0.095 0.19 3.5(5) 8.0 x 20.0 RL1E331MSD 060064 200 RL1E331MSET 060064T 1000 470 1010 0.065 0.13 5 10.0 x 20.0 RL1E471MFE 060065 100 RL1E471MFET 060065T 600 470 1010 0.065 0.13 5 12.5 x 15.0 RL1E471MWE 060816 100 RL1E471MWET 060816T 400 560 1190 0.055 0.11 5 10.0 x 25.0 RL1E561MYE 060066 100 RL1E561MYET 060066T 600 820 1440 0.045 0.090 5 10.0 x 30.0 RL1E821MUE 060068 100 RL1E821MUET 060068T 600 820 1400 0.042 0.084 5 12.5 x 20.0 RL1E821MGE 060817 100 RL1E821MGET 060817T 400 820 1360 0.046 0.092 7.5 16.0 x 15.0 RL1E821MA1F 060818 100 RL1E821MA1FT 060818T 180 1000 1690 0.036 0.072 5 12.5 x 25.0 RL1E102MHE 060069 100 RL1E102MHET 060069T 400 1200 1500 0.043 0.086 7.5 18.0 x 15.0 RL1E122MA5F 060070 50 – – – 1500 1950 0.030 0.060 5 12.5 x 30.0 RL1E152MXE 060071 100 – – – 1500 1730 0.034 0.068 7.5 16.0 x 20.0 RL1E152MA2F 060819 100 RL1E152MA2FT 060819T 180 1800 2200 0.028 0.056 5 12.5 x 35.0 RL1E182MTE 060072 50 – – – 1800 2070 0.028 0.056 7.5 16.0 x 25.0 RL1E182MPF 060820 100 RL1E182MPFT 060820T 180 1800 1890 0.036 0.072 7.5 18.0 x 20.0 RL1E182MA6F 060821 50 – – – 2200 2390 0.024 0.048 5 12.5 x 40.0 RL1E222MZE 060073 50 – – – 2700 2350 0.025 0.050 7.5 16.0 x 31.5 RL1E272MRF 060074 50 – – – 2700 2180 0.027 0.054 7.5 18.0 x 25.0 RL1E272MA7F 060822 50 – – – 3300 2550 0.022 0.044 7.5 16.0 x 35.5 RL1E332MA3F 060075 50 – – – 3300 2470 0.023 0.046 7.5 18.0 x 31.5 RL1E332MA8F 060823 50 – – – 3900 2900 0.020 0.040 7.5 16.0 x 40.0 RL1E392MA4F 060076 50 – – – 3900 2740 0.019 0.038 7.5 18.0 x 35.5 RL1E392MVF 060824 50 – – – 4700 3070 0.018 0.036 7.5 18.0 x 40.0 RL1E472MA9F 060077 50 – – –

35 Volt

27 175 0.65 1.30 2(5) 5.0 x 11.5 RL1V270MAB 060080 200 RL1V270MAET 060080T 2000 39 235 0.46 0.92 2.5(5) 6.3 x 11.5 RL1V390MBC 060081 200 RL1V390MBET 060081T 1500 56 290 0.30 0.60 2.5(5) 6.3 x 11.5 RL1V560MBC 060082 200 RL1V560MBET 060082T 1500 82 400 0.20 0.40 3.5(5) 8.0 x 12.0 RL1V820MCD 060083 200 RL1V820MCET 060083T 1000 120 506 0.17 0.34 3.5(5) 8.0 x 12.0 RL1V121MCD 060084 200 RL1V121MCET 060084T 1000 150 635 0.12 0.24 5 10.0 x 12.5 RL1V151MDE 060085 100 RL1V151MDET 060085T 600 180 795 0.13 0.26 3.5(5) 8.0 x 15.0 RL1V181MQD 060086 200 RL1V181MQET 060086T 1000 180 795 0.095 0.19 5 10.0 x 16.0 RL1V181MEE 060828 100 RL1V181MEET 060828T 600 220 760 0.095 0.19 3.5(5) 8.0 x 20.0 RL1V221MSD 060133 200 RL1V221MSET 060133T 1000

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

Page 26

LOW ESR, 105°C

RADIAL

NOVER type RL (continued)

LOOSE TAPED & BOXED

Value Ripple Current Impedance (Ω) Dimensions (mm) Nover Pack Qty Nover Box Qty

(F) (mA) 20°C -10°C Pitch Dia. x L Part No. Order Code pcs Part No. Order Code pcs

35 Volt

(continued)

330 1010 0.065 0.13 5 10.0 x 20.0 RL1V331MFE 060088 100 RL1V331MFET 060088T 600 330 1010 0.065 0.13 5 12.5 x 15.0 RL1V331MWE 060829 100 RL1V331MWET 060829T 400 390 1190 0.055 0.11 5 10.0 x 25.0 RL1V391MYE 060089 100 RL1V391MYET 060089T 600 560 1450 0.045 0.090 5 10.0 x 30.0 RL1V561MUE 060090 100 – – – 560 1400 0.042 0.084 5 12.5 x 20.0 RL1V561MGE 060830 100 RL1V561MGET 060830T 400 560 1360 0.046 0.092 7.5 16.0 x 15.0 RL1V561MA1F 060831 100 RL1V561MA1FT 060831T 180 680 1690 0.038 0.076 5 12.5 x 25.0 RL1V681MHE 060091 100 RL1V681MHET 060091T 400 680 1520 0.043 0.086 7.5 18.0 x 15.0 RL1V681MA5F 060832 50 – – – 1000 1950 0.032 0.064 5 12.5 x 30.0 RL1V102MXE 060093 100 – – – 1000 1730 0.034 0.068 7.5 16.0 x 20.0 RL1V102MA2F 060833 100 RL1V102MA2FT 060833T 180 1200 2200 0.028 0.056 5 12.5 x 35.0 RL1V122MTE 060094 50 – – – 1200 2070 0.028 0.056 7.5 16.0 x 25.0 RL1V122MPF 060834 100 RL1V122MPFT 060834T 180 1200 1900 0.036 0.072 7.5 18.0 x 20.0 RL1V122MA6F 060835 50 – – – 1500 2390 0.026 0.052 5 12.5 x 40.0 RL1V152MZE 060095 50 – – – 1800 2350 0.025 0.050 7.5 16.0 x 31.5 RL1V182MRF 060096 50 – – – 1800 2200 0.027 0.054 7.5 18.0 x 25.0 RL1V182MA7F 060836 50 – – – 2200 2550 0.022 0.044 7.5 16.0 x 35.5 RL1V222MA3F 060098 50 – – – 2200 2490 0.023 0.046 7.5 18.0 x 31.5 RL1V222MA8F 060837 50 – – – 2700 2900 0.020 0.040 7.5 16.0 x 40.0 RL1V272MA4F 060099 50 – – – 2700 2770 0.019 0.038 7.5 18.0 x 35.5 RL1V272MVF 060838 50 – – – 3300 3110 0.018 0.036 7.5 18.0 x 40.0 RL1V332MA9F 060100 50 – – –

50 Volt

0.47 22 3.9 7.8 2(5) 5.0 x 11.5 RL1HR47MAB 060105 200 RL1HR47MAET 060105T 2000

1.0 36 3.5 7.0 2(5) 5.0 x 11.5 RL1H010MAB 060106 200 RL1H010MAET 060106T 2000

2.2 54 3.0 6.0 2(5) 5.0 x 11.5 RL1H2R2MAB 060107 200 RL1H2R2MAET 060107T 2000

3.3 63 2.6 5.2 2(5) 5.0 x 11.5 RL1H3R3MAB 060108 200 RL1H3R3MAET 060108T 2000

4.7 75 2.2 4.4 2(5) 5.0 x 11.5 RL1H4R7MAB 060109 200 RL1H4R7MAET 060109T 2000 10 110 1.4 2.8 2(5) 5.0 x 11.5 RL1H100MAB 060110 200 RL1H100MAET 060110T 2000 18 120 0.95 1.9 2(5) 5.0 x 11.5 RL1H180MAB 060111 200 RL1H180MAET 060111T 2000 27 135 0.55 1.1 2.5(5) 6.3 x 11.5 RL1H270MBC 060112 200 RL1H270MBET 060112T 1500 39 148 0.36 0.72 2.5(5) 6.3 x 11.5 RL1H390MBC 060113 200 RL1H390MBET 060113T 1500 56 153 0.28 0.56 2.5(5) 6.3 x 11.5 RL1H560MBC 060114 200 RL1H560MBET 060114T 1500 68 360 0.20 0.40 3.5(5) 8.0 x 12.0 RL1H680MCD 060115 200 RL1H680MCET 060115T 1000 82 460 0.18 0.36 3.5(5) 8.0 x 15.0 RL1H820MQD 060116 200 RL1H820MQET 060116T 1000 82 443 0.18 0.36 5 10.0 x 12.5 RL1H820MDE 060842 100 RL1H820MDET 060842T 600 100 553 0.15 0.30 5 10.0 x 16.0 RL1H101MEE 060117 100 RL1H101MEET 060117T 600 120 670 0.13 0.26 3.5(5) 8.0 x 20.0 RL1H121MSD 060118 200 RL1H121MSET 060118T 1000 180 676 0.085 0.17 5 10.0 x 20.0 RL1H181MFE 060119 100 RL1H181MFET 060119T 600 180 745 0.095 0.19 5 12.5 x 15.0 RL1H181MWE 060843 100 RL1H181MWET 060843T 400 220 876 0.075 0.17 5 10.0 x 20.0 RL1H221MFE 060120 100 RL1H221MFET 060120T 600 330 982 0.065 0.13 7.5 16.0 x 15.0 RL1H331MA1F 060121 100 RL1H331MA1FT 060121T 600 330 1010 0.055 0.11 5 10.0 x 30.0 RL1H331MUE 060844 100 – – – 330 979 0.060 0.12 5 12.5 x 20.0 RL1H331MGE 060845 100 RL1H331MGET 060845T 400 470 1180 0.044 0.088 5 12.5 x 25.0 RL1H471MHE 060122 100 RL1H471MHET 060122T 400 470 1080 0.048 0.096 7.5 18.0 x 15.0 RL1H471MA5F 060846 50 – – – 560 1310 0.040 0.080 5 12.5 x 30.0 RL1H561MXE 060123 100 – – – 680 1470 0.036 0.072 5 12.5 x 35.0 RL1H681MTE 060124 50 – – – 680 1210 0.045 0.090 7.5 16.0 x 20.0 RL1H681MA2F 060847 100 RL1H681MA2FT 060847T 180 820 1590 0.034 0.068 5 12.5 x 40.0 RL1H821MZE 060125 50 – – – 820 1490 0.038 0.076 7.5 16.0 x 25.0 RL1H821MPF 060848 100 RL1H821MPFT 060848T 180 820 1450 0.036 0.064 7.5 18.0 x 20.0 RL1H821MA6F 060849 50 – – – 1000 1890 0.032 0.064 7.5 16.0 x 31.5 RL1H102MRF 060126 50 RL1H102MRFT 060126T 180 1000 1720 0.032 0.064 7.5 18.0 x 25.0 RL1H102MA7F 060850 50 – – – 1200 2140 0.028 0.056 7.5 16.0 x 35.5 RL1H122MA3F 060127 50 – – – 1500 2410 0.026 0.052 7.5 16.0 x 40.0 RL1H152MA4F 060128 50 – – – 1500 1970 0.026 0.052 7.5 18.0 x 31.5 RL1H152MA8F 060851 50 – – – 1800 2310 0.025 0.050 7.5 18.0 x 31.5 RL1H182MA8F 060129 50 – – – 2200 2530 0.024 0.048 7.5 18.0 x 40.0 RL1H222MA9F 060130 50 – – –

63 Volt

12 120 1.20 3.6 2(5) 5.0 x 11.5 RL1J120MAB 060146 200 RL1J120MAET 060146T 2000 18 135 0.85 2.6 2(5) 5.0 x 11.5 RL1J180MAB 060147 200 RL1J180MAET 060147T 2000 27 148 0.55 1.7 2.5(5) 6.3 x 11.5 RL1J270MBC 060148 200 RL1J270MBET 060148T 1500 39 153 0.38 1.1 3.5(5) 8.0 x 12.0 RL1J390MCD 060149 200 RL1J390MCET 060149T 1000 47 360 0.32 0.96 3.5(5) 8.0 x 12.0 RL1J470MCD 060150 200 RL1J470MCET 060150T 1000 56 448 0.23 0.69 5 10.0 x 12.5 RL1J560MDE 060151 100 RL1J560MDET 060151T 600 68 469 0.24 0.72 3.5(5) 8.0 x 12.0 RL1J680MCD 060152 200 RL1J680MCET 060152T 1000 68 553 0.17 0.51 5 10.0 x 16.0 RL1J680MEE 060860 100 RL1J680MEET 060860T 600 82 682 0.17 0.51 3.5(5) 8.0 x 20.0 RL1J820MSD 060153 200 RL1J820MSET 060153T 1000 120 676 0.12 0.36 5 10.0 x 20.0 RL1J121MFE 060154 100 RL1J121MFET 060154T 600 150 745 0.11 0.33 5 12.5 x 15.0 RL1J151MWE 060155 100 RL1J151MWET 060155T 400 150 876 0.10 0.30 5 10.0 x 25.0 RL1J151MYE 060861 100 RL1J151MYET 060861T 600

RL continued overleaf > > > >

(5) Leads pre-formed to 5mm pitch on taped part

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

Page 27

LOW ESR, 105°C

RADIAL

NOVER type RL (continued)

LOOSE TAPED & BOXED

Value Ripple Current Impedance (Ω) Dimensions (mm) Nover Pack Qty Nover Box Qty

(F) (mA) 20°C -10°C Pitch Dia. x L Part No. Order Code pcs Part No. Order Code pcs

63 Volt

(continued)

180 1020 0.085 0.26 5 10.0 x 30.0 RL1J181MUE 060156 100 – – – 220 979 0.075 0.23 5 12.5 x 20.0 RL1J221MGE 060157 100 RL1J221MGET 060157T 400 220 982 0.080 0.24 7.5 16.0 x 15.0 RL1J221MA1F 060862 100 RL1J221MA1FT 060862T 180 270 1180 0.065 0.20 5 12.5 x 20.0 RL1J271MGE 060158 100 RL1J271MGET 060158T 400 330 1200 0.065 0.20 7.5 18.0 x 15.0 RL1J331MA5F 060159 50 – – – 390 1310 0.055 0.17 5 12.5 x 30.0 RL1J391MXE 060160 100 – – – 390 1210 0.057 0.17 7.5 16.0 x 20.0 RL1J391MA2F 060863 100 RL1J391MA2FT 060863T 180 470 1470 0.048 0.14 5 12.5 x 35.0 RL1J471MTE 060142 50 – – – 470 1460 0.058 0.17 7.5 18.0 x 20.0 RL1J471MA6F 060161 50 – – – 470 1490 0.052 0.16 7.5 16.0 x 25.0 RL1J471MPF 060864 100 RL1J471MPFT 060864T 180 560 1590 0.042 0.13 5 12.5 x 40.0 RL1J561MZE 060162 50 – – – 680 1890 0.042 0.13 7.5 16.0 x 31.5 RL1J681MRF 060163 50 – – – 680 1740 0.050 0.15 7.5 18.0 x 25.0 RL1J681MA7F 060865 50 – – – 820 2140 0.036 0.11 7.5 16.0 x 35.5 RL1J821MA3F 060164 50 – – – 820 1990 0.042 0.13 7.5 18.0 x 31.5 RL1J821MA8F 060866 50 – – – 1000 2410 0.032 0.096 7.5 16.0 x 40.0 RL1J102MA4F 060165 50 – – – 1000 2340 0.035 0.110 7.5 18.0 x 31.5 RL1J102MA8F 060867 50 – – – 1200 2560 0.032 0.096 7.5 18.0 x 40.0 RL1J122MA9F 060166 50 – – –

100 Volt

5.6 57 1.9 7.6 2(5) 5.0 x 11.5 RL2A5R6MAB 060171 200 RL2A5R6MAET 060171T 2000

8.2 74 1.3 5.2 2.5(5) 6.3 x 11.5 RL2A8R2MBC 060172 200 RL2A8R2MBET 060172T 1500 12 78 1.1 4.4 2.5(5) 6.3 x 11.5 RL2A120MBC 060173 200 RL2A120MBET 060173T 1500 18 85 0.62 2.5 3.5(5) 8.0 x 12.0 RL2A180MCD 060174 200 RL2A180MCET 060174T 1000 22 275 0.53 2.1 3.5(5) 8.0 x 12.0 RL2A220MCD 060175 200 RL2A220MCET 060175T 1000 27 319 0.47 1.9 5 10.0 x 12.5 RL2A270MDE 060176 100 RL2A270MDET 060176T 600 33 360 0.35 1.4 3.5(5) 8.0 x 15.0 RL2A330MQD 060177 200 RL2A330MQET 060177T 1000 33 424 0.32 1.3 5 10.0 x 16.0 RL2A330MEE 060871 100 RL2A330MEET 060871T 600 39 490 0.27 1.1 3.5(5) 8.0 x 20.0 RL2A390MSD 060178 200 RL2A390MSET 060178T 1000 56 499 0.25 1.0 5 10.0 x 20.0 RL2A560MFE 060277 100 RL2A560MFET 060277T 600 68 634 0.18 0.72 5 10.0 x 25.0 RL2A680MYE 060278 100 RL2A680MYET 060278T 600 68 613 0.20 0.80 5 12.5 x 15.0 RL2A680MWE 060872 100 RL2A680MWET 060872T 400 100 739 0.15 0.60 5 10.0 x 30.0 RL2A101MUE 060179 100 – – – 100 805 0.13 0.52 5 12.5 x 20.0 RL2A101MGE 060873 100 RL2A101MGET 060873T 400 120 857 0.11 0.44 5 12.5 x 25.0 RL2A121MHE 060180 100 RL2A121MHET 060180T 400 120 706 0.13 0.52 7.5 16.0 x 15.0 RL2A121MA1F 060874 100 RL2A121MA1FT 060874T 180 150 871 0.12 0.48 7.5 18.0 x 15.0 RL2A151MA5F 060181 50 – – – 180 1120 0.090 0.36 5 12.5 x 30.0 RL2A181MXE 060182 100 – – – 180 916 0.110 0.44 7.5 16.0 x 20.0 RL2A181MA2F 060875 100 RL2A181MA2FT 060875T 180 220 1240 0.075 0.30 5 12.5 x 35.0 RL2A221MTE 060183 50 – – – 220 1290 0.081 0.32 7.5 16.0 x 25.0 RL2A221MPF 060876 100 RL2A221MPFT 060876T 180 270 1330 0.060 0.24 5 12.5 x 40.0 RL2A271MZE 060184 50 – – – 270 1170 0.085 0.34 7.5 18.0 x 20.0 RL2A271MA6F 060877 50 – – – 330 1630 0.059 0.23 7.5 16.0 x 31.5 RL2A331MRF 060185 50 – – – 330 1500 0.071 0.28 7.5 18.0 x 25.0 RL2A331MA7F 060878 50 – – – 390 1750 0.052 0.21 7.5 16.0 x 35.5 RL2A391MA3F 060186 50 – – – 390 1630 0.058 0.23 7.5 18.0 x 31.5 RL2A391MA8F 060879 50 – – – 470 1920 0.045 0.18 7.5 16.0 x 40.0 RL2A471MA4F 060187 50 – – – 560 1920 0.054 0.22 7.5 18.0 x 35.5 RL2A561MVF 060880 50 – – – 680 2100 0.041 0.16 7.5 18.0 x 40.0 RL2A681MA9F 060188 50 – – –

(5) Leads pre-formed to 5mm pitch on taped part

ORDERING INFORMATION

Example : 270µF 16V

Nover

Basic Anglia Code Letter

Cropped 060034 C

Twisted & formed 060034 W

PART NUMBER KEY

Refer to page 4

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

NO ER

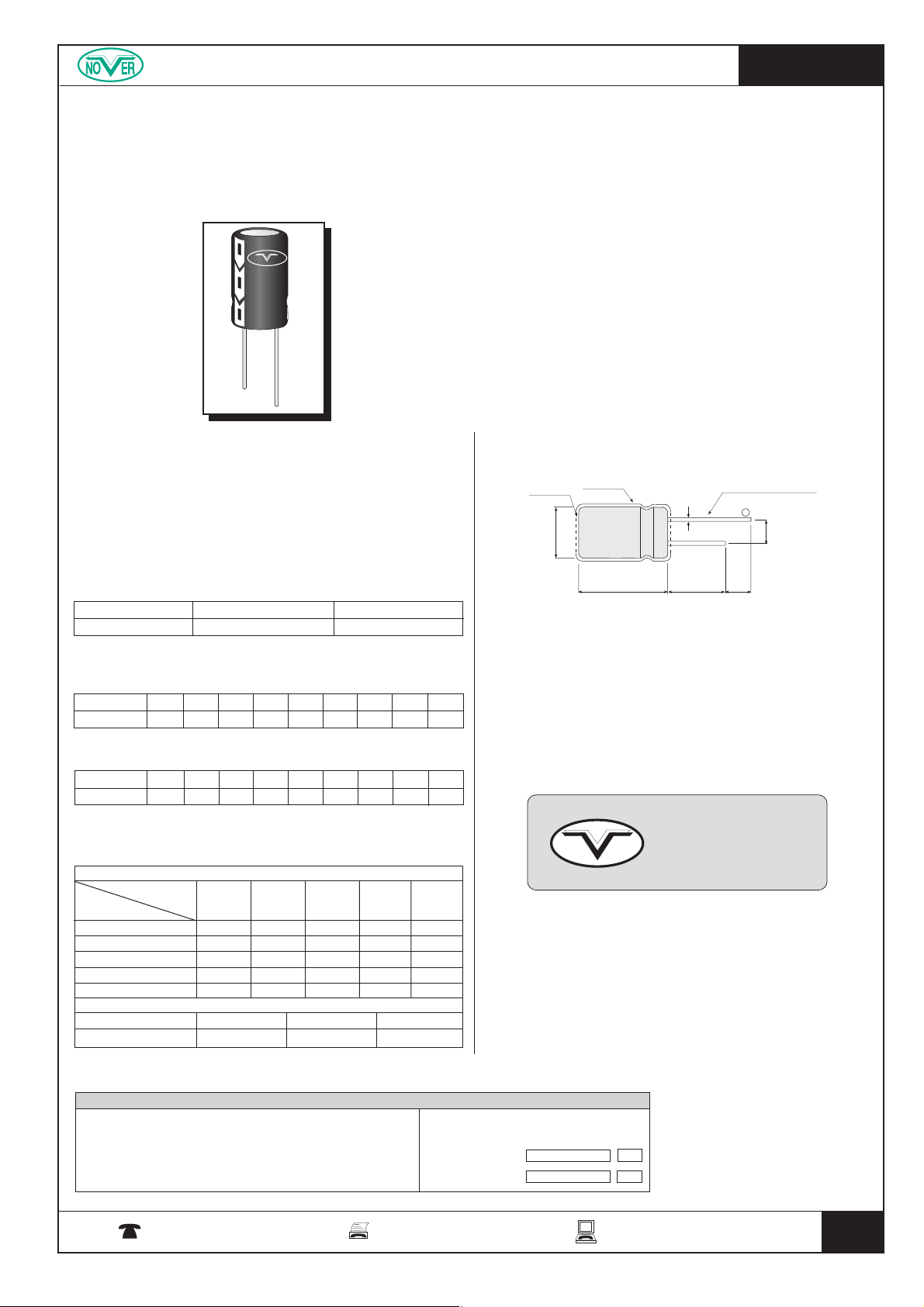

Page 28

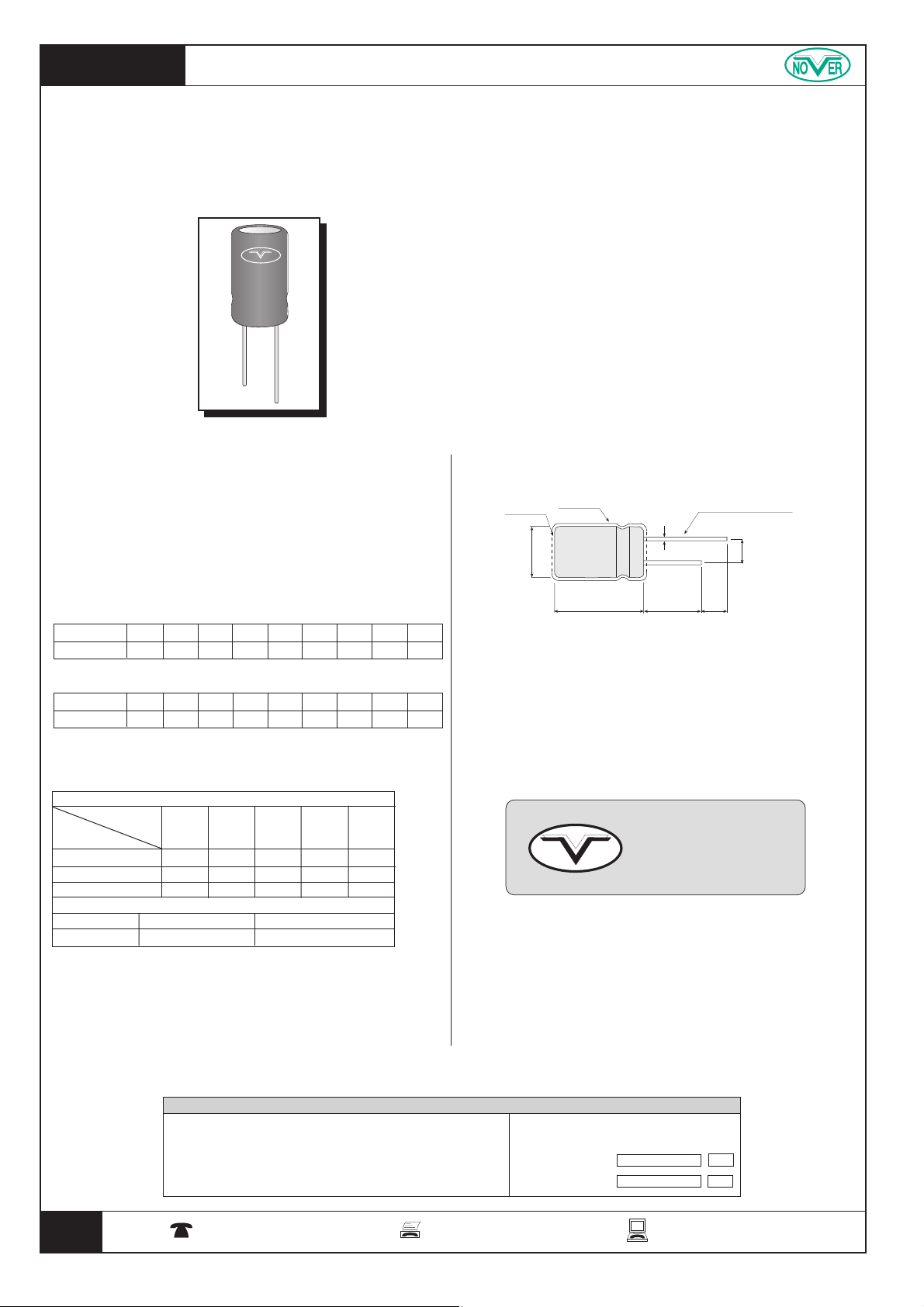

LOW ESR, Long life, 105°C

RADIAL

Conforms to JIS C5141-1982 Char.W

Capacitance tolerance ............................... ±20% at 120Hz, 20°C

Ripple current (as listed) ........................... measured at 100kHz, 105°C

(see also Multiplier table below)

Impedance (as listed)................................. measured at 100kHz, 20°C

Operating temperature range .................... -55°C to +105°C

Leakage current ........................................ ≤0.01CV or 0.3A

(whichever is greater) after 2 min.

NOVER type RX

A specialised range of radial aluminium electrolytic capacitors derived from the high speciﬁcation RL series. The RX offers a superb combination of low impedance, high temperature and an extended life expectancy, making it especially suitable for applications where long term component reliability and integrity are of paramount importance. The entire range of available values and voltages in loose or taped formats, are shown on the following pages. For lead forming, cropping and taping options refer to page 5.

● High endurance Up to 6000 hours

● Low impedance

● High ripple current

● Maximum temperature 105°C

● Capacitance tolerance 20%

● Body colour Black

● Supplied loose or taped

Dimensions (mm)

Speciﬁcation

Rated voltage 6.3V 10V 16V 25V 35V 50V 63V 100V d.c.

Tan  (max) * 0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.08

Dissipation factor (120Hz, 20°C)

* Add 0.02 for every 100µF above 1000µF

Diameter ≤ 8mm ≥ 10mm

Endurance 3000 hours 6000 hours

Endurance at 105°C

Rated voltage 6.3V 10V 16V 25V 35V 50V 63V 100V d.c.

Surge voltage 8V 13V 20V 32V 44V 63V 79V 125V d.c.

Surge voltage capability

Multiplier for ripple current



LEAD FORMING



CROPPING



TAPING



Refer to page 5

NO ER

ORDERING INFORMATION

Example : 100µF 16V

Nover

Basic Anglia Code Letter

Cropped 061085 C

Twisted & formed 061085 W

Frequency coefﬁcient

Freq(Hz)

50/60 120 1K 10K ≤100K

Cap (µF)

0.47 ~ 4.7 0.35 0.42 0.60 0.80 1.0

10 ~ 33 0.45 0.55 0.75 0.90 1.0

47 ~ 330 0.60 0.70 0.85 0.95 1.0

470 ~ 1000 0.65 0.75 0.90 0.98 1.0

2200 ~ 10000 0.75 0.80 0.95 1.0 1.0

Temperature coefﬁcient

Temperature (°C) +70 +85 +105

Coefﬁcient 1.96 1.68 1.0

15 min.

Dia

Vinyl sleeve

Tinned copper-clad steel wire

ød

Pitch

5 min.

Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L (2.0 L≥20)

Vent (Dia ≥ 6.3)

ød = 0.5 (Dia ≤6.3)

d = 0.6 (Dia 8–12.5) d = 0.8 (Dia ≥16)

RX continued overleaf > > > >

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

NO ER

Page 29

LOW ESR, Long life, 105°C

RADIAL

NOVER type RX

LOOSE TAPED & BOXED

Value Ripple Current Impedance Dimensions (mm) Nover Pack Qty Nover Box Qty

(F) (mA) (Ω) Pitch Dia. x L Part No. Order Code pcs Part No. Order Code pcs

6.3 Volt

100 147 0.9 2(5) 5.0 x 11.0 RX0J101MAB 061001 200 RX0J101MAET 061001T 2000 220 244 0.4 2.5(5) 6.3 x 11.0 RX0J221MBC 061002 200 RX0J221MBET 061002T 1500 330 244 0.4 2.5(5) 6.3 x 11.0 RX0J331MBC 061003 200 RX0J331MBET 061003T 1500 470 391 0.250 3.5(5) 8.0 x 11.5 RX0J471MCD 061004 200 RX0J471MCET 061004T 1000 1000 576 0.160 5 10.0 x 12.5 RX0J102MDE 061005 100 RX0J102MDET 061005T 600 2200 1296 0.052 5 12.5 x 20.0 RX0J222MGE 061006 100 RX0J222MGET 061006T 400 3300 1296 0.052 5 12.5 x 20.0 RX0J332MGE 061007 100 RX0J332MGET 061007T 400 4700 1839 0.034 7.5 16.0 x 25.0 RX0J472MPF 061008 100 RX0J472MPFT 061008T 180 6800 1839 0.034 7.5 16.0 x 25.0 RX0J682MPF 061009 100 RX0J682MPFT 061009T 180 10000 1994 0.029 7.5 16.0 x 31.5 RX0J103MRF 061010 50 – – –

10 Volt

100 147 0.9 2(5) 5.0 x 11.0 RX1A101MAB 061011 200 RX1A101MAET 061011T 2000 220 244 0.4 2.5(5) 6.3 x 11.0 RX1A221MBC 061012 200 RX1A221MBET 061012T 1500 330 391 0.25 3.5(5) 8.0 x 11.5 RX1A331MCD 061013 200 RX1A331MCET 061013T 1000 470 391 0.25 3.5(5) 8.0 x 11.5 RX1A471MCD 061014 200 RX1A471MCET 061014T 1000 1000 762 0.12 5 10.0 x 16.0 RX1A102MEE 061015 100 RX1A102MEET 061015T 600 2200 1296 0.062 5 12.5 x 20.0 RX1A222MGE 061016 100 RX1A222MGET 061016T 400 3300 1646 0.048 5 12.5 x 25.0 RX1A332MHE 061017 100 RX1A332MHET 061017T 400 4700 1839 0.034 7.5 16.0 x 25.0 RX1A472MPF 061018 100 RX1A472MPFT 061018T 180 6800 1994 0.029 7.5 16.0 x 31.5 RX1A682MRF 061019 50 – – – 10000 2193 0.025 7.5 18.0 x 35.5 RX1A103MVF 061020 50 – – –

16 Volt

47 147 0.9 2(5) 5.0 x 11.0 RX1C470MAB 061084 200 RX1C470MAET 061084T 2000 100 244 0.4 2.5(5) 6.3 x 11.0 RX1C101MBC 061085 200 RX1C101MBET 061085T 1500 220 391 0.25 3.5(5) 8.0 x 11.5 RX1C221MCD 061086 200 RX1C221MCET 061086T 1000 330 391 0.25 3.5(5) 8.0 x 11.5 RX1C331MCD 061087 200 RX1C331MCET 061087T 1000 470 576 0.16 5 10.0 x 12.5 RX1C471MDE 061088 100 RX1C471MDET 061088T 600 1000 1009 0.078 5 10.0 x 20.0 RX1C102MFE 061089 100 RX1C102MFET 061089T 600 2200 1646 0.048 5 12.5 x 25.0 RX1C222MHE 061090 100 RX1C222MHET 061090T 400 3300 1839 0.034 7.5 16.0 x 25.0 RX1C332MPF 061091 100 RX1C332MPFT 061091T 180 4700 1994 0.029 7.5 16.0 x 31.5 RX1C472MRF 061092 50 – – – 6800 2193 0.025 7.5 18.0 x 35.5 RX1C682MVF 061093 50 – – –

25 Volt

33 147 0.9 2(5) 5.0 x 11.0 RX1E330MAB 061028 200 RX1E330MAET 061028T 2000 47 147 0.9 2(5) 5.0 x 11.0 RX1E470MAB 061029 200 RX1E470MAET 061029T 2000 100 244 0.4 2.5(5) 6.3 x 11.0 RX1E101MBC 061030 200 RX1E101MBET 061030T 1500 220 391 0.25 3.5(5) 8.0 x 11.5 RX1E221MCD 061031 200 RX1E221MCET 061031T 1000 330 576 0.16 5 10.0 x 12.5 RX1E331MDE 061032 100 RX1E331MDET 061032T 600 470 762 0.12 5 10.0 x 16.0 RX1E471MEE 061033 100 RX1E471MEET 061033T 600 1000 1296 0.062 5 12.5 x 20.0 RX1E102MGE 061034 100 RX1E102MGET 061034T 400 2200 1893 0.034 7.5 16.0 x 25.0 RX1E222MPF 061035 100 RX1E222MPFT 061035T 180 3300 1994 0.029 7.5 16.0 x 31.5 RX1E332MRF 061036 50 – – – 4700 2193 0.025 7.5 18.0 x 35.5 RX1E472MVF 061037 50 – – –

35 Volt

33 147 0.90 2(5) 5.0 x 11.0 RX1V330MAB 061039 200 RX1V330MAET 061039T 2000 47 244 0.40 2.5(5) 6.3 x 11.0 RX1V470MBC 061040 200 RX1V470MBET 061040T 1500 100 391 0.25 3.5(5) 8.0 x 11.5 RX1V101MCD 061041 200 RX1V101MCET 061041T 1000 220 576 0.16 5 10.0 x 12.5 RX1V221MDE 061042 100 RX1V221MDET 061042T 600 330 762 0.12 5 10.0 x 16.0 RX1V331MEE 061043 100 RX1V331MEET 061043T 600 470 1009 0.078 5 10.0 x 20.0 RX1V471MFE 061044 100 RX1V471MFET 061044T 600 1000 1646 0.048 5 12.5 x 25.0 RX1V102MHE 061045 100 RX1V102MHET 061045T 400 2200 1994 0.029 7.5 16.0 x 31.5 RX1V222MRF 061046 50 – – – 3300 2193 0.025 7.5 18.0 x 35.5 RX1V332MVF 061047 50 – – –

50 Volt

0.47 17 5.50 2(5) 5.0 x 11.0 RX1HR47MAB 061048 200 RX1HR47MAET 061048T 2000

1.0 29 4.00 2(5) 5.0 x 11.0 RX1H010MAB 061049 200 RX1H010MAET 061049T 2000

2.2 43 2.50 2(5) 5.0 x 11.0 RX1H2R2MAB 061050 200 RX1H2R2MAET 061050T 2000

3.3 53 2.20 2(5) 5.0 x 11.0 RX1H3R3MAB 061051 200 RX1H3R3MAET 061051T 2000

4.7 88 1.90 2(5) 5.0 x 11.0 RX1H4R7MAB 061052 200 RX1H4R7MAET 061052T 2000 10 100 1.50 2(5) 5.0 x 11.0 RX1H100MAB 061053 200 RX1H100MAET 061053T 2000 22 147 0.90 2(5) 5.0 x 11.0 RX1H220MAB 061054 200 RX1H220MAET 061054T 2000 33 244 0.40 2.5(5) 6.3 x 11.0 RX1H330MBC 061055 200 RX1H330MBET 061055T 1500 47 244 0.40 2.5(5) 6.3 x 11.0 RX1H470MBC 061056 200 RX1H470MBET 061056T 1500 100 391 0.25 3.5(5) 8.0 x 11.5 RX1H101MCD 061057 200 RX1H101MCET 061057T 1000 220 762 0.12 5 10.0 x 16.0 RX1H221MEE 061058 100 RX1H221MEET 061058T 600 330 1009 0.078 5 10.0 x 20.0 RX1H331MFE 061059 100 RX1H331MFET 061059T 600 470 1295 0.062 5 12.5 x 20.0 RX1H471MGE 061060 100 RX1H471MGET 061060T 400 1000 1839 0.034 7.5 16.0 x 25.0 RX1H102MPF 061061 100 RX1H102MPFT 061061T 180 2200 2193 0.025 7.5 18.0 x 35.5 RX1H222MVF 061062 50 – – –

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

Page 30

LOW ESR, Long life, 105°C

RADIAL

NOVER type RX (continued)

LOOSE TAPED & BOXED

Value Ripple Current Impedance Dimensions (mm) Nover Pack Qty Nover Box Qty

(F) (mA) (Ω) Pitch Dia. x L Part No. Order Code pcs Part No. Order Code pcs

63 Volt

10 87 2.30 2(5) 5.0 x 11.0 RX1J100MAB 061063 200 RX1J100MAET 061063T 2000 22 138 1.30 2.5(5) 6.3 x 11.0 RX1J220MBC 061064 200 RX1J220MBET 061064T 1500 33 138 1.20 2.5(5) 6.3 x 11.0 RX1J330MBC 061065 200 RX1J330MBET 061065T 1500 47 210 0.63 3.5(5) 8.0 x 11.5 RX1J470MCD 061066 200 RX1J470MCET 061066T 1000 100 300 0.43 5 10.0 x 12.5 RX1J101MDE 061067 100 RX1J101MDET 061067T 600 220 520 0.21 5 10.0 x 20.0 RX1J221MFE 061068 100 RX1J221MFET 061068T 600 330 660 0.16 5 12.5 x 20.0 RX1J331MGE 061069 100 RX1J331MGET 061069T 400 470 750 0.12 5 12.5 x 25.0 RX1J471MHE 061070 100 RX1J471MHET 061070T 400 1000 1390 0.054 7.5 16.0 x 31.5 RX1J102MRF 061071 50 – – –

100 Volt

0.47 15 6.0 2(5) 5.0 x 11.0 RX2AR47MAB 061072 200 RX2AR47MAET 061072T 2000

1.0 20 4.5 2(5) 5.0 x 11.0 RX2A010MAB 061073 200 RX2A010MAET 061073T 2000

2.2 30 3.0 2(5) 5.0 x 11.0 RX2A2R2MAB 061074 200 RX2A2R2MAET 061074T 2000

3.3 40 2.7 2(5) 5.0 x 11.0 RX2A3R3MAB 061075 200 RX2A3R3MAET 061075T 2000

4.7 65 2.5 2(5) 5.0 x 11.0 RX2A4R7MAB 061076 200 RX2A4R7MAET 061076T 2000 10 138 1.2 2.5(5) 6.3 x 11.0 RX2A100MBC 061077 200 RX2A100MBET 061077T 1500 22 160 0.63 3.5(5) 8.0 x 11.5 RX2A220MCD 061078 200 RX2A220MCET 061078T 1000 33 230 0.43 5 10.0 x 12.5 RX2A330MDE 061079 100 RX2A330MDET 061079T 600 47 290 0.31 5 10.0 x 16.0 RX2A470MEE 061080 100 RX2A470MEET 061080T 600 100 430 0.16 5 12.5 x 20.0 RX2A101MGE 061081 100 RX2A101MGET 061081T 400 220 900 0.073 7.5 16.0 x 25.0 RX2A221MPF 061082 100 RX2A221MPFT 061082T 180 330 900 0.073 7.5 16.0 x 25.0 RX2A331MPF 061083 100 RX2A331MPFT 061083T 180

ORDERING INFORMATION

Example : 100µF 16V

Nover

Basic Anglia Code Letter

Cropped 061085 C

Twisted & formed 061085 W

PART NUMBER KEY

Refer to page 4

(5) Leads pre-formed to 5mm pitch on taped part

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

NO ER

Page 31

NOVER type RB

A range of bi-polar (non-polarised) radial aluminium electrolytic capacitors suitable for applications where reverse voltage may be applied. Typical applications may be in the automotive, motor control or audio industries. The entire range of available values and voltages in loose or taped formats, are shown on the following pages. For lead forming, cropping and taping options refer to page 5.

● Bi-polar (non-polarised)

● Endurance 2000 hours at 85°C

● Solvent resistant

● Capacitance tolerance 20%

● Body colour Red

● Supplied loose or taped

Speciﬁcation

Dimensions (mm)

Conforms to EIAJ RC-3803

Endurance test ........................................... 2000 hours at 85°C

Capacitance tolerance ............................... ±20% at 120Hz, 20°C

Ripple current (as listed) ........................... measured at 120Hz, 85°C

(see also Multiplier table below)

Operating temperature range .................... -40°C to +85°C

Leakage current ........................................ ≤0.03CV + 3A after 5 min.

BI-POLAR

RADIAL

ORDERING INFORMATION

Example : 10µF 50V

Nover

Basic Anglia Code Letter

Cropped 050054 C

Twisted & formed 050054 W

Rated voltage 6.3V 10V 16V 25V 35V 50V 63V 100V d.c.

Tan  (max)* 0.24 0.24 0.20 0.20 0.16 0.14 0.12 0.10

Rated voltage 6.3V 10V 16V 25V 35V 50V 63V 100V d.c.

Surge voltage 8V 13V 20V 32V 44V 63V 79V 125V d.c.

Dissipation factor (120Hz, 20°C)

* Add 0.02 for every 1000µF above 1000µF

Multiplier for ripple current

Surge voltage capability



LEAD FORMING



CROPPING



TAPING



Refer to page 5

Frequency coefﬁcient

Freq(Hz)

50/60 120 1K 10K 100K

Rated Voltage (V)

6.3 ~ 16 0.8 1.0 1.1 1.2 1.2

25 ~ 35 0.8 1.0 1.5 1.7 1.7

50 ~ 100 0.8 1.0 1.6 1.9 1.9

Temperature coefﬁcient

Temperature (°C) +70 +85

Factor 1.35 1.0

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

NO ER

Vent (Dia ≥ 6.3)

Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L (2.0 L≥20)

Vinyl sleeve

Dia

Tinned copper-clad steel wire

ød

15 min.

5 min.

Pitch

ød = 0.5 (Dia ≤6.3)

0.6 (Dia 8–12.5)

0.8 (Dia ≥16)

NO ER

Page 32

BI-POLAR

RADIAL

NOVER type RB

LOOSE TAPED & BOXED

Value Ripple Current Dimensions (mm) Nover Pack Qty Nover Box Qty

(F) (mA) Pitch Dia. x L Part No. Order Code pcs Part No. Order Code pcs

6.3 Volt

33 58 2(5) 5.0 x 11.0 RB0J330MAB 050303 200 RB0J330MAET 050303T 2000 47 69 2(5) 5.0 x 11.0 RB0J470MAB 050304 200 RB0J470MAET 050304T 2000 100 115 2.5(5) 6.3 x 11.0 RB0J101MBC 050305 200 RB0J101MBET 050305T 1500 220 202 3.5(5) 8.0 x 11.5 RB0J221MCD 050306 200 RB0J221MCET 050306T 1000 330 247 3.5(5) 8.0 x 11.5 RB0J331MCD 050307 200 RB0J331MCET 050307T 1000 470 350 5 10.0 x 12.5 RB0J471MDE 050308 100 RB0J471MDET 050308T 600 1000 611 5 10.0 x 16.0 RB0J102MEE 050301 100 RB0J102MEET 050301T 600 2200 1090 5 12.5 x 25.0 RB0J222MHE 050310 100 RB0J222MHET 050310T 400 3300 1490 7.5 16.0 x 25.0 RB0J332MPF 050311 100 RB0J332MPFT 050311T 180 4700 1880 7.5 16.0 x 31.5 RB0J472MRF 050312 50 – – –

10 Volt

22 52 2(5) 5.0 x 11.0 RB1A220MAB 050001 200 RB1A220MAET 050001T 2000 33 63 2(5) 5.0 x 11.0 RB1A330MAB 050002 200 RB1A330MAET 050002T 2000 47 75 2(5) 5.0 x 11.0 RB1A470MAB 050003 200 RB1A470MAET 050003T 2000 100 126 2.5(5) 6.3 x 11.0 RB1A101MBC 050004 200 RB1A101MBET 050004T 1500 220 221 3.5(5) 8.0 x 11.5 RB1A221MCD 050005 200 RB1A221MCET 050005T 1000 330 322 5 10.0 x 12.5 RB1A331MDE 050006 100 RB1A331MDET 050006T 600 470 420 5 10.0 x 16.0 RB1A471MEE 050007 100 RB1A471MEET 050007T 600 1000 767 5 12.5 x 20.0 RB1A102MGE 050008 100 RB1A102MGET 050008T 400 2200 1380 7.5 16.0 x 25.0 RB1A222MPF 050009 100 RB1A222MPFT 050009T 180 3300 1760 7.5 16.0 x 31.5 RB1A332MRF 050010 50 – – – 4700 2280 7.5 18.0 x 35.5 RB1A472MVF 050011 50 – – –

16 Volt

10 39 2(5) 5.0 x 11.0 RB1C100MAB 050013 200 RB1C100MAET 050013T 2000 22 58 2(5) 5.0 x 11.0 RB1C220MAB 050014 200 RB1C220MAET 050014T 2000 33 71 2(5) 5.0 x 11.0 RB1C330MAB 050015 200 RB1C330MAET 050015T 2000 47 97 2.5(5) 6.3 x 11.0 RB1C470MBC 050016 200 RB1C470MBET 050016T 1500 100 167 3.5(5) 8.0 x 11.5 RB1C101MCD 050017 200 RB1C101MCET 050017T 1000 220 294 5 10.0 x 12.5 RB1C221MDE 050018 100 RB1C221MDET 050018T 600 330 394 5 10.0 x 16.0 RB1C331MEE 050019 100 RB1C331MEET 050019T 600 470 513 5 10.0 x 20.0 RB1C471MFE 050020 100 RB1C471MFET 050020T 600 1000 935 5 12.5 x 25.0 RB1C102MHE 050021 100 RB1C102MHET 050021T 400 2200 1660 7.5 16.0 x 31.5 RB1C222MRF 050022 50 – – –

25 Volt

4.7 28 2(5) 5.0 x 11.0 RB1E4R7MAB 050024 200 RB1E4R7MAET 050024T 2000 10 40 2(5) 5.0 x 11.0 RB1E100MAB 050025 200 RB1E100MAET 050025T 2000 22 60 2(5) 5.0 x 11.0 RB1E220MAB 050026 200 RB1E220MAET 050026T 2000 33 84 2.5(5) 6.3 x 11.0 RB1E330MBC 050027 200 RB1E330MBET 050027T 1500 47 100 2.5(5) 6.3 x 11.0 RB1E470MBC 050028 200 RB1E470MBET 050028T 1500 100 204 5 10.0 x 12.5 RB1E101MDE 050029 100 RB1E101MDET 050029T 600 220 332 5 10.0 x 16.0 RB1E221MEE 050030 100 RB1E221MEET 050030T 600 330 444 5 10.0 x 20.0 RB1E331MFE 050031 100 RB1E331MFET 050031T 600 470 607 5 12.5 x 20.0 RB1E471MGE 050032 100 RB1E471MGET 050032T 400 1000 1120 7.5 16.0 x 25.0 RB1E102MPF 050033 100 RB1E102MPFT 050033T 180

35 Volt

4.7 28 2(5) 5.0 x 11.0 RB1V4R7MAB 050035 200 RB1V4R7MAET 050035T 2000 10 42 2(5) 5.0 x 11.0 RB1V100MAB 050036 200 RB1V100MAET 050036T 2000 22 71 2.5(5) 6.3 x 11.0 RB1V220MBC 050037 200 RB1V220MBET 050037T 1500 33 87 2.5(5) 6.3 x 11.0 RB1V330MBC 050038 200 RB1V330MBET 050038T 1500 47 122 3.5(5) 8.0 x 11.5 RB1V470MCD 050039 200 RB1V470MDET 050039T 1000 100 212 5 10.0 x 12.5 RB1V101MDE 050040 100 RB1V101MDET 050040T 600 220 375 5 10.0 x 20.0 RB1V221MFE 050041 100 RB1V221MFET 050041T 600 330 526 5 12.5 x 20.0 RB1V331MGE 050042 100 RB1V331MGET 050042T 400 470 685 5 12.5 x 25.0 RB1V471MHE 050043 100 RB1V471MHET 050043T 400 1000 1270 7.5 16.0 x 31.5 RB1V102MRF 050044 50 – – –

RB continued overleaf > > > >

`(5) Leads pre-formed to 5mm pitch on taped part

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

Page 33

NOVER type RB (continued)

LOOSE TAPED & BOXED

Value Ripple Current Dimensions (mm) Nover Pack Qty Nover Box Qty

(F) (mA) Pitch Dia. x L Part No. Order Code pcs Part No. Order Code pcs

50 Volt

0.1 4 2(5) 5.0 x 11.0 RB1HR10MAB 050046 200 RB1HR10MAET 050046T 2000

0.22 7 2(5) 5.0 x 11.0 RB1HR22MAB 050047 200 RB1HR22MAET 050047T 2000

0.33 8 2(5) 5.0 x 11.0 RB1HR33MAB 050048 200 RB1HR33MAET 050048T 2000

0.47 10 2(5) 5.0 x 11.0 RB1HR47MAB 050049 200 RB1HR47MAET 050049T 2000

1.0 14 2(5) 5.0 x 11.0 RB1H010MAB 050050 200 RB1H010MAET 050050T 2000

2.2 21 2(5) 5.0 x 11.0 RB1H2R2MAB 050051 200 RB1H2R2MAET 050051T 2000

3.3 26 2(5) 5.0 x 11.0 RB1H3R3MAB 050052 200 RB1H3R3MAET 050052T 2000

4.7 31 2(5) 5.0 x 11.0 RB1H4R7MAB 050053 200 RB1H4R7MAET 050053T 2000 10 45 2(5) 5.0 x 11.0 RB1H100MAB 050054 200 RB1H100MAET 050054T 2000 22 77 2.5(5) 6.3 x 11.0 RB1H220MBC 050055 200 RB1H220MBET 050055T 1500 33 111 3.5(5) 8.0 x 11.5 RB1H330MCD 050056 200 RB1H330MCET 050056T 1000 47 157 5 10.0 x 12.5 RB1H470MDE 050057 100 RB1H470MDET 050057T 500 100 273 5 10.0 x 20.0 RB1H101MFE 050058 100 RB1H101MFET 050058T 500 220 506 5 12.5 x 25.0 RB1H221MHE 050059 100 RB1H221MHET 050059T 400 330 620 5 12.5 x 25.0 RB1H331MHE 050060 100 RB1H331MHET 050060T 400 470 861 7.5 16.0 x 25.0 RB1H471MPF 050061 100 RB1H471MPFT 050061T 180

63 Volt

2.2 23 2(5) 5.0 x 11.0 RB1J2R2MAB 050064 200 RB1J2R2MAET 050064T 2000

3.3 28 2(5) 5.0 x 11.0 RB1J3R3MAB 050065 200 RB1J3R3MAET 050065T 2000

4.7 34 2(5) 5.0 x 11.0 RB1J4R7MAB 050066 200 RB1J4R7MAET 050066T 2000 10 57 2.5(5) 6.3 x 11.0 RB1J100MBC 050067 200 RB1J100MBET 050067T 1500 22 89 3.5(5) 8.0 x 11.5 RB1J220MCD 050068 200 RB1J220MCET 050068T 1000 33 144 5 10.0 x 12.5 RB1J330MDE 050069 100 RB1J330MDET 050069T 500 47 188 5 10.0 x 16.0 RB1J470MEE 050070 100 RB1J470MEET 050070T 500 100 343 5 12.5 x 20.0 RB1J101MGE 050071 100 RB1J101MGET 050071T 400 220 645 7.5 16.0 x 25.0 RB1J221MPF 050072 100 RB1J221MPFT 050072T 180

100 Volt

0.1 5 2(5) 5.0 x 11.0 RB2AR10MAB 050075 200 RB2AR10MAET 050075T 2000

0.22 8 2(5) 5.0 x 11.0 RB2AR22MAB 050076 200 RB2AR22MAET 050076T 2000

0.33 9 2(5) 5.0 x 11.0 RB2AR33MAB 050077 200 RB2AR33MAET 050077T 2000

0.47 11 2(5) 5.0 x 11.0 RB2AR47MAB 050078 200 RB2AR47MAET 050078T 2000

1.0 16 2(5) 5.0 x 11.0 RB2A010MAB 050079 200 RB2A010MAET 050079T 2000

2.2 24 2(5) 5.0 x 11.0 RB2A2R2MAB 050080 200 RB2A2R2MAET 050080T 2000

3.3 34 2.5(5) 6.3 x 11.0 RB2A3R3MBC 050081 200 RB2A3R3MBET 050081T 1500

4.7 41 2.5(5) 6.3 x 11.0 RB2A4R7MBC 050082 200 RB2A4R7MBET 050082T 1500 10 70 3.5(5) 8.0 x 11.5 RB2A100MCD 050083 200 RB2A100MCET 050083T 1000 22 136 5 10.0 x 16.0 RB2A220MEE 050084 100 RB2A220MEET 050084T 500 33 181 5 10.0 x 20.0 RB2A330MFE 050085 100 RB2A330MFET 050085T 500 47 248 5 12.5 x 20.0 RB2A470MGE 050086 100 RB2A470MGET 050086T 400 100 458 7.5 16.0 x 25.0 RB2A101MPF 050087 100 RB2A101MPFT 050087T 180 220 837 7.5 18.0 x 35.5 RB2A221MVF 050088 50 – – –

BI-POLAR

RADIAL

PART NUMBER KEY

Refer to page 4

NO ER

ORDERING INFORMATION

Example : 10µF 50V

Nover

Basic Anglia Code Letter

Cropped 050054 C

Twisted & formed 050054 W

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

`(5) Leads pre-formed to 5mm pitch on taped part

BACK TO CONTENTS

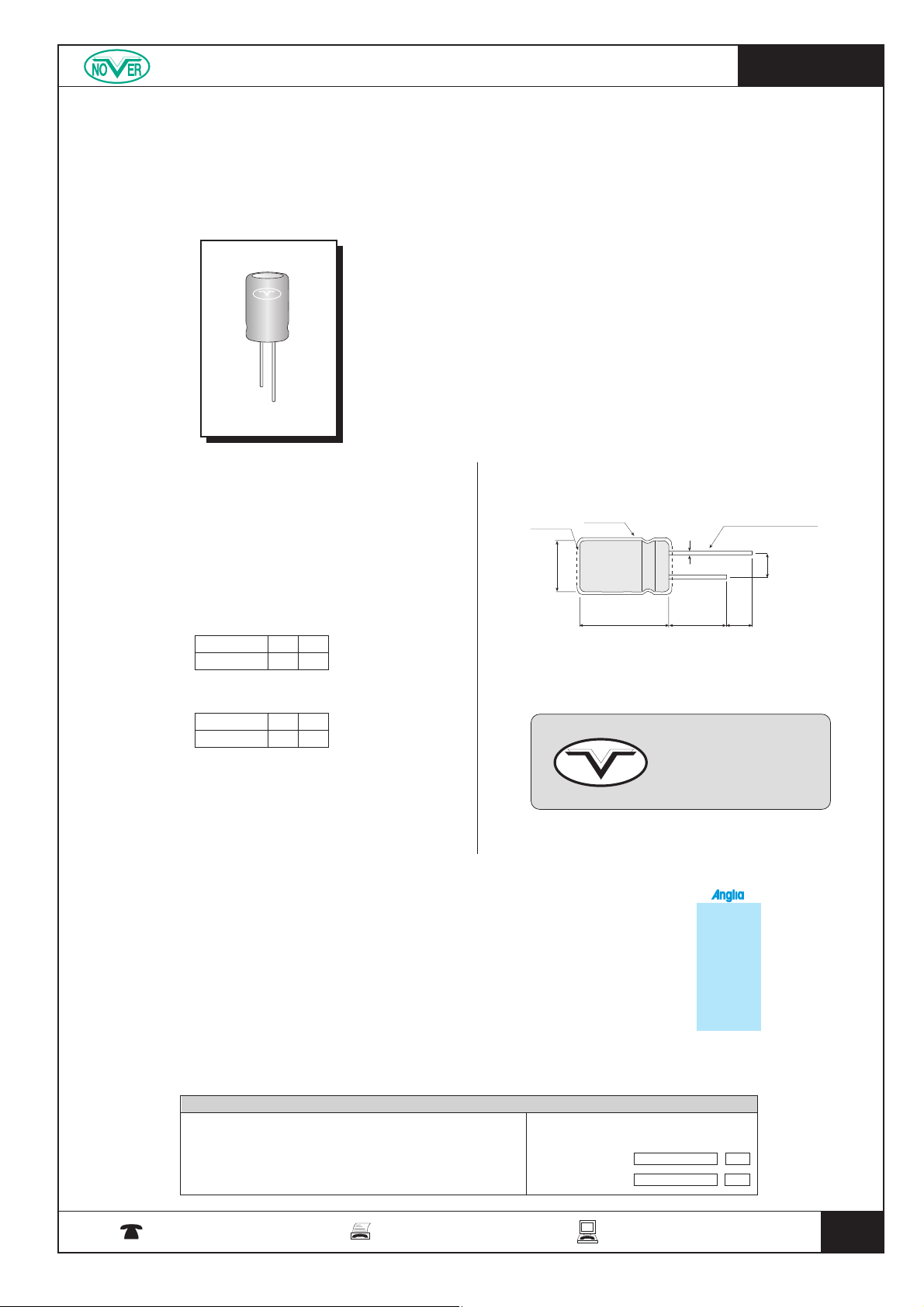

Page 34

● Bi-polar (non polarised)

● High temperature 105°C max.

● Solvent resistant

● Capacitance tolerance 20%

● Body colour Light blue

Conforms to JIS C5141-1982 Char.W

Endurance test ........................................... 1000 hours at 105°C

Capacitance tolerance ............................... ±20% at 120Hz, 20°C

Ripple current ............................................ as listed

Operating temperature range .................... -55°C to +105°C

Leakage current ........................................ 100µA (max.) after 3 minutes

Speciﬁcation

Dissipation factor (120Hz, 20°C)

Surge voltage capability

Dimensions (mm)

NOVER type BD

Bi-polar (non-polarised), radial aluminium electrolytic capacitors with a maximum operating temperature capability of 105°C. The temperature range allows the BD series to be utlilised in arduous environments such as the automotive industry, whilst the high stability characteristics make it especially suitable for horizontal deﬂection circuits.The entire range of available values and voltages in loose format, are shown below. For lead forming, cropping and taping options refer to page 5.

RADIAL

BI-POLAR, 105°C

Value Ripple Current (A)* Dimensions (mm) Nover Pack Qty

(F) 105°C 85°C 70°C Pitch Dia. x L Part No. Order Code pcs

50 Volt

2.2 3.4 5.8 7.5 7.5 12.5 x 20.0 BD1H2R2MG 050201 100

3.3 4.1 7.0 9.1 7.5 12.5 x 25.0 BD1H3R3MH 050202 100

4.7 4.5 7.8 10.0 7.5 16.0 x 25.0 BD1H4R7MP 050203 100

6.8 4.6 8.0 10.4 7.5 16.0 x 31.5 BD1H6R8MR 050204 100 10 4.9 8.6 11.1 7.5 16.0 x 35.5 BD1H100MA3 050205 50 15 5.4 9.5 12.2 7.5 18.0 x 40.0 BD1H150MA4 050206 50

* Ripple current (Ap-p/15.75kHz)



LEAD FORMING



CROPPING



TAPING



Refer to page 5

ORDERING INFORMATION

Example : 10µF 50V

Nover

Basic Anglia Code Letter

Cropped 050205 C

Twisted & formed 050205 W

For simplicity, this list provides both Nover Part No’s and Anglia Order Codes for loose (natural pitch, full length leads) parts only. To order alternative lead forms etc just add the appropriate Nover Part No. sufﬁx letter (see page 4) to the basic six digit Anglia Order Code, like example shown.

Rated voltage 50V d.c.

Tan  (max) 0.05

Rated voltage 50V d.c.

Surge voltage 63V d.c.

15 min.

Dia

Vinyl sleeve

Tinned copper-clad steel wire

ød

7.5

5 min.

Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 2.0 to L

Vent (Dia ≥ 6.3)

ød = 0.6 (Dia 12.5)

d = 0.8 (Dia ≥16)

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

NO ER

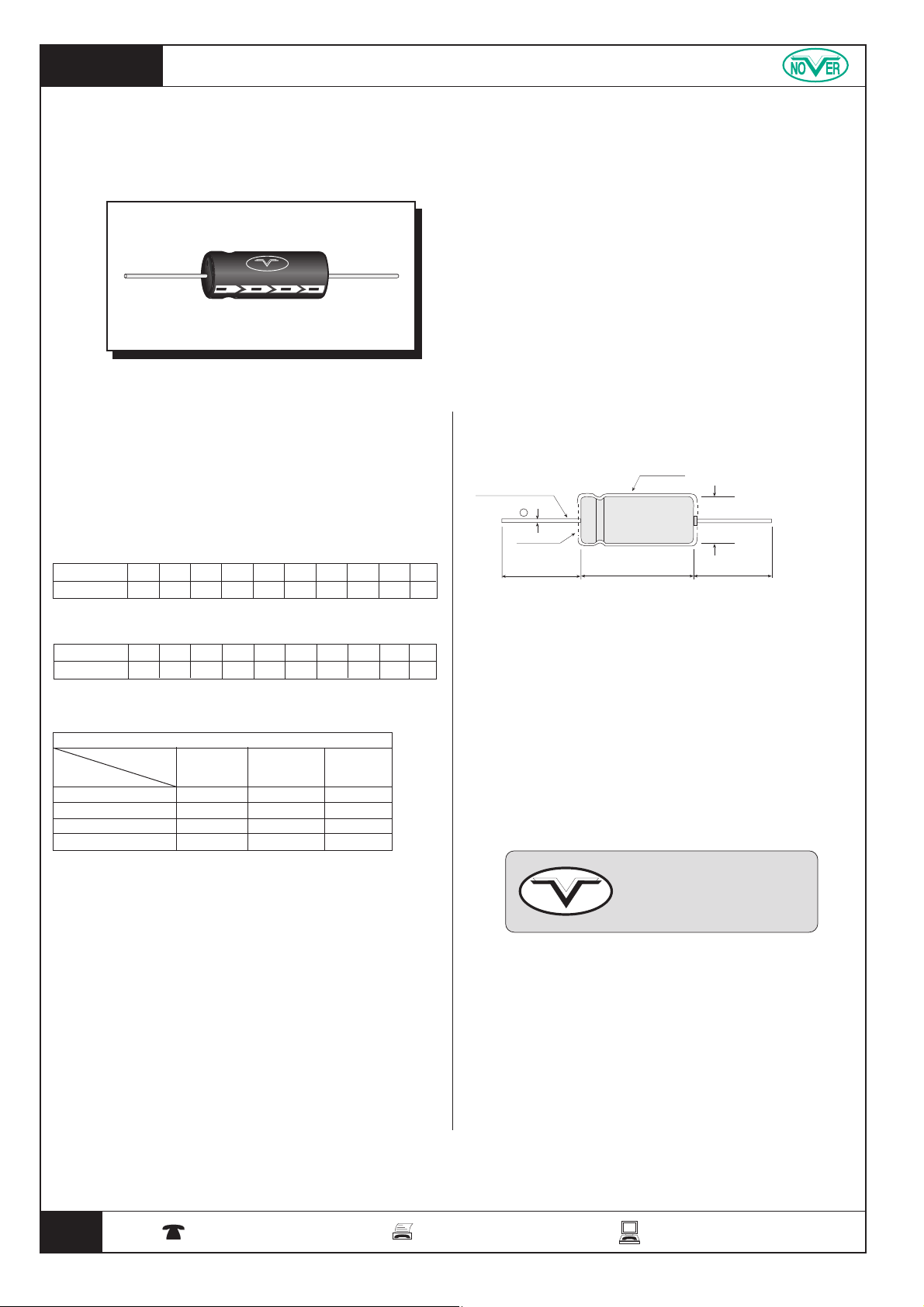

Page 35

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

GENERAL PURPOSE

AXIAL

NOVER type TE

A range of axial lead aluminium electrolytic capacitors designed to be highly cost-effective whilst maintaining high levels of quality and reliability. All voltages and values in loose format are shown on the following page, with taped and reeled versions also available.

● Standard range

● Maximum temperature 85°C

● Capacitance tolerance 20%

● Leakage current ≤0.01CV

● Body colour Black

Conforms to JIS C5141-1982 Char.W

Capacitance tolerance ............................... ±20% at 120Hz, 20°C

Ripple current (as listed) ........................... measured at 120Hz, 85°C

(see also Multiplier table below)

Operating temperature range .................... -40°C to +85°C

Leakage current ........................................

≤0.01CV or 3A (≤100V) (whichever is greater) after 2 mins. ≤0.01CV +100A (>100V) after 5 mins.

Speciﬁcation

Dimensions (mm)

Rated voltage 10V 16V 25V 40V 63V 100V 250V 350V 450V d.c.

Tan  (max)* 0.20 0.16 0.14 0.11 0.10 0.08 0.20 0.20 0.25

Rated voltage 10V 16V 25V 40V 63V 100V 250V 350V 450V d.c.

Surge voltage 13V 20V 32V 50V 79V 125V 300V 400V 500V d.c.

*Add 0.02 for every 1000F above 1000F

Dissipation factor (120Hz, 20°C)

Surge voltage capability

Multiplier for ripple current

Frequency coefﬁcient

Freq(Hz)

50/60 120 1K

Rated Voltage (V)

16 ~ 25 0.85 1.0 1.10

40 ~ 100 0.80 1.0 1.15

250 0.75 1.0 1.25

350 ~ 450 0.70 1.0 1.30



TAPED AND REELED



Also available

NO ER

BACK TO CONTENTS

NO ER

Tinned copper-clad steel wire

ød

Vent (Dia >8)

35 min.

Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.5 to L

Vinyl sleeve

Dia

35 min.

ød = 0.6 (Dia ≤13)

0.8 (Dia ≥16)

Page 36

GENERAL PURPOSE

AXIAL

Value Ripple Current Dimensions (mm) Nover Pack Qty

(F) (mA) Dia. x L Part No. Order Code pcs

0 Volt

47 75 5.0 x 12.5 TE1A470MA 051006 500 100 180 6.3 x 12.5 TE1A101MB 051007 500 220 204 6.3 x 16.0 TE1A221MC 051008 400 470 400 8.0 x 20.0 TE1A471MF 051010 200 1000 585 10.0 x 20.0 TE1A102MG 051011 100 2200 920 13.0 x 25.0 TE1A222ML 051012 100 4700 1200 16.0 x 30.0 TE1A472MN 051014 50

16 Volt

10 40 5.0 x 12.5 TE1C100MA 051016 500 22 64 5.0 x 12.5 TE1C220MA 051017 500 47 92 6.3 x 12.5 TE1C470MB 051019 500 100 160 6.3 x 12.5 TE1C101MB 051020 500 220 280 8.0 x 16.0 TE1C221MD 051021 300 470 450 8.0 x 20.0 TE1C471MF 051023 200 1000 760 10.0 x 25.0 TE1C102MK 051024 100 2200 1200 13.0 x 26.0 TE1C222MM 051025 100 4700 1900 16.0 x 34.0 TE1C472MP 051027 50

25 Volt

10 47 5.0 x 12.5 TE1E100MA 051000 500 22 70 6.3 x 12.5 TE1E220MB 051028 500 47 100 6.3 x 12.5 TE1E470MB 051030 500 100 180 6.3 x 16.5 TE1E101MC 051031 400 220 300 8.0 x 16.0 TE1E221MD 051032 300 470 500 10.0 x 20.0 TE1E471MG 051034 100 1000 950 13.0 x 21.0 TE1E102MJ 051035 100 2200 1450 16.0 x 29.0 TE1E222MN 051036 50 4700 2160 16.0 x 40.0 TE1E472MR 051037 25

40 Volt

10 38 5.0 x 12.5 TE1G100MA 051038 500 22 67 6.3 x 12.5 TE1G220MB 051039 500 47 113 8.0 x 16.0 TE1G470MD 051041 300 100 189 8.0 x 20.0 TE1G101MF 051042 200 220 335 10.0 x 20.0 TE1G221MG 051043 100 470 590 13.0 x 26.0 TE1G471MM 051045 100 1000 1095 16.0 x 34.0 TE1G102MP 051046 50 2200 1624 18.0 x 40.0 TE1G222MS 051047 25 4700 (35V) 2300 18.0 x 40.0 TE1V472MS 051049 25

63 Volt

1.0 16 5.0 x 12.5 TE1J010MA 051058 500

2.2 21 5.0 x 12.5 TE1J2R2MA 051059 500

4.7 38 6.3 x 12.5 TE1J4R7MB 051061 500 10 62 6.3 x 12.5 TE1J100MB 051062 500 22 100 6.3 x 12.5 TE1J220MB 051063 500 47 180 8.0 x 16.0 TE1J470MD 051065 300 100 280 10.0 x 16.0 TE1J101ME 051066 200 220 470 10.0 x 25.0 TE1J221MK 051067 100 470 900 13.0 x 26.0 TE1J471MM 051069 100 1000 1500 16.0 x 40.0 TE1J102MR 051070 25 2200 2060 22.0 x 40.0 TE1J222MT 051071 20

100 Volt

1.0 12 5.0 x 12.5 TE2A010MA 051073 500

2.2 21 6.3 x 12.5 TE2A2R2MB 051074 500

4.7 39 6.3 x 12.5 TE2A4R7MB 051076 500 10 75 6.3 x 16.5 TE2A100MC 051077 400 22 120 8.0 x 16.0 TE2A220MD 051078 300 47 230 10.0 x 20.0 TE2A470MG 051080 100 100 420 13.0 x 21.0 TE2A101MJ 051081 100 220 700 16.0 x 30.0 TE2A221MW 051082 50 470 1031 16.0 x 40.0 TE2A471MR 051084 25 1000 1447 22.0 x 40.0 TE2A102MT 051085 25

250 Volt

1.0 13 6.3 x 16.0 TE2E010MC 051099 400

2.2 23 8.0 x 16.0 TE2E2R2MD 051100 300

4.7 37 8.0 x 20.0 TE2E4R7MF 051102 200 10 57 10.0 x 16.0 TE2E100ME 051103 200 22 101 10.0 x 25.0 TE2E220MK 051104 100 47 184 13.0 x 25.0 TE2E470ML 051106 100

350 Volt

10 62 10.0 x 20.0 TE2V100MG 051114 100 22 109 13.0 x 20.0 TE2V220MH 051115 100 47 147 16.0 x 33.0 TE2V470MP 051117 50

450 Volt

1.0 19 8.0 x 16.0 TE2W010MD 051121 300

2.2 30 10.0 x 20.0 TE2W2R2MG 051122 100

4.7 50 10.0 x 25.0 TE2W4R7MK 051124 100 10 80 13.0 x 20.0 TE2W100MH 051125 100 22 130 13.0 x 30.0 TE2W220MW 051126 50 47 230 18.0 x 40.0 TE2W470MS 051128 25 100 470 22.0 x 40.0 TE2W101MT 051129 20

NOVER type TE

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

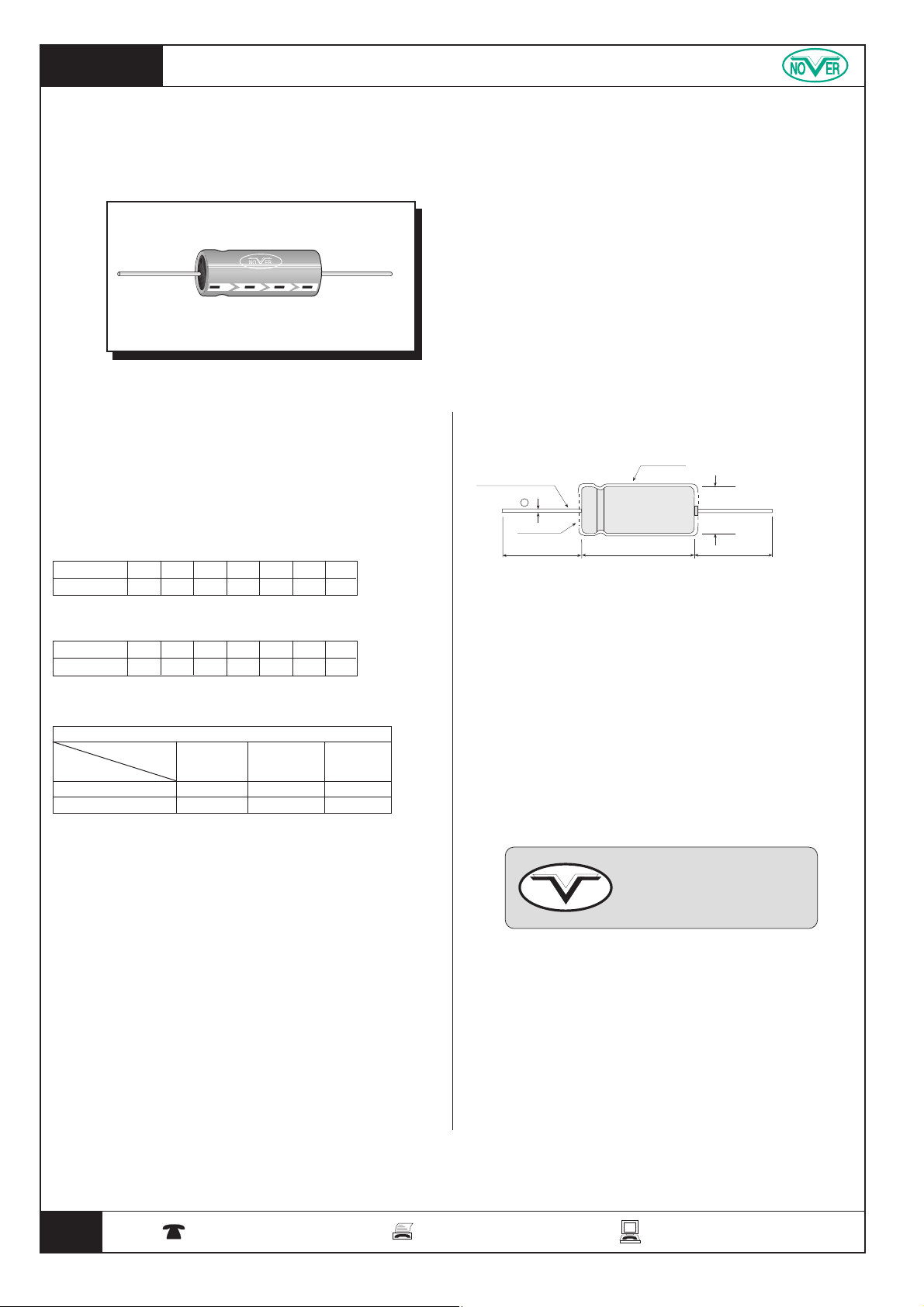

Page 37

GENERAL PURPOSE, 105°C

AXIAL

NOVER type TH

Axial lead aluminium electrolytic capacitors with an extended upper temperature limit of 105°C. Ideal for equipment running at high ambient temperatures where a greater climatic safety margin and improved reliabilty is required. All voltages and values in loose format are shown on the following page, whilst taped and reeled versions are also available.

● High temperature 105°C

● Capacitance tolerance 20%

● Leakage current ≤0.01CV

● Body colour Light Green

Conforms to JIS C5141-1982 Char.W

Capacitance tolerance ............................... ±20% at 120Hz, 20°C

Ripple current (as listed) ........................... measured at 120Hz, 105°C

(see also Multiplier table below)

Operating temperature range .................... -40°C to +105°C

Leakage current ........................................ ≤0.01CV or 3A

(whichever is greater) after 2 min.

Speciﬁcation

Dimensions (mm)

Rated voltage 10V 16V 25V 35V 63V 100V d.c.

Tan  (max)* 0.20 0.17 0.15 0.12 0.10 0.08

Rated voltage 10V 16V 25V 35V 63V 100V d.c.

Surge voltage 13V 20V 32V 44V 79V 125V d.c.

*Add 0.02 for every 1000F above 1000F

Dissipation factor (120Hz, 20°C)

Surge voltage capability

Multiplier for ripple current

Frequency coefﬁcient

Freq(Hz)

50/60 120 1K

Rated Voltage (V)

16 ~ 25 0.85 1.0 1.10

35 ~ 100 0.80 1.0 1.15



TAPED AND REELED



Also available

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

Tinned copper-clad steel wire

ød

Vent (Dia >8)

35 min.

Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.5 to L

Vinyl sleeve

Dia

35 min.

ød = 0.6 (Dia ≤13)

0.8 (Dia ≥16)

NO ER

Page 38

GENERAL PURPOSE, 105°C

AXIAL

Value Ripple Current Dimensions (mm) Nover Pack Qty

(F) (mA) Dia. x L Part No. Order Code pcs

10 Volt

22 38 5.0 x 12.5 TH1A220MA 062004 500 47 56 5.0 x 12.5 TH1A470MA 062006 500 100 93 6.3 x 12.5 TH1A101MB 062007 500 220 177 6.3 x 16.0 TH1A221MC 062008 400 470 267 8.0 x 20.0 TH1A471MF 062010 200 1000 488 10.0 x 20.0 TH1A102MG 062011 100 2200 783 13.0 x 25.0 TH1A222ML 062012 100 4700 1483 16.0 x 30.0 TH1A472MN 062014 50

16 Volt

22 38 5.0 x 12.5 TH1C220MA 062017 500 47 61 6.3 x 12.5 TH1C470MB 062019 500 100 101 6.3 x 16.0 TH1C101MC 062020 400 220 177 8.0 x 16.0 TH1C221MD 062021 300 470 329 10.0 x 16.0 TH1C471ME 062023 200 1000 572 10.0 x 25.0 TH1C102MK 062024 100 2200 912 13.0 x 30.0 TH1C222MW 062025 50 4700 1585 16.0 x 40.0 TH1C472MR 062027 25

25 Volt

10 27 5.0 x 12.5 TH1E100MA 062000 500 22 44 6.3 x 12.5 TH1E220MB 062028 500 47 73 6.3 x 12.5 TH1E470MB 062030 500 100 127 8.0 x 16.0 TH1E101MD 062031 300 220 210 8.0 x 20.0 TH1E221MF 062032 200 470 384 10.0 x 20.0 TH1E471MG 062034 100 1000 672 13.0 x 25.0 TH1E102ML 062035 100 2200 1099 16.0 x 30.0 TH1E222MN 062036 50 4700 1498 18.0 x 40.0 TH1E472MS 062037 25

35 Volt

10 30 5.0 x 12.5 TH1V100MA 062038 500 22 49 6.3 x 12.5 TH1V220MB 062039 500 47 82 6.3 x 16.0 TH1V470MC 062041 400 100 158 8.0 x 16.0 TH1V101MD 062042 300 220 266 10.0 x 16.0 TH1V221ME 062043 200 470 467 10.0 x 25.0 TH1V471MK 062045 100 1000 816 13.0 x 30.0 TH1V102MW 062046 50 2200 1140 16.0 x 40.0 TH1V222MR 062047 25 4700 1550 22.0 x 40.0 TH1V472MT 062049 20

63 Volt

1.0 10 5.0 x 12.5 TH1J010MA 062058 500

2.2 15 5.0 x 12.5 TH1J2R2MA 062059 500

4.7 25 6.3 x 12.5 TH1J4R7MB 062061 500 10 36 6.3 x 12.5 TH1J100MB 062062 500 22 61 6.3 x 16.0 TH1J220MC 062063 400 47 117 8.0 x 16.0 TH1J470MD 062065 300 100 196 10.0 x 16.0 TH1J101ME 062066 200 220 346 10.0 x 25.0 TH1J221MK 062067 100 470 597 13.0 x 30.0 TH1J471MW 062069 50 1000 1163 16.0 x 40.0 TH1J102MR 062070 25 2200 1320 22.0 x 40.0 TH1J222MT 062071 20

100 Volt

1.0 10 5.0 x 12.5 TH2A010MA 062073 500

2.2 17 6.3 x 12.5 TH2A2R2MB 062074 500

4.7 25 6.3 x 12.5 TH2A4R7MB 062076 500 10 45 6.3 x 16.0 TH2A100MC 062077 400 22 81 8.0 x 16.0 TH2A220MD 062078 300 47 134 10.0 x 20.0 TH2A470MG 062080 100 100 255 10.0 x 25.0 TH2A101MK 062081 100 220 439 13.0 x 30.0 TH2A221MW 062082 50

NOVER type TH

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

Page 39

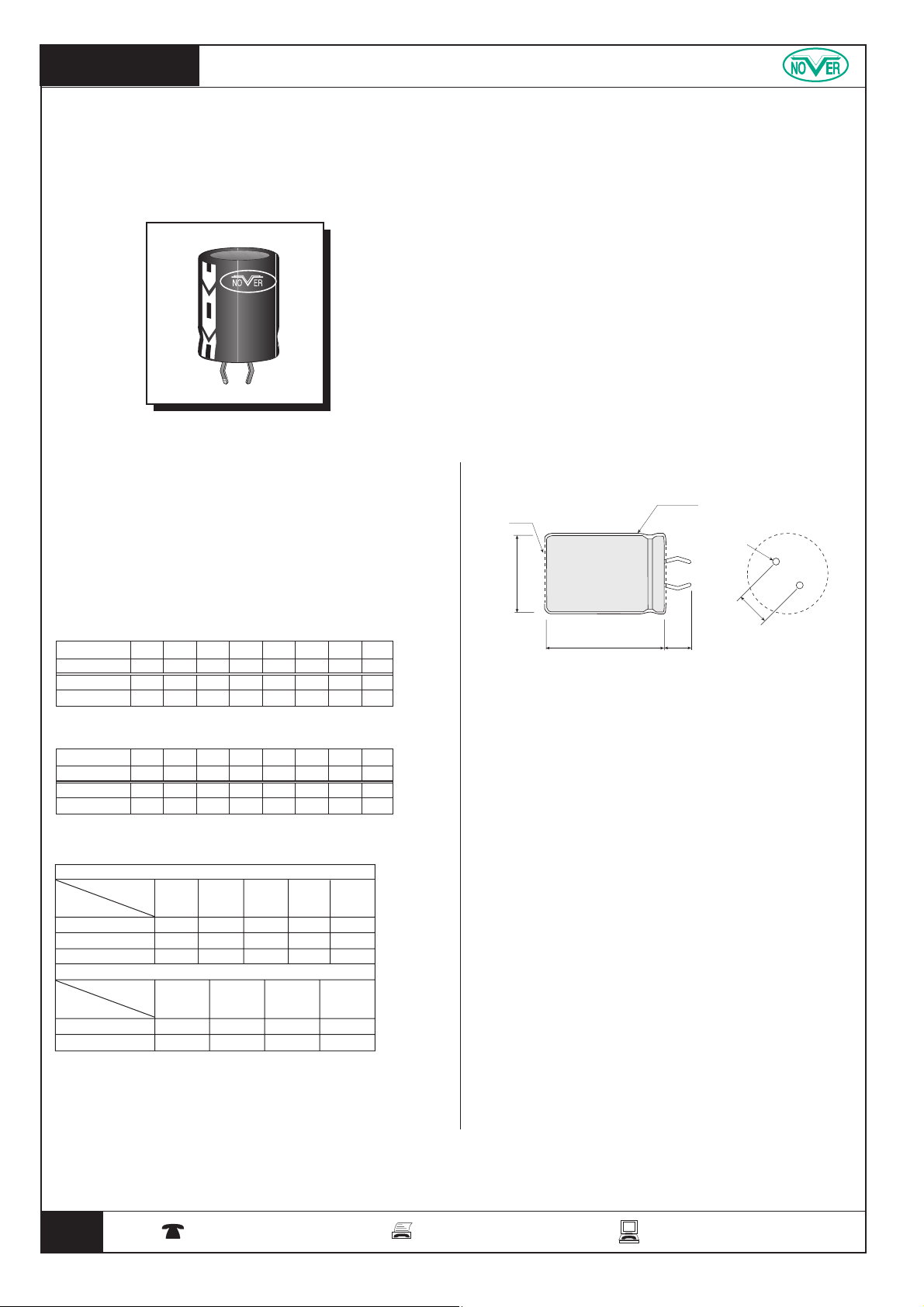

Rated voltage 16V 25V 35V 50V 63V 80V 100V d.c.

Surge voltage 20V 32V 44V 63V 79V 100V 125V d.c.

Rated voltage 160V 200V 250V 350V 400V 450V d.c.

Surge voltage 200V 250V 300V 400V 450V 500V d.c.

A range of high CV, high ripple current, aluminium capacitors suitable for general purpose use up to 85°C ambient. Housed in compact bodies and ﬁtted with snap-in terminals on an standard 10mm pitch. The entire range of available values and voltages in loose format, are shown on the following pages.

● High CV

● High ripple current

● Compact body

● Snap-in terminals Standard 10mm pitch

● Endurance 2000 hours at 85°C

● Capacitance tolerance 20%

● Leakage current ≤0.01CV

● Body colour Black

NOVER type LS

Speciﬁcation

GENERAL PURPOSE

Conforms to JIS C5141-1982 Char.W

Endurance test ........................................... 2000 hours at 85°C

Capacitance tolerance ............................... ±20% at 120Hz, 20°C

Ripple current (as listed) ........................... measured at 120Hz, 85°C

(see also Multiplier table below)

Operating temperature range .................... -40°C to +85°C (16 ~ 100V)

-25°C to +85°C (160 ~ 450V)

Leakage current ........................................ ≤0.01CV or 3A

(whichever is greater) after 2 min.

Dia x L are can sizes only. To allow for sleeve add 1.0 to Dia and 2.0 to L

Vinyl sleeve

6.0 ±1

Dia

Vent

ø2

Mounting Holes

SNAP-IN

Rated voltage 16V 25V 35V 50V 63V 80V 100V d.c.

Tan  (max)* 0.40 0.30 0.25 0.20 0.15 0.15 0.15

Rated voltage 160V 200V 250V 350V 400V 450V d.c.

Tan  (max) 0.15 0.15 0.15 0.15 0.15 0.15

Dissipation factor (120Hz, 20°C)

Surge voltage capability

Multiplier for ripple current

Dimensions (mm)

Frequency coefﬁcient

Freq(Hz)

50 120 1K 10K 20K

Rated Voltage(V)

16 ~ 50 0.95 1.0 1.10 1.15 1.15

63 ~ 100 0.95 1.0 1.16 1.30 1.33

160 ~ 450 0.90 1.0 1.20 1.50 1.55

Temperature coefﬁcient

Temperature

+40 +55 +70 +85

Rated Voltage(V)

(°C)

<160 2.1 1.8 1.5 1.0

≥160 1.7 1.5 1.3 1.0

*Add 0.02 for every 1000F above 5000F

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

Page 40

GENERAL PURPOSE

SNAP-IN

NOVER type LS

Value Ripple Current Dimensions (mm) Nover Pack Qty

(F) (A) Pitch Dia. x L Part No. Order Code pcs

16 Volt

4700 2.20 10 22.0 x 25.0 LS1C472MA 054002 100 6800 2.33 10 22.0 x 25.0 LS1C682MA 054003 100 8200 2.56 10 22.0 x 30.0 LS1C822MB 054053 100 10000 2.81 10 22.0 x 30.0 LS1C103MB 054004 100 15000 3.64 10 25.0 x 30.0 LS1C153ME 054005 100 22000 4.44 10 25.0 x 40.0 LS1C223MG 054006 100 33000 5.38 10 30.0 x 45.0 LS1C333MM 054007 80

25 Volt

4700 2.18 10 22.0 x 25.0 LS1E472MA 054101 100 6800 2.56 10 22.0 x 30.0 LS1E682MB 054102 100 8200 2.80 10 22.0 x 35.0 LS1E822MJ 054123 100 8200 2.86 10 25.0 x 40.0 LS1E822MG 054103 100 10000 3.16 10 25.0 x 30.0 LS1E103ME 054105 100 15000 4.00 10 25.0 x 40.0 LS1E153MG 054106 100 22000 5.19 10 30.0 x 40.0 LS1E223MV 054107 80

35 Volt

3300 2.14 10 22.0 x 25.0 LS1V332MA 054203 100 4700 2.28 10 25.0 x 25.0 LS1V472MD 054204 100 6800 2.89 10 25.0 x 35.0 LS1V682MF 054205 100 8200 3.33 10 25.0 x 40.0 LS1V822MG 054255 100 10000 3.59 10 25.0 x 40.0 LS1V103MG 054226 100 10000 3.62 10 25.0 x 45.0 LS1V103MH 054206 100 10000 3.70 10 30.0 x 40.0 LS1V103MV 054216 80 15000 4.80 10 30.0 x 45.0 LS1V153MM 054207 80 22000 6.40 10 30.0 x 50.0 LS1V223MN 054208 80

50 Volt

2200 1.93 10 22.0 x 30.0 LS1H222MB 054303 100 3300 2.41 10 22.0 x 30.0 LS1H332MB 054304 100 4700 3.01 10 22.0 x 40.0 LS1H472MC 054305 100 4700 3.01 10 35.0 x 25.0 LS1H472MS 054315 50 6800 3.87 10 30.0 x 35.0 LS1H682MR 054306 80 8200 4.42 10 30.0 x 40.0 LS1H822MV 054356 80 10000 5.02 10 30.0 x 40.0 LS1H103MV 054327 80 10000 5.06 10 30.0 x 45.0 LS1H103MM 054307 80 15000 6.44 10 35.0 x 50.0 LS1H153MZ 054308 50

63 Volt

2200 2.30 10 25.0 x 25.0 LS1J222MD 054424 100 2200 2.35 10 25.0 x 30.0 LS1J222ME 054404 100 3300 2.69 10 25.0 x 30.0 LS1J332ME 054425 100 3300 2.73 10 25.0 x 40.0 LS1J332MG 054405 100 4700 3.37 10 30.0 x 30.0 LS1J472MK 054416 80 4700 3.42 10 30.0 x 40.0 LS1J472MV 054406 80 6800 4.41 10 30.0 x 40.0 LS1J682MV 054427 80 6800 4.47 10 30.0 x 50.0 LS1J682MN 054407 80 8200 4.90 10 30.0 x 50.0 LS1J822MN 054428 80 10000 5.32 10 35.0 x 40.0 LS1J103MW 054438 50 10000 5.49 10 35.0 x 50.0 LS1J103MZ 054408 50

80 Volt

1500 2.01 10 22.0 x 30.0 LS1K152MB 054913 100 2200 2.53 10 22.0 x 40.0 LS1K222MC 054914 100 3300 3.25 10 25.0 x 40.0 LS1K332MG 054915 100 4700 4.28 10 25.0 x 50.0 LS1K472ML 054916 100 6800 5.18 10 30.0 x 50.0 LS1K682MN 054917 80 8200 5.83 10 35.0 x 50.0 LS1K822MZ 054918 50

100 Volt

1000 2.10 10 22.0 x 30.0 LS2A102MB 054504 100 2200 3.20 10 30.0 x 40.0 LS2A222MV 054506 80 3300 4.10 10 35.0 x 45.0 LS2A332MQ 054507 50 4700 5.10 10 35.0 x 40.0 LS2A472MW 054528 50 4700 5.14 10 35.0 x 45.0 LS2A472MQ 054508 50

LS continued overleaf > > > >

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

Page 41

GENERAL PURPOSE

NOVER type LS (continued)

Value Ripple Current Dimensions (mm) Nover Pack Qty

(F) (A) Pitch Dia. x L Part No. Order Code pcs

160 Volt

330 1.35 10 22.0 x 30.0 LS2C331MB 054603 100 470 1.75 10 25.0 x 30.0 LS2C471ME 054604 100 680 2.20 10 25.0 x 35.0 LS2C681MF 054605 100 820 2.46 10 25.0 x 45.0 LS2C821MH 054606 100 1000 2.80 10 25.0 x 50.0 LS2C102ML 054607 100

200 Volt

220 1.10 10 22.0 x 30.0 LS2D221MB 054703 100 330 1.48 10 22.0 x 30.0 LS2D331MB 054734 100 330 1.50 10 25.0 x 30.0 LS2D331ME 054724 100 330 1.50 10 22.0 x 40.0 LS2D331MC 054704 100 470 1.86 10 25.0 x 35.0 LS2D471MF 054725 100 470 1.90 10 25.0 x 40.0 LS2D471MG 054705 100 680 2.36 10 25.0 x 40.0 LS2D681MG 054736 100 680 2.40 10 25.0 x 45.0 LS2D681MH 054726 100 680 2.44 10 25.0 x 50.0 LS2D681ML 054706 100 820 2.69 10 30.0 x 40.0 LS2D821MV 054756 80 1000 2.88 10 35.0 x 30.0 LS2D102MP 054727 50 1000 3.05 10 35.0 x 40.0 LS2D102MW 054707 50

250 Volt

220 1.30 10 22.0 x 35.0 LS2E221MB 054803 100 330 1.68 10 25.0 x 35.0 LS2E331ME 054804 100 470 2.05 10 25.0 x 40.0 LS2E471MF 054805 100 680 2.78 10 30.0 x 45.0 LS2E681MH 054806 80 820 3.13 10 30.0 x 50.0 LS2E821MV 054807 80 1000 3.50 10 35.0 x 50.0 LS2E102MW 054808 50

350 Volt

100 0.65 10 22.0 x 35.0 LS2V101MJ 054943 100 150 0.87 10 22.0 x 40.0 LS2V151MC 054944 100 220 1.25 10 25.0 x 40.0 LS2V221MG 054945 100 330 1.51 10 30.0 x 40.0 LS2V331MV 054946 80 470 2.15 10 35.0 x 45.0 LS2V471MQ 054947 50 680 2.35 10 35.0 x 50.0 LS2V681MZ 054948 50

400 Volt

47 0.50 10 22.0 x 25.0 LS2G470MA 054902 100 100 0.72 10 22.0 x 30.0 LS2G101MB 054904 100 150 0.95 10 25.0 x 30.0 LS2G151ME 054905 100 220 1.23 10 30.0 x 30.0 LS2G221MK 054926 80 220 1.25 10 30.0 x 35.0 LS2G221MR 054906 80 330 1.61 10 30.0 x 40.0 LS2G331MV 054927 80 330 1.68 10 30.0 x 45.0 LS2G331MM 054907 80 470 2.10 10 35.0 x 40.0 LS2G471MW 054928 50 470 2.15 10 35.0 x 45.0 LS2G471MQ 054908 50

450 Volt

47 0.56 10 22.0 x 25.0 LS2W470MA 054973 100 100 0.70 10 25.0 x 35.0 LS2W101MF 054975 100 150 1.08 10 25.0 x 40.0 LS2W151MG 054976 100 220 1.30 10 30.0 x 45.0 LS2W221MM 054977 80 330 1.49 10 35.0 x 45.0 LS2W331MQ 054978 50 470 1.92 10 35.0 x 50.0 LS2W471MZ 054979 50

SNAP-IN

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

Page 42

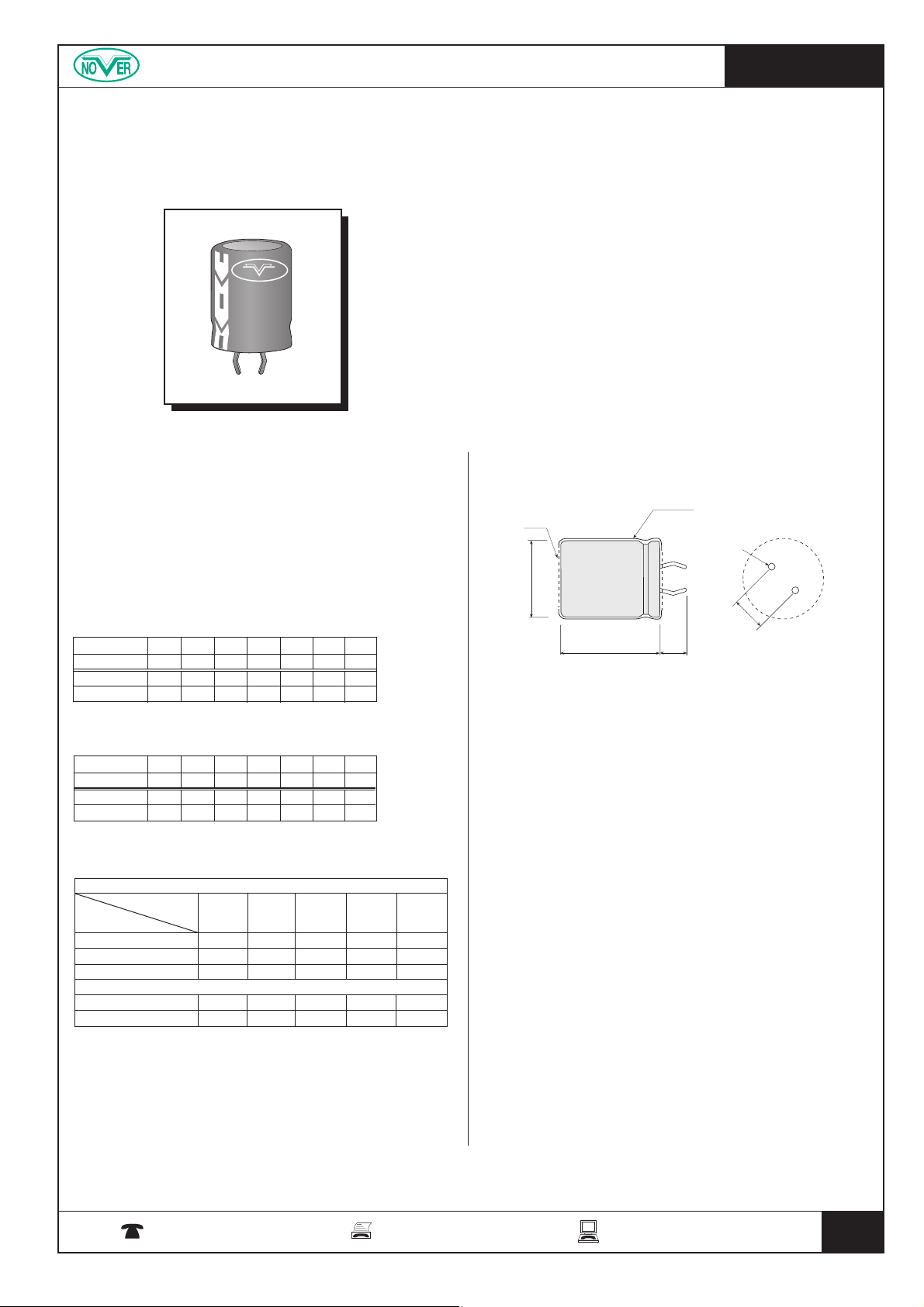

Offering a high temperature capability of 105°C and an endurance of 2000 hours, the LH aluminium electrolytic snap-in capacitor range is designed for applications where ambient conditions may exceed the operating speciﬁcation of the general purpose LS series. The entire range of values and voltages in loose format, are shown on the following pages.

● High temperature

● High CV

● High ripple current

● Snap-in terminals Standard 10mm pitch

● Endurance 2000 hours at 105°C

● Capacitance tolerance 20%

● Leakage current ≤0.01CV

● Body colour Grey

NOVER type LH

Speciﬁcation

GENERAL PURPOSE, 105°C

Conforms to JIS C5141-1982 Char.W

Endurance test ........................................... 2000 hours at 105°C

Capacitance tolerance ............................... ±20% at 120Hz, 20°C

Ripple current (as listed) ........................... measured at 120Hz, 105°C

(see also Multiplier table below)

Operating temperature range .................... -40°C to +105°C (16 ~ 100V)

-25°C to +105°C (160 ~ 450V)

Leakage current ........................................ ≤0.01CV or 3A

(whichever is greater) after 2 min.

Dia x L are can sizes only. To allow for sleeve add 1.0 to Dia and 2.0 to L

Vinyl sleeve

6.0 ±1

Dia

Vent

ø2

Mounting Holes

Rated voltage 16V 25V 35V 50V 63V 100V d.c.

Tan  (max)* 0.40 0.30 0.25 0.20 0.15 0.15

Rated voltage 160V 200V 250V 350V 400V 450V d.c.

Tan  (max) 0.15 0.15 0.15 0.15 0.15 0.15

Rated voltage 16V 25V 35V 50V 63V 100V d.c.

Surge voltage 20V 32V 44V 63V 79V 125V d.c.

Rated voltage 160V 200V 250V 350V 400V 450V d.c.

Surge voltage 200V 250V 300V 400V 450V 500V d.c.

Dissipation factor (120Hz, 20°C)

Surge voltage capability

Multiplier for ripple current

Dimensions (mm)

SNAP-IN

Frequency coefﬁcient

Freq(Hz)

50 120 1K 10K 20K

Rated Voltage (V)

16 ~ 50 0.95 1.0 1.10 1.15 1.15

63 ~ 100 0.95 1.0 1.16 1.30 1.33

160 ~ 450 0.90 1.0 1.20 1.50 1.55

Temperature coefﬁcient

Temperature (°C) +40 +55 +70 +85 +105

Factor 2.7 2.5 2.1 1.7 1.0

*Add 0.01 for every 1000F above 5000F

LH continued overleaf > > > >

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

NO ER

Page 43

GENERAL PURPOSE, 105°C

NOVER type LH

Value Ripple Current Dimensions (mm) Nover Pack Qty

(F) (A) Pitch Dia. x L Part No. Order Code pcs

16 Volt

4700 1.60 10 22.0 x 25.0 LH1C472MA 055002 100 6800 1.75 10 22.0 x 25.0 LH1C682MA 055003 100 8200 2.00 10 22.0 x 30.0 LH1C822MB 055053 100 10000 2.10 10 22.0 x 30.0 LH1C103MB 055004 100 22000 3.36 10 25.0 x 45.0 LH1C223MH 055006 100 33000 4.30 10 30.0 x 45.0 LH1C333MM 055007 80

25 Volt

4700 1.61 10 22.0 x 30.0 LH1E472MB 055101 100 6800 2.00 10 22.0 x 40.0 LH1E682MC 055104 100 6800 2.09 10 25.0 x 30.0 LH1E682ME 055102 100 8200 2.34 10 25.0 x 35.0 LH1E822MF 055123 100 10000 2.61 10 25.0 x 40.0 LH1E103MG 055105 100 22000 4.04 10 30.0 x 45.0 LH1E223MM 055107 80

35 Volt

3300 1.57 10 22.0 x 30.0 LH1V332MB 055203 100 4700 2.02 10 25.0 x 30.0 LH1V472ME 055204 100 6800 2.31 10 25.0 x 40.0 LH1V682MG 055205 100 8200 2.73 10 25.0 x 45.0 LH1V822MH 055255 100 10000 3.05 10 25.0 x 50.0 LH1V103ML 055206 100 22000 4.92 10 35.0 x 50.0 LH1V223MZ 055208 50

50 Volt

2200 1.60 10 22.0 x 35.0 LH1H222MJ 055303 100 3300 1.97 10 25.0 x 35.0 LH1H332MF 055304 100 4700 2.43 10 25.0 x 40.0 LH1H472MG 055305 100 6800 3.30 10 30.0 x 40.0 LH1H682MV 055306 80 8200 3.60 10 30.0 x 45.0 LH1H822MM 055356 80 10000 4.05 10 30.0 x 50.0 LH1H103MN 055307 80

63 Volt

2200 1.75 10 25.0 x 30.0 LH1J222ME 055404 100 3300 2.33 10 25.0 x 40.0 LH1J332MG 055405 100 4700 2.86 10 30.0 x 40.0 LH1J472MV 055406 80 6800 3.65 10 30.0 x 50.0 LH1J682MN 055407 80 8200 4.04 10 35.0 x 50.0 LH1J822MZ 055527 50 10000 4.48 10 35.0 x 50.0 LH1J103MZ 055408 50

100 Volt

1000 1.47 10 22.0 x 30.0 LH2A102MB 055504 100 2200 2.55 10 30.0 x 40.0 LH2A222MV 055506 80 3300 3.30 10 35.0 x 45.0 LH2A332MQ 055507 50 4700 3.80 10 35.0 x 50.0 LH2A472MZ 055508 50

160 Volt

330 1.03 10 22.0 x 30.0 LH2C331MB 055603 100 470 1.28 10 25.0 x 30.0 LH2C471ME 055604 100 680 1.70 10 25.0 x 35.0 LH2C681MF 055605 100 820 1.92 10 25.0 x 40.0 LH2C821MG 055606 100 1000 2.17 10 25.0 x 50.0 LH2C102ML 055607 100

SNAP-IN

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

Page 44

GENERAL PURPOSE, 105°C

NOVER type LH (continued)

Value Ripple Current Dimensions (mm) Nover Pack Qty

(F) (A) Pitch Dia. x L Part No. Order Code pcs

200 Volt

220 0.83 10 22.0 x 25.0 LH2D221MA 055723 100 220 1.00 10 22.0 x 30.0 LH2D221MB 055703 100 330 1.20 10 25.0 x 30.0 LH2D331ME 055704 100 470 1.44 10 25.0 x 35.0 LH2D471MF 055705 100 680 1.76 10 25.0 x 45.0 LH2D681MH 055706 100 820 2.11 10 30.0 x 40.0 LH2D821MV 055756 80 1000 2.40 10 35.0 x 40.0 LH2D102MM 055707 50

250 Volt

220 0.97 10 22.0 x 35.0 LH2E221MJ 055803 100 330 1.26 10 25.0 x 35.0 LH2E331MF 055804 100 470 1.61 10 25.0 x 40.0 LH2E471MG 055805 100 680 2.09 10 30.0 x 45.0 LH2E681MM 055806 80 820 2.35 10 30.0 x 50.0 LH2E821MN 055807 80 1000 2.64 10 35.0 x 50.0 LH2E102MZ 055808 50

350 Volt

100 0.53 10 22.0 x 35.0 LH2V101MJ 055943 100 150 0.73 10 22.0 x 40.0 LH2V151MC 055944 100 220 0.92 10 25.0 x 40.0 LH2V221MG 055945 100 330 1.24 10 30.0 x 40.0 LH2V331MV 055946 80 470 1.57 10 35.0 x 45.0 LH2V471MQ 055947 50 680 1.96 10 35.0 x 50.0 LH2V681MZ 055948 50

400 Volt

47 0.32 10 22.0 x 25.0 LH2G470MA 055902 100 100 0.62 10 22.0 x 35.0 LH2G101MJ 055904 100 150 0.75 10 22.0 x 40.0 LH2G151MC 055905 100 150 0.85 10 25.0 x 40.0 LH2G151MG 055925 100 220 1.24 10 30.0 x 40.0 LH2G221MV 055906 80 330 1.47 10 30.0 x 50.0 LH2G331MN 055907 80 470 1.87 10 35.0 x 50.0 LH2G471MZ 055908 50

450 Volt

47 0.36 10 22.0 x 25.0 LH2W470MA 055973 100 100 0.67 10 22.0 x 35.0 LH2W101MJ 055974 100 150 0.85 10 25.0 x 40.0 LH2W151MG 055975 100 220 1.10 10 30.0 x 45.0 LH2W221MM 055976 80 330 1.44 10 35.0 x 45.0 LH2W331MQ 055977 50 470 1.80 10 35.0 x 50.0 LH2W471MZ 055978 50

SNAP-IN

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

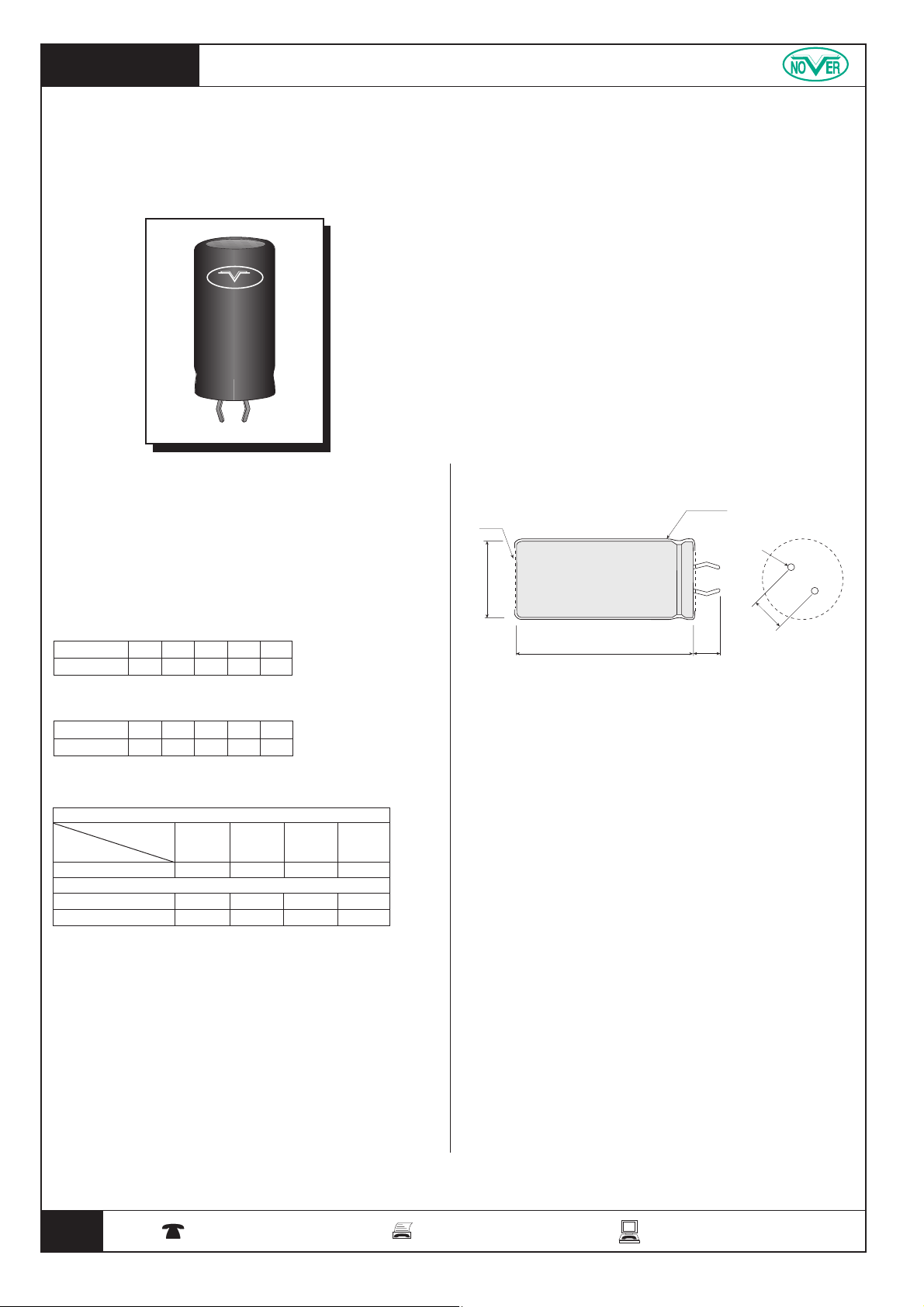

Page 45

LOW ESR

A range of high CV, low ESR, snap-in aluminium electrolytic capacitors on a standard 10mm pitch. The high response characteristics of the LA series make it especially suitable for ampliﬁcation power supplies and other audio based equipment.The entire range of available values and voltages in loose format, are shown on the following page.

● Low ESR

● High CV

● Snap-in terminals Standard 10mm pitch

● Endurance 2000 hours at 85°C

● Capacitance tolerance 20%

● Leakage current ≤0.01CV

● Body colour Black

NOVER type LA

Speciﬁcation

Endurance test ........................................... 2000 hours at 85°C

Capacitance tolerance ............................... ±20% at 120Hz, 20°C

Ripple current (as listed) ........................... measured at 120Hz, 85°C

(see also Multiplier table below)

Operating temperature range .................... -40°C to +85°C

Leakage current ........................................ ≤0.01CV or 3A

(whichever is greater) after 2 min.

Rated voltage 50V 63V 80V 100V d.c.

Tan  (max) * 0.20 0.15 0.15 0.15

Rated voltage 50V 63V 80V 100V d.c.

Surge voltage 63V 79V 100V 125V d.c.

Dissipation factor (120Hz, 20°C)

Surge voltage capability

Dimensions (mm)

SNAP-IN

Multiplier for ripple current

Frequency coefﬁcient

Freq(Hz)

50 120 1K 10K

Rated Voltage (V)

50 ~ 100 0.95 1.0 1.1 1.3

Temperature coefﬁcient

Temperature (°C) +40 +55 +70 +85

Factor 2.1 1.8 1.5 1.0

*Add 0.02 for every 1000F above 10000F

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

NO ER

Vent

Dia

Vinyl sleeve

Polarity indicated on terminals

ø2

Dia x L are can sizes only. To allow for sleeve add 1.0 to Dia and 2.0 to L

6.0 ±1

Mounting Holes

Page 46

LOW ESR

NOVER type LA

Value Ripple Current Dimensions (mm) Nover

(F) (A) Pitch Dia. x L Part No. Order Code

50 Volt

4700 3.25 10 25.0 x 50.0 LA1H472MG5 069305 6800 4.18 10 25.0 x 50.0 LA1H682MG5 069306 8200 4.76 10 30.0 x 50.0 LA1H822MH5 069356 10000 5.42 10 30.0 x 60.0 LA1H103MH6 069307 12000 6.16 10 30.0 x 60.0 LA1H123MH6 069357 15000 6.89 10 35.0 x 60.0 LA1H153MJ6 069308 18000 7.88 10 35.0 x 70.0 LA1H183MJ7 069309 22000 8.20 10 35.0 x 80.0 LA1H223MJ8 069310

63 Volt

4700 3.64 10 30.0 x 50.0 LA1J472MH5 069406 6800 4.76 10 30.0 x 60.0 LA1J682MH6 069407 8200 5.29 10 30.0 x 60.0 LA1J822MH6 069428 10000 5.93 10 30.0 x 60.0 LA1J103MH6 069408 12000 6.80 10 30.0 x 70.0 LA1J123MH7 069409 15000 7.92 10 35.0 x 80.0 LA1J153MJ8 069410

80 Volt

4700 4.42 10 30.0 x 50.0 LA1K472MH5 069926 6800 5.57 10 30.0 x 60.0 LA1K682MH6 069927 8200 6.30 10 30.0 x 80.0 LA1K822MH8 069556 10000 7.06 10 35.0 x 80.0 LA1K103MJ8 069928 12000 7.80 10 35.0 x 80.0 LA1K123MJ8 069557

100 Volt

4700 5.52 10 30.0 x 60.0 LA2A472MH6 069508 6800 6.50 10 35.0 x 70.0 LA2A682MJ7 069509 8200 7.20 10 35.0 x 80.0 LA2A822MJ8 069510

SNAP-IN

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

For the very latest Nover product data and news

visit the Nover website:

www.nover.com

BACK TO CONTENTS

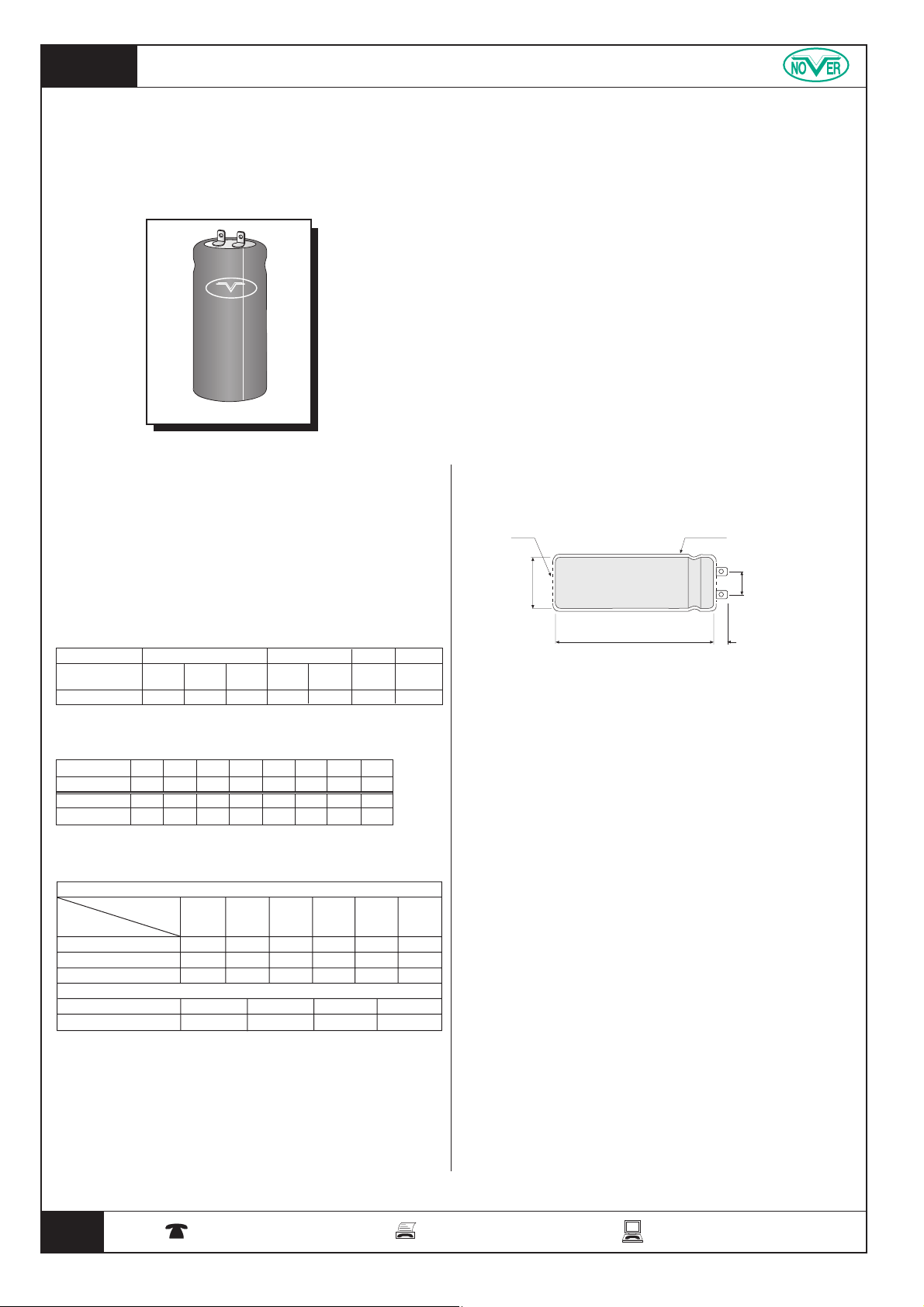

Page 47

GENERAL PURPOSE

LUG

A comprehensive range of standard aluminium electrolytic capacitors suitable for many industrial applications. Fitted with lug terminals and housed within a robust casing, the LE series is supplied loose and available in a wide range of standard voltages and values, the full list of which is shown on the following pages.

NOVER type LE

Speciﬁcation

Endurance test ........................................... 1000 hours at 85°C

Capacitance tolerance ............................... -10, +50% at 120Hz, 20°C

Ripple current (as listed) ........................... measured at 120Hz, 85°C

(see also Multiplier table below)

Operating temperature range .................... -40°C to +85°C (16 - 100V)

-25°C to +85°C (160 - 450V)

Leakage current ........................................ ≤3 x C (µA) after 5 minutes

Dissipation factor (120Hz, 20°C)

Dimensions (mm)

● Standard range

● Maximum temperature 85°C

● Capacitance tolerance -10, +50%

● Body colour Dark Blue

Rated voltage (V) 16 ~ 25 35 ~ 63 80 ~ 350 400 ~ 450

Cap (µF)

3300 ~ 15000 ~ 47000 ~ 1000 ~ 15000 ~ 47 ~ 33 ~

10000 33000 68000 10000 33000 10000 470

Tan  (max) 0.35 0.50 0.75 0.25 0.35 0.20 0.25

Rated voltage 16V 25V 35V 50V 63V 80V 100V d.c.

Surge voltage 20V 32V 44V 63V 79V 100V 125V d.c.

Rated voltage 160V 200V 250V 315V 350V 400V 450V d.c.

Surge voltage 200V 250V 300V 365V 400V 450V 500V d.c.

Surge voltage capability

Multiplier for ripple current

Frequency coefﬁcient

Freq(Hz)

50 60 120 1K 10K 20K

Rated Voltage (V)

16 ~ 100 0.88 0.90 1.0 1.15 1.15 1.15

160 ~ 250 0.77 0.80 1.0 1.50 1.60 1.63

315 ~ 450 0.88 0.90 1.0 1.15 1.15 1.15

Temperature coefﬁcient

Temperature (°C) +20 +45 +70 +85

Coefﬁcient 1.5 1.48 1.3 1.0

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

NO ER

Vent

Dia

Dia x L are can sizes only. To allow for sleeve add 1.0 to Dia and 2.0 to L

Vinyl sleeve

Polarity indicated

Pitch

on terminals

Terminal Height

Page 48

GENERAL PURPOSE

LUG

NOVER type LE

Dimensions (mm)

Value Ripple Current Pitch x Nover Pack Qty

(F) (A) Terminal Height Dia. x L Part No. Order Code pcs

16 Volt

4700 2.41 8.5 x 10.0 22.0 x 30.0 LE1C472TM3 064002 100 6800 2.53 8.5 x 10.0 22.0 x 30.0 LE1C682TM3 064003 100 10000 3.10 10.0 x 12.0 25.0 x 40.0 LE1C103TG4 064004 100 15000 4.01 14.0 x 12.0 30.0 x 50.0 LE1C153TH5 064005 80 22000 4.88 14.0 x 12.0 30.0 x 63.0 LE1C223TH6 064006 80 33000 5.92 14.0 x 12.0 35.0 x 63.0 LE1C333TJ6 064007 50 47000 7.42 14.0 x 12.0 35.0 x 80.0 LE1C473TJ8 064008 50 68000 8.60 14.0 x 12.0 40.0 x 100.0 LE1C683TK9 064009 50

25 Volt

3300 2.06 8.5 x 10.0 22.0 x 30.0 LE1E332TM3 064100 100 4700 2.40 8.5 x 10.0 22.0 x 40.0 LE1E472TM4 064101 100 6800 2.82 10.0 x 12.0 25.0 x 40.0 LE1E682TG4 064102 100 10000 3.47 10.0 x 12.0 25.0 x 50.0 LE1E103TG5 064105 100 15000 4.40 14.0 x 12.0 30.0 x 63.0 LE1E153TH6 064106 80 22000 5.71 14.0 x 12.0 35.0 x 63.0 LE1E223TJ6 064107 50 33000 6.80 14.0 x 12.0 35.0 x 80.0 LE1E333TJ8 064108 50 47000 8.02 14.0 x 12.0 40.0 x 100.0 LE1E473TK9 064109 50

35 Volt

2200 1.89 8.5 x 10.0 22.0 x 30.0 LE1V222TM3 064202 100 3300 2.35 8.5 x 10.0 22.0 x 40.0 LE1V332TM4 064203 100 4700 2.51 10.0 x 12.0 25.0 x 40.0 LE1V472TG4 064204 100 6800 3.18 10.0 x 12.0 25.0 x 50.0 LE1V682TG5 064205 100 10000 3.95 14.0 x 12.0 30.0 x 50.0 LE1V103TH5 064206 80 15000 5.28 14.0 x 12.0 35.0 x 63.0 LE1V153TJ6 064207 50 22000 7.04 14.0 x 12.0 35.0 x 80.0 LE1V223TJ8 064208 50 33000 7.80 14.0 x 12.0 40.0 x 100.0 LE1V333TK9 064209 50

50 Volt

1500 1.52 8.5 x 10.0 22.0 x 30.0 LE1H152TM3 064302 100 2200 2.12 8.5 x 10.0 22.0 x 40.0 LE1H222TM4 064303 100 3300 2.65 10.0 x 12.0 25.0 x 40.0 LE1H332TG4 064304 100 4700 3.31 10.0 x 12.0 25.0 x 50.0 LE1H472TG5 064305 100 6800 4.26 14.0 x 12.0 30.0 x 50.0 LE1H682TH5 064306 80 10000 5.52 14.0 x 12.0 35.0 x 63.0 LE1H103TJ6 064307 50 15000 7.08 14.0 x 12.0 35.0 x 80.0 LE1H153TJ8 064308 50 22000 7.92 14.0 x 12.0 35.0 x 100.0 LE1H223TJ9 064309 50

63 Volt

1000 1.72 8.5 x 10.0 22.0 x 30.0 LE1J102TM3 064402 100 1500 2.04 8.5 x 10.0 22.0 x 40.0 LE1J152TM4 064403 100 2200 2.58 10.0 x 12.0 25.0 x 40.0 LE1J222TG4 064404 100 3300 2.96 10.0 x 12.0 25.0 x 50.0 LE1J332TG5 064405 100 4700 3.71 14.0 x 12.0 30.0 x 50.0 LE1J472TH5 064406 80 6800 4.91 14.0 x 12.0 35.0 x 50.0 LE1J682TJ5 064407 50 10000 6.04 14.0 x 12.0 35.0 x 80.0 LE1J103TJ8 064408 50 15000 7.13 14.0 x 12.0 35.0 x 100.0 LE1J153TJ9 064409 50

80 Volt

680 1.05 8.5 x 10.0 22.0 x 30.0 LE1K681TM3 064921 100 1000 1.54 8.5 x 10.0 22.0 x 40.0 LE1K102TM4 064922 100 1500 2.21 8.5 x 10.0 22.0 x 40.0 LE1K152TM4 064923 100 2200 2.53 10.0 x 12.0 25.0 x 50.0 LE1K222TG5 064924 100 3300 3.57 14.0 x 12.0 30.0 x 50.0 LE1K332TH5 064925 80 4700 4.71 14.0 x 12.0 35.0 x 50.0 LE1K472TJ5 064926 50 6800 5.70 14.0 x 12.0 35.0 x 63.0 LE1K682TJ6 064927 50 10000 6.82 14.0 x 12.0 35.0 x 100.0 LE1K103TJ9 064928 50

100 Volt

470 1.32 8.5 x 10.0 22.0 x 30.0 LE2A471TM3 064502 100 680 1.86 8.5 x 10.0 22.0 x 40.0 LE2A681TM4 064503 100 1000 2.31 10.0 x 12.0 25.0 x 40.0 LE2A102TG4 064504 100 1500 2.89 10.0 x 12.0 25.0 x 50.0 LE2A152TG5 064505 100 2200 3.52 14.0 x 12.0 30.0 x 50.0 LE2A222TH5 064506 80 3300 4.51 14.0 x 12.0 35.0 x 50.0 LE2A332TJ5 064507 50 4700 5.61 14.0 x 12.0 35.0 x 63.0 LE2A472TJ6 064508 50 6800 6.02 14.0 x 12.0 35.0 x 100.0 LE2A682TJ9 064509 50

LE continued overleaf > > > >

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

Page 49

GENERAL PURPOSE

NOVER type LE (continued)

Dimensions (mm)

Value Ripple Current Pitch x Nover Pack Qty

(F) (A) Terminal Height Dia. x L Part No. Order Code pcs

160 Volt

150 0.88 8.5 x 10.0 22.0 x 30.0 LE2C151TM3 064601 100 220 1.14 8.5 x 10.0 22.0 x 40.0 LE2C221TM4 064602 100 330 1.48 10.0 x 12.0 25.0 x 50.0 LE2C331TG5 064603 100 470 1.92 14.0 x 12.0 30.0 x 50.0 LE2C471TH5 064604 80 680 2.42 14.0 x 12.0 35.0 x 50.0 LE2C681TJ5 064605 50 1000 3.08 14.0 x 12.0 35.0 x 63.0 LE2C102TJ6 064607 50 1500 4.24 14.0 x 12.0 35.0 x 80.0 LE2C152TJ8 064608 50 2200 5.86 14.0 x 12.0 40.0 x 100.0 LE2C222TK9 064609 50

200 Volt

100 0.52 8.5 x 10.0 22.0 x 30.0 LE2D101TM3 064701 100 150 0.71 8.5 x 10.0 22.0 x 40.0 LE2D151TM4 064702 100 220 1.21 10.0 x 12.0 25.0 x 40.0 LE2D221TG4 064703 100 330 1.62 10.0 x 12.0 25.0 x 50.0 LE2D331TG5 064704 100 470 2.00 14.0 x 12.0 30.0 x 50.0 LE2D471TH5 064705 80 680 2.59 14.0 x 12.0 35.0 x 50.0 LE2D681TJ5 064706 50 1000 3.16 14.0 x 12.0 35.0 x 63.0 LE2D102TJ6 064707 50 1500 4.12 14.0 x 12.0 35.0 x 100.0 LE2D152TJ9 064708 50 2200 5.43 14.0 x 12.0 40.0 x 100.0 LE2D222TK9 064709 50

250 Volt

68 0.52 8.5 x 10.0 22.0 x 30.0 LE2E680TM3 064800 100 100 0.68 8.5 x 10.0 22.0 x 40.0 LE2E101TM4 064801 100 150 0.96 10.0 x 12.0 25.0 x 40.0 LE2E151TG4 064802 100 220 1.43 10.0 x 12.0 25.0 x 50.0 LE2E221TG5 064803 100 330 1.85 14.0 x 12.0 30.0 x 50.0 LE2E331TH5 064804 80 470 2.25 14.0 x 12.0 35.0 x 50.0 LE2E471TJ5 064805 50 680 3.05 14.0 x 12.0 35.0 x 63.0 LE2E681TJ6 064806 50 1000 3.85 14.0 x 12.0 35.0 x 80.0 LE2E102TJ8 064808 50 1500 4.96 14.0 x 12.0 40.0 x 100.0 LE2E152TK9 064809 50

315 Volt

47 0.31 8.5 x 10.0 22.0 x 30.0 LE2F470TM3 064951 100 68 0.45 8.5 x 10.0 22.0 x 40.0 LE2F680TM4 064952 100 100 0.66 10.0 x 12.0 25.0 x 40.0 LE2F101TG4 064953 100 150 0.82 10.0 x 12.0 25.0 x 50.0 LE2F151TG5 064954 100 220 1.19 14.0 x 12.0 30.0 x 50.0 LE2F221TH5 064955 80 330 1.42 14.0 x 12.0 35.0 x 50.0 LE2F331TJ5 064956 50 470 2.13 14.0 x 12.0 35.0 x 63.0 LE2F471TJ6 064957 50 680 2.31 14.0 x 12.0 35.0 x 80.0 LE2F681TJ8 064958 50 1000 3.34 14.0 x 12.0 40.0 x 100.0 LE2F102TK9 064959 50

350 Volt

47 0.35 8.5 x 10.0 22.0 x 30.0 LE2V470TM3 064941 100 68 0.52 8.5 x 10.0 22.0 x 40.0 LE2V680TM4 064942 100 100 0.71 10.0 x 12.0 25.0 x 40.0 LE2V101TG4 064943 100 150 0.95 10.0 x 12.0 25.0 x 50.0 LE2V151TG5 064944 100 220 1.37 14.0 x 12.0 30.0 x 50.0 LE2V221TH5 064945 80 330 1.66 14.0 x 12.0 35.0 x 50.0 LE2V331TJ5 064946 50 470 2.31 14.0 x 12.0 35.0 x 80.0 LE2V471TJ8 064947 50 680 2.58 14.0 x 12.0 35.0 x 100.0 LE2V681TJ9 064948 50 1000 3.66 14.0 x 12.0 40.0 x 100.0 LE2V102TK9 064949 50

400 Volt

33 0.42 8.5 x 10.0 22.0 x 30.0 LE2G330TM3 064901 100 47 0.55 8.5 x 10.0 22.0 x 40.0 LE2G470TM4 064902 100 68 0.61 10.0 x 12.0 25.0 x 40.0 LE2G680TG4 064903 100 100 0.79 10.0 x 12.0 25.0 x 50.0 LE2G101TG5 064904 100 150 1.04 14.0 x 12.0 30.0 x 50.0 LE2G151TH5 064905 80 220 1.35 14.0 x 12.0 35.0 x 50.0 LE2G221TJ5 064906 50 330 1.79 14.0 x 12.0 35.0 x 63.0 LE2G331TJ6 064907 50 470 2.31 14.0 x 12.0 35.0 x 100 LE2G471TJ9 064908 50 680 3.16 14.0 x 12.0 40.0 x 100.0 LE2G681TK9 064909 50

450 Volt

33 0.48 8.5 x 10.0 22.0 x 30.0 LE2W330TM3 064972 100 47 0.61 8.5 x 10.0 22.0 x 40.0 LE2W470TM4 064973 100 68 0.69 10.0 x 12.0 25.0 x 40.0 LE2W680TG4 064974 100 100 0.77 14.0 x 12.0 30.0 x 50.0 LE2W101TH5 064975 80 150 1.18 14.0 x 12.0 35.0 x 50.0 LE2W151TJ5 064976 50 220 1.43 14.0 x 12.0 35.0 x 63.0 LE2W221TJ6 064977 50 330 1.64 14.0 x 12.0 35.0 x 80.0 LE2W331TJ8 064978 50 470 2.11 14.0 x 12.0 40.0 x 100.0 LE2W471TK9 064979 50

LUG

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

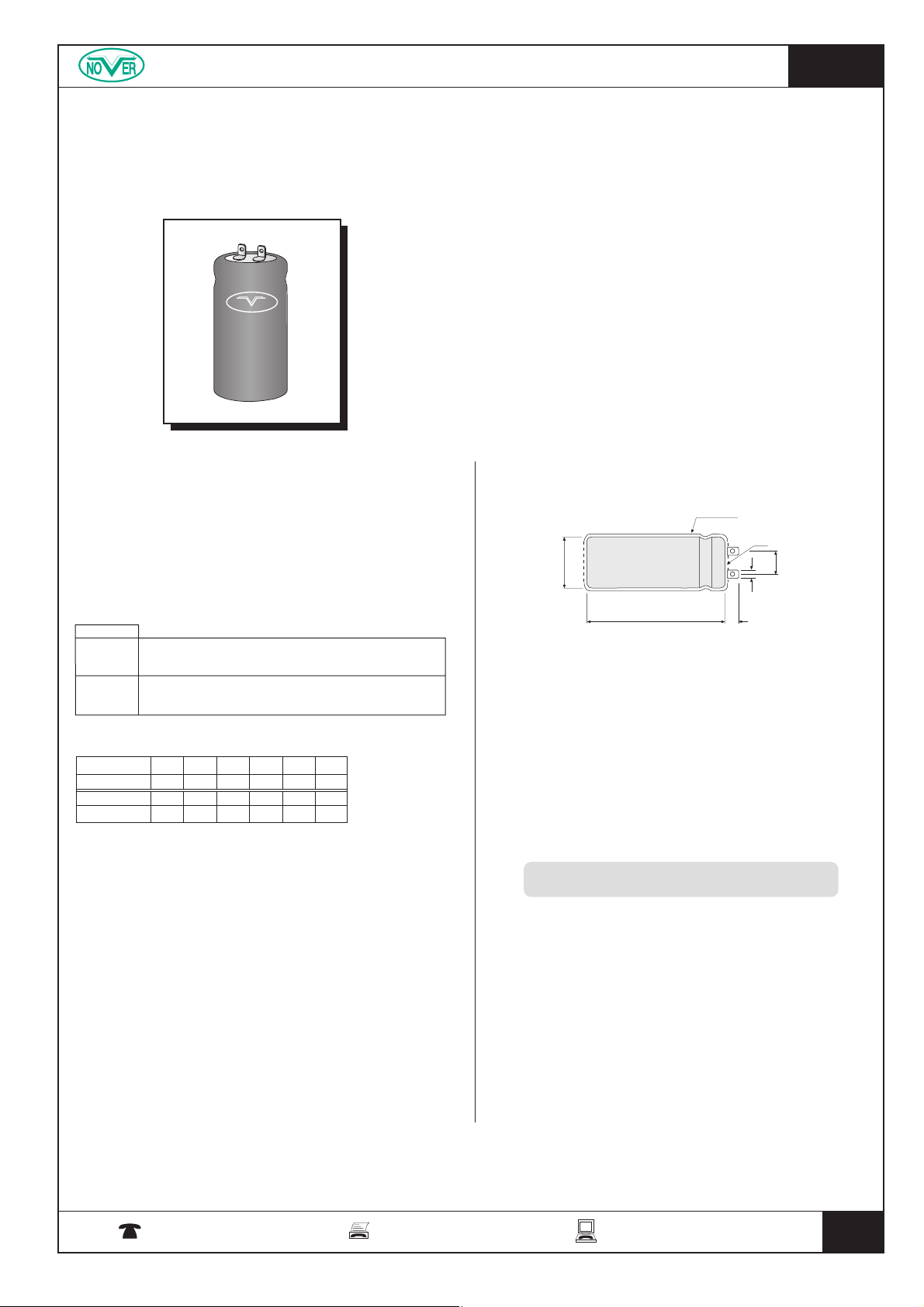

Page 50

MOTOR START

The MS series of aluminium electrolytic capacitors has been speciﬁcally designed to offer high performance operation on AC motor loads. Fitted with 4mm lug terminals, the MS offers excellent endurance ﬁgures of between 30 - 75K applications and good surge/withstand voltage characteristics, making it especially suitable for use in compressor, water pump, air conditioning and other similar industries. The entire range of available values and voltages in loose format, are shown on the following pages.

● For AC motor loads

● High endurance 30 - 75K applications

● Capacitance tolerance 0, +20%

● High withstand voltage 1500Va.c

● Body colour Grey

NOVER type MS

Speciﬁcation

Capacitance tolerance ............................... 0, +20% at 120Hz, 20°C

Operating temperature range .................... -20°C to +70°C

Power factor (25°C) ................................... 8% max.

Withstand voltage ...................................... 1500Va.c. for 1 minute

between both terminals and holding clamp

Endurance test

Dimensions (mm)

LUG

Rated voltage

≤125Va.c.

Apply for 1 second and rest for 29 seconds. 2 cycles per minute at +70°C with power factor of 20% or less. Capacitance change within 25% of initial measured value after 75,000 applications.

≥160Va.c.

Apply for 1 second and rest for 59 seconds. 1 cycle per minute at +70°C with power factor of 20% or less. Capacitance change within 25% of initial measured value after 30,000 applications.

Rated voltage 110V 125V 140V 160V 180V a.c.

Surge voltage 132V 150V 168V 192V 216V a.c.

Rated voltage 200V 220V 250V 280V 300V a.c.

Surge voltage 240V 264V 300V 336V 360V a.c.

Surge voltage capability

Other terminal types available to special order

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

MS continued overleaf > > > >

BACK TO CONTENTS

NO ER

Vinyl sleeve

Dia

Dia x L are can sizes only. To allow for sleeve add 1.0 to Dia and 2.0 to L

Vent

Pitch

4.0 x 0.5

12.0

Page 51

MOTOR START

NOVER type MS

Value Dimensions (mm) Nover

(F) Pitch Dia. x L Part No. Order Code

110 Volt

40 10 25.0 x 40.0 MS11A400RA4 066001 50 10 25.0 x 50.0 MS11A500RA5 066002 63 10 25.0 x 50.0 MS11A630RA5 066003 80 10 25.0 x 60.0 MS11A800RA6 066004 100 10 25.0 x 60.0 MS11A101RA6 066005 125 10 30.0 x 60.0 MS11A125RRB6 066006 160 10 30.0 x 70.0 MS11A161RB7 066007 200 12 35.0 x 60.0 MS11A201RC6 066008 250 12 35.0 x 70.0 MS11A251RC7 066009 315 12 35.0 x 80.0 MS11A315RRC8 066010 400 12 35.0 x 100.0 MS11A401RC9 066011 500 16 40.0 x 100.0 MS11A501RD9 066012

125 Volt

40 10 25.0 x 50.0 MS12B400RA5 066015 50 10 25.0 x 50.0 MS12B500RA5 066016 63 10 25.0 x 60.0 MS12B630RA6 066017 80 10 30.0 x 60.0 MS12B800RB6 066018 100 10 30.0 x 70.0 MS12B101RB7 066019 125 12 35.0 x 60.0 MS12B125RRC6 066020 160 12 35.0 x 70.0 MS12B161RC7 066021 200 12 35.0 x 80.0 MS12B201RC8 066022 250 12 35.0 x 100.0 MS12B251RC9 066023 315 16 40.0 x 100.0 MS12B315RRD9 066024 400 16 45.0 x 100.0 MS12B401RE9 066025

140 Volt

40 10 25.0 x 60.0 MS14A400RA6 066028 50 10 25.0 x 60.0 MS14A500RA6 066029 63 10 30.0 x 60.0 MS14A630RB6 066030 80 10 30.0 x 70.0 MS14A800RB7 066031 100 12 35.0 x 60.0 MS14A101RC6 066032 125 12 35.0 x 70.0 MS14A125RRC7 066033 160 12 35.0 x 80.0 MS14A161RC8 066034 200 12 35.0 x 100.0 MS14A201RC9 066035 250 16 40.0 x 100.0 MS14A251RD9 066036 315 16 45.0 x 100.0 MS14A315RRE9 066037

160 Volt

40 10 25.0 x 60.0 MS16A400RA6 066040 50 10 25.0 x 70.0 MS16A500RA7 066041 63 10 30.0 x 70.0 MS16A630RB7 066042 80 12 35.0 x 60.0 MS16A800RC6 066043 100 12 35.0 x 70.0 MS16A101RC7 066044 125 12 35.0 x 80.0 MS16A125RRC8 066045 160 12 35.0 x 100.0 MS16A161RC9 066046 200 16 40.0 x 100.0 MS16A201RD9 066047 250 16 45.0 x 100.0 MS16A251RE9 066048

180 Volt

30 10 25.0 x 60.0 MS18A300RA6 066051 40 10 25.0 x 70.0 MS18A400RA7 066052 50 10 30.0 x 70.0 MS18A500RB7 066053 63 12 35.0 x 60.0 MS18A630RC6 066054 80 12 35.0 x 70.0 MS18A800RC7 066055 100 12 35.0 x 80.0 MS18A101RC8 066056 125 12 35.0 x 100.0 MS18A125RRC9 066057 160 16 40.0 x 100.0 MS18A161RD9 066058 200 16 45.0 x 100.0 MS18A201RE9 066059

200 Volt

25 10 30.0 x 70.0 MS20A250RB7 066062 30 10 30.0 x 80.0 MS20A300RB8 066063 40 12 35.0 x 60.0 MS20A400RC6 066064 50 12 35.0 x 70.0 MS20A500RC7 066065 63 12 35.0 x 80.0 MS20A630RC8 066066 80 12 35.0 x 100.0 MS20A800RC9 066067 100 16 40.0 x 100.0 MS20A101RD9 066068 125 16 45.0 x 100.0 MS20A125RRE9 066069 160 20 51.0 x 100.0 MS20A161RF9 066070

LUG

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

Page 52

NOVER type MS (continued)

Value Dimensions (mm) Nover

(F) Pitch Dia. x L Part No. Order Code

220 Volt

25 10 30.0 x 80.0 MS22A250RB8 066073 30 12 35.0 x 60.0 MS22A300RC6 066074 40 12 35.0 x 70.0 MS22A400RC7 066075 50 12 35.0 x 80.0 MS22A500RC8 066076 63 12 35.0 x 100.0 MS22A630RC9 066077 80 16 40.0 x 100.0 MS22A800RD9 066078 100 16 45.0 x 100.0 MS22A101RE9 066079 125 20 51.0 x 100.0 MS22A125RRF9 066080

250 Volt

25 12 35.0 x 60.0 MS25A250RC6 066083 30 12 35.0 x 70.0 MS25A300RC7 066084 40 12 35.0 x 80.0 MS25A400RC8 066085 50 12 35.0 x 100.0 MS25A500RC9 066086 63 16 40.0 x 100.0 MS25A630RD9 066087 80 16 45.0 x 100.0 MS25A800RE9 066088 100 20 51.0 x 100.0 MS25A101RF9 066089

280 Volt

25 12 35.0 x 70.0 MS28A250RC7 066092 30 12 35.0 x 80.0 MS28A300RC8 066093 40 12 35.0 x 100.0 MS28A400RC9 066094 50 16 40.0 x 100.0 MS28A500RD9 066095 63 16 45.0 x 100.0 MS28A630RE9 066096 80 20 51.0 x 100.0 MS28A800RF9 066097

300 Volt

25 12 35.0 x 80.0 MS30A250RC8 066100 30 12 35.0 x 100.0 MS30A300RC9 066101 40 16 40.0 x 100.0 MS30A400RD9 066102 50 16 45.0 x 100.0 MS30A500RE9 066103 63 16 45.0 x 100.0 MS30A630RE9 066104

MOTOR START

LUG

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

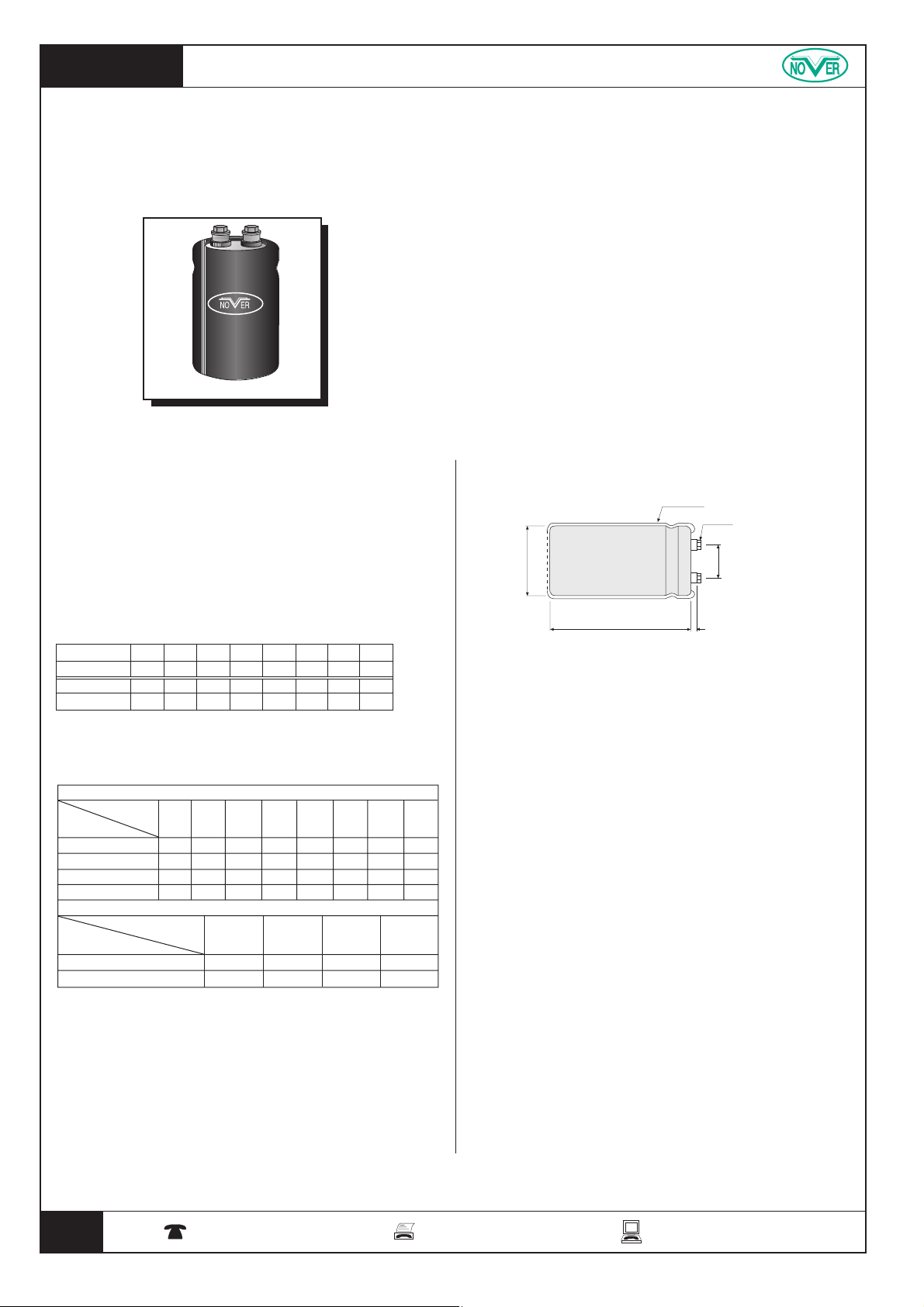

Page 53

GENERAL PURPOSE

SCREW

Designed for use in a wide range of general industrial applications such as power supplies, inverters and computer equipment, the CE aluminium electrolytic capacitors offer high ripple current and excellent endurance. Fitted with quality M5 screw terminals, the CE series are supplied in numerous values and voltages in loose format, as shown on the following pages.

● High ripple current

● Endurance 2000 hours at 85°C

● Capacitance tolerance 20%

● Body colour Black

NOVER type CE

Speciﬁcation

Endurance test ........................................... 2000 hours at 85°C

Capacitance tolerance ............................... ±20% at 120Hz, 20°C

Ripple current (as listed) ............................ measured at 120Hz, 85°C

Operating temperature range .................... -40°C to +85°C (25 ~ 250V)

-25°C to +85°C (350 ~ 450V)

Leakage current ........................................ ≤0.02CV after 5 minutes

Dissipation factor (as listed) ...................... measured at 120Hz, 20°C

Dimensions (mm)

Rated voltage 16V 25V 35V 50V 63V 80V 100V d.c.

Surge voltage 20V 32V 44V 63V 79V 100V 125V d.c.

Rated voltage 160V 200V 250V 350V 400V 450V – d.c.

Surge voltage 200V 250V 300V 400V 450V 500V – d.c.

Surge voltage capability

Multiplier for ripple current

Frequency coefﬁcient

Freq(Hz)

50 120 300 1K 3K 5K 10K 20K

Rated Voltage(V)

25 ~ 50 0.95 1.0 1.04 1.10 1.12 1.13 1.15 1.15

63 ~ 100 0.95 1.0 1.06 1.16 1.20 1.25 1.30 1.33

160 ~ 200 0.90 1.0 1.10 1.20 1.35 1.40 1.50 1.55

250 ~ 450 0.80 1.0 1.10 1.20 1.35 1.40 1.50 1.55

Temperature coefﬁcient

Temperature (°C)

40 55 70 85

Rated Voltage(V)

25 ~ 100 2.1 1.8 1.5 1.0

160 ~ 450 2.6 2.2 1.7 1.0

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

Vinyl sleeve

Dia

Dia x L are can sizes only. To allow for sleeve add 1.0 to Dia and 3.0 to L

M5 x 0.8

8 max.

Pitch

Polarity indicated

adjacent to terminals

Page 54

GENERAL PURPOSE

SCREW

NOVER type CE

CE continued overleaf > > > >

Value Ripple Current Dissipation Factor Dimensions (mm) Nover

(F) (A) Tan  (max) Pitch Dia. x L Part No. Order Code

25 Volt

47000 6.6 0.8 22 51.0 x 63.0 CE1E473MC6 065100 68000 7.9 0.8 22 51.0 x 63.0 CE1E683MC6 065101 82000 9.0 0.8 22 51.0 x 72.0 CE1E823MC7 065102 100000 10.3 0.8 22 51.0 x 80.0 CE1E104MC8 065103 150000 14.1 0.8 22 51.0 x 115.0 CE1E154MC11 065104 180000 15.7 0.8 22 51.0 x 120.0 CE1E184MC12 065105 220000 16.1 1.0 28 63.5 x 100.0 CE1E224MD10 065106 330000 21.9 1.0 28 63.5 x 140.0 CE1E334MD14 065107 470000 25.6 1.2 32 77.0 x 140.0 CE1E474ME14 065108 680000 32.5 1.2 32 89.0 x 140.0 CE1E684MF14 065109

35 Volt

33000 6.4 0.6 22 51.0 x 63.0 CE1V333MC6 065120 47000 7.9 0.6 22 51.0 x 72.0 CE1V473MC7 065121 68000 9.8 0.6 22 51.0 x 80.0 CE1V683MC8 065122 82000 11.6 0.6 22 51.0 x 100.0 CE1V823MC10 065123 100000 13.3 0.6 22 51.0 x 115.0 CE1V104MC11 065124 150000 14.9 0.8 28 63.5 x 100.0 CE1V154MD10 065125 180000 17.0 0.8 28 63.5 x 115.0 CE1V184MD11 065126 180000 15.7 1.0 32 89.0 x 80.0 CE1V184MF8 065127 220000 20.0 0.8 28 63.5 x 140.0 CE1V224MD14 065128 270000 20.3 1.0 32 77.0 x 120.0 CE1V274ME12 065129 270000 20.4 1.0 32 89.0 x 100.0 CE1V274MF10 065130 330000 23.5 1.0 32 77.0 x 140.0 CE1V334ME14 065131 470000 29.6 1.0 32 89.0 x 140.0 CE1V474MF14 065132

50 Volt

22000 6.3 0.5 22 51.0 x 63.0 CE1H223MC6 065140 33000 7.3 0.5 22 51.0 x 72.0 CE1H333MC7 065141 47000 9.3 0.5 22 51.0 x 90.0 CE1H473MC9 065142 68000 12.0 0.5 22 51.0 x 115.0 CE1H683MC11 065143 82000 13.7 0.5 22 51.0 x 130.0 CE1H823MC13 065144 100000 14.7 0.6 28 63.5 x 115.0 CE1H104MD11 065145 150000 19.3 0.6 32 77.0 x 115.0 CE1H154ME11 065146 180000 21.9 0.6 32 77.0 x 130.0 CE1H184ME13 065147 220000 21.4 0.8 32 89.0 x 115.0 CE1H224MF11 065148

63 Volt

18000 5.8 0.4 22 51.0 x 63.0 CE1J183MC6 065160 22000 6.4 0.4 22 51.0 x 63.0 CE1J223MC6 065161 33000 8.4 0.4 22 51.0 x 80.0 CE1J333MC8 065162 47000 11.3 0.4 22 51.0 x 115.0 CE1J473MC11 065163 68000 12.7 0.5 28 63.5 x 100.0 CE1J683MD10 065164 82000 14.5 0.5 28 63.5 x 115.0 CE1J823MD11 065165 100000 16.7 0.5 28 63.5 x 130.0 CE1J104MD13 065166 150000 22.4 0.5 32 77.0 x 140.0 CE1J154ME14 065167 180000 22.4 0.6 32 89.0 x 115.0 CE1J184MF11 065168 220000 26.2 0.6 32 89.0 x 140.0 CE1J224MF14 065169

80 Volt

15000 6.2 0.3 22 51.0 x 63.0 CE1K153MC6 065180 18000 7.0 0.3 22 51.0 x 72.0 CE1K183MC7 065181 22000 8.0 0.3 22 51.0 x 80.0 CE1K223MC8 065182 33000 10.5 0.3 22 51.0 x 100.0 CE1K333MC10 065183 47000 13.6 0.3 22 51.0 x 130.0 CE1K473MC13 065184 68000 15.4 0.4 28 63.5 x 130.0 CE1K683MD13 065185 82000 17.5 0.4 32 77.0 x 115.0 CE1K823ME11 065186 100000 20.5 0.4 32 77.0 x 140.0 CE1K104ME14 065187 150000 26.5 0.4 32 89.0 x 140.0 CE1K154MF14 065188

100 Volt

10000 5.6 0.25 22 51.0 x 63.0 CE2A103MC6 065200 15000 7.0 0.25 22 51.0 x 80.0 CE2A153MC8 065201 18000 8.3 0.25 22 51.0 x 90.0 CE2A183MC9 065202 22000 10.0 0.25 22 51.0 x 115.0 CE2A223MC11 065203 33000 11.9 0.3 28 63.5 x 115.0 CE2A333MD11 065204 47000 14.2 0.35 32 77.0 x 115.0 CE2A473ME11 065205 68000 18.8 0.35 32 77.0 x 160.0 CE2A683ME16 065206 82000 20.5 0.35 32 89.0 x 130.0 CE2A823MF13 065207 100000 24.0 0.35 32 89.0 x 160.0 CE2A104MF16 065208

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

Page 55

NOVER type CE (continued)

Value Ripple Current Dissipation Factor Dimensions (mm) Nover

(F) (A) Tan  (max) Pitch Dia. x L Part No. Order Code

160 Volt

3300 4.2 0.25 22 51.0 x 63.0 CE2C332MC6 065220 4700 5.2 0.25 22 51.0 x 72.0 CE2C472MC7 065221 6800 6.7 0.25 22 51.0 x 90.0 CE2C682MC9 065222 8200 7.6 0.25 22 51.0 x 100.0 CE2C822MC10 065223 10000 8.8 0.25 22 51.0 x 115.0 CE2C103MC11 065224 15000 11.6 0.25 28 63.5 x 115.0 CE2C153MD11 065225 18000 13.2 0.25 28 63.5 x 130.0 CE2C183MD13 065226 22000 14.5 0.25 32 77.0 x 115.0 CE2C223ME11 065227 33000 19.4 0.25 32 89.0 x 130.0 CE2C333MF13 065228

200 Volt

2200 3.5 0.25 22 51.0 x 63.0 CE2D222MC6 065240 3300 4.5 0.25 22 51.0 x 72.0 CE2D332MC7 065241 4700 5.7 0.25 22 51.0 x 90.0 CE2D472MC9 065242 6800 7.4 0.25 22 51.0 x 115.0 CE2D682MC11 065243 8200 8.4 0.25 22 51.0 x 130.0 CE2D822MC13 065244 10000 9.8 0.25 28 63.5 x 115.0 CE2D103MD11 065245 15000 12.3 0.25 32 77.0 x 115.0 CE2D153ME11 065246 22000 15.3 0.25 32 89.0 x 115.0 CE2D223MF11 065247

250 Volt

1500 3.3 0.2 22 51.0 x 63.0 CE2E152MC6 065260 2200 4.7 0.2 22 51.0 x 72.0 CE2E222MC7 065261 3300 6.1 0.2 22 51.0 x 90.0 CE2E332MC9 065262 4700 7.9 0.2 22 51.0 x 115.0 CE2E472MC11 065263 6800 10.5 0.2 28 63.5 x 115.0 CE2E682MD11 065264 8200 12.0 0.2 28 63.5 x 130.0 CE2E822MD13 065265 10000 13.5 0.2 28 63.5 x 140.0 CE2E103MD14 065266 15000 16.6 0.2 32 77.0 x 140.0 CE2E153ME14 065267 18000 18.5 0.2 32 89.0 x 130.0 CE2E183MF13 065268 22000 21.7 0.2 32 89.0 x 160.0 CE2E223MF16 065269

350 Volt

1000 3.5 0.2 22 51.0 x 63.0 CE2V102MC6 065280 1500 4.5 0.2 22 51.0 x 72.0 CE2V152MC7 065281 2200 5.8 0.2 22 51.0 x 90.0 CE2V222MC9 065282 3300 7.7 0.2 22 51.0 x 115.0 CE2V332MC11 065283 4700 10.1 0.2 28 63.5 x 115.0 CE2V472MD11 065284 6800 13.1 0.2 32 77.0 x 115.0 CE2V682ME11 065285 8200 15.2 0.2 32 77.0 x 140.0 CE2V822ME14 065286 10000 16.8 0.2 32 89.0 x 115.0 CE2V103MF11 065287

400 Volt

820 3.2 0.2 22 51.0 x 63.0 CE2G821MC6 065300 1000 3.5 0.2 22 51.0 x 63.0 CE2G102MC6 065301 1500 4.6 0.2 22 51.0 x 80.0 CE2G152MC8 065302 1800 5.3 0.2 22 51.0 x 90.0 CE2G182MC9 065303 2200 6.0 0.2 22 51.0 x 100.0 CE2G222MC10 065304 3300 8.1 0.2 28 63.5 x 100.0 CE2G332MD10 065305 4700 10.5 0.2 28 63.5 x 130.0 CE2G472MD13 065306 6800 13.8 0.2 32 77.0 x 140.0 CE2G682ME14 065307 8200 15.2 0.2 32 89.0 x 115.0 CE2G822MF11 065308 10000 17.7 0.2 32 89.0 x 140.0 CE2G103MF14 065309

450 Volt

680 2.8 0.25 22 51.0 x 63.0 CE2W681MC6 065320 820 3.2 0.25 22 51.0 x 72.0 CE2W821MC7 065321 1000 3.6 0.25 22 51.0 x 72.0 CE2W102MC7 065322 1500 4.7 0.25 22 51.0 x 90.0 CE2W152MC9 065323 2200 6.3 0.25 22 51.0 x 130.0 CE2W222MC13 065324 3300 8.2 0.25 28 63.5 x 115.0 CE2W332MD11 065325 4700 10.9 0.25 32 77.0 x 130.0 CE2W472ME13 065326 6800 13.4 0.25 32 89.0 x 115.0 CE2W682MF11 065327 8200 15.6 0.25 32 89.0 x 140.0 CE2W822MF14 065328

GENERAL PURPOSE

SCREW

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

Page 56

SURFACE MOUNT

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

Type Description Page

VE General Purpose – standard range 56-57A

VH General Purpose, 105°C – high temperature 58-59A

VL Long Life, 105°C – high temperature 59B-59C

VA 125°C – very high temperature 59D-59E

VZ Low ESR, 105°C – high temperature 60-61

VX Very Low ESR, 105°C – high temperature 61A-61B

VP Bi-Polar – non-polarised 62-63

This section details the various ranges of surface mount electrolytics.

NOV/0251

BACK TO CONTENTS

Page 57

SURFACE MOUNT

GENERAL PURPOSE

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

◆ Standard range

◆ Endurance 2000 hours at 85°C

◆ Excellent performance/size characteristics

◆ Ideal for general purpose use

◆ Suitable for wave & reﬂow soldering

◆ Capacitance tolerance 20%

◆ Leakage current ≤0.01CV

◆ Supplied taped & reeled

Endurance test ........................................... 2000 hours at 85°C

Capacitance tolerance ............................... ±20% at 120Hz, 20°C

Ripple current (as listed) ........................... measured at 120Hz, 85°C

Operating temperature range .................... -40°C to +85°C

Leakage current ........................................ ≤0.01CV or 3A

(whichever is greater) after 2 min.

Speciﬁcation

Dimensions (mm)

NOVER type VE

Surface mount, aluminium electrolytic capacitors giving an excellent operational speciﬁcation within a small package and designed for general purpose use. The VE series has an endurance test of 2000 hours at 85°C and is available in a wide range of values and voltages, which are shown on the following pages. Supplied taped and reeled.

Dissipation factor/Tan  (max.) at 120Hz, 20°C

Marking

Printed on top surface of case, except largest case sizes which may be printed on a case sleeve around the body.

Capacitance value Voltage Bar to indicate negative terminal

Packaging

Case Size H J K M N P

3.0 x 5.3 12.0 3.4 3.4 8.0 5.5 5.9

4.0 x 5.3 12.0 5.0 5.0 8.0 5.5 5.8

5.0 x 5.3 12.0 6.0 6.0 12.0 5.5 5.8

6.3 x 5.3 16.0 7.0 7.0 12.0 7.5 5.8

6.3 x 7.7 16.0 7.0 7.0 12.0 7.5 8.4

8.0 x 6.5 16.0 8.7 8.7 12.0 7.5 6.8

8.0 x 10.0 24.0 8.7 8.7 16.0 11.5 11.0

10.0 x 10.0 24.0 10.7 10.7 16.0 11.5 11.0

Case Size X Reel Qty

3.0 x 5.3 14 2000pcs

4.0 x 5.3 14 2000pcs

5.0 x 5.3 14 1000pcs

6.3 x 5.3 18 1000pcs

6.3 x 7.7 18 1000pcs

8.0 x 6.5 18 1000pcs

8.0 x 10.0 26 500pcs

10.0 x 10.0 26 500pcs

TAPE

REELS

Rated voltage (d.c.) 4V 6.3V 10V 16V 25V 35V 50V 63V 100V

Case size 3.0 x 5.3 0.42 0.30 0.24 0.22 0.16 0.14 0.12 – –

Case size 6.3 x 7.7 0.42 0.42 0.32 0.26 0.18 0.14 0.12 – –

All other case sizes 0.42 0.28 0.24 0.20 0.14 0.12 0.10 0.10 0.10

Case Size Dia. L R S T U V

3.0 x 5.3 3.0 5.3 3.3 3.3 1.5 0.6 0.8

4.0 x 5.3 4.0 5.3 4.3 4.3 2.0 0.65 1.0

5.0 x 5.3 5.0 5.3 5.3 5.3 2.3 0.65 1.5

6.3 x 5.3 6.3 5.3 6.6 6.6 2.7 0.65 2.0

6.3 x 7.7 6.3 7.7 6.6 6.6 2.7 0.65 2.0

8.0 x 6.5 8.0 6.5 8.4 8.4 3.4 0.65 2.3

8.0 x 10.0 8.0 10.0 8.4 8.4 3.0 0.9 3.1

10.0 x 10.0 10.0 10.0 10.4 10.4 3.3 0.9 4.7

NOV/0251

BACK TO CONTENTS

4.0

ø1.5

1.75

0.4

Polarity bar

Dia.

0.3 max.

0.5

max.

ø13

ø 50

min.

3 max.

380

Page 58

NOVER type VE

Value Ripple Current Case Size Nover Reel Qty (F) (mA) Dia. x L Part No. Order Code pcs

4 Volt

22 14 3.0 x 5.3 VE0G220MG1R VG220 2000 33 26 4.0 x 5.3 VE0G330MF1R VG330 2000 47 34 4.0 x 5.3 VE0G470MF1R VG470 2000 100 61 5.0 x 5.3 VE0G101MF2R VG101 1000 220 95 6.3 x 5.3 VE0G221MF3R VG221 1000 330 102 6.3 x 7.7 VE0G331MMR VG331 1000 470 150 6.3 x 7.7 VE0G471MMR VG471 1000

6.3 Volt

22 31 4.0 x 5.3 VE0J220MF1R VJ220 2000 33 39 5.0 x 5.3 VE0J330MF2R VJ330 1000 47 47 5.0 x 5.3 VE0J470MF2R VJ470 1000 100 71 6.3 x 5.3 VE0J101MF3R VJ101 1000 220 95 6.3 x 7.7 VE0J221MMR VJ221 1000 220 155 8.0 x 6.5 VE0J221MG2R VJ229 1000 330 150 6.3 x 7.7 VE0J331MMR VJ331 1000 330 155 8.0 x 6.5 VE0J331MG2R VJ339 1000 470 300 8.0 x 10.0 VE0J471MF4R VJ471 500 1000 458 10.0 x 10.0 VE0J102MF5R VJ102 500

10 Volt

10 23 4.0 x 5.3 VE1A100MF1R VA100 2000 22 35 5.0 x 5.3 VE1A220MF2R VA220 1000 33 43 5.0 x 5.3 VE1A330MF2R VA330 1000 47 59 6.3 x 5.3 VE1A470MF3R VA470 1000 100 76 6.3 x 5.3 VE1A101MF3R VA101 1000 220 150 6.3 x 7.7 VE1A221MMR VA221 1000 220 155 8.0 x 6.5 VE1A221MG2R VA229 1000 330 280 8.0 x 10.0 VE1A331MF4R VA331 500 470 360 8.0 x 10.0 VE1A471MF4R VA471 500

16 Volt

10 18 3.0 x 5.3 VE1C100MG1R VC109 2000 10 25 4.0 x 5.3 VE1C100MF1R VC100 2000 22 39 5.0 x 5.3 VE1C220MF2R VC220 1000 33 57 6.3 x 5.3 VE1C330MF3R VC330 1000 47 68 6.3 x 5.3 VE1C470MF3R VC470 1000 100 86 6.3 x 5.3 VE1C101MF3R VC101 1000 220 150 6.3 x 7.7 VE1C221MMR VC221 1000 330 280 8.0 x 10.0 VE1C331MF4R VC331 500 470 458 10.0 x 10.0 VE1C471MF5R VC471 500

25 Volt

4.7 11 3.0 x 5.3 VE1E4R7MG1R VE478 2000

4.7 19 4.0 x 5.3 VE1E4R7MF1R VE4R7 2000 10 28 5.0 x 5.3 VE1E100MF2R VE100 1000 22 52 6.3 x 5.3 VE1E220MF3R VE220 1000 33 63 6.3 x 5.3 VE1E330MF3R VE330 1000 47 68 6.3 x 5.3 VE1E470MF3R VE470 1000 100 130 6.3 x 7.7 VE1E101MMR VE101 1000 100 155 8.0 x 6.5 VE1E101MG2R VE109 1000 220 250 8.0 x 10.0 VE1E221MF4R VE221 500 330 458 10.0 x 10.0 VE1E331MF5R VE331 500

GENERAL PURPOSE

SURFACE MOUNT

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

NOV/0251

VE continued overleaf > > > >

BACK TO CONTENTS

Page 59

SURFACE MOUNT

GENERAL PURPOSE

57A

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

NOV/0251

NOVER type VE (continued)

Value Ripple Current Case Size Nover Reel Qty (F) (mA) Dia. x L Part No. Order Code pcs

35 Volt

2.2 8 3.0 x 5.3 VE1V2R2MG1R VX2R2 2000

3.3 9 3.0 x 5.3 VE1V3R3MG1R VX3R3 2000

4.7 20 4.0 x 5.3 VE1V4R7MF1R VX4R7 2000 10 30 5.0 x 5.3 VE1V100MF2R VX100 1000 22 54 6.3 x 5.3 VE1V220MF3R VX220 1000 33 60 6.3 x 5.3 VE1V330MF3R VX330 1000 47 70 6.3 x 5.3 VE1V470MF3R VX470 1000 47 155 8.0 x 6.5 VE1V470MG2R VX479 1000 100 252 8.0 x 10.0 VE1V101MF4R VX109 500 220 458 10.0 x 10.0 VE1V221MF5R VX221 500

50 Volt

0.1 1 3.0 x 5.3 VE1H0R1MG1R VH018 2000

0.1 1 4.0 x 5.3 VE1H0R1MF1R VH0R1 2000

0.22 2 3.0 x 5.3 VE1HR22MG1R VH228 2000

0.22 2.3 4.0 x 5.3 VE1HR22MF1R VHR22 2000

0.33 3 3.0 x 5.3 VE1HR33MG1R VH338 2000

0.33 3.5 4.0 x 5.3 VE1HR33MF1R VHR33 2000

0.47 4 3.0 x 5.3 VE1HR47MG1R VH478 2000

0.47 5 4.0 x 5.3 VE1HR47MF1R VHR47 2000

1.0 6 3.0 x 5.3 VE1H1R0MG1R VH108 2000

1.0 10 4.0 x 5.3 VE1H1R0MF1R VH1R0 2000

2.2 15 4.0 x 5.3 VE1H2R2MF1R VH2R2 2000

3.3 18 4.0 x 5.3 VE1H3R3MF1R VH3R3 2000

4.7 23 5.0 x 5.3 VE1H4R7MF2R VH4R7 1000 10 34 6.3 x 5.3 VE1H100MF3R VH100 1000 22 45 6.3 x 5.3 VE1H220MF3R VH220 1000 33 85 6.3 x 7.7 VE1H330MMR VH330 1000 33 155 8.0 x 6.5 VE1H330MG2R VH339 1000 47 90 6.3 x 7.7 VE1H470MMR VH470 1000 100 200 8.0 x 10.0 VE1H101MF4R VH101 500

63 Volt

22 139 8.0 x 10.0 VE1J220MF4R VF220 500 33 139 8.0 x 10.0 VE1J330MF4R VF330 500 47 226 10.0 x 10.0 VE1J470MF5R VF470 500

100 Volt

10 94 8.0 x 10.0 VE2A100MF4R VT100 500 22 189 10.0 x 10.0 VE2A220MF5R VT220 500 33 189 10.0 x 10.0 VE2A330MF5R VT330 500

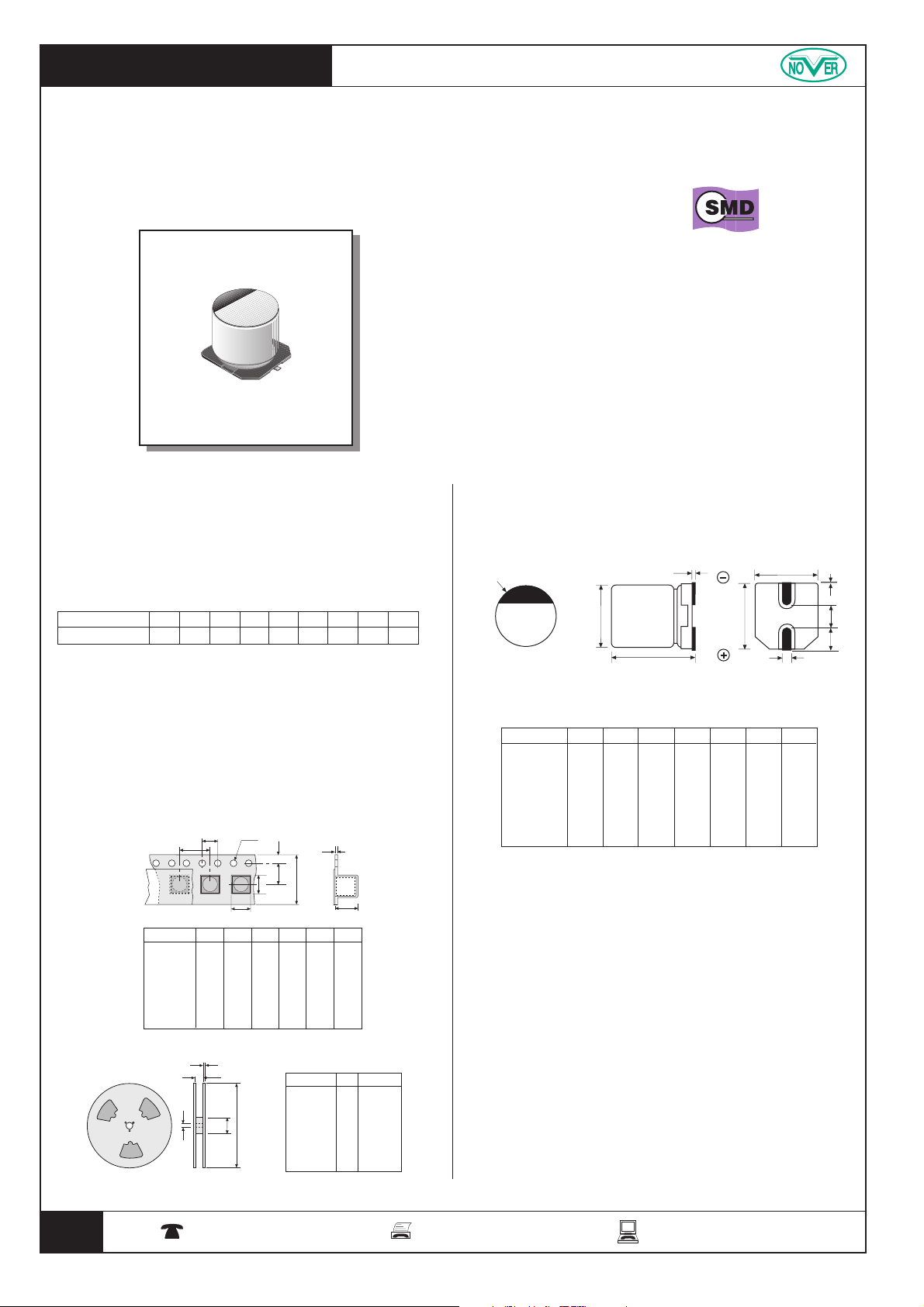

Page 60

SURFACE MOUNT

GENERAL PURPOSE, 105°C

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

◆ High temperature

◆ Endurance 2000 hours at 105°C

◆ Excellent performance/size characteristics

◆ Designed for higher ambient conditions

◆ Suitable for wave & reﬂow soldering

◆ Capacitance tolerance 20%

◆ Leakage current ≤0.01CV

◆ Supplied taped & reeled

Endurance test ........................................... 2000 hours at 105°C

Capacitance tolerance ............................... ±20% at 120Hz, 20°C

Ripple current (as listed) ........................... measured at 120Hz, 105°C

Operating temperature range .................... -55°C to +105°C

Leakage current ........................................ ≤0.01CV or 3A

(whichever is greater) after 2 min.

Speciﬁcation

Dimensions (mm)

NOVER type VH

Surface mount, aluminium electrolytic capacitors with an extended upper temperature limit of 105°C. The VH series has an endurance test of 2000 hours at 105°C and is available in a wide range of values and voltages, which are shown on the following pages. Supplied taped and reeled.

Dissipation factor/Tan  (max.) at 120Hz, 20°C

Marking

Printed on top surface of case, except largest case sizes which may be printed on a case sleeve around the body.

Capacitance value Voltage Bar to indicate negative terminal

Case Size H J K M N P

4.0 x 5.8 12.0 5.0 5.0 8.0 5.5 6.3

5.0 x 5.8 12.0 6.0 6.0 12.0 5.5 6.3

6.3 x 5.8 16.0 7.0 7.0 12.0 7.5 6.3

8.0 x 6.5 16.0 8.7 8.7 12.0 7.5 6.8

8.0 x 10.0 24.0 8.7 8.7 16.0 11.5 11.0

10.0 x 10.0 24.0 10.7 10.7 16.0 11.5 11.0

Packaging

Case Size X Reel Qty

4.0 x 5.8 14 2000pcs

5.0 x 5.8 14 1000pcs

6.3 x 5.8 18 1000pcs

8.0 x 6.5 18 1000pcs

8.0 x 10.0 26 500pcs

10.0 x 10.0 26 500pcs

TAPE

REELS

Rated voltage (d.c.) 4V 6 .3V 10 V 16 V 25 V 3 5V 50 V 63 V 100V

All case sizes 0.37 0.30 0.26 0.22 0.17 0.14 0.13 0.11 0.10

Dia.

0.3 max.

Polarity bar

0.5

max.

Case Size Dia. L R S T U V

4.0 x 5.8 4.0 5.8 4.3 4.3 2.0 0.65 1.0

5.0 x 5.8 5.0 5.8 5.3 5.3 2.3 0.65 1.5

6.3 x 5.8 6.3 5.8 6.6 6.6 2.7 0.65 2.0

8.0 x 6.5 8.0 6.5 8.4 8.4 3.4 0.65 2.3

8.0 x 10.0 8.0 10.0 8.4 8.4 3.0 0.9 3.1

10.0 x 10.0 10.0 10.0 10.4 10.4 3.3 0.9 4.7

NOV/0251

BACK TO CONTENTS

4.0

ø1.5

1.75

0.4

3 max.

ø 50

min.

380

ø13

Page 61

NOVER type VH

Value Ripple Current Case Size Nover Reel Qty (F) (mA) Dia. x L Part No. Order Code pcs

4 Volt

22 22 4.0 x 5.8 VH0G220MF6R ZP220 2000 33 27 5.0 x 5.8 VH0G330MF7R ZP330 1000 47 33 5.0 x 5.8 VH0G470MF7R ZP470 1000 100 50 6.3 x 5.8 VH0G101MF8R ZP101 1000

6.3 Volt

22 22 4.0 x 5.8 VH0J220MF6R ZN220 2000 33 27 5.0 x 5.8 VH0J330MF7R ZN330 1000 47 33 5.0 x 5.8 VH0J470MF7R ZN470 1000 100 100 6.3 x 5.8 VH0J101MF8R ZN101 1000 220 178 8.0 x 10.0 VH0J221MF4R ZN221 500 330 178 8.0 x 10.0 VH0J331MF4R ZN331 500 470 324 10.0 x 10.0 VH0J471MF5R ZN471 500 1000 335 10.0 x 10.0 VH0J102MF5R ZN102 500

10 Volt

22 25 5.0 x 5.8 VH1A220MF7R ZL220 1000 33 30 5.0 x 5.8 VH1A330MF7R ZL330 1000 47 43 6.3 x 5.8 VH1A470MF8R ZL470 1000 100 110 8.0 x 6.5 VH1A101MG2R ZL101 1000 220 178 8.0 x 10.0 VH1A221MF4R ZL221 500 330 324 10.0 x 10.0 VH1A331MF5R ZL331 500 470 324 10.0 x 10.0 VH1A471MF5R ZL471 500

16 Volt

10 16 4.0 x 5.8 VH1C100MF6R ZK100 2000 22 30 5.0 x 5.8 VH1C220MF7R ZK220 1000 33 40 6.3 x 5.8 VH1C330MF8R ZK330 1000 47 50 6.3 x 5.8 VH1C470MF8R ZK470 1000 100 110 8.0 x 6.5 VH1C101MG2R ZK101 1000 220 324 10.0 x 10.0 VH1C221MF5R ZK221 500 330 324 10.0 x 10.0 VH1C331MF5R ZK331 500 470 324 10.0 x 10.0 VH1C471MF5R ZK471 500

25 Volt

4.7 13 4.0 x 5.8 VH1E4R7MF6R ZW4R7 2000 10 23 5.0 x 5.8 VH1E100MF7R ZW100 1000 22 38 6.3 x 5.8 VH1E220MF8R ZW220 1000 33 48 6.3 x 5.8 VH1E330MF8R ZW330 1000 47 110 8.0 x 6.5 VH1E470MG2R ZW470 1000 100 178 8.0 x 10.0 VH1E101MF4R ZW101 500 220 324 10.0 x 10.0 VH1E221MF5R ZW221 500 330 324 10.0 x 10.0 VH1E331MF5R ZW331 500

35 Volt

4.7 15 4.0 x 5.8 VH1V4R7MF6R ZR4R7 2000 10 25 5.0 x 5.8 VH1V100MF7R ZR100 1000 22 50 6.3 x 5.8 VH1V220MF8R ZR220 1000 33 110 8.0 x 6.5 VH1V330MG2R ZR330 1000 47 178 8.0 x 10.0 VH1V470MF4R ZR470 500 100 324 10.0 x 10.0 VH1V101MF5R ZR101 500 220 324 10.0 x 10.0 VH1V221MF5R ZR221 500

GENERAL PURPOSE, 105°C

SURFACE MOUNT

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

NOV/0251

VH continued overleaf > > > >

BACK TO CONTENTS

Page 62

SURFACE MOUNT

GENERAL PURPOSE

59A

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

NOV/0251

NOVER type VH (continued)

Value Ripple Current Case Size Nover Reel Qty (F) (mA) Dia. x L Part No. Order Code pcs

50 Volt

0.1 2 4.0 x 5.8 VH1H0R1MF6R ZB0R1 2000

0.22 3 4.0 x 5.8 VH1HR22MF6R ZBR22 2000

0.33 4 4.0 x 5.8 VH1HR33MF6R ZBR33 2000

0.47 5 4.0 x 5.8 VH1HR47MF6R ZBR47 2000

1.0 10 4.0 x 5.8 VH1H1R0MF6R ZB1R0 2000

2.2 16 4.0 x 5.8 VH1H2R2MF6R ZB2R2 2000

3.3 18 4.0 x 5.8 VH1H3R3MF6R ZB3R3 2000

4.7 22 5.0 x 5.8 VH1H4R7MF7R ZB4R7 1000 10 30 6.3 x 5.8 VH1H100MF8R ZB100 1000 22 110 8.0 x 6.5 VH1H220MG2R ZB220 1000 33 178 8.0 x 10.0 VH1H330MF4R ZB330 500 47 178 8.0 x 10.0 VH1H470MF4R ZB470 500 100 324 10.0 x 10.0 VH1H101MF5R ZB101 500

63 Volt

22 99 8.0 x 10.0 VH1J220MF4R ZF220 500 33 160 10.0 x 10.0 VH1J330MF5R ZF330 500 47 160 10.0 x 10.0 VH1J470MF5R ZF470 500

100 Volt

10 67 8.0 x 10.0 VH2A100MF4R ZT100 500 22 133 10.0 x 10.0 VH2A220MF5R ZT220 500

BACK TO CONTENTS

Page 63

SURFACE MOUNT

LONG LIFE, 105°C

59B

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

NOV/0251

◆ High temperature, long life

◆ Endurance 5000 hours at 105°C

◆ Excellent performance/size characteristics

◆ For sustained operation in higher ambients

◆ Suitable for wave & reﬂow soldering

◆ Capacitance tolerance 20%

◆ Leakage current ≤0.01CV

◆ Supplied taped & reeled

Endurance test ........................................... 5000 hours at 105°C

Capacitance tolerance ............................... ±20% at 120Hz, 20°C

Ripple current (as listed) ........................... measured at 120Hz, 105°C

Operating temperature range .................... -40°C to +105°C

Leakage current ........................................ ≤0.01CV or 3A

(whichever is greater) after 2 min.

Speciﬁcation

Dimensions (mm)

NOVER type VL

Surface mount, aluminium electrolytic capacitors offering long life together with an extended upper temperature limit of 105°C. The VL series has an endurance test of 5000 hours at 105°C and is available in a wide range of values and voltages, which are shown on the following page. Supplied taped and reeled.

Dia.

0.3 max.

Polarity bar

0.5

max.

Case Size Dia. L R S T U V

4.0 x 5.8 4.0 5.8 4.3 4.3 1.8 0.65 1.0

5.0 x 5.8 5.0 5.8 5.3 5.3 2.1 0.65 1.3

6.3 x 5.8 6.3 5.8 6.6 6.6 2.4 0.65 2.2

6.3 x 7.7 6.3 7.7 6.6 6.6 2.4 0.65 2.2

8.0 x 10.0 8.0 10.0 8.3 8.3 2.9 0.95 3.1

10.0 x 10.0 10.0 10.0 10.3 10.3 3.2 0.95 4.5

Dissipation factor/Tan  (max.) at 120Hz, 20°C

Rated voltage (d.c.) 4V 6.3V 10V 16V 25V 35V 50V

All case sizes 0.37 0.28 0.24 0.20 0.16 0.13 0.12

Marking

Printed on top surface of case, except largest case sizes which may be printed on a case sleeve around the body.

Capacitance value Voltage Bar to indicate negative terminal

Case Size H J K M N P

4.0 x 5.8 12.0 5.0 5.0 8.0 5.5 6.3

5.0 x 5.8 12.0 6.0 6.0 12.0 5.5 6.3

6.3 x 5.8 16.0 7.0 7.0 12.0 7.5 6.3

6.3 x 7.7 16.0 7.0 7.0 12.0 7.5 8.4

8.0 x 10.0 24.0 8.7 8.7 16.0 11.5 11.0

10.0 x 10.0 24.0 10.7 10.7 16.0 11.5 11.0

Case Size X Reel Qty

4.0 x 5.8 14 2000pcs

5.0 x 5.8 14 1000pcs

6.3 x 5.8 18 1000pcs

6.3 x 7.7 18 1000pcs

8.0 x 10.0 26 500pcs

10.0 x 10.0 26 500pcs

TAPE

REELS

Packaging

BACK TO CONTENTS

4.0

ø1.5

1.75

0.4

3 max.

ø 50

min.

380

ø13

Page 64

NOVER type VL

Value Ripple Current Case Size Nover Reel Qty (F) (mA) Dia. x L Part No. Order Code pcs

4 Volt

22 22 4.0 x 5.8 VL0G220MF6R EP220 2000 33 30 5.0 x 5.8 VL0G330MF7R EP330 1000 47 36 5.0 x 5.8 VL0G470MF7R EP470 1000 100 60 6.3 x 5.8 VL0G101MF8R EP101 1000 220 60 6.3 x 7.7 VL0G221MF9R EP221 1000 330 140 8.0 x 10.0 VL0G331MF4R EP331 500 470 140 8.0 x 10.0 VL0G471MF4R EP471 500 1000 315 10.0 x 10.0 VL0G102MF5R EP102 500

6.3 Volt

22 22 4.0 x 5.8 VL0J220MF6R EN220 2000 33 30 5.0 x 5.8 VL0J330MF7R EN330 1000 47 36 5.0 x 5.8 VL0J470MF7R EN470 1000 100 60 6.3 x 5.8 VL0J101MF8R EN101 1000 220 140 8.0 x 10.0 VL0J221MF4R EN221 500 330 140 8.0 x 10.0 VL0J331MF4R EN331 500 470 315 10.0 x 10.0 VL0J471MF5R EN471 500

10 Volt

22 27 5.0 x 5.8 VL1A220MF7R EL220 1000 33 35 5.0 x 5.8 VL1A330MF7R EL330 1000 47 46 6.3 x 5.8 VL1A470MF8R EL470 1000 100 60 6.3 x 7.7 VL1A101MF9R EL101 1000 220 140 8.0 x 10.0 VL1A221MF4R EL221 500 330 315 10.0 x 10.0 VL1A331MF5R EL331 500 470 315 10.0 x 10.0 VL1A471MF5R EL471 500

16 Volt

10 18 4.0 x 5.8 VL1C100MF6R EK100 2000 22 30 5.0 x 5.8 VL1C220MF7R EK220 1000 33 40 6.3 x 5.8 VL1C330MF8R EK330 1000 47 50 6.3 x 5.8 VL1C470MF8R EK470 1000 100 60 6.3 x 7.7 VL1C101MF9R EK101 1000 220 315 10.0 x 10.0 VL1C221MF5R EK221 500 330 315 10.0 x 10.0 VL1C331MF5R EK331 500

25 Volt

4.7 13 4.0 x 5.8 VL1E4R7MF6R EE4R7 2000 10 23 5.0 x 5.8 VL1E100MF7R EE100 1000 22 38 6.3 x 5.8 VL1E220MF8R EE220 1000 33 48 6.3 x 5.8 VL1E330MF8R EE330 1000 47 60 6.3 x 7.7 VL1E470MF9R EE470 1000 100 140 8.0 x 10.0 VL1E101MF4R EE101 500 220 315 10.0 x 10.0 VL1E221MF5R EE221 500

35 Volt

4.7 15 4.0 x 5.8 VL1V4R7MF6R ER4R7 2000 10 25 5.0 x 5.8 VL1V100MF7R ER100 1000 22 42 6.3 x 5.8 VL1V220MF8R ER220 1000 33 60 6.3 x 7.7 VL1V330MF9R ER330 1000 47 140 8.0 x 10.0 VL1V470MF4R ER470 500 100 315 10.0 x 10.0 VL1V101MF5R ER101 500

50 Volt

0.1 1 4.0 x 5.8 VL1H0R1MF6R ES0R1 2000

0.22 2.6 4.0 x 5.8 VL1HR22MF6R ESR22 2000

0.33 3.2 4.0 x 5.8 VL1HR33MF6R ESR33 2000

0.47 3.8 4.0 x 5.8 VL1HR47MF6R ESR47 2000

1.0 6.2 4.0 x 5.8 VL1H1R0MF6R ES1R0 2000

2.2 11 4.0 x 5.8 VL1H2R2MF6R ES2R2 2000

3.3 14 4.0 x 5.8 VL1H3R3MF6R ES3R3 2000

4.7 19 5.0 x 5.8 VL1H4R7MF7R ES4R7 1000 10 30 6.3 x 5.8 VL1H100MF8R ES100 1000 22 60 6.3 x 7.7 VL1H220MF9R ES220 1000 33 140 8.0 x 10.0 VL1H330MF4R ES330 500 47 315 10.0 x 10.0 VL1H470MF5R ES470 500 100 315 10.0 x 10.0 VL1H101MF5R ES101 500

LONG LIFE, 105°C

59C

SURFACE MOUNT

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

NOV/0251

BACK TO CONTENTS

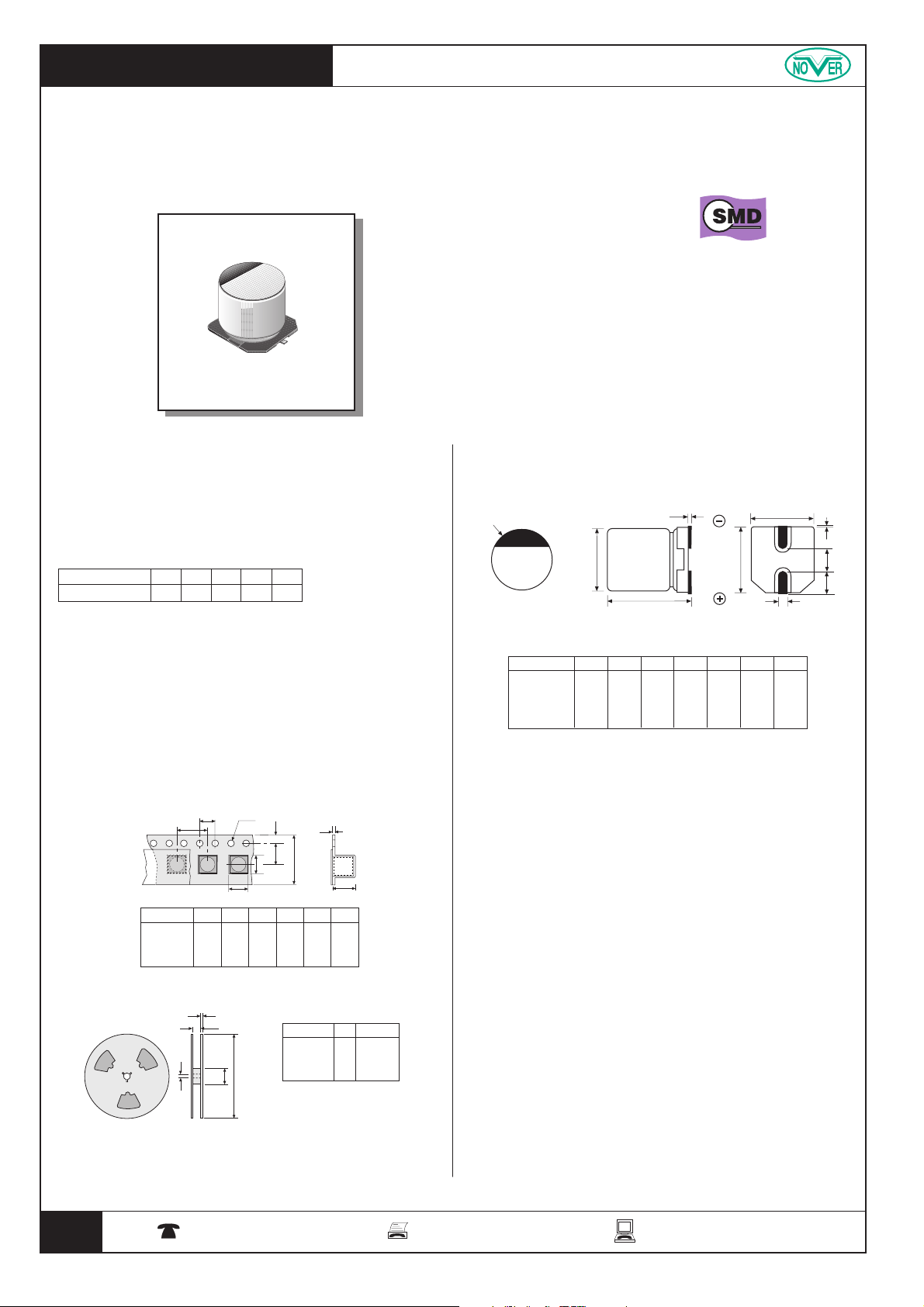

Page 65

SURFACE MOUNT

125°C

59D

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

NOV/0251

◆ Very high temperature

◆ Endurance 1000 hours at 125°C

◆ Excellent performance/size characteristics

◆ Ideal for harsh environments

◆ Suitable for wave & reﬂow soldering

◆ Capacitance tolerance 20%

◆ Leakage current ≤0.03CV

◆ Supplied taped & reeled

Endurance test ........................................... 1000 hours at 125°C

Capacitance tolerance ............................... ±20% at 120Hz, 20°C

Ripple current (as listed) ........................... measured at 120Hz, 125°C

Operating temperature range .................... -40°C to +125°C

Leakage current ........................................ ≤0.03CV or 4A

(whichever is greater) after 1 min.

Speciﬁcation

Dimensions (mm)

NOVER type VA

Surface mount, aluminium electrolytic capacitors with an upper temperature limit extended to 125°C to sustain performance in harsher environments. The VA series has an endurance test of 1000 hours at 125°C and is available in a range of values and voltages, which are shown on the following page. Supplied taped and reeled.

Case Size Dia. L R S T U V

6.3 x 7.7 6.3 7.7 6.6 6.6 2.4 0.65 2.2

8.0 x 10.0 8.0 10.0 8.3 8.3 2.9 0.95 3.1

10.0 x 10.0 10.0 10.0 10.3 10.3 3.2 0.95 4.5

Dissipation factor/Tan  (max.) at 120Hz, 20°C

Rated voltage (d.c.) 10V 16V 25V 35V 50V

All case sizes 0.32 0.24 0.21 0.18 0.18

Marking

Printed on top surface of case, except largest case sizes which may be printed on a case sleeve around the body.

Capacitance value Voltage Bar to indicate negative terminal

Case Size H J K M N P

6.3 x 7.7 16.0 7.0 7.0 12.0 7.5 8.4

8.0 x 10.0 24.0 8.7 8.7 16.0 11.5 11.0

10.0 x 10.0 24.0 10.7 10.7 16.0 11.5 11.0

Case Size X Reel Qty

6.3 x 7.7 18 1000pcs

8.0 x 10.0 26 500pcs

10.0 x 10.0 26 500pcs

TAPE

REELS

Packaging

BACK TO CONTENTS

4.0

1.75

ø1.5

Polarity bar

Dia.

0.4

0.3 max.

0.5

max.

3 max.

ø 50

min.

380

ø13

Page 66

125°C

59E

SURFACE MOUNT

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

NOV/0251

NOVER type VA

Value Ripple Current Case Size Nover Reel Qty (F) (mA) Dia. x L Part No. Order Code pcs

10 Volt

100 58 6.3 x 7.7 VA1A101MF9R EB101 1000 220 90 8.0 x 10.0 VA1A221MF4R EB221 500 330 112 10.0 x 10.0 VA1A331MF5R EB331 500

16 Volt

100 66 8.0 x 10.0 VA1C101MF4R EC101 500 220 102 10.0 x 10.0 VA1C221MF5R EC221 500

25 Volt

47 48 6.3 x 7.7 VA1E470MF9R EH470 1000 100 74 8.0 x 10.0 VA1E101MF4R EH101 500 220 116 10.0 x 10.0 VA1E221MF5R EH221 500

35 Volt

33 44 6.3 x 7.7 VA1V330MF9R ET330 1000 47 52 8.0 x 10.0 VA1V470MF4R ET470 500 100 80 10.0 x 10.0 VA1V101MF5R ET101 500

50 Volt

10 24 6.3 x 7.7 VA1H100MF9R EW100 1000 22 38 6.3 x 7.7 VA1H220MF9R EW220 1000 33 46 8.0 x 10.0 VA1H330MF4R EW330 500 47 58 10.0 x 10.0 VA1H470MF5R EW470 500

BACK TO CONTENTS

Page 67

SURFACE MOUNT

LOW ESR, 105°C

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

◆ Low impedance

◆ Endurance 2000 hours at 105°C

◆ Excellent performance/size characteristics

◆ For switch mode power supplies (SMPS)

and industrial electronics

◆ Suitable for wave & reﬂow soldering

◆ Capacitance tolerance 20%

◆ Leakage current ≤0.01CV

◆ Supplied taped & reeled

Endurance test ........................................... 2000 hours at 105°C

Capacitance tolerance ............................... ±20% at 120Hz, 20°C

Ripple current (as listed) ........................... measured at 100kHz, 105°C

Impedance (as listed) ................................ measured at 100kHz, 20°C

Operating temperature range .................... -55°C to +105°C

Leakage current ........................................ ≤0.01CV or 3A

(whichever is greater) after 2 min.

Speciﬁcation

Dimensions (mm)

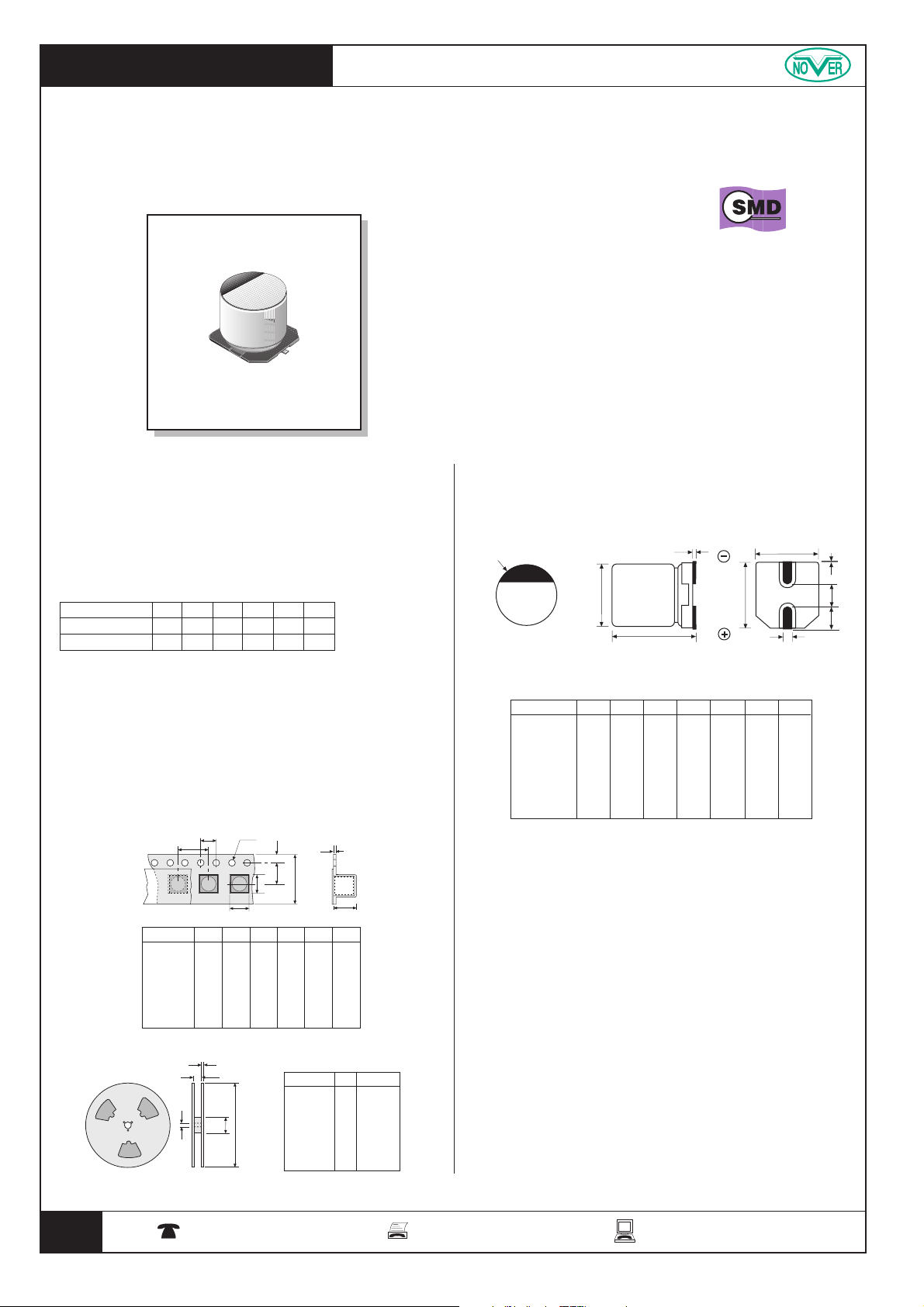

NOVER type VZ

Surface mount, aluminium electrolytic capacitors combining low impedance and ESR characteristics within a small package.The VZ series additionally feature a maximum operational temperature speciﬁcation of 105°C making them especially suitable for switch mode power supplies (SMPS). Available in a wide range of values and voltages, which are shown on the following page. Supplied taped and reeled.

Dissipation factor/Tan  (max.) at 120Hz, 20°C

Marking

Printed on top surface of case, except largest case sizes which may be printed on a case sleeve around the body.

Capacitance value Voltage Bar to indicate negative terminal

Packaging

Case Size H J K M N P

4.0 x 5.4 12.0 5.0 5.0 8.0 5.5 5.8

5.0 x 5.4 12.0 6.0 6.0 12.0 5.5 5.8

6.3 x 5.4 16.0 7.0 7.0 12.0 7.5 5.8

6.3 x 7.7 16.0 7.0 7.0 12.0 7.5 8.4

8.0 x 10.0 24.0 8.7 8.7 16.0 11.5 11.0

10.0 x 10.0 24.0 10.7 10.7 16.0 11.5 11.0

Case Size X Reel Qty

4.0 x 5.4 14 2000pcs

5.0 x 5.4 14 1000pcs

6.3 x 5.4 18 1000pcs

6.3 x 7.7 18 1000pcs

8.0 x 10.0 26 500pcs

10.0 x 10.0 26 500pcs

TAPE

REELS

Dia.

0.3 max.

Polarity bar

0.5

max.

Case Size Dia. L R S T U V

4.0 x 5.4 4.0 5.4 4.3 4.3 1.8 0.65 1.0

5.0 x 5.4 5.0 5.4 5.3 5.3 2.1 0.65 1.3

6.3 x 5.4 6.3 5.4 6.6 6.6 2.4 0.65 2.2

6.3 x 7.7 6.3 7.7 6.6 6.6 2.4 0.65 2.2

8.0 x 10.0 8.0 10.0 8.3 8.3 2.9 0.95 3.1

10.0 x 10.0 10.0 10.0 10.3 10.3 3.2 0.95 4.5

Rated voltage (d.c.) 6.3V 10V 16V 25V 35V 50V

All case sizes 0.22 0.19 0.16 0.14 0.12 0.12

NOV/0251

BACK TO CONTENTS

4.0

1.75

ø1.5

0.4

3 max.

ø 50 min.

ø13

380

Page 68

NOVER type VZ

Value Ripple Current Impedance Case Size Nover Reel Qty

(F) (mA) (Ω) Dia. x L Part No. Order Code pcs

6.3 Volt

22 50 5.0 4.0 x 5.4 VZ0J220MF6R ZJ220 2000 33 80 2.6 5.0 x 5.4 VZ0J330MF7R ZJ330 1000 47 80 2.6 5.0 x 5.4 VZ0J470MF7R ZJ470 1000 100 115 1.3 6.3 x 5.4 VZ0J101MF8R ZJ101 1000 220 150 0.8 6.3 x 7.7 VZ0J221MF9R ZJ221 1000 330 150 0.8 6.3 x 7.7 VZ0J331MF9R ZJ331 1000 470 450 0.45 8.0 x 10.0 VZ0J471MF4R ZJ471 500 1000 670 0.15 10.0 x 10.0 VZ0J102MF5R ZJ102 500 1500 670 0.15 10.0 x 10.0 VZ0J152MF5R ZJ152 500

10 Volt

22 80 2.6 5.0 x 5.4 VZ1A220MF7R ZA220 1000 33 80 2.6 5.0 x 5.4 VZ1A330MF7R ZA330 1000 47 115 1.3 6.3 x 5.4 VZ1A470MF8R ZA470 1000 100 150 0.8 6.3 x 7.7 VZ1A101MF9R ZA101 1000 220 150 0.8 6.3 x 7.7 VZ1A221MF9R ZA221 1000 330 450 0.45 8.0 x 10.0 VZ1A331MF4R ZA331 500 470 450 0.45 8.0 x 10.0 VZ1A471MF4R ZA471 500 1000 670 0.15 10.0 x 10.0 VZ1A102MF5R ZA102 500

16 Volt

10 50 5.0 4.0 x 5.4 VZ1C100MF6R ZC100 2000 22 80 2.6 5.0 x 5.4 VZ1C220MF7R ZC220 1000 33 115 1.3 6.3 x 5.4 VZ1C330MF8R ZC330 1000 47 115 1.3 6.3 x 5.4 VZ1C470MF8R ZC470 1000 100 150 0.8 6.3 x 7.7 VZ1C101MF9R ZC101 1000 220 150 0.8 6.3 x 7.7 VZ1C221MF9R ZC221 1000 330 450 0.45 8.0 x 10.0 VZ1C331MF4R ZC331 500 470 670 0.15 10.0 x 10.0 VZ1C471MF5R ZC471 500

25 Volt

4.7 50 5.0 4.0 x 5.4 VZ1E4R7MF6R ZE4R7 2000 10 80 2.6 5.0 x 5.4 VZ1E100MF7R ZE100 1000 22 115 1.3 6.3 x 5.4 VZ1E220MF8R ZE220 1000 33 115 1.3 6.3 x 5.4 VZ1E330MF8R ZE330 1000 47 150 0.8 6.3 x 7.7 VZ1E470MF9R ZE470 1000 100 150 0.8 6.3 x 7.7 VZ1E101MF9R ZE101 1000 220 450 0.45 8.0 x 10.0 VZ1E221MF4R ZE221 500 330 670 0.15 10.0 x 10.0 VZ1E331MF5R ZE331 500 470 670 0.15 10.0 x 10.0 VZ1E471MF5R ZE471 500

35 Volt

4.7 50 5.0 4.0 x 5.4 VZ1V4R7MF6R ZV4R7 2000 10 80 2.6 5.0 x 5.4 VZ1V100MF7R ZV100 1000 22 115 1.3 6.3 x 5.4 VZ1V220MF8R ZV220 1000 33 150 0.8 6.3 x 7.7 VZ1V330MF9R ZV330 1000 47 150 0.8 6.3 x 7.7 VZ1V470MF9R ZV470 1000 100 450 0.45 8.0 x 10.0 VZ1V101MF4R ZV101 500 220 670 0.15 10.0 x 10.0 VZ1V221MF5R ZV221 500 330 670 0.15 10.0 x 10.0 VZ1V331MF5R ZV331 500

50 Volt

1.0 30 5.0 4.0 x 5.4 VZ1H1R0MF6R ZH1R0 2000

2.2 30 5.0 4.0 x 5.4 VZ1H2R2MF6R ZH2R2 2000

3.3 30 5.0 4.0 x 5.4 VZ1H3R3MF6R ZH3R3 2000

4.7 50 3.0 5.0 x 5.4 VZ1H4R7MF7R ZH4R7 1000 10 70 2.6 6.3 x 5.4 VZ1H100MF8R ZH100 1000 22 70 2.6 6.3 x 5.4 VZ1H220MF8R ZH220 1000 33 120 1.0 6.3 x 7.7 VZ1H330MF9R ZH330 1000 47 120 1.0 6.3 x 7.7 VZ1H470MF9R ZH470 1000 100 300 0.6 8.0 x 10.0 VZ1H101MF4R ZH101 500 220 500 0.3 10.0 x 10.0 VZ1H221MF5R ZH221 500

LOW ESR, 105°C

SURFACE MOUNT

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

NOV/0250

BACK TO CONTENTS

Page 69

SURFACE MOUNT

VERY LOW ESR, 105°C

61A

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

NOV/0251

◆ Very low impedance

◆ Endurance 2000 hours at 105°C

◆ Excellent performance/size characteristics

◆ Ideal for portable equipment & instrumentation

◆ Suitable for wave & reﬂow soldering

◆ Capacitance tolerance 20%

◆ Leakage current ≤0.01CV

◆ Supplied taped & reeled

Endurance test ........................................... 2000 hours at 105°C

Capacitance tolerance ............................... ±20% at 120Hz, 20°C

Ripple current (as listed) ........................... measured at 100Hz, 105°C

Impedance (as listed) ................................ measured at 100kHz

Operating temperature range .................... -55°C to +105°C

Leakage current ........................................ ≤0.01CV or 3A

(whichever is greater) after 2 min.

Speciﬁcation

Dimensions (mm)

NOVER type VX

Surface mount, aluminium electrolytic capacitors offering a very low impedance and a 105°C operational temperature limit within a small package. Available in a wide range of values and voltages, which are shown on the following page. Supplied taped and reeled.

Dia.

0.3 max.

Polarity bar

0.5

max.

Case Size Dia. L R S T U V

4.0 x 5.8 4.0 5.8 4.3 4.3 1.8 0.65 1.0

5.0 x 5.8 5.0 5.8 5.3 5.3 2.1 0.65 1.3

6.3 x 5.8 6.3 5.8 6.6 6.6 2.4 0.65 2.2

6.3 x 7.7 6.3 7.7 6.6 6.6 2.4 0.65 2.2

8.0 x 10.0 8.0 10.0 8.3 8.3 2.9 0.95 3.1

10.0 x 10.0 10.0 10.0 10.3 10.3 3.2 0.95 4.5

Dissipation factor/Tan  (max.) at 120Hz, 20°C

Rated voltage (d.c.) 6.3V 10V 16V 25V 35V 50V

Case dia. 4.0 to 6.3 0.22 0.20 0.16 0.14 0.12 0.10

Case dia. 8.0 to 10.0 0.28 0.24 0.20 0.16 0.14 0.12

Marking

Printed on top surface of case, except largest case sizes which may be printed on a case sleeve around the body.

Capacitance value Voltage Bar to indicate negative terminal

Case Size H J K M N P

4.0 x 5.8 12.0 5.0 5.0 8.0 5.5 6.3

5.0 x 5.8 12.0 6.0 6.0 12.0 5.5 6.3

6.3 x 5.8 16.0 7.0 7.0 12.0 7.5 6.3

6.3 x 7.7 16.0 7.0 7.0 12.0 7.5 8.4

8.0 x 10.0 24.0 8.7 8.7 16.0 11.5 11.0

10.0 x 10.0 24.0 10.7 10.7 16.0 11.5 11.0

Case Size X Reel Qty

4.0 x 5.8 14 2000pcs

5.0 x 5.8 14 1000pcs

6.3 x 5.8 18 1000pcs

6.3 x 7.7 18 1000pcs

8.0 x 10.0 26 500pcs

10.0 x 10.0 26 500pcs

TAPE

REELS

Packaging

BACK TO CONTENTS

4.0

ø1.5

1.75

0.4

3 max.

ø 50

min.

380

ø13

Page 70

VERY LOW ESR, 105°C

61B

SURFACE MOUNT

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

NOV/0251

NOVER type VX

Value Ripple Current Impedance Case Size Nover Reel Qty

(F) (mA) (Ω) Dia. x L Part No. Order Code pcs

6.3 Volt

33 150 0.76 5.0 x 5.8 VX0J330MF7R ZD330 1000 47 150 0.76 5.0 x 5.8 VX0J470MF7R ZD470 1000 100 230 0.44 6.3 x 5.8 VX0J101MF8R ZD101 1000 220 280 0.34 6.3 x 7.7 VX0J221MF9R ZD221 1000 330 280 0.34 6.3 x 7.7 VX0J331MF9R ZD331 1000 470 450 0.17 8.0 x 10.0 VX0J471MF4R ZD471 500 1000 670 0.09 10.0 x 10.0 VX0J102MF5R ZD102 500 1500 670 0.09 10.0 x 10.0 VX0J152MF5R ZD152 500

10 Volt

22 80 1.8 4.0 x 5.8 VX1A220MF6R ZG220 2000 33 150 0.76 5.0 x 5.8 VX1A330MF7R ZG330 1000 47 230 0.44 6.3 x 5.8 VX1A470MF7R ZG470 1000 100 280 0.34 6.3 x 7.7 VX1A101MF9R ZG101 1000 220 280 0.34 6.3 x 7.7 VX1A221MF9R ZG221 1000 330 450 0.17 8.0 x 10.0 VX1A331MF4R ZG331 500 470 450 0.17 8.0 x 10.0 VX1A471MF4R ZG471 500 1000 670 0.09 10.0 x 10.0 VX1A102MF5R ZG102 500

16 Volt

22 150 0.76 5.0 x 5.8 VX1C220MF7R ZM220 1000 33 230 0.44 6.3 x 5.8 VX1C330MF8R ZM330 1000 47 230 0.44 6.3 x 5.8 VX1C470MF8R ZM470 1000 100 280 0.34 6.3 x 7.7 VX1C101MF9R ZM101 1000 220 450 0.17 8.0 x 10.0 VX1C221MF4R ZM221 500 330 450 0.17 8.0 x 10.0 VX1C331MF4R ZM331 500 470 670 0.09 10.0 x 10.0 VX1C471MF5R ZM471 500

25 Volt

10 80 1.8 4.0 x 5.8 VX1E100MF6R ZX100 2000 22 230 0.44 6.3 x 5.8 VX1E220MF8R ZX220 1000 33 230 0.44 6.3 x 5.8 VX1E330MF8R ZX330 1000 47 280 0.34 6.3 x 7.7 VX1E470MF9R ZX470 1000 100 280 0.34 6.3 x 7.7 VX1E101MF9R ZX101 1000 220 450 0.17 8.0 x 10.0 VX1E221MF4R ZX221 500 330 670 0.09 10.0 x 10.0 VX1E331MF5R ZX331 500 470 670 0.09 10.0 x 10.0 VX1E471MF5R ZX471 500

35 Volt

4.7 80 1.8 4.0 x 5.8 VX1V4R7MF6R ZY4R7 2000 10 150 0.76 5.0 x 5.8 VX1V100MF7R ZY100 1000 22 230 0.44 6.3 x 5.8 VX1V220MF8R ZY220 1000 33 230 0.44 6.3 x 5.8 VX1V330MF8R ZY330 1000 47 280 0.34 6.3 x 7.7 VX1V470MF9R ZY470 1000 100 450 0.17 8.0 x 10.0 VX1V101MF4R ZY101 500 220 670 0.09 10.0 x 10.0 VX1V221MF5R ZY221 500 330 670 0.09 10.0 x 10.0 VX1V331MF5R ZY331 500

50 Volt

1.0 30 5.0 4.0 x 5.8 VX1H1R0MF6R ZS1R0 2000

2.2 30 5.0 4.0 x 5.8 VX1H2R2MF6R ZS2R2 2000

3.3 30 5.0 4.0 x 5.8 VX1H3R3MF6R ZS3R3 2000

4.7 40 1.52 5.0 x 5.8 VX1H4R7MF7R ZS4R7 1000 10 120 0.88 6.3 x 5.8 VX1H100MF8R ZS100 1000 22 140 0.68 6.3 x 7.7 VX1H220MF9R ZS220 1000 33 140 0.68 6.3 x 7.7 VX1H330MF9R ZS330 1000 47 140 0.68 6.3 x 7.7 VX1H470MF9R ZS470 1000 100 340 0.18 10.0 x 10.0 VX1H101MF5R ZS101 500 220 340 0.18 10.0 x 10.0 VX1H221MF5R ZS221 500

BACK TO CONTENTS

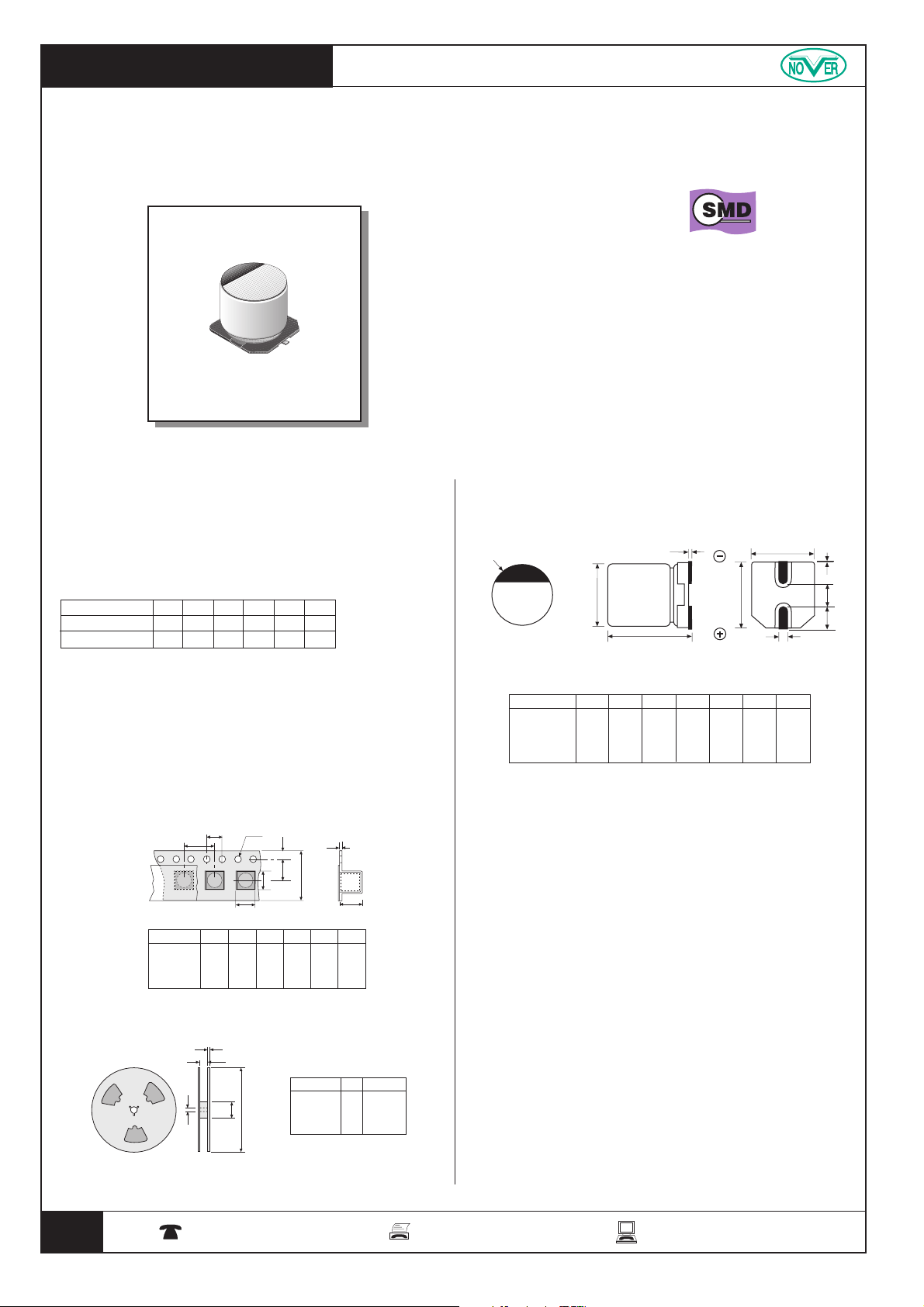

Page 71

BI-POLAR

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

SURFACE MOUNT

◆ Bi-polar (non-polarised)

◆ Endurance 2000 hours at 85°C

◆ Excellent performance/size characteristics

◆ Able to withstand reverse voltage

◆ Suitable for wave & reﬂow soldering

◆ Capacitance tolerance 20%

◆ Supplied taped & reeled

Endurance test ........................................... 2000 hours at 85°C

Capacitance tolerance ............................... ±20% at 120Hz, 20°C

Ripple current (as listed) ........................... measured at 120Hz, 85°C

Operating temperature range .................... -40°C to +85°C

Leakage current ........................................ ≤0.01CV or 3A

(whichever is greater) after 2 min.

Speciﬁcation

Dimensions (mm)

NOVER type VP

Surface mount, bi-polar (non polarised) aluminium electrolytic capacitors suitable for applications where reverse voltage may be applied. Available in a wide range of values and voltages, which are shown on the following page. Supplied taped and reeled.

Dissipation factor/Tan  (max.) at 120Hz, 20°C

Marking

Printed on top surface of case.

Capacitance value Voltage Bar to indicate negative terminal

Packaging

Case Size H J K M N P

4.0 x 5.3 12.0 5.0 5.0 8.0 5.5 5.8

5.0 x 5.3 12.0 6.0 6.0 12.0 5.5 5.8

6.3 x 5.3 16.0 7.0 7.0 12.0 7.5 5.8

Case Size X Reel Qty

4.0 x 5.3 14 2000pcs

5.0 x 5.3 14 1000pcs

6.3 x 5.3 18 1000pcs

TAPE

REELS

Case Size Dia. L R S T U V

4.0 x 5.3 4.0 5.3 4.3 4.3 2.0 0.65 1.0

5.0 x 5.3 5.0 5.3 5.3 5.3 2.3 0.65 1.3

6.3 x 5.3 6.3 5.3 6.6 6.6 2.7 0.65 2.2

Rated voltage (d.c.) 6.3V 10V 16V 25V 35V 50V

Case size 4.0 x 5.3 0.35 0.30 0.25 0.25 0.25 0.25

All other case sizes 0.30 0.25 0.20 0.15 0.15 0.15

NOV/0251

BACK TO CONTENTS

4.0

ø1.5

1.75

Polarity bar

Dia.

0.4

0.3 max.

0.5

max.

3 max.

ø13

ø 50 min.

380

Page 72

BI-POLAR

SURFACE MOUNT

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

NOVER type VP

Value Ripple Current Case Size Nover Reel Qty

(F) (mA) Dia. x L Part No. Order Code pcs

6.3 Volt

22 27 5.0 x 5.3 VP0J220MF2R VB220 1000 33 45 6.3 x 5.3 VP0J330MF3R VB330 1000 47 54 6.3 x 5.3 VP0J470MF3R VB470 1000

10 Volt

10 18 4.0 x 5.3 VP1A100MF1R VR100 2000 22 40 6.3 x 5.3 VP1A220MF3R VR220 1000 33 50 6.3 x 5.3 VP1A330MF3R VR330 1000

16 Volt

4.7 14 4.0 x 5.3 VP1C4R7MF1R VK4R7 2000 10 26 5.0 x 5.3 VP1C100MF2R VK100 1000 22 45 6.3 x 5.3 VP1C220MF3R VK220 1000 33 55 6.3 x 5.3 VP1C330MF3R VK330 1000

25 Volt

3.3 13 4.0 x 5.3 VP1E3R3MF1R VN3R3 2000

4.7 20 5.0 x 5.3 VP1E4R7MF2R VN4R7 1000 10 35 6.3 x 5.3 VP1E100MF3R VN100 1000

35 Volt

2.2 10 4.0 x 5.3 VP1V2R2MF1R VW2R2 2000

3.3 17 5.0 x 5.3 VP1V3R3MF2R VW3R3 1000

4.7 21 5.0 x 5.3 VP1V4R7MF2R VW4R7 1000 10 35 6.3 x 5.3 VP1V100MF3R VW100 1000

50 Volt

0.1 2.3 4.0 x 5.3 VP1H0R1MF1R VL0R1 2000

0.22 3.3 4.0 x 5.3 VP1HR22MF1R VLR22 2000

0.33 4.1 4.0 x 5.3 VP1HR33MF1R VLR33 2000

0.47 4.9 4.0 x 5.3 VP1HR47MF1R VLR47 2000

1.0 7.2 4.0 x 5.3 VP1H1R0MF1R VL1R0 2000

2.2 14 5.0 x 5.3 VP1H2R2MF2R VL2R2 1000

3.3 17 5.0 x 5.3 VP1H3R3MF2R VL3R3 1000

4.7 24 6.3 x 5.3 VP1H4R7MF3R VL4R7 1000

NOV/0250

BACK TO CONTENTS

Page 73

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

For the very latest Nover product data and news

visit the Nover website:

www.nover.com

BACK TO CONTENTS

Page 74

TANTALUM

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

TANTALUM

CAPACITORS

SURFACE MOUNT Type Page

CHIP, General Purpose – standard range TC 66-70 CHIP, Low ESR – high ripple current TL 71-72

RADIAL

DIPPED – General Purpose TX 72A-72C

NOV/0149

BACK TO CONTENTS

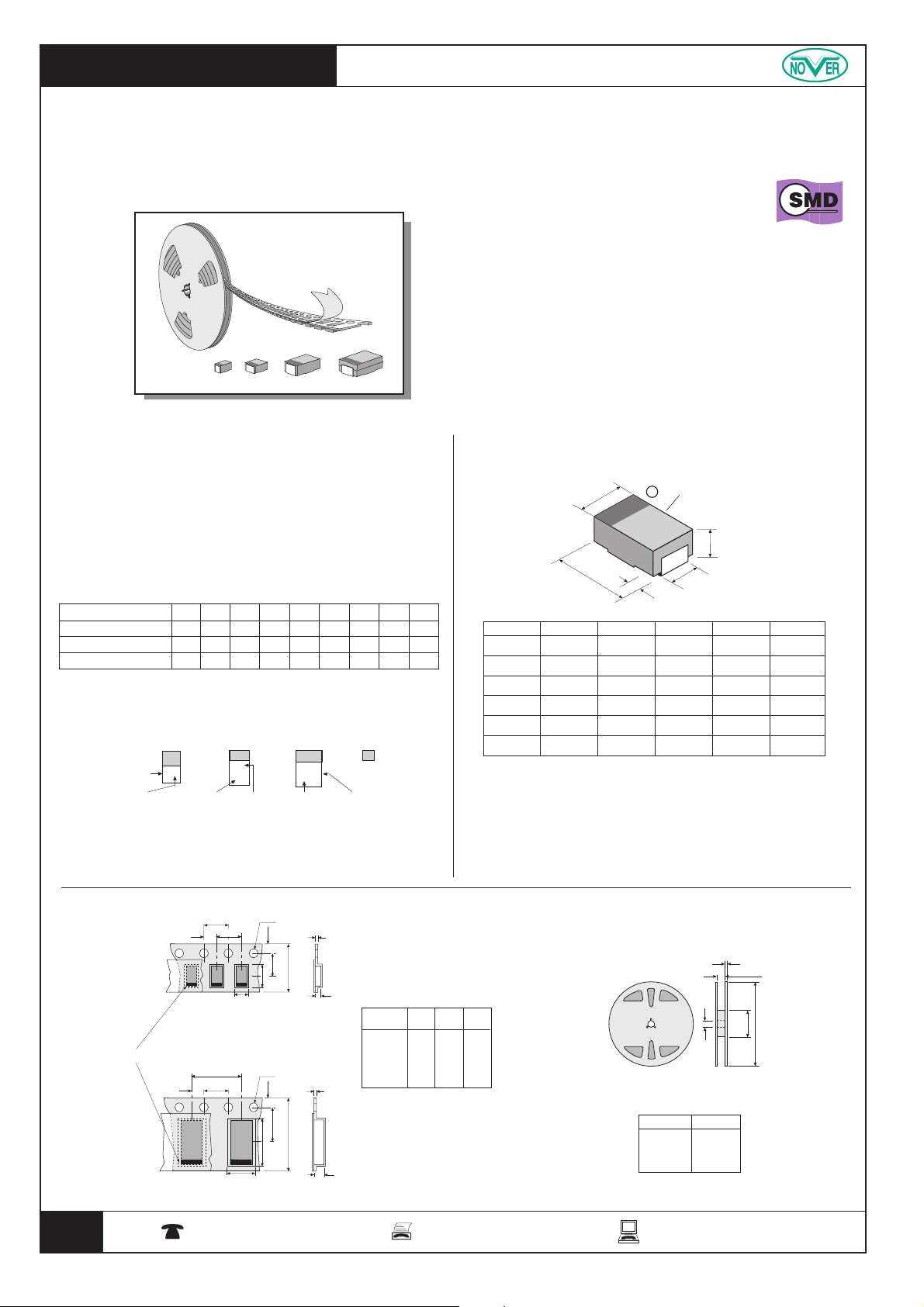

Page 75

Surface mount, solid tantalum capacitors fully encapsulated to provide a mechanically robust construction whilst offering superior resistance to moisture and heat. Supplied taped and reeled.

NOVER type TC

Dimensions (mm)

Rated voltage (≤ +85°C) 2.5V 4V 6.3V 10V 16V 20V 25V 35V d.c.

Rated voltage (≤ +125°C) 1.6V 2.5V 4V 6.3V 10V 13V 16V 22V d.c.

Surge voltage (≤ +85°C) 3.2V 5.2V 8V 13V 20V 26V 32V 46V d.c.

Surge voltage (≤ +125°C) 2V 3.2V 5V 8V 12V 16V 20V 28V d.c.

Rated voltage/ surge voltage capability

Refer to Marking section for marking explanation

3.3

16V

Case Size L W H a b

R (0805) 2.0

±0.2

1.25

±0.2

1.2

±0.2

0.5

±0.3

0.9

±0.2

A2* 3.2 ±0.2 1.6 ±0.2 1.2 ±0.2 0.8 ±0.3 1.2 ±0.2

A (1206) 3.2 ±0.2 1.6 ±0.2 1.6 ±0.2 0.8 ±0.3 1.2 ±0.2

B 3.4

±0.2

2.8

±0.2

1.9

±0.2

0.8

±0.3

2.2

±0.2

C 6.0 ±0.2 3.2 ±0.2 2.5 ±0.2 1.3 ±0.3 2.2 ±0.2

D 7.3

±0.2

4.3

±0.2

2.8

±0.2

1.3

±0.3

2.4

±0.2

◆ High performance & reliability

◆ High volumetric efﬁciency

◆ Fully moulded construction

◆ Suitable for wave & reﬂow soldering

◆ Capacitance tolerance 10%

◆ Leakage current ≤0.01CV

◆ Supplied taped & reeled

Capacitance tolerance ........................... ±10% at 120Hz, 20°C

Operating temperature range ................. -55°C to +125°C

(+125°C with voltage derating - see table below)

Leakage current (as listed) ..................... ≤0.01CV or 0.5µA

(whichever is greater) after 5 min.

Dissipation factor (as listed).................... measured at 120Hz, 20°C

ESR (as listed) ........................................ measured at 100kHz, 20°C

Speciﬁcation

Meets IEC 60384-1, 3 1989

JIS C5101-1, 3 1998

Marking

Case X Y Z

Size mm mm mm

R 1.4 2.2 1.2

A2 1.9 3.5 1.25

A 1.9 3.5 1.9 B 3.1 3.8 2.1 C 3.7 6.4 2.9 D 4.8 7.7 3.2

2.0

4.0

ø1.5

1.75

8.0

3.5

4.0

ø1.5

1.75

12.0

5.5 (C)

5.7 (D)

8.0

2.0

Polarity Marking (+)

0.3 max.

Packaging

TAPE

REELS

8mm Tape

Case size R, A2, A & B

12mm Tape

Case Size C & D

CHIP, General Purpose

SURFACE MOUNT

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

Case Sizes

R A2, A B, C, D

JA7

V474

3.3

16V

Rated Voltage Symbol

Capacitance

Code

bar denotes positive terminal

Rated Voltage Symbol

Capacitance

(µF)

e.g. JA7 = 6.3V, 10µF e.g. V474 = 35V, 0.47µF

Capacitance

Code

(pF)

Rated

Voltage

Case Size Reel Qty

R, A2 3000pcs

A, B 2000pcs

C, D 500pcs

*low proﬁle 1206 case

NOV/0149

BACK TO CONTENTS

1.2

9.0 (8mm tape) 13 (12mm tape)

Ø60

180

min.

Page 76

CHIP, General Purpose

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

NOVER type TC

DC Leakage Dissipation ESR max. Value Case Current Factor at 100kHz Nover Reel Qty (F) Size (A) max. (%) max. (Ω) Part No. Order Code pcs

2.5 Volt

3.3 R 0.5 8 20 TC0E3R3KR TX335K 3000

4.7 R 0.5 8 20 TC0E4R7KR TX475SK 3000

4.7 A2 0.5 8 8 TC0E4R7KA2 TX475K 3000

6.8 R 0.5 8 20 TC0E6R8KR TX685SK 3000

6.8 A2 0.5 8 8 TC0E6R8KA2 TX685K 3000 10 R 0.5 10 15 TC0E100KR TX106SK 3000 10 A2 0.5 8 4 TC0E100KA2 TX106K 3000 15 R 0.5 10 15 TC0E150KR TX156PK 3000 15 A2 0.5 12 4 TC0E150KA2 TX156SK 3000 15 A 0.5 6 4 TC0E150KA TX156K 2000 22 R 0.5 10 15 TC0E220KR TX226PK 3000 22 A2 0.55 12 4 TC0E220KA2 TX226SK 3000 22 A 0.55 8 5 TC0E220KA TX226K 2000 33 A2 0.82 12 4 TC0E330KA2 TX336SK 3000 33 A 0.82 8 4 TC0E330KA TX336K 2000 47 A 1.17 12 4 TC0E470KA TX476K 2000 68 A 1.7 14 4 TC0E680KA TX686SK 2000 68 B 1.7 8 4 TC0E680KB TX686K 2000 100 B 2.5 8 4 TC0E101KB TX107K 2000 150 B 3.75 12 4 TC0E151KB TX157K 2000 220 C 5.5 12 2 TC0E221KC TX227K 500 330 D 8.25 14 2 TC0E331KD TX337K 500 470 D 11.75 14 2 TC0E471KD TX477K 500

4 Volt

2.2 A2 0.5 8 8 TC0G2R2KA2 TB225K 3000

3.3 R 0.5 8 20 TC0G3R3KR TB335PK 3000

3.3 A2 0.5 8 8 TC0G3R3KA2 TB335SK 3000

3.3 A 0.5 6 8 TC0G3R3KA TB335K 2000

4.7 R 0.5 8 20 TC0G4R7KR TB475PK 3000

4.7 A2 0.5 8 8 TC0G4R7KA2 TB475SK 3000

4.7 A 0.5 8 8 TC0G4R7KA TB475K 2000

6.8 R 0.5 8 20 TC0G6R8KR TB685PK 3000

6.8 A2 0.5 8 20 TC0G6R8KA2 TB685SK 3000

6.8 A 0.5 8 4 TC0G6R8KA TB685K 2000 10 R 0.5 10 15 TC0G100KR TB106PK 3000 10 A2 0.5 10 15 TC0G100KA2 TB106TK 3000 10 A 0.5 8 4 TC0G100KA TB106SK 2000 10 B 0.5 6 2.5 TC0G100KB TB106K 2000 15 R 0.6 10 15 TC0G150KR TB156PK 3000 15 A2 0.6 10 15 TC0G150KA2 TB156TK 3000 15 A 0.6 8 3 TC0G150KA TB156SK 2000 15 B 0.6 8 3.5 TC0G150KB TB156K 2000 22 R 0.88 10 15 TC0G220KR TB226PK 3000 22 A2 0.88 12 10 TC0G220KA2 TB226TK 3000 22 A 0.88 8 5 TC0G220KA TB226SK 2000 22 B 0.88 6 1.5 TC0G220KB TB226RK 2000 33 A 1.32 10 5 TC0G330KA TB336SK 2000 33 B 1.32 8 2 TC0G330KB TB336RK 2000 33 C 1.32 6 2.2 TC0G330KC TB336K 500 47 A 1.88 10 5 TC0G470KA TB476PK 2000 47 B 1.88 8 2.5 TC0G470KB TB476SK 2000 47 C 1.88 6 1 TC0G470KC TB476RK 500 68 B 2.72 8 2.5 TC0G680KB TB686PK 2000 68 C 2.72 6 1 TC0G680KC TB686SK 500 68 D 2.72 6 0.7 TC0G680KD TB686K 500 100 B 4.0 10 2.5 TC0G101KB TB107PK 2000 100 C 4.0 8 1.5 TC0G101KC TB107SK 500 100 D 4.0 8 0.8 TC0G101KD TB107K 500 150 C 6.0 10 1.3 TC0G151KC TB157SK 500 150 D 6.0 8 0.8 TC0G151KD TB157K 500 220 C 8.8 12 1.3 TC0G221KC TB227SK 500 220 D 8.8 8 1 TC0G221KD TB227RK 500 330 D 13.2 14 1 TC0G331KD TB337SK 500 470 D 18.8 16 0.7 TC0G471KD TB477K 500

TC continued overleaf > > > >

SURFACE MOUNT

NOV/0149

BACK TO CONTENTS

Page 77

DC Leakage Dissipation ESR max. Value Case Current Factor at 100kHz Nover Reel Qty (F) Size (A) max. (%) max. (Ω) Part No. Order Code pcs

6.3 Volt

1.0 R 0.5 8 25 TC0J010KR TW105K 3000

1.5 R 0.5 8 25 TC0J1R5KR TW155SK 3000

1.5 A2 0.5 8 8 TC0J1R5KA2 TW155K 3000

2.2 R 0.5 8 25 TC0J2R2KR TW225SK 3000

2.2 A2 0.5 8 8 TC0J2R2KA2 TW225RK 3000

2.2 A 0.5 6 8 TC0J2R2KA TW225K 2000

3.3 R 0.5 8 20 TC0J3R3KR TW335SK 3000

3.3 A2 0.5 8 8 TC0J3R3KA2 TW335RK 3000

3.3 A 0.5 6 7 TC0J3R3KA TW335K 2000

4.7 R 0.5 8 20 TC0J4R7KR TW475PK 3000

4.7 A2 0.5 8 8 TC0J4R7KA2 TW475SK 3000

4.7 A 0.5 6 4 TC0J4R7KA TW475K 2000

6.8 R 0.5 8 15 TC0J6R8KR TW685PK 3000

6.8 A2 0.5 10 8 TC0J6R8KA2 TW685TK 3000

6.8 A 0.5 6 4.5 TC0J6R8KA TW685SK 2000

6.8 B 0.5 6 2.5 TC0J6R8KB TW685K 2000 10 R 0.63 10 15 TC0J100KR TW106PK 3000 10 A2 0.63 8 4 TC0J100KA2 TW106TK 3000 10 A 0.63 8 3 TC0J100KA TW106SK 2000 10 B 0.63 6 3 TC0J100KB TW106K 2000 15 A2 0.94 12 5 TC0J150KA2 TW156DK 3000 15 A 0.94 8 5 TC0J150KA TW156PK 2000 15 B 0.94 6 1.5 TC0J150KB TW156SK 2000 22 A 1.38 8 5 TC0J220KA TW226PK 2000 22 B 1.38 8 2 TC0J220KB TW226SK 2000 22 C 1.38 6 1 TC0J220KC TW226K 500 33 A 2.07 10 5 TC0J330KA TW336PK 2000 33 B 2.07 8 2.5 TC0J330KB TW336SK 2000 33 C 2.07 6 1 TC0J330KC TW336K 500 47 B 2.96 8 2.5 TC0J470KB TW476PK 2000 47 C 2.96 6 1 TC0J470KC TW476SK 500 47 D 2.96 6 0.7 TC0J470KD TW476K 500 68 B 4.28 10 2.5 TC0J680KB TW686PK 2000 68 C 4.28 8 1.5 TC0J680KC TW686SK 500 68 D 4.28 6 0.8 TC0J680KD TW686K 500 100 B 6.3 10 2.5 TC0J101KB TW107PK 2000 100 C 6.3 10 1.3 TC0J101KC TW107SK 500 100 D 6.3 8 0.8 TC0J101KD TW107K 500 150 C 9.45 10 1.3 TC0J151KC TW157SK 500 150 D 9.45 8 1 TC0J151KD TW157K 500 220 D 13.86 12 0.7 TC0J221KD TW227SK 500 330 D 20.79 16 0.7 TC0J331KD TW337SK 500

10 Volt

0.68 R 0.5 8 28 TC1AR68KR TL684K 3000

1.0 R 0.5 8 25 TC1A010KR TL105K 3000

1.0 A2 0.5 6 8 TC1A010KA2 TL105LK 3000

1.5 R 0.5 8 25 TC1A1R5KR TL155SK 3000

1.5 A2 0.5 8 8 TC1A1R5KA2 TL155RK 3000

1.5 A 0.5 6 8 TC1A1R5KA TL155K 2000

2.2 R 0.5 8 20 TC1A2R2KR TL225SK 3000

2.2 A2 0.5 8 8 TC1A2R2KA2 TL225RK 3000

2.2 A 0.5 6 7 TC1A2R2KA TL225K 2000

3.3 R 0.5 8 20 TC1A3R3KR TL335PK 3000

3.3 A2 0.5 8 8 TC1A3R3KA2 TL335SK 3000

3.3 A 0.5 6 4 TC1A3R3KA TL335K 2000

4.7 R 0.5 8 15 TC1A4R7KR TL475PK 3000

4.7 A2 0.5 10 8 TC1A4R7KA2 TL475TK 3000

4.7 A 0.5 6 4.5 TC1A4R7KA TL475SK 2000

4.7 B 0.5 6 3 TC1A4R7KB TL475K 2000

6.8 A 0.68 6 3 TC1A6R8KA TL685SK 2000

6.8 B 0.68 6 3 TC1A6R8KB TL685K 2000 10 A 1.0 8 5 TC1A100KA TL106PK 2000 10 B 1.0 6 1.5 TC1A100KB TL106SK 2000 15 A 1.5 8 5 TC1A150KA TL156PK 2000 15 B 1.5 6 2 TC1A150KB TL156SK 2000 15 C 1.5 6 1 TC1A150KC TL156K 500 22 B 2.2 8 2.5 TC1A220KB TL226SK 2000 22 C 2.2 6 1 TC1A220KC TL226K 500 33 B 3.3 8 2.5 TC1A330KB TL336PK 2000 33 C 3.3 6 1 TC1A330KC TL336SK 500 33 D 3.3 6 0.7 TC1A330KD TL336K 500 47 B 4.7 10 2.5 TC1A470KB TL476PK` 2000 47 C 4.7 6 1.5 TC1A470KC TL476SK 500 47 D 4.7 6 0.8 TC1A470KD TL476K 500 68 C 6.8 8 1.3 TC1A680KC TL686SK 500 68 D 6.8 6 0.8 TC1A680KD TL686K 500 100 C 10.0 10 1.3 TC1A101KC TL107SK 500 100 D 10.0 8 1 TC1A101KD TL107K 500 150 D 15.0 10 0.7 TC1A151KD TL157SK 500

NOVER type TC (continued)

CHIP, General Purpose

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

SURFACE MOUNT

NOV/0149

BACK TO CONTENTS

Page 78

CHIP, General Purpose

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

NOVER type TC (continued)

DC Leakage Dissipation ESR max. Value Case Current Factor at 100kHz Nover Reel Qty (F) Size (A) max. (%) max. (Ω) Part No. Order Code pcs

16 Volt

0.33 R 0.5 6 28 TC1CR33KR TP334K 3000

0.47 R 0.5 6 28 TC1CR47KR TP474K 3000

0.68 R 0.5 6 28 TC1CR68KR TP684SK 3000

0.68 A2 0.5 6 14 TC1CR68KA2 TP684K 3000

1.0 R 0.5 6 25 TC1C010KR TP105SK 3000

1.0 A2 0.5 6 10 TC1C010KA2 TP105RK 3000

1.0 A 0.5 4 8 TC1C010KA TP105K 2000

1.5 R 0.5 8 20 TC1C1R5KR TP155PK 3000

1.5 A2 0.5 6 9 TC1C1R5KA2 TP155SK 3000

1.5 A 0.5 6 8 TC1C1R5KA TP155K 2000

2.2 R 0.5 8 20 TC1C2R2KR TP225PK 3000

2.2 A2 0.5 6 8 TC1C2R2KA2 TP225TK 3000

2.2 A 0.5 6 5 TC1C2R2KA TP225SK 2000

3.3 A 0.5 6 4.5 TC1C3R3KA TP335SK 2000

3.3 B 0.5 6 3 TC1C3R3KB TP335K 2000

4.7 A 0.75 6 5 TC1C4R7KA TP475SK 2000

4.7 B 0.75 6 3.5 TC1C4R7KB TP475K 2000

6.8 A 1.08 6 5 TC1C6R8KA TP685PK 2000

6.8 B 1.08 6 1.5 TC1C6R8KB TP685SK 2000 10 A 1.6 8 5 TC1C100KA TP106PK 2000 10 B 1.6 6 4 TC1C100KB TP106SK 2000 10 C 1.6 6 2.2 TC1C100KC TP106K 500 15 B 2.4 6 2.5 TC1C150KB TP156SK 2000 15 C 2.4 6 2 TC1C150KC TP156K 500 22 B 3.52 6 2.5 TC1C220KB TP226PK 2000 22 C 3.52 6 1 TC1C220KC TP226SK 500 22 D 3.52 6 0.7 TC1C220KD TP226K 500 33 C 5.28 6 1.5 TC1C330KC TP336SK 500 33 D 5.28 6 1 TC1C330KD TP336K 500 47 C 7.52 8 1.3 TC1C470KC TP476SK 500 47 D 7.52 6 1 TC1C470KD TP476K 500 68 D 10.8 6 1 TC1C680KD TP686K 500 100 D 16.0 10 0.7 TC1C101KD TP107SK 500

20 Volt

0.1 A2 0.5 6 28 TC1DR10KA2 TA104K 3000

0.15 A2 0.5 6 25 TC1DR15KA2 TA154K 3000

0.22 A2 0.5 6 23 TC1DR22KA2 TA224K 3000

0.33 A2 0.5 6 20 TC1DR33KA2 TA334K 3000

0.47 A2 0.5 6 15 TC1DR47KA2 TA474K 3000

0.68 A2 0.5 6 14 TC1DR68KA2 TA684RK 3000

0.68 A 0.5 4 12 TC1DR68KA TA684K 2000

1.0 A2 0.5 6 10 TC1D010KA2 TA105RK 3000

1.0 A 0.5 4 9 TC1D010KA TA105K 2000

1.5 A2 0.5 6 9 TC1D1R5KA2 TA155SK 3000

1.5 A 0.5 6 8 TC1D1R5KA TA155K 2000

2.2 A 0.5 6 6 TC1D2R2KA TA225SK 2000

2.2 B 0.5 6 5 TC1D2R2KB TA225K 2000

3.3 A 0.66 6 4.5 TC1D3R3KA TA335PK 2000

3.3 B 0.66 6 3.8 TC1D3R3KB TA335SK 2000

4.7 A 0.94 6 6 TC1D4R7KA TA475PK 2000

4.7 B 0.94 6 5 TC1D4R7KB TA475SK 2000

6.8 B 1.36 6 3 TC1D6R8KB TA685SK 2000

6.8 C 1.36 6 2.5 TC1D6R8KC TA685K 500 10 B 2.0 6 3 TC1D100KB TA106SK 2000 10 C 2.0 6 2.5 TC1D100KC TA106K 500 15 C 3.0 6 2 TC1D150KC TA156SK 500 15 D 3.0 6 2 TC1D150KD TA156K 500 22 C 4.4 6 1.5 TC1D220KC TA226SK 500 22 D 4.4 6 1 TC1D220KD TA226K 500 33 D 6.6 6 1 TC1D330KD TA336K 500 47 D 9.4 6 1 TC1D470KD TA476SK 500

TC continued overleaf > > > >

SURFACE MOUNT

NOV/0149

BACK TO CONTENTS

Page 79

CHIP, General Purpose

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

NOVER type TC (continued)

DC Leakage Dissipation ESR max. Value Case Current Factor at 100kHz Nover Reel Qty (F) Size (A) max. (%) max. (Ω) Part No. Order Code pcs

25 Volt

0.47 A 0.5 4 15 TC1ER47KA TM474K 2000

0.68 A 0.5 4 10 TC1ER68KA TM684K 2000

1.0 A 0.5 6 8 TC1E010KA TM105K 2000

1.5 A 0.5 6 7 TC1E1R5KA TM155SK 2000

1.5 B 0.5 6 5 TC1E1R5KB TM155K 2000

2.2 A 0.55 6 8 TC1E2R2KA TM225SK 2000

2.2 B 0.55 6 5 TC1E2R2KB TM225K 2000

3.3 B 0.82 6 4 TC1E3R3KB TM335SK 2000

4.7 B 1.17 6 3.5 TC1E4R7KB TM475SK 2000

4.7 C 1.17 6 2.5 TC1E4R7KC TM475K 500

6.8 C 1.7 6 2 TC1E6R8KC TM685SK 500 10 C 2.5 6 1.5 TC1E100KC TM106SK 500 10 D 2.5 6 1.2 TC1E100KD TM106K 500 15 D 3.75 6 1 TC1E150KD TM156K 500 22 D 5.5 6 1 TC1E220KD TM226K 500

35 Volt

0.1 A 0.5 4 28 TC1VR10KA TC104K 2000

0.15 A 0.5 4 24 TC1VR15KA TC154K 2000

0.22 A 0.5 4 20 TC1VR22KA TC224K 2000

0.33 A 0.5 4 15 TC1VR33KA TC334K 2000

0.47 A 0.5 4 11 TC1VR47KA TC474SK 2000

0.47 B 0.5 4 11 TC1VR47KB TC474K 2000

0.68 A 0.5 4 8 TC1VR68KA TC684SK 2000

0.68 B 0.5 4 8 TC1VR68KB TC684K 2000

1.0 A 0.5 4 9 TC1V010KA TC105SK 2000

1.0 B 0.5 4 6 TC1V010KB TC105K 2000

1.5 B 0.52 6 5 TC1V1R5KB TC155SK 2000

1.5 C 0.52 6 4.5 TC1V1R5KC TC155K 500

2.2 B 0.77 6 4 TC1V2R2KB TC225SK 2000

2.2 C 0.77 6 3.5 TC1V2R2KC TC225K 500

3.3 B 1.15 6 4.5 TC1V3R3KB TC335SK 2000

3.3 C 1.15 6 3 TC1V3R3KC TC335K 500

4.7 C 1.64 6 2 TC1V4R7KC TC475SK 500

4.7 D 1.64 6 1.5 TC1V4R7KD TC475K 500

6.8 C 2.38 6 2.3 TC1V6R8KC TC685SK 500

6.8 D 2.38 6 1.3 TC1V6R8KD TC685K 500 10 D 3.5 6 1 TC1V100KD TC106K 500 15 D 5.25 6 1 TC1V150KD TC156K 500

SURFACE MOUNT

NOV/0149

BACK TO CONTENTS

Page 80

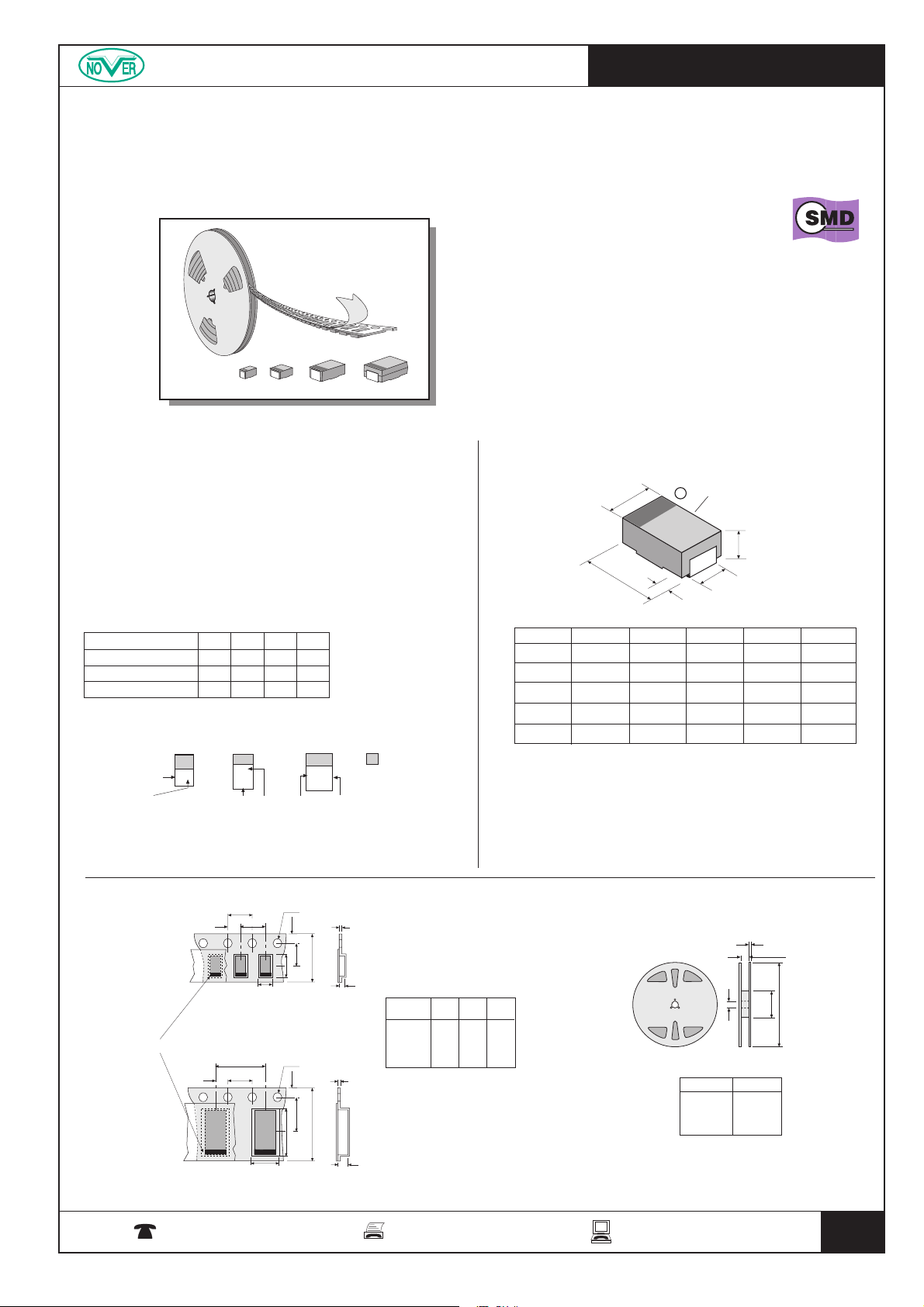

CHIP, Low ESR

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

Low ESR, surface mount, solid tantalum capacitors capable of handling higher ripple current and producing greater circuit effciency. Utilisation of the latest technology ensures optimum performance. Fully encapsulated to provide a mechanically robust construction whilst offering superior resistance to moisture and heat. Supplied taped and reeled.

NOVER type TL

Dimensions (mm)

Rated voltage (≤ +85°C) 6.3V 10V 16V d.c.

Rated voltage (≤ +125°C) 4V 6.3V 10V d.c.

Surge voltage (≤ +85°C) 8V 13V 20V d.c.

Surge voltage (≤ +125°C) 5V 8V 12V d.c.

Rated voltage/ surge voltage capability

Case Size L W H a b

R (0805) 2.0

±0.2 1.25 ±0.2 1.2 ±0.2 0.5 ±0.3 0.9 ±0.2

A (1206) 3.2 ±0.2 1.6 ±0.2 1.6 ±0.2 0.8 ±0.3 1.2 ±0.2

B 3.4 ±0.2 2.8 ±0.2 1.9 ±0.2 0.8 ±0.3 2.2 ±0.2

C 6.0

±0.2

3.2

±0.2

2.5

±0.2

1.3

±0.3

2.2

±0.2

D 7.3

±0.2

4.3

±0.2

2.8

±0.2

1.3

±0.3

2.4

±0.2

◆ Low ESR

◆ High ripple current

◆ Optimised performance & reliability

◆ Fully moulded construction

◆ Suitable for wave & reﬂow soldering

◆ Capacitance tolerance 10%

◆ Leakage current ≤0.01CV

◆ Supplied taped & reeled

Capacitance tolerance ........................... ±10% at 120Hz, 20°C

Operating temperature range ................. -55°C to +125°C

(+125°C with voltage derating - see table below)

Leakage current (as listed) ..................... ≤0.01CV or 0.5µA

(whichever is greater) after 5 min.

Dissipation factor (as listed) ................... measured at 120Hz, 20°C

ESR (as listed) ....................................... measured at 100kHz, 20°C

Ripple current (as listed) ........................ measured at 100kHz, 20°C

Speciﬁcation

Meets IEC 60384-1, 3 1989

JIS C5101-1, 3 1998

Marking

Case Sizes

R A B, C, D

JA7

C475

150

10V

Rated Voltage Symbol

Capacitance

Code

bar denotes positive terminal

Rated Voltage Symbol

Capacitance

(µF)

e.g. JA7 = 6.3V, 10µF e.g. C475 = 16V, 4.7µF

Capacitance

Code

(pF)

Rated

Voltage

Case X Y Z Size mm mm mm

R 1.4 2.2 1.2 A 1.9 3.5 1.9 B 3.1 3.8 2.1 C 3.7 6.4 2.9 D 4.8 7.7 3.2

Packaging

TAPE

REELS

8mm Tape

Case size R, A & B

12mm Tape

Case Size C & D

Case Size Reel Qty

R 3000pcs

A, B 2000pcs

C, D 500pcs

TL continued overleaf > > > >

SURFACE MOUNT

NOV/0149

BACK TO CONTENTS

Polarity Marking (+)

4.0

2.0

8.0

4.0

2.0

ø1.5

4.0

1.75

ø1.5

1.75

3.5

5.5 (C)

5.7 (D)

8.0

12.0

0.3 max.

Refer to Marking

10V

150

section for marking explanation

1.2

9.0 (8mm tape) 13 (12mm tape)

Ø60

180

min.

Page 81

CHIP, Low ESR

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

NOVER type TL

DC Leakage Dissipation ESR max. Ripple Value Case Current Factor at 100kHz Current Nover Reel Qty (F) Size (A) max. (%) max. (mΩ) (mA) Part No. Order Code pcs

6.3 Volt

10 R 0.63 10 1200 130 TL0J100KR1200 TG106SK1200 3000 10 A 0.63 8 1200 160 TL0J100KA1200 TG106K1200 2000 22 B 1.38 8 800 190 TL0J220KB0800 TG226K800 2000 33 B 2.07 8 800 190 TL0J330KB0800 TG336K800 2000 47 B 2.96 8 1000 170 TL0J470KB1000 TG476SK1000 2000 47 C 2.96 6 400 350 TL0J470KC0400 TG476K400 500 100 D 6.3 8 350 460 TL0J101KD0350 TG107LK350 500 150 D 9.45 8 120 790 TL0J151KD0120 TG157K120 500 220 D 13.86 12 120 790 TL0J221KD0120 TG227K120 500

10 Volt

10 A 1.0 8 1300 150 TL1A100KA1300 TH106K1300 2000 22 B 2.2 8 1000 170 TL1A220KB1000 TH226K1000 2000 33 C 3.3 6 375 370 TL1A330KC0375 TH336K375 500 47 C 4.7 6 400 350 TL1A470KC0400 TH476K400 500 100 D 10.0 8 120 790 TL1A101KD0120 TH107PK120 500 150 D 15.0 10 120 790 TL1A151KD0120 TH157K120 500

16 Volt

3.3 A 0.5 6 1800 130 TL1C3R3KA1800 TJ335K1800 2000

4.7 A 0.75 6 1800 130 TL1C4R7KA1800 TJ475K1800 2000 10 B 1.6 6 1000 170 TL1C100KB1000 TJ106K1000 2000 22 C 3.52 6 400 350 TL1C220KC0400 TJ226K400 500 33 C 5.28 6 400 350 TL1C330KC0400 TJ336K400 500 47 D 7.52 6 300 500 TL1C470KD0300 TJ476K300 500

SURFACE MOUNT

NOV/0315

BACK TO CONTENTS

Page 82

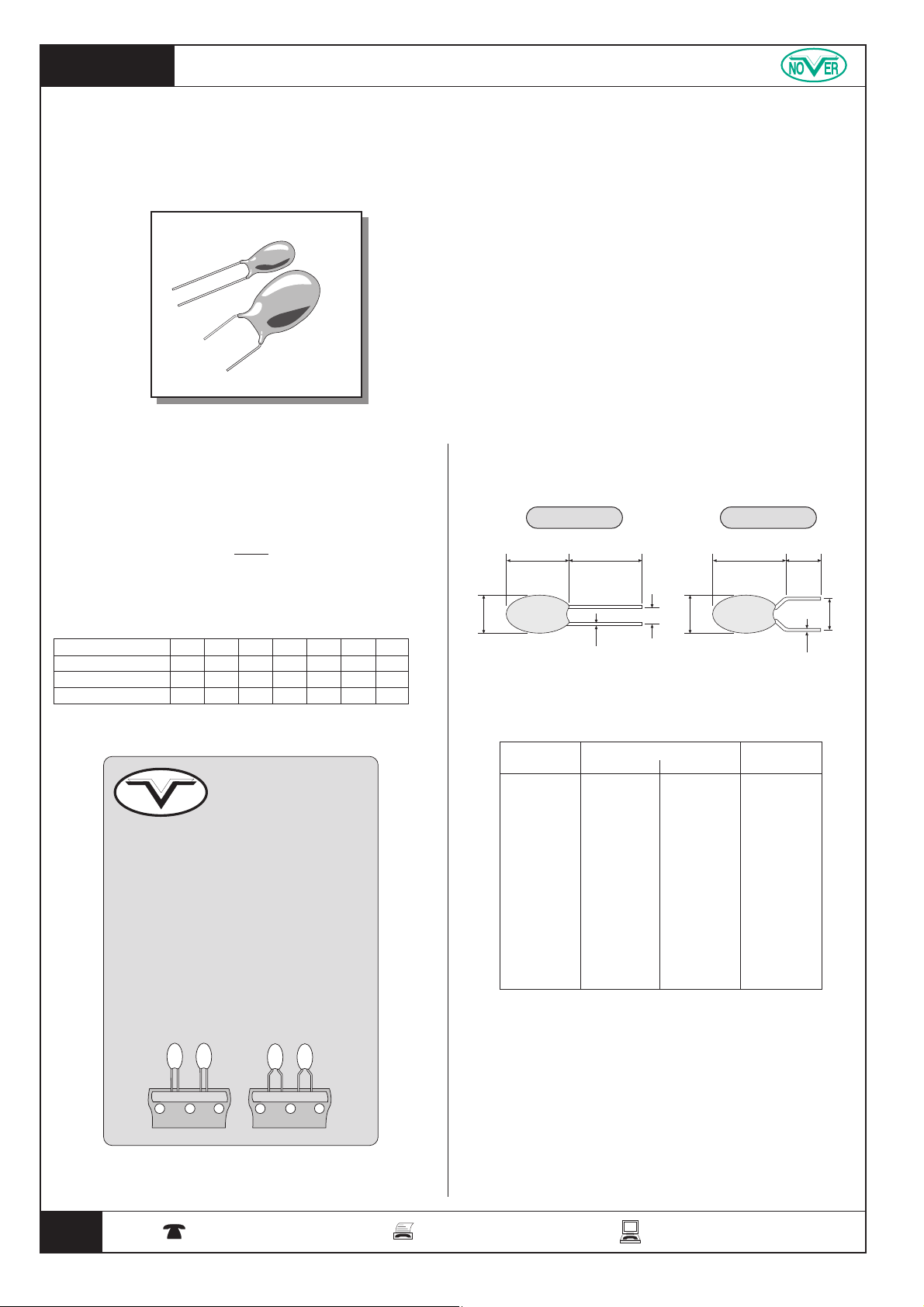

72A

SMDRADIAL

NOV/0149

DIPPED, General Purpose

NOVER type TX

Dimensions (mm)

Rated voltage (≤ +85°C) 6.3V 10V 16V 25V 35V 50V d.c. Rated voltage (≤ +125°C) 4V 6.3V 10V 16V 23V 33V d.c. Surge voltage (≤ +85°C) 8V 13V 20V 33V 46V 65V d.c. Surge voltage (≤ +125°C) 5V 8V 12V 20V 28V 40V d.c.

Rated voltage /surge voltage capability

◆ High performance & stability

◆ High volumetric efﬁciency

◆ Flame retardant coating

◆ Choice of pitch

◆ Capacitance tolerance 20%

◆ Body colour Gold

Case L (max)

Size 2.5mm Pitch 5mm Pitch Dia. (max)

A 7.0 8.5 4.5

B 7.5 9.0 4.5

C 8.5 10.0 5.0

D 9.0 10.5 5.0

E 9.0 10.5 5.5

F 10.0 11.5 6.0

G 10.0 11.5 6.5

H 10.5 12.0 7.0

J 11.5 13.0 8.0

K 12.5 14.0 8.5

L – 14.0 9.0

M – 14.5 9.0

N – 16.0 9.0

P – 17.0 10.0

R – 18.5 10.0

Capacitance tolerance ............................... ±20% at 120Hz, 25°C

Operating temperature range .................... -55°C to +85°C

(+125°C with voltage derating - see table below)

Leakage current (as listed) ........................ measured at 25°C

Dissipation factor (as listed) ....................... measured at 120Hz, 25°C

ESR (as listed) .......................................... measured at 100kHz, 25°C

Power dissipation (as listed) ...................... measured at 25°C

Ripple current ............................................ √ (P ÷ R)

where P = power dissipation

R = ESR

Speciﬁcation

2.5mm Pitch 5mm Pitch

Miniature resin dipped solid bead tantalum capacitors ideally suited where high performance and stability is required.

DIPPED TANTALUM

Also available to special order



OTHER VALUES



OTHER VOLTAGES



OTHER TOLERANCES



TAPED PRODUCT



boxed or reeled

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

NO ER

Dia

12.7

±1.27

ø0.5

2.54

Dia

4.75

±0.81

5.08

ø0.5

Page 83

72B

NOV/0149

SMDRADIAL

DIPPED, General Purpose

NOVER type TX

TX continued overleaf > > > >

2.5mm Pitch

DC Leakage Dissipation ESR Power

Value Case Current Factor at 100kHz Dissipation Nover Nover (F) Size (A) max. (%) max. (Ω) max. (W) max. Part No. Order Code Part No. Order Code

6.3 Volt

3.3 A 0.5 5 13.0 0.04 TX0J3R3M2 058059 TX0J3R3M5 058059A

4.7 A 0.5 5 10.0 0.04 TX0J4R7M2 058060 TX0J4R7M5 058060A

6.8 A 0.5 5 8.0 0.04 TX0J6R8M2 058061 TX0J6R8M5 058061A 10 B 0.5 6 6.0 0.05 TX0J100M2 058001 TX0J100M5 058001A 15 C 0.7 6 5.0 0.06 TX0J150M2 058002 TX0J150M5 058002A 22 D 1.1 6 3.7 0.065 TX0J220M2 058003 TX0J220M5 058003A 33 E 1.6 6 3.0 0.07 TX0J330M2 058004 TX0J330M5 058004A 47 F 2.3 6 2.0 0.08 TX0J470M2 058005 TX0J470M5 058005A 68 G 3.3 6 1.8 0.09 TX0J680M2 058064 TX0J680M5 058064A 100 H 4.8 8 1.6 0.10 TX0J101M2 058006 TX0J101M5 058006A 150 J 7.2 8 0.9 0.11 – – TX0J151M5 058065A 220 K 10.0 8 0.9 0.12 – – TX0J221M5 058062A 330 L 10.0 8 0.7 0.13 – – TX0J331M5 058063A

10 Volt

2.2 A 0.5 5 13.0 0.04 TX1A2R2M2 058007 TX1A2R2M5 058007A

3.3 A 0.5 5 10.0 0.04 TX1A3R3M2 058008 TX1A3R3M5 058008A

4.7 A 0.5 5 8.0 0.04 TX1A4R7M2 058009 TX1A4R7M5 058009A

6.8 B 0.5 5 6.0 0.05 TX1A6R8M2 058010 TX1A6R8M5 058010A 10 C 0.8 6 5.0 0.06 TX1A100M2 058011 TX1A100M5 058011A 15 E 1.2 6 3.7 0.07 TX1A150M2 058012 TX1A150M5 058012A 22 E 1.8 6 2.7 0.07 TX1A220M2 058013 TX1A220M5 058013A 33 F 2.6 6 2.1 0.08 TX1A330M2 058014 TX1A330M5 058014A 47 H 3.8 6 1.7 0.10 TX1A470M2 058015 TX1A470M5 058015A 68 H 5.4 6 1.3 0.10 TX1A680M2 058070 TX1A680M5 058070A 100 J 8.0 8 1.0 0.11 – – TX1A101M5 058071A 150 K 10.0 8 0.8 0.12 – – TX1A151M5 058072A 220 L 10.0 8 0.6 0.13 – – TX1A221M5 058073A

16 Volt

1.5 A 0.5 5 10.0 0.04 TX1C1R5M2 058080 TX1C1R5M5 058080A

2.2 A 0.5 5 8.0 0.04 TX1C2R2M2 058016 TX1C2R2M5 058016A

3.3 A 0.5 5 6.0 0.04 TX1C3R3M2 058017 TX1C3R3M5 058017A

4.7 B 0.6 5 5.0 0.05 TX1C4R7M2 058050 TX1C4R7M5 058050A

6.8 C 0.9 5 4.0 0.06 TX1C6R8M2 058018 TX1C6R8M5 058018A 10 E 1.3 6 3.2 0.07 TX1C100M2 058019 TX1C100M5 058019A 15 E 1.8 6 2.5 0.07 TX1C150M2 058020 TX1C150M5 058020A 22 F 2.6 6 2.0 0.08 TX1C220M2 058021 TX1C220M5 058021A 33 H 4.0 6 1.6 0.10 TX1C330M2 058022 TX1C330M5 058022A 47 J 5.6 6 1.3 0.11 – – TX1C470M5 058023A 68 K 8.2 6 1.0 0.12 – – TX1C680M5 058081A 100 L 10.0 8 0.8 0.13 – – TX1C101M5 058025A 150 M 10.0 8 0.6 0.14 – – TX1C151M5 058026A

25 Volt

1.0 A 0.5 3 10.0 0.04 TX1E010M2 058201 TX1E010M5 058201A

1.5 A 0.5 5 8.0 0.04 TX1E1R5M2 058202 TX1E1R5M5 058202A

2.2 B 0.5 5 6.0 0.05 TX1E2R2M2 058203 TX1E2R2M5 058203A

3.3 B 0.7 5 5.0 0.05 TX1E3R3M2 058204 TX1E3R3M5 058204A

4.7 C 0.9 5 4.0 0.06 TX1E4R7M2 058205 TX1E4R7M5 058205A

6.8 E 1.4 5 3.1 0.07 TX1E6R8M2 058206 TX1E6R8M5 058206A 10 E 2.0 6 2.5 0.07 TX1E100M2 058207 TX1E100M5 058207A 15 G 3.0 6 2.0 0.09 TX1E150M2 058208 TX1E150M5 058208A 22 H 4.4 6 1.5 0.10 TX1E220M2 058209 TX1E220M5 058209A 33 J 6.6 6 1.2 0.11 – – TX1E330M5 058210A 47 K 9.4 6 1.0 0.12 – – TX1E470M5 058211A 68 L 10.0 6 0.8 0.13 – – TX1E680M5 058212A

5mm Pitch

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS

Page 84

72C

SMDRADIAL

NOV/0149

DIPPED, General Purpose

NOVER type TX

(continued)

2.5mm Pitch

DC Leakage Dissipation ESR Power

Value Case Current Factor at 100kHz Dissipation Nover Nover (F) Size (A) max. (%) max. (Ω) max. (W) max. Part No. Order Code Part No. Order Code

35 Volt

0.1 A 0.5 3 26.0 0.04 TX1V0R1M2 058036 TX1V0R1M5 058036A

0.15 A 0.5 3 21.0 0.04 TX1VR15M2 058037 TX1VR15M5 058037A

0.22 A 0.5 3 17.0 0.04 TX1VR22M2 058038 TX1VR22M5 058038A

0.33 A 0.5 3 15.0 0.04 TX1VR33M2 058039 TX1VR33M5 058039A

0.47 A 0.5 3 13.0 0.04 TX1VR47M2 058040 TX1VR47M5 058040A

0.68 A 0.5 3 10.0 0.04 TX1VR68M2 058041 TX1VR68M5 058041A

1.0 A 0.5 3 8.0 0.04 TX1V010M2 058042 TX1V010M5 058042A

1.5 B 0.5 5 6.0 0.05 TX1V1R5M2 058043 TX1V1R5M5 058043A

2.2 C 0.6 5 5.0 0.06 TX1V2R2M2 058044 TX1V2R2M5 058044A

3.3 D 0.9 5 4.0 0.065 TX1V3R3M2 058045 TX1V3R3M5 058045A

4.7 E 1.3 5 3.0 0.07 TX1V4R7M2 058046 TX1V4R7M5 058046A

6.8 F 1.9 5 2.5 0.08 TX1V6R8M2 058047 TX1V6R8M5 058047A 10 G 2.8 6 2.0 0.09 TX1V100M2 058048 TX1V100M5 058048A 15 J 4.2 6 1.6 0.11 – – TX1V150M5 058049A 22 K 6.2 6 1.3 0.12 – – TX1V220M5 058051A 33 L 9.2 6 1.0 0.13 – – TX1V330M5 058052A 47 M 10.0 6 0.8 0.14 – – TX1V470M5 058053A

50 Volt

0.1 A 0.5 3 26.0 0.04 TX1H0R1M2 058501 TX1H0R1M5 058501A

0.15 A 0.5 3 21.0 0.04 TX1HR15M2 058502 TX1HR15M5 058502A

0.22 A 0.5 3 17.0 0.04 TX1HR22M2 058503 TX1HR22M5 058503A

0.33 A 0.5 3 15.0 0.04 TX1HR33M2 058504 TX1HR33M5 058504A

0.47 B 0.5 3 13.0 0.05 TX1HR47M2 058505 TX1HR47M5 058505A

0.68 B 0.5 3 10.0 0.05 TX1HR68M2 058506 TX1HR68M5 058506A

1.0 B 0.5 3 8.0 0.05 TX1H010M2 058507 TX1H010M5 058507A

1.5 E 0.6 5 5.0 0.07 TX1H1R5M2 058508 TX1H1R5M5 058508A

2.2 E 0.9 5 3.5 0.07 TX1H2R2M2 058509 TX1H2R2M5 058509A

3.3 F 1.3 5 3.0 0.08 TX1H3R3M2 058510 TX1H3R3M5 058510A

4.7 G 1.9 5 2.5 0.09 TX1H4R7M2 058511 TX1H4R7M5 058511A

6.8 J 2.7 5 2.0 0.11 – – TX1H6R8M5 058512A 10 K 4.0 6 1.6 0.12 – – TX1H100M5 058513A 15 L 6.0 6 1.2 0.13 – – TX1H150M5 058514A 22 M 8.8 6 1.0 0.14 – – TX1H220M5 058515A

5mm Pitch

01945 47 47 47

●

01945 47 48 49

●

[email protected]

www.angliac.com

BACK TO CONTENTS
