TL/D/8827

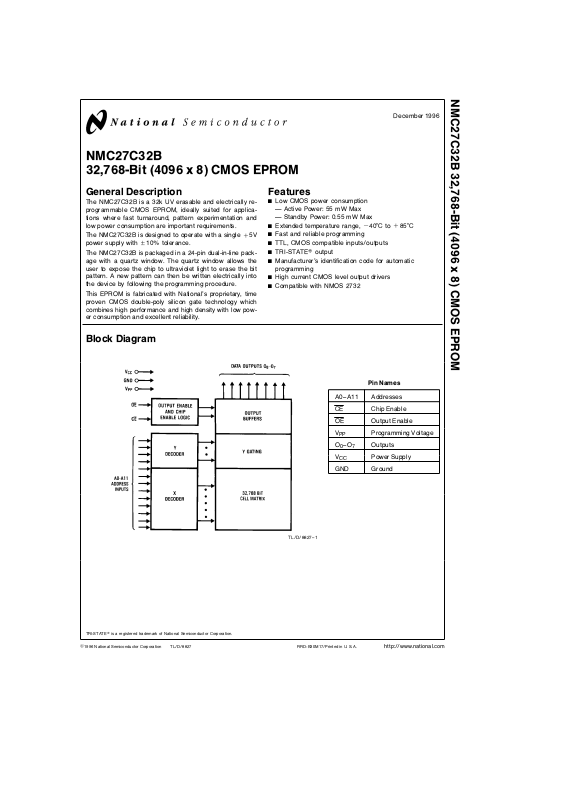

NMC27C32B 32,768-Bit (4096 x 8) CMOS EPROM
December 1996
NMC27C32B
32,768-Bit (4096 x 8) CMOS EPROM
General Description
The NMC27C32B is a 32k UV erasable and electrically reprogrammable CMOS EPROM, ideally suited for applications where fast turnaround, pattern experimentation and
low power consumption are important requirements.
The NMC27C32B is designed to operate with a single
a
5V
power supply with
g
10% tolerance.
The NMC27C32B is packaged in a 24-pin dual-in-line package with a quartz window. The quartz window allows the
user to expose the chip to ultraviolet light to erase the bit
pattern. A new pattern can then be written electrically into
the device by following the programming procedure.
This EPROM is fabricated with National’s proprietary, time
proven CMOS double-poly silicon gate technology which
combines high performance and high density with low power consumption and excellent reliability.
Features
Y
Low CMOS power consumption
Ð Active Power: 55 mW Max
Ð Standby Power: 0.55 mW Max
Y
Extended temperature range,b40§Ctoa85§C
Y
Fast and reliable programming
Y
TTL, CMOS compatible inputs/outputs
Y
TRI-STATEÉoutput
Y
Manufacturer’s identification code for automatic
programming
Y
High current CMOS level output drivers
Y
Compatible with NMOS 2732
Block Diagram
TL/D/8827– 1
Pin Names
A0–A11 Addresses
CE Chip Enable
OE Output Enable
V
PP
Programming Voltage
O0–O7Outputs
V
CC
Power Supply
GND Ground
TRI-STATEÉis a registered trademark of National Semiconductor Corporation.
C
1996 National Semiconductor Corporation RRD-B30M17/Printed in U. S. A.
http://www.national.com
Page 2
Connection Diagram
27C256 27C128 27C64 27C16
27256 27128 2764 2716
V
PP
V
PP
V
PP
A12 A12 A12
A7 A7 A7 A7
A6 A6 A6 A6
A5 A5 A5 A5
A4 A4 A4 A4
A3 A3 A3 A3
A2 A2 A2 A2
A1 A1 A1 A1
A0 A0 A0 A0
O
0
O
0
O
0
O
0
O
1
O
1
O
1
O
1
O
2
O
2
O
2
O
2
GND GND GND GND
NMC27C32B
Dual-In-Line Package
TL/D/8827– 2
27C16 27C64 27C128 27C256
2716 2764 27128 27256
V
CC
V
CC
V
CC
PGM PGM A14
V
CC
NC A13 A13
A8 A8 A8 A8
A9 A9 A9 A9
V
PP
A11 A11 A11
OE
OE OE OE
A10 A10 A10 A10
CE
CE CE CE
O
7
O
7
O
7
O
7
O
6
O
6
O
6
O
6
O
5
O
5
O
5
O
5
O
4
O
4
O
4
O
4
O
3
O
3
O
3
O
3
Note: Socket compatible EPROM pin configurations are shown in the blocks adjacent to the NMC27C32B pins.
Order Number NMC27C32BQ

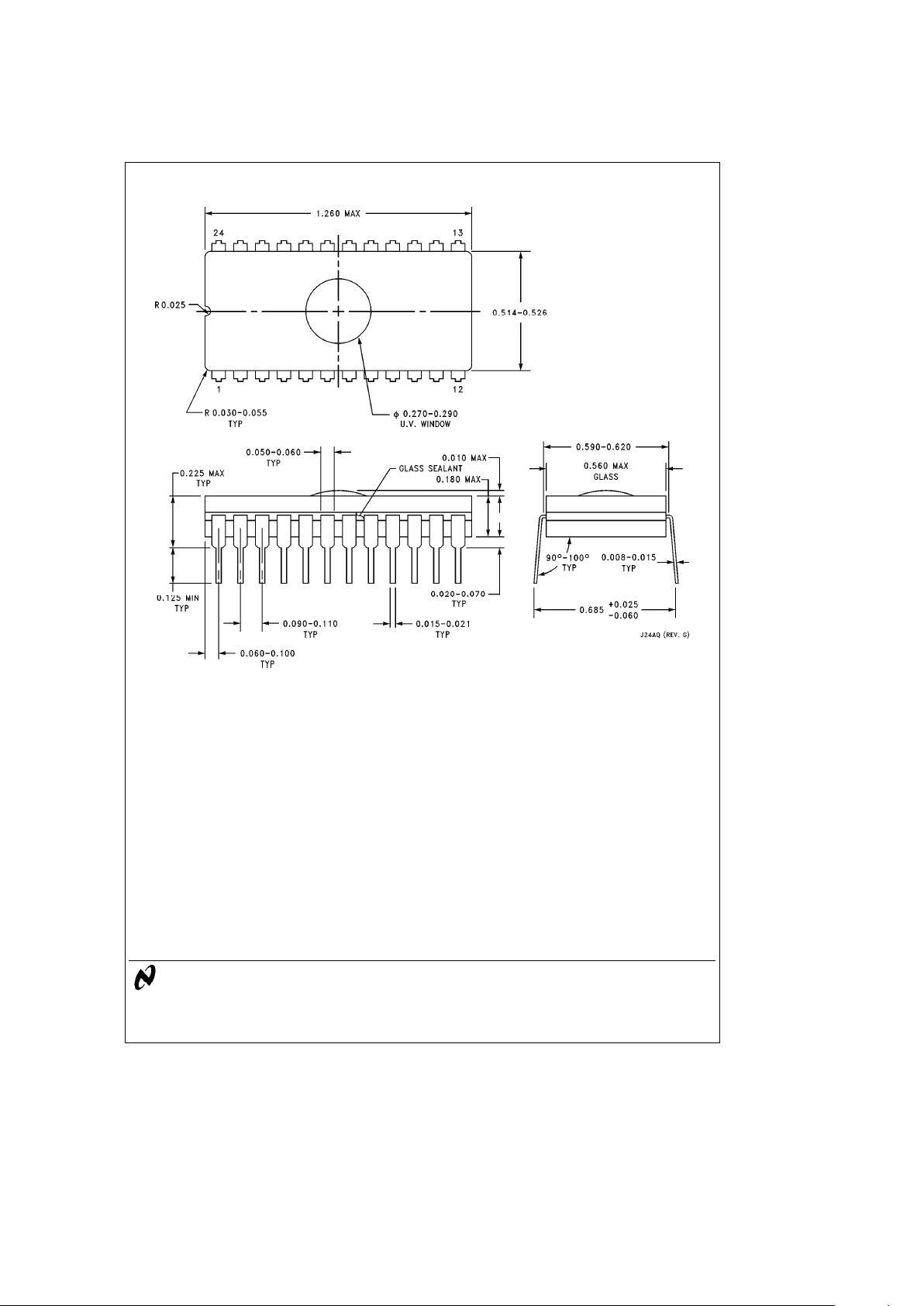

See NS Package Number J24AQ
Commercial Temp Range (0
§
Ctoa70§C) V
CC
e
5Vg10%
Parameter/Order Number Access Time (ns)
NMC27C32BQ150 150
NMC27C32BQ200 200
NMC27C32BQ250 250
Extended Temp Range (b40§Ctoa85§C) V
CC
e
5Vg10%
Parameter/Order Number Access Time (ns)
NMC27C32BQE200 200
http://www.national.com 2
Page 3
Absolute Maximum Ratings (Note 1)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales
Office/Distributors for availability and specifications.
Temperature Under Bias
b
40§Ctoa85§C
Storage Temperature
b
65§Ctoa150§C
V
CC
Supply Voltage with
Respect to Ground
a
7.0V tob0.6V
All Input Voltages except A9
and OE
/VPPwith
Respect to Ground (Note 9)
a
6.5V tob0.6V
All Output Voltages with
Respect to Ground (Note 9) V
CC
a
1.0V to GNDb0.6V
OE
/VPPSupply and A9 Voltage with
Respect to Ground
a
14.0V tob0.6V
Power Dissipation 1.0W
Lead Temperature (Soldering, 10 sec.) 300
§
C
Operating Conditions (Note 6)
Temperature Range
NMC27C32BQ150, 200, 250 0
§
Ctoa70§C
NMC27C32BQE200
b
40§Ctoa85§C
VCCPower Supply
a
5Vg10%
READ OPERATION
DC Electrical Characteristics
Symbol Parameter Conditions Min Typ Max Units
I
LI
Input Load Current V
IN
e
VCCor GND 0.01 1 mA
I
PP
OE/VPPLoad Current OE/V
PP
e
VCCor GND 10 mA
I
LO
Output Leakage Current V
OUT
e
VCCor GND, CEeV
IH
0.01 1 mA
I
CC1
VCCCurrent (Active) CEeVIL,fe5 MHz
520mA
TTL Inputs Inputs
e
VIHor VIL, I/Oe0mA
I
CC2
VCCCurrent (Active) CEeGND, fe5 MHz
310mA
CMOS Inputs Inputs
e
VCCor GND, I/Oe0mA
I
CCSB1
VCCCurrent (Standby) CEeV
IH
0.1 1 mA
TTL Inputs
I
CCSB2
VCCCurrent (Standby) CEeV
CC
0.5 100 mA
CMOS Inputs
V
IL
Input Low Voltage
b
0.2 0.8 V
V
IH
Input High Voltage 2.0 V
CC
a
1V
V
OL1
Output Low Voltage I
OL
e
2.1 mA 0.45 V
V
OH1
Output High Voltage I
OH
eb
400 mA 2.4 V
V
OL2
Output Low Voltage I
OL
e
10 mA 0.1 V
V
OH2
Output High Voltage I
OH
eb
10 mAV
CC
b
0.1 V
AC Electrical Characteristics
NMC27C32B
Symbol Parameter Conditions Q150 Q200, QE200 Q250 Units
Min Max Min Max Min Max
t
ACC
Address to Output Delay CEeOEeV
IL
150 200 250 ns
t
CE
CE to Output Delay OEeV
IL
150 200 250 ns
t
OE
OE to Output Delay CEeV
IL
60 60 70 ns
t
DF
OE High to Output Float CEeV
IL
0 50 0 60 0 70 ns
t
CF
CE High to Output Float OEeV
IL
0 50 0 60 0 60 ns
t
OH
Output Hold from Addresses, CEeOEeV
IL
CE or OE, Whichever 0 0 0 ns
Occurred First
http://www.national.com3
Page 4
Capacitance T
A
ea
25§C, fe1 MHz (Note 2)
Symbol Parameter Conditions Typ Max Units
C
IN1
Input Capacitance except OE/VPPV
IN
e
0V 6 12 pF
C
IN2
OE/VPPInput Capacitance V
IN
e
0V 16 20 pF
C
OUT
Output Capacitance V
OUT
e
0V 9 12 pF
AC Test Conditions
Output Load 1 TTL Gate and
C
L
e
100 pF (Note 8)
Input Rise and Fall Times
s
5ns
Input Pulse Levels 0.45V to 2.4V
Timing Measurement Reference Level
Inputs 0.8V and 2V
Outputs 0.8V and 2V

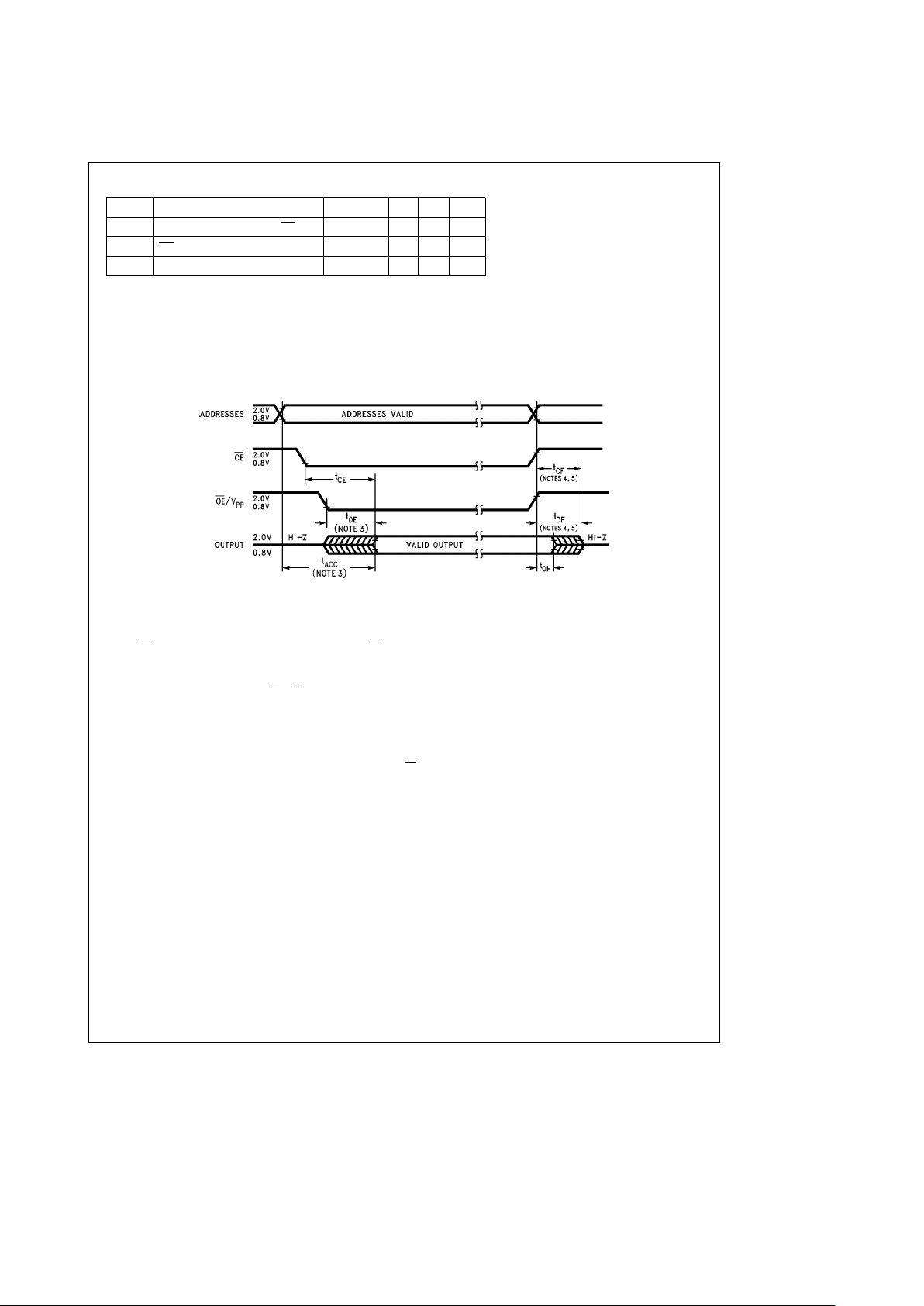

AC Waveforms (Note 7)
TL/D/8827– 3
Note 1: Stresses above those listed under ‘‘Absolute Maximum Ratings’’ may cause permanent damage to the device. This is a stress rating only and functional
operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute
maximum rating conditions for extended periods may affect device reliability.
Note 2: This parameter is only sampled and is not 100% tested.
Note 3: OE
may be delayed up to t
ACC
b
tOEafter the falling edge of CE without impacting t
ACC
.
Note 4: The t
DF
and tCFcompare level is determined as follows:
High to TRI-STATE, the measured V
OH1
(DC)b0.10V;
Low to TRI-STATE, the measured V
OL1
(DC)a0.10V.
Note 5: TRI-STATE may be attained using OE
or CE.
Note 6: The power switching characteristics of EPROMs require careful device decoupling. It is recommended that at least a 0.1 mF ceramic capacitor be used on
every device between V
CC
and GND.
Note 7: The outputs must be restricted to V
CC
a
1.0V to avoid latch-up and device damage.
Note 8: 1 TTL Gate: I
OL
e
1.6 mA, I
OH
eb
400 mA.
C
L
: 100 pF includes fixture capacitance.
Note 9: Inputs and outputs can undershoot to
b
2.0V for 20 ns Max, except for OE/VPPwhich cannot exceedb0.2V.
Note 10: Typical values are for T
A
e
25§C and nominal supply voltages.
http://www.national.com 4
Page 5
Programming Characteristics (Notes 1, 2,3&4)
Symbol Parameter Conditions Min Typ Max Units
t
AS
Address Setup Time 1 ms
t
OES
OE Setup Time 1 ms
t
DS
Data Setup Time 1 ms
t
VCS
VCCSetup Time 1 ms
t
AH
Address Hold Time 0 ms
t
DH
Data Hold Time 1 ms
t
CF
Chip Enable to Output Float Delay OEeV
IL
060ns
t
PW
Program Pulse Width 95 100 105 ms
t
OEH
OE Hold Time 1 ms
t
DV
Data Valid from CE OEeV
IL
250 ns
t
PRT
OE Pulse Rise Time
50 ns
During Programming
t
VR
VPPRecovery Time 1 ms
I
PP
VPPSupply Current During CEeVIL,
30 mA
Programming Pulse OE
e
V
PP
I
CC
VCCSupply Current 10 mA
T
A
Temperature Ambient 20 25 30
§
C
V
CC
Power Supply Voltage 6.0 6.25 6.5 V
V
PP
Programming Supply Voltage 12.5 12.75 13.0 V
t
FR
Input Rise, Fall Time 5 ns
V
IL
Input Low Voltage 0.0 0.45 V
V
IH
Input High Voltage 2.4 4.0 V
t
IN
Input Timing Reference Voltage 0.8 2.0 V
t
OUT
Output Timing Reference Voltage 0.8 2.0 V

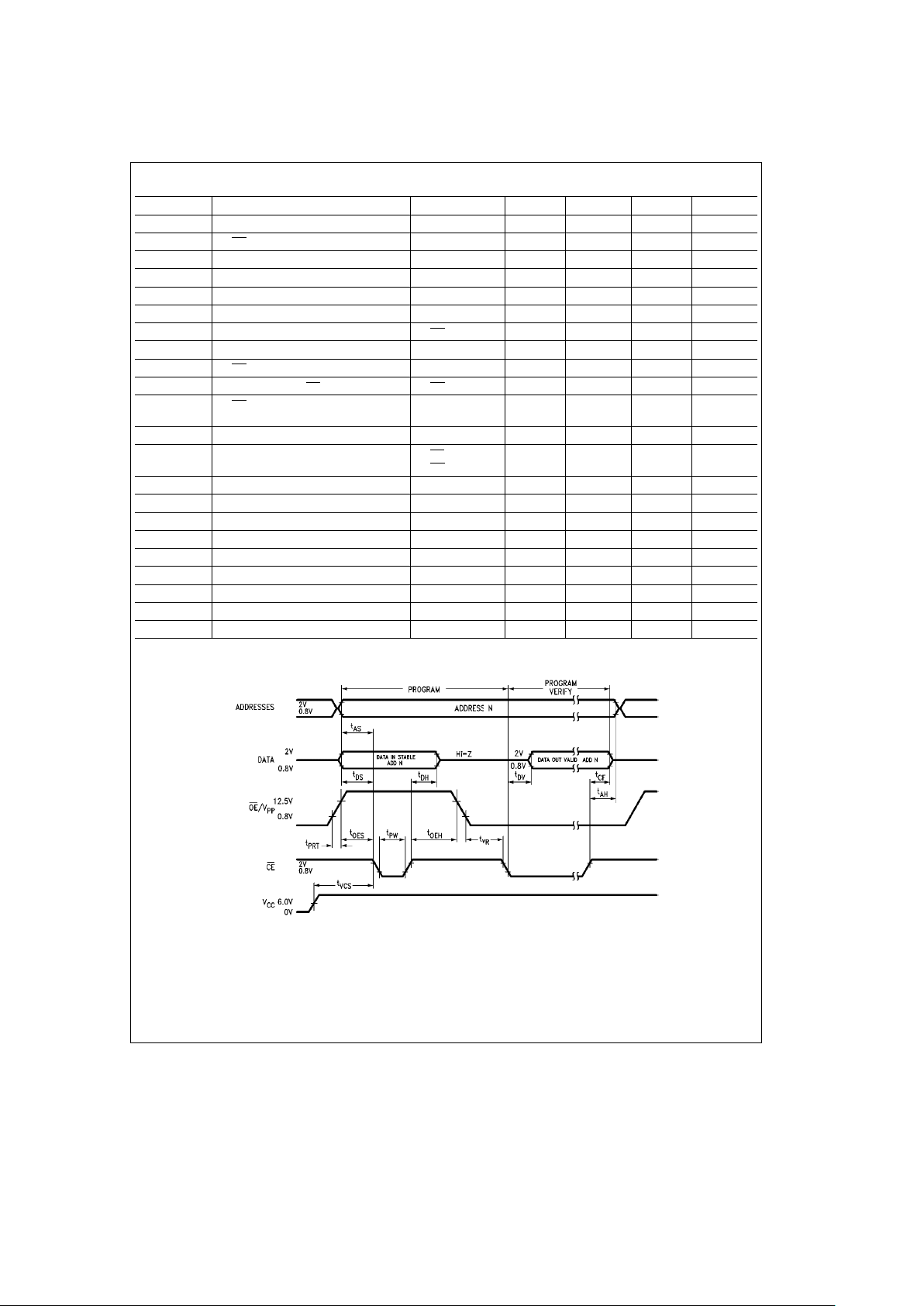

Programming Waveforms
TL/D/8827– 4
Note 1: National’s standard product warranty applies only to devices programmed to specifications described herein.
Note 2: V
CC
must be applied simultaneously or before VPPand removed simultaneously or after VPP. The EPROM must not be inserted into or removed from a
board with voltage applied to V
PP
or VCC.
Note 3: The maximum absolute allowable voltage which may be applied to the V
PP
pin during programming is 14V. Care must be taken when switching the V
PP
supply to prevent any overshoot from exceeding this 14V maximum specification. At least a 0.1 mF capacitor is required across VCCto GND to suppress spurious
voltage transients which may damage the device.
Note 4: Programming and program verify are tested with the fast Program Algorithm, at typical power supply voltages and timings.
http://www.national.com5
Page 6

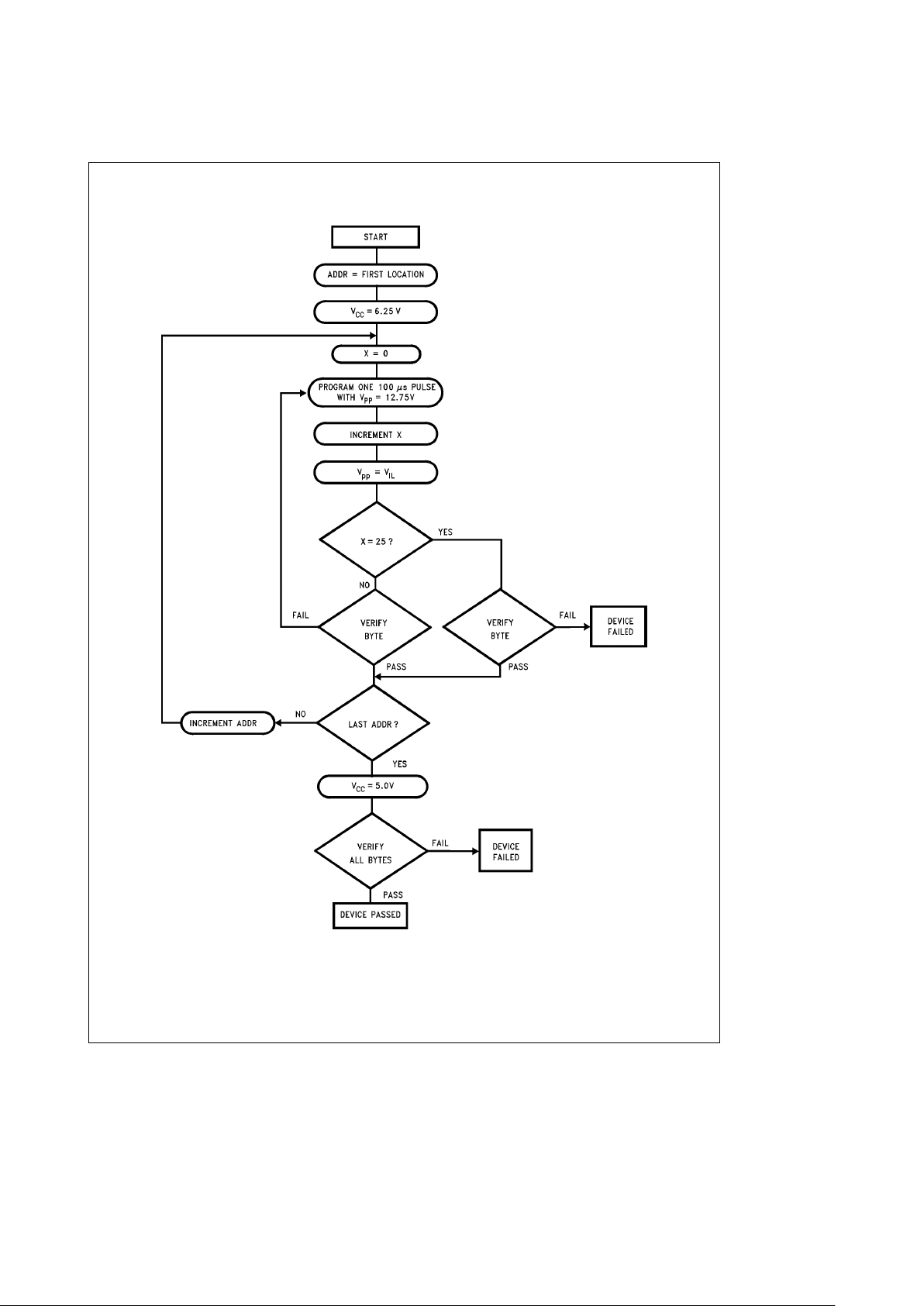

Fast Programming Algorithm Flow Chart (Note 4)
TL/D/8827– 5
FIGURE 1
http://www.national.com 6
Page 7
Functional Description
DEVICE OPERATION
The six modes of operation of the NMC27C32B are listed in
Table I. A single 5V power supply is required in the read
mode. All inputs are TTL levels except for OE
/VPPduring
programming. In the program mode the OE
/VPPinput is
pulsed from a TTL low level to 12.75V.
Read Mode
The NMC27C32B has two control functions, both of which
must be logically active in order to obtain data at the outputs. Chip Enable (CE
) is the power control and should be
used for device selection. Output Enable (OE
) is the output
control and should be used to gate data to the output pins,
independent of device selection. Assuming that addresses
are stable, address access time (t
ACC
) is equal to the delay
from CE
to output (tCE). Data is available at the outputs t
OE
after the falling edge of OE, assuming that CE has been low
and addresses have been stable for at least t
ACC–tOE
.
The sense amps are clocked for fast access time. V
CC
should therefore be maintained at operating voltage during
read and verify. If V
CC
temporarily drops below the spec.
voltage (but not to ground) an address transition must be
performed after the drop to ensure proper output data.
Standby Mode
The NMC27C32B has a standby mode which reduces the
active power dissipation by 99%, from 55 mW to 0.55 mW.
The NMC27C32B is placed in the standby mode by applying
a CMOS high signal to the CE
input. When in standby mode,
the outputs are in a high impedance state, independent of
the OE
input.
Output OR-Tying
Because EPROMs are usually used in larger memory arrays, National has provided a 2-line control function that
accommodates this use of multiple memory connection.
The 2-line control function allows for:
a. The lowest possible memory power dissipation, and
b. complete assurance that output bus contention will not
occur.
To most efficiently use these two control lines, it is recommended that CE
(pin 18) be decoded and used as the pri-
mary device selecting function, while OE
(pin 20) be made a
common connection to all devices in the array and connected to the READ line from the system control bus. This assures that all deselected memory devices are in their low
power standby modes and that the output pins are active
only when data is desired from a particular memory device.
Programming
CAUTION: Exceeding 14V on pin 20 OE
/VPPwill damage
the NMC27C32B.
Initially, and after each erasure, all bits of the NMC27C32B
are in the ‘‘1’’ state. Data is introduced by selectively programming ‘‘0s’’ into the desired bit locations. Although only
‘‘0s’’ will be programmed, both ‘‘1s’’ and ‘‘0s’’ can be presented in the data word. The only way to change a ‘‘0’’ to a
‘‘1’’ is by ultraviolet light erasure.
The NMC27C32B is in the programming mode when
OE
/VPPis at 12.75V. It is required that at least a 0.1 mF
capacitor be placed across V
CC
and ground to suppress
spurious voltage transients which may damage the device.
The data to be programmed is applied 8 bits in parallel to
the data output pins. The levels required for the address
and data inputs are TTL.
When the address and data are stable, an active low, TTL
program pulse is applied to the CE
input. A program pulse
must be applied at each address location to be programmed. The NMC27C32B is programmed with the Fast
Programming Algorithm shown in
Figure 1
. Each Address is
programmed with a series of 100 ms pulses until it verifies
good, up to a maximum of 25 pulses. Most memory cells will
Program with a single 100 ms pulse.
Note: Some programmer manufactures due to equipment limitation may of-
fer interactive program Algorithm (Shown in
Figure 2
).
The NMC27C32B must not be programmed with a DC signal
applied to the CE
input.
Programming multiple NMC27C32Bs in parallel with the
same data can be easily accomplished due to the simplicity
of the programming requirements. Like inputs of the paralleled NMC27C32B may be connected together when they
are programmed with the same data. A low level TTL pulse
applied to the CE
input programs the paralleled
NMC27C32B.
TABLE I. Mode Selection
Pins
CE
OE/V
PP
V
CC
Outputs
Mode
(18) (20) (24) (9–11, 13 –17)
Read V
IL
V
IL
5V D
OUT
Standby V
IH
Don’t Care 5V Hi-Z
Program V
IL
12.75V 6.25V D
IN
Program Verify V
IL
V
IL
6.25V D
OUT
Program Inhibit V
IH
12.75V 6.25V Hi-Z
Output Disable Don’t Care V
IH
5V Hi-Z
http://www.national.com7
Page 8
Functional Description (Continued)
Program Inhibit
Programming multiple NMC27C32B in parallel with different
data is also easily accomplished. Except for CE
all like in-
puts (including OE
) of the parallel NMC27C32B may be
common. A TTL low level program pulse applied to an
NMC27C32B’s CE
input with OE/VPPat 12.75V will pro-
gram that NMC27C32B. A TTL high level CE
input inhibits
the other NMC27C32B from being programmed.
Program Verify
A verify should be performed on the programmed bit to determine whether they were correctly programmed. The verify is accomplished with OE
/VPPand CE at VIL. Data should
be verified t
DV
after the falling edge of CE.
MANUFACTURER’S IDENTIFICATION CODE
The NMC27C32B has a manufacturer’s identification code
to aid in programming. The code, shown in Table II, is two
bytes wide and is stored in a ROM configuration on the chip.
It identifies the manufacturer and the device type. The code
for the NMC27C32B is, ‘‘8F01’’, where ‘‘8F’’ designates that
it is made by National Semiconductor, and ‘‘01’’ designates
a 32k part.
The code is accessed by applying 12.0V
g
0.5V to address
pin A9. Addresses A1 –A8, A10 –A11, CE
, and OE are held
at V
IL
. Address A0 is held at VILfor the manufacturer’s
code, and at V
IH
for the device code. The code is read out
on the 8 data pins. Proper code access is only guaranteed
at 25
§
Cg5§C.
The primary purpose of the manufacturer’s identification
code is automatic programming control. When the device is
inserted in an EPROM programmer socket, the programmer
reads the code and then automatically calls up the specific
programming algorithm for the part. This automatic programming control is only possible with programmers which
have the capability of reading the code.
ERASURE CHARACTERISTICS
The erasure characteristics of the NMC27C32B are such
that erasure begins to occur when exposed to light with
wavelengths shorter than approximately 4000 Angstroms
(Ð). It should be noted that sunlight and certain types of
fluorescent lamps have wavelengths in the 3000Ð – 4000Ð
range. After programming, opaque labels should be placed
over the NMC27C32B’s window to prevent unintentional
erasure. Covering the window will also prevent temporary
functional failure due to the generation of photo currents.
The recommended erasure procedure for the NMC27C32B
is exposure to short wave ultraviolet light which has a wavelength of 2537Ð. The integrated dose (i.e., UV intensity
c
exposure time) for erasure should be a minimum of
15 W-sec/cm
2
.
The NMC27C32B should be placed within 1 inch of the
lamp tubes during erasure. Some lamps have a filter on their
tubes which should be removed before erasure. Table III
shows the minimum NMC27C32B erasure time for various
light intensities.
An erasure system should be calibrated periodically. The
distance from lamp to unit should be maintained at one inch.
The erasure time increases as the square of the distance. (If
distance is doubled the erasure time increases by a factor of
4.) Lamps lose intensity as they age. When a lamp is
changed, the distance has changed or the lamp has aged,
the system should be checked to make certain full erasure
is occurring. Incomplete erasure will cause symptoms that
can be misleading. Programmers, components, and even
system designs have been erroneously suspected when incomplete erasure was the problem.
SYSTEM CONSIDERATION
The power switching characteristics of EPROMs require
careful decoupling of the devices. The supply current, I
CC
,
has three segments that are of interest to the system designerÐthe standby current level, the active current level,
and the transient current peaks that are produced by voltage transitions on input pins. The magnitude of these transient current peaks is dependent on the output capacitance
loading of the device. The associated V
CC
transient voltage
peaks can be suppressed by properly selected decoupling
capacitors. It is recommended that at least a 0.1 mF ceramic
capacitor be used on every device between V
CC
and GND.
This should be a high frequency capacitor of low inherent
inductance. In addition, at least a 4.7 mF bulk electrolytic
capacitor should be used between V
CC
and GND for each
eight devices. The bulk capacitor should be located near
where the power supply is connected to the array. The purpose of the bulk capacitor is to overcome the voltage drop
caused by the inductive effects of the PC board traces.
TABLE II. Manufacturer’s Identification Code
Pins
A0 O
7
O
6
O
5
O
4
O
3
O
2
O
1
O
0
Hex
(8) (17) (16) (15) (14) (13) (11) (10) (9) Data
Manufacturer Code V
IL
100011118F
Device Code V
IH
0000000101
TABLE III. Minimum NMC27C32B Erasure Time
Light Intensity Erasure Time
(mW/cm
2
) (Minutes)
15,000 20
10,000 25
5,000 50
http://www.national.com 8
Page 9
http://www.national.com9
Page 10
NMC27C32B 32,768-Bit (4096 x 8) CMOS EPROM
Physical Dimensions inches (millimeters) unless otherwise noted
UV Window Cavity Dual-In-Line Cerdip Package (JQ)
Order Number NMC27C32BQ
NS Package Number J24AQ
LIFE SUPPORT POLICY
NATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF NATIONAL
SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or 2. A critical component is any component of a life
systems which, (a) are intended for surgical implant support device or system whose failure to perform can
into the body, or (b) support or sustain life, and whose be reasonably expected to cause the failure of the life
failure to perform, when properly used in accordance support device or system, or to affect its safety or
with instructions for use provided in the labeling, can effectiveness.
be reasonably expected to result in a significant injury
to the user.
National Semiconductor National Semiconductor National Semiconductor National Semiconductor
Corporation Europe Southeast Asia Japan Ltd.
Fax:
a
49 (0) 180-530 85 86 Fax: (852) 2376 3901 Tel: 81-3-5620-7561
Americas
Email: europe.support
@
Tel: 1(800) 272-9959
Deutsch Tel:
a
49 (0) 180-530 85 85
Fax: 1(800) 737-7018
English Tel:
a
49 (0) 180-532 78 32
Email: support
@
nsc.com
Fran3ais Tel:
a
49 (0) 180-532 93 58
Italiano Tel:
a
49 (0) 180-534 16 80
http://www.national.com
National does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and National reserves the right at any time without notice to change said circuitry and specifications.
Loading...
