NM95MS16 Plug and Play Front-End Devices for ISA-BUS Systems

July 1998

© 1998 Fairchild Semiconductor Corporation

NM95MS16
Plug and Play Front-End Devices for
ISA-BUS Systems

General Description

The NM95MS16 is the smaller of a family of devices designed to
provide complete Plug and Play Capability for ISA bus systems.
The NM95MS16 includes the necessary state machine logic to
manage the Plug and Play protocol in addition to switches for
steering Interrupt and DMA requests. It also features a built-in 2
kbits of serial EEPROM for storing the resource data specified in
the Plug and Play Standard. In addition, 4 kbits of EEPROM is
available for use by other on-board logic. This device provides a
“truly complete” single-chip solution for implementing Plug and
Play on ISA-Bus Adapter cards. The NM95MS16 supports one
logical device with a flexible choice of DMA/IRQ selection and I/O
Chipselect generation as well as offering 16-bit addressing in
Mode 1.

NM95MS16 is implemented using Fairchild’s Advanced CMOS
process and operates single power supply. The NM95MS16 is
available in a 48-pin TQFP package and 52-pin PLCC package.

Block Diagram

Features

■ Complete Implementation of Plug and Play Standard
—Direct interface to ISA bus

■ Two modes of operation
—DMA mode
—Extended Interrupt mode (Windows® 95 logo

compatible)

■ 6 or 8 ISA bus interrupt lines and 2 DRQ/DACK lines
supported

■ On-chip EEPROM for resource request table

■ Additional 4 kbits of on-chip EEPROM available for external

access

■ 24 mA Drivers for Data outputs

■ Complete compliance to ISA PnP specification (Ver. 1.0A)

■ 48-Pin TQFP, and 52-Pin PLCC Packages

DS012601-1

Windows® 95 is a registered trademark of Microsoft Corporation.

Osc.

From

ISA

Bus

From

ISA

Bus

To
ISA
Bus

ISA
Bus

Rstdrv

Address
Control

Address

DACKx*

LIRQx

LDRQx

Control

IOCS<0:2>*

Function

Module

Support

Logic

State

Machine

Decoder

& Control

Register

Block

Data

Buffer

SD<0:7>

MICROWIRE Port

EEPROM

LDACKx*

IRQx
DRQx

2

www.fairchildsemi.com

NM95MS16 Plug and Play Front-End Devices for ISA-BUS Systems

Connection Diagrams

Commercial Temperature Range (0°C to +70°C)

Order Number NM95MS16VBH

Order Number NM95MS16V

SA0

IRQOUT4
IRQOUT3
IRQOUT2
IRQOUT1

IRQOUT0
ISADRQ0/IRQOUT6
ISADRQ1/IRQOUT7

ISADACK0*/SA12
ISADACK1*/SA13

CS
SK

DI

SD7
SD6
SD5
SD4

SD2
SD1
SD0
OSC
AEN
DO

SD3

RSTDRV

IRQOUT5

IRQIN0

IRQIN1/SA14

GND

DRQIN/SA15

V

CC

IOWR*

IORD*

IOCS0*

IOCS1*

DACKOUT*/IOCS2*

SA11

SA1

SA2

SA3

SA4

SA5

SA6

SA7

SA8

SA9

SA10

GND

12 1234567891011

24

13

14

15

16

17

18

19

20

21

22

23

37

48

47

46

45

44

43

42

41

40

39

38

25 3635343332313029282726

NM95MS16

(TQFP)

1

23

45

6

7

12

9
10
11

13
14

15
16
17
18
19
20

36

48

46
45
44
43
42
41
40
39
38
37

24

22

23

25

33

32

313029

28

27

26

SA0

IRQOUT3
IRQOUT2
IRQOUT1
IRQOUT0

ISADRQ0/IRQOUT6

ISADRQ1/IRQOUT7

ISADACK0*/SA12
ISADACK1*/SA13

CS
SK

SD7
SD6
SD5
SD4

SD2

SD1
SD0
OSC
AEN
DO

SD3

IRQOUT5

IRQIN0

IRQIN1/SA14

GND

DRQIN/ISA15

VCC

IOWR*

IORD*

IOCS0*

IOCS1*

DACKOUT*/IOCS2*

SA11

SA2

SA3

SA4

SA5

SA6

SA7

SA8

SA9

SA10

GND

51

52 50 49

35
34

NC

NC

NC

47

21

8

NC

DI

IRQOUT4

RSTDRV

SA1

NM95MS16

(PLCC)

DS012601-2

DS012601-3

3

www.fairchildsemi.com

NM95MS16 Plug and Play Front-End Devices for ISA-BUS Systems

Connection Diagrams (Continued)

Signals Type Description

SA<11:0> I Address inputs from the ISA bus.
IORD* I I/O read strobe from the ISA bus.
IOWR* I I/O write strobe from the ISA bus.
AEN I Address Enable from ISA Bus —used in conjunction with DMA.
SD<7:0> I/O Data bus —lower byte —from/to the ISA bus.
OSC (Note 1) I “OSC” clock from the ISA bus —used for internal state machines.
RSTDRV I Reset input from the ISA bus.
CS I Chip select for Microwire port. There should be a pull down

resistor of 4.7k on CS pin if unused externally, or directly
connected to GND.

SK, DI I Clock and Data input lines for Microwire bus connection to access

a portion (4k) on chip EEPROM.
DO O Data output line for the Microwire interface detailed above.
IRQOUT<5:0> O Connection to ISA bus interrupt request pins. On-chip interrupt

request(s) may be connected to any 6 of the ISA IRQ lines.
IRQIN<1:0> I Interrupt request from on-board logic
DRQin/SA<15> I DMA request from on-board logic, or Address input from ISA bus

depending on mode selected.
DACKOUT* /IOCS2* O DMA Acknowledge for on-board logic or Programmable chipselect

(2) depending on mode selected.
ISADRQ<1:0>/IRQOUT<7:6> O Connection for two ISA bus DMA Request lines, or additional

interrupt request lines depending on the mode selected.
ISADACK<1:0>*/SA<13:12> I DMA Acknowledge from the ISA bus or additional address lines

depending on the mode selected.
IOCS<1:0>* O Programmable chip selects to address on-board peripheral.
IRQIN<1>/SA<14> I Interrupt request from on board logic or Address input from ISA bus

depending on mode selected.

*Signal name with a “*” means its an active low signal.
Note 1: “OSC” clock from ISA Bus is fixed at a standard frequency of 14.318 MHz. NM95MS16 is designed and tested for 14.318 MHz. However NM95MS16 can handle

frequencies up to 24 MHz though it is not 100% tested.

4

www.fairchildsemi.com

NM95MS16 Plug and Play Front-End Devices for ISA-BUS Systems

Pinout Details for the NM95MS16

Mode 00 = DMA Mode; Mode 01 = Extended Interrupt Mode

TQFP Pin DMA Mode Ext.Intr.Mode

1 RSTDRV RSTDRV
2 IOCS1* IOCS1*
3 IOCS0* IOCS0*
4 IORD* IORD*
5 IOWR* IOWR*
6VCCV

CC

7 DRQIN SA15
8 DACKOUT* IOCS2*

9 GND GND
10 IRQIN1 SA14
11 IRQIN0 IRQIN0
12 IRQOUT5 IRQOUT5
13 IRQOUT4 IRQOUT4
14 IRQOUT3 IRQOUT3
15 IRQOUT2 IRQOUT2
16 IRQOUT1 IRQOUT1
17 IRQOUT0 IRQOUT0
18 ISADRQ0 IRQOUT6
19 ISADRQ1 IRQOUT7
20 ISADACK0* SA12
21 ISADACK1* SA13
22 CS CS
23 SK SK
24 SA0 SA0

TQFP Pin DMA Mode Ext.Intr.Mode

25 SA1 SA1
26 SA2 SA2
27 SA3 SA3
28 SA4 SA4
29 GND GND
30 SA5 SA5
31 SA6 SA6
32 SA7 SA7
33 SA8 SA8
34 SA9 SA9
35 SA10 SA10
36 SA11 SA11
37 DI DI
38 DO DO
39 AEN AEN
40 OSC OSC
41 SD0 SD0
42 SD1 SD1
43 SD2 SD2
44 SD3 SD3
45 SD4 SD4
46 SD5 SD5
47 SD6 SD6
48 SD7 SD7

Note: Mode selection (00 or 01) is done by setting MS bits in the EEPROM configuration register. Detailed information about this is described in User’s Guide.

5

www.fairchildsemi.com

NM95MS16 Plug and Play Front-End Devices for ISA-BUS Systems

Absolute Maximum Ratings (Note 2)

Ambient Storage Temperature -65°C to +150°C
All Input or Output Voltages

with Respect to Ground VCC + 1V to -0.3V

Lead Temperature

(Soldering, 10 seconds) +300°C

ESD Rating 2000V Min

Operating Conditions

Ambient Operating Temperature

NM95MS16 0°C to +70°C

Positive Power Supply (VCC) 4.5V to 5.5V

DC Electrical Characteristics

Symbol Parameter Test Conditions Limits Units

Min Typ Max

(Note 3)

I

CCA

Active Power Supply Current f

SCL

= 100 kHz 15 mA

I

LI

Input Leakage Current VIN = GND or V

CC

0.2 15 µA

I

LO

Output Leakage Current V

OUT

= GND to V

CC

15 µA

V

IL

Input Low Voltage -0.1 0.8 V

V

IH

Input High Voltage 2.0 VCC + 1.0 V

V

OL

Output Low Voltage IOL = 24 mA (Note 5) 0.4 V

IOL = 2.1 mA (Note 6)

V

OH

Output High Voltage IOH = -3 mA (Note 5) 2.4 V

IOH = -400 µA (Note 6) 2.4 V

Capacitance T

A

= +25°C, f = 1.0 MHz, VCC = 5V

Symbol Test Conditions Max Units

CI/O (Note 4) Input/Output Capacitance VI/O = 0V 8 pF
CIN (Note 4) Input Capacitance VIN = 0V 6 pF
COUT (Note 4) Output Capacitance VOUT = 0V 6 pF

Note 2: Stress above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only, and functional operation of the
device at these or any other conditions above those indicated in the operational sections of the specification is not implied. Exposure to absolute maximum rating conditions for
extended periods may affect device reliability.

Note 3: Typical values are for TA = 25°C and nominal supply voltage (5V).
Note 4: This parameter is periodically sampled and not 100% tested.
Note 5: These values are for ISA signals like SD[0:7], IRQx, DRQx.
Note 6: These values are for card signal like IOCS[0:3]*, DO(EEPROM).

AC Electrical Characteristics

Symbol Parameter Min Max Unit

t

AEN

AEN Valid to Command Active 100 ns

t

AC

Address Valid to Command Active 88 ns

t

RVD

Active Read to Valid Data 200 ns

t

AH

Address, AEN Hold from Inactive Command 30 ns

t

RDH

Read Data Hold from Inactive Read 5 ns

t

WD

Write Data Valid before Write Active 22 ns

t

WDH

Write Data Hold after Write Inactive 25 ns

t

CSA

Chip Selects Valid from Address Valid 5 25 ns

t

CSC

Chip Selects Valid from Command Active 5 25 ns

t

IDD

Propagation Delay for IRQ/DRQ/DACK 5 25 ns

6

www.fairchildsemi.com

NM95MS16 Plug and Play Front-End Devices for ISA-BUS Systems

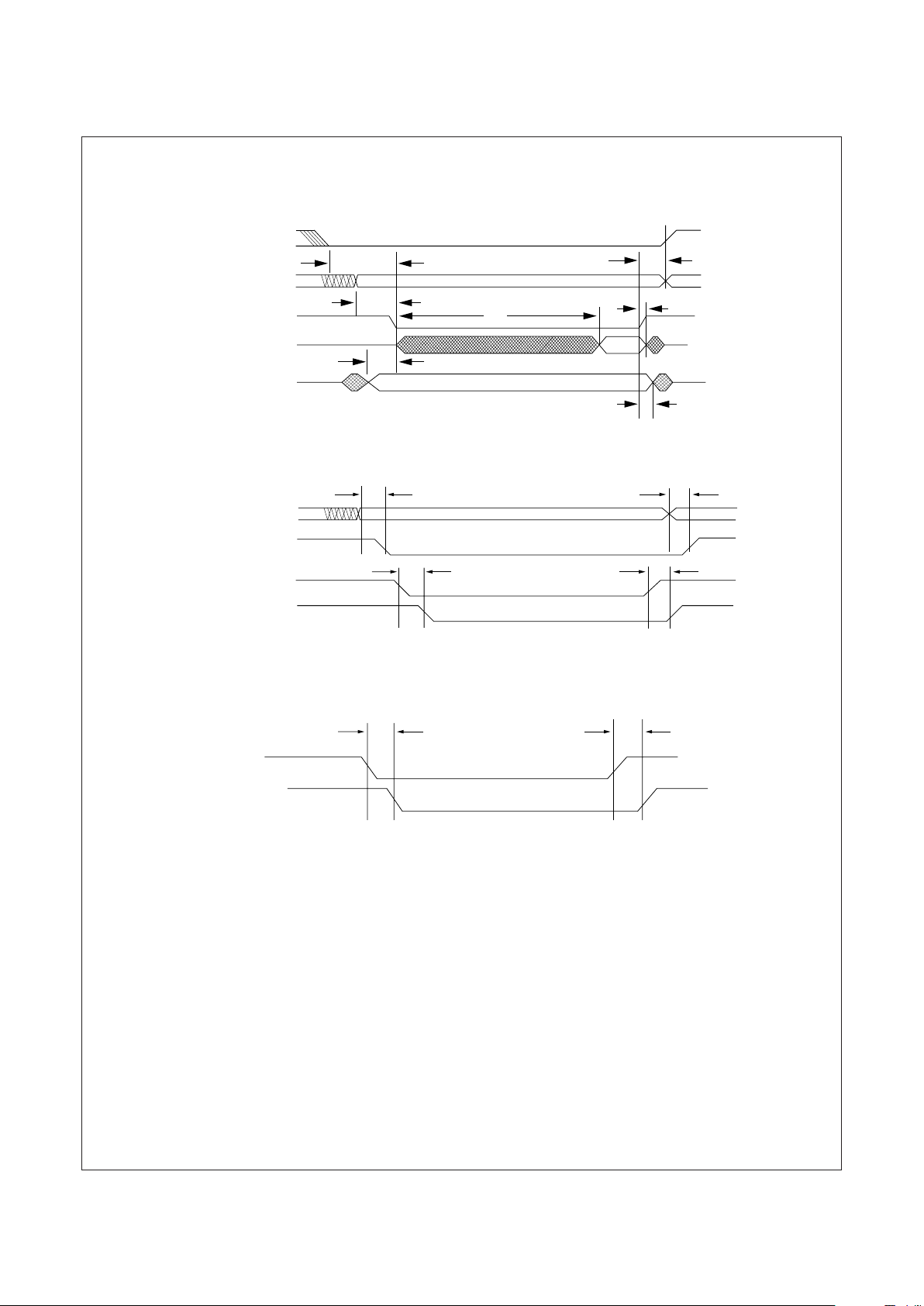

Timing Diagrams

Timings for ISA Read/Write Cycle

Decode Delay for Chipselect Generation

Propagation Delay for IRQ/DRQ/DACK

INTRODUCTION

The NM95MS16 is a single-chip solution for the ISA Plug and Play
(PnP) specification. It implements the complete state machine
and the necessary logic for supporting configurable Interrrupts
and DMA channels on the ISA bus for one logical device. Apart
from providing “PnP” capability, it has built-in EEPROM that
eliminates external EEPROM. This device is available in a space
saving 48-pin Thin Quad Flat Pack (TQFP) package.

Functional Description

NM95MS16 has two modes of operation, viz, “DMA mode” and
“Extended Interrupt mode”. These modes are programmed using
the mode select (MS) bits in one of the configuration registers

(Refer to the NM95MS16 User’s guide for detailed information).
Each of these modes are discussed below.

DMA Mode

In the DMA mode, support is provided for

1. One on-board DMA request that is switchable to any two
DMA channels on the ISA bus.

2. Two on-board interrupt request lines switchable to any six
IRQ lines on the ISA bus.

3. Two programmable I/O chip selects for on-board logic.

Figure 1 shows a Block Diagram of NM95MS16 configured for
DMA Mode.

AEN

SA[0:11]

IORD*

IOWR*

READ DATA

SD[0:7]

t

RDH

WRITE DATA

SD[0:7]

t

AC

t

AH

VALID ADDRESS

VALID

t

WD

t

AEN

t

RVD

t

WDH

IORD*

IOWR*

t

CSC

t

CSC

IOCS[0:1]*

SA[0:11]

VALID ADDRESS

IOCS[0:1]*

t

CSA

t

CSA

(Qualified with CMD)

(addr decode only)

t

IDD

IRQin

DRQin

ISADACK

IRQout

DRQout

DACKout

t

IDD

DS012601-4

DS012601-5

DS012601-6

7

www.fairchildsemi.com

NM95MS16 Plug and Play Front-End Devices for ISA-BUS Systems

INTRODUCTION (Continued)

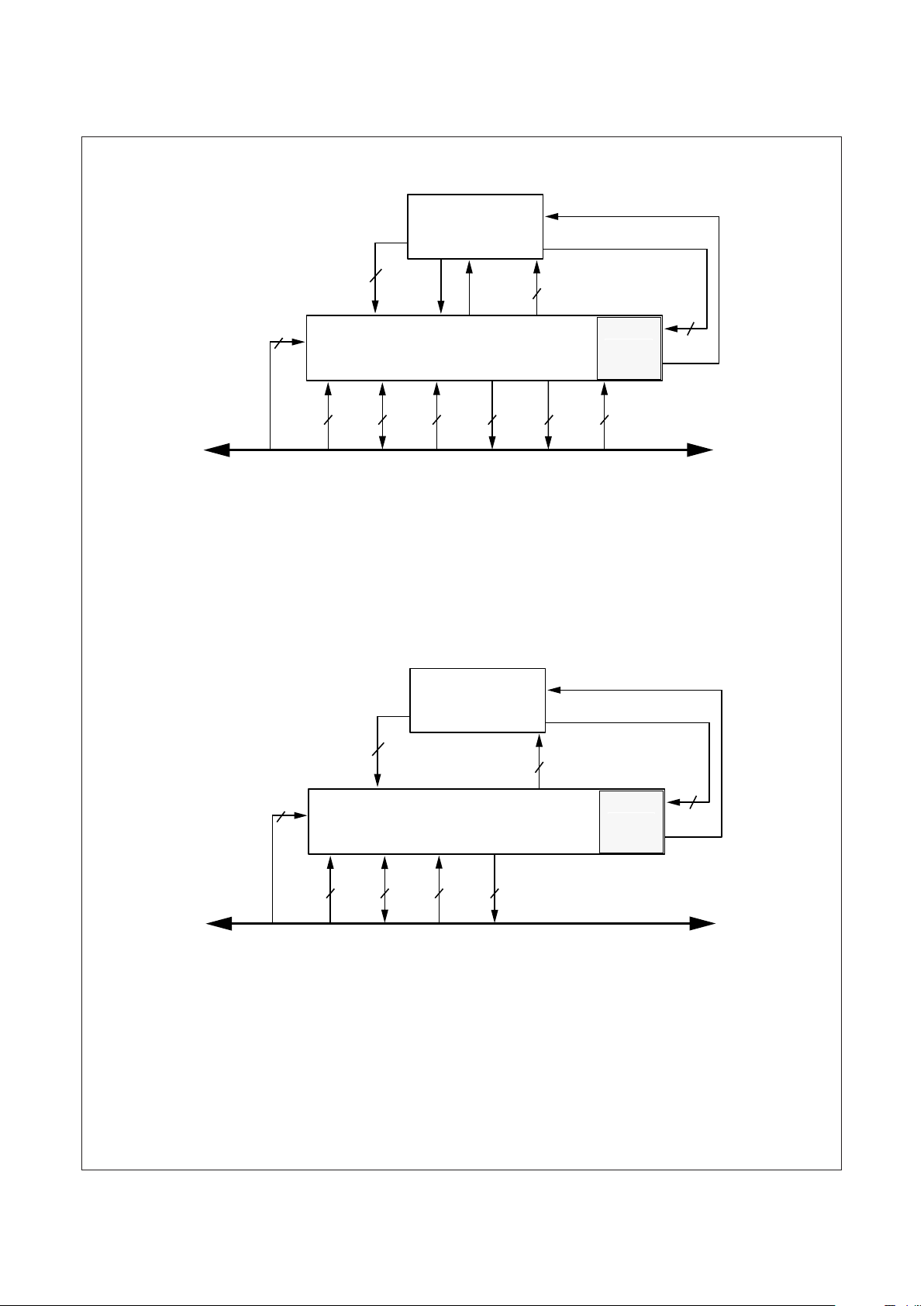

FIGURE 1.

Extended Interrupt Mode

In the Ext.Int. mode, support is provided for:

1. Two on-board interrupt request lines switchable to any eight IRQ lines on the ISA bus.

2. Three programmable I/O chip selects for on-board logic.

3. ISA address SA12–SA15 are also included for extended decode.
Figure 2 shows a Block Diagram of NM95MS16 configured for Extended Interrupt Mode.

FIGURE 2.

Chipselect Generation

Individual I/O chipselect can be generated in the following two
ways:

A)Address Decode only
B)Address Decode qualified by Command (IORD*, IOWR*).

On-Chip EEPROM

NM95MS16 has 6 kbits of EEPROM on chip. All the PnP resource
data structure for the logical device is stored in this EEPROM. Of
the 6 kbits, 4 kbits are available for the logical device’s external
usage. The logical device can access the EEPROM through a
microwire port, which is essentially a 4-wire serial bus. The pins
CS, SK, DI and DO follow the exact timing as the standard
microwire bus and are compatible to the NM93Cxx family of
EEPROMs.

ISA BUS

SCSI/MODEM/ETHERNET

CONTROLLERS

NM95MS16

IOCS[0:1]DACKOUT*

DRQIN

CS,SK,DI

DO

IRQIN0
IRQIN1

FUNCTION MODULE

2

3

2

RSTDRV

OSC

2

IRQOUT

[0:5]

6

IORD*

IOWR*

AEN

3

SD[0:7]

8

SA[0:11]

DACK

[0:1]

2

DRQ

[0:1]

2

12

EEPROM

(DMA Mode)

ISA BUS

SERIAL I/O /MULTI-MEDIA

CONTROLLERS

NM95MS16

IOCS[0:2]

CS,SK,DI

DO

IRQIN0

FUNCTION MODULE

1

3

4

RSTDRV

OSC

2

IRQOUT

[0:7]

8

IORD*

IOWR*

AEN

3

SD[0:7]

8

SA[0:15]

16

EEPROM

(Extended Interrupt Mode)

DS012601-7

DS012601-8

8

www.fairchildsemi.com

NM95MS16 Plug and Play Front-End Devices for ISA-BUS Systems

INTRODUCTION (Continued)

EEPROM Programming

The entire 6 kbits of EEPROM can be programmed through the
ISA bus. The EEPROM can be programmed by putting the device
(NM95MS16) in the Config. state (as defined in the PnP standard).
Under this state 4 registers at address 0xF0–0xF3 are accessible
to program the EEPROM. The data to be programmed is loaded
in register at address 0xF3 and 0xF2 (LSB and MSB respectively).
The address to be programmed is loaded in register at address

0xF1. The Ninth bit of address for 6 kbits of memory is provided
through the register at address 0xF0. Both read write are possible.
The actual operation does not begin until Go Ahead (GA) bit is set.
Programming a word takes approximately 10 ms. The status of the
operation can be polled by the Status bit. This bit is set when the
operation is in progress and will be reset when complete. The
register at address 0xF0 is COMMAND register. This is the
handshake register in programming the EEPROM and is ex­plained below in a tabular format.

COMMAND Register 0xF0 Bit[1:0] —OP Code bits 10 - Read operation

01 - Write operation
11 - Erase operation

Bit[2] —GA(Go ahead bits)

If set to 1 the programming will continue.
Bit[6:3] —Reserved, should be 0.
Bit[7] —It provides A8 of the address. A[0:7] is provided by 0xF1 reg. (Note 7)

Address Register 0xF1 AddressRegister [A0–A7]
Data Register 0xF2 Data Byte [MSB]
Data Register 0xF3 Data Byte [LSB]
STATUS Register 0x05 Bit[0] —Status/Busy bit.

“0” if busy, “1” is done.

Note 7: The PNP resource data portion of the internal memory is at high address. Hence to program that portion, bit [7] of register 0xF0 (Address A8) should be set to “1”.

9

www.fairchildsemi.com

NM95MS16 Plug and Play Front-End Devices for ISA-BUS Systems

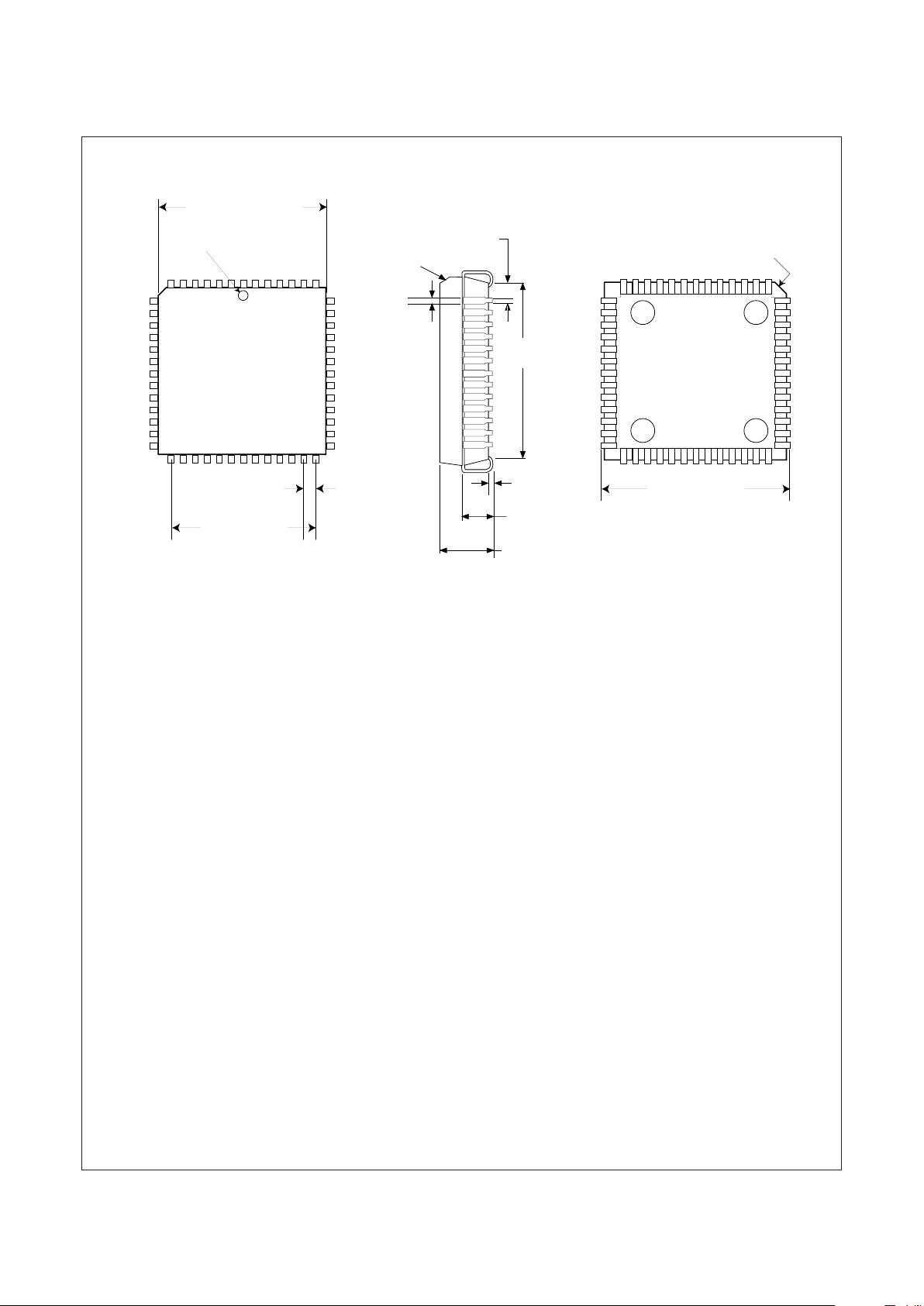

52-Lead Molded Plastic Leaded Chip Carrier

Package Number V52A

Order Number NM95MS16V

Physical Dimensions inches (millimeters) unless otherwise noted

45° X

0.045
[1.14]

0.785 - 0.795

[19.94 - 20.19]

0.600

[15.24]

TYP

0.050
[1.27]

TYP

17

8

20

21 33

34

46

52

Pin 1 IDENT

47

0.750 - 0.756

[19.05 - 19.20]

0.026–0.032
[0.66–0.81]

0.013–0.021
[0.33–0.53]

0.045
[1.14]

0.020
[0.51]

0.690–0.730

[17.53–18.54]

0.090–0.130
[2.29–3.30]

TYP

TYP

MIN TYP

TYP

0.165–0.180
[4.19–4.57]

TYP

TYP

45°X

10

www.fairchildsemi.com

NM95MS16 Plug and Play Front-End Devices for ISA-BUS Systems

Physical Dimensions inches (millimeters) unless otherwise noted

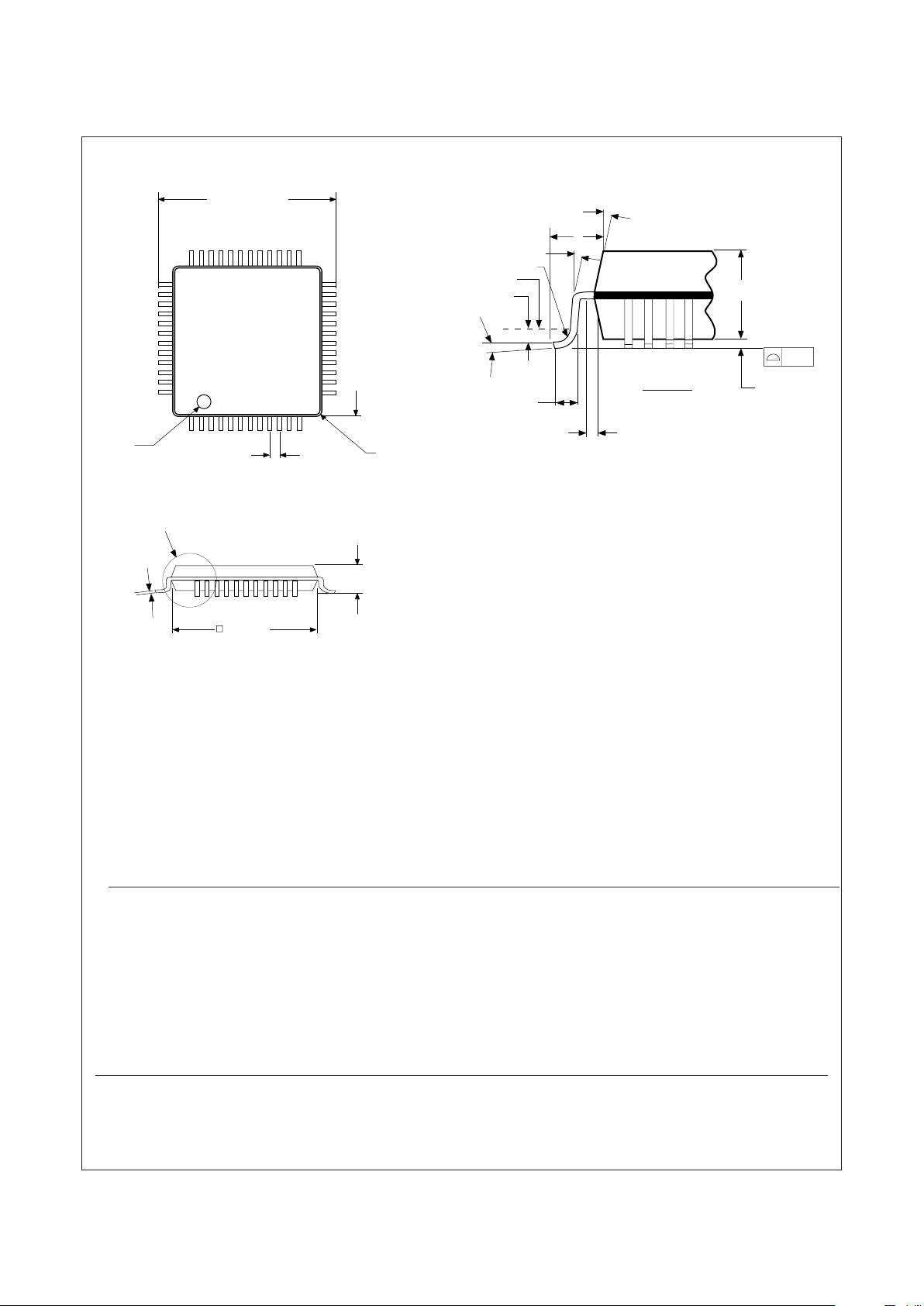

TQFP Package (VBH)

Package Number VBH48A

Order Number NM95MS16VBH

1.40 ±0.05

1.6 MAX

0.08

Seating
Plane

0.20 Min

0.05 - 0.10

12° Top and Bottom

0° Min

Gage plane

R 0.08 – 0.20

0.25

DETAIL A

Typical

See Detail A

9.0

± 0.25 Typ

1.0

112

36 25

13

Pin #1

Ident

24

48

37

0.5 Typ.

7.0 ±0.1

0.60

±0.15

0°- 7°

0.125 Typ

Optional:
Sharp corners
except Pin #1
Ident corner

Fairchild does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and Fairchild reserves the right at any time without notice to change said circuitry and specifications.

Life Support Policy

Fairchild's products are not authorized for use as critical components in life support devices or systems without the express written
approval of the President of Fairchild Semiconductor Corporation. As used herein:

1. Life support devices or systems are devices or systems which,
(a) are intended for surgical implant into the body, or (b) support
or sustain life, and whose failure to perform, when properly
used in accordance with instructions for use provided in the
labeling, can be reasonably expected to result in a significant
injury to the user.

2. A critical component is any component of a life support device
or system whose failure to perform can be reasonably ex­pected to cause the failure of the life support device or system,
or to affect its safety or effectiveness.

Fairchild Semiconductor Fairchild Semiconductor Fairchild Semiconductor Fairchild Semiconductor
Americas Europe Hong Kong Japan Ltd.
Customer Response Center Fax: [phone]/F, Room 808, Empire Centre 4F, Natsume Bldg.

Tel. [phone] Deutsch Tel: [phone] Mody Road, Tsimshatsui East 2-18-6, Yushima, Bunkyo-ku

English Tel: [phone] Kowloon. Hong Kong Tokyo, 113-0034 Japan
Français Tel: [phone] Tel; [phone] Tel: [phone]
Italiano Tel: [phone] Fax: [phone] Fax: [phone]
