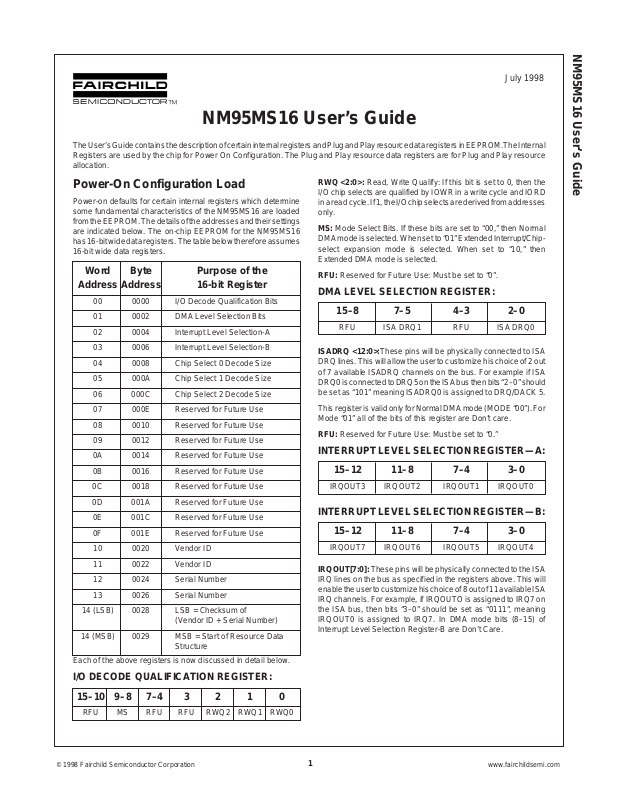

NM95MS16 User’s Guide

The User’s Guide contains the description of certain internal registers and Plug and Play resource data registers in EEPROM.The Internal
Registers are used by the chip for Power On Configuration. The Plug and Play resource data registers are for Plug and Play resource
allocation.

NM95MS16 User’s Guide

Power-On Configuration Load

Power-on defaults for certain internal registers which determine
some fundamental characteristics of the NM95MS16 are loaded
from the EEPROM. The details of the addresses and their settings
are indicated below. The on-chip EEPROM for the NM95MS16
has 16-bit wide data registers. The table below therefore assumes
16-bit wide data registers.

Word Byte Purpose of the

Address Address 16-bit Register

00 0000 I/O Decode Qualification Bits
01 0002 DMA Level Selection Bits
02 0004 Interrupt Level Selection-A
03 0006 Interrupt Level Selection-B
04 0008 Chip Select 0 Decode Size
05 000A Chip Select 1 Decode Size
06 000C Chip Select 2 Decode Size
07 000E Reserved for Future Use
08 0010 Reserved for Future Use
09 0012 Reserved for Future Use
0A 0014 Reserved for Future Use

0B 0016 Reserved for Future Use
0C 0018 Reserved for Future Use
0D 001A Reserved for Future Use
0E 001C Reserved for Future Use
0F 001E Reserved for Future Use

10 0020 Vendor ID

11 0022 Vendor ID

12 0024 Serial Number

13 0026 Serial Number

14 (LSB) 0028 LSB = Checksum of

(Vendor ID + Serial Number)

14 (MSB) 0029 MSB = Start of Resource Data

Structure

Each of the above registers is now discussed in detail below.

RWQ <2:0>: Read, Write Qualify: If this bit is set to 0, then the
I/O chip selects are qualified by IOWR in a write cycle and IORD
in a read cycle. If 1, the I/O chip selects are derived from addresses
only.

MS: Mode Select Bits. If these bits are set to “00,” then Normal
DMA mode is selected. When set to “01” Extended Interrupt/Chip­select expansion mode is selected. When set to “10,” then
Extended DMA mode is selected.

RFU: Reserved for Future Use: Must be set to “0”.

DMA LEVEL SELECTION REGISTER:

15–8 7–5 4–3 2–0

RFU ISA DRQ1 RFU ISA DRQ0

ISADRQ <12:0>:These pins will be physically connected to ISA
DRQ lines. This will allow the user to customize his choice of 2 out
of 7 available ISADRQ channels on the bus. For example if ISA
DRQ0 is connected to DRQ5 on the ISA bus then bits “2–0” should
be set as “101” meaning ISADRQ0 is assigned to DRQ/DACK 5.

This register is valid only for Normal DMA mode (MODE “00”). For
Mode “01” all of the bits of this register are Don’t care.

RFU: Reserved for Future Use: Must be set to “0.”

INTERRUPT LEVEL SELECTION REGISTER—A:

15–12 11–8 7–4 3–0

IRQOUT3 IRQOUT2 IRQOUT1 IRQOUT0

INTERRUPT LEVEL SELECTION REGISTER—B:

15–12 11–8 7–4 3–0

IRQOUT7 IRQOUT6 IRQOUT5 IRQOUT4

IRQOUT[7:0]: These pins will be physically connected to the ISA
IRQ lines on the bus as specified in the registers above. This will
enable the user to customize his choice of 8 out of 11 available ISA
IRQ channels. For example, if IRQOUTO is assigned to IRQ7 on
the ISA bus, then bits “3–0” should be set as “0111”, meaning
IRQOUT0 is assigned to IRQ7. In DMA mode bits (8–15) of
Interrupt Level Selection Register-B are Don’t Care.

I/O DECODE QUALIFICATION REGISTER:

15–10 9–8 7–4 3 2 1 0

RFU MS RFU RFU RWQ2 RWQ1 RWQ0

© 1998 Fairchild Semiconductor Corporation

1

www.fairchildsemi.com

Power-On Configuration Load for the NM95MS16 (Continued)

CHIP SELECT DECODE SIZE REGISTER <3:0>:

15–8 7–0

RFU Chip Select Decode size

Chip Select Decode Size: These bits function as masks in the
chip select decode function and will set the size of the decode
(from the base address) according to the selections as shown.

Chip Select Decode Size

Decode Size Bits:

00000000 1 byte
00000001 2 bytes
00000011 4 bytes
00000111 8 bytes
00001111 16 bytes
00011111 32 bytes
00111111 64 bytes
01111111 128 bytes
11111111 256 bytes

RFU: Reserved for Future Use.
Vendor ID Registers: The lower address contains the least

significant word of the Vendor ID (as defined in the Plug and Play
Standard) and the higher address contains the most significant
word.

Serial Number Registers: The lower address contains the least
significant word of the Serial number of the Card (as defined in the
Plug and Play Standard) and the higher address contains the most
significant word.

Checksum Register: This 8-bit quantity occupies the lower 8-bits
of the word at address 0014 (Byte address 0028). This checksum
is the LFSR checksum of the vendor ID and the Serial Number.
Please refer to the PnP standard on how to compute this checksum.

Start of Resource Data Structure: The resource data structure
begins at the MSB of word address 0014 (Byte address 0029).

NM95MS16 User’s Guide

2

www.fairchildsemi.com

Plug and Play Registers Implemented on the NM95MS16

TABLE 1. Plug and Play Standard Registers

Name Address Definition

Port Value

Set RD__DATA Port 0x00 Writing to this location modifies the address of the port used for reading

from the Plug and Play ISA cards. Bits[7:0] become I/O read port
address bits[9:2]. Reads from this register are ignored.

Serial Isolation 0x01 A read to this register causes a Plug and Play cards in the Isolation

state to compare one bit of the boards ID. This process is fully
described above. This register is read only.

Config Control 0x02 Bit[2]—Reset CSN to 0

Bit [1]—Return to the Wait for Key state
Bit[0]—Reset all logical devices and restore configuration registers to
their power-up values.
A write to bit[0] of this register performs a reset function on all logical
devices. This resets the contents of configuration registers to their
default state. All card’s logical devices enter their default state and the
CSN is preserved.
A write to bit[I] of this register causes all cards to enter the Wait for
Keystate but all CSNs are preserved and logical devices are not
affected.
A write to bit[2] of this register causes all cards to reset their CSN to
zero.
This register is write-only. The values are not sticky, that is, hardware
will automatically clear them and there is no need for software to clear
the bits.

Wake[CSN] 0x03 A write to this port will cause all cards that have a CSN that matches

the write data[7:0] to go from the Sleep state to either the Isolation
state if the write data for this command is zero or the Config state if the
write data is not zero. Additionally, the pointer to the byte-serial device
is reset. This register is write-only.

Resource Data 0x04 A read from this address reads the next byte of resource information.

The Status register must be polled until bit[0] is set before this register
may be read. This register is read only.

Status 0x05 Bit[0] when set indicates it is okay to read the next data byte from the

Resource Data register. This register is read-only.

Card Select Number 0x06 A write to this port sets a card’s CSN. The CSN is a value uniquely

assigned to each ISA card after the serial identification process so that
each card may be individually selected during a Wake[CSN] command.
This register is read/write.

Logical Device Number 0x07 Selects the current logical device. All reads and writes of memory, I/O,

interrupt and DMA configuration information access the registers of the
logical device written here. In addition, the I/O Range Check and
Activate commands operate only on the selected logical device. This
register is read-only. It returns a value of 0x00 on Read.

NM95MS16 User’s Guide

3

www.fairchildsemi.com

Plug and Play Registers Implemented on the NM95MS16 (Continued)

TABLE 2. Plug & Play Logical Device Control Registers

Name Address Definition

Port Value

Activate 0x30 For each logical device there is one activate register that controls

I/O Range Check 0x31 This register is used to perform a conflict check on the I/O port range

I/O port base address bits[15:8] 0x60 Read/write value indicating the selected I/O lower limit address
Descriptor 0 bits[15:8] for I/O descriptor 0. If a logical device indicates it only uses 10

I/O port base address bits[7:0] 0x61 Read/write value indicating the selected I/O lower limit address bits[7:0]
Descriptor 0 for I/O descriptor 0.

I/O port address descriptors [1–2]

0x62–0x65 I/O base addresses for I/O descriptors 1 and 2.

whether or not the logical device is active on the ISA bus. Bit[0], if set,
activates the logical device. Bits[7:I] are reserved and must return 0 on
reads. This is a read/write register. Before a logical device is activated,
I/O range check must be disabled.

programmed for use by a logical device.
Bit[7:2] Reserved and must return 0 on reads
Bit[1] Enable I/O Range check, if set then I/O Range Check is enabled.
I/O range check is only valid when the logical device is inactive.
Bit[0], if set, forces the logical device to respond to I/O reads of the
logical device’s assigned I/O range with a 0x55 when I/O range check
is in operation. If clear, the logical device drives 0xAA. This register is
read/write.

bit decoding, then bits[15:10] do not need to be supported.

NM95MS16 User’s Guide

TABLE 3. Interrupt Configuration

Name Register Definition

Index

Interrupt request level select 0 0x70 Read/write value indicating selected interrupt level. Bits[3:0] select

which interrupt level is used for Interrupt 0. One selects IRQL 1, fifteen
selects IRQL fifteen. IRQL 0 is not a valid interrupt selection and
represents no interrupt selection.

Interrupt request type select 0 0x71 Read-only value indicating which type of interrupt is used for the

Interrupt request level select 1 0x72 Read/write value indicating selected interrupt level. Bits[3:0] select

Interrupt request type select 1 0x73 Read-only value indicating which type of interrupt is used for the

Request Level selected above. NM95MS16 supports only “High True­Edge Sensitive” interrupt type. This type is compatible with ISA bus
interrupt type. This register returns “0x02” value on read.

which interrupt level is used for Interrupt 0. One selects IRQL 1, fifteen
selects IRQL fifteen. IRQL 0 is not a valid interrupt selection and
represents no interrupt selection.

Request Level selected above. NM95MS16 supports only “High True­Edge Sensitive” interrupt type. This type is compatible with ISA bus
interrupt type. This register returns “0x02” value on read.

4

www.fairchildsemi.com

Plug and Play Registers Implemented on the NM95MS16 (Continued)

TABLE 4. DMA Channel Configuration

Name Register Definition

Index

DMA Channel Select 0 0x74 Read/write value indicating selected DMA channels. Bits[2:0] select

which DMA channel is in use for DMA 0. Zero selects DMA channel 0,
seven selects DMA channel 7. DMA channel 4, the cascade channel is
used to indicate no DMA channel is active.

Programming Interface

TABLE 5. Programming E2PROM Register

Name Register Definition

Index

Status and Command Register 0xF0 Bit[I:0]—OP Code bits

10—Read operation
01—Write operation
11—Erase operation

Bit[2]—GA (Go ahead bits)

If set to I, the programming will continue
Bit[6:3]—Reserved, should be 0
Bit[7]—It provides A8 of the address (Note 1)

[A0–A7] is provided by Address Reg at 0xF1.

Address Register 0xF1 Address Register [A0–A7]
Data Register 0xF2 Data Byte [MSB]
Data Register 0xF3 Data Byte [LSB]
Status Register 0x05 Bit [0]—STATUS/BUSY bit during programming. “0” is busy, “1” is done

NM95MS16 User’s Guide

Note 1: Bit[7] should be 1 for programming the PNP portion of the internal memory.

EEPROM PROGRAMMING METHOD

A total of 6k bits of EEPROM is available on-chip. Of this, 2k bits
are dedicated for the Plug and Play Access and the 4k bits are
available for access externally. For purposes of programming the
contents of the EEPROM, the entire 6k bits are accessible via the
ISA bus.

Specifically, the contents of the EEPROM may be altered by
putting the device in the Config State (as defined in the Plug and
Play Standard). Under this state, the following registers detailed
above are accessible. The data to be programmed is loaded in
registers at address 0xF3 and 0xF2 (LSB and MSB respectively).

The address to be programmed is loaded in register at address
0xF1. Addressing 6k bits of memory requires 9 bits of address.
The ninth bit of address is provided through the register at address
0xF0, Bit [7].

Both read and write operations are possible. The opcodes are as
indicated in the table. The actual operation does not begin until the
Go Ahead (GA) bit is set. Programming a word takes approxi­mately 10 ms. The status of the operation can be polled by the
status bit. This bit is set when the operation is in progress and will
be reset when complete.

5

www.fairchildsemi.com

Programming Interface (Continued)

EEPROM CHARACTERISTICS (FOR EXTERNAL ACCESS)

Symbol Parameter Conditions Min Max Units

f
t
t
t
t
t
t
t
t
t
t
t
t
t

SK

SKH

SKL

SKS

CS

CSS

DH

DIS

DIH

PD1

PD0

SV

DF

WP

SK Clock Frequency 0 1 MHz
SK High Time 250 ns
SK Low Time 250 ns
SK Setup Time 50 ns
CS Low Time (min) 250 ns
CS Setup Time Relative to 50 ns
DO Hold Time Relative to 70 ns
DI Setup Time Relative to 100 ns
DI Hold Time Relative to 20 ns
Output Delay to “1” Relative to 500 ns
Output Delay to “0” Relative to 500 ns
CS to Status Valid Relative to 500 ns
CS to DO in TRI-STATE CS = V
Write Cycle Time CS = V

NM95MS16 User’s Guide

IL

IL

100 ns

10 ms

AVAILABILITY OF EXTRA 4k EEPROM

The Extra 4k EEPROM built into NM95MS16 for the Functional
logic to be used for other purposes becomes available after the
DO pin on the EEPROM Microwire port becomes high. This DO
pin is pulled low when the EEPROM is accessed internally by the
Plug and Play logic.

LEGACY ISA SYSTEMS

The LEGACY system collectively refers to Older ISA cards or
Systems that are not Plug and Play compatible (Motherboard

1. NM95MS16 on a Non Bootable ISA ADD-ON Plug and Play
Card.

Under this situation, the card will be Powered ON inactive.
Once the system is Booted, NM95MS16 can be configured by
the O/S (Windows’95) or by the external Plug-n-Play utilities.

2. NM95MS16 on a Bootable ISA ADD-ON Plug and Play Card.
Since the card cannot on its own come up active unless some

Plug-n-Play configuration software configures it, NM95MS16
cannot be used for a Bootable card on a Legacy system.

BIOS being Non Plug and Play compliant).
In a LEGACY system there can be two of the following situations

where NM95MS16 will be used.

Life Support Policy

Fairchild's products are not authorized for use as critical components in life support devices or systems without the express written
approval of the President of Fairchild Semiconductor Corporation. As used herein:

1. Life support devices or systems are devices or systems which,
(a) are intended for surgical implant into the body, or (b) support
or sustain life, and whose failure to perform, when properly
used in accordance with instructions for use provided in the
labeling, can be reasonably expected to result in a significant
injury to the user.

2. A critical component is any component of a life support device
or system whose failure to perform can be reasonably ex­pected to cause the failure of the life support device or system,
or to affect its safety or effectiveness.

Fairchild Semiconductor Fairchild Semiconductor Fairchild Semiconductor Fairchild Semiconductor
Americas Europe Hong Kong Japan Ltd.
Customer Response Center Fax: [phone]/F, Room 808, Empire Centre 4F, Natsume Bldg.

Tel. [phone] Deutsch Tel: [phone] Mody Road, Tsimshatsui East 2-18-6, Yushima, Bunkyo-ku

Fairchild does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and Fairchild reserves the right at any time without notice to change said circuitry and specifications.

English Tel: [phone] Kowloon. Hong Kong Tokyo, 113-0034 Japan
Français Tel: [phone] Tel; [phone] Tel: [phone]
Italiano Tel: [phone] Fax: [phone] Fax: [phone]

6

www.fairchildsemi.com
