November 1997

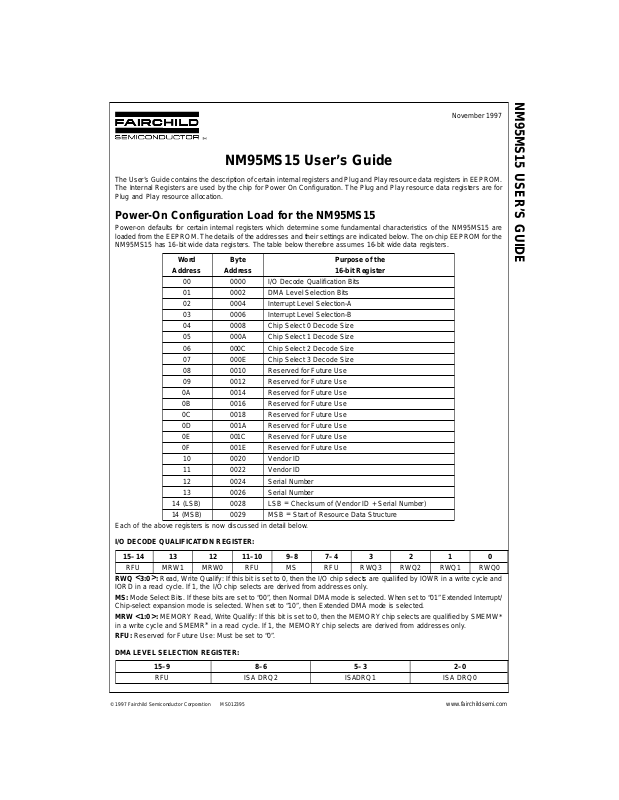

NM95MS15 User’s Guide

The User’s Guide contains the description of certain internal registers and Plug and Play resource data registers in EEPROM. The Internal Registers are used by the chip for Power On Configuration. The Plug and Play resource data registers are for Plug and Play resource allocation.

Power-On Configuration Load for the NM95MS15

Power-on defaults for certain internal registers which determine some fundamental characteristics of the NM95MS15 are loaded from the EEPROM. Thedetails of the addresses and their settings are indicated below. The on-chip EEPROM for the NM95MS15 has 16-bit wide data registers. The table below therefore assumes 16-bit wide data registers.

Word Byte Purpose of the

Address Address 16-bit Register

00 0000 I/O Decode Qualification Bits 01 0002 DMA Level Selection Bits 02 0004 Interrupt Level Selection-A 03 0006 Interrupt Level Selection-B 04 0008 Chip Select 0 Decode Size 05 000A Chip Select 1 Decode Size 06 000C Chip Select 2 Decode Size 07 000E Chip Select 3 Decode Size 08 0010 Reserved for Future Use 09 0012 Reserved for Future Use 0A 0014 Reserved for Future Use 0B 0016 Reserved for Future Use 0C 0018 Reserved for Future Use 0D 001A Reserved for Future Use 0E 001C Reserved for Future Use 0F 001E Reserved for Future Use 10 0020 Vendor ID 11 0022 Vendor ID 12 0024 Serial Number 13 0026 Serial Number

14 (LSB) 0028 LSB=Checksum of (Vendor ID + Serial Number)

14 (MSB) 0029 MSB=Start of Resource Data Structure

Each of the above registers is now discussed in detail below.

I/O DECODE QUALIFICATION REGISTER:

15–14131211–109–87–43210

RFU MRW1 MRW0 RFU MS RFU RWQ3 RWQ2 RWQ1 RWQ0

3:0>: Read, Write Qualify: If this bit is set to 0, then the I/O chip selects are qualified by IOWR in a write cycle and

RWQ

IORD in a read cycle. If 1, the I/O chip selects are derived from addresses only. MS: Mode Select Bits. If these bits are set to “00”, then Normal DMA mode is selected. When set to “01” Extended Interrupt/

Chip-select expansion mode is selected. When set to “10”, then Extended DMA mode is selected.

MRW

1:0>: MEMORY Read, Write Qualify: If this bit is set to 0, then the MEMORY chip selects are qualified by SMEMW

in a write cycle and SMEMR*in a read cycle. If 1, the MEMORY chip selects are derived from addresses only.

RFU: Reserved for Future Use: Must be set to “0”.

DMA LEVEL SELECTION REGISTER:

15–9 8–6 5–3 2–0

RFU ISA DRQ2 ISADRQ1 ISA DRQ0

NM95MS15 USER’S GUIDE

Page 2

Power-On Configuration Load for the NM95MS15 (Continued)

ISADRQ

3 out of 7 available ISA DRQ channels on the bus. For example if ISADRQ0isconnected to DRQ5 on the ISA bus then bits “2–0” should be set as “101” meaning ISADRQ0 is assigned to DRQ/DACK 5.

This register is valid only for Normal DMAmode(MODE “00”) and Extended DMA mode (MODE 02). For Mode “01” allof the bits of this register are Don’t care.

RFU: Reserved for Future Use: Must be set to “0”.

INTERRUPT LEVEL SELECTION REGISTER — A:

INTERRUPT LEVEL SELECTION REGISTER — B:

IRQOUT[7:0]: These pins will be physically connected to the ISA IRQ lines on the bus as specified in the registers above. This

will enable the user to customize his choice of 8 out of 11 available ISA IRQ channels. For example, if IRQOUTO is assigned to IRQ7 on the ISA bus, then bits “3–0” should be set as “0111”, meaning IRQOUT0 is assigned to IRQ7. In Extended DMA mode bits (8–15) of Interrupt Level Selection Register-B are Don’t Care.

IRQOUT[8: 10]: These pins are hard coded to IRQ10, IRQ11, IRQ12 on the ISA bus respectively in extended interrupt mode.

CHIP SELECT DECODE SIZE REGISTER

Chip Select Decode Size: These bits function as masks in the chip select decode function and will set the size of the decode

(from the base address) according to the selections as shown.

RFU: Reserved for Future Use. Vendor ID Registers: The lower address contains the least significant word of the Vendor ID (as defined in the Plug and Play

Standard) and the higher address contains the most significant word. Serial Number Registers: The lower address contains the least significant word of the Serial number of the Card (as defined in

the Plug and Play Standard) and the higher address contains the most significant word. Checksum Register: This 8-bit quantityoccupies the lower 8-bits of the word at address 0014(Byte address 0028). Thischeck-

sum is the LFSR checksum of the vendorID and theSerial Number. Please refer to the Pand P standard on how tocompute this checksum.

Start of Resource Data Structure: The resource data structure begins at the MSB of word address 0014 (Byte address 0029).

2:0>:These pins will be physically connected to ISA DRQ lines. This will allow the user to customize his choice of

15–12 11–8 7–4 3–0

IRQOUT3 IRQOUT2 IRQOUT1 IRQOUT0

15–12 11–8 7–4 3–0

IRQOUT7 IRQOUT6 IRQOUT5 IRQOUT4

3:0>:

15–8 7–0

RFU Chip Select Decode size

Chip Select Decode Size

Decode Size Bits:

00000000 1 byte 00000001 2 bytes 00000011 4 bytes 00000111 8 bytes 00001111 16 bytes 00011111 32 bytes 00111111 64 bytes 01111111 128 bytes 11111111 256 bytes

www.fairchildsemi.com 2

Page 3

Plug and Play Registers Implemented on the NM95MS15

TABLE 1. Plug and Play Standard Registers

Name Address Definition

Port

Value

Set RD__DATA Port 0x00 Writing to this location modifies the address of the port used for reading from the

Serial Isolation 0x01 A read to this register causes a Plug and Play cards in the

Config Control 0x02 Bit[2]— Reset CSN to 0

Wake[CSN] 0x03 A write to this port will cause all cards that have a CSN that matches the write

Resource Data 0x04 A read from this address reads the next byte of resource information. The Status

Status 0x05 Bit[0] when set indicates it is okay to read the next data byte from the Resource

Card Select Number 0x06 A write to this port sets a card’s CSN. The CSN is a value uniquely assigned to

Logical Device Number 0x07 Selects the current logical device. All reads and writes of memory, I/O, interrupt

Plug and Play ISA cards. Bits[7:0] become I/O read port address bits[9:2]. Reads from this register are ignored.

compare one bit of the boards ID. This process is fully described above. This

Isolation

Bit [1] —Return to the Bit[0]— Reset all logical devices and restore configuration registers to their

power-up values. A write to bit[0] of this register performs a reset function on all logical devices. This

resets the contents of configuration registers to their default state. All card’s logical devices enter their default state and the CSN is preserved.

A write to bit[I] of this register causes all cards to enter the all CSNs are preserved and logical devices are not affected.

A write to bit[2] of this register causes all cards to reset their CSN to zero. This register is write-only. The values are not sticky, that is, hardware will

automatically clear them and there is no need for software to clear the bits.

data[7:0] to go from the for this command is zero or the Additionally, the pointer to the byte-serial device is reset. This register is write-only.

Data register. This register is read-only.

each ISA card after the serial identification process so that each card may be individually selected during a Wake[CSN] command. This register is read/write.

and DMA configuration information access the registers of the logical device written here. In addition, the I/O Range Check and Activate commands operate only on the selected logical device. This register is read/write.

Wait for Key

Sleep

state

state to either the

Config

Isolation

state if the write data is not zero.

Wait for Key

state if the write data

state to

state but

3 www.fairchildsemi.com

Page 4

Plug and Play Registers Implemented on the NM95MS15 (Continued)

TABLE 2. Plug & Play Logical Device Control Registers

Name Address Definition

Port

Value

Activate (Note 1) 0x30 For each logical device there is one activate register that

I/O Range Check (Note 1) 0x31 This register is used to perform a conflict check on the I/O port

Memory base address bits[23:16] (Note 1) descriptor 0

Memory base address bits[15:8] (Note 1) descriptor 0

Memory control (Note 1) 0x42 Bit[1] specifies 8-/16-bit control. This bit is set to indicate 16-bit

Memory upper limit address bits[23:16] or range length bits[23:16] (Note 1) for descriptor 0

Memory upper limit address bits[15:8] or range length bits[15:8] (Note 1) for descriptor 0

I/O port base address bits[15:8] (Note 1) descriptor 0

I/O port base address bits[7:0] (Note 1) descriptor 0

I/O port base address bits[15:8] (Note 1) descriptor 1

I/O port base address bits[7:0] (Note 1) descriptor 1

0x40 Read/write value indicating the selected memory base address

0x41 Read/write value indicating the selected memory base address

0x43 Read/write value indicating the selected memory high address

0x44 Read/write value indicating the selected memory high address

0x60 Read/write value indicating the selected I/O lower limit address

0x61 Read/write value indicating the selected I/O lower limit address

0x62 Read/write value indicating the selected I/O base address

0x63 Read/write value indicating the selected I/O base address

controls whether or not the logical device is active on the ISA bus. Bit[0], if set, activates the logical device. Bits[7:I] are reserved and must return 0 on reads. This is a read/write register. Before a logical device is activated, I/O range check must be disabled.

range programmed for use by a logical device. Bit[7:2] Reserved and must return 0 on reads Bit[1] Enable I/O Range check, if set then I/O Range Check is

enabled. I/O range check is only valid when the logical device is inactive.

Bit[0], if set, forces the logical device to respond to I/O reads of the logical device’s assigned I/O range with a 0x55 when I/O range check is in operation. If clear, the logical device drives 0xAA. This register is read/write.

bits [23:16] for memory descriptor 0.

bits [15:8] for memory descriptor 0.

memory, and cleared to indicate 8-bit memory. Bit[0], set always indicates the next field is the upper limit for the

address. Bit[0] is read-only. On NM95MS15 this bit is set to “1”.

bits[23:16] for memory descriptor 0. If bit[0] of memory control is 0, this is the range length. If bit[0] of memory control is 1, this is upper limit for memory

address (equal to memory base address plus the range length allocated).

bits[15:8] for memory descriptor 0, either a memory address or a range length as described above..

bits[15:8] for I/O descriptor 0. If a logical device indicates it only uses 10 bit decoding, then bits[15:10] do not need to be supported.

bits[7:0] for I/O descriptor 0.

bits[15:8] for I/O descriptor 1. If a logical device indicates it only uses 10 bit decoding, then bits[15:10] do not need to be supported.

bits[7:0] for I/O descriptor 1.

www.fairchildsemi.com 4

Page 5

Plug and Play Registers Implemented on the NM95MS15 (Continued)

TABLE 3. Interrupt Configuration

Name Register Definition

Index

Interrupt request level select 0 (Note 1)

Interrupt request type select 0 (Note 1)

Name Register Definition

Index

DMA channel select 0 (Note 1)

Note 1: All of the above registers are for the first logical device. A second set of these registers are provided for the second logical device, though it is not shown here.

0x74 Read/write value indicating selected DMA channels. Bits[2:0] select which DMA

0x70 Read/write value indicating selected interrupt level. Bits[3:0] select which

interrupt level is used for Interrupt 0. One selects IRQL 1, fifteen selects IRQL fifteen. IRQL 0 is not a valid interrupt selection and represents no interrupt selection.

0x71 Read/write value indicating which type of interrupt is used for the Request

Level selected above. Bit[I]: Level, 1=high, 0=low Bit[0]: Type, 1=level, 0=edge If a card only supports 1 type of interrupt, this register may be read-only.

TABLE 4. DMA Channel Configuration

channel is in use for DMA 0. Zero selects DMA channel 0, seven selects DMA channel 7. DMA channel 4, the cascade channel is used to indicate no DMA channel is active.

Programming Interface

TABLE 5. Programming E2PROM Register

Name Register Definition

Index

Status and Command Register 0xF0 Bit[I:0]— OP Code bits

10— Read operation 01— Write operation

11— Erase operation Bit[2]— GA (Go ahead bits) If set to I, the programming will continue Bit[6:3]— Reserved, should be 0 Bit[7]— It provides A8 of the address (Note 2). [A0–A7] is provided by Address Reg at 0xF1.

Address Register 0xF1 Address Register [A0–A7] Data Register 0xF2 Data Byte [MSB] Data Register 0xF3 Data Byte [LSB] STATUS Register 0x05 BIT [0]: STATUS/BUSY bit during programming “0” is BUSY, “1” is done.

Note 2: Bit [7] should be 1 for programming the PNP portion of the internal EEPROM.

5 www.fairchildsemi.com

Page 6

Programming Interface (Continued)

EEPROM PROGRAMMING METHOD

A total of 8k bits of EEPROM is available on-chip. Of this, 4k bits are dedicated for the Plug and Play Access and the 4k bits are available for access externally. For purposes of programming the contents of the EEPROM, the entire 8k bits are accessible via the ISA bus.

Specifically,the contents of the EEPROM may be altered by putting the device in the Config State (as defined in the Plug and Play Standard). Under this state, the following registers detailed above are accessible. The data to be programmed is loaded in registers at address 0xF3 and 0xF2 (LSB and MSB respectively). The address to be programmed is loaded in register at address 0xF1.Addressing 8k bits of memory requires 9 bits of address. The ninth bit of address is provided through the register at address 0xF0.

Both read and write operations are possible.The opcodes are as indicated in the table. The actual operation does not begin until the Go Ahead (GA) bit is set. Programming a word takes approximately 10 ms. The status of the operation can be polled by the status bit. This bit is set when the operation is in progress and will be reset when complete.

AVAILABILITY OF EXTRA 4k EEPROM

The Extra 4k EEPROM built into NM95MS15 for the Functional logic to be used for other purposes becomes available after the

NM95MS15 USER’S GUIDE

DO pin on the EEPROM Microwire port becomes high. This DO pin is pulled low whenthe EEPROM is accessed internallyby the Plug and Play logic.

LEGACY ISA SYSTEMS

The LEGACY system collectively refers to Older ISA cards or Systems that are notPlug and Play compatible(Motherboard BIOS being Non Plug and Play compliant)

In a LEGACY system there can be two of the following situations where NM95MS15 will be used.

1. NM95MS15 on a Non Bootable ISAADD-ON Plug and Play Card. Under this situation, the card will bePowered ONinactive. Oncethe system isBooted, NM95MS15can beconfigured by the

O/S (Windows’95) or by the external Plug-n-Play utilities.

2. NM95MS15 on a Bootable ISA ADD-ON Plug and Play Card. Since the card cannot on its own come up active unless some Plug-n-Play Software configures it, NM95MS15 cannot be

used for a Bootable card on a Legacy system.

EEPROM CHARACTERISTICS (FOR EXTERNAL ACCESS)

Symbol Parameter Conditions Min Max Units

SKH

SKL

SKS

CSS

DIS

DIH

PD1

PD0

SK Clock Frequency 0 1 MHz SK High Time 250 ns SK Low Time 250 ns SK Setup Time 50 ns CS Low Time (min) 250 ns CS Setup Time Relative to 50 ns DO Hold Time Relative to 70 ns DI Setup Time Relative to 100 ns DI Hold Time Relative to 20 ns Output Delay to “1” Relative to 500 ns Output Delay to “0” Relative to 500 ns CS to Status Valid Relative to 500 ns CS to DO in TRI-STATE CS=V Write Cycle Time CS=V

100 ns

10 ms
