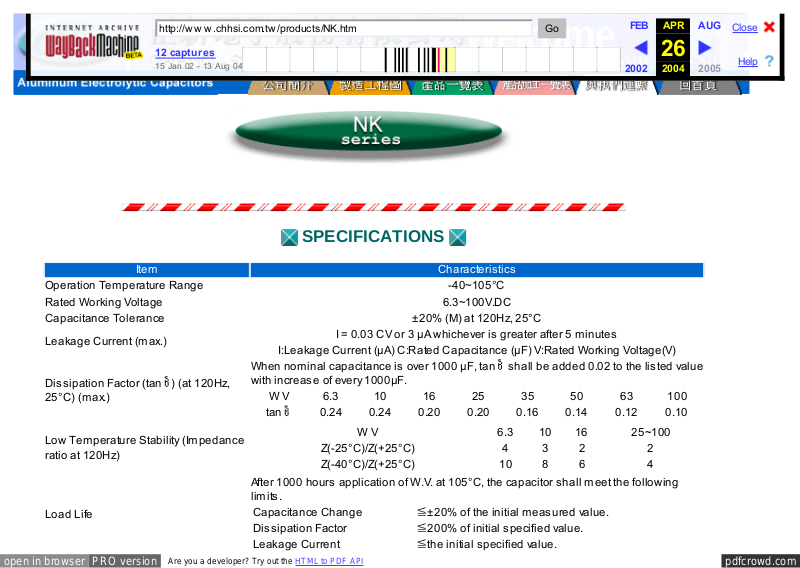

SPECIFICATIONS
Item Characteris tics
Operation Temperature Range 40~105°C
Rated Working Voltage 6.3~100V.DC
Capacitance Tolerance ±20% (M) at 120Hz, 25°C
Leakage Current (max.)
I = 0.03 CV or 3 µA whichever is greater after 5 minutes
I:Leakage Current (µA) C:Rated Capacitance (µF) V:Rated Working Voltage(V)
Dis sipation Factor (tan ) (at 120Hz,
25°C) (max.)
When nominal capacitance is over 1000 µF, tan shall be added 0.02 to the lis ted value
with increas e of every 1000µF.
W V 6.3 10 16 25 35 50 63 100
tan 0.24 0.24 0.20 0.20 0.16 0.14 0.12 0.10
Low Temperature Stability (Im pedance
ratio at 120Hz)
W V 6.3 10 16 25~100
Z(25°C)/Z(+25°C) 4 3 2 2
Z(40°C)/Z(+25°C) 10 8 6 4
Load Life
After 1000 hours application of W.V. at 105°C, the capacitor shall meet the following
lim its.
Capacitance Change ≦±20% of the initial measured value.
Dis sipation Factor ≦200% of initial specified value.
Leakage Current ≦the initial specified value.
http://w w w .chhsi.com.tw /products/NK.htm
Go
FEB APR AUG
26
2002 2004 2005
12 captures
15 Jan 02 13 Aug 04
Close
Help
Are you a developer? Try out the HTML to PDF API
pdfcrowd.comopen in browser PRO version
Page 2
Shelf Life
At 105°C no voltage applied after 500 hours, the capacitor shall meet the following
lim its.
Capacitance Change ≦±20% of the initial measured value.
Dis sipation Factor ≦200% of initial specified value.
Leakage Current ≦the initial specified value.
Reference Standard JIS C5141

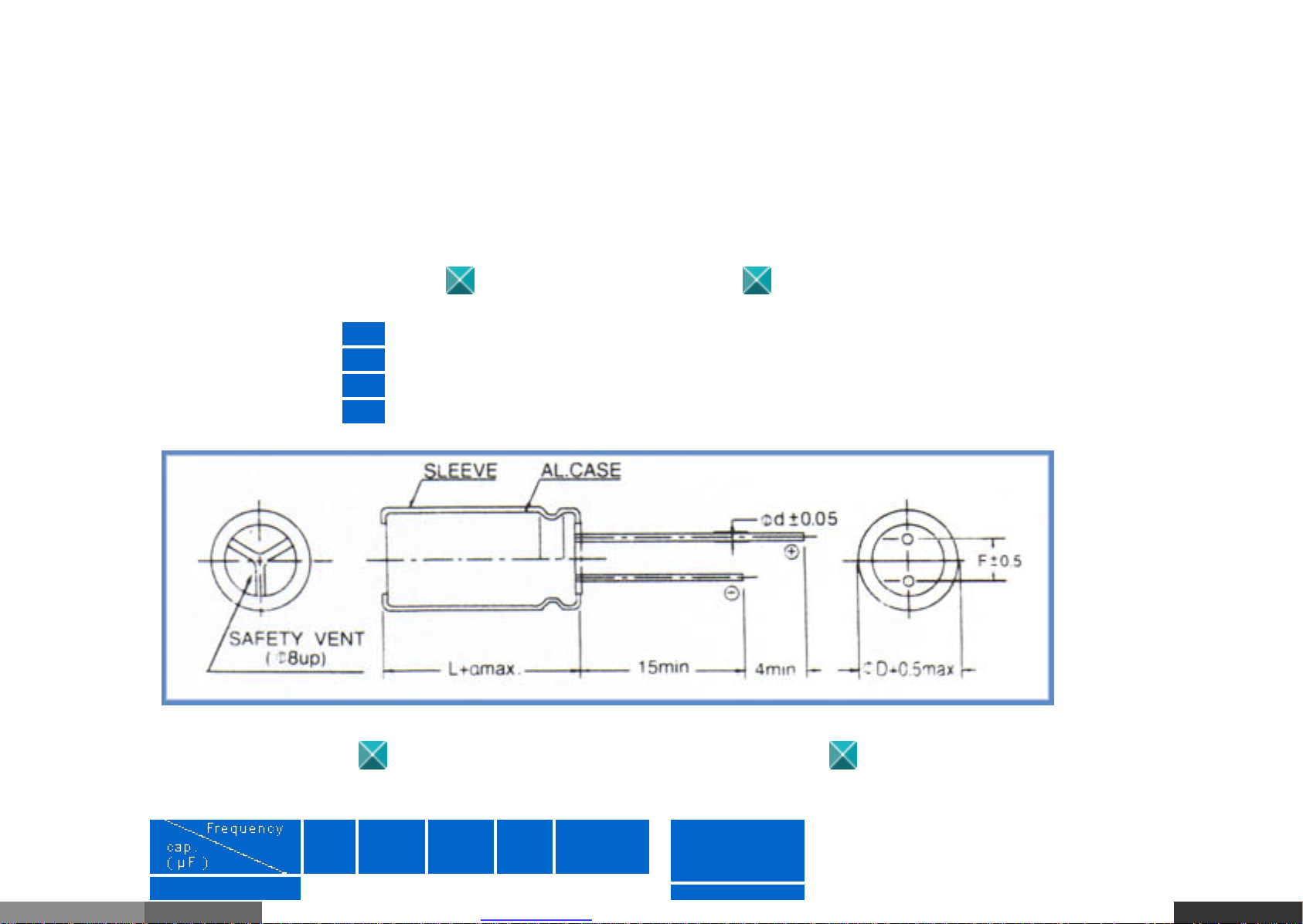

DRAWING:(UNIT=mm)
øD 5 6.3 8 10 13 16 18 22 25
F 2.0 2.5 3.5 5.0 5.0 7.5 7.5 10.0 10.0
ød 0.5 0.5 0.6 0.6 0.6 0.8 0.8 1.0 1.0
α 1.0 1.5 2.0
MULTIPLIER FOR RIPPLE CURRENT
Frequency Multipliers Temperature Multipliers
50Hz 120Hz 300Hz 1KHz ≧10KHz
0.47~47 0.75 1 1.35 1.55 2.0
Temp.(°C) 40 60 70 85 105
Are you a developer? Try out the HTML to PDF API
pdfcrowd.comopen in browser PRO version
Page 3
68~680 0.80 1 1.25 1.34 1.5
1000~10000 0.85 1 1.10 1.13 1.15
Coefficient 2.4 2.1 1.78 1.65 1
DIMENSIONS & MAXIMUM PERMISSIBLE RIPPLE CURRENT
6.3 10 16 25
SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C.
6.8 5X11 26
10 5X11 31 5X11 31
15 5X11 34 5X11 38 6.3X11 44
22 5X11 38 5X11 41 5X11 53 6.3X11 63
33 5X11 46 5X11 58 6.3X11 77 6.3X11 77
47 5X11 63 6.3X11 69 6.3X11 92 8X11 106
68 6.3X11 76 6.3X11 98 8X11 128 10X12 140
100 6.3X11 109 8X11 139 10X12 170 10X17 185
150 10X12 155 10X16 186 10X20 227 13X20 267
220 8X11 188 10X17 246 10X20 323 10X20 323
330 10X17 252 10X20 354 10X20 396 13X21 431
470 10X17 328 10X20 422 13X21 515 13X25 571
680 10X20 464 13X21 554 13X25 687 13X26 788
1000 13X21 613 13X25 745 16X26 956 16X35 1026
1500 16X25 800 16X26 999 18X36 1184 18X40 1243
2200 16X26 1072 16X36 1242 18X36 1428 22X30 1572
3300 16X35 1361 18X40 1534 22X40 1835 22X40 2005
4700 18X40 1650 22X40 1942 25X50 2498 25X40 2563
6800 22X40 2060 25X50 2603
10000 25X50 2755
Are you a developer? Try out the HTML to PDF API
pdfcrowd.comopen in browser PRO version
Page 4
35 50 63 100
SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C.
0.1 5X11 3.6 5X11 3.9 5X11 4.2
0.15 5X11 4.4 5X11 4.8 5X11 5.1
0.22 5X11 5.9 5X11 4.8 5X11 6.2
0.33 5X11 6.5 5X11 7.2 5X11 7.5
0.47 5X11 7.8 5X11 8.5 5X11 9.2
0.68 5X11 9.4 5X11 10 5X11 11
1.0 5X11 11 5X11 12 5X11 13
1.5 5X11 14 5X11 15 5X11 16
2.2 5X11 17 5X11 18 5X11 19
3.3 5X11 21 5X11 23 6.3X11 27
4.7 5X11 23 5X11 25 6.3X11 31 8X11 39
6.8 5X11 27 6.3X11 34 6.3X11 37 8X11 54
10 5X11 38 6.3X11 41 8X11 53 10X12 65
15 5X11 55 8X11 60 10X12 76 10X16 88
22 6.3X11 67 8X11 84 10X12 101 10X17 97
33 8X11 95 10X12 113 10X17 124 10X20 140
47 10X12 125 10X17 147 10X20 161 13X21 170
68 10X17 164 10X20 177 13X21 227 13X25 210
100 10X20 198 13X21 251 13X25 300 16X25 300
150 13X20 285 13X25 336 16X25 408 16X35 410
220 13X21 376 13X25 451 16X35 567 18X40 510
330 16X26 511 16X35 634 16X35 745
470 16X26 701 16X35 812 18X40 933
680 16X35 904 18X35 1025 22X30 1236
1000 18X40 1151 22X40 1368 22X40 1637
1500 22X40 1451 25X40 1694
2200 22X40 1974
