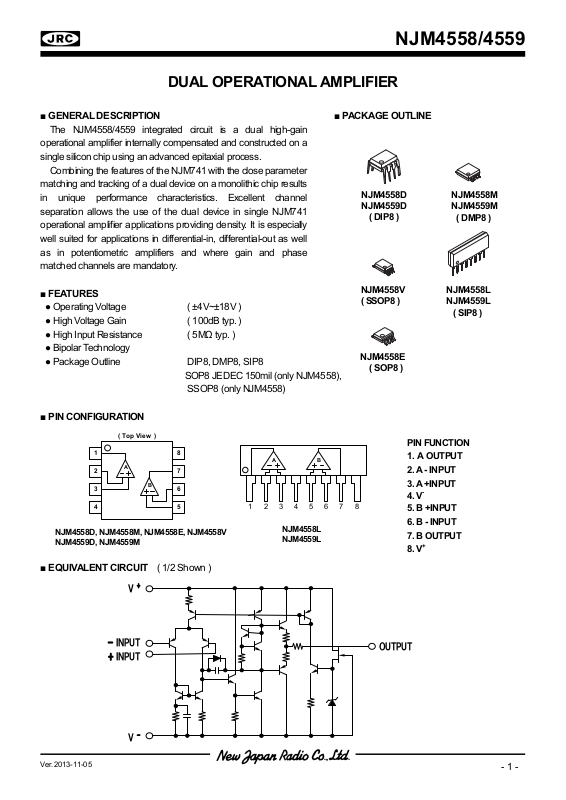

Page 1
L
NJM4558/4559
DUAL OPERATIONAL AMPLIFIER
■ GENERAL DESCRIPTION ■ PACKAGE OUTLINE
The NJM4558/4559 integrated circuit is a dual high-gain
operational amplifier internally compensated and constructed on a
single silicon chip using an advanced epitaxial process.
Combining the features of the NJM741 with the close parameter
matching and tracking of a dual device on a monolithic chip results
in unique performance characteristics. Excellent channel
separation allows the use of the dual device in single NJM741
operational amplifier applications providing density. It is especially
well suited for applications in differential-in, differential-out as well
as in potentiometric amplifiers and where gain and phase
matched channels are mandatory.
■ FEATURES
● Operating Voltage ( ±4V~±18V )
● High Voltage Gain ( 100dB typ. )
● High Input Resistance ( 5MΩ typ. )
● Bipolar Technology
● Package Outline DIP8, DMP8, SIP8
SOP8 JEDEC 150mil (only NJM4558),
SSOP8 (only NJM4558)
■ PIN CONFIGURATION
( Top View )
NJM4558D, NJM4558M, NJM4558E, NJM4558V
NJM4559D, NJM4559M
1
2
3
4
A
B
8
7
6
5
A B
1 234567 8
NJM4558
NJM4559L
■ EQUIVALENT CIRCUIT ( 1/2 Shown )
V
+
- INPUT
+ INPUT
V
-
Ver.2013-11-05
NJM4558D
NJM4559D
( DIP8 )
NJM4558V
( SSOP8 )
NJM4558E
( SOP8 )
OUTPUT
PIN FUNCTION
1. A OUTPUT
2. A - INPUT
3. A +INPUT
-
4. V
5. B +INPUT
6. B - INPUT
7. B OUTPUT
+
8. V
NJM4558M
NJM4559M
( DMP8 )
NJM4558L
NJM4559L
( SIP8 )
-
-
Page 2
NJM4558/4559
■ ABSOLUTE MAXIMUM RATINGS
( Ta=25˚C )
PARAMETER SYMBOL RATINGS UNIT
Supply Voltage V+/V- ± 18 V
Differential Input Voltage VID ± 30 V
Input Voltage VIC ± 15 ( note1 ) V
( DIP8 ) 500
( DMP8 ) 300
Power Dissipation PD
Operating Temperature Range T
Storage Temperature Range T
( note1 ) For supply voltage less than ±15V,the absolute maximum input voltage is equal to the supply voltage.
-40~+85 ˚C
opr
-40~+125 ˚C
stg
( SOP8 ) 300
( SSOP8 ) 250
( SIP8 ) 800
■ ELECTRICAL CHARACTERISTICS
PARAMETER SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Input Offset Voltage VIO
Input Offset Current IIO - 5 200 nA
Input Bias Current IB - 25 500 nA
Input Resistance RIN 0.3 5 - MΩ
Large Signal Voltage Gain AV RL≥2kΩ,VO=±10V 86 100 - dB
Maximum Output Voltage Swing 1 V
Maximum Output Voltage Swing 2 V
Input Common Mode Voltage Range V
Common Mode Rejection Ratio CMR
Supply Voltage Rejection Ratio SVR
Operating Current ICC - 3.5 5.7 mA
Slew Rate
NJM4558 SR - 1 - V/µs
NJM4559 SR - 2 - V/µs
Equivalent Input Noise Voltage (note2) VNI RIAA,RS=2.2kΩ,30kHz LPF - 1.4 - µVrms
Gain Bandwidth Product GB
NJM4558 3 MHz
NJM4559 6 MHz
(note2) In regard to Noise Standard, NJRC is preparing for special D Rank type products (VNI=1.8µV max.) except for SSOP package.
OM1
OM2
ICM
≤10kΩ
R
S
RL≥10kΩ ± 12 ± 14 - V
RL≥2kΩ ± 10 ± 13 - V
± 12 14 - V
≤10kΩ
R
S
≤10kΩ
R
S
mW
+/V-
=±15V,Ta= 2 5 ˚C )
( V
- 0.5 6 mV
70 90 - dB
76.5 90 - dB
-
-
Ver.2013-11-05
Page 3
/
■ TYPICAL CHARACTERISTICS
Open Loop Voltage Gain vs. Frequency
120
100
80
V+/V-=±15V, RL=2kΩ, Ta=25ºC
NJM4559
60
Open Loop Voltage Gain Av [dB]
40
20
0
1 10 100 1k 10k 100k 1M 10M
NJM4558
Frequency f [Hz]
30
[V]
28
opp
26
24
22
20
18
16
14
12
Maximum Output Voltage Swing V
Maximum Output Voltage Swing vs.
Load Resistance
V+/V-=±15V, Ta=25ºC
100 1k 10k
Load Resistance R
L
[Ω]
NJM4558/4559
Maximum Output Voltage Swing vs. Frequency
30
[V]
opp
25
20
15
10
5
Maximum Output Voltage Swing V
0
1 10 100 1k 10k 100k 1M
Equivalent Input Noise Voltage vs. Frequency
1000
Hz]
√
100
10
1
Equivalent Input Noise Voltage en [nV
1 10 100 1k
V+/V-=±15V, RL=2kΩ, Ta=25ºC
NJM4558
Frequency f [Hz]
V+/V-=±15V, RS=50Ω, AV=60dB, Ta=25ºC
Frequency f [Hz]
NJM4559
Operating Current vs. Temperature
9
8
7
[mA]
cc
6
5
4
3
2
Operating Current I
1
0
-50 -25 0 25 50 75 100 125
Ambient Temperature Ta [ºC]
V+/V-=±15V
Maximum Output Voltage Swing vs. Temperature
15
+V
OM
14
13
12
-12
11
-13
Maximum Output Voltage Swing [V]
-14
-V
OM
10
-50 -25 0 25 50 75 100 125
V+/V-=±15V, RL=10kΩ
Ambient Temperature Ta [ºC]
-9
-10
-11
-12
-13
-14
Ver.2013-11-05
-
-
Page 4
NJM4558/4559
■ TYPICAL CHARACTERISTICS
1.5
[mV]
IO
0.5
-0.5
Input Offset Voltage V
-1.5
-10
Maximum Output Voltage Swing [V]
-15
Input Offset Voltage vs. temperature
2
1
0
-1
-2
-50 -25 0 25 50 75 100 125
Ambient Temperature Ta [ºC]
Maximum Output Voltage Swing
15
10
5
0
-5
+V
OM
-V
OM
±6 ±8 ±10 ±12 ±14 ±16
Operating Voltage V
V+/V-=±15V
vs. Operating Voltage
RL=2kΩ, Ta=25ºC
+/V-
[V]
Input Bias Current vs. Temperature
45
40
35
[nA]
B
30
25
20
15
Input Bias Current I
10
5
-50 -25 0 25 50 75 100 125
Ambient Temperature Ta [ºC]
Operating Current vs. Operating Voltage
9
8
7
[mA]
CC
6
5
4
3
2
Operating Current I
1
0
0 ±2 ±4 ±6 ±8 ±10 ±12 ±14 ±16 ±18
Operating Voltage V
V+/V-=±15V
Ta=25ºC
+/V-
[V]
[CAUTION]
The specifications on this databook are only
given for information , without any guarantee
as regards either mistakes or omissions. The
application circuits in this databook are
described only to show representative usages
of the product and not intended for the
guarantee or permission of any right including
the industrial rights.
-
-
