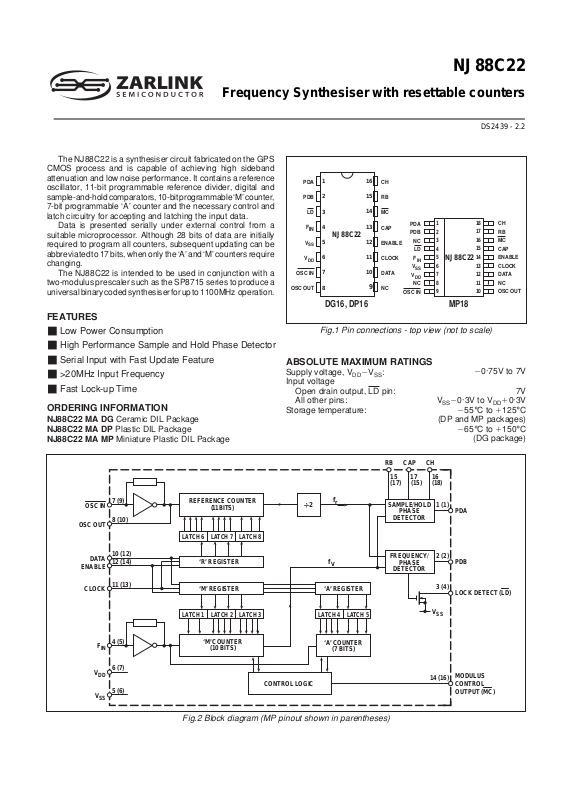

Frequency Synthesiser with resettable counters
T
he NJ88C22 is a synthesiser circuit fabricated on the GPS
CMOS process and is capable of achieving high sideband
attenuation and low noise performance. It contains a reference
oscillator, 11-bit programmable reference divider, digital and
sample-and-hold comparators, 10-bit programmable ‘M’ counter,
7-bit programmable ‘A’ counter and the necessary control and
latch circuitry for accepting and latching the input data.
Data is presented serially under external control from a
suitable microprocessor. Although 28 bits of data are initially
required to program all counters, subsequent updating can be
abbreviated to 17 bits, when only the ‘A’ and ‘M’ counters require
changing.
The NJ88C22 is intended to be used in conjunction with a
two-modulus prescaler such as the SP8715 series to produce a
universal binary coded synthesiser for up to 1100MHz operation.
FEATURES
■
Low Power Consumption
■
High Performance Sample and Hold Phase Detector
■
Serial Input with Fast Update Feature
■
>20MHz Input Frequency
■
Fast Lock-up Time
ORDERING INFORMATION
NJ88C22 MA DG Ceramic DIL Package
NJ88C22 MA DP Plastic DIL Package
NJ88C22 MA MP Miniature Plastic DIL Package
PDA
PDB
LD
F
IN
V
SS
V
DD
OSC IN
OSC OUT
1
2
3
4
NJ88C22
5
6
7
8
16
15
14
13
12
11
10
9
CH
RB
MC
CAP
ENABLE
CLOCK
DATA
NC
PDA
PDB
NC
LD
F
V
SS
V
DD
NC
OSC IN
IN
Fig.1 Pin connections - top view (not to scale)
ABSOLUTE MAXIMUM RATINGS
Supply voltage, VDD2VSS:
Input voltage
Open drain output, LD pin:
All other pins:
Storage temperature:
NJ88C22
DS2439 - 2.2
1
2
3
4
5
NJ88C22
6
7
8
9
V
SS
(DP and MP packages)
18
CH
17
RB
16
MC
15
CAP
14
ENABLE
13
CLOCK
12
DATA
11
NC
10
OSC OUT
MP18DG16, DP16
20·75V to 7V
20·3V to VDD10·3V
255°C to 1125°C
265°C to 1150°C
(DG package)
7V
OSC IN
OSC OUT
DATA
ENABLE
CLOCK
F
IN
V
DD
V
SS
7 (9)
8 (10)
10 (12)
12 (14)
11 (13)
4 (5)
6 (7)
5 (6)
RB CAP CH
REFERENCE COUNTER
(11BITS)
LATCH 6 LATCH 7 LATCH 8
‘R’ REGISTER
‘M’ REGISTER
LATCH 1 LATCH 2 LATCH 3
‘M’ COUNTER
(10 BITS)
42
÷
CONTROL LOGIC
f
r
f
V
‘A’ REGISTER
LATCH 4 LATCH 5
‘A’ COUNTER
(7 BITS)
Fig.2 Block diagram (MP pinout shown in parentheses)
15 17 16
(17) (15) (18)
SAMPLE/HOLD
PHASE
DETECTOR
FREQUENCY/
PHASE
DETECTOR
V
14 (16)
1 (1)
PDA
2 (2)
PDB
3 (4)
LOCK DETECT (LD)
SS
MODULUS
CONTROL
OUTPUT (MC)
Page 2
NJ88C22
ELECTRICAL CHARACTERISTICS AT VDD = 5V
Test conditions unless otherwise stated:
V
DC Characteristics
Characteristic Units Conditions
Supply current 5·5 mA f
Modulus Control Output (
High level 4·6 V I
Low level 0·4 V I
Lock Detect Output (
Low level 0·4 V I
Open drain pull-up voltage 7·0 V
PDB Output
High level 4·6 V I
Low level 0·4 V I
3-state leakage current ±0·1 µA
AC Characteristics
=5V ±0·5V. Temperature range = –40°C to +85°C
DD–VSS
MC)
LD)
Value
Min. Typ. Max.
1.5 mA f
osc
osc
SOURCE
SINK
SINK
SOURCE
SINK
, f
FIN
, f
FIN
= 1mA
= 1mA
= 4mA
= 5mA
= 5mA
= 10MHz
= 1MHz
0 to 5V
square
wave
Value
Characteristic Units Conditions
Min. Typ. Max.
FIN and OSC IN input level 200 mV RMS 10MHz AC-coupled sinewave
Max. operating frequency, f
FIN
and f
osc
20 MHz Input squarewave VDD to VSS,
25°C.
Propagation delay, clock to modulus control
MC 30 50 ns See note 2
Programming Inputs
Clock high time, t
Clock low time, t
CH
CL
Enable set-up time, t
Enable hold time, t
Data set-up time, t
Data hold time, t
EH
DS
DH
ES
0·5 µs
0·5 µs
0·2 t
CH
µs
0·2 µs
0·2 µs
0·2 µs
All timing periods
are referenced to
the negative
transition of the
clock waveform
Clock rise and fall times 0·2 µs
High level threshold V
20·8 V See note 1
DD
Low level threshold 0·8 V See note 1
Hysteresis 1·0 V See note 1
Phase Detector
Digital phase detector propagation delay 500 ns
Gain programming resistor, RB 5 kΩ
Hold capacitor, CH 1 nF See note 3
Programming capacitor, CAP 1 nF
Output resistance, PDA 5 kΩ
NOTES
1. Data, Clock and Enable inputs are high impedance Schmitt buffers without pull-up resistors; they are therefore not TTL compatible.
2. All counters have outputs directly synchronous with their respective clock rising edges.
3. The finite output resistance of the internal voltage follower and ‘on’ resistance of the sample switch driving this pin will add a finite time constant
to the loop. An external 1nF hold capacitor will give a maximum time constant of 5µs.
4. The inputs to the device should be at logic ‘0’ when power is applied if latch-up conditions are to be avoided. This includes the signal/osc.
frequency inputs.
2
Page 3
PIN DESCRIPTIONS
NJ88C22
Pin no.
DG,DP MP
1
1
2
2
3
–
4
3
5
4
6
5
7
6
8
–
9,10
7, 8
–
9
12
10
13
11
14
12
15
13
16
14
17
15
18
16
Name
PDA
PDB
NC
LD
F
IN
V
SS
V
DD
NC
OSC IN/
OSC OUT
NC
DATA
CLOCK
ENABLE
CAP
MC
RB
CH
Description
Analog output from the sample and hold phase comparator for use as a ‘fine’ error signal. Voltage
increases as fv (the output from the ‘M’ counter) phase lead increases; voltage decreases as fr (the
output from the reference counter) phase lead increases. Output is linear over only a narrow phase
window, determined by gain (programmed by RB). In a type 2 loop, this pin is at (V
DD2VSS
)/2 when the
system is in lock.
Three-state output from the phase/frequency detector for use as a ‘coarse’ error signal.
f
. fr or fv leading: positive pulses with respect to the bias point V
v
fv , fr or fr leading: negative pulses with respect to the bias point V
fv = fr and phase error within PDA window: high impedance.
BIAS
BIAS
Not connected.
An open-drain lock detect output at low level when phase error is within PDA window (in lock); high
impedance at all other times.
The input to the main counters. It is normally driven from a prescaler, which may be AC-coupled or,
when a full logic swing is available, may be DC-coupled.
Negative supply (ground).
Positive supply (normally 5V)
Not connected.
These pins form an on-chip reference oscillator when a series resonant crystal is connected across
them. Capacitors of appropriate value are also required between each end of the crystal and ground
to provide the necessary additional phase shift. The addition of a 220Ω resistor between OSC OUT and
the crystal will improve stability. An external reference signal may, alternatively, be applied to
OSC IN.
This may be a low-level signal, AC-coupled, or if a full logic swing is available it may be DC-coupled.
The program range of the reference counter is 3 to 2047 , with the total division ratio being twice the
programmed number.
Not connected.
Information on this input is transferred to the internal data latches during the appropriate data read time
slot. DATA is high for a ‘1’ and low for a ‘0’. There are three data words which control the NJ88C22;
MSB is first in the order: ‘A’ (7 bits), ‘M’ (10 bits), ‘R’ (11 bits).
Data is clocked on the negative transition of the CLOCK waveform. If less than 28 negative clock
transitions have been received when the ENABLE line goes low (i.e., only ‘M’ and ‘A’ will have been
clocked in), then the ‘R’ counter latch will remain unchanged and only ‘M’ and ‘A’ will be transferred from
the input shift register to the counter latches. This will protect the ‘R’ counter from being corrupted by
any glitches on the clock line after only ‘M’ and ‘A’ have been loaded If 28 negative transitions have
been counted, then the ‘R’ counter will be loaded with the new data.
When ENABLE is low, the DATA and CLOCK inputs are disabled internally. As soon as ENABLE is
high, the DATA and CLOCK inputs are enabled and data may be clocked into the device. The data is
transferred from the input shift register to the counter latches on the negative transition of the ENABLE
input and both inputs to the phase detector are synchronised to each other.
This pin allows an external capacitor to be connected in parallel with the internal ramp capacitor and
allows further programming of the device. (This capacitor is connected from CAP to V
SS
).
Modulus control output for controlling an external dual-modulus prescaler. MC will be low at the beginning
of a count cycle and will remain low until the ‘A’ counter completes its cycle.
MC then goes high and
remains high until the ‘M’ counter completes its cycle, at which point both ‘A’ and ‘M’ counters are reset.
This gives a total division ratio of MP1A, where P and P11 represent the dual-modulus prescaler
values. The program range of the ‘A’ counter is 0-127 and therefore can control prescalers with a
division ratio up to and including 4128/129. The programming range of the ‘M’ counter is 8-1023
and, for correct operation,
ratio
N
should be: N>
M>A
. Where every possible channel is required, the minimum total division
2
P
2P, where N = MP1A.
An external sample and hold phase comparator gain programming resistor should be connected
between this pin and V
SS
.
An external hold capacitor should be connected between this pin and VSS.
3
Page 4
NJ88C22
2·0
VDD = 5V
OSC IN, F
1·5
1·0
SUPPLY CURRENT (mA)
0·5
= 0V TO 5V SQUARE WAVE
IN
1 2 3 4 5 6 7 8 9 10
OSC IN
TOTAL SUPPLY CURRENT IS
THE SUM OF THAT DUE TO
AND OSC IN
INPUT FREQUENCY (MHz)
FIN
FIN
8
7
6
5
4
3
SUPPLY CURRENT (mA)
2
1
0·2 0·4 0·6 0·8 1·0 1·2 1·4 1·6
VDD = 5V
= LOW FREQUENCY
F
IN
0V TO 5V SQUARE WAVE
INPUT LEVEL (V RMS)
Fig. 3 Typical supply current v. input frequency Fig. 4 Typical supply current v. input level, OSC IN
PROGRAMMING
Reference Divider Chain
The comparison frequency depends upon the crystal
oscillator frequency and the division ratio of th ‘R’ counter,
which can be programmed in the range 3 to 2047, and a fixed
divide by two stage.
where
fosc
= oscillator frequency,
fcomp
= comparison frequency,
R
= ‘R’ counter ratio
f
R
osc
=
23
fcomp
For example, where the crystal frequency = 10MHz and a
channel spacing comparison frequency of 12·5kHz is required,
7
R
= = 400
10
2312·5310
3
Thus, the ‘R’ register would be programmed to 400 expressed
in binary. The total division ratio would then be 23400 = 800
since the total division ratio of the ‘R’ counter plus the 42 stage
is from 6 to 4094 in steps of 2.
VCO Divider Chain
The synthesised frequency of the voltage controlled oscillator
(VCO) will depend on the division ratios of the ‘M’ and ‘A’
counters, the ratio of the external two-modulus prescaler
(
P/P11
)and the comparison frequency .
The division ratio
where M is the ratio of the ‘M’ counter in the range 8 to 1023
and A is the ratio of the ‘A’ counter in the range 0 to 127.
N = MP1A
,
Note that M>A and
f
VCO
N
=
fcomp
For example, if the desired VCO frequency = 275MHz, the
comparison frequency is 12·5kHz and a two-modulus prescaler
of 464/65 is being used, then
275310
N
= = 22310
12·5310
6
3
Now, N = MP1A, which can be rearranged as
In our example we have P = 64, therefore
3
such that
22310
64
M
= 343 and A/64 = 0·75.
= M1
A
64
Now, M is programmed to the integer part = 343 and A is
programmed to the fractional part364 i.e., A = 0·75364 = 48.
NB The minimum ratio
N
that can be used is
our example) for all contiguous channels to be available.
To check: N = 343364148 = 22000, which is the required
division ratio and is greater than 4032 ( =
When re-programming, a reset to zero is followed by reloading
with the new counter values, which means that the loop lock-up
time will be well defined and less than 10ms. If shorter lock-up
times are required, when making only small changes in frequency,
the non-resettable NJ88C28 should be considered.
P
10MHz
1MHz
3
N/P
2
P
2
2P).
= M1
A/P.
2P (= 4032 in
CLOCK
ENABLE
DATA
t
CH
t
EH
t
ES
t
DS
t
EH
t
DH
t
CL
t
ES
Fig. 5 Timing diagram showing timing periods required for correct operation
4
Page 5
NJ88C22
CLOCK
ENABLE
DATA
12
A
6
A
5
345
A
A
4
3
Fig.6 Timing diagram showing programming details
PHASE COMPARATORS
Noise output from a synthesiser loop is related to loop gain:
K
K
VCO
PD
where
K
is the phase detector constant (volts/rad),
PD
the VCO constant (rad/sec/volt) and N is the overall loop division
ratio. When N is large and the loop gain is low, noise may be
reduced by employing a phase comparator with a high gain.
The sample and hold phase comparator in the NJ88C22 has
a high gain and uses a double sampling technique to reduce
spurious outputs to a low level.
A standard digital phase/frequency detector driving a threestate output,PDB, provides a ‘coarse’ error signal to enable
fast switching between channels.
The PDB output is active until the phase error is within the
sample and hold phase detector window, when PDB becomes
high impedance. Phase-lock is indicated at this point by a low
level on
LD. The sample and hold phase detector provides a
‘fine’ error signal to give further phase adjustment and to hold
the loop in lock. An internally generated ramp, controlled by the
digital output from both the reference and main divider chains,
N
K
is
VCO
(15)26 (16)27 (17)28
A
2
(M2)R2(M1)R1(M0)R
0
is sampled at the reference frequency to give the ‘fine’ error
signal, PDA. When in phase lock, this output would be typically
at (V
DD2VSS
)/2 and any offset from this would be proportional
to phase error.
The relationship between this offset and the phase error is
the phase comparator gain,
K
, which is programmable with
PDA
an external resistor, RB, and a capacitor, CAP. An internal
50pF capacitor is used in the sample and hold comparator.
CRYSTAL OSCILLATOR
When using the internal oscillator, the stability may be
enhanced at high frequencies by the inclusion of a resistor
between the OSC OUT pin and the other components. A value
of between 150Ω and 270Ω is advised, depending on the
crystal series resistance.
PROGRAMMING/POWER UP
Data and signal input pins should not have input applied to
them prior to the application of VDD, as otherwise latch-up may
occur.
5
Page 6
Page 7
For more information about all Zarlink products
visit our Web Site at
www.zarlink.com
Information relating to products and services furnished herein by Zarlink Semiconductor Inc. or its subsidiaries (collectively “Zarlink”) is believed to be reliable.
However, Zarlink assumes no liability for errors that may appear in this publication, or for liability otherwise arising from the application or use of any such
information, product or service or for any infringement of patents or other intellectual property rights owned by third parties which may result from such application or
use. Neither the supply of such information or purchase of product or service conveys any license, either express or implied, under patents or other intellectual
property rights owned by Zarlink or licensed from third parties by Zarlink, whatsoever. Purchasers of products are also hereby notified that the use of product in
certain ways or in combination with Zarlink, or non-Zarlink furnished goods or services may infringe patents or other intellectual property rights owned by Zarlink.
This publication is issued to provide information only and (unless agreed by Zarlink in writing) may not be used, applied or reproduced for any purpose nor form part
of any order or contract nor to be regarded as a representation relating to the products or services concerned. The products, their specifications, services and other
information appearing in this publication are subject to change by Zarlink without notice. No warranty or guarantee express or implied is made regarding the
capability, performance or suitability of any product or service. Information concerning possible methods of use is provided as a guide only and does not constitute
any guarantee that such methods of use will be satisfactory in a specific piece of equipment. It is the user’s responsibility to fully determine the performance and
suitability of any equipment using such information and to ensure that any publication or data used is up to date and has not been superseded. Manufacturing does
not necessarily include testing of all functions or parameters. These products are not suitable for use in any medical products whose failure to perform may result in
significant injury or death to the user. All products and materials are sold and services provided subject to Zarlink’s conditions of sale which are available on request.
Purchase of Zarlink’s I
conforms to the I
Zarlink, ZL and the Zarlink Semiconductor logo are trademarks of Zarlink Semiconductor Inc.
Copyright Zarlink Semiconductor Inc. All Rights Reserved.
2
C components conveys a licence under the Philips I2C Patent rights to use these components in and I2C System, provided that the system
2
C Standard Specification as defined by Philips.
TECHNICAL DOCUMENTATION - NOT FOR RESALE
Loading...
