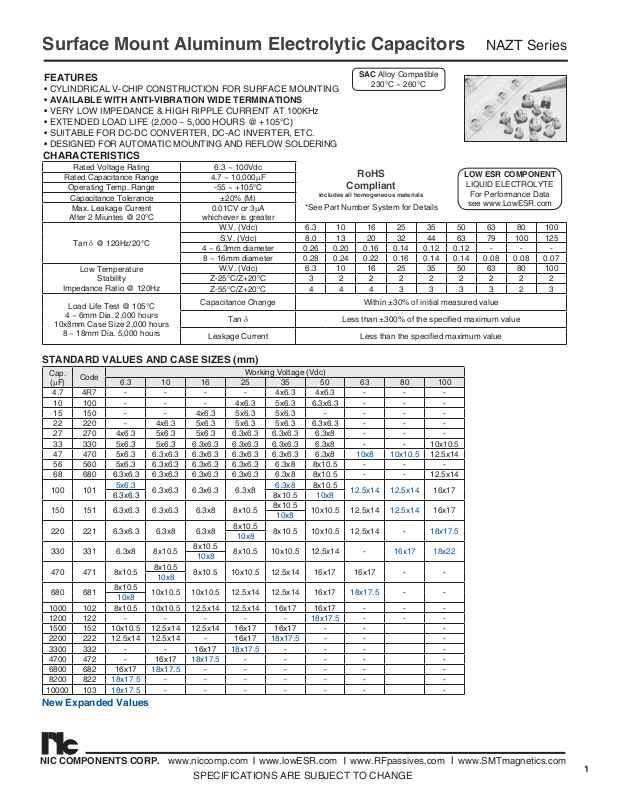

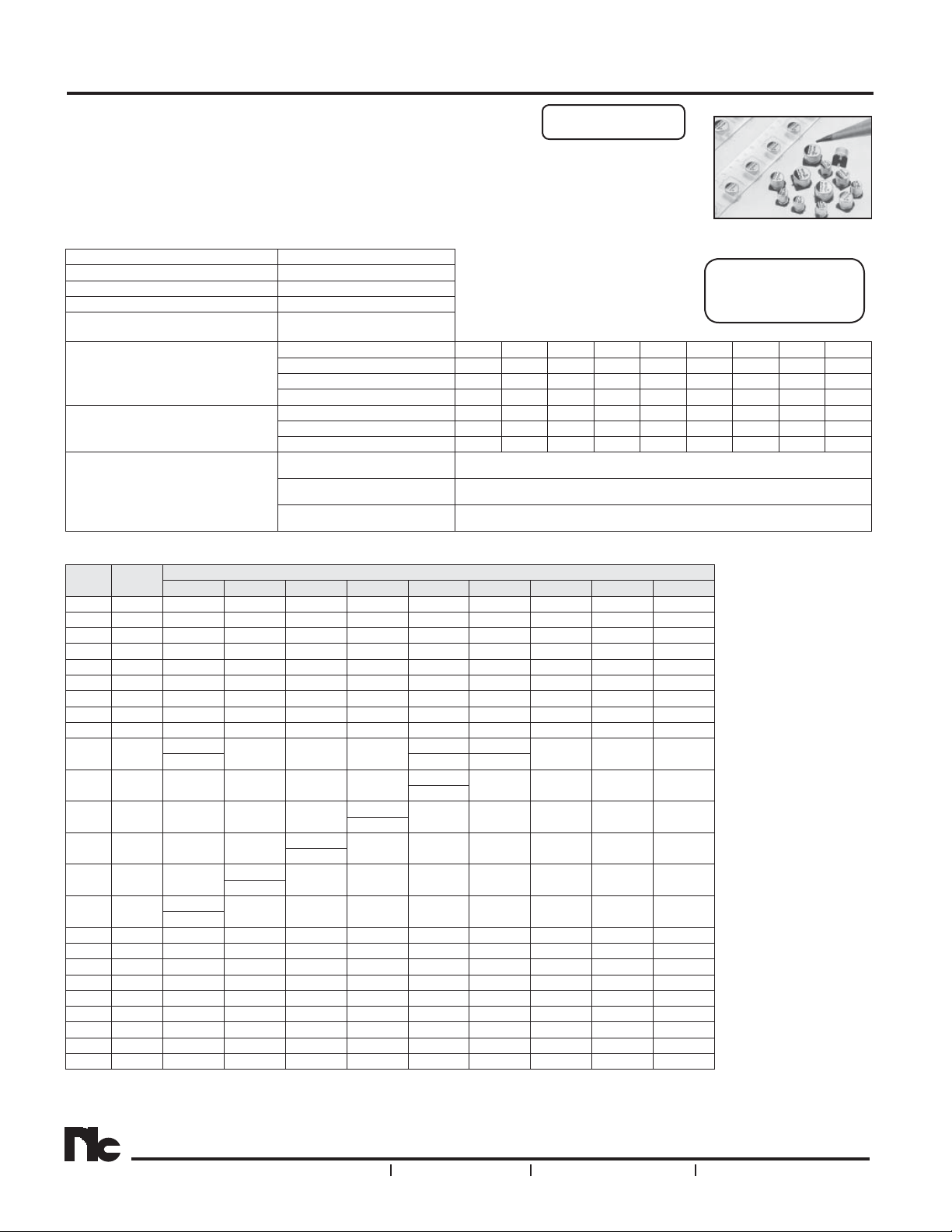

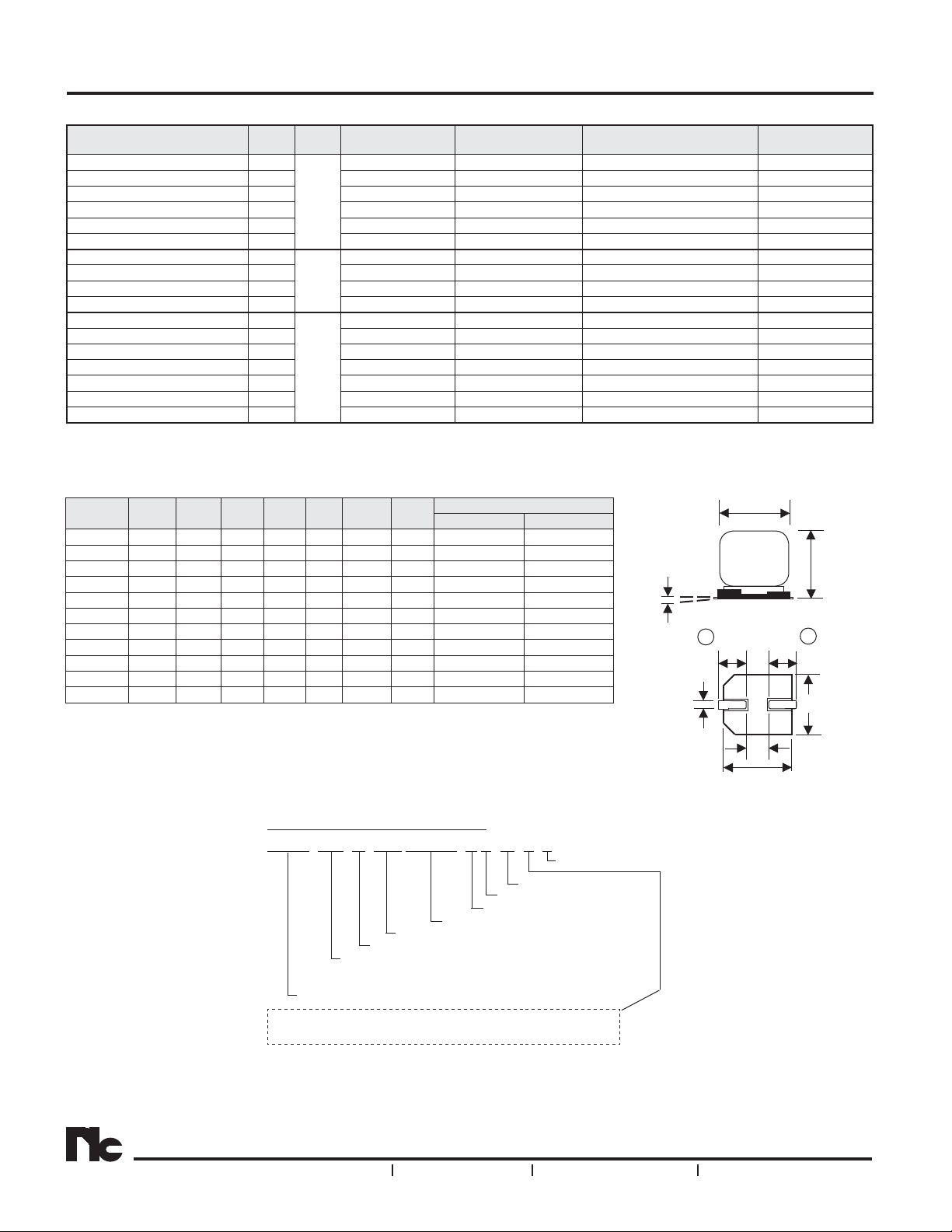

Surface Mount Aluminum Electrolytic Capacitors

NAZT Series

FEATURES

• CYLINDRICAL V-CHIP CONSTRUCTION FOR SURFACE MOUNTING

SAC Alloy Compatible

230°C ~ 260°C

• AVAILABLE WITH ANTI-VIBRATION WIDE TERMINATIONS

• VERY LOW IMPEDANCE & HIGH RIPPLE CURRENT AT 100KHz

• EXTENDED LOAD LIFE (2,000 ~ 5,000 HOURS @ +105°C)

• SUITABLE FOR DC-DC CONVERTER, DC-AC INVERTER, ETC.

• DESIGNED FOR AUTOMATIC MOUNTING AND REFLOW SOLDERING

CHARACTERISTICS

Rated Voltage Rating 6.3 ~ 100Vdc

Rated Capacitance Range 4.7 ~ 10,000μF

Operating Temp. Range -55 ~ +105°C

Capacitance Tolerance ±20% (M)

Max. Leakage Current

After 2 Miuntes @ 20°C

Tan δ @ 120Hz/20°C

Low Temperature

Stability

Impedance Ratio @ 120Hz

Load Life Test @ 105°C

4 ~ 6mm Dia. 2,000 hours

10x8mm Case Size 2,000 hours

8 ~ 18mm Dia. 5,000 hours

0.01CV or 3μA

whichever is greater

W.V. (Vdc) 6.3 10 16 25 35 50 63 80 100

S.V. (Vdc) 8.0 13 20 32 44 63 79 100 125

4 ~ 6.3mm diameter 0.26 0.20 0.16 0.14 0.12 0.12 - - -

8 ~ 16mm diameter 0.28 0.24 0.22 0.16 0.14 0.14 0.08 0.08 0.07

W.V. (Vdc) 6.3 10 16 25 35 50 63 80 100 Z-25°C/Z+20°C 322222222 Z-55°C/Z+20°C 444333323

Capacitance Change Within ±30% of initial measured value

Tan δ Less than ±300% of the speciﬁ ed maximum value

Leakage Current Less than the speciﬁ ed maximum value

includes all homogeneous materials

*See Part Number System for Details

RoHS

Compliant

LOW ESR COMPONENT

STANDARD VALUES AND CASE SIZES (mm)

Cap.

1000 102 8x10.5 10x10.5 12.5x14 12.5x14 16x17 16x17 - - 1200 122 - - - - 1500 152 10x10.5 12.5x14 12.5x14 16x17 16x17 - - 2200 222 12.5x14 12.5x14 - 16x17 18x17.5 -- 3300 332 - - 16x17 18x17.5 --- 4700 472 - 16x17 18x17.5 ---- 6800 682 16x17 8200 822 18x17.5 ------ -

10000 103 18x17.5 ------ -

Code

(μF)

4.7 4R7 - - - - 4x6.3 4x6.3 - - 10 100 - - - 4x6.3 5x6.3 6.3x6.3 - - 15 150 - - 4x6.3 5x6.3 5x6.3 - - - 22 220 - 4x6.3 5x6.3 5x6.3 5x6.3 6.3x6.3 - - 27 270 4x6.3 5x6.3 5x6.3 6.3x6.3 6.3x6.3 6.3x8 - - 33 330 5x6.3 5x6.3 6.3x6.3 6.3x6.3 6.3x6.3 6.3x8 - - 10x10.5 47 470 5x6.3 6.3x6.3 6.3x6.3 6.3x6.3 6.3x6.3 6.3x8 56 560 5x6.3 6.3x6.3 6.3x6.3 6.3x6.3 6.3x8 8x10.5 - - 68 680 6.3x6.3 6.3x6.3 6.3x6.3 6.3x6.3 6.3x8 8x10.5 - - 12.5x14

100 101

150 151 6.3x6.3 6.3x6.3 6.3x8 8x10.5

220 221 6.3x6.3 6.3x8 6.3x8

330 331 6.3x8 8x10.5

470 471 8x10.5

680 681

6.3 10 16 25 35 50 63 80 100

5x6.3

6.3x6.3 8x10.5 10x8

8x10.5

10x8

6.3x6.3 6.3x6.3 6.3x8

8x10.5

10x8

8x10.5

10x8

10x10.5 10x10.5 12.5x14 12.5x14 16x17 18x17.5 --

18x17.5 ----- -

8x10.5 10x10.5 12.5x14 16x17 16x17 - -

Working Voltage (Vdc)

10x8 10x10.5 12.5x14

6.3x8 8x10.5

8x10.5

10x8

8x10.5

10x8

8x10.5 10x10.5 12.5x14 - 16x17 18x22

8x10.5 10x10.5 12.5x14 - 18x17.5

10x10.5 12.5x14 12.5x14 16x17

18x17.5 ---

12.5x14 12.5x14 16x17

New Expanded Values

LIQUID ELECTROLYTE

For Performance Data

see www.LowESR.com

NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com

SPECIFICATIONS ARE SUBJECT TO CHANGE

Page 2

Surface Mount Aluminum Electrolytic Capacitors

NAZT Series

STANDARD VALUES, CASE SIZES AND SPECIFICATIONS

Cap.

W.V.

NIC Part Number

NAZT270M6.3V4X6.3NBF 27 NAZT330M6.3V5X6.3NBF 33 0.26 0.70 150 2,000 NAZT470M6.3V5X6.3NBF 47 0.26 0.70 150 2,000 NAZT560M6.3V5X6.3NBF 56 0.26 0.70 150 2,000

NAZT680M6.3V6.3X6.3NBF 68 0.26 0.39 230 2,000

NAZT101M6.3V5X6.3NBF 100 0.26 0.70 170 2,000

NAZT101M6.3V6.3X6.3NBF 100 0.26 0.39 230 2,000 NAZT151M6.3V6.3X6.3NBF 150 0.26 0.39 230 2,000 NAZT221M6.3V6.3X6.3NBF 220 0.26 0.39 230 2,000

NAZT331M6.3V6.3X8NBF 330 0.26 0.30 280 2,000

NAZT471M6.3V8X10.5NBF 470 0.28 0.17 450 5,000 NAZT681M6.3V8X10.5NBF 680 0.28 0.17 450 5,000

NAZT681M6.3V10X8JBF 680 0.28 0.17 450 2,000

NAZT102M6.3V8X10.5NBF 1000 0.28 0.17 450 5,000

NAZT152M6.3V10X10.5LBF 1500 0.28 0.09 670 5,000

NAZT222M6.3V12.5X14KLBF 2200 0.30 0.066 900 5,000

NAZT682M6.3V16X17JLSF 6800 0.38 0.035 1800 5,000 NAZT822M6.3V18X17.5JLSF 8200 0.42 0.033 2060 5,000 NAZT103M6.3V18X17.5JLSF 10000 0.46 0.033 2060 5,000

NAZT220M10V4X6.3NBF 22 NAZT270M10V5X6.3NBF 27 0.20 0.70 170 2,000

NAZT330M10V5X6.3NBF 33 0.20 0.70 170 2,000 NAZT470M10V6.3X6.3NBF 47 0.20 0.39 250 2,000 NAZT560M10V6.3X6.3NBF 56 0.20 0.39 250 2,000 NAZT680M10V6.3X6.3NBF 68 0.20 0.39 250 2,000 NAZT101M10V6.3X6.3NBF 100 0.20 0.39 250 2,000 NAZT151M10V6.3X6.3NBF 150 0.20 0.39 250 2,000

NAZT221M10V6.3X8NBF 220 0.20 0.30 300 2,000

NAZT331M10V8X10.5NBF 330 0.24 0.17 450 5,000 NAZT471M10V8X10.5NBF 470 0.24 0.17 450 5,000

NAZT471M10V10X8JBF 470 0.24 0.17 450 2,000 NAZT681M10V10X10.5LBF 680 0.24 0.09 670 5,000 NAZT102M10V10X10.5LBF 1000 0.24 0.09 670 5,000

NAZT152M10V12.5X14KLBF 1500 0.24 0.066 900 5,000 NAZT222M10V12.5X14KLBF 2200 0.26 0.066 900 5,000

NAZT472M10V16X17JLSF 4700 0.30 0.035 1800 5,000

NAZT682M10V18X17.5JLSF 6800 0.34 0.033 2060 5,000

NAZT150M16V4X6.3NBF 15 NAZT220M16V5X6.3NBF 22 0.16 0.70 170 2,000

NAZT270M16V5X6.3NBF 27 0.16 0.70 170 2,000 NAZT330M16V6.3X6.3NBF 33 0.16 0.39 250 2,000 NAZT470M16V6.3X6.3NBF 47 0.16 0.39 250 2,000 NAZT560M16V6.3X6.3NBF 56 0.16 0.39 250 2,000 NAZT680M16V6.3X6.3NBF 68 0.16 0.39 250 2,000 NAZT101M16V6.3X6.3NBF 100 0.16 0.39 250 2,000

NAZT151M16V6.3X8NBF 150 0.16 0.30 300 2,000

NAZT221M16V6.3X8NBF 220 0.16 0.30 300 2,000

NAZT331M16V8X10.5NBF 330 0.22 0.17 450 5,000

NAZT331M16V10X8JBF 330 0.22 0.17 450 2,000

NAZT471M16V8X10.5NBF 470 0.22 0.17 450 5,000

NAZT681M16V10X10.5LBF 680 0.22 0.09 670 5,000 NAZT102M16V12.5X14KLBF 1000 0.22 0.066 900 5,000 NAZT152M16V12.5X14KLBF 1500 0.22 0.06 900 5,000

NAZT332M16V16X17JLSF 3300 0.26 0.035 1800 5,000

NAZT472M16V18X17.5JLSF 4700 0.28 0.033 2060 5,000

NAZT100M25V4X6.3NBF 10 NAZT150M25V5X6.3NBF 15 0.14 0.70 150 2,000 NAZT220M25V5X6.3NBF 22 0.14 0.70 150 2,000

NAZT270M25V6.3X6.3NBF 27 0.14 0.39 250 2,000

For Automotive Equipment, see part number system

(μF)

(Vdc)

Dissipaton Factor

(Tan δ)

0.26 1.45 90 2,000

6.3

0.20 1.45 90 2,000

0.16 1.45 90 2,000

0.14 1.45 90 2,000

Max. Impedance (Ω)

100KHz, +20°C

Max. Ripple Current (mA rms)

+105°C, 100KHz

Load Life Hours

@ +105°C

NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com

SPECIFICATIONS ARE SUBJECT TO CHANGE

Page 3

Surface Mount Aluminum Electrolytic Capacitors

NAZT Series

STANDARD VALUES, CASE SIZES AND SPECIFICATIONS

Cap.

W.V.

NIC Part Number

NAZT330M25V6.3X6.3NBF 33 NAZT470M25V6.3X6.3NBF 47 0.14 0.39 230 2,000 NAZT560M25V6.3X6.3NBF 56 0.14 0.39 250 2,000 NAZT680M25V6.3X6.3NBF 68 0.14 0.39 250 2,000

NAZT101M25V6.3X8NBF 100 0.14 0.30 300 2,000 NAZT151M25V8X10.5NBF 150 0.16 0.17 450 5,000 NAZT221M25V8X10.5NBF 220 0.16 0.17 450 5,000

NAZT221M25V10X8JBF 220 0.16 0.17 450 2,000

NAZT331M25V8X10.5NBF 330 0.16 0.17 450 5,000

NAZT471M25V10X10.5LBF 470 0.16 0.09 670 5,000 NAZT681M25V12.5X14KLBF 680 0.16 0.066 900 5,000 NAZT102M25V12.5X14KLBF 1000 0.16 0.066 900 5,000

NAZT152M25V16X17JLSF 1500 0.16 0.035 1800 5,000 NAZT222M25V16X17JLSF 2200 0.18 0.035 1800 5,000

NAZT332M25V18X17.5JLSF 3300 0.20 0.033 2060 5,000

NAZT4R7M35V4X6.3NBF 4.7 NAZT100M35V5X6.3NBF 10 0.12 0.70 170 2,000 NAZT150M35V5X6.3NBF 15 0.12 0.70 170 2,000

NAZT220M35V5X6.3NBF 22 0.12 0.70 170 2,000 NAZT270M35V6.3X6.3NBF 27 0.12 0.39 250 2,000 NAZT330M35V6.3X6.3NBF 33 0.12 0.39 250 2,000 NAZT470M35V6.3X6.3NBF 47 0.12 0.39 250 2,000

NAZT560M35V6.3X8NBF 56 0.12 0.30 300 2,000

NAZT680M35V6.3X8NBF 68 0.12 0.30 300 2,000

NAZT101M35V6.3X8NBF 100 0.12 0.30 300 2,000

NAZT101M35V8X10.5NBF 100 0.14 0.17 450 5,000 NAZT151M35V8X10.5NBF 150 0.14 0.17 450 5,000

NAZT151M35V10X8JBF 150 0.14 0.17 450 2,000

NAZT221M35V8X10.5NBF 220 0.14 0.17 450 5,000

NAZT331M35V10X10.5LBF 330 0.14 0.09 670 5,000

NAZT471M35V12.5X14KLBF 470 0.14 0.066 900 5,000 NAZT681M35V12.5X14KLBF 680 0.14 0.066 900 5,000

NAZT102M35V16X17JLSF 1000 0.14 0.035 1800 5,000 NAZT152M35V16X17JLSF 1500 0.14 0.035 1800 5,000

NAZT222M35V18X17.5JLSF 2200 0.16 0.033 2060 5,000

NAZT4R7M50V4X6.3NBF 4.7 NAZT100M50V6.3X6.3NBF 10 0.12 0.88 165 2,000 NAZT150M50V6.3X6.3NBF 15 0.12 0.88 165 2,000 NAZT220M50V6.3X6.3NBF 22 0.12 0.88 165 2,000

NAZT270M50V6.3X8NBF 27 0.12 0.68 195 2,000

NAZT330M50V6.3X8NBF 33 0.12 0.68 195 2,000

NAZT470M50V6.3X8NBF 47 0.12 0.68 195 2,000

NAZT560M50V8X10.5NBF 56 0.14 0.34 300 5,000 NAZT680M50V8X10.5NBF 68 0.14 0.34 300 5,000 NAZT101M50V8X10.5NBF 100 0.14 0.34 300 5,000

NAZT101M50V10X8JBF 100 0.14 0.34 300 2,000 NAZT151M50V10X10.5LBF 150 0.14 0.21 490 5,000 NAZT221M50V10X10.5LBF 220 0.14 0.21 490 5,000

NAZT331M50V12.5X14KLBF 330 0.14 0.14 620 5,000

NAZT471M50V16X17JLSF 470 0.14 0.073 1610 5,000 NAZT681M50V16X17JLSF 680 0.14 0.073 1610 5,000 NAZT102M50V16X17JLSF 1000 0.14 0.073 1610 5,000

NAZT122M50V18X17.5JLSF 1200 0.14 0.068 1900 5,000

For Automotive Equipment, see part number system

(μF)

(Vdc)

Dissipaton Factor

(Tan δ)

0.14 0.39 250 2,000

0.12 1.45 90 2,000

0.12 2.90 60 2,000

Max. Impedance (Ω)

100KHz, +20°C

Max. Ripple Current (mA rms)

+105°C, 100KHz

Load Life Hours

@ +105°C

PRECAUTIONS

Please review the notes on correct use, safety and precautions found on

pages T10 & T11 of NIC’s Electrolytic Capacitor catalog.

If in doubt or uncertainty, please review your speciﬁ c application - process

Also found at www.niccomp.com/precautions

details with NIC’s technical support personnel: [email protected]

NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com

SPECIFICATIONS ARE SUBJECT TO CHANGE

Page 4

Surface Mount Aluminum Electrolytic Capacitors

NAZT Series

STANDARD VALUES, CASE SIZES AND SPECIFICATIONS

Cap.

W.V.

NIC Part Number

NAZT470M63V10X8JBF 47

NAZT101M63V12.5X14JLBF 100 0.08 0.16 580 5,000 NAZT151M63V12.5X14JLBF 150 0.08 0.16 580 5,000 NAZT221M63V12.5X14JLBF 220 0.08 0.16 580 5,000

NAZT471M63V16X17HLSF 470 0.08 0.082 1410 5,000

NAZT681M63V18X17.5HLSF 680 0.08 0.080 1690 5,000

NAZT470M80V10X10.5JBF 47

NAZT101M80V12.5X14HLBF 100 0.08 0.32 500 5,000 NAZT151M80V12.5X14HLBF 150 0.08 0.32 500 5,000

NAZT331M80V16X17HLSF 330 0.08 0.17 793 5,000

NAZT330M100V10X10.5JBF 33 NAZT470M100V12.5X14HLBF 47 0.07 0.32 500 5,000 NAZT680M100V12.5X14HLBF 68 0.07 0.32 500 5,000

NAZT101M100V16X17HLSF 100 0.07 0.17 793 5,000

NAZT151M100V16X17HLSF 150 0.07 0.17 793 5,000 NAZT221M100V18X17.5HLSF 220 0.07 0.153 917 5,000

NAZT331M100V18X22HLSF 330 0.07 0.083 1230 5,000

For Automotive Equipment, see part number system

(μF)

(Vdc)

Dissipaton Factor

(Tan δ)

0.08 0.70 200 2,000

0.08 0.65 200 5,000

0.07 0.65 200 5,000

100

Max. Impedance (Ω)

100KHz, +20°C

Max. Ripple Current (mA rms)

+105°C, 100KHz

Load Life Hours

@ +105°C

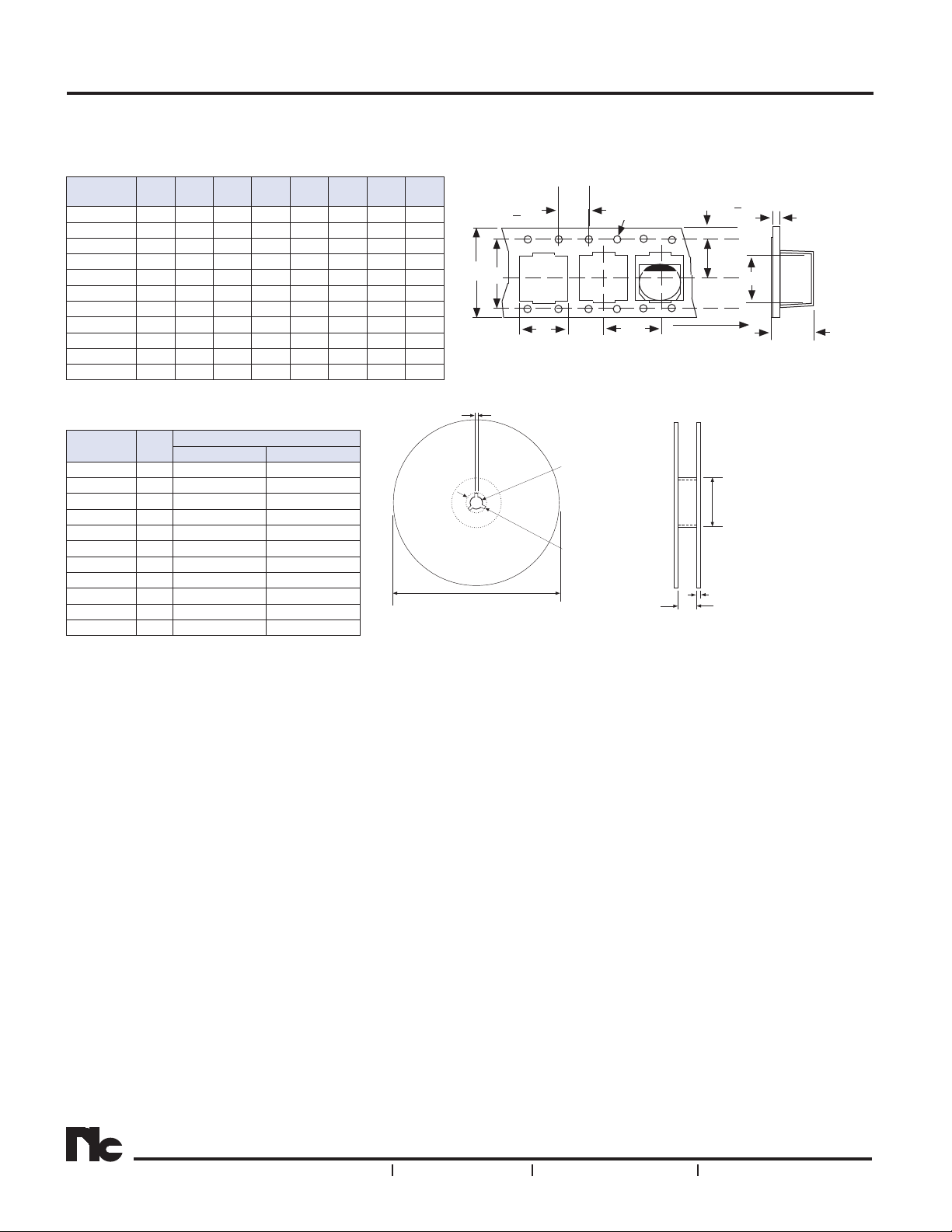

DIMENSIONS (mm) AND REEL QUANTITIES

Case Size φD±0.5 L max. A±0.2 B±0.2 I±0.3 W P±0.3

4x6.3 4.0 6.3 4.3 4.3 1.8 0.5~0.8 1.0 1,200 2,000 5x6.3 5.0 6.3 5.3 5.3 2.2 0.5~0.8 1.4 800 1,000

6.3x6.3 6.3 6.3 6.6 6.6 2.5 0.5~0.8 2.2 800 1,000

6.3X8 6.3 8.0 6.6 6.6 2.5 0.5~0.8 2.2 500 900

8x10.5 8.0 10.5 8.3 8.3 2.9 0.7~1.0 3.2 300 500

10x8 10.0 8.0 10.3 10.3 3.2 1.0~1.4 4.6 400 500

10x10.5 10.0 10.5 10.3 10.3 3.2 1.0~1.4 4.6 300 500

12.5x14 12.5 14.0 12.8 12.8 4.5 1.0~1.4 4.6 - 250 16x17 16.0 17.0 16.3 16.3 5.2 1.8~2.1 7.0 - 200

18x17.5 18 17.5 19.0 19.0 6.5 1.7~2.1 7.0 - 175

18x22 18 22.0 19.0 19.0 6.5 1.7~2.1 7.0 - 125

TR13 (330mm) TR15 (380mm)

Qty/Reel

PART NUMBER SYSTEM

NAZT 101 M 16V 6.3x6.3 N B W Y F

RoHS Compliant

Wide Terminations (Opt.) Termination/Packaging Code Reﬂ ow Temperature Code Size in mm Working Voltage Tolerance Code M=20% Capacitance Code in μF, ﬁ rst 2 digits are signiﬁ cant Third digit is no. of zeros, “R” indicates decimal for values under 10μF Series

Optional: Suitable for automotive equipment, sourced to special production and inspection at TS-16949 certiﬁ ed production site

0.3mm max.

+ -

Dφ

NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com

SPECIFICATIONS ARE SUBJECT TO CHANGE

Page 5

Surface Mount Aluminum Electrolytic Capacitors

NAZT Series

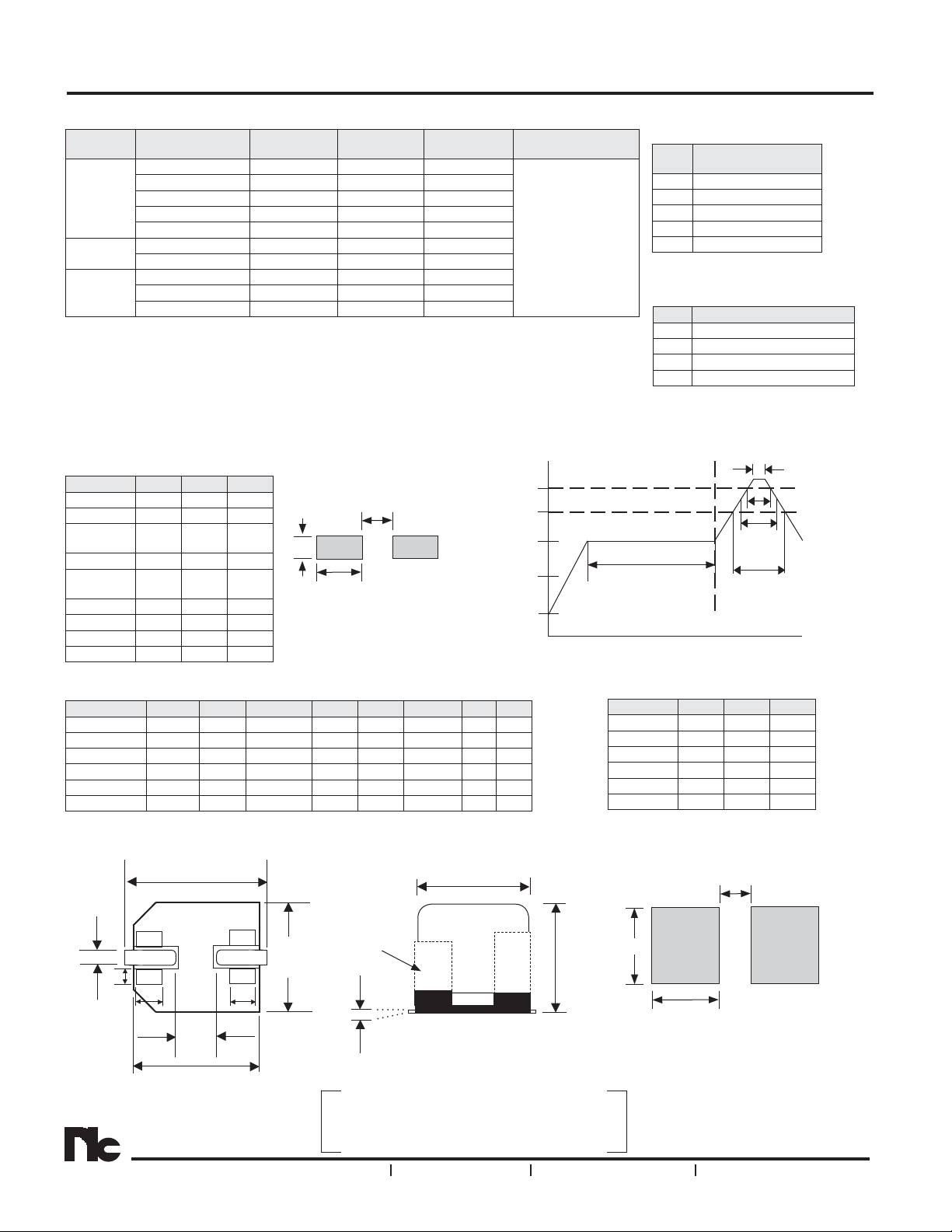

REFLOW TEMPERATURES AND DURATION

Voltage Diameter

4 ~ 8mm φ 80 sec. max. 70 sec. max. 40 sec. max.

10x8 50 sec. max. 40 sec. max. 20 sec. max.

6.3 ~ 50V

63V

80V, 100V

Capacitors can withstand two times reflow at the above conditions. Second reflow shall be at least one hour after natural cool to room temperature.

10mm φ 70 sec. max. 60 sec. max. 40 sec. max.

12.5mm φ 60 sec. max. 50 sec. max. 30 sec. max.

16 ~ 18mm φ 50 sec. max. 40 sec. max. 20 sec. max.

10 ~ 12.5mm φ 50 sec. max. 40 sec. max. 20 sec. max.

16 ~ 18mm φ 50 sec. max. 40 sec. max. 15 sec. max.

10mm φ 50 sec. max. 40 sec. max. 20 sec. max.

12.5mm φ 50 sec. max. 40 sec. max. 20 sec. max.

16 ~ 18mm φ 45 sec. max. 30 sec. max. 10 sec. max.

Time above

200°C

Time above

217°C

STANDARD TERMINAL LAND PATTERN DIMENSIONS (mm)

Case Size a b c

4x6.3 1.0 2.6 1.8 5x6.3 1.4 3.0 1.8

6x3x6.3

6.3x8

8x10.5 2.8 4.1 2.1

10x8

10x10.5

12.5x14 4.3 5.8 2.5 16x17 6.6 6.5 5.0

18x17.5 6.6 7.7 5.0

18x22 6.6 7.7 5.0

2.1 3.5 1.8

4.3 4.4 2.5

Time above

230°C

Peak Temperature

5 seconds

See Part Number

Sufﬁ x and Peak

Reﬂ ow Temperature

Table

230

200

150

100

Temperature - Deg. C

Preheat - 120 seconds max.

(150°C ~ 180°C)

PEAK REFLOW TEMPERATURE CODES

Code

N 260°C L 250°C K 245°C

J 240°C

H 235°C

Peak Reﬂ ow

Temperature

TERMINATION FINISH & PACKAGING OPTIONS CODES

Code Finish & Reel Size

B Sn-Bi Finish & 13" Reel

LB Sn-Bi Finish & 15" Reel

S 100% Sn Finish & 13" Reel

LS 100% Sn Finish & 15" Reel

Note: 16mm & 18mm diameter parts are only available with Sn ﬁ nish.

Peak Temperature

(see table)

Time Above 230°C

(see table)

Time Above

217°C

(see table)

Time Above

200°C

(see table)

Time (Seconds)

WIDE TERMINATION (WT) DIM. (mm)

Case Size Dφ ±0.5 L max. A, B C ±0.2 P ±0.2 W R T

8 x 10.5WT 8.0 10.5 8.3 ± 0.2 9.0 3.2 0.7 ~ 1.0 (0.7) (1.3)

10 x 10.5WT 10.0 10.5 10.3 ± 0.2 11.0 4.6 1.0 ~ 1.4 (0.7) (1.3)

12.5 x 14WT 12.5 14.0 13.5 ± 0.2 14.2 4.6 1.0 ~ 1.4 (2.2) (2.4) 16 x 17WT 16.0 17.0 17.0 ± 0.2 18.0 7.0 1.8 ~ 2.1 (3.0) (2.0)

18x17.5WT 18.0 17.0 19.0 ± 0.2 20.0 7.0 1.7 ~ 2.1 (3.0) (2.0)

18x22WT 18.0 22.0 19.0 ± 0.2 20.0 7.0 1.7 ~ 2.1 (3.0) (2.0)

Anti-Vibration

Skirt

Termination deﬂ ection: WT = 0.15mm max. from bottom of support terminals

Review & Compare Reﬂ ow Soldering Heat Limits

V-chip SMT Aluminum Electrolytic Capacitors

www.niccomp.com/RSL

Dφ

WT LAND PATTERN DIM. (mm)

Case Size a b c

8x10.5 2.5 4.5 4.7

10x10.5 3.8 4.8 4.7

12.5x14 3.8 6.1 6.9 16x17 5.0 8.0 9.5

18x17.5 5.0 8.6 9.5

18x22 5.0 8.6 9.5

NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com

SPECIFICATIONS ARE SUBJECT TO CHANGE

Page 6

Surface Mount Aluminum Electrolytic Capacitors

TAPING SPECIFICATIONS (mm)

1. Both Leader and Trailer tape: Minimum 10 empty carrier tape pockets.

2. Connection: Maximum 3 connections (slices) per reel.

Case Size

4x6.3 4.7 4.7 12.0 5.5 8.0 6.4 0.6 5x6.3 5.7 5.7 12.0 5.5 12.0 6.4 0.6 -

6.3x6.3 7.0 7.0 16.0 7.5 12.0 6.5 0.6 -

6.3x8 7.0 7.0 16.0 7.5 12.0 8.2 0.6 -

8x10.5 8.7 8.7 24.0 11.5 16.0 11.1 0.6 -

10x8 10.7 10.7 24.0 11.5 16.0 8.3 0.6 -

10x10.5 10.7 10.7 24.0 11.5 16.0 11.2 0.6 -

12.5x14 13.2 13.2 32.0 14.2 24.0 14.3 0.6 28.4 16x17 17.5 17.5 44.0 20.2 28.0 17.3 0.6 40.4 18x17 19.5 19.5 44.0 20.2 32.0 17.8 0.6 40.4 18x22 19.5 19.5 44.0 20.2 32.0 22.5 0.6 40.4

±0.2B±0.2C±0.3D±0.1P±0.1T±0.2tmax.S±0.1

4 + 0.1

1.5∅ +0.1/-

1.5φ+0.1/-0

1.75 ±

Feeding

NAZT Series

1.75 + 0.15 t

REEL DIMENSIONS (mm)

Case Size

4x6.3 14 1200 2000 5x6.3 14 800 1000

6.3x6.3 18 800 1000

6.3x8 18 500 900

8x10.5 26 300 500

10x8 26 400 500

10x10.5 26 300 500

12.5x14 34 - 250 16x17 46 - 200 18x17 46 - 175 18x22 46 - 125

±1.0

13" (330mm) 15" (380mm)

Qty per Reel

2mm ± 0.5mm

φ330mm ± 2.0mm

or φ380mm ± 2.0mm

φ13mm ± 0.5mm

φ50mm min.

φ21mm ± 0.8mm

3mm

NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com

SPECIFICATIONS ARE SUBJECT TO CHANGE
