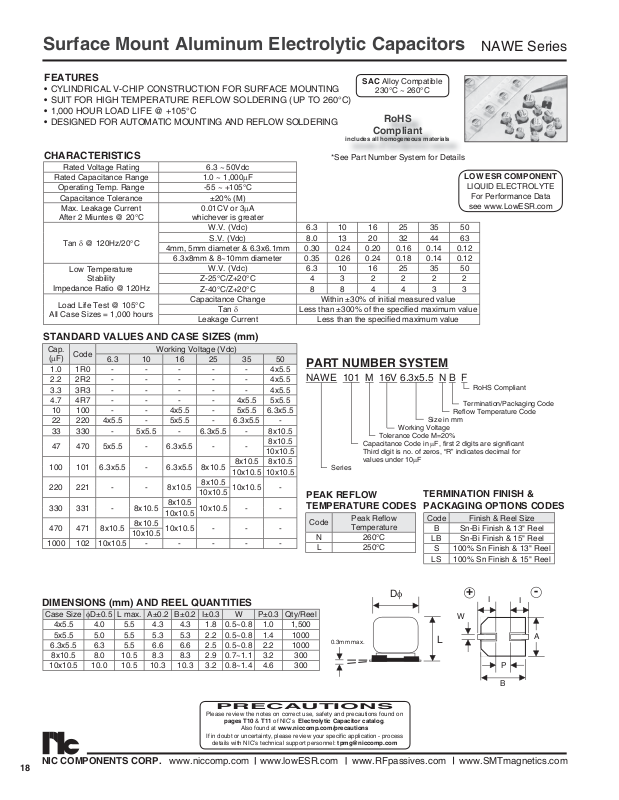

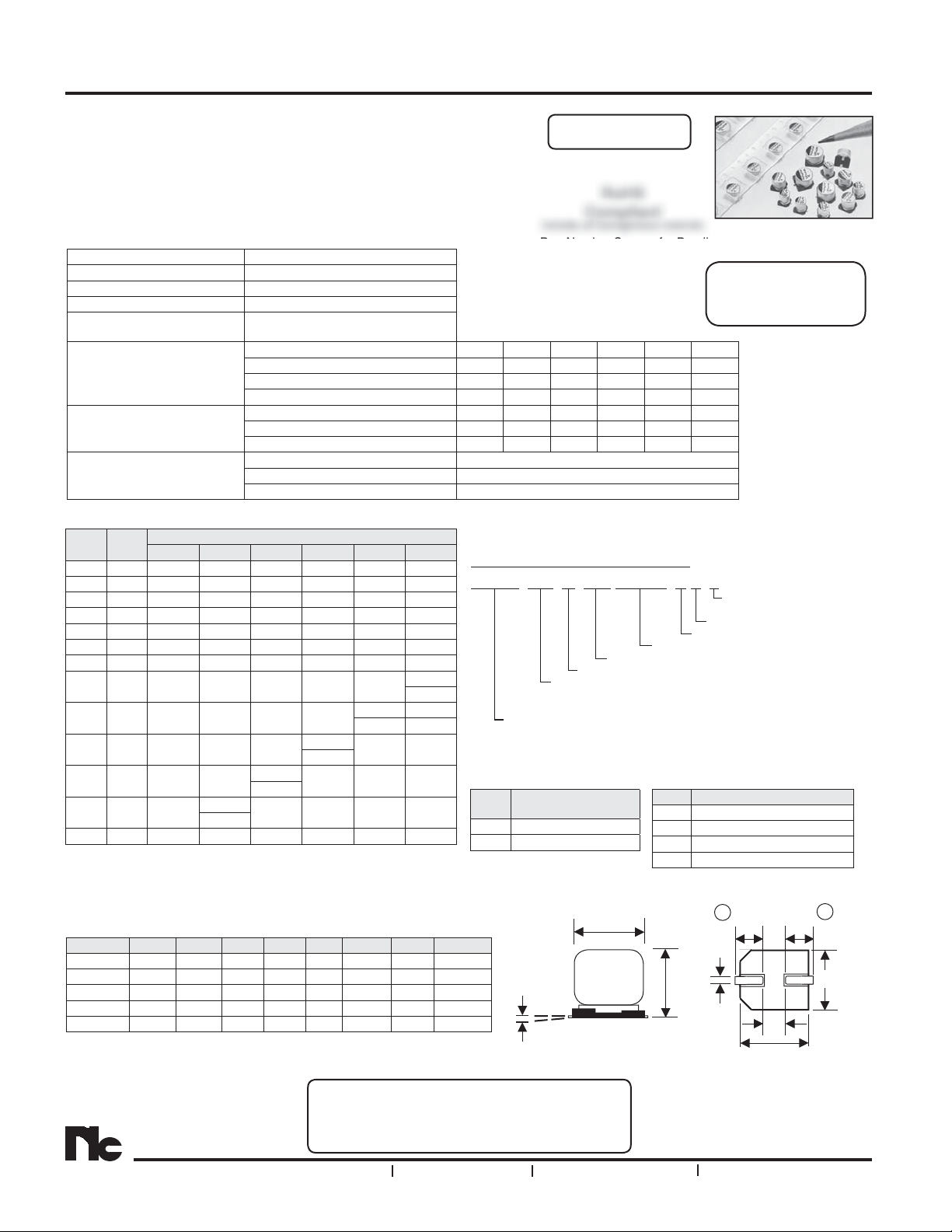

Page 1
Surface Mount Aluminum Electrolytic Capacitors
NAWE Series
FEATURES
• CYLINDRICAL V-CHIP CONSTRUCTION FOR SURFACE MOUNTING
• SUIT FOR HIGH TEMPERATURE REFLOW SOLDERING (UP TO 260°C)
• 1,000 HOUR LOAD LIFE @ +105°C
• DESIGNED FOR AUTOMATIC MOUNTING AND REFLOW SOLDERING
CHARACTERISTICS
Rated Voltage Rating 6.3 ~ 50Vdc
Rated Capacitance Range 1.0 ~ 1,000μF
Operating Temp. Range -55 ~ +105°C
Capacitance Tolerance ±20% (M)
Max. Leakage Current
After 2 Miuntes @ 20°C
Tan δ @ 120Hz/20°C
Low Temperature
Stability
Impedance Ratio @ 120Hz
Load Life Test @ 105°C
All Case Sizes = 1,000 hours
4mm, 5mm diameter & 6.3x6.1mm 0.30 0.24 0.20 0.16 0.14 0.12
0.01CV or 3μA
whichever is greater
W.V. (Vdc) 6.3 10 16 25 35 50
S.V. (Vdc) 8.0 13 20 32 44 63
6.3x8mm & 8~10mm diameter 0.35 0.26 0.24 0.18 0.14 0.12
W.V. (Vdc) 6.3 10 16 25 35 50
Z-25°C/Z+20°C 432222
Z-40°C/Z+20°C 884433
Capacitance Change Within ±30% of initial measured value
Tan δ Less than ±300% of the specifi ed maximum value
Leakage Current Less than the specifi ed maximum value
*See Part Number System for Details
STANDARD VALUES AND CASE SIZES (mm)
Cap.
Code
(μF)
1.01R0-----4x5.5
2.22R2-----4x5.5
3.33R3-----4x5.5
4.7 4R7 - - - - 4x5.5 5x5.5
10 100 - - 4x5.5 - 5x5.5 6.3x5.5
22 220 4x5.5 - 5x5.5 - 6.3x5.5 33 330 - 5x5.5 - 6.3x5.5 - 8x10.5
47 470 5x5.5 - 6.3x5.5 - -
100 101 6.3x5.5 - 6.3x5.5 8x10.5
220 221 - - 8x10.5
330 331 - 8x10.5
470 471 8x10.5
1000 102 10x10.5 -----
6.3 10 16 25 35 50
Working Voltage (Vdc)
8x10.5
10x10.5
8x10.5
10x10.5
10x10.5 - - -
8x10.5
10x10.5
8x10.5 8x10.5
10x10.5 10x10.5
8x10.5
10x10.5
10x10.5 - -
10x10.5 -
PART NUMBER SYSTEM
NAWE 101 M 16V 6.3x5.5 N B F
RoHS Compliant
Termination/Packaging Code
Refl ow Temperature Code
Size in mm
Working Voltage
Tolerance Code M=20%
Capacitance Code in μF, fi rst 2 digits are signifi cant
Third digit is no. of zeros, “R” indicates decimal for
values under 10μF
Series
PEAK REFLOW
TEMPERATURE CODES
Code
N 260°C
L 250°C
SAC Alloy Compatible
230°C ~ 260°C
RoHS
Compliant
includes all homogeneous materials
TERMINATION FINISH &
PACKAGING OPTIONS CODES
Peak Refl ow
Temperature
Code Finish & Reel Size
B Sn-Bi Finish & 13" Reel
LB Sn-Bi Finish & 15" Reel
S 100% Sn Finish & 13" Reel
LS 100% Sn Finish & 15" Reel
LOW ESR COMPONENT
LIQUID ELECTROLYTE
For Performance Data
see www.LowESR.com
DIMENSIONS (mm) AND REEL QUANTITIES
Dφ
Case Size φD±0.5 L max. A±0.2 B±0.2 I±0.3 W P±0.3 Qty/Reel
4x5.5 4.0 5.5 4.3 4.3 1.8 0.5~0.8 1.0 1,500
5x5.5 5.0 5.5 5.3 5.3 2.2 0.5~0.8 1.4 1000
6.3x5.5 6.3 5.5 6.6 6.6 2.5 0.5~0.8 2.2 1000
8x10.5 8.0 10.5 8.3 8.3 2.9 0.7~1.1 3.2 300
10x10.5 10.0 10.5 10.3 10.3 3.2 0.8~1.4 4.6 300
PRECAUTIONS
Please review the notes on correct use, safety and precautions found on
pages T10 & T11 of NIC’s Electrolytic Capacitor catalog.
If in doubt or uncertainty, please review your specifi c application - process
NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com
18
Also found at www.niccomp.com/precautions
details with NIC’s technical support personnel: [email protected]
0.3mm max.
+ -
W
L
I
P
B
I
A
Page 2
Surface Mount Aluminum Electrolytic Capacitors
STANDARD VALUES, CASE SIZES AND SPECIFICATIONS
Cap.
NIC Part Number
NAWE220M6.3V4X5.5NBF 22
NAWE470M6.3V5X5.5NBF 47 0.30 37 1,000
NAWE101M6.3V6.3X5.5NBF 100 0.30 57 1,000
NAWE471M6.3V8X10.5LBF 470 0.35 210 1,000
NAWE102M6.3V10X10.5LBF 1000 0.35 480 1,000
NAWE330M10V5X5.5NBF 33
NAWE331M10V8X10.5LBF 330 0.26 195 1,000
NAWE471M10V8X10.5LBF 470 0.26 210 1,000
NAWE470M10V10X10.5LBF 470 0.26 440 1,000
NAWE100M16V4X5.5NBF 10
NAWE220M16V5X5.5NBF 22 0.20 31 1,000
NAWE470M16V6.3X5.5NBF 47 0.20 56 1,000
NAWE101M16V6.3X5.5NBF 100 0.20 65 1,000
NAWE221M16V8X10.5LBF 220 0.20 185 1,000
NAWE331M16V8X10.5LBF 330 0.20 195 1,000
NAWE331M16V10X10.5LBF 330 0.20 440 1,000
NAWE471M16V10X10.5LBF 470 0.20 460 1,000
NAWE330M25V6.3X5.5NBF 33
NAWE101M25V8X10.5LBF 100 0.16 180 1,000
NAWE221M25V8X10.5LBF 220 0.16 190 1,000
NAWE221M25V10X10.5LBF 220 0.16 353 1,000
NAWE331M25V10X10.5LBF 330 0.16 450 1,000
NAWE4R7M35V4X5.5NBF 4.7
NAWE100M35V5X5.5NBF 10 0.14 24 1,000
NAWE220M35V6.3X5.5NBF 22 0.14 46 1,000
NAWE101M35V8X10.5LBF 100 0.14 180 1,000
NAWE101M35V10X10.5LBF 100 0.14 305 1,000
NAWE221M35V10X10.5LBF 220 0.14 360 1,000
NAWE1R0M50V4X5.5NBF 1.0
NAWE2R2M50V4X5.5NBF 2.2 0.12 11 1,000
NAWE3R3M50V4X5.5NBF 3.3 0.12 13 1,000
NAWE4R7M50V5X5.5NBF 4.7 0.12 18 1,000
NAWE100M50V6.3X5.5NBF 10 0.12 28 1,000
NAWE330M50V8X10.5LBF 33 0.12 135 1,000
NAWE470M50V8X10.5LBF 47 0.12 155 1,000
NAWE470M50V10X10.5LBF 47 0.12 180 1,000
NAWE101M50V8X10.5LBF 100 0.12 200 1,000
NAWE101M50V10X10.5LBF 100 0.12 315 1,000
(μF)
W.V.
(Vdc)
6.3
10
16
25
35
50
Dissipaton Factor
(Tan δ)
0.30 23 1,000
0.24 34 1,000
0.20 20 1,000
0.16 48 1,000
0.14 14 1,000
0.12 8.0 1,000
Max. Ripple Current (mA)
+105°C/120Hz
Load Life Hours
@ +105°C
NAWE Series
RIPPLE CURRENT FREQUENCY CORRECTION FACTORS
Frequency 50/60Hz 120Hz 500Hz 1KHz 10KHz
0.1 ~ 1μF 0.5 1.00 1.20 1.30 1.50
2.2 ~ 4.7μF 0.65 1.00 1.20 1.30 1.50
10 ~ 47μF 0.80 1.00 1.20 1.30 1.50
100 ~ 1000μF 0.80 1.00 1.10 1.15 1.20
NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com
19

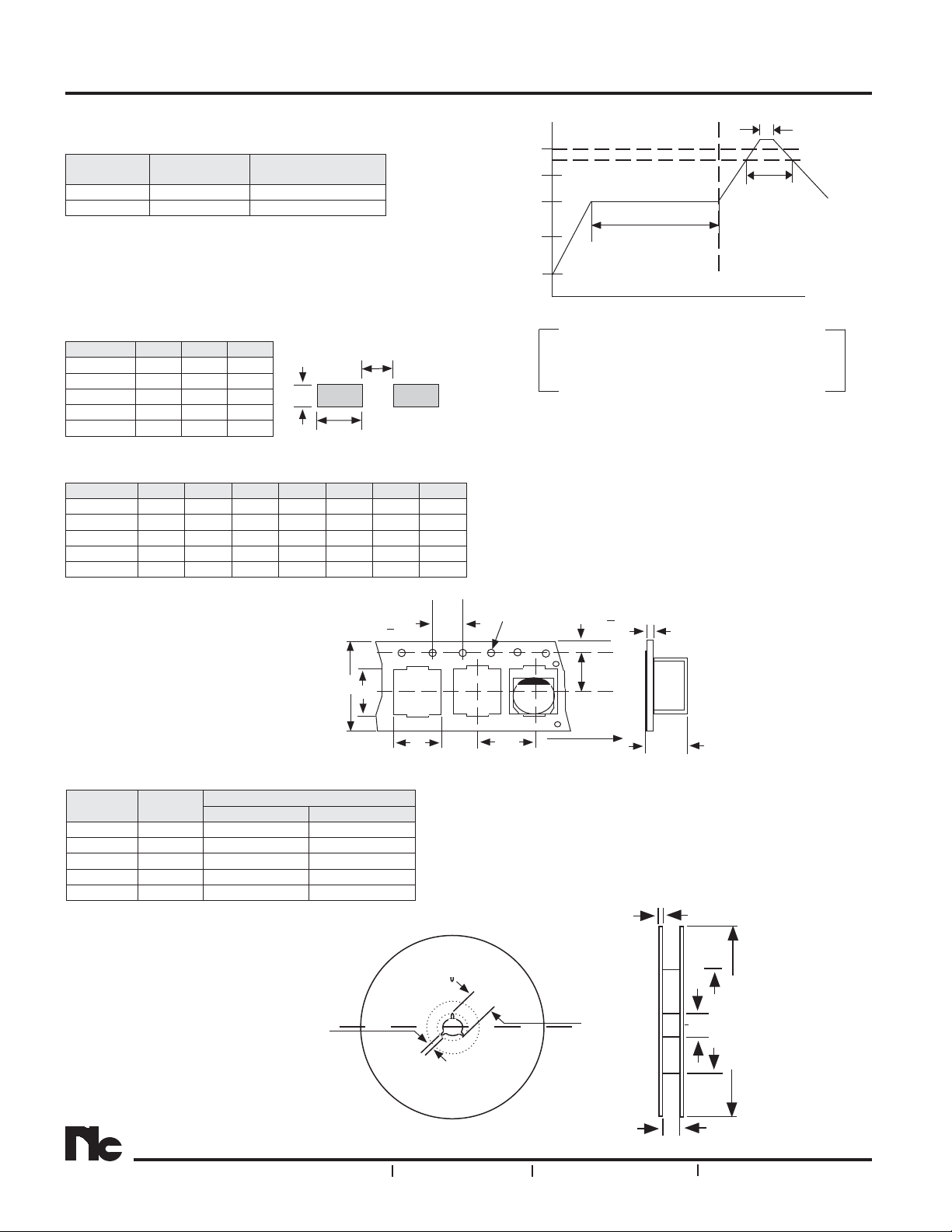

Page 3
Surface Mount Aluminum Electrolytic Capacitors
PEAK REFLOW TEMPERATURE AND DURATION
Diameter
4 ~ 6.3mm φ 60 sec. max. 260°C
8 ~ 10mm φ 60 sec. max. 250°C
Capacitors can withstand two times reflow at the above conditions.
Second reflow shall be at least one hour after natural cool to room
temperature.
Time above
217°C
Peak Temperature
5 seconds
RECOMMENDED LAND PATTERN DIMENSIONS (mm)
Case Size a b c
4x5.5 1.0 2.6 1.8
5x5.5 1.4 3.0 1.8
6x3x5.5 1.8 3.6 1.8
8x10.5 2.8 4.1 2.2
10x10.5 4.3 4.4 2.5
c
a
b
CARRIER TAPE DIMENSIONS & REEL QTY
Case Size A ±0.5 B ±0.5 C ±0.3 D ±0.1 P ±0.1 T ±0.2 t ±0.1
4x5.5 4.7 4.7 12.0 5.5 8.0 5.8 0.6
5x5.5 5.7 5.7 12.0 5.5 12.0 5.8 0.6
6.3x5.5 7.0 7.0 16.0 7.5 12.0 5.8 0.6
8x10.5 8.7 8.7 24.0 11.5 16.0 11.1 0.6
10x10.5 10.7 10.7 24.0 11.5 16.0 11.2 0.6
230
200
150
100
50
Temperature - Deg. C
Preheat - 120 seconds max.
(150°C ~ 180°C)
Review & Compare Refl ow Soldering Heat Limits
V-chip SMT Aluminum Electrolytic Capacitors
www.niccomp.com/RSL
Time (Seconds)
NAWE Series
Peak Temperature
(see table)
Time Above 217°C
(see table)
REEL DIMENSIONS & REEL QTY
Case Size W ±1.0
4x5.5 14 1500 2000
5x5.5 14 1000 -
6.3x5.5 18 1000 8x10.5 26 300 500
10x10.5 26 300 500
TR13 (330mm) TR15 (380mm)
Quantity
2.0±0.5
C
4 + 0.1
B
1.5φ+0.1/-0
A
P
1.75 + 0.10
Feeding
t
D
T
3.0 ± 0.5
0.5
13∅ ±
21±0.8
50∅ Min.
330 or 380 mm
W
NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com
20
