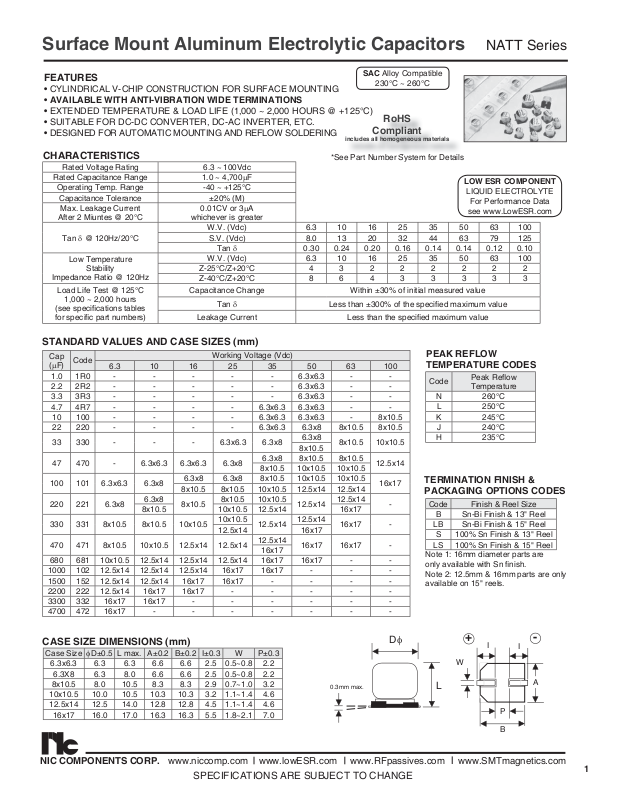

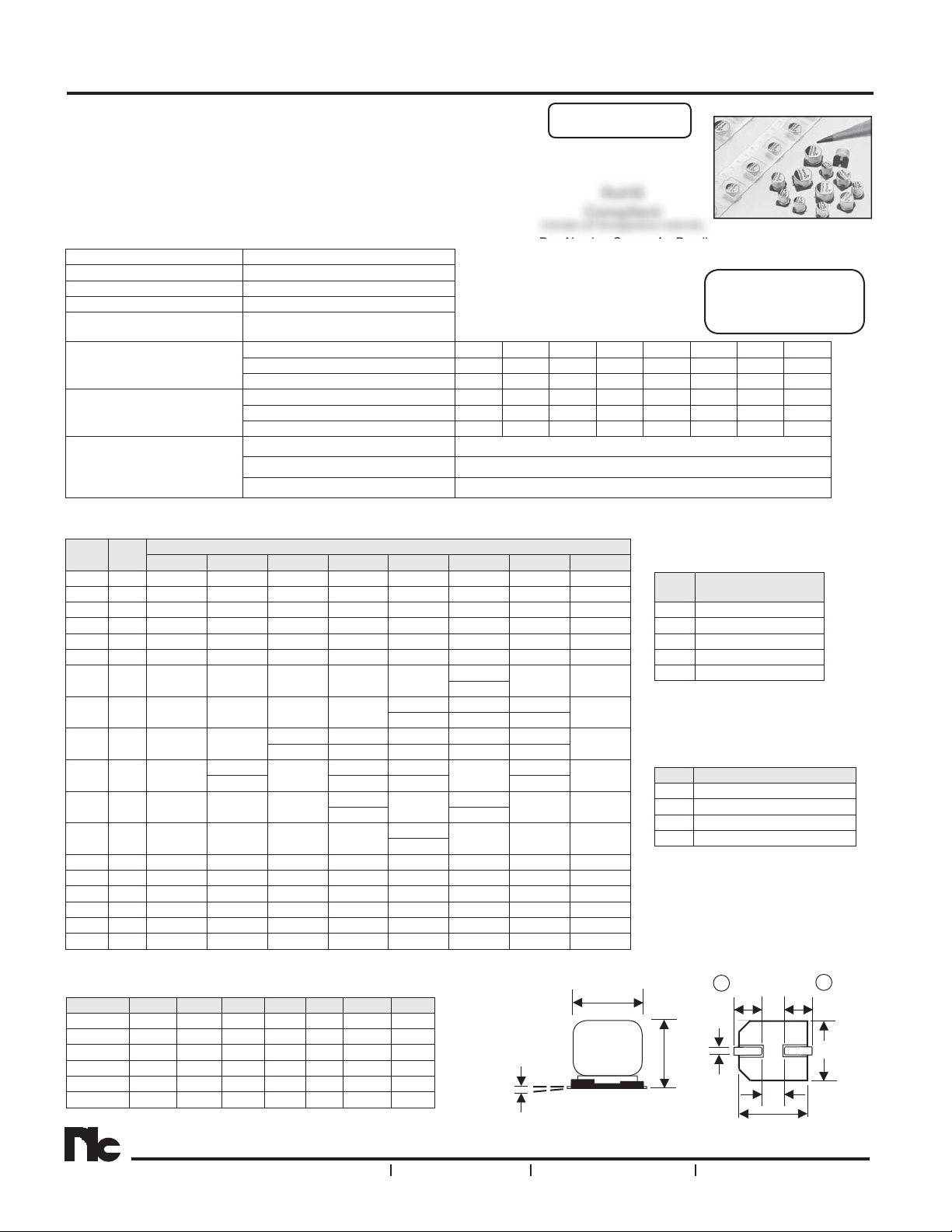

Datasheet NIC [smd] NATT Series Datasheet

Surface Mount Aluminum Electrolytic Capacitors

NATT Series

FEATURES

SAC Alloy Compatible

• CYLINDRICAL V-CHIP CONSTRUCTION FOR SURFACE MOUNTING

• AVAILABLE WITH ANTI-VIBRATION WIDE TERMINATIONS

• EXTENDED TEMPERATURE & LOAD LIFE (1,000 ~ 2,000 HOURS @ +125°C)

• SUITABLE FOR DC-DC CONVERTER, DC-AC INVERTER, ETC.

• DESIGNED FOR AUTOMATIC MOUNTING AND REFLOW SOLDERING

CHARACTERISTICS

Rated Voltage Rating 6.3 ~ 100Vdc

Rated Capacitance Range 1.0 ~ 4,700μF

Operating Temp. Range -40 ~ +125°C

Capacitance Tolerance ±20% (M)

Max. Leakage Current

After 2 Miuntes @ 20°C

Tan δ @ 120Hz/20°C

Low Temperature

Stability

Impedance Ratio @ 120Hz

Load Life Test @ 125°C

1,000 ~ 2,000 hours
(see specifi cations tables
for specifi c part numbers)

0.01CV or 3μA

whichever is greater

W.V. (Vdc) 6.3 10 16 25 35 50 63 100

S.V. (Vdc) 8.0 13 20 32 44 63 79 125

Tan δ 0.30 0.24 0.20 0.16 0.14 0.14 0.12 0.10

W.V. (Vdc) 6.3 10 16 25 35 50 63 100
Z-25°C/Z+20°C 43222222
Z-40°C/Z+20°C 86433333

Capacitance Change Within ±30% of initial measured value

Tan δ Less than ±300% of the specifi ed maximum value

Leakage Current Less than the specifi ed maximum value

*See Part Number System for Details

Compliant

includes all homogeneous materials

STANDARD VALUES AND CASE SIZES (mm)

Cap

Code

(μF)

1.0 1R0 - - - - - 6.3x6.3 - -

2.2 2R2 - - - - - 6.3x6.3 - -

3.3 3R3 - - - - - 6.3x6.3 - -

4.7 4R7 - - - - 6.3x6.3 6.3x6.3 - ­10 100 - - - - 6.3x6.3 6.3x6.3 - 8x10.5
22 220 - - - - 6.3x6.3 6.3x8 8x10.5 8x10.5

33 330 - - - 6.3x6.3 6.3x8

47 470 - 6.3x6.3 6.3x6.3 6.3x8

100 101 6.3x6.3 6.3x8

220 221 6.3x8

330 331 8x10.5 8x10.5 10x10.5

470 471 8x10.5 10x10.5 12.5x14 12.5x14

680 681 10x10.5 12.5x14 12.5x14 12.5x14 16x17 16x17 - ­1000 102 12.5x14 12.5x14 12.5x14 16x17 16x17 - - ­1500 152 12.5x14 12.5x14 16x17 16x17 - - - ­2200 222 12.5x14 16x17 16x17 - - - - ­3300 332 16x17 16x17 - - - - - ­4700 472 16x17 - - - - - - -

6.3 10 16 25 35 50 63 100

8x10.5 8x10.5 10x10.5 12.5x14 12.5x14

6.3x8

8x10.5 10x10.5 12.5x14 16x17

8x10.5

Working Voltage (Vdc)

6.3x8

8x10.5

6.3x8 8x10.5 8x10.5

8x10.5 10x10.5 10x10.5

6.3x8 6.3x8 8x10.5 10x10.5 10x10.5

8x10.5 10x10.5

10x10.5

12.5x14 16x17

12.5x14

12.5x14
16x17

12.5x14

12.5x14

16x17 16x17 -

8x10.5 10x10.5

12.5x14

16x17 -

230°C ~ 260°C

RoHS

12.5x14

16x17

-

LOW ESR COMPONENT

LIQUID ELECTROLYTE

For Performance Data

see www.LowESR.com

PEAK REFLOW
TEMPERATURE CODES

Code

N 260°C
L 250°C
K 245°C

J 240°C

H 235°C

Peak Refl ow
Temperature

TERMINATION FINISH &
PACKAGING OPTIONS CODES

Code Finish & Reel Size

B Sn-Bi Finish & 13" Reel

LB Sn-Bi Finish & 15" Reel

S 100% Sn Finish & 13" Reel

LS 100% Sn Finish & 15" Reel
Note 1: 16mm diameter parts are
only available with Sn fi nish.
Note 2: 12.5mm & 16mm parts are only
available on 15" reels.

CASE SIZE DIMENSIONS (mm)

Case Size φD±0.5 L max. A±0.2 B±0.2 I±0.3 W P±0.3

6.3x6.3 6.3 6.3 6.6 6.6 2.5 0.5~0.8 2.2

6.3X8 6.3 8.0 6.6 6.6 2.5 0.5~0.8 2.2

8x10.5 8.0 10.5 8.3 8.3 2.9 0.7~1.0 3.2

10x10.5 10.0 10.5 10.3 10.3 3.2 1.1~1.4 4.6

12.5x14 12.5 14.0 12.8 12.8 4.5 1.1~1.4 4.6
16x17 16.0 17.0 16.3 16.3 5.5 1.8~2.1 7.0

Dφ

0.3mm max.

+ -

W

L

I

I

A

P

B

NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com

SPECIFICATIONS ARE SUBJECT TO CHANGE

1

Surface Mount Aluminum Electrolytic Capacitors

NATT Series

STANDARD VALUES, CASE SIZES AND SPECIFICATIONS

Cap.

NIC Part Number

NATT101M6.3V6.3X6.3NBF 100

NATT221M6.3V6.3X8NBF 220 0.30 0.90 100 1,000
NATT331M6.3V8X10.5NBF 330 0.30 0.40 160 2,000
NATT471M6.3V8X10.5NBF 470 0.30 0.40 160 2,000

NATT681M6.3V10X10.5LBF 680 0.30 0.30 220 2,000
NATT102M6.3V12.5X14KLBF 1000 0.30 0.12 550 2,000
NATT152M6.3V12.5X14KLBF 1500 0.30 0.12 550 2,000
NATT222M6.3V12.5X14KLBF 2200 0.30 0.12 550 2,000

NATT332M6.3V16X17JLSF 3300 0.30 0.08 900 2,000
NATT472M6.3V16X17JLSF 4700 0.30 0.08 900 2,000
NATT470M10V6.3X6.3NBF 47

NATT101M10V6.3X8NBF 100 0.24 0.90 100 1,000

NATT221M10V6.3X8NBF 220 0.24 0.90 100 1,000
NATT221M10V8X10.5NBF 220 0.24 0.40 160 2,000
NATT331M10V8X10.5NBF 330 0.24 0.40 160 2,000

NATT471M10V10X10.5LBF 470 0.24 0.30 220 2,000
NATT681M10V12.5X14KLBF 680 0.24 0.12 550 2,000
NATT102M10V12.5X14KLBF 1000 0.24 0.12 550 2,000
NATT152M10V12.5X14KLBF 1500 0.24 0.12 550 2,000

NATT222M10V16X17JLSF 2200 0.24 0.08 900 2,000
NATT332M10V16X17JLSF 3300 0.24 0.08 900 2,000

NATT470M16V6.3X6.3NBF 47

NATT101M16V6.3X8NBF 100 0.20 0.90 110 1,000
NATT101M16V8X10.5NBF 100 0.20 0.40 160 2,000
NATT221M16V8X10.5NBF 220 0.20 0.40 160 2,000

NATT331M16V10X10.5LBF 330 0.20 0.30 220 2,000
NATT471M16V12.5X14KLBF 470 0.20 0.12 550 2,000
NATT681M16V12.5X14KLBF 680 0.20 0.12 550 2,000
NATT102M16V12.5X14KLBF 1000 0.20 0.12 550 2,000

NATT152M16V16X17JLSF 1500 0.20 0.08 900 2,000
NATT222M16V16X17JLSF 2200 0.20 0.08 900 2,000

NATT330M25V6.3X6.3NBF 33

NATT470M25V6.3X8NBF 47 0.16 0.90 100 1,000

NATT101M25V6.3X8NBF 100 0.16 0.90 100 1,000
NATT101M25V8X10.5NBF 100 0.16 0.40 160 2,000
NATT221M25V8X10.5NBF 220 0.16 0.40 160 2,000

NATT221M25V10X10.5LBF 220 0.16 0.30 220 2,000

NATT331M25V10X10.5LBF 330 0.16 0.30 220 2,000
NATT331M25V12.5X14KLBF 330 0.16 0.12 550 2,000
NATT471M25V12.5X14KLBF 470 0.16 0.12 550 2,000
NATT681M25V12.5X14KLBF 680 0.16 0.12 550 2,000

NATT102M25V16X17JLSF 1000 0.16 0.08 900 2,000
NATT152M25V16X17JLSF 1500 0.16 0.08 900 2,000

NATT4R7M35V6.3X6.3NBF 4.7

NATT100M35V6.3X6.3NBF 10 0.14 1.60 70 1,000
NATT220M35V6.3X6.3NBF 22 0.14 1.60 70 1,000

NATT330M35V6.3X8NBF 33 0.14 0.90 100 1,000

NATT470M35V6.3X8NBF 47 0.14 0.90 100 1,000
NATT470M35V8X10.5NBF 47 0.14 0.40 160 2,000
NATT101M35V8X10.5NBF 100 0.14 0.40 160 2,000

NATT101M35V10X10.5LBF 100 0.14 0.30 220 2,000

NATT221M35V10X10.5LBF 220 0.14 0.30 220 2,000
NATT221M35V12.5X14KLBF 220 0.14 0.12 550 2,000
NATT331M35V12.5X14KLBF 330 0.14 0.12 550 2,000
NATT471M35V12.5X14KLBF 470 0.14 0.12 550 2,000

NATT471M35V16X17JLSF 470 0.14 0.08 900 2,000
NATT681M35V16X17JLSF 680 0.14 0.08 900 2,000
NATT102M35V16X17JLSF 1000 0.14 0.08 900 2,000

For Automotive Equipment, see part number system

(μF)

W.V.

(Vdc)

6.3

10

16

25

35

Dissipaton Factor

(Tan δ)

0.30 1.60 70 1,000

0.24 1.60 70 1,000

0.20 1.60 70 1,000

0.16 1.60 70 1,000

0.14 2.00 60 1,000

Max. Impedance (Ω)

100KHz, +20°C

Max. Ripple Current (mA)

+125°C, 100KHz

Load Life Hours

@ +125°C

NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com

2

SPECIFICATIONS ARE SUBJECT TO CHANGE

Surface Mount Aluminum Electrolytic Capacitors

NATT Series

STANDARD VALUES, CASE SIZES AND SPECIFICATIONS

Cap.

NIC Part Number

NATT1R0M50V6.3X6.3NBF 1.0
NATT2R2M50V6.3X6.3NBF 2.2 0.14 3.50 45 1,000
NATT3R3M50V6.3X6.3NBF 3.3 0.14 3.50 45 1,000
NATT4R7M50V6.3X6.3NBF 4.7 0.14 3.50 45 1,000
NATT100M50V6.3X6.3NBF 10 0.14 2.80 50 1,000

NATT220M50V6.3X8NBF 22 0.14 2.00 80 1,000

NATT330M50V6.3X8NBF 33 0.14 2.00 80 1,000
NATT330M50V8X10.5NBF 33 0.14 0.70 140 2,000
NATT470M50V8X10.5NBF 47 0.14 0.70 140 2,000

NATT470M50V10X10.5LBF 47 0.14 0.50 240 2,000

NATT101M50V10X10.5LBF 100 0.14 0.50 240 2,000
NATT101M50V12.5X14KLBF 100 0.14 0.23 490 2,000
NATT221M50V12.5X14KLBF 220 0.14 0.23 490 2,000
NATT331M50V12.5X14KLBF 330 0.14 0.23 490 2,000

NATT331M50V16X17JLSF 330 0.14 0.15 800 2,000
NATT471M50V16X17JLSF 470 0.14 0.15 800 2,000
NATT681M50V16X17JLSF 680 0.14 0.15 800 2,000
NATT220M63V8X10.5KBF 22
NATT330M63V8X10.5KBF 33 0.12 1.0 100 1,500

NATT470M63V8X10.5KBF 47 0.12 1.0 100 1,500
NATT470M63V10X10.5JBF 47 0.12 0.5 150 1,500
NATT101M63V10X10.5JBF 100 0.12 0.5 150 1,500

NATT101M63V12.5X14JLBF 100 0.12 0.25 350 1,500
NATT221M63V12.5X14JLBF 220 0.12 0.25 350 1,500

NATT221M63V16X17HLSF 220 0.12 0.18 500 1,500
NATT331M63V16X17HLSF 330 0.12 0.18 500 1,500
NATT471M63V16X17HLSF 470 0.12 0.18 500 1,500
NATT100M100V8X10.5JBF 10
NATT220M100V8X10.5JBF 22 0.10 1.00 70 1,500

NATT330M100V10X10.5JBF 33 0.10 0.80 115 1,500

NATT470M100V12.5X14HLBF 47 0.10 0.33 350 1,500

NATT101M100V16X17HLSF 100 0.10 0.24 500 1,500

For Automotive Equipment, see part number system

(μF)

W.V.

(Vdc)

100

50

63

Dissipaton Factor

(Tan δ)

0.14 3.50 45 1,000

0.12 1.0 100 1,500

0.10 1.00 70 1,500

Max. Impedance (Ω)

100KHz, +20°C

Max. Ripple Current (mA)

+125°C, 100KHz

Load Life Hours

@ +125°C

RIPPLE CURRENT FREQUENCY MULTIPLIER

Capacitance

(μF)

<22 0.50 0.80 0.90 1.0
<150 0.65 0.85 0.92 1.0
>150 0.70 0.85 0.95 1.0

100 1K 10K 100K

Frequency (Hz)

PART NUMBER SYSTEM

NATT 101 M 16V 6.3x8 N B W Y F

RoHS Compliant

Wide Terminations (Opt.)
Termination/Packaging Code
Refl ow Temperature Code
Size in mm
Working Voltage
Tolerance Code M=20%
Capacitance Code in μF, fi rst 2 digits are signifi cant
Third digit is no. of zeros, “R” indicates decimal for
values under 10μF
Series

Optional: Suitable for automotive equipment, sourced to special
production and inspection at TS-16949 certifi ed production site

PRECAUTIONS

Please review the notes on correct use, safety and precautions found on

pages T10 & T11 of NIC’s Electrolytic Capacitor catalog.

If in doubt or uncertainty, please review your specifi c application - process

NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com

SPECIFICATIONS ARE SUBJECT TO CHANGE

Also found at www.niccomp.com/precautions

details with NIC’s technical support personnel: [email protected]

3

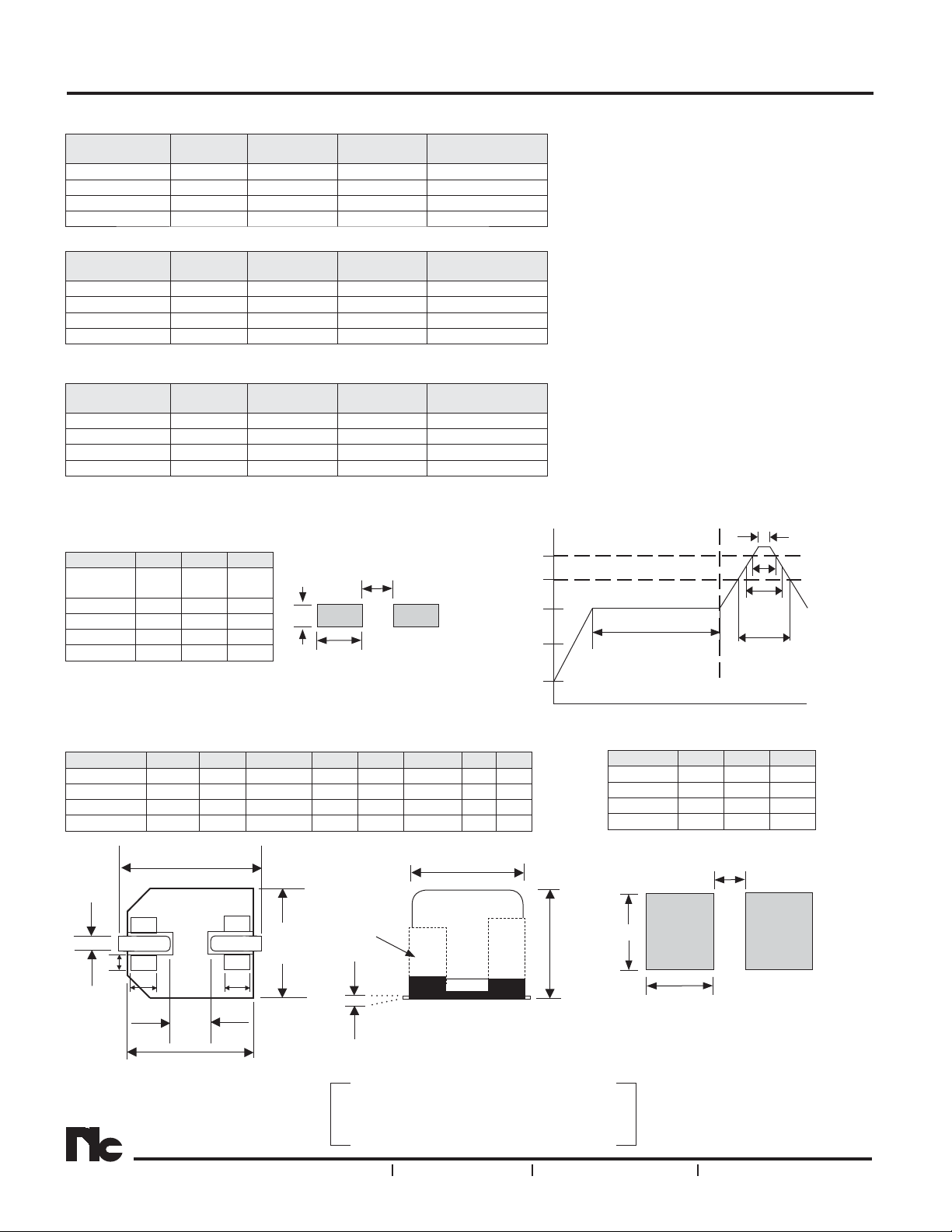

Surface Mount Aluminum Electrolytic Capacitors

PEAK REFLOW TEMPERATURE & DURATION (6.3 ~ 50V)

Diameter

6.3mm ~ 8mm φ 80 sec. max. 70 sec. max. 40 sec. max. 260°C
10mm φ 70 sec. max. 60 sec. max. 40 sec. max. 250°C

12.5mm φ 60 sec. max. 50 sec. max. 30 sec. max. 245°C
16mm φ 50 sec. max. 40 sec. max. 20 sec. max. 240°C

Time above

200°C

PEAK REFLOW TEMPERATURE & DURATION (63V)

Diameter

8mm φ 60 sec. max. 50 sec. max. 30 sec. max. 245°C

10mm φ 50 sec. max. 40 sec. max. 20 sec. max 240°C

12.5mm φ 50 sec. max. 40 sec. max. 20 sec. max. 240°C
16mm φ 50 sec. max. 40 sec. max. 15 sec. max. 235°C

Time above

200°C

PEAK REFLOW TEMPERATURE & DURATION (100V)

Diameter

8mm φ 60 sec. max. 50 sec. max. 30 sec. max. 240°C

10mm φ 50 sec. max. 40 sec. max. 20 sec. max. 240°C

12.5mm φ 50 sec. max. 40 sec. max. 20 sec. max. 235°C
16mm φ 45 sec. max. 30 sec. max. 10 sec. max. 235°C

Capacitors can withstand two times reflow at the above conditions.
Second reflow shall be at least one hour after natural cool to room
temperature.

Time above

200°C

RECOMMENDED LAND PATTERN DIMENSIONS (mm)

Case Size a b c

6x3x6.3

6.3x8

8x10.5 2.8 4.1 2.1

10x10.5 4.3 4.4 2.5

12.5x14 4.3 5.8 2.5
16x17 6.6 6.5 5.0

2.1 3.5 1.8

Time above

217°C

Time above

217°C

Time above

217°C

c

Time above

230°C

Time above

230°C

Time above

230°C

a

b

Peak Temperature

5 seconds

Peak Temperature

5 seconds

Peak Temperature

5 seconds

230

200

150

100

50

Temperature - Deg. C

Preheat - 120 seconds max.

(150°C ~ 180°C)

Time (Seconds)

NATT Series

Peak Temperature

(see table)

Time Above 230°C

(see table)

Time Above

217°C

(see table)

Time Above

200°C

(see table)

WIDE TERMINATION (WT) DIM. (mm)

Case Size Dφ ±0.5 L max. A, B C ±0.2 P ±0.2 W R T

8 x 10.5WT 8.0 10.5 8.3 ± 0.2 9.0 3.2 0.7 ~ 1.0 (0.7) (1.3)

10 x 10.5WT 10.0 10.8 10.3 ± 0.2 11.0 4.6 1.0 ~ 1.4 (0.7) (1.3)

12.5 x 14WT 12.5 14.3 13.5 ± 0.2 14.2 4.6 1.0 ~ 1.4 (2.2) (2.4)
16 x 17WT 16.0 17.5 17.0 ± 0.2 18.0 7.0 1.8 ~ 2.1 (3.0) (2.0)

W

C

WT

Anti-Vibration

A

T

R

R

P

B

Skirt

Termination defl ection:
WT = 0.15mm max. from
bottom of support terminals

Review & Compare Refl ow Soldering Heat Limits

V-chip SMT Aluminum Electrolytic Capacitors

Dφ

www.niccomp.com/RSL

L

WT LAND PATTERN DIM. (mm)

Case Size a b c

8x10.5 2.5 4.5 4.7

10x10.5 3.8 4.8 4.7

12.5x14 3.8 6.1 6.9
16x17 5.0 8.0 9.5

a

c

b

NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com

4

SPECIFICATIONS ARE SUBJECT TO CHANGE

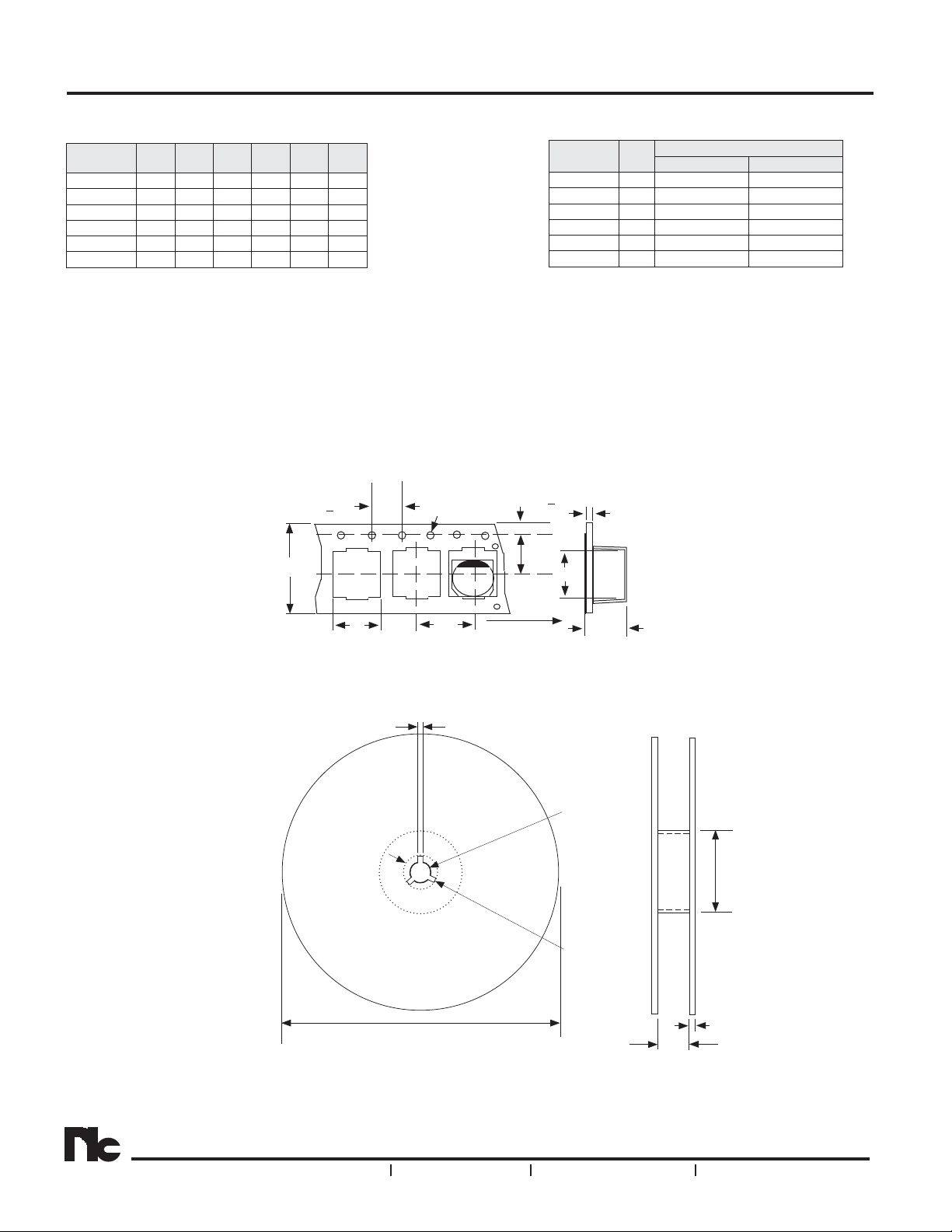

Surface Mount Aluminum Electrolytic Capacitors

TR13 330mm (13") REEL

CARRIER TAPE DIMENSIONS (mm)

Case Size

6.3 x 6.3 7.0 7.0 16.0 7.5 12.0 6.6

6.3 x 8 7.0 7.0 16.0 7.5 12.0 8.3

8 x 10.5 8.7 8.7 24.0 11.5 16.0 11.1

10 x 10.5 10.7 10.7 24.0 11.5 16.0 11.2

12.5 x 14 13.2 13.2 32.0 14.2 24.0 14.2
16 x 17 17.5 17.5 44.0 20.2 28.0 17.5

A

±0.5B±0.5C±0.3D±0.1P±0.1T±0.2

TAPING SPECIFICATIONS (mm)

1. Both Leader and Trailer tape: Minimum 40mm (1.57") empty carrier tape pockets.

2. Leader tape: Approximately 20cm of cover tape at leader.

3. Connection: Maximum 3 connections (slices) per reel.

TR15 380mm (15") REEL

Case Size

6.3 x 6.3 18 800 1,000

6.3 x 8 18 500 900

8 x 10.5 26 300 500

10 x 10.5 26 300 500

12.5 x 14 34 - 250
16 x 17 46 - 200

W

±1.0

13" (330mm) 15" (380mm)

NATT Series

Qty per Reel

C

4 + 0.1

1.5∅ +0.1/-

1.5φ+0.1/-0

A

P

2mm ± 0.5mm

1.75 ±

-

+

Feeding

1.75 + 0.15
t

D

B

T

φ13mm
± 0.5mm

φ50mm min.

φ21mm

± 0.8mm

φ330mm ± 2.0mm

or φ380mm ± 2.0mm

W

3mm

NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com

SPECIFICATIONS ARE SUBJECT TO CHANGE

5
