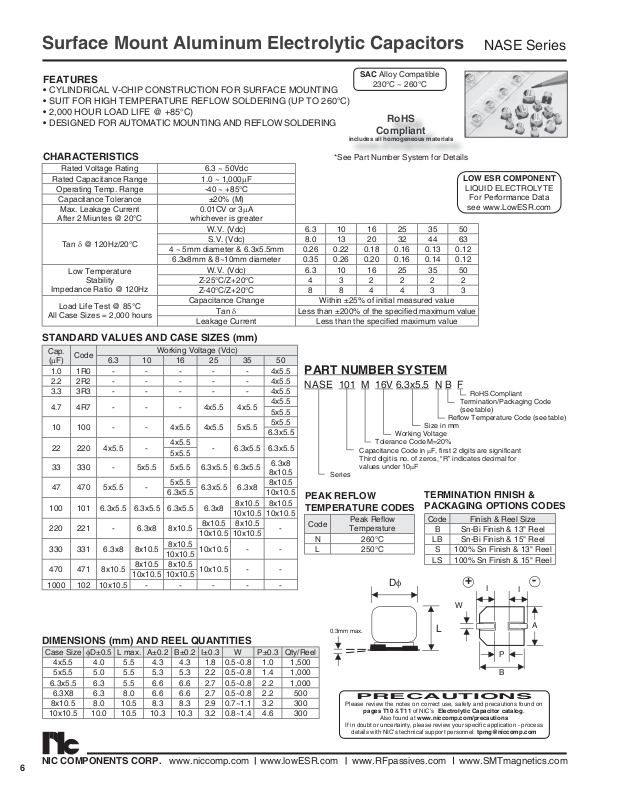

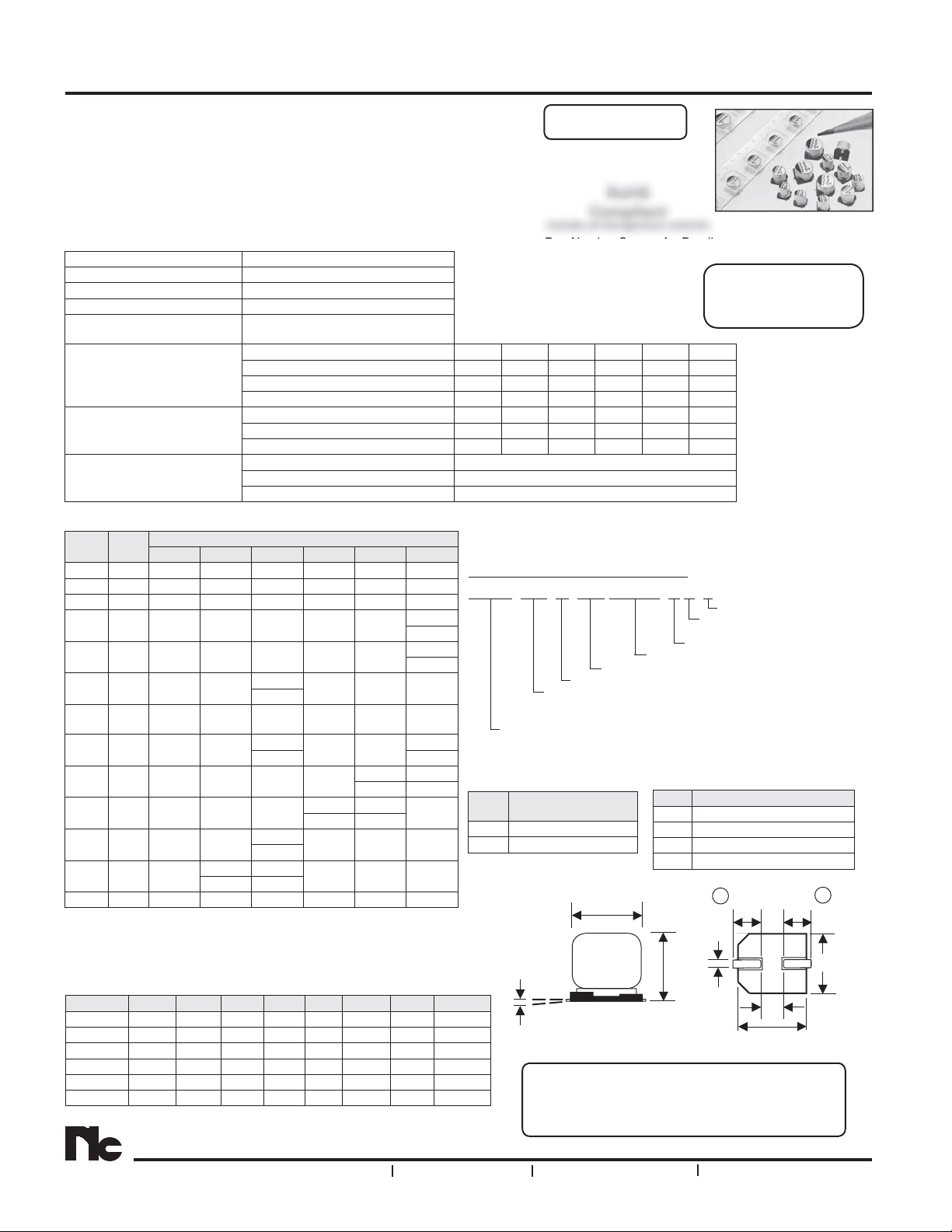

Surface Mount Aluminum Electrolytic Capacitors
NASE Series
FEATURES
• CYLINDRICAL V-CHIP CONSTRUCTION FOR SURFACE MOUNTING
• SUIT FOR HIGH TEMPERATURE REFLOW SOLDERING (UP TO 260°C)
• 2,000 HOUR LOAD LIFE @ +85°C)
• DESIGNED FOR AUTOMATIC MOUNTING AND REFLOW SOLDERING
CHARACTERISTICS
Rated Voltage Rating 6.3 ~ 50Vdc
Rated Capacitance Range 1.0 ~ 1,000μF
Operating Temp. Range -40 ~ +85°C
Capacitance Tolerance ±20% (M)
Max. Leakage Current
After 2 Miuntes @ 20°C
Tan δ @ 120Hz/20°C
Low Temperature
Stability
Impedance Ratio @ 120Hz
Load Life Test @ 85°C
All Case Sizes = 2,000 hours
4 ~ 5mm diameter & 6.3x5.5mm 0.26 0.22 0.18 0.16 0.13 0.12
0.01CV or 3μA
whichever is greater
W.V. (Vdc) 6.3 10 16 25 35 50
S.V. (Vdc) 8.0 13 20 32 44 63
6.3x8mm & 8~10mm diameter 0.35 0.26 0.20 0.16 0.14 0.12
W.V. (Vdc) 6.3 10 16 25 35 50
Z-25°C/Z+20°C 432222
Z-40°C/Z+20°C 884433
Capacitance Change Within ±25% of initial measured value
Tan δ Less than ±200% of the specifi ed maximum value
Leakage Current Less than the specifi ed maximum value
*See Part Number System for Details
STANDARD VALUES AND CASE SIZES (mm)
Cap.
Code
(μF)
1.01R0-----4x5.5
2.22R2-----4x5.5
3.33R3-----4x5.5
4.7 4R7 - - - 4x5.5 4x5.5
10 100 - - 4x5.5 4x5.5 5x5.5
22 220 4x5.5 -
33 330 - 5x5.5 5x5.5 6.3x5.5 6.3x5.5
47 470 5x5.5 -
100 101 6.3x5.5 6.3x5.5 6.3x5.5 6.3x8
220 221 - 6.3x8 8x10.5
330 331 6.3x8 8x10.5
470 471 8x10.5
1000 102 10x10.5 -----
6.3 10 16 25 35 50
Working Voltage (Vdc)
4x5.5
5x5.5
5x5.5
6.3x5.5 10x10.5
8x10.5
10x10.5
8x10.5 8x10.5
10x10.5 10x10.5
4x5.5
5x5.5
5x5.5
6.3x5.5
- 6.3x5.5 6.3x5.5
6.3x8
8x10.5
6.3x5.5 6.3x8
8x10.5 8x10.5
10x10.5 10x10.5
8x10.5 8x10.5
10x10.5 10x10.5
10x10.5 - -
10x10.5 - -
8x10.5
PART NUMBER SYSTEM
NASE 101 M 16V 6.3x5.5 N B F
RoHS Compliant
Termination/Packaging Code
(see table)
Refl ow Temperature Code (see table)
Size in mm
Working Voltage
Tolerance Code M=20%
Capacitance Code in μF, fi rst 2 digits are signifi cant
Third digit is no. of zeros, “R” indicates decimal for
values under 10μF
Series
PEAK REFLOW
TEMPERATURE CODES
Code
N 260°C
L 250°C
SAC Alloy Compatible
230°C ~ 260°C
RoHS
Compliant
includes all homogeneous materials
TERMINATION FINISH &
PACKAGING OPTIONS CODES
Peak Refl ow
Temperature
Code Finish & Reel Size
B Sn-Bi Finish & 13" Reel
LB Sn-Bi Finish & 15" Reel
S 100% Sn Finish & 13" Reel
LS 100% Sn Finish & 15" Reel
Dφ
LOW ESR COMPONENT
LIQUID ELECTROLYTE
For Performance Data
see www.LowESR.com
+ -
I
W
I
0.3mm max.
L
DIMENSIONS (mm) AND REEL QUANTITIES
Case Size φD±0.5 L max. A±0.2 B±0.2 I±0.3 W P±0.3 Qty/Reel
4x5.5 4.0 5.5 4.3 4.3 1.8 0.5~0.8 1.0 1,500
5x5.5 5.0 5.5 5.3 5.3 2.2 0.5~0.8 1.4 1,000
6.3x5.5 6.3 5.5 6.6 6.6 2.7 0.5~0.8 2.2 1,000
6.3X8 6.3 8.0 6.6 6.6 2.7 0.5~0.8 2.2 500
8x10.5 8.0 10.5 8.3 8.3 2.9 0.7~1.1 3.2 300
10x10.5 10.0 10.5 10.3 10.3 3.2 0.8~1.4 4.6 300
NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com
6
PRECAUTIONS
Please review the notes on correct use, safety and precautions found on
pages T10 & T11 of NIC’s Electrolytic Capacitor catalog.
If in doubt or uncertainty, please review your specifi c application - process
Also found at www.niccomp.com/precautions
details with NIC’s technical support personnel: [email protected]
P
B
A
Page 2
Surface Mount Aluminum Electrolytic Capacitors
STANDARD VALUES, CASE SIZES AND SPECIFICATIONS
Cap.
NIC Part Number
NASE220M6.3V4X5.5NBF 22
NASE470M6.3V5X5.5NBF 47 0.26 46 2,000
NASE101M6.3V6.3X5.5NBF 100 0.26 71 2,000
NASE331M6.3V6.3X8NBF 330 0.35 190 2,000
NASE471M6.3V8X10.5LBF 470 0.35 380 2,000
NASE102M6.3V10X10.5LBF 1000 0.35 700 2,000
NASE330M10V5X5.5NBF 33
NASE101M10V6.3X5.5NBF 100 0.22 71 2,000
NASE221M10V6.3X8NBF 220 0.26 175 2,000
NASE331M10V8X10.5LBF 330 0.26 330 2,000
NASE471M10V8X10.5LBF 470 0.26 380 2,000
NASE471M10V10X10.5LBF 470 0.26 680 2,000
NASE100M16V4X5.5NBF 10
NASE220M16V4X5.5NBF 22 0.18 30 2,000
NASE220M16V5X5.5NBF 22 0.18 39 2,000
NASE330M16V5X5.5NBF 33 0.18 43 2,000
NASE470M16V5X5.5NBF 47 0.18 50 2,000
NASE470M16V6.3X5.5NBF 47 0.18 60 2,000
NASE101M16V6.3X5.5NBF 100 0.18 86 2,000
NASE221M16V8X10.5LBF 220 0.20 290 2,000
NASE331M16V8X10.5LBF 330 0.20 330 2,000
NASE331M16V10X10.5LBF 330 0.20 670 2,000
NASE471M16V8X10.5LBF 470 0.20 385 2,000
NASE471M16V10X10.5LBF 470 0.20 690 2,000
NASE4R7M25V4X5.5NBF 4.7
NASE100M25V4X5.5NBF 10 0.16 25 2,000
NASE330M25V6.3X5.5NBF 33 0.16 54 2,000
NASE470M25V6.3X5.5NBF 47 0.16 60 2,000
NASE101M25V6.3X8NBF 100 0.16 145 2,000
NASE221M25V8X10.5LBF 220 0.16 300 2,000
NASE221M25V10X10.5LBF 220 0.16 560 2,000
NASE331M25V10X10.5LBF 330 0.16 680 2,000
NASE471M25V10X10.5LBF 470 0.16 680 2,000
NASE4R7M35V4X5.5NBF 4.7
NASE100M35V5X5.5NBF 10 0.13 30 2,000
NASE220M35V6.3X5.5NBF 22 0.13 48 2,000
NASE330M35V6.3X5.5NBF 33 0.13 58 2,000
NASE470M35V6.3X8NBF 47 0.14 105 2,000
NASE101M35V8X10.5LBF 100 0.14 280 2,000
NASE101M35V10X10.5LBF 100 0.14 480 2,000
NASE221M35V8X10.5LBF 220 0.14 280 2,000
NASE221M35V10X10.5LBF 220 0.14 570 2,000
NASE1R0M50V4X5.5NBF 1.0
NASE2R2M50V4X5.5NBF 2.2 0.12 14 2,000
NASE3R3M50V4X5.5NBF 3.3 0.12 17 2,000
NASE4R7M50V4X5.5NBF 4.7 0.12 18 2,000
NASE4R7M50V5X5.5NBF 4.7 0.12 22 2,000
NASE100M50V5X5.5NBF 10 0.12 30 2,000
NASE100M50V6.3X5.5NBF 10 0.12 35 2,000
NASE220M50V6.3X5.5NBF 22 0.12 48 2,000
NASE330M50V6.3X8NBF 33 0.12 95 2,000
NASE330M50V8X10.5LBF 33 0.12 200 2,000
NASE470M50V8X10.5LBF 47 0.12 240 2,000
NASE470M50V10X10.5LBF 47 0.12 280 2,000
NASE101M50V8X10.5LBF 100 0.12 320 2,000
NASE101M50V10X10.5LBF 100 0.12 500 2,000
(μF)
W.V.
(Vdc)
6.3
10
16
25
35
50
Dissipaton Factor
(Tan δ)
0.26 29 2,000
0.22 43 2,000
0.18 25 2,000
0.16 18 2,000
0.13 18 2,000
0.12 8.4 2,000
Max. Ripple Current (mA)
+85°C/120Hz
Load Life Hours
@ +85°C
NASE Series
NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com
7
Page 3

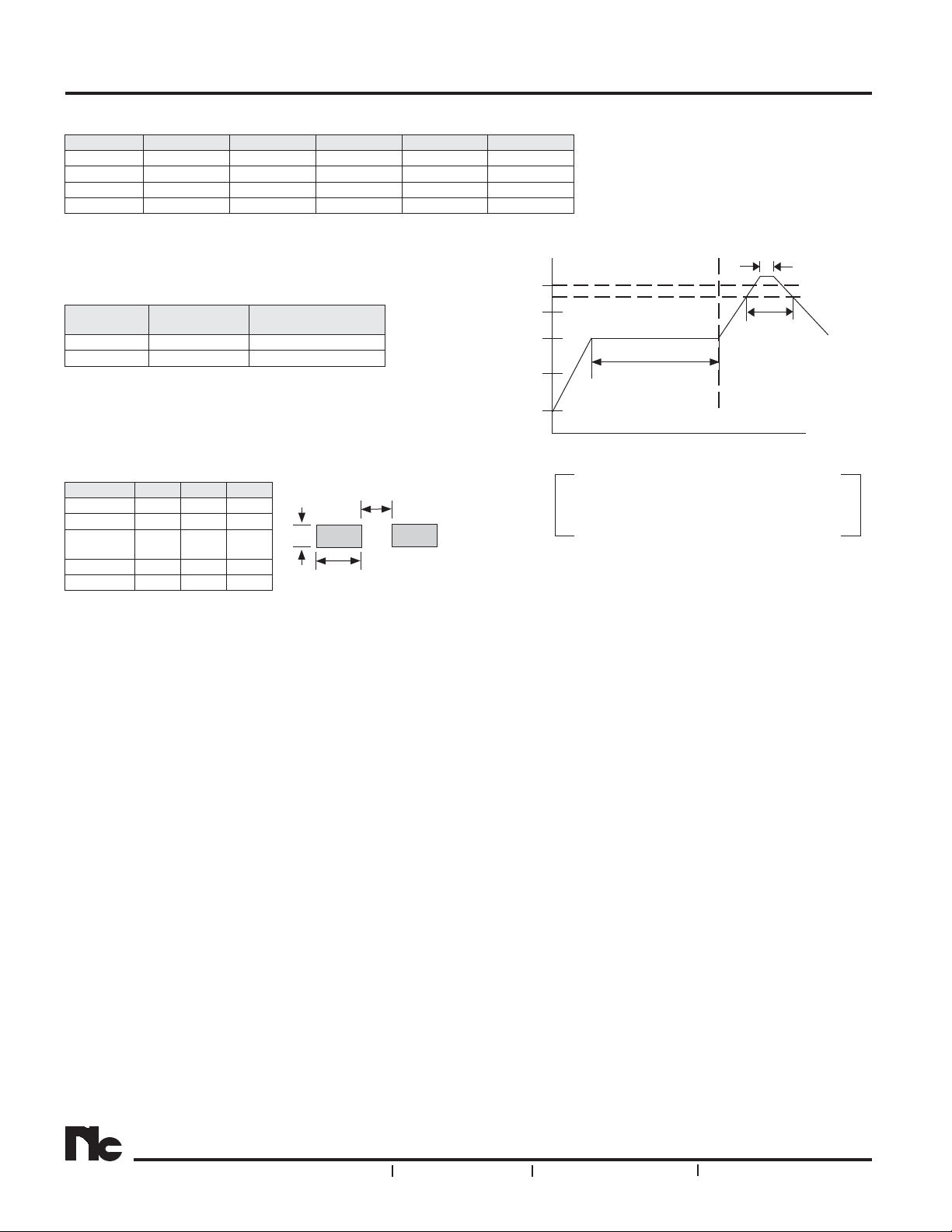

Surface Mount Aluminum Electrolytic Capacitors
RIPPLE CURRENT FREQUENCY CORRECTION FACTORS
Frequency 50/60Hz 120Hz 500Hz 1KHz 10KHz
1μF 0.5 1.00 1.20 1.30 1.50
2.2~4.7μF 0.65 1.00 1.20 1.30 1.50
10~47μF 0.80 1.00 1.20 1.30 1.50
100~1000μF 0.80 1.00 1.10 1.15 1.20
PEAK REFLOW TEMPERATURE AND DURATION
Diameter
4 ~ 6.3mm φ 60 sec. max. 260°C
8 ~ 10mm φ 60 sec. max. 250°C
Capacitors can withstand two times reflow at the above conditions.
Second reflow shall be at least one hour after natural cool to room
temperature.
Time above
217°C
Peak Temperature
5 seconds
RECOMMENDED LAND PATTERN DIMENSIONS (mm)
Case Size a b c
4x5.5 1.0 2.6 1.8
5x5.5 1.4 3.0 1.8
6x3x5.5
6.3x8
8x10.5 2.8 4.1 2.1
10x10.5 4.3 4.4 2.2
2.1 3.5 1.8
c
a
b
230
200
150
100
50
Temperature - Deg. C
Preheat - 120 seconds max.
(150°C ~ 180°C)
Review & Compare Refl ow Soldering Heat Limits
V-chip SMT Aluminum Electrolytic Capacitors
Time (Seconds)
www.niccomp.com/RSL
NASE Series
Peak Temperature
(see table)
Time Above 217°C
(see table)
NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com
8
Page 4

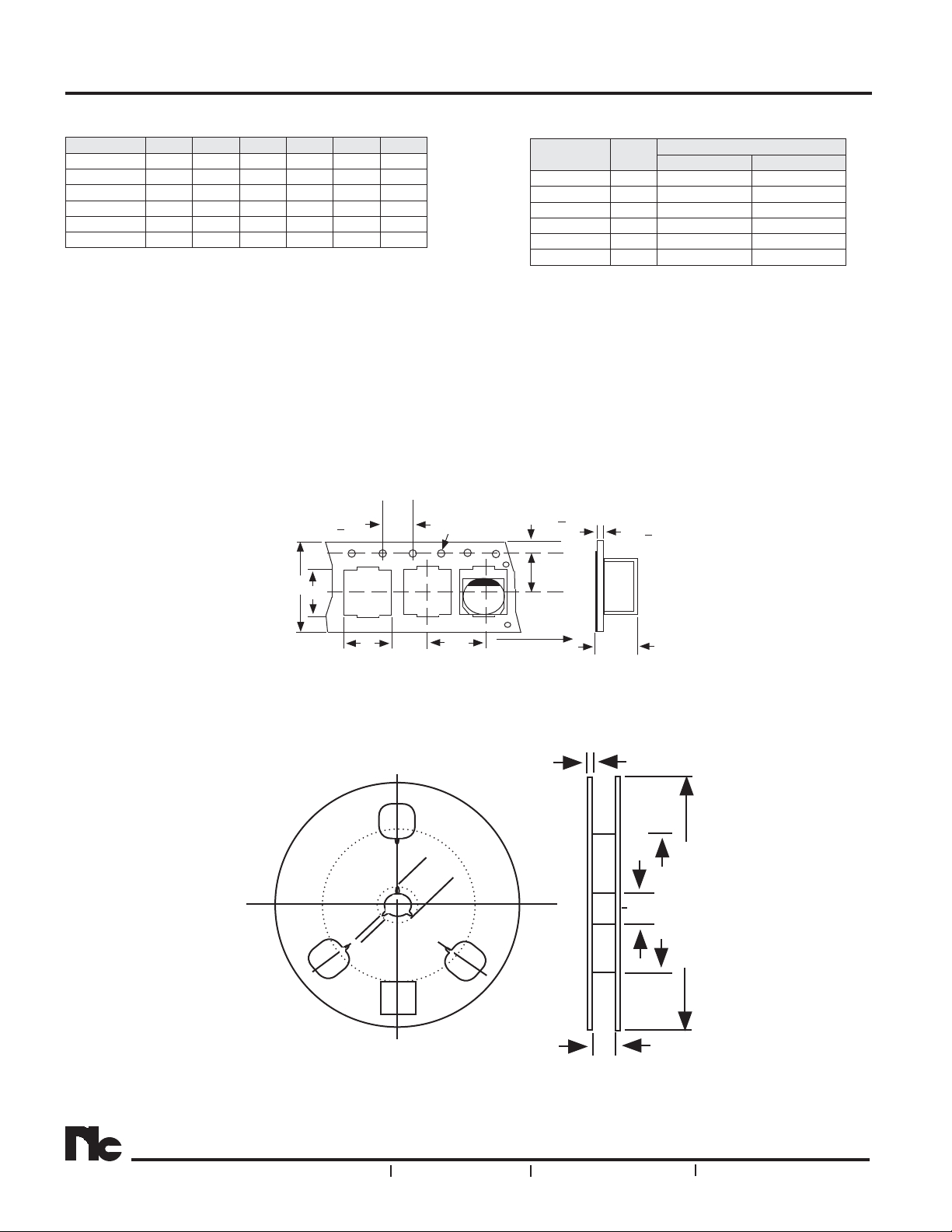

Surface Mount Aluminum Electrolytic Capacitors
TR13 330mm (13") REEL
CARRIER TAPE
Case Size A ±0.5 B ±0.2 C ±0.3 D ±0.1 P ±0.1 T ±0.2
4 x 5.5 4.7 4.7 12.0 5.5 8.0 5.8
5 x 5.5 5.7 5.7 12.0 5.5 12.0 5.8
6.3 x 5.5 7.0 7.0 16.0 7.5 12.0 5.8
6.3 x 8 7.0 7.0 16.0 7.5 12.0 8.3
8 X 10.5 8.7 8.7 24.0 11.5 16.0 11.1
10 x 10.5 10.7 10.7 24.0 11.5 16.0 11.2
TAPING SPECIFICATIONS (mm)
1. Both Leader and Trailer tape: Minimum 40mm (1.57") empty carrier tape pockets.
2. Leader tape: Approximately 20cm of cover tape at leader.
3. Connection: Maximum 3 connections (slices) per reel.
CARRIER
TR15 380mm (15") REEL
Case Size W ±1.0
4 x 5.5 14.0 1,500 pcs 2,000 pcs
5 x 5.5 14.0 1,000 pcs -
6.3 x 5.5 18.0 1,000 pcs -
6.3 x 8 18.0 500 pcs 900 pcs
8 X 10.5 26.0 300 pcs 500 pcs
10 x 8 26.0 400 pcs 500 pcs
13" Reel 15" Reel
NASE Series
Quantity Per Reel
C
4 + 0.1
B
A
2.0±0.5
±0.8
21
1.5∅ +0.1/-
1.5φ+0.1/-0
REEL
1.75 ±
-
+
Feeding
1.75 + 0.15
0.4 + 0.2
D
T
3.0 ± 0.5
13∅ ±0.5
50∅ Min.
330 or 380 mm
W
