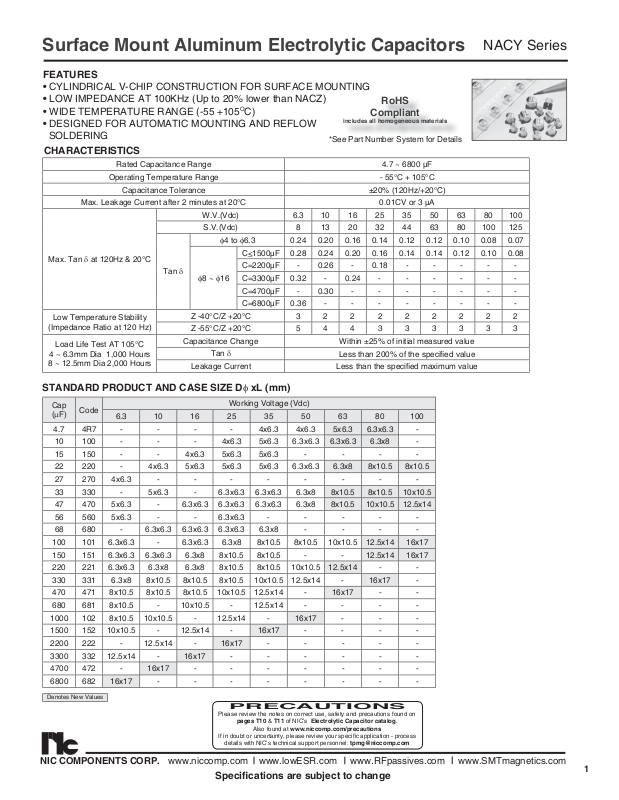

Datasheet NIC [smd] NACY Series Datasheet

Surface Mount Aluminum Electrolytic Capacitors

FEATURES

• CYLINDRICAL V-CHIP CONSTRUCTION FOR SURFACE MOUNTING

• LOW IMPEDANCE AT 100KHz (Up to 20% lower than NACZ)

O

• WIDE TEMPERATURE RANGE (-55 +105

C)

• DESIGNED FOR AUTOMATIC MOUNTING AND REFLOW

..SOLDERING

CHARACTERISTICS

Rated Capacitance Range 4.7 ~ 6800 μF

Operating Temperature Range - 55°C + 105°C

Capacitance Tolerance ±20% (120Hz/+20°C)

Max. Leakage Current after 2 minutes at 20°C 0.01CV or 3 μA

W.V.(Vdc) 6.3 10 16 25 35 50 63 80 100

S.V.(Vdc) 8 13 20 32 44 63 80 100 125

Max. Tan δ at 120Hz & 20°C

Low Temperature Stability

(Impedance Ratio at 120 Hz)

Load Life Test AT 105°C
4 ~ 6.3mm Dia 1,000 Hours
8 ~ 12.5mm Dia 2,000 Hours

φ4 to φ6.3

C<1500μF 0.28 0.24 0.20 0.16 0.14 0.14 0.12 0.10 0.08

Tan δ

φ8 ~ φ16

Z -40°C/Z +20°C 3 2 2 2 2 2 2 2 2

Z -55°C/Z +20°C 5 4 4 3 3 3 3 3 3

Capacitance Change Within ±25% of initial measured value

Tan δ

Leakage Current Less than the specifi ed maximum value

C=2200μF - 0.26 - 0.18 - - - - -

C=3300μF 0.32 - 0.24 ------

C=4700μF - 0.30 - ------

C=6800μF 0.36 - - ------

0.24 0.20 0.16 0.14 0.12 0.12 0.10 0.08 0.07

includes all homogeneous materials

*See Part Number System for Details

Less than 200% of the specifi ed value

RoHS

Compliant

NACY Series

STANDARD PRODUCT AND CASE SIZE Dφ xL (mm)

Cap

Code

(μF)

4.7 4R7 - - - - 4x6.3 4x6.3 5x6.3 6.3x6.3 -

10 100 - - - 4x6.3 5x6.3 6.3x6.3 6.3x6.3 6.3x8 -

15 150 - - 4x6.3 5x6.3 5x6.3 - - - -

22 220 - 4x6.3 5x6.3 5x6.3 5x6.3 6.3x6.3 6.3x8 8x10.5 8x10.5

27 270 4x6.3 - - - - - - - -

33 330 - 5x6.3 - 6.3x6.3 6.3x6.3 6.3x8 8x10.5 8x10.5 10x10.5

47 470 5x6.3 - 6.3x6.3 6.3x6.3 6.3x6.3 6.3x8 8x10.5 10x10.5 12.5x14

56 560 5x6.3 - - 6.3x6.3 - - - - -

68 680 - 6.3x6.3 6.3x6.3 6.3x6.3 6.3x8 - - - -

100 101 6.3x6.3 - 6.3x6.3 6.3x8 8x10.5 8x10.5 10x10.5 12.5x14 16x17

150 151 6.3x6.3 6.3x6.3 6.3x8 8x10.5 8x10.5 - - 12.5x14 16x17

220 221 6.3x6.3 6.3x8 6.3x8 8x10.5 8x10.5 10x10.5 12.5x14 - -

330 331 6.3x8 8x10.5 8x10.5 8x10.5 10x10.5 12.5x14 - 16x17 -

470 471 8x10.5 8x10.5 8x10.5 10x10.5 12.5x14 - 16x17 - -

680 681 8x10.5 - 10x10.5 - 12.5x14 - - - -

1000 102 8x10.5 10x10.5 - 12.5x14 - 16x17 - - -

1500 152 10x10.5 - 12.5x14 - 16x17 - - - -

2200 222 - 12.5x14 - 16x17 - - - - -

3300 332 12.5x14 - 16x17 - - - - - -

4700 472 - 16x17 - - - - - - -

6800 682 16x17 - - - - - - - -

Denotes New Values

6.3 10 16 25 35 50 63 80 100

Working Voltage (Vdc)

PRECAUTIONS

Please review the notes on correct use, safety and precautions found on

pages T10 & T11 of NIC’s Electrolytic Capacitor catalog.

If in doubt or uncertainty, please review your specifi c application - process

Also found at www.niccomp.com/precautions

details with NIC’s technical support personnel: [email protected]

NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com

Specifi cations are subject to change

1

Surface Mount Aluminum Electrolytic Capacitors

NACY Series

STANDARD VALUES, CASE SIZES AND SPECIFICATIONS

NIC Part Number

NACY270M6.3V4X6.3TR13F 27
NACY470M6.3V5X6.3TR13F 47 0.24 170 0.7 1,000

NACY560M6.3V5X6.3TR13F 56 0.24 170 0.7 1,000
NACY101M6.3V6.3X6.3TR13F 100 0.24 250 0.39 1,000
NACY151M6.3V6.3X6.3TR13F 150 0.24 250 0.39 1,000
NACY221M6.3V6.3X6.3TR13F 220 0.24 250 0.39 1,000

NACY331M6.3V6.3X8TR13F 330 0.24 300 0.3 1,000

NACY471M6.3V8X10.5TR13F 470 0.28 600 0.15 2,000
NACY681M6.3V8X10.5TR13F 680 0.28 600 0.15 2,000

NACY102M6.3V8X10.5TR13F 1000 0.28 600 0.15 2,000
NACY152M6.3V10X10.5TR13F 1500 0.28 850 0.08 2,000
NACY332M6.3V12.5X14TR15F 3300 0.32 1150 0.058 2,000

NACY682M6.3V16X17TR15F 6800 0.36 1800 0.035 2,000

NACY220M10V4X6.3TR13F 22

NACY330M10V5X6.3TR13F 33 0.20 170 0.7 1,000
NACY680M10V6.3X6.3TR13F 68 0.20 250 0.39 1,000
NACY151M10V6.3X6.3TR13F 150 0.20 250 0.39 1,000

NACY221M10V6.3X8TR13F 220 0.20 300 0.3 1,000

NACY331M10V8X10.5TR13F 330 0.24 600 0.15 2,000

NACY471M10V8X10.5TR13F 470 0.24 600 0.15 2,000
NACY102M10V10X10.5TR13F 1000 0.24 850 0.08 2,000
NACY222M10V12.5X14TR15F 2200 0.26 1150 0.058 2,000

NACY472M10V16X17TR15F 4700 0.30 1800 0.035 2,000

NACY150M16V4X6.3TR13F 15

NACY220M16V5X6.3TR13F 22 0.16 170 0.7 1,000
NACY470M16V6.3X6.3TR13F 47 0.16 250 0.39 1,000
NACY680M16V6.3X6.3TR13F 68 0.16 250 0.39 1,000
NACY101M16V6.3X6.3TR13F 100 0.16 250 0.39 1,000

NACY151M16V6.3X8TR13F 150 0.16 300 0.3 1,000

NACY221M16V6.3X8TR13F 220 0.16 300 0.3 1,000

NACY331M16V8X10.5TR13F 330 0.20 600 0.15 2,000

NACY471M16V8X10.5TR13F 470 0.20 600
NACY681M16V10X10.5TR13F 680 0.20 850 0.08 2,000
NACY152M16V12.5X14TR15F 1500 0.20 1150 0.058 2,000

NACY332M16V16X17TR15F 3300 0.24 1800 0.035 2,000

NACY100M25V4X6.3TR13F 10
NACY150M25V5X6.3TR13F 15 0.14 170 0.7 1,000

NACY220M25V5X6.3TR13F 22 0.14 170 0.7 1,000
NACY330M25V6.3X6.3TR13F 33 0.14 250 0.39 1,000
NACY470M25V6.3X6.3TR13F 47 0.14 250 0.39 1,000
NACY560M25V6.3X6.3TR13F 56 0.14 250 0.39 1,000
NACY680M25V6.3X6.3TR13F 68 0.14 250 0.39 1,000

NACY101M25V6.3X8TR13F 100 0.14 300 0.3 1,000

NACY151M25V8X10.5TR13F 150 0.16 600 0.15 2,000
NACY221M25V8X10.5TR13F 220 0.16 600 0.15 2,000

NACY331M25V8X10.5TR13F 330 0.16 600 0.15 2,000
NACY471M25V10X10.5TR13F 470 0.16 850 0.08 2,000
NACY102M25V12.5X14TR15F 1000 0.16 1150 0.058 2,000

NACY222M25V16X17TR15F 2200 0.18 1800 0.035 2,000
NACY4R7M35V4X6.3TR13F 4.7

NACY100M35V5X6.3TR13F 10 0.12 170 0.7 1,000
NACY150M35V5X6.3TR13F 15 0.12 170 0.7 1,000

NACY220M35V5X6.3TR13F 22 0.12 170 0.7 1,000
NACY330M35V6.3X6.3TR13F 33 0.12 250 0.39 1,000
NACY470M35V6.3X6.3TR13F 47 0.12 250 0.39 1,000

NACY680M35V6.3X8TR13F 68 0.12 300 0.30 1,000

NACY101M35V8X10.5TR13F 100 0.14 600 0.15 2,000
NACY151M35V8X10.5TR13F 150 0.14 600 0.15 2,000
NACY221M35V8X10.5TR13F 220 0.14 600 0.15 2,000

For Automotive Equipment, see part number system

Cap.

(μF)

W.V.

(Vdc)

6.3

10

16

25

35

Dissipaton Factor

(Tan δ)

0.24 90 1.45 1,000

0.20 90 1.45 1,000

0.16 90 1.45 1,000

0.14 90 1.45 1,000

0.12 90 1.45 1,000

Max. Ripple Current (mA)

+105°C/100kHz

Max. Z (Ω)

+20°C/100kHz

0.15 2,000

Load Life Hours

@ +105°C

NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com

2

Specifi cations are subject to change

Surface Mount Aluminum Electrolytic Capacitors

NACY Series

STANDARD VALUES, CASE SIZES AND SPECIFICATIONS

NIC Part Number

NACY331M35V10X10.5TR13F 330
NACY471M35V12.5X14TR15F 470 0.14 1150 0.058 2,000
NACY681M35V12.5X14TR15F 680 0.14 1150 0.058 2,000

NACY152M35V16X17TR15F 1500 0.14 1800 0.035 2,000

NACY4R7M50V4X6.3TR13F 4.7
NACY100M50V6.3X6.3TR13F 10 0.12 215 0.52 1,000
NACY220M50V6.3X6.3TR13F 22 0.12 215 0.52 1,000

NACY330M50V6.3X8TR13F 33 0.12 243 0.44 1,000
NACY470M50V6.3X8TR13F 47 0.12 243 0.44 1,000

NACY101M50V8X10.5TR13F 100 0.14 400 0.22 2,000
NACY221M50V10X10.5TR13F 220 0.14 585 0.13 2,000
NACY331M50V12.5X14TR15F 330 0.14 800 0.10 2,000

NACY102M50V16X17TR15F 1000 0.14 1610 0.065 2,000
NACY4R7M63V5X6.3TR13F 4.7

NACY100M63V6.3X6.3TR13F 10 0.10 90 1.00 1,000

NACY220M63V6.3X8TR13F 22 0.10 135 0.80 1,000
NACY330M63V8X10.5TR13F 33 0.12 280 0.35 2,000
NACY470M63V8X10.5TR13F 47 0.12 280 0.35 2,000

NACY101M63V10X10.5TR13F 100 0.12 480 0.20 2,000
NACY221M63V12.5X14TR15F 220 0.12 800 0.14 2,000

NACY471M63V16X17TR15F 470 0.12 1410 0.065 2,000

NACY4R7M80V6.3X6.3TR13F 4.7

NACY100M80V6.3X8TR13F 10 0.08 65 2.00 1,000
NACY220M80V8X10.5TR13F 22 0.10 140 0.90 2,000
NACY330M80V8X10.5TR13F 33 0.10 140 0.90

NACY470M80V10X10.5TR13F 47 0.10 220 0.50 2,000
NACY101M80V12.5X14TR15F 100 0.10 500 0.24 2,000
NACY151M80V12.5X14TR15F 150 0.10 500 0.24 2,000

NACY331M80V16X17TR15F 330 0.10 800 0.14 2,000

NACY220M100V8X10.5TR13F 22
NACY330M100V10X10.5TR13F 33 0.08 220 0.50 2,000
NACY470M100V12.5X14TR15F 47 0.08 500 0.24 2,000

NACY101M100V16X17TR15F 100 0.08 800 0.14 2,000
NACY151M100V16X17TR15F 150 0.08 800 0.14 2,000

For Automotive Equipment, see part number system

Cap.

(μF)

W.V.

(Vdc)

35

50

63

80

100

Dissipaton Factor

(Tan δ)

0.14 850 0.08 2,000

0.12 64 2.55 1,000

0.10 55 2.00 1,000

0.08 45 2.40 1,000

0.08 140 0.90 2,000

Max. Ripple Current (mA)

+105°C/100kHz

Max. Z (Ω)

+20°C/100kHz

Load Life Hours

RIPPLE CURRENT
FREQUENCY CORRECTION FACTOR

Frequency < 120Hz < 1KHz < 10KHz < 100KHz
Correction

Factor

0.75 0.85 0.95 1.00

@ +105°C

2,000

PART NUMBER SYSTEM

NACY 100 M 25V 4x6.3 TR 13 Y F

RoHS Compliant

13 = 13” (330mm) Reel, 15 = 15" (380mm) Reel
Tape & Reel
Size in mm
Working Voltage
Tolerance Code M=20%
Capacitance Code in mF, fi rst 2 digits are signifi cant
Third digit is no. of zeros, “R” indicates decimal for
values under 10μF
Series

Optional: Suitable for automotive equipment, sourced to special
production and inspection at TS-16949 certifi ed production site

NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com

Specifi cations are subject to change

3

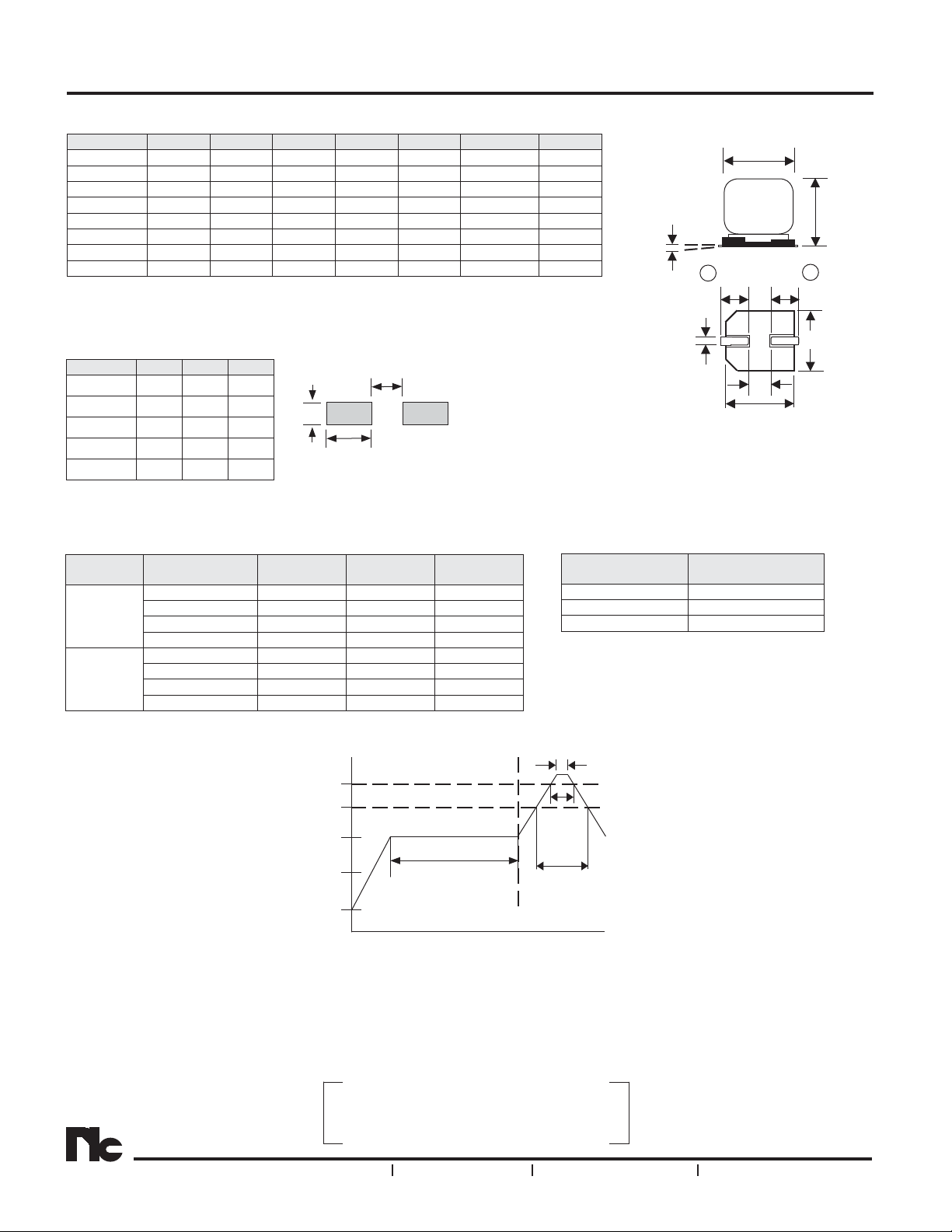

Surface Mount Aluminum Electrolytic Capacitors

DIMENSIONS (mm)

Case Size Dφ ±0.5 L max. A ±0.2 B ±0.2 I ±0.2 W P ±0.2

4 x 6.3 4.0 6.3 4.3 4.3 1.8 0.5 ~ 0.8 1.0
5 x 6.3 5.0 6.3 5.3 5.3 2.2 0.5 ~ 0.8 1.5

6.3 x 6.3 6.3 6.3 6.6 6.6 2.5 0.5 ~ 0.8 2.2

6.3 x 8 6.3 8.0 6.6 6.6 2.5 0.5 ~ 0.8 2.2

8 X 10.5 8.0 10.5 8.3 8.3 2.9 0.7 ~ 1.0 3.2

10 x 10.5 10.0 10.5 10.3 10.3 3.2 0.7 ~ 1.4 4.6

12.5 x 14 12.5 14.0 12.8 12.8 4.5 0.6 ~ 1.4 4.6
16x17 16.0 17 16.3 16.3 5.0 1.8 ~ 2.1 7.0

0.3mm max.

+ -

W

NACY Series

Dφ

L

I

I

RECOMMENDED LAND PATTERN DIMENSIONS (mm)

Case Size a b c

4 φ 1.0 2.6 1.8

5 φ 1.4 3.0 1.8

6.3 φ 2.1 3.5 1.8

8 φ 2.8 4.1 2.1

10 φ 4.3 4.4 2.5

c

a

b

REFLOW TEMPERATURES AND DURATION

Voltage Diameter

4 ~ 6.3mm φ 70 sec. max. 40 sec. max. 250°C

6.3 ~ 63V

80V ~ 100V

8mm φ 60 sec. max 30 sec. max. 245°C

10mm ~ 12mm φ 50 sec. max. 20 sec. max. 240°C

16mm φ 50 sec. max. 15 sec. max. 235°C

6.3mm φ 60 sec. max. 40 sec. max. 250°C
8mm φ 50 sec. max. 30 sec. max. 240°C

10mm ~ 12mm φ 50 sec. max. 20 sec. max. 235°C

16mm φ 45 sec. max. 10 sec. max. 235°C

Time above

200°C

Time above

230°C

Temperature

230

200

Peak

P

B

Case

Diameter

4 ~ 8mm φ 97% Sn, 3% Bi

10 ~ 12.5mm 99.3% Sn, 0.7% Bi

16mm 100% Sn

Peak Temperature

(see table)

Time Above 230°C

(see table)

Termination

Material

A

150

100

50

Temperature - Deg. C

Review & Compare Refl ow Soldering Heat Limits

V-chip SMT Aluminum Electrolytic Capacitors

Preheat - 120 seconds max.

(150°C ~ 180°C)

Time (Seconds)

www.niccomp.com/RSL

Time Above

200°C

(see table)
