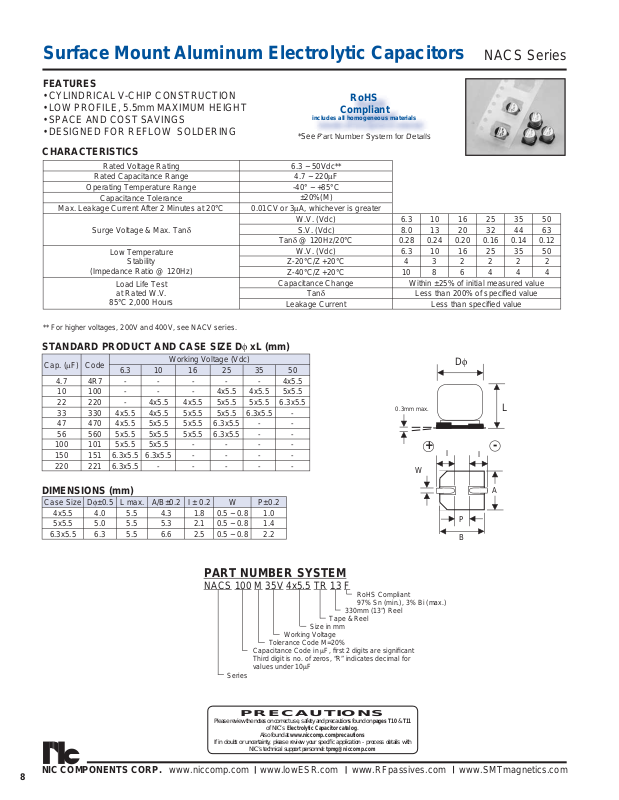

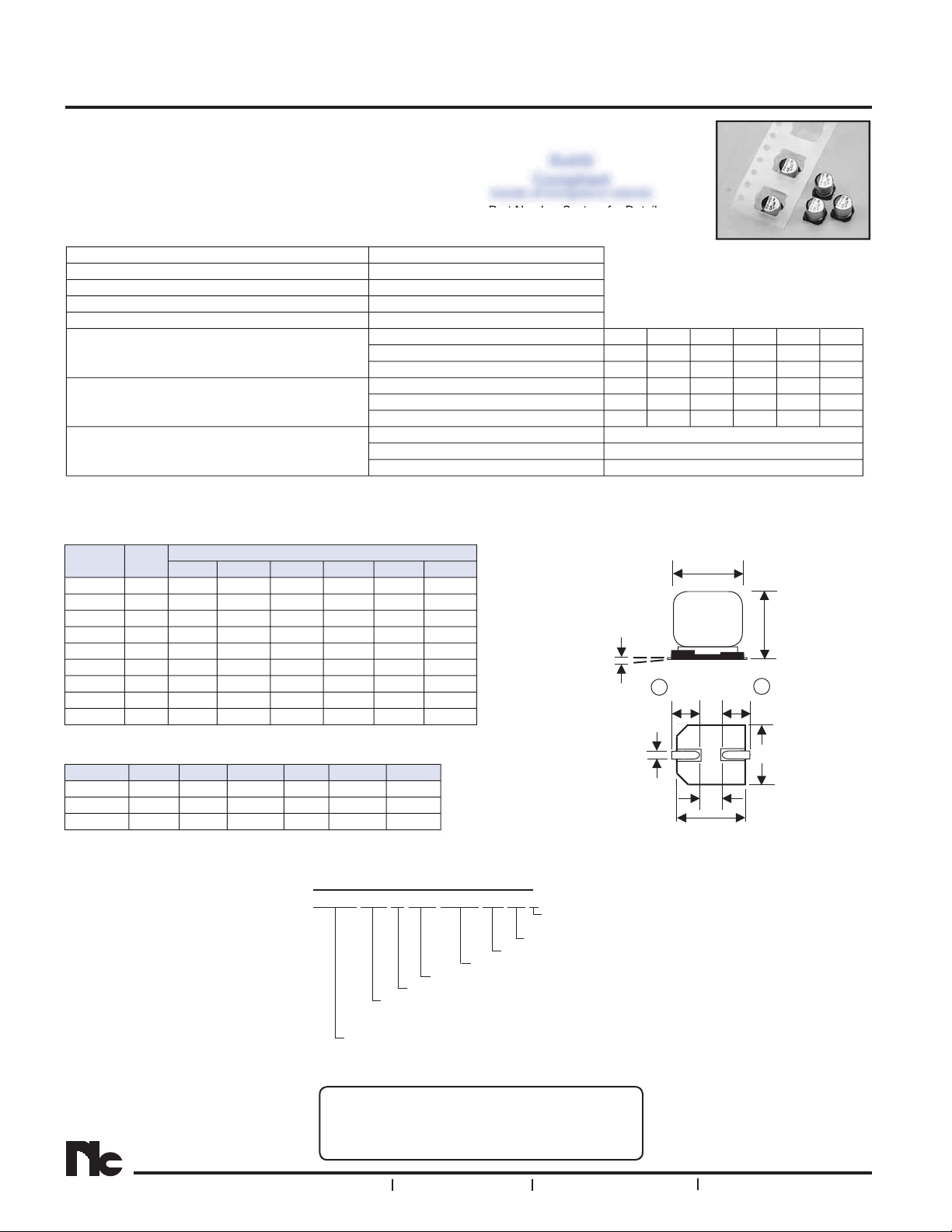

Datasheet NIC [smd] NACS Series Datasheet

Surface Mount Aluminum Electrolytic Capacitors

*See Part Number System for Details

FEATURES

• CYLINDRICAL V-CHIP CONSTRUCTION

• LOW PROFILE, 5.5mm MAXIMUM HEIGHT

• SPACE AND COST SAVINGS

• DESIGNED FOR REFLOW SOLDERING

CHARACTERISTICS

Rated Voltage Rating 6.3 ~ 50Vdc**

Rated Capacitance Range

Operating Temperature Range -40° ~ +85°C

Capacitance Tolerance

Max. Leakage Current After 2 Minutes at 20°C

Surge Voltage & Max. Tanδ

Low Temperature

Stability

(Impedance Ratio @ 120Hz)

Load Life Test
at Rated W.V.

85°C 2,000 Hours

** For higher voltages, 200V and 400V, see NACV series.

0.01CV or 3μA, whichever is greater

Tanδ @ 120Hz/20°C

Capacitance Change Within ±25% of initial measured value

STANDARD PRODUCT AND CASE SIZE Dφ xL (mm)

Cap. (μF) Code

4.7 4R7 - - - - - 4x5.5
10 100 - - - 4x5.5 4x5.5 5x5.5
22 220 - 4x5.5 4x5.5 5x5.5 5x5.5 6.3x5.5
33 330 4x5.5 4x5.5 5x5.5 5x5.5 6.3x5.5 ­47 470 4x5.5 5x5.5 5x5.5 6.3x5.5 - ­56 560 5x5.5 5x5.5 5x5.5 6.3x5.5 - -

100 101 5x5.5 5x5.5 - - - ­150 151 6.3x5.5 6.3x5.5 - - - ­220 221 6.3x5.5 - - - - -

6.3 10 16 25 35 50

Working Voltage (Vdc)

includes all homogeneous materials

4.7 ~ 220μF

±20%(M)

W.V. (Vdc) 6.3 10 16 25 35 50

S.V. (Vdc) 8.0 13 20 32 44 63

W.V. (Vdc) 6.3 10 16 25 35 50
Z-20°C/Z +20°C
Z-40°C/Z +20°C

Tanδ

Leakage Current Less than specifi ed value

RoHS

Compliant

0.28 0.24 0.20 0.16 0.14 0.12

432222

1086444

Less than 200% of specifi ed value

Dφ

0.3mm max.

+ -

I

W

NACS Series

L

I

DIMENSIONS (mm)

Case Size

4x5.5 4.0 5.5 4.3 1.8 0.5 ~ 0.8 1.0
5x5.5 5.0 5.5 5.3 2.1 0.5 ~ 0.8 1.4

6.3x5.5 6.3 5.5 6.6 2.5 0.5 ~ 0.8 2.2

Dφ±0.5

L max. A/B±0.2 I ± 0.2 W P±0.2

P
B

A

PART NUMBER SYSTEM

NACS 100 M 35V 4x5.5 TR 13 F

RoHS Compliant
97% Sn (min.), 3% Bi (max.)
330mm (13”) Reel
Tape & Reel
Size in mm
Working Voltage
Tolerance Code M=20%
Capacitance Code in μF, fi rst 2 digits are signifi cant
Third digit is no. of zeros, “R” indicates decimal for
values under 10μF
Series

PRECAUTIONS

Please review the notes on correct use, safety and precautions found on pages T10 & T11

If in doubt or uncertainty, please review your specifi c application - process details with

NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com

8

of NIC’s Electrolytic Capacitor catalog.

Also found at www.niccomp.com/precautions

NIC’s technical support personnel: [email protected]

Surface Mount Aluminum Electrolytic Capacitors

NACS Series

STANDARD VALUES, CASE SIZES AND SPECIFICATIONS

Cap.

W.V.

NIC Part Number

NACS330M6.3V4X5.5TR13F 33
NACS470M6.3V4X5.5TR13F 47 0.28 36 9.88 2,000
NACS560M6.3V5X5.5TR13F 56 0.28 46 8.29 2,000

NACS101M6.3V5X5.5TR13F 100 0.28 47 4.64 2,000
NACS151M6.3V6.3X5.5TR13F 150 0.28 71 3.10 2,000
NACS221M6.3V6.3X5.5TR13F 220 0.28 74 2.11 2,000

NACS220M10V4X5.5TR13F 22
NACS330M10V4X5.5TR13F 33 0.24 32 12.6 2,000
NACS470M10V5X5.5TR13F 47 0.24 43 8.47 2,000
NACS560M10V5X5.5TR13F 56 0.24 46 7.11 2,000
NACS101M10V5X5.5TR13F 100 0.24 50 3.98 2,000

NACS151M10V6.3X5.5TR13F 150 0.24 76 2.66 2,000

NACS220M16V4X5.5TR13F 22
NACS330M16V5X5.5TR13F 33 0.20 40 10.1 2,000
NACS470M16V5X5.5TR13F 47 0.20 44 7.06 2,000
NACS560M16V5X5.5TR13F 56 0.20 48 5.92 2,000
NACS100M25V4X5.5TR13F 10
NACS220M25V5X5.5TR13F 22 0.16 35 12.1 2,000

NACS330M25V5X5.5TR13F 33 0.16 42 8.04 2,000
NACS470M25V6.3X5.5TR13F 47 0.16 65 5.65 2,000
NACS560M25V6.3X5.5TR13F 56 0.16 68 4.74 2,000

NACS100M35V4X5.5TR13F 10

NACS220M35V5X5.5TR13F 22 0.14 36 10.6 2,000
NACS330M35V6.3X5.5TR13F 33 0.14 65 7.04 2,000

NACS4R7M50V4X5.5TR13F 4.7

NACS100M50V5X5.5TR13F 10 0.12 27 19.9 2,000
NACS220M50V6.3X5.5TR13F 22 0.12 40 9.05 2,000

(μF)

(Vdc)

6.3

10

16

25

35

50

Dissipaton Factor

(Tan δ)

0.28 31 14.1 2,000

0.24 28 18.1 2,000

0.20 28 15.1 2,000

0.16 20 26.5 2,000

0.14 20 23.2 2,000

0.12 18 42.3 2,000

Max. Ripple Current (mA)

+85°C/120Hz

Max. ESR (Ω)

+20°C/120Hz

Load Life Hours

@ +85°C

RIPPLE CURRENT FREQUENCY CORRECTION FACTOR

Frequency Hz 50 < f<100 100 < f<1K 1K < f<10K f > 10K

Correcton

Factor

0.8 1.0 1.3 1.5

NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com

9

Surface Mount Aluminum Electrolytic Capacitors

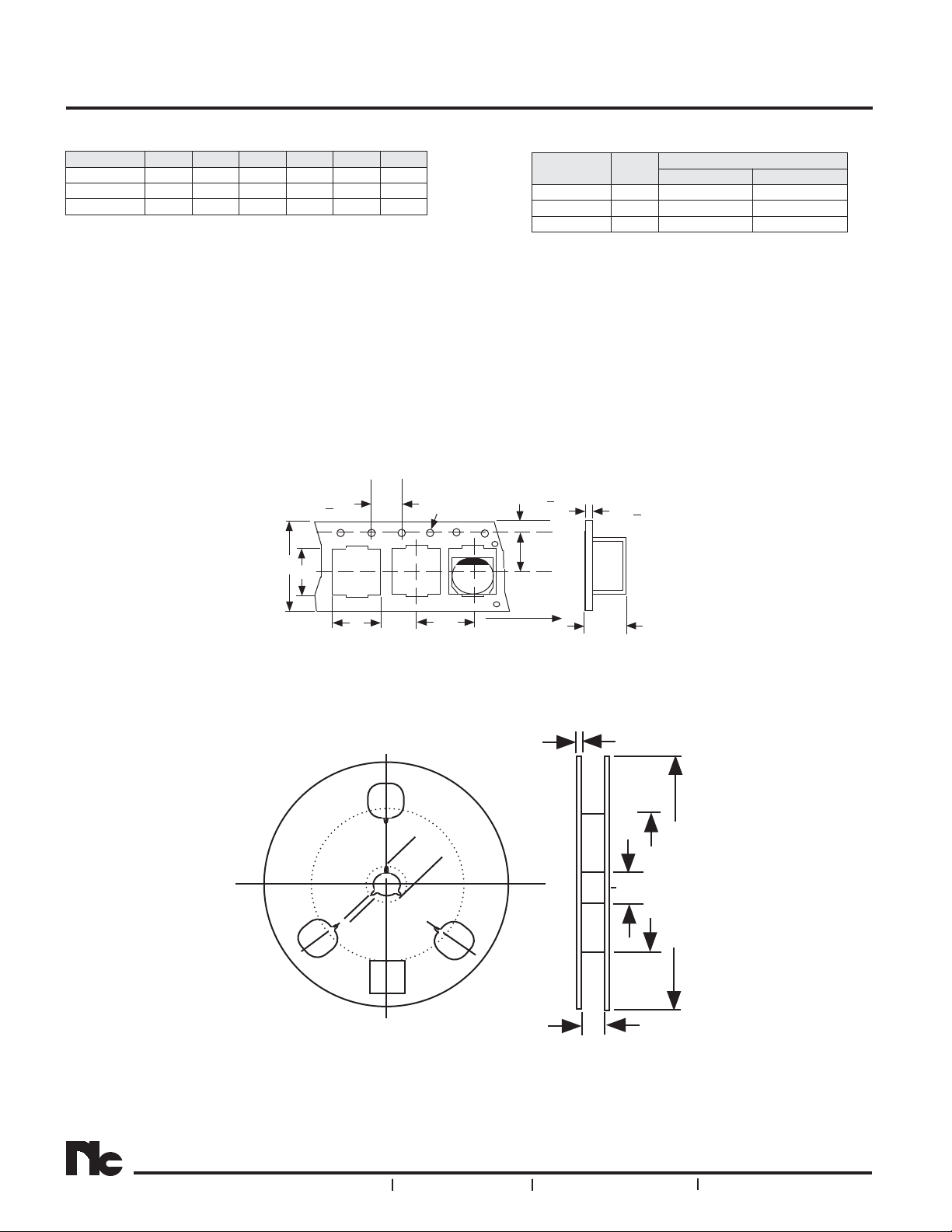

TR13 330mm (13") REEL

CARRIER TAPE

Case Size A ±0.5 B ±0.2 C ±0.3 D ±0.1 P ±0.1 T ±0.2

4 x 5.5 4.7 4.7 12.0 5.5 8.0 5.8
5 x 5.5 5.7 5.7 12.0 5.5 12.0 5.8

6.3 x 5.5 7.0 7.0 16.0 7.5 12.0 5.8

TAPING SPECIFICATIONS (mm)

1. Both Leader and Trailer tape: Minimum 40mm (1.57") empty carrier tape pockets.

2. Leader tape: Approximately 20cm of cover tape at leader.

3. Connection: Maximum 3 connections (slices) per reel.

CARRIER

TR15 380mm (15") REEL

Case Size W ±1.0

4 x 5.5 14.0 1,500 pcs 2,000 pcs
5 x 5.5 14.0 1,000 pcs 1,000 pcs

6.3 x 5.5 18.0 1,000 pcs 1,000 pcs

13" Reel 15" Reel

NACS Series

Quantity Per Reel

C

4 + 0.1

B

A

2.0±0.5

±0.8

21

1.5∅ +0.1/-

1.5φ+0.1/-0

P

REEL

1.75 ±

-

+

Feeding

1.75 + 0.15

0.4 + 0.2

D

T

3.0 ± 0.5

13∅ ±0.5

50∅ Min.

330 or 380mm

W

NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com

34
