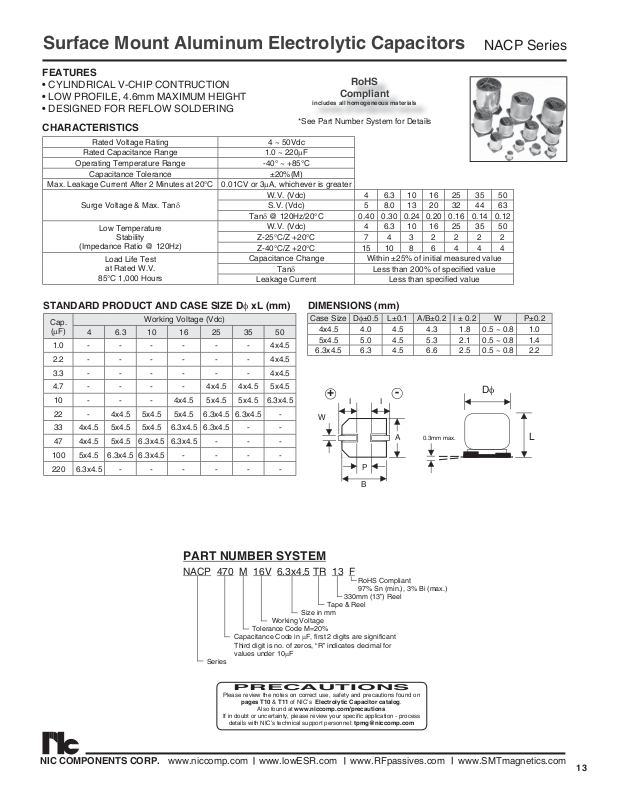

Datasheet NIC [smd] NACP Series Datasheet

Surface Mount Aluminum Electrolytic Capacitors

NACP Series

FEATURES

• CYLINDRICAL V-CHIP CONTRUCTION

• LOW PROFILE, 4.6mm MAXIMUM HEIGHT

• DESIGNED FOR REFLOW

SOLDERING

CHARACTERISTICS

Rated Voltage Rating 4 ~ 50Vdc

Rated Capacitance Range 1.0 ~ 220μF

Operating Temperature Range -40° ~ +85°C

Capacitance Tolerance ±20%(M)

Max. Leakage Current After 2 Minutes at 20°C 0.01CV or 3μA, whichever is greater

W.V. (Vdc) 4 6.3 10 16 25 35 50

Surge Voltage & Max. Tanδ

Low Temperature

Stability

(Impedance Ratio @ 120Hz)

Load Life Test
at Rated W.V.

85°C 1,000 Hours

S.V. (Vdc) 5 8.0 13 20 32 44 63

Tanδ @ 120Hz/20°C 0.40 0.30 0.24 0.20 0.16 0.14 0.12

W.V. (Vdc) 4 6.3 10 16 25 35 50
Z-25°C/Z +20°C 7 4 3 2 2 2 2
Z-40°C/Z +20°C 15 10 8 6 4 4 4

Capacitance Change Within ±25% of initial measured value

Tanδ Less than 200% of specifi ed value

Leakage Current Less than specifi ed value

STANDARD PRODUCT AND CASE SIZE Dφ xL (mm)

Cap.

(μF)

1.0 - - - - - - 4x4.5

2.2 - - - - - - 4x4.5

3.3 - - - - - - 4x4.5

4.7 - - - - 4x4.5 4x4.5 5x4.5

10 - - - 4x4.5 5x4.5 5x4.5 6.3x4.5

22 - 4x4.5 5x4.5 5x4.5 6.3x4.5 6.3x4.5 -

33 4x4.5 5x4.5 5x4.5 6.3x4.5 6.3x4.5 - -

47 4x4.5 5x4.5 6.3x4.5 6.3x4.5 - - -

100 5x4.5 6.3x4.5 6.3x4.5 - - - -

220 6.3x4.5 - - - - - -

4 6.3 10 16 25 35 50

Working Voltage (Vdc)

includes all homogeneous materials

*See Part Number System for Details

DIMENSIONS (mm)

Case Size Dφ±0.5 L±0.1 A/B±0.2 I ± 0.2 W P±0.2

4x4.5
5x4.5

6.3x4.5

+ -

W

RoHS

Compliant

4.0

5.0

6.3

I

I

P

B

4.5

4.5

4.5

A

4.3 1.8 0.5 ~ 0.8 1.0

5.3 2.1 0.5 ~ 0.8 1.4

6.6 2.5 0.5 ~ 0.8 2.2

Dφ

0.3mm max.

L

PART NUMBER SYSTEM

NACP 470 M 16V 6.3x4.5 TR 13 F

RoHS Compliant
97% Sn (min.), 3% Bi (max.)
330mm (13”) Reel
Tape & Reel
Size in mm
Working Voltage
Tolerance Code M=20%
Capacitance Code in μF, fi rst 2 digits are signifi cant
Third digit is no. of zeros, “R” indicates decimal for
values under 10μF
Series

PRECAUTIONS

Please review the notes on correct use, safety and precautions found on

pages T10 & T11 of NIC’s Electrolytic Capacitor catalog.

If in doubt or uncertainty, please review your specifi c application - process

NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com

Also found at www.niccomp.com/precautions

details with NIC’s technical support personnel: [email protected]

13

Surface Mount Aluminum Electrolytic Capacitors

NACP Series

STANDARD VALUES, CASE SIZES AND SPECIFICATIONS

Cap.

W.V.

NIC Part Number

NACP330M4V4X4.5TR13F 33
NACP470M4V4X4.5TR13F 47 0.40 33 14.1 1,000

NACP101M4V5X4.5TR13F 100 0.40 56 6.6 1,000
NACP221M4V6.3X4.5TR13F 220 0.40 98 3.0 1,000
NACP220M6.3V4X4.5TR13F 22
NACP330M6.3V5X4.5TR13F 33 0.30 37 15.1 1,000
NACP470M6.3V5X4.5TR13F 47 0.30 45 10.6 1,000

NACP101M6.3V6.3X4.5TR13F 100 0.30 70 5.0 1,000

NACP220M10V5X4.5TR13F 22

NACP330M10V5X4.5TR13F 33 0.24 41 12.6 1,000
NACP470M10V6.3X4.5TR13F 47 0.24 53 8.5 1,000
NACP101M10V6.3X4.5TR13F 100 0.24 74 3.98 1,000

NACP100M16V4X4.5TR13F 10

NACP220M16V5X4.5TR13F 22 0.20 37 15.1 1,000
NACP330M16V6.3X4.5TR13F 33 0.20 51 10.1 1,000
NACP470M16V6.3X4.5TR13F 47 0.20 61 7.1 1,000

NACP4R7M25V4X4.5TR13F 4.7

NACP100M25V5X4.5TR13F 10 0.16 27 26.5 1,000
NACP220M25V6.3X4.5TR13F 22 0.16 47 12.1 1,000
NACP330M25V6.3X4.5TR13F 33 0.16 57 8.1 1,000

NACP4R7M35V4X4.5TR13F 4.7

NACP100M35V5X4.5TR13F 10 0.14 29 23.2 1,000
NACP220M35V6.3X4.5TR13F 22 0.14 49 10.8 1,000

NACP1R0M50V4X4.5TR13F 1.0

NACP2R2M50V4X4.5TR13F 2.2 0.12 14 90.5 1,000

NACP3R3M50V4X4.5TR13F 3.3 0.12 17 60.3 1,000

NACP4R7M50V5X4.5TR13F 4.7 0.12 21 42.3 1,000
NACP100M50V6.3X4.5TR13F 10 0.12 33 19.0 1,000

(μF)

(Vdc)

4

6.3

10

16

25

35

50

Dissipaton Factor

(Tan δ)

0.40 28 20.1 1,000

0.30 28 22.6 1,000

0.24 33 18.1 1,000

0.20 23 33.2 1,000

0.16 17 56.5 1,000

0.14 18 49.4 1,000

0.12 8.4 199 1,000

Max. Ripple Current (mA)

+85°C/120Hz

Max. ESR (Ω)

+20°C/120Hz

Load Life Hours

@ +85°C

RIPPLE CURRENT FREQUENCY CORRECTION FACTOR

Cap. (μF)

0.47 ~ 4.7 1.0 1.3 1.5 2.0
10 ~ 33 1.0 1.2 1.3 1.45

47 ~ 220 1.0 1.1 1.2 1.3

10< f <1KHz 1K< f <10KHz 10K< f >100KHz >100KHz

Frequency

RECOMMENDED LAND PATTERN DIMENSIONS (mm)

Case Size a b c

4 φ 1.0 2.6 1.8
5 φ 1.4 3.0 1.8

6.3 φ 2.1 3.5 1.8

c

a

b

NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com

14

Surface Mount Aluminum Electrolytic Capacitors

TR13 330mm (13") REEL

CARRIER TAPE

Case Size A ±0.5 B ±0.2 C ±0.3 D ±0.1 P ±0.1 T ±0.2

4 x 4.5 4.7 4.7 12.0 5.5 8.0 5.1
5 x 4.5 5.7 5.7 12.0 5.5 12.0 5.1

6.3 x 4.5 7.0 7.0 16.0 7.5 12.0 5.1

TAPING SPECIFICATIONS (mm)

1. Both Leader and Trailer tape: Minimum 40mm (1.57") empty carrier tape pockets.

2. Leader tape: Approximately 20cm of cover tape at leader.

3. Connection: Maximum 3 connections (slices) per reel.

CARRIER

TR15 380mm (15") REEL

Case Size W ±1.0

4 x 4.5 14.0 1,500 pcs 2,000 pcs
5 x 4.5 14.0 1,000 pcs 1,000 pcs

6.3 x 4.5 18.0 1,000 pcs 1,000 pcs

13" Reel (Std) 15" Reel (Opt.)

NACP Series

Quantity Per Reel

C

4 + 0.1

B

A

2.0±0.5

±0.8

21

1.5∅ +0.1/-

1.5φ+0.1/-0

P

REEL

1.75 ±

-

+

Feeding

1.75 + 0.15

0.4 + 0.2

D

T

3.0 ± 0.5

13∅ ±0.5

50∅ Min.

330 or 380mm

W

NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com

15
