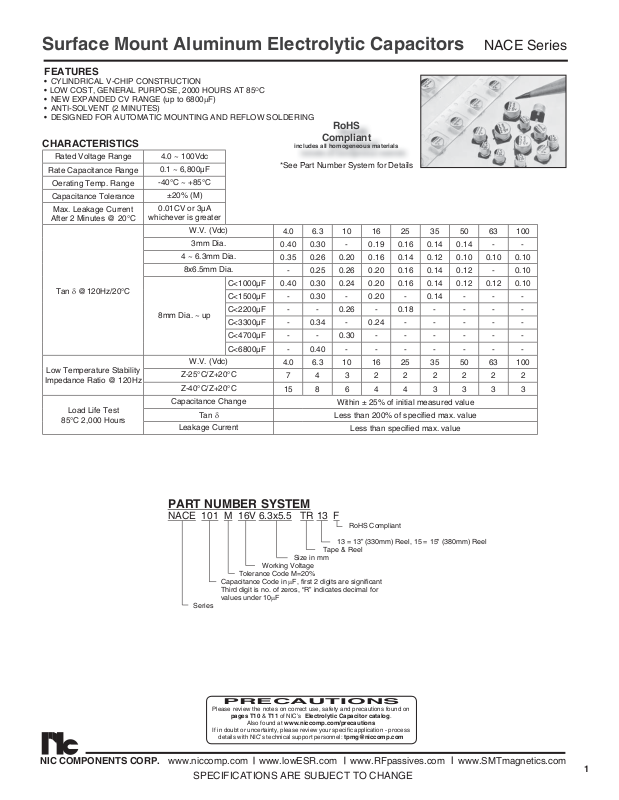

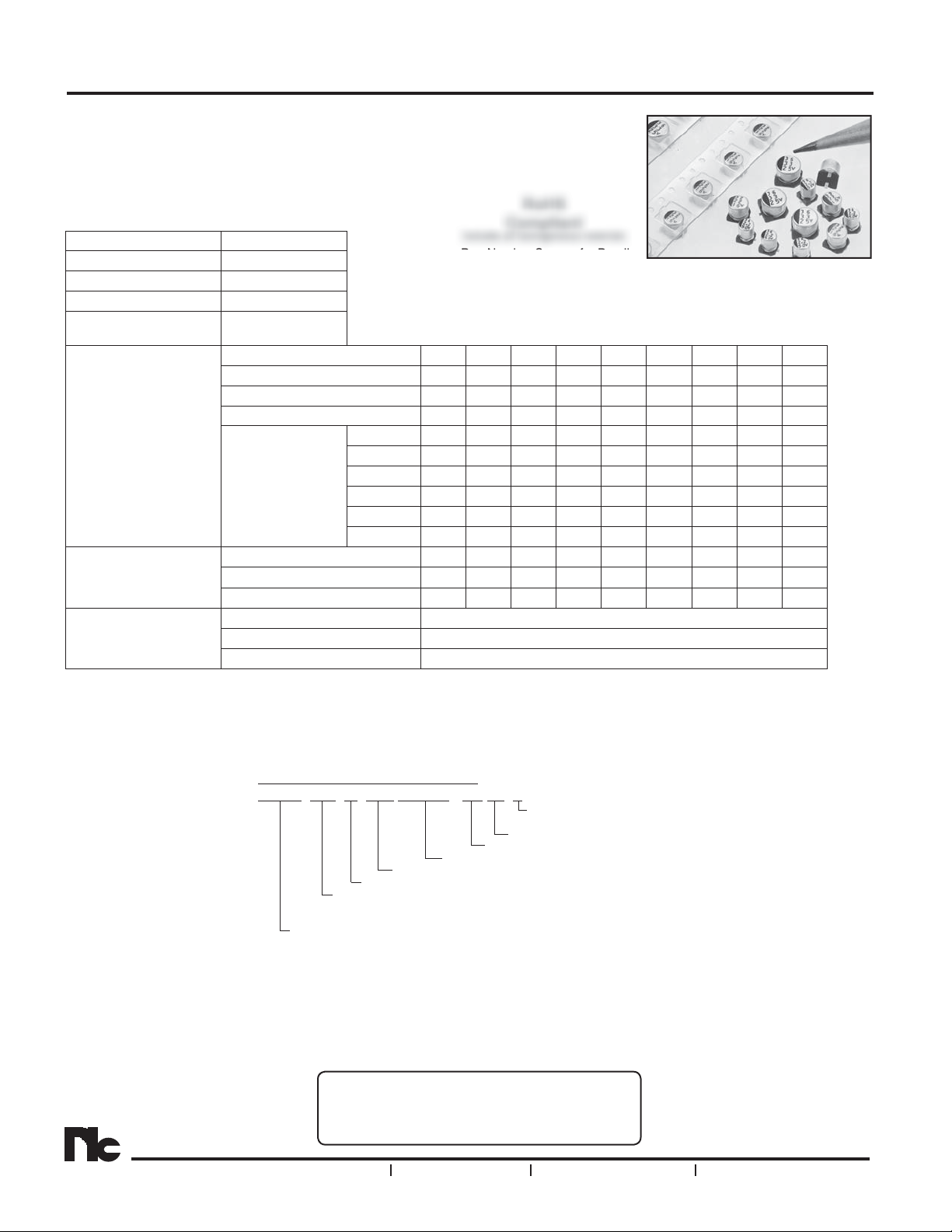

Surface Mount Aluminum Electrolytic Capacitors
FEATURES
• CYLINDRICAL V-CHIP CONSTRUCTION
• LOW COST, GENERAL PURPOSE, 2000 HOURS AT 85OC
• NEW EXPANDED CV RANGE (up to 6800μF)
• ANTI-SOLVENT (2 MINUTES)
• DESIGNED FOR AUTOMATIC MOUNTING AND REFLOW SOLDERING
CHARACTERISTICS
Rated Voltage Range
Rate Capacitance Range
Oerating Temp. Range
Capacitance Tolerance
Max. Leakage Current
After 2 Minutes @ 20°C
Tan δ @120Hz/20°C
Low Temperature Stability
Impedance Ratio @ 120Hz
Load Life Test
85°C 2,000 Hours
4.0 ~ 100Vdc
0.1 ~ 6,800μF
-40°C ~ +85°C
±20% (M)
0.01CV or 3μA
whichever is greater
W.V. (Vdc)
3mm Dia.
4 ~ 6.3mm Dia.
8x6.5mm Dia.
8mm Dia. ~ up
W.V. (Vdc)
Z-25°C/Z+20°C
Z-40°C/Z+20°C
Capacitance Change
Tan δ
Leakage Current
C<1000μF 0.40 0.30 0.24 0.20 0.16 0.14 0.12 0.12 0.10
C<1500μF - 0.30 - 0.20 - 0.14 - - -
C<2200μF - - 0.26 - 0.18 ----
C<3300μF - 0.34 - 0.24 -----
C<4700μF - - 0.30 ------
C<6800μF - 0.40 -------
includes all homogeneous materials
*See Part Number System for Details
4.0 6.3 10 16 25 35 50 63 100
0.40 0.30 - 0.19 0.16 0.14 0.14 - -
0.35 0.26 0.20 0.16 0.14 0.12 0.10 0.10 0.10
- 0.25 0.26 0.20 0.16 0.14 0.12 - 0.10
4.0 6.3 10 16 25 35 50 63 100
743222222
1586443333
RoHS
Compliant
Within ± 25% of initial measured value
Less than 200% of specifi ed max. value
Less than specifi ed max. value
NACE Series
PART NUMBER SYSTEM
NACE 101 M 16V 6.3x5.5 TR 13 F
RoHS Compliant
13 = 13” (330mm) Reel, 15 = 15" (380mm) Reel
Tape & Reel
Size in mm
Working Voltage
Tolerance Code M=20%
Capacitance Code in μF, fi rst 2 digits are signifi cant
Third digit is no. of zeros, “R” indicates decimal for
values under 10μF
Series
PRECAUTIONS
Please review the notes on correct use, safety and precautions found on
pages T10 & T11 of NIC’s Electrolytic Capacitor catalog.
If in doubt or uncertainty, please review your specifi c application - process
NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
Also found at www.niccomp.com/precautions
details with NIC’s technical support personnel: [email protected]
1
Page 2
Surface Mount Aluminum Electrolytic Capacitors

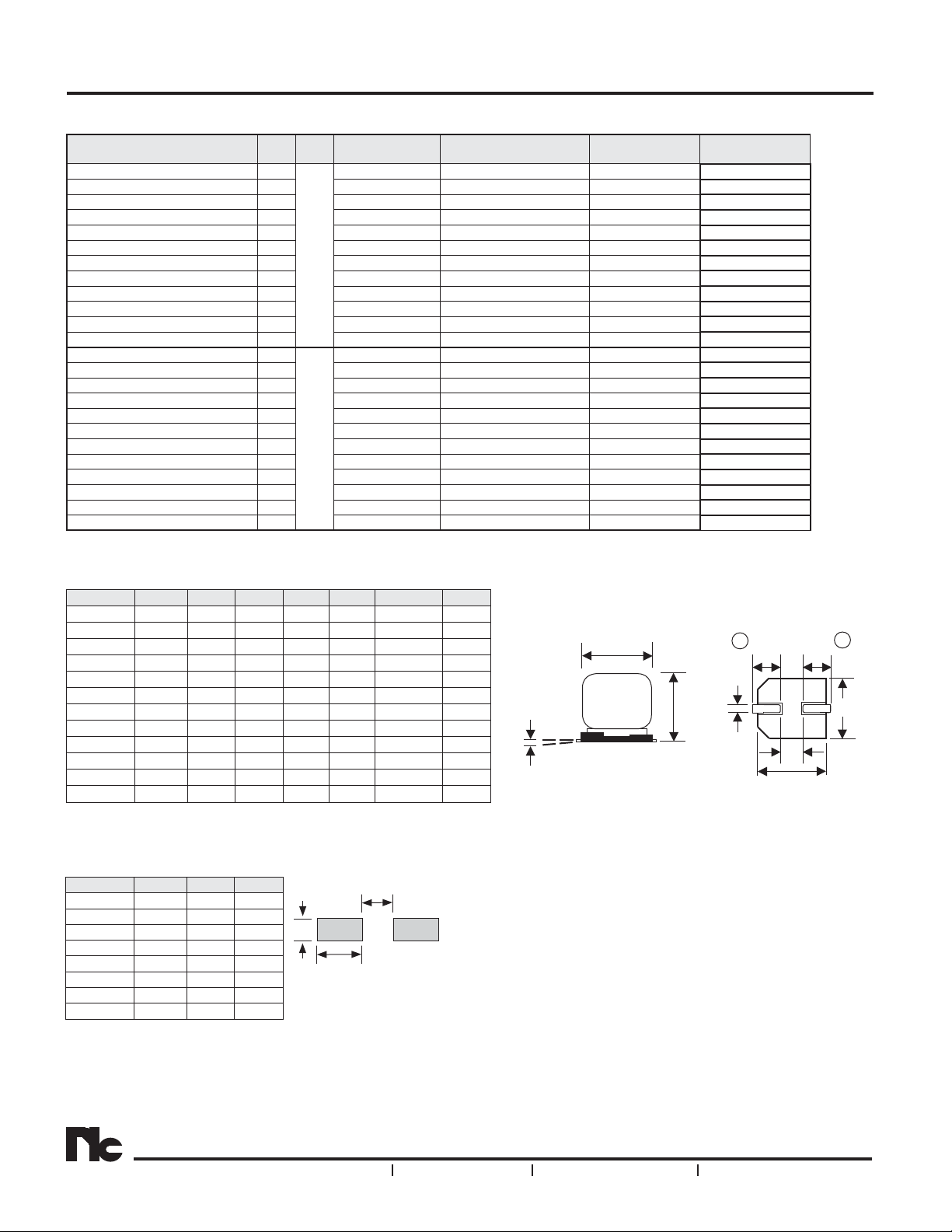

STANDARD PRODUCTS, SPECIFICATIONS AND CASE SIZE TABLE DφxL (mm)
Cap.
W.V.
NIC Part Number
NACE220M4V3X5.5TR13F 22
NACE330M4V4X5.5TR13F 33 0.35 26 17.6 2,000
NACE470M4V4X5.5TR13F 47 0.35 34 12.4 2,000
NACE680M4V5X5.5TR13F 68 0.35 52 8.54 2,000
NACE101M4V5X5.5TR13F 100 0.35 61 5.80 2,000
NACE151M4V6.3X5.5TR13F 150 0.35 74 3.87 2,000
NACE221M4V6.3X5.5TR13F 220 0.35 82 2.64 2,000
NACE331M4V6.3X6.3TR13F 330 0.35 102 1.76 2,000
NACE471M4V6.3X8TR13F 470 0.35 150 1.42 2,000
NACE102M4V10X8TR13F 1000 0.40 330 0.67 2,000
NACE150M6.3V3X5.5TR13F 15
NACE220M6.3V3X5.5TR13F 22 0.30 21 26.5 2,000
NACE220M6.3V4X5.5TR13F 22 0.26 31 18.1 2,000
NACE330M6.3V5X5.5TR13F 33 0.26 39 12.6 2,000
NACE470M6.3V5X5.5TR13F 47 0.26 47 8.47 2,000
NACE680M6.3V6.3X5.5TR13F 68 0.26 63 5.86 2,000
NACE101M6.3V6.3X5.5TR13F 100 0.26 71 3.98 2,000
NACE151M6.3V6.3X5.5TR13F 150 0.26 78 2.66 2,000
NACE221M6.3V6.3X6.3TR13F 220 0.26 95 1.96 2,000
NACE331M6.3V6.3X8TR13F 330 0.26 150 1.31 2,000
NACE331M6.3V8X6.5TR13F 330 0.25 300 1.76 2,000
NACE471M6.3V8X10.5TR13F 470 0.30 300 1.06 2,000
NACE681M6.3V10X8TR13F 680 0.30 300 0.59 2,000
NACE102M6.3V8X10.5TR13F 1000 0.30 330 0.50 2,000
NACE152M6.3V10X10.5TR13F 1500 0.30 450 0.35 2,000
NACE332M6.3V12.5X14TR15F 3300 0.34 750 0.17 2,000
NACE682M6.3V16X17TR15F 6800 0.40 1330 0.10 2,000
NACE220M10V5X5.5TR13F 22
NACE330M10V5X5.5TR13F 33 0.20 43 10.1 2,000
NACE470M10V6.3X5.5TR13F 47 0.20 59 7.06 2,000
NACE680M10V6.3X5.5TR13F 68 0.20 66 4.88 2,000
NACE101M10V6.3X5.5TR13F 100 0.20 76 3.32 2,000
NACE151M10V6.3X6.3TR13F 150 0.20 88 2.21 2,000
NACE221M10V6.3X8TR13F 220 0.20 150 1.51 2,000
NACE221M10V8X6.5TR13F 220 0.26 250 1.99 2,000
NACE331M10V8X10.5TR13F 330 0.24 280 1.21 2,000
NACE471M10V8X10.5TR13F 470 0.24 300 0.85 2,000
NACE471M10V10X8TR13F 470 0.24 300 0.85 2,000
NACE102M10V10X10.5TR13F 1000 0.24 450 0.40 2,000
NACE222M10V12.5X14TR15F 2200 0.26 730 0.24 2,000
NACE472M10V16X17TR15F 4700 0.30 1200 0.13 2,000
NACE100M16V3X5.5TR13F 10
NACE100M16V4X5.5TR13F 10 0.16 25 26.5 2,000
NACE220M16V5X5.5TR13F 22 0.16 39 12.1 2,000
NACE330M16V6.3X5.5TR13F 33 0.16 57 8.04 2,000
NACE470M16V6.3X5.5TR13F 47 0.16 68 5.65 2,000
NACE680M16V6.3X5.5TR13F 68 0.16 75 3.91 2,000
NACE101M16V6.3X5.5TR13F 100 0.16 86 2.66 2,000
NACE101M16V8X6.5TR13F 100 0.20 200 3.32 2,000
NACE151M16V6.3X8TR13F 150 0.16 135 1.77 2,000
NACE221M16V6.3X8TR13F 220 0.16 150 1.21 2,000
NACE331M16V8X10.5TR13F 330 0.20 280 1.01 2,000
NACE331M16V10X8TR13F 330 0.20 280 1.01 2,000
NACE471M16V8X10.5TR13F 470 0.20 330 0.71 2,000
NACE681M16V10X10.5TR13F 680 0.20 450 0.49 2,000
NACE152M16V12.5X14TR15F 1500 0.20 710 0.24 2,000
NACE332M16V16X17TR15F 3300 0.24 1200 0.12 2,000
(μF)
Dissipation Factor
(Vdc)
4
6.3
10
16
(Tan δ)
0.40 19 30.1 2,000
0.30 16 33.1 2,000
0.20 35 15.1 2,000
0.19 20 26.5 2,000
Max. Ripple current (mA)
@ +85°C/120Hz
Max. ESR (Ω)
@ +20°C/120Hz
Load Life Hours
@ +85°C
NACE Series
RIPPLE CURRENT FREQUENCY CORRECTION FACTOR
Frequency Hz 100<f<1K 1K<f<10K 10K< f<100K f >100K
C<4.7μF 1.0 1.3 1.5 2.0
4.7μF<C<33μF 1.0 1.2 1.3 1.45
C>33μF 1.0 1.1 1.2 1.3
NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com
2
SPECIFICATIONS ARE SUBJECT TO CHANGE
Page 3
Surface Mount Aluminum Electrolytic Capacitors
STANDARD PRODUCTS, SPECIFICATIONS AND CASE SIZE TABLE DφxL (mm)
Cap.
W.V.
NIC Part Number
NACE4R7M25V3X5.5TR13F 4.7
NACE4R7M25V4X5.5TR13F 4.7 0.14 19 49.4 2,000
NACE100M25V5X5.5TR13F 10 0.14 28 23.2 2,000
NACE220M25V6.3X5.5TR13F 22 0.14 52 10.6 2,000
NACE330M25V6.3X5.5TR13F 33 0.14 63 7.04 2,000
NACE470M25V6.3X6.3TR13F 47 0.14 68 4.94 2,000
NACE680M25V6.3X6.3TR13F 68 0.14 80 3.41 2,000
NACE101M25V6.3X8TR13F 100 0.14 130 2.32 2,000
NACE101M25V8X6.5TR13F 100 0.16 91 2.65 2,000
NACE151M25V8X10.5TR13F 150 0.16 200 1.77 2,000
NACE221M25V8X10.5TR13F 220 0.16 250 1.21 2,000
NACE221M25V10X8TR13F 220 0.16 250 1.21 2,000
NACE331M25V8X10.5TR13F 330 0.16 310 0.80 2,000
NACE471M25V10X10.5TR13F 470 0.16 430 0.56 2,000
NACE102M25V12.5X14TR15F 1000 0.16 660 0.27 2,000
NACE222M25V16X17TR15F 2200 0.18 1150 0.14 2,000
NACE2R2M35V3X5.5TR13F 2.2
NACE3R3M35V3X5.5TR13F 3.3 0.14 10 60.3 2,000
NACE4R7M35V4X5.5TR13F 4.7 0.12 20 42.3 2,000
NACE100M35V5X5.5TR13F 10 0.12 30 19.9 2,000
NACE220M35V6.3X5.5TR13F 22 0.12 54 9.05 2,000
NACE330M35V6.3X6.3TR13F 33 0.12 60 6.04 2,000
NACE330M35V8X6.5TR13F 33 0.14 130 7.04 2,000
NACE470M35V6.3X6.3TR13F 47 0.12 70 4.24 2,000
NACE470M35V8X6.5TR13F 47 0.14 165 4.95 2,000
NACE680M35V6.3X8TR13F 68 0.12 110 2.93 2,000
NACE101M35V6.3X8TR13F 100 0.12 130 1.99 2,000
NACE151M35V8X10.5TR13F 150 0.14 220 1.33 2,000
NACE151M35V10X8TR13F 150 0.14 220 1.33 2,000
NACE221M35V8X10.5TR13F 220 0.14 270 1.06 2,000
NACE331M35V10X10.5TR13F 330 0.14 340 0.71 2,000
NACE471M35V12.5X14TR15F 470 0.14 590 0.49 2,000
NACE681M35V12.5X14TR15F 680 0.14 610 0.34 2,000
NACE152M35V16X17TR15F 1500 0.14 1060 0.17 2,000
NACER10M50V3X5.5TR13F 0.1
NACER22M50V3X5.5TR13F 0.22 0.14 2.3 1660 2,000
NACER33M50V3X5.5TR13F 0.33 0.14 3.5 503 2,000
NACER47M50V3X5.5TR13F 0.47 0.14 4.0 353 2,000
NACE1R0M50V3X5.5TR13F 1.0 0.14 8.0 166 2,000
NACE1R0M50V4X5.5TR13F 1.0 0.10 10 166 2,000
NACE2R2M50V4X5.5TR13F 2.2 0.10 15 75.4 2,000
NACE3R3M50V4X5.5TR13F 3.3 0.10 15 50.3 2,000
NACE4R7M50V5X5.5TR13F 4.7 0.10 23 35.3 2,000
NACE100M50V6.3X5.5TR13F 10 0.10 34 16.6 2,000
NACE220M50V6.3X6.3TR13F 22 0.10 58 7.54 2,000
NACE220M50V8X6.5TR13F 22 0.12 120 9.05 2,000
NACE330M50V6.3X8TR13F 33 0.10 85 5.03 2,000
NACE330M50V8X6.5TR13F 33 0.12 65 6.04 2,000
NACE470M50V6.3X8TR13F 47 0.10 90 3.53 2,000
NACE680M50V8X10.5TR13F 68 0.12 120 2.44 2,000
NACE820M50V10X8TR13F 82 0.12 200 2.44 2,000
NACE101M50V8X10.5TR13F 100 0.12 200 1.99 2,000
NACE221M50V10X10.5TR13F 220 0.12 320 0.91 2,000
NACE331M50V12.5X14TR15F 330 0.12 520 0.60 2,000
NACE471M50V16X17TR15F 470 0.12 925 0.43 2,000
NACE102M50V16X17TR15F 1000 0.12 940 0.20 2,000
(μF)
Dissipation Factor
(Vdc)
25
35
50
(Tan δ)
0.16 12 56.5 2,000
0.14 8.0 90.4 2,000
0.14 1.0 1660 2,000
Max. Ripple current (mA)
@ +85°C/120Hz
Max. ESR (Ω)
@ +20°C/120Hz
Load Life Hours
@ +85°C
NACE Series
NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
3
Page 4
Surface Mount Aluminum Electrolytic Capacitors
STANDARD PRODUCTS, SPECIFICATIONS AND CASE SIZE TABLE DφxL (mm)
Cap.
W.V.
NIC Part Number
NACE1R0M63V4X5.5TR13F 1.0
NACE2R2M63V4X5.5TR13F 2.2 0.10 15 75.4 2,000
NACE3R3M63V5X5.5TR13F 3.3 0.10 15 50.3 2,000
NACE4R7M63V5X5.5TR13F 4.7 0.10 23 35.3 2,000
NACE100M63V6.3X5.5TR13F 10 0.10 34 16.6 2,000
NACE220M63V6.3X8TR13F 22 0.10 70 7.54 2,000
NACE330M63V8X10.5TR13F 33 0.12 160 6.04 2,000
NACE470M63V8X10.5TR13F 47 0.12 170 4.24 2,000
NACE680M63V8X10.5TR13F 68 0.12 180 2.44 2,000
NACE101M63V10X10.5TR13F 100 0.12 280 1.99 2,000
NACE221M63V12.5X14TR15F 220 0.12 410 0.91 2,000
NACE471M63V16X17TR15F 470 0.12 700 0.43 2,000
NACE1R0M100V4X6.3TR13F 1.0
NACE2R2M100V6.3X6.3TR13F 2.2 0.10 20 75.4 2,000
NACE3R3M100V6.3X6.3TR13F 3.3 0.10 28 50.3 2,000
NACE3R3M100V8X6.5TR13F 3.3 0.10 50 90.4 2,000
NACE4R7M100V6.3X6.3TR13F 4.7 0.10 35 35.3 2,000
NACE100M100V6.3X8TR13F 10 0.10 50 16.6 2,000
NACE220M100V8X10.5TR13F 22 0.10 120 7.54 2,000
NACE330M100V10X10.5TR13F 33 0.10 190 5.03 2,000
NACE470M100V12.5X14TR15F 47 0.10 330 3.53 2,000
NACE680M100V12.5X14TR15F 68 0.10 350 2.44 2,000
NACE101M100V16X17TR15F 100 0.10 550 1.66 2,000
NACE151M100V16X17TR15F 150 0.10 560 1.11 2,000
(μF)
Dissipation Factor
(Vdc)
63
100
(Tan δ)
0.10 10 166 2,000
0.10 10 166 2,000
Max. Ripple current (mA)
@ +85°C/120Hz
Max. ESR (Ω)
@ +20°C/120Hz
Load Life Hours
@ +85°C
NACE Series
DIMENSIONS (mm)
Case Size Dφ ±0.5 L max. A ±0.2 B ±0.2 I ±0.2 W P ±0.2
3 x 5.5 3.0 5.5 3.3 3.3 1.5 0.45 ~ 0.8 0.6
4 x 5.5 4.0 5.5 4.3 4.3 1.8 0.5 ~ 0.8 1.0
5 x 5.5 5.0 5.5 5.3 5.3 2.1 0.5 ~ 0.8 1.4
6.3 x 5.5 6.3 5.5 6.6 6.6 2.5 0.5 ~ 0.8 2.2
6.3 x 6.3 6.3 6.3 6.6 6.6 2.5 0.5 ~ 0.8 2.2
6.3 x 8 6.3 8.0 6.6 6.6 2.5 0.5 ~ 0.8 2.2
8 x 6.5 8.0 6.5 8.3 8.3 3.4 0.5 ~ 0.8 2.2
8 X 10.5 8.0 10.5 8.3 8.3 2.9 0.7 ~ 1.0 3.2
10 x 8 10.0 8.0 10.3 10.3 3.2 0.7 ~ 1.4 4.6
10 x 10.5 10.0 10.5 10.3 10.3 3.2 0.7 ~ 1.4 4.6
12.5 x 14 12.5 14.0 12.8 12.8 4.5 0.6 ~ 1.4 4.6
16 x 17 16.0 17.5 17.0 17.0 5.5 0.9 ~ 1.5 6.7
RECOMMENDED LAND PATTERN DIMENSIONS (mm)
Case Size a b c
3 φ 0.8 2.2 1.7
4 φ 1.0 2.6 1.8
5 φ 1.4 3.0 1.8
6.3 φ 2.1 3.5 1.8
8 φ 2.8 4.1 2.1
10 φ 4.3 4.4 2.5
12.5 φ 4.3 5.8 2.5
16 φ 6.6 6.5 5.0
c
a
b
0.3mm max.
Dφ
+ -
I
W
L
I
A
P
B
NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com
4
SPECIFICATIONS ARE SUBJECT TO CHANGE
Page 5
Surface Mount Aluminum Electrolytic Capacitors

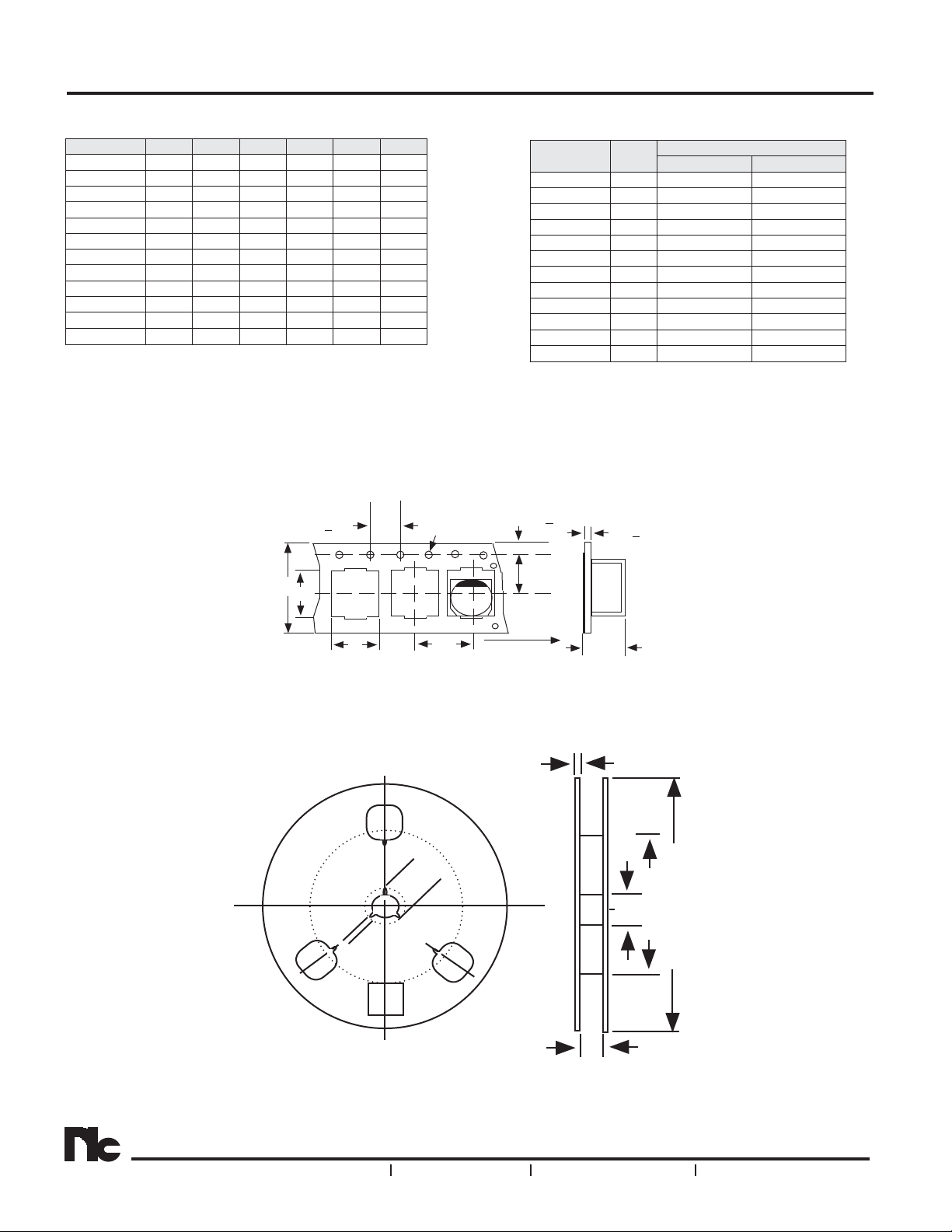

TR13 330mm (13") REEL
CARRIER TAPE
Case Size A ±0.5 B ±0.2 C ±0.3 D ±0.1 P ±0.1 T ±0.2
3 x 5.5 3.7 3.7 12.0 5.5 8.0 5.8
4 x 5.5 4.7 4.7 12.0 5.5 8.0 5.8
5 x 5.5 5.7 5.7 12.0 5.5 12.0 5.8
6.3 x 5.5 7.0 7.0 16.0 7.5 12.0 5.8
6.3 x 6.3 7.0 7.0 16.0 7.5 12.0 6.6
6.3 x 8 7.0 7.0 16.0 7.5 12.0 8.3
8 x 6.5 8.7 8.7 16.0 7.5 12.0 6.8
8 X 10.5 8.7 8.7 24.0 7.5 12.0 11.1
10 x 8 10.7 10.7 24.0 11.5 16.0 8.3
10 x 10.5 10.7 10.7 24.0 11.5 16.0 11.2
12.5 x 14 13.2 13.2 32.0 14.2 24.0 14.2
16 x 17 17.5 17.5 44.0 20.2 28.0 17.5
TAPING SPECIFICATIONS (mm)
1. Both Leader and Trailer tape: Minimum 40mm (1.57") empty carrier tape pockets.
2. Leader tape: Approximately 20cm of cover tape at leader.
3. Connection: Maximum 3 connections (slices) per reel.
CARRIER
TR15 380mm (15") REEL
Case Size W ±1.0
3 x 5.5 14.0 1,500 pcs 2,000 pcs
4 x 5.5 14.0 1,500 pcs 2,000 pcs
5 x 5.5 14.0 1,000 pcs 1,000 pcs
6.3 x 5.5 18.0 1,000 pcs 1,000 pcs
6.3 x 6.3 18.0 800 pcs 1,000 pcs
6.3 x 8 18.0 500 pcs 900 pcs
8 x 6.5 18.0 800 pcs 1,000 pcs
8 X 10.5 26.0 300 pcs 500 pcs
10 x 8 26.0 400 pcs 500 pcs
10 x 10.5 26.0 300 pcs 500 pcs
12.5 x 14 34.0 N/A 250 pcs
16 x 17 46.0 N/A 200 pcs
13" Reel 15" Reel
NACE Series
Quantity Per Reel
C
4 + 0.1
B
A
2.0±0.5
±0.8
21
1.5∅ +0.1/-
1.5φ+0.1/-0
P
REEL
1.75 ±
-
+
Feeding
1.75 + 0.15
0.4 + 0.2
D
T
3.0 ± 0.5
13∅ ±0.5
50∅ Min.
330 or 380mm
W
NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
5
Loading...
