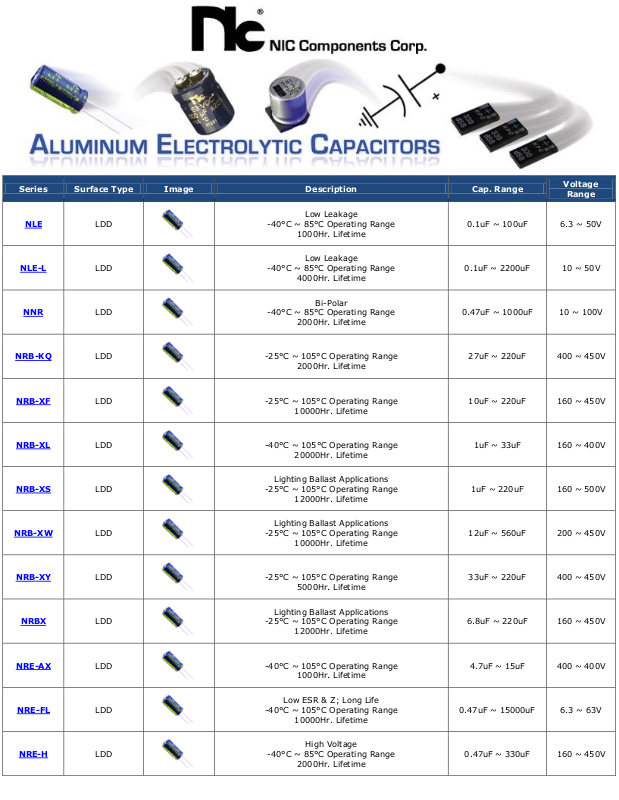

Page 1
Series
Surface Type
Description
Cap. Range
Voltage
Range
NLE
LDD
Low Leakage
-40°C ~ 85°C Operating Range
1000Hr. Lifetime
0.1uF ~ 100uF
6.3 ~ 50V
NLE-L
LDD
Low Leakage
-40°C ~ 85°C Operating Range
4000Hr. Lifetime
0.1uF ~ 2200uF
10 ~ 50V
NNR
LDD
Bi-Polar
-40°C ~ 85°C Operating Range
2000Hr. Lifetime
0.47uF ~ 1000uF
10 ~ 100V
NRB-KQ
LDD
-25°C ~ 105°C Operating Range
2000Hr. Lifetime
27uF ~ 220uF
400 ~ 450V
NRB-XF
LDD
-25°C ~ 105°C Operating Range
10000Hr. Lifetime
10uF ~ 220uF
160 ~ 450V
NRB-XL
LDD
-40°C ~ 105°C Operating Range
20000Hr. Lifetime
1uF ~ 33uF
160 ~ 400V
NRB-XS
LDD
Lighting Ballast Applications
-25°C ~ 105°C Operating Range
12000Hr. Lifetime
1uF ~ 220uF
160 ~ 500V
NRB-XW
LDD
Lighting Ballast Applications
-25°C ~ 105°C Operating Range
10000Hr. Lifetime
12uF ~ 560uF
200 ~ 450V
NRB-XY
LDD
-25°C ~ 105°C Operating Range
5000Hr. Lifetime
33uF ~ 220uF
400 ~ 450V
NRBX
LDD
Lighting Ballast Applications
-25°C ~ 105°C Operating Range
12000Hr. Lifetime
6.8uF ~ 220uF
160 ~ 450V
NRE-AX
LDD
-40°C ~ 105°C Operating Range
1000Hr. Lifetime
4.7uF ~ 15uF
400 ~ 400V
NRE-FL
LDD
Low ESR & Z; Long Life
-40°C ~ 105°C Operating Range
10000Hr. Lifetime
0.47uF ~ 15000uF
6.3 ~ 63V
NRE-H
LDD
High Voltage
-40°C ~ 85°C Operating Range
2000Hr. Lifetime
0.47uF ~ 330uF
160 ~ 450V
Page 2
NRE-HL
LDD
Low ESR & Z; Long Life
-40°C ~ 105°C Operating Range
10000Hr. Lifetime
6.8uF ~ 18000uF
6.3 ~ 100V
NRE-HS
LDD
Reduced Size
-55°C ~ 105°C Operating Range
2000Hr. Lifetime
2.2uF ~ 10000uF
6.3 ~ 450V
NRE-HW
LDD
High Voltage, Wide Temperature
-40°C ~ 105°C Operating Range
2000Hr. Lifetime
0.47uF ~ 330uF
160 ~ 450V
NRE-JL
LDD
Long Life Low Impedance
-40°C ~ 105°C Operating Range
10000Hr. Lifetime
0.47uF ~ 15000uF
6.3 ~ 100V
NRE-LS
LDD
Low Profile
-40°C ~ 85°C Operating Range
2000Hr. Lifetime
220uF ~ 10000uF
6.3 ~ 50V
NRE-LW
LDD
Low Profile, Wide Temperature
-40°C ~ 105°C Operating Range
1000Hr. Lifetime
47uF ~ 4700uF
10 ~ 100V
NRE-LX
LDD
Reduced Size
-40°C ~ 85°C Operating Range
2000Hr. Lifetime
2.2uF ~ 10000uF
6.3 ~ 450V
NRE-S
LDD
Low Profile
-40°C ~ 85°C Operating Range
1000Hr. Lifetime
0.1uF ~ 330uF
6.3 ~ 63V
NRE-SN
LDD
Bi-Polar, Low Profile
-40°C ~ 85°C Operating Range
1000Hr. Lifetime
0.1uF ~ 47uF
6.3 ~ 50V
NRE-SW
LDD
Low Profile, Wide Temperature
-55°C ~ 105°C Operating Range
1000Hr. Lifetime
0.1uF ~ 330uF
6.3 ~ 50V
NRE-SX
LDD
Low ESR & Z
-55°C ~ 105°C Operating Range
1000Hr. Lifetime
4.7uF ~ 330uF
6.3 ~ 35V
NRE-WX
LDD
Extended Temperature
-40°C ~ 150°C Operating Range
1000Hr. Lifetime
330uF ~ 1000uF
16 ~ 50V
NRE-WY
LDD
Extended Temperature
-40°C ~ 130°C Operating Range
4000Hr. Lifetime
1uF ~ 4700uF
10 ~ 400V
NREL
LDD
Low Profile
-40°C ~ 85°C Operating Range
3000Hr. Lifetime
22uF ~ 4700uF
6.3 ~ 100V
NRGB
LDD
Lighting Ballast Applications
-25°C ~ 105°C Operating Range
10000Hr. Lifetime
0.47uF ~ 330uF
10 ~ 100V
NRLF
LDD
Low Profile Snap-In
-40°C ~ 85°C Operating Range
2000Hr. Lifetime
33uF ~ 15000uF
16 ~ 450V
NRLFW
LDD
Low Profile, Wide Temperature Snap-In
-40°C ~ 105°C Operating Range
2000Hr. Lifetime
33uF ~ 10000uF
16 ~ 400V
Page 3
NRLM
LDD
Standar Snap-In
-40°C ~ 85°C Operating Range
2000Hr. Lifetime
56uF ~ 68000uF
16 ~ 450V
NRLMW
LDD
Standard, Wide Temperature Snap-In
-40°C ~ 105°C Operating Range
2000Hr. Lifetime
56uF ~ 68000uF
10 ~ 450V
NRLPW
LDD
Standard Snap-In
-40°C ~ 105°C Operating Range
3000Hr. Lifetime
39uF ~ 15000uF
50 ~ 500V
NRLR
LDD
Long Life Snap-In [For New Designs]
-40°C ~ 85°C Operating Range
3000Hr. Lifetime
56uF ~ 82000uF
10 ~ 450V
NRLRW
LDD
Long Life, Wide Termpature Snap-In [For New Designs]
-40°C ~ 105°C Operating Range
3000Hr. Lifetime
47uF ~ 68000uF
10 ~ 450V
NRSA
LDD
General Purpose
-40°C ~ 85°C Operating Range
2000Hr. Lifetime
0.47uF ~ 10000uF
6.3 ~ 63V
NRSG
LDD
Low ESR & Z
-40°C ~ 105°C Operating Range
5000Hr. Lifetime
6.8uF ~ 6800uF
6.3 ~ 100V
NRSH
LDD
Low ESR, Long Life
-40°C ~ 105°C Operating Range
10000Hr. Lifetime
8.2uF ~ 8200uF
6.3 ~ 100V
NRSJ
LDD
Low ESR & Z
-25°C ~ 105°C Operating Range
2000Hr. Lifetime
220uF ~ 2200uF
6.3 ~ 35V
NRSK
LDD
Low ESR & Z; Radial
-40°C ~ 105°C Operating Range
4000Hr. Lifetime
220uF ~ 3300uF
6.3 ~ 25V
NRSS
LDD
General Purpose
-40°C ~ 85°C Operating Range
2000Hr. Lifetime
22uF ~ 10000uF
6.3 ~ 63V
NRSX
LDD
Low ESR & Z; Radial
°C ~ °C Operating Range
Hr. Lifetime
uF ~ uF
~ V
NRSY
LDD
Low ESR & Z; Radial
-55°C ~ 105°C Operating Range
3000Hr. Lifetime
0.47uF ~ 15000uF
6.3 ~ 50V
NRSZ
LDD
Low ESR & Z; Radial
-55°C ~ 105°C Operating Range
10000Hr. Lifetime
1uF ~ 12000uF
6.3 ~ 100V
NRSZC
LDD
Low ESR, Reduced Size
-55°C ~ 105°C Operating Range
7000Hr. Lifetime
47uF ~ 15000uF
6.3 ~ 35V
NRWA
LDD
Wide Temperature
-55°C ~ 105°C Operating Range
2000Hr. Lifetime
0.47uF ~ 10000uF
6.3 ~ 100V
NRWP
LDD
Wide Temperature, Reduced Size
-55°C ~ 105°C Operating Range
2000Hr. Lifetime
33uF ~ 33000uF
6.3 ~ 100V
Page 4
NRWS
LDD
Wide Temperature
-55°C ~ 105°C Operating Range
2000Hr. Lifetime
0.1uF ~ 15000uF
6.3 ~ 100V
NRWX
LDD
Wide Temperature
-55°C ~ 125°C Operating Range
2000Hr. Lifetime
1uF ~ 4700uF
10 ~ 50V
NRWY
LDD
Low ESR & Z; Radial
-55°C ~ 105°C Operating Range
3000Hr. Lifetime
0.1uF ~ 22000uF
6.3 ~ 450V
NRZJ
LDD
Long Life Low Impedance
-40°C ~ 105°C Operating Range
10000Hr. Lifetime
8.2uF ~ 8200uF
6.3 ~ 100V
NSR
LDD
Low Profile
-40°C ~ 85°C Operating Range
1000Hr. Lifetime
10uF ~ 470uF
4 ~ 50V
NSRN
LDD
Bi-Polar, Low Profile
-40°C ~ 85°C Operating Range
1000Hr. Lifetime
4.7uF ~ 47uF
6.3 ~ 50V
NSRW
LDD
Low Profile; Wide Temperature
-55°C ~ 105°C Operating Range
1000Hr. Lifetime
10uF ~ 100uF
6.3 ~ 50V
NSRZ
LDD
Low ESR
-55°C ~ 105°C Operating Range
1000Hr. Lifetime
33uF ~ 180uF
6.3 ~ 35V
NSTL
LDD
Standard Screw Terminal
-25°C ~ 85°C Operating Range
5000Hr. Lifetime
1200uF ~ 10000uF
350 ~ 450V
NSTLW
LDD
Wide Temperature Screw Terminal
-25°C ~ 105°C Operating Range
5000Hr. Lifetime
1000uF ~ 12000uF
350 ~ 500V
Page 5
Series
Surface Type
Description
Cap. Range
Voltage Range
NACC
SMT
Long Life
-40°C ~ 105°C Operating Range
5000Hr. Lifetime
0.1uF ~ 1000uF
6.3 ~ 50V
NACE
SMT
General Purpose
-40°C ~ 85°C Operating Range
2000Hr. Lifetime
0.1uF ~ 6800uF
4 ~ 100V
NACEN
SMT
Bi-Polar
-40°C ~ 85°C Operating Range
2000Hr. Lifetime
0.1uF ~ 47uF
6.3 ~ 50V
NACEW
SMT
Wide Temperature
-55°C ~ 105°C Operating Range
2000Hr. Lifetime
0.1uF ~ 6800uF
6.3 ~ 100V
NACH
SMT
Wide Temperature
-40°C ~ 105°C Operating Range
2000Hr. Lifetime
0.1uF ~ 220uF
4 ~ 50V
NACK
SMT
Low ESR & Z
-55°C ~ 105°C Operating Range
5000Hr. Lifetime
3.3uF ~ 6800uF
6.3 ~ 100V
NACKA
SMT
Low ESR & Z Extended Life
-55°C ~ 105°C Operating Range
5000Hr. Lifetime
47uF ~ 6800uF
6.3 ~ 100V
NACL
SMT
Low Leakage
-40°C ~ 85°C Operating Range
2000Hr. Lifetime
0.1uF ~ 100uF
6.3 ~ 50V
NACNW
SMT
Bi-Polar; Wide Temp
-55°C ~ 105°C Operating Range
1000Hr. Lifetime
0.1uF ~ 47uF
6.3 ~ 50V
NACP
SMT
Low Profile
-40°C ~ 85°C Operating Range
1000Hr. Lifetime
0.1uF ~ 220uF
4 ~ 50V
NACS
SMT
Low Profile
-40°C ~ 85°C Operating Range
2000Hr. Lifetime
4.7uF ~ 220uF
6.3 ~ 50V
NACV
SMT
High Voltage
-40°C ~ 105°C Operating Range
2000Hr. Lifetime
2.2uF ~ 82uF
160 ~ 400V
Page 6
NACVF
SMT
High Voltage (large case)
-40°C ~ 105°C Operating Range
5000Hr. Lifetime
2.2uF ~ 100uF
160 ~ 450V
NACX
SMT
Low ESR & Z
-55°C ~ 105°C Operating Range
1000Hr. Lifetime
0.47uF ~ 220uF
6.3 ~ 63V
NACY
SMT
Low ESR & Z
-55°C ~ 105°C Operating Range
2000Hr. Lifetime
4.7uF ~ 6800uF
6.3 ~ 100V
NACZ
SMT
Low ESR & Z; Higher Reflow Rated
-55°C ~ 105°C Operating Range
2000Hr. Lifetime
4.7uF ~ 6800uF
6.3 ~ 50V
NACZF
SMT
Low ESR & Z (large can)
-40°C ~ 105°C Operating Range
5000Hr. Lifetime
47uF ~ 6800uF
6.3 ~ 100V
NASE
SMT
General Purpose; Higher Reflow Rated
-40°C ~ 85°C Operating Range
2000Hr. Lifetime
0.1uF ~ 1000uF
6.3 ~ 50V
NATK
SMT
Low ESR Extended Temperature (100Khz)
-40°C ~ 125°C Operating Range
3000Hr. Lifetime
100uF ~ 2200uF
16 ~ 35V
NATT
SMT
Extended Temperature
-40°C ~ 125°C Operating Range
2000Hr. Lifetime
1uF ~ 4700uF
6.3 ~ 100V
NAWE
SMT
Wide Temperature, Higher Reflow Rated
-55°C ~ 105°C Operating Range
1000Hr. Lifetime
0.1uF ~ 1000uF
6.3 ~ 50V
NAWP
SMT
Wide Temperature, Reduced Size
-40°C ~ 105°C Operating Range
1000Hr. Lifetime
4.7uF ~ 220uF
6.3 ~ 50V
NAWT
SMT
Wide Temperature, Higher Reflow Rated
-55°C ~ 105°C Operating Range
2000Hr. Lifetime
22uF ~ 1000uF
6.3 ~ 50V
NAWU
SMT
Wide Temperature, Long Life
-40°C ~ 105°C Operating Range
5000Hr. Lifetime
0.1uF ~ 220uF
6.3 ~ 400V
NAZJ
SMT
Ultra Low ESR & Z
-55°C ~ 105°C Operating Range
2000Hr. Lifetime
10uF ~ 1800uF
6.3 ~ 35V
Page 7
NAZK
SMT
Low ESR & Z, Higher Reflow Rated
-55°C ~ 105°C Operating Range
2000Hr. Lifetime
4.7uF ~ 1000uF
6.3 ~ 35V
NAZT
SMT
Low ESR & Z,Higher Reflow Rated
-55°C ~ 105°C Operating Range
5000Hr. Lifetime
4.7uF ~ 10000uF
6.3 ~ 100V
NAZU
SMT
Low ESR & Z, Long Life Higher Reflow
Rated
-40°C ~ 105°C Operating Range
3000Hr. Lifetime
10uF ~ 330uF
6.3 ~ 50V
NAZV
SMT
Low ESR & Z, Long Life
-25°C ~ 105°C Operating Range
10000Hr. Lifetime
10uF ~ 1000uF
6.3 ~ 50V
NSPE-H
SMT
Ultra Low ESR Hybrid, Long Life
-55°C ~ 105°C Operating Range
10000Hr. Lifetime
3.3uF ~ 330uF
25 ~ 125V
NSPE-S
SMT
Ultra Low ESR Hybrid, High Voltage
-55°C ~ 105°C Operating Range
5000Hr. Lifetime
10uF ~ 1000uF
6.3 ~ 16V
NSPE-T
SMT
Ultra Low ESR Hybrid
-55°C ~ 125°C Operating Range
3000Hr. Lifetime
6.8uF ~ 330uF
25 ~ 125V
NSPE-U
SMT
Ultra Low ESR Hybrid
-55°C ~ 125°C Operating Range
2000Hr. Lifetime
22uF ~ 560uF
6.3 ~ 16V
NSPE-Y
SMT
Ultra Low ESR Hybrid, Extended
Temperature
-55°C ~ 135°C Operating Range
2000Hr. Lifetime
10uF ~ 330uF
25 ~ 63V
Copyright © 2012, NIC Components Corp. All Rights Reserved.
Reproduction in whole, or in part, without the written permission of the copyright holder is prohibited.
All information contained within this web site is believed to be accurate and reliable, and is presented without guarantee,
warranty, or responsibility of any kind, expressed or implied.
Loading...
