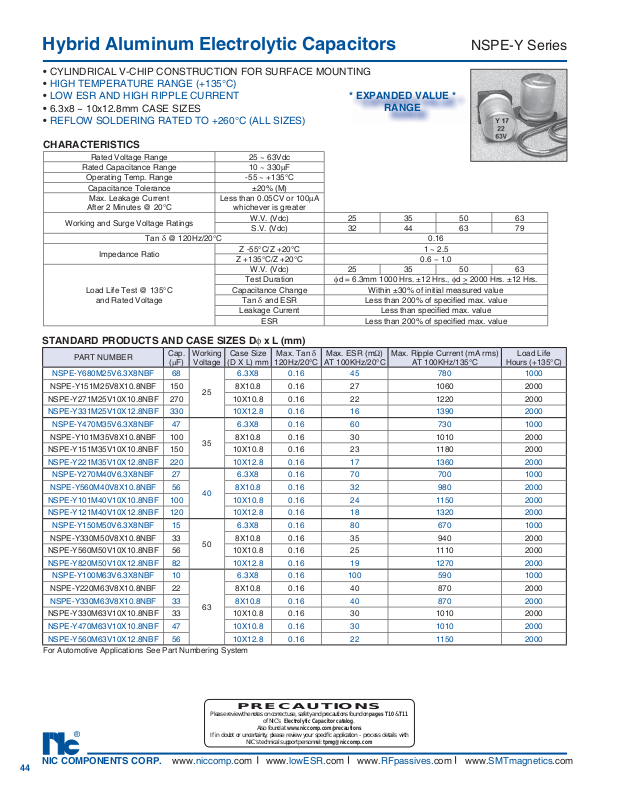

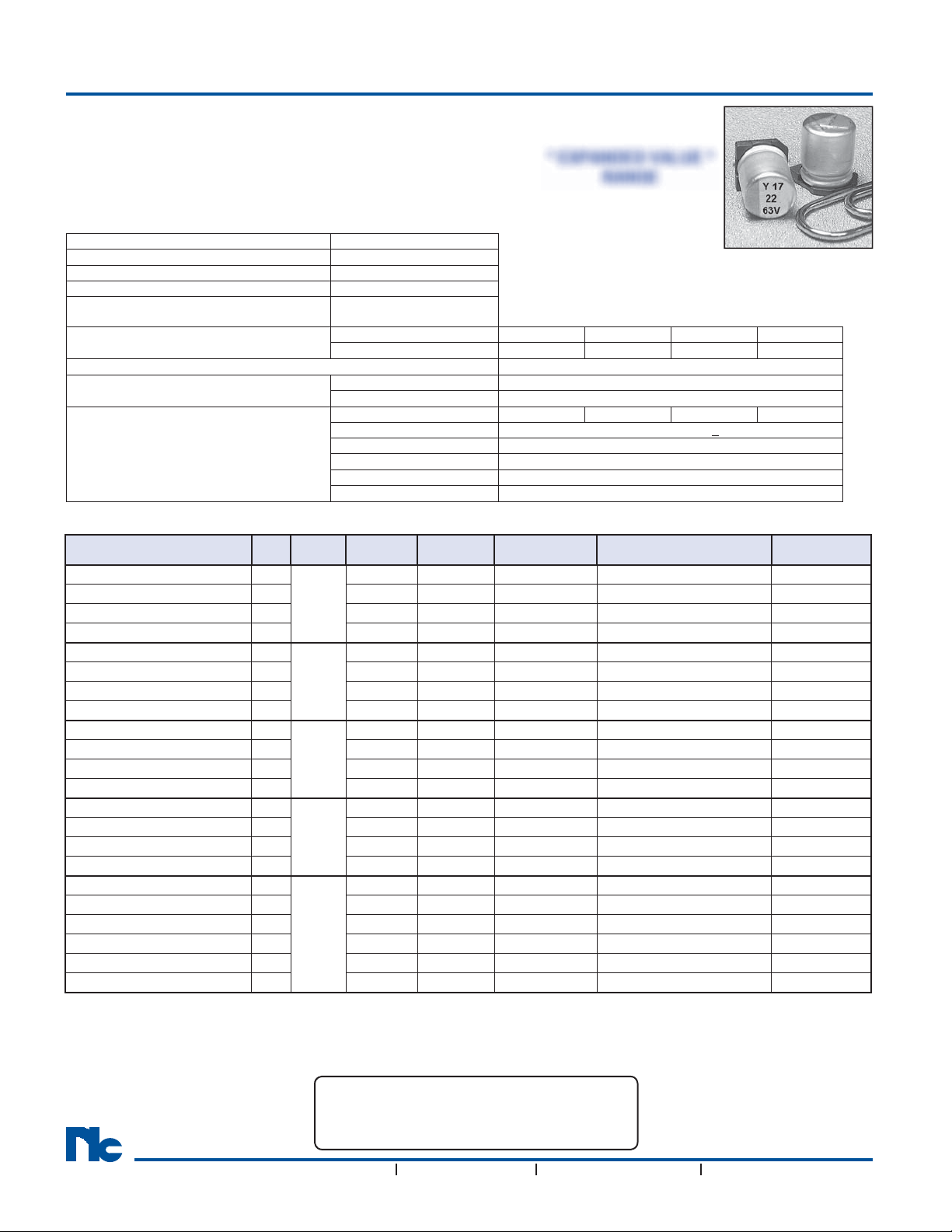

Hybrid Aluminum Electrolytic Capacitors
• CYLINDRICAL V-CHIP CONSTRUCTION FOR SURFACE MOUNTING
•
HIGH TEMPERATURE RANGE (+135°C)
• LOW ESR AND HIGH RIPPLE CURRENT
• 6.3x8 ~ 10x12.8mm CASE SIZES
• REFLOW SOLDERING RATED TO +260°C (ALL SIZES)
CHARACTERISTICS
Rated Voltage Range 25 ~ 63Vdc
Rated Capacitance Range
Operating Temp. Range -55 ~ +135°C
Capacitance Tolerance ±20% (M)
Max. Leakage Current
After 2 Minutes @ 20°C
Working and Surge Voltage Ratings
Tan δ @ 120Hz/20°C
Impedance Ratio
Load Life Test @ 135°C
and Rated Voltage
10 ~ 330μF
Less than 0.05CV or 100μA
whichever is greater
W.V. (Vdc) 25 35 50 63
S.V. (Vdc) 32 44 63 79
Z -55°C/Z +20°C 1 ~ 2.5
Z +135°C/Z +20°C 0.6 ~ 1.0
W.V. (Vdc) 25 35 50 63
Test Duration
Capacitance Change Within ±30% of initial measured value
Tan δ and ESR
Leakage Current Less than specifi ed max. value
ESR Less than 200% of specifi ed max. value
* EXPANDED VALUE *
RANGE
φd = 6.3mm 1000 Hrs. ±12 Hrs., φd > 2000 Hrs. ±12 Hrs.
Less than 200% of specifi ed max. value
NSPE-Y Series
0.16
STANDARD PRODUCTS AND CASE SIZES Dφ x L (mm)
Cap.
PART NUMBER
NSPE-Y680M25V6.3X8NBF 68
NSPE-Y151M25V8X10.8NBF 150 8X10.8 0.16 27 1060 2000
NSPE-Y271M25V10X10.8NBF 270 10X10.8 0.16 22 1220 2000
NSPE-Y331M25V10X12.8NBF 330 10X12.8 0.16 16 1390 2000
NSPE-Y470M35V6.3X8NBF 47
NSPE-Y101M35V8X10.8NBF 100 8X10.8 0.16 30 1010 2000
NSPE-Y151M35V10X10.8NBF 150 10X10.8 0.16 23 1180 2000
NSPE-Y221M35V10X12.8NBF 220 10X12.8 0.16 17 1360 2000
NSPE-Y270M40V6.3X8NBF 27
NSPE-Y560M40V8X10.8NBF 56 8X10.8 0.16 32 980 2000
NSPE-Y101M40V10X10.8NBF 100 10X10.8 0.16 24 1150 2000
NSPE-Y121M40V10X12.8NBF 120 10X12.8 0.16 18 1320 2000
NSPE-Y150M50V6.3X8NBF 15
NSPE-Y330M50V8X10.8NBF 33 8X10.8 0.16 35 940 2000
NSPE-Y560M50V10X10.8NBF 56 10X10.8 0.16 25 1110 2000
NSPE-Y820M50V10X12.8NBF 82 10X12.8 0.16 19 1270 2000
NSPE-Y100M63V6.3X8NBF 10
NSPE-Y220M63V8X10.8NBF 22 8X10.8 0.16 40 870 2000
NSPE-Y330M63V8X10.8NBF 33 8X10.8 0.16 40 870 2000
NSPE-Y330M63V10X10.8NBF 33 10X10.8 0.16 30 1010 2000
NSPE-Y470M63V10X10.8NBF 47 10X10.8 0.16 30 1010 2000
NSPE-Y560M63V10X12.8NBF 56 10X12.8 0.16 22 1150 2000
For Automotive Applications See Part Numbering System
(μF)
Working
Voltage
25
35
40
50
63
Case Size
(D X L) mm
6.3X8 0.16 45 780 1000
6.3X8 0.16 60 730 1000
6.3X8 0.16 70 700 1000
6.3X8 0.16 80 670 1000
6.3X8 0.16 100 590 1000
Max. Tan δ
120Hz/20°C
Max. ESR (mΩ)
AT 100KHz/20°C
Max. Ripple Current (mA rms)
AT 100KHz/135°C
Hours (+135°C)
Load Life
PRECAUTIONS
Please review the notes on correct use, safety and precautions found on pages T10 & T11
®
NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com
44
If in doubt or uncertainty, please review your specifi c application - process details with
of NIC’s Electrolytic Capacitor catalog.
Also found at www.niccomp.com/precautions
NIC’s technical support personnel: [email protected]
Page 2
Hybrid Aluminum Electrolytic Capacitors

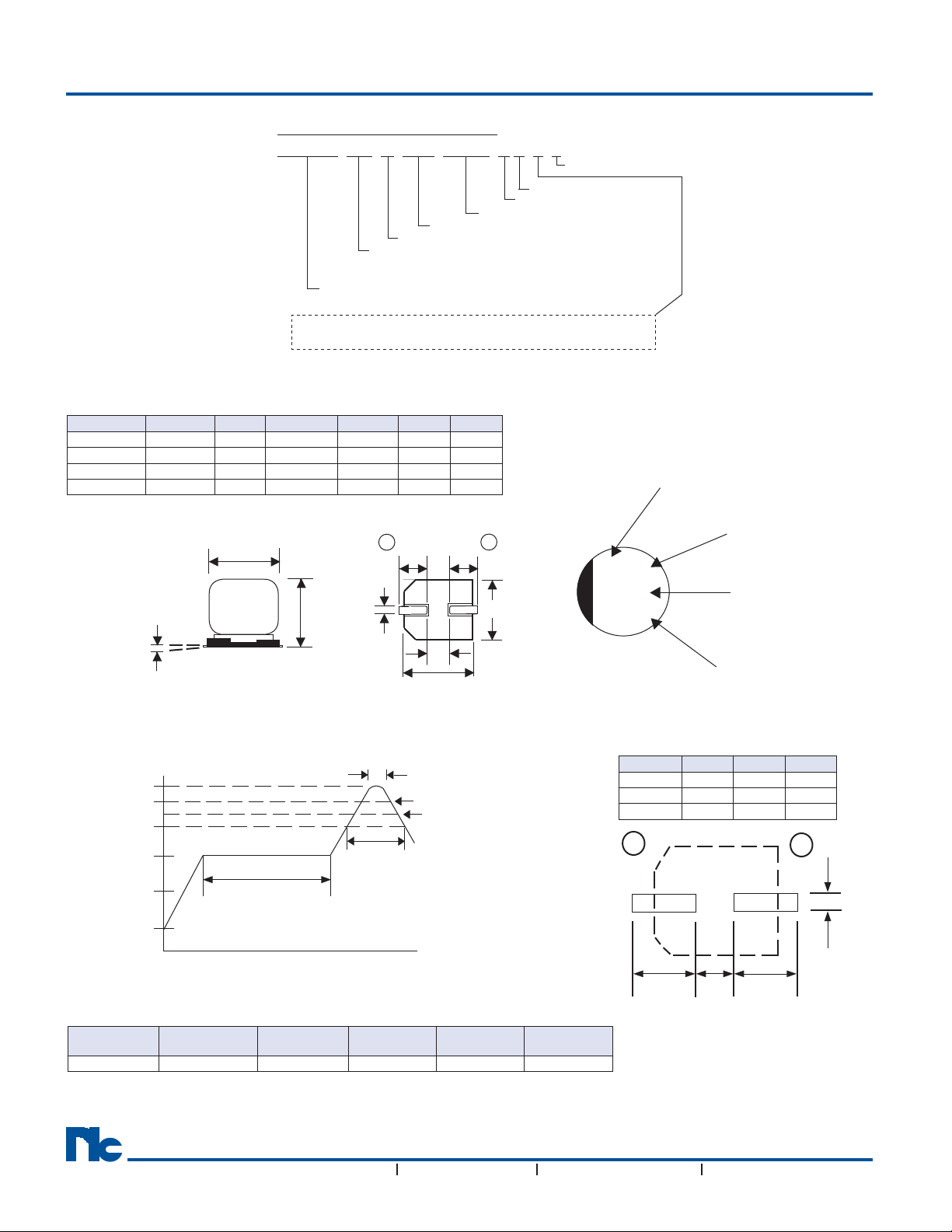

PART NUMBER SYSTEM
NSPE-Y 101 M 35V 8x10.8 N B Y F
RoHS Compliant
Sn-Bi Finish, 13" Reel
Refl ow Temp. Code (N=+260°C)
Size in mm
Working Voltage
Tolerance Code M=20%
Capacitance Code in μF, fi rst 2 digits are signifi cant
Third digit is no. of zeros, “R” indicates decimal for
values under 10μF
Series
Optional: Suitable for automotive equipment, sourced to special
production and inspection at TS-16949 certifi ed production site
DIMENSIONS (mm)
Case Size
6.3X8 6.3 8 6.6 0.5 ~ 0.8 2.5 2.2
8x10.8 8.0 10.8 8.3 0.7 ~ 1.0 2.9 3.2
10x10.8 10 10.8 10.3 1.0 ~ 1.4 3.2 4.6
10x12.8 10 12.8 10.3 1.0 ~ 1.4 3.2 4.6
Dφ ±0.5
L max. A, B ±0.2 W I ±0.2 P ±0.2
NSPE-Y Series
Part Marking
Series Code
+ -
I
W
P
B
I
A
0.3mm max.
Dφ
L
RECOMMENDED REFLOW SOLDERING PROFILE*
Peak Temperature
(260°C/5 seconds)
260
230
200
150
100
50
Temperature - Deg. C
Preheat - 120 seconds max.
(see table for temperature)
Time Above 200°C
(100 seconds max.)
Time Above 230°C
(40 seconds max.)
Time Above 217°C
(80 seconds max.)
Time (Seconds)
PEAK TEMPERATURE AND DURATION
Diameter
6.3 ~ 10mm 150°C ~ 190°C 100 sec. max. 80 sec. max. 40 sec. max. 260°C/5 sec.
*Two refl ow passes are permissible with a cool down to room temperature required between
the fi rst and second pass.
Preheat
(120 sec. max.)
Time above
200°C
Time above
217°C
Time above
230°C
Peak
Temperature
Lot Code
Y__
22
Capacitance Value
63V
Voltage
LAND PATTERN DIM. (mm)
Case Dia. A B P
6.3 1.8 1.8 3.6
8 4.1 2.1 2.8
10 4.4 2.5 4.3
+
AAP
-
B
®
NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com
45
Page 3
Hybrid Aluminum Electrolytic Capacitors

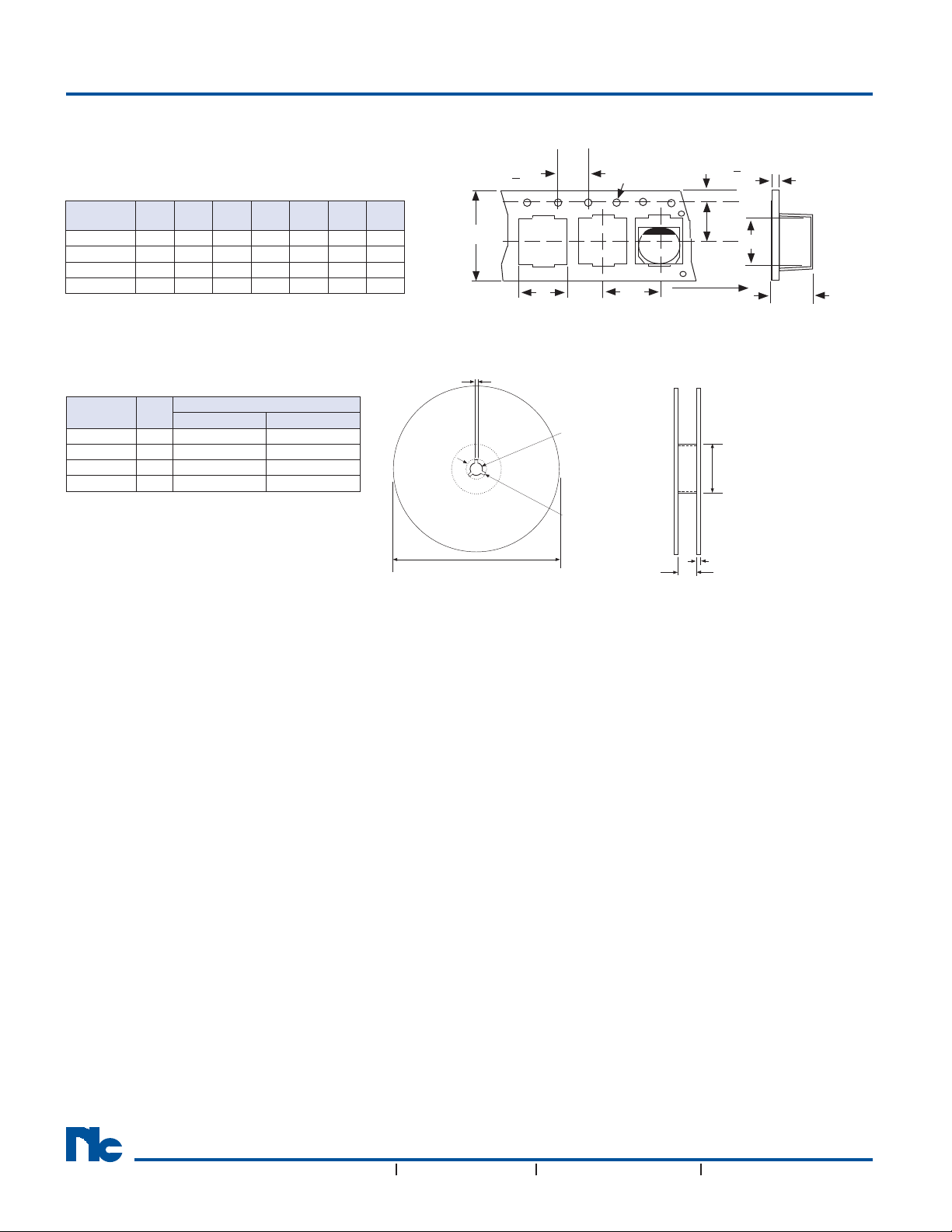

TAPING SPECIFICATIONS (mm)
1. Both Leader and Trailer tape: Minimum 40mm (1.57") empty carrier tape pockets.
2. Leader tape: Approximately 20cm of cover tape at leader.
3. Connection: Maximum 3 connections (slices) per reel.
Case Size
6.3X8 7.0 7.0 16.0 7.5 12.0 8.2 0.6
8X10.8 8.7 8.7 24.0 11.5 16.0 11.1 0.6
10X10.8 10.7 10.7 24.0 11.5 16.0 11.2 0.6
10X12.8 10.7 10.7 24.0 11.5 16.0 13.3 0.6
A
±0.5B±0.5C±0.3D±0.1P±0.1T±0.2tmax.
4 + 0.1
C
A
1.5∅ +0.1/-
1.5φ+0.1/-0
P
NSPE-Y Series
1.75 + 0.15
1.75 ±
D
B
+
Feeding
t
T
REEL DIMENSIONS (mm)
Case Size
6.3X8 18 500 900
8X10.8 26 300 500
10X10.8 26 300 500
10X12.8 26 300 400
W
±1.0
13" (330mm) 15" (380mm)
Qty per Reel
2mm ± 0.5mm
φ330mm ± 2.0mm
or φ380mm ± 2.0mm
φ13mm ± 0.5mm
φ50mm min.
φ21mm ± 0.8mm
3mm
W
®
NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com
46
