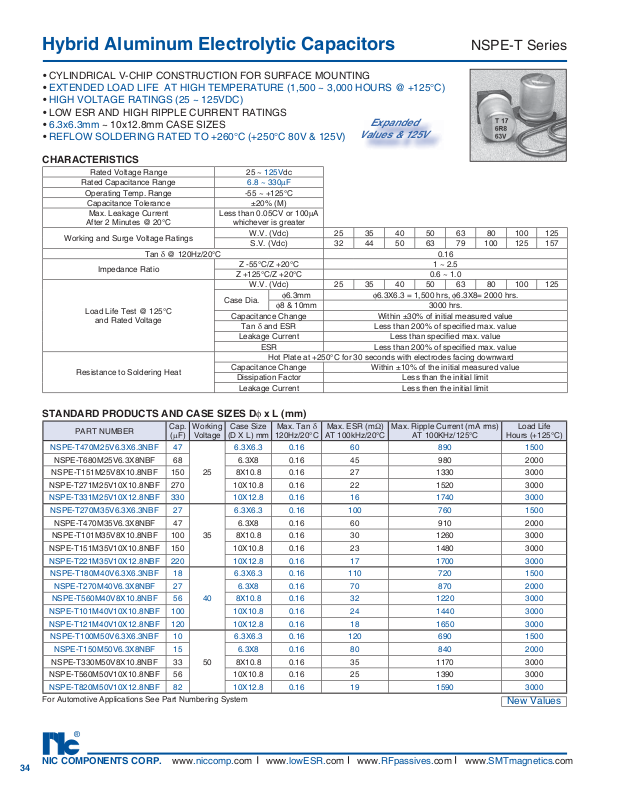

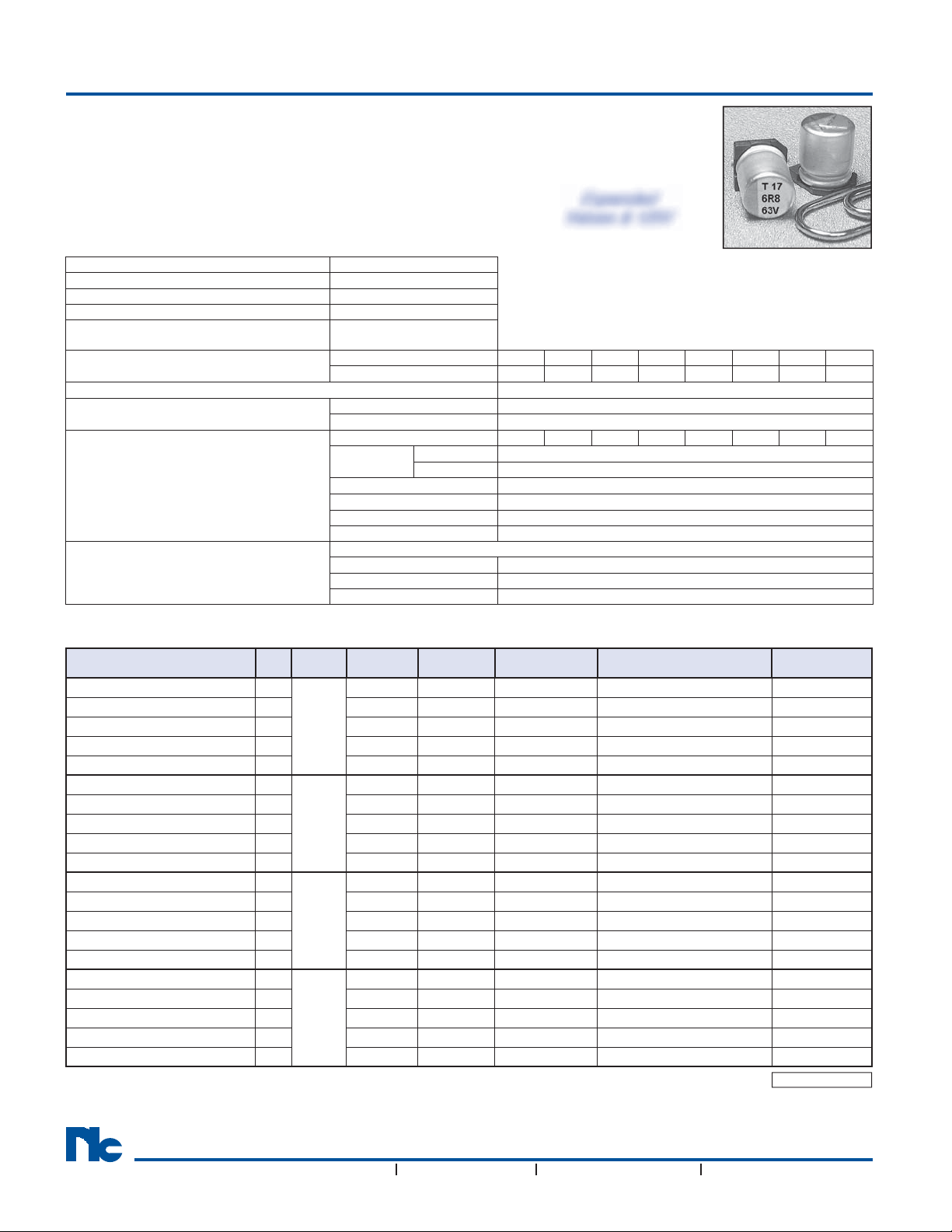

Hybrid Aluminum Electrolytic Capacitors
• CYLINDRICAL V-CHIP CONSTRUCTION FOR SURFACE MOUNTING
• EXTENDED LOAD LIFE AT HIGH TEMPERATURE (1,500 ~ 3,000 HOURS @ +125°C)
• HIGH VOLTAGE RATINGS (25 ~ 125VDC)
• LOW ESR AND HIGH RIPPLE CURRENT RATINGS
• 6.3x6.3mm ~ 10x12.8mm CASE SIZES
• REFLOW SOLDERING RATED TO +260°C (+250°C 80V & 125V)
CHARACTERISTICS
Rated Voltage Range 25 ~ 125Vdc
Rated Capacitance Range
Operating Temp. Range -55 ~ +125°C
Capacitance Tolerance
Max. Leakage Current
After 2 Minutes @ 20°C
Working and Surge Voltage Ratings
Tan δ @ 120Hz/20°C
Impedance Ratio
Load Life Test @ 125°C
and Rated Voltage
Resistance to Soldering Heat
6.8 ~ 330μF
±20% (M)
Less than 0.05CV or 100μA
whichever is greater
W.V. (Vdc) 25 35 40 50 63 80 100 125
S.V. (Vdc) 32 44 50 63 79 100 125 157
Z -55°C/Z +20°C 1 ~ 2.5
Z +125°C/Z +20°C 0.6 ~ 1.0
W.V. (Vdc) 25 35 40 50 63 80 100 125
Case Dia.
Capacitance Change Within ±30% of initial measured value
Tan δ and ESR
Leakage Current Less than specifi ed max. value
Capacitance Change Within ±10% of the initial measured value
Dissipation Factor Less than the initial limit
Leakage Current Less then the initial limit
φ6.3mm φ6.3X6.3 = 1,500 hrs, φ6.3X8= 2000 hrs.
φ8 & 10mm
ESR Less than 200% of specifi ed max. value
Hot Plate at +250°C for 30 seconds with electrodes facing downward
Expanded
Values & 125V
3000 hrs.
Less than 200% of specifi ed max. value
NSPE-T Series
0.16
STANDARD PRODUCTS AND CASE SIZES Dφ x L (mm)
Cap.
PART NUMBER
NSPE-T470M25V6.3X6.3NBF 47
NSPE-T680M25V6.3X8NBF 68 6.3X8 0.16 45 980 2000
NSPE-T151M25V8X10.8NBF
NSPE-T271M25V10X10.8NBF 270 10X10.8 0.16 22 1520 3000
NSPE-T331M25V10X12.8NBF 330 10X12.8 0.16 16 1740 3000
NSPE-T270M35V6.3X6.3NBF
NSPE-T470M35V6.3X8NBF 47 6.3X8 0.16 60 910 2000
NSPE-T101M35V8X10.8NBF
NSPE-T151M35V10X10.8NBF 150 10X10.8 0.16 23 1480 3000
NSPE-T221M35V10X12.8NBF 220 10X12.8 0.16 17 1700 3000
NSPE-T180M40V6.3X6.3NBF
NSPE-T270M40V6.3X8NBF 27 6.3X8 0.16 70 870 2000
NSPE-T560M40V8X10.8NBF 56 8X10.8 0.16 32 1220 3000
NSPE-T101M40V10X10.8NBF 100 10X10.8 0.16 24 1440 3000
NSPE-T121M40V10X12.8NBF 120 10X12.8 0.16 18 1650 3000
NSPE-T100M50V6.3X6.3NBF 10
NSPE-T150M50V6.3X8NBF
NSPE-T330M50V8X10.8NBF 33 8X10.8 0.16 35 1170 3000
NSPE-T560M50V10X10.8NBF
NSPE-T820M50V10X12.8NBF 82 10X12.8 0.16 19 1590 3000
For Automotive Applications See Part Numbering System
Working
(μF)
Voltage
150 8X10.8 0.16 27 1330 3000
27
100 8X10.8 0.16 30 1260 3000
18
15 6.3X8 0.16 80 840 2000
56 10X10.8 0.16 25 1390 3000
25
35
40
50
Case Size
(D X L) mm
6.3X6.3 0.16 60 890 1500
6.3X6.3 0.16 100 760 1500
6.3X6.3 0.16 110 720 1500
6.3X6.3 0.16 120 690 1500
Max. Tan δ
120Hz/20°C
Max. ESR (mΩ)
AT 100kHz/20°C
Max. Ripple Current (mA rms)
AT 100KHz/125°C
Load Life
Hours (+125°C)
New Values
®
NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com
34
Page 2

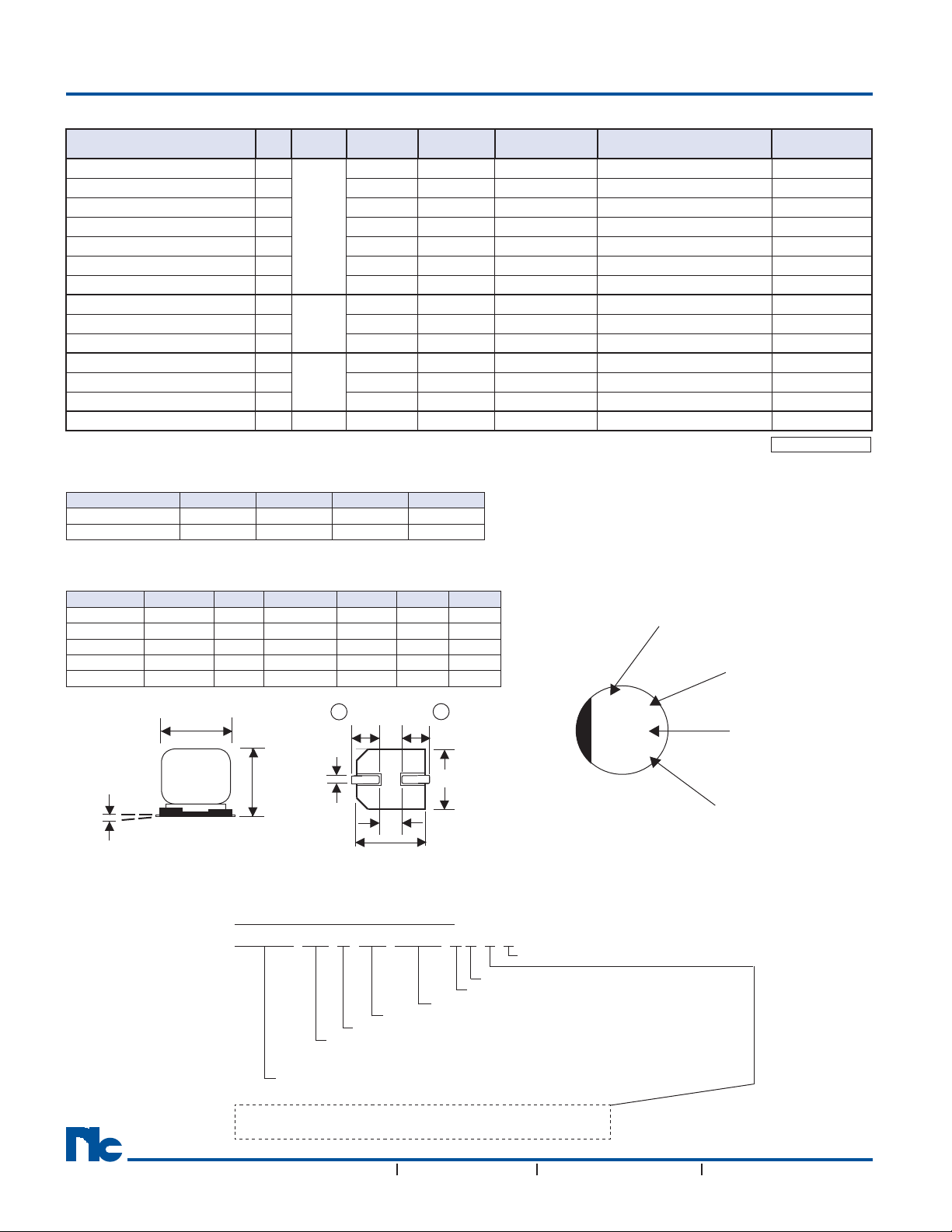

Hybrid Aluminum Electrolytic Capacitors
NSPE-T Series
STANDARD PRODUCTS AND CASE SIZES Dφ x L (mm)
Cap.
PART NUMBER
NSPE-T6R8M63V6.3X6.3NBF 6.8
NSPE-T100M63V6.3X8NBF
NSPE-T220M63V8X10.8NBF 22 8X10.8 0.16 40 1090 3000
NSPE-T330M63V8X10.8NBF 33 8X10.8 0.16 40 1090 3000
NSPE-T330M63V10X10.8NBF 33 10X10.8 0.16 30 1260 3000
NSPE-T470M63V10X10.8NBF 47 10X10.8 0.16 30 1260 3000
NSPE-T560M63V10X12.8NBF
NSPE-T120M80V10X10.8LBF 12
NSPE-T150M80V10X10.8LBF 15 10X10.8 0.16 70 900 3000
NSPE-T180M80V10X12.8LBF
NSPE-T100M100V10X10.8LBF 10
NSPE-T120M100V10X10.8LBF 12 10X10.8 0.16 80 870 3000
NPSE-T150M100V10X12.8LBF
NSPE-T100M125V10X10.8LBF 10 125 10X10.8 0.16 90 750 3000
For Automotive Applications See Part Numbering System
Working
(μF)
Voltage
10 6.3X8 0.16 100 740 2000
56 10X12.8 0.16 22 1440 3000
18 10X12.8 0.16 50 1100 3000
15 10X12.8 0.16 60 1000 3000
63
80
100
Case Size
(D X L) mm
6.3X6.3 0.16 150 670 1500
10X10.8
10X10.8
Max. Tan δ
120Hz/20°C
0.16 70 900 3000
0.16 80 870 3000
Max. ESR (mΩ)
AT 100kHz/20°C
Max. Ripple Current (mA rms)
AT 100KHz/125°C
Load Life
Hours (+125°C)
New Values
RIPPLE CURRENT FREQUENCY CORRECTION FACTOR
Frequency 100Hz 1KHz 10KHz 100KHz
6.8 ~ 33μF 0.05 0.32 0.67 1.0
47 ~ 330μF 0.10 0.35 0.70 1.0
DIMENSIONS (mm)
Case Size
6.3x6.3 6.3 6.3 6.6 0.5 ~ 0.8 2.5 2.2
6.3x8 6.3 8.0 6.6 0.5 ~ 0.8 2.5 2.2
8x10.8 8.0 10.8 8.3 0.7 ~ 1.0 2.9 3.2
10x10.8 10 10.8 10.3 1.0 ~ 1.4 3.2 4.6
10x12.8 10 12.8 10.3 1.0 ~ 1.4 3.2 4.6
0.3mm max.
Dφ ±0.5
L max. A, B ±0.2 W I ±0.2 P ±0.2
Dφ
+ -
I
W
I
L
P
B
PART NUMBER SYSTEM
NSPE-T 220 M 63V 8x10.8 N B Y F
RoHS Compliant
B=Sn-Bi Finish & 13" Reel, L=Sn-Bi Finish & 15" Reel
Refl ow Temp. Code (N=+260°C, L=+250°C)
Size in mm
Working Voltage
Tolerance Code M=20%
Capacitance Code in μF, fi rst 2 digits are signifi cant
Third digit is no. of zeros, “R” indicates decimal for
values under 10μF
Series
Part Marking
Series Code
Lot Code
T__
6R8
Capacitance Value
63V
A
Voltage
®
Optional: Suitable for automotive equipment, sourced to special
production and inspection at TS-16949 certifi ed production site
NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com
35
Page 3
Hybrid Aluminum Electrolytic Capacitors
NSPE-T Series

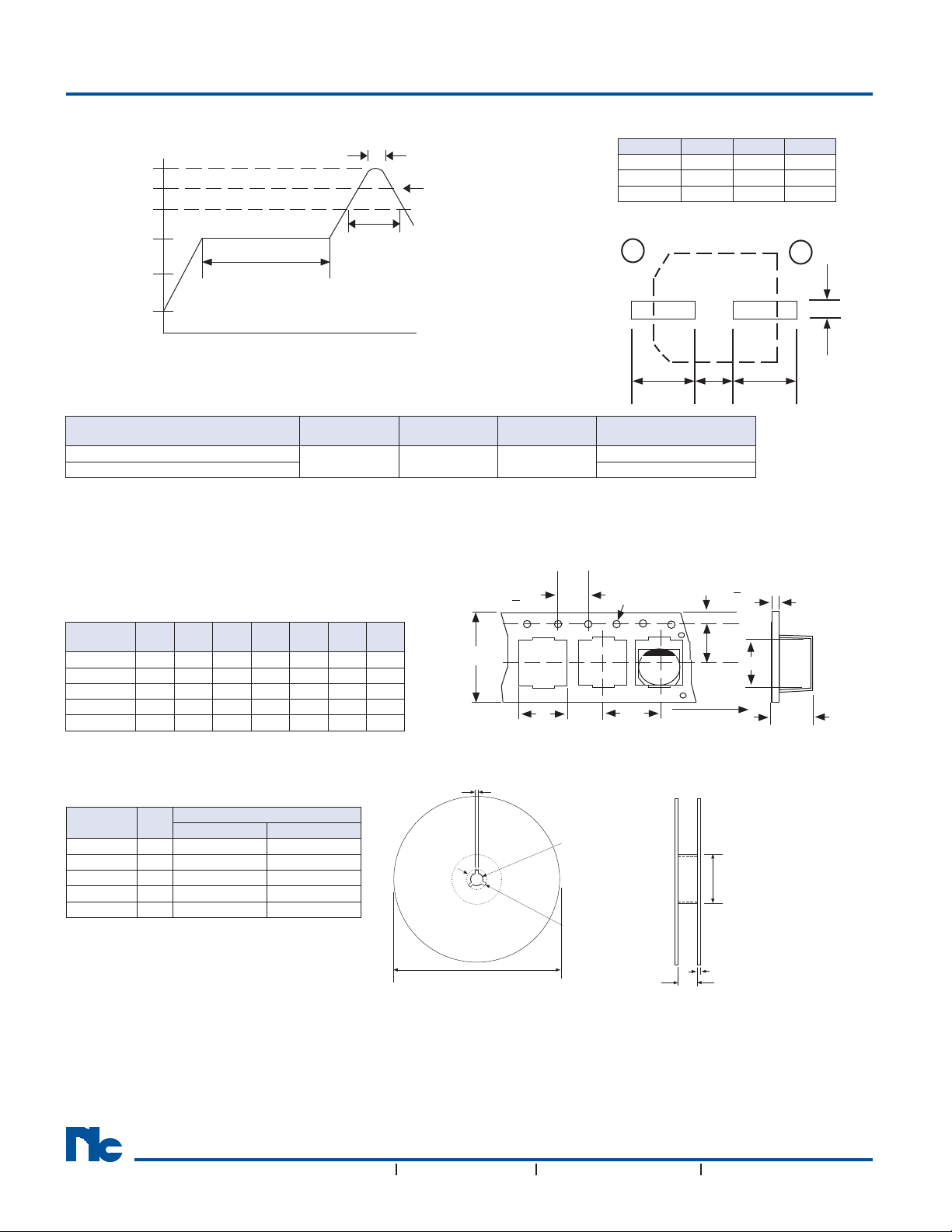

RECOMMENDED REFLOW SOLDERING PROFILE*
Peak Temperature
260
230
200
150
100
50
Temperature - Deg. C
Preheat - 120 seconds max.
(+150°C ~ +190°C)
Time Above 200°C
(80 seconds max.)
(260°C/5 seconds)
Time Above 230°C
(40 seconds max.)
Time (Seconds)
PEAK TEMPERATURE AND DURATION
Rated Voltage/Diameter
25V ~ 63V / 6.3mm ~ 10mm
80 ~ 125V / 10mm +250°C (5 sec. max.)
*Two refl ow passes are permissible with a cool down to room temperature required between
the fi rst and second pass.
Time Above
+200°C
100 sec. max. 80 sec. max. 40 sec. max.
Time Above
+217°C
Time Above
+230°C
TAPING SPECIFICATIONS (mm)
1. Both Leader and Trailer tape: Minimum 40mm (1.57") empty carrier tape pockets.
2. Leader tape: Approximately 20cm of cover tape at leader.
3. Connection: Maximum 3 connections (slices) per reel.
Case Size
6.3x6.3 7.0 7.0 16.0 7.5 12.0 6.5 0.6
6.3x8 7.0 7.0 16.0 7.5 12.0 8.2 0.6
8x10.8 8.7 8.7 24.0 11.5 16.0 11.0 0.6
10x10.8 10.7 10.7 24.0 11.5 16.0 11.0 0.6
10x12.8 10.7 10.7 24.0 11.5 16.0 13.3 0.6
A
±0.5B±0.5C±0.3D±0.1P±0.1T±0.2tmax.
4 + 0.1
C
A
LAND PATTERN DIM. (mm)
Case Dia. A B P
6.3 3.6 1.8 1.8
8 4.1 2.1 2.8
10 4.4 2.5 4.3
+
-
AAP
Peak
Temperature
+260°C (5 sec. max.)
1.5∅ +0.1/-
1.5φ+0.1/-0
P
1.75 ±
-
+
Feeding
1.75 + 0.15
t
D
B
T
B
REEL DIMENSIONS (mm)
Case Size
6.3x6.3 18 800 1000
6.3x8 18 500 900
8x10.5 26 300 500
10x10.5 26 300 500
10x12.8 26 300 400
NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com
36
W
±1.0
13" (330mm) 15" (380mm)
®
Qty per Reel
φ330mm ± 2.0mm
or φ380mm ± 2.0mm
2mm ± 0.5mm
φ13mm ± 0.5mm
φ50mm min.
φ21mm ± 0.8mm
3mm
W
