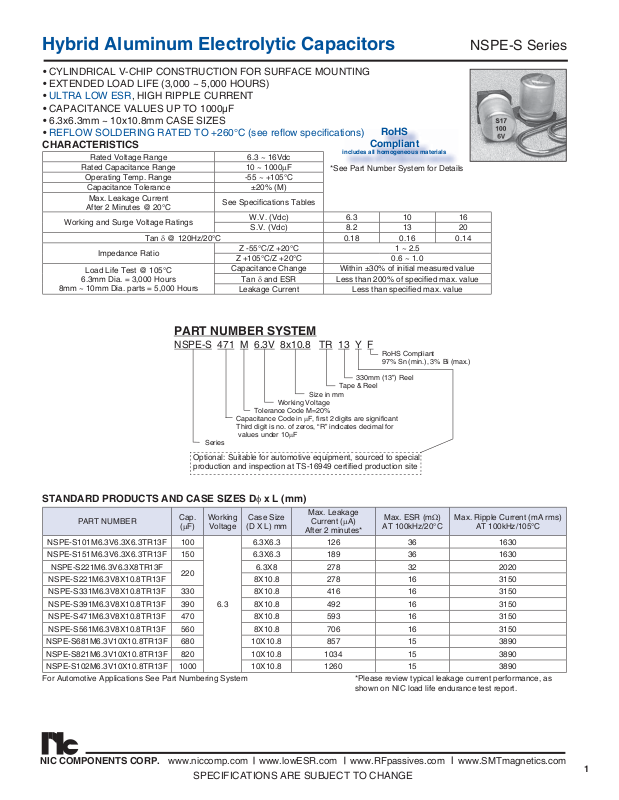

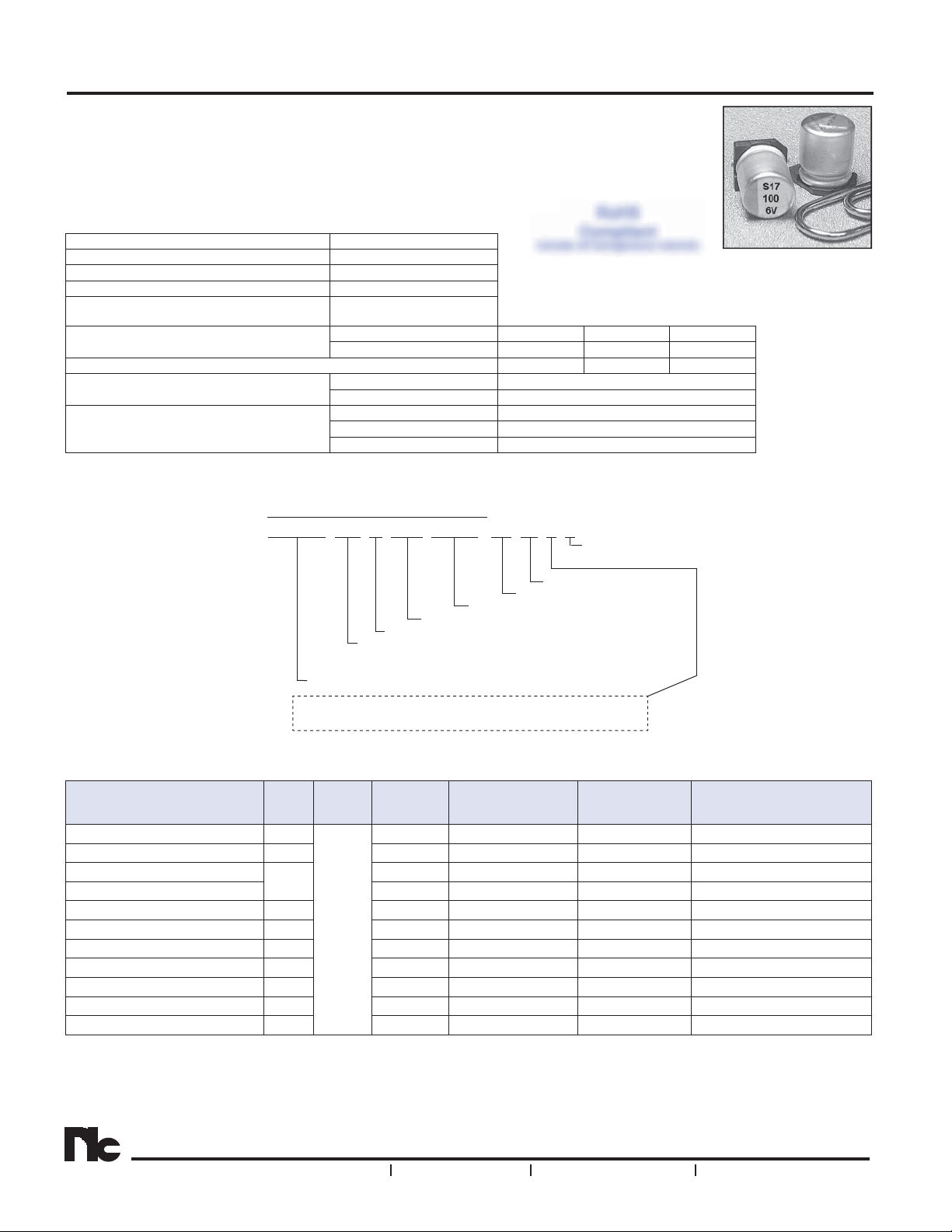

Page 1
Hybrid Aluminum Electrolytic Capacitors
)
• CYLINDRICAL V-CHIP CONSTRUCTION FOR SURFACE MOUNTING
• EXTENDED LOAD LIFE (3,000 ~ 5,000 HOURS)
•
ULTRA LOW ESR, HIGH RIPPLE CURRENT
• CAPACITANCE VALUES UP TO 1000μF
• 6.3x6.3mm ~ 10x10.8mm CASE SIZES
REFLOW SOLDERING RATED TO +260°C (see refl ow specifi cations)ons
•
CHARACTERISTICS
Rated Voltage Range 6.3 ~ 16Vdc
Rated Capacitance Range 10 ~ 1000μF
Operating Temp. Range -55 ~ +105°C
Capacitance Tolerance ±20% (M)
Max. Leakage Current
After 2 Minutes @ 20°C
Working and Surge Voltage Ratings
Tan δ @ 120Hz/20°C 0.18 0.16 0.14
Impedance Ratio
Load Life Test @ 105°C
6.3mm Dia. = 3,000 Hours
8mm ~ 10mm Dia. parts = 5,000 Hours
See Specifi cations Tables
Z +105°C/Z +20°C 0.6 ~ 1.0
Capacitance Change Within ±30% of initial measured value
W.V. (Vdc) 6.3 10 16
S.V. (Vdc) 8.2 13 20
Z -55°C/Z +20°C 1 ~ 2.5
Tan δ and ESR Less than 200% of specifi ed max. value
Leakage Current Less than specifi ed max. value
*See Part Number System for Details
PART NUMBER SYSTEM
NSPE-S 471 M 6.3V 8x10.8 TR 13 Y F
RoHS Compliant
97% Sn (min.), 3% Bi (max.)
330mm (13”) Reel
Tape & Reel
Size in mm
Working Voltage
Tolerance Code M=20%
Capacitance Code in μF, fi rst 2 digits are signifi cant
Third digit is no. of zeros, “R” indicates decimal for
values under 10μF
Series
Optional: Suitable for automotive equipment, sourced to special
production and inspection at TS-16949 certifi ed production site
includes all homogeneous materials
RoHS
Compliant
NSPE-S Series
STANDARD PRODUCTS AND CASE SIZES Dφ x L (mm)
Cap.
PART NUMBER
NSPE-S101M6.3V6.3X6.3TR13F 100
NSPE-S151M6.3V6.3X6.3TR13F 150 6.3X6.3 189 36 1630
NSPE-S221M6.3V6.3X8TR13F
NSPE-S221M6.3V8X10.8TR13F 8X10.8 278 16 3150
NSPE-S331M6.3V8X10.8TR13F 330 8X10.8 416 16 3150
NSPE-S391M6.3V8X10.8TR13F 390 8X10.8 492 16 3150
NSPE-S471M6.3V8X10.8TR13F 470 8X10.8 593 16 3150
NSPE-S561M6.3V8X10.8TR13F 560 8X10.8 706 16 3150
NSPE-S681M6.3V10X10.8TR13F 680 10X10.8 857 15 3890
NSPE-S821M6.3V10X10.8TR13F 820 10X10.8 1034 15 3890
NSPE-S102M6.3V10X10.8TR13F 1000 10X10.8 1260 15 3890
For Automotive Applications See Part Numbering System *Please review typical leakage current performance, as
(μF)
220
Working
Voltage
6.3
Case Size
(D X L) mm
6.3X6.3 126 36 1630
6.3X8 278 32 2020
Max. Leakage
Current (μA)
After 2 minutes*
Max. ESR (mΩ)
AT 100kHz/20°C
shown on NIC load life endurance test report.
Max. Ripple Current (mA rms)
AT 100kHz/105°C
NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
1

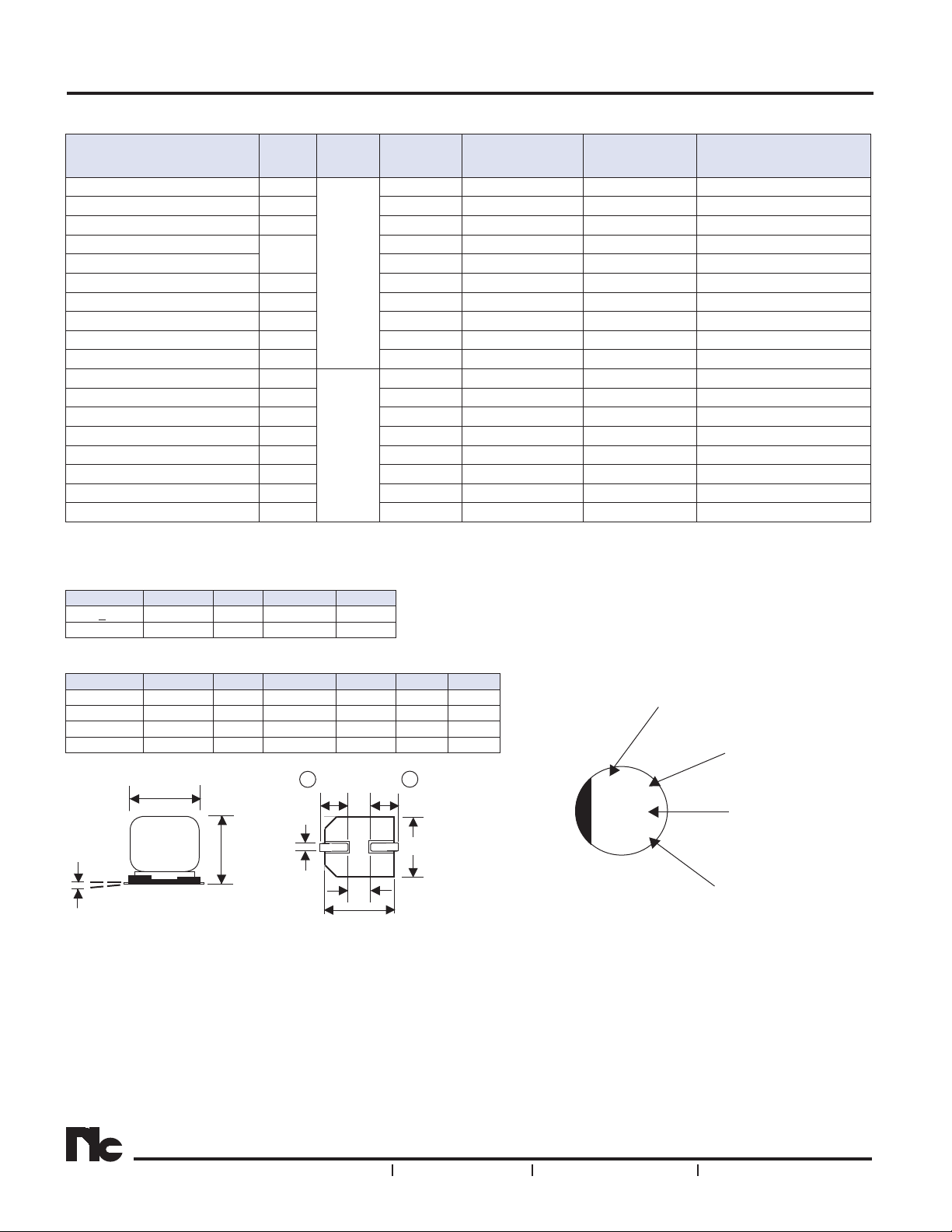

Page 2
Hybrid Aluminum Electrolytic Capacitors
NSPE-S Series
STANDARD PRODUCTS AND CASE SIZES Dφ x L (mm)
PART NUMBER
NSPE-S330M10V6.3X6.3TR13F 33
NSPE-S470M10V6.3X6.3TR13F 47 6.3X6.3 100 40 1510
NSPE-S680M10V6.3X6.3TR13F 68 6.3X6.3 136 40 1510
NSPE-S101M10V6.3X8TR13F
NSPE-S101M10V8X10.8TR13F 8x10.8 200 18 2800
NSPE-S151M10V8X10.8TR13F 150 8X10.8 300 18 2800
NSPE-S221M10V8X10.8TR13F 220 8X10.8 440 18 2800
NSPE-S331M10V8X10.8TR13F 330 8X10.8 660 18 2800
NSPE-S471M10V10X10.8TR13F 470 10X10.8 940 16 3650
NSPE-S561M10V10X10.8TR13F 560 10X10.8 1120 16 3650
NSPE-S100M16V6.3X6.3TR13F 10
NSPE-S220M16V6.3X6.3TR13F 22 6.3X6.3 100 54 1130
NSPE-S330M16V6.3X6.3TR13F 33 6.3X6.3 106 54 1130
NSPE-S470M16V6.3X8TR13F 47 6.3X8 151 45 1480
NSPE-S470M16V8X10.8TR13F 47 8X10.8 151 22 2290
NSPE-S680M16V8X10.8TR13F 68 8X10.8 218 22 2290
NSPE-S101M16V8X10.8TR13F 100 8X10.8 320 22 2290
NSPE-S151M16V10X10.8TR13F 150 10X10.8 480 20 2920
For Automotive Applications See Part Numbering System
Cap.
(μF)
100
Working
Voltage
10
16
Case Size
(D X L) mm
6.3X6.3 100 40 1510
6.3X8 200 35 1910
6.3X6.3 100 54 1130
RIPPLE CURRENT FREQUENCY
Max. Leakage
Current (μA)
After 2 minutes*
*Please review typical leakage current performance, as
shown on NIC load life endurance test report.
Max. ESR (mΩ)
AT 100kHz/20°C
Max. Ripple Current (mA rms)
AT 100kHz/105°C
CORRECTION FACTORS
Cap. μF 100Hz 1KHz 10KHz 100KHz
C < 10 0.03 0.20 0.50 1.00
> 10 0.05 0.20 0.50 1.00
DIMENSIONS (mm)
Case Size Dφ ±0.5 L max. A, B ±0.2 W I ±0.2 P ±0.2
6.3x6.3 6.3 6.3 6.6 0.5 ~ 0.8 2.5 2.2
6.3x8 6.3 8.0 6.6 0.5 ~ 0.8 2.5 2.2
8x10.8 8.0 10.8 8.3 0.7 ~ 1.0 2.9 3.2
10x10.8 10 10.8 10.3 1.0 ~ 1.4 3.2 4.6
+ -
I
W
P
B
I
A
0.3mm max.
Dφ
L
S17
100
6V
Part Marking
Series Code
Lot Code
Capacitance Value
Voltage
NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com
2
SPECIFICATIONS ARE SUBJECT TO CHANGE

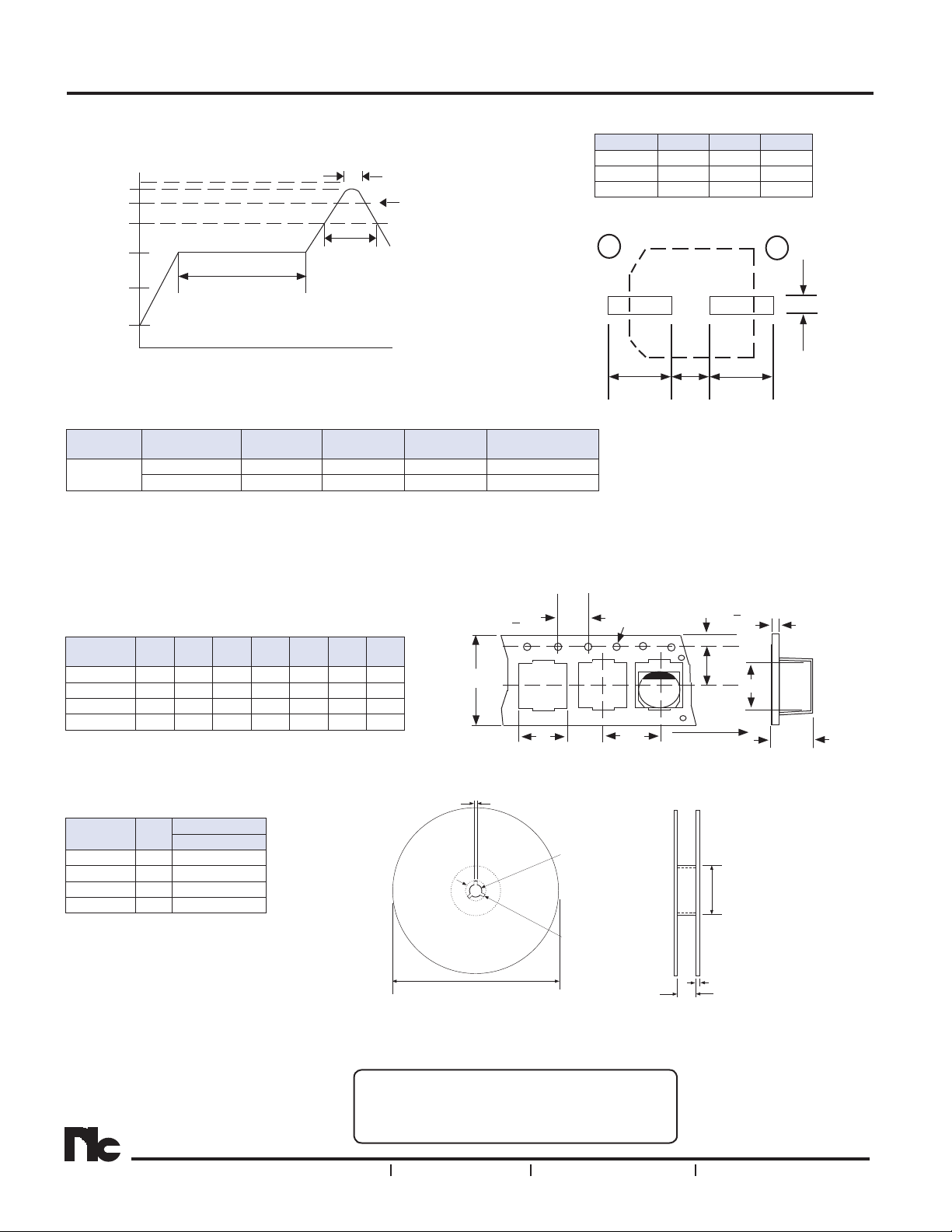

Page 3
Hybrid Aluminum Electrolytic Capacitors
LAND PATTERN DIM. (mm)
RECOMMENDED REFLOW SOLDERING PROFILE
Peak Temperature
230°C
(see table below)
Time Above 230°C
(40 seconds max.)
Peak
Temperature
Number
of Refl ow Passes
250
230
200
150
100
50
Temperature - Deg. C
Preheat - 120 seconds max.
(see table for temperature)
Time Above 200°C
(see table below)
Time (Seconds)
PEAK TEMPERATURE AND DURATION
Diameter
6.3 ~ 10mm
*Two refl ow passes are permissible with a cool down to room temperature required between
the fi rst and second pass.
Preheat
(120 sec. max.)
150°C ~ 190°C 90 sec. max. 40 sec. max. 250°C/5 sec. 2x*
150°C ~ 180°C 60 sec. max. 40 sec. max. 260°C/5 sec. 1x
Time above
200°C
Time above
NSPE-S Series
Case Dia. A B P
6.3 3.5 1.8 2.1
8 4.1 2.1 2.8
10 4.4 2.5 4.3
+
AAP
-
B
TAPING SPECIFICATIONS (mm)
1. Both Leader and Trailer tape: Minimum 40mm (1.57") empty carrier tape pockets.
2. Leader tape: Approximately 20cm of cover tape at leader.
3. Connection: Maximum 3 connections (slices) per reel.
Case Size
6.3x6.3 7.0 7.0 16.0 7.5 12.0 6.5 0.4
6.3x8 7.0 7.0 16.0 7.5 12.0 8.2 0.4
8x10.8 8.7 8.7 24.0 11.5 16.0 11.1 0.4
10x10.8 10.7 10.7 24.0 11.5 16.0 11.2 0.4
A
±0.5B±0.5C±0.3D±0.1P±0.1T±0.2tmax.
REEL DIMENSIONS (mm)
Qty per Reel
Case Size
6.3x6.3 18 800
6.3x8 18 500
8x10.8 26 300
10x10.8 26 300
W
±1.0
13" (330mm)
φ330mm ± 2.0mm
or φ380mm ± 2.0mm
4 + 0.1
C
2mm ± 0.5mm
A
φ13mm ± 0.5mm
φ21mm ± 0.8mm
1.5∅ +0.1/-
1.5φ+0.1/-0
P
1.75 ±
-
+
Feeding
W
1.75 + 0.15
t
D
B
T
φ50mm min.
3mm
PRECAUTIONS
Please review the notes on correct use, safety and precautions found on
pages T10 & T11 of NIC’s Electrolytic Capacitor catalog.
If in doubt or uncertainty, please review your specifi c application - process
Also found at www.niccomp.com/precautions
details with NIC’s technical support personnel: [email protected]
NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
3
