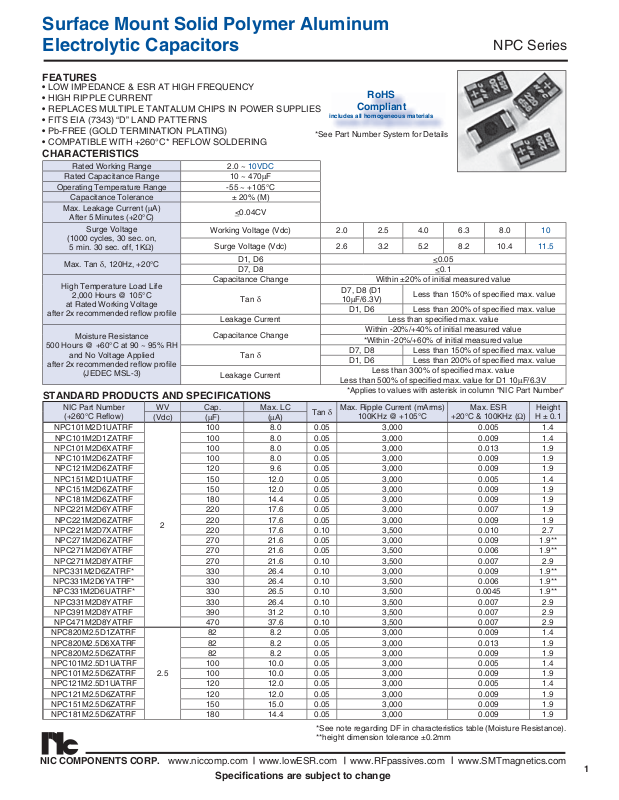

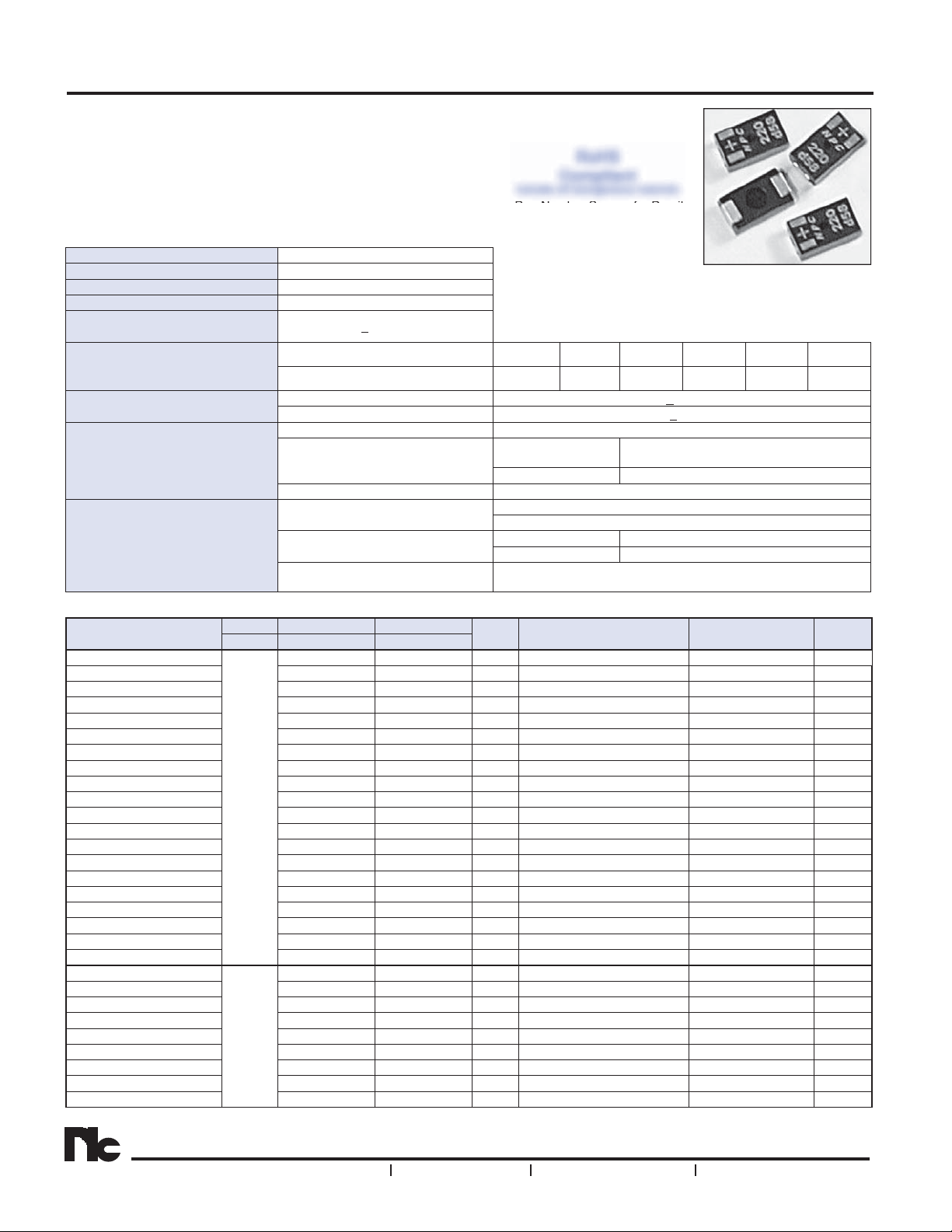

Surface Mount Solid Polymer Aluminum
Electrolytic Capacitors
NPC Series
FEATURES
• LOW IMPEDANCE & ESR AT HIGH FREQUENCY
• HIGH RIPPLE CURRENT
• REPLACES MULTIPLE TANTALUM CHIPS IN POWER SUPPLIES
• FITS EIA (7343) “D” LAND PATTERNS
• Pb-FREE (GOLD TERMINATION PLATING)
• COMPATIBLE WITH +260°C* REFLOW SOLDERING
includes all homogeneous materials
*See Part Number System for Details
RoHS
Compliant
CHARACTERISTICS
Rated Working Range 2.0 ~ 10VDC
Rated Capacitance Range
Operating Temperature Range -55 ~ +105°C
Capacitance Tolerance ± 20% (M)
Max. Leakage Current (μA)
After 5 Minutes (+20°C)
Surge Voltage
(1000 cycles, 30 sec. on,
5 min. 30 sec. off, 1KΩ)
Max. Tan δ, 120Hz, +20°C
High Temperature Load Life
2,000 Hours @ 105°C
at Rated Working Voltage
after 2x recommended refl ow profi le
Moisture Resistance
500 Hours @ +60°C at 90 ~ 95% RH
and No Voltage Applied
after 2x recommended refl ow profi le
(JEDEC MSL-3)
STANDARD PRODUCTS AND SPECIFICATIONS
NIC Part Number
(+260°C Refl ow)
NPC101M2D1UATRF
NPC101M2D1ZATRF 100 8.0 0.05 3,000 0.009 1.4
NPC101M2D6XATRF 100 8.0 0.05 3,000 0.013 1.9
NPC101M2D6ZATRF 100 8.0 0.05 3,000 0.009 1.9
NPC121M2D6ZATRF 120 9.6 0.05 3,000 0.009 1.9
NPC151M2D1UATRF 150 12.0 0.05 3,000 0.005 1.4
NPC151M2D6ZATRF 150 12.0 0.05 3,000 0.009 1.9
NPC181M2D6ZATRF 180 14.4 0.05 3,000 0.009 1.9
NPC221M2D6YATRF 220 17.6 0.05 3,000 0.007 1.9
NPC221M2D6ZATRF 220 17.6 0.05 3,000 0.009 1.9
NPC221M2D7XATRF 220 17.6 0.10 3,500 0.010 2.7
NPC271M2D6ZATRF 270 21.6 0.05 3,000 0.009 1.9**
NPC271M2D6YATRF 270 21.6 0.05 3,500 0.006 1.9**
NPC271M2D8YATRF 270 21.6 0.10 3,500 0.007 2.9
NPC331M2D6ZATRF* 330 26.4 0.10 3,000 0.009 1.9**
NPC331M2D6YATRF* 330 26.4 0.10 3,500 0.006 1.9**
NPC331M2D6UATRF* 330 26.5 0.10 3,500 0.0045 1.9**
NPC331M2D8YATRF 330 26.4 0.10 3,500 0.007 2.9
NPC391M2D8YATRF 390 31.2 0.10 3,500 0.007 2.9
NPC471M2D8YATRF 470 37.6 0.10 3,500 0.007 2.9
NPC820M2.5D1ZATRF
NPC820M2.5D6XATRF 82 8.2 0.05 3,000 0.013 1.9
NPC820M2.5D6ZATRF 82 8.2 0.05 3,000 0.009 1.9
NPC101M2.5D1UATRF 100 10.0 0.05 3,000 0.005 1.4
NPC101M2.5D6ZATRF 100 10.0 0.05 3,000 0.009 1.9
NPC121M2.5D1UATRF 120 12.0 0.05 3,000 0.005 1.4
NPC121M2.5D6ZATRF 120 12.0 0.05 3,000 0.009 1.9
NPC151M2.5D6ZATRF 150 15.0 0.05 3,000 0.009 1.9
NPC181M2.5D6ZATRF 180 14.4 0.05 3,000 0.009 1.9
WV Cap. Max. LC
(Vdc)
2
2.5
10 ~ 470μF
<0.04CV
Working Voltage (Vdc) 2.0 2.5 4.0 6.3 8.0 10
Surge Voltage (Vdc) 2.6 3.2 5.2 8.2 10.4 11.5
D1, D6
D7, D8
Capacitance Change Within ±20% of initial measured value
D7, D8 (D1
Tan δ
Leakage Current Less than specifi ed max. value
Capacitance Change
Tan δ
Leakage Current
(μF) (μA)
100 8.0 0.05 3,000 0.005 1.4
82 8.2 0.05 3,000 0.009 1.4
10μF/6.3V)
D1, D6 Less than 200% of specifi ed max. value
Within -20%/+40% of initial measured value
*Within -20%/+60% of initial measured value
D7, D8 Less than 150% of specifi ed max. value
D1, D6 Less than 200% of specifi ed max. value
Less than 500% of specifi ed max. value for D1 10μF/6.3V
Max. Ripple Current (mArms)
Tan δ
*See note regarding DF in characteristics table (Moisture Resistance).
**height dimension tolerance ±0.2mm
Less than 300% of specifi ed max. value
*Applies to values with asterisk in column "NIC Part Number"
100KHz @ +105°C
<0.05
<0.1
Less than 150% of specifi ed max. value
Max. ESR
+20°C & 100KHz (Ω)
Height
H ± 0.1
NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com
Specifi cations are subject to change
1
Page 2
Surface Mount Solid Polymer Aluminum
Electrolytic Capacitors
NPC Series
STANDARD PRODUCTS AND SPECIFICATIONS
NIC Part Number
(+260°C Refl ow)
NPC181M2.5D7XATRF
NPC221M2.5D6YATRF* 220 22.0 0.10 3,500 0.006 1.9**
NPC221M2.5D6ZATRF* 220 22.0 0.10 3,000 0.009 1.9**
NPC221M2.5D8YATRF 220 22.0 0.10 3,500 0.007 2.9
NPC271M2.5D6ZATRF* 270 27.0 0.10 3,000 0.009 1.9**
NPC271M2.5D6YATRF* 270 27.0 0.10 3,500 0.006 1.9**
NPC271M2.5D8YATRF 270 27.0 0.10 3,500 0.007 2.9
NPC331M2.5D8YATRF 330 33.0 0.10 3,500 0.007 2.9
NPC680M4D1ZATRF
NPC680M4D6XATRF 68 10.9 0.05 3,000 0.013 1.9
NPC680M4D6ZATRF 68 10.9 0.05 3,000 0.009 1.9
NPC820M4D6XATRF 82 13.1 0.05 3,000 0.010 1.9
NPC101M4D6XATRF 100 16.0 0.05 3,000 0.010 1.9
NPC121M4D6XATRF 120 19.2 0.05 3,000 0.010 1.9
NPC151M4D6XATRF 150 24.0 0.05 3,000 0.010 1.9
NPC151M4D7XATRF 150 24.0 0.10 3,500 0.010 2.7
NPC181M4D6ZATRF 180 28.8 0.05 3,000 0.009 1.9**
NPC181M4D8ZATRF 180 28.8 0.10 3,500 0.009 2.9
NPC221M4D6ZATRF 220 35.2 0.05 3,000 0.009 1.9**
NPC221M4D8ZATRF 220 35.2 0.10 3,500 0.009 2.9
NPC271M4D8ZATRF 270 43.2 0.10 3,500 0.009 2.9
NPC330M6.3D6XATRF
NPC470M6.3D1XATRF 47 11.8 0.05 3,000 0.010 1.4
NPC470M6.3D6XATRF 47 11.8 0.05 3,000 0.013 1.9
NPC470M6.3D6ZATRF 47 11.8 0.05 3,000 0.009 1.9
NPC560M6.3D6XATRF 56 14.1 0.05 3,000 0.010 1.9
NPC680M6.3D6XATRF 68 17.1 0.05 3,000 0.010 1.9
NPC820M6.3D6XATRF 82 20.7 0.05 3,000 0.010 1.9
NPC101M6.3D6XATRF 100 25.2 0.05 3,000 0.010 1.9
NPC101M6.3D7XATRF 100 25.2 0.10 3,500 0.010 2.7
NPC121M6.3D6ZATRF* 120 30.2 0.05 3,000 0.009 1.9**
NPC121M6.3D8ZATRF 120 30.2 0.10 3,500 0.009 2.9
NPC151M6.3D6ZATRF 150 37.8 0.05 3,000 0.009 1.9**
NPC151M6.3D8ZATRF 150 37.8 0.10 3,500 0.009 2.9
NPC181M6.3D8ZATRF 180 45.4 0.10 3,500 0.009 2.9
NPC221M6.3D8ZATRF 220 55.4 0.10 3,500 0.009 2.9
NPC150M8D6XATRF
NPC220M8D6ATRF 22 7.0 0.05 2,500 0.018 1.9
NPC330M8D6ATRF 33 10.6 0.05 2,500 0.018 1.9
NPC330M8D7XATRF 33 10.6 0.10 3,000 0.013 2.7
NPC470M8D6ATRF 47 11.8 0.05 2,500 0.018 1.9
NPC680M8D7ATRF 68 21.8 0.10 2,500 0.018 2.7
NPC101M8D7ATRF 100 32.0 0.10 2,500 0.018 2.7
NPC220M10D6ATRF
NPC470M10D6ATRF 47 18.8 0.10 1,800 0.025 1.9
Please contact NIC for additional values (example: 10uF @ 6.3VDC)
RIPPLE CURRENT
WV Cap. Max. LC
(Vdc)
2.5
4.0
6.3
8
10
(μF) (μA)
180 18.0 0.10 3,500 0.010 2.7
68 10.9 0.05 3,000 0.009 1.4
33 8.3 0.05 3,000 0.013 1.9
15 4.8 0.05 3,000 0.015 1.9
22 8.8 0.10 1,600 0.030 1.9
Max. Ripple Current (mArms)
Tan δ
*See note regarding DF in characteristics table (Moisture Resistance).
**height dimension tolerance ±0.2mm
100KHz @ +105°C
Max. ESR
+20°C & 100KHz (Ω)
Height
H ± 0.1
FREQUENCY CORRECTION FACTORS
Frequency
Correction
Factor
1KHz
<=f<
10KHz
0.6 0.85 1.0
10KHz
<=f<
100KHz
100KHz
<=f<
1MHz
NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com
2
Specifi cations are subject to change
Page 3
Surface Mount Solid Polymer Aluminum
Electrolytic Capacitors
PART NUMBERING SYSTEM
NPC 101 M 6.3 D7 X A TR 500 F
RoHS Compliant
Optional 500 piece reel qty
Tape & Reel Packaging
Denotes +260°C Peak Refl ow
Performance Code (see Standard Products & Specifi cations Tables)
Case Size
Working Voltage (Vdc)
Tolerance Code M=20%, K=10%
Capacitance Code in μF, fi rst 2 digits are
signifi cant, third digits no. of zeros
Series
DIMENSIONS (mm)
Case Code L ±0.2 W ±0.2
D1
D6
D7 2.7
D8 2.9
*D6 - See Standard Products & Specifi cations Tables
for height tolerance.
7.3 4.3
L
H ±0.1
1.4
1.9*
W1 ±0.1 S ±0.2
2.4 1.3
H
S
W
W
NPC Series
TEMINATION MATERIAL:
Cu: 100 ±8μm
1
Au: 0.003 ~ 0.014μm
Pd: 0.02 ~ 0.07μm
Ni: 0.5 ~ 2.0μm
Ni: 0.5 ~ 2.0μm
Pd: 0.02 ~ 0.07μm
Au: 0.003 ~ 0.014μm
Anode Polarity
Indicator
+
Capacitance Value
Lot Number
220
d58
W1
Voltage Code
RECOMMENDED LAND PATTERNS (mm)
Case Code a b c
D1, D6, D7, D8 2.4 2.9 3.7
B
A
APPLICATION NOTES:
1. NPC Series cannot be used in coupling, time-constant or other
circuits that are greatly affected by leakage current.
2. NPC parts are polarized so be sure to verify component orientation
when mounting components.
3. Do not apply over voltage exceeding the rated voltage.
4. Do not apply ripple current over the specifi ed maximum ripple current
rating.
C
A
VOLTAGE CODES
Voltage Code
2.0VDC d
2.5VDC e
4.0VDC g
6.3VDC j
8.0VDC k
10VDC A
RECOMMENDED REFLOW SOLDERING PROFILE
260
250
C)
o
230
200
150
100
50
COMPONENT SURFACE TEMP. (
NOTES ON REFLOW SOLDERING:
1. SAC alloy (+217°C) refl ow soldering compatible
2. Soldering heat limits apply to the top surface of component
3. If you have concerns about your refl ow soldering profi le
review them with NIC to insure compatible [[email protected]]
Pre-Heat
150oC ~ 180°C
120 Sec. Max.
TIME (SECONDS)
30 sec. max.
Peak Temperature
260°C Max. for 10 sec.
NATURAL COOLING
Time Above 230°C
40 sec. max.
NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com
Specifi cations are subject to change
3
Page 4
Surface Mount Solid Polymer Aluminum
Electrolytic Capacitors

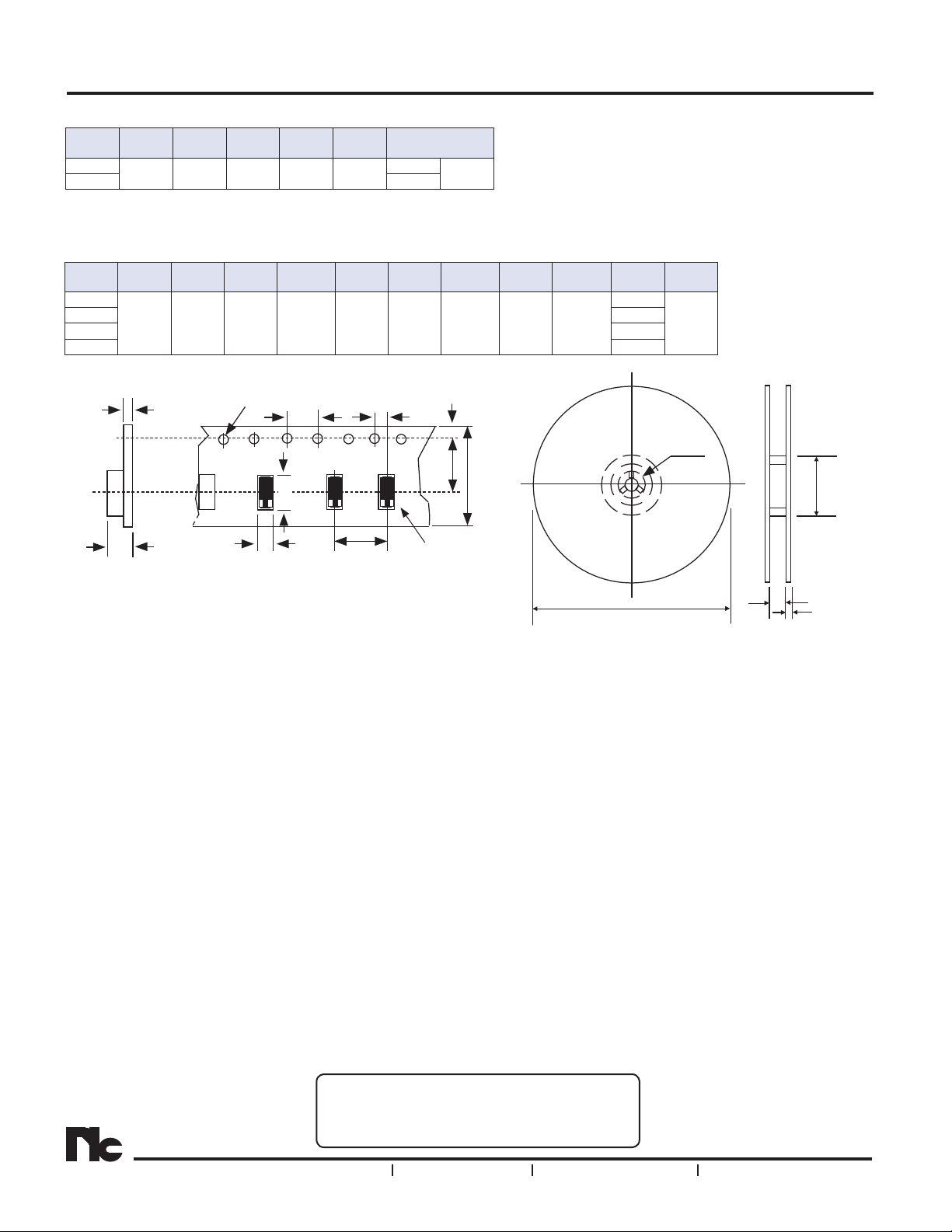

REEL TAPE DIMENSIONS (mm)
Case
Code
D1, D6
D7, D8 2,000
A ±2.0 B ±1.0 C ±0.2 W ±1.0 t ±0.5
330 80 13 13.5 2.0
*See part number system for details on designating reel quantity
TAPE DIMENSIONS (mm)
Case
Code
A ±0.1 B ±0.1 C ±0.3 D ±0.05 E ±0.1 F ±0.1 G ±0.05 H ±0.1 J -0/+0.1 K ±0.1 t ±0.05
D1
D6 2.2
D7 2.9
4.50 7.60 12.0 5.5 1.75 8.0 2.0 4.0 1.5
D8 3.1
t
J
H
d58
220
B
+
d58
220
+
3,500
d58
220
+
Reel
Quantity
G
D
500*
E
C
NPC Series
1.6
0.3
C
B
K
A
F
Anode
W
A
t
PRECAUTIONS
Please review the notes on correct use, safety and precautions found on
pages T10 & T11 of NIC’s Electrolytic Capactitor catalog.
If in doubt or uncertainty, please review your specifi c application - process
Also found at www.niccomp.com/precautions
details with NIC’s technical support personnel: [email protected]
NIC COMPONENTS CORP. www.niccomp.com www.lowESR.com www.RFpassives.com www.SMTmagnetics.com
4
Specifi cations are subject to change
