Page 1

CAT. 8200B

Aluminum Solid Electrolytic Capacitors

with Functional Polymer

2012

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Page 2

CONTENTS

Precautions

Critical Precautions on FPCAP itself 1

General Precautions at Designing, for Use and Handling 2

Page

Products List Green Products System Diagram Products / Radial Lead Type

series 8

series 10

series 12

series 14

series 16

series 18

series 20

series 22

series 24

series 26

series 28

Products / SMD Type

PS, PA HS, HA SS, SA, SB FS SL VA, VB

series 30

series 32

series 34

series 36

series 38

series 40

Ordering Information Packing Specifications Materials and Soldering Technical Guide Estimating of Lifetime Application Guide

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Page 3

Precautions

Functional Polymer Aluminum Solid Electrolytic Capacitors

Critical Precautions on itself

1. Polarity

The FPCAP has polarity. Consequently, make sure polarity is never reversed when using. If polarity is reversed, leakage current could increase or lifetime could decrease.

2. Applied Voltage

Under no circumstances can reverse voltage be applied. It may cause a short circuit.

3. Sudden charge and discharge

Keep sudden charge and discharge to a minimum. It may create a short circuit or cause high leakage current. In this case, it is recommended to use a protection circuit in order to maintain high reliability. Regardless, using protection circuit to ensure reliability is recommended when the rush current value exceeds 10A. Please make sure to insert a protection resistor of about 1kΩ for charge and discharge when measuring the leakage current.

4. Soldering

The soldering conditions must be kept within the permissible range prescribed in the catalog specification. If the specification is not kept, there is the possibility of abnormal appearance and abnormal leakage current and reduced capacitance.

5. Installation on PC board

When designing the layout of your PC board using the FPCAP please take into consideration the standard mounting specifications. The FPCAP can not be able to be mounted on a PC board if there is insufficient space.

6. Directions for use in circuits

Since leakage current fluctuations can occur during the solde ring p rocess the FPCAPcannot be used in the following circuits. (1) High impedance voltage retention circuits (2) Coupling circuits (3) Time constant circuits (4) Circuits greatly affected by leakage current (5) Connecting two or more FPCAP in series

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Page 4

Precautions

General Precautions at Designing, for Use and Handling

1. Circuit design precautions

(1) Check the rated performance

After checking the operation and installation environments, design the circuit so that it falls within the rated performance range

stipulated in the catalog specification.

(2) Operating temperature and ripple current

a) Set the operating temperature so that it falls within the range stipulated in the catalog specification. b) Do not apply current that exceeds the allowable ripple current in the catalog.

(3) Leakage current

Even when the soldering conditions fall within the range of the catalog specification, the leakage current increases slightly. It also increases slightly during high temperature no-load, moisture-proof no-load and temperature cycling tests with no voltage applied. In cases such as these, leakage current will decrease by applying voltage in conditions below the maximum operating temperature.

(4) Applied voltage Considerations

a) Make sure the sum of the peak DC voltage and ripple voltage values does not exceed the rated voltage. b) Please do not apply the reverse voltage to FPCAP. c) When the DC voltage is low, please check whether the peak value of ripple voltage does not become a reverse voltage.

(5) Reduction of failure stress

The main failure mode of the FPCAP is in the open mode primarily caused by an electrostatic capacitance drop. Random short circuit mode failures occur rarely. The time it takes to reach the failure mode can be extended by using the FPCAP with reduced ambient temperature, ripple current and applied voltage.

(6) Capacitor insulation

a) Insulation is not guaranteed. b) Be sure to completely separate the case, negative electrode terminal and positive electrode terminal from adjacent components

and PC board traces.

(7) Operating environment

Do not use the FPCAP in the following environments. a) Places where it can come into direct contact with water or salt water and places where condensation may form. b) Places filled with noxious gasses such as: hydrogen sulfide, sulfurous acid, nitrous acid, chlorine, ammonia, etc. c) Places exposed to ozone, ultraviolet rays and radiation. d) Where severe vibration or shock which exceeds the condition specified in the specification sheets.

(8) Assembly Conditions Considerations

In designing a circuit, the following conditions should be checked before the FPCAP is mounted on the PC board. a) The pitch and diameter of PCB holes to which the FPCAP is mounted, shall be designed in conformance with the dimensional

tolerance stipulated in the catalog specifications.

(9) PC board

Avoid locating heat-generating components around the FPCAP and on the underside of the PC board under the FPCAP.

(10) Parallel connection

When used in a parallel connection with another capacitor, carefully select the type of capacitor.

(11) Other

a) Electrical characteristics are affected by fluctuations in temperature and frequency. b) When mounting the FPCAP on a double-sided PC board, design the board so that extra PC board holes are not located

underneath the FPCAP.

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Page 5

Precautions

2. Mounting precautions

(1) Things to know before mounting

a) Do not reuse the FPCAP that has already been assembled in a device and energized.

Excluding the FPCAPthat has been removed for measuring electrical characteristics during a periodic inspection, they cannot be reused.

b) Leakage current may increase if the part has been stored for a long period of time.

In this case, use after voltage treatment under the rated voltage.

(2) Mounting-1

a) Mount after checking the capacitance and the rated voltage. b) Mount after checking the polarity. c) Do not drop on the floor and do not use parts that have been dropped. d) Do not deform and then mount.

(3) Mounting-2

a) Mount after checking the match between the lead pitch and the PC board holes pitch. b) When an automatic insertion equipment is used to clinch the lead wires, make sure it is set correctly. c) Be careful of the shock force that can be produced by the automatic insertion equipment. d) Do not apply excessive external force to the lead wires, the FPCAP itself, or the electrode terminals.

(4) Soldering with a soldering iron

a) Set the soldering conditions (temperature, time) so that they fall within the range stipulated by the catalog specification. b) When the lead wire terminal must be processed because the terminal spacing and the PC board holes spacing do not match,

process it before soldering so that no stress is applied to the FPCAP itself. c) Do not subject the FPCAP itself to excessive stress when soldering with a soldering iron. d) When a soldering iron is used to repair the FPCAP that has already been soldered once and needs to be removed,

do it after the solder has been completely melted so that no stress is applied to the FPCAP terminals. e) Do not let the tip of the soldering iron touch the FPCAP itself. f ) The amount of leakage current aft er solderin g may increa se a slightly (from a few μA to several hundred μA) depending

on the soldering condition (preheating and solder temperature and time, PC board material and thickness, etc.)

The leakage current can be reduced by applying voltage.

(5) Flow soldering (Radial lead type)

a) Never submerge the FPCAP in molten solder. Use the PC board to protect the FPCAP and only solder the opposite side

of the board that the FPCAP is mounted on. b) Set the soldering conditions (soldering temperature, terminal submersion time) so that they fall within the range stipulated

by the catalog specification. The amount of leakagecurrent after soldering may increase slightly (from a few μA to several

hundred μA) depending on the soldering conditions (preheating and solder temperature and time, PC board material and

thickness, etc.). The leakage current can be reduced through self-repair by applying voltage. c) Take care that flux does not adhere to any place other than the terminals. d) When soldering, take care that other components do not fall over and touch the FPCAP. e) Flow soldering under extremely abnormal conditions may reduce the capacitance of products before or after soldering.

(6) Reflow soldering (SMD type)

Do not use reflow soldering for Radial lead type (Through Hole). a) Never submerge the FPCAP in molten solder. Use the PC board to protect the FPCAP and only solder the opposite side

of the board that the FPCAP is mounted on.

b) Set the soldering conditions (soldering temperature, terminal submersion time) so that they fall within the range stipulated

by the catalog specification. The amount of leakage current after soldering may increase slightly (from a few μA to several hundred μA) depending on the soldering conditions (preheating and solder temperature and time, PC board material and

thickness, etc.). The leakage current can be reduced through self-repair by applying voltage. c) Take care that flux does not adhere to any place other than the terminals. d) When soldering, take care that other components do not fall over and touch the FPCAP. e) Reflow soldering under extremely abnormal conditions may reduce the capacitance of products before or after soldering. f) Do not use VPS (Vapor Phase Soldering).

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Page 6

Precautions

(7) Handling after soldering

a) Do not tilt, bend or twist the FPCAP after it has been soldered on the PC board. b) Do not use the FPCAP as a handle to move the PC board after it has been attached to it. c) Do not bump the FPCAP with objects after it has been soldered to the PC board. Make sure the FPCAP does not touch

other PC boards or components.

d) Do not subject to excessive stress after it has been soldered to the PC board.

(8) Washing the PC board

Check the following items before washing the PC board with these detergents; high quality alcohol-based cleaning fluid such as Pine-αST-100S, Clean-thru 750H, 750L, 750K, or Techno Care FRW14 through 17; or detergents including substitute Freon such as AK-225AES and IPA. a) Use immersion or ultrasonic wave to clean for a total of less than five minutes. b) The temperature of the cleaning fluid should be less than 60°C. c) Watch for contamination of the detergent (conductivity, pH, specific gravity, water content, etc.). d) After cleaning do not store in a location subject to gases from the cleaning fluid or in an airtight container.

Dry the PC board and the FPCAP using hot air (less than the maximum operating temperature).

e) Please contact our company for details about detergents and cleaning methods, and about detergents other than those

listed above.

(9) Fixatives and coatings

a) Select appropriate material for the FPCAP marking material and sealant.

In particular, make sure the fixative, coating and thinner do not contain acetone or toluene.

b) Before applying a fixative or coating, completely remove any flux residue and foreign matter from the area where the PC board

and the FPCAP are to be joined together. c) Allow any detergent to dry before applying the fixative or coating. d) Please contact our company for fixative and coating heat curing conditions.

3. Precautions with completed board

(1) Do not directly touch the FPCAPterminals. (2) Do not use electric conductors to cause a short circuit between the FPCAP terminals.

Do not subject the FPCAPto conductive solutions.

(3) Check the installation environment of the board on which the FPCAP is mounted.

Aging of the completed board, please use the voltage below the rated voltage of the capacitor.

(4) (5) It is recommended that the board be used at room temperature and in ordinary humidity.

For details, refer to the Operating Precaution Guidelines for the EIAJ RCR-2367C. (Safety Application Guide for fixed aluminum electrolytic capacitors for use in electronic equipment.) No part of this publication shall be reproduced without prior written permission of the publisher.

4. If trouble should occur

(1) In the event that a short circuit causes the current to become relatively small (Radial lead type : less than approximately

3A for φ10 and less than approximately 1A for φ6.3), the FPCAPitself will generate some heat, but the appearance will not be affected even when electricity is supplied continuously. However, if there is a short circuit and the current value exceeds the above mentioned values, the temperature inside the FPCAP will increase. When the temperature exceeds approximately 200°C the internal press u re will increase, and an odorous gas will be released. In this case, do not allow contact with your face and hands.

(2) If a short circuit occurs and an odorous gas is released, either turn off the device’s main power or unplug the power cord from

the outlet.

(3) If a short circuit should occur, it may take anywhere from a few seconds to a few minutes until an odorous gas develops,

depending on the conditions. Design the device so that a power protection circuit works during this time period.

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Page 7

Precautions

(4) If the gas gets in your eyes, rinse them immediately. If it has been inhaled, gargle with water immediately. (5) When the polymer or gas of the polymer comes in contact with your skin, wash it off with soap and water. (6) The electrolyte, separator paper, rubber and tube used in the FPCAP are all combustible. When the current value is

extraordinarily high during a short circuit, and assuming the worst possibility, the shorted-out section in the lead wire or inside the capacitor could create a spark, and cause t h e resin o r tu b e t o catch fire. Give due consideration to the capacitors mounting methods, mounting positions, pattern design etc.

5. Storage conditions

Do not store capacitors without load more than a year because of potential increased leakage current.

(1) Do not store at high temperatures and high humidity. Store it in a location that is not subject to direct sunlight and that has

low temperatures and humidity (generally, temperatures between 5 and 35ºC and a relative humidity of 75% or less). (SMD type VA/VB series : Temperatures between 5 and 30ºC and a relative humidity of 70% or less)

(2) Storage period (SMD type VA/VB series)

Store in an aluminum laminated bag.

Before opening : 1 year After opening : 1 week (Use up all the products after having opened out. Surplus products should be put into the aluminum

laminated bag, and seal up.)

(3) Baking conditions (SMD type VA/VB series)

When you use it exceeding a storage term, please carry out and use baking by the following conditions.

Temperature: 60(+0, -5) ºC

Time: 168hours (only one time) (4) Store in an airtight plastic bag to keep the leads in good condition. (5) To keep the leads in good condition, store lead-type the FPCAP for no more than one year. (6) Do not store in places where water, salt water or oil can directly fall on them, or places where condensation may form. (7) Do not store in places filled with noxious gas (hydrogen sulfide, sulfurous acid, nitrous acid, chlorine, ammonia, etc.). (8) Do not store in places exposed to ozone, ultraviolet rays and radiation.

6. Disposal

Please treat the FPCAP as industrial waste when needing to dispose of the FPCAP.

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Page 8

Products List, Green Products

Products List

Rated

Classification Pages

NoteSeries

NS R7 R5

Low ESR and Low Profile (φ8)

Ultra-Low ESR and Low Profile (φ8)

Low ESR/ESL and Low Profile (φ6.3)

Low ESR/ESL and Low Profile (φ5)

Radial Lead

Type

L8 E5 S8 F8

PS/PA

Standard (φ6.3 , φ8 , φ10)

Voltage

Range

4.0 to 25VStandard

2.5 to 16VLow ESR

2.5 to 6.3VUltra-Low ESR

2.5 to 35V

2.5 to 4.0V

2.5 to 16V

2.5 to 6.3V

2.5 to 63VLarge Capacitance

2.5 to 16VLarge Capacitance

2.5 to 25VMiniature Sized Large Capacitance

6.3 to 20VHigh Temperature (125ºC)

2.5 to 63V

Capacitance

Range

10 to 1200μF

68 to 1500μF

390 to 1500μF

100 to 1500μF

560 to 820μF

100 to 1200μF

100 to 560μF

10 to 2700μF

100 to 1200μF

33 to 560μF

150 to 820μF

8.2 to 1500μF

Categorical Max. Temp.

and Endurance

8105ºC 2000Hrs

10105ºC 2000Hrs

12105ºC 2000Hrs

14105ºC 2000/5000Hrs

16105ºC 2000Hrs

18105ºC 2000/5000Hrs

20105ºC 2000Hrs

22105ºC 2000/5000Hrs

24105ºC 2000Hrs

26105ºC 2000Hrs

28125ºC 1000Hrs

30105ºC 2000Hrs

Large Capacitance (φ8)

Large Capacitance (φ6.3)

Large Capacitance (φ4 , φ5)

Low Profile (φ6.3)

SMD Type

HS/HA

SS/SA/SB

FS SL

VA/VB

Green Products

Corresponding to the environmental Requirement

Radial Lead

Type

SMD Type

2.5 to 35V

2.5 to 25V

2.5 to 25VMolded Chip (7.3¯4.3¯2.8)

100 to 1500μF

10 to 560μF

10 to 180μF

15 to 330μF

15 to 220μF

32105ºC 2000Hrs

34105ºC 2000Hrs

36105ºC 2000Hrs

38105ºC 2000Hrs

40105ºC 1000Hrs

Halogen-freeRoHS complianceLead-freeClassification

: Completed

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Page 9

System Diagram

System Diagram for

Radial lead type

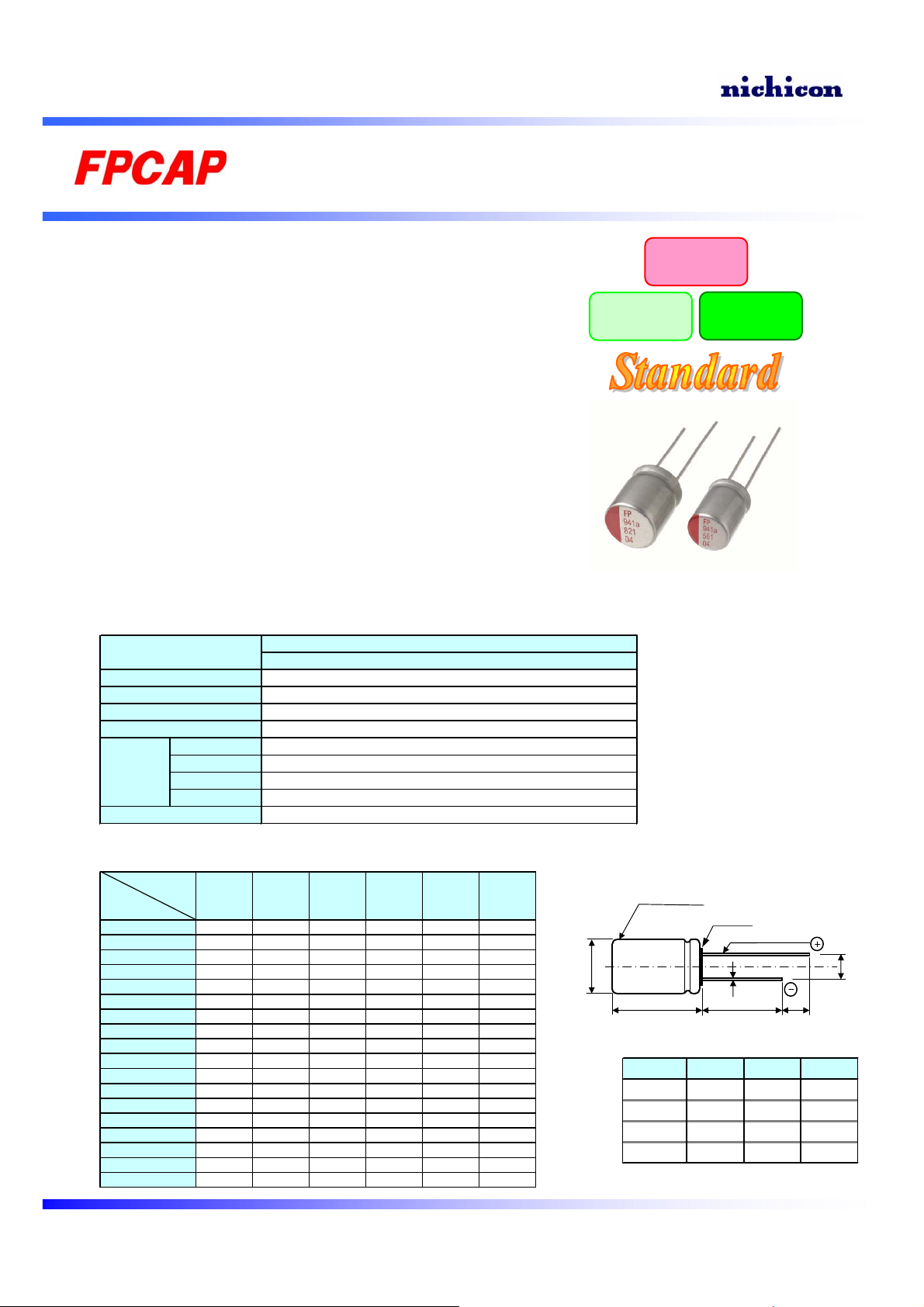

Standard

series

φ6.3×7 / 10 φ8×11.5, φ10×12.5

z4.0 to 25V z10 to 1200µF z105ºC, 2000h

φ4×5, φ6.3×10, φ8×11.5, φ10×12.5

z2.5 to 63V z10 to 2700µF z105ºC, 2000h / 5000h

φ5×8 /10,φ6.3×10,φ8×6 to11.5, φ10×12.5

z2.5 to 16V z100 to 1200µF z105ºC, 2000h

Miniature Large Cap.

z2.5 to 25V z33 to 560µF z105ºC, 2000h

Large

Cap.

Large Cap.

series

Large

Cap.

Large Cap.

series

Large

Cap.

series

φ6.3×5, φ6.3×6

FPCAP

Low ESR

z2.5 to 16V z68 to 1500µF z105ºC, 2000h

z2.5 to 35V z100 to 1500µF z105ºC, 2000h / 5000h

Low ESL / Large Cap.

z2.5 to 16V z100 to 1200µF z105ºC, 2000h / 5000h

Low ESL / Large Cap.

z2.5 to 6.3V z100 to 560µF z105ºC, 2000h

ESR 7mΩ

series

φ8×11.5, φ10×12.5

Low

Profile

Low Profile

series

φ8×8

Low ESL

series

φ6.3×8

Low ESL

series

φ5×8

Low ESR

ESR 5mΩ

φ8×11.5, φ10×2.5

z2.5 to 6.3V z390 to 1500µF z105ºC, 2000h

Profile

ESR 5mΩ

φ8×8

z2.5 to 4V z560 to 820µF z105ºC, 2000h

High

Temperature

Guarantee 125ºC

φ8×11.5, φ10×12.5

z6.3 to 20V z150 to 820µF z125ºC, 1000h

series

Low

series

SMD type

Standard

φ6.3×5.7, φ8×6.7 / 11.7, φ10×7.7 / 12.4

z2.5 to 63V z8.2 to 1500µF z105ºC, 2000h

Large Cap.

φ8×6.7, φ8×7.7, φ8×8.7, φ8×11.7

z2.5 to 35V z100 to 1500µF z105ºC, 2000h

Large Cap.

z2.5 to 25V z10 to 560µF z105ºC, 2000h

Large Cap.

z2.5 to 25V z10 to 180µF z105ºC, 2000h

φ4×5.2, φ5×5.7

series

Large

Cap.

series

Large

Cap.

series

φ6.3×5.7

Large

Cap.

series

Low ESR

φ6.3×5.7, φ8×11.7, φ10× 7.7

z4.0 to 16V z39 to 560µF z105ºC, 2000h

Low ESR

z2.5 to 16V z150 to 1000µF z105ºC, 2000h

φ8×6.7, φ8×7.7

Low ESR

φ6.3×5.7, φ6.3×7.7

z2.5 to 16V z100 to 560µF z105ºC, 2000h

series

Low ESR

Molded Chip

Standard / Low ESR

VA/VB

z2.5 to 25V z15 to 220µF z105ºC, 1000h

z2.5 to 6.3V z220 to 560µF z105ºC, 2000h

z2.5 to 25V z15 to 330µF z105ºC, 2000h

7.3×4.3×2.8

Low ESR

series

φ6.3×5.7

Low Profile

series

φ6.3×4.2

series

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

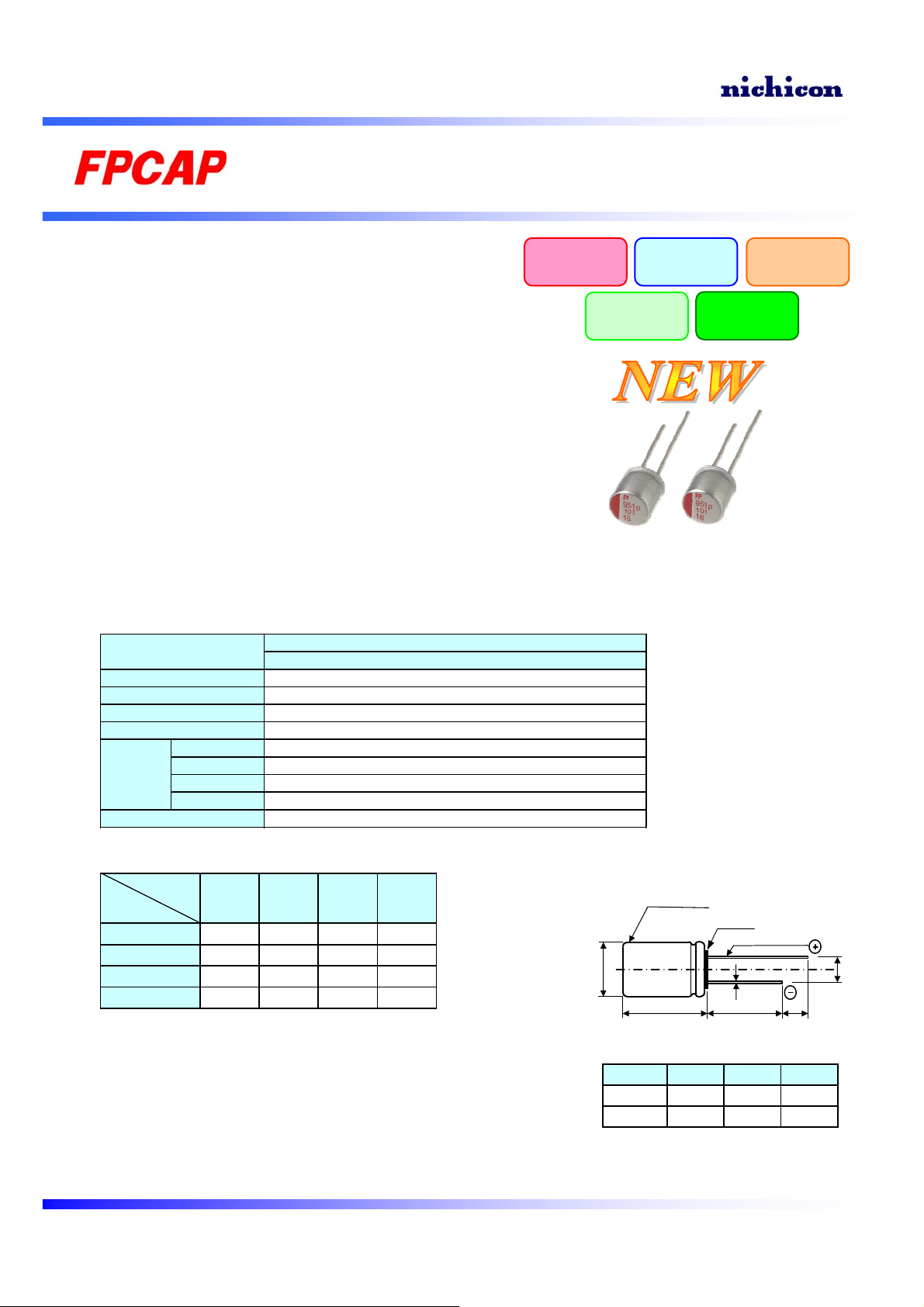

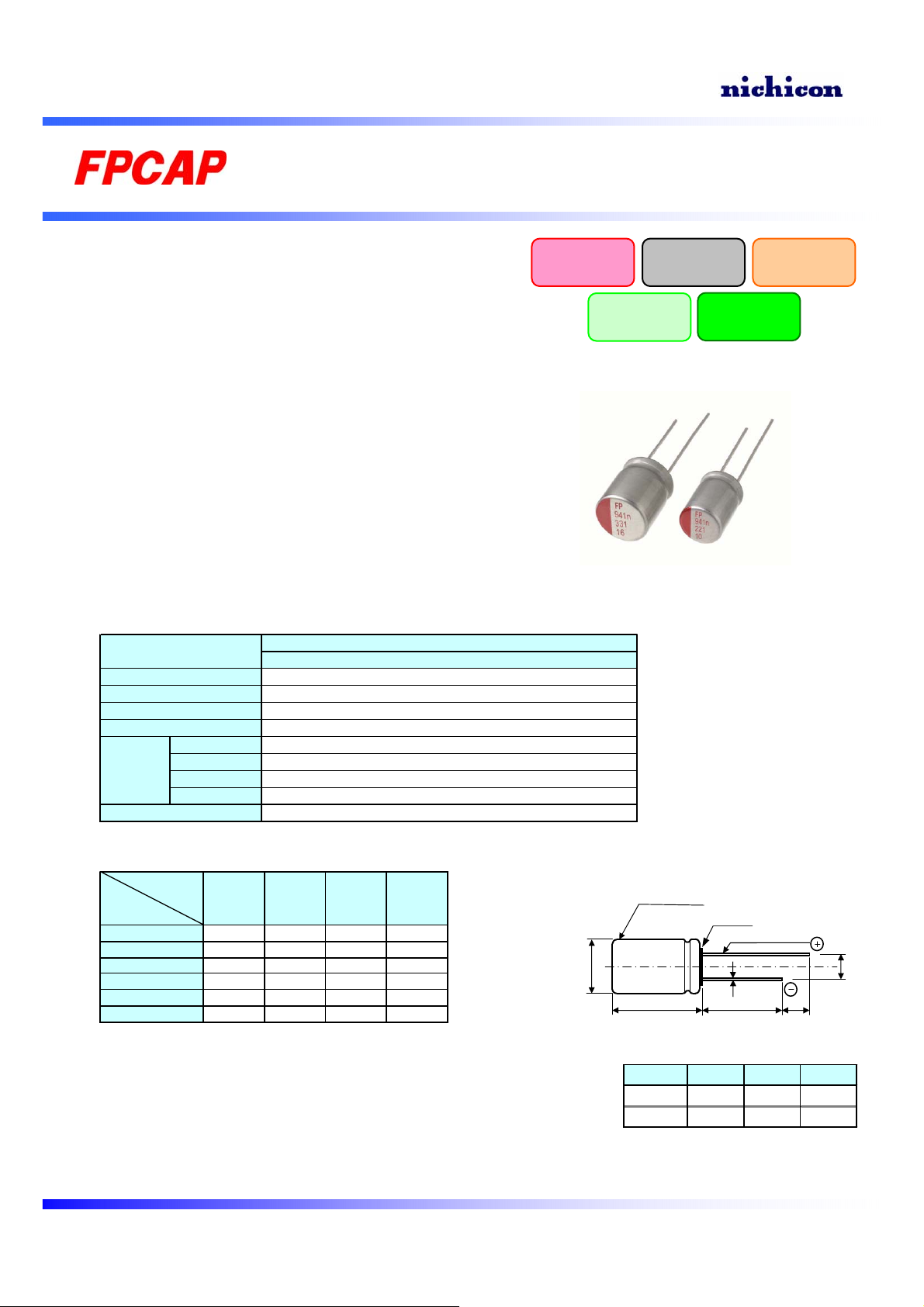

Page 10

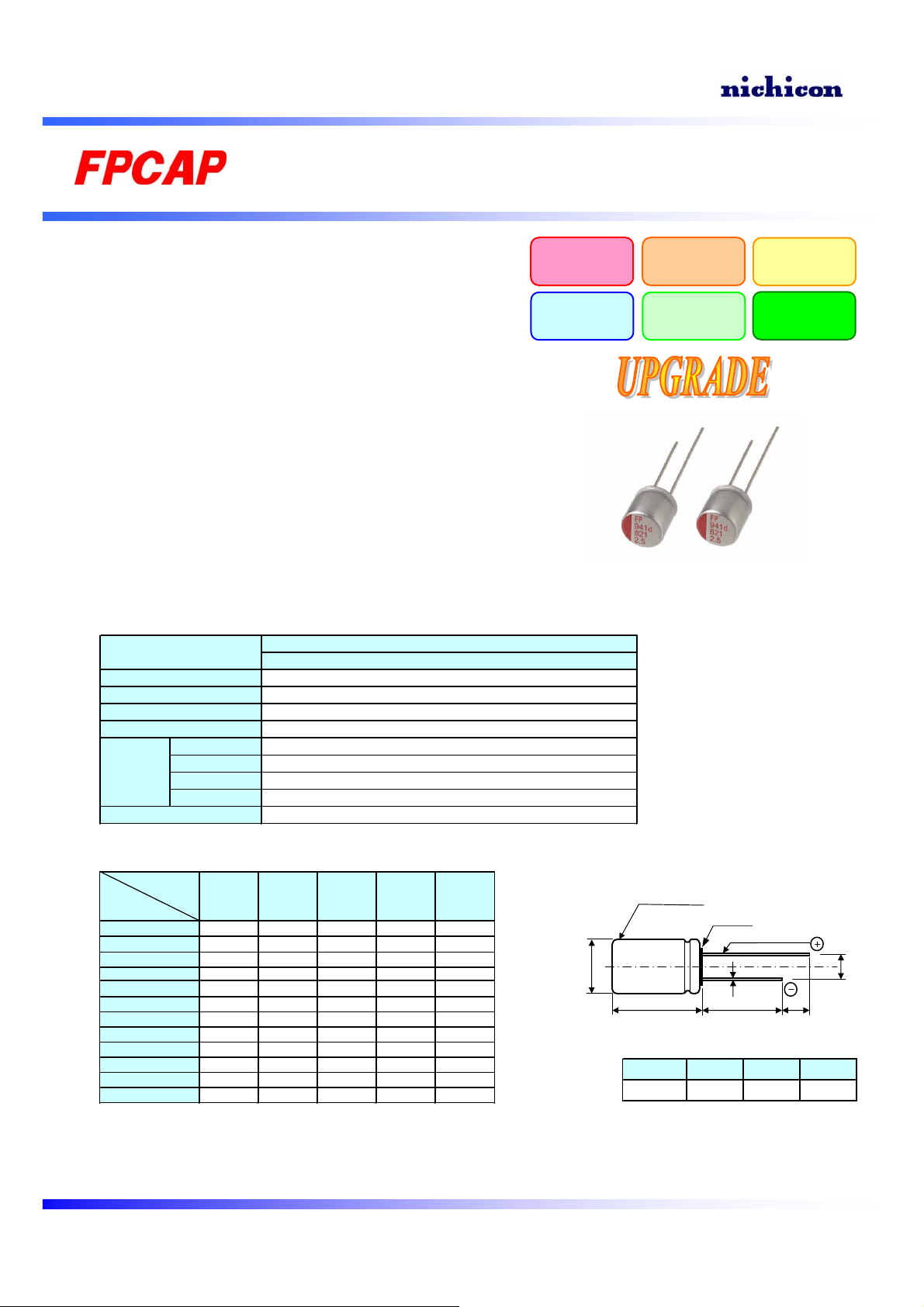

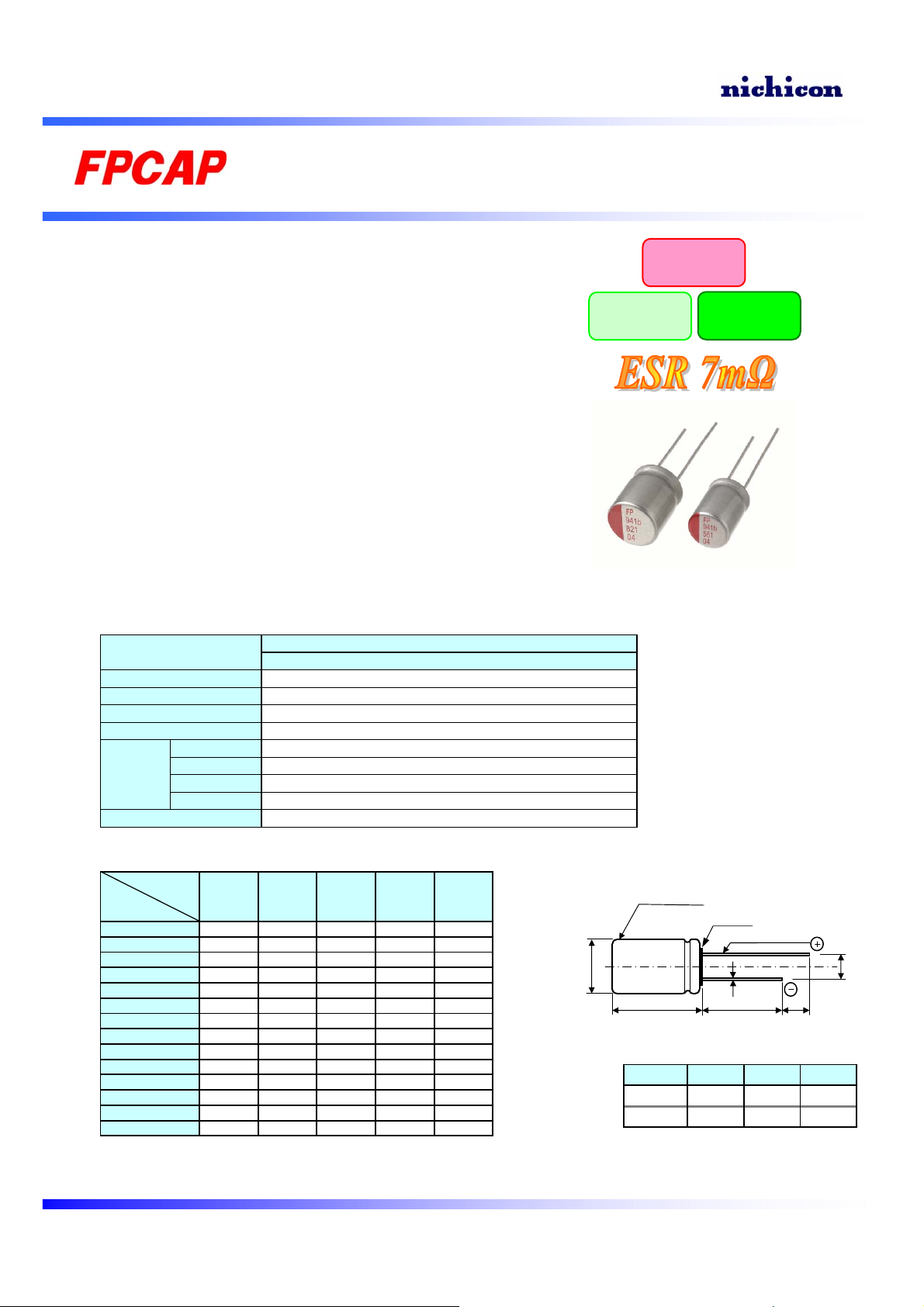

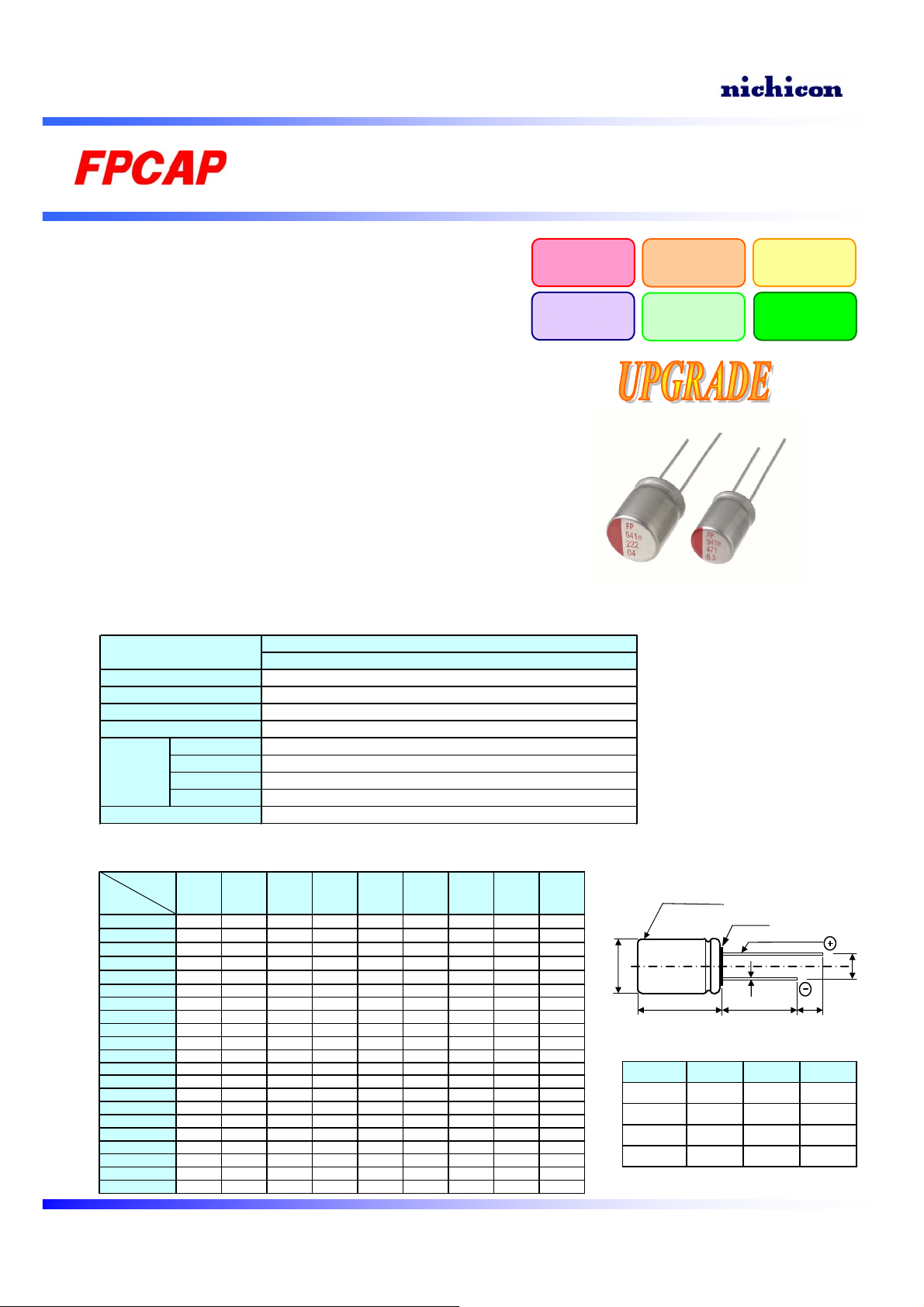

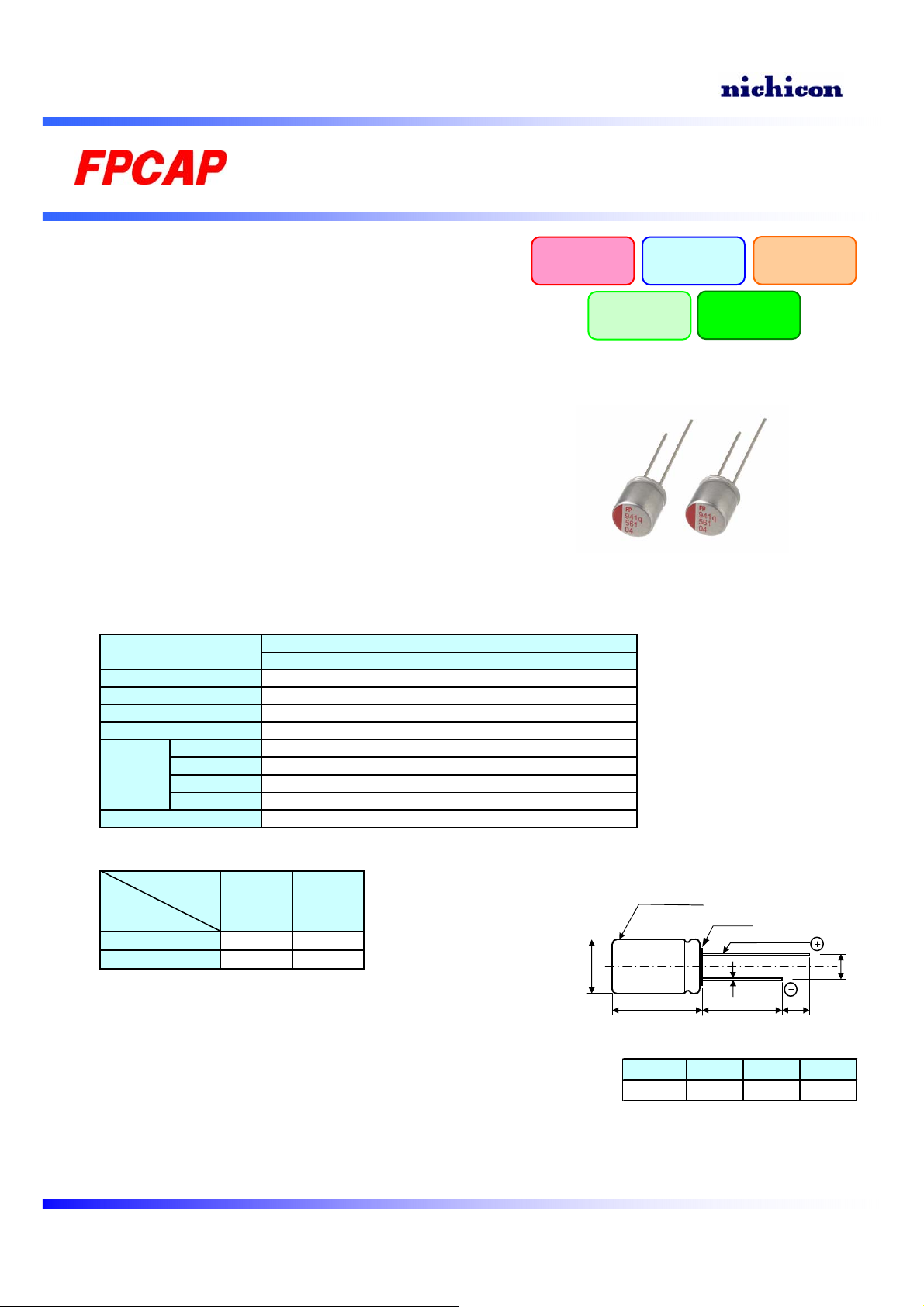

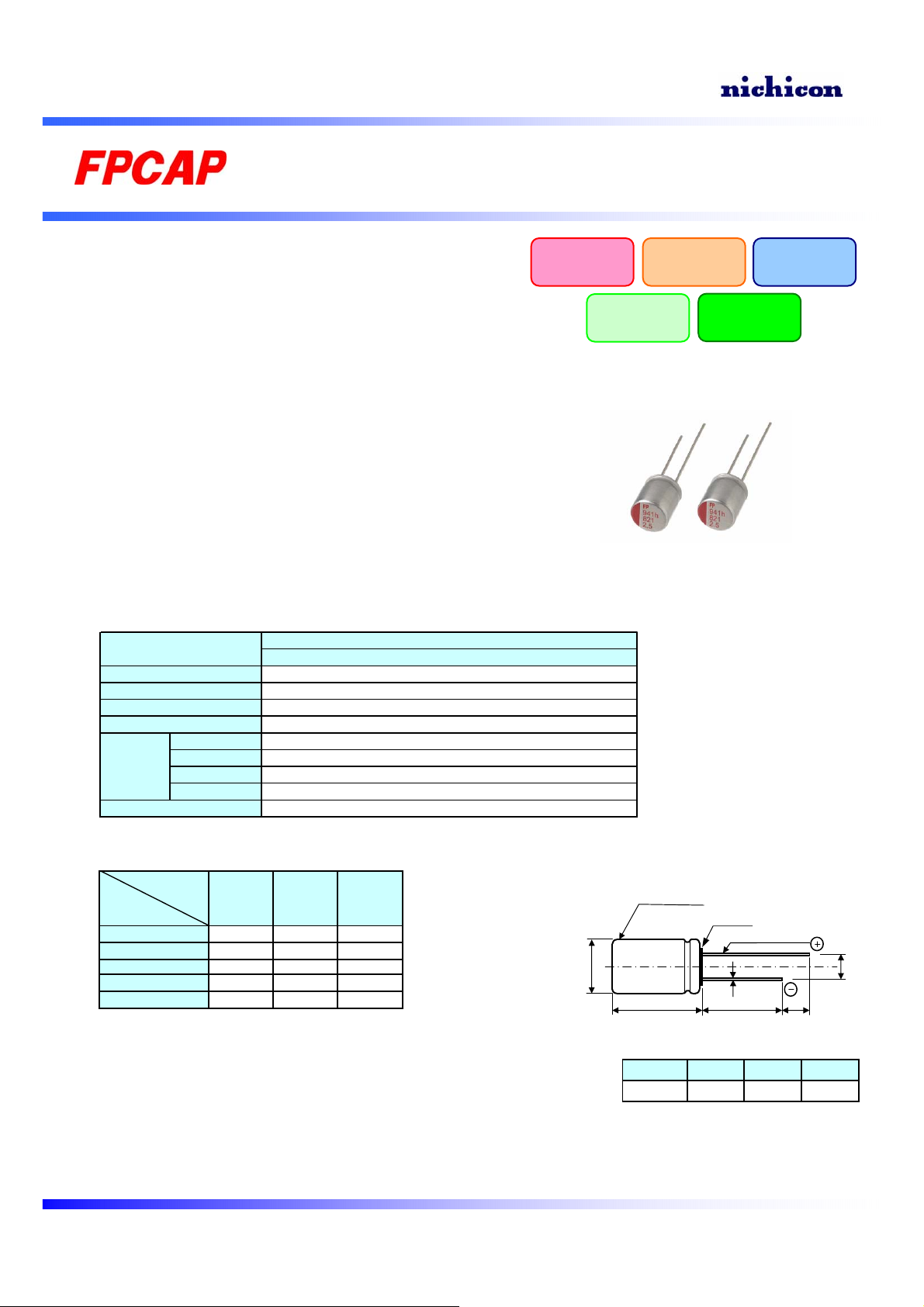

Products / Radial Lead Type

Functional Polymer Aluminum Solid Electrolytic Capacitors

zFeatures

By using Functional Polymer cathode, Frequency & Temp. characteristics are greatly impr oved.

zApplications

 Switching Power Supply and DC/DC Converter.  Back up Power Supplies of CPU(VRM etc.)  Miniature high Power Supply.

zEnvironmental Correspondence

Any environmental hazardous substances are not used.

 The lead free of ter minal plating (Sn 100%)

series

 Low ESR at a high frequency range.  High ripple current capability.  Long life and high reliability.

Low ESR

Lead-free

RoHS

Compliance

zSpecifications

Ite ms

Operating Temp. Range

Rated Voltage Range

Capacitance Range

Capacitance Tolerance

Condition

Endurance

Capacitance

Leakage Current

tan δ

Failure Rate

zSize List

R.V (S.V.)

Cap. [ μF]

10 6.3×7 15 6.3×7 6.3×10 22 6.3×7 6.3×7 8×11.5 33 6.3×7 6.3×7 6.3×10 10×12.5 47 6.3×7 6.3×10 8×11.5 10×12.5

68 6.3×10 8×11.5 8×11.5 100 8×11.5 8×11.5 10×12.5 10×12.5 150 8×11.5 10×12.5 180 8×11.5 220 8×11.5 10×12.5 330 10× 12.5 10×12.5 390 8×11.5 470 10×12.5 560 8×11.5 680 10× 12.5 820 10×12.5 10×12.5

1000 10×12.5 1200 10×12.5

4.0

[V]

(4.6)

105°C 2000Hrs at rated voltage

Within ±20% of the value before test

Not to exceed the value specified

Not to exceed 150% of the value s pecified

0.1% / 1000Hrs. Max (60%CL)

6.3

(7.2)10(11.5)16(18.4)

Characteristics

-55 to +105°C

4.0 to 25V·

10 to 1200μF

±20% (M)

(23)25(28.7)

[φD×L]

zDimensions

Aluminum Case

Stand off

φD+0.5Max

L+α Max 15Min 4Min

D×L

6.3×7 0.45 2.5 1.0

6.3×10 0.5 2.5 1.0

8×11.5 0.6 3.5 1.5

10×12.5 0.6 5.0 1.5

Wire (Lead free)

P± 0.5

φd

[Unit : mm]

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

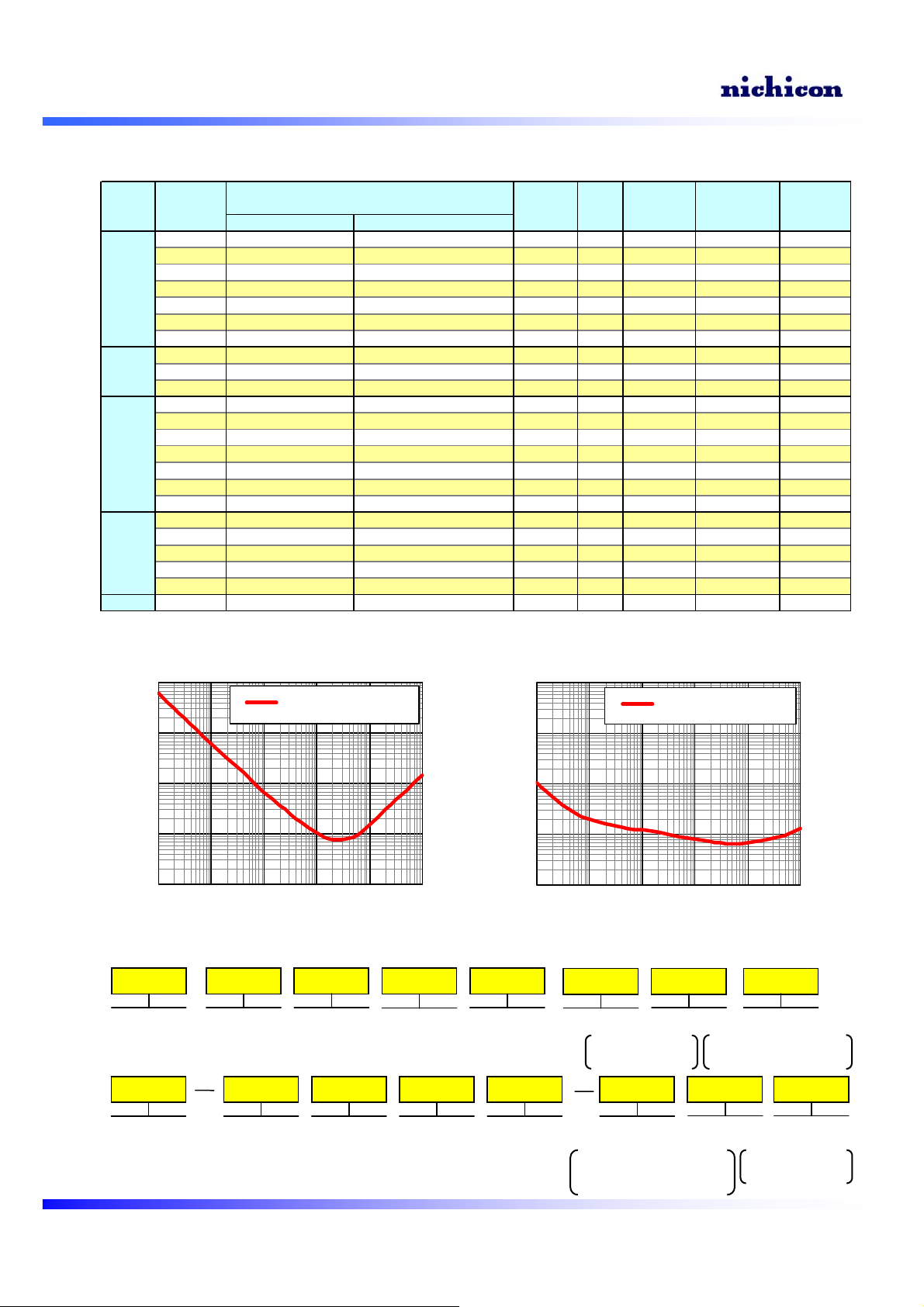

Page 11

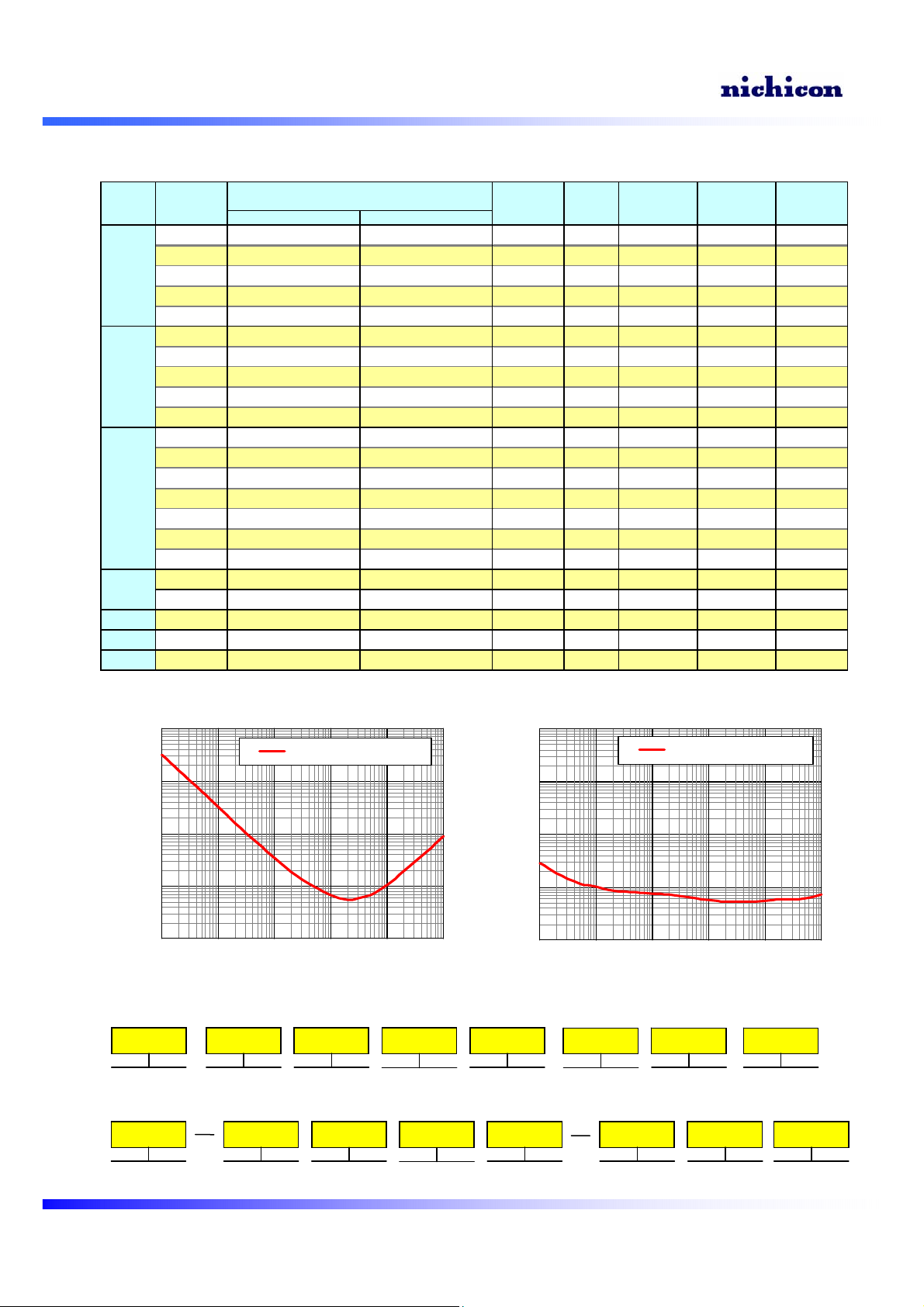

zPart number & Specifications

Rated

Voltage

(V) (μF, 120Hz)

4.0

6.3

* In case of some doubt about measured values, measure after applying rated voltage for 120 minutes at 105°C.

Rated

Capacit ance

NICHICON FPCA P

560 RNS0G561MDN1

820 RNS0G821MDN1

1200 RNS0G122MDN1

47 RNS0J470MDS1

150 RNS0J151MDN1

220 RNS0J221MDN1

330 RNS0J331MDN1

390 RNS0J391MDN1

680 RNS0J681MDN1

820 RNS0J821MDN1

1000 RNS0J102MDN1

33 RNS1A 330MDS1

68 RNS1A 680MDS1

100 RNS1A101MDN1

220 RNS1A221MDN1

470 RNS1A471MDN1

22 RNS1C220MDS1

33 RNS1C330MDS1

47 RNS1C470MDS1

68 RNS1C680MDN1

100 RNS1C101MDN1

150 RNS1C151MDN1

180 RNS1C181MDN1

330 RNS1C331MDN1

15 RNS1D150MDS1

22 RNS1D220MDS1

33 RNS1D330MDS1

47 RNS1D470MDN1

68 RNS1D680MDN1

100 RNS1D101MDN1

10 RNS1E 100MDS1

15 RNS1E 150MDS1

22 RNS1E 220MDN1

33 RNS1E 330MDN1

47 RNS1E 470MDN1

100 RNS1E101MDN1

Part Number



FP-4R0RE561M-NS

FP-4R0RE821M-NS

FP-4R0RE122M-NS

FP-6R3RE470M-NS

FP-6R3RE151M-NS

FP-6R3RE221M-NS

FP-6R3RE331M-NS

FP-6R3RE391M-NS

FP-6R3RE681M-NS

FP-6R3RE821M-NS

FP-6R3RE102M-NS

FP-010RE330M -NS

FP-010RE680M -NS

FP-010RE101M -NS

FP-010RE221M -NS

FP-010RE471M -NS

FP-016RE220M -NS

FP-016RE330M -NS

FP-016RE470M -NS

FP-016RE680M -NS

FP-016RE101M -NS

FP-016RE151M -NS

FP-016RE181M -NS

FP-016RE331M -NS

FP-020RE150M -NS

FP-020RE220M -NS

FP-020RE330M -NS

FP-020RE470M -NS

FP-020RE680M -NS

FP-020RE101M -NS

FP-025RE100M -NS

FP-025RE150M -NS

FP-025RE220M -NS

FP-025RE330M -NS

FP-025RE470M -NS

FP-025RE101M -NS

Leakage Current *

(μA, 2 min) (120Hz) (mΩ, 100kHz) (mA, r.m.s.)



336 0.08 10 5230 8 × 11.5

492 0.08 10 5500 10 × 12. 5

720 0.15 10 5500 10 × 12. 5

50 0.07 42 2050 6.3 × 7

142 0.07 21 3900 8 × 11.5

208 0.07 21 3900 8 × 11.5

312 0.07 10 5500 10 × 12. 5

369 0.08 10 5230 8 × 11.5

643 0.08 10 5500 10 × 12. 5

775 0.12 10 5500 10 × 12. 5

945 0.12 10 5500 10 × 12. 5

50 0.07 49 1900 6.3 × 7

102 0.07 35 2650 6.3 × 10

150 0.07 21 3900 8 × 11.5

330 0.07 10 5500 10 × 12. 5

705 0.08 10 5500 10 × 12. 5

53 0.06 49 1900 6.3 × 7

79 0.06 49 1900 6.3 × 7

113 0.06 42 2400 6. 3 × 10

163 0.06 25 3600 8 × 11.5

240 0.06 21 3900 8 × 11.5

360 0.06 10 5500 10 × 12. 5

432 0.08 16 4700 8 × 11.5

792 0.08 10 5500 10 × 12. 5

50 0.06 63 1700 6.3 × 7

66 0.06 49 1900 6.3 × 7

99 0.06 49 2200 6.3 × 10

141 0.06 28 3400 8 × 11.5

204 0.06 25 3600 8 × 11.5

300 0.06 15 4500 10 × 12. 5

50 0.06 63 1700 6.3 × 7

75 0.06 49 2200 6.3 × 10

110 0.06 28 3400 8 × 11.5

165 0.06 20 3800 10 × 12. 5

235 0.06 20 3800 10 × 12. 5

500 0.08 15 4500 10 × 12. 5

tanδ ESR

Rated Ripple

Current

Case Size

D×L(mm)

zPart Number (EX) 16V, 100μF

Nichicon P/N

R NS 1C 101 M

Type

Series name

Rated

Voltage

Capacitance

FPCAP P/N

Commodity

Mark

Rated Voltage

Classification

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Rated

Capacitance

Tolerance

Capacitance

Tolerance

Configuration

NSFP 016 RE 101 M R

Series name

Control code

CG: Cut lead (Bulk) JX: φ6.3x10 2.5mm pitch taping JT: φ6.3x7, 2.5mm pitch taping KX: φ8, 3.5mm pitch taping PX: φ6.3&φ8, 5.0mm pitch taping PH: φ10, 5.0mm pitch taping

Forming

R: Long lead (Bulk) CG: Cut lead (Bulk) J : φ6.3x10, 2.5mm pitch ta ping JT: φ6.3x7, 2.5mm pitch taping K : φ8, 3.5mm pitch taping P : φ6.3&φ8, 5.0mm pitch taping PH: φ10, 5.0mm pitch taping

Lead

Forming

Control codeLead

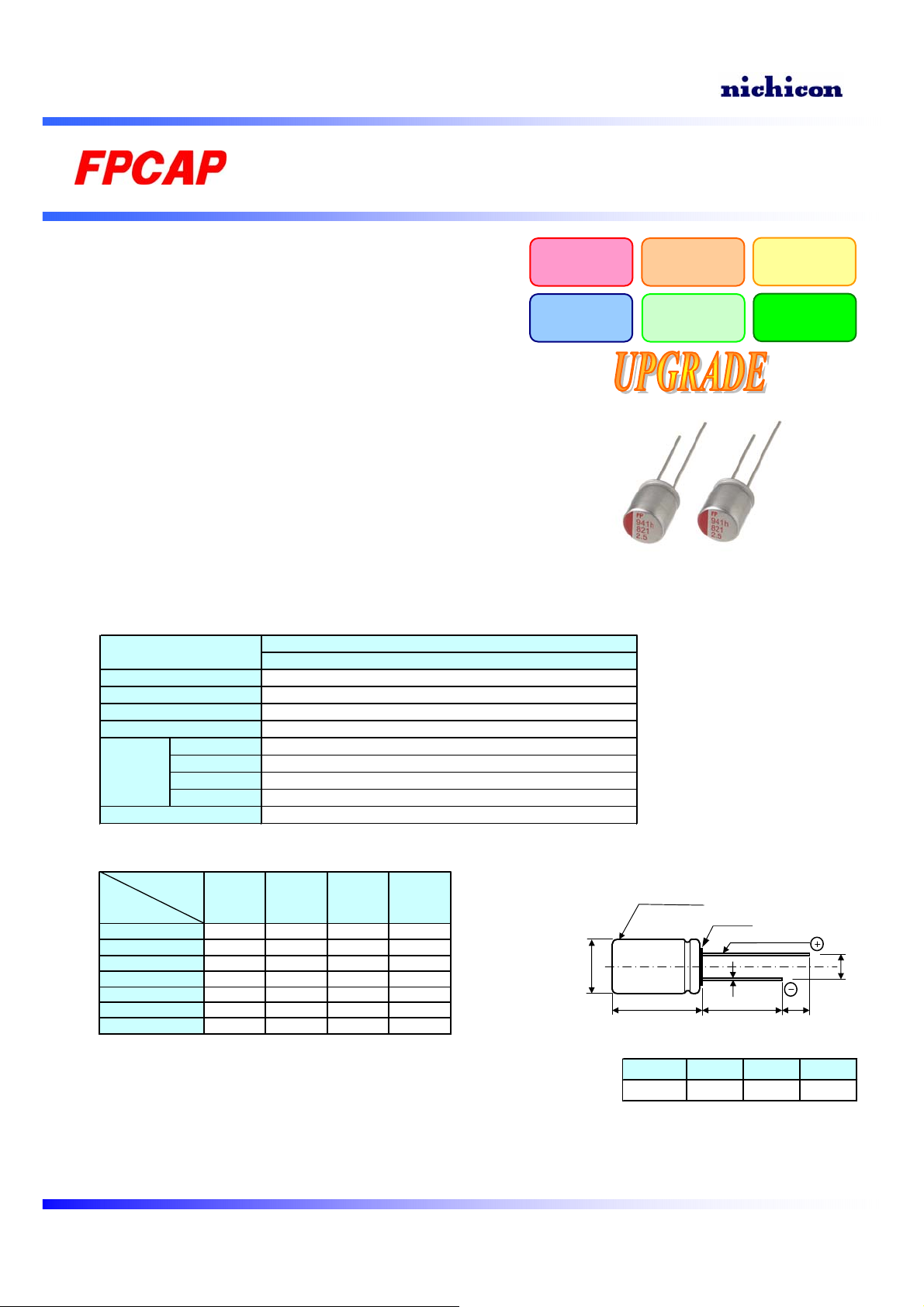

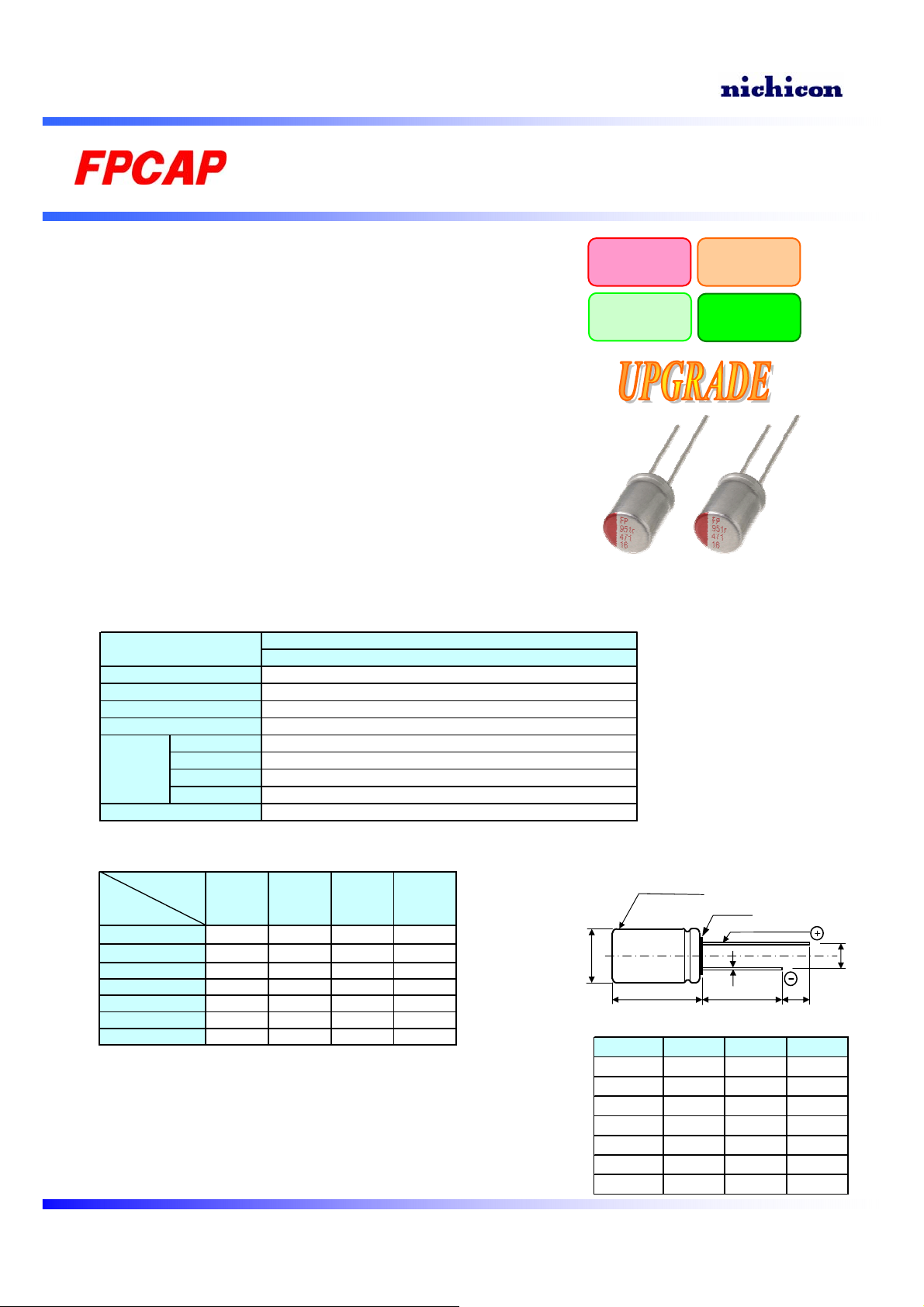

Page 12

Products / Radial Lead Type

Functional Polymer Aluminum Solid Electrolytic Capacitors

zFeatures

By using Functional Polymer cathode, Frequency & Temp. characteristics are greatly impr oved.

 Low ESR at a high frequency range.  High ripple current capability.  Long life and high reliability.

zApplications

 Switching Power Supply and DC/DC Converter.  Back up Power Supplies of CPU(VRM etc.)  Miniature high Power Supply.

zEnvironmental Correspondence

Any environmental hazardous substances are not used.

 The lead free of ter minal plating (Sn 100%)

series

Low ESR

Lead-free

Ultra

RoHS

Compliance

zSpecifications

Ite ms

Operating Temp. Range

Rated Voltage Range

Capacitance Range

Capacitance Tolerance

Condition

Endurance

Capacitance

Leakage Current

tan δ

Failure Rate

zSize List

R.V (S.V.)

Cap. [μF]

68 8×11.5 100 8×11.5 8×11. 5 150 8×11.5 10×12.5 220 8×11.5 10×12. 5 270 10×12.5 330 10×12.5 10×12.5 390 8×11.5 470 10×12.5 560 8×11.5 680 8×11. 5 10×12.5 10×12.5 820 8×11. 5 10×12.5 10× 12.5

1000 10×12.5 1200 10×12.5 1500 10×12.5

[V]

2.5

(2.8)

4.0

(4.6)

Charac teris tic s

- 55 to + 105°C

2.5 to 16V·

68 to 1500μF

± 20% (M)

105°C 2000Hrs at rated voltage

Within ± 20% of the value before test

Not to exceed the value specified

Not to exceed 150% of the value specified

0.1% / 1000Hrs. Max (60%CL)

6.3

(7.2)10(11.5)16(18.4)

[φD×L]

zDimensions

Aluminum Case

Stand off

φD+0.5Max

L+α Max 15Min 4Min

D×L

8×11.5 0.6 3.5 1.5

10×12.5 0.6 5.0 1.5

Wire (Lead free)

P± 0.5

φd

[Unit : mm]

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

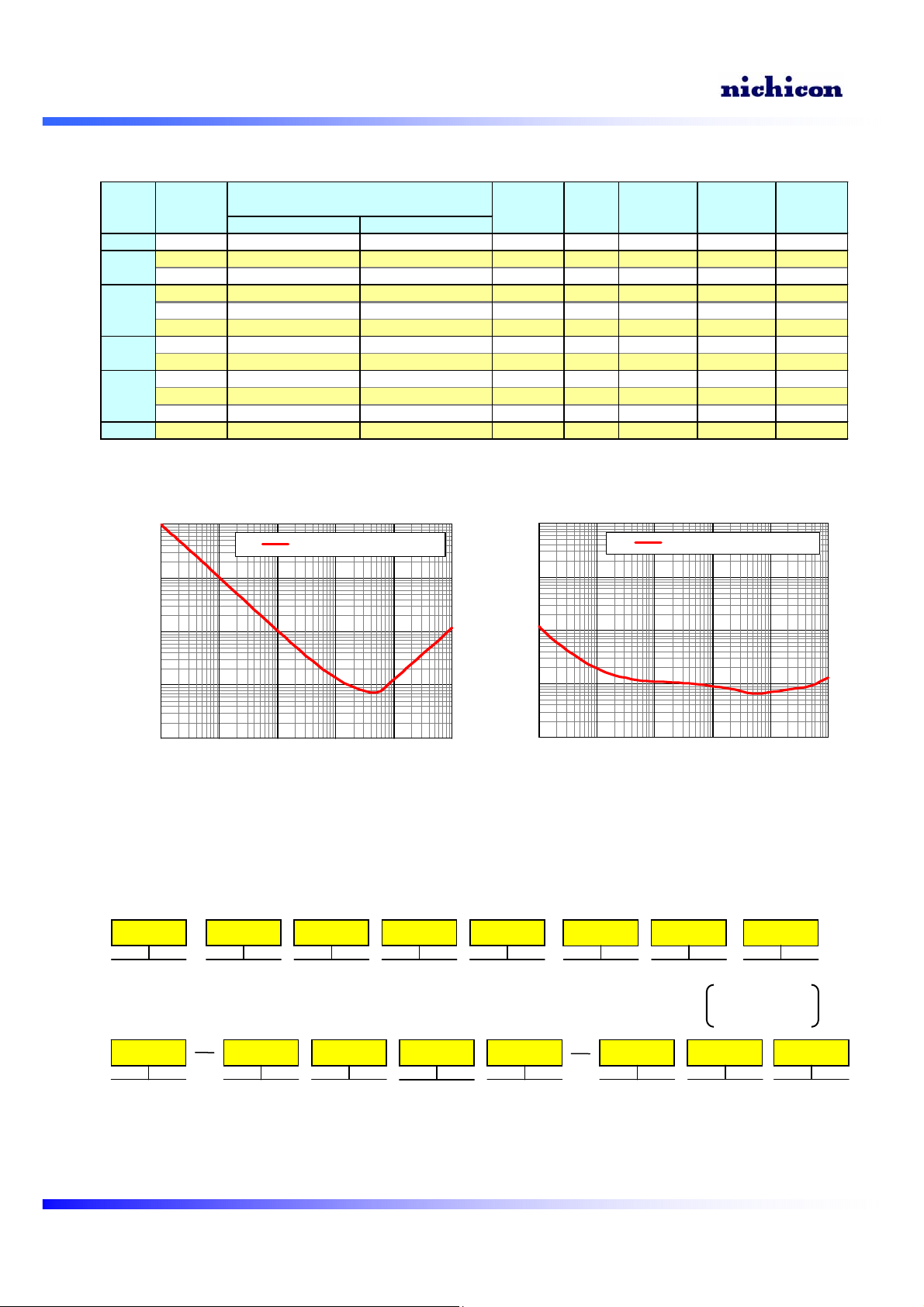

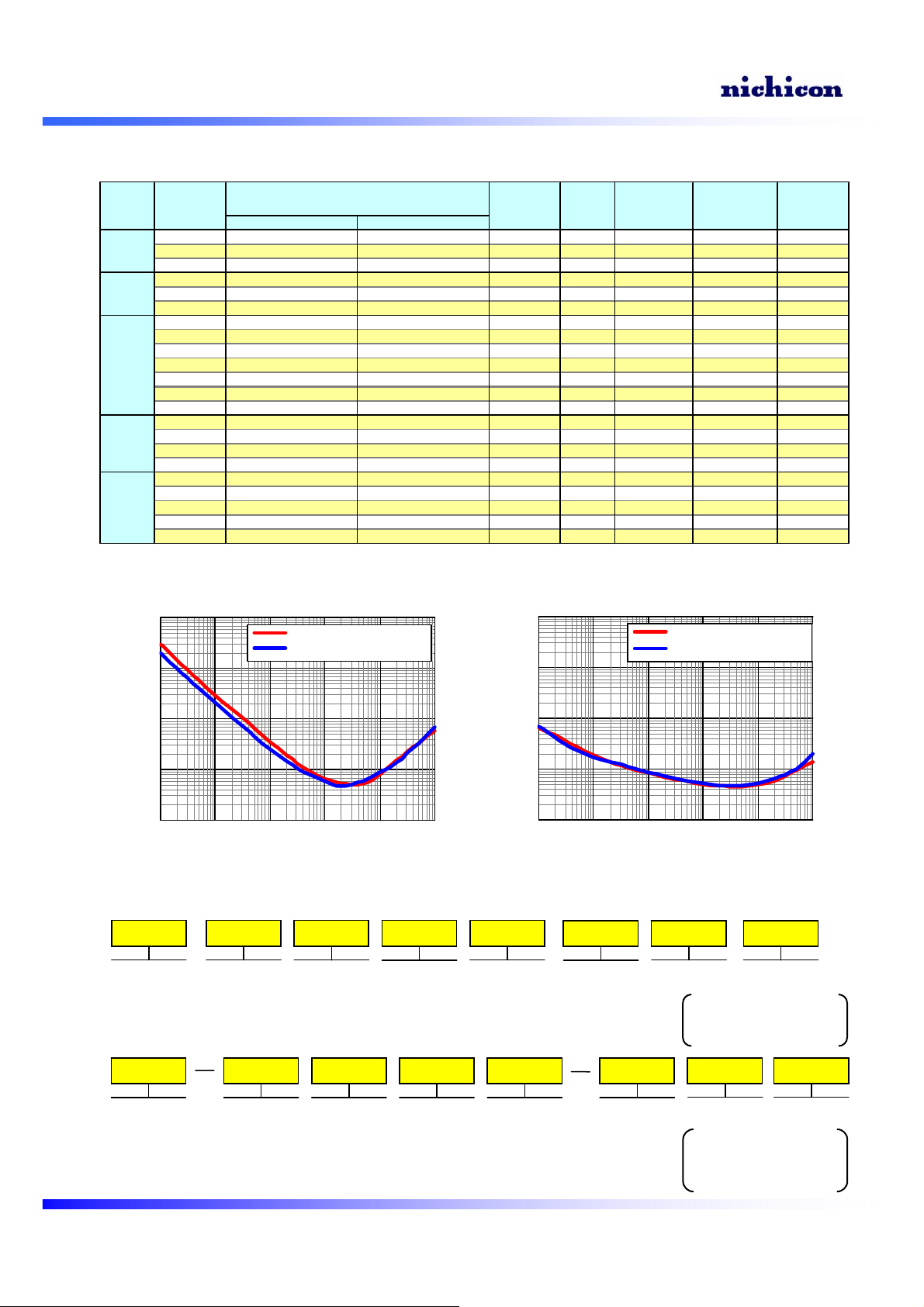

Page 13

zPart number & Specifications

Rated

Voltage

(V) (μF, 120Hz) NICHICON FPCAP (μA, 2 min) (120Hz) (mΩ, 100kHz) (mA, r.m.s.)

2.5

4.0

6.3

* In case of some doubt about measured values, measure after applying rated voltage for 120 minutes at 105°C.

Rated

Capacit ance

680 RR70E681MDN1 820 RR70E821MDN1 1500 RR70E152MDN1 560 RR70G561MDN1 820 RR70G821MDN1 1200 RR70G122MDN1 150 RR70J151MDN1 220 RR70J221MDN1 330 RR70J331MDN1 390 RR70J391MDN1 680 RR70J681MDN1 820 RR70J821MDN1 1000 RR70J102MDN1 100 RR71A101MDN1 220 RR71A221MDN1 470 RR71A471MDN1 680 RR71A681MDN1

68 RR71C680MDN1 100 RR71C101MDN1 150 RR71C151MDN1 270 RR71C271MDN1 330 RR71C331MDN1

Part Number

                     

FP-2R5RE681M-R7 FP-2R5RE821M-R7 FP-2R5RE152M-R7 FP-4R0RE561M-R7 FP-4R0RE821M-R7 FP-4R0RE122M-R7 FP-6R3RE151M-R7 FP-6R3RE221M-R7 FP-6R3RE331M-R7 FP-6R3RE391M-R7 FP-6R3RE681M-R7 FP-6R3RE821M-R7 FP-6R3RE102M-R7 FP-010RE101M -R7 FP-010RE221M -R7 FP-010RE471M -R7 FP-010RE681M -R7 FP-016RE680M -R7 FP-016RE101M -R7 FP-016RE151M -R7 FP-016RE271M -R7 FP-016RE331M -R7

           

         

Leakage Current *

425 0. 08 7 5600 8 × 11.5 513 0. 08 7 5600 8 × 11.5 938 0. 08 7 6100 10 × 12.5 224 0. 08 7 5600 8 × 11.5 328 0. 08 7 6100 10 × 12.5 960 0. 15 7 6100 10 × 12.5

47 0.07 7 5600 8 × 11.5

69 0.07 7 5600 8 × 11.5 104 0. 07 7 6100 10 × 12.5 246 0. 08 7 5600 8 × 11.5 428 0. 08 7 6100 10 × 12.5 517 0. 12 7 6100 10 × 12.5 630 0. 12 7 6100 10 × 12.5

50 0.07 7 5600 8 × 11.5 110 0. 07 7 6100 10 × 12.5 470 0. 08 7 6100 10 × 12.5

1360 0.10 7 6100 10 × 12.5

54 0.06 7 5600 8 × 11.5

80 0.06 7 5600 8 × 11.5 120 0. 06 7 6100 10 × 12.5 648 0. 08 7 6100 10 × 12.5 792 0. 08 7 6100 10 × 12.5

tanδ ESR

Rated Ripple

Current

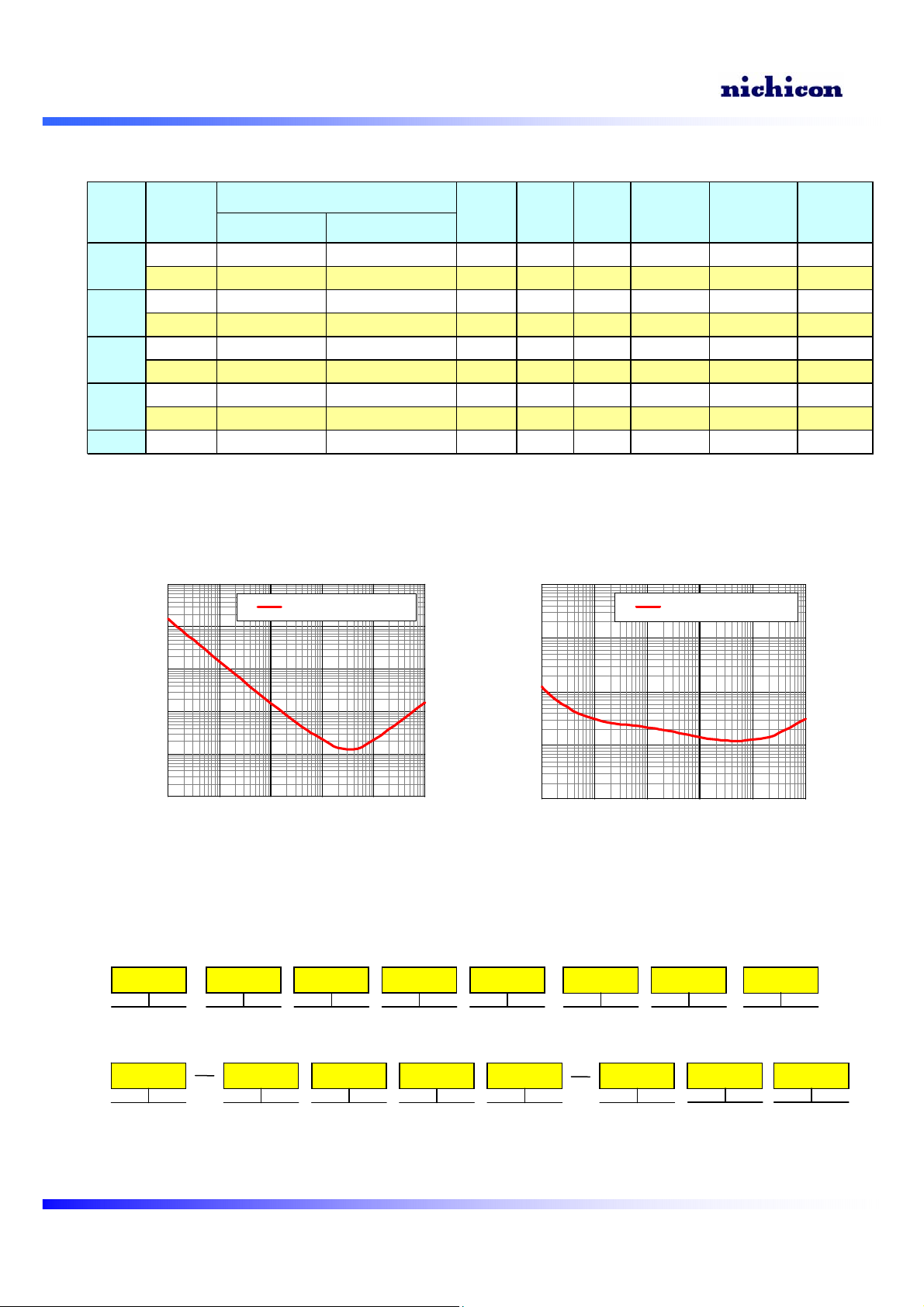

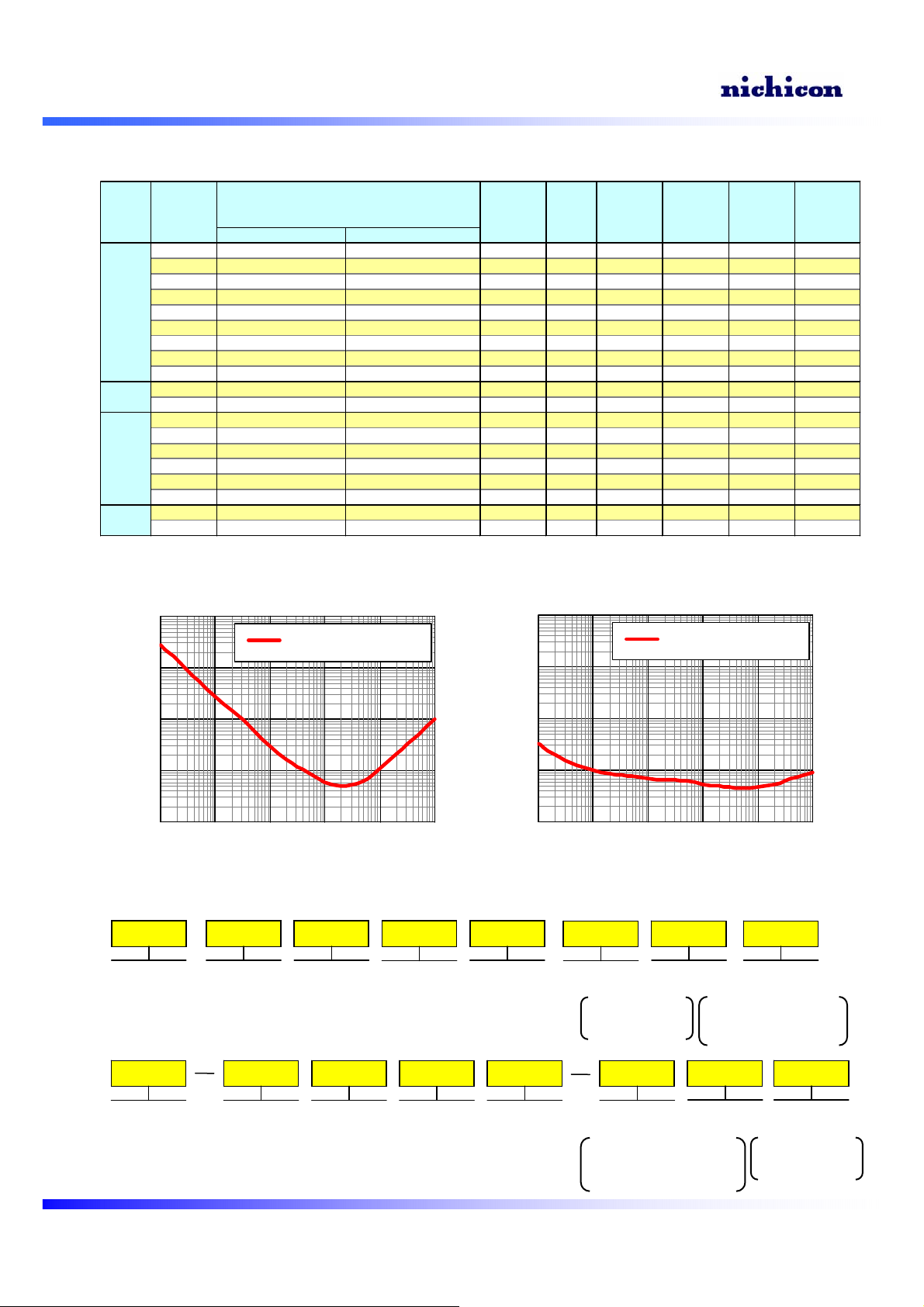

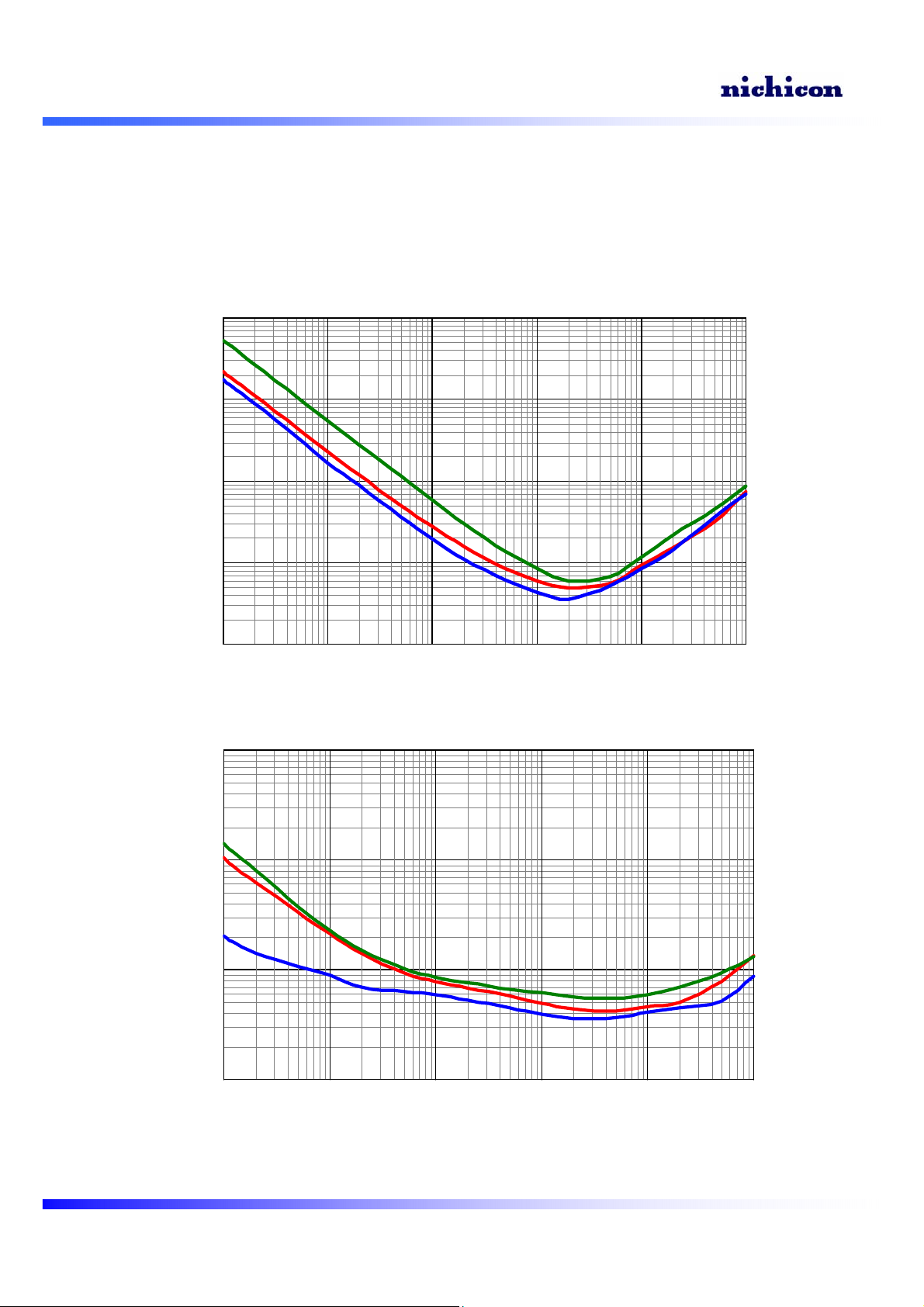

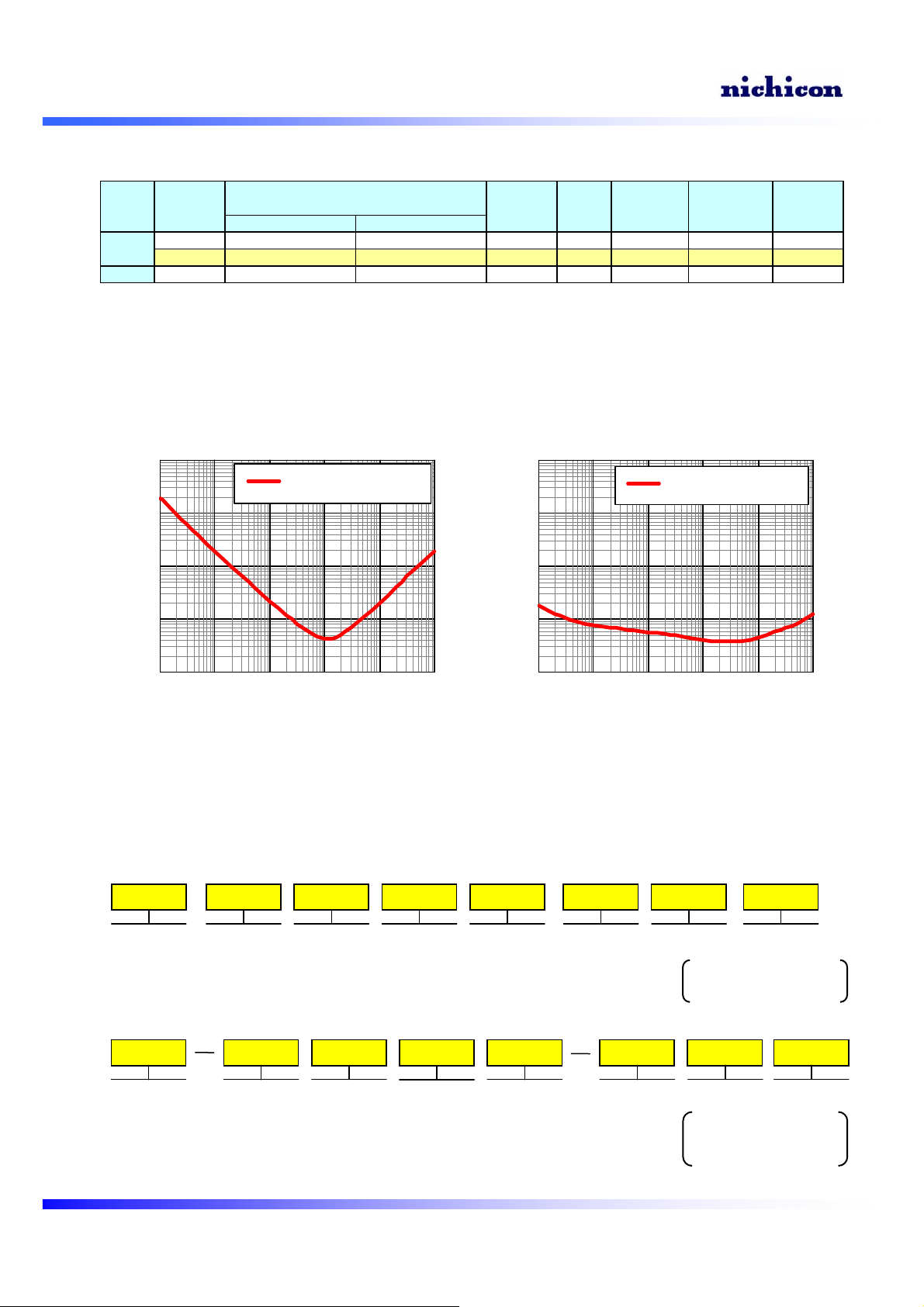

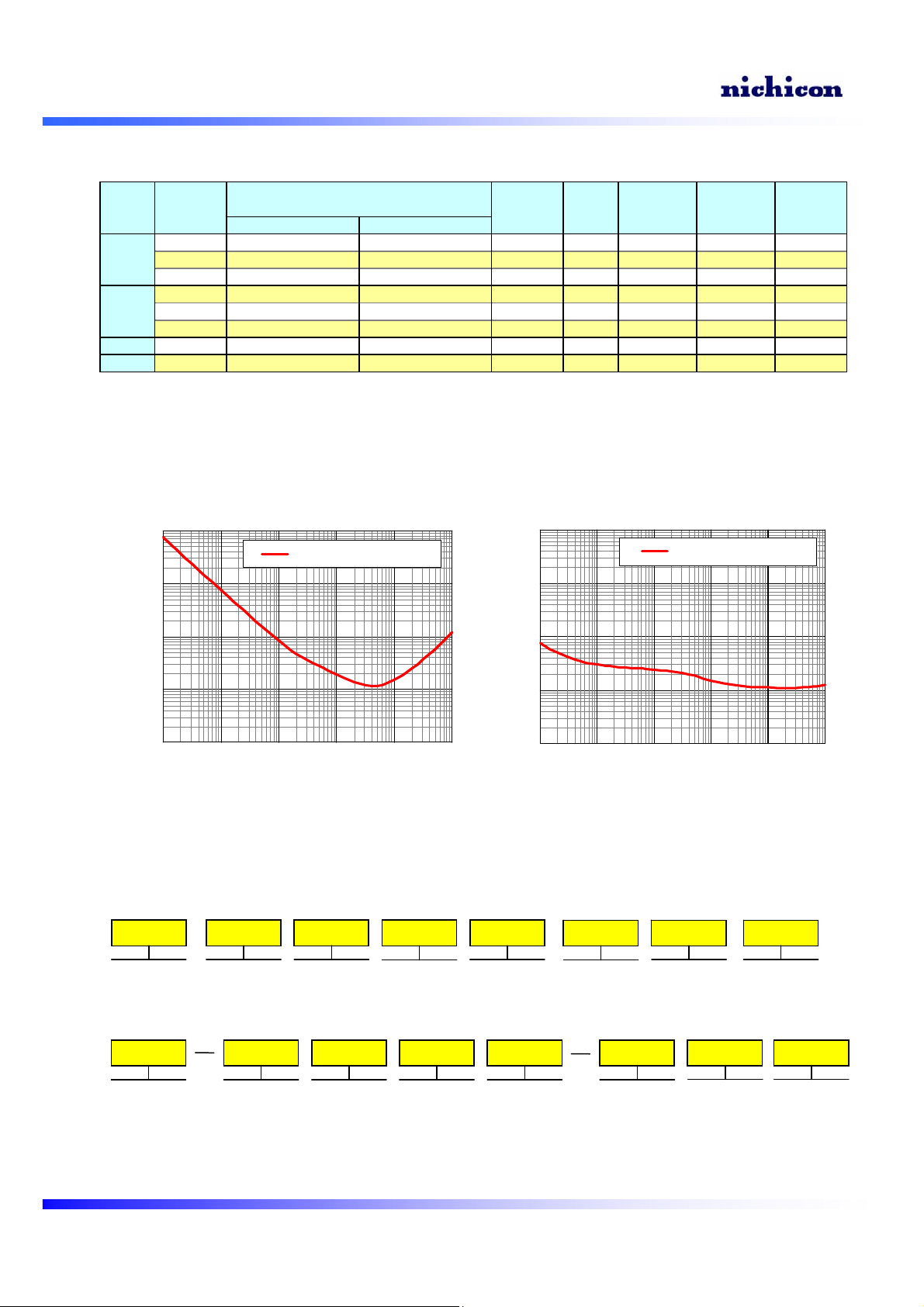

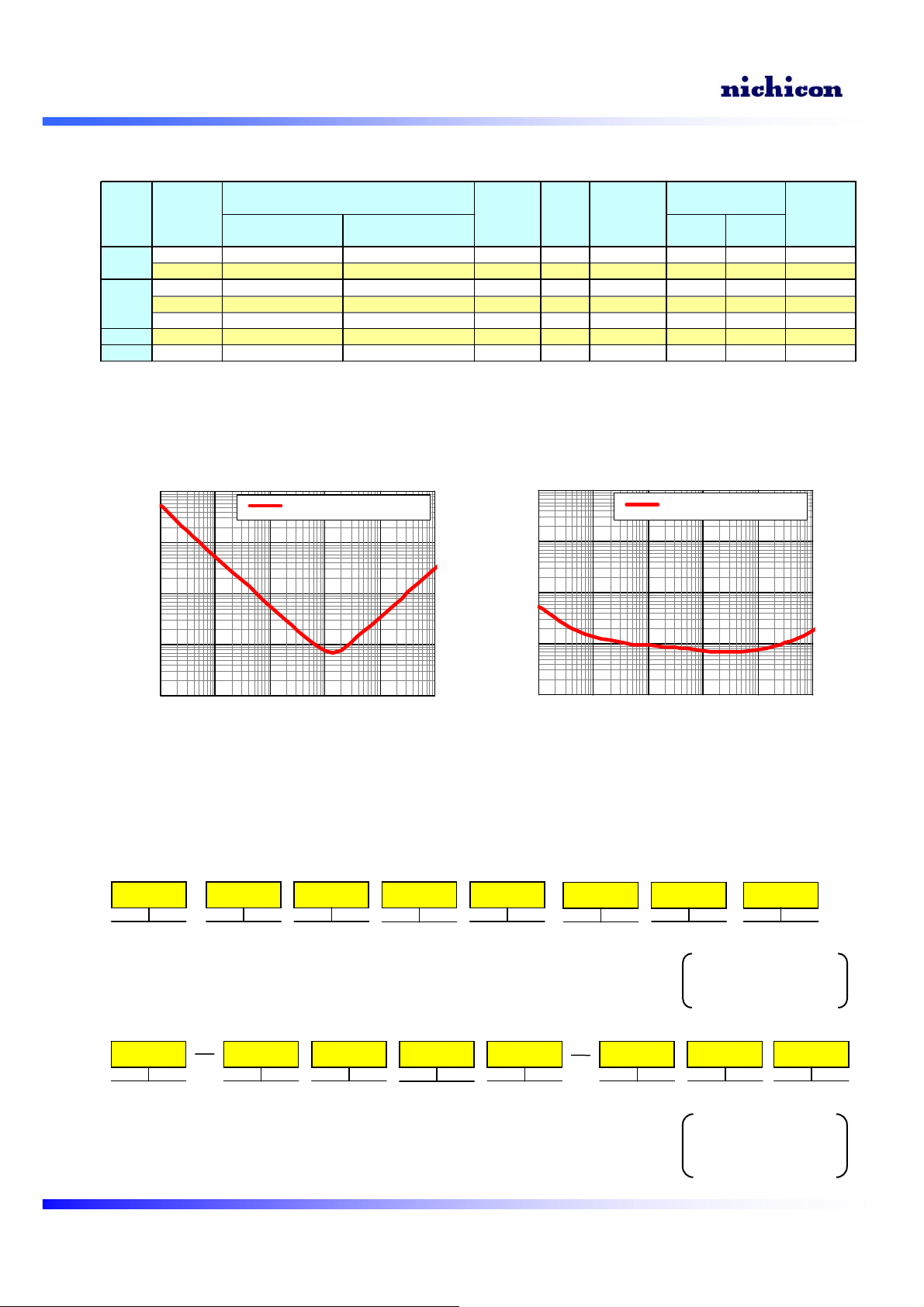

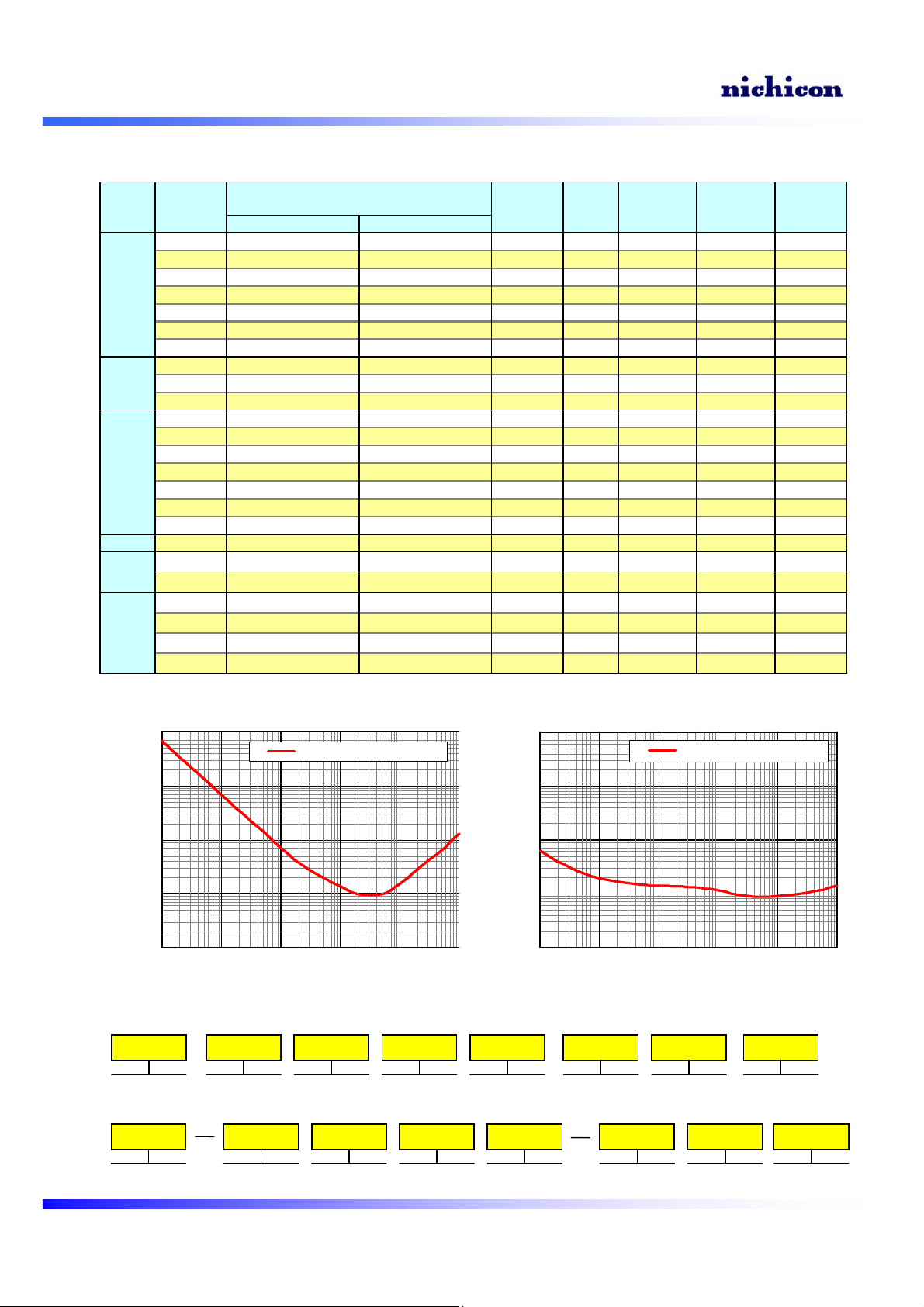

zFrequency Characteristics

10000

4.0V 560μF (R7 series)

2.5V 820μF (R7 series)

1000

10000

4.0V 560μF (R7 series)

2.5V 820μF (R7 series)

1000

Case Size

D×L(mm)

100

Impedance (mΩ)

0.1 1 10 100 1000 10000

Frequency (kHz)

zPart Number (EX) 4V, 560μF

Nichicon P/N

R R7 0G 561 M

Type

FPCAP P/N

Commodity

Mark

Series name

Rated Voltage

Rated

Voltage

Classification

Rated

Capacitance

Rated

Capacitance

100

ESR (mΩ)

0.1 1 10 100 1000 10000

Capacitance

Tolerance

Capacitance

Tolerance

Frequency (kHz)

Configuration

R7FP 4R0 RE 561 M R

Series name

Control code

CG: Cut lead (Bulk) KX: φ8, 3.5mm pitch taping PX: φ8, 5.0mm pitch taping PH: φ10, 5.0mm pitch taping

Lead

Forming

R: Long lead (Bulk) CG: Cut lead (Bulk) K : φ8, 3.5mm pitch taping P : φ8, 5.0mm pitch taping PH: φ10, 5.0mm pitch taping

Lead

Forming

Control code

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

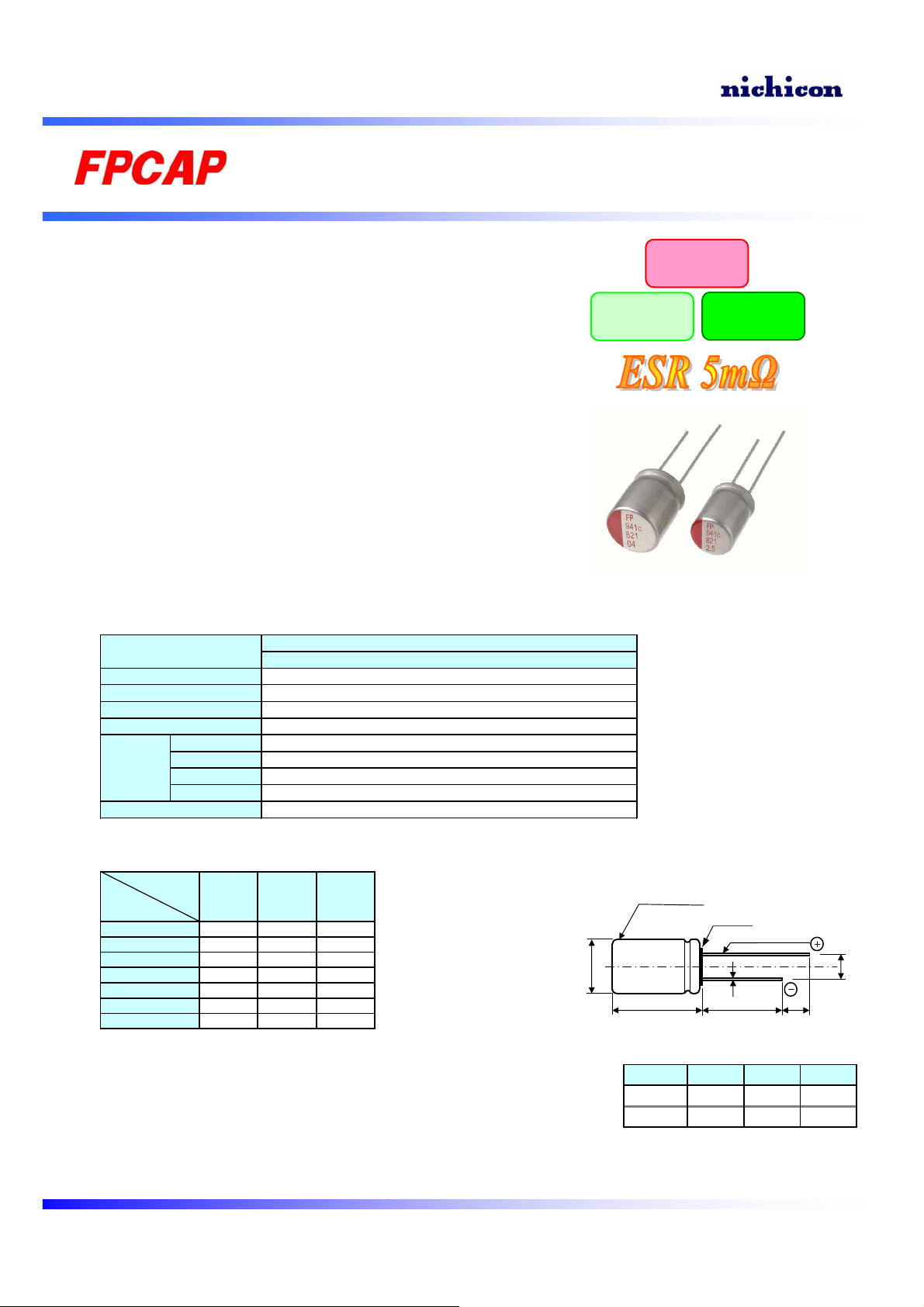

Page 14

Products / Radial Lead Type

Functional Polymer Aluminum Solid Electrolytic Capacitors

zFeatures

By using Functional Polymer cathode, Frequency & Temp. characteristics are greatly impr oved.

 Low ESR at a high frequency range.  High ripple current capability.  Long life and high reliability.

zApplications

 Switching Power Supply and DC/DC Converter.  Back up Power Supplies of CPU(VRM etc.)  Miniature high Power Supply.

zEnvironmental Correspondence

Any environmental hazardous substances are not used.

 The lead free of ter minal plating (Sn 100%)

series

Low ESR

Lead-free

Ultra

RoHS

Compliance

zSpecifications

Ite ms

Operating Temp. Range

Rated Voltage Range

Capacitance R ange

Capacitance Tolerance

Condition

Endurance

Capacitance

Leakage Current

tan δ

Failure Rate

zSize List

R.V (S.V.)

Cap. [μF]

390 8×11.5 560 8×11.5 8×11.5 680 8×11.5 10×12.5

820 8×11.5 10×12. 5 10×12.5 1000 8×11.5 1200 10×12.5 1500 10×12.5

[V]

2.5

(2.8)

4.0

(4.6)

Charac teris tics

- 55 to + 105°C

2.5 to 6.3V·

390 to 1500μF

± 20% (M)

105°C 2000Hrs at rated voltage

Within ± 20% of the value before tes t

Not to exceed the value specified

Not to exceed 150% of the value s pecified

0.1% / 1000Hrs. Max (60%CL)

[φD×L]

6.3

(7.2)

zDimensions

Aluminum Case

Stand off

φD+0.5Max

L+α Max 15Min 4Min

D×L

8×11.5 0.6 3.5 1.5

10×12.5 0.6 5.0 1.5

Wire (Lead free)

P± 0.5

φd

[Unit : mm]

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

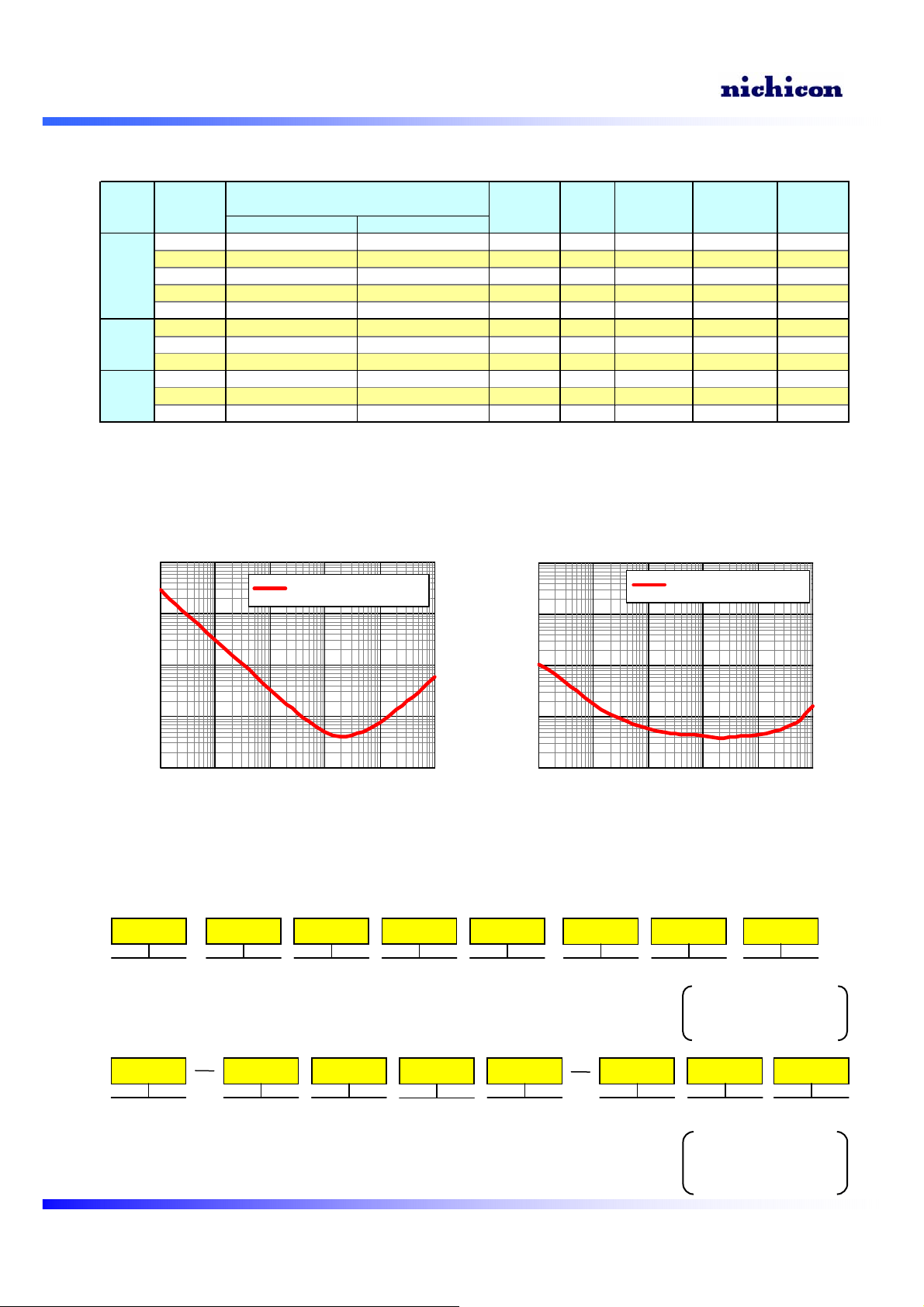

Page 15

zPart number & Specifications

Rated

Voltage

(V) (μF, 120Hz) NICHICON FPCAP (μA, 2 min) (120Hz) (mΩ, 100kHz) (mA, r.m.s.)

2.5

4.0

6.3

* In case of some doubt about measured values, measure after applying rated voltage for 120 minutes at 105°C.

Rated

Capacit ance

560 RR50E561MDN1

680 RR50E681MDN1

820 RR50E821MDN1

1000 RR50E102MDN1

1500 RR50E152MDN1

560 RR50G561MDN1

820 RR50G821MDN1

1200 RR50G122MDN1

390 RR50J391MDN1

680 RR50J681MDN1

820 RR50J821MDN1

Part Number



FP-2R5RE561M-R5

FP-2R5RE681M-R5

FP-2R5RE821M-R5

FP-2R5RE102M-R5

FP-2R5RE152M-R5

FP-4R0RE561M-R5

FP-4R0RE821M-R5

FP-4R0RE122M-R5

FP-6R3RE391M-R5

FP-6R3RE681M-R5

FP-6R3RE821M-R5



Leakage Current *

350 0.15 5 6630 8 × 11.5

425 0.15 5 6630 8 × 11.5

513 0.15 5 6630 8 × 11.5

625 0.15 5 6630 8 × 11.5

938 0.15 5 7220 10 × 12.5

560 0.15 5 6630 8 × 11.5

820 0.15 5 7220 10 × 12.5

1200 0.15 5 7220 10 × 12. 5

614 0.15 5 6630 8 × 11.5

1071 0.15 5 7220 10 × 12. 5

1292 0.15 5 7220 10 × 12. 5

tanδ ESR

Rated Ripple

Current

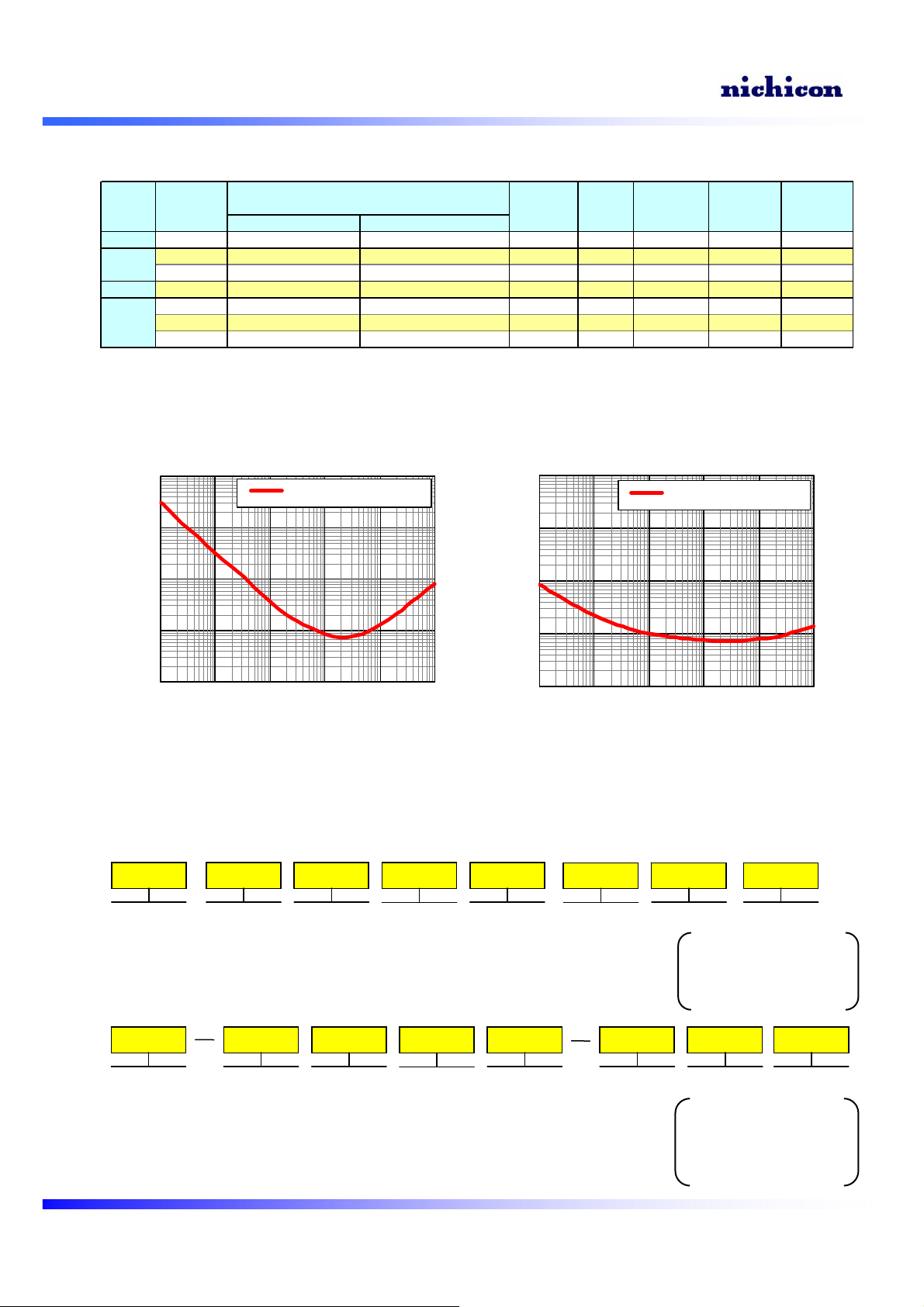

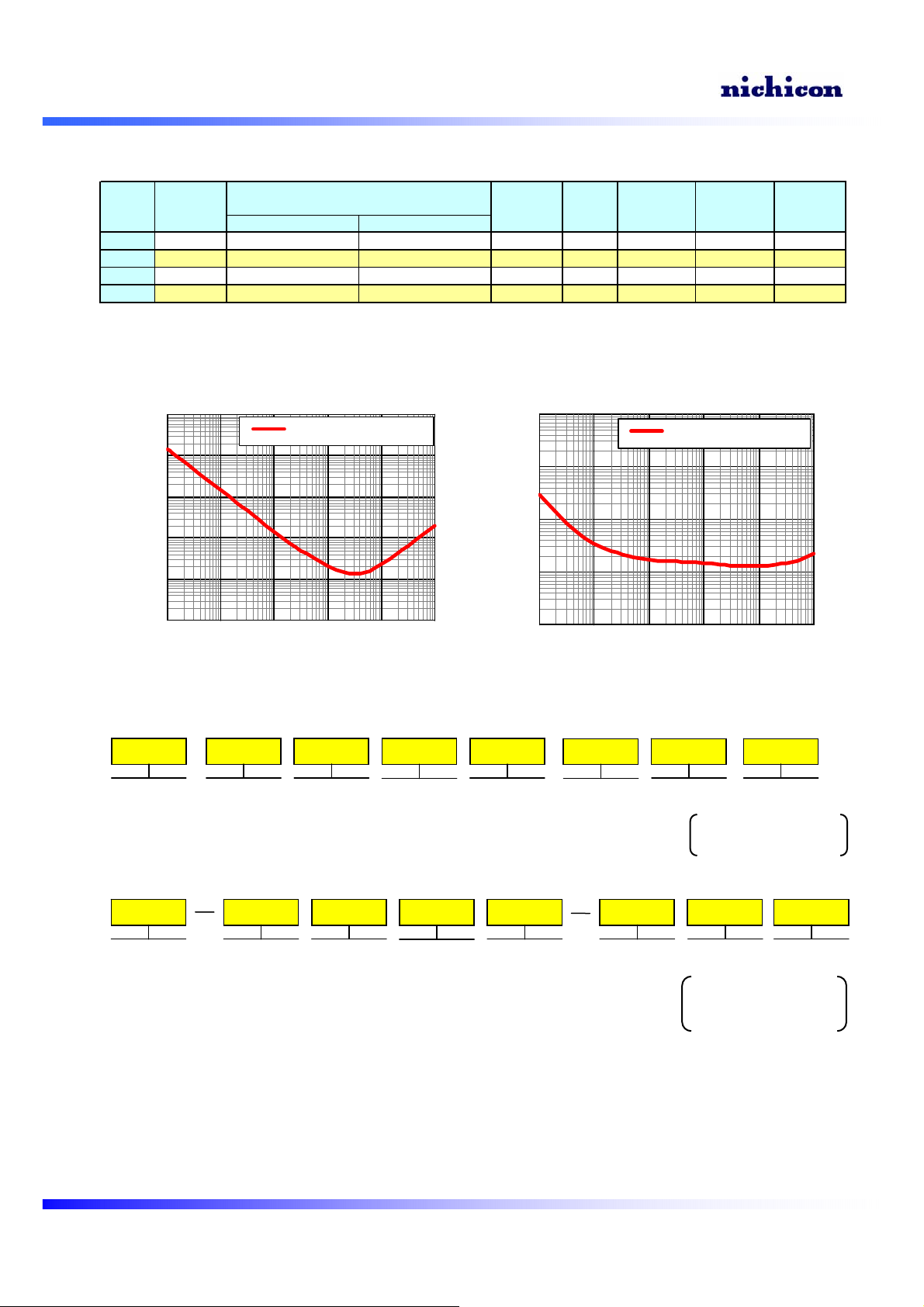

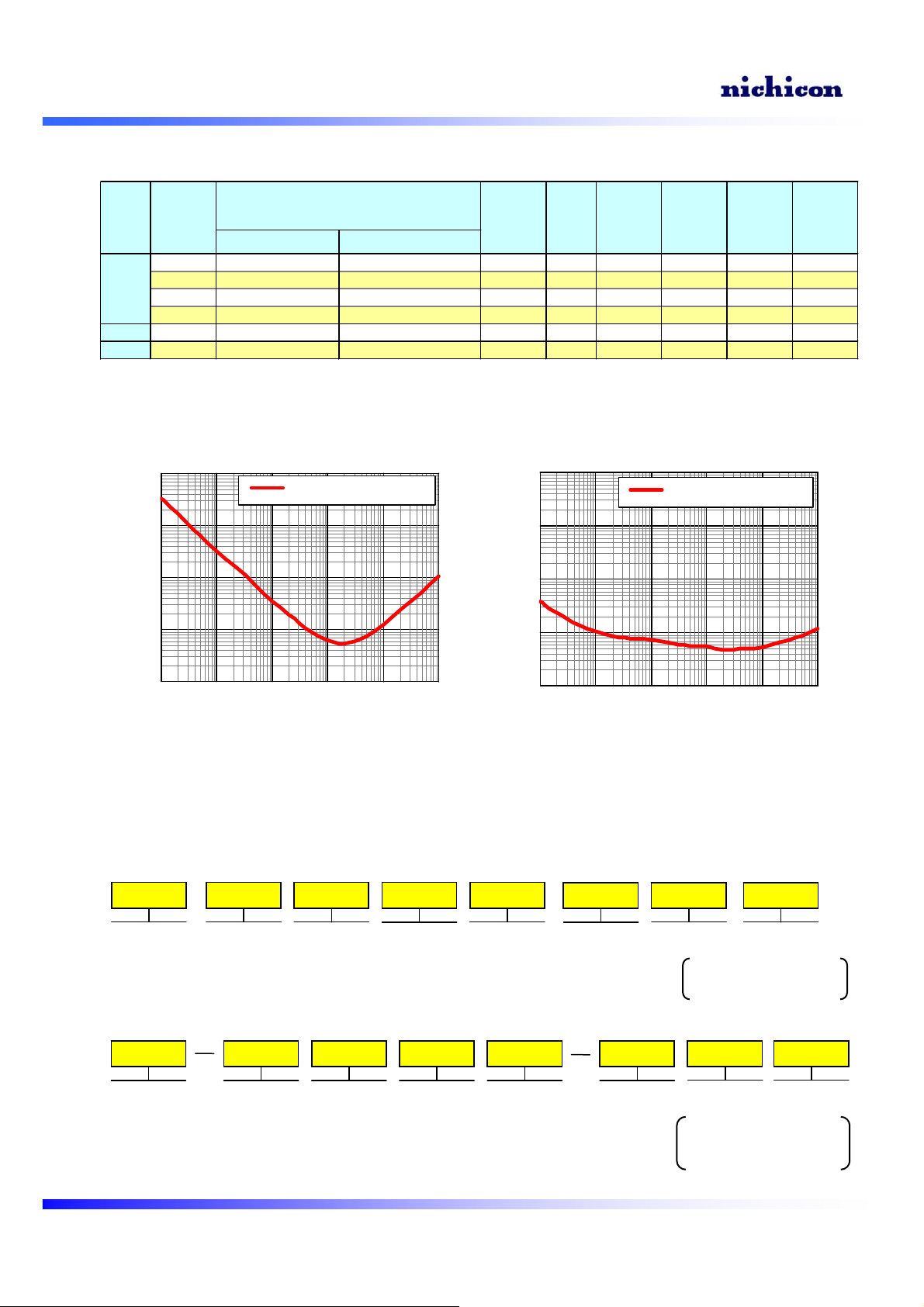

zFrequency Characteristics

Case Size

D×L(mm)

10000

4.0V 560μF (R5 series)

1000

100

Impedance ( mΩ )

0.1 1 10 100 1000 10000

Frequency (kHz)

zPart Number (EX) 4V, 560μF

Nichicon P/N

R R5 0G 561 M

Type

FPCAP P/N

Series name

Rated

Voltage

Rated

Capacitance

10000

1000

100

ESR ( mΩ )

0.1 1 10 100 1000 10000

Capacitance

Tolerance

Frequency (kHz)

Configuration

4.0V 560μF (R5 series)

Control code

CG: Cut lead (Bulk) KX: φ8, 3.5mm pitch taping PX: φ8, 5.0mm pitch taping PH: φ10, 5.0mm pitch taping

Forming

Lead

R5FP 4R0 RE 561 M R

Commodity

Mark

Rated Voltage

Classification

Rated

Capacitance

Tolerance

Series name

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Lead

Control code

Forming

R: Long lead (Bulk) CG: Cut lead (Bulk) K : φ8, 3.5mm pitch taping P : φ8, 5.0mm pitch taping PH: φ10, 5.0mm pitch taping

Page 16

Products / Radial Lead Type

Functional Polymer Aluminum Solid Electrolytic Capacitors

series

zFeatures

By using Functional Polymer cathode, Frequency & Temp. characteristics are greatly impr oved.

 Low ESR at a high frequency range.  High ripple current capability.  Long life and high reliability.

zApplications

 Switching Power Supply and DC/DC Converter.  Back up Power Supplies of CPU(VRM etc.)  Miniature high Power Supply.

zEnvironmental Correspondence

Any environmental hazardous substances are not used.

 The lead free of ter minal plating (Sn 100%)

zSpecifications

Ite ms

Operating Temp. Range

Rated Voltage Range

Capacitance Range

Capacitance Tolerance

Condition

Endurance

Capacitance

Leakage Current

tan δ

Failure Rate

105°C 2000/5000Hrs at rated voltage

Within ± 20% of the value before test

Not to exceed 150% of the value s pecified

Characteristics

- 55 to + 105°C

2.5 to 35V·

100 to 1500μF

± 20% (M)

Not to exceed the value specified

0.1% / 1000Hrs. Max (60%CL)

Ultra

Low ESR

Low Profile

Large

Capacitance

Lead-free

Endurance

2000/5000hrs

RoHS

Compliance

zSize List

R.V (S.V.)

Cap. [ μF]

100 8×8 8× 8

180 8×8

220 8×8

270 8×8

330 8×8

470 8×8

560 8×8 8×8 8×8

680 8×8

820 8×8 8×8 8×8

1000 8×8 8×8 1200 8×8 1500 8×8

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

[V]

2.5

(2.8)

4.0

(4.6)

6.3

(7.2)16(18.4)

[φD×L]

(40.2)

zDimensions

Aluminum Case

Stand off

φD+0.5Max

L+α Max 15Min 4Min

D×L

8×8 0.6 3.5 1. 0

Wire (Lead free)

P± 0.5

φd

[Unit : mm]

Page 17

zPart number & Specifications

Rated

Voltage

(V) (μF, 120Hz) NICHICON FPCAP (μA, 2 min) (120Hz) (mΩ, 100kHz) (mA, r.m.s.)

2.5

4.0

6.3

35 100 RL81V101MDN1

Rated

Capacitance

560 RL80E561MDN1

** 560 RL80E561MDNASQ

820 RL80E821MDN1

** 820 RL80E821MDNASQ

1000 RL80E102MDN1

1200 RL80E122MDN1

1500 RL80E152MDN1

560 RL80G561MDN1

** 560 RL80G561MDNASQ

820 RL80G821MDN1

470 RL80J471MDN1

** 470 RL80J471MDNASQ

560 RL80J561MDN1

** 560 RL80J561MDNASQ

680 RL80J681MDN1

820 RL80J821MDN1

1000 RL80J102MDN1

100 RL81C101MDN1

180 RL81C181MDN1

220 RL81C221MDN1

270 RL81C271MDN1

330 RL81C331MDN1

Part Number



Leakage Current *

FP-2R5RE561M-L8

FP-2R5RE561M-L8-5K 500 0.12 6 6100 8 × 8

FP-2R5RE821M-L8

FP-2R5RE821M-L8-5K 513 0.12 6 6100 8 × 8

FP-2R5RE102M-L8

FP-2R5RE122M-L8

FP-2R5RE152M-L8

FP-4R0RE561M-L8

FP-4R0RE561M-L8-5K 560 0.12 6 6100 8 × 8

FP-4R0RE821M-L8

FP-6R3RE471M-L8

FP-6R3RE471M-L8-5K 592 0.12 8 5700 8 × 8

FP-6R3RE561M-L8

FP-6R3RE561M-L8-5K 706 0.12 8 5700 8 × 8

FP-6R3RE681M-L8

FP-6R3RE821M-L8

FP-6R3RE102M-L8

FP-016RE101M-L8

FP-016RE181M-L8

FP-016RE221M-L8

FP-016RE271M-L8

FP-016RE331M-L8

FP-035RE101M-L8



500 0.12 6 6100 8 × 8

513 0.12 6 6100 8 × 8

625 0.12 6 6100 8 × 8

750 0.12 7 6100 8 × 8

938 0.12 7 6100 8 × 8

560 0.12 6 6100 8 × 8

820 0.12 6 6100 8 × 8

592 0.12 8 5700 8 × 8

706 0.12 8 5700 8 × 8

857 0.12 8 5700 8 × 8

1033 0.12 8 5700 8 × 8

1260 0.12 9 5700 8 × 8

320 0.12 12 5000 8 × 8

576 0.12 12 5000 8 × 8

704 0.12 12 5000 8 × 8

864 0.12 10 5000 8 × 8

1056 0.12 12 5000 8 × 8

700 0.12 25 3000 8 × 8

tanδ ESR

* In case of some doubt about measured values, measure after applying rated voltage for 120 minutes at 105°C.

** Endurance 5000hrs product.

Rated Ri pple

Current

zFrequency Characteristics

10000

16V 270μF( L8 s er ie s )

10000

16V 270μF(L8 series)

Case Size

D×L(mm)

1000

100

1000

100

ESR (mΩ)

Impedance (mΩ)

0.1 1 10 100 1000 10000

Frequency (kHz)

zPart Number (EX) 6.3V, 560μF, 5000hrs (Endurance)

Nichicon P/N

R L8 0J 561 M

Type

FPCAP P/N

Commodity

Mark

Series name

Rated Voltage

Rated

Voltage

Classification

Rated

Capacitance

Rated

Capacitance

Tolerance

Capacitance

Tolerance

Frequency (kHz)

Configuration

ASQ : 5000hrs

1 : 2000hrs

L8FP 6R3 RE 561 M R -5K

Series name

R: Long lead (Bulk) CG: Cut lead (Bulk) K : φ8, 3.5mm pitch taping P : φ8, 5.0mm pitch taping

ASQ

Control code

Lead

Forming

Lead

Forming

CG: Cut lead (Bulk) KX: φ8, 3.5mm pitch taping PX: φ8, 5.0mm pitch taping

Control code

-5K : 5000hrs

Without -5K: 2000hrs

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Page 18

Products / Radial Lead Type

Functional Polymer Aluminum Solid Electrolytic Capacitors

series

zFeatures

By using Functional Polymer cathode, Frequency & Temp. characteristics are greatly impr oved.

 Low ESR at a high frequency range.  High ripple current capability.  Long life and high reliability.

zApplications

 Switching Power Supply and DC/DC Converter.  Back up Power Supplies of CPU(VRM etc.)  Miniature high Power Supply.

zEnvironmental Correspondence

Any environmental hazardous substances are not used.

 The lead free of ter minal plating (Sn 100%)

zSpecifications

Ite ms

Operating Temp. Range

Rated Voltage Range

Capacitance R ange

Capacitance Tolerance

Condition

Endurance

Capacitance

Leakage Current

tan δ

Failure Rate

Within ± 20% of the value before test

Not to exceed 150% of the value s pecified

Characteristics

- 55 to + 105°C

2.5 to 4.0V·

560 to 820μF

± 20% (M)

105°C 2000Hrs at rated voltage

Not to exceed the value specified

0.1% / 1000Hrs. Max (60%CL)

Ultra

Low ESR

Low Profile

Lead-free

Large

Capacitance

RoHS

Compliance

zSize List

R.V (S.V.)

Cap. [μF]

560 8×8 8×8 820 8×8

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

[V]

2.5

(2.8)

[φD×L]

4.0

(4.6)

zDimensions

Aluminum Case

Stand off

φD+0.5Max

L+α Max 15Min 4Min

D×L

8×8 0.6 3.5 1. 0

Wire (Lead free)

P± 0.5

φd

[Unit : mm]

Page 19

zPart number & Specifications

Rated

Voltage

(V) (μF, 120Hz) NICHICON FPCAP (μA, 2 min) (120Hz) (mΩ, 10 0kHz) (m A, r.m .s .)

2.5

4.0 560 RE50G561MDN1

* In case of some doubt about measured values, measure after applying rated voltage for 120 minutes at 105°C.

Rated

Capac it anc e

560 RE50E561MDN1

820 RE50E821MDN1

Part Number

FP-2R5RE561M-E5



FP-2R5RE821M-E5



FP-4R0RE561M-E5



Leakage Current *

500 0.10 5 6300 8 × 8

513 0.10 5 6300 8 × 8

560 0.10 5 6300 8 × 8

tanδ ESR

Rated Ripple

Current

zFrequency Characteristics

10000

2.5V 560μF (E5 series)

10000

2.5V 560μF (E5 series)

Case Size

D×L(mm)

1000

100

Impedance (mΩ)

0.1 1 10 100 1000 10000

Frequency (kHz)

zPart Number (EX) 4V, 560μF

Nichicon P/N

R E5 0G 561 M

Type

Series name

Rated

Voltage

Rated

Capacitance

1000

100

ESR (mΩ)

0.1 1 10 100 1000 10000

Capacitance

Tolerance

Configuration

Frequency (kHz)

Control code

CG: Cut lead (Bulk) KX: φ8, 3.5mm pitch taping PX: φ8, 5.0mm pitch taping

Lead

Forming

FPCAP P/N

E5FP 4R0 RE 561 M R

Commodity

Mark

Rated Voltage

Classification

Rated

Capacitance

Tolerance

Series name

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Lead

Control code

Forming

R: Long lead (Bulk) CG: Cut lead (Bulk) K : φ8, 3.5mm pitch taping P : φ8, 5.0mm pitch taping

Page 20

Products / Radial Lead Type

Functional Polymer Aluminum Solid Electrolytic Capacitors

series

zFeatures

By using Functional Polymer cathode, Frequency & Temp. characteristics are greatly impr oved.

 Low ESR and Low ESL at a high frequency range.  High ripple current capability.  Long life and high reliability.

zApplications

 Switching Power Supply and DC/DC Converter.  Back up Power Supplies of CPU(VRM etc.)  Miniature high Power Supply.

zEnvironmental Correspondence

Any environmental hazardous substances are not used.

 The lead free of ter minal plating (Sn 100%)

zSpecifications

Ite ms

Operating Temp. Range

Rated Voltage Range

Capacitance Range

Capacitance Tolerance

Condition

Endurance

Capacitance

Leakage Current

tan δ

Failure Rate

105°C 2000/5000Hrs at rated voltage

Within ± 20% of the value before test

Not to exceed 150% of the value s pecified

Characteristics

- 55 to + 105°C

2.5 to 16V·

100 to 1200μF

± 20% (M)

Not to exceed the value specified

0.1% / 1000Hrs. Max (60%CL)

Ultra

Low ESR

Low ESL

Large

Capacitance

Lead-free

Endurance

2000/5000hrs

RoHS

Compliance

zSize List

R.V (S.V.)

Cap. [μF]

100 6.3×8

270 6.3×8

330 6.3×8 6.3×8

470 6.3×8 6.3×8

560 6.3×8 6.3×8 6.3×8

820 6.3×8 1200 6.3× 8

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

[V]

2.5

(2.8)

4.0

(4.6)

6.3

(7.2)

[φD×L]

(18.4)

zDimensions

Aluminum Case

Stand off

φD+0.5Max

L+α Max 15Min 4Min

D×L

6.3×8 0.6 2.5 1.0

Wire (Lead free)

P± 0.5

φd

[Unit : mm]

Page 21

zPart number & Specifications

Rated

Voltage

(V) (μF, 120Hz) NICHICON FPCAP (μA, 2 min) (120Hz) (mΩ, 100kHz) (nH, 10MHz) (mA, r.m.s.)φD×L(mm)

2.5

4.0

6.3

Rated

Capacita nce

330 RS80E 331MDN1

** 330 RS80E331MDNA SQ

470 RS80E 471MDN1

** 470 RS80E471MDNA SQ

560 RS80E 561MDN1

** 560 RS80E561MDNA SQ

820 RS80E 821MDN1

** 820 RS80E821MDNA SQ

1200 RS80E 122MDN1

560 RS80G561M DN1

** 560 RS 80G561MDNASQ

330 RS80J331MDN1

** 330 RS80J331MDNASQ

470 RS80J471MDN1

** 470 RS80J471MDNASQ

560 RS80J561MDN1

** 560 RS80J561MDNASQ

100 RS81C101MDN1

270 RS81C271MDN1



Leakage Current *

500 0.10 7 2 5600 6.3 × 8

512 0.10 7 2 5600 6.3 × 8

750 0.10 7 2 5600 6.3 × 8

560 0.10 7 2 5000 6.3 × 8

519 0.10 8 2 5000 6.3 × 8

740 0.10 8 2 5000 6.3 × 8

882 0.10 8 2 5000 6.3 × 8

500 0.10 14 2 3800 6.3 × 8

1296 0.10 15 2 3800 6.3 × 8

Part Number



FP-2R5RE331M-S8

FP-2R5RE331M-S8-5K 500 0.10 7 2 5600 6.3 × 8



FP-2R5RE471M-S8

FP-2R5RE471M-S8-5K 500 0.10 7 2 5600 6.3 × 8



FP-2R5RE561M-S8

FP-2R5RE561M-S8-5K 500 0.10 7 2 5600 6.3 × 8



FP-2R5RE821M-S8

FP-2R5RE821M-S8-5K 512 0.10 7 2 5600 6.3 × 8



FP-2R5RE122M-S8

FP-4R0RE561M-S8

FP-4R0RE561M-S8-5K 560 0.10 7 2 5000 6.3 × 8



FP-6R3RE331M-S8

FP-6R3RE331M-S8-5K 519 0.10 8 2 5000 6.3 × 8



FP-6R3RE471M-S8

FP-6R3RE471M-S8-5K 740 0.10 8 2 5000 6.3 × 8



FP-6R3RE561M-S8

FP-6R3RE561M-S8-5K 882 0.10 8 2 5000 6.3 × 8



FP-016RE101M-S8

FP-016RE271M-S8

tanδ ESR

ESL

(Typ.)

Rated Ripple

Current

* In case of some doubt about measured values, measure after applying rated voltage for 120 minutes at 105°C.

** Endurance 5000hrs product.

zFrequency Characteristics

10000

6.3V 560μF (S8 series)

1000

10000

6.3V 560μF (S8 series)

1000

Case S iz e

100

ESR (mΩ)

Impedance (mΩ)

0.1 1 10 100 1000 10000

Frequency (kHz) Frequency (kHz)

zPart Number (EX) 2.5V, 820μF, 5000hrs (Endurance)

Nichicon P/N

R S8 0E 821 M

Type

FPCAP P/N

Commodity

Mark

Series name

Rated Voltage

Rated

Voltage

Classification

Rated

Capacitance

Rated

Capacitance

Tolerance

Capacitance

Tolerance

Configuration

ASQ : 5000hrs

1 : 2000hrs

S8FP 2R5 RE 821 M R -5K

Series name

R: Long lead (Bulk) CG: Cut lead (Bulk) JT: φ6.3x8, 2.5mm pitch taping P : φ6.3x8, 5.0mm pitch ta ping

ASQ

Control code

CG: Cut lead (Bulk) JT: φ6.3, 2.5mm pitch taping PX: φ6.3x8, 5.0mm pitch ta ping

Lead

Forming

Lead

Forming

Control code

-5K : 5000hrs

Without -5K: 2000hrs

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Page 22

Products / Radial Lead Type

Functional Polymer Aluminum Solid Electrolytic Capacitors

series

zFeatures

By using Functional Polymer cathode, Frequency & Temp. characteristics are greatly impr oved.

 Low ESR and Low ESL at a high frequency range.  High ripple current capability.  Long life and high reliability.

zApplications

 Switching Power Supply and DC/DC Converter.  Back up Power Supplies of CPU(VRM etc.)  Miniature high Power Supply.

zEnvironmental Correspondence

Any environmental hazardous substances are not used.

 The lead free of terminal plating (Sn 100%)

zSpecifications

Ite ms

Operating Temp. Range

Rated Voltage Range

Capacitance Range

Capacitance Tolerance

Condition

Endurance

Capacitance

Leakage Current

tan δ

Failure Rate

Within ± 20% of the value before test

Not to exceed 150% of the value s pecified

Characteristics

- 55 to + 105°C

2.5 to 6.3V·

100 to 560μF

± 20% (M)

105°C 2000Hrs at rated voltage

Not to exceed the value specified

0.1% / 1000Hrs. Max (60%CL)

Ultra

Low ESR

Lead-free

Large

Capacitance

Compliance

Low ESL

RoHS

zSize List

R.V (S.V.)

Cap. [μF]

100 5×8 270 5×8 330 5×8 5×8 470 5×8 560 5×8

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

[V]

2.5

(2.8)

4.0

(4.6)

[φD×L]

6.3

(7.2)

zDimensions

Aluminum Case

Stand off

φD+0.5Max

L+α Max 15Min 4Min

D×L

5×8 0.6 2.0 1.0

Wire (Lead free)

P± 0.5

φd

[Unit : mm]

Page 23

zPart number & Specifications

Rated

Voltage

(V) (μF, 120Hz) NICHICON FPCAP (μA, 2 min) (120Hz) (mΩ, 100kHz) (nH, 10MHz) (mA, r.m.s.)φD×L(mm)

2.5

4 330 RF80G331MDN1

6.3 270 RF80J271MDN1

Rated

Capacitance

100 RF80E101MDN1

330 RF80E331MDN1

470 RF80E471MDN1

560 RF80E561MDN1

Part Number



FP-2R5RE101M-F8

FP-2R5RE331M-F8

FP-2R5RE471M-F8

FP-2R5RE561M-F8

FP-4R0RE331M-F8

FP-6R3RE271M-F8



Leakage

Current

500 0.10 7 1.5 4200 5 × 8

500 0.10 8 1.5 4000 5 × 8

500 0.10 11 1.5 3700 5 × 8

tanδ ESR

ESL

(Typ.)

Rated Ripple

Current

* In case of some doubt about measured values, measure after applying rated voltage for 120 minutes at 105°C.

zFrequency Characteristics

10000

1000

100

Impedance (mΩ)

2.5V 560μF (F8 series)

10000

2.5V 560μF (F8 series)

1000

100

ESR (mΩ)

Case Size

0.1 1 10 100 1000 10000

Frequency (kHz)

zPart Number (EX) 2.5V, 560μF

Nichicon P/N

R F8 0E 561 M

Type

FPCAP P/N

Commodity

Mark

Series name

Rated Voltage

Rated

Voltage

Classification

Capacitance

Rated

Capacitance

0.1 1 10 100 1000 10000

Capacitance

Tolerance

Capacitance

Tolerance

Frequency (kHz)

Configuration

F8FP 2R5 RE 561 M R

Series name

Control code

CG: Cut lead (Bulk) JT: φ5x8, 2.5mm pitch taping PX:φ5x8, 5.0mm pitch taping

Lead

Forming

R: Long lead (Bulk) CG: Cut lead (Bulk) JT: φ5x8, 2.5mm pitch taping P : φ5x8, 5.0mm pitch taping

Lead

Forming

Control code

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Page 24

Products / Radial Lead Type

Functional Polymer Aluminum Solid Electrolytic Capacitors

series

zFeatures

By using Functional Polymer cathode, Frequency & Temp. characteristics are greatly impr oved.

 Low ESR at a high frequency range.  High ripple current capability.  Long life and high reliability.

zApplications

 Switching Power Supply and DC/DC Converter.  Back up Power Supplies of CPU(VRM etc.)  Miniature high Power Supply.

zEnvironmental Correspondence

Any environmental hazardous substances are not used.

 The lead free of ter minal plating (Sn 100%)

zSpecifications

Ite ms

Operating Temp. Range

Rated Voltage Range

Capacitance Range

Capacitance Tolerance

Condition

Endurance

Capacitance

Leakage Current

tan δ

Failure Rate

105°C 2000/5000Hrs at rated voltage

Within ± 20% of the value before test

Not to exceed 150% of the value s pecified

Characteristics

- 55 to + 105°C

2.5 to 63V·

10 to 2700μF

± 20% (M)

Not to exceed the value specified

0.1% / 1000Hrs. Max (60%CL)

Ultra

Low ESR

High Voltage

Large

Capacitance

Lead-free

Endurance

2000/5000hrs

RoHS

Compliance

zSize List

R.V (S.V.)

Cap. [μF]

10 4×5 33 8×11.5 8×11.5 39 8×11.5 10×12.5 47 8×11.5 10×12.5 56 10×12.5

68 8×11.5 10×12.5 100 6.3×10 150 10×12.5 180 8×11.5 8× 11.5 220 6.3×10 270 8×11.5 330 8×11.5 10×12.5 470 8×11.5 10×12.5 680 8×11.5 10×12.5 820 8×11.5 8× 11.5

1000 8× 11.5 8× 11.5 1200 8× 11.5 8× 11.5 10× 12.5 1500 8× 11.5 10×12.5 1800 10×12.5 2200 10×12.5 2700 10×12.5

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

[φD×L]

2.5

4.0

[V]

(2.8)

(4.6)

6.3

(7.2)10(11.5)16(18.4)

(28.7)

(40.2)

(57.5)63(72.5)

zDimensions

Aluminum Case

Stand off

φD+0.5Max

L+α Max 15Min 4Min

D×L

Wire (Lead free)

P± 0.5

φd

[Unit : mm]

4×5 0.45 1.5 1.0

6.3×10 0. 5 2.5 1.0

8×11.5 0. 6 3.5 1.5

10×12.5 0. 6 5.0 1.5

Page 25

zPart number & Specifications

Rated

Voltage

(V) (μF, 120Hz) NICHICON FPCAP (μA, 2 min) (120Hz) (mΩ, 100 kHz) (m A, r.m .s.)φD×L(mm)

2.5

4.0

6.3

35 150 RNU1V151MDN1

* In case of some doubt about measured values, measure after applying rated voltage for 120 minutes at 105°C.

** Endurance 5000hrs product.

Rated

Capacitanc e

1500 RNU0E152MDN1

2700 RNU0E272MDN1

820 RNU0G821MDN1

1000 RNU0G102MDN1

1200 RNU0G122MDN1

1800 RNU0G182MDN1

2200 RNU0G222MDN1

220 RNU0J221MDN1

470 RNU0J471MDN1

680 RNU0J681MDN1

820 RNU0J821MDN1

1000 RNU0J102M DN1

1200 RNU0J122M DN1

1500 RNU0J152M DN1

10 RNU1A100MDS 1

** 10 RNU1A100MDSASQ

1200 RNU1A122MDN1

100 RNU1C101MDS1

** 100 RNU1C101MDSASQ

180 RNU1C181MDN1

270 RNU1C271MDN1

** 270 RNU1C271MDNASQ

330 RNU1C331MDN1

470 RNU1C471MDN1

680 RNU1C681MDN1

33 RNU1E330MDN1

47 RNU1E470MDN1

68 RNU1E680MDN1

180 RNU1E181MDN1 330 RNU1E331MDN1

39 RNU1H390MDN1

47 RNU1H470MDN1

68 RNU1H680MDN1

33 RNU1J330MDN1

39 RNU1J390MDN1

56 RNU1J560MDN1

Part Number



FP-2R5RE152M-NU

FP-2R5RE272M-NU

FP-4R0RE821M-NU

FP-4R0RE102M-NU

FP-4R0RE122M-NU

FP-4R0RE182M-NU

FP-4R0RE222M-NU

FP-6R3RE221M-NU

FP-6R3RE471M-NU

FP-6R3RE681M-NU

FP-6R3RE821M-NU

FP-6R3RE102M-NU

FP-6R3RE122M-NU

FP-6R3RE152M-NU

FP-010RE 100M-NU

FP-010RE 100M-NU-5K 300 0.12 220 700 4 × 5



FP-010RE 122M-NU

FP-016RE 101M-NU

FP-016RE 101M-NU-5K 320 0.08 25 2820 6.3 x 10



FP-016RE 181M-NU

FP-016RE 271M-NU

FP-016RE 271M-NU-5K 864 0.08 8 5000 8 × 11.5



FP-016RE 331M-NU

FP-016RE 471M-NU

FP-016RE 681M-NU

FP-025RE 330M-NU

FP-025RE 470M-NU

FP-025RE 680M-NU

FP-025RE 181M-NU FP-025RE 331M-NU

FP-035RE 151M-NU

FP-050RE 390M-NU

FP-050RE 470M-NU

FP-050RE 680M-NU

FP-063RE 330M-NU

FP-063RE 390M-NU

FP-063RE 560M-NU



Leakage

Current *

938 0.08 7 5700 8 x 11.5

1350 0.08 7 6100 10 x 12.5

656 0.08 7 5700 8 x 11.5

800 0.08 7 5700 8 x 11.5

960 0.08 7 5700 8 x 11.5

1440 0.08 7 6100 10 x 12.5

1760 0.08 7 6100 10 x 12.5

277 0. 08 20 3200 6.3 × 10

592 0.08 7 5700 8 × 11.5

857 0.08 7 5700 8 x 11.5

1033 0.08 7 5700 8 x 11.5

1260 0.08 7 5700 8 x 11.5

1512 0.08 9 6100 8 x 11.5

1890 0.08 7 6100 10 x 12.5

300 0.12 220 700 4 × 5

2400 0.08 9 6200 10 × 12.5

320 0.08 25 2820 6.3 x 10

576 0.08 8 5700 8 × 11.5

864 0.08 8 5000 8 × 11.5

1056 0.08 8 6100 8 × 11. 5

1504 0.08 10 6100 10 × 12.5

2176 0.08 10 6100 10 × 12.5

413 0.12 24 3600 8 × 11. 5

588 0.12 24 3600 8 × 11. 5

850 0.12 24 3600 8 × 11. 5

900 0.12 16 4650 8 × 11. 5 1650 0.12 14 5000 10 × 12.5

1050 0.12 20 3800 10 × 12.5

390 0.12 25 2400 8 x 11.5

470 0.12 24 2700 10 x 12.5

680 0.12 24 2700 10 x 12.5

416 0.12 26 2300 8 x 11.5

492 0.12 25 2600 10 x 12.5

706 0.12 25 2600 10 x 12.5

tanδ ESR

Rated Ripple

Current

Case Size

zPart Number (EX) 16V, 270μF, 5000hrs (Endurance)

Nichicon P/N

R NU 1C 271 M

Type

Series name

Rated

Voltage

Rated

Capacitance

Tolerance

ASQ : 5000hrs

1 : 2000hrs

FPCAP P/N

Commodity

Mark

Rated Voltage

Classification

Rated

Capacitance

Tolerance

R: Long lead (Bulk) , CG: Cut lead (Bulk) J : φ6.3x10, 2.5mm pitch taping , K : φ8, 3.5mm pitch taping P : φ6.3&φ8, 5.0mm pitch taping , P H: φ10, 5.0mm pitch taping

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Configuration

CG: Cut lead (Bulk) , JX: φ6.3x10 2.5mm pitch taping KX: φ8, 3.5mm pitch taping, PX: φ6.3&φ8, 5.0mm pitch tapi ng PH: φ10, 5.0mm pitch taping

ASQ

Control code

Forming

NUFP 016 RE 271 M R -5K

Series name

Lead

Forming

Lead

Control code

-5K : 5000hrs

Without -5K: 2000hrs

Page 26

Products / Radial Lead Type

Functional Polymer Aluminum Solid Electrolytic Capacitors

series

zFeatures

By using Functional Polymer cathode, Frequency & Temp. characteristics are greatly impr oved.

· Low ESR at a high frequency range.

· High ripple current capability.

· Long life and high reliability.

zApplications

· Switching Power Supply and DC/DC Converter.

· Back up Power Supplies of CPU(VRM etc.)

· Miniature high Power Supply.

zEnvironmental Correspondence

Any environmental hazardous substances are not used.

· The lead free of terminal plating (Sn 100%)

zSpecifications

Ite ms

Operating Temp. Range

Rated Voltage Range

Capacitance Range

Capacitance Tolerance

Condition

Endurance

Capacitance

Leakage Current

tan δ

Failure Rate

Within ± 20% of the value before test

Not to exceed 150% of the value s pecified

Characteristics

-55 to +105°C

2.5 to 16V·

100 to 1200μF

± 20% (M)

105°C 2000Hrs at rated voltage

Not to exceed the value specified

0.1% / 1000Hrs. Max (60%CL)

Ultra

Low ESR

Lead free

Ultra Large

Capacitance

RoHS

Compliance

zSize List

R.V (S.V.)

Cap. [μF]

100 5×10 220 6.3×10 270 5×8

470 8×11.5 680 8×6 820 10×12.5

1200 8×9

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

[V]

2.5

(2.8)

6.3

(7.2)

[φD×L]

(11.5)16(18.4)

zDimensions

Aluminum Case

Stand off

Wire (Lead free)

φD+0.5Max

L+α Max 15Min 4Min

D×L

5×8 0.5 2.0 1.0

5×10 0.5 2.0 1.0

6.3×10 0.5 2.5 1.0

8×6 0.6 3.5 1.0

8×9 0.6 3.5 1.0

8×11.5 0.6 3.5 1.5

10×12. 5 0.6 5.0 1.5

φd

P± 0.5

[Unit : mm]

Page 27

zPart number & Specifications

Rated

Voltage

(V) (μF, 120Hz) NICHICON FPCAP (μA, 2 min) (120Hz) (mΩ, 100kHz) (mA, r.m.s.)φD×L(mm)

2.5 680 RNE0E681MDN1

6.3

10 220 RNE1A221MDS 1

Rated

Capacitanc e

270 RNE0J271MDS1

1200 RNE0J122MDN1

100 RNE 1C101MDS 1

470 RNE 1C471MDN1

820 RNE 1C821MDN1

Part Number



FP-2R5RE 681M-NE

FP-6R3RE 271M-NE

FP-6R3RE 122M-NE

FP-010RE221M-NE

FP-016RE101M-NE

FP-016RE471M-NE

FP-016RE821M-NE



Leakage

Current *

500 0. 10 8 4900 8 × 6

500 0.10 12 3600 5 × 8

1512 0.08 10 5700 8 × 9

440 0.08 30 2500 6.3 × 10

320 0.08 35 2300 5 × 10

1504 0.08 10 5400 8 × 11.5

2624 0.08 11 5600 10 × 12. 5

tanδ ESR

* In case of some doubt about measured values, measure after applying rated voltage for 120 minutes at 105°C.

Rated Ripple

Current

zFrequency Characteristics

10000

16V 470μF (NE series)

10000

16V 470μF (NE series)

Case Si ze

1000

100

Impedance (mΩ)

0.1 1 10 100 1000 10000

Frequency (kHz)

zPart Number (EX) 16V, 470μF

Nichicon P/N

R NE 1C 471 M

Type

FPCAP P/N

Series name

Rated

Voltage

Capacitance

Rated

1000

100

ESR (mΩ)

0.1 1 10 100 1000 10000

Capacitance

Tolerance

Frequency (kHz)

Configuration

Control code

CG: Cut lead (Bulk) JT: φ5x8, 2.5mm pitch taping JX: φ5x10, φ6.3x10, 2.5mm pitch taping KX: φ8, 3.5mm pitch taping PX: φ5&φ6.3&φ8, 5.0mm pitch taping PH: φ10, 5.0mm pitch taping

Forming

Lead

NEFP 016 RE 471 M R

Commodity

Mark

Rated Voltage

Classification

Rated

Capacitance

Tolerance

Series name

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Lead

Control code

Forming

R: Long lead (Bulk) CG: Cut lead (Bulk) JT: φ5x8, 2.5mm pitch taping J : φ5x10, φ6.3x10, 2.5mm pitch taping K : φ8, 3.5mm pitch taping P : φ5&φ6.3&φ8, 5.0mm pitch taping PH: φ10, 5.0mm pitch taping

Page 28

Products / Radial Lead Type

Functional Polymer Aluminum Solid Electrolytic Capacitors

series

zFeatures

By using Functional Polymer cathode, Frequency & Temp. characteristics are greatly impr oved.

· Low ESR at a high frequency range.

· High ripple current capability.

· Long life and high reliability.

zApplications

· Switching Power Supply and DC/DC Converter.

· Buck up Power Supplies of CPU(VRM etc.)

· Miniature high Power Supply.

zEnvironmental Correspondence

Any environmental hazardous substances are not used.

· The lead free of terminal plating (Sn 100%)

zSpecifications

Item s

Operating Temp. Range

Rated Voltage Range

Capacitance Range

Capacitance Toleranc e

Condition

Enduranc e

Capacitance

Leakage Current

tan δ

Failure Rate

Within ±20% of the value before tes t

Not to exceed 150% of the value specified

Charac teristic s

-55 to +105°C

2.5 to 25 V· 33 to 560 μF

±20% (M)

105°C 2000Hrs at rated voltage

Not to exceed the value spec ified

0.1% / 1000Hrs. Max (60%CL)

Low ESR

Low Profile

Lead-free

RoHS

Compliance

Large

Capacitance

zSize List

R.V (S.V.)

Cap. [ μF]

33 6.3×5

100 6.3× 6

150 6. 3×5

560 6.3× 5

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

[V]

2.5

(2.8)

(11.5)16(18.4)

[φD×L]

(28.7)

zDimensions

Aluminum Case

Stand off

φD+0.5Max

L+α Max 15Min 4Min

D×L

6.3×5 0.5 2.5 1.0

6.3×6 0.45 2.5 1.0

Wire (Lead free)

P± 0.5

φd

[Unit : mm]

Page 29

zPart number & Specifications

Rated

Volt age

(V) (μF, 120Hz) NICHICON FPCAP (μA, 2 min) (120Hz) (mΩ, 100kHz) (m A, r.m.s.)φD×L(mm)

2.5 560 RS60E561MDN1

10 150 RS61A151MDN1

16 100 RS61C101MDS1

25 33 RS61E330MDN1

Rated

Capacit ance

Part Number

FP-2R5RE561M-S6



FP-010RE151M-S6



FP-016RE101M-S6



FP-025RE330M-S6



Leakage

Current *

700 0. 12 13 3600 6.3 × 5

450 0. 10 25 2500 6.3 × 5

500 0. 10 24 2490 6.3 × 6

165 0. 10 60 1700 6.3 × 5

tan

ESR

* In case of some doubt about measured values, measure after applying rated voltage for 120 minutes at 105°C.

Rated Ripple

Current

zFrequency Characteristics

100000

10000

1000

100

Impedance (mΩ)

16V 100μF (S6 series)

10000

16V 100μF (S6 series)

1000

100

ESR (mΩ)

Case S ize

0.1 1 10 100 1000 10000

Frequency (kHz)

zPart Number (EX) 16V, 100μF

Nichicon P/N

R S6 1C 101 M

Type

FPCAP P/N

Commodity

Mark

Series name

Rated Voltage

Rated

Voltage

Classification

Capacitance

Rated

Capacitance

0.1 1 10 100 1000 10000

Capacitance

Tolerance

Capacitance

Tolerance

Frequency (kHz)

Configuration

S6FP 016 RE 101 M R

Series name

Control code

CG: Cut lead (Bulk) JT : φ6.3x5/6, 2.5mm pitch taping PX : φ6.3 5.0mm pitch taping

Lead

Forming

R: Long lead (Bulk) CG: Cut lead (Bulk) JT: φ6.3x5/6, 2.5mm pitch t aping P : φ6.3, 5.0mm pitch taping

Lead

Forming

Control code

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Page 30

Products / Radial Lead Type

Functional Polymer Aluminum Solid Electrolytic Capacitors

series

zFeatures

By using Functional Polymer cathode, Frequency & Temp. characteristics are greatly impr oved.

 Low ESR at a high frequency range.  High ripple current capability.  Guaranteed at 125 degrees and high reliability.

zApplications

 Switching Power Supply and DC/DC Converter.  Back up Power Supplies of CPU(VRM etc.)  Miniature high Power Supply.

zEnvironmental Correspondence

Any environmental hazardous substances are not used.

 The lead free of ter minal plating (Sn 100%)

zSpecifications

Ite ms

Operating Temp. Range

Rated Voltage Range

Capacitance Range

Capacitance Tolerance

Condition

Endurance

Capacitance

Leakage Current

tan δ

Failure Rate

Within ± 20% of the value before test

Not to exceed 150% of the value s pecified

Characteristics

- 55 to + 125°C

6.3 to 20V·

150 to 820μF

± 20% (M)

125°C 1000Hrs at rated voltage

Not to exceed the value specified

0.5% / 1000Hrs. Max (60%CL)

Low ESR

Guarantee

Lead-free

125ºC

Compliance

Large

Capacitance

RoHS

zSize List

R.V (S.V.)

Cap. [μF]

150 10×12.5 220 8×11.5 330 8×11.5 10×12.5 560 10×12. 5 680 10×12.5 820 10×12.5

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

[V]

6.3

(7.2)

(11.5)16(18.4)

[φD×L]

(23)

zDimensions

Aluminum Case

Stand off

φD+0.5Max

L+α Max 15Min 4Min

D×L

8×11.5 0.6 3.5 1.5

10×12.5 0.6 5.0 1.5

Wire (Lead free)

P± 0.5

φd

[Unit : mm]

Page 31

zPart number & Specifications



Leakage

Current

857 0.12 12 5450 1740 10 x 12. 5

1033 0.12 12 5450 1740 10 × 12.5

440 0.12 17 3950 1260 8 × 11.5

660 0.12 17 3950 1260 8 × 11.5

1120 0.12 13 5250 1680 10 × 12.5

1056 0.12 16 4750 1520 10 × 12.5

600 0.12 20 4350 1390 10 × 12.5

tanδ ESR Case Size

Rated Ripple Current

105ºC

or less

to 1 25 ºC

Rated

Voltage

(V) (μF, 120Hz) NICHICON FPCAP (μA, 2 min) (120Hz) (mΩ, 100kHz)

6.3

16 330 RHT1C331MDN1

20 150 RHT1D151MDN1

Rated

Capacit ance

680 RHT0J681M DN1

820 RHT0J821M DN1

220 RHT1A221MDN1

330 RHT1A331MDN1

560 RHT1A561MDN1

Part Number

FP-6R3RE681M -HT



FP-6R3RE821M -HT



FP-010RE221M-HT



FP-010RE331M-HT



FP-010RE561M-HT



FP-016RE331M-HT



FP-020RE151M-HT



*1: In case of some doubt about measured values, measure after applying rated voltage for 120 minutes at 105°C. *2: At ambient temperature

105ºC

D×L(mm)

zFrequency Characteristics

10000

16V 330μF (HT series)

1000

100

Impedance (mΩ)

0.1 1 10 100 1000 10000

Frequency (kHz) Frequency (kHz)

zPart Number (EX) 16V, 330μF

Nichicon P/N

R HT 1C 331 M

10000

16V 330μF (HT series)

1000

100

ESR (mΩ)

0.1 1 10 100 1000 10000

Type

Series name

Rated

Voltage

Rated

Capacitance

Tolerance

Configuration

Control code

FPCAP P/N

HTFP 016 RE 331 M R

Commodity

Mark

Rated Voltage

Classification

Rated

Capacitance

Tolerance

Series name

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Lead

Forming

CG: Cut lead (Bulk) KX: φ8, 3.5mm pitch taping PX: φ8, 5.0mm pitch taping PH: φ10, 5.0mm pitch taping

Lead

Control code

Forming

R: Long lead (Bulk) CG: Cut lead (Bulk) K : φ8, 3.5mm pitch taping P : φ8, 5.0mm pitch taping PH: φ10, 5.0mm pitch taping

Page 32

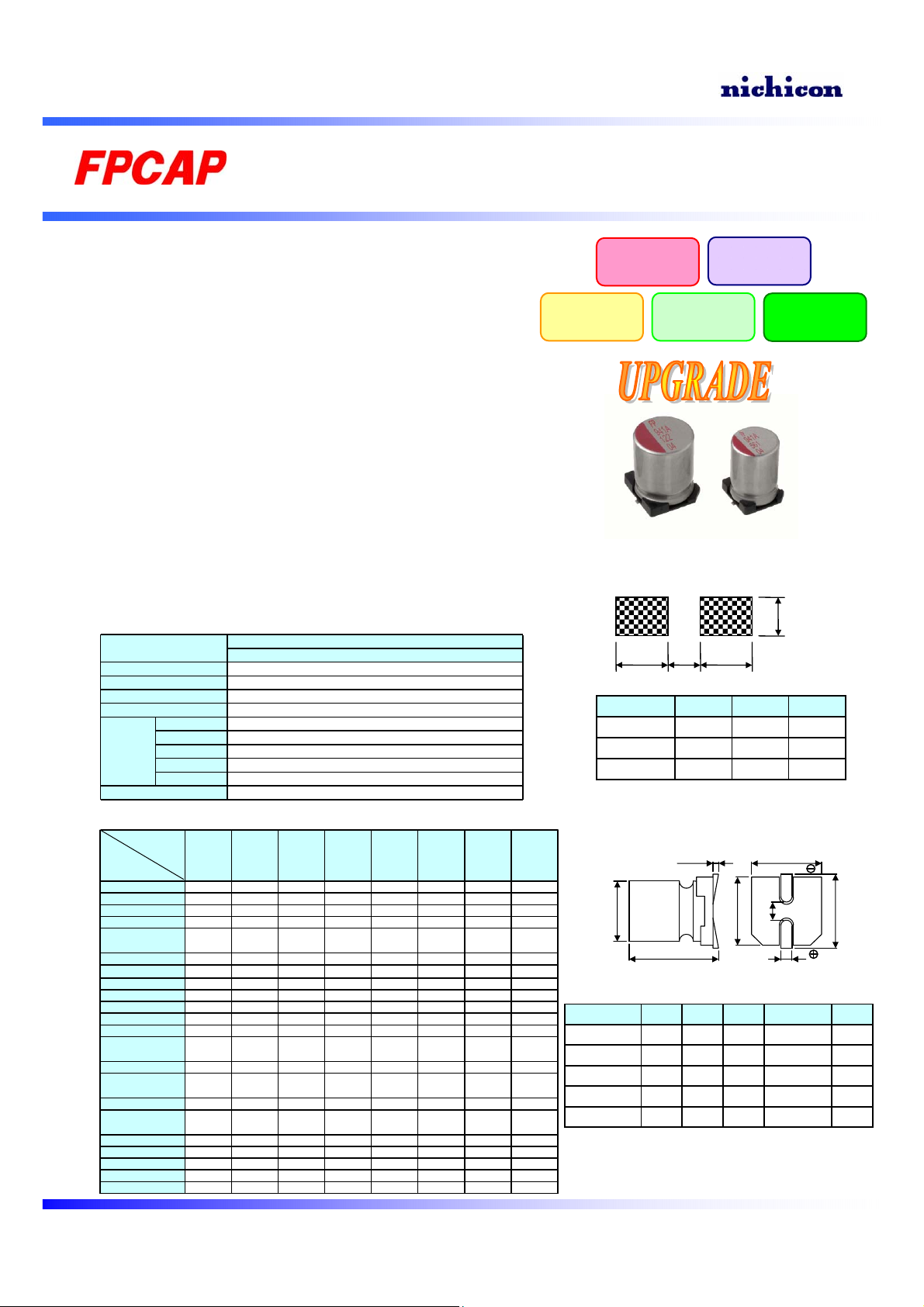

Products / SMD Type

Functional Polymer Aluminum Solid Electrolytic Capacitors

series

zFeatures

By using Functional Polymer cathode, Frequency & Temp. characteristics are greatly impr oved.

 Low ESR at a high frequency range.  High ripple current capability.  Long life and high reliability.

zApplications

 Switching Power Supply and DC/DC Converter.  Back up Power Supplies of CPU(VRM etc.)  Miniature high Power Supply.

zEnvironmental Correspondence

Any environmental hazardous substances are not used.

 The lead free of ter minal plating (Sn 100%)

zSpecifications

Ite ms

Operating tem p. range

Rated voltage range

Capacitanc e range

Capacitanc e tolerance

Test c ondition

Endurance

Capacitanc e

Leakage current

ESR

tan δ

Failure Rate

Within ±20% of initial value before test

Not to exceed the initial specified value

Not to exceed 150% of initial specified value

Characteristic

PS, PA

-55 to +105°C

2.5 to 63V·

8.2 to 1500μF

±20% (M)

105°C, rated voltage 2000Hrs.

0.5% / 1000Hrs. Max (60%CL)

Low ESR

SMD Lead-free

High Voltage

RoHS

Compliance

zRecommended land pattern

b ba

[Unit: mm]

Dabc

6.3 2.1 3.5 1.6

8 2.8 4.2 1.9

10 4.3 4.4 1.9

zSize List

R.V. (S.V.)

Cap. [μF]

8.2 6. 3×5.7 12 6.3× 5.7 8×6.7 22 8×6.7 8× 6.7 10× 7.7 33 10×7. 7 8×11.7

47 6.3×5.7 8×11. 7 56 6.3×5.7 8×6. 7 10×12. 4 82 6.3×5.7 8× 6.7 10×12. 4

100 6.3×5.7 10×7.7 120 8×6.7 150 8×6.7 10×7.7 180 8×6.7 8×11.7

220 8× 6.7

270 10×7.7 8×11.7

330 8× 6.7 10×7.7

470 10×7.7 8×11.7

560

680 8× 11.7 10×12.4

820 10×12.4 1000 10×12.4 1200 10×12. 4 1500 10×12.4

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

[V]

2.5

(2.8)

( ) :

4.0

(4.6)

8×11. 7

(8×11. 7)

series

6.3

(7.2)10(11.5)

8×11. 7 10× 12.4

8×11.7

(10×7. 7)

(18.4)

6.3× 5.7

(6.3×5.7)

8×11.7

(10×7.7)

10×12. 4

(28.7)

[φD×L]

(57.5)63(72.5)

zDimensions

0.2 Max

φD ± 0.5

L ± 0.3

D×L W H C R P

6.3×5.7 6.5 6.5 7.2 0.5 to 0.9 2.1

8×6.7 8.3 8.3 9.0 0.8 to 1.1 3.2

8×11.7 8.3 8.3 9.0 0.8 to 1.1 3.2

10×7.7 10.3 10.3 11.0 0.8 to 1.1 4.6

10×12.4 10.3 10. 3 11.0 0.8 t o 1.1 4.6

W ± 0.2

H ± 0.2

C ± 0.2

[Unit: mm]

Page 33

zPart number & Specifications

Rated

Voltage

(V) (μF, 120Hz) NICHICON FPCAP (μA, 2 min) (120Hz) (mΩ, 100kHz) (mA, r.m.s.)φD×L(mm)

2.5

4.0

6.3

25 22 RPS1E220MCN1GS FP-025ME220M-PS R 275 0.12 50 1800 8 × 6.7

* In case of some doubt about measured values, measure after applying rated voltage for 120 minutes at 105°C.

Rated

Capac it anc e

680 RPS0E681MCN1GS FP-2R5ME 681M-P SR 425 0.12 13 4500 8 × 11.7

1500 RPS0E 152MCN1GS FP-2R5ME152M-PSR 938 0. 12 10 5500 10 × 12.4

100 RPS0G101M CN1GS FP-4R0ME 101M-PSR 80 0.12 35 2200 6. 3 × 5. 7

220 RPS0G221M CN1GS FP-4R0ME 221M-PSR 176 0.12 30 2700 8 × 6.7

330 RPS0G331M CN1GS FP-4R0ME 331M-PSR 264 0.12 30 2700 8 × 6.7

470 RPS0G471M CN1GS FP-4R0ME 471M-PSR 376 0.12 22 3800 10 × 7. 7

560 RPS0G561M CN1GS FP-4R0ME 561M-PSR 448 0.12 13 4500 8 × 11.7

560 RPA0G561M CN1GS FP-4R0ME 561M-PAR 448 0.12 9 5400 8 × 11.7

1200 RPS0G122MCN1GS FP-4R0ME122M-PSR 960 0. 12 12 5500 10 × 12.4

82 RPS0J820MCN1GS FP-6R3ME820M-P SR 103 0.12 35 2200 6.3 × 5.7

150 RPS0J151MCN1GS FP-6R3ME 151M-P SR 189 0.12 30 2600 8 × 6.7

180 RPS0J181MCN1GS FP-6R3ME 181M-P SR 227 0.12 30 2600 8 × 6.7

330 RPS0J331MCN1GS FP-6R3ME 331M-P SR 416 0.12 22 3600 10 × 7.7

470 RPS0J471MCN1GS FP-6R3ME 471M-P SR 592 0.15 15 4300 8 × 11.7

560 RPS0J561MCN1GS FP-6R3ME 561M-P SR 706 0.15 14 4400 8 × 11.7

680 RPS0J681MCN1GS FP-6R3ME 681M-P SR 643 0.15 13 5200 10 × 12.4

820 RPS0J821MCN1GS FP-6R3ME 821M-P SR 775 0.15 12 5500 10 × 12.4

1000 RPS0J102MCN1GS FP-6R3ME102M-PSR 945 0.15 12 5500 10 × 12.4

47 RPS1A470MCN1GS FP -010ME470M-PSR 94 0.12 40 2100 6.3 × 5.7

56 RPS 1A560M CN1GS FP-010M E560M-PSR 112 0.12 40 2100 6.3 × 5.7

120 RPS1A121MCN1GS FP-010ME121M-PSR 240 0. 12 30 2600 8 × 6.7

270 RPS1A271MCN1GS FP-010ME271M-PSR 540 0. 12 25 3500 10 × 7.7

330 RPS1A331MCN1GS FP-010ME331M-PSR 660 0. 15 17 4000 8 × 11.7

330 RPA1A331MCN1GS FP-010ME331M-PAR 660 0. 12 20 3600 10 × 7.7

560 RPS1A561MCN1GS FP-010ME561M-PSR 840 0.15 13 5300 10 × 12.4

39 RPS 1C390MCN1GS FP -016ME 390M-PSR 125 0. 10 45 2000 6.3 × 5.7

39 RPA 1C390MCN1GS FP -016ME 390M-PAR 125 0. 10 24 2500 6.3 × 5.7

56 RPS 1C560MCN1GS FP -016ME 560M-PSR 179 0. 10 40 2300 8 × 6.7

82 RPS 1C820MCN1GS FP -016ME 820M-PSR 262 0. 10 40 2300 8 × 6.7

100 RPS1C101MCN1GS FP-016M E101M-PSR 320 0.10 30 3200 10 × 7.7

150 RPS1C151MCN1GS FP-016M E151M-PSR 480 0.10 30 3200 10 × 7.7

180 RPS1C181MCN1GS FP-016M E181M-PSR 576 0.12 20 3700 8 × 11.7

220 RPS1C221MCN1GS FP-016M E221M-PSR 704 0.12 20 3700 8 × 11.7

220 RPA1C221MCN1GS FP-016M E221M-PAR 704 0.10 22 3450 10 × 7.7

270 RPS1C271MCN1GS FP-016M E271M-PSR 864 0.12 14 4400 8 × 11.7

330 RPS1C331MCN1GS FP-016ME331M-PS R 792 0.12 16 4800 10 × 12.4

12 RPS 1H120MCN1GS FP -050ME 120M-PSR 120 0. 12 40 1250 6.3 × 5.7

22 RPS 1H220MCN1GS FP -050ME 220M-PSR 220 0. 12 37 1550 8 × 6.7

33 RPS 1H330MCN1GS FP -050ME 330M-PSR 330 0. 12 32 1950 10 × 7.7

47 RPS 1H470MCN1GS FP -050ME 470M-PSR 470 0. 15 26 2300 8 × 11.7

82 RPS1H820MCN1GS FP-050ME820M-PSR 820 0.15 23 2800 10 × 12.4

8.2 RPS1J8R2M CN1GS FP -063ME8R2M-PSR 103 0.12 41 1200 6.3 × 5.7

12 RPS1J120MCN1GS FP-063ME120M-P SR 151 0.12 38 1500 8 × 6.7

22 RPS1J220MCN1GS FP-063ME220M-P SR 277 0.12 33 1900 10 × 7.7

33 RPS1J330MCN1GS FP-063ME330M-P SR 416 0.15 27 2250 8 × 11.7

56 RPS1J560MCN1GS FP -063ME560M-PSR 706 0.15 24 2700 10 × 12. 4

Part Number

Leakage

Current *

tanδ ESR

Rated Ripple

Current

Case Size

zPart Number (EX) 4V, 1200μF, PS series

Nichicon P/N

R PS 0G 122 M

Type

Series name

Rated

Voltage

Rated

Capacitance

FPCAP P/N

Commodity

Mark

Rated Voltage

Classification

Rated

Capacitance

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Capacitance

Tolerance

Capacitance

Tolerance

Configuration

PSFP 4R0 ME 122 M R

Series name

1 GS

Control code

Taping

code

Taping

code

Control code

Page 34

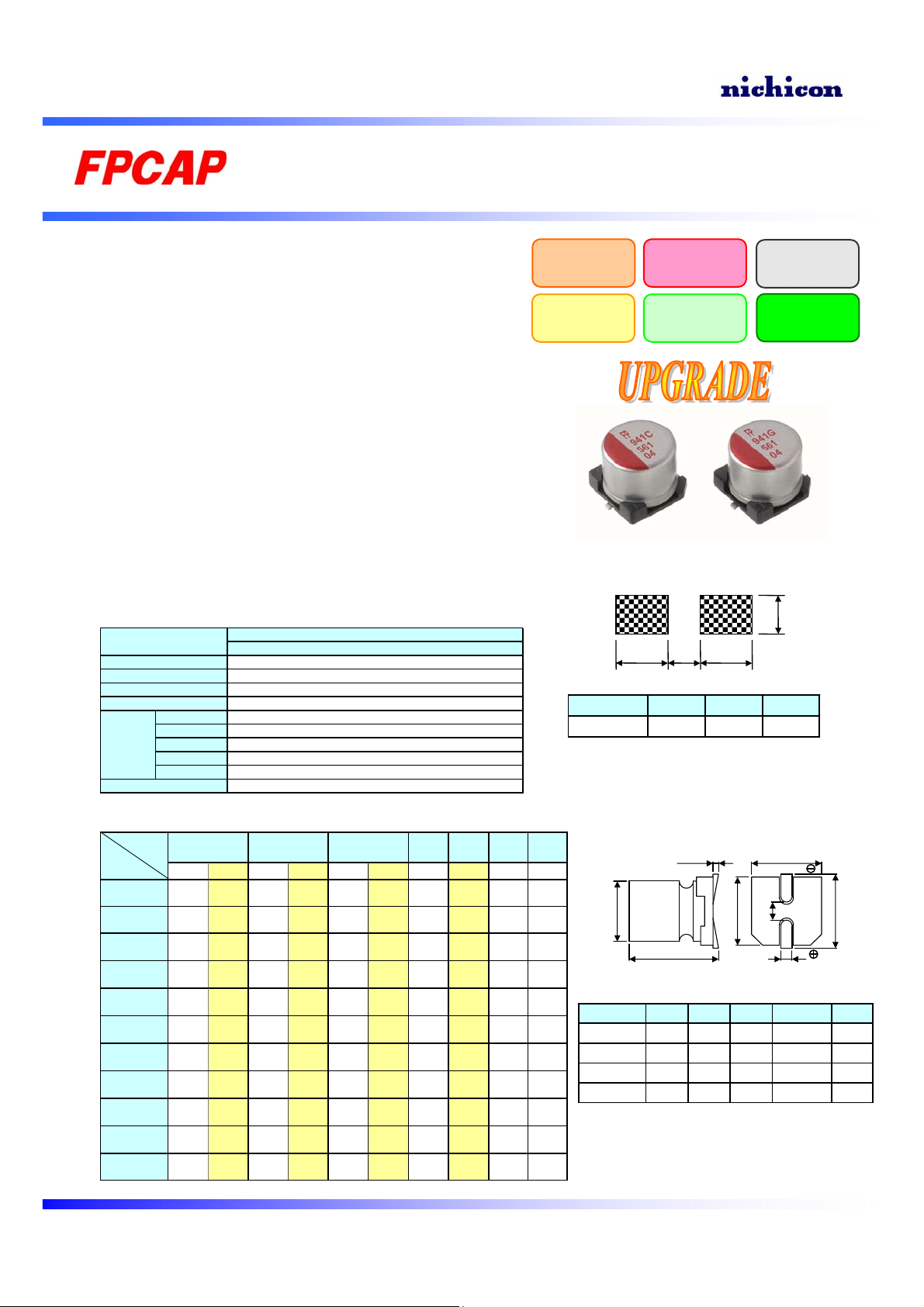

Products / SMD Type

Functional Polymer Aluminum Solid Electrolytic Capacitors

series

zFeatures

By using Functional Polymer cathode, Frequency & Temp. characteristics are greatly impr oved.

 Low ESR at a high frequency range.  High ripple current capability.  Long life and high reliability.

zApplications

 Switching Power Supply and DC/DC Converter.  Back up Power Supplies of CPU(VRM etc.)  Miniature high Power Supply.

zEnvironmental Correspondence

Any environmental hazardous substances are not used.

 The lead free of ter minal plating (Sn 100%)

zSpecifications

Ite ms

Operating tem p. range

Rated voltage range

Capacitanc e range

Capacitanc e toleranc e

Test c ondition

Endurance

Capacitanc e

Leakage current

ESR

tan δ

Failure Rate

Within ±20% of initial value before tes t

Not to exceed the initial specified value

Not to exceed 150% of initial s pecified value

Charact eristic

HS, HA

-55 to +105°C

2.5 to 35V·

100 to 1500μF

±20% (M)

105°C, rated voltage 2000Hrs.

0.5% / 1000Hrs. Max (60%CL)

Large

Capacitance

SMD Lead-free

Low ESR

φ8

RoHS

Compliance

zRecommended land pattern

b ba

[Unit: mm]

D abc

82.84.21.9

zSize (ESR) List

R.V. (S.V.)

Cap. [μF]

100

150

330

390

470

560

680

820

1000

1200

1500

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

2.5

[V]

(2.8)

HS HA HS HA HS HA HS HA HS HS

8x6.7

8x11.7

(8)

8x6.7

(9)

(8)

8x7.7

(8)

(9)

8x6.7

(16)

8x11.7

(9)

8x11.7

(12)

4.0

(4.6)

8x6.7

(8)

8x7.7

(8)

8x6.7

(18)

8x11.7

(10)

8x11.7

(10)

6.3

(7.2)

8x6.7

(9)

8x6.7

(9)

8x6.7

(9)

8x7.7

(9)

(11.5)16(18.4)

8x6.7

(25)

(22)

8x7.7

(19)

[φD×L (mΩ)]

(28.7)35(40.2)

8x8.7

(25)

zDimensions

0.2 Max

φD ± 0.5

L ± 0.3

D×L W H C R P

8×6.7 8.3 8.3 9.0 0.8 to 1.1 3.2

8×7.7 8.3 8.3 9.0 0.8 to 1.1 3.2

8×8.7 8.3 8.3 9.0 0.8 to 1.1 3.2

8×11.7 8.3 8.3 9.0 0.8 to 1.1 3.2

W ± 0.2

H ± 0.2

C ± 0.2

[Unit: mm]

Page 35

zPart number & Specifications

Rated

Voltage

(V) (μF, 120Hz) NICHICON FPCAP (μA, 2 min) (120Hz) (mΩ, 100kHz) (m A, r.m.s.)φD×L(mm)

2.5

4.0

6.3

16 150 RHA1C151MCN1GS FP-016ME151M-HAR 700 0.12 22 3220 8 × 6. 7

25 100 RHS1E101MCN1GS FP-025ME101M-HSR 700 0.12 25 3000 8 × 8.7

35 100 RHS1V101MCN1GS FP-035ME101M-HSR 700 0.12 25 3000 8 × 8.7

* In case of some doubt about measured values, measure after applying rated voltage for 120 minutes at 105°C.

Rated

Capac it anc e

680 RHA0E 681MCN1GS FP-2R5ME681M-HAR 700 0.12 8 5000 8 × 6.7

820 RHS0E 821MCN1GS FP-2R5ME821M-HSR 700 0.12 9 5400 8 × 11.7

820 RHA0E 821MCN1GS FP-2R5ME821M-HAR 700 0.12 8 5000 8 × 6.7

1000 RHA0E102MCN1GS FP-2R5ME 102M-HAR 750 0. 12 8 5000 8 × 7.7

1500 RHS0E152MCN1GS FP-2R5ME 152M-HSR 1125 0.12 9 5400 8 × 11.7

560 RHS0G561MCN1GS FP-4R0ME561M-HSR 700 0.12 16 3200 8 × 6.7

560 RHA0G561MCN1GS FP-4R0ME561M-HAR 700 0.12 8 5000 8 × 6.7

680 RHA0G681MCN1GS FP-4R0ME681M-HAR 816 0.12 8 5000 8 × 7.7

1200 RHS0G122MCN1GS FP-4R0ME122M-HSR 1440 0.12 9 5400 8 × 11.7

1500 RHS0G152MCN1GS FP-4R0ME152M-HSR 1800 0.12 12 4700 8 × 11.7

330 RHA0J331MCN1GS FP -6R3ME331M-HAR 700 0.12 9 4500 8 × 6.7

390 RHS0J391MCN1GS FP -6R3ME391M-HSR 737 0.12 18 3200 8 × 6.7

390 RHA0J391MCN1GS FP -6R3ME391M-HAR 737 0.12 9 4500 8 × 6.7

470 RHA0J471MCN1GS FP -6R3ME471M-HAR 888 0.12 9 4500 8 × 6.7

560 RHA0J561MCN1GS FP -6R3ME561M-HAR 1058 0. 12 9 4500 8 × 7.7

820 RHS0J821MCN1GS FP -6R3ME821M-HSR 1550 0. 12 10 5150 8 × 11.7

1000 RHS0J102MCN1GS FP-6R3ME102M-HSR 1890 0.12 10 5150 8 × 11.7

150 RHS1A 151MCN1GS FP-010ME151M-HS R 700 0.12 25 3000 8 × 6.7

330 RHS1A 331MCN1GS FP-010ME331M-HS R 660 0.12 19 3390 8 × 7.7

Part Number

Leakage

Current *

tanδ ESR

Rated Ripple

Current

Case Size

zFrequency Characteristics

10000

6.3V 390μF (HS series)

1000

100

Impedance (mΩ)

0.1 1 10 100 1000 10000

Frequency (kHz)

zPart Number (EX) 6.3V, 390μF, HS series

Nichicon P/N

R HS 0J 391 M

Type

FPCAP P/N

Series name

Rated

Voltage

Rated

Capacitance

10000

1000

100

ESR (mΩ)

Tolerance

6.3V 390μF (HS series)

0.1 1 10 100 1000 10000

Frequency (kHz)

Configuration

1 GS

Control code

Taping

code

HSFP 6R3 ME 391 M R

Commodity

Mark

Rated Voltage

Classification

Rated

Capacitance

Tolerance

Series name

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Taping

code

Control code

Page 36

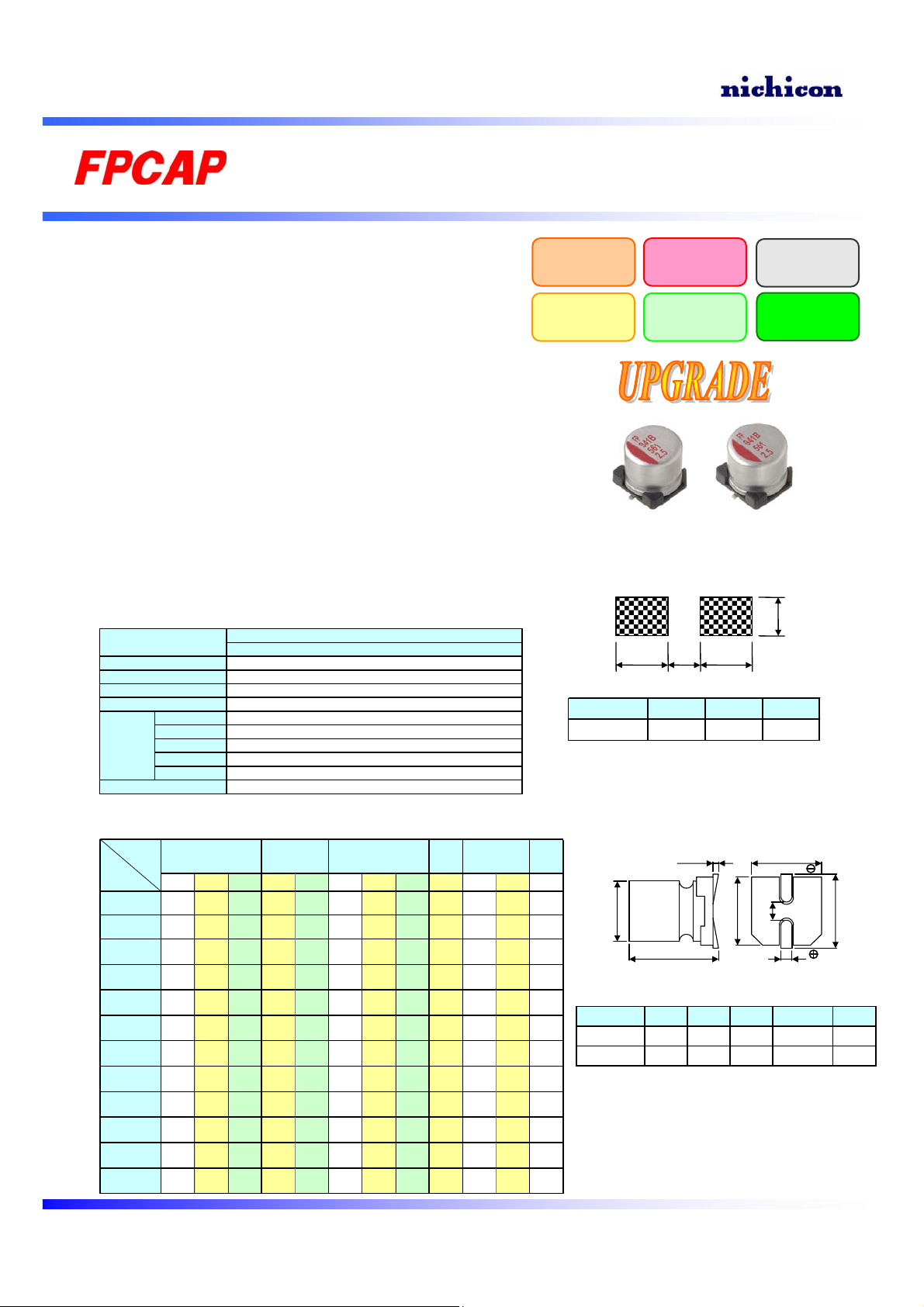

Products / SMD Type

Functional Polymer Aluminum Solid Electrolytic Capacitors

series

zFeatures

By using Functional Polymer cathode, Frequency & Temp. characteristics are greatly impr oved.

 Low ESR at a high frequency range.  High ripple current capability.  Long life and high reliability.

zApplications

 Switching Power Supply and DC/DC Converter.  Back up Power Supplies of CPU(VRM etc.)  Miniature high Power Supply.

zEnvironmental Correspondence

Any environmental hazardous substances are not used.

 The lead free of ter minal plating (Sn 100%)

zSpecifications

Ite ms

Operating tem p. range

Rated voltage range

Capacitanc e range

Capacitanc e tolerance

Test c ondition

Endurance

Capacitanc e

Leakage current

ESR

tan δ

Failure Rate

Within ±20% of initial value before test

Not to exceed the initial specified value

Not to exceed 150% of initial specified value

Characteristic

SS, SA, SB

-55 to +105°C

2.5 to 25V· 10 to 560μF

±20% (M)

105°C, rated voltage 2000Hrs.

0.5% / 1000Hrs. Max (60%CL)

Large

Capacitance

SMD Lead-free

Low ESR

φ6.3

RoHS

Compliance

zRecommended land pattern

b ba

[Unit: mm]

D abc

6.3 2.1 3.5 1.6

zSize (ESR) List

R.V. (S.V.)

[V]

Cap. [μF] SS SA SB SA SB SS SA SB SA SS SA SS

100

120

220

270

330

390

470

560

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

6.3x5.7 (25)

2.5

(2.8)

6.3x5.7 (14)

6.3x5.7 (13)

6.3x5.7 (10)

6.3x5.7 (14)

4.0

(4.6)

6.3x5.7 (11)

6.3x5.7 (25)

6.3

(7.2)

6.3x5.7 (15)

6.3x5.7 (14)

6.3x5.7 (12)

(11.5)

6.3x5.7 (18)

6.3x5.7 (24)

[φD×L (mΩ)]

(18.4)

6.3x7.7 (24)

zDimensions

(28.7)

6.3x5.7 (60)

6.3x5.7 (40)

6.3x5.7 (30)

φD ± 0.5

D×L W H C R P

6.3×5.7 6.5 6.5 7.2 0.5 to 0.9 2.1

6.3×7.7 6.5 6.5 7.2 0.5 to 0.9 2.1

0.2 Max

L ± 0.3

W ± 0.2

H ± 0.2

C ± 0.2

[Unit: mm]

Page 37

zPart number & Specifications

Rated

Voltage

(V) (μF, 120Hz) NICHICON FPCAP (μA, 2 min) (120Hz) (mΩ, 100kHz) (mA, r.m.s.)φD×L(mm)

2.5

4.0

6.3

10 120 RSA1A121MCN1GS FP-010ME121M-SAR 700 0. 12 18 2900 6.3 × 5.7

* In case of some doubt about measured values, measure after applying rated voltage for 120 minutes at 105°C.

Rated

Capacit ance

330 RSA0E331MCN1GS FP -2R5ME331M-SAR 700 0.12 14 3160 6.3 × 5.7

390 RSA0E391MCN1GS FP -2R5ME391M-SAR 700 0.12 14 3160 6.3 × 5.7

390 RSB0E391MCN1GS FP -2R5ME391M-SBR 700 0.12 10 3650 6.3 × 5.7

470 RSA0E471MCN1GS FP -2R5ME471M-SAR 700 0.12 13 3600 6.3 × 5.7

560 RSS0E561MCN1GS FP -2R5ME561M-SSR 700 0.12 25 2500 6.3 × 5.7

560 RSA0E561MCN1GS FP -2R5ME561M-SAR 700 0.12 13 3600 6.3 × 5.7

560 RSB0E561MCN1GS FP -2R5ME561M-SBR 700 0.12 10 3800 6.3 × 5.7

330 RSA0G331M CN1GS FP-4R0M E331M-SAR 700 0.12 14 3160 6. 3 × 5. 7

330 RSB0G331M CN1GS FP-4R0M E331M-SBR 700 0.12 11 3700 6. 3 × 5. 7

390 RSA0G391M CN1GS FP-4R0M E391M-SAR 700 0.12 14 3160 6. 3 × 5. 7

100 RSS0J101MCN1GS FP-6R3ME101M-SSR 700 0.12 25 2500 6.3 × 5. 7

220 RSS0J221MCN1GS FP-6R3ME221M-SSR 700 0.12 25 2500 6.3 × 5. 7

220 RSA0J221MCN1GS FP-6R3ME221M-SAR 700 0.12 15 3100 6.3 × 5. 7

220 RSB0J221MCN1GS FP-6R3ME221M-SBR 700 0.12 12 3500 6.3 × 5. 7

270 RSA0J271MCN1GS FP-6R3ME271M-SAR 700 0.12 14 3160 6.3 × 5. 7

330 RSS0J331MCN1GS FP-6R3ME331M-SSR 700 0.12 25 2500 6.3 × 5. 7

330 RSA0J331MCN1GS FP-6R3ME331M-SAR 700 0.12 14 3160 6.3 × 5. 7

100 RSS 1C101MCN1GS FP-016ME 101M-S SR 700 0. 12 24 2490 6.3 × 5.7

100 RSA 1C101MCN1GS FP-016ME 101M-S AR 700 0. 12 24 2700 6.3 × 7.7

10 RSS1E100MCN1GS FP-025ME100M-SSR 100 0.12 60 1700 6.3 × 5.7

22 RSS1E220MCN1GS FP-025ME220M-SSR 110 0.12 60 1700 6.3 × 5.7

27 RSS1E270MCN1GS FP-025ME270M-SSR 135 0.12 40 2100 6.3 × 5.7

47 RSS1E470MCN1GS FP-025ME470M-SSR 235 0.12 30 2800 6.3 × 5.7

Part Number

Leakage

Current*

tanδ ESR

Rated Rippl e

Current

Case Size

zFrequency Characteristics

10000

6.3V 220μF (SA series)

1000

100

Impedance (mΩ)

0.1 1 10 100 1000 10000

Frequency (kHz)

zPart Number (EX) 6.3V, 220μF, SA series

Nichicon P/N

R SA 0J 221 M

Type

FPCAP P/N

Series name

Rated

Voltage

Rated

Capacitance

10000

1000

100

ESR (mΩ)

Tolerance

6.3V 220μF (SA series)

0.1 1 10 100 1000 10000

Frequency (kHz)

Configuration

1 GS

Control code

Taping

code

SAFP 6R3 ME 221 M R

Commodity

Mark

Rated Voltage

Classification

Rated

Capacitance

Tolerance

Series name

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Taping

code

Control code

Page 38

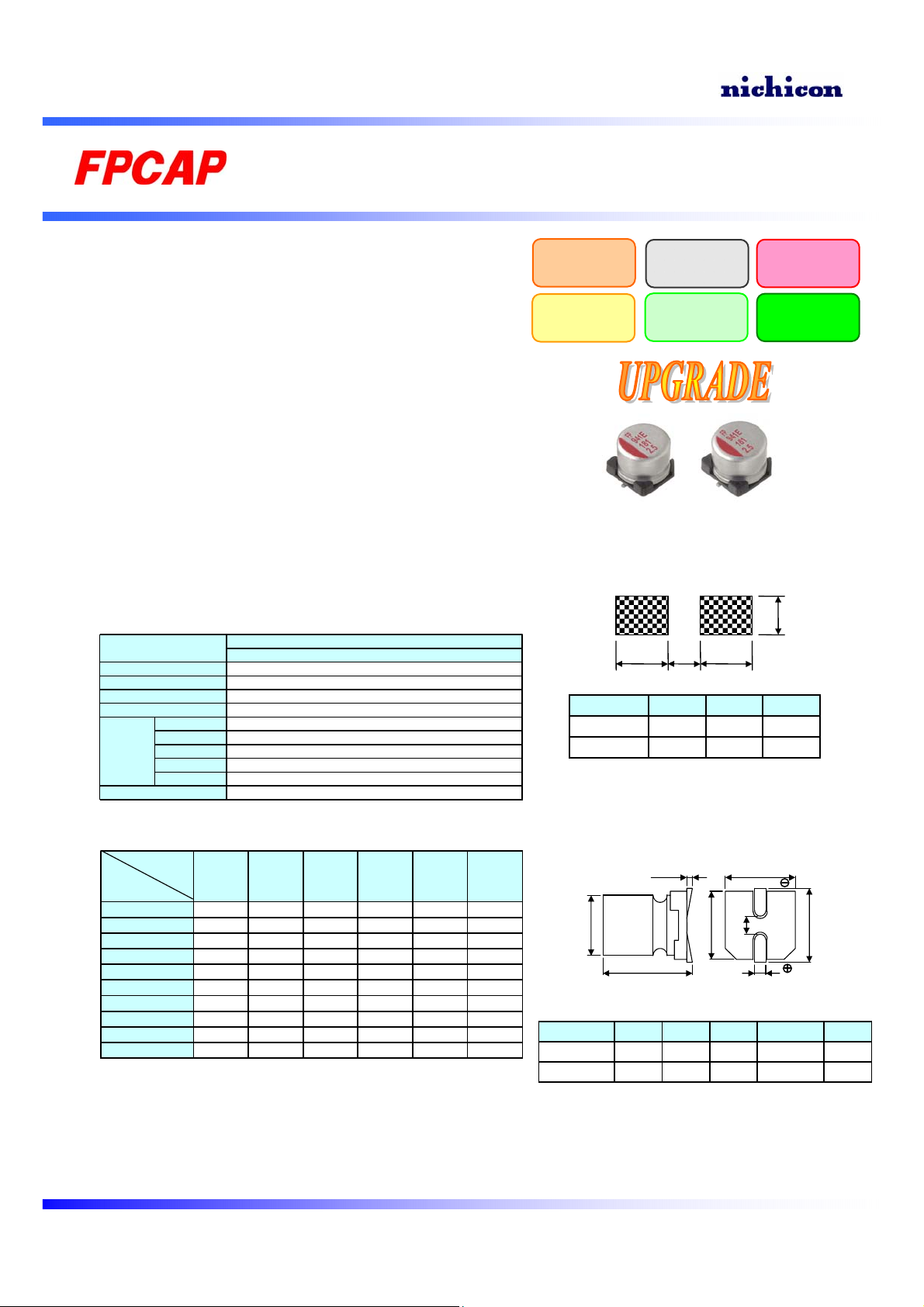

Products / SMD Type

Functional Polymer Aluminum Solid Electrolytic Capacitors

series

zFeatures

By using Functional Polymer cathode, Frequency & Temp. characteristics are greatly impr oved.

 Low ESR at a high frequency range.  High ripple current capability.  Long life and high reliability.

zApplications

 Switching Power Supply and DC/DC Converter.  Back up Power Supplies of CPU(VRM etc.)  Miniature high Power Supply.

zEnvironmental Correspondence

Any environmental hazardous substances are not used.

 The lead free of ter minal plating (Sn 100%)

zSpecifications

Ite ms

Operating tem p. range

Rated voltage range

Capacitanc e range

Capacitanc e tolerance

Test c ondition

Endurance

Capacitanc e

Leakage current

ESR

tan δ

Failure Rate

Within ±20% of initial value before test

Not to exceed the initial specified value

Not to exceed 150% of initial specified value

Characteristic

-55 to +105°C

2.5 to 25V· 10 to 180μF

±20% (M)

105°C, rated voltage 2000Hrs.

0.5% / 1000Hrs. Max (60%CL)

Large

Capacitance

SMD

φ4 , φ5

Lead-free

Low ESR

RoHS

Compliance

zRecommended land pattern

b ba

[Unit: mm]

D abc

4 1.0 2.6 1.6

5 1.4 3.0 1.6

zSize List

R.V. (S.V.)

Cap. [μF]

10 22 33 39 47

68 100 120 150 180

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

zDimensions

[φD×L]

2.5

[V]

(2.8)

5×5.7

4.0

(4.6)

5×5.7 5×5.7

5×5.7

6.3

(7.2)10(11.5)

5×5.7

4×5.2

5×5.7

(18.4)25(28.7)

5×5.7 5×5.7 5×5.7 5×5.7

0.2 Max

φD ± 0.5

L ± 0.3

D×L W H C R P

4×5.2 4.3 4.3 5.1 0.5 to 0.9 1.0

5×5.7 5.3 5.3 5.9 0.5 to 0.9 1.4

W ± 0.2

H ± 0.2

C ± 0.2

[Unit: mm]

Page 39

zPart number & Specifications

Rated

Voltage

(V) (μF, 120Hz) NICHICON FPCAP (μA, 2 min) (120Hz) (mΩ, 100kHz) (mA, r.m.s.)φD×L(mm)

2.5 180 RFS0E181MCN1GS FP-2R5ME181M-FSR 300 0. 12 21 2670 5 × 5.7

4.0

6.3

25 22 RFS1E220MCN1GS FP-025ME 220M-FSR 300 0.12 40 2200 5 × 5.7

* In case of some doubt about measured values, measure after applying rated voltage for 120 minutes at 105°C.

Rated

Capac it anc e

100 RFS0G101MCN1GS FP-4R0ME101M-FS R 300 0. 12 22 2610 5 × 5.7

150 RFS0G151MCN1GS FP-4R0ME151M-FS R 300 0. 12 22 2610 5 × 5.7

47 RFS0J470MCN1GS FP-6R3ME470M-FSR 300 0. 12 30 2000 5 × 5.7

100 RFS0J101MCN1GS FP -6R3ME101M-FS R 300 0.12 24 2500 5 × 5.7

120 RFS0J121MCN1GS FP -6R3ME121M-FS R 300 0.12 24 2500 5 × 5.7

10 RFS1A100MCN1GB FP-010ME100M-FSR 100 0.12 220 700 4 × 5.2

68 RFS1A680MCN1GS FP-010ME680M-FSR 300 0.12 30 2000 5 × 5. 7

22 RFS1C220MCN1GS FP-016ME220M-FSR 100 0.12 45 1210 5 × 5.7

33 RFS1C330MCN1GS FP-016ME330M-FSR 105 0.12 35 2070 5 × 5.7

39 RFS1C390MCN1GS FP-016ME390M-FSR 125 0.12 35 2070 5 × 5.7

Part Number

Leakage

Current *

tanδ ESR

Rated Ripple

Current

zFrequency Characteristics

10000

4.0V 150μF (FS serie s)

10000

4.0V 150μF (FS series)

Case Size

1000

100

Impedance (mΩ)

0.1 1 10 100 1000 10000

Frequency (kHz) Frequency (kHz)

zPart Number (EX) 2.5V, 180μF, FS series

Nichicon P/N

R FS 0E 181 M

Type

FPCAP P/N

Series name

Rated

Voltage

Rated

Capacitance

1000

100

ESR (mΩ)

0.1 1 10 100 1000 10000

Capacitance

Tolerance

Configuration

1 GS

Control code

Taping code:

GB: Height under 5.2mm GS: Height over 5.7mm

Taping

code

FSFP 2R5 ME 181 M R

Commodity

Mark

Rated Voltage

Classification

Rated

Capacitance

Tolerance

Series name

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Taping

code

Control code

Page 40

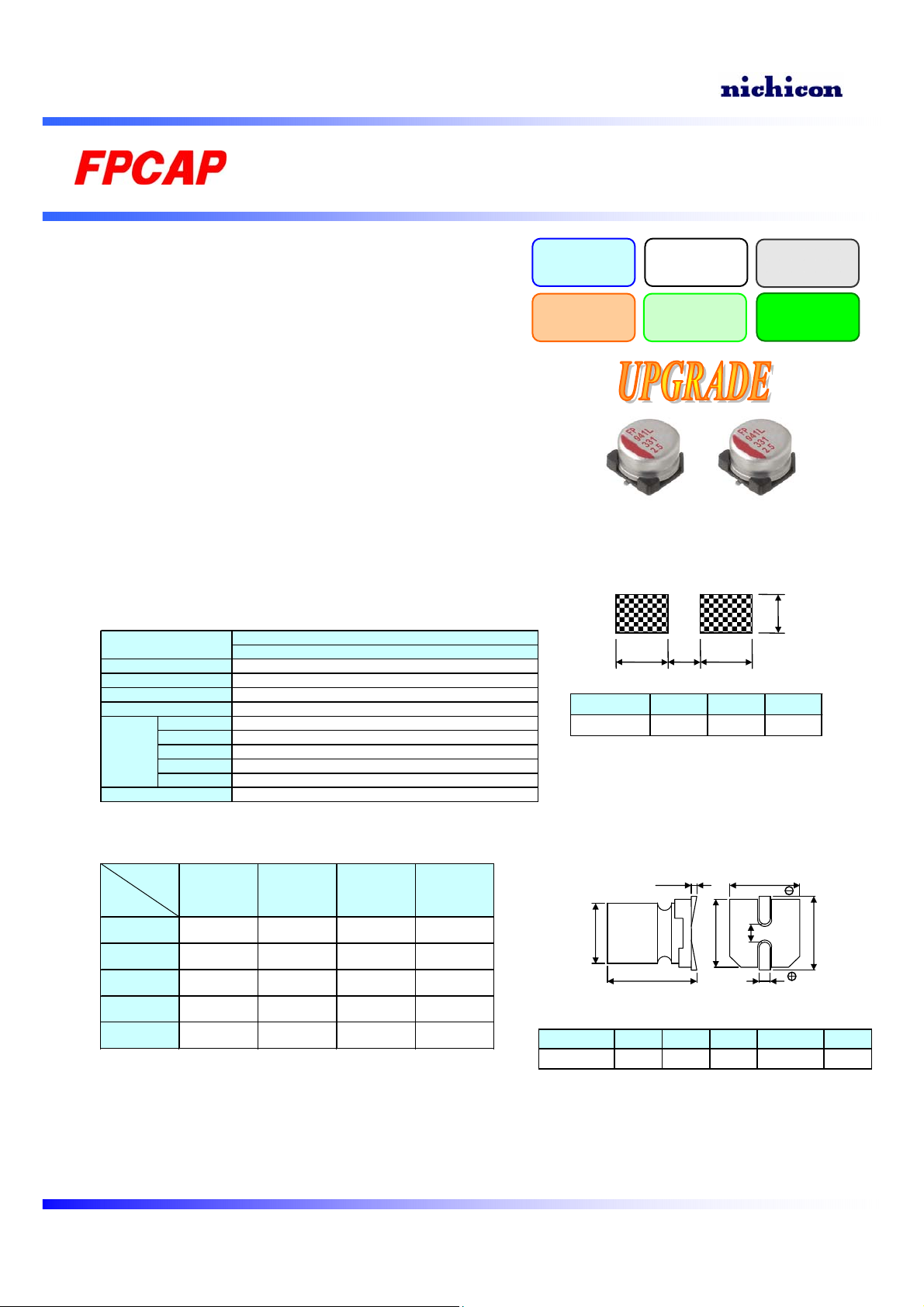

Products / SMD Type

Functional Polymer Aluminum Solid Electrolytic Capacitors

series

zFeatures

By using Functional Polymer cathode, Frequency & Temp. characteristics are greatly impr oved.

 Low ESR at a high frequency range.  High ripple current capability.  Low profile type. (Height : 4.5mmMax.)

zApplications

 Switching Power Supply and DC/DC Converter.  Back up Power Supplies of CPU(VRM etc.)  Miniature high Power Supply.

zEnvironmental Correspondence

Any environmental hazardous substances are not used.

 The lead free of ter minal plating (Sn 100%)

zSpecifications

Ite ms

Operating tem p. range

Rated voltage range

Capacitanc e range

Capacitanc e tolerance

Test condition

Endurance

Capacitanc e

Leakage current

ESR

tan δ

Failure Rate

Within ±20% of initial value before tes t

Not to exceed the initial specified value

Not to exceed 150% of initial spec ified value

Character istic

-55 to +105°C

105°C, rated voltage 2000Hrs.

0.5% / 1000Hrs. Max (60%CL)

2.5 to 25V· 15 to 330μF

±20% (M)

Low Profile

Large

Capacitance

4.5mmMax

Lead-free

φ6.3

RoHS

Compliance

zRecommended land pattern

b ba

[Unit: mm]

D abc

6.3 2.1 3.5 1.6

zSize (ESR) List

R.V. (S.V.)

Cap. [μF]

100

150

220

330

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

2.5

[V]

(2.8)

6.3x 4.2 (16)

6.3

(7.2)

6.3x 4.2 (18)

(18.4)

6.3x 4.2 (45)

[φD×L (mΩ)]

(28.7)

6.3x4. 2 (55)

zDimensions

0.2 Max

φD ± 0.5

L ± 0.3

D×L W H C R P

6.3×4.2 6. 5 6.5 7.2 0.5 to 0.9 2.1

W ± 0.2

H ± 0.2

C ± 0.2

[Unit: mm]

Page 41

zPart number & Specifications

Rated

Voltage

(V) (μF, 120Hz) NICHICON FPCAP (μA, 2 min) (120Hz) (mΩ, 100kHz) (mA, r.m.s.)φD×L(mm)

2.5

6.3

16 15 RSL1C150MCN1GB FP-016ME150M-SLR 300 0.12 45 1900 6.3 × 4.2

25 15 RSL1E150MCN1GB FP-025ME150M-SLR 100 0.12 55 1700 6. 3 × 4.2

* In case of some doubt about measured values, measure after applying rated voltage for 120 minutes at 105°C.

Rated

Capac it anc e

100 RSL0E101MCN1GB FP-2R5ME101M-SLR 300 0.12 16 3500 6.3 × 4.2

220 RSL0E221MCN1GB FP-2R5ME221M-SLR 300 0.12 16 3500 6.3 × 4.2

330 RSL0E331MCN1GB FP-2R5ME331M-SLR 413 0.12 16 3500 6.3 × 4.2

100 RSL0J101MCN1GB FP-6R3ME101M-SLR 315 0.12 18 3200 6.3 × 4.2

150 RSL0J151MCN1GB FP-6R3ME151M-SLR 473 0.12 18 3200 6.3 × 4.2

220 RSL0J221MCN1GB FP-6R3ME221M-SLR 693 0.12 18 3200 6.3 × 4.2

Part Number

Leakage Current *

tanδ ESR

Rated Ripple

Current

Case Size

zFrequency Characteristics

10000

6.3V 220μF （ SL series)

1000

100

Impedance (mΩ)

0.1 1 10 100 1000 10000

Frequency (kHz)

zPart Number (EX) 2.5V, 330μF, SL series

Nichicon P/N

R SL 0E 331 M

10000

6.3V 220μ F (SL series)

1000

100

ESR (mΩ)

0.1 1 10 100 1000 10000

Frequency (kHz)

1 GB

Type

Series name

Rated

Voltage

Rated

Capacitance

Tolerance

Configuration

Control code

FPCAP P/N

SLFP 2R5 ME 331 M R

Commodity

Mark

Rated Voltage

Classification

Rated

Capacitance

Tolerance

Series name

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Taping

code

Taping

code

Control code

Page 42

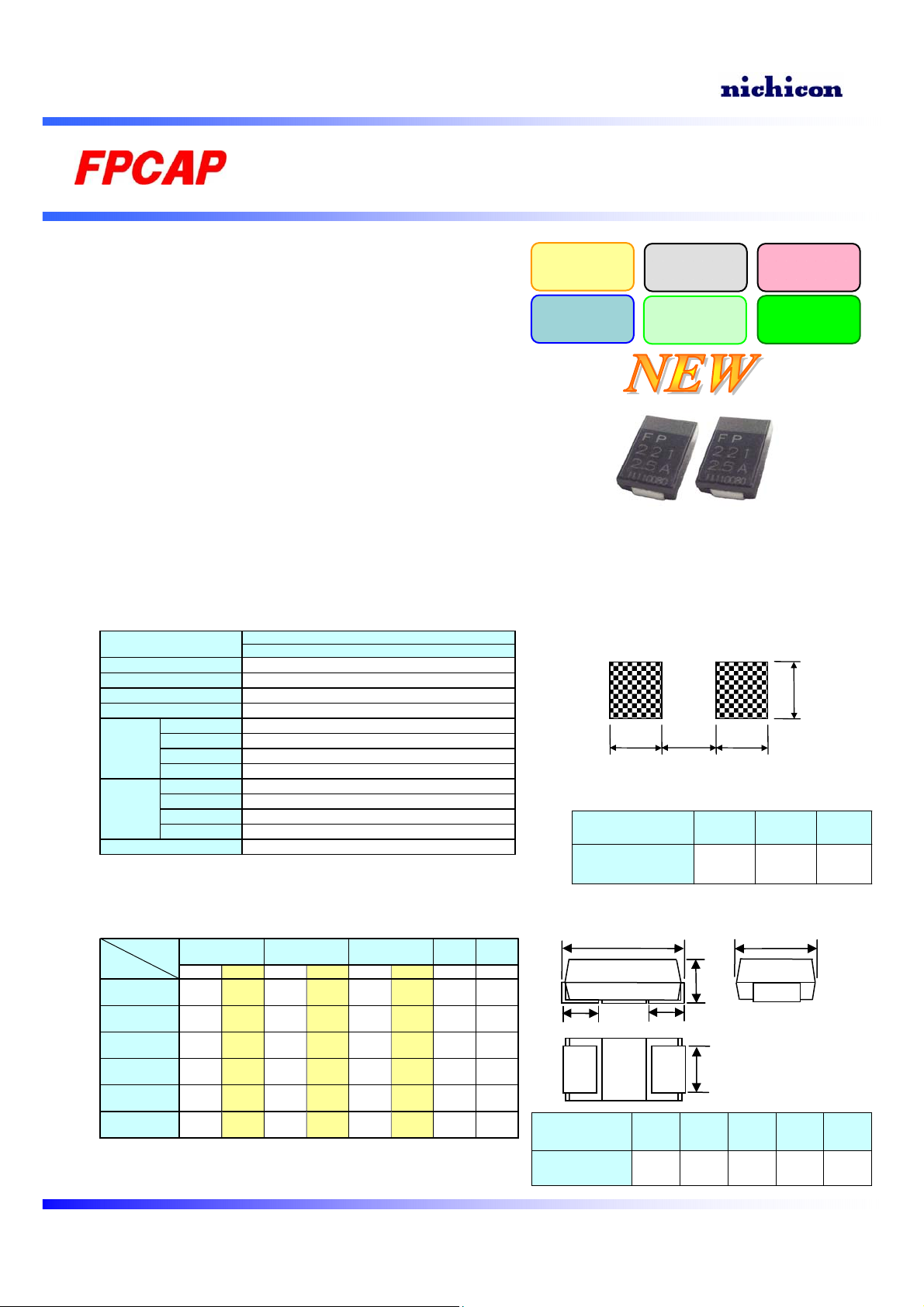

Products / SMD Type

Functional Polymer Aluminum Solid Electrolytic Capacitors

series

zFeatures

By using AluminumFunctional Polymer.

 Low ESR at a high frequency range.  High ripple current capability.

zApplications

 Switching Power Supply and DC/DC Converter.  Back up Power Supplies of CPU(VRM etc.)  Miniature high Power Supply.

zEnvironmental Correspondence

Any environmental hazardous substances are not used.

 The lead free of terminal plating (Sn 100%)

zSpecifications

Ite ms

Operating temp. range

Rated voltage ran ge

Capacit ance range

Capacit ance tolerance

Test c ondition

Endurance

Damp Heat

Capacit ance

Leakage curr ent

tan δ

Test c ondition

Capacit ance

Leakage curr ent

tan δ

Failure Rate 0.5% / 1000Hrs. Max (60%CL)

Within ±20% of initial value befor e test

Not to exceed the initial spec ified value

Not to exceed 150% of in itial spec ified value

Within +50%-20% of init ial value before tes t

Not to exceed 300% of in itial spec ified value

Not to exceed 200% of in itial spec ified value

Charac teris tic

VA , VB

-55 to +105° C

2.5 to 25V·DC

15 to 220μF

±20% (M)

105°C, ra ted voltage 1000Hrs.

60°C,90~95%RH, No Bias, 500Hrs.

SMD

Low ESR

7.3×4.3×2.8

Lead-free

3mm Height

RoHS

Compliance

zRecommended land pattern

b ba

[Unit: mm]

Size Code

L × W × H

7.3 × 4.3 × 2.8

a b c

4.1 2.05 2.9

zSize Code (ESR) List

R.V. (S.V.)

Cap. [μF] VA VB VA VB VA VB VA VA

[V]

100

150

220

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

2.5

(2.8)

(18)N(15)

4.0

(4.6)

(25)N(20)

(18)N(15)

[Size Code (mΩ)]

6.3

(7.2)

(18.4)25(28.7)

(60)

(55)

zDimensions

Size Code

L × W × H

7.3 × 4.3 × 2.8

0.2

7.3 4.3 2.4 2.8 1.3

0.2

[Unit: mm]

0.1

0.2

Page 43

zPart number & Specifications

Rated

Voltage

(V) (μF, 120Hz)

2.5

4.0

6.3

25 15 RVA1E150MNG F P-025CM150M-VAR 188 0.12 60 1000 7.3 × 4. 3 × 2.8 Level 3

* In case of some doubt about measured values, measure after applying rated voltage for 120 minutes at 105°C.

Rated

Capacitanc e

NICHICON FPCAP (μA, 2 min) (120Hz)

220 RVA0E221MNG FP-2R5CM221M-V AR 700 0.12 18 2600 7.3 × 4.3 × 2. 8 Level 3

220 RVB0E221MNG FP-2R5CM221M-V BR 700 0.12 15 2800 7.3 × 4.3 × 2. 8 Level 3

150 RVA 0G151MNG FP-4R0CM151M-VAR 700 0.12 18 2600 7.3 × 4. 3 × 2. 8 Level 3

150 RVB 0G151MNG FP-4R0CM151M-VBR 700 0.12 15 2800 7.3 × 4. 3 × 2. 8 Level 3

100 RVA0J101MNG FP-6R3CM101M-V AR 700 0.12 25 2000 7.3 × 4.3 × 2.8 Level 3

100 RVB0J101MNG FP-6R3CM101M-V BR 700 0.12 20 2400 7.3 × 4.3 × 2.8 Level 3

27 RVA1C270MNG FP-016CM270M-VA R 216 0.12 55 1100 7. 3 × 4.3 × 2.8 Level 3

33 RVA1C330MNG FP-016CM330M-VA R 264 0.12 55 1100 7. 3 × 4.3 × 2.8 Level 3

Part Number

Leakage

Current*

tanδ ESR

(mΩ,

100kHz)

Rated Rippl e

Current

(mA, r.m.s .)

Size

L×W×H(mm)

zFrequency Characteristics

MSL

(J-STD-020 D)

100000

6.3V100μF (VA series)

10000

1000

100

Impedance (mΩ)

0.1 1 10 100 1000 10000

Frequency (kHz)

zPart Number (EX) 6.3V, 100μF, VA series

Nichicon P/N

R VA 0J 101 M

Type

FPCAP P/N

Series name

Rated

Voltage

Rated

Capacitance

Tolerance

10000

6.3V100μF (VA series)

1000

100

ESR (mΩ)

0.1 1 10 100 1000 10000

Frequency (kHz)

Size Code

(N:

7.3×4.3×2.8)

Taping

code

Control code

VAFP 6R3 CM 101 M R

Commodity

Mark

Rated Voltage

Classification

Rated

Capacitance

Tolerance

Series name

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Taping

code

Control code

Page 44

Ordering Information

Functional Polymer Aluminum Solid Electrolytic Capacitors

Type numbering system

Nichicon Part Number

R L8 0E 561 M

Type Series name

FPCAP Part Number

Commodity

Mark

Type & Classification

Type &

Clas s i ficatio n

Radial Lead

Type

SMD Type

Rated Voltage Classification

Nichicon

P/N

Sym bol

FPCAP

P/N

Sym bol

Rated

Voltage

Capacitance

Series Name

Class ificati on Series

Radial Lead

Type

SMD Type

（

Example:2.5V560μF L8

Rated

Capacitance

Tolerance

Capacitance

Tolerance

Configuration

VA/VB series Size Code :N

Series name

Rated Voltage

Nichicon

P/N

Symbol

NS R7 R5

L8 E5 S8 F8

PS, PA

HS, HA

SS, SA, SB

FS SL

VA, VB

Voltage

[V]

2.5 0E 2R5

4.0 0G 4R0

6.3 0J 6R3 10 1A 010 16 1C 016 20 1D 020 25 1E 025 35 1V 035 50 1H 050 63 1J 063

）

Control code

L8FP 2R5 RE 561 M R

Taping &

Lead Forming

Rated Capacitance

FPCAP

P/N

Symbol

Capacitance

Capacitance Tolerance

Tolerances Symbol

Taping &

Lead Forming

Control code

[μF]

8.2 8R2 10 100 22 220

100 101 220 221

1500 152

± 20% M

Sym bol

Control code*

Nichicon

Endurance

Symbol

5000hrs ASQ -5K 2000hrs 1 no sign

VA/VB

series

* In case of endurance

no sign no s ign

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

P/N

FPCAP

P/N

Symbol

Taping & Lead Forming

Classification

Radial Lead Type

SMD Type

Taping &

Lead Forming

Long lead (Bulk) All no s ign R Cut lead (Bulk) All CG CG

2.5mm pitch taping

3.5mm pitch taping

5.0mm pitch taping

Bulk All no sign N

Case Size

(mm)

5×8, φ6.3×5 to 8 JT JT

5×10, φ6.3×10 JX J

8KXK

5, φ6.3, φ8PXP

10 PH PH

Height under 5.2mm GB

Height over 5.7mm GS

7.3×4.3×2.8 G

Nichicon

P/N

Sym bol

FPCAP

P/N

Symbol

RTaping

Page 45

Packing Specifications

Functional Polymer Aluminum Solid Electrolytic Capacitors

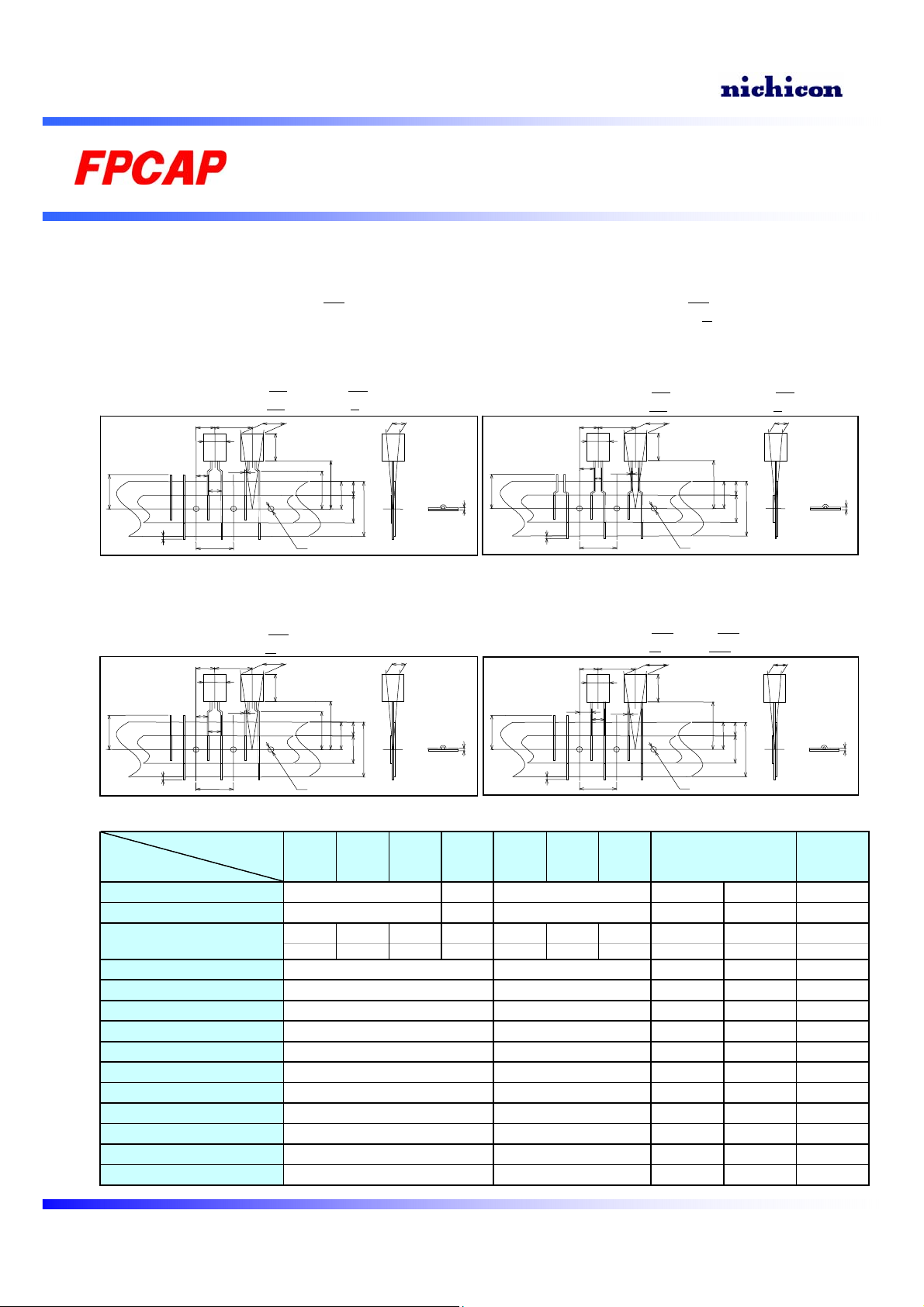

Ammo Pack Taping Specifications (Radial lead type)

Taping Dimensions

Lead Forming (Symbol: Ex. PX) Nichicon P/N Symbol : R M1PX

FPCAP P/N Symbol : FP-REM- P

2.5mm pitch taping

Taping Dimensions for φ5

Nichicon P/N Symbol : JT (φ5×8) , JX (φ5×10) FPCAP P/N Symbol : JT

P2 P

φd

(φ5×8) , J (φ5×10)

Δh1

Δh2

5.0mm pitch taping

Taping Dimensions for φ5, φ6.3, φ8

Nichicon P/N Symbol : PX FPCAP P/N Symbol : P

P2 P

Δh1

φd

Δh2

2.5mm pitch taping

Taping Dimensions for φ6.3

Nichicon P/N Symbol : JT FPCAP P/N Symbol : JT

P2 P

φd

(φ6.3×5 to 8) , JX (φ6.3×10)

(φ6.3×5 to 8) , J (φ6.3×10)

Δh1

3.5mm(φ8) or 5.0mm(φ10) pitch taping

Taping Dimensions for φ8, φ10

Nichicon P/N Symbol : KX (φ8) , PH (φ10) FPCAP P/N Symbol : K

P2 P

φd

(φ8) , PH (φ10)

Δh1

Δh2

Specification Table

Item φD×L

Lead Forming Sym bol (Nichicon P/N)

Lead Forming Symbol (FPCAP P/N)

Lead Wire Diameter

6.3×6,

6.3×7

5×8,

6.3×8

6.3×5

5×10,

6.3×10

6.3×6,

6.3×7

5×8,

6.3×8

JX PX KX PH

JPKPH

5×10,

6.3×5,

6.3×10

8×6 , 8×8 ,

8×9 , 8×11.5

d 0.45 0.6 0.5 0.5 0.45 0.6 0.5 0.6 0.6 0.6

[Unit : mm]

10×12.5

Tolerance ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05

Lead Wire Interval f 5.0 +0.8/-0.2 3 .5 +0.8/-0 .2 5 .0 +0.8 /-0 .2

Pitch Between Components P 12.7±1.0 12.7±1.0 12.7±1.0

Feed Holes Position Gap P1 12.7±0.3 12.7±0.3 12.7±0.3

Feed Holes Position Gap P2 6.35±1.0 6.35±0.5 6.35±0.5

Lead Wire Clinch Height H0 16.0±0.5 - -

Components Height H 20.0±0.75 20.0±0.5 18.5±0.5

Bas e Tape W 18.0 +1.0/-0.5 18.0 +1.0/-0.5 18.0 +1.0/-0.5

Feed Holes Position Gap W1 9.0±0.5 9.0±0.5 9.0±0.5

Feed Hole Diameter D0 4.0±0.2 4.0±0.2 4.0±0.2

Components Alignment ∆h 2.0 m ax 2.0 m ax 2 .0 max

Tape Thickness t 0.7±0.2 0.7±0.2 0.7±0.2

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

2.5 +0.8/-0.2 (φ6.3: 2.5±0.5) 5.0 +0.8/-0.2

12.7±1.0

12.7±0.3

6.35±1.0

18.5±0.5

18.0 +1.0/-0.5

9.0±0.5

4.0±0.2

2.0 max

0.7±0.2

12.7±1.0

12.7±0.3

6.35±1.0

16.0±0.5

17.5±0.5

18.0 +1.0/-0.5

9.0±0.5

4.0±0.2

2.0 max

0.7±0.2

Page 46

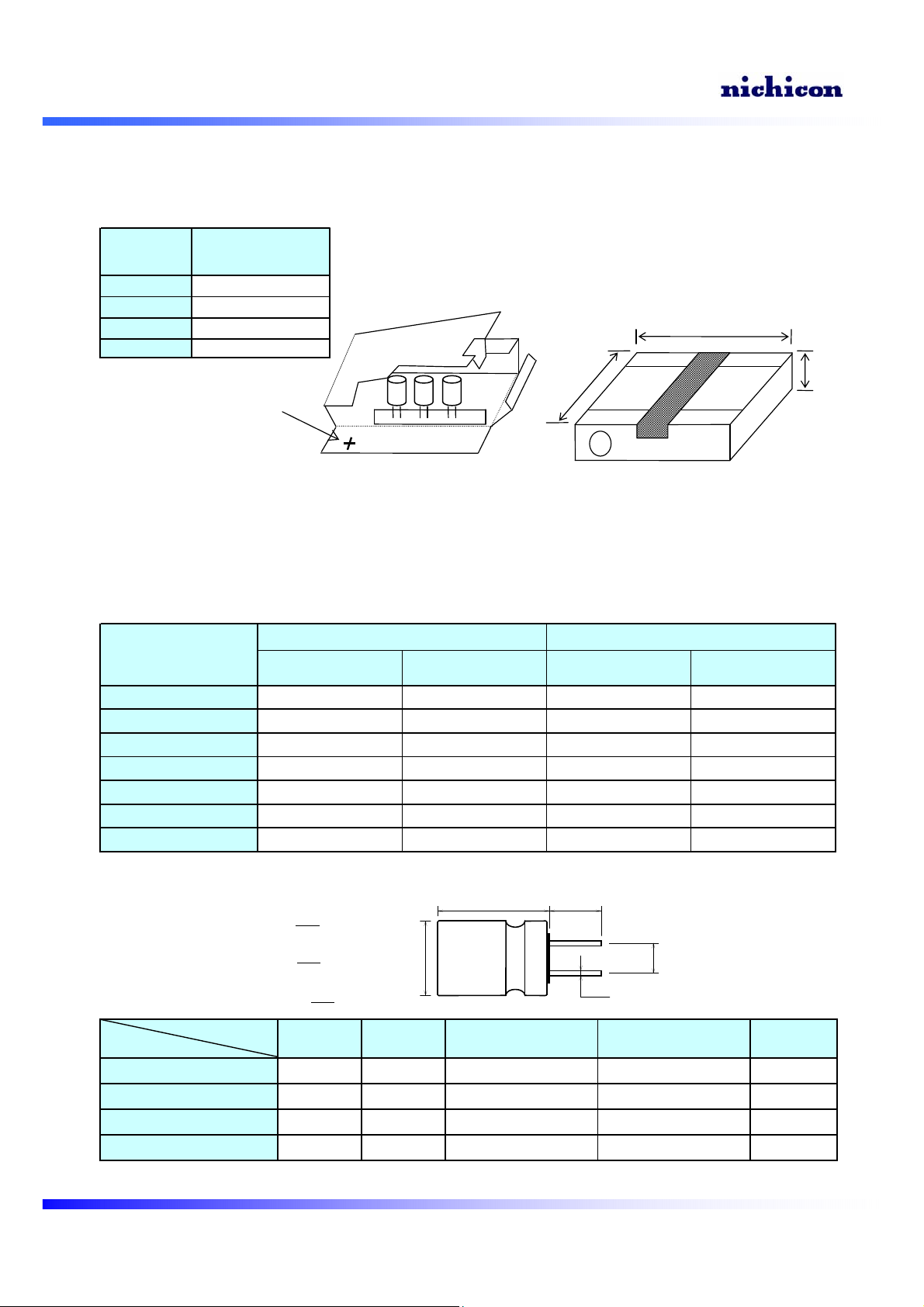

Packing Specifications

Ammo Pack Quantity Unit

Packing Quantity (Ammo Pack)

Size (dia)

52,000

6.3 2,000

81,000

10 500

Packing Unit

(pcs / Ammo Pack)

Ammo pack

320Max

Polarity mark

The lid of feeding side of the taping box shall be torn off at the perforation line.

Bulk Packing Quantity Unit (Radial lead type)

Components are packaged as per following packing unit.

Packing Quantity (Bulk)

Case Size

D×L

(mm)

4×5 200 8, 000 200 8,000

5×8, 5×10 200 3,200 200 4,000

6.3×5, 6. 3×6, 6. 3×7 200 4,000 200 4,000

6.3×8, 6. 3×10 200 3,200 200 4,000

8×6, 8×8, 8×9 200 3,200 200 4,000

8×11.5 100 2,000 200 2,400

10×12.5 100 1,600 100 2,000

Inner Bag

(pcs )

Long Lead Cut Lead

Packing Unit

(pcs / Carton Box)

Inner Bag

(pcs )

Note:Please inquire for FPCAP by Packing Unit as above.

340Max

60Max

[Unit : mm]

Packing Unit

(pcs / Carton Box)

Cut lead (Bulk) Dimensions

Lead Forming (Symbol: CG) Nichicon P/N

: R M1CG

FPCAP P/N

: FP-REM- CG

D×L

Item

Lead Forming Symbol

Lead Wire Diameterφd 0.45±0.05 0.6, 0.5±0.05 0.45, 0.6, 0.5±0.05 0.6±0.05 0.6±0.05

Lead Wire Length H 3.1±0.3 3.1±0.3 3.1±0.3 3.1±0.3 3.1±0.3

Lead Wire Interval f 1.5±0.5 2.0±0.5 2.5±0.5 3.5±0.5 5.0±0.5

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

4×5 5×8, 5×10

CG CG CG CG CG

6.3×5, 6.3×6

6.3×7, 6.3×8, 6.3×10

8×6, 8×8, 8×9, 8×11.5 10×12.5

[Unit: mm]

Page 47

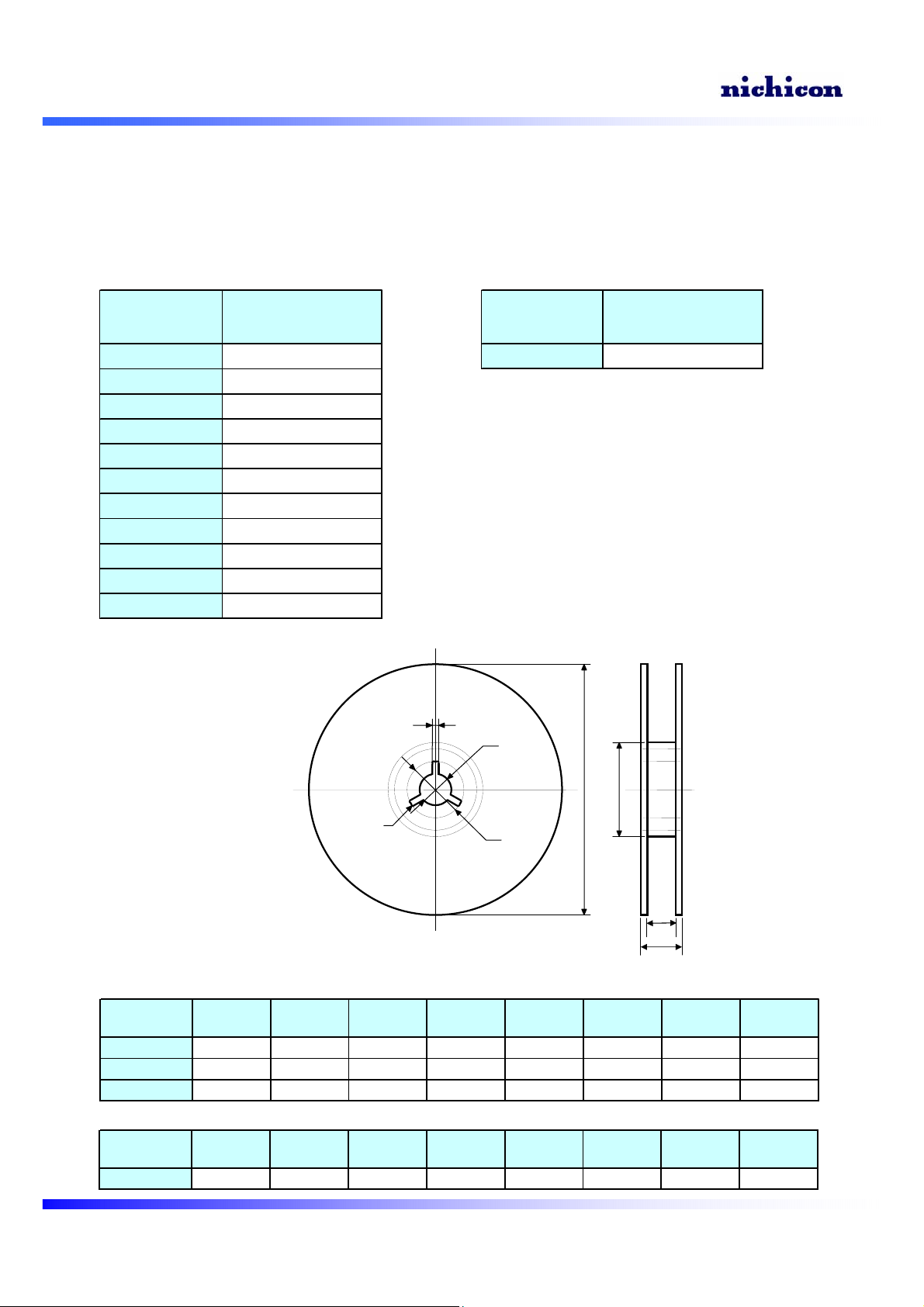

Packing Specifications

Packaging Unit Quantity for a Reel (SMD type)

Components are packaged as per following packing unit

Packing Quantity (Reel)

PS, PA, HS, HA, SS, SA, SB, FS, SL series

Case Size

D×L

(mm)

4×5.2 2,000

5×5.7 1,000

6.3×4.2 1,000

6.3×5.7 1,000

6.3×7.7 900

8×6.7 1,000

8×7.7 900

8×8.7 500

8×11.7 500

10×7. 7 500

10×12.4 400

Reel

(pcs)

VA,VB series

Case Size

L×W×H

(mm)

7.3×4.3×2.8 2,500

Reel

(pcs )

Note:Please inquire for FPCAP by Packing Unit as above.

Dimensions of Reel

PS, PA, HS, HA, SS, SA, SB, FS, SL series

Size (dia) R

4, φ5 380 80 13.0 21 2.0 13.4 17.4 1.0

6.3 380 80 13.0 21 2.0 17.4 21.4 1.0

8, φ10 380 80 13.0 21 2.0 25.4 29.4 1.0

ABCDEW1W2

2.0

1.0

0.5

1.0

0.5

0.8

[Unit : mm]

VA, VB series

Size

L×W ×H

7.2×4.3×2. 8 330 80 13.0 21 2.0 13.4 17.4 1.0

ABCDEW1W2

±2.0 ±1.0 ±0.5 ±1.0 ±0.5 ±1.0 ±1.0

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Page 48

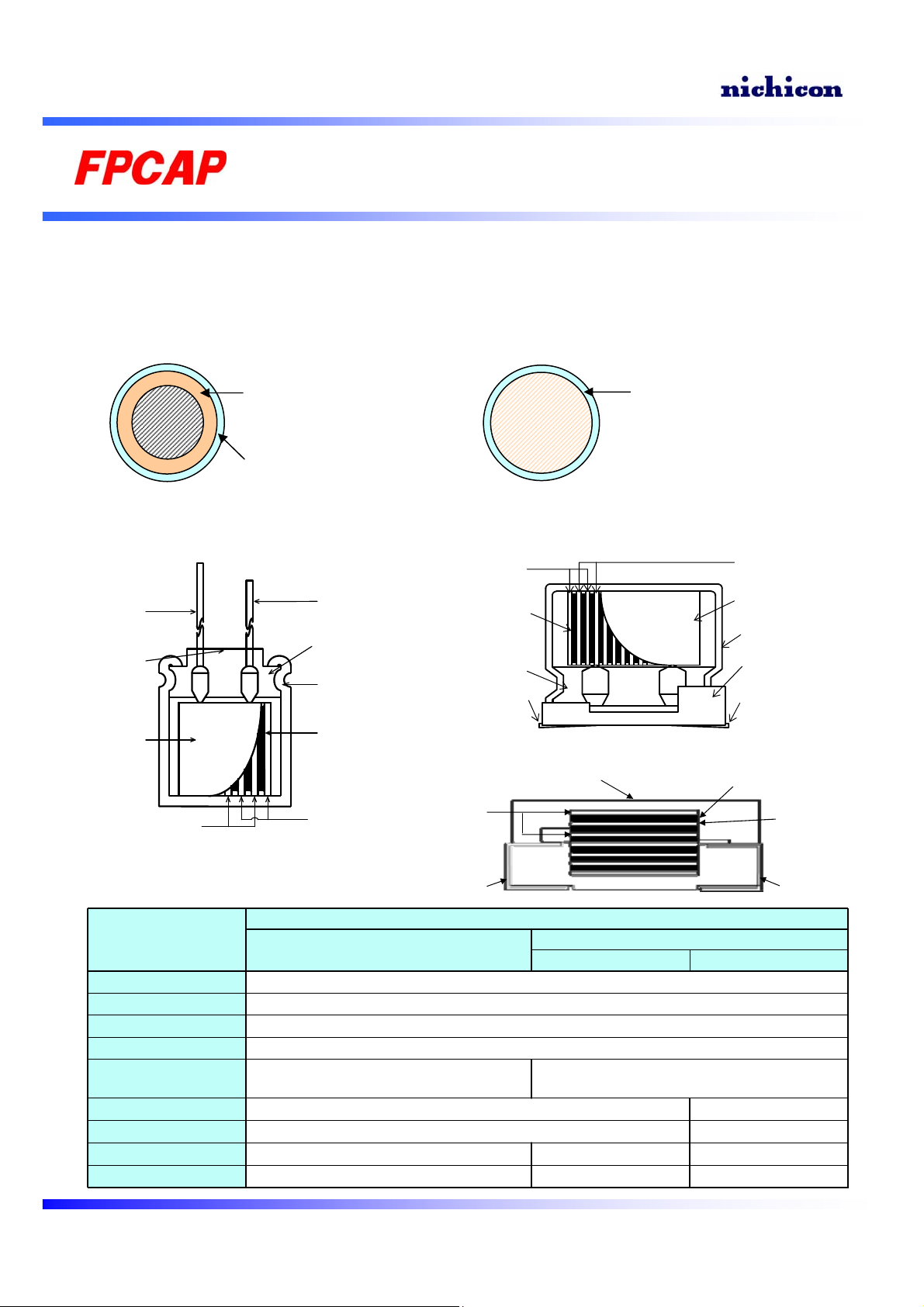

Materials and Soldering

Functional Polymer Aluminum Solid Electrolytic Capacitors

Materials

Terminals

Fe wire

Compositions

Radial Lead type

Anode Terminal

Stand off

Element

Anode Foil

Cu (Thickness/22.5 to 30μm)

100%Sn (Thickness/13μm)

Cathode Terminal

Sealing Material

Plastic coating Aluminum Case

Electrolyte and Separator Sheet

Cathode Foil

Electrolyte and Separator Sheet

Sealing Material

Anode Foil

Cu wire

Anode Foil

Anode Terminal

100%Sn (Thickness/12μm)

SMD (Can) type

SMD (Molded Chip) type

Molded Resin

Cathode Foil

Element

Plastic coating Aluminum Case

Base

Cathode Terminal

Electrolyte and Separator Sheet

Cathode Foil

Composition Part

Anode Foil

Cathode Foil

Separator Sheet

Electrolyte

Terminal

Aluminum Case

Sealing Material

Base

Molded Resin

Anode Terminal

Materials

Radial Lead type

Electrolytic Capacitor Paper

Functional Polymer

1)Iron Lead + Copper Plating + Tin Plating

2)Copper Lead + Tin Plating

Aluminum

Copper Lead + Tin Plating

SMD type

Molded Chip typeCan type

Epoxy Resin--

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Cathode Terminal

-Aluminum + Plastic

-Rubber

-Plastic-

Page 49

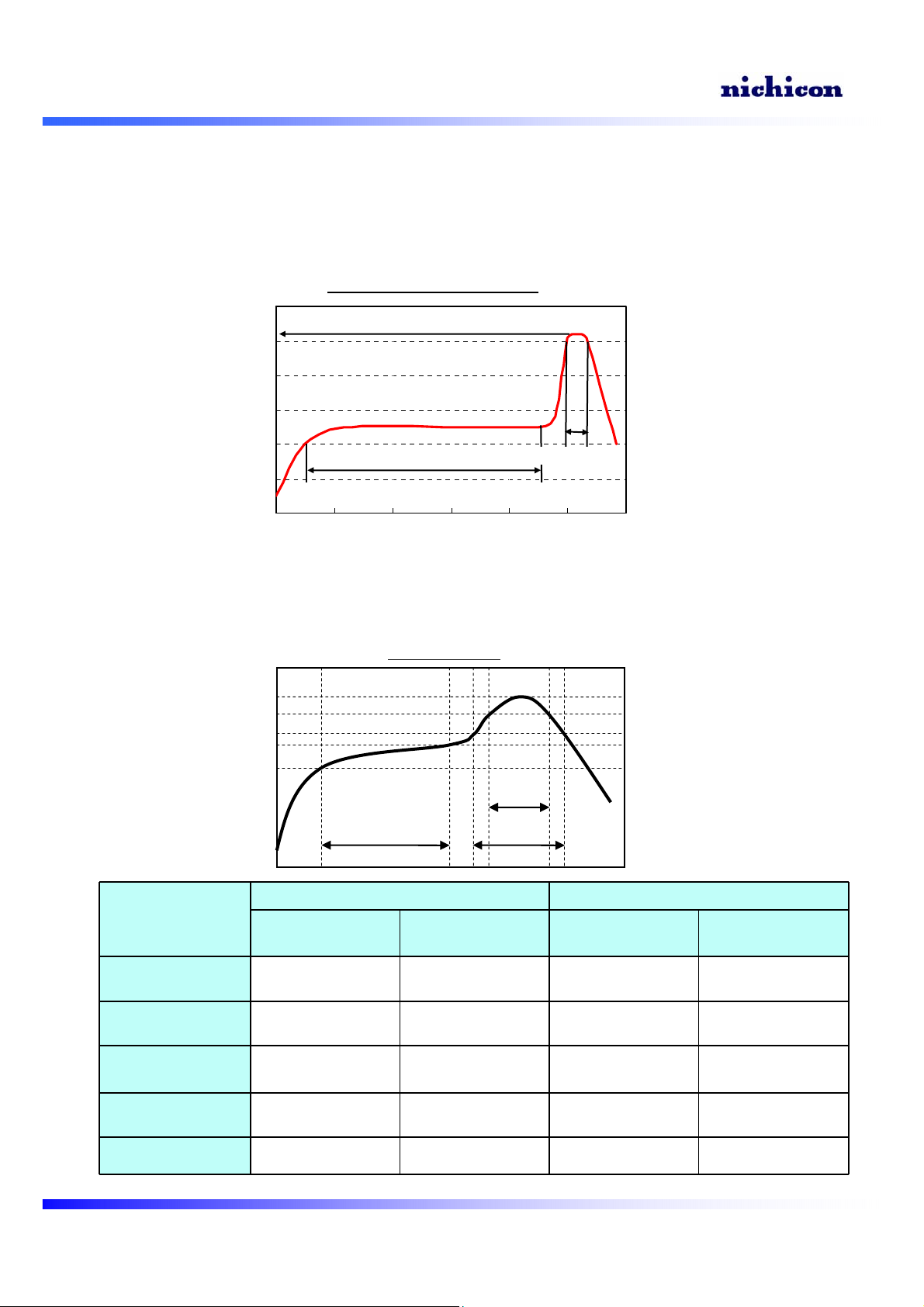

Materials and Soldering

Soldering Profile

Flow Soldering (Radial lead type)

Recommended Flow Profile

300

250

200

Peak Flow Temp:260ºC max.

Soldering

150

100

Temperature (ºC)

Reflow Soldering (SMD type)

Peak temperature

230ºC

200(or217)ºC

180ºC

150ºC

Pre-heat Temp:125ºC Max

Within 120sec.

Time (se c)

Reflow profile

Preheating

Within 10sec.

PS, PA, HS, HA, SS, SA, SB, FS, SL

Item

Peak Temperature

Preheating

The number of reflow Only 1 time Twice or less

Recommended

Condition 1

260ºC or less 250ºC or less

150ºC to 180ºC

Within 90 seconds

200ºC and higher

Within 60 seconds

230ºC and higher

Within 40 seconds

Recommended

Condition 2

150ºC to 180ºC

Within 90 seconds

200ºC and higher

Within 60 seconds

230ºC and higher

Within 40 seconds

Recommended

Condition 3

260ºC or less

(Within 5 seconds)

150ºC to 180ºC

Within 90 seconds

217ºC and higher

Within 60 seconds

Only 1 time

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

VA, VB

Recommended

Condition 4

250ºC or less

(Within 5 seconds)

150ºC to 180ºC

Within 120 seconds

217ºC and higher

Within 60 seconds

Twice or less

Page 50

Technical Guide

Functional Polymer Aluminum Solid Electrolytic Capacitors

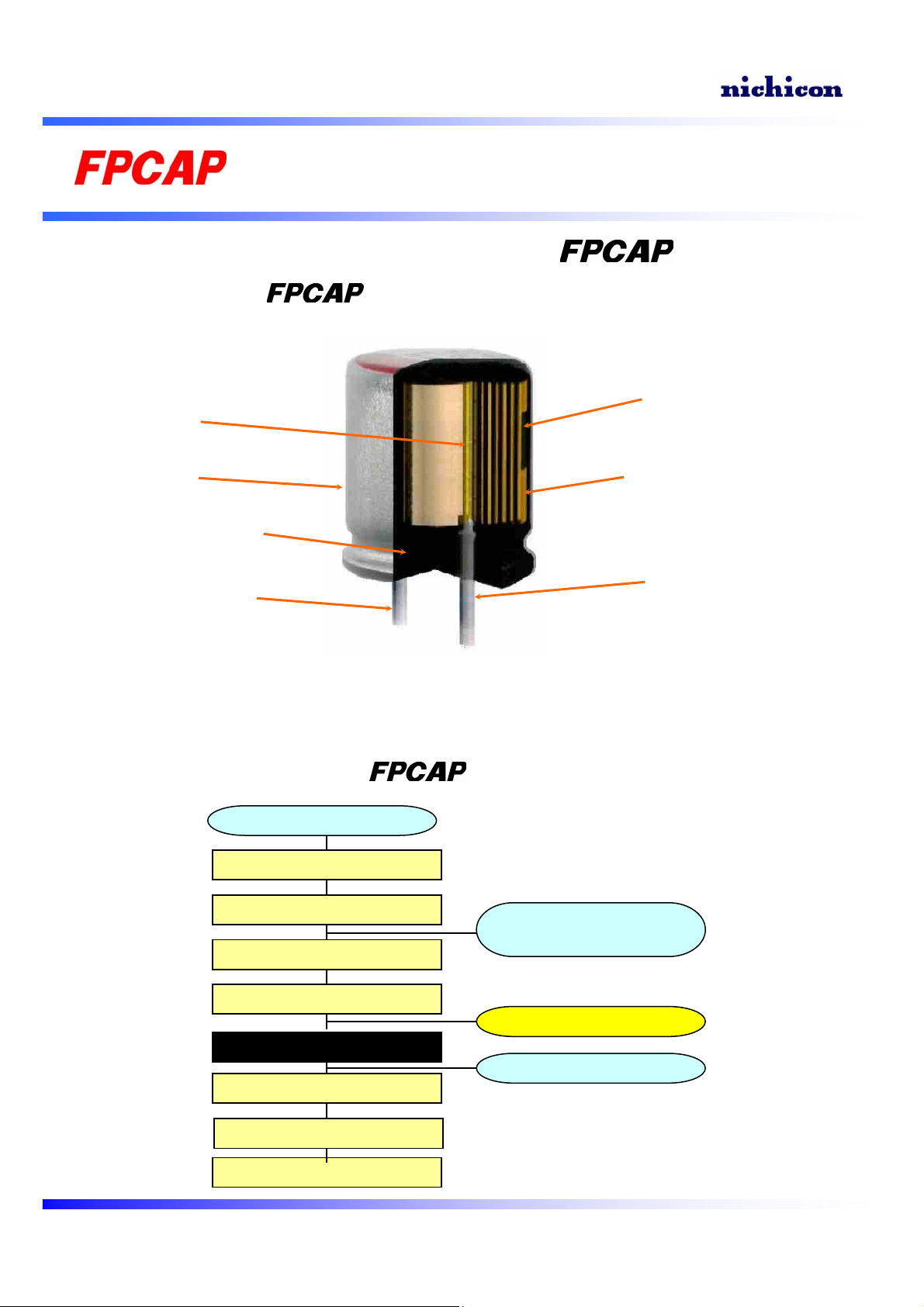

Construction and Characteristics of

Construction of

Al Foil

Case

Sealing Rubber

Lead ( - )

FPCAP is roughly the same construction as an aluminum electrolytic capacitor, and uses rolled aluminum foils in its capacitor element.

Manufacturing Process of

Etched Al Foil

Forming

Slitting

Winding

Functional Polymer

(&Separator)

Lead ( + )

Tab Terminal

Separator sheet

Forming

Functional polymer

Polymerization

Assembling parts

Sealing

Aging and Inspection

Shipping

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Page 51

Technical Guide

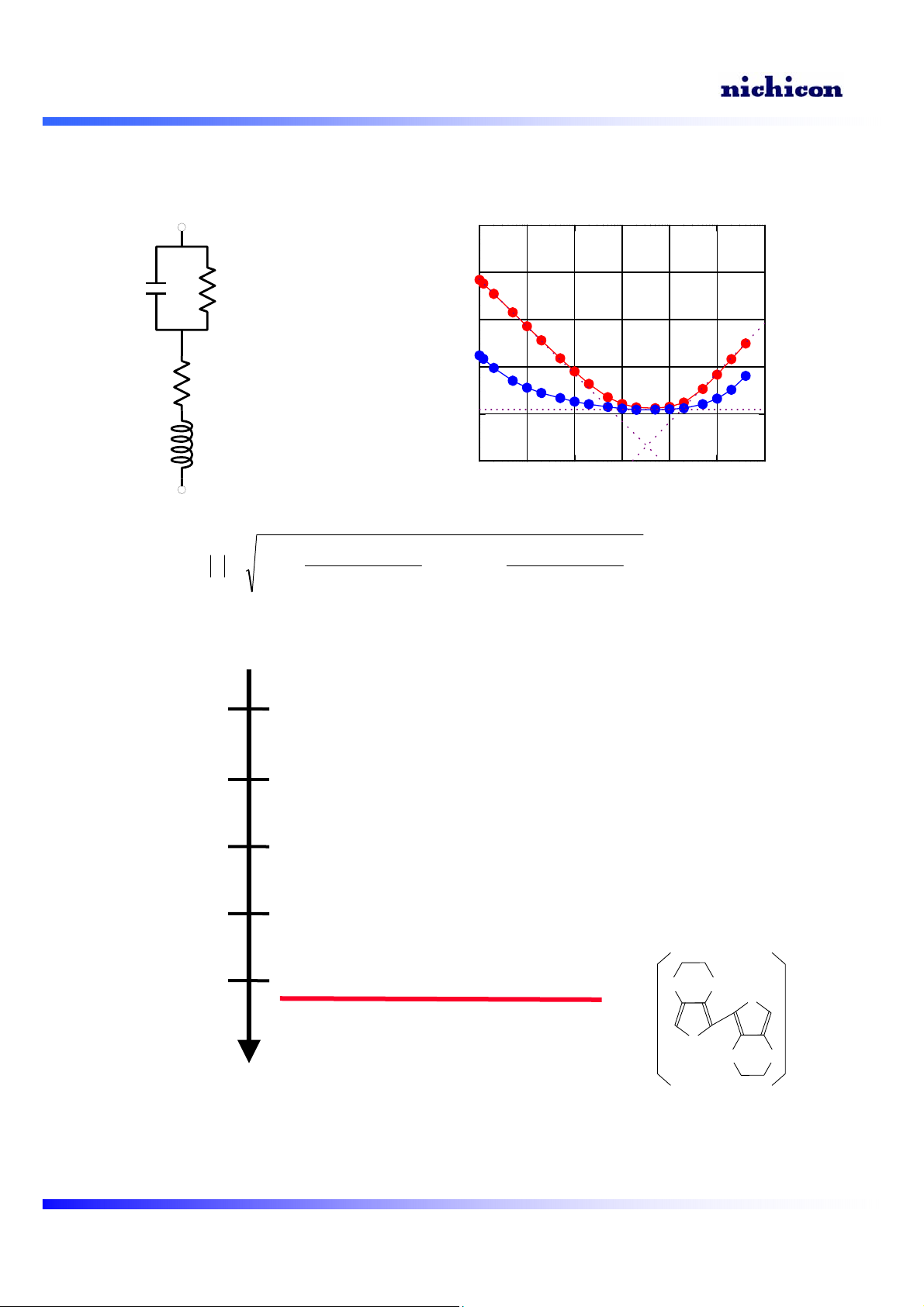

Equivalent Circuit of Capacitor

Cp : Capacitance Rp : Equivalent parallel

resistance (Insulation resistance)

( ≅Rated Voltage/LC)

Rs : Equivalent series

resistance

L : Inductance

100

Imp

100m

Imp / ESR (Ω)

ESR

10m

100 1k 10k 100k 1M 10M 100M

1/ωC

ωL

Frequency (Hz)

⎧

RsZ

⎨ ⎩

()()

ω+

RpCp1

Feature of Functional Polymer

100

Electrolyte (Aluminum Electrolytic Capacitor)

Manganese dioxide

(Tantalum Solid Electrolytic Capacitor)

TCNQ Complex salt

(Organic Semiconductive Capacitor)

0.1

PPY by Chemical Polymerization PPY by Electrolytic Polymerization

0.01

Conductive Polymer (PEDOT)

⎧

⎫ ⎬

222

⎭

−ω+

⎨ ⎩

CpRp

ω+

RpCp1

⎫ ⎬

222

⎭

(Ω⋅cm)

FPCAP differs from the aluminum electrolytic capacitor in that in place of the electrolyte, functional polymer is impregnated.

PEDT

PEDOT

O O

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Page 52

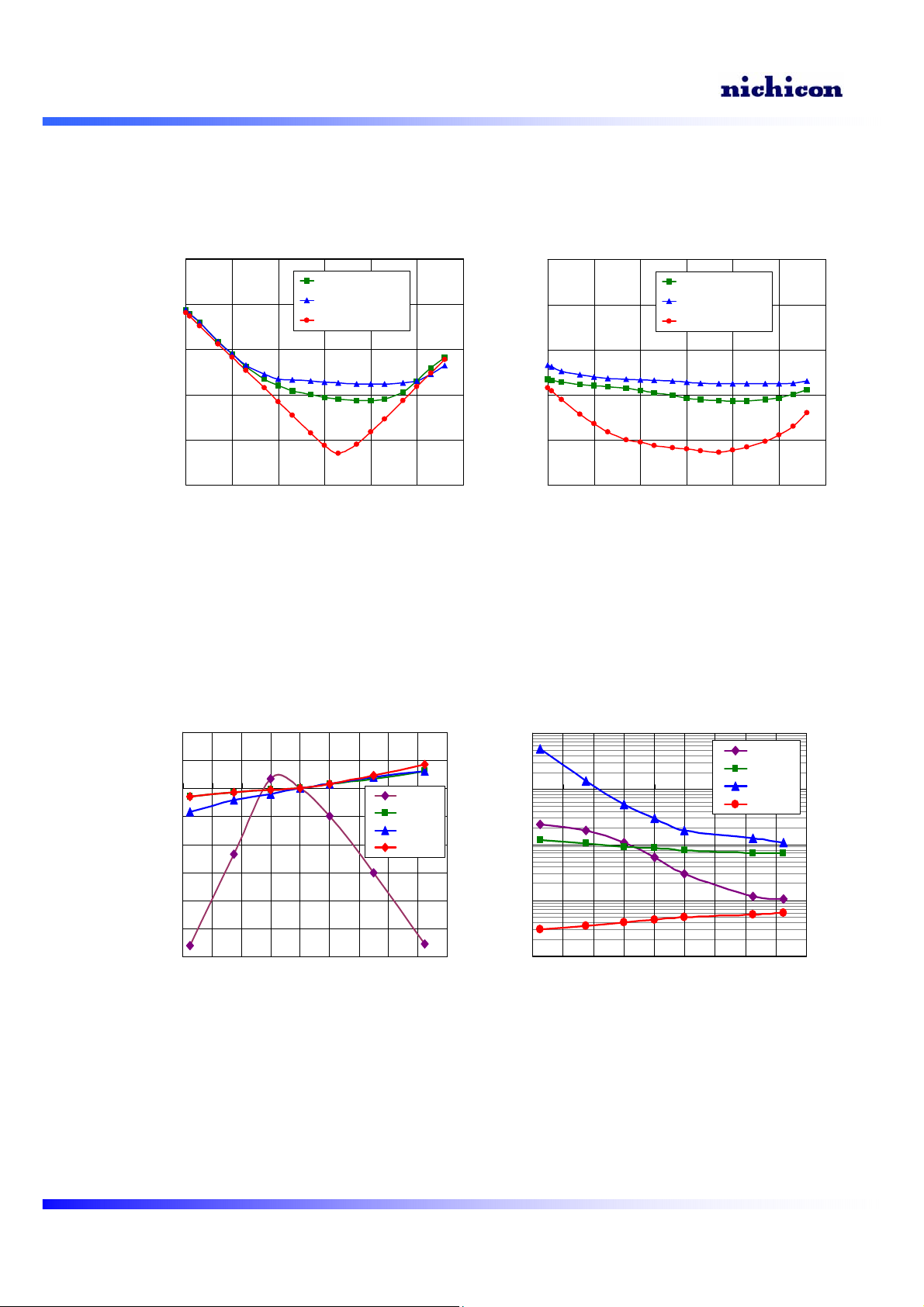

Technical Guide

Typical Electrical Characteristics of Capacitors

Frequency Dependence

100

TA Cap 220µF

0.1

Impedance (Ω)

0.01

0.001 100 1k 10k 100k 1M 10M 100M

AL E-Cap 220µF

FPCAP 270µF

Frequency (Hz)

100

ESR (Ω)

0.1

0.01

0.001 100 1k 10k 100k 1M 10M 100M

FPCAP has excellent frequency characteristic nearly equal to the film capacitor.

Using the high conductivity of the Functional polymer with an electrolyte, and adopting the winding element for layer thinness of electrolyte, the ESR is improved greatly and has the frequency characteristic that is nearly equal to the film capacitor.

Typical Temperature Dependence of Capacitors

TA Cap 220µF

AL E-Cap 220µF

FPCAP 270µF

Frequency (Hz)

20 10

-10

-20

-30

-40

Capacitance (ΔC/C %)

-50

-60

-60 -40 -20 0 2 0 40 60 80 100 120

Temperature (°C)

The temperature dependence of the FPCAP is that it features little change in temperature for the ESR. Since ESR is dominant at high range of impedance (near resonance point), the ESR value greatly affects Noise clearing capacity. What ESR changes little against temperature means that Noise clearing ability changes little against temperature as well.

MLCC TA Cap AL E-cap FPCAP

0.1

ESR (Ω)

0.01

0.001

-60 -40 -20 0 20 40 60 80 100 120

Temperature (°C)

MLCC TA C ap AL E-cap FPCAP

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Page 53

Technical Guide

Frequency Dependence

10000

1000

100

L8 series 2.5V 560µF (φ8×8L)

NU series 6.3V 1000µF (φ8×11.5L)

NU series 16V 270µF (φ8×11.5L)

Impedance (mΩ)

ESR (mΩ)

0.1 1 10 100 1000 10000

Frequency (kHz)

1000

100

0.1 1 10 100 1000 10000

Frequency (kHz)

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Page 54

Technical Guide

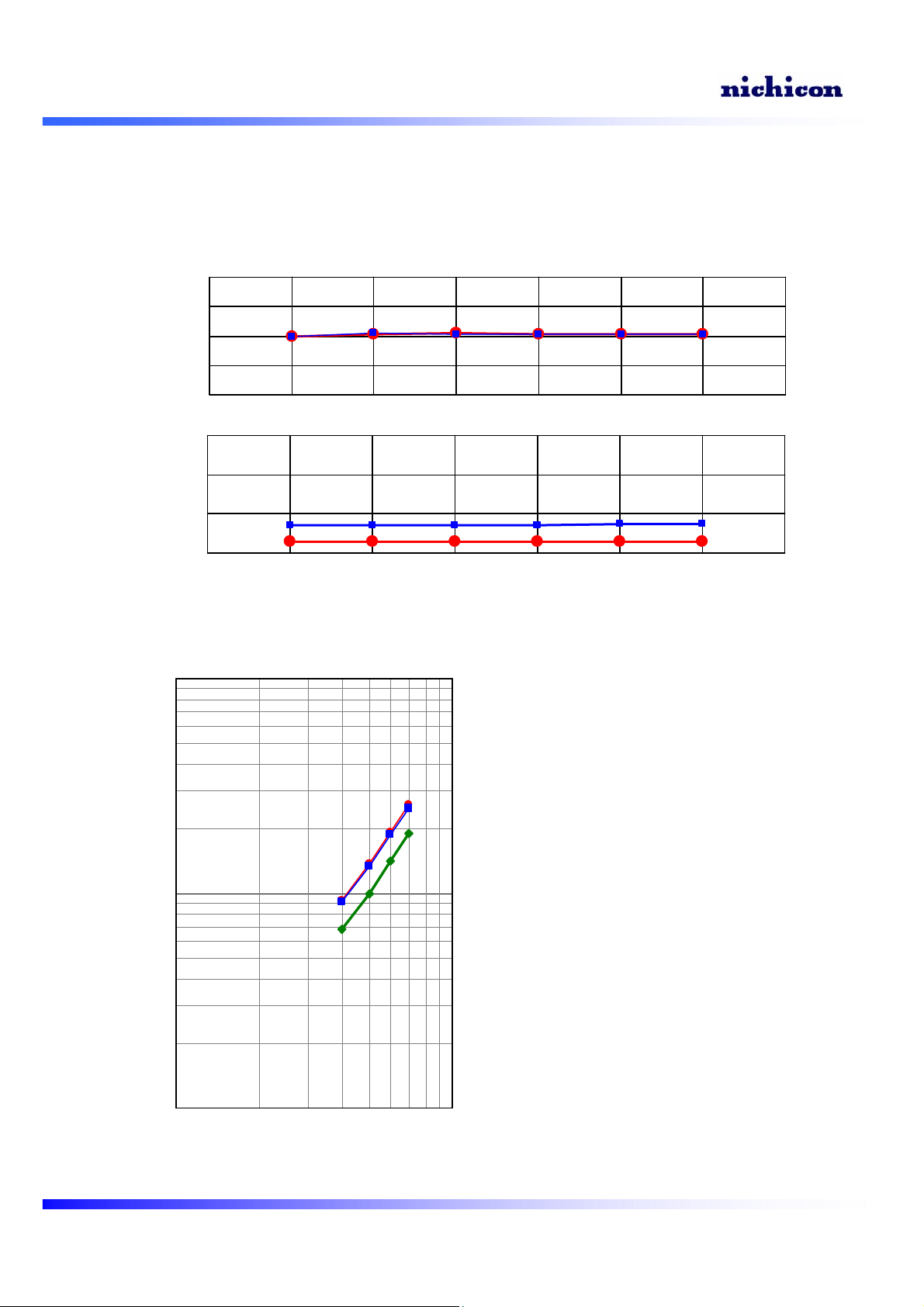

Resistance to Soldering Heat

Test condition : 260°C, 30sec

ΔC/C (%)

-10

-20

0 1 2 3 4 5

0.1

ESR (Ω) at 100kHz

0.01

0 1 2 3 4 5

Fevering Temperature by Ripple Current

100

L8 series 2.5V 560µF (φ8×8L)

R7 series 2.5V 820µF (φ8×11.5L)

R7 series 4.0V 820µF (φ10×12.5L)

NS series 10V 220µF (φ10×12.5L)

NS series 16V 33µF (φ6.3×7L)

I2 R = ΔT×β×S= ΔTc×α×β×S

R) / (α×β×S)

R) / (αβS)

= log I

+ log R – log αβS

ΔTc = (I

log ΔTc = log (I

= 2×log I + (log R - log αβS)

Feverin g T e mp erature (

Where, I : Ripple Current (Arms) R : ESR (Ω)

ΔT : Fevering Temp. at Outside Wall of Capacitor (°C) ΔTc : Fevering Temp. at Inside of Capacitor (°C)

110

β : Heat Radiation coefficient (W/ °C×cm S : Surface Area of Aluminum Case(cm α : Ratio of ΔTc/ ΔT

Current (Arms)

= 2×log I + A

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

)

Page 55

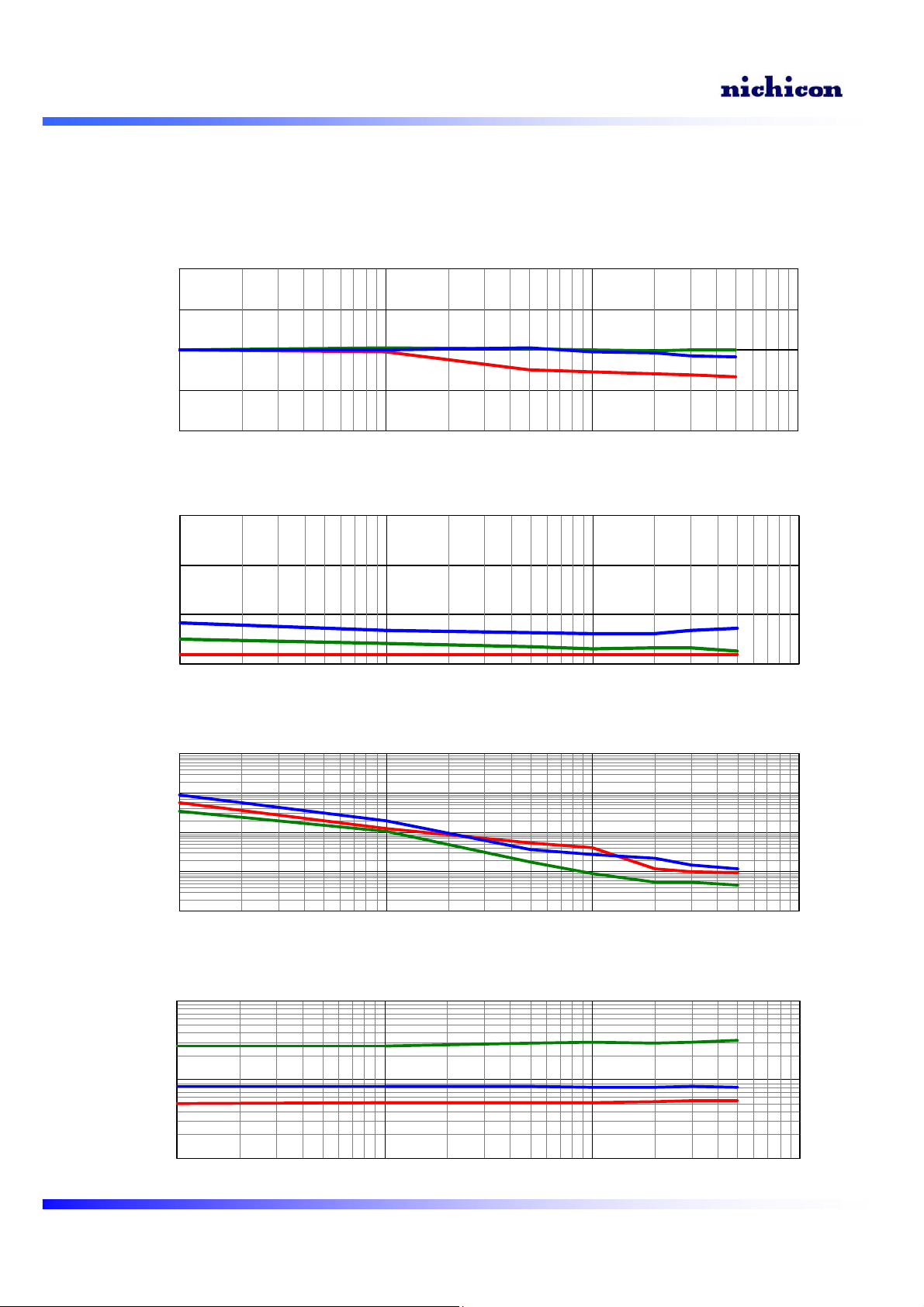

Technical Guide

Reliability at 105°C

High-temperature lode

Relative (%)

Change of Capacitance

-10

-20 10 100 1000 10000

NS series 6.3V 47µF (φ6.3×7L)

L8 series 2.5V 560µF (φ 8×8L)

NS series 4.0V 1200µF (φ10×12.5L)

Duration (H)

0.15

Change of Tangent of Loss Angle

0.1

0.05

Absolute (tanδ)

10 100 1000 10000

1000

100

Absolute (μ A)

0.1

Change of Leakage Current

10 100 1000 10000

Duration (H)

Change of Equivalent Series Resistance

100

Absolute (mΩ)

10 100 1000 10000

Duration (H)

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Page 56

Estimating of Lifetime

Functional Polymer Aluminum Solid Electrolytic Capacitors

Calculation Formula of Lifetime

For

In general, calculation formula of lifetime of capacitors is appeared as follows. The calculation formula of lifetime on FPCAP is same as usual Aluminum capacitor.

(T0-TX)

X=L0

Where,

LX(Hrs) =Life expectance in actual use L0 (Hrs) =Life time T0(105°C) =Maximum operating temperature (105°C)

TX(°C) =Temperature of capacitor in actual use

×10

/20

On the other hand, temperature Tx adds the circumference temperature T as the capacitor temperature and the generating temperature ΔT by ripple current.

TX=T+ΔT

T (°C) = Ambient temperature ΔT (°C) = generating temperature

Furthermore, the generating temperature ΔT by the ripple current is proportional to ripple current, and is shown by the following formula.

ΔT = ( I / I0) 2×ΔT

I (A rms) = Ripple current in actual use I0(A rms)= Maximum permissible ripple current

ΔT0(°C) = Generated temperature value by maximum permissible ripple current

[About 20 (°C) ]

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Page 57

Application Guide

Functional Polymer Aluminum Solid Electrolytic Capacitors

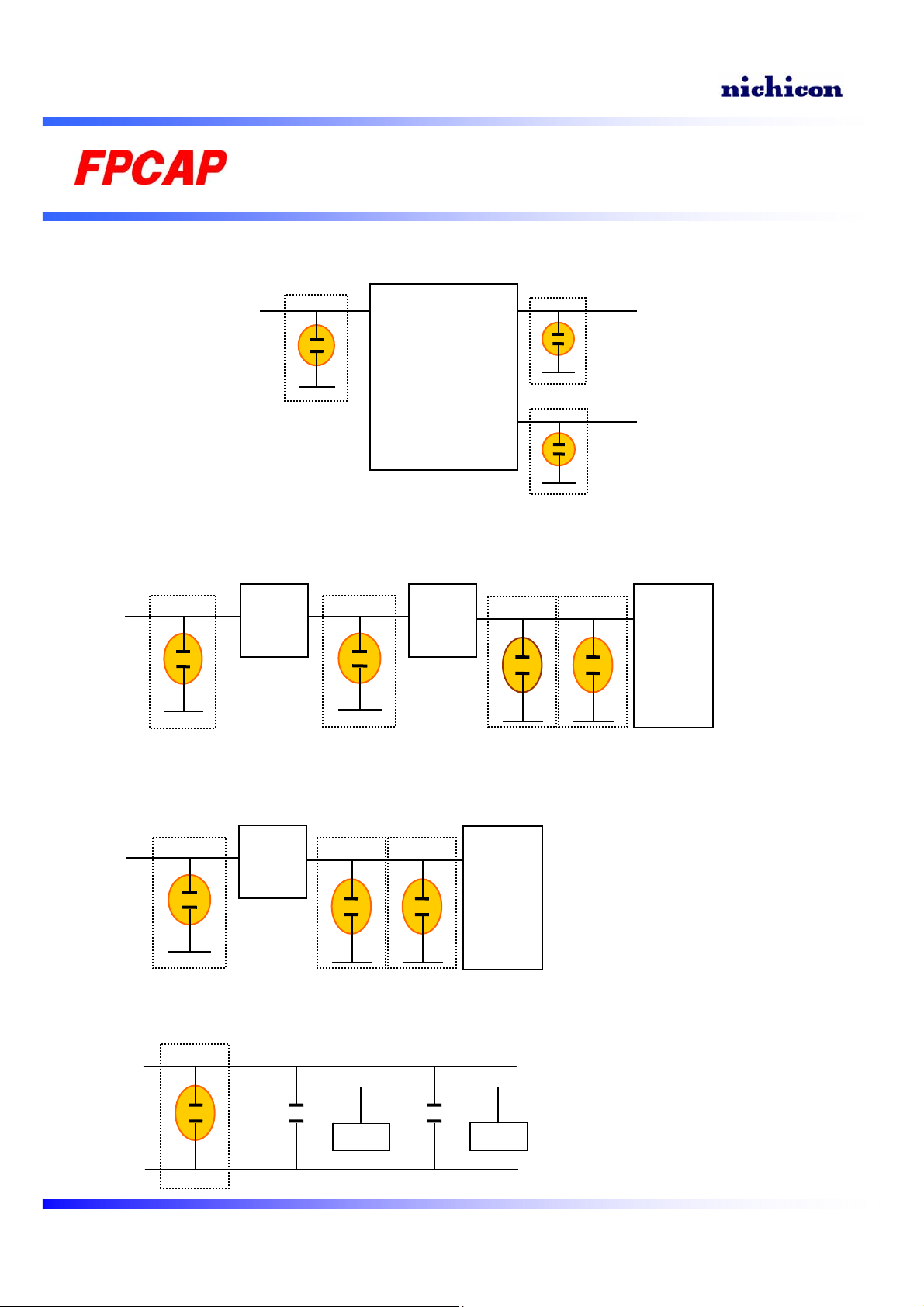

DC/DC Converter Primary, Secondary Side Smoothing

Input side Output side

For Primary

Side Smoothing

+3.3V CIRCUIT

+5V CIRCUIT

FPCAP 6.3V

FPCAP 10∼6.3V

3.3V

For Secondary Side Smoothing

Back-up Capacitor for Variable Load (1)

12V

3.3∼5V

1.6∼1.8V

CPU

FPCAP 16V FPCAP 6.3V

Back-up Capacitor for Variable Load (2)

3.3∼5V

1.6∼1.8V

CPU

FPCAP 6.3V

Noise Filters

FPCAP 2.5∼4V

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Page 58

Application Guide

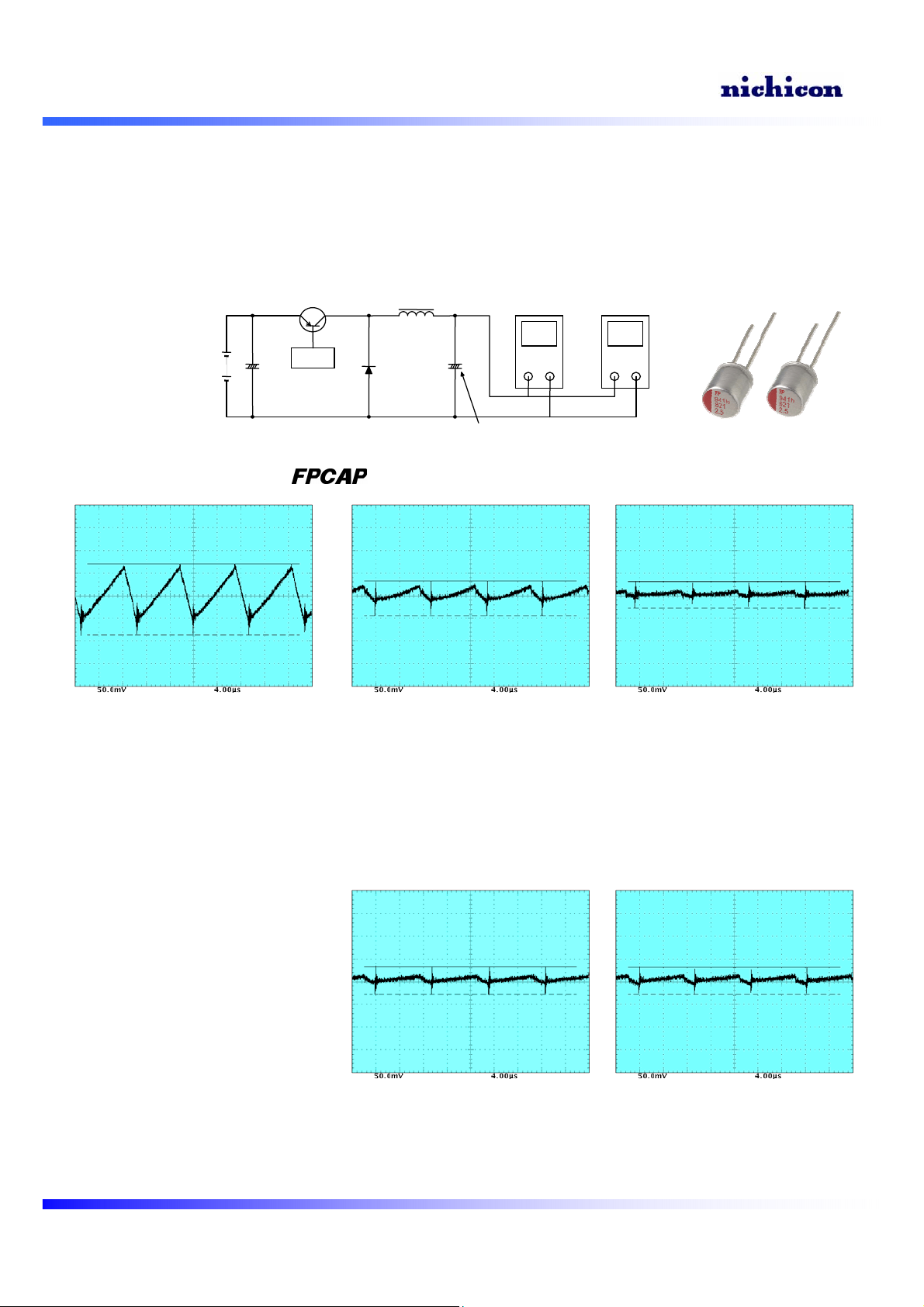

Ripple Removal Capability

We measured ripple voltage by oscilloscope for output capacitor change on the typical chopper type DC-DC converter. (described below)

Electronic Load

IN=

12V

f=100kHzVOUT=5V, IOUT=0.5A

SW ICV

Specimen

Oscilloscope

Comparison Between and Other Capacitors with Same Capacitance

Low Impedance Aluminum Capacitor 16V100uF (φ6.3x11L) ΔV=156mV

Low ESR Tantalum Capacitor 16V100uF (7.3x4.3x2.9) ΔV=76mV

FPCAP

16V100uF (φ8x11.5L) ΔV=58mV

Examination of Same Level Residual Ripple Voltage

To obtain same level of ripple voltage to FPCAP, Low Impedance Aluminum capacitor needs 16V3300uF, even Low ESR tantalum capacitor needs 4 pcs. of same capacitance.

Low Impedance Aluminum Capacitor 16V3300uF (φ16x25L) ΔV=60mV

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Low ESR Tantalum Capacitor 16V100uF (7.3x4.3x2.9) X4 pcs. ΔV=59mV

Page 59

Application Guide

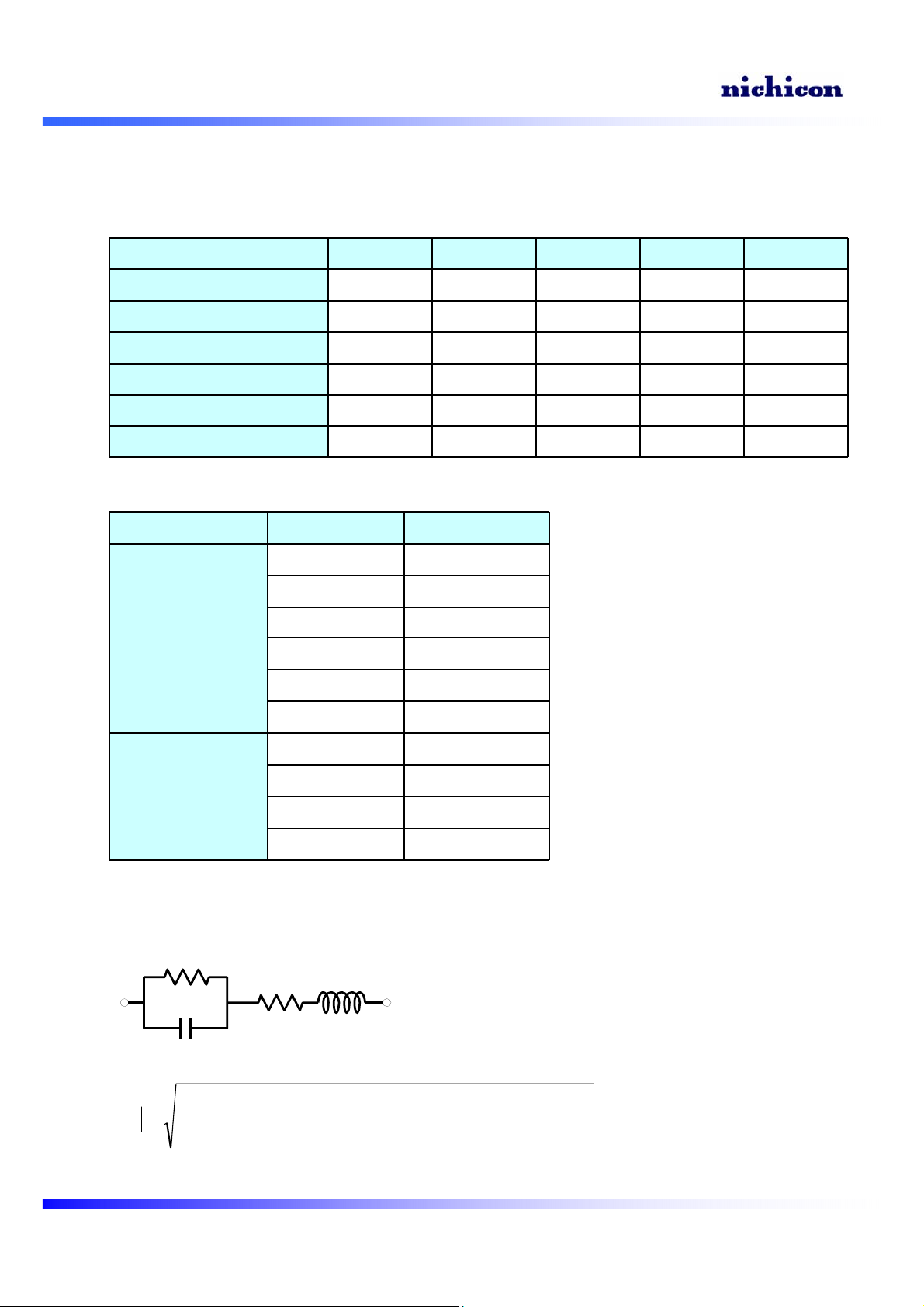

Spice Model for Simulation Circuits with Computer

Spice Model of

Part Number

RL80E821MDN1 820 4.2 2.9 100 25

RL80G561MDN1 560 4.2 2.9 100 40

RL80J561MDN1 560 5.0 2.9 100 63

RS80E331MDN1 330 5.3 2.0 30 83

RS80E471MDN1 470 5.3 2.0 50 50

RS80E561MDN1 560 5.3 2.0 100 25

Radial lead type

Cp (μF) Rs (mΩ)

Typical ESL by Case Size

Classification Case Size (mm) ESL (nH,40MHz)

6.3×8L (S8)

6.3×10L

φ8×

8L (L8)

Radial lead type

φ8×

11.5L

(L8 and S8 Series)

L (nH)

1.8 to 2.2

2.8 to 3.0

2.7 to 3.1

3.9 to 4.1

LC (μA) Rp (kΩ)

4.6 to 4.9

5.4 to 5.6

1.0 to 1.2

2.5 to 2.7

3.1 to 3.3

4.5 to 4.7

SMD type

φ8×

11.5L (R7)

φ10×

12.5L

φ4×

5.2L

6.3×5.7L

φ8×

11.7L

φ10×

12.4L

Equivalent Circuit of Capacitor

⎧

⎫ ⎬

222

RpCp1

⎭

⎨ ⎩

⎧ ⎨ ⎩

RsZ

()()

ω+

* It is available to present the spice model of other parts for customers.

Cp : Capacitance Rp : Equivalent Parallel Resistance

(Insulation resistance) ( ≅Rated Voltage/LC)

Rs : Equivalent Series Resistance L : Inductance

CpRp

−ω+ ω+

⎫ ⎬

222

RpCp1

⎭

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.

Page 60

http://www.nichicon.co.jp/ http://www.nichicon.com

HEAD OFFICE

Karasumadori Oike-agaru, Nakagyo-ku, Kyoto, 604-0845 Japan TEL.81-75-231-8461 FAX.81-75-256-4158

TOKYO SALES OFFICE

5-5, 2-chome, Hamamatsu-cho, Minato-ku, Tokyo, 105-0013 Japan TEL.81-3-5473-5611 FAX.81-3-5473-5651

NAGOYA SALES OFFICE

18F Nishiki-Park Bldg. 4-3, Nishiki 2-chome, Naka-ku, Nagoya, 460-0003 Japan TEL.81-52-223-5581 FAX.81-52-220-1839

WEST JAPAN SALES OFFICE

Karasumadori Oike-agaru, Nakagyo-ku, Kyoto, 604-0845 Japan TEL.81-75-241-5370 FAX.81-75-231-8467

FPCAP ELECTRONICS (SUZHOU) CO., LTD.

http://www.fpcap.jp

112 Sutong Road, Suzhou Industrial Park, Jiangsu, China 215021 TEL.86-512-6761-2423 FAX.86-512-6761-7076

• TO USE NICHICON PRODUCT CORRECTLY AND SAFETY, PLEASE READ ”APPLICATION GUIDELINES” VERY CAREFULLY.

• THE PRODUCTS ARE DESIGNED AND MANUFACTURED CHIEFLY FOR GENERAL ELECTRONIC APPLIANCES. IN CASE THAT YOU ARE GOING TO APPLY THEM FOR MEDICAL EQUIPMENT,

CAUTION FOR SAFETY

AIRCRAFT / SPACE EQUIPMENT, OR THE SAME KIND THAT REQUIRES HIGH SAFETY, YOU ARE REQUESTED TO CONFIRM THEIR ADAPTATION BEFORE THE USE.

• PRIOR TO ORDERING A PRODUCT, PLEASE OBTAIN A COPY OF SPECIFICATION FROM NICHICON AND USE THE SPECIFICATION AS A BASIS WHEN DESIGNING EQUIPMENT AND INCORPORATING OUR PRODUCT. NICHICON ADMITS NO LIABILITY FOR EQUIPMENT PROBLEMS DUE TO THE LACK OF PRODUCT SPECIFICATIONS BEING CONFIRMED. ALSO, PLEASE BE SURE TO PERFORM ALL NECESSARY UNIT LEVEL EVALUATION TESTING TO AVOID MALFUNCTIONS THAT COULD BE UNFORESEEABLE DURING COMPONENT LEVEL TESTING ALONE.

NICHICON (AMERICA) CORP.

927 East State Parkway, Schaumburg, Illinois 60173, U.S.A. TEL.1-847-843-7500 FAX.1-847-843-2798

NICHICON (AUSTRIA) GmbH

Businesspark Marximum, Modecenterstrasse 17, Unit 2-7-A, 1110 Vienna, Austria TEL.43-1-706-7932 FAX.43-1-706-7933

•U.K.OFFICE

Coliseum Business Centre, Riverside Way, Camberley, Surrey GU15 3YL, United Kingdom TEL.44-1276-685393 FAX.44-1276-686531

NICHICON (HONG KONG) LTD.

Unit 308, Harbour Centre Tower 1, 1 Hok Cheung Street, Hunghom, Kowloon, Hong Kong TEL.852-2363-4331 FAX.852-2764-1867

NICHICON (SINGAPORE) PTE. LTD.

20 Jalan Afifi, #06-08, Certis CISCO Centre Ⅱ, Singapore 409179 TEL.65-6481-5641 FAX.65-6481-6485

NICHICON (THAILAND) CO., LTD.

Empire Tower 15th Floor, Unit 1506, Tower 3, 195 South Sathorn Road, Yannawa, Bangkok 10120, Thailand TEL.66-2-670-0150 FAX.66-2-670-0153

NICHICON (TAIWAN) CO., LTD.

16F-12, No.6, Sec.4, Hsin-Yi Rd., Taipei, Taiwan TEL.886-2-2708-0200 FAX.886-2-2708-0959

NICHICON ELECTRONICS TRADING (SHANGHAI) CO., LTD.

Room 1206, Aetna Tower, 107 Zunyi Road, Shanghai, China 200051 TEL. 86-21-6237-5538 FAX. 86-21-6237-5537

•DALIAN REPRESENTATIVE OFFICE

12F Senmao Building, 147 Zhongshan Road, Xigang District, Dalian, China 116011 TEL.86-411-3989-3322 FAX.86-411-3989-3168

NICHICON ELECTRONICS TRADING (SHENZHEN) CO., LTD.

Room 2709, 27/F, Excellence Times Square Bldg. No.4068, Yi Tian Road, Futian District, Shenzhen, China 518048 TEL.86-755-8294-5715 FAX.86-755-8294-5716

•CHONGQING BRANCH

Room 2812, 28/F, International Trade Center (Part A), No.38, Qing Nian Road, Yuzhong District, Chongqing, China 400010 TEL.86-23-6310-8166 FAX.86-23-6310-8308

•CHENGDU BRANCH

Room 1408, 14/F, Hailrun Complex (Part A), No.216, Xi Dong Da Street, Jinjiang District, Chengdu, Sichuan, China 610021 TEL.86-28-6212-9507 FAX.86-28-6212-9513

NICHICON (MALAYSIA) SDN. BHD.

No.4 Jalan P/10, Kawasan Perusahaan Bangi, 43650 Bandar Baru Bangi, Selangor Darul Ehsan, Malaysia TEL.60-3-8925-0678 FAX.60-3-8925-0858

NICHICON ELECTRONICS (WUXI) CO., LTD.

Block 51-B, Wuxi National High & New Technology Industrial Development Zone, Wuxi, Jiangsu, China 214028 TEL.86-510-8521-8222 FAX.86-510-8522-1170

NICHICON ELECTRONICS (TIANJIN) CO., LTD.

No.4 Xinghua Road, Xiqing Economic Development Zone, Tianjin, China 300381 TEL.86-22-8396-8930 FAX.86-22-8396-8931

z SPECIFICATION AND DIMENSIONS IN THIS CATALOG ARE SUBJECT TO CHANGE WITHOUT NOTICE. IF NECESSARY, DRAWINGS CAN BE PROVIDED.

NOTE:

z IN CASE THAT THERE IS A CERTAIN DANGER OF THE PRODUCTS CONFLICTING WITH THE USE AND ACTIVITY FOR THE DEVELOPMENTS OF

WEAPONS OF MASS DESTRUCTION, THE PROCEDURES BASED UPON THE RELEVANT EXPORT REGULATIONLAWS ARE ABSOLUTELY NEEDED.

z THE PRODUCTS AND THEIR PACKAGES DO NOT CONTAIN ANY OZONE DEPLETING SUBSTANCES (ODS) UNDER THE MONTREAL PROTOCOL. AND

ODS IN NOT USED IN THEIR MANUFACTURING PROCESSES, TOO.

z OTHER THAN THE EXPRESS WRITTEN SPECIFICATIONS CONTAINED IN NICHICON'S CATALOG OR OTHER NICHICON LITERATURE. NICHICON MAKES

NO WARRANTY, EXPRESS, IMPLIED, OR OTHERWISE, INCONNECTION WITH THESE PRODUCTS, AND ALL IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PRODUCT,ARE DISCLAIMED. NICHICON SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.CUSTOMER'S SOLE REMEDY IN THE EVENT THAT NICHICON'S SPECIFICATIONS ARE NOT MET IS TO REPAIR, REPLACE,OR REFUND THE PURCHASE PRICE OF THE SUBJECT PRODUCT, AT NICHICON'S OPTION

z CATALOG PRINTED IN DECEMBER. 1, 2011
