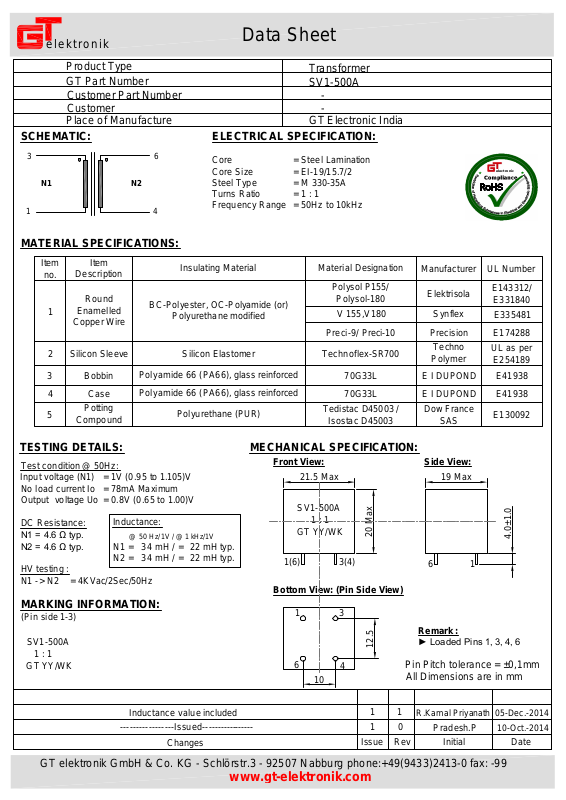

Page 1
elektronik
www.gt-elektronik.com
electronic
05-Dec.-2014
Data Sheet
Product Type
GT Part Number
Customer Part Number
Customer
Place of Manufacture
SCHEMATIC:
3
N1
1
N2
ELECTRICAL SPECIFICATION:
6
4
Core = Steel Lamination
Core Size = EI-19/15.7/2
Steel Type = M 330-35A
Turns Ratio = 1 : 1
Frequency Range = 50Hz to 10kHz
Transformer
SV1-500A
-
-
GT Electronic India
MATERIAL SPECIFICATIONS:
Item
no.
1
2 Silicon Sleeve Silicon Elastomer Technoflex-SR700
3 Bobbin
Item
Description
Round
Enamelled
Copper Wire
Insulating Material Material Designation
BC-Polyester, OC-Polyamide (or)
Polyurethane modified
Polyamide 66 (PA66), glass reinforced
Polysol P155/
Polysol-180
V 155,V180
Preci-9/ Preci-10 Precision E174288
Manufacturer UL Number
Elektrisola
Synflex
Techno
Polymer
70G33L E I DUPOND E41938
E143312/
E331840
E335481
UL as per
E254189
4 Case
5
Potting
Compound
Polyamide 66 (PA66), glass reinforced
Polyurethane (PUR)
TESTING DETAILS:
Test condition @ 50Hz:
Input voltage (N1) = 1V (0.95 to 1.105)V
No load current Io = 78mA Maximum
Output voltage Uo = 0.8V (0.65 to 1.00)V
DC Resistance:
N1 = 4.6 Ω typ.
N2 = 4.6 Ω typ.
HV testing :
N1 -> N2 = 4KVac/2Sec/50Hz
Inductance:
@ 50 Hz/1V / @ 1 kHz/1V
N1 = 34 mH / = 22 mH typ.
N2 = 34 mH / = 22 mH typ.
MARKING INFORMATION:
(Pin side 1-3)
SV1-500A
1 : 1
GT YY/WK
70G33L E I DUPOND
Tedistac D45003 /
Isostac D45003
MECHANICAL SPECIFICATION:
Front View: Side View:
21.5 Max 19 Max
SV1-500A
1 : 1
GT YY/WK
3(4)1(6)
Bottom View: (Pin Side View)
31
6
4
10
20 Max
12.5
Pin Pitch tolerance = ±0,1mm
All Dimensions are in mm
E41938
Dow France
SAS
Remark :
► Loaded Pins 1, 3, 4, 6
E130092
4.0±1.0
16
Inductance value included
GT elektronik GmbH & Co. KG - Schlörstr.3 - 92507 Nabburg phone:+49(9433)2413-0 fax: -99
Changes
11
01-----------------Issued-----------------
Issue Rev
R.Kamal Priyanath
Pradesh.P 10-Oct.-2014
Initial Date
