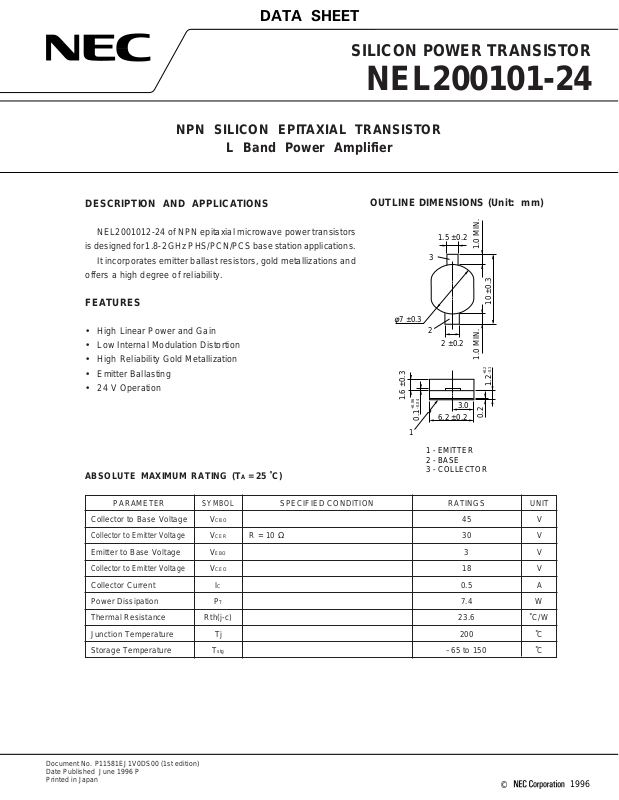

Page 1
DATA SHEET
1.5 ±0.2
7 ±0.3
φ
1.0 MIN.
10 ±0.3
3
2
2 ±0.2
1.0 MIN.
1.2
+0.2
–0.1
0.2
1.6 ±0.3
0.1
+0.06
–0.04
3.0
6.2 ±0.2
1 - EMITTER
2 - BASE
3 - COLLECTOR
1
SILICON POWER TRANSISTOR
NEL200101-24
NPN SILICON EPITAXIAL TRANSISTOR
L Band Power Amplifier
DESCRIPTION AND APPLICATIONS
NEL2001012-24 of NPN epitaxial microwave power transistors
is designed for 1.8-2 GHz PHS/PCN/PCS base station applications.
It incorporates emitter ballast resistors, gold metallizations and
offers a high degree of reliability.
FEATURES
• High Linear Power and Gain
• Low Internal Modulation Distortion
• High Reliability Gold Metallization
• Emitter Ballasting
• 24 V Operation
ABSOLUTE MAXIMUM RATING (TA = 25 ˚C)
OUTLINE DIMENSIONS (Unit: mm)
PARAMETER
Collector to Base Voltage VCBO 45 V
Collector to Emitter Voltage
Emitter to Base Voltage VEBO 3V
Document No. P11581EJ1V0DS00 (1st edition)
Date Published June 1996 P
Printed in Japan
Collector to Emitter Voltage
Collector Current IC 0.5 A
Power Dissipation PT 7.4 W
Thermal Resistance Rth(j-c) 23.6 ˚C/W
Junction Temperature Tj 200 ˚C
Storage Temperature Tstg –65 to 150 ˚C
SYMBOL
VCER R = 10 Ω 30 V
VCEO 18 V
SPECIFIED CONDITION RATINGS UNIT
©
1996
Page 2
ELECTRICAL CHARACTERISTICS (TA = 25 ˚C)
NEL200101-24
PARAMETER
Collector to Emitter Cutoff ICES VCE = 24 V 1 mA
Current
Collector to Emitter Voltage
(Base to Emitter Registor = 10 Ω)
Collector to Emitter Voltage
(Open Base)
Collector to Base Voltage VCBO IC = 1 mA 45 85 V
(Open Emitter)
Emitter to Base Voltage VEBO IC = 3 mA 3 4.4 V
(Open Collector)
DC Forward Current Gain hFE VCE = 5 V, IC = 0.1 A 30 100 150
Output Capacitance Cob VCE = 24 V, f = 1 MHz 3 pF
SYMBOL
VCER IC = 1 mA, R = 10 Ω 30 85 V
VCEO IC = 1 mA 18 22 V
SPECIFIED CONDITION MIN. TYP. MAX. UNIT
2
Page 3
NEL200101-24
PERFORMANCE SPECIFICATIONS (TA = 25 ˚C)
CLASS AB OPERATION
PARAMETER SYMBOL SPECIFIED CONDITION MIN. TYP. MAX. UNIT
Output Power PIdB f = 1.97 GHz, Iq = 20 mA, 2.5 W
VCC = 24 V, CLASS AB
Collector Efficiency
Linear Gain GL f = 1.97 GHz, Pin = 0.04 W, Iq = 20 mA, 8.8 dB
3rd Order Intermodulation IM3 f = 1.97 GHz, ∆f = 100 kHz, 2 W PEP, –33 dBc
CLASS A OPERATION
PARAMETER SYMBOL SPECIFIED CONDITION MIN. TYP. MAX. UNIT
Output Power PIdB f = 1.97 GHz, Iq = 100 mA, 0.5 0.7 W
Collector Efficiency
Linear Gain GL f = 1.97 GHz, Pin = 0.01 W, Iq = 100 mA, 10.8 dB
3rd Order Intermodulation IM3 f = 1.97 GHz, ∆f = 100 kHz, 0.5 W PEP, –36 dBc
η
c f = 1.97 GHz, Pout = PIdB, Iq = 20 mA, 54 %
VCC = 24 V, CLASS AB
VCC = 24 V, CLASS AB
VCC = 24 V, Iq = 20 mA, CLASS AB
VCC = 20 V, CLASS A
η
c f = 1.97 GHz, Pout = PIdB, Iq = 100 mA, 30 %
VCC = 20 V, CLASS A
VCC = 20 V, CLASS A
VCC = 20 V, Iq = 100 mA, CLASS A
3
Page 4
Gain (dB)
11
NEL200101-24
f = 1970 MHz
10
9
8
7
0.5 W
1.0 W
20 24 28 32 36
–25
Class AB, Vcc = 24 V
I
Class A, V
I
60
η
c
(%)
50
40
30
20
P
out
(dBm)
f1 = 1970 MHz
f2 = 1970.1 MHz
Class AB, V
I
q
= 20 mA
cc
= 20 V
q
= 100 mA
cc
= 24 V
q
= 20 mA
–30
–35
–40
IM (dBc)
–45
–50
–55
cc
IM
3
IM
5
IM
7
Class A, V
I
= 20 V
q
= 100 mA
–60
20 24 28 32 36
P
out
(dBm) ··· PEP
40
4
Page 5
S-PARAMETER
NEL2001 Class A
V
CC = 20 V, Icq = 0.1 A
NEL200101-24
FREQUENCY
GHz MAG ANG (DEG) MAG ANG (DEG) MAG ANG (DEG) MAG ANG (DEG)
1.70 0.75 130 0.07 –7 2.08 18 0.41 –155
1.71 0.75 129 0.07 –6 2.07 18 0.41 –155
1.72 0.74 129 0.07 –6 2.06 18 0.42 –156
1.73 0.74 128 0.08 –7 2.05 17 0.42 –156
1.74 0.74 128 0.08 –7 2.04 16 0.42 –156
1.75 0.74 127 0.08 –7 2.02 16 0.42 –156
1.76 0.74 127 0.08 –6 2.01 16 0.42 –156
1.77 0.74 127 0.08 –7 2.00 15 0.42 –156
1.78 0.74 126 0.08 –7 1.99 15 0.42 –157
1.79 0.74 126 0.08 –8 1.98 14 0.42 –157
1.80 0.74 125 0.08 –8 1.97 14 0.43 –157
1.81 0.74 125 0.07 –9 1.95 13 0.43 –157
1.82 0.74 124 0.07 –10 1.94 13 0.43 –158
1.83 0.74 124 0.08 –7 1.93 12 0.43 –158
1.84 0.74 124 0.08 –6 1.93 12 0.43 –158
1.85 0.75 124 0.08 –6 1.92 12 0.43 –158
1.86 0.75 123 0.08 –8 1.91 11 0.43 –158
1.87 0.75 122 0.08 –9 1.89 10 0.43 –159
1.88 0.75 122 0.08 –9 1.88 10 0.43 –159
1.89 0.75 122 0.08 –10 1.87 10 0.43 –159
1.90 0.75 121 0.08 –9 1.86 9 0.43 –159
1.91 0.75 121 0.08 –9 1.86 9 0.43 –159
1.92 0.75 120 0.08 –10 1.85 8 0.44 –159
1.93 0.75 120 0.08 –10 1.84 8 0.44 –160
1.94 0.75 119 0.08 –10 1.83 8 0.44 –160
1.95 0.75 119 0.08 –10 1.81 7 0.44 –160
1.96 0.75 119 0.08 –10 1.80 7 0.44 –161
1.97 0.75 118 0.08 –9 1.80 7 0.44 –161
1.98 0.75 118 0.08 –9 1.80 6 0.44 –161
1.99 0.75 118 0.08 –10 1.80 6 0.44 –161
2.00 0.75 117 0.08 –11 1.80 5 0.45 –161
S11 S12 S21 S22
NEL2001 Class AB
VCC = 24 V, Icq = 0.02 A
FREQUENCY
GHz MAG ANG (DEG) MAG ANG (DEG) MAG ANG (DEG) MAG ANG (DEG)
1.70 0.78 131 0.07 –11 1.56 9 0.53 –132
1.71 0.78 130 0.06 –11 1.53 9 0.53 –132
1.72 0.78 130 0.06 –11 1.51 9 0.53 –133
1.73 0.78 130 0.07 –10 1.51 8 0.53 –133
1.74 0.77 129 0.07 –11 1.52 8 0.53 –133
1.75 0.77 129 0.07 –11 1.51 7 0.53 –134
1.76 0.77 128 0.07 –11 1.50 6 0.53 –134
1.77 0.77 128 0.06 –11 1.48 6 0.54 –134
1.78 0.77 128 0.06 –11 1.46 6 0.54 –135
1.79 0.77 127 0.06 –11 1.46 5 0.54 –135
1.80 0.77 127 0.06 –11 1.46 5 0.54 –135
1.81 0.78 127 0.07 –13 1.46 4 0.54 –135
1.82 0.78 126 0.07 –14 1.45 3 0.55 –136
1.83 0.78 126 0.07 –14 1.43 3 0.55 –136
1.84 0.77 125 0.07 –13 1.41 3 0.55 –137
1.85 0.77 125 0.07 –13 1.41 2 0.55 –137
1.86 0.78 124 0.07 –12 1.41 2 0.55 –137
1.87 0.78 124 0.07 –12 1.41 1 0.55 –138
1.88 0.78 123 0.07 –12 1.40 0 0.55 –138
1.89 0.78 123 0.07 –12 1.38 0 0.55 –138
1.90 0.78 122 0.07 –12 1.37 0 0.55 –139
1.91 0.78 122 0.07 –12 1.36 0 0.56 –139
1.92 0.78 121 0.07 –13 1.37 –1 0.56 –139
1.93 0.78 121 0.07 –13 1.37 –2 0.56 –140
1.94 0.78 121 0.07 –13 1.35 –2 0.56 –140
1.95 0.78 120 0.07 –13 1.34 –3 0.56 –140
1.96 0.78 120 0.07 –12 1.32 –3 0.56 –141
1.97 0.78 120 0.07 –12 1.32 –3 0.56 –141
1.98 0.78 119 0.07 –12 1.32 –3 0.56 –141
1.99 0.78 119 0.07 –12 1.33 –4 0.57 –142
2.00 0.78 118 0.07 –12 1.34 –5 0.57 –142
S11 S12 S21 S22
5
Page 6

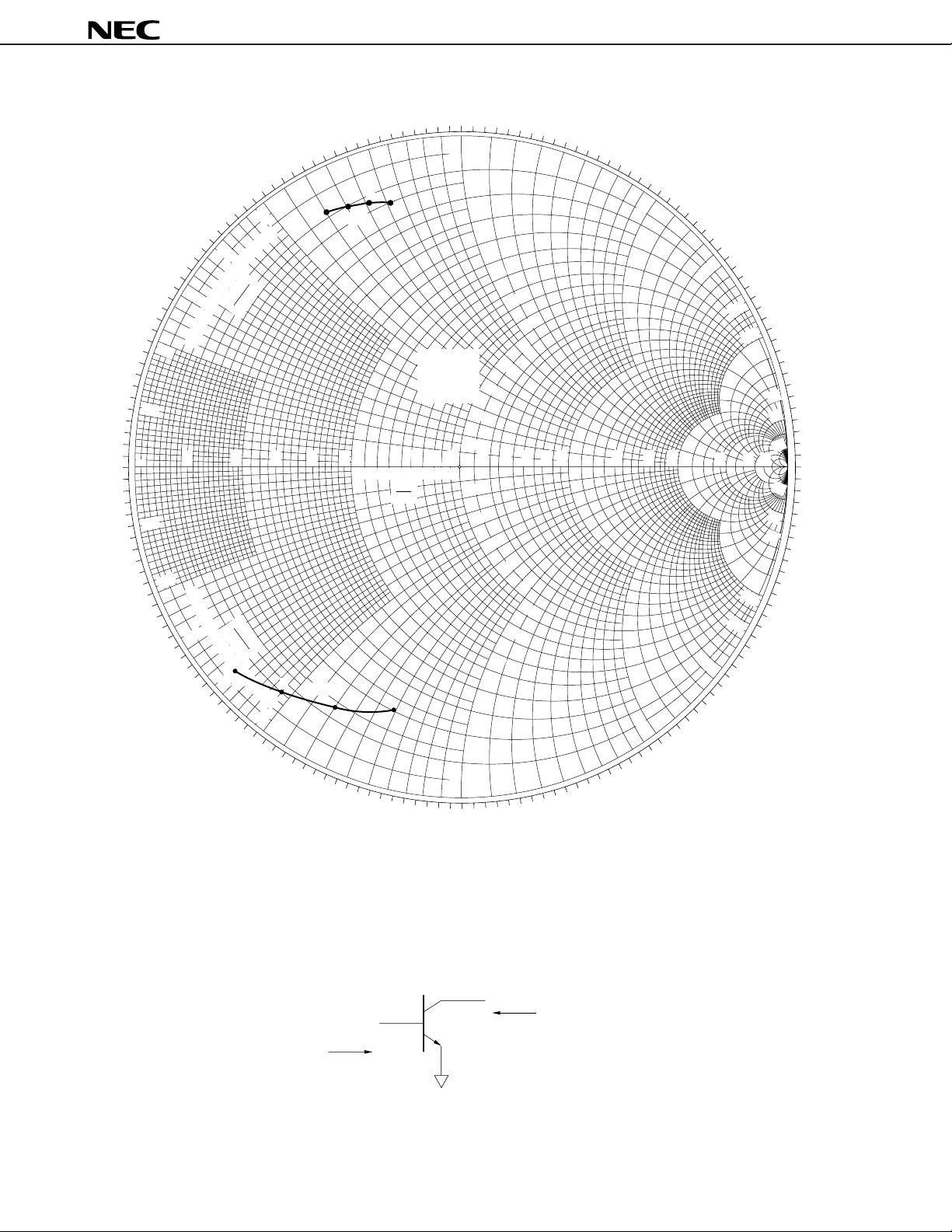

NEL200101-24 Zin/Zout
0.3
E
R
E
V
I
T
I
S
O
P
0.2
0.1
0.1
0.1
0.2
T
N
E
N
O
P
M
O
0.3
NEL200101-24
1.0
0.9
0.8
0.7
0.6
0.5
T
N
E
N
O
0.4
P
M
O
C
E
C
N
A
T
C
+JX
A
Zo
0.2
0.3
0.4
C
E
Zo
C
N
–JX
A
T
C
A
E
R
E
V
I
T
A
0.5
2
Z
G
E
out
N
0.6
0.4
1
2
1
3
4
Z
in
1: 1.8 GHz
2: 1.9
3: 1.97
4: 2.0
0.500.6
3
0.7
0.7
4
0.8
Zo
0.8
R
0.9
RESISTANCE COMPONENT
0.9
1.0
0.2
1.0
0.2
0.4
0.4
0.2
0.4
1.2
0.6
0.2
0.6
0.4
0.6
0.8
0.6
1.2
0.8
1.4
0.8
1.2
1.0
1.0
0.8
1.0
1.6
1.0
1.8
1.4
1.4
2.0
1.6
1.6
1.8
3.0
1.8
2.0
4.0
2.0
5.0
3.0
3.0
10
4.0
5.0
4.0
20
10
20
50
50
50
20
10
5.0
ZO = 50 ohm
f [GHz]
1.80
1.90
1.97
2.00
Z
in
Zin [ohm]
8.7 + j38
6.3 + j36
5.4 + j33
4.7 + j30
Z
out
Z
out
[ohm]
2.2 – j19
4.1 – j24
6.4 – j30
10 – j37
6
Page 7

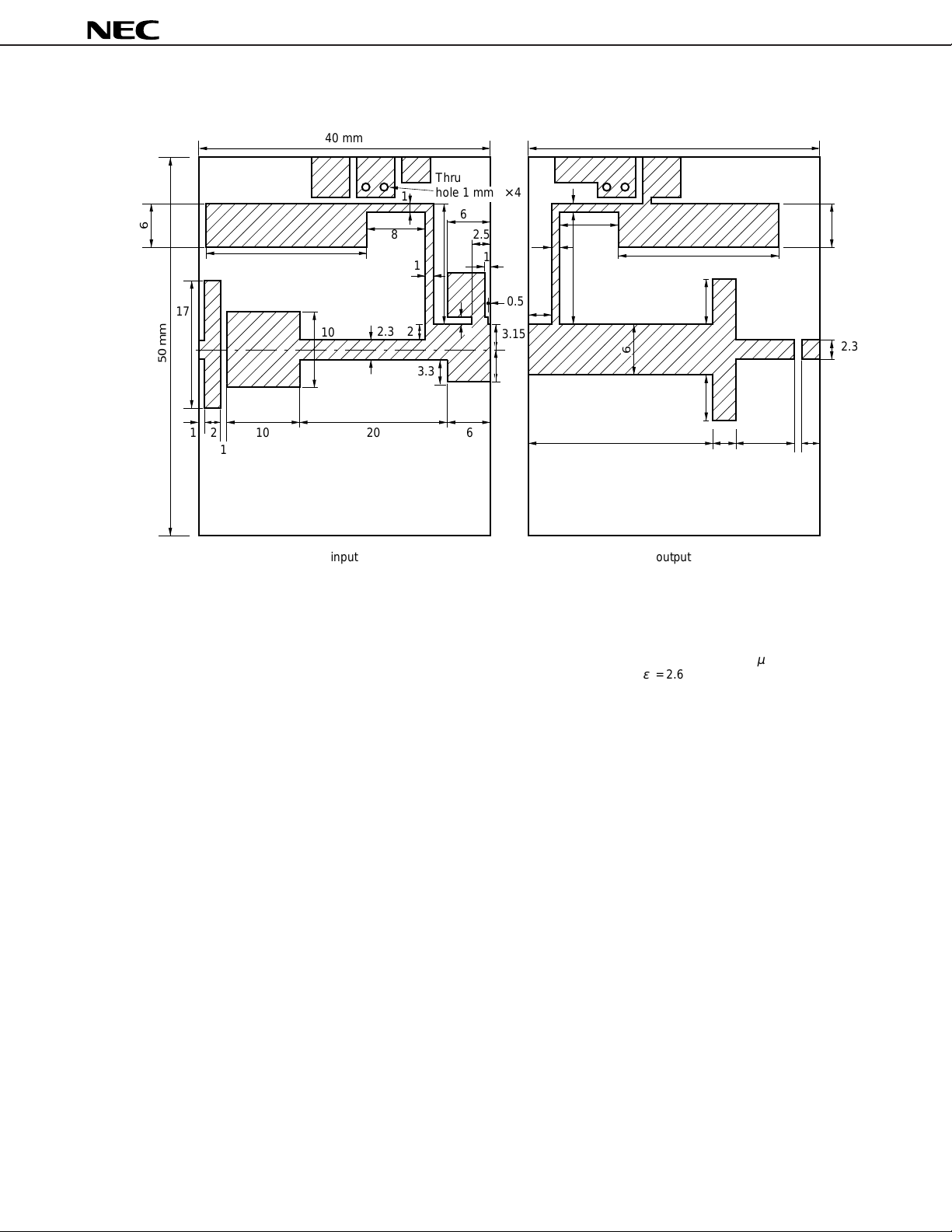

Circuit Drawing
NEL200101-24
6
17
50 mm
25
6
40 mm
22
7
7
38 3
1
6
6
2.3
40 mm
Thru
hole 1 mm × 4
1
8
22
10
10
21
1
20 6
input output
2.3
1
16
2
3.3
φ
6
2.5
1
0.5
1
3.15
4.15
1
8
1
15
3
SUBSTRATE (TEFLON)
DICLAD 522T
THICKNESS = 0.79 mm
DOUBLE SIDE 35 m Cu
ε
r = 2.6
®
µ
7
Page 8

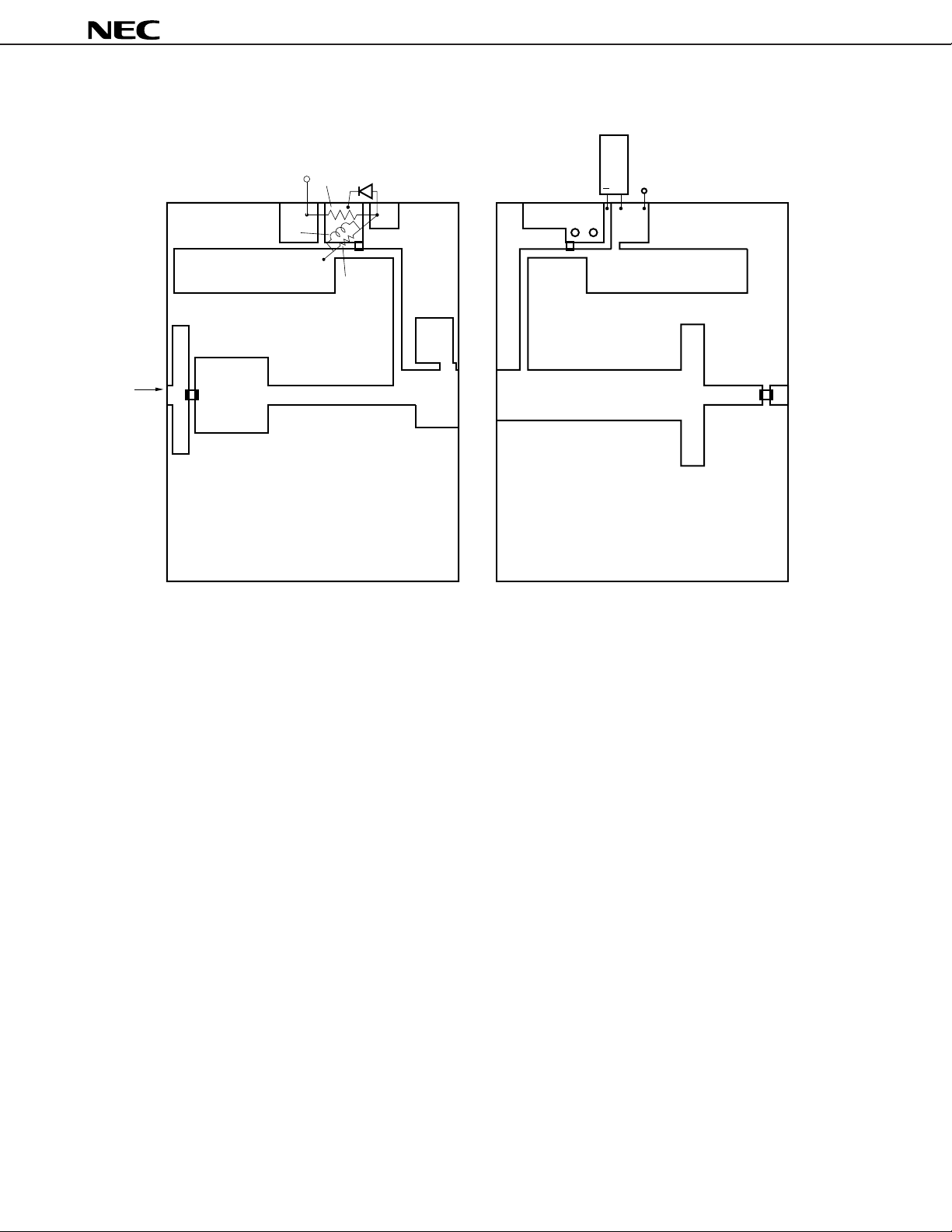

Components Layout
y
NEL200101-24
RF
input
C1
V
BB
L1
input output
R1
R2
D1
C2
C3
C4
CC
V
C5
R1:
5.1 Ω
R2:
30 Ω
L1:
5 mm 10T Coil
φ
D1:
1S2075
C1, C2, C3, C5: MURATA, 47 pF
C4:
22 F (50 V)
µ
Electrol
tic Capacitor
8
Page 9
APPLICATION
NEL200101-24

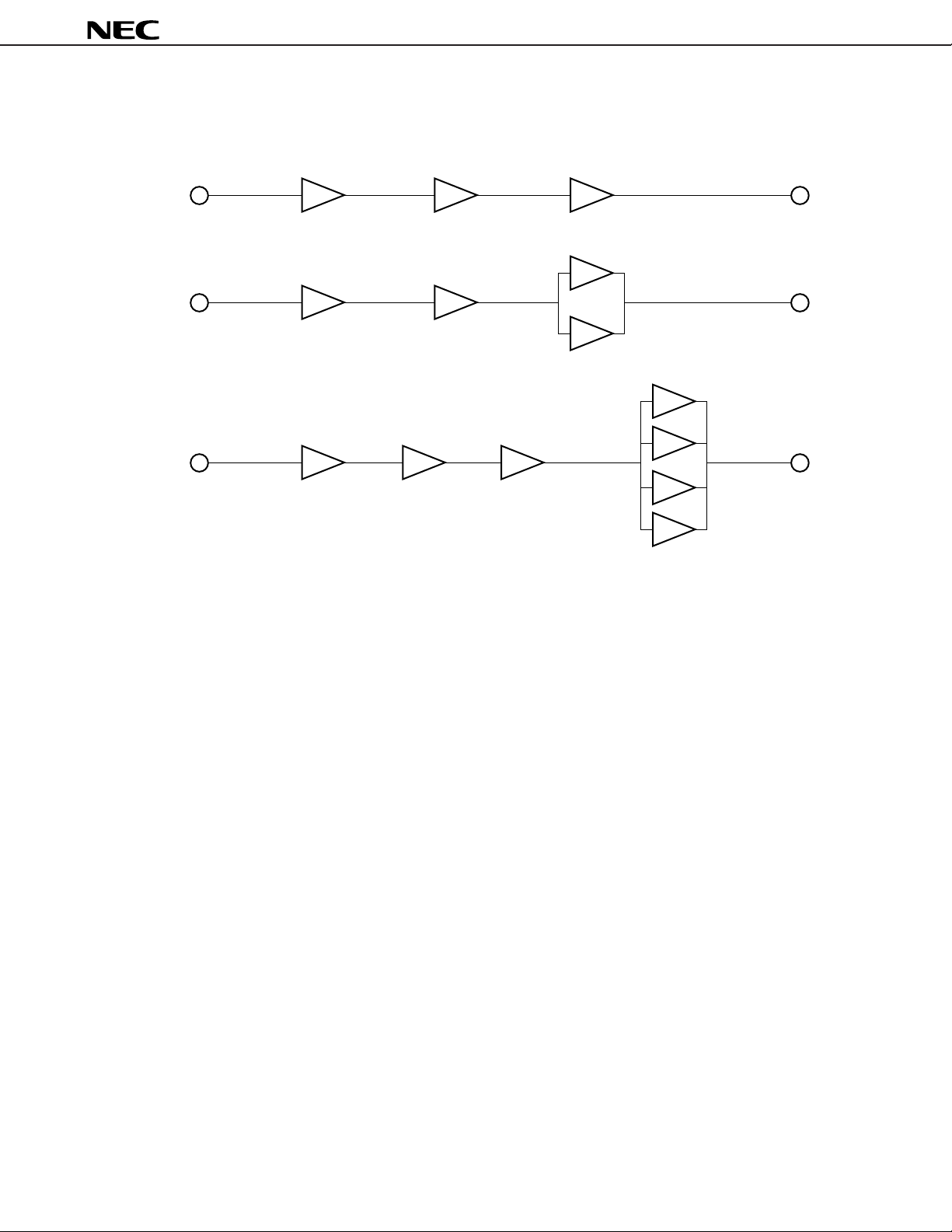

= Amplifier Diagrams =
46 mW
95 mW
40 mW
NEL2001 NEL2012 NEL2035
NEL2001
NEL2004
NEL2012
NEL2012 NEL2035
30 W
NEL2035 × 2
50 W
NEL2035 × 4
100 W
9
