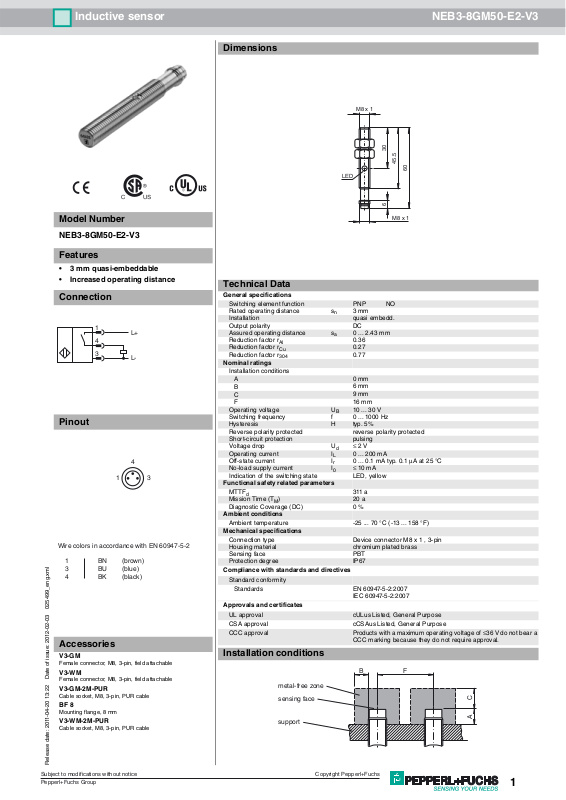

Inductive sensor NEB3-8GM50-E2-V3
Dimensions
M8 x 1
30
45.5
60
6
M8 x 1
CA
Model Number
NEB3-8GM50-E2-V3
Features
• 3 mm quasi-embeddable
• Increased operating distance
Connection
1
4
3
L+
L-
Pinout
4
13
Wire colors in accordance with EN 60947-5-2
1 BN
3 BU
4 BK
(brown)
(blue)
(black)
Accessories
V3-GM
Female connector, M8, 3-pin, field attachable
V3-WM
Female connector, M8, 3-pin, field attachable
V3-GM-2M-PUR
Cable socket, M8, 3-pin, PUR cabl e
BF 8
Mounting flange, 8 mm
V3-WM-2M-PUR
Cable socket, M8, 3-pin, PUR cabl e
LED
Technical Data
General specifications
Switching element function PNP NO
Rated operating distance s
Installation quasi embedd.
Output polarity DC
Assured operating distance sa0 ... 2.43 mm
Reduction factor r
Reduction factor rCu 0.27
Reduction factor r
Nominal ratings
Installation conditions
A
B
C
F
Operating voltage UB10 ... 30 V
Switching frequency f 0 ... 1000 Hz
Hysteresis H typ. 5%
Reverse polarity protected reverse polarity protected
Short-circuit protection pulsing
Voltage drop U
Operating current I
Off-state current I
No-load supply current I
Indication of the switching state LED, yellow
Functional safety related parameters
MTTFd 311 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Mechanical specifications
Connection type Device connector M8 x 1 , 3-pin
Housing material chromium plated brass
Sensing face PBT
Protection degree IP67
Compliance with standards and directives
Standard conformity
Standards
Approvals and certificates
UL approval cULus Listed, General Purpose
CSA approval cCSAus Listed, General Purpose
CCC approval Products with a maximum operating voltage of ≤36 V do not bear a
0.36
Al
0.77
304
3 mm
n
0 mm
6 mm
9 mm
16 mm
≤ 2 V
d
0 ... 200 mA
L
0 ... 0.1 mA typ. 0.1 µA at 25 °C
r
≤ 10 mA
0
EN 60947-5-2:2007
IEC 60947-5-2:2007
CCC marking because they do not require approval.
Installation conditions
B F
metal-free zone
sensing face
support
Release date: 2011-04-20 13:22 Date of issue: 2012-02-03 025499_eng.xml
Subject to modifications without notice
Pepperl+Fuchs Group
Copyright Pepperl+Fuchs
