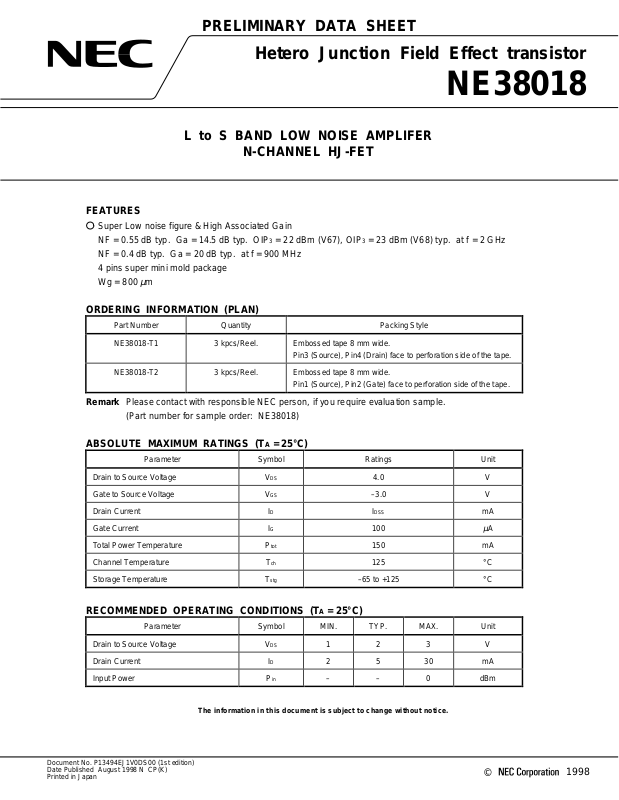

PRELIMI NARY DATA S HE ET
Hetero Juncti on Field Effect transistor
L to S BAND LOW NOISE AMPLIFER
N-CHANNEL HJ-FET
FEATURES
Super Low noise figure & High Associated Gain
NF = 0.55 dB typ. Ga = 14.5 dB typ. OIP
NF = 0.4 dB typ. Ga = 20 dB typ. at f = 900 MHz
4 pins super mini mold package
Wg = 800
µ
m
ORDERING INFORMATION (PLAN)
Part Number Quantity Packing Style
3
= 22 dBm (V67), OIP3 = 23 dBm (V68) typ. at f = 2 GHz
NE38018
NE38018-T1 3 kpcs/Reel. Embossed tape 8 mm wide.
Pin3 (Source), Pin4 (Drain) face to perforation side of the tape.
NE38018-T2 3 kpcs/Reel. Embossed tape 8 mm wide.
Pin1 (Source), Pin2 (Gate) face to perforation side of the tape.
Remark
Please contact with responsible NEC person, if you require evaluation sample.
(Part number for sam ple or der : NE38018)
ABSOLUTE MAXIMUM RATINGS (TA = 25°C)
Parameter Symbol Ratings Unit
Drain to Source Voltage V
Gate to Source Voltage V
Drain Current I
Gate Current I
Total Power Temperature P
Channel Temperature T
Storage Temperature T
DS
GS
D
G
tot
ch
stg
RECOMMENDED OPERATING CONDITIONS (TA = 25°C)
Parameter Symbol MIN. TYP. MAX. Unit
4.0 V
–3.0 V
DSS
I
100
150 mA
125 °C
–65 to +125 °C
mA
µ
A
Drain to Source Voltage V
Drain Current I
Input Power P
Document No. P13494EJ1V0DS00 (1st edition)
Date Published August 1998 N CP(K)
Printed in Japan
DS
D
in
The information in this document is subject to change without notice.
123 V
2530 mA
––0 dBm
©
1998
Page 2
ELECTRICAL CHARACTERISTICS (TA = 25°C)
Parameter Symbol Test Conditions MIN. TYP. MAX. Unit
NE38018
P
OIP
GSO
DSS
GS(off)
m
0(1 dB)
VGS = –3 V – 1.0 20
VDS = 2 V VGS = 0 V 40 – 170 mA
VDS = 2 V IDS = 100 µA –0.1 – –1.5 V
VDS = 2 V IDS = 5 mA 50 – – mS
DS
= 2 V IDS = 5 mA
V
f = 2 GHz
–16–dB
VDS = 3 V IDS = 30 mA
f = 2 GHz
3
VDS = 2 V IDS = 5 mA
f = 2 GHz
– 17 (V67) –Output Power at 1 dB Gain
– 18 (V68) –
– 22 (V67) –Output Third-Order Distortion
– 23 (V68) –
Gate to Source Leak Current I
Saturated Drain Current I
Gate to Source Cut off Voltage V
Transconductance g
Noise Figure NF – 0.55 1.0 dB
Associated Gain Ga 12.5 14.5 – dB
Power Gain Gs
Compression Point
Intercept Point
DSS
I
CLASSIFICATIONS
Rank I
DSS
(mA) Marking
67 40 to 90 V67
68 70 to 170 V68
DIMENSIONS (Unit: mm)
µ
A
dBm
dBm
(1.25)
2.0±0.2
0.650.60
0.9±0.1
2.1±0.2
1.25±0.1
2
+0.1
–0.05
+0.1
0.3
–0.05
0.4
V67
1
0.3
0 to 0.1
PIN CONNECTIONS
1. Source
2. Gate
3. Source
4. Drain
+0.1
–0.05
0.3
(1.3)
+0.1
–0.05
43
0.3
+0.1
–0.05
0.15
Preliminary Data Sheet
2
Page 3
TYPICAL CHARACTERISTICS ( TA = 25°C)
NE38018
TOTAL POWER DISSIPATION vs.
AMBIENT TEMPERATURE
250
200
150
100
- Total Power Dissipation - mW
tot
50
0
50 100 150 200
DRAIN CURRENT vs.
GATE TO SOURCE VOLTAGE
100
80
60
40
- Drain Current - mA P
D
I
20
0
–2.0
V
GS
- Gate to Source Voltage - V ID - Drain Current - mA
–1.0 0 0
V
DS
= 2 V
DRAIN CURRENT vs.
DRAIN TO SOURCE VOLTAGE
100
80
60
40
- Drain Current - mA
D
I
20
0
1234
DS
- Drain to Source Voltage - VTA - Ambient Temperature -˚C
V
NOISE FIGURE, ASSOCIATED GAIN vs.
DRAIN CURRENT
2.0
DS
= 2 V
V
1.8
f = 2 GHz
1.6
1.4
1.2
1.0
0.8
0.6
NF - Noise Figure - dB
0.4
0.2
5 1015202530
G
NF
V
GS =
0 V
–0.2 V
–0.4 V
–0.6 V
5
20
18
a
16
14
12
10
8
6
- Associated Gain - dB
a
G
4
2
0
Preliminary Data Sheet
3
Page 4
S-PARAMETER
MAG. AND ANG.
DS
V
= 2 V, ID = 5 mA
NE38018
FREQUENCY S
MHz MAG. ANG. MAG. ANG. MAG. ANG. MAG. ANG.
500.0000 .962 –30.1 5.769 154.6 .042 71.3 .643 –21.7
600.0000 .949 –36.0 5.770 149.8 .050 68.6 .632 –26.0
700.0000 .941 –41.6 5.650 145.1 .057 65.3 .623 –29.7
800.0000 .930 –46.8 5.582 140.8 .064 61.9 .613 –33.5
900.0000 .915 –52.4 5.518 136.4 .070 59.3 .602 –36.9
1000.0000 .907 –57.4 5.382 132.3 .076 55.7 .589 –40.5
1100.0000 .881 –63.0 5.296 127.9 .081 53.2 .578 –43.7
1200.0000 .876 –67.0 5.200 124.1 .086 50.8 .568 –46.7
1300.0000 .861 –72.2 5.093 120.1 .092 48.1 .557 –49.7
1400.0000 .847 –76.5 4.983 116.6 .097 45.6 .547 –52.5
1500.0000 .833 –80.9 4.873 112.8 .101 43.6 .534 –55.2
1600.0000 .820 –85.4 4.788 108.9 .105 41.5 .522 –58.0
1700.0000 .804 –89.6 4.682 105.6 .109 39.6 .513 –60.7
1800.0000 .792 –93.9 4.590 102.2 .113 37.4 .506 –62.6
1900.0000 .774 –98.2 4.490 98.8 .117 35.4 .496 –65.1
2000.0000 .720 –104.7 4.227 95.0 .115 33.2 .416 –61.3
2100.0000 .702 –108.5 4.138 91.7 .118 31.1 .405 –65.1
2200.0000 .688 –112.1 4.038 88.4 .121 29.4 .383 –68.5
2300.0000 .680 –116.4 3.951 85.4 .123 27.9 .364 –70.8
2400.0000 .668 –120.9 3.874 82.2 .126 26.1 .349 –73.5
2500.0000 .649 –125.8 3.776 78.9 .128 24.1 .336 –76.7
2600.0000 .641 –129.8 3.721 76.3 .129 22.7 .324 –78.6
2700.0000 .619 –134.5 3.613 73.0 .133 20.9 .307 –82.9
2800.0000 .607 –139.1 3.547 70.2 .133 19.6 .286 –86.4
2900.0000 .593 –144.2 3.459 67.4 .136 18.3 .271 –89.3
3000.0000 .577 –149.5 3.383 64.6 .137 16.8 .257 –92.6
11
(deg.) (deg.) (deg.) (deg.)
21
S
12
S
22
S
Preliminary Data Sheet
4
Page 5
AMP. PARAMETERS
VDS = 2 V, ID = 5 mA
NE38018
2
21
FREQUENCY GUmax GAmax
MHz dBdBdBdB ns dB dBdB
500.0000 28.78 15.22 –27.52 .13 .132 37.633 11.25 2.31
600.0000 27.49 15.22 –26.00 .14 .132 10.06 2.21
700.0000 26.62 15.04 –24.89 .15 .131 9.45 2.13
800.0000 25.70 14.94 –23.88 .17 .121 8.72 2.05
900.0000 24.65 14.84 –23.08 .19 .123 7.87 1.95
1000.0000 24.00 14.62 –22.34 .20 .114 7.53 1.85
1100.0000 22.75 14.48 –21.85 .23 .122 6.50 1.77
1200.0000 22.34 14.32 –21.30 .24 .104 6.33 1.69
1300.0000 21.62 14.14 –20.75 .26 .112 5.86 1.61
1400.0000 20.97 13.95 –20.29 .28 .098 5.48 1.54
1500.0000 20.37 13.76 –19.92 .30 .104 5.15 1.46
1600.0000 19.84 13.60 –19.56 .31 .108 4.85 1.38
1700.0000 19.25 13.41 –19.23 .33 .093 4.51 1.33
1800.0000 18.80 13.24 –18.91 .35 .095 4.28 1.28
1900.0000 18.25 13.04 –18.63 .37 .094 3.98 1.23
2000.0000 16.53 12.52 –18.81 .53 .106 24.944 3.18 .83
2100.0000 16.06 12.34 –18.53 .55 .090 24.408 2.95 .78
2200.0000 15.60 12.12 –18.37 .58 .092 24.058 2.79 .69
2300.0000 15.25 11.93 –18.18 .60 .084 24.196 2.70 .62
2400.0000 14.90 11.76 –18.01 .62 .089 24.103 2.57 .57
2500.0000 14.43 11.54 –17.84 .65 .090 23.007 2.37 .52
2600.0000 14.19 11.41 –17.75 .66 .075 23.048 2.30 .48
2700.0000 13.69 11.16 –17.54 .70 .091 22.005 2.10 .43
2800.0000 13.37 11.00 –17.51 .73 .078 21.443 2.00 .37
2900.0000 13.00 10.78 –17.34 .75 .077 20.972 1.89 .33
3000.0000 12.64 10.59 –17.24 .78 .078 20.186 1.76 .30
S
S12
2
K Delay Mason’s U G1 G2
Preliminary Data Sheet
5
Page 6
S-PARAMETER
MAG. AND ANG.
DS
V
= 2 V, ID = 10 mA
NE38018
FREQUENCY S
MHz MAG.ANG.MAG.ANG.MAG.ANG.MAG.ANG.
500.0000 .935 –35.4 8.514 150.3 .037 71.4 .481 –26.8
600.0000 .916 –42.0 8.368 144.9 .043 67.9 .470 –31.6
700.0000 .898 –48.5 8.140 139.6 .049 65.0 .460 –36.2
800.0000 .879 –54.3 7.931 134.9 .056 62.4 .452 –40.3
900.0000 .854 –60.4 7.710 130.1 .060 60.2 .438 –44.2
1000.0000 .838 –66.0 7.472 125.5 .066 57.4 .426 –48.1
1100.0000 .809 –71.8 7.215 121.0 .070 55.1 .414 –51.4
1200.0000 .794 –76.5 7.025 117.1 .075 52.4 .403 –55.0
1300.0000 .771 –81.7 6.773 112.9 .079 50.2 .390 –57.9
1400.0000 .754 –86.3 6.550 109.1 .082 48.9 .382 –61.0
1500.0000 .736 –91.1 6.344 105.4 .087 47.1 .371 –64.0
1600.0000 .717 –95.5 6.149 101.6 .091 46.0 .359 –67.2
1700.0000 .698 –99.9 5.961 98.1 .094 43.8 .352 –69.5
1800.0000 .682 –104.2 5.793 94.8 .097 41.9 .344 –71.7
1900.0000 .664 –108.7 5.624 91.4 .101 40.5 .336 –74.1
2000.0000 .625 –115.4 5.254 88.4 .099 39.3 .252 –67.5
2100.0000 .605 –119.4 5.103 85.3 .103 37.7 .243 –72.0
2200.0000 .591 –122.9 4.945 82.1 .106 36.1 .224 –76.0
2300.0000 .583 –127.4 4.805 79.3 .109 34.7 .209 –78.2
2400.0000 .572 –132.2 4.676 76.4 .112 33.7 .198 –81.8
2500.0000 .554 –137.0 4.543 73.2 .114 32.5 .189 –86.2
2600.0000 .549 –141.1 4.428 70.7 .118 31.2 .180 –88.6
2700.0000 .529 –146.1 4.290 67.8 .120 29.7 .167 –95.2
2800.0000 .522 –150.7 4.176 65.3 .121 29.6 .151 –100.3
2900.0000 .514 –156.1 4.060 62.8 .124 27.8 .140 –105.1
3000.0000 .503 –161.5 3.954 60.3 .126 26.7 .129 –112.4
11
(deg.) (deg.) (deg.) (deg.)
21
S
12
S
22
S
Preliminary Data Sheet
6
Page 7
AMP. PARAMETERS
VDS = 2 V, ID = 10 mA
NE38018
2
21
FREQUENCY GUmax GAmax
MHz dBdBdBdB ns dB dBdB
500.0000 28.74 18.60 –28.57 .20 .152 40.416 8.99 1.15
600.0000 27.45 18.45 –27.27 .23 .152 40.577 7.92 1.09
700.0000 26.37 18.21 –26.12 .25 .145 7.13 1.03
800.0000 25.42 17.99 –25.11 .28 .131 6.44 .99
900.0000 24.35 17.74 –24.37 .31 .134 5.68 .92
1000.0000 23.59 17.47 –23.65 .33 .126 5.26 .87
1100.0000 22.59 17.16 –23.10 .37 .127 4.61 .81
1200.0000 22.02 16.93 –22.55 .39 .107 4.32 .77
1300.0000 21.25 16.62 –22.08 .43 .117 3.91 .72
1400.0000 20.66 16.32 –21.72 .45 .104 3.65 .68
1500.0000 20.08 16.05 –21.25 .47 .104 3.39 .64
1600.0000 19.51 15.78 –20.81 .49 .104 3.13 .60
1700.0000 18.98 15.51 –20.58 .52 .096 2.90 .57
1800.0000 18.52 15.26 –20.23 .54 .093 2.72 .55
1900.0000 18.04 15.00 –19.89 .56 .093 2.52 .52
2000.0000 16.85 14.41 –20.05 .70 .083 27.137 2.15 .28
2100.0000 16.40 14.16 –19.71 .73 .086 26.620 1.98 .27
2200.0000 15.97 13.88 –19.48 .75 .090 25.873 1.87 .22
2300.0000 15.63 13.63 –19.24 .77 .077 25.484 1.80 .19
2400.0000 15.29 13.40 –19.05 .79 .083 25.825 1.72 .17
2500.0000 14.90 13.15 –18.84 .81 .087 25.386 1.59 .16
2600.0000 14.63 12.92 –18.55 .82 .069 25.606 1.56 .14
2700.0000 14.19 12.65 –18.44 .86 .081 23.866 1.42 .12
2800.0000 13.90 12.41 –18.36 .88 .069 23.850 1.38 .10
2900.0000 13.59 12.17 –18.10 .90 .070 23.052 1.33 .09
3000.0000 13.28 11.94 –17.97 .92 .069 22.305 1.27 .07
S
S12
2
K Delay Mason’s U G1 G2
Preliminary Data Sheet
7
Page 8
S-PARAMETER
MAG. AND ANG.
DS
V
= 3 V, ID = 5 mA
NE38018
FREQUENCY S
MHz MAG. ANG. MAG. ANG. MAG. ANG. MAG. ANG.
500.0000 .962 –29.9 5.774 154.7 .041 71.4 .657 –21.3
600.0000 .951 –35.6 5.771 150.0 .049 68.7 .645 –25.4
700.0000 .942 –41.3 5.650 145.4 .056 65.1 .636 –29.1
800.0000 .931 –46.4 5.582 141.0 .063 62.2 .627 –32.8
900.0000 .916 –51.9 5.527 136.7 .068 59.6 .615 –36.0
1000.0000 .907 –56.8 5.393 132.5 .075 56.3 .604 –39.5
1100.0000 .882 –62.4 5.299 128.1 .080 53.4 .593 –42.7
1200.0000 .877 –66.6 5.215 124.4 .086 51.4 .584 –45.7
1300.0000 .862 –71.5 5.114 120.4 .091 48.4 .571 –48.7
1400.0000 .850 –76.0 4.993 116.8 .096 45.6 .562 –51.4
1500.0000 .835 –80.4 4.878 113.2 .098 44.1 .549 –54.0
1600.0000 .822 –84.8 4.797 109.3 .104 41.7 .537 –56.9
1700.0000 .806 –89.0 4.696 106.0 .107 39.5 .528 –59.3
1800.0000 .793 –93.2 4.605 102.6 .111 37.4 .520 –61.2
1900.0000 .777 –97.5 4.510 99.1 .116 35.6 .511 –63.7
2000.0000 .722 –104.0 4.246 95.4 .114 33.3 .432 –59.9
2100.0000 .705 –107.7 4.154 92.1 .117 31.4 .422 –63.6
2200.0000 .690 –111.3 4.051 88.8 .119 29.8 .399 –67.1
2300.0000 .681 –115.6 3.970 85.8 .121 28.0 .380 –69.1
2400.0000 .670 –120.2 3.892 82.6 .124 26.3 .365 –71.8
2500.0000 .650 –124.9 3.802 79.3 .127 24.2 .351 –74.7
2600.0000 .641 –128.9 3.735 76.6 .129 22.6 .339 –76.8
2700.0000 .620 –133.7 3.639 73.4 .130 20.8 .322 –80.6
2800.0000 .607 –138.3 3.570 70.5 .132 20.1 .302 –83.8
2900.0000 .594 –143.5 3.481 67.7 .133 18.4 .288 –86.6
3000.0000 .578 –148.7 3.405 64.9 .135 16.6 .271 –89.7
11
(deg.) (deg.) (deg.) (deg.)
21
S
12
S
22
S
Preliminary Data Sheet
8
Page 9
AMP. PARAMETERS
VDS = 3 V, ID = 5 mA
NE38018
2
21
FREQUENCY GUmax GAmax
MHz dBdBdBdB ns dB dBdB
500.0000 28.91 15.23 –27.70 .13 .130 37.792 11.22 2.46
600.0000 27.73 15.23 –26.26 .14 .130 10.17 2.34
700.0000 26.77 15.04 –25.03 .15 .129 9.47 2.26
800.0000 25.85 14.94 –23.98 .17 .121 8.74 2.17
900.0000 24.85 14.85 –23.30 .18 .121 7.93 2.07
1000.0000 24.13 14.64 –22.55 .20 .116 7.53 1.97
1100.0000 22.91 14.48 –21.98 .23 .121 6.54 1.88
1200.0000 22.52 14.34 –21.31 .23 .102 6.36 1.81
1300.0000 21.80 14.18 –20.82 .26 .113 5.91 1.72
1400.0000 21.18 13.97 –20.39 .28 .100 5.56 1.65
1500.0000 20.50 13.77 –20.15 .29 .098 5.18 1.56
1600.0000 19.98 13.62 –19.70 .31 .110 4.88 1.48
1700.0000 19.41 13.43 –19.42 .33 .091 4.56 1.42
1800.0000 18.95 13.27 –19.08 .35 .095 4.31 1.37
1900.0000 18.42 13.08 –18.75 .37 .096 4.02 1.32
2000.0000 16.65 12.56 –18.89 .52 .103 25.087 3.19 .90
2100.0000 16.21 12.37 –18.62 .54 .094 25.123 2.99 .85
2200.0000 15.71 12.15 –18.50 .57 .091 24.612 2.81 .75
2300.0000 15.36 11.98 –18.31 .59 .084 24.225 2.71 .68
2400.0000 15.01 11.80 –18.13 .61 .089 24.455 2.58 .62
2500.0000 14.56 11.60 –17.93 .64 .090 23.164 2.38 .57
2600.0000 14.28 11.45 –17.80 .66 .076 22.974 2.30 .53
2700.0000 13.81 11.22 –17.72 .69 .089 21.882 2.11 .48
2800.0000 13.47 11.05 –17.60 .72 .081 21.909 2.00 .41
2900.0000 13.10 10.83 –17.49 .75 .078 21.134 1.89 .38
3000.0000 12.74 10.64 –17.39 .78 .077 20.108 1.76 .33
S
S12
2
K Delay Mason’s U G1 G2
Preliminary Data Sheet
9
Page 10
S-PARAMETER
MAG. AND ANG.
DS
V
= 3 V, ID = 10 mA
NE38018
FREQUENCY S
MHz MAG. ANG. MAG. ANG. MAG. ANG. MAG. ANG.
500.0000 .941 –35.2 8.537 150.9 .036 71.6 .510 –25.3
600.0000 .922 –41.7 8.386 145.5 .043 67.9 .498 –30.0
700.0000 .905 –48.0 8.146 140.4 .048 65.3 .488 –34.2
800.0000 .887 –53.7 7.943 135.6 .054 62.7 .477 –38.2
900.0000 .864 –59.7 7.728 130.8 .060 60.3 .466 –41.9
1000.0000 .847 –65.1 7.479 126.4 .065 57.3 .452 –45.5
1100.0000 .820 –70.8 7.261 121.9 .068 54.6 .441 –49.0
1200.0000 .807 –75.4 7.042 118.0 .073 52.3 .429 –52.0
1300.0000 .787 –80.4 6.814 113.7 .078 51.1 .418 –54.8
1400.0000 .768 –85.0 6.597 110.1 .082 48.4 .407 –57.7
1500.0000 .749 –89.4 6.381 106.5 .085 46.8 .396 –60.3
1600.0000 .733 –93.8 6.200 102.7 .089 45.3 .384 –63.1
1700.0000 .714 –98.0 6.007 99.3 .092 43.6 .376 –65.3
1800.0000 .700 –102.2 5.849 96.0 .095 41.8 .368 –67.3
1900.0000 .681 –106.3 5.668 92.6 .099 40.5 .360 –69.3
2000.0000 .638 –113.1 5.314 89.5 .099 39.2 .277 –61.9
2100.0000 .620 –116.8 5.169 86.3 .101 37.3 .269 –66.2
2200.0000 .606 –120.5 5.005 83.3 .105 36.0 .248 –69.4
2300.0000 .598 –124.8 4.870 80.5 .107 35.1 .231 –71.2
2400.0000 .587 –129.5 4.744 77.5 .110 33.5 .219 –74.3
2500.0000 .569 –134.1 4.611 74.3 .112 32.0 .208 –78.1
2600.0000 .561 –138.2 4.506 71.8 .115 31.0 .198 –79.5
2700.0000 .542 –143.0 4.371 68.9 .117 29.2 .183 –85.5
2800.0000 .532 –147.6 4.255 66.3 .120 28.2 .163 –89.5
2900.0000 .523 –152.8 4.141 63.7 .121 27.0 .150 –93.8
3000.0000 .511 –158.4 4.037 61.3 .124 26.3 .137 –99.4
11
(deg.) (deg.) (deg.) (deg.)
21
S
12
S
22
S
10
Preliminary Data Sheet
Page 11
AMP. PARAMETERS
MAG. AND ANG.
DS
V
= 3 V, ID = 10 mA
NE38018
2
21
FREQUENCY GUmax GAmax
MHz dBdBdBdB ns dB dBdB
500.0000 29.33 18.63 –28.83 .18 .149 9.40 1.31
600.0000 27.97 18.47 –27.37 .22 .149 47.710 8.26 1.24
700.0000 26.81 18.22 –26.30 .24 .143 7.41 1.18
800.0000 25.82 18.00 –25.37 .26 .134 6.70 1.12
900.0000 24.80 17.76 –24.41 .29 .132 5.97 1.06
1000.0000 23.95 17.48 –23.80 .32 .123 5.48 .99
1100.0000 23.01 17.22 –23.30 .35 .127 4.85 .94
1200.0000 22.41 16.95 –22.72 .37 .106 4.57 .89
1300.0000 21.70 16.67 –22.17 .40 .119 4.20 .83
1400.0000 21.05 16.39 –21.74 .42 .100 3.87 .79
1500.0000 20.41 16.10 –21.40 .45 .103 3.58 .74
1600.0000 19.89 15.85 –21.06 .47 .103 3.35 .69
1700.0000 19.33 15.57 –20.69 .50 .096 3.10 .66
1800.0000 18.89 15.34 –20.40 .52 .091 2.92 .63
1900.0000 18.38 15.07 –20.11 .54 .094 2.71 .60
2000.0000 17.13 14.51 –20.08 .68 .086 27.582 2.27 .35
2100.0000 16.70 14.27 –19.92 .71 .088 26.662 2.11 .33
2200.0000 16.25 13.99 –19.60 .73 .084 26.190 1.99 .27
2300.0000 15.91 13.75 –19.40 .75 .079 26.581 1.92 .24
2400.0000 15.57 13.52 –19.21 .77 .083 26.283 1.84 .21
2500.0000 15.17 13.28 –19.00 .80 .087 25.503 1.70 .19
2600.0000 14.89 13.08 –18.80 .81 .069 25.488 1.64 .17
2700.0000 14.47 12.81 –18.64 .84 .082 23.995 1.51 .15
2800.0000 14.14 12.58 –18.42 .86 .072 23.516 1.44 .12
2900.0000 13.83 12.34 –18.31 .89 .072 22.858 1.39 .10
3000.0000 13.52 12.12 –18.15 .91 .066 22.417 1.32 .08
S
S12
2
K Delay Mason’s U G1 G2
Preliminary Data Sheet
11
Page 12
NOISE PARAMETERS
DS
= 2 V, IDS = 5 mA
V
NE38018
0.9 0.41 21.1 0.65 25.1 0.18
1.0 0.42 20.3 0.63 27.2 0.18
1.5 0.48 16.9 0.55 42.4 0.17
1.9 0.54 15.0 0.48 58.0 0.16
2.0 0.55 14.7 0.46 62.1 0.15
2.5 0.62 13.4 0.38 81.3 0.13
VDS = 2 V, IDS = 10 mA
0.9 0.37 22.0 0.59 29.2 0.13
1.0 0.38 21.8 0.50 38.0 0.12
1.5 0.44 17.6 0.50 39.6 0.12
1.9 0.49 15.6 0.38 45.1 0.11
2.0 0.50 15.5 0.39 54.4 0.11
2.5 0.56 13.9 0.38 70.3 0.10
min
(dB) Ga (dB)
min
(dB) Ga (dB)
ΓoptFrequency (GHz) NF
MAG. ANG. (deg)
ΓoptFrequency (GHz) NF
MAG. ANG. (deg)
Rn/50
Rn/50
VDS = 3 V, IDS = 5 mA
0.9 0.41 21.8 0.67 24.9 0.18
1.0 0.42 20.8 0.65 26.9 0.18
1.5 0.48 16.9 0.54 42.1 0.17
1.9 0.54 14.8 0.47 57.8 0.16
2.0 0.55 14.4 0.45 61.8 0.15
2.5 0.62 13.3 0.38 80.7 0.13
min
(dB) Ga (dB)
ΓoptFrequency (GHz) NF
MAG. ANG. (deg)
Rn/50
12
Preliminary Data Sheet
Page 13
NE38018
RECOMMENDED SOLDERING CONDITIONS
This product should be soldered under the following recommended conditions. For soldering methods and
conditions other than those recomm ended below, cont act your NEC sales representat ive.
Soldering Method Soldering Conditions Recommended Condition
Symbol
Infrared Reflow Package peak temperature: 230°C or below
Time: 30 seconds or less (at 210°C)
Note
Note
Note
: None
: None
: None
Count: 3, Exposure limit
VPS Package peak temperature: 215°C or below
Time: 40 seconds or less (at 200°C)
Count: 3, Exposure limit
Wave Soldering Soldering bath temperature: 260°C or below
Time: 10 seconds or less
Count: 1, Exposure limit
Partial Heating Pin temperature: 230°C
Time: 10 seconds or less (per pin row)
Note
Exposure limit
Note
After opening the dry pack, keep it in a place below 25°C and 65% RH for the allowable storage period.
: None
IR30-00-3
VP15-00-3
WS60-00-1
–
Caution Do not use different sol der ing methods together ( except f or par t ial heating).
PRECAUTION Avoid high static voltage and electr ic fields, because this device i s Hetero Junction field
effect transi st or w ith shottky barrier gat e.
Preliminary Data Sheet
13
Page 14
[MEMO]
NE38018
14
Preliminary Data Sheet
Page 15
[MEMO]
NE38018
Preliminary Data Sheet
15
Page 16
NE38018
Caution
The Great Care must be t aken i n deal ing with the devices i n t hi s guide.
The reason is that the material of the devi ces i s G a As (Gallium Arsenide), which is
designated as harmful subst ance accor di ng t o t he law concerned.
Keep the law concerned and so on, especi al l y i n case of r em oval .
