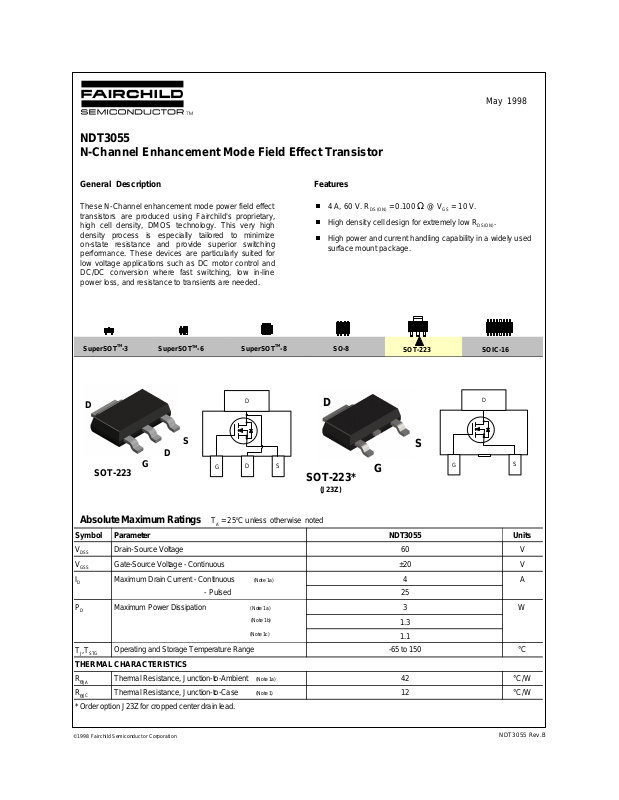

Page 1
May 1998
NDT3055
N-Channel Enhancement Mode Field Effect Transistor
General Description Features
These N-Channel enhancement mode power field effect
transistors are produced using Fairchild's proprietary,
high cell density, DMOS technology. This very high
density process is especially tailored to minimize
on-state resistance and provide superior switching
performance. These devices are particularly suited for
low voltage applications such as DC motor control and
DC/DC conversion where fast switching, low in-line
power loss, and resistance to transients are needed.
SuperSOTTM-3
D
SuperSOTTM-6
SuperSOTTM-8
D
S
D
SOT-223
G
G
D S
4 A, 60 V. R
High density cell design for extremely low R
= 0.100 Ω @ VGS = 10 V.
DS(ON)
DS(ON)
High power and current handling capability in a widely used
surface mount package.
SO-8
SOT-223
D
S
G
G
SOT-223*
(J23Z)
.
SOIC-16
D
S
Absolute Maximum Ratings T
= 25oC unless otherwise noted
A
Symbol Parameter NDT3055 Units
V
DSS
V
GSS
I
D
Drain-Source Voltage 60 V
Gate-Source Voltage - Continuous ±20 V
Maximum Drain Current - Continuous (Note 1a) 4 A
- Pulsed 25
P
D
TJ,T
Maximum Power Dissipation (Note 1a) 3 W
(Note 1b)
(Note 1c)
Operating and Storage Temperature Range -65 to 150 °C
STG
1.3
1.1
THERMAL CHARACTERISTICS
R
JA
θ
R
JC
θ
Thermal Resistance, Junction-to-Ambient (Note 1a) 42 °C/W
Thermal Resistance, Junction-to-Case (Note 1) 12 °C/W
* Order option J23Z for cropped center drain lead.
© 1998 Fairchild Semiconductor Corporation
NDT3055 Rev.B
Page 2
Electrical Characteristics (T
= 25 OC unless otherwise noted )
A
Symbol Parameter Conditions Min Typ Max Units
OFF CHARACTERISTICS
BV
∆BV
I
DSS
DSS
DSS
Drain-Source Breakdown Voltage VGS = 0 V, ID = 250 µA 60 V
Breakdown Voltage Temp. Coefficient
/∆T
J
Zero Gate Voltage Drain Current
ID = 250 µA, Referenced to 25 o C
VDS = 48 V, V
GS
= 0 V
63
10 µA
mV/o C
TJ =125°C 100 µA
I
GSSF
I
GSSR
Gate - Body Leakage, Forward
VGS = 20 V, VDS = 0 V
Gate - Body Leakage, Reverse VGS = -20 V, VDS = 0 V -100 nA
100 nA
ON CHARACTERISTICS (Note 2)
V
GS(th)
Gate Threshold Voltage
VDS = VGS, ID = 250 µA
2 3 4 V
TJ =125°C 1.5 2.4 3
R
DS(ON)
Static Drain-Source On-Resistance
VGS = 10 V, ID = 4 A
0.084 0.1
Ω
TJ =125°C 0.14 0.18
I
D(ON)
g
On-State Drain Current
FS
Forward Transconductance VDS = 15 V, ID = 4 A 6 S
VGS = 10 V, VDS = 10 V
15 A
DYNAMIC CHARACTERISTICS
C
iss
C
oss
C
rss
Input Capacitance
Output Capacitance 100 pF
VDS = 30 V, VGS = 0 V,
f = 1.0 MHz
Reverse Transfer Capacitance 30 pF
250 pF
SWITCHING CHARACTERISTICS (Note 2)
t
t
t
t
Q
Q
Q
D(on)
r
D(off)
f
g
gs
gd
Turn - On Delay Time VDD = 25 V, ID = 1.2 A,
Turn - On Rise Time 18 50 ns
VGS = 10 V, R
GEN
= 50 Ω
10 25 ns
Turn - Off Delay Time 37 65 ns
Turn - Off Fall Time 30 60 ns
Total Gate Charge VDS = 40 V, ID = 4 A,
Gate-Source Charge 2.3 nC
VGS = 10 V
9 15 nC
Gate-Drain Charge 2.6 nC
DRAIN-SOURCE DIODE CHARACTERISTICS AND MAXIMUM RATINGS
I
S
V
SD
Notes:
1. R
is the sum of the junction-to-case and case-to-ambient thermal resistance where the case thermal reference is defined as the solder mounting surface of the drain pins. R
JA
θ
guaranteed by design while R
Typical R
Maximum Continuous Drain-Source Diode Forward Current 2.5 A
Drain-Source Diode Forward Voltage
is determined by the user's board design.
CA
using the board layouts shown below on FR-4 PCB in a still air environment:
JA
θ
θ
VGS = 0 V, IS = 2.5 A
(Note 2)
0.85 1.2 V
is
JC
θ
a. 42oC/W when mounted on a 1 in2 pad of
2oz Cu.
Scale 1 : 1 on letter size paper
2. Pulse Test: Pulse Width < 300µs, Duty Cycle < 2.0%
b. 95oC/W when mounted on a 0.066 in
pad of 2oz Cu.
2
c. 110oC/W when mounted on a 0.00123
2
in
pad of 2oz Cu.
NDT3055 Rev.B
Page 3
Typical Electrical Characteristics
15
12
V =10V
GS
8.0V
7.0V
9
6.0V
6
3
D
I , DRAIN-SOURCE CURRENT (A)
0
0 1 2 3 4 5
V , DRAIN-SOURCE VOLTAGE (V)
DS
5.5V
5.0V
Figure 1. On-Region Characteristics.
2
I = 4A
D
V =10V
GS
1.6
1.2
DS(ON)
0.8
R , NORMALIZED
DRAIN-SOURCE ON-RESISTANCE
0.4
-50 -25 0 25 50 75 100 125 150
T , JUNCTION TEMPERATURE (°C)
J
4.5V
3
V = 5.5V
GS
2.5
2
1.5
DS(ON)
R , NORMALIZED
1
DRAIN-SOURCE ON-RESISTANCE
0.5
0 4 8 12 16 20
6.0V
6.5V
7.0V
I , DRAIN CURRENT (A)
D
8.0V
10V
Figure 2. On-Resistance Variation with
Drain Current and Gate Voltage.
0.4
0.3
0.2
0.1
DS(ON)
R , ON-RESISTANCE (OHM)
0
4 6 8 10
V , GATE TO SOURCE VOLTAGE (V)
GS
T = 125°C
A
T = 25°C
A
I = 2A
D
Figure 3. On-Resistance Variation
with Temperature.
10
V = 10V
DS
8
6
4
D
I , DRAIN CURRENT (A)
2
0
2 4 6 8
V , GATE TO SOURCE VOLTAGE (V)
GS
T = -55°C
J
25°C
125°C
Figure 5. Transfer Characteristics.
Figure 4. On-Resistance Variation with
Gate-to- Source Voltage.
10
V = 0V
GS
1
0.1
0.01
0.001
S
I , REVERSE DRAIN CURRENT (A)
0.0001
0 0.2 0.4 0.6 0.8 1 1.2
V , BODY DIODE FORWARD VOLTAGE (V)
SD
T = 125°C
A
25°C
-55°C
Figure 6. Body Diode Forward Voltage
Variation with Current and
Temperature.
NDT3055 Rev.B
Page 4
Typical Electrical Characteristics (continued)
15
I = 4A
D
12
9
6
3
GS
V , GATE-SOURCE VOLTAGE (V)
0
0 3 6 9 12 15
V = 10V
DS
Q , GATE CHARGE (nC)
g
20V
40V
Figure 7. Gate Charge Characteristics.
50
DC
10s
100us
1ms
10ms
100ms
1s
10
0.3
0.1
D
I , DRAIN CURRENT (A)
0.03
0.01
RDS(ON) LIMIT
3
1
V = 10V
GS
SINGLE PULSE
o
R = 110 C/W
JA
θ
T = 25°C
A
0.1 0.2 0.5 1 2 5 10 30 60 100
V , DRAIN-SOURCE VOLTAGE (V)
DS
1000
500
C
200
100
50
CAPACITANCE (pF)
f = 1 MHz
20
V = 0V
GS
10
0.1 0.3 1 4 10 30 60
V , DRAIN TO SOURCE VOLTAGE (V)
DS
C
C
iss
oss
rss
Figure 8. Capacitance Characteristics.
80
SINGLE PULSE
R =110°C/W
JA
60
40
POWER (W)
20
0
0.001 0.01 0.1 1 10 100 300
SINGLE PULSE TIME (SEC)
θ
T = 25°C
A
Figure 9. Maximum Safe Operating Area.
Figure 10. Single Pulse Maximum Power
Dissipation.
1
D = 0.5
0.5
0.2
0.2
0.1
0.1
0.05
0.05
0.02
0.02
0.01
0.01
0.005
r(t), NORMALIZED EFFECTIVE
0.002
TRANSIENT THERMAL RESISTANCE
0.001
Single Pulse
0.0001 0.001 0.01 0.1 1 10 100 300
Figure 11. Transient Thermal Response Curve.
Thermal characterization performed using the conditions described in note 1c.
Transient thermal response will change depending on the circuit board design.
t , TIME (sec)
1
R (t) = r(t) * R
JA
θ
R = 110 °C/W
JA
θ
P(pk)
t
1
t
2
T - T = P * R (t)
J
A
Duty Cycle, D = t / t
θ
JA
1 2
JA
θ
NDT3055 Rev.B
