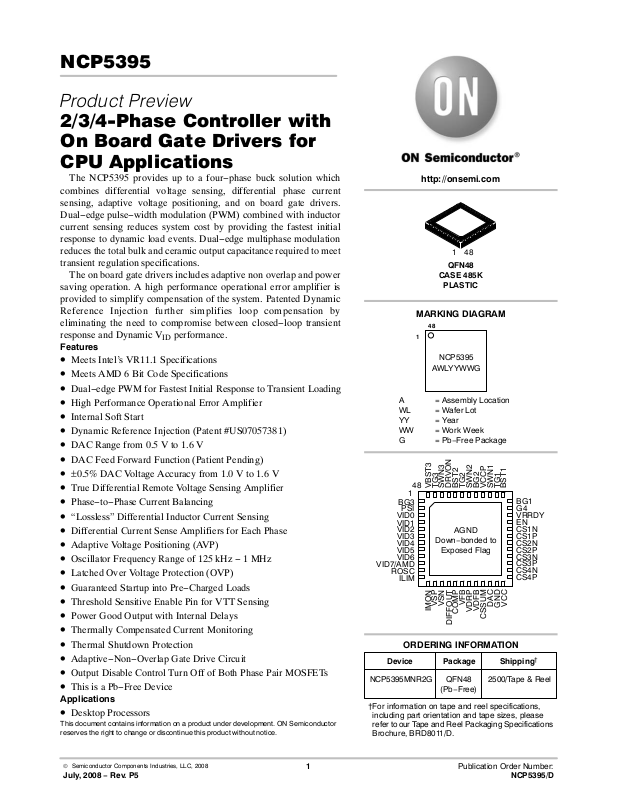

NCP5395

Product Preview

2/3/4-Phase Controller with On Board Gate Drivers for CPU Applications

The NCP5395 provides up to a four−phase buck solution which combines differential voltage sensing, differential phase current sensing, adaptive voltage positioning, and on board gate drivers. Dual−edge pulse−width modulation (PWM) combined with inductor current sensing reduces system cost by providing the fastest initial response to dynamic load events. Dual−edge multiphase modulation reduces the total bulk and ceramic output capacitance required to meet transient regulation specifications.

The on board gate drivers includes adaptive non overlap and power saving operation. A high performance operational error amplifier is provided to simplify compensation of the system. Patented Dynamic Reference Injection further simplifies loop compensation by eliminating the need to compromise between closed−loop transient response and Dynamic VID performance.

Features

• Meets Intel’s VR11.1 Specifications

• Meets AMD 6 Bit Code Specifications

• Dual−edge PWM for Fastest Initial Response to Transient Loading

• High Performance Operational Error Amplifier

• Internal Soft Start

• Dynamic Reference Injection (Patent #US07057381)

• DAC Range from 0.5 V to 1.6 V

• DAC Feed Forward Function (Patient Pending)

• ±0.5% DAC Voltage Accuracy from 1.0 V to 1.6 V

• True Differential Remote Voltage Sensing Amplifier

• Phase−to−Phase Current Balancing

• “Lossless” Differential Inductor Current Sensing

• Differential Current Sense Amplifiers for Each Phase

• Adaptive Voltage Positioning (AVP)

• Oscillator Frequency Range of 125 kHz − 1 MHz

• Latched Over Voltage Protection (OVP)

• Guaranteed Startup into Pre−Charged Loads

• Threshold Sensitive Enable Pin for VTT Sensing

• Power Good Output with Internal Delays

• Thermally Compensated Current Monitoring

• Thermal Shutdown Protection

• Adaptive−Non−Overlap Gate Drive Circuit

• Output Disable Control Turn Off of Both Phase Pair MOSFETs

• This is a Pb−Free Device

Applications

• Desktop Processors

This document contains information on a product under development. ON Semiconductor reserves the right to change or discontinue this product without notice.

http://onsemi.com

148

QFN48

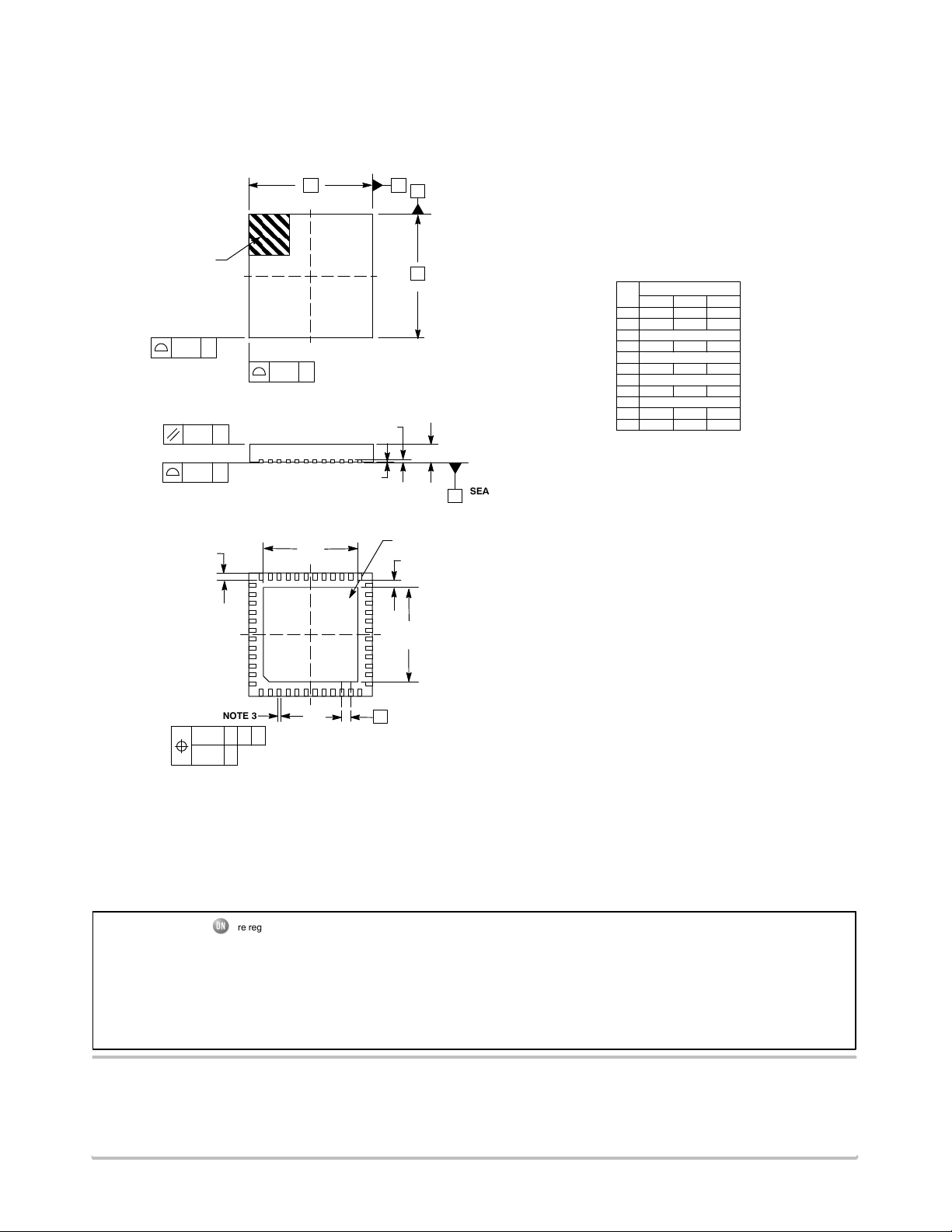

CASE 485K

PLASTIC

MARKING DIAGRAM

NCP5395

AWLYYWWG

A = Assembly Location WL = Wafer Lot YY = Year WW = Work Week G = Pb−Free Package

BST1

TG1

SWN1

VCCP

BG2

SWN2

TG2

BST2

DRVON

SWN3

TG3

VBST3

BG3

PSI VID0 VID1 VID2 VID3 VID4 VID5 VID6

VID7/AMD

ROSC

ILIM

ORDERING INFORMATION

Device Package Shipping

NCP5395MNR2G QFN48

†For information on tape and reel specifications,

including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.

AGND

Down−bonded to

Exposed Flag

VFB

VSP

VSN

IMON

(Pb−Free)

VDRP

COMP

DIFFOUT

VDFB

BG1 G4 VRRDY EN CS1N CS1P CS2N CS2P CS3N CS3P CS4N CS4P

VCC

DAC

GND

CSSUM

†

2500/Tape & Reel

July, 2008 − Rev. P5

1 Publication Order Number:

NCP5395/D

Page 2

VID0 VID1

VID2 VID3 VID4

VID5 VID6

VID7/AMD

PSI

DAC

VSN

VSP

DIFFOUT

VFB

COMP

VDRP

VDFB

CSSUM

CS1P

CS1N

CS2P

CS2N

CS3P

CS3N

CS4P

CS4N

ROSC

1.3 V

Flexible DAC

Diff Amp

Gain = 6

Oscillator

Error Amp

NCP5395

Overvoltage

Protection

Phase 1

Gate Driver

with

Adaptive

Non−overlap

Phase 2

Gate Driver

with

Adaptive

Non−overlap

Phase 3

Gate Driver

with

Adaptive

Non−overlap

VCCP

BST1

TG1

SWN1

BG1

BST2

TG2

SWN2

BG2

BST3

TG3

SWN3

BG3

IMON

DRVON

ILIM

VCC

GND (FLAG)

Limit

4.25 V

UVLO

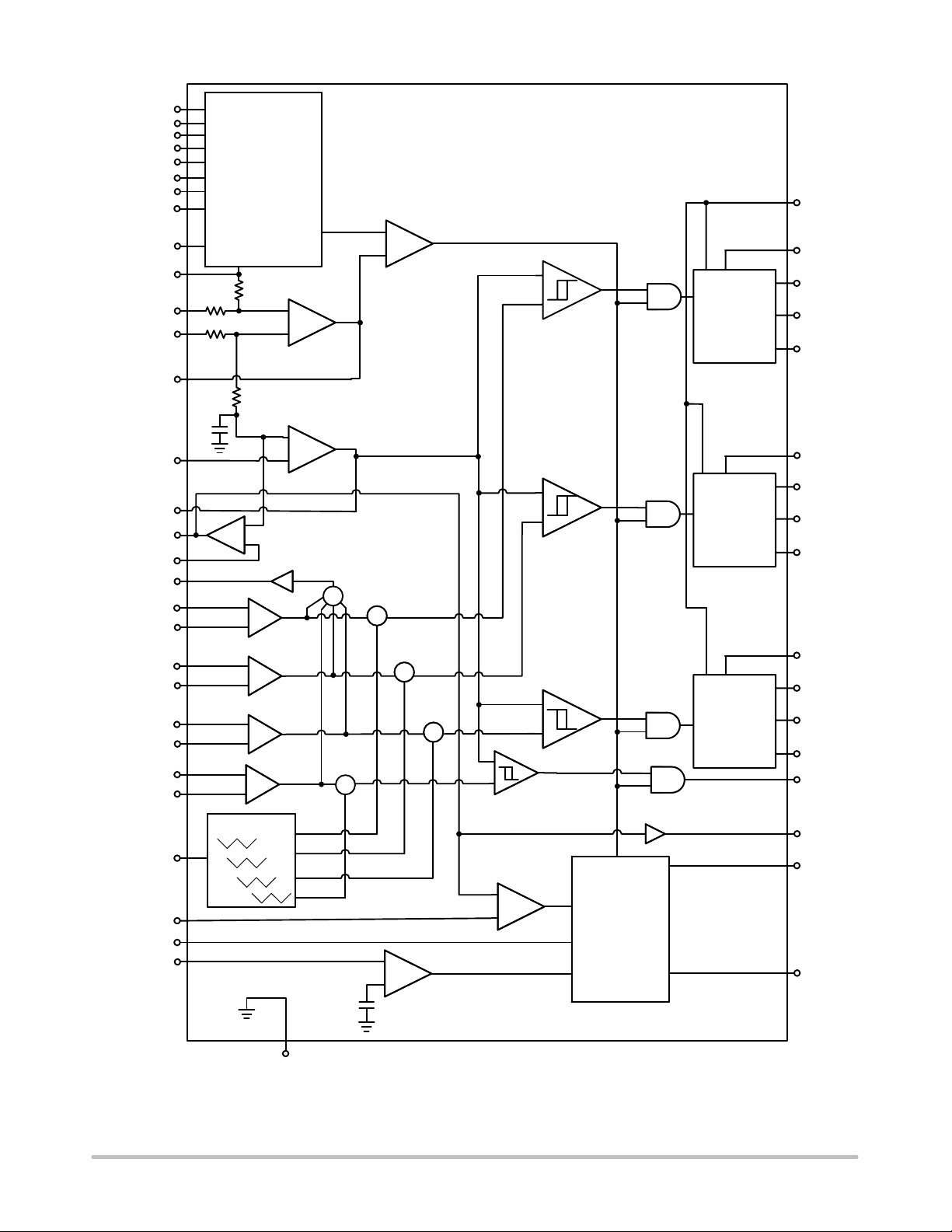

Figure 1. NCP5395 Functional Block Diagram

http://onsemi.com

Control,

Fault Logic

and

Monitor Circuits

VR_RDY

Page 3

VCCP

RF3

CF3

RISO7

+5.0V

RFB7

CH3

CDFB3

RDFB3

RISO8

RT8

PSI#_CPU

C82

R14

CFB4

RFB6

RDRP7

2.61K

R47

VID0 VID1 VID2

VID3 VID4 VID5 VID6 VID7

RLIM7

IMON

13 14

RLIM8

ILIM

ROSC

IMON

VSP

VSN

DIFFOUT

COMP

VFB

VDRP

VDFB

CSSUM

DAC

GND

VCC

VID4

VID7

VID5

VID6

NCP5395

48L 7x7 QFN

FLAG = GND

VID2

VID3

VID1

DRVON

VTT

R226

12V_FILTER

PSI

BG3

VID0 VBST3

TG3

SWN3

BST2

TG2

SWN2

BG2 41

VCCP

SWN1

TG1

BST1

NCP5395

DRVON

12V_FILTER

PWM3_SENSE_N

PWM3_SENSE_P

C34

VTT

ENABLE

R137

R139

CS4P

CS4N

CS2P

CS3P27CS3N

CS2N

C32

R28

C17

R24

C31

PWM1_SENSE_P

PWM1_SENSE_N

PWM3_SENSE_P

PWM3_SENSE_N

VR_RDY

BG1

CS1N

CS1P

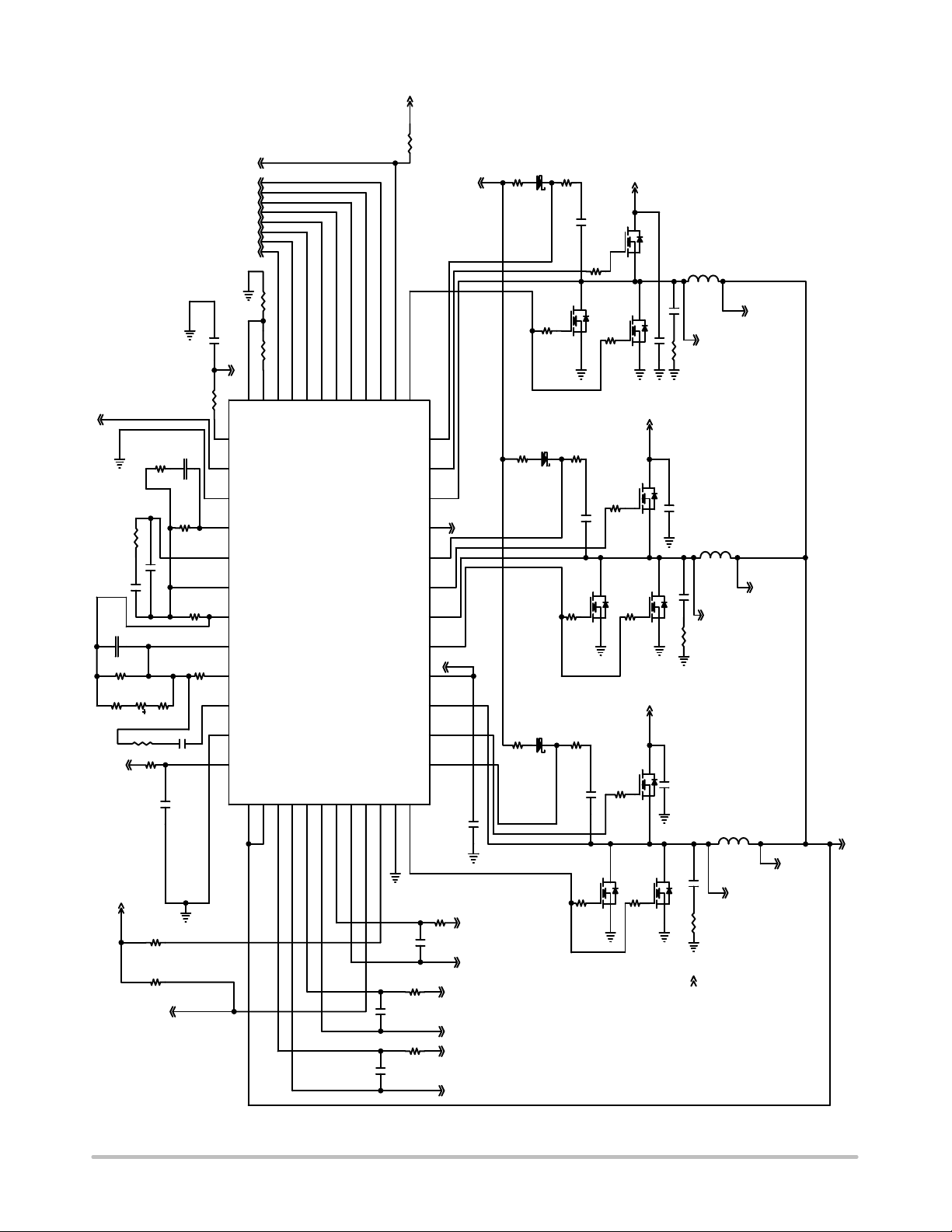

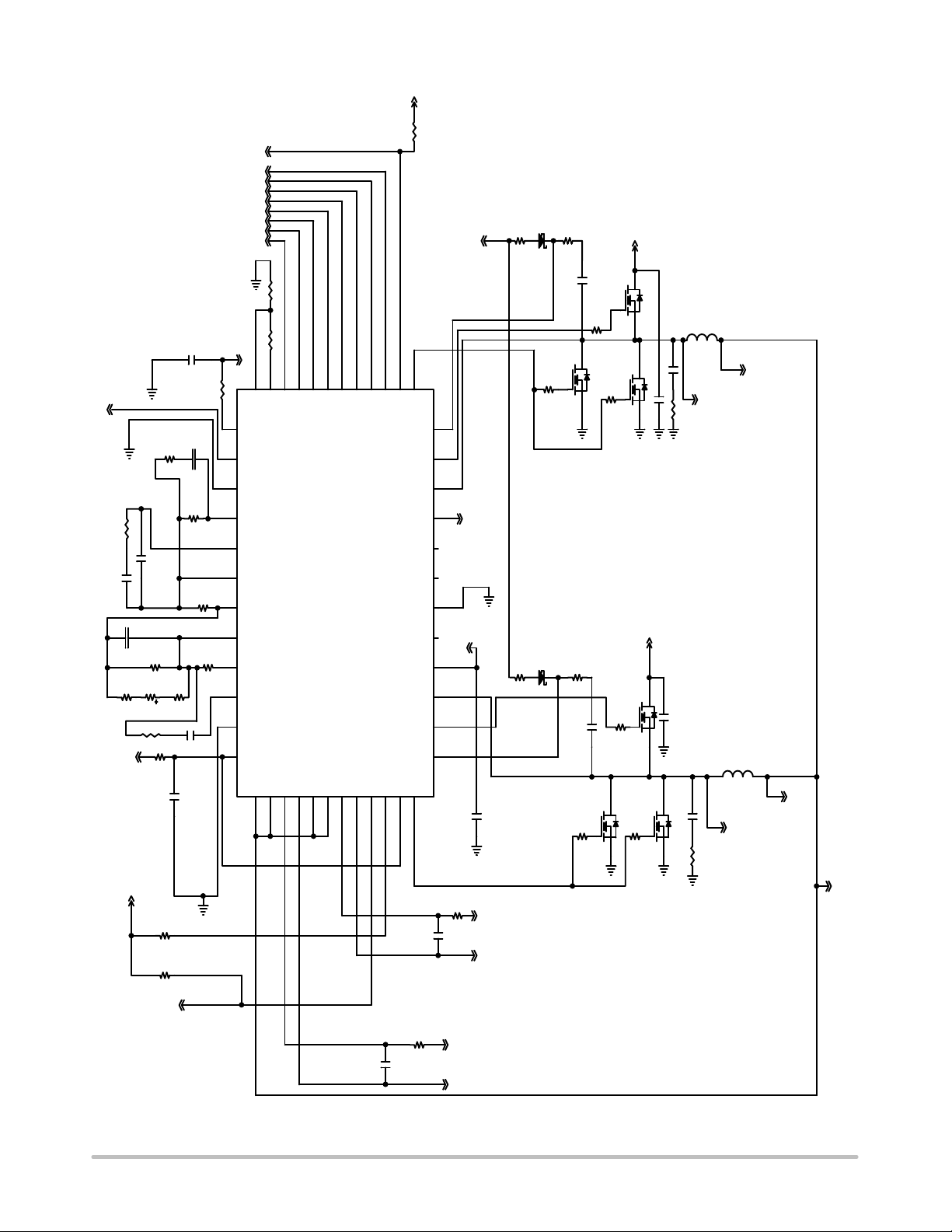

Figure 2. Typical 2 Phase Application

http://onsemi.com

PWM1_SENSE_N

PWM1_SENSE_P

VCCP

Page 4

PSI#_CPU

VID0 VID1 VID2

VID3 VID4 VID5 VID6 VID7

NCP5395

VTT

R236

12V_FILTER

2 1

12V_FILTER

VCCP

RF4

CH4

CF4

RDFB4

RISO4

+5.0V

RFB10

CDFB4

RT10

RISO10

C48

C83

R29

CFB5

RFB8

RDRP10

2.61K

R46

RLIM9

13 14

22 23

RLIM11

ILIM

ROSC

IMON

VSP

VSN

DIFFOUT

COMP

VFB

VDRP

VDFB

CSSUM

DAC

GND

VCC

CS4N

CS4P

VID7

VID5

VID6

VID4

NCP5395

48L 7x7 QFN

FLAG = GND

CS2P

CS3P27CS3N

CS2N

VID2

VID3

CS1N

CS1P

VID1

PSI

VID0

VBST3

TG3

SWN3

DRVON

BST2

TG2

SWN2

BG2

VCCP

SWN1

TG1

BST1

VR_RDY

BG3

41 12V_FILTER

40 39

BG1

C37

DRVON

12V_FILTER

PWM3_SENSE_N

PWM3_SENSE_P

PWM2_SENSE_P

PWM2_SENSE_N

VCCP

VTT

ENABLE

R145

R148

R33

PWM1_SENSE_P

C40

PWM1_SENSE_N

R32

PWM2_SENSE_P

C38

PWM2_SENSE_N

R34

PWM3_SENSE_P

C41

PWM3_SENSE_N

Figure 3. Typical 3 Phase Application

http://onsemi.com

PWM1_SENSE_N

PWM1_SENSE_P

12V_FILTER

Page 5

VTT

NCP5395

VCCP

RF5

CF5

RDFB5

RISO11

+5.0V

RFB11

CH5

CDFB5

RT12

RISO12

PSI#_CPU

IMON

CFB6

RFB9

RDRP11

VID0 VID1 VID2 VID3 VID4 VID5 VID6 VID7

RLIM10

13 14

22 23

RLIM12

ILIM

ROSC

IMON VSP

VSN

DIFFOUT

COMP

VFB

VDRP

VDFB

CSSUM

DAC

GND VCC

CS4N

CS4P

VID7

VID4

VID5

VID6

NCP5395 48L 7x7 QFN FLAG = GND

CS2P

CS3P27CS3N

CS2N

VID3

CS1P

VID2

CS1N

VID1

DRVON

12V_FILTER

PSI

BG3

VID0 VBST3

TG3

SWN3

BST2

TG2

SWN2

BG2

VCCP

SWN1

TG1

BST1

VR_RDY

BG1

DRVON

44 43

12V_FILTER

PWM3_SENSE_N

PWM3_SENSE_P

PWM2_SENSE_N

PWM2_SENSE_P

VCCP

VTT

ENABLE

PWM4_GATE

PWM1_SENSE_P

PWM1_SENSE_N

12V_FILTER

PWM2_SENSE_P

PWM2_SENSE_N PWM3_SENSE_P

PWM3_SENSE_N

DRVON

PWM4_GATE

PWM4_SENSE_P

PWM4_SENSE_N

2 1

VCC

NCP5359

BST

1 8 7

5 6

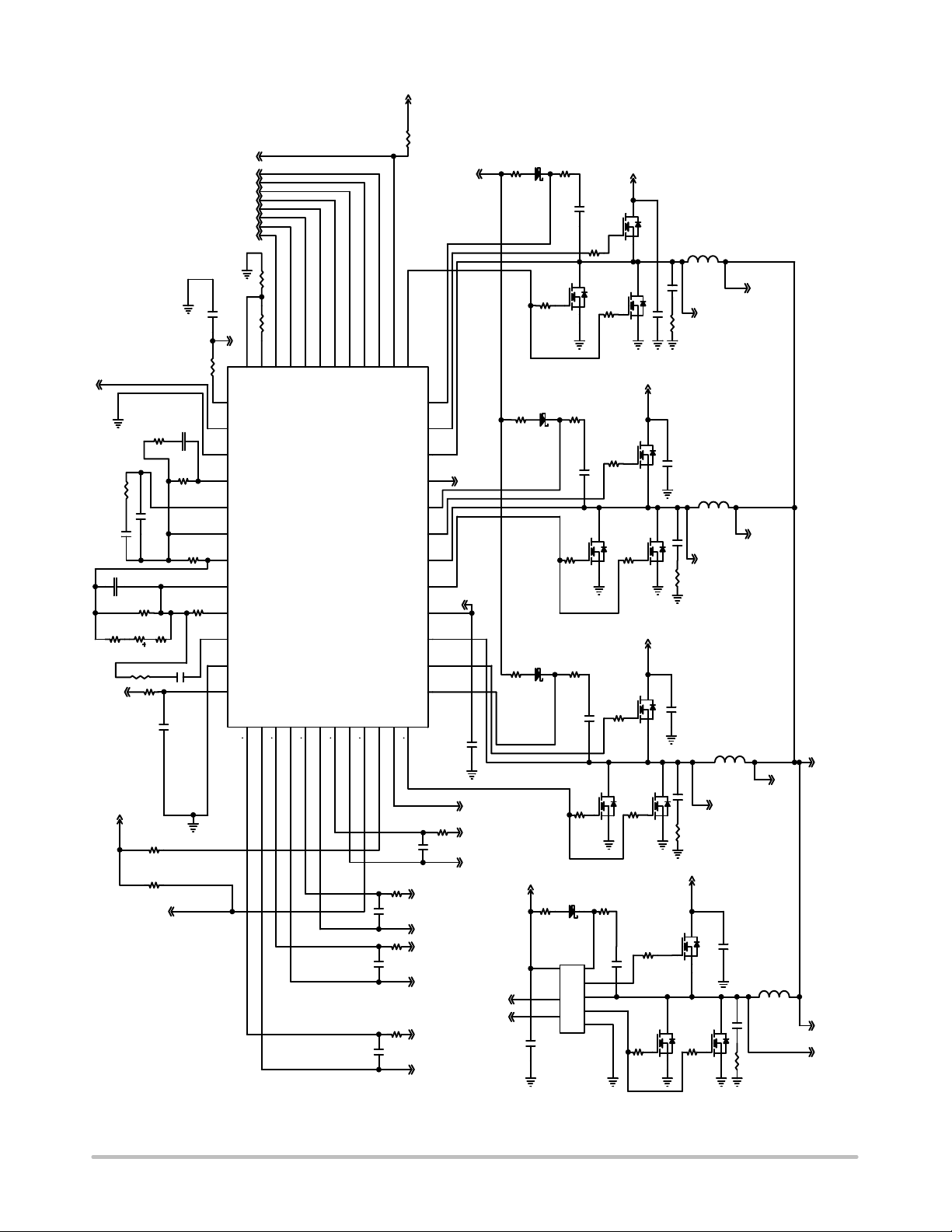

Figure 4. Typical 4 Phase Application

http://onsemi.com

DRH SW

DRL

PGND

12V_FILTER

PWM1_SENSE_N

PWM1_SENSE_P

PWM4_SENSE_N

PWM4_SENSE_P

Page 6

NCP5395

Table 1. Pin Descriptions

Pin No. Symbol Description

1 BG3 Low side gate drive #3

2 PSI Selects DAC Decode.

3 VID0 Voltage ID DAC input

4 VID1 Voltage ID DAC input

5 VID2 Voltage ID DAC input

6 VID3 Voltage ID DAC input

7 VID4 Voltage ID DAC input

8 VID5 Voltage ID DAC input

9 VID6 Voltage ID DAC input

10 VID7/AMD Voltage ID DAC input. Pull to VCC (5 V) to enable AMD 6−bit DAC code.

11 ROSC A resistance from this pin to ground programs the oscillator frequency and provides a 2 V reference

12 ILIM Over current shutdown threshold setting. ILIM = VDRP − 1.3 V. Resistor divide ROSC to set threshold

13 IMON 0 to 1 Volt analog signal proportional to the output load current. VSN referenced Clamped to 1.1 Vmax

14 VSP Non−inverting input to the internal differential remote sense amplifier

15 VSN Inverting input to the internal differential remote sense amplifier

16 DIFFOUT Output of the differential remote sense amplifier

17 COMP Output of the compensation amplifier

18 VFB Compensation amplifier voltage feedback

19 VDRP Voltage output signal proportional to current used for current limit and output voltage droop

20 VDFB Droop Amplifier Voltage Feedback

21 CSSUM Inverted Sum of the Differential Current Sense inputs

22 DAC DAC output used to provide feed forward for dynamic VID

23 GND Ground

24 VCC Power for the internal control circuits with UVLO monitor

25 CS4P Non−inverting input to current sense amplifier #4

26 CS4N Inverting input to current sense amplifier #4

27 CS3P Non−inverting input to current sense amplifier #3

28 CS3N Inverting input to current sense amplifier #3

29 CS2P Non−inverting input to current sense amplifier #2

30 CS2N Inverting input to current sense amplifier #2

31 CS1P Non−inverting input to current sense amplifier #1

32 CS1N Inverting input to current sense amplifier #1

33 EN Threshold sensitive input. High = startup, Low =shutdown.

34 VR_RDY Open collector output. High indicates that the output is regulating

35 G4 PWM output pulse to gate driver.

36 BG1 Low side gate drive #1

37 BST1 Upper MOSFET floating bootstrap supply for driver#1

38 TG1 High side gate drive #1

39 SWN1 Switch Node #1

40 VCCP Power VCC for gate drivers with UVLO monitor

41 BG2 Low side gate drive #2

42 SWN2 Switch Node #2

43 TG2 High side gate drive #2

44 BST2 Upper MOSFET floating bootstrap supply for driver#2

45 DRVON Bidirectional Gate Drive Enable

46 SWN3 Switch Node #3

47 TG3 High side gate drive #3

48 BST3 Upper MOSFET floating bootstrap supply for driver#3

FLAG GND Power supply return (QFN Flag)

for programming the ILIM voltage.

http://onsemi.com

Page 7

NCP5395

ABSOLUTE MAXIMUM RATINGS

Rating Symbol Value Unit

ELECTRICAL INFORMATION

Controller Power Supply Voltages to GND

Driver Power Supply Voltages to GND V

High−Side Gate Driver Supplies: BSTx to SWNx V

High−Side FET Gate Driver Voltages: TGx to SWNx VTG − V

Switch Node: SWNx V

Low−Side Gate Drive: BGx VBG − AGND VCC + 0.3 V

Logic Inputs V

GND V

V− GND ±300 mV

Imon Out V

All Other Pins −0.3, 5.5 V

THERMAL INFORMATION

Thermal Characteristic QFN Package (Note 1)

Operating Junction Temperature Range (Note 2) T

Operating Ambient Temperature Range T

Maximum Storage Temperature Range T

Moisture Sensitivity Level QFN Package

Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability. *All signals referenced to GND unless noted otherwise. *The maximum package power dissipation must be observed.

1. JESD 51−5 (1S2P Direct−Attach Method) with 0 LFM

2. Operation at −40°C to 0°C guaranteed by design, not production tested.

CCP

− V

BST

SWN

40 V ≤ 50 ns wrt/GND

−0.3, 15 wrt/SWN

SWN

35 V ≤ 50 ns wrt/GND

−0.3, 15 wrt/SWN

SWN

40 V ≤ 50 ns wrt/GND

−10 V (200 ns)

−0.3 VDC (200 ns)

LOGIC

GND

IMON

AMB

STG

MSL 1

−0.3, 7 V

−0.3, 15 V

35 V wrt/GND

BOOT + 0.3 V

−2 V (200 ns)

−5 VDC

−0.3, 6 V

0 V

1.1 V

TBD °C/W

0 to 125 °C

0 to +70 °C

−55 to +150 °C

http://onsemi.com

Page 8

NCP5395

ELECTRICAL CHARACTERISTICS

0°C < TA < 70°C; 0°C < TJ < 125°C; 4.75 < VCC < 5.25 V; All DAC Codes; C

Parameter Test Conditions Min Typ Max Unit

ERROR AMPLIFIER

Input Bias Current −200 − 200 nA

Open Loop DC Gain CL = 60 pF to GND,

RL = 10 kW to GND

Open Loop Unity Gain Bandwidth CL = 60 pF to GND,

RL = 10 kW to GND

Open Loop Phase Margin CL = 60 pF to GND,

RL = 10 kW to GND

Slew Rate

DVin = 100 mV, G = −10V/V, DV

= 1.5 V − 2.5 V,

out

CL = 60 pF to GND, DC Load = ±125 mA to GND

Maximum Output Voltage 10 mV of Overdrive,

= 2.0 mA

SOURCE

Minimum Output Voltage 10 mV of Overdrive,

= 500 mA

SINK

Output Source Current 10 mV of Overdrive,

= 3.5 V

out

Output Sink Current 10 mV of Overdrive,

= 0.1 V

out

DIFFERENTIAL SUMMING AMPLIFIER

V+ Input Pull down Resistance DRVON = low

DRVON = high

V+ Input Bias Voltage DRVON = low

DRVON = high

Input Voltage Range (Note 4) −0.3 − 3.0 V

−3 dB Bandwidth CL = 80 pF to GND, RL = 10 kW to GND

Closed Loop DC gain VS to Diffout (Note 4) VS+ to VS− = 0.5 V to 1.6 V 0.98 1.0 1.02 V/V

Maximum Output Voltage 10 mV of Overdrive,

= 2 mA

SOURCE

Minimum Output Voltage 10 mV of Overdrive,

= 1 mA

SINK

Output Source Current 10 mV of Overdrive,

= 3 V

out

Output Sink Current 10 mV of Overdrive,

= 0.2 V

out

INTERNAL OFFSET VOLTAGE

Offset Voltage to the (+) Pin of the Error Amp & the VDRP Pin

3. Design guaranteed.

4. For propagation delays, “tpdh” refers to the specified signal going high “tpdl” refers to it going low. Reference Gate Timing Diagram.

5. Guaranteed by design; not tested in production.

6. Internal DAC voltage is centered 19 mV below the listed Voltage. For VR11.1/VR11.0/VR10

7. No DAC offset is implemented for AMD operation.

= 0.1 mF unless otherwise noted.

VCC

− 100 − dB

− 18 − MHz

− 70 − °

− 10 −

3.0 − − V

− − 75 mV

1.5 2.0 − mA

0.75 1.0 − mA

−

− 15 − MHz

3.0 − − V

− − 0.5 V

1.5 2.0 − mA

1.0 1.5 − mA

−2 0 +2 mV

0.6

6.0

0.5

0.86

V/ms

−

http://onsemi.com

Page 9

NCP5395

ELECTRICAL CHARACTERISTICS

0°C < TA < 70°C; 0°C < TJ < 125°C; 4.75 < VCC < 5.25 V; All DAC Codes; C

Parameter UnitMaxTypMinTest Conditions

VDROOP AMPLIFIER

Input Bias Current −200 − 200 nA

Inverting Voltage Range 0 1.3 3.0 V

Open Loop DC Gain CL = 20 pF to GND including ESD

RL = 1 kW to GND

Open Loop Unity Gain Bandwidth CL = 20 pF to GND including ESD

RL = 1 kW to GND

Open Loop Phase Margin CL = 20 pF to GND including ESD

RL = 1 kW to GND

Slew Rate CL = 20 pF to GND including ESD

RL = 1 kW to GND

Maximum Output Voltage 10 mV of Overdrive,

= 4.0 mA

SOURCE

Minimum Output Voltage 10 mV of Overdrive,

= 1.0 mA

SINK

Output Source Current 10 mV of Overdrive,

= 3.0 V

out

Output Sink Current 10 mV of Overdrive,

= 1.0 V

out

CSSUM AMPLIFIER

Current Sense Input to CSSUM Gain −75 mV < CS < 75 mV −3.793 −3.70 −3.608 V/V

Current Sense Input to V

−3 dB Bandwidth CL = 10 pF to GND,

DRP

RL = 10 kW to GND

Current Summing Amp Output Offset Voltage CSx − CSNx = 0, CSx = 1 V −8.0 − +8.0 mV

Maximum CSSUM Output Voltage CSx − CSxN = −0.2 V

(all phases) I

Minimum CSSUM Output Voltage CSx − CSxN = 0.7 V

(all phases) I

Output Source Current V

Output Sink Current V

= 3.0 V 1.0 − − mA

out

= 0.3 V 4.0 − − mA

out

PSI

Enable High Input Leakage Current External 1k Pull−up to 3.3 V − − 1.0

Threshold 450 600 770 mV

Delay − 100 − ns

DRVON

Output High Voltage

Output Low Voltage

Sourcing 500 mA

Sinking 500 mA

Delay Time Propagation delays − 10 − ns

Rise Time CL (PCB) = 20 pF,

DVo = 10% to 90%

Fall Time CL (PCB) = 20 pF,

DVo = 10% to 90%

Internal Pull−Down Resistance 35 70 140

VCC Voltage when DRVON Output Valid − − 2.0 V

3. Design guaranteed.

4. For propagation delays, “tpdh” refers to the specified signal going high “tpdl” refers to it going low. Reference Gate Timing Diagram.

5. Guaranteed by design; not tested in production.

6. Internal DAC voltage is centered 19 mV below the listed Voltage. For VR11.1/VR11.0/VR10

7. No DAC offset is implemented for AMD operation.

VCC

SOURCE

= 1 mA

SINK

= 0.1 mF unless otherwise noted.

− 100 − dB

− 18 − MHz

− 70 − °

− 10 −

3.0 − − V

− − 1.0 V

4.0 − − mA

1.0 − − mA

− 12 − MHz

3.0 − − V

= 1 mA

− − 0.3 V

3.0 − − V

− − 0.7 V

− 10 − ns

V/ms

http://onsemi.com

Page 10

NCP5395

ELECTRICAL CHARACTERISTICS

0°C < TA < 70°C; 0°C < TJ < 125°C; 4.75 < VCC < 5.25 V; All DAC Codes; C

Parameter UnitMaxTypMinTest Conditions

CURRENT SENSE AMPLIFIERS

Input Bias Current CSx = CSxN = 1.4 V −50 − 50 nA

Common Mode Input Voltage Range −0.3 − 2.0 V

Differential Mode Input Voltage Range −120 − 120 mV

Current Sharing Output Voltage CSx = CSxN = 1.00 V, −TBD − TBD mV

Current Sense Input to PWM Gain 0 V < CSx − CSxN < 0.1 V, 5.4 5.7 6.0 V/V

Current Sense Input to CSSUM Gain 0 V < CSx − CSxN < 0.1 V −3.793 −3.7 −3.608 V/V

IMON

to IMON Gain 1.325 V > V

DRP

Current Sense Input to V

to IMON Output Slew Rate CL = 30 pF to GND,

DRP

Output Referred Offset Voltage V

Minimum Output Voltage

Maximum Output Voltage

Output Sink Current V

−3 dB Bandwidth CL = 30 pF to GND,

DRP

RL = 100 kW to GND

Load = 100k to GND

DRP

= 300 mA

out

DRP

= 1.5 V, I

= 1.3 V, I

= 0.3 V 175 − −

Maximum Clamp Voltage IMON − VSN V

= Open

LOAD

OSCILLATOR

Switching Frequency Range 100 − 1100 kHz

Switching Frequency Accuracy 200 kHz < FSW < 600 kHz − − 5.0 %

Switching Frequency Accuracy 100 kHz < FSW < 1 MHz − − 10 %

Switching Frequency Accuracy (2ph or 4ph)

Switching Frequency Accuracy (3ph)

= 69.8k TBD − TBD

OSC

= 16.2k 475 − 525

OSC

= 7.5k TBD − TBD

OSC

= 69.8k TBD − TBD

OSC

= 16.2k 494 − 546

OSC

= 7.5k TBD − TBD

OSC

ROSC Output Voltage 1.93 2.00 2.05 V

MODULATORS (PWM Comparators)

Minimum Pulse Width Fsw = 800 kHz − 30 − ns

Magnitude of the PWM Ramp TBD 1.0 TBD V

0% Duty Cycle COMP Voltage when the PWM

Outputs Remain LO

100% Duty Cycle COMP Voltage when the PWM

Outputs Remain HI

PWM Phase Angle Error Between Adjacent Phases −TBD − TBD °

VR_RDY (Power Good) OUTPUT

VR_RDY Output Saturation Voltage I

= 10 mA − − 0.4 V

PGD

3. Design guaranteed.

4. For propagation delays, “tpdh” refers to the specified signal going high “tpdl” refers to it going low. Reference Gate Timing Diagram.

5. Guaranteed by design; not tested in production.

6. Internal DAC voltage is centered 19 mV below the listed Voltage. For VR11.1/VR11.0/VR10

7. No DAC offset is implemented for AMD operation.

= 0.1 mF unless otherwise noted.

VCC

> 1.75 V 1.89 2.0 2.02 V/V

− 4.0 − MHz

− TBD −

= 0 mA −TBD − TBD mV

SOURCE

SINK

= 25 mA

− − 0.1 V

V/ms

1.0 − − V

DRP

= HIGH

1.1 − 1.15 V

TBD 150 TBD mV

− 1.15 − V

kHz

http://onsemi.com

Page 11

NCP5395

ELECTRICAL CHARACTERISTICS

0°C < TA < 70°C; 0°C < TJ < 125°C; 4.75 < VCC < 5.25 V; All DAC Codes; C

Parameter UnitMaxTypMinTest Conditions

VR_RDY (Power Good) OUTPUT

VR_RDY Rise Time

VR_RDY Output Voltage at Power−up

External pull−up of 1 KW to 1.25 V, C

= 45 pF, DVo = 10% to 90%

TOT

VR_RDY pulled up to 5 V via 2 kW, t

≤ 3 x t

R(VCC)

100 ms ≤ t

R(VCC)

VR_RDY High − Output Leakage Current VR_RDY = 5.5 V via 1 K − − 0.1

VR_RDY Upper Threshold Voltage (INTEL) VCore Increasing, DAC = 1.3 V − 300 250 mV

VR_RDY Lower Threshold Voltage (INTEL) VCore Decreasing, DAC = 1.3 V 390 350 300 mV

VR_RDY Lower Threshold Voltage (AMD) VCore Increasing, DAC = 1.3 V − TBD TBD mV

VR_RDY Lower Threshold Voltage (AMD) VCore Decreasing, DAC = 1.3 V TBD TBD TBD mV

VR_RDY Rising Delay VCore Increasing − TBD −

VR_RDY Falling Delay VCore Decreasing − 5.0 −

PWM G4 OUTPUT

Output High Voltage

Sourcing 500 mA

Mid Output Voltage 1.4 1.5 1.6

Output Low Voltage

Sinking 500 mA

Delay + Rise Time CL (PCB) = 50 pF,

DVo = VCC to GND

Delay + Fall Time CL (PCB) = 50 pF,

DVo = GND to V

Tri−State Output Leakage Gx = 2.5 V, x = 1−4 − − 1.5

Output Impedance − HI or LO State

Max Resistance to VCC (HI) or GND (LO)

Minimum VCC for Valid PWM Output Level − − 2.0 V

PWM 4 2/3/4 Phase Detection

2 Phase Mode Note Gate 4 tied to V

4 Phase Mode Note Gate Driver will pull to 1.5 V 1.2 − 2.8 V

3 Phase Mode Note Gate 4 tied to GND 0 − 0.8 V

DIGITAL SOFT−START

Soft−Start Ramp Time DAC = 0 to DAC = 1.1 V 1.0 − 1.3 ms

VR11 V

time Not used in Legacy Startup 400 500 600

boot

VID7/VR11/AMD/LEGACY INPUT

VID Threshold 450 600 770 mV

VR11 Input Bias Current −100 − 100 nA

3. Design guaranteed.

4. For propagation delays, “tpdh” refers to the specified signal going high “tpdl” refers to it going low. Reference Gate Timing Diagram.

5. Guaranteed by design; not tested in production.

6. Internal DAC voltage is centered 19 mV below the listed Voltage. For VR11.1/VR11.0/VR10

7. No DAC offset is implemented for AMD operation.

= 0.1 mF unless otherwise noted.

VCC

R(5V)

≤ 20 ms

− 100 150 ns

− − 1.0 V

(below

DAC)

(below

DAC)

(below

DAC)

(below

DAC)

3.0 − − V

− − 0.7 V

− 10 15 ns

− 75 150

3.2 − V

http://onsemi.com

Page 12

NCP5395

ELECTRICAL CHARACTERISTICS

0°C < TA < 70°C; 0°C < TJ < 125°C; 4.75 < VCC < 5.25 V; All DAC Codes; C

Parameter UnitMaxTypMinTest Conditions

VID7/VR11/AMD/LEGACY INPUT

Delay Before Latching VID Change (VID Deskewing) Measured from the Edge of the 1st

VID Change

AMD Upper Threshold Note: When above this threshold

the controller will ramp directly to VID without stopping at V

AMD Lower Threshold 2.4 − − V

ENABLE INPUT

Enable High Input Leakage Current Pull−up to 1.3 V − − 200 nA

VR11.1 Threshold 450 600 770 mV

AMD Upper Threshold − 1.3 1.5 V

AMD Lower Threshold 0.9 1.1 − V

AMD Total Hysteresis Rising− Falling Threshold − 200 − mV

Enable Delay Time Measure time from Enable

transitioning HI to when SS begins

CURRENT LIMIT

ILIM to VDRP Gain 0.99 1.00 1.01 V/V

ILIM to VRDP Gain in PSI 4 Phase − 0.25 − V/V

ILIM to VDRP Gain in PSI 3 Phase − 0.333 − V/V

ILIM to VDRP Gain in PSI 2 Phase − 0.5 − V/V

ILIM Pin Input Bias Current − 0.1 1.0

ILIM Pin Working Voltage Range 0.1 − 2.0 V

ILIM accuracy Measured with respect to the ILIM

setting

Delay − − 120 ns

OVERVOLTAGE PROTECTION

VR11 Over Voltage Threshold DAC+

AMD Over Voltage Threshold DAC+

Delay − − 100 ns

UNDERVOLTAGE PROTECTION

VCC UVLO Start Threshold 4.0 4.25 4.5 V

VCC UVLO Stop Threshold 3.8 4.05 4.3 V

VCC UVLO Hysteresis − 200 − mV

DAC OUTPUT

DAC Output Variation

Output Source Current V

Output Sink Current V

= 200 mA, All VIDs

SOURCE

= 200 mA, All VIDs

SINK

= 1.6 V 0 − 5.0 mA

out

= 0.3 V 5.0 − 16 mA

out

3. Design guaranteed.

4. For propagation delays, “tpdh” refers to the specified signal going high “tpdl” refers to it going low. Reference Gate Timing Diagram.

5. Guaranteed by design; not tested in production.

6. Internal DAC voltage is centered 19 mV below the listed Voltage. For VR11.1/VR11.0/VR10

7. No DAC offset is implemented for AMD operation.

= 0.1 mF unless otherwise noted.

VCC

200 − 300 ns

− − 2.9 V

boot

− 3.5 − ms

−10 − 10 mV

160

210

−3.0 0 3.0 %

DAC+

190

DAC+

235

DAC+

210

DAC+

260

http://onsemi.com

Page 13

NCP5395

ELECTRICAL CHARACTERISTICS

0°C < TA < 70°C; 0°C < TJ < 125°C; 4.75 < VCC < 5.25 V; All DAC Codes; C

Parameter UnitMaxTypMinTest Conditions

VID INPUTS

Threshold 450 600 770 mV

VR11 Mode Leakage −100 − 100 nA

AMD Mode Input Bias Current 10 − 25

Delay before Latching VID Change (VID Deskewing)

Delay Before Responding to Invalid or Shutdown Codes (Remove Spec)

Measured from the edge of the 1 VID change

Note: DAC must hold the last valid VID during this period

DIGITAL DAC SLEW RATE LIMITER

Slew Rate Limit (Intel Mode) 12.5 − 15

Slew Rate Limit (AMD Mode) 3.125 − 3.75

Soft−Start Slew Rate − 0.84 −

INPUT SUPPLY CURRENT

VCC Operating Current EN Low, No PWM 20 − 40 mA

PHASE SHEDDING

CS referred ph shed bias CS2 through CS4 − 66 − mV

SUPPLY VOLTAGE

CCP

UVLO Start Threshold 8.2 9.0 9.5 V

CCP

UVLO Stop Threshold 7.2 8.0 8.5 V

CCP

UVLO Hysteresis − 1.0 − V

CCP

POR Voltage at which the Driver OVP

CCP

becomes active

BOOST PIN UVLO

BOOST VCC UVLO Start Threshold 3.5 4.0 V

BOOST VCC UVLO Stop Threshold 3.3 3.8 V

BOOST VCC UVLO Hysteresis 200 mV

BOOST SUPPLY CURRENT

VCCP_NORM

Operation

VCC_SBC

BST1

BST2

BST3

BST1_SD

BST2_SD

BST3_SD

Quiescent Supply Current in Normal

EN = VCC, PWM = OSC, F

LOAD

100k, C

Standby Current EN = GND; No switching,

= 12 V

CCP

Quiescent Supply Current in Normal Operation IN = V

Quiescent Supply Current in Normal Operation IN = GND, V

Standby Current IN = V

Standby Current IN = GND, V

CCP

, V

CCP

STARTUP HIGH SIDE SHORT TRIP (Active only during 1st power on)

Output Overvoltage Trip Threshold at Startup Power Startup time, VCC > 9 V 1.75 − 2.0 V

swx

3. Design guaranteed.

4. For propagation delays, “tpdh” refers to the specified signal going high “tpdl” refers to it going low. Reference Gate Timing Diagram.

5. Guaranteed by design; not tested in production.

6. Internal DAC voltage is centered 19 mV below the listed Voltage. For VR11.1/VR11.0/VR10

7. No DAC offset is implemented for AMD operation.

= 0.1 mF unless otherwise noted.

VCC

200 − 300 ns

− − −

TBD 3.2 TBD

= 0 p, V

CCP

= 12 V

− − 42 mA

20 − 40 mA

= 12 V − 10 TBD mA

= 12 V − 10 TBD

= 12 V − 0.25 − mA

mV/ms

http://onsemi.com

Page 14

NCP5395

ELECTRICAL CHARACTERISTICS

0°C < TA < 70°C; 0°C < TJ < 125°C; 4.75 < VCC < 5.25 V; All DAC Codes; C

Parameter UnitMaxTypMinTest Conditions

HIGH SIDE DRIVER

Output Resistance, Sourcing V

H_TG

Output Resistance, Sinking V

H_TG

Transition Time C

DRVH

Transition Time C

DRVH

Tpdh

Propagation Delay (Note 4) Driving High, C

DRVH

Propagation Delay (Note 4) Driving Low, C

DRVH

BST

LOAD

CCP

− V

= 12 V − 1.8 4.2

− V

= 12 V − 1.0 2.2

= 3 nF, V

= 12 V

LOW SIDE DRIVER

Output Resistance, Sourcing SW = GND − TBD 4.2

H_BG

Output Resistance, Sinking SW = V

L_BG

Transition Time C

DRVH

Transition Time C

DRVH

Tpdh

NCDT

Propagation Delay (Note 4) Driving High, C

DRVH

Propagation Delay (Note 4) Driving Low, C

DRVH

Negative Current Detector Threshold (Note 3) − −1.0 − mV

= 3 nF − 16 − ns

LOAD

= 3 nF − 11 − ns

LOAD

= 12 V

CCP

= 12 V

CCP

THERMAL SHUTDOWN

Tsd Thermal Shutdown (Note 3) 150 170 − °C

Tsdhys Thermal Shutdown Hysteresis (Note 3) − 20 − °C

VRM 11 DAC

System Voltage Accuracy 1.0 V < DAC < 1.6 V

0.8 V < DAC < 1.0 V

0.5 V < DAC < 0.8 V

3. Design guaranteed.

4. For propagation delays, “tpdh” refers to the specified signal going high “tpdl” refers to it going low. Reference Gate Timing Diagram.

5. Guaranteed by design; not tested in production.

6. Internal DAC voltage is centered 19 mV below the listed Voltage. For VR11.1/VR11.0/VR10

7. No DAC offset is implemented for AMD operation.

= 0.1 mF unless otherwise noted.

VCC

− VSW = 12 V − 16 − ns

BST

− VSW = 12 V − 11 − ns

BST

LOAD

= 3 nF,

− 20 − ns

− TBD 2.2

LOAD

= 3 nF,

− 20 − ns

−

±0.5 ±5.0 ±8.0

% mV mV

http://onsemi.com

Page 15

NCP5395

DRVL

DRVH−SW

tpdl

DRVL

90%

DRVL

90%

tpdh

10%

DRVH

10%

DRVH

90% 90%

tpdl

DRVH

tpdh

10%

DRVL

10%2V

DRVL

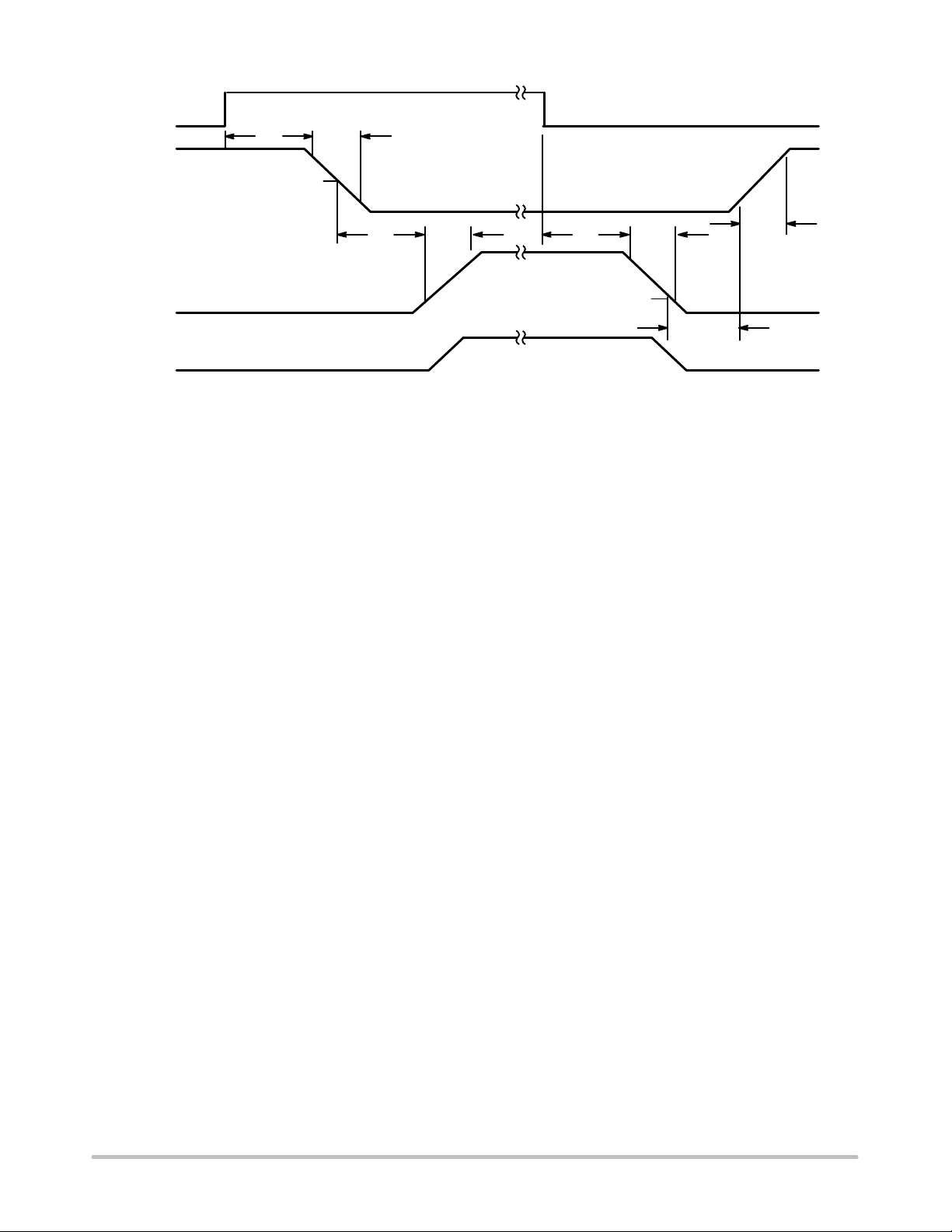

Figure 5. Timing Diagram

http://onsemi.com

Page 16

NCP5395

Table 2. VRM11 VID CODES

ID7

800 mV

0 0 0 0 0 0 0 0 00

0 0 0 0 0 0 0 1 01

0 0 0 0 0 0 1 0 1.60000 02

0 0 0 0 0 0 1 1 1.59375 03

0 0 0 0 0 1 0 0 1.58750 04

0 0 0 0 0 1 0 1 1.58125 05

0 0 0 0 0 1 1 0 1.57500 06

0 0 0 0 0 1 1 1 1.56875 07

0 0 0 0 1 0 0 0 1.56250 08

0 0 0 0 1 0 0 1 1.55625 09

0 0 0 0 1 0 1 0 1.55000 0A

0 0 0 0 1 0 1 1 1.54375 0B

0 0 0 0 1 1 0 0 1.53750 0C

0 0 0 0 1 1 0 1 1.53125 0D

0 0 0 0 1 1 1 0 1.52500 0E

0 0 0 0 1 1 1 1 1.51875 0F

0 0 0 1 0 0 0 0 1.51250 10

0 0 0 1 0 0 0 1 1.50625 11

0 0 0 1 0 0 1 0 1.50000 12

0 0 0 1 0 0 1 1 1.49375 13

0 0 0 1 0 1 0 0 1.48750 14

0 0 0 1 0 1 0 1 1.48125 15

0 0 0 1 0 1 1 0 1.47500 16

0 0 0 1 0 1 1 1 1.46875 17

0 0 0 1 1 0 0 0 1.46250 18

0 0 0 1 1 0 0 1 1.45625 19

0 0 0 1 1 0 1 0 1.45000 1A

0 0 0 1 1 0 1 1 1.44375 1B

0 0 0 1 1 1 0 0 1.43750 1C

0 0 0 1 1 1 0 1 1.43125 1D

0 0 0 1 1 1 1 0 1.42500 1E

0 0 0 1 1 1 1 1 1.41875 1F

0 0 1 0 0 0 0 0 1.41250 20

0 0 1 0 0 0 0 1 1.40625 21

0 0 1 0 0 0 1 0 1.40000 22

0 0 1 0 0 0 1 1 1.39375 23

0 0 1 0 0 1 0 0 1.38750 24

0 0 1 0 0 1 0 1 1.38125 25

0 0 1 0 0 1 1 0 1.37500 26

0 0 1 0 0 1 1 1 1.36875 27

0 0 1 0 1 0 0 0 1.36250 28

0 0 1 0 1 0 0 1 1.35625 29

0 0 1 0 1 0 1 0 1.35000 2A

0 0 1 0 1 0 1 1 1.34375 2B

0 0 1 0 1 1 0 0 1.33750 2C

0 0 1 0 1 1 0 1 1.33125 2D

ID6

400 mV

ID5

200 mV

ID4

100 mV

ID3

50 mV

ID2

25 mV

ID1

12.5 mV

ID0

6.25 mV

Voltage (V) HEX

http://onsemi.com

Page 17

NCP5395

Table 2. VRM11 VID CODES

ID7

800 mV

ID6

400 mV

ID5

200 mV

ID4

100 mV

ID3

50 mV

ID2

25 mV

ID1

12.5 mV

0 0 1 0 1 1 1 0 1.32500 2E

0 0 1 0 1 1 1 1 1.31875 2F

0 0 1 1 0 0 0 0 1.31250 30

0 0 1 1 0 0 0 1 1.30625 31

0 0 1 1 0 0 1 0 1.30000 32

0 0 1 1 0 0 1 1 1.29375 33

0 0 1 1 0 1 0 0 1.28750 34

0 0 1 1 0 1 0 1 1.28125 35

0 0 1 1 0 1 1 0 1.27500 36

0 0 1 1 0 1 1 1 1.26875 37

0 0 1 1 1 0 0 0 1.26250 38

0 0 1 1 1 0 0 1 1.25625 39

0 0 1 1 1 0 1 0 1.25000 3A

0 0 1 1 1 0 1 1 1.24375 3B

0 0 1 1 1 1 0 0 1.23750 3C

0 0 1 1 1 1 0 1 1.23125 3D

0 0 1 1 1 1 1 0 1.22500 3E

0 0 1 1 1 1 1 1 1.21875 3F

0 1 0 0 0 0 0 0 1.21250 40

0 1 0 0 0 0 0 1 1.20625 41

0 1 0 0 0 0 1 0 1.20000 42

0 1 0 0 0 0 1 1 1.19375 43

0 1 0 0 0 1 0 0 1.18750 44

0 1 0 0 0 1 0 1 1.18125 45

0 1 0 0 0 1 1 0 1.17500 46

0 1 0 0 0 1 1 1 1.16875 47

0 1 0 0 1 0 0 0 1.16250 48

0 1 0 0 1 0 0 1 1.15625 49

0 1 0 0 1 0 1 0 1.15000 4A

0 1 0 0 1 0 1 1 1.14375 4B

0 1 0 0 1 1 0 0 1.13750 4C

0 1 0 0 1 1 0 1 1.13125 4D

0 1 0 0 1 1 1 0 1.12500 4E

0 1 0 0 1 1 1 1 1.11875 4F

0 1 0 1 0 0 0 0 1.11250 50

0 1 0 1 0 0 0 1 1.10625 51

0 1 0 1 0 0 1 0 1.10000 52

0 1 0 1 0 0 1 1 1.09375 53

0 1 0 1 0 1 0 0 1.08750 54

0 1 0 1 0 1 0 1 1.08125 55

0 1 0 1 0 1 1 0 1.07500 56

0 1 0 1 0 1 1 1 1.06875 57

0 1 0 1 1 0 0 0 1.06250 58

0 1 0 1 1 0 0 1 1.05625 59

0 1 0 1 1 0 1 0 1.05000 5A

0 1 0 1 1 0 1 1 1.04375 5B

ID0

6.25 mV

HEXVoltage (V)

http://onsemi.com

Page 18

NCP5395

Table 2. VRM11 VID CODES

ID7

800 mV

ID6

400 mV

ID5

200 mV

ID4

100 mV

ID3

50 mV

ID2

25 mV

ID1

12.5 mV

0 1 0 1 1 1 0 0 1.03750 5C

0 1 0 1 1 1 0 1 1.03125 5D

0 1 0 1 1 1 1 0 1.02500 5E

0 1 0 1 1 1 1 1 1.01875 5F

0 1 1 0 0 0 0 0 1.01250 60

0 1 1 0 0 0 0 1 1.00625 61

0 1 1 0 0 0 1 0 1.00000 62

0 1 1 0 0 0 1 1 0.99375 63

0 1 1 0 0 1 0 0 0.98750 64

0 1 1 0 0 1 0 1 0.98125 65

0 1 1 0 0 1 1 0 0.97500 66

0 1 1 0 0 1 1 1 0.96875 67

0 1 1 0 1 0 0 0 0.96250 68

0 1 1 0 1 0 0 1 0.95625 69

0 1 1 0 1 0 1 0 0.95000 6A

0 1 1 0 1 0 1 1 0.94375 6B

0 1 1 0 1 1 0 0 0.93750 6C

0 1 1 0 1 1 0 1 0.93125 6D

0 1 1 0 1 1 1 0 0.92500 6E

0 1 1 0 1 1 1 1 0.91875 6F

0 1 1 1 0 0 0 0 0.91250 70

0 1 1 1 0 0 0 1 0.90625 71

0 1 1 1 0 0 1 0 0.90000 72

0 1 1 1 0 0 1 1 0.89375 73

0 1 1 1 0 1 0 0 0.88750 74

0 1 1 1 0 1 0 1 0.88125 75

0 1 1 1 0 1 1 0 0.87500 76

0 1 1 1 0 1 1 1 0.86875 77

0 1 1 1 1 0 0 0 0.86250 78

0 1 1 1 1 0 0 1 0.85625 79

0 1 1 1 1 0 1 0 0.85000 7A

0 1 1 1 1 0 1 1 0.84375 7B

0 1 1 1 1 1 0 0 0.83750 7C

0 1 1 1 1 1 0 1 0.83125 7D

0 1 1 1 1 1 1 0 0.82500 7E

0 1 1 1 1 1 1 1 0.81875 7F

1 0 0 0 0 0 0 0 0.81250 80

1 0 0 0 0 0 0 1 0.80625 81

1 0 0 0 0 0 1 0 0.80000 82

1 0 0 0 0 0 1 1 0.79375 83

1 0 0 0 0 1 0 0 0.78750 84

1 0 0 0 0 1 0 1 0.78125 85

1 0 0 0 0 1 1 0 0.77500 86

1 0 0 0 0 1 1 1 0.76875 87

1 0 0 0 1 0 0 0 0.76250 88

1 0 0 0 1 0 0 1 0.75625 89

ID0

6.25 mV

HEXVoltage (V)

http://onsemi.com

Page 19

NCP5395

Table 2. VRM11 VID CODES

ID7

800 mV

ID6

400 mV

ID5

200 mV

ID4

100 mV

ID3

50 mV

ID2

25 mV

ID1

12.5 mV

1 0 0 0 1 0 1 0 0.75000 8A

1 0 0 0 1 0 1 1 0.74375 8B

1 0 0 0 1 1 0 0 0.73750 8C

1 0 0 0 1 1 0 1 0.73125 8D

1 0 0 0 1 1 1 0 0.72500 8E

1 0 0 0 1 1 1 1 0.71875 8F

1 0 0 1 0 0 0 0 0.71250 90

1 0 0 1 0 0 0 1 0.70625 91

1 0 0 1 0 0 1 0 0.70000 92

1 0 0 1 0 0 1 1 0.69375 93

1 0 0 1 0 1 0 0 0.68750 94

1 0 0 1 0 1 0 1 0.68125 95

1 0 0 1 0 1 1 0 0.67500 96

1 0 0 1 0 1 1 1 0.66875 97

1 0 0 1 1 0 0 0 0.66250 98

1 0 0 1 1 0 0 1 0.65625 99

1 0 0 1 1 0 1 0 0.65000 9A

1 0 0 1 1 0 1 1 0.64375 9B

1 0 0 1 1 1 0 0 0.63750 9C

1 0 0 1 1 1 0 1 0.63125 9D

1 0 0 1 1 1 1 0 0.62500 9E

1 0 0 1 1 1 1 1 0.61875 9F

1 0 1 0 0 0 0 0 0.61250 A0

1 0 1 0 0 0 0 1 0.60625 A1

1 0 1 0 0 0 1 0 0.60000 A2

1 0 1 0 0 0 1 1 0.59375 A3

1 0 1 0 0 1 0 0 0.58750 A4

1 0 1 0 0 1 0 1 0.58125 A5

1 0 1 0 0 1 1 0 0.57500 A6

1 0 1 0 0 1 1 1 0.56875 A7

1 0 1 0 1 0 0 0 0.56250 A8

1 0 1 0 1 0 0 1 0.55625 A9

1 0 1 0 1 0 1 0 0.55000 AA

1 0 1 0 1 0 1 1 0.54375 AB

1 0 1 0 1 1 0 0 0.53750 AC

1 0 1 0 1 1 0 1 0.53125 AD

1 0 1 0 1 1 1 0 0.52500 AE

1 0 1 0 1 1 1 1 0.51875 AF

1 0 1 1 0 0 0 0 0.51250 B0

1 0 1 1 0 0 0 1 0.50625 B1

1 0 1 1 0 0 1 0 0.50000 B2

1 1 1 1 1 1 1 0 OFF FE

1 1 1 1 1 1 1 1 OFF FF

ID0

6.25 mV

HEXVoltage (V)

http://onsemi.com

Page 20

NCP5395

Parameter Test Condition TYP MAX Units

VR10 DAC

System Voltage Accuracy

8. Internal DAC voltage is centered 19 mV below the listed Voltage. For VR11.1/VR11.0/VR10 No DAC offset is implemented for AMD operation.

1.0 V < DAC < 1.6 V

0. 83125 V < DAC < 1.0 V

−

±0.5

±5

ID4

400 mV

ID3

200 mV

ID2

100 mV

ID1

50 mV

ID0

25 mV

ID5

12.5 mV

ID6

6.25 mV

Voltage (V)

0 1 0 1 0 1 1 1.60000

0 1 0 1 0 1 0 1.59375

0 1 0 1 1 0 1 1.58750

0 1 0 1 1 0 0 1.58125

0 1 0 1 1 1 1 1.57500

0 1 0 1 1 1 0 1.56875

0 1 1 0 0 0 1 1.56250

0 1 1 0 0 0 0 1.55625

0 1 1 0 0 1 1 1.55000

0 1 1 0 0 1 0 1.54375

0 1 1 0 1 0 1 1.53750

0 1 1 0 1 0 0 1.53125

0 1 1 0 1 1 1 1.52500

0 1 1 0 1 1 0 1.51875

0 1 1 1 0 0 1 1.51250

0 1 1 1 0 0 0 1.50625

0 1 1 1 0 1 1 1.50000

0 1 1 1 0 1 0 1.49375

0 1 1 1 1 0 1 1.48750

0 1 1 1 1 0 0 1.48125

0 1 1 1 1 1 1 1.47500

0 1 1 1 1 1 0 1.46875

1 0 0 0 0 0 1 1.46250

1 0 0 0 0 0 0 1.45625

1 0 0 0 0 1 1 1.45000

1 0 0 0 0 1 0 1.44375

1 0 0 0 1 0 1 1.43750

1 0 0 0 1 0 0 1.43125

1 0 0 0 1 1 1 1.42500

1 0 0 0 1 1 0 1.41875

1 0 0 1 0 0 1 1.41250

1 0 0 1 0 0 0 1.40625

1 0 0 1 0 1 1 1.40000

1 0 0 1 0 1 0 1.39375

1 0 0 1 1 0 1 1.38750

1 0 0 1 1 0 0 1.38125

1 0 0 1 1 1 1 1.37500

1 0 0 1 1 1 0 1.36875

1 0 1 0 0 0 1 1.36250

http://onsemi.com

Page 21

NCP5395

Table 3. DAC CODES FOR VRM 10

ID4

400 mV

1 0 1 0 0 0 0 1.35625

1 0 1 0 0 1 1 1.35000

1 0 1 0 0 1 0 1.34375

1 0 1 0 1 0 1 1.33750

1 0 1 0 1 0 0 1.33125

1 0 1 0 1 1 1 1.32500

1 0 1 0 1 1 0 1.31875

1 0 1 1 0 0 1 1.31250

1 0 1 1 0 0 0 1.30625

1 0 1 1 0 1 1 1.30000

1 0 1 1 0 1 0 1.29375

1 0 1 1 1 0 1 1.28750

1 0 1 1 1 0 0 1.28125

1 0 1 1 1 1 1 1.27500

1 0 1 1 1 1 0 1.26875

1 1 0 0 0 0 1 1.26250

1 1 0 0 0 0 0 1.25625

1 1 0 0 0 1 1 1.25000

1 1 0 0 0 1 0 1.24375

1 1 0 0 1 0 1 1.23750

1 1 0 0 1 0 0 1.23125

1 1 0 0 1 1 1 1.22500

1 1 0 0 1 1 0 1.21875

1 1 0 1 0 0 1 1.21250

1 1 0 1 0 0 0 1.20625

1 1 0 1 0 1 1 1.20000

1 1 0 1 0 1 0 1.19375

1 1 0 1 1 0 1 1.18750

1 1 0 1 1 0 0 1.18125

1 1 0 1 1 1 1 1.17500

1 1 0 1 1 1 0 1.16875

1 1 1 0 0 0 1 1.16250

1 1 1 0 0 0 0 1.15625

1 1 1 0 0 1 1 1.15000

1 1 1 0 0 1 0 1.14375

1 1 1 0 1 0 1 1.13750

1 1 1 0 1 0 0 1.13125

1 1 1 0 1 1 1 1.12500

1 1 1 0 1 1 0 1.11875

1 1 1 1 0 0 1 1.11250

1 1 1 1 0 0 0 1.10625

1 1 1 1 0 1 1 1.10000

1 1 1 1 0 1 0 1.09375

1 1 1 1 1 0 1 OFF

1 1 1 1 1 0 0 OFF

ID3

200 mV

ID2

100 mV

ID1

50 mV

ID0

25 mV

ID5

12.5 mV

ID6

6.25 mV

Voltage (V)

http://onsemi.com

Page 22

NCP5395

Table 3. DAC CODES FOR VRM 10

ID4

400 mV

ID3

200 mV

ID2

100 mV

ID1

50 mV

ID0

25 mV

ID5

12.5 mV

1 1 1 1 1 1 1 OFF

1 1 1 1 1 1 0 OFF

0 0 0 0 0 0 1 1.08750

0 0 0 0 0 0 0 1.08125

0 0 0 0 0 1 1 1.07500

0 0 0 0 0 1 0 1.06875

0 0 0 0 1 0 1 1.06250

0 0 0 0 1 0 0 1.05625

0 0 0 0 1 1 1 1.05000

0 0 0 0 1 1 0 1.04375

0 0 0 1 0 0 1 1.03750

0 0 0 1 0 0 0 1.03125

0 0 0 1 0 1 1 1.02500

0 0 0 1 0 1 0 1.01875

0 0 0 1 1 0 1 1.01250

0 0 0 1 1 0 0 1.00625

0 0 0 1 1 1 1 1.00000

0 0 0 1 1 1 0 0.99375

0 0 1 0 0 0 1 0.98750

0 0 1 0 0 0 0 0.98125

0 0 1 0 0 1 1 0.97500

0 0 1 0 0 1 0 0.96875

0 0 1 0 1 0 1 0.96250

0 0 1 0 1 0 0 0.95625

0 0 1 0 1 1 1 0.95000

0 0 1 0 1 1 0 0.94375

0 0 1 1 0 0 1 0.93750

0 0 1 1 0 0 0 0.93125

0 0 1 1 0 1 1 0.92500

0 0 1 1 0 1 0 0.91875

0 0 1 1 1 0 1 0.91250

0 0 1 1 1 0 0 0.90625

0 0 1 1 1 1 1 0.90000

0 0 1 1 1 1 0 0.89375

0 1 0 0 0 0 1 0.88750

0 1 0 0 0 0 0 0.88125

0 1 0 0 0 1 1 0.87500

0 1 0 0 0 1 0 0.86875

0 1 0 0 1 0 1 0.86250

0 1 0 0 1 0 0 0.85625

0 1 0 0 1 1 1 0.85000

0 1 0 0 1 1 0 0.84375

0 1 0 1 0 0 1 0.83750

0 1 0 1 0 0 0 0.83125

ID6

6.25 mV

Voltage (V)

http://onsemi.com

Page 23

NCP5395

Parameter Test Condition MIN TYP MAX Units

AMD DAC

System Voltage Accuracy

9. NOTE: No DAC offset is implemented for AMD operation. DAC should be equal to the Nominal V

Table 4. AMD PROCESSOR 6−BIT VID CODE

ID5VID4VID3VID2VID1VID0

0 0 0 0 0 0 1.550 V

0 0 0 0 0 1 1.525 V

0 0 0 0 1 0 1.500 V

0 0 0 0 1 1 1.475 V

0 0 0 1 0 0 1.450 V

0 0 0 1 0 1 1.425 V

0 0 0 1 1 0 1.400 V

0 0 0 1 1 1 1.375 V

0 0 1 0 0 0 1.350 V

0 0 1 0 0 1 1.325 V

0 0 1 0 1 0 1.300 V

0 0 1 0 1 1 1.275 V

0 0 1 1 0 0 1.250 V

0 0 1 1 0 1 1.225 V

0 0 1 1 1 0 1.200 V

0 0 1 1 1 1 1.175 V

0 1 0 0 0 0 1.150 V

0 1 0 0 0 1 1.125 V

0 1 0 0 1 0 1.100 V

0 1 0 0 1 1 1.075 V

0 1 0 1 0 0 1.050 V

0 1 0 1 0 1 1.025 V

0 1 0 1 1 0 1.000 V

0 1 0 1 1 1 0.975 V

0 1 1 0 0 0 0.950 V

0 1 1 0 0 1 0.925 V

0 1 1 0 1 0 0.900 V

0 1 1 0 1 1 0.875 V

0 1 1 1 0 0 0.850 V

0 1 1 1 0 1 0.825 V

0 1 1 1 1 0 0.800 V

0 1 1 1 1 1 0.775 V

1 0 0 0 0 0 0.7625 V

1 0 0 0 0 1 0.7500 V

1.0 V < DAC < 1.55V

0.6 V ≤ DAC < 1.0V

0.375 V < DAC < 0.6V

(VID) Codes

−

Nominal

out

Units

−

shown in the table.

out

±0.5 ±1.0 ±2.0

% % %

http://onsemi.com

Page 24

NCP5395

Table 4. AMD PROCESSOR 6−BIT VID CODE

(VID) Codes

ID5

ID4

ID3

ID2

ID1

1 0 0 0 1 0 0.7375 V

1 0 0 0 1 1 0.7250 V

1 0 0 1 0 0 0.7125 V

1 0 0 1 0 1 0.7000 V

1 0 0 1 1 0 0.6875 V

1 0 0 1 1 1 0.6750 V

1 0 1 0 0 0 0.6625 V

1 0 1 0 0 1 0.6500 V

1 0 1 0 1 0 0.6375 V

1 0 1 0 1 1 0.6250 V

1 0 1 1 0 0 0.6125 V

1 0 1 1 0 1 0.6000 V

1 0 1 1 1 0 0.5875 V

1 0 1 1 1 1 0.5750 V

1 1 0 0 0 0 0.5625 V

1 1 0 0 0 1 0.5500 V

1 1 0 0 1 0 0.5375 V

1 1 0 0 1 1 0.5250 V

1 1 0 1 0 0 0.5125 V

1 1 0 1 0 1 0.5000 V

1 1 0 1 1 0 0.4875 V

1 1 0 1 1 1 0.4750 V

1 1 1 0 0 0 0.4625 V

1 1 1 0 0 1 0.4500 V

1 1 1 0 1 0 0.4375 V

1 1 1 0 1 1 0.4250 V

1 1 1 1 0 0 0.4125 V

1 1 1 1 0 1 0.4000 V

1 1 1 1 1 0 0.3875 V

1 1 1 1 1 1 0.3750 V

ID0

Nominal

out

Units

http://onsemi.com

Page 25

NCP5395

FUNCTIONAL DESCRIPTIONS

General

The NCP5395 dual edge modulated multiphase PWM controller is specifically designed with the necessary features for a high current CPU system. The IC consists of the following blocks: Precision Flexible DAC, Differential Remote Voltage Sense Amplifier, High Performance Voltage Error Amplifier, Differential Current Feedback Amplifiers, Precision Oscillator and Saw−tooth Generator, and PWM Comparators with Hysteresis. The controller also supports power saving mode as per Intel VR11.1 by accurately monitoring the current and switching between multi−phase and single phase operations as requested by the microprocessor system. Protection features include: Undervoltage Lockout, Soft−Start, Overcurrent Protection, Overvoltage Protection, and Power Good Monitor.

Precision Programmable DAC

A precision flexible DAC is provided. The DAC will conform to 2 different specifications: AMD or VR11.1. The VID7/AMD pin is provided to determine which DAC specification will be used and which soft−start mode the part will use for power up. There are two soft−start modes. If VID7/AMD is above it’s threshold the device will soft−start and ramp directly to the DAC code present on the VID inputs. The following truth table describes the functionality:

voltage with the DAC voltage. The non−inverting input sums the remote output voltage with a 1.3 V reference. The resulting voltage at the output of the remote sense amplifier is:

Diffout

+ V

) 1.3 V * V

out

dac

* V

outreturn

This signal then goes through a standard compensation circuit and into the inverting input of the error amplifier. The non−inverting input of the error amplifier is also connected to the 1.3 V reference. The 1.3 V reference then is subtracted out and the error signal at the comp pin of the error amplifier is as normally expected:

comp

+ V

dac

* V

out

The non−inverting input of the remote sense amplifier is pulled low through a small current sink during a fault condition to prevent accidental charging of the regulator output.

2/3/4 Phase Operation

The part can be configured to 2−, 3−, or 4−phase mode. In 2− or 3−phase mode, the internal drivers will be used. In 4−phase mode, an external driver must be used to drive phase 4. The NCP5359 driver is suggested to be used with the controller. The input to G4 pin will decide which phase mode the system is in operation. Please refer to the Application Schematics for more information.

VID7/AMD Pin VID7 Enable

Above AMD

Threshold

Below AMD

Threshold

VID INPUTS

Not

active

Active VR11.1

Pin Mode

AMD

Threshol

Soft Start

Mode

Ramp to

VID

Ramp to

Vboot

VID0−VID7 control the target regulation voltage during normal operation. In AMD mode the VID capture is enabled just before soft start. In VR11 mode the VID capture is enabled at the end of the V

waiting period. If the VID

BOOT

is valid the DAC will track to it. If an invalid VID occurs it will be ignored for 10 ms before the controller shuts down.

Remote Sense Amplifier

A high performance differential amplifier is provided to accurately sense the output voltage of the regulator. The non−inverting input should be connected to the regulator’s output voltage. The inverting input should be connected to the return line of the regulator. Both connection points are intended to be at a remote point so that the most accurate reading of the output voltage can be obtained. The amplifier is configured in a very unique way. First, the gain of the amplifier is internally set to unity. Second, both the inverting and non−inverting inputs of the amplifier are summing nodes. The inverting input sums the output voltage return

High Performance Voltage Error Amplifier

A high performance voltage error amplifier is provided. The error amplifier’s inverting input is VFB and its output is COMP. A standard type 3 compensation circuit is used compensate the system. This involves a 3 pole, 2 zero compensation network. The comp pin is pulled to ground before soft−start for smooth start up.

Differential Current Sense

Four differential amplifiers are provided to sense the output current of each phase. These current sense amplifiers sense the current through the corresponding phase. A voltage is generated across a current sense element such as an inductor or sense resistor. The sense element should be between 0.5 mW and 1.5 mW. It is possible to sense both negative and positive going current. The information is used to create the signal CSSUM and provide feedback for current sharing.

Precision Oscillator

A programmable precision oscillator is provided. This oscillator is programmed by the summed resistance of an oscillator resistor and a current limit resistor. The output voltage of this pin is used as the reference for the current limit. The oscillator frequency range is 125 KHz/phase to 1000 KHz/phase. The oscillator frequency is proportional to the current drawn out of the OSC pin.

http://onsemi.com

Page 26

NCP5395

PWM Comparators

Four PWM comparators are incorporated within the IC. The non−inverting input of the comparators is connected to the output of the error amplifier. The inverting input is connected to a summed output of the phase current and the oscillator ramp voltage with an offset. The output of the comparator generates the PWM control signals.

During steady state operation, the duty cycle will center on the valley of the saw−tooth waveform. During a transient event, the controller will operate somewhat hysteretic, with the duty cycle climbing along either the down ramp, up ramp, or both.

Soft−Start

Soft−start is implemented internally. A digital counter steps the DAC up from zero to the target voltage based on the predetermined rate in the spec table. There are 2 possible soft start modes: VR11 and AMD. AMD mode simply ramps V

from 0 V directly to the DAC setting. The VR11 mode

core

ramps DAC to 1.1 V, pauses for 500 ms, reads the DAC setting, then ramps to the final DAC setting.

Digital Slew Rate Limiter / Soft Start Block

The slew rate limiter and the soft−start block are to be implemented with a digital up/down counter controlled by an oscillator that is synchronized to VID line changes. During soft start the DAC will ramp at the soft−start rate, after soft start is complete the ramp rate will follow either the Intel or the AMD slew rate depending on the mode.

Under Voltage Lockouts

An under voltage circuit senses the VCC input of the controller and the V

input of the driver. During power up

CCP

the input voltage to the controller is monitored. The PWM outputs and the soft start circuit are disabled until the input voltage exceeds the threshold voltage of the comparators. Hysteresis is incorporated within the comparators.

The DRVON is held low until V threshold during startup. If V

CCP

decreases below the stop

reaches the start

CCP

threshold, the output gate will be forced low unit input voltage V

Over Current Latch

rises above the startup threshold.

CCP

A programmable over current latch is incorporated within the IC. The oscillator pin provides the reference voltage for this pin. A resistor divider from the OSC pin generates the ILIM voltage. The latch is set when the current information on V

exceeds the programmed voltage plus a 1.3 V

droop

offset. DRVON is immediately set low. To recover the part must be reset by the EN pin or by cycling VCC.

UVLO Monitor

If the output voltage falls greater than 300 mV below the DAC voltage for more than 5 ms the UVLO comparator will trip sending the VR_RDY signal low.

Over Voltage Protection

The output voltage is monitored at the input of the differential amplifier. During normal operation, if the output

voltage exceeds the DAC voltage by 185 mV, or 285 mV if in AMD mode, the VR_RDY flag will transition low the high side gate drivers set to low, and the low side gate drivers are all brought to high until the voltage falls below the OVP threshold. If the over voltage trip 8 times the output voltage will shut down. The OVP will not shut down the controller if it occurs during soft−start. This is to allow the controller to pull the output down to the DAC voltage and start up into a pre−charged output.

Power ON Reset OVP

CCP

The V

the CPU during start up. When V

power on reset OVP feature is used to protect

CCP

is higher than 3.2 V, the

CCP

gate driver will monitor the switching node SW pin. If SWNx pin higher than 1.9 V, the bottom gate will be forced to high for discharge of the output capacitor. This works best if the 5 volt standby is diode OR’ed into V

with the 12 V

CCP

rail. The fault mode will be latched and the DRVON pin will be forced to low, unless V

is reduced below the UVLO

CCP

threshold.

Power Saving Mode

The controller is designed to allow power saving mode to maintain a maximum efficiency. When a low PSI signal from microcontroller is received, the controller will keep one phase operating while shedding other phases. The active one phase will operate in diode emulation mode, minimizing power losses in light load. When the low PSI signal is de−asserted, the dropped phases will be pulled back in to be ready for heavy load.

Adaptive Non−overlap

The non−overlap dead time control is used to avoid shoot through damage to the power MOSFETs. When the PWM signal pull high, DRVL will go low after a propagation delay, the controller monitors the switching node (SWN) pin voltage and the gate voltage of the MOSFET to know the status of the MOSFET. When the low side MOSFET status is off an internal timer will delay turn on of the high–side MOSFET. When the PWM pull low, gate DRVH will go low after the propagation delay (tpdDRVH). The time to turn off the high side MOSFET is depending on the total gate charge of the high−side MOSFET. A timer will be triggered once the high side MOSFET is turn off to delay the turn on the low−side MOSFET.

Layout Guidelines

Layout is very important thing for design a DC−DC converter. Bootstrap capacitor and Vin capacitor are most critical items, it should be placed as close as to the controller IC. Another item is using a GND plane. Ground plane can provide a good return path for gate drives for reducing the ground noise. Therefore GND pin should be directly connected to the ground plane and close to the low−side MOSFET source pin. Also, the gate drive trace should be considered. The gate drives has a high di/dt when switching, therefore a minimized gate drives trace can reduce the di/dv, raise and fall time for reduce the switching loss.

http://onsemi.com

Page 27

1.25 V

NCP5395

ENABLE

5 V

12 V

5 and 12 Good

DRVON

1 ms − 20 ms

Rise Time

1 ms − 20 ms

Rise Time

12 V

1.25 V

VID Not Valid VID Valid

VR11 Soft−start

Mode Latched

3.5 ms

Calibration Time

VID Captured

Soft−start

Slew Rate

DAC Setting

VOUT/DAC

VR_RDY

1.10 V

Soft−start

Slew Rate

500 ms

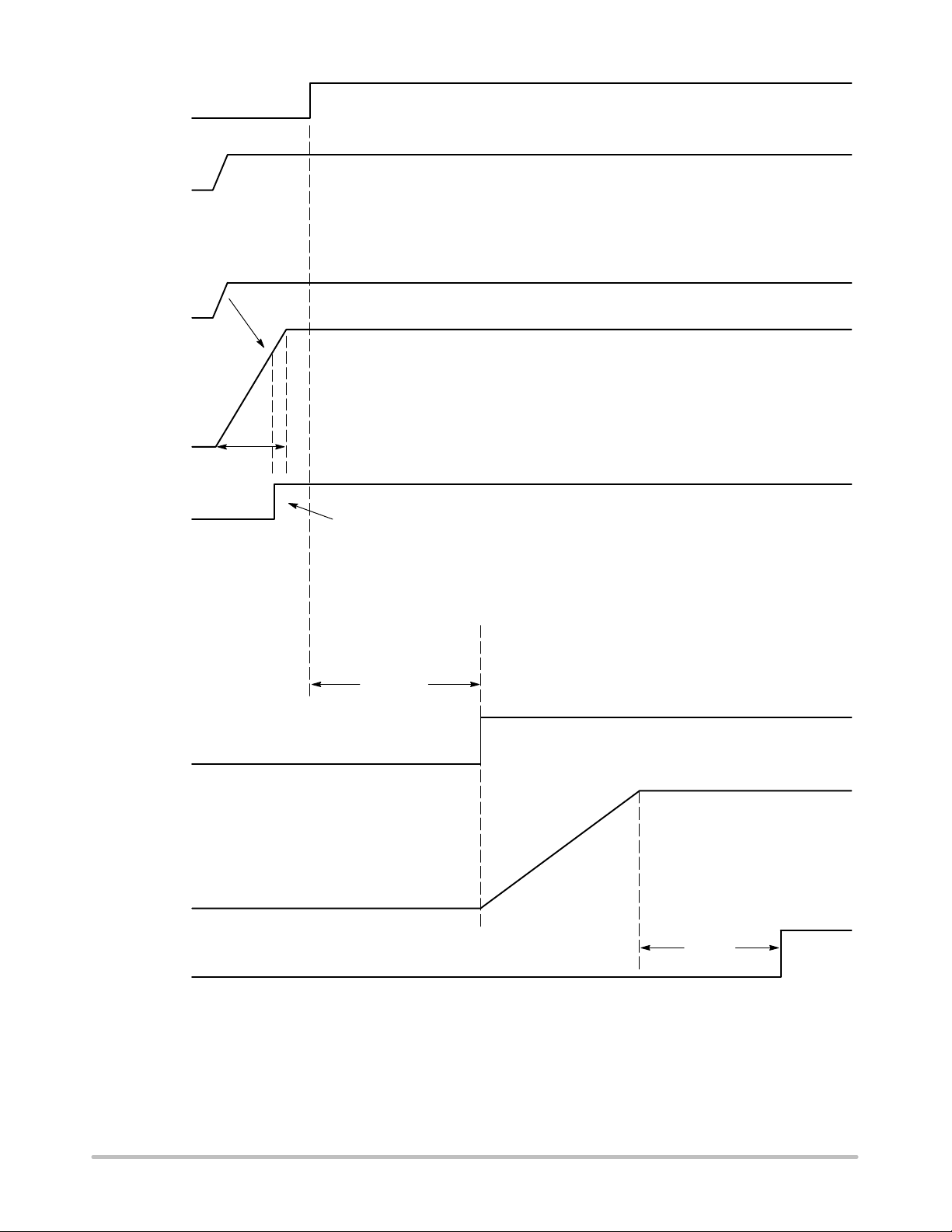

Figure 6. VR11.1 Start Up Timing Diagram

http://onsemi.com

Page 28

ENABLE

VID7/AMD

1 ms − 20 ms

CCP

Rise Time

5 V

1 ms − 20 ms

Rise Time

9.5 V

NCP5395

12 V

VCC and V

DRVON

VOUT/DAC

CCP

UVLO

AMD/Legacy Soft Start

Mode Latched

3.5 ms

Calibration Time

DAC Setting

SS Slew

Rate

500 ms

VR_RDY

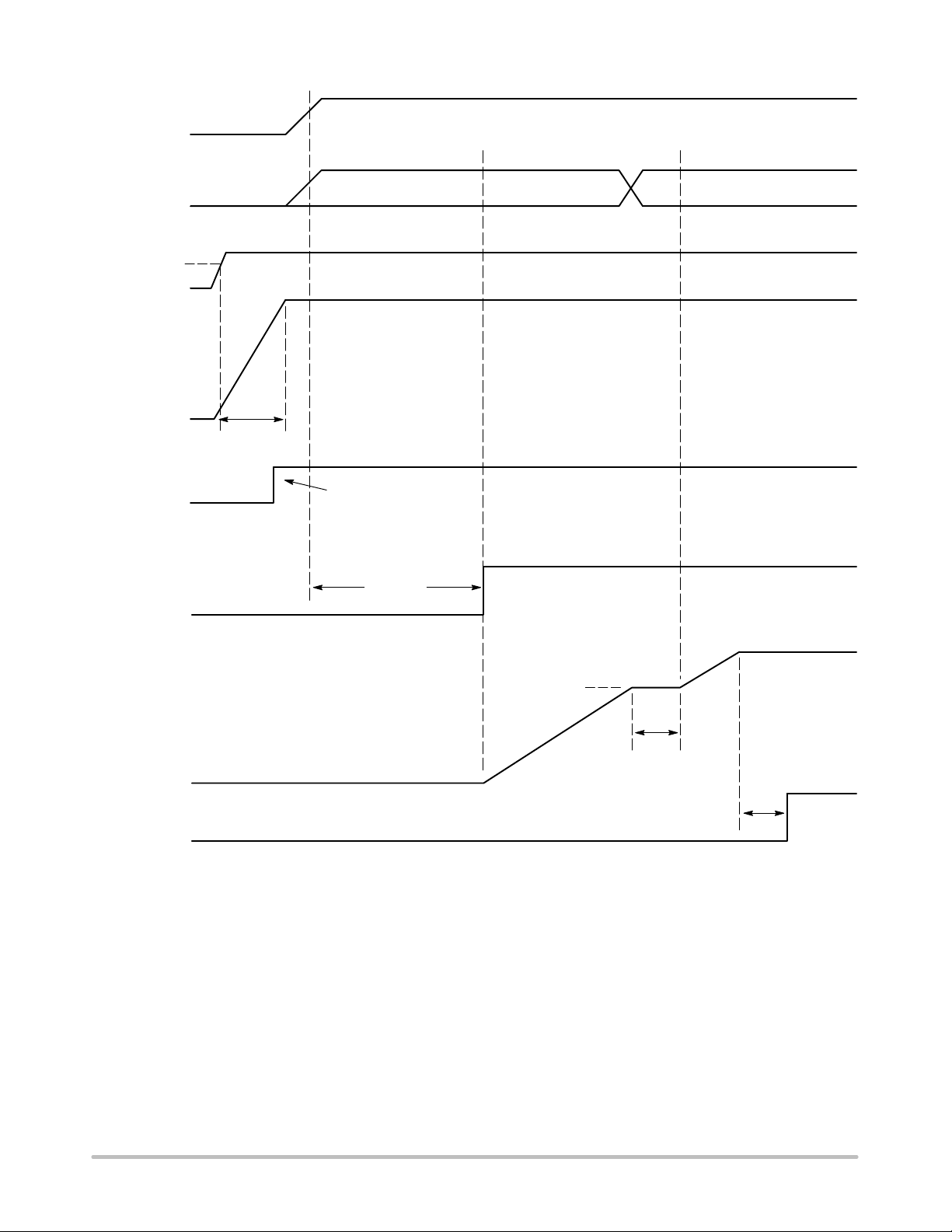

Figure 7. AMD / Legacy Start Up Timing Diagram

http://onsemi.com

Page 29

2 X

48 X

PIN 1

LOCATION

0.15 C

0.10 C

0.08 C

2 X

0.15 C

D A

TOP VIEW

SIDE VIEW

NCP5395

PACKAGE DIMENSIONS

QFN48

CASE 485K−02

ISSUE C

(A3)

SEATING PLANE

NOTES:

1. DIMENSIONS AND TOLERANCING PER ASME Y14.5M, 1994.

2. DIMENSIONS IN MILLIMETERS.

3. DIMENSION b APPLIES TO THE PLATED TERMINAL AND IS MEASURED ABETWEEN

0.25 AND 0.30 MM FROM TERMINAL

4. COPLANARITY APPLIES TO THE EXPOSED PAD AS WELL AS THE TERMINALS.

MILLIMETERS

DIM MIN NOM MAX

A 0.800 0.900 1.000 A1 0.000 0.025 0.050 A3 0.200 REF

b 0.180 0.250 0.300

D 7.000 BSC D2 5.260 5.360 5.460

E 7.000 BSC

E2 5.260 5.360 5.460

e 0.500 BSC

K 0.200 −−−− −−−−

L 0.300 0.400 0.500

48 X

EXPOSED PAD

4 X

48 37

NOTE 3

48 X

0.10 C

A B

0.05 C

BOTTOM VIEW

The products described herein (NCP5395), may be covered by one or more of the following U.S. patents; US07057381.There may be other patents pending.

ON Semiconductor and are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.

PUBLICATION ORDERING INFORMATION

LITERATURE FULFILLMENT:

Literature Distribution Center for ON Semiconductor P.O. Box 5163, Denver, Colorado 80217 USA

Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada Email: [email protected]

N. American Technical Support: 800−282−9855 Toll Free

USA/Canada

Europe, Middle East and Africa Technical Support:

Phone: 421 33 790 2910

Japan Customer Focus Center

Phone: 81−3−5773−3850

http://onsemi.com

ON Semiconductor Website: www.onsemi.com

Order Literature: http://www.onsemi.com/orderlit

For additional information, please contact your loca Sales Representative

NCP5395/D
