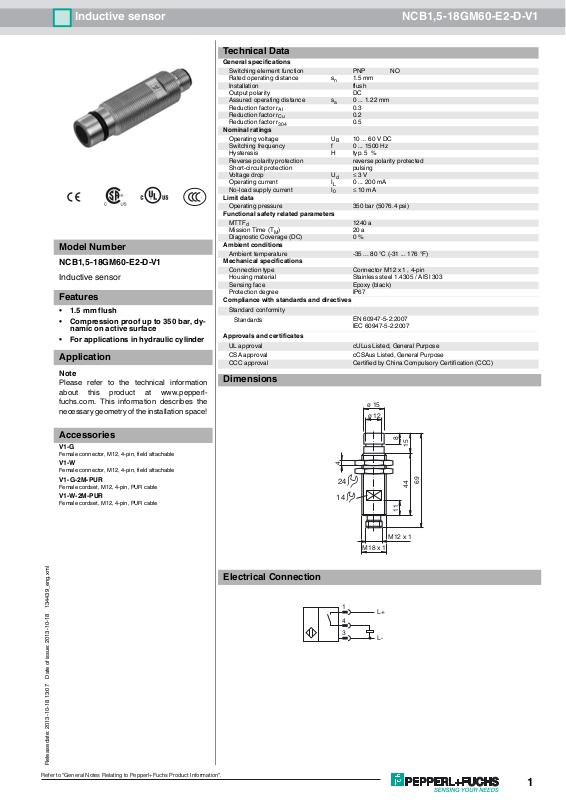

Page 1
Inductive sensor NCB1,5-18GM60-E2-D-V1
Technical Data
General specifications
Switching element function PNP NO
Model Number
NCB1,5-18GM60-E2-D-V1
Inductive sensor
Features
•1.5 mm flush
• Compression proof up to 350 bar, dynamic on active surface
• For applications in hydraulic cylinder
Application
Note
Please refer to the technical information
about this product at www.pepperlfuchs.com. This information describes the
necessary geometry of the installation space!
Rated operating distance s
Installation flush
Output polarity DC
Assured operating distance sa0 ... 1.22 mm
Reduction factor r
Reduction factor rCu 0.2
Reduction factor r
Nominal ratings
Operating voltage UB10 ... 60 V DC
Switching frequency f 0 ... 1500 Hz
Hysteresis H typ. 5 %
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Vol tag e d rop Ud≤ 3 V
Operating current I
No-load supply current I
S
Limit data
Operating pressure 350 bar (5076.4 psi)
Functional safety related parameters
MTTFd 1240 a
Mission Time (T
Diagnostic Coverage (DC) 0 %
Ambient conditions
Ambient temperature -35 ... 80 °C (-31 ... 176 °F)
Mechanical specifications
Connection type Connector M12 x 1 , 4-pin
Housing material Stainless steel 1.4305 / AISI 303
Sensing face Epoxy (black)
Protection degree IP67
Compliance with standards and directives
Stan dard conf ormit y
Sta ndar ds
Approvals and certificates
UL approval cULus Listed, General Purpose
CSA approval cCSAus Listed, General Purpose
CCC approval Certified by China Compulsory Certification (CCC)
0.3
Al
0.5
304
) 20 a
M
Dimensions
1.5 mm
n
0 ... 200 mA
L
≤ 10 mA
0
EN 60947-5-2:2007
IEC 60947-5-2:2007
ø 15
ø 12
Accessories
V1-G
Female connector, M12, 4-pin, field attachable
V1-W
Female connector, M12, 4-pin, field attachable
V1-G-2M-PUR
Female cordset, M12, 4-pin, PUR cable
V1-W-2M-PUR
Female cordset, M12, 4-pin, PUR cable
Electrical Connection
14
24
8
1544
4
69
11
M12 x 1
M18 x 1
1
4
3
L+
L-
Release date: 2013-10-18 13:07 Date of issue: 2013-10-18 134439_eng.xml
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
1
Page 2
Inductive sensor NCB1,5-18GM60-E2-D-V1
Pinout
1
2
Wire colors in accordance with EN 60947-5-2
1 BN
2 WH
3 BU
4 BK
(brown)
(white)
(blue)
(black)
4
3
Thread undercut D DIN 76
ø15 H8 (d1)
15° - 30°
L
M18 x 1 6H (d2)
installation direction
0.6 x O-cord
thickness (= 1.5)
L: recommended installation depth: L ≥ 0.8 x d2
Release date: 2013-10-18 13:07 Date of issue: 2013-10-18 134439_eng.xml
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
2
