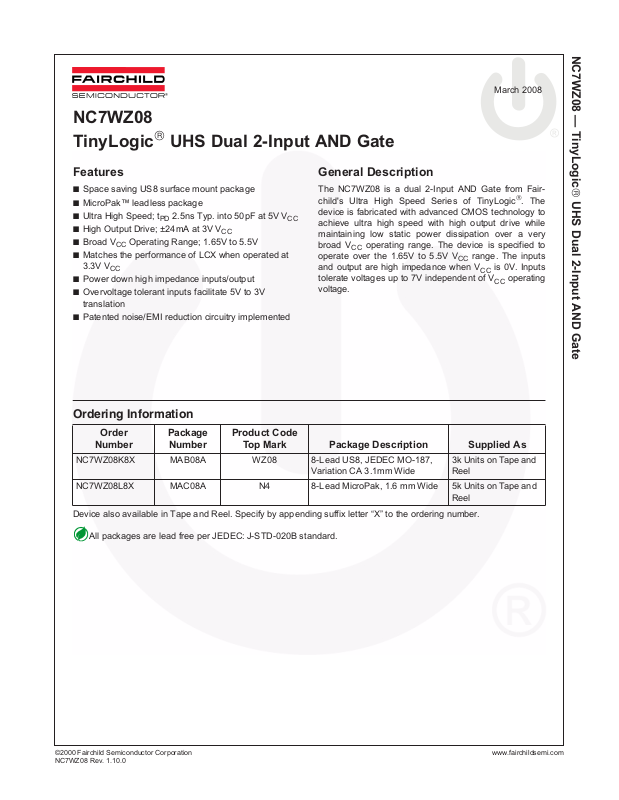

NC7WZ08 — TinyLogic

March 2008

NC7WZ08 TinyLogic



UHS Dual 2-Input AND Gate

Features

Space saving US8 surface mount package

■

MicroPak™ leadless package

■

Ultra High Speed; t

■

High Output Drive; ±24mA at 3V V

■

Broad V

■

Matches the performance of LCX when operated at

3.3V V

■

Power down high impedance inputs/output

■

Overvoltage tolerant inputs facilitate 5V to 3V translation

Patented noise/EMI reduction circuitry implemented

■

Operating Range; 1.65V to 5.5V

CC

2.5ns Typ. into 50pF at 5V V

PD

CC

Ordering Information

CC

General Description

The NC7WZ08 is a dual 2-Input AND Gate from Fairchild's Ultra High Speed Series of TinyLogic device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad V operate over the 1.65V to 5.5V V and output are high impedance when V tolerate voltages up to 7V independent of V voltage.

operating range. The device is specified to

CC

range. The inputs

CC



. The

is 0V. Inputs

operating

CC

UHS Dual 2-Input AND Gate

Order

Number

NC7WZ08K8X MAB08A WZ08 8-Lead US8, JEDEC MO-187,

NC7WZ08L8X MAC08A N4 8-Lead MicroPak, 1.6 mm Wide 5k Units on Tape and

Device also available in Tape and Reel. Specify by appending suffix letter “X” to the ordering number.

All packages are lead free per JEDEC: J-STD-020B standard.

Package

Number

Product Code

Top Mark Package Description Supplied As

3k Units on Tape and

Var iation CA 3.1mm Wide

Reel



(

H =

NC7WZ08 — TinyLogic

Connection Diagram

Top View)

Pin One Orientation Diagram

AAA represents Product Code Top Mark – see ordering code

Note: Orientation of Top Mark determines Pin One

location. Read the top product code mark left to right, Pin One is the lower left pin (see diagram).

Logic Symbol

IEEE/IEC

UHS Dual 2-Input AND Gate

Function Table

Y = AB

Inputs Output

AB Y

LL L

LH L HL L HH H

HIGH Logic Level

L = LOW Logic Level

Pad Assignments for MicroPak

(Top Thru View)

Pin Description

Pin Names Description

A

, B

n

Y

n

Inputs Output



<

=

Absolute Maximum Ratings

Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above the recommended operating conditions and stressing the parts to these levels is not recommended. In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability. The absolute maximum ratings are stress ratings only.

Symbol Parameter Rating

I

CC

V

I

T

CC

V

IN

OUT

I

IK

I

OK

OUT

/I

STG

T T

L

P

D

GND

J

Supply Voltage –0.5V to +7V DC Input Voltage –0.5V to +7V DC Output Voltage –0.5V to +7V DC Input Diode Current @ V DC Output Diode Current @ V

–0.5V –50mA

IN

–0.5V –50mA

OUT

DC Output Current ±50mA DC V

/GND Current ±100mA

CC

Storage Temperature –65°C to +150°C Junction Temperature Under Bias 150°C Junction Lead Temperature (Soldering, 10 seconds) 260°C Power Dissipation @ +85°C 250mW

NC7WZ08 — TinyLogic

UHS Dual 2-Input AND Gate

Recommended Operating Conditions

(1)

The Recommended Operating Conditions table defines the conditions for actual device operation. Recommended operating conditions are specified to ensure optimal performance to the datasheet specifications. Fairchild does not recommend exceeding them or designing to absolute maximum ratings.

Symbol Parameter Rating

V

CC

V

IN

V

OUT

T

A

, t

t

r

f

θ

JA

Note:

1. Unused inputs must be held HIGH or LOW. They may not float.

Supply Voltage Operating 1.65V to 5.5V Supply Voltage Data Retention 1.5V to 5.5V Input Voltage 0V to 5.5V Output Voltage 0V to V Operating Temperature –40°C to +85°C Input Rise and Fall Time

V V V

1.8V ± 0.15V, 2.5V ± 0.2V 0ns/V to 20ns/V

CC

3.3V ±0.3V 0ns/V to 10ns/V

CC

5.0V ±0.5V 0ns/V to 5ns/V

CC

Thermal Resistance 250°C/W

CC

DC Electrical Characteristics

Symbol Parameter V

V

HIGH Level

IH

Input Voltage

V

LOW Level

IL

Input Voltage

V

I

OH

OL

I

IN

OFF

I

CC

HIGH Level Output Voltage

LOW Level Output Voltage

Input Leakage Current

Power Off Leakage Current

Quiescent Supply Current

(V) Conditions

CC

1.65–1.95 0.75 x V

2.3–5.5 0.7 x V

1.65–1.95 0.25 x V

2.3–5.5 0.3 x V

1.65 V

IN

2.3 2.2 2.3 2.2

3.0 2.9 3.0 2.9

4.5 4.4 4.5 4.4

1.65 I

2.3 I

3.0 I

4.5 I

1.65 V

IN

2.3 0.0 0.1 0.1

3.0 0.0 0.1 0.1

4.5 0.0 0.1 0.1

1.65 I

2.3 I

3.0 I

4.5 I

0–5.5 V

0.0 V

IN

1.65–5.5 VIN = 5.5V, GND 1 10 µA



=

T

–40°C

0.75 x V

0.7 x V

A

to +85°C

CC

0.25 x V

0.3 x V

CC

T

25°C

A

CC

V

I

IH

V

IL

–100µA 1.55 1.65 1.55 V

OH

–4mA 1.29 1.52 1.29

OH

–8mA 1.9 2.15 1.9

OH

–16mA 2.5 2.80 2.4

OH

–24mA 2.4 2.68 2.3

OH

–32mA 3.9 4.20 3.8

OH

I

100µA 0.0 0.1 0.1 V

OL

4mA 0.08 0.24 0.24

OL

8mA 0.10 0.3 0.3

OL

16mA 0.15 0.4 0.4

OL

24mA 0.22 0.55 0.55

OL

32mA 0.22 0.55 0.55

OL

5.5V, GND ±0.1 ±1 µA

or V

= 5.5V 1 10 µA

OUT

=

NC7WZ08 — TinyLogic

UnitsMin. Typ. Max. Min. Max.

V

UHS Dual 2-Input AND Gate

AC Electrical Characteristics

= –40°C

T

A

T

= +25°C

A

Symbol Parameter V

t

, t

PLH

Propagation Delay 1.8 ± 0.15 CL = 15pF,

PHL

(V) Conditions

CC

2.0 5.7 10.5 2.0 11.0 ns Figure 1

= 1MΩ

R

2.5 ± 0.2 1.0 3.5 5.8 1.0 6.2

L

3.3 ± 0.3 0.8 2.6 3.9 0.8 4.3

5.0 ± 0.5 0.5 1.9 3.1 0.5 3.3

, t

t

PLH

C C

Propagation Delay 3.3 ± 0.3 CL = 50pF,

PHL

5.0 ± 0.5 0.8 2.5 3.7 0.8 4.0

Input Capacitance 0 2.5 pF

IN

Power Dissipation

PD

Capacitance

3.3

5.0 19.5

R

= 500Ω

L

(2)

1.2 3.2 4.8 1.2 5.2 ns Figure 1

14.5 pF Figure 2

Note:

2. C

is defined as the value of the internal equivalent capacitance which is derived from dynamic operating current

PD

consumption (I dynamic operating current by the expression: I

) at no output loading and operating at 50% duty cycle. (See Figure 2.) CPD is related to I

CCD

= (CPD) (VCC) (fIN) + (ICC static)

CCD

to +85°C

Units

Figure

NumberMin Typ Max Min Max

Figure 3

CCD

NC7WZ08 — TinyLogic UHS Dual 2-Input AND Gate

AC Loading and Waveforms

CL includes load and stray capacitance Input PRR = 1.0MHz, t

Figure 1. AC Test Circuit

= 500ns

w

Figure 3. AC Waveforms

Input = Ac Waveform; t

= tf = 1.8ns;

r

PRR = 10 MHz; Duty Cycle = 50%

Figure 2. I

Test Circuit

CCD

Tape and Reel Specifications

Tape Format for US8

Package Designator Tape Section Number of Cavities Cavity Status Cover Tape Status

K8X Leader (Start End) 125 (typ.) Empty Sealed

Carrier 3000 Filled Sealed

Tr ailer (Hub End) 75 (typ.) Empty Sealed

Tape Dimensions inches (millimeters)

NC7WZ08 — TinyLogic UHS Dual 2-Input AND Gate

Tape Format for MicroPak

Package Designator Tape Section Number of Cavities Cavity Status Cover Tape Status

L8X Leader (Start End) 125 (typ.) Empty Sealed

Carrier 3000 Filled Sealed

Tr ailer (Hub End) 75 (typ.) Empty Sealed

Tape Dimensions inches (millimeters)

Tape and Reel Specifications (Continued)

Reel Dimensions inches (millimeters)

NC7WZ08 — TinyLogic UHS Dual 2-Input AND Gate

Tape

Size ABCDN W1 W2 W3

8mm 7.0

(177.8)

0.059 (1.50)

0.512

(13.00)

0.795

(20.20)

2.165

(55.00)

0.331 +0.059/–0.000 (8.40 +1.50/–0.00)

0.567

(14.40)

W1 +0.078/–0.039

(W1 +2.00/–1.00)

Physical Dimensions

NC7WZ08 — TinyLogic UHS Dual 2-Input AND Gate

3.1±.1

PIN #1 IDENT.

0.90 MAX

-C-

0.50TYP

0.15

1.55

8

1

ALL LEAD TIPS

5

4

0.1 C

-A-

-B-

2.3±0.1

0.2

ALL LEAD TIPS

0.70±0.10

0.10

0.00

0.17-0.27

0.13 A B C

C B A

1.00

0.4 TYP

0.70

0.5 TYP

1.80

DETAIL A

2.70

0.30 TYP

0.10-0.18

3.40

GAGE PLANE

0.12

A. CONFORMS TO JEDEC REGISTRATION MO-187

B. DIMENSIONS ARE IN MILLIMETERS. C. DIMENSIONS ARE EXCLUSIVE OF BURRS, MOLD FLASH,

AND TIE BAR EXTRUSIONS.

D. DIMENSIONS AND TOLERANCES PER ANSI Y14.5M, 1982.

0°-8°

SEATING PLANE

DETAIL A

MAB08AREVC

Figure 4. 8-Lead US8, JEDEC MO-187, Variation CA 3.1mm Wide

Package drawings are provided as a service to customers considering Fairchild components. Drawings may change in any manner without notice. Please note the revision and/or date on the drawing and contact a Fairchild Semiconductor representative to verify or obtain the most recent revision. Package speciﬁcations do not expand the terms of Fairchild’s worldwide terms and conditions, speciﬁcally the warranty therein, which covers Fairchild products.

Always visit Fairchild Semiconductor’s online packaging area for the most recent package drawings:

http://www

.fairchildsemi.com/packaging/

Physical Dimensions (Continued)

NC7WZ08 — TinyLogic UHS Dual 2-Input AND Gate

Figure 5. 8-Lead MicroPak, 1.6 mm Wide

Package drawings are provided as a service to customers considering Fairchild components. Drawings may change in any manner without notice. Please note the revision and/or date on the drawing and contact a Fairchild Semiconductor representative to verify or obtain the most recent revision. Package speciﬁcations do not expand the terms of Fairchild’s worldwide terms and conditions, speciﬁcally the warranty therein, which covers Fairchild products.

Always visit Fairchild Semiconductor’s online packaging area for the most recent package drawings:

http://www

.fairchildsemi.com/packaging/

TRADEMARKS

Thefollowing includes registered and unregistered trademarks and service marks, owned by Fairchild Semiconductor and/or its global subsidiaries, and is not intended to be an exhaustive list of all such trademarks.

®

ACEx Build it Now™ CorePLUS™ CROSSVOLT™ CTL™ Current Transfer Logic™ EcoSPARK

®

EZSWITCH™ *

™

®

Fairchild Fairchild Semiconductor FACT Quiet Series™ FACT FAST FastvCore™ FlashWriter

®

® ®

®*

*EZSWITCH™ and FlashWriter

FPS™

®

FRFET Global Power Resource

SM

Green FPS™ Green FPS™e-Series™ GTO™ i-Lo™ IntelliMAX™ ISOPLANAR™ MegaBuck™ MICROCOUPLER™ MicroFET™ MicroPak™ MillerDrive™ Motion-SPM™ OPTOLOGIC OPTOPLANAR

®

are trademarks of System General Corporation, used under license by Fairchild Semiconductor.

®

PDP-SPM™ Power220 POWEREDGE Power-SPM™ PowerTrench Programmable Active Droop™ QFET

®

QS™ QT Optoelectronics™ Quiet Series™ RapidConfigure™ SMART START™

®

SPM STEALTH™ SuperFET™ SuperSOT™-3 SuperSOT™-6 SuperSOT™-8

SupreMOS™ SyncFET™

®

The Power Franchise

TinyBoost™ TinyBuck™ TinyLogic

®

TINYOPTO™ TinyPower™ TinyPWM™ TinyWire™ µSerDes™

®

UHC Ultra FRFET™ UniFET™ VCX™

NC7WZ08 — TinyLogic UHS Dual 2-Input AND Gate

®

DISCLAIMER

FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION, OR DESIGN. FAIRCHILD DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS. THESE SPECIFICATIONS DO NOT EXPAND THE TERMS OF FAIRCHILD’S WORLDWIDE TERMS AND CONDITIONS, SPECIFICALLY THE WARRANTY THEREIN, WHICH COVERS THESE PRODUCTS.

LIFE SUPPORT POLICY

FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF FAIRCHILD SEMICONDUCTOR CORPORATION.

As used herein:

1. Life support devices or systems are devices or systems which, (a) are intended for surgical implant into the body or (b) support or sustain life, and (c) whose failure to perform when properly used in accordance with instructions for use

2. A critical component in any component of a life support, device, or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.

provided in the labeling, can be reasonably expected to result in a significant injury of the user.

PRODUCT STATUS DEFINITIONS Definition of Terms

Datasheet Identification Product Status Definition

Advance Information Formative or In Design

This datasheet contains the design specifications for product development. Specifications may change in any manner without notice.

This datasheet contains preliminary data; supplementary data will be

Preliminary First Production

published at a later date. Fairchild Semiconductor reserves the right to make changes at any time without notice to improve design.

This datasheet contains final specifications. Fairchild Semiconductor

No Identification Needed Full Production

reserves the right to make changes at any time without notice to improve the design.

This datasheet contains specifications on a product that has been

Obsolete Not In Production

discontinued by Fairchild Semiconductor. The datasheet is printed for reference information only.

Rev. I33
