Page 2
NC7SZD384
1-Bit Low Power Bus Switch with Level Shifting
NC7SZD384 1-Bit Low Power Bus Switch with Level Shifting
June 1997
Revised December 2005
General Description
The NC7SZD384 provides 1-bit of high-speed CMOS TTL-compatible bus switch. The low on resistance of the switch allows
inputs to be connected to outputs with minimal propagation
delay and without generating additional ground bounce noise.
The device is organized as a 1-bit switch with a bus enable (OE
signal. When OE
nected to Port B. When OE
high-impedance state exists between the two ports. Reduced
voltage drive to the gate of the FET switch permits nominal level
shifting of 5V to 3.3V through the switch.
is LOW, the switch is on and Port A is con-
is HIGH, the switch is open and a
Features
O
Space saving SOT23 or SC70 5-lead package
O
Ultra small MicroPak¥ Pb-Free leadless package
O5:
switch connection between two ports
)
O
Designed to be used in level-shifting applications
O
Minimal propagation delay through the switch
O
Low I
CC
O
Zero bounce in flow-through mode
O
Control inputs compatible with TTL level
Ordering Code:
Order Package Product Code
Number Number Top Mark
NC7SZD384M5X MA05B 8Z4D 5-Lead SOT23, JEDEC MO-178, 1.6mm 3k Units on Tape and Reel
NC7SZD384P5X MAA05A Z4D 5-Lead SC70, EIAJ SC-88a, 1.25mm Wide 3k Units on Tape and Reel
NC7SZD384L6X MAC06A A4 Pb-Free 6-Lead MicroPak, 1.0mm Wide 5k Units on T ape and Reel
Pb-Free package per JEDEC J-STD-020B.
Package Description Supplied As
MicroPak¥ is a trademark of Fairchild Semiconductor Corporation.
© 2005 Fairchild Semiconductor Corporation DS500016 www.fairchildsemi.com
Page 3
Logic Symbol
NC7SZD384
Pin Descriptions

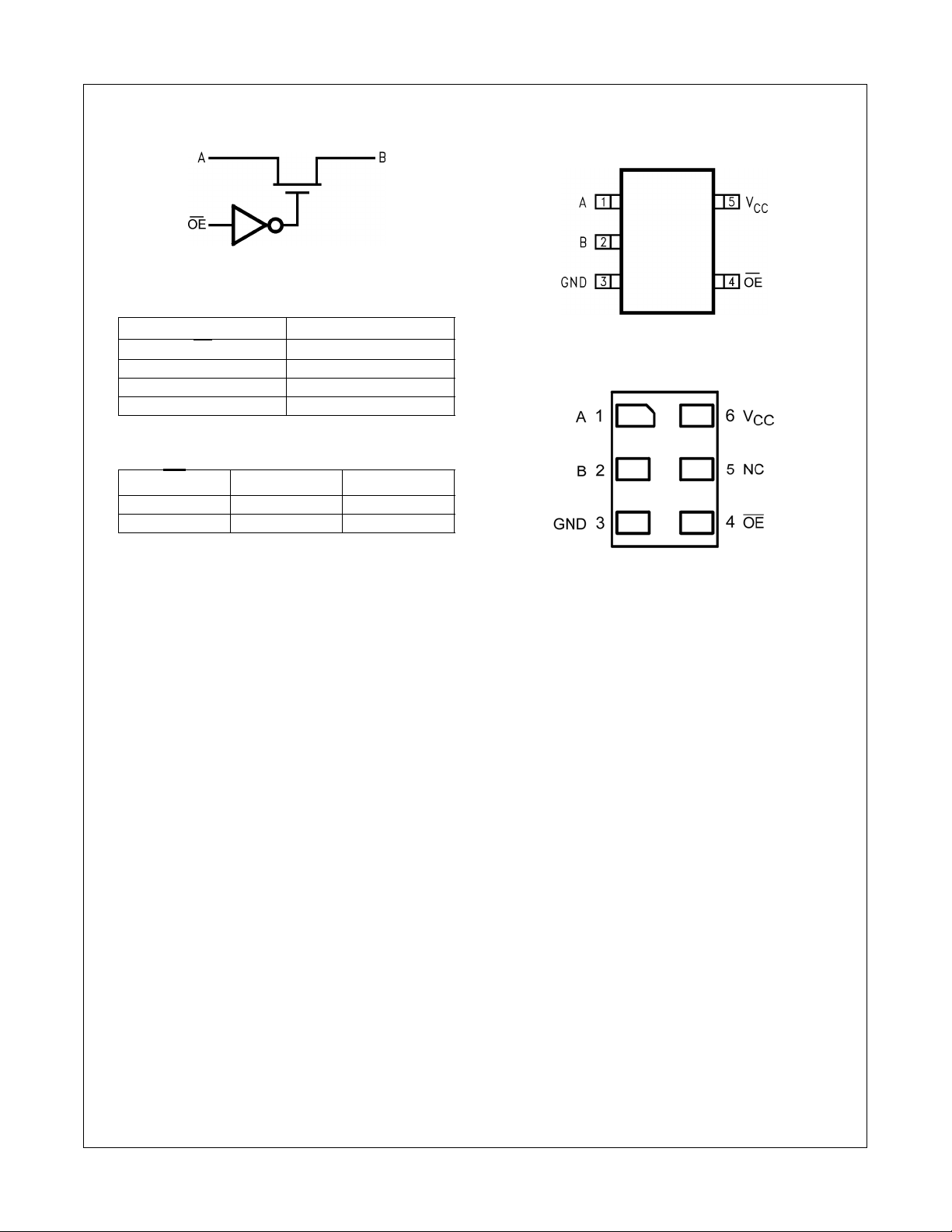

Connection Diagrams
Pin Assignments for SC70 and SOT23
Pin Name Description
OE Bus Switch Enable
ABus A
BBus B
NC No Connect
Function Table
OE
LAOConnect
H HIGH-Z State Disconnect
(Top View)
Pad Assignments for MicroPak
B
O
Function
(Top Through View)
www.fairchildsemi.com 2
Page 4
NC7SZD384
Absolute Maximum Ratings(Note 1)
Supply Voltage (VCC)
DC Switch Voltage (VS)
DC Input Voltage (V
DC Input Diode Current (I
DC Output (I
DC V
OUT
/GND Current (ICC/GND)
CC
Storage Temperature Range (T
Junction Temperature under bias (T
Junction Lead Temperature (T
) (Note 2)
IN
) VIN 0V
IK
) Sink Current 128 mA
STG
J
)
L
(Soldering, 10 seconds)
Power Dissipation (P
) @ 85qC
D
SOT23-5 200 mW
SC70-5 150 mW
0.5V to 7.0V
0.5V to 7.0V
0.5V to 7.0V
)
65q
C to 150qC
)
50 mA
r
100 mA
150qC
260qC
Recommended Operating
Conditions
Power Supply Operating (V
Input Voltage (V
Output Voltage (V
Input Rise and Fall Time (t
Switch Control Input 0 ns/V to 5 ns
Switch I/O 0 ns/V to DC
Operating Temperature (T
Thermal Resistance (
SOT23-5 300
SC70-5 425
Note 1: The “Absolute Maximum Ratings” are those values beyond which the safety
of the device cannot be guaranteed. The device should not be operated at these limits. The parametric values defined in the Electrical Characteristics tables are not
guaranteed at the absolute maximum ratings. The “Recommended Operating Conditions” table will define the conditions for actual device operation.
Note 2: The input and output negative voltage ratings may be exceeded if the input
and output diode current ratings are observed.
Note 3: Unused inputs must be held HIGH or LOW. They may not float.
(Note 3)
) 4.5V to 5.5V
) 0V to 5.5V
IN
OUT
CC
) 0V to 5.5V
, tf)
r
)
A
T
)
JA
40q
C to 85qC
q
C/Watt
q
C/Watt
DC Electrical Characteristics
V
Symbol Parameter
V
IK
V
IH
V
IL
V
OH
I
I
I
OFF
R
ON
I
CC
'
I
CC
Note 4: All typical values are at VCC 5.0V, TA
Note 5: Measured by the voltage drop between A and B pins at the indicated current through the switch. On Resistance is determined by the lower of the voltages on the two (A
or B) pins.
Note 6: Per TTL driven input (VIN 3.4V, control input only). A and B pins do not contribute to I
Maximum Clamp Diode Voltage 4.5
HIGH Level Input Voltage 4.5–5.5 2.0 V
LOW Level Input Voltage 4.5–5.5 0.8 V
HIGH Level Output Voltage 4.5–5.5 See Figure 3 V VIN V
Input Leakage Current 0–5.5
“OFF” Leakage Current 5.5
Switch On Resistance (Note 5) 4.5 5.0 7.0
Quiescent Supply Current VIN VCC or GND, IO 0
Switch On 5.5 0.8 1.5 mA OE
Switch Off 5.5 10.0
Increase in ICC per Input (Note 6) 5.5 0.8 2.5 mA OE 3.4V, IO 0,
25qC.
CC
(V)
TA 40qC to 85qC
Min Typ
(Note 4)
5.0 7.0
35.0 50.0
CC.
Max
r
r
1.2
1.0
10.0
Units Conditions
VIIN 18 mA
P
A0 d VIN d 5.5V
P
A0 d A, B, d V
:
:
:
P
AOE
CC
VIN 0V, II 64 mA
V
V
Control Input only.
CC
0V, II 30 mA
IN
2.4V, II 15 mA
IN
GND
V
CC
3 www.fairchildsemi.com
Page 5
AC Electrical Characteristics
TA 40qC to 85qC
NC7SZD384
Symbol Parameter
t
, Propagation Delay Bus-to-Bus 4.5–5.5 0.25 ns VI OPEN
PHL
t
PLH
t
PZL
t
PZH
t
PLZ
t
PHZ
Note 7: All typical values are VCC 5.0V, TA 25qC.
Note 8: This parameter is guaranteed by design but is not tested. The bus switch contributes no propagation delay other than the RC delay of the typical On Resistance of the
switch and the 50 pF load capacitance, when driven by an ideal voltage source (zero output impedance).
(Note 8)
, Output Enable Time 4.5–5.5 1.5 7.5 ns VI 7V for t
, Output Disable Time 4.5–5.5 1.0 6.0 ns VI 7V for t
V
CC
(V) Min Typ
CL 50 pF, RU RD 500
(Note 7)
:
Max Number
Units Conditions Figure
VI OPEN for t
VI OPEN for t
PZL Figures
PZH
PLZ Figures
PHZ
Capacitance (Note 9)
Symbol Parameter Typ Max Units Conditions
C
IN
C
I/O
Note 9: TA 25qC f 1MHz
Control Pin Input Capacitance 2 5 pF VCC 5.0V
Input/Output Capacitance 4.5 10 pF VCC 5.0V

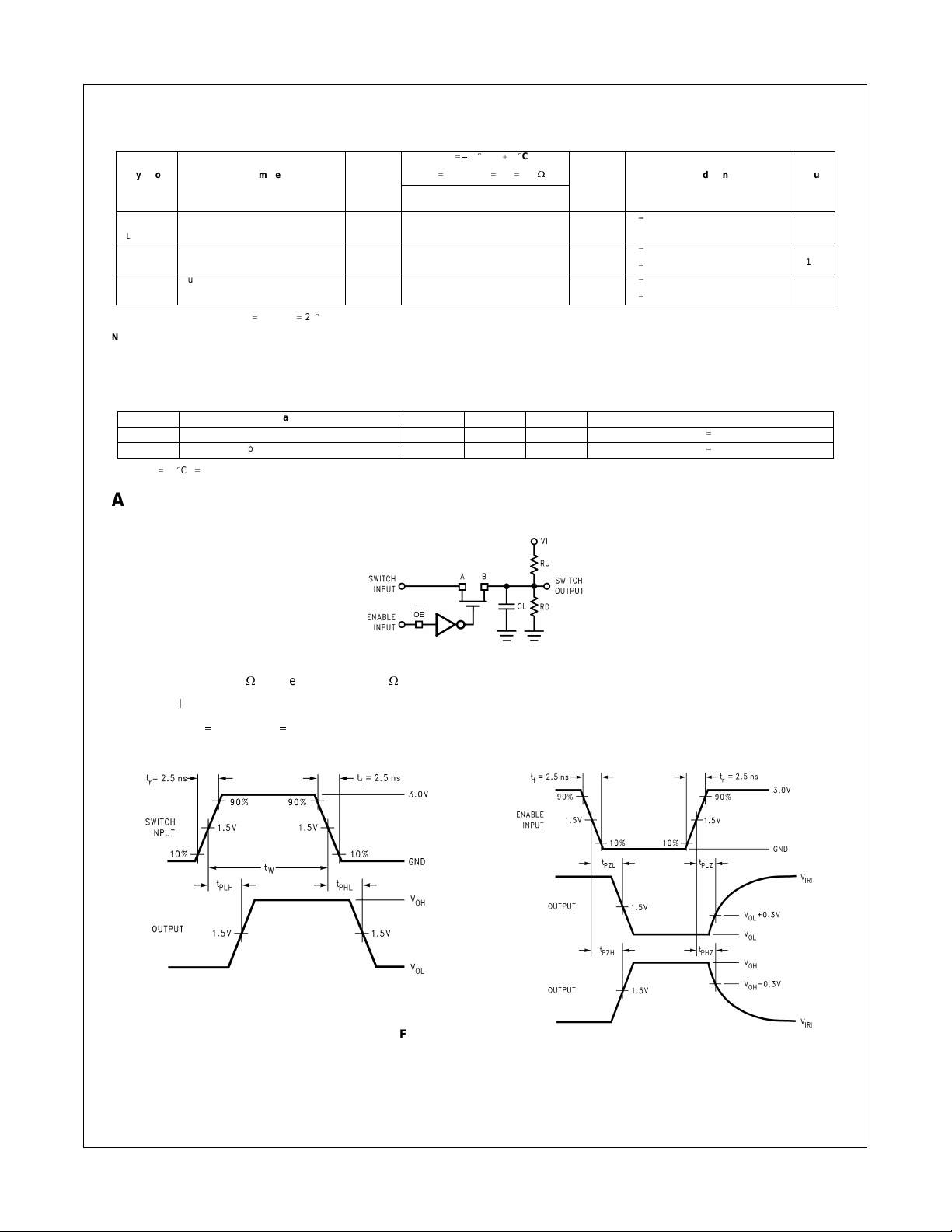

AC Loading and Waveforms
Figures
1, 2
1, 2
1, 2
Note: Input driven by 50
C
includes load and stray capacitance.
L
Input PRR
1.0 MHz tw 500 ns.
:
source terminated in 50:.
FIGURE 1. AC Test Circuit
FIGURE 2. AC Waveforms
www.fairchildsemi.com 4
Page 6
DC Characteristics
NC7SZD384

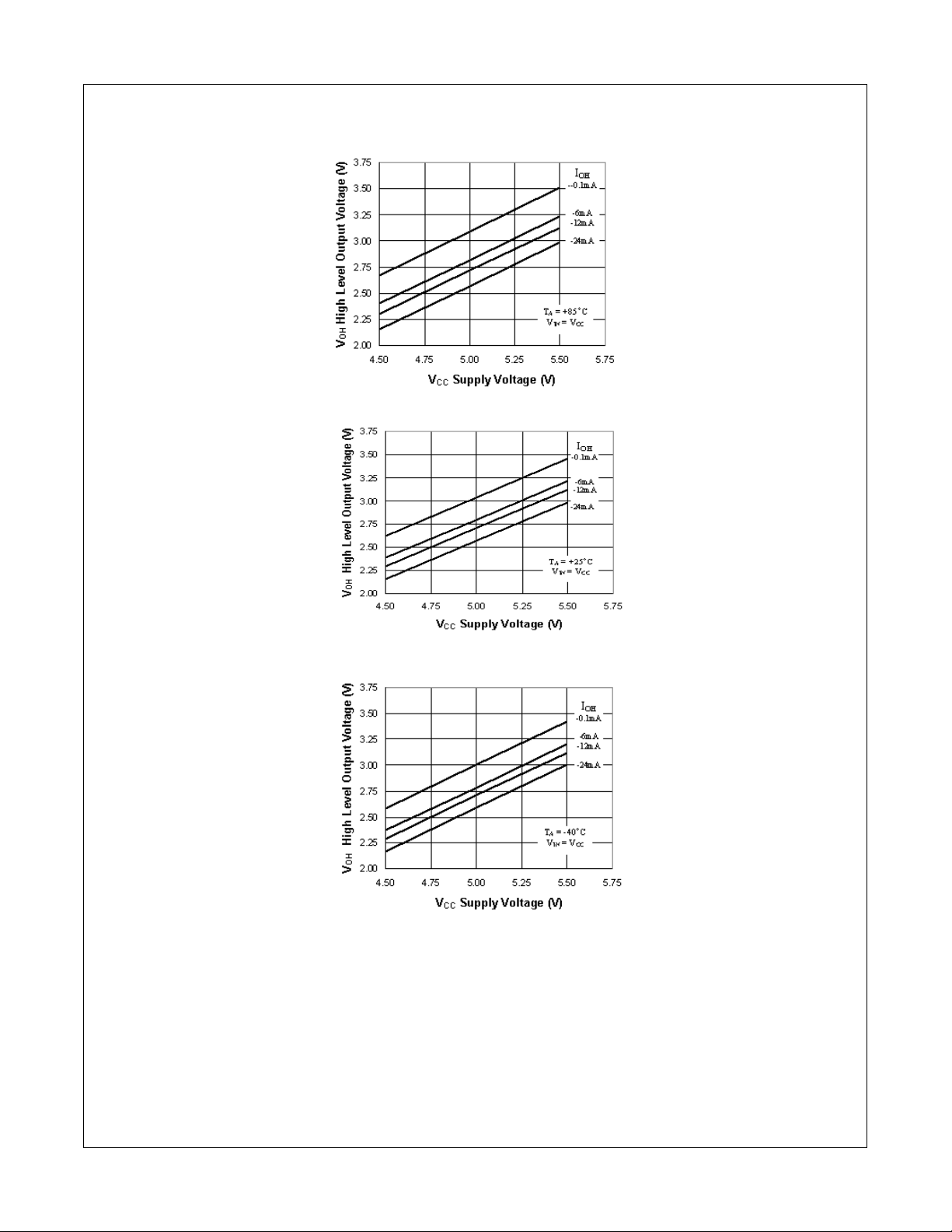

FIGURE 3. Typical High Level Output Voltage vs. Supply Voltage
5 www.fairchildsemi.com
Page 7

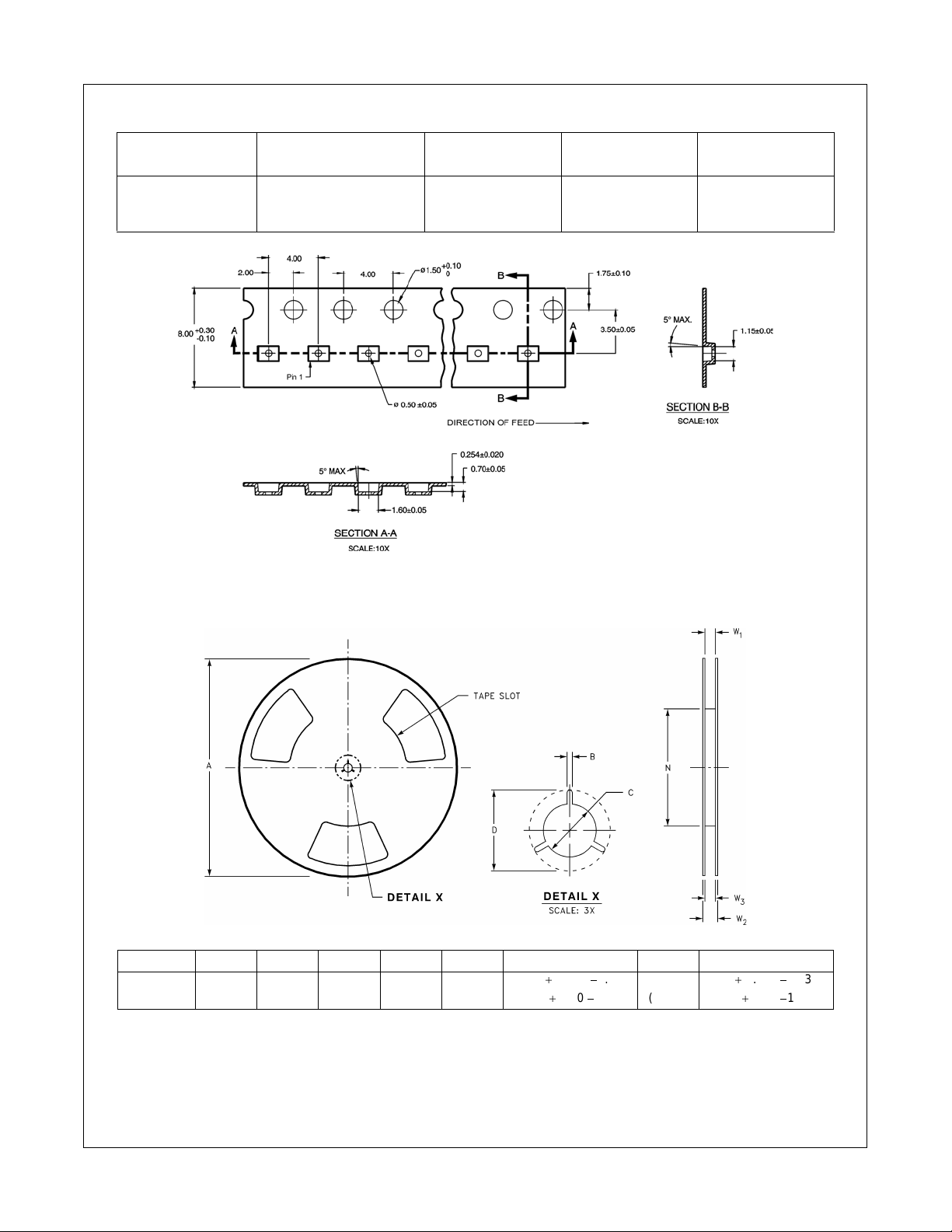

Tape and Reel Specification
TAPE FORMAT for SC70 and SOT23
Package Tape Number Cavity Cover Tape
NC7SZD384
Designator Section Cavities Status Status
M5X, P5X Carrier 3000 Filled Sealed

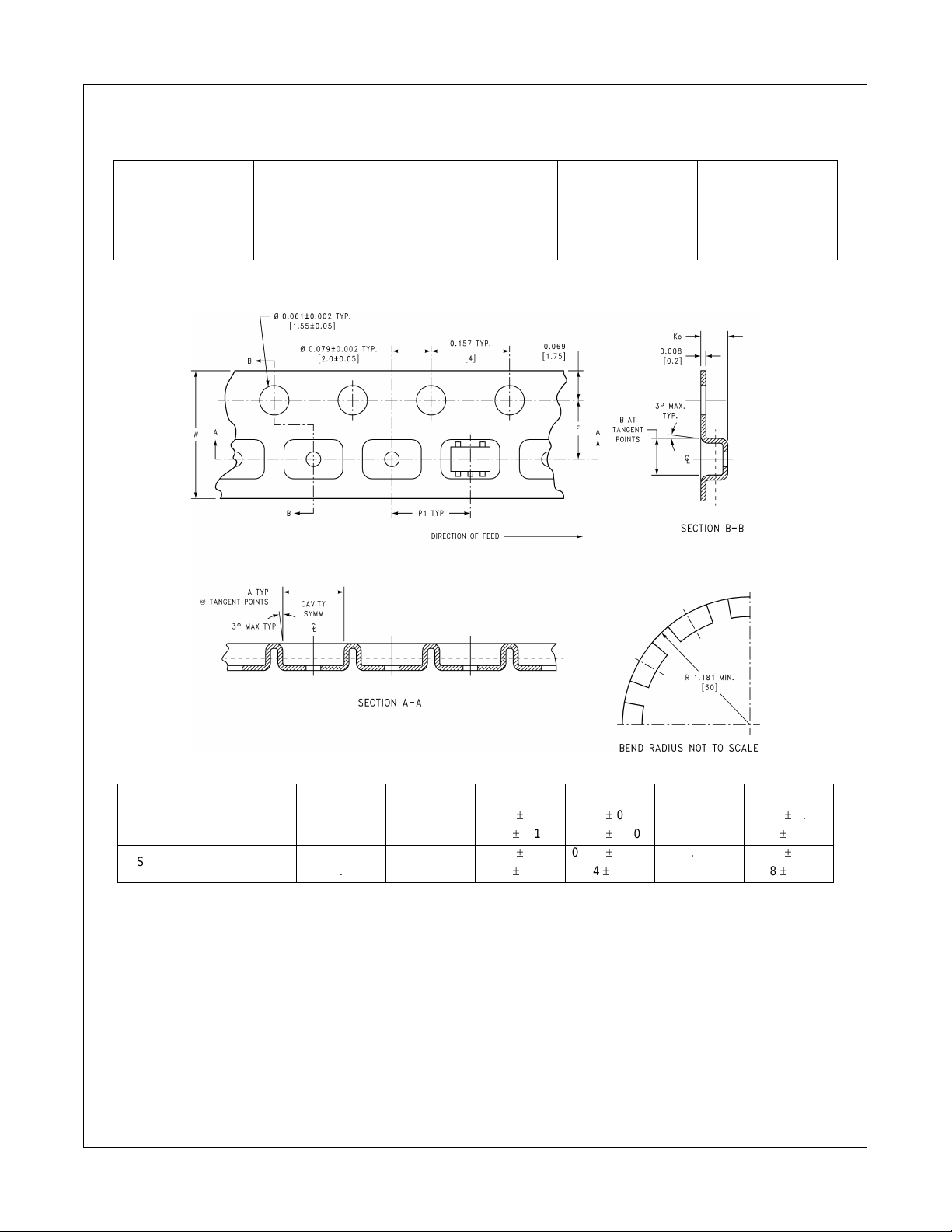

TAPE DIMENSIONS inches (millimeters)
Leader (Start End) 125 (typ) Empty Sealed
Trailer (Hub End) 75 (typ) Empty Sealed
Package Tape Size DIM A DIM B DIM F
SC70-5 8 mm
SOT23-5 8 mm
www.fairchildsemi.com 6
0.093 0.096 0.138
(2.35) (2.45) (3.5
0.130 0.130 0.138
(3.3) (3.3) (3.5
DIM K
r
0.004 0.053 r 0.004 0.157 0.315 r 0.004
r
0.10) (1.35 r 0.10) (4) (8 r 0.1)
r
0.002 0.055 r 0.004 0.157 0.315 r 0.012
r
0.05) (1.4 r 0.11) (4) (8 r 0.3)
DIM P1 DIM W
o
Page 8
TAPE FORMAT for MicroPak
Package Tape Number Cavity Cover Tape
Designator Section Cavities Status Status
Leader (Start End) 125 (typ) Empty Sealed
L6X Carrier 5000 Filled Sealed
Trailer (Hub End) 75 (typ) Empty Sealed
NC7SZD384
REEL DIMENSIONS inches (millimeters)
Tape SizeABCDN W1 W2 W3
8 mm
7.0 0.059 0.512 0.795 2.165 0.331
(177.8) (1.50) (13.00 ) (20.20) (55.00) (8.40
0.059/0.000 0.567 W1 0.078/0.039
1.50/0.00) (14.40) (W1 2.00/1.00)
7 www.fairchildsemi.com
Page 9
Physical Dimensions inches (millimeters) unless otherwise noted
NC7SZD384

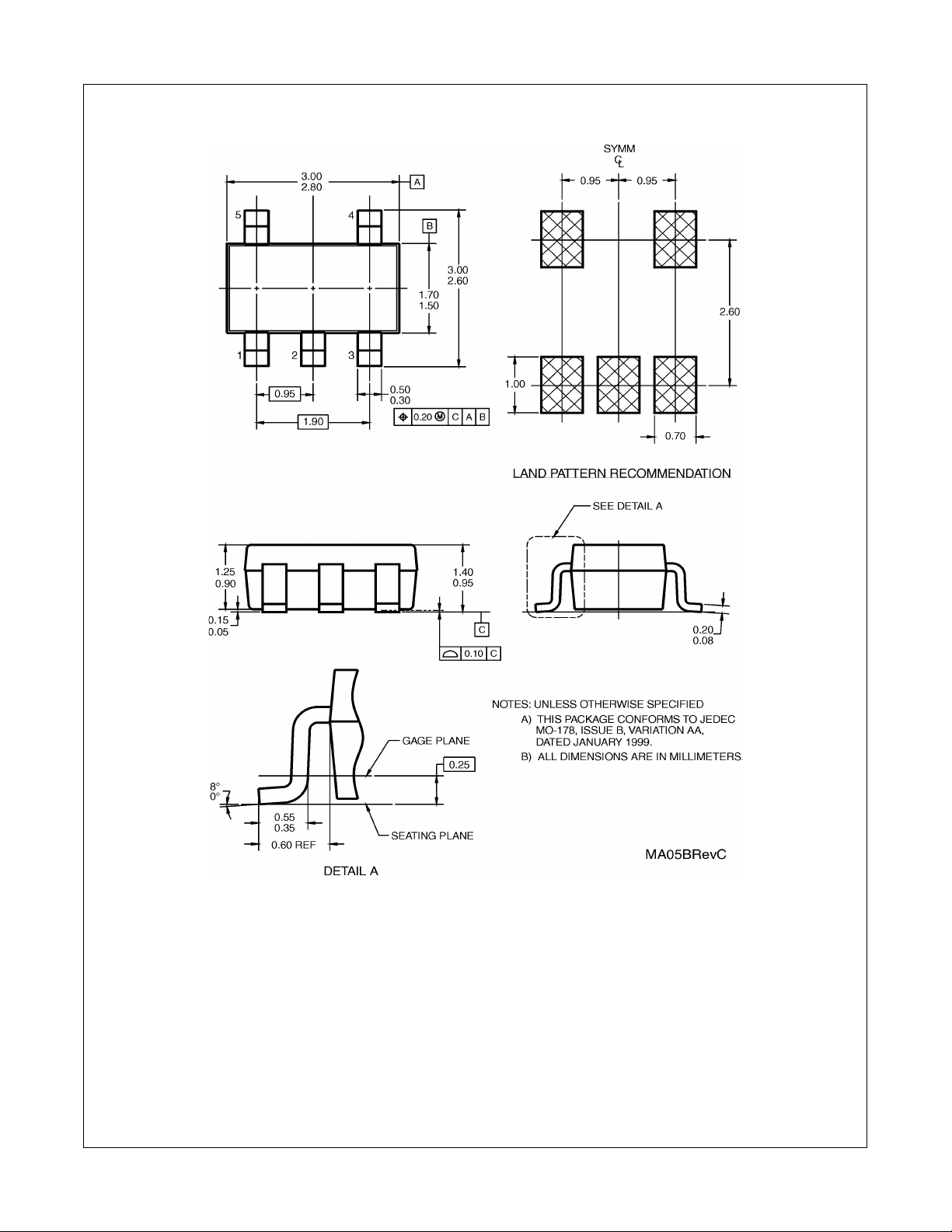

5-Lead SOT23, JEDEC MO-178, 1.6mm
Package Number MA05B
www.fairchildsemi.com 8
Page 10
Physical Dimensions inches (millimeters) unless otherwise noted (Continued)
NC7SZD384

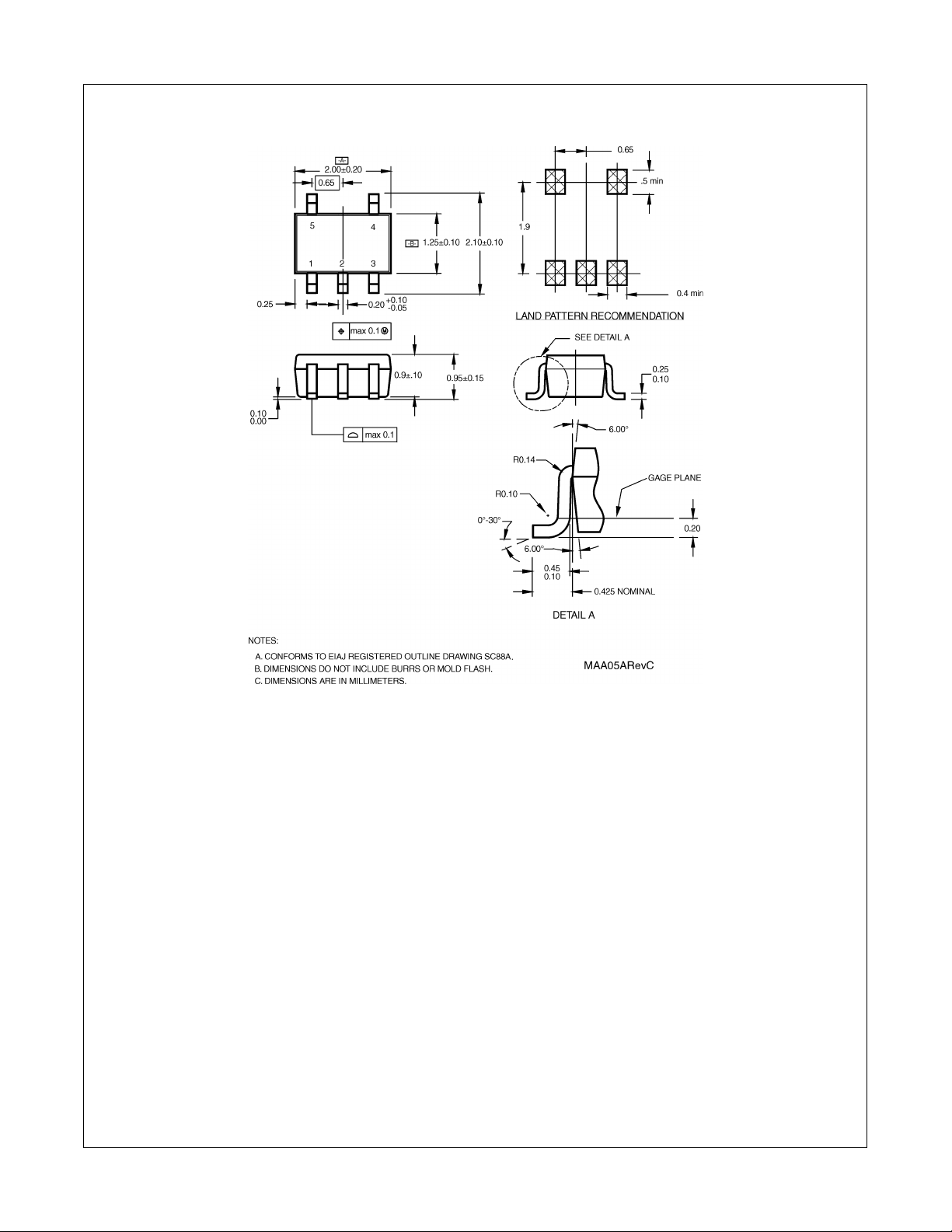

5-Lead SC70, EIAJ SC-88a, 1.25mm Wide
Package Number MAA05A
9 www.fairchildsemi.com
Page 11
Physical Dimensions inches (millimeters) unless otherwise noted (Continued)
NC7SZD384

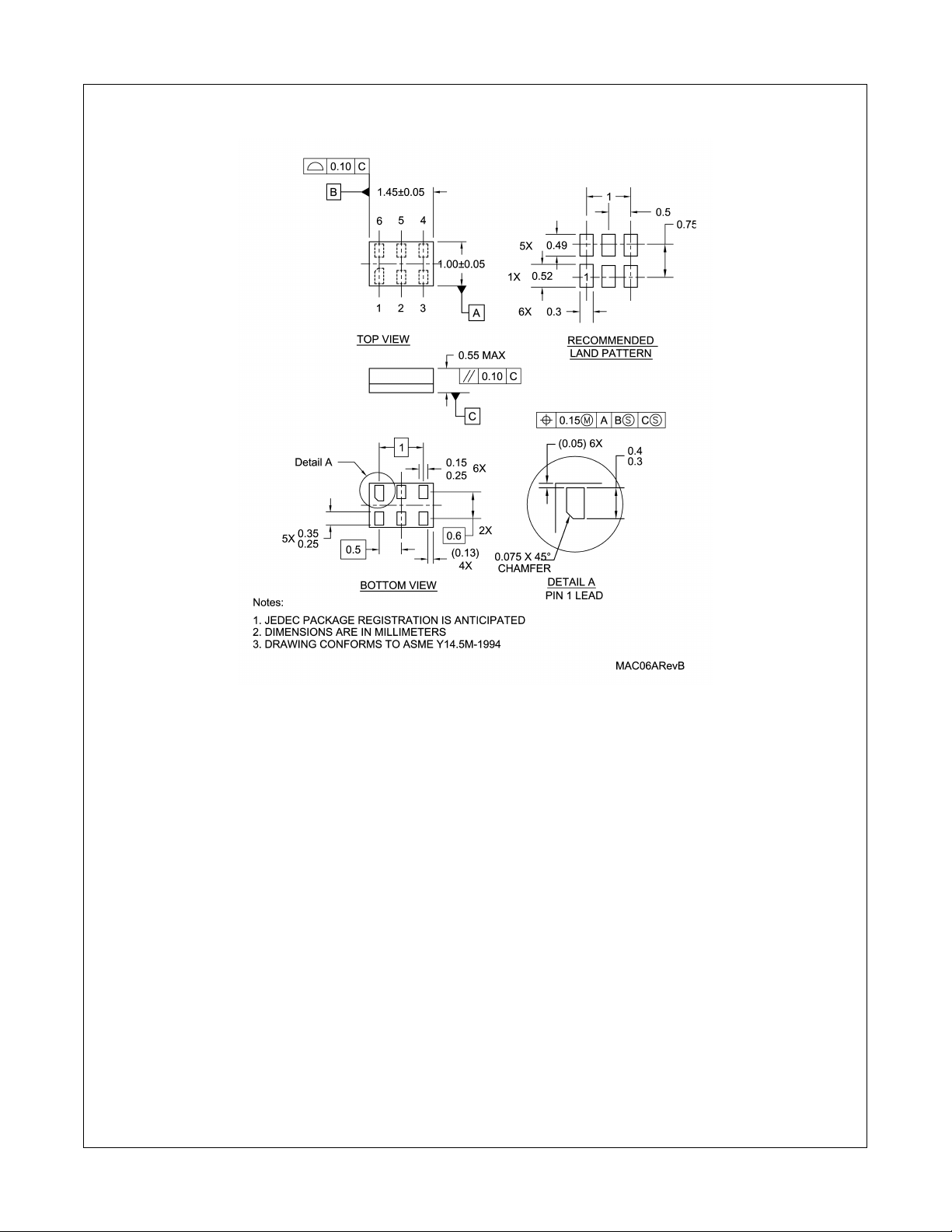

Pb-Free 6-Lead MicroPak, 1.0mm Wide
Package Number MAC06A
www.fairchildsemi.com 10
Page 12
NC7SZD384 1-Bit Low Power Bus Switch with Level Shifting
DISCLAIMER
FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY
PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD DOES NOT ASSUME ANY LIABILITY
ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT
CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES
OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF FAIRCHILD SEMICONDUCTOR CORPORATION
As used herein:
1. Life support devices or systems are devices or systems
which, (a) are intended for surgical implant into the body, or
(b) support or sustain life, or (c) whose failure to perform
when properly used in accordance with instructions for use
provided in the labeling, can be reasonably expected to
result in significant injury to the user.
2. A critical component is any component of a life support
device or system whose failure to perform can be reasonably expected to cause the failure of the life support device
or system, or to affect its safety or effectiveness.
PRODUCT STATUS DEFINITIONS
Definition of terms
Datasheet Identification Product Status Definition
Advance Information F orm ative or In Design This datasheet contains the design specifications for product develop-
Preliminary First Production This datasheet contains preliminary data, and supplementary data will
No Identification Needed Full Production This datasheet contains final specifications. Fairchild Semiconductor
Obsolete Not In Production This datasheet contains specifications on a product that has been dis-
ment. Specifications may change in any manner without notice.
be published at a later date. Fairchild Semiconductor reserves the right
to make changes at any time without notice in order to improve design.
reserves the right to make changes at any time without notice in order
to improve design.
continued by Fairchild Semiconductor. The datasheet is printed for reference information only.
11 www.fairchildsemi.com
Page 13
ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries.
ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent
coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf
ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability
arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages.
Buyer is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards,
regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or
specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer
application by customer’s technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not
designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification
in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized
application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and
expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such
claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This
literature is subject to all applicable copyright laws and is not for resale in any manner.
. ON Semiconductor reserves the right to make changes without further notice to any products herein.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
Literature Distribution Center for ON Semiconductor
19521 E. 32nd Pkwy, Aurora, Colorado 80011 USA
Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada
Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada
Email: orderlit@onsemi.com
© Semiconductor Components Industries, LLC
N. American Technical Support: 800−282−9855 Toll Free
USA/Canada
Europe, Middle East and Africa Technical Support:
Phone: 421 33 790 2910
Japan Customer Focus Center
Phone: 81−3−5817−1050
www.onsemi.com
ON Semiconductor Website: www.onsemi.com
Order Literature: http://www.onsemi.com/orderlit
For additional information, please contact your local
Sales Representative
www.onsemi.com
1
Loading...
