NC7ST08
NC7ST08 TinyLogic
January 1997
Revised August 2004
TinyLogic
General Description
The NC7ST08 is a single 2-In put high pe rform anc e CMOS
AND Gate, with TTL-compatible inputs. Ad vanced Silicon
Gate CMOS fabrication assures high speed and low power
circuit operation. E SD protection diodes inherently g uard
both inputs and outpu t with respect to the V
rails. High gain circuitry offers high noise immunity and
reduced sensitivity to input edge rate. The TTL-compa tible
inputs facilitate TTL to NMOS/CMOS inte rfacing. Device
performance is similar to MM74HCT but with 1/2 the output
current drive of HC/HCT.
HST 2-Input AND Gate
Features
■ Space saving SOT23 or SC70 5-lead package
■ Ultra small MicroPak
■ High Speed:
t
6 ns (typ), VCC = 5V, CL = 15 pF, TA = 25°C
and GND
CC
PD
■ Low Quiescent Power, I
■ Balanced Output Drive; 2 mA I
■ TTL-compatible inputs
leadless package
< 1 µA, VCC = 5.5V
CC
, −2 mA I
OL
OH
Ordering Code:
Order Package Product Code
Number Number Top Mark
NC7ST08M5X MA05B 8S08 5-Lead SOT23, JEDEC MO-178, 1.6mm 3k Units on Tape and Reel
NC7ST08P5X MAA05A T08 5-Lead SC70, EIAJ SC-88a, 1.25mm Wide 3k Units on Tape and Reel
NC7ST08L6X MAC06A NN 6-Lead MicroPak, 1.0mm Wide 5k Units on Tape and Reel
Logic Symbol
IEEE/IEC
Package Descript ion Supplied As
Connection Diagrams
Pin Assignme nts for SC70 and SOT23
HST 2-Input AND Gate
Pin Descriptions
Pin Names Description
A, B Inputs
Y Output
NC No Connect
Pad Assignment for MicroPak
(Top View)
Function Table
Y = AB
Inputs Output
ABY
LLL
LHL
HLL
HHH
H = HIGH Logic Le v el L = LOW Logic Lev el
TinyLogic is a registered tradema rk of F airc hild Semiconduct or Corporation.
MicroPak is a tradem ark of Fairchild Semiconductor Corporation.
© 2004 Fairchild Semiconductor Corporation DS012182 www.fairchildsemi.com
(Top Thru View)
Page 2
Absolute Maximum Ratings(Note 1) Recommended Operating
Supply Voltage (VCC) −0.5V to +7.0V
DC Input Diode Current (I
NC7ST08
@V
< −0.5V −20 mA
IN
≥ VCC + 0.5V +20 mA
@V
IN
DC Input Voltage (V
DC Output Diode Current (I
< −0.5V −20 mA
V
OUT
V
> VCC + 0.5V +20 mA
OUT
Output Voltage (V
)
IK
) −0.5V to VCC + 0.5V
IN
OUT
)
OK
) −0.5V to VCC + 0.5V
DC Output Source or Sink Current
) ±12.5 mA
(I
OUT
DC V
or Ground Current per
CC
Supply Pin (I
Storage Temperature (T
Junction Temperature (T
Lead Temperature (T
or I
CC
) ±25 mA
GND
) −65°C to +150°C
STG
) 150°C
J
);
L
(Soldering, 10 seconds) 260
Power Dissipation (P
) @+85°C
D
SOT23-5 200 mW
SC70-5 150 mW
Conditions
Supply Voltage 4.5V to 5.5V
Input Voltage (V
Output Voltage (V
Operating Temperature (TA) −40°C to +85°C
Input Rise and Fall Time (t
V
= 5.0V 0 ns to 500 ns
CC
Thermal Resistance (
SOT23-5 300
SC70-5 425
Note 1: Absolute Maximum Ratings a re those va lues beyon d which d amage to the device may occu r. The databook specifica tions should be met ,
°C
without exception, t o ensure that the system design is reliab le over its
power supply, temperature, an d output/input loading variables. F airchild
does not recom mend op eration of circuits o utside th e databoo k specific ations.
Note 2: Unused inputs must be held HIGH or LOW. They may not float.
(Note 2)
) 0.0V to V
IN
)0V to V
OUT
, tf)
r
θ
)
JA
DC Electrical Characteristics
Symbol Parameter
HIGH Level Input Voltage 4.5–5.5 2.0 2.0 V
V
IH
V
LOW Level Input Voltage 4.5–5.5 0.8 0.8 V
IL
V
HIGH Level Output Voltage 4.5 4.4 4.5 4.4
OH
V
LOW Level Output Voltage 4.5 0 0.1 0.1
OL
I
Input Leakage Current 5.5 ±0.1 ±1.0 V 0 ≤ VIN ≤ 5.5V
IN
Quiescent Supply Current 5.5 1.0 10.0 µAVIN = VCC or GND
I
CC
I
CCTICC
per Input 5.5 2.0 2.9 mA One Input VIN = 0.5V or 2.4V,
V
CC
(V) Min Typ Max Min Max
4.5 4.18 4.35 4.13 IOH = −2 mA
4.5 0.10 0.26 0.33 I
TA = +25°CT
= 40°C to +85°C
A
Units Conditions
V
V
IOH = −20 µA
VIN = V
IH
IOL = 20 µA
= 2 mA
OL
VIN = V
IL
Other Input VCC or GND
CC
CC
°C/W
°C/W
www.fairchildsemi.com 2
Page 3
AC Electrical Characteristics
V
Symbol Parameter
t
, Propagation Delay 5.0 4 12
PLH
t
PHL
CC
(V) Min Typ Max Min Max Number
4.5 6 16 20
5.5 5 14 18
, Output Transition Time 5.0 4 10 ns CL = 15 pF
t
TLH
t
THL
4.5 11 25 31
5.5 10 21 26
C
Input Capacitance Open 10 pF
IN
C
Power Dissipation Capacitance 5.0 6 pF (Note 3) Figure 2
PD
Note 3: CPD is defined as the value of the internal equivalent capacitance which is derived from dynamic operating current consumption (I
loading and operating at 50% duty cycle. (See Figure 2.) C
= (CPD)(VCC)(fIN) + (ICCstatic).
I
CCD
TA = +25°CT
617
12 27 31
11 26 30
is related to I
PD
dynamic operating current by the express ion:
CCD
= 40°C to +85°C
A
Units Conditions
ns C
= 15 pF
L
ns C
= 50 pF
L
ns CL = 50 pF
AC Loading and Waveforms
) at no output
CCD
Figure
Figures
1, 3
Figures
1, 3
NC7ST08
CL includes load and s tr ay c apacitance
Input PR R = 1.0 MHz; t
= 500 ns
w
FIGURE 1. AC Test Circuit
Input = AC Wavefor m; PRR = variable; Duty Cycle = 50%
FIGURE 2. I
Test Circuit
CCD
FIGURE 3. AC Waveforms
3 www.fairchildsemi.com
Page 4
Tape and Reel Specification
TAPE FORMAT for SC70 and SOT23
Package Tape Number Cavity Cover Tape
Designator Section Cavities Status Status
NC7ST08
M5X, P5X Carrier 3000 Filled Sealed
TAPE DIMENSIONS inches (millimeters)
Leader (Start End) 125 (typ) Empty Sealed
Trailer (Hub End) 75 (typ) Empty Sealed
Package
SC70-5 8 mm
SOT23-5 8 mm
www.fairchildsemi.com 4
Tape Size DIM A DIM B DIM F DIM K
0.093 0.096 0.138
(2.35) (2.45) (3.5
0.130 0.130 0.138
(3.3) (3.3) (3.5
DIM P1 DIM W
o
± 0.004 0.053 ± 0.004 0.157 0.315 ± 0.004
± 0.10) (1.35 ± 0.10) (4) (8 ± 0.1)
± 0.002 0.055 ± 0.004 0.157 0.315 ± 0.012
± 0.05) (1.4 ± 0.11) (4) (8 ± 0.3)
Page 5
Tape and Reel Specification (Continu ed)
TAPE FORMAT for MircoPak
Package Tape Numb er Cavity Cover Tape
Designator Section Cavities Status Status
Leader (Start End) 125 (typ) Empty Sealed
L6X Carrier 5000 Filled Sealed
Trailer (Hub End) 75 (typ) Empty Sealed
NC7ST08
REEL DIMENSIONS inches (millimeters)
Tape
Size
8 mm
ABCDN W1 W2 W3
7.0 0.059 0.512 0.795 2.165 0.331
(177.8) (1.50) (13.00) (20.20) (55.00) (8.40
+ 0.059/−0.000 0.567 W1 + 0.078/−0.039
+ 1.50/−0.00) (14.40) (W1 + 2.00/−1.00)
5 www.fairchildsemi.com
Page 6
Physical Dimensions inches (millimeters) unless otherwise noted
NC7ST08

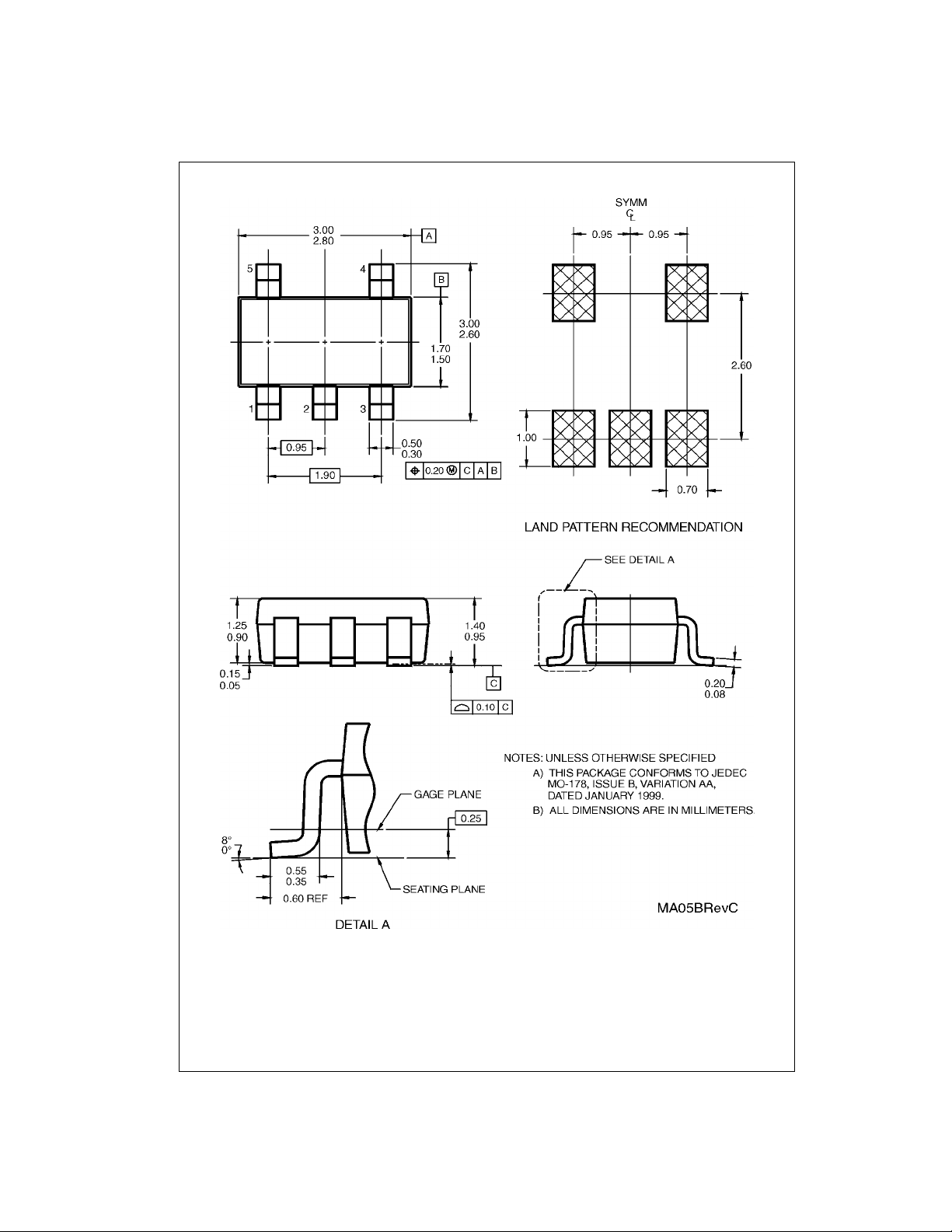

5-Lead SOT23, JEDEC MO-178, 1.6mm
Package Number MA05B
www.fairchildsemi.com 6
Page 7
Physical Dimensions inches (millimeters) unless otherwise noted (Continued)
NC7ST08

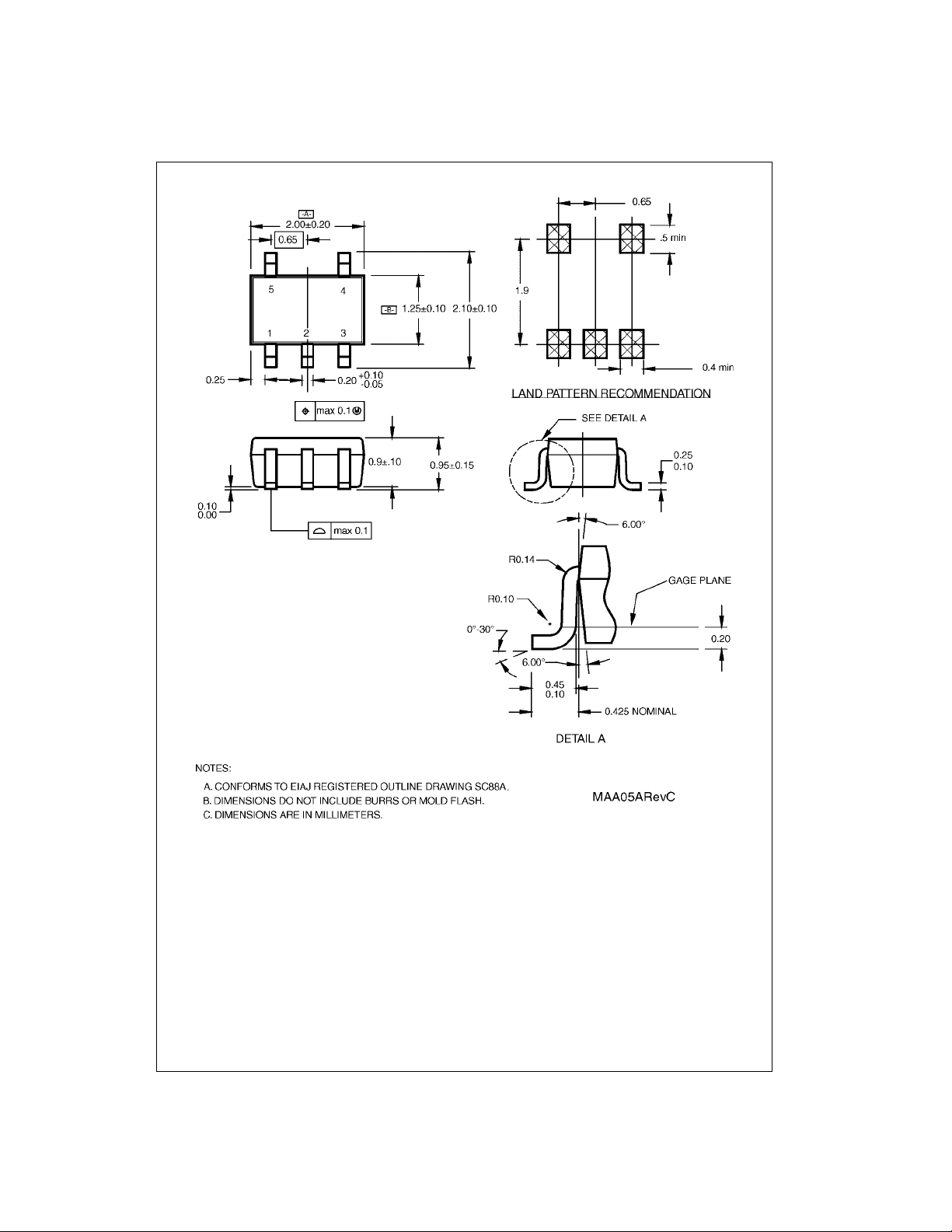

5-Lead SC70, EIAJ SC-88a, 1.25mm Wide
Package Number MAA05A
7 www.fairchildsemi.com
Page 8
Physical Dimensions inches (millimeters) unless otherwise noted (Continued)
HST 2-Input AND Gate
NC7ST08 TinyLogic

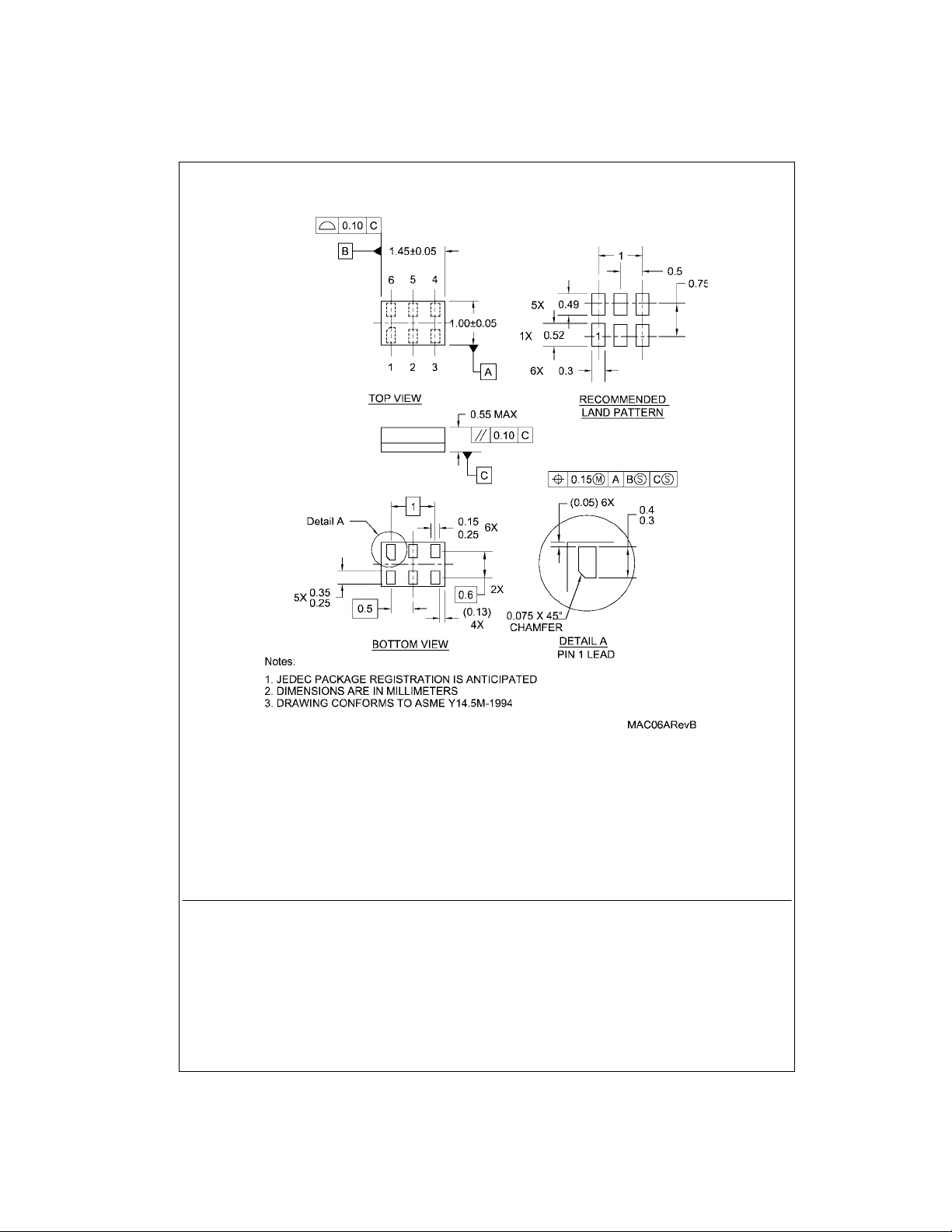

6-Lead MicroPak, 1.0mm Wide
Package Number MAC06A
