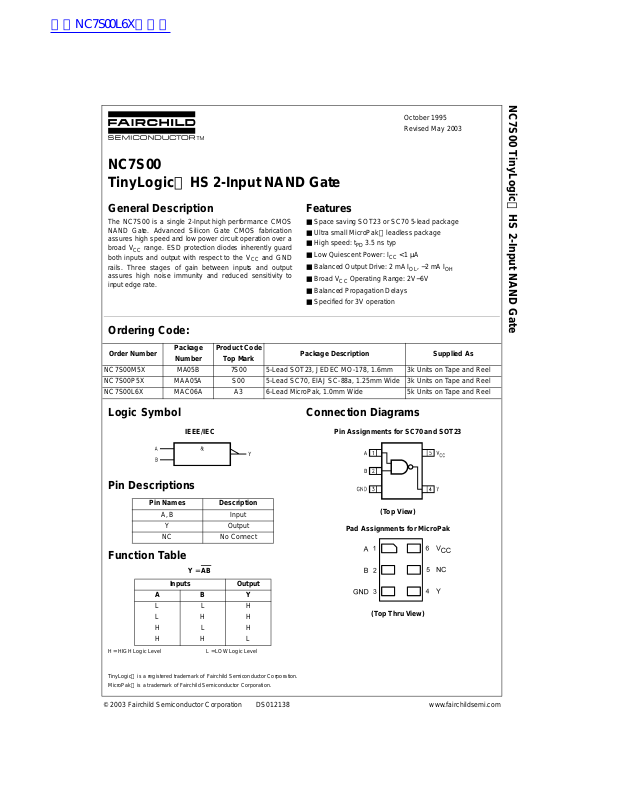

NC7S00
NC7S00 TinyLogic
October 1995
Revised May 2003
TinyLogic
General Description
The NC7S00 is a sing le 2-Input high perfor mance CMOS
NAND Gate. Advanced Silicon Gate CMOS fabrication
assures high speed and low po wer cir cuit oper atio n over a
broad V
both inputs and outpu t with respect to the V
rails. Three stages of gain between inputs and output
assures high noise immunity and reduced sensitivity to
input edge rate.
range. ESD protecti on diodes inhe rently guard
CC
HS 2-Input NAND Gate
Features
■ Space saving SOT23 or SC70 5-lead package
■ Ultra small MicroPak
■ High speed: t
and GND
CC
■ Low Quiescent Power: I
■ Balanced Output Drive: 2 mA I
■ Broad VCC Operating Range: 2V−6V
■ Balanced Propagation Dela ys
■ Specified for 3V operation
leadless package
3.5 ns typ
PD
CC
< 1 µA
OL
, −2 mA I
OH
Ordering Code:
Order Number
NC7S00M5X MA05B 7S00 5-Lead SOT23, JEDEC MO-178, 1.6mm 3k Units on Tape and Reel
NC7S00P5X MAA05A S00 5-Lead SC70, EIAJ SC-88a, 1.25mm Wide 3k Units on Tape and Reel
NC7S00L6X MAC06A A3 6-Lead MicroPak, 1.0mm Wide 5k Units on Tape and Reel
Logic Symbol
Package Product Code
Number Top Mark
IEEE/IEC
Package Descript ion Supplied As
Connection Diagrams
Pin Assignme nts for SC70 and SOT23
HS 2-Input NAND Gate
Pin Descriptions
Pin Names Description
A, B Input
Y Output
NC No Connect
Pad Assignments for MicroPak
(Top View)
Function Table
Y = AB
Inputs Output
ABY
LLH
LHH
HLH
HHL
H = HIGH Logic Le v el L = LOW Logic Level
TinyLogic is a registered t rademark of Fairchild Semiconductor Co rporation.
MicroPak is a tradem ark of Fairchild Semiconductor Corporation.
© 2003 Fairchild Semiconductor Corporation DS012138 www.fairchildsemi.com
(Top Thru View)
Page 2
Absolute Maximum Ratings(Note 1) Recommended Operating
Supply Voltage (VCC) −0.5V to +7.0V
NC7S00
DC Input Diode Current (I
@V
≤ −0.5V −20 mA
IN
≥ VCC + 0.5V +20 mA
@V
IN
DC Input Voltage (V
DC Output Diode Current (I
< −0.5V −20 mA
@V
OUT
@V
> VCC + 0.5V +20 mA
OUT
DC Output Voltage (V
)
IK
) −0.5V to V
IN
)
OK
) −0.5V to V
OUT
DC Output Source
or Sink Current (I
DC V
or Ground Current
CC
per Output Pin (I
Storage Temperature (T
Junction Temperature (T
Lead Temperature (T
) ±12.5 mA
OUT
or I
CC
) ±25 mA
GND
) −65°C to +150°C
STG
)150°C
J
);
L
(Soldering, 10 seconds) 260
Power Dissipation (P
) @ +85°C
D
SOT23-5 200 mW
SC70-5 150 mW
CC
CC
Conditions
Supply Voltage (V
Input Voltage (V
Output Voltage (V
+ 0.5V
+ 0.5V
Operating Temperature (TA) −40°C to +85°C
Input Rise and Fall Time (t
V
@ 2.0V 0−1000 ns
CC
@ 3.0V 0−750 ns
V
CC
V
@ 4.5V 0−500 ns
CC
V
@ 6.0V 0−400 ns
CC
Thermal Resistance (
SOT23-5 300
SC70-5 425
Note 1: Absolute maximum ratings are those values beyond which damage
to the device may occur. The databook specifications should be met, without exception, to ensure that the system design is reliable over its power
supply, temperature, and ou tput/inp ut loadi ng varia bles. Fairchild does no t
°C
recommend operat ion of circuits outside t he databook specific ations.
Note 2: Unused inputs must be held HIGH or LOW. They may not float.
(Note 2)
)2.0V−6.0V
CC
)0V−V
IN
)0V−V
OUT
, tf)
r
θ
)
JA
DC Electrical Characteristics
Symbol Parameter
V
V
V
V
I
I
HIGH Level Input Voltage 2.0 1.50 1.50
IH
LOW Level Input Voltage 2.0 0.50 0.50
IL
HIGH Level Output Voltage 2.0 1.90 2.0 1.90
OH
LOW Level Output Voltage 2.0 0.0 0.10 0.10
OL
Input Leakage Current 6.0 ±0.1 ±1.0 µAVIN = VCC, GND
IN
Quiescent Supply Current 6.0 1.0 10.0 µAVIN = VCC, GND
CC
V
CC
(V) Min Typ Max Min Max
3.0 - 6.0 0.7 V
3.0 - 6.0 0.3V
3.02.903.0 2.90 I
4.54.404.5 4.40 V
6.05.906.0 5.90
3.0 2.68 2.85 2.63 IOH = −1.3 mA
4.5 4.18 4.35 4.13 IOH = −2 mA
6.0 5.68 5.85 5.63 IOH = −2.6 mA
3.0 0.0 0.10 0.10 IOL = 20 µA
4.5 0.0 0.10 0.10 VIN = V
6.0 0.0 0.10 0.10
3.0 0.1 0.26 0.33 IOL = 1.3 mA
4.5 0.1 0.26 0.33 IOL = 2 mA
6.0 0.1 0.26 0.33 IOL = 2.6 mA
TA=+25°CT
CC
A
0.7V
CC
=−40°Cto+85°C
CC
0.3 V
CC
°C/W
°C/W
Units Conditions
V
V
= −20 µA
OH
V
= V
IN
IL
V
= V
IN
IL
V
V
V
VIN = V
IH
IH
CC
CC
www.fairchildsemi.com 2
Page 3
AC Electrical Characteristics
V
Symbol Parameter
t
, Propa gation De lay 5.0 3.5 15 ns CL = 15 pF
PLH
t
PHL
CC
(V) Min Typ Max Min Max Number
2.0 19 100 125
3.0 10.5 27 35
4.5 7.5 20 25
6.0 6.5 17 21
t
, Output Transition Time 5.0 3.0 10 ns CL = 15 pF
TLH
t
THL
2.0 25 125 155
3.0 16 35 45
4.5 11 25 31
6.0 9 21 26
C
C
Input Capacitance Open 2 10 10 pF
IN
Power Dissipation Capacitance 5.0 6 pF (Note 3) Figure 2
PD
Note 3: CPD is defined as the value of the internal equivalent capacitance which is derived from dynamic operating current consumption (I
loading and operating at 50% duty cycle. (See Figure 2.) C
= (CPD) (VCC) (fIN) + (ICCstatic).
I
CCD
TA = +25°CT
is related to I
PD
dynamic operating current by the express ion:
CCD
= −40°C to +85°C
A
Units Conditions
ns CL = 50 pF
ns CL = 50 pF
AC Loading and Waveforms
) at no output
CCD
Figure
Figures
1, 3
Figures
1, 3
NC7S00
CL includes load and s tr ay c apacitance
Input PR R = 1.0 MHz, t
= 500 ns
w
FIGURE 1. AC Test Circuit
Input = AC Wavefor m;
PRR = variable; Duty Cycle = 50%
FIGURE 2. I
CCD
FIGURE 3. AC Waveforms
Test Circuit
3 www.fairchildsemi.com
Page 4
Tape and Reel Specification
TAPE FORMAT for SC70 and SOT23
NC7S00
Package Tape Number Cavity Cover Tape
Designator Section Cavities Status Status
Leader (Start End) 125 (typ) Empty Sealed
M5X, P5X Carrier 3000 Filled Sealed
Trailer (Hub End) 75 (typ) Empty Sealed
TAPE DIMENSIONS inches (millimeters)
Package
SC70-5 8 mm
SOT23-5 8 mm
www.fairchildsemi.com 4
Tape Size DIM A DIM B DIM F DIM K
0.093 0.096 0.138
(2.35) (2.45) (3.5
0.130 0.130 0.138
(3.3) (3.3) (3.5
DIM P1 DIM W
o
±0.004 0.053 ±0.004 0.157 0.315 ±0.004
±0.10) (1.35 ±0.10) (4) (8 ±0.1)
±0.002 0.055 ±0.004 0.157 0.315 ±0.012
±0.05) (1.4 ±0.11) (4) (8 ±0.3)
Page 5
Tape and Reel Specification (Continued)
TAPE FORMAT for MicroPak
Package Tape Number Ca vit y Cover Tape
Designator Section Cavities Status Status
Leader (Start End) 125 (typ) Empty Sealed
L6X Carrier 5000 Filled Sealed
Trailer (Hub End) 75 (typ) Empty Sealed
NC7S00
REEL DIMENSIONS inches (millimeters)
Tape
Size
8 mm
ABCDN W1 W2 W3
7.0 0.059 0.512 0.795 2.165 0.331
(177.8) (1.50) (13.00) (20.20) (55.00) (8.40
+0.059/−0.000 0.567 W1 +0.078/−0.039
+1.50/−0.00) (14.40) (W1 +2.00/−1.00)
5 www.fairchildsemi.com
Page 6

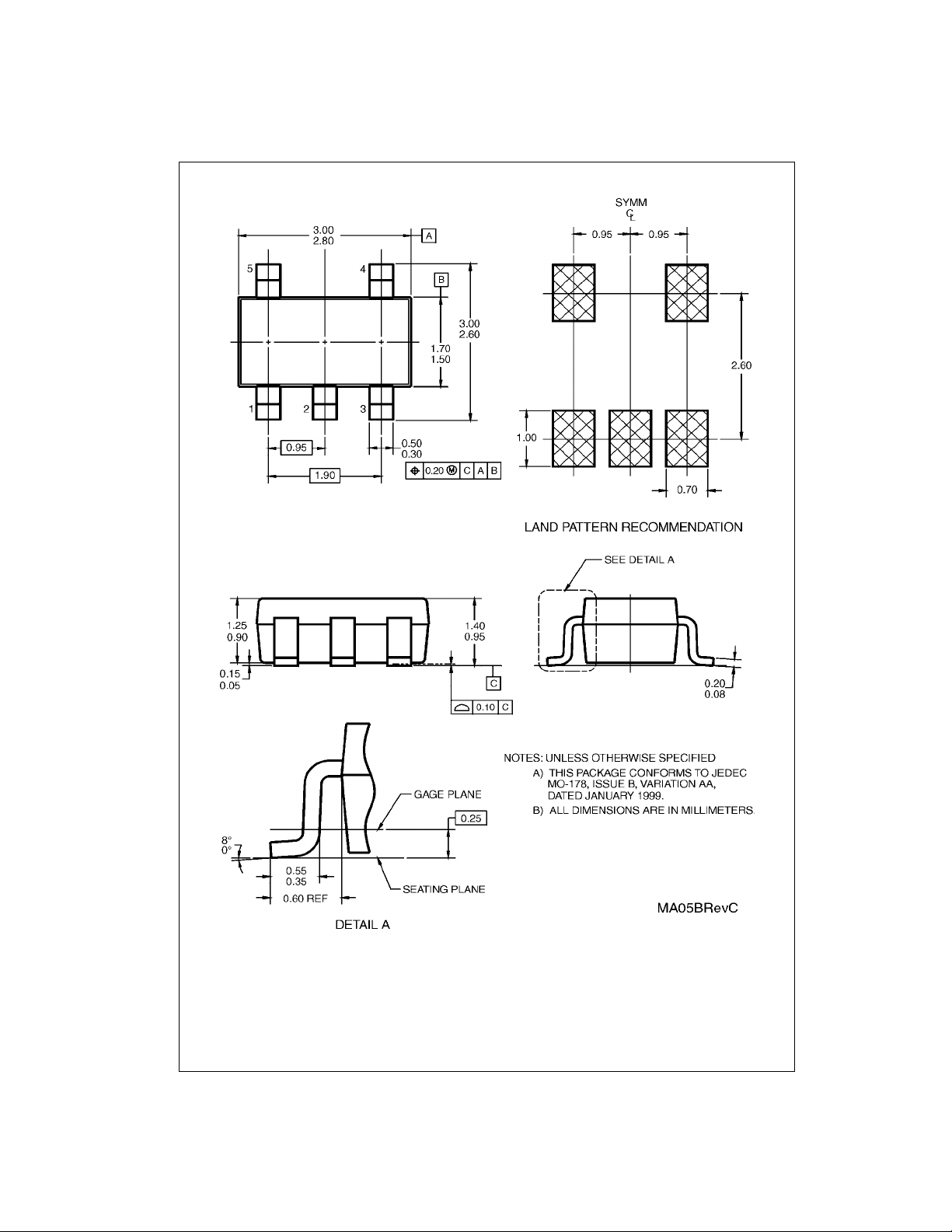

Physical Dimensions inches (millimeters) unless otherwise noted
NC7S00
5-Lead SOT23, JEDEC MO-178, 1.6mm
Package Number MA05B
www.fairchildsemi.com 6
Page 7

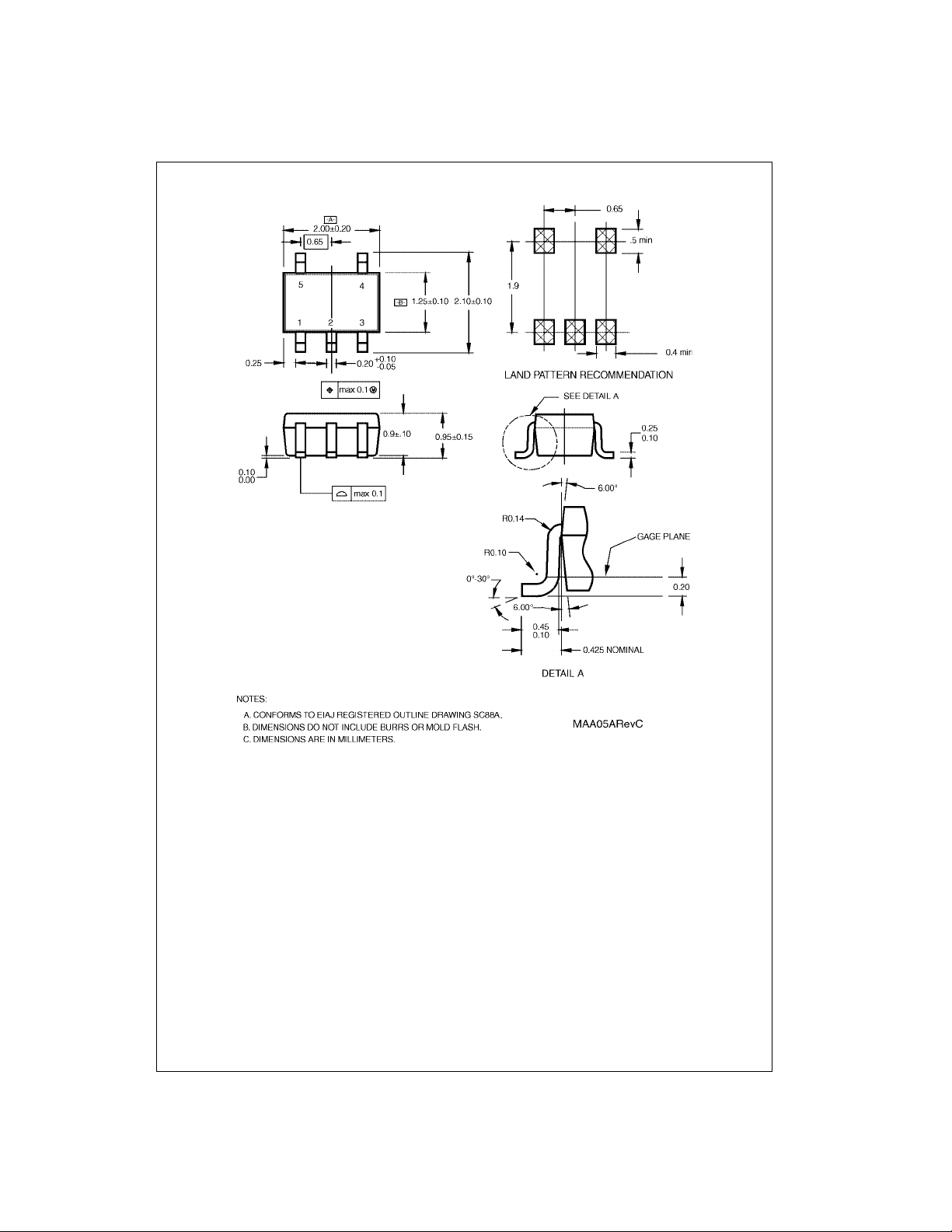

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)
NC7S00
5-Lead SC70, EIAJ SC-88a, 1.25mm Wide
Package Number MAA05A
7 www.fairchildsemi.com
Page 8

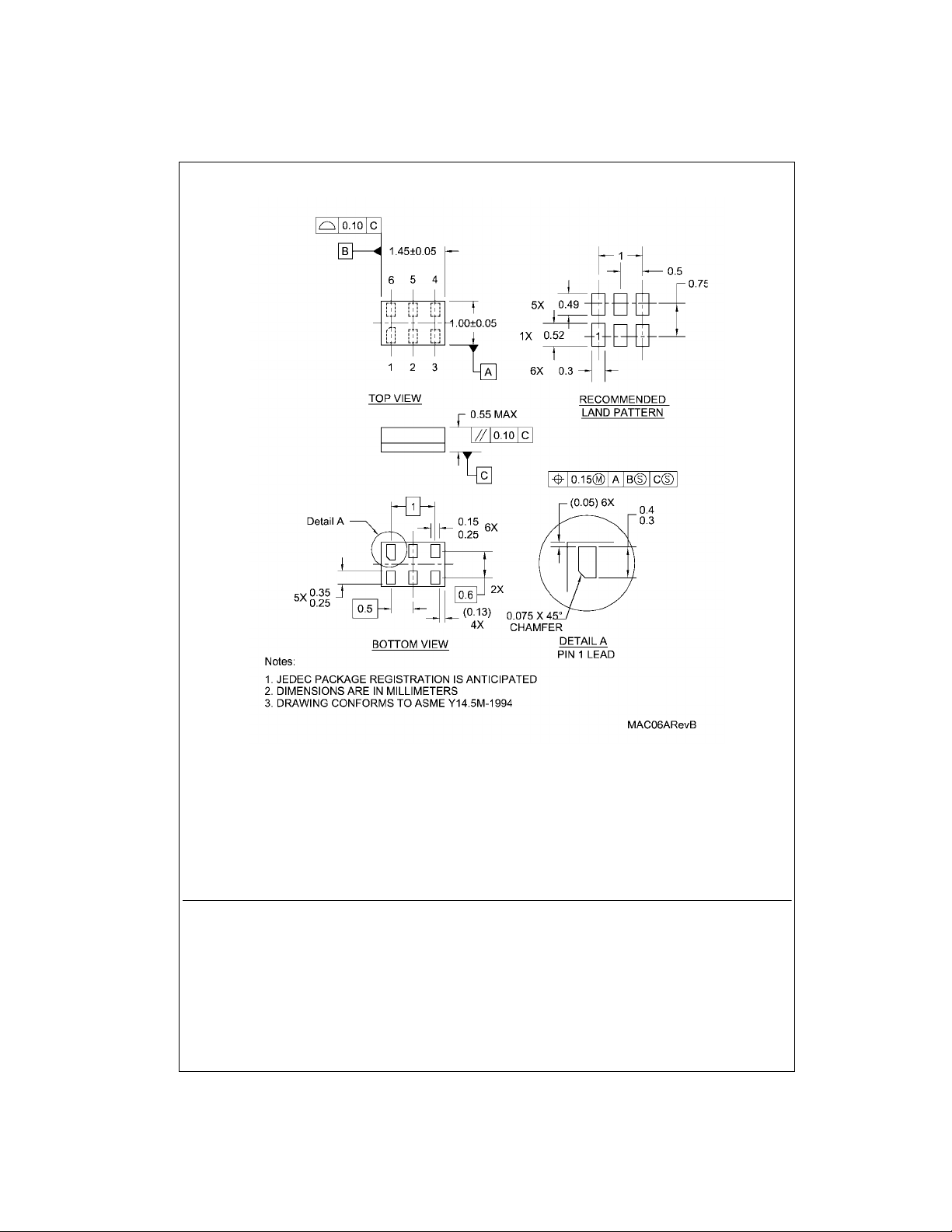

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)
HS 2-Input NAND Gate
NC7S00 TinyLogic
6-Lead MicroPak, 1.0mm Wide
Package Number MAC06A
