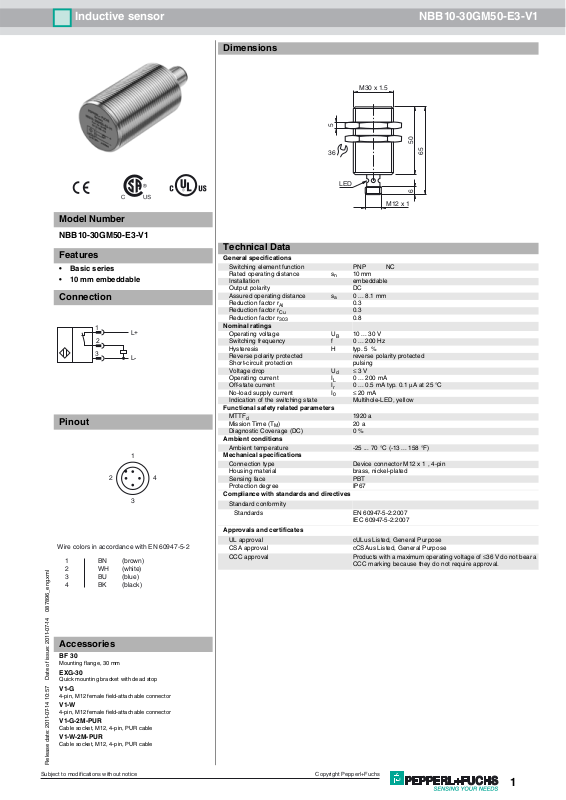

Inductive sensor NBB10-30GM50-E3-V1
Dimensions
M30 x 1.5
5
50
36
65
Model Number
NBB10-30GM50-E3-V1
Features
• Basic series
• 10 mm embeddable
Connection
1
2
3
L+
L-
Pinout
1
2
Wire colors in accordance with EN 60947-5-2
1 BN
2 WH
3 BU
4 BK
(brown)
(white)
(blue)
(black)
4
3
LED
6
M12 x 1
Technical Data
General specifications
Switching element function PNP NC
Rated operating distance s
Installation embeddable
Output polarity DC
Assured operating distance sa0 ... 8.1 mm
Reduction factor r
Reduction factor rCu 0.3
Reduction factor r
Nominal ratings
Operating voltage UB10 ... 30 V
Switching frequency f 0 ... 200 Hz
Hysteresis H typ. 5 %
Reverse polarity protected reverse polarity protected
Short-circuit protection pulsing
Voltage drop Ud≤ 3 V
Operating current I
Off-state current I
No-load supply current I
Indication of the switching state Multihole-LED, yellow
Functional safety related parameters
MTTFd 1920 a
Mission Time (T
Diagnostic Coverage (DC) 0 %
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Mechanical specifications
Connection type Device connector M12 x 1 , 4-pin
Housing material brass, nickel-plated
Sensing face PBT
Protection degree IP67
Compliance with standards and directives
Standard conformity
Standards
Approvals and certificates
UL approval cULus Listed, General Purpose
CSA approval cCSAus Listed, General Purpose
CCC approval Products with a maximum operating voltage of ≤36 V do not bear a
0.3
Al
0.8
303
) 20 a
M
10 mm
n
0 ... 200 mA
L
0 ... 0.5 mA typ. 0.1 µA at 25 °C
r
≤ 20 mA
0
EN 60947-5-2:2007
IEC 60947-5-2:2007
CCC marking because they do not require approval.
Accessories
BF 30
Mounting flange, 30 mm
EXG-30
Quick mounting bracket with dead stop
V1-G
4-pin, M12 female field-attachable connector
V1-W
4-pin, M12 female field-attachable connector
V1-G-2M-PUR
Cable socket, M12, 4-pin, PUR cable
V1-W-2M-PUR
Cable socket, M12, 4-pin, PUR cable
Release date: 2011-07-14 10:57 Date of issue: 2011-07-14 087896_eng.xml
Subject to modifications without notice
Copyright Pepperl+Fuchs
