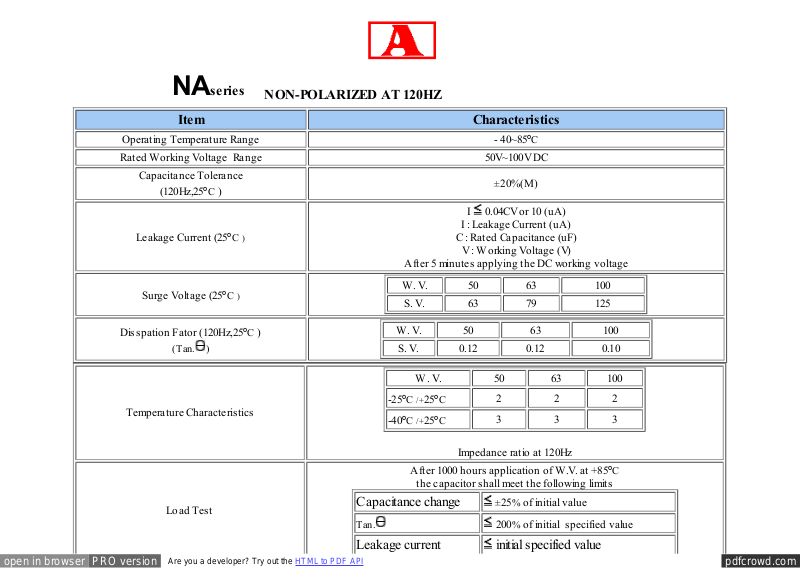

NAseries
NON-POLARIZED AT 120HZ
Item Characteristics
Operating Temperature Range 40~85ºC
Rated Working Voltage Range 50V~100V DC
Capacitance Tolerance
(120Hz,25ºC )
±20%(M)
Leakage Current (25ºC )
I 0.04CV or 10 (uA)
I : Leakage Current (uA)
C : Rated Capacitance (uF)
V : Working Voltage (V)
After 5 minutes applying the DC working voltage
Surge Voltage (25ºC )
W. V. 50 63 100
S. V. 63 79 125
Disspation Fator (120Hz,25ºC )
(Tan. )
W. V. 50 63 100
S. V. 0.12 0.12 0.10
Temperature Characteristics
W. V. 50 63 100
25ºC /+25ºC
2 2 2
40ºC /+25ºC
3 3 3
Impedance ratio at 120Hz
Load Tes t
After 1000 hours application of W.V. at +85ºC
the capacitor shall meet the following limits
Capacitance change ±25% of initial value
Tan. 200% of initial specified value
Leakage current initial specified value
Are you a developer? Try out the HTML to PDF API
pdfcrowd.comopen in browser PRO version
Page 2
Shelf Test
After 500 hours application of W.V. at +85ºC
the capacitor shall meet the following limits
Capacitance change
±25% of initial value
Tan.
200% of initial specified value
Leakage current
200% of initial specified value
NAseries

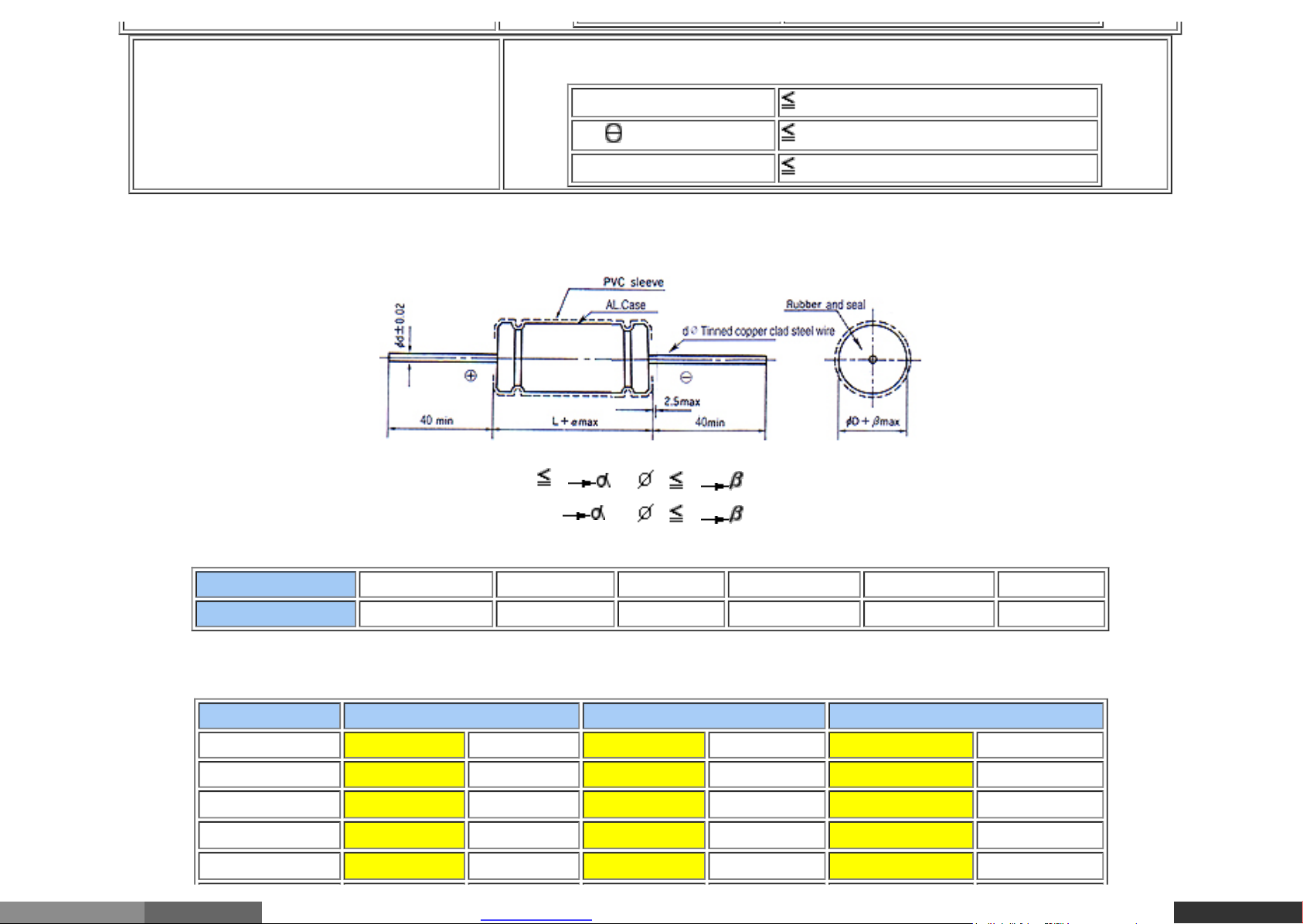

Dimensions
L 16 =1
D 10 =0.5
L>16 =2
D 10 =1.0
Unit (mm)
D 6 8 10 13 16 18
d ± 0.02 0.5 0.5 0.6 0.6 0.8 0.8
D x L (m/m)
uF\WV
50 63 100
1 6x16 16 6x16 16 6x16 20
2.2 6x16 24 6x16 24 6x16 32
3.3 6x16 29 6x16 35 6x16 47
4.7 6x16 39 6x16 42 8x17 55
10 8x17 67 8x17 70 10x20 95
Are you a developer? Try out the HTML to PDF API
pdfcrowd.comopen in browser PRO version
Page 3
22 8x17 109 8x20 124 10x24 171
33 10x20 143 10x20 166 13x26 210
47 10x20 181 10x24 219 13x26 271
100 10x24 295 13x26 390 16x33
220 13x31 542 16x33 627
330 16x33 751 16x42
470 16x42 790
