Philips Semiconductors Product specification
82S23/82S123256-bit TTL bipolar PROM (32 x 8)
1
November 11, 1986 853-0154 86487
DESCRIPTION
The 82S23 and 82S123 are field programmable, which means that custom patterns are immediately available by following the Signetics Generic I fusing procedure. The 82S23 and 82S123 devices are supplied with all outputs at logical Low. Outputs are programmed to a logic High level at any specified address by fusing the Ni-Cr link matrix.
These devices include on-chip decoding and 1 Chip Enable input for memory expansion. They feature either Open Collector or 3-State outputs for optimization of word expansion in bused organizations.
Ordering information can be found on the following page.
The 82S23 and 82S123 devices are also processed to military requirements for operation over the military temperature range. For specifications and ordering information, consult the Signetics Military Data Handbook.
FEATURES
•Address access time: 50ns max
•Power dissipation: 1.3mW/bit typ
•Input loading: –100µA max
•On-chip address decoding
•One Chip Enable input
•Output options:
– N82S23: Open Collector – N82S123: 3-State
•No separate fusing pins
•Unprogrammed outputs are Low level
•Fully TTL compatible
APPLICATIONS
•Prototyping/volume production
•Sequential controllers
•Format conversion
•Hardwired algorithms
•Random logic
•Code conversion
PIN CONFIGURATIONS
1 2 3 4 5 6 7 8 9
10
11
12
13
14
15
16
O1
O2
O3 O4 O5 O6 O7
GND
V
CC
CE A4
A2 A1
A0 O8
123 4 5 6 7 8
9 10 11 12 13
14
15
16
17
18
1920
A Package
N Package
A3
NC
NCNC
NC
V
CC
CE
A4 A3
A2 A1
A0O8GNDO7
O5 O6
O3 O4
O2
O1
BLOCK DIAGRAM
O2 O4 O6 O8
A0
A4
CE
ADDRESS
LINES
1:32
DECODER
32 × 8 MATRIX
8 OUTPUT DRIVERS
OUTPUT LINES
O1 O3 O5 O7
Page 2
Philips Semiconductors Product specification
82S23/82S123256-bit TTL bipolar PROM (32 x 8)
November 11, 1986
2
ORDERING INFORMATION
DESCRIPTION ORDER CODE
16-Pin Plastic Dual-In-Line 300mil-wide
N82S23 N, N82S123 N
20-Pin Plastic Leaded Chip Carrier 350mil-square
N82S23 A, N82S123 A
ABSOLUTE MAXIMUM RATINGS
SYMBOL PARAMETER RATING UNIT
V
CC
Supply voltage +7.0 V
DC
V
IN
Input voltage +5.5 V
DC
V
OH
Output voltage High (82S23) +5.5 V
DC
V
O
Output voltage Off-State (82S123) +5.5 V
DC
T
amb
Operating temperature range 0 to +75 °C
T
stg
Storage temperature range –65 to +150 °C
DC ELECTRICAL CHARACTERISTICS
0°C ≤ T
amb
≤ +75°C, 4.75V ≤ VCC ≤ 5.25V
SYMBOL
PARAMETER TEST CONDITIONS
1, 2
LIMITS UNIT
MIN TYP
3
MAX
Input voltage
V
IL
Low VCC = 4.75V 0.8 V
V
IH
High VCC = 5.25V 2.0 V
V
IC
Clamp IIN = –12mA –1.2 V
Output voltage
CE = Low
V
OL
Low I
OUT
= 16mA 0.45 V
V
OH
High I
OUT
= –2.0mA 2.4 V
Input current
I
IL
Low VIN = 0.45V –100 µA
I
IH
High VIN = 5.5V 50 µA
Output current
I
OLK
Leakage (82S23) CE = High, V
OUT
= 5.5V 40 µA
I
OZ
Hi-Z state (82S123) CE = High, V
OUT
= 5.5V 40 µA
CE = High, V
OUT
= 0.5V –40 µA
I
OS
Short circuit (82S123)
4
CE = Low, V
OUT
= 0V, High stored –15 –90 mA
Supply current
5
I
CC
VCC = 5.25V 96 mA
Capacitance
CE = High, VCC = 5.0V
C
IN
Input VIN = 2.0V 5 pF
C
OUT
Output V
OUT
= 2.0V 8 pF
NOTES:
1. Positive current is defined as into the terminal referenced.
2. All voltages with respect to network ground terminal.
3. Typical values are at V
CC
= 5V, T
amb
= +25°C.
4. Duration of short circuit should not exceed 1 second.
5. Measured with all inputs grounded and all outputs open.
Page 3
Philips Semiconductors Product specification
82S23/82S123256-bit TTL bipolar PROM (32 x 8)
November 11, 1986
3

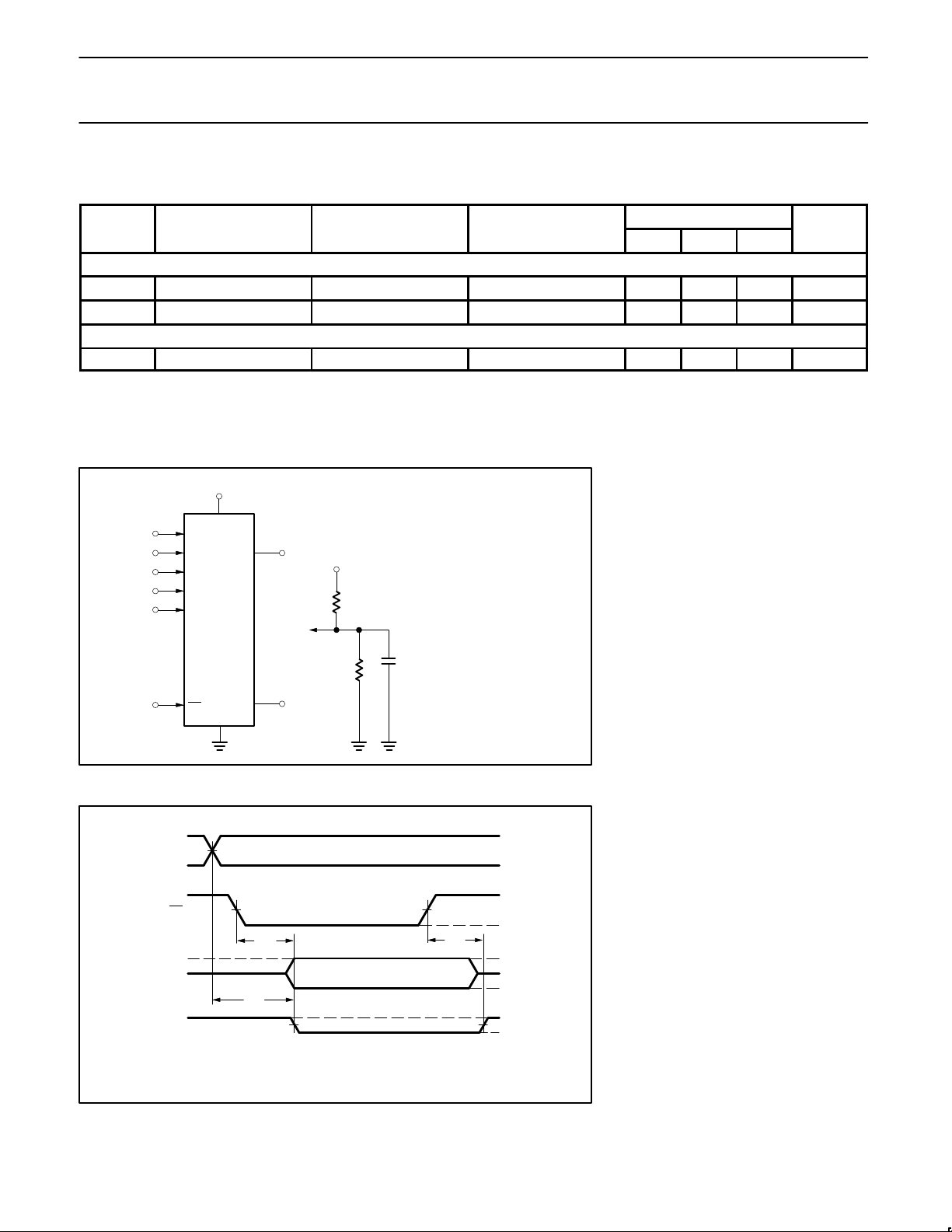

AC ELECTRICAL CHARACTERISTICS
R1 = 270Ω, R2 = 600Ω, CL = 30F, 0°C ≤ T
amb
≤ +75°C, 4.75V ≤ VCC ≤ 5.25V
SYMBOL
PARAMETER TO FROM LIMITS UNIT
MIN TYP
1
MAX
Access time
2
t
AA
Output Address 45 50 ns
t
CE
Output Chip Enable 35 ns
Disable time
3
t
CD
Output Chip Disable 35 ns
NOTES:
1. Typical values are V
CC
= 5V, T
amb
= +25°C.
2. Tested at an address cycle time of 1µs.
3. Measured at a delta of 0.5V from Logic Level with R
1
= 750Ω, R2 = 750Ω and CL = 5pF.
TEST LOAD CIRCUIT
A1
A0
A2 A3
A4
CE
GND
V
CC
V
CC
R
1
R
2
C
L
(INCLUDES SCOPE AND JIG CAPACITANCE)
DUT
O8
O1
VOLTAGE WAVEFORMS
t
CE
+3.0V
0V
+3.0V
0V
V
OL
1.5V1.5V
1.5VADDRESS
CE
t
CD
t
AA
All inputs tr = tf = 5ns (10% to 90%). All AC parameters are measured at 1.5V unless otherwise specified.
O1 - O8
82S23
V
OH
V
OL
Hi-Z
O1 - O8 82S123
1.5V
1.5V
