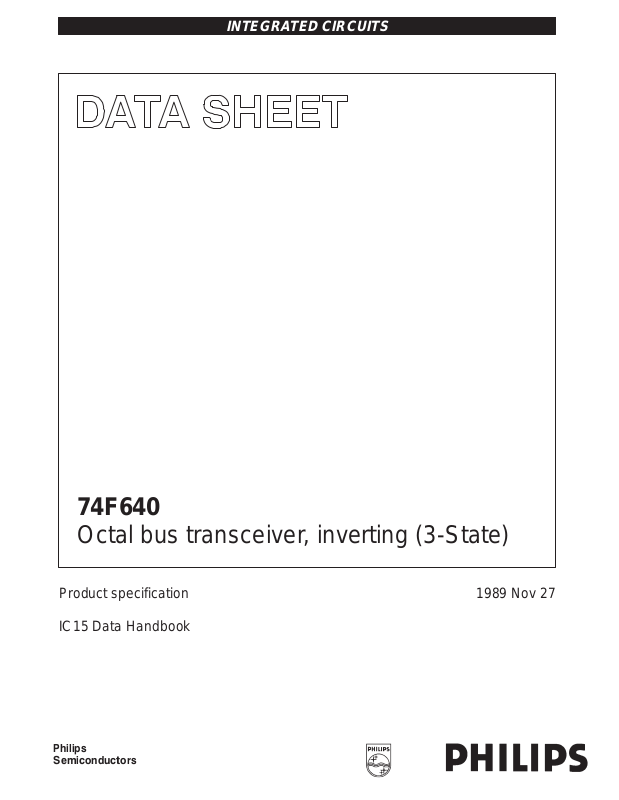

INTEGRATED CIRCUITS

74F640

Octal bus transceiver, inverting (3-State)

Product specification IC15 Data Handbook

 

1989 Nov 27

Page 2

Philips Semiconductors Product specification

74F640Octal bus transceiver, inverting (3-State)

FEA TURES

•High-impedance NPN base inputs for reduced loading

(70µA in High and Low states)

•Ideal for applications which require high-output drive and minimal

bus loading

•Inverting version of 74F245

•Octal bidirectional bus interface

•3-State outputs sink 64mA and source 15mA

DESCRIPTION

The 74F640 is an octal transceiver featuring inverting 3-State bus compatible outputs in both transmit and receive directions. The B port outputs are capable of sinking 64mA and sourcing 15mA, providing very good capacitive drive characteristics. The device features an Output Enable (OE Transmit/Receiver (T/R outputs, B0–B7, have been designed to prevent output bus loading if the power is removed from the device.

) input for easy cascading and

) input for direction control. The 3-State

PIN CONFIGURATION

T/R

10 11

GND

TYPE

TYPICAL

PROPAGATION

TYPICAL SUPPLY CURRENT

DELAY

74F640 3.5ns 78mA

20 19 18 17 16 15 14 13 12

SF00198

OE B0 B1 B2 B3 B4 B5 B6

(TOTAL)

ORDERING INFORMATION

COMMERCIAL RANGE

DESCRIPTION

20-pin plastic DIP N74F640N SOT146-1

20-pin plastic SOL N74F640D SOT163-1

VCC = 5V ±10%,

= 0°C to +70°C

amb

PKG DWG #

INPUT AND OUTPUT LOADING AND FAN-OUT TABLE

PINS DESCRIPTION

74F(U.L.)

HIGH/LOW

A0 - A7, B0 - B7 Data inputs 3.5/0.1 15 70µA/70µA OE Output Enable input (active Low) 2.0/0.067 40µA/40µA T/R Transmit/Receive input 2.0/0.067 40µA/40µA A0 - A7 A port outputs 150/40 3.0mA/24mA B0 - B7 B port outputs 750/106.7 15mA/64mA

NOTE: One (1.0) FAST unit load is defined as: 20µA in the High state and 0.6mA in the Low state.

LOAD VALUE

HIGH/LOW

1989 Nov 27 853–0381 98171

Page 3

Philips Semiconductors Product specification

OUTPUTS

74F640Octal bus transceiver, inverting (3-State)

LOGIC SYMBOL

456

A2 A3

A4 A5 A67A7

B4 B5 B6 B7

VCC= Pin 20 GND = Pin 10

A0 A1

OE T/R

B0 B1 B2 B3

18 17 16 15 14 13 12 11

FUNCTION TABLE

INPUTS

OE T/R

L L Bus B data to Bus A L H Bus A data to Bus B

H X Z

H = High voltage level L = Low voltage level X = Don’t care Z = High impedance “off” state

SF01140

LOGIC SYMBOL (IEEE/IEC)

2 3

G3 3EN1(BA) 3EN2(AB)

18 17

SF01141

LOGIC DIAGRAM

T/R

VCC= Pin 20 GND = Pin 10

1989 Nov 27

A0 A1 A4 A5 A6 A7

23 4

18 17 16 15 14 13 12

B0 B1 B4 B5 B6 B7

B2 B3

A3A2

5678119

SF01142

Page 4

Philips Semiconductors Product specification

Current applied to output in Low output state

SYMBOL

PARAMETER

UNIT

IOHHigh-level output current

IOLLow-level output current

74F640Octal bus transceiver, inverting (3-State)

ABSOLUTE MAXIMUM RATINGS

(Operation beyond the limits set forth in this table may impair the useful life of the device. Unless otherwise noted these limits are over the operating free-air temperature range.)

SYMBOL

V V I

OUT

T T

CC IN

OUT

amb stg

Supply voltage –0.5 to +7.0 V Input voltage –0.5 to +7.0 V Input current –30 to +5 mA Voltage applied to output in High output state –0.5 to +V

Operating free-air temperature range 0 to +70 °C Storage temperature range –65 to +150 °C

RECOMMENDED OPERATING CONDITIONS

V V V I

CC IH IL

amb

Supply voltage 4.5 5.0 5.5 V High-level input voltage 2.0 V Low-level input voltage 0.8 V Input clamp current –18 mA

Operating free-air temperature range 0 70 °C

PARAMETER RATING UNIT

A0–A7 48 mA B0–B7 128 mA

LIMITS

MIN NOM MAX

A0–A7 –3 mA B0–B7 –15 mA A0–A7 24 mA B0–B7 64 mA

1989 Nov 27

Page 5

Philips Semiconductors Product specification

NO TAG

3mA

VOHHigh-level output voltage

MAX

B0–B7

15mA

A0–A7

24mA

VOLLow-level output voltage

MAX

B0–B7

MAX

T/R

MAX

74F640Octal bus transceiver, inverting (3-State)

DC ELECTRICAL CHARACTERISTICS

(Over recommended operating free-air temperature range unless otherwise noted.)

LIMITS

SYMBOL PARAMETER TEST CONDITIONS

MIN

TYP

NO TAG

MAX

UNIT

OZH+IIH

OZL+IIL

A0–A7 B0–B7

VCC = MIN,

= MIN

VCC = MIN,

= MIN,

Input clamp voltage VCC = MIN, II = I

OE,

VCC = 0.0V, VI = 7.0V 100 µA

Input current at maximum input voltage

High-level input current Low-level input current Off-state output current,

High level of voltage applied Off-state output current,

Low level of voltage applied Short-circuit output cur-

NO TAG

rent

Supply current (total)

T/R

A0–A7,

B0–B7

OE, only

A0–A7 B0–B7

CCH

CCL

CCZ

VCC = 5.5V, VI = 5.5V 1.0 mA

VCC = MAX, VI = 2.7V 40 µA VCC = MAX, VI = 0.5V –40 µA

VCC = MAX, VI = 2.7V 70 µA

VCC = MAX, VI = 0.5V –70 µA

VCC = MAX

= –

±10%V

±5%V

±10%V

±5%V

±10%V

±5%V

±10%V

±5%V

T/R = An = 4.5V, OE = GND

T/R = Bn = OE = GND 91 120 mA T/R = Bn = GND,

OE = 4.5V

2.4 V

2.7 3.3 V

2.0 V

0.35 0.50 V

0.42 0.55 V

–0.73 –1.2 V

–60 –150 mA

–100 –225 µA

66 85 mA

78 102 mA

0.55 V

NOTES:

1. For conditions shown as MIN or MAX, use the appropriate value specified under recommended operating conditions for the applicable type.

2. All typical values are at V

3. Not more than one output should be shorted at a time. For testing I

= 5V, T

techniques are preferable in order to minimize internal heating and more accurately reflect operational values. Otherwise, prolonged shorting

amb

= 25°C.

, the use of high-speed test apparatus and/or sample-and-hold

of a High output may raise the chip temperature well above normal and thereby cause invalid readings in other parameter tests. In any sequence of parameter tests, I

tests should be performed last.

1989 Nov 27

Page 6

Philips Semiconductors Product specification

74F640Octal bus transceiver, inverting (3-State)

AC ELECTRICAL CHARACTERISTICS

LIMITS

SYMBOL PARAMETER

PLH

PHL

PZH

PZL

PHZ

PLZ

Propagation delay An to Bn, Bn to An

Output Enable time to High or Low level

Output Disable time from High or Low level

TEST

CONDITION

Waveform

NO TAG

Waveform 3 Waveform 2

VCC = +5V

= +25°C

amb

= 50pF, RL = 500Ω

MIN TYP MAX MIN MAX

2.0

1.0

5.5

2.0

4.5

2.5

6.5

7.0

3.5

4.5

7.0

5.0

10.5

6.5

7.0

VCC = +5V ± 10%

= 0°C to +70°C

amb

= 50pF, RL = 500Ω

2.0

1.0

5.0

1.5

2.0

8.0

5.5

12.0

11.0

8.0

7.5

UNIT

1989 Nov 27

Page 7

Philips Semiconductors Product specification

74F640Octal bus transceiver, inverting (3-State)

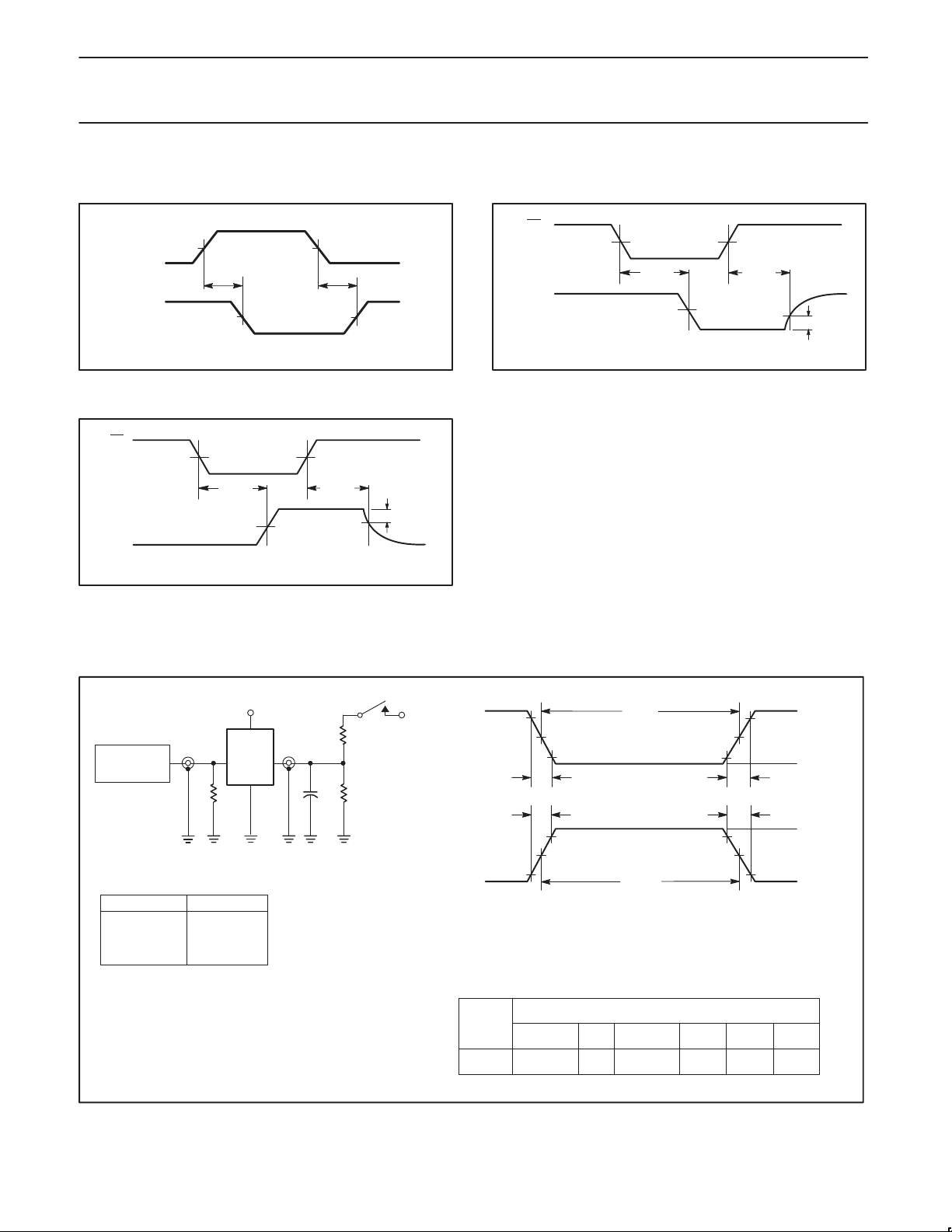

AC WAVEFORMS

For all waveforms, VM = 1.5V.

An, B

PHL

PLH

An, Bn

PZL

PLZ

VOL+0.3V

SF00773

Waveform 1. Propagation Delay for Inverting Outputs

PHZ

VOH–0.3V

SF00203

An, Bn

PZH

Waveform 3. 3-State Output Enable Time to High Level and

Output Disable Time from High Level

TEST CIRCUIT AND WAVEFORMS

PULSE

GENERATOR

D.U.T.

OUT

Test Circuit for Open Collector Outputs

SWITCH POSITION

TEST SWITCH

t t

PLZ PZL

closed closed

All other open

7.0V

NEGATIVE PULSE

POSITIVE PULSE

SF00204

Waveform 2. 3-State Output Enable Time to Low Level and

Output Disable Time from Low Level

90%

10%

90%

THL (tf

TLH (tr

)

TLH (tr

THL (tf

10%

)

90%

10%

AMP (V)

Input Pulse Definition

DEFINITIONS:

= Load resistor;

= Load capacitance includes jig and probe capacitance;

= Termination resistance should be equal to Z

1989 Nov 27

see AC electrical characteristics for value. see AC electrical characteristics for value. pulse generators.

OUT

family

74F

INPUT PULSE REQUIREMENTS

amplitude

3.0V

1.5V

rep. rate

1MHz 500ns

TLHtTHL

2.5ns 2.5ns

SF00128

Page 8

Philips Semiconductors Product specification

Octal bus transceiver, inverting (3-State)

DIP20: plastic dual in-line package; 20 leads (300 mil) SOT146-1

74F640

1989 Nov 27

Page 9

Philips Semiconductors Product specification

Octal bus transceiver, inverting (3-State)

SO20: plastic small outline package; 20 leads; body width 7.5 mm SOT163-1

74F640

1989 Nov 27

Page 10

Philips Semiconductors Product specification

Octal bus transceiver, inverting (3-State)

NOTES

74F640

1989 Nov 27

Page 11

Philips Semiconductors Product specification

Octal bus transceiver, inverting (3-State)

Data sheet status

Objective specification

Preliminary specification

Product specification

Product status

Development

Qualification

Production

Definition

This data sheet contains the design target or goal specifications for product development. Specification may change in any manner without notice.

This data sheet contains preliminary data, and supplementary data will be published at a later date. Philips Semiconductors reserves the right to make chages at any time without notice in order to improve design and supply the best possible product.

This data sheet contains final specifications. Philips Semiconductors reserves the right to make changes at any time without notice in order to improve design and supply the best possible product.

[1]

74F640

[1] Please consult the most recently issued datasheet before initiating or completing a design.

Definitions

Short-form specification — The data in a short-form specification is extracted from a full data sheet with the same type number and title. For

detailed information see the relevant data sheet or data handbook. Limiting values definition — Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one

or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or at any other conditions above those given in the Characteristics sections of the specification is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information — Applications that are described herein for any of these products are for illustrative purposes only. Philips Semiconductors make no representation or warranty that such applications will be suitable for the specified use without further testing or modification.

Disclaimers

Life support — These products are not designed for use in life support appliances, devices or systems where malfunction of these products can

reasonably be expected to result in personal injury . Philips Semiconductors customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips Semiconductors for any damages resulting from such application.

Right to make changes — Philips Semiconductors reserves the right to make changes, without notice, in the products, including circuits, standard cells, and/or software, described or contained herein in order to improve design and/or performance. Philips Semiconductors assumes no responsibility or liability for the use of any of these products, conveys no license or title under any patent, copyright, or mask work right to these products, and makes no representations or warranties that these products are free from patent, copyright, or mask work right infringement, unless otherwise specified.
